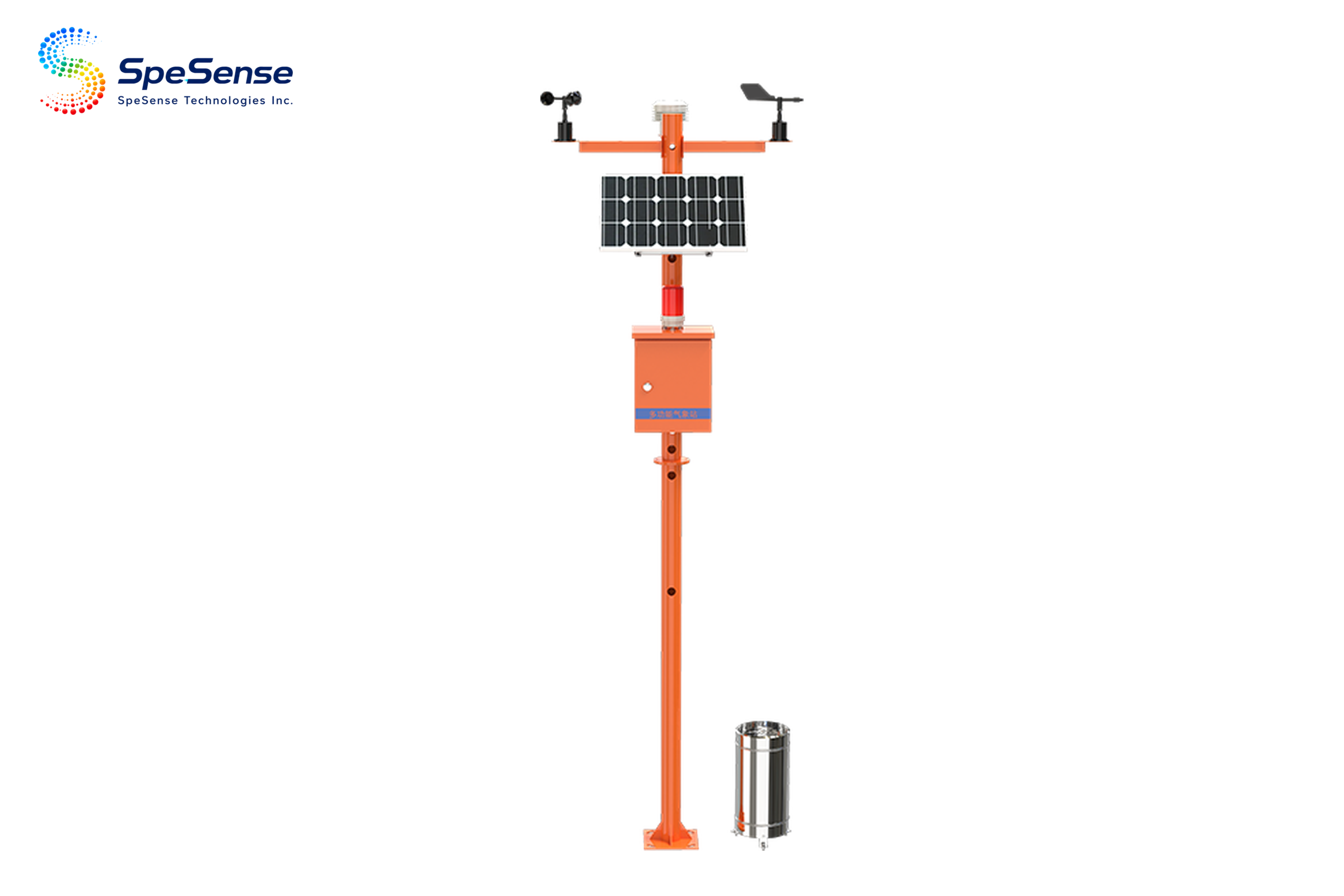

Ultrasonic Weather Station
SS1000U-11
森林防火气象站
产品亮点

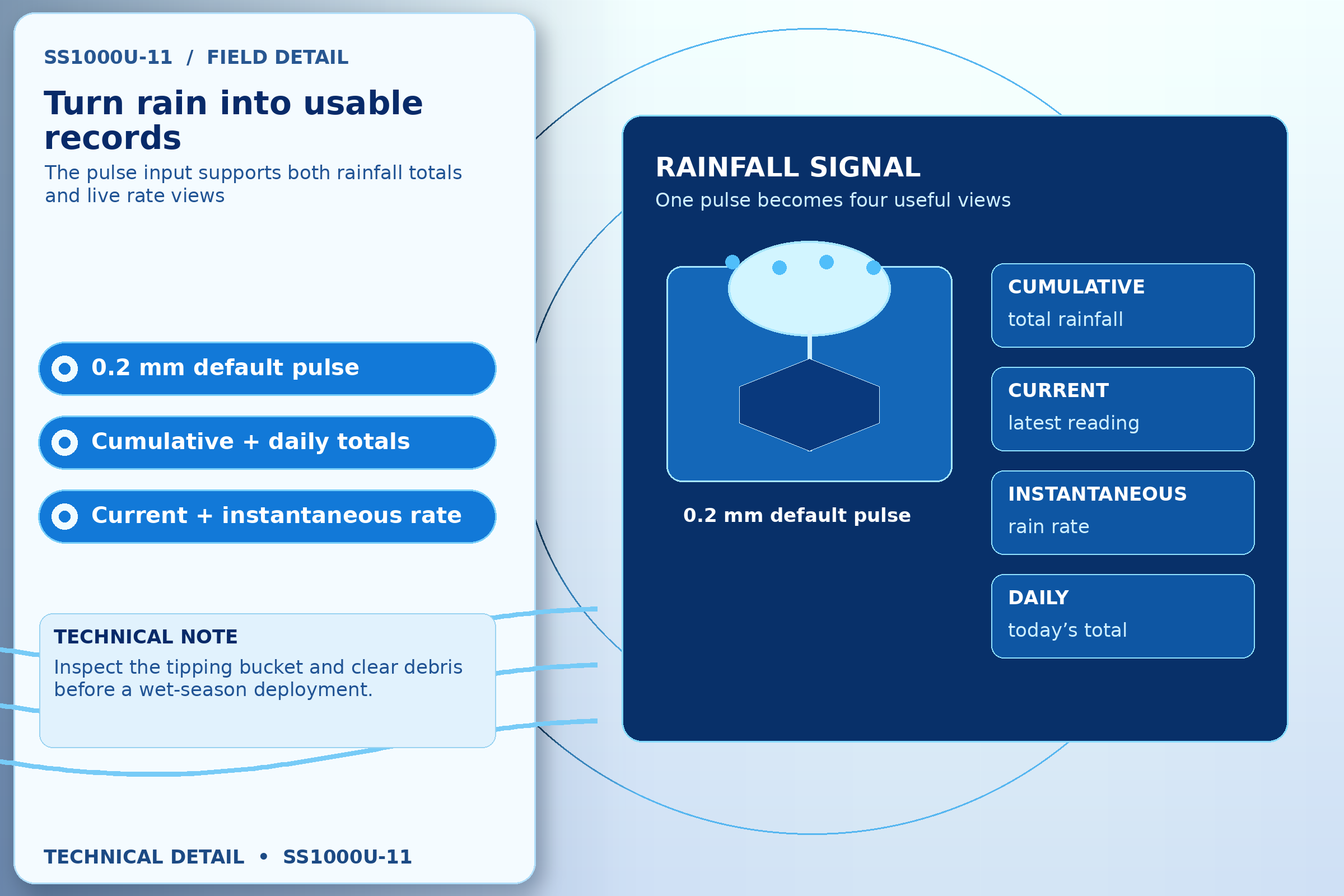

● Rainfall input provides cumulative, instantaneous, daily and current rainfall values.

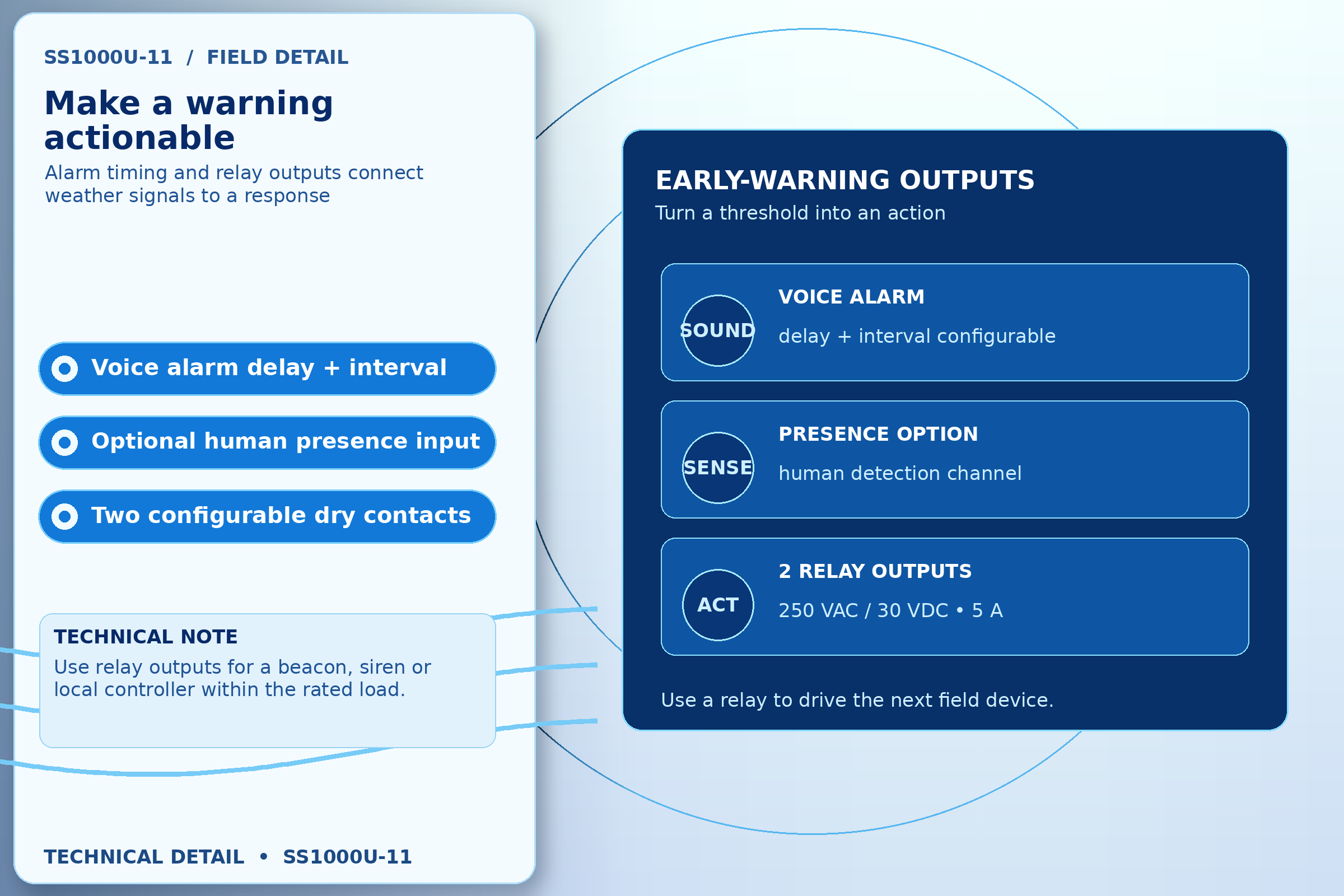

● Voice alarm, human-presence sensing and optional two-relay output support prevention and remote response.

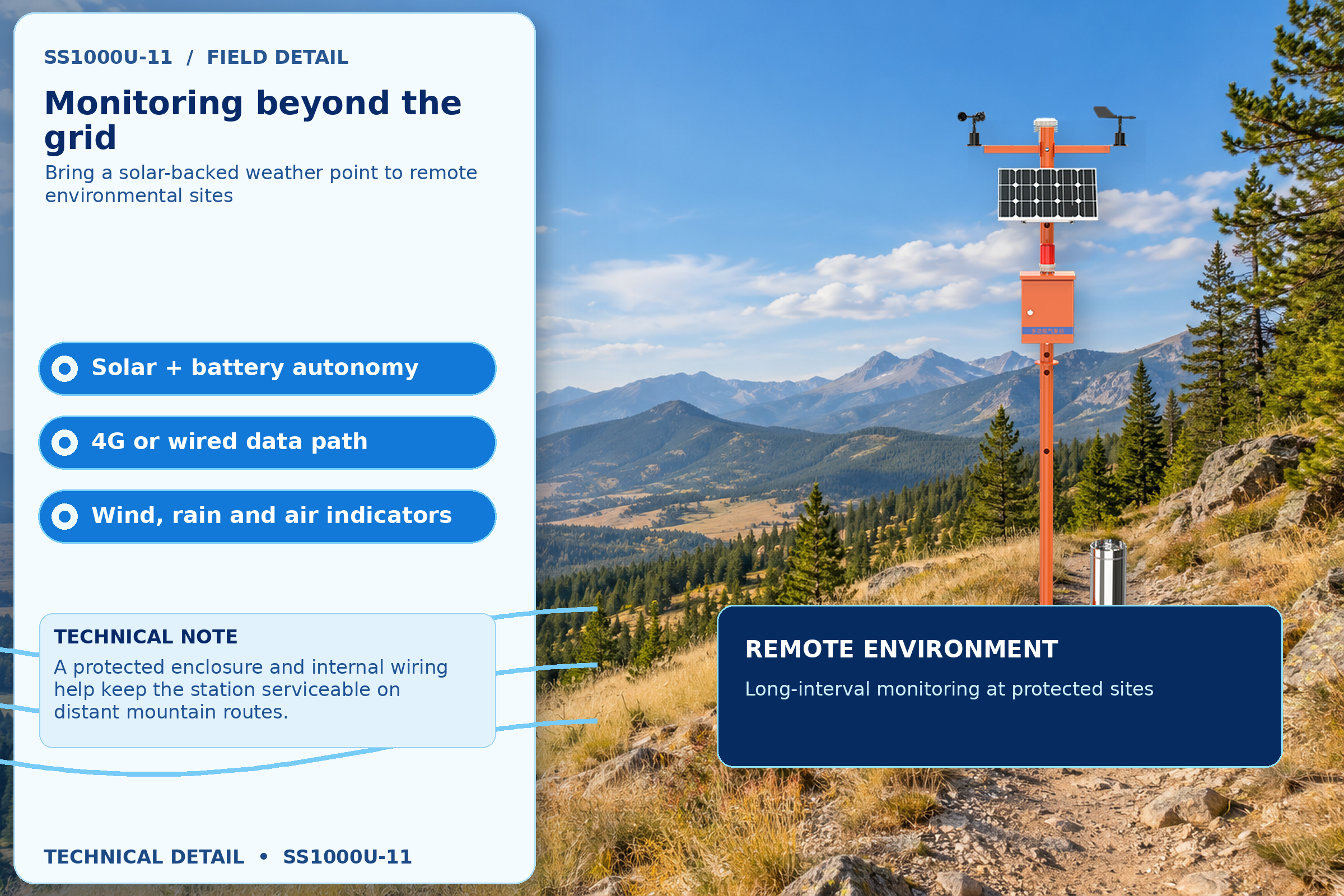

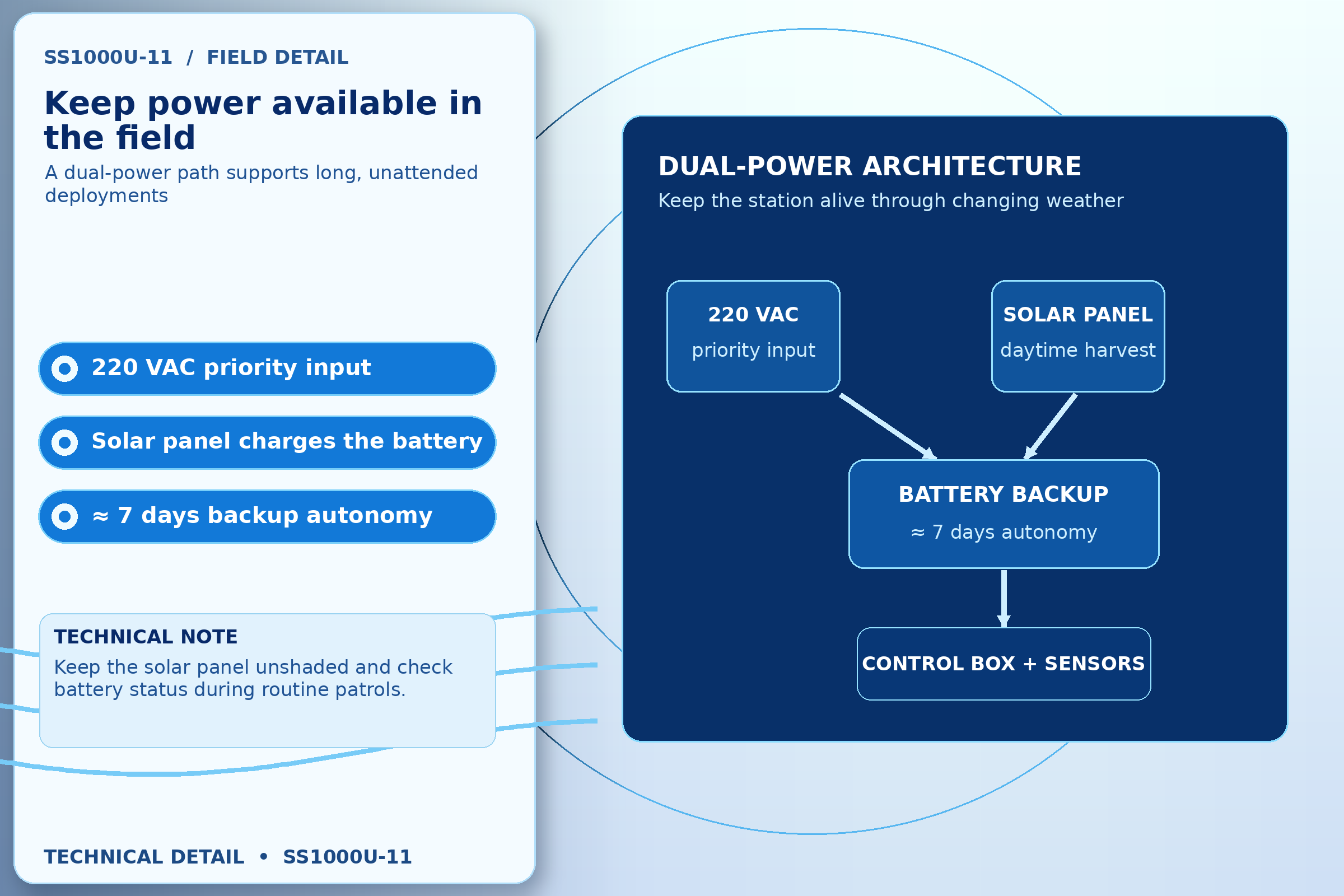

● Dual mains / solar supply keeps the station operating when utility power is unavailable; battery autonomy is about 7 days.
● Voice alarm, human-presence sensing and optional two-relay output support prevention and remote response.
● Dual mains / solar supply keeps the station operating when utility power is unavailable; battery autonomy is about 7 days.
产品概述

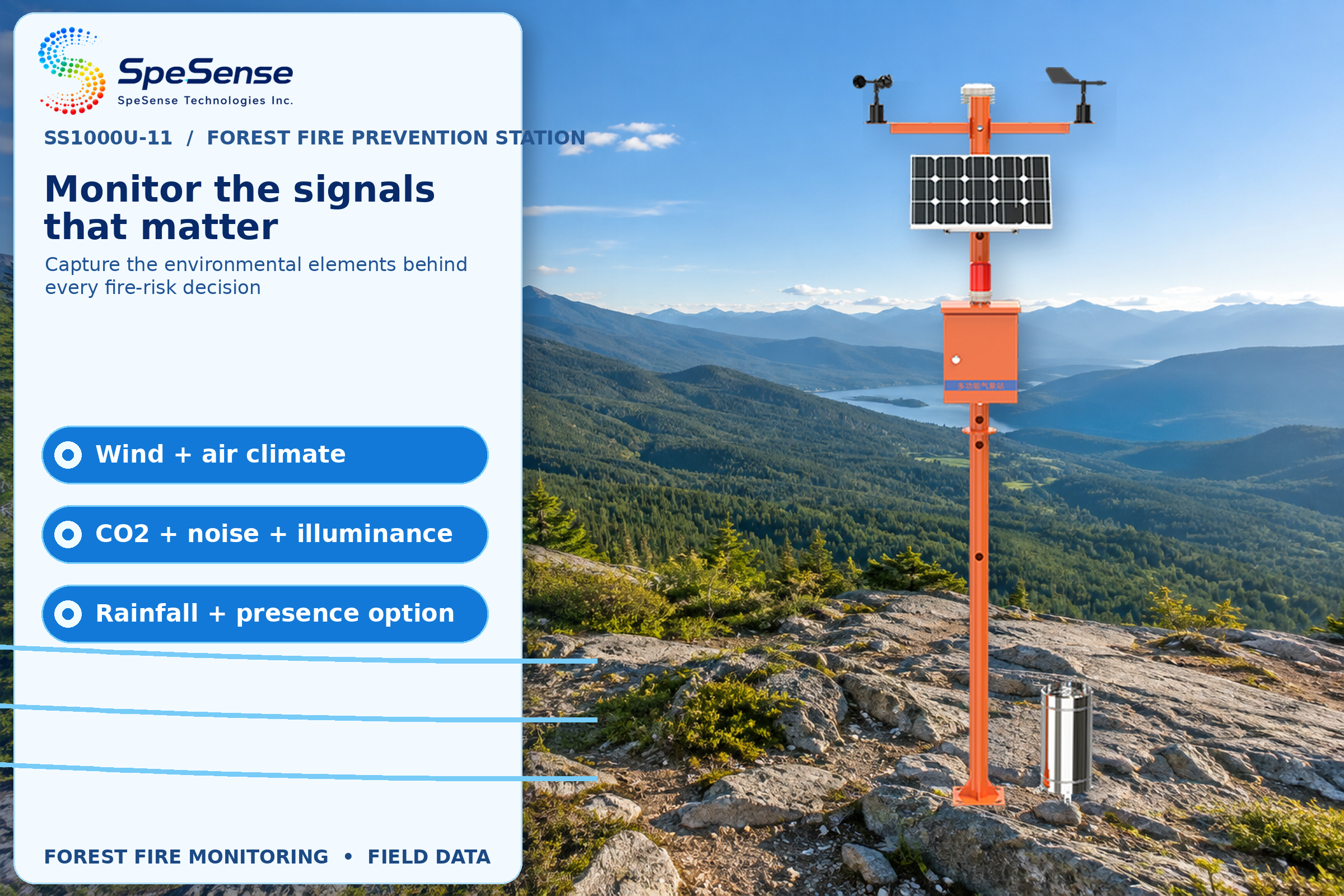

• Monitors wind, air temperature / humidity, pressure, noise, CO₂, illuminance, rainfall and human presence according to the selected configuration.

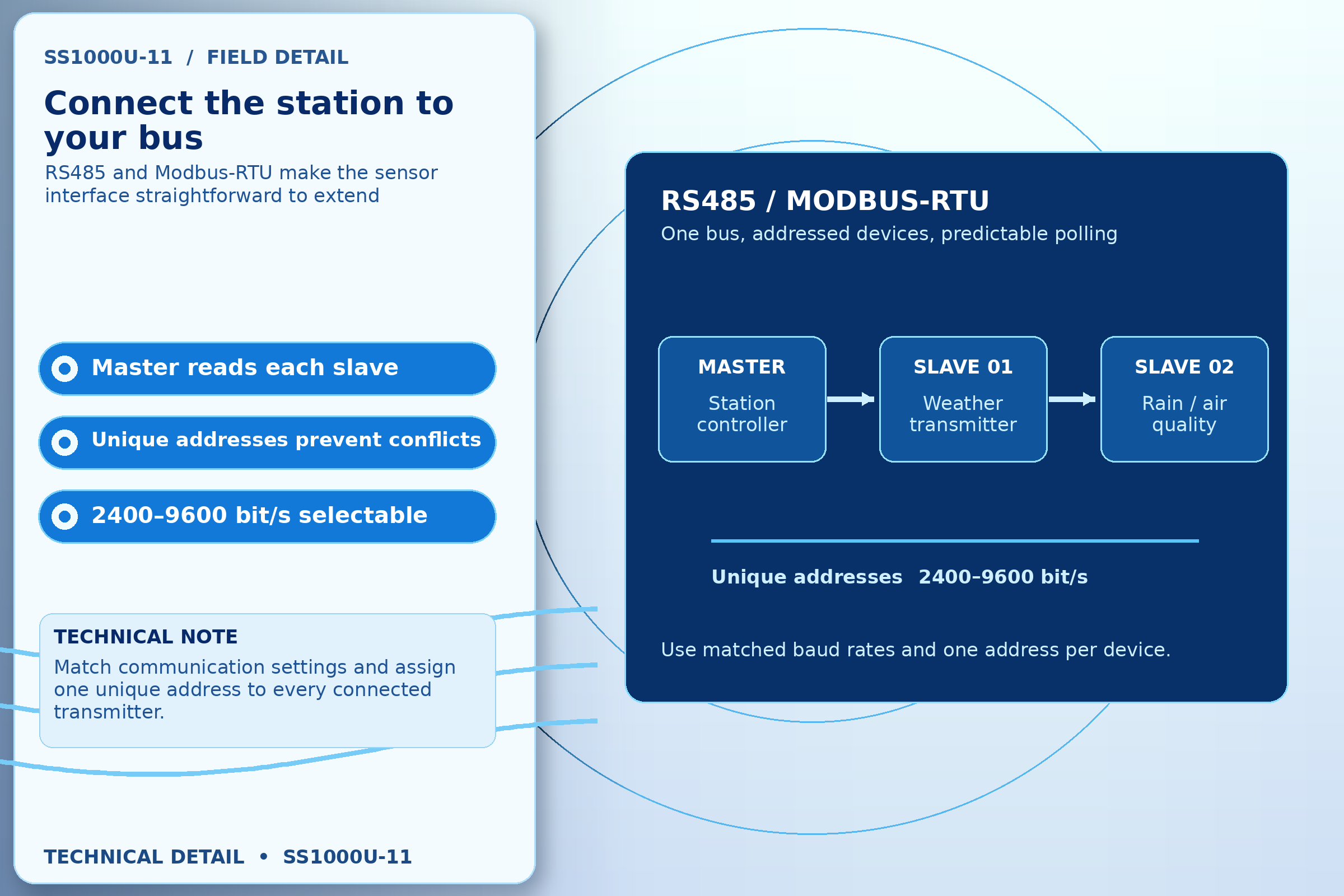

• One RS485 master acquires transmitter data while an RS485 slave interface exposes station values to an external host.

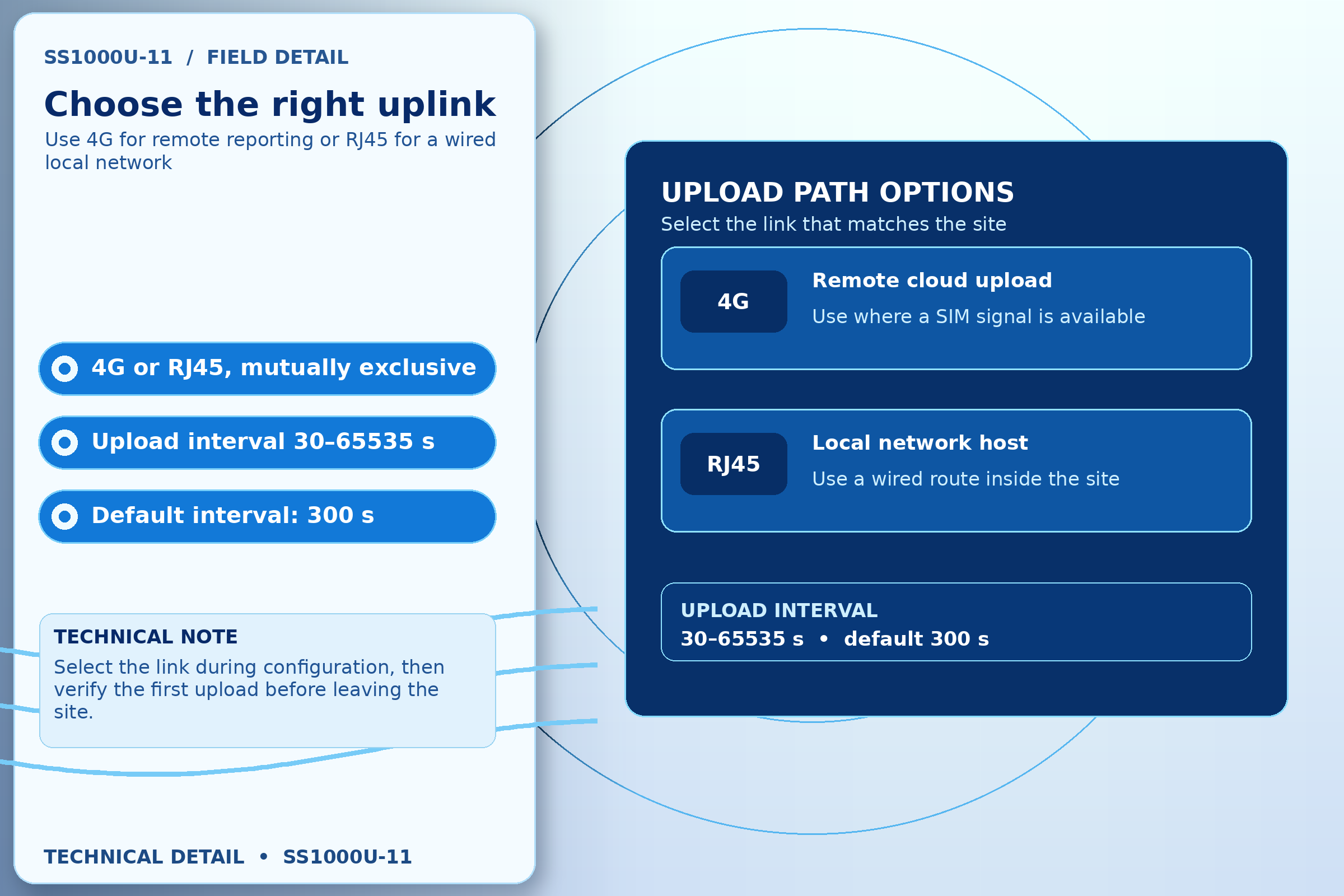

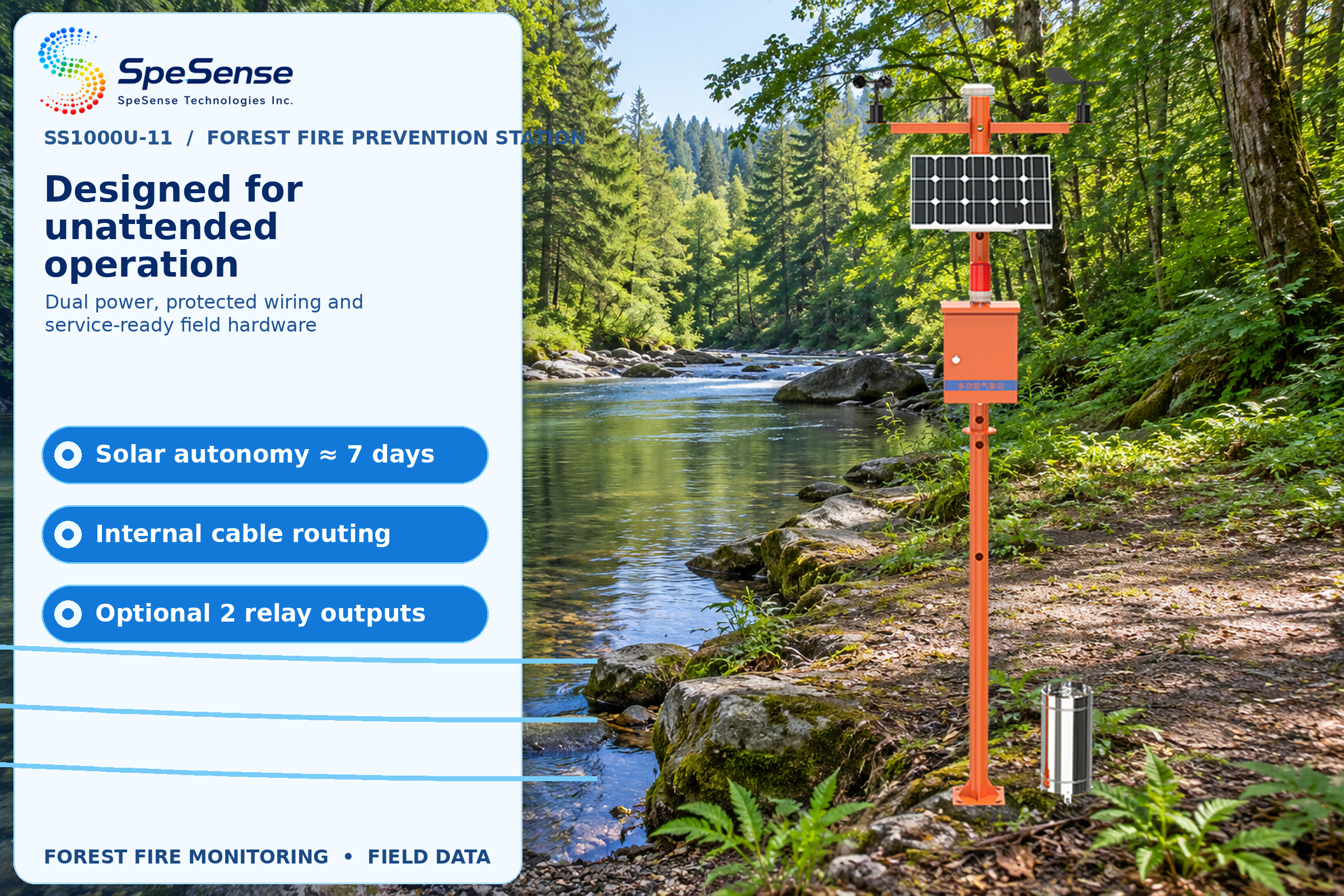

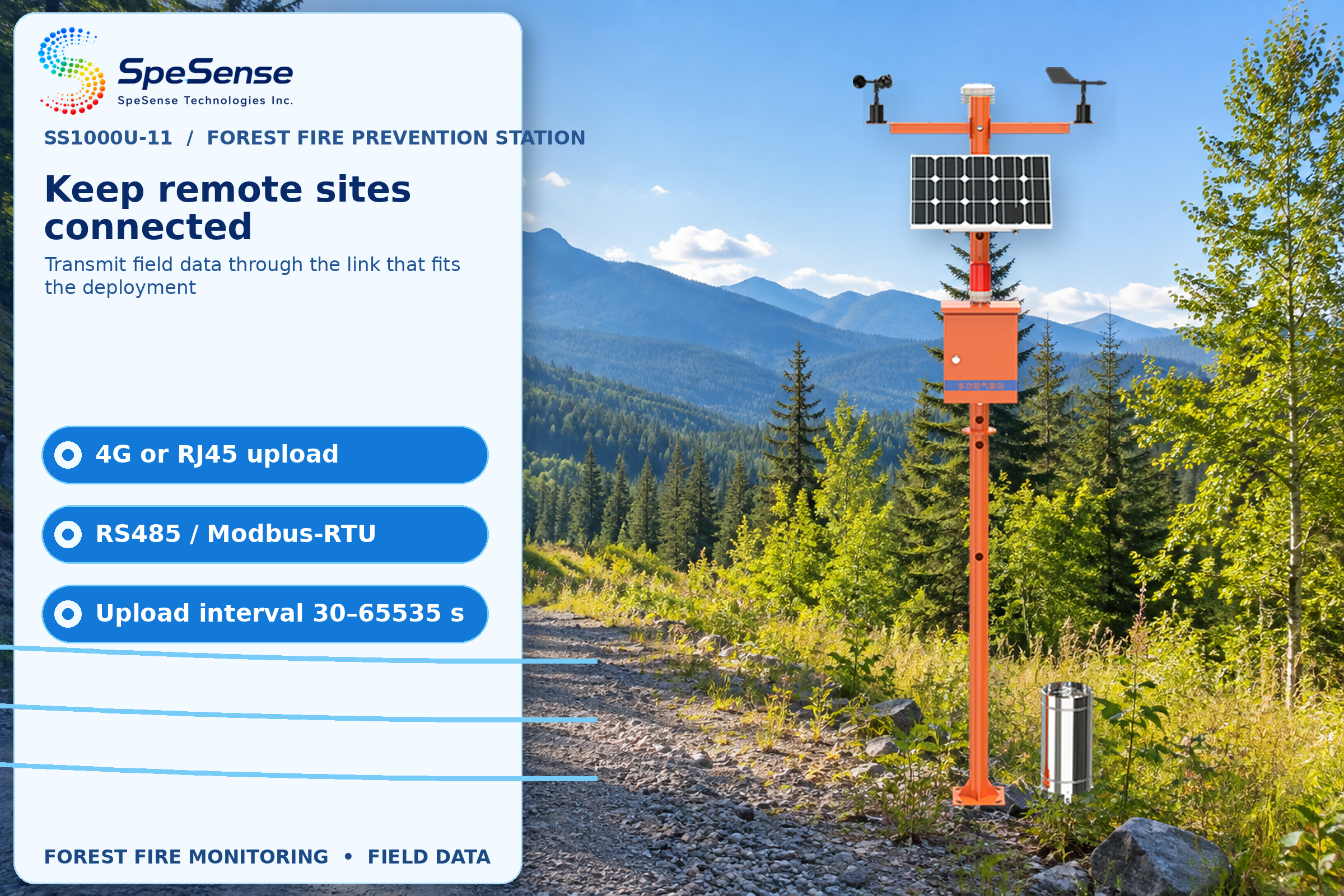

• 4G or RJ45 upload, 220 VAC or solar dual supply, and optional relay outputs support unattended field operation.

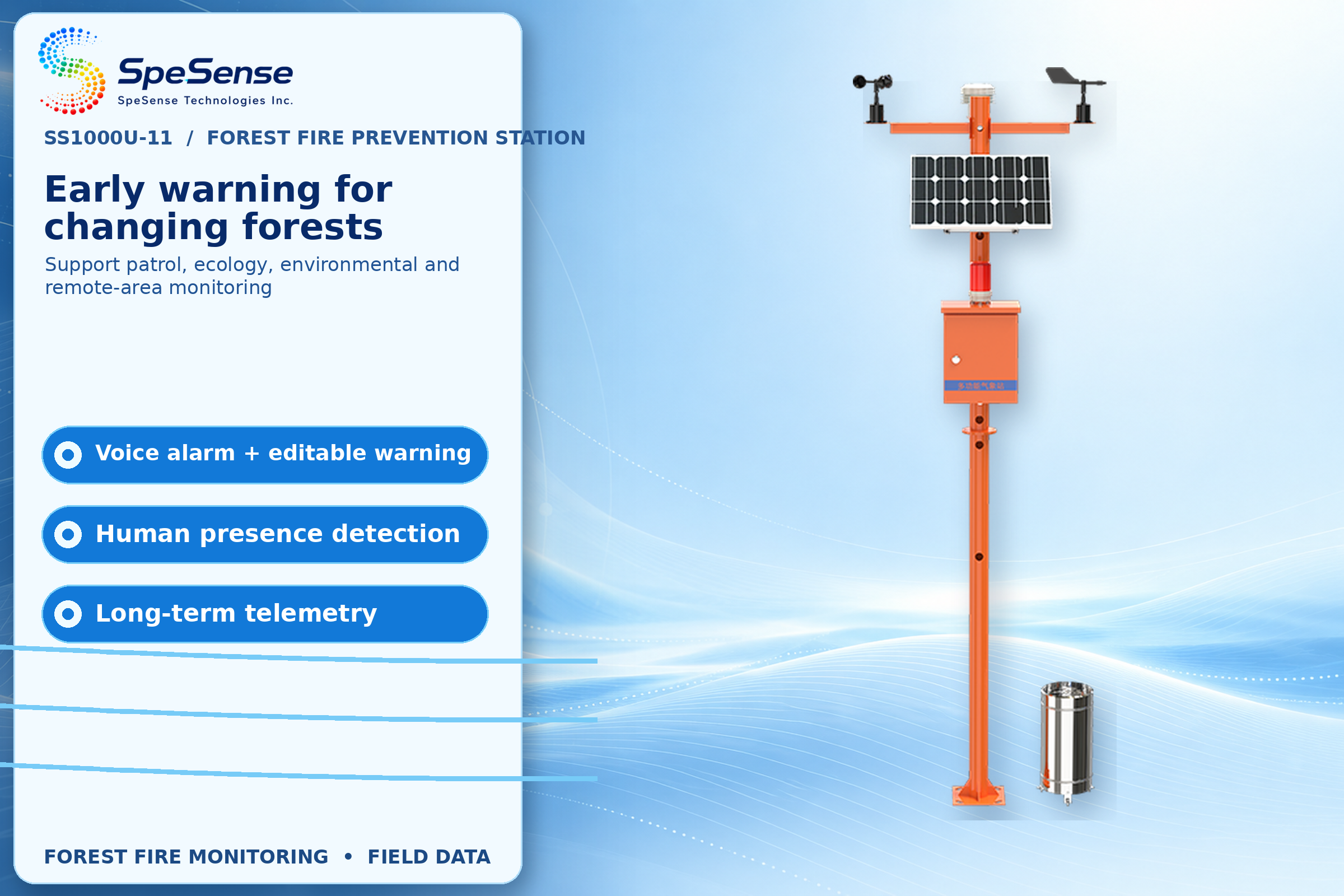

• Voice alerts provide editable warnings when a person enters the monitored area; the orange structure remains highly visible outdoors.

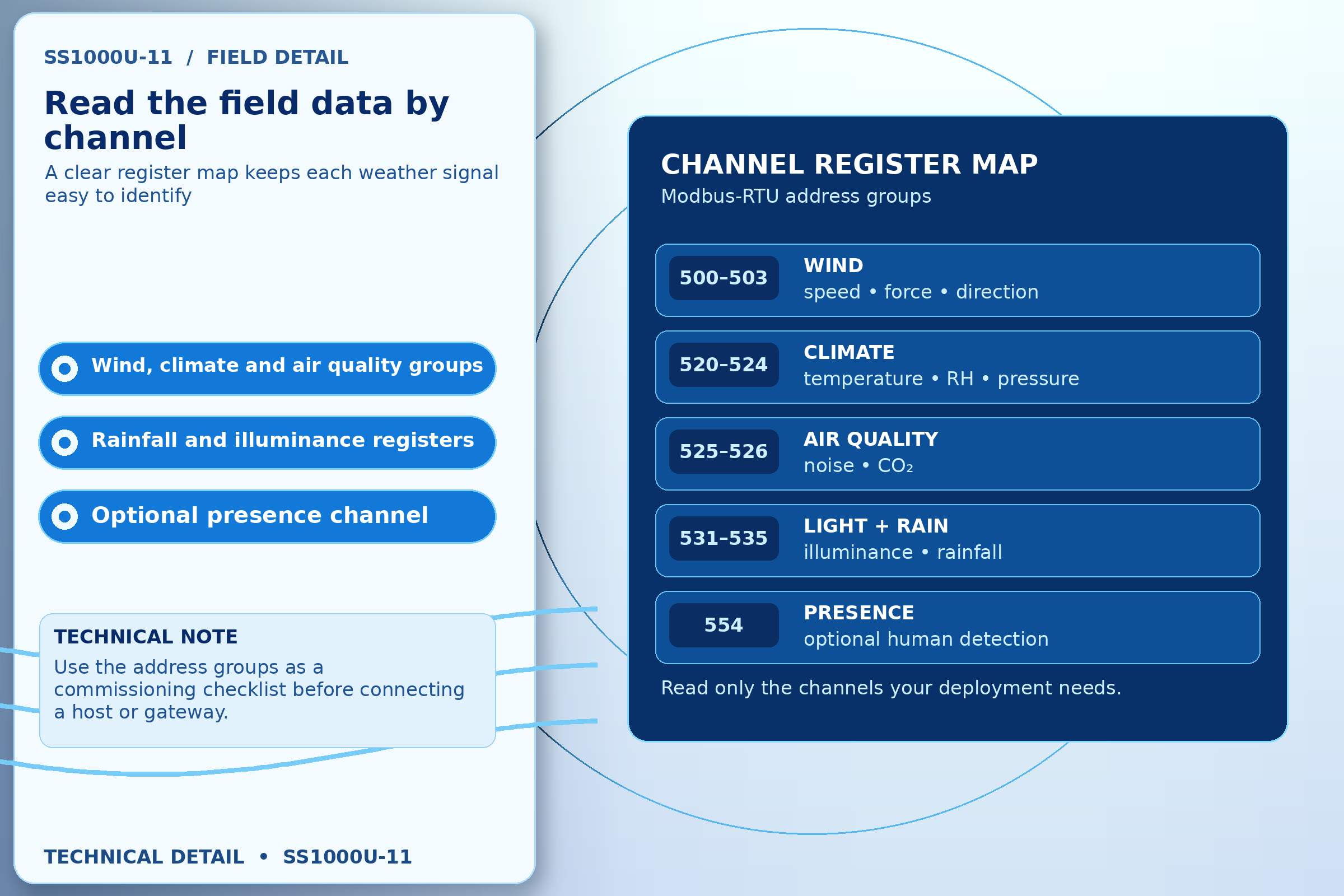

| Measured element | Range / capability | Register / notes |
| Wind speed / force | 0–70 m/s; 0–12 levels | Registers 500 / 501; factors 0.1 / 1 |
| Wind direction | 8-point direction + 0–359° | Registers 502 / 503 |
| Air temperature / humidity | −40 to +120 °C; 0–99%RH | Registers 520 / 521; factor 0.1 |
| Noise level | 30–120 dB | Register 522; factor 0.1 |
| CO₂ concentration | 0–5000 ppm | Register 523; factor 1 |
| Atmospheric pressure | 0–120 kPa | Register 524; factor 0.1 |
| Illuminance | 0–200,000 Lux | Registers 525 / 526; 32-bit value |
| Rainfall | Cumulative, current, instantaneous and daily | Registers 531–535; default pulse 0.2 mm |
| Human presence | 0 = no person; 1 = person detected | Register 554; optional detector |
