X-ray Fluorescence Analyzer
TrueX
手持式X射线荧光分析仪
产品亮点
● Lightweight 1.5 kg handheld design
● Fast non-destructive on-site elemental analysis
● Little or no sample preparation required

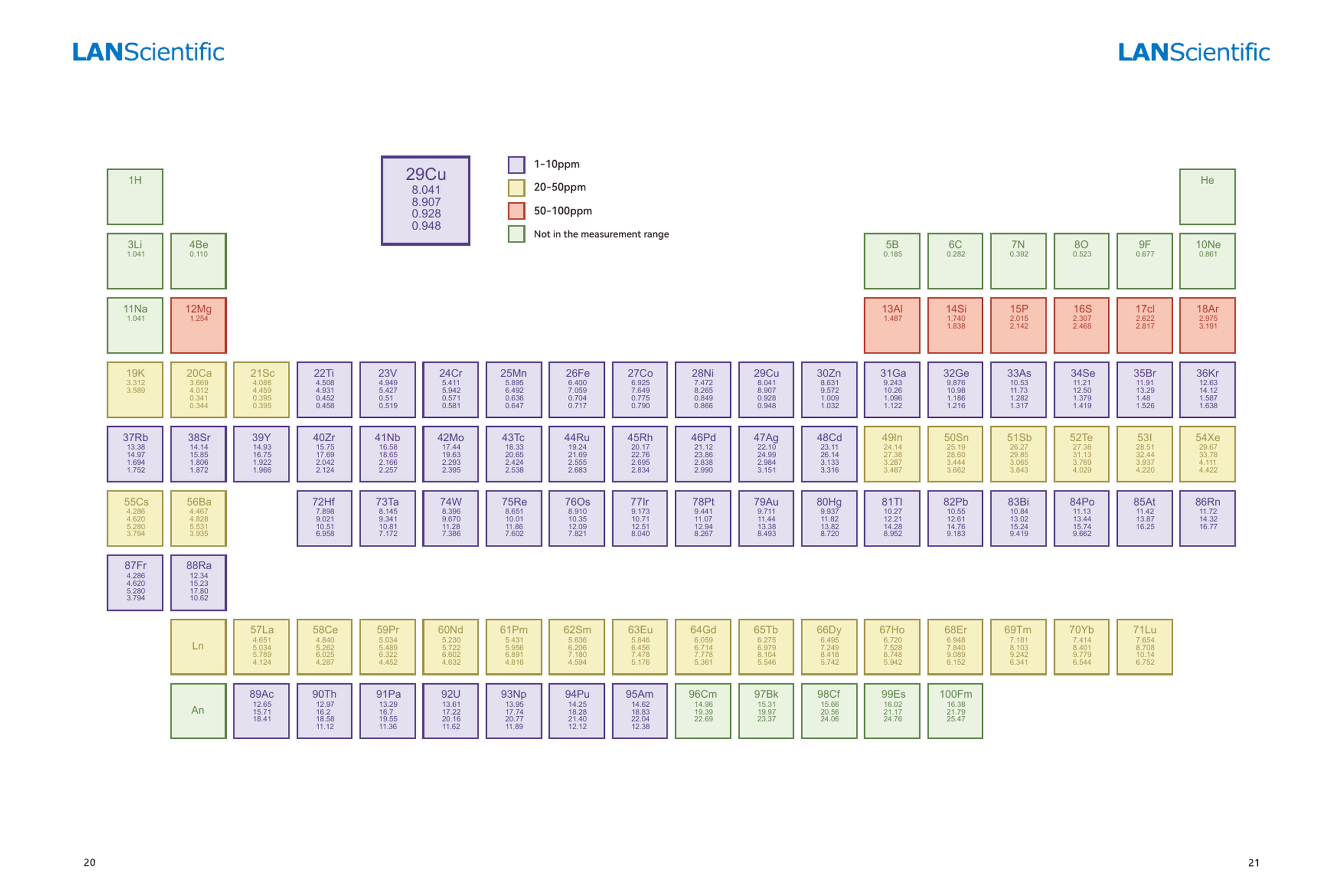

● Na-U elemental detection range
● Adjustable 50 kV/200 μA excitation source
● Optional Ag, Au, W, and Rh targets
● Si-PIN detector with optional SDD detector
● Fast non-destructive on-site elemental analysis
● Little or no sample preparation required
● Na-U elemental detection range
● Adjustable 50 kV/200 μA excitation source
● Optional Ag, Au, W, and Rh targets
● Si-PIN detector with optional SDD detector
产品概述

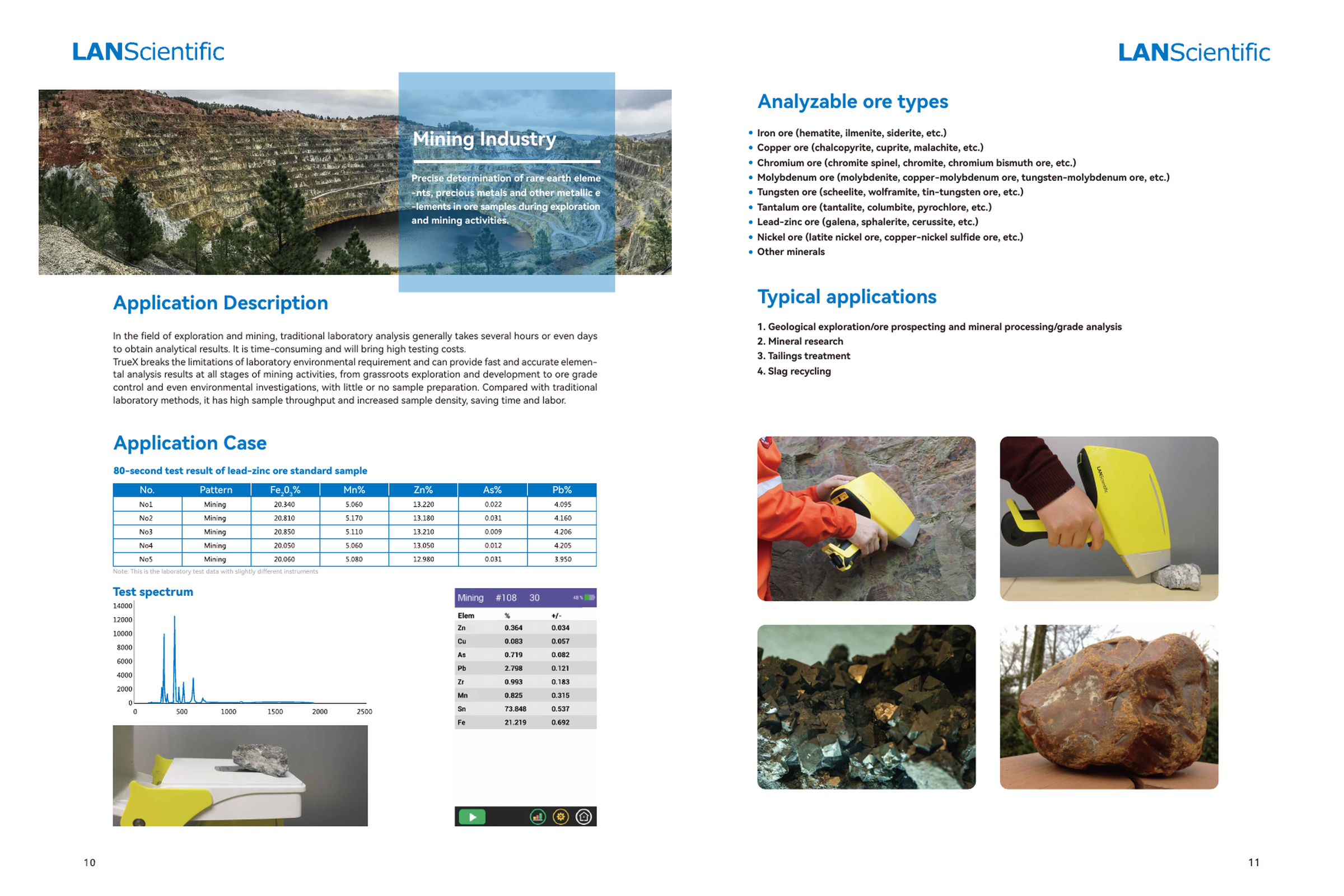

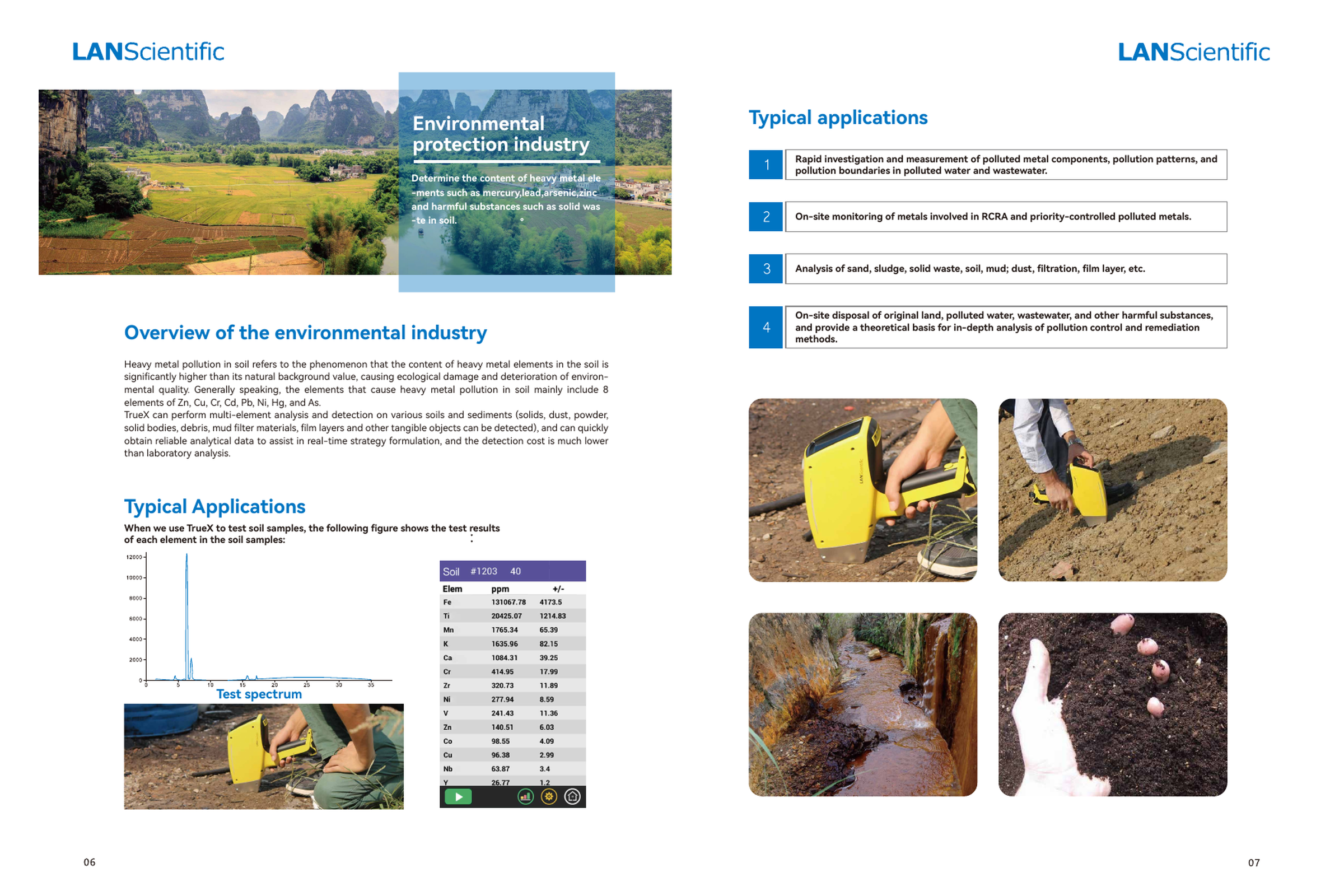

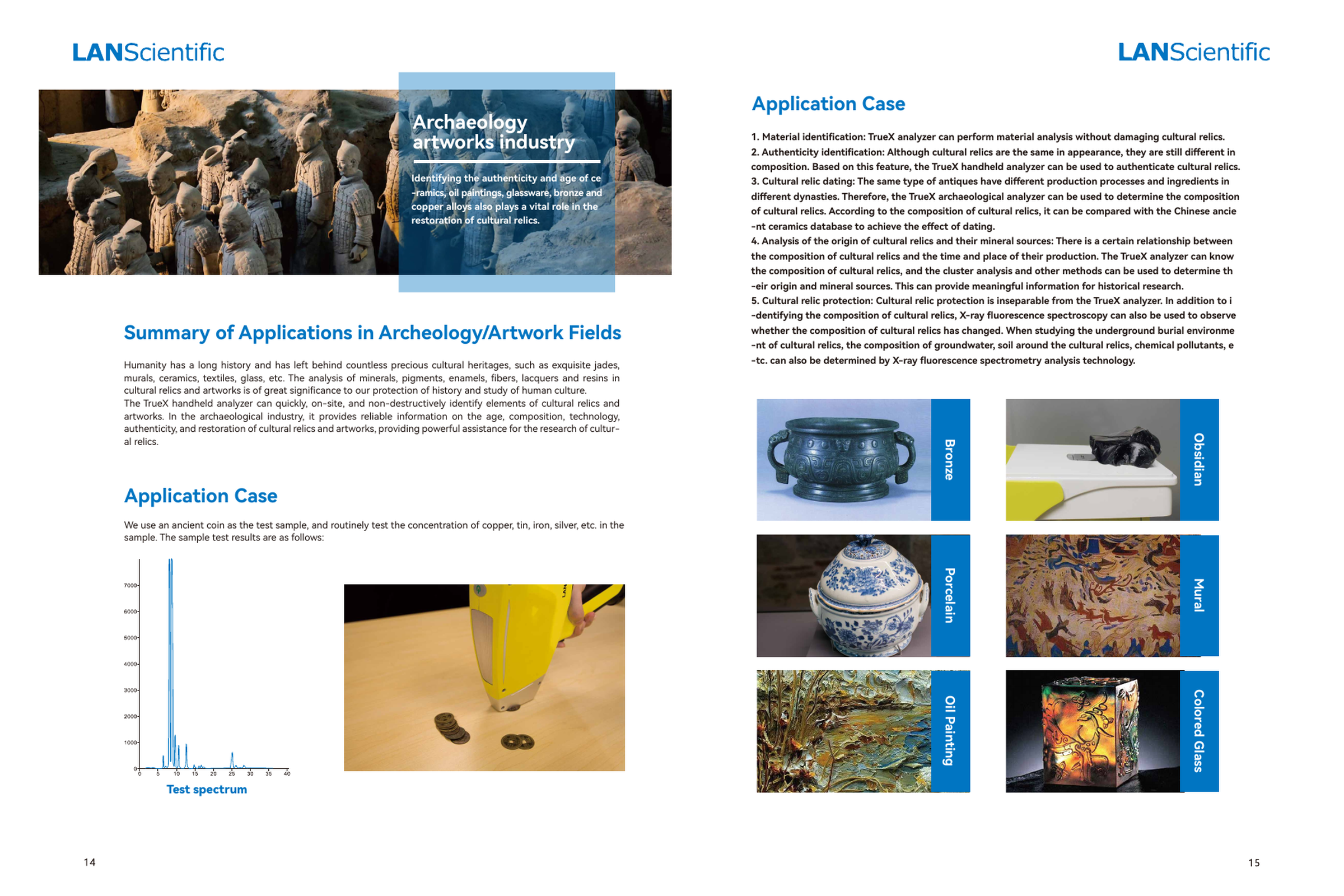

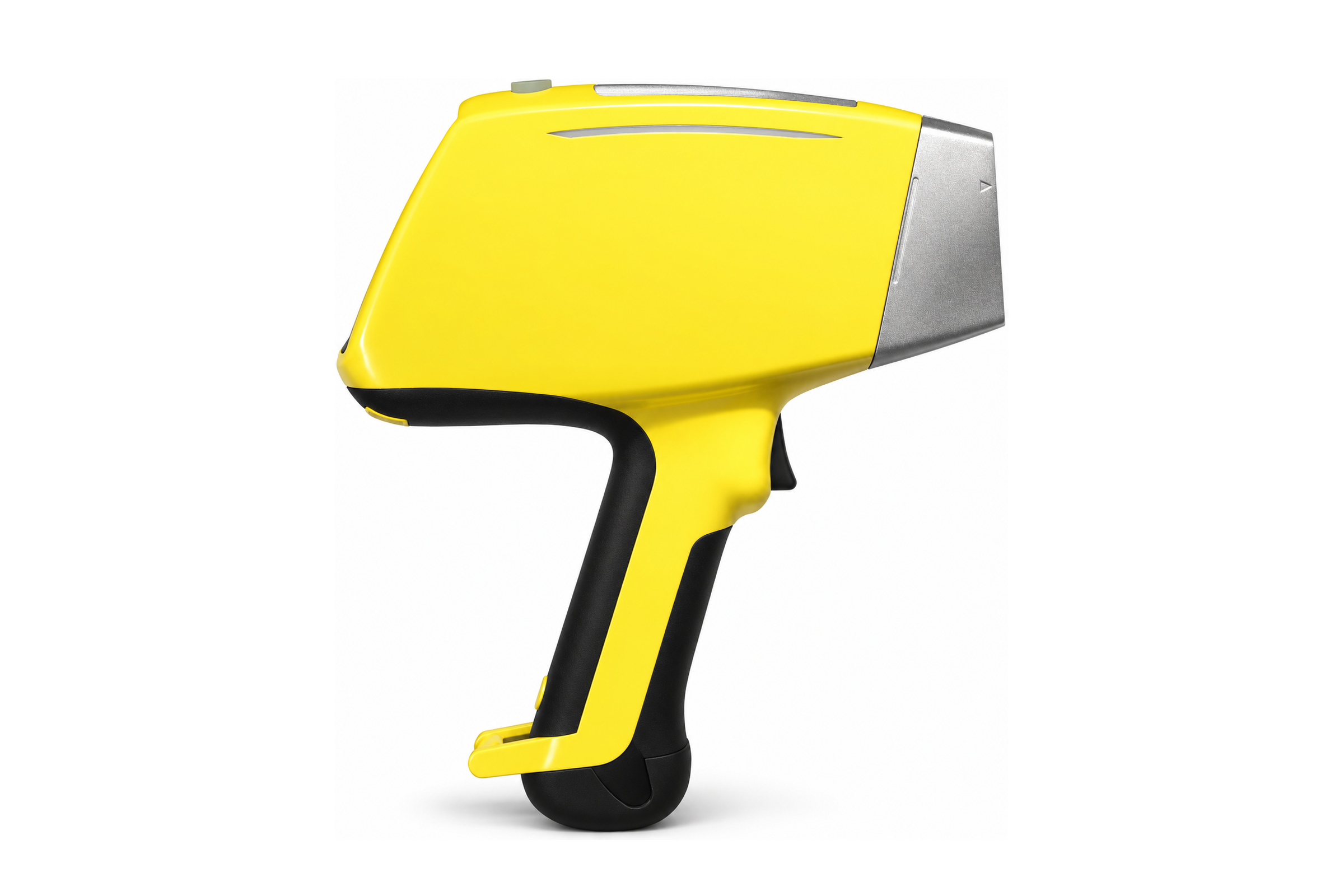

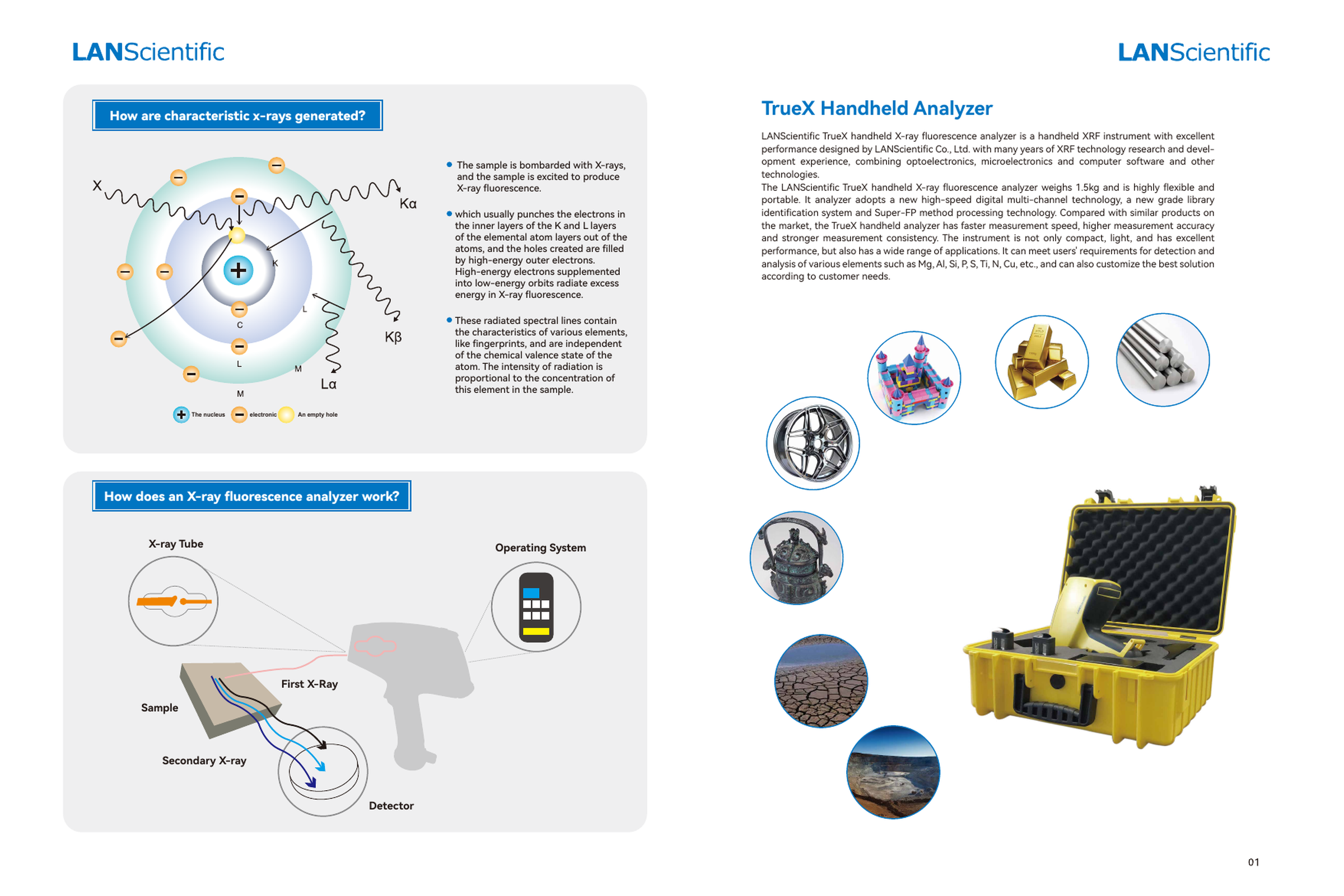

TrueX is a lightweight handheld X-ray fluorescence analyzer designed for fast, non-destructive elemental analysis in the field, factory, laboratory, and inspection environment. With a 1.5 kg body, Na-U detection range, adjustable 50 kV/200 μA maximum excitation source, 4.3-inch resistive touchscreen, and optional Si-PIN or SDD detector, it supports rapid analysis of metals, alloys, ores, soil, coatings, consumer products, and cultural heritage materials.

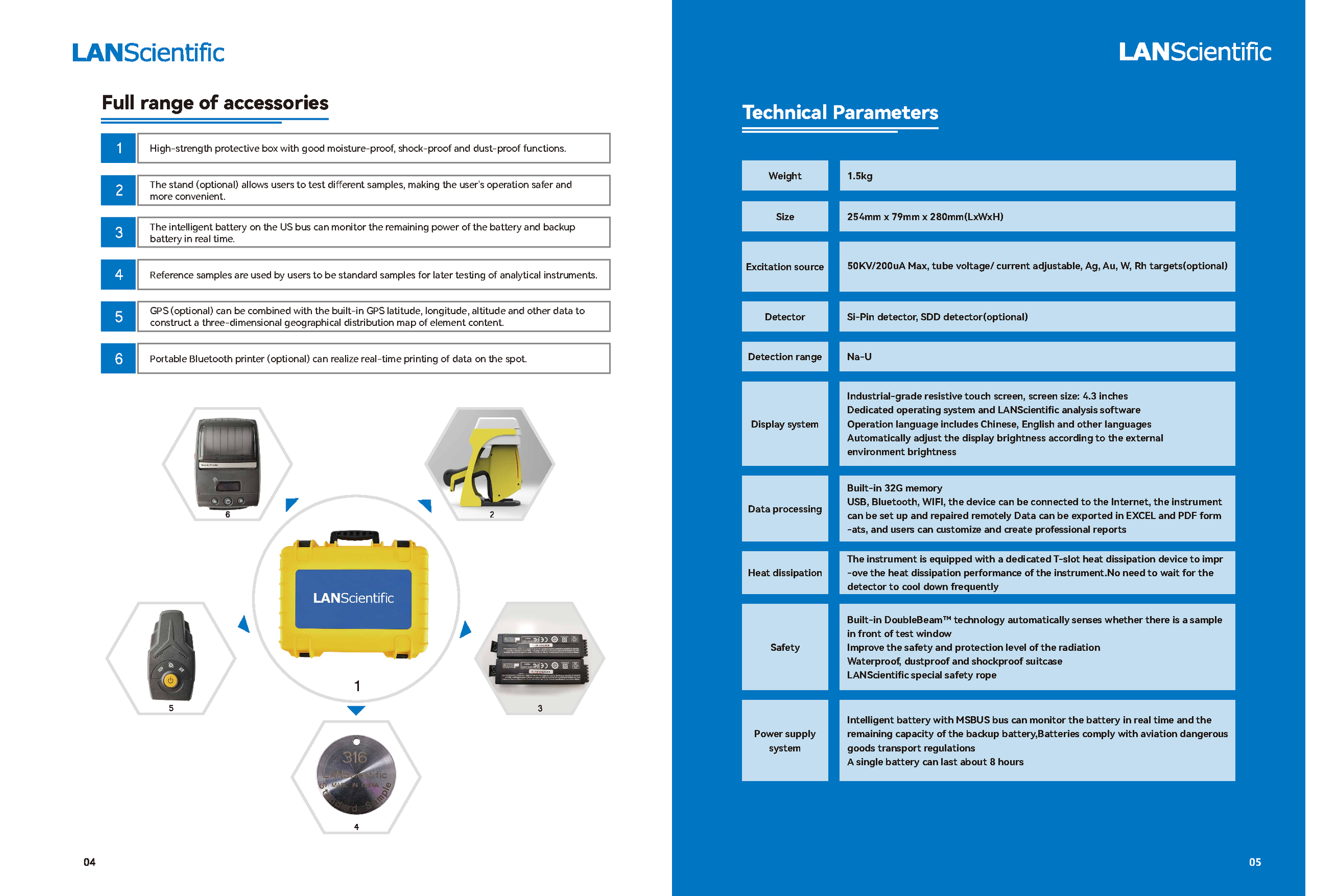

The analyzer supports USB, Bluetooth, Wi-Fi, 32G internal storage, Excel/PDF data export, remote maintenance, optional GPS, portable printing, reference samples, and approximately 8 hours of battery operation.
