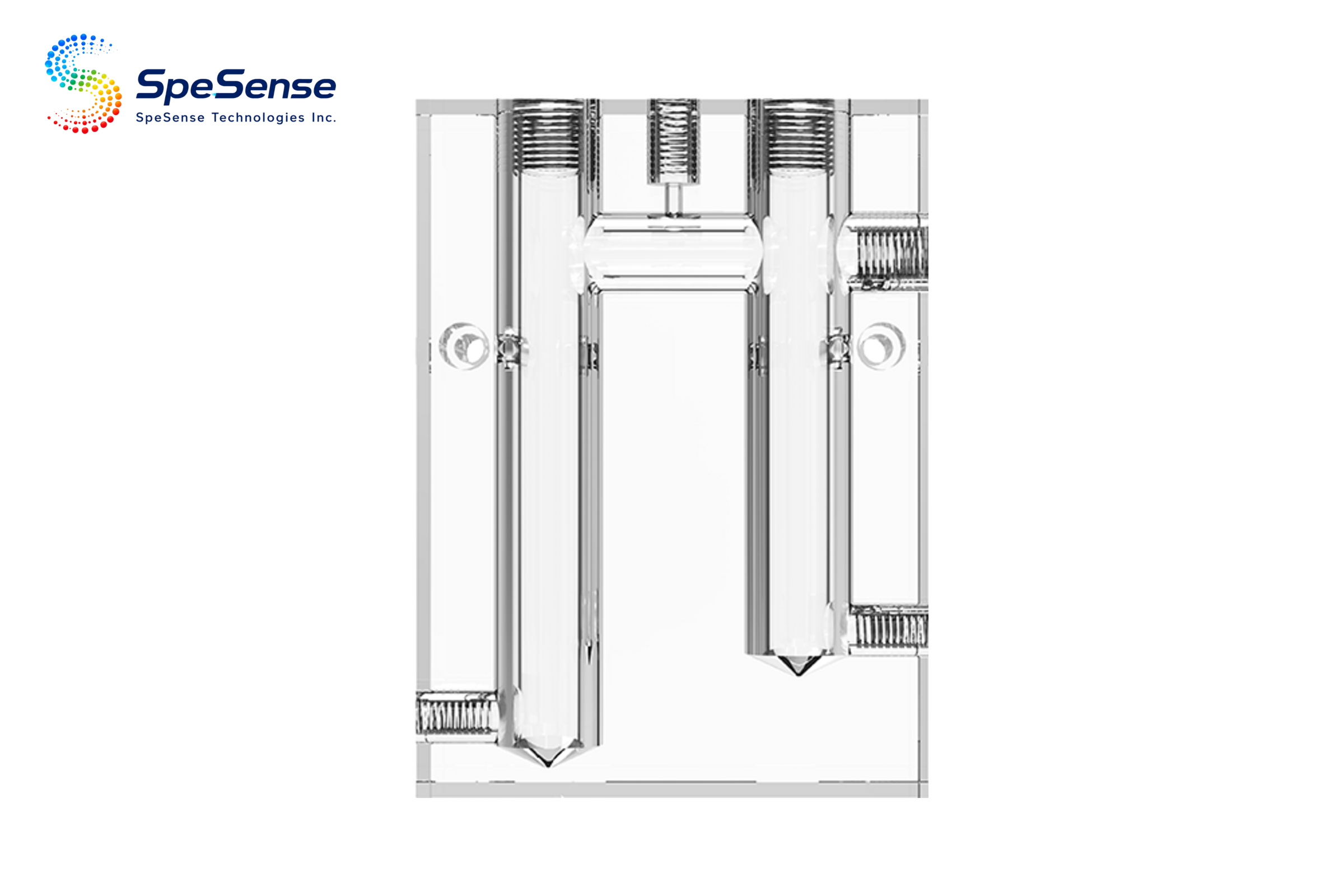

SS309-TY

Water Quality Analysis Flow Cell

Product Highlights

● Stable, repeatable sample contact around the probe sensing end.
● Multiple port layouts for different installation and sampling arrangements.
● Fast-connect hose interface for efficient installation and service.
Download PDF

Product Overview

• Single-, double-, triple- and four-port flow-path geometries are available. • Matching fittings, fasteners and a 2 m hose are supplied for installation. • Single-pass flow enters below and exits above; multi-port layouts support controlled filling and venting. • Threaded connections are sealed with PTFE tape to reduce leakage and protect measurement stability.
ItemSpecification

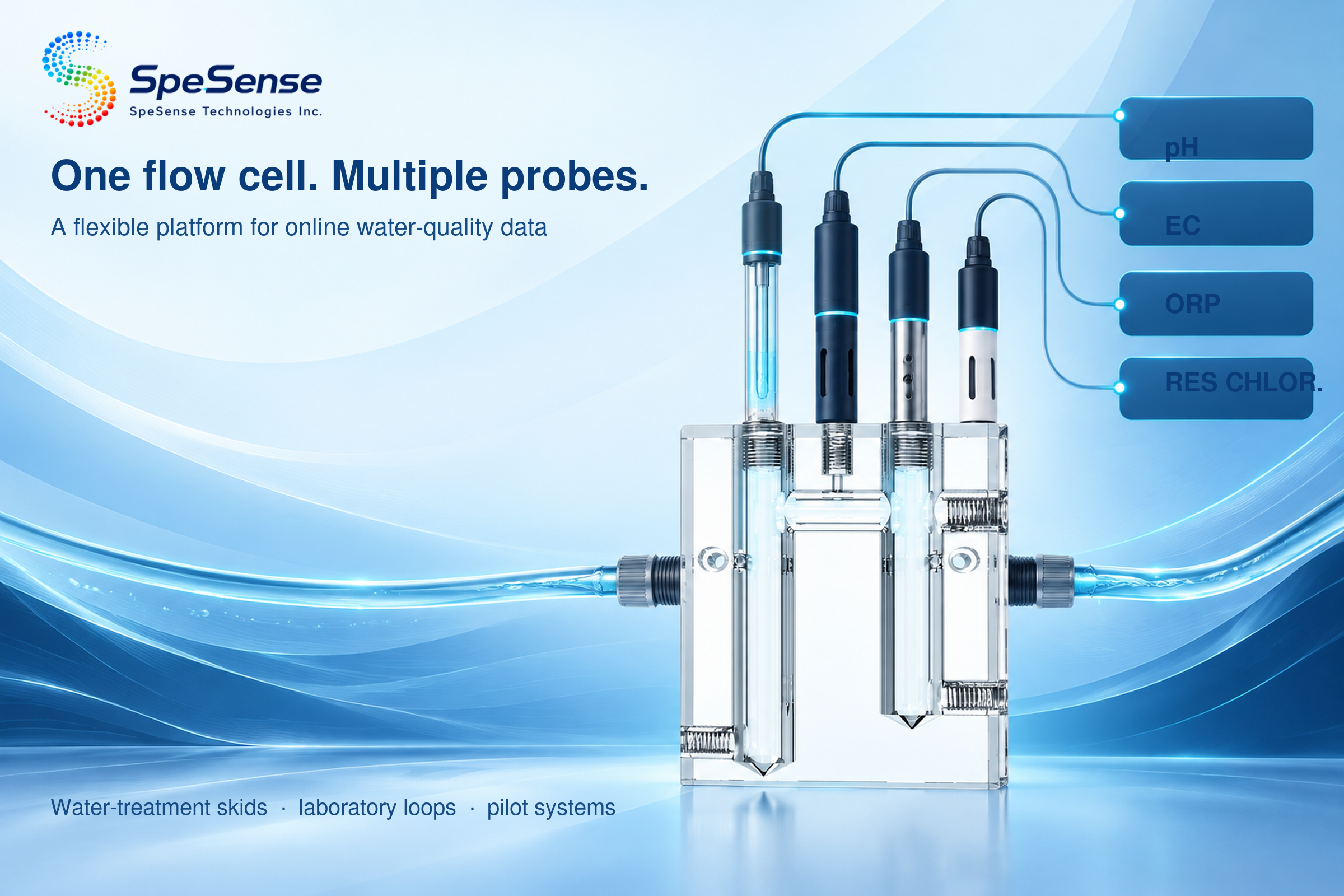

Compatible probesWater-quality devices with 3/4-inch threaded measurement ends, including pH, EC, ORP and residual chlorine probes

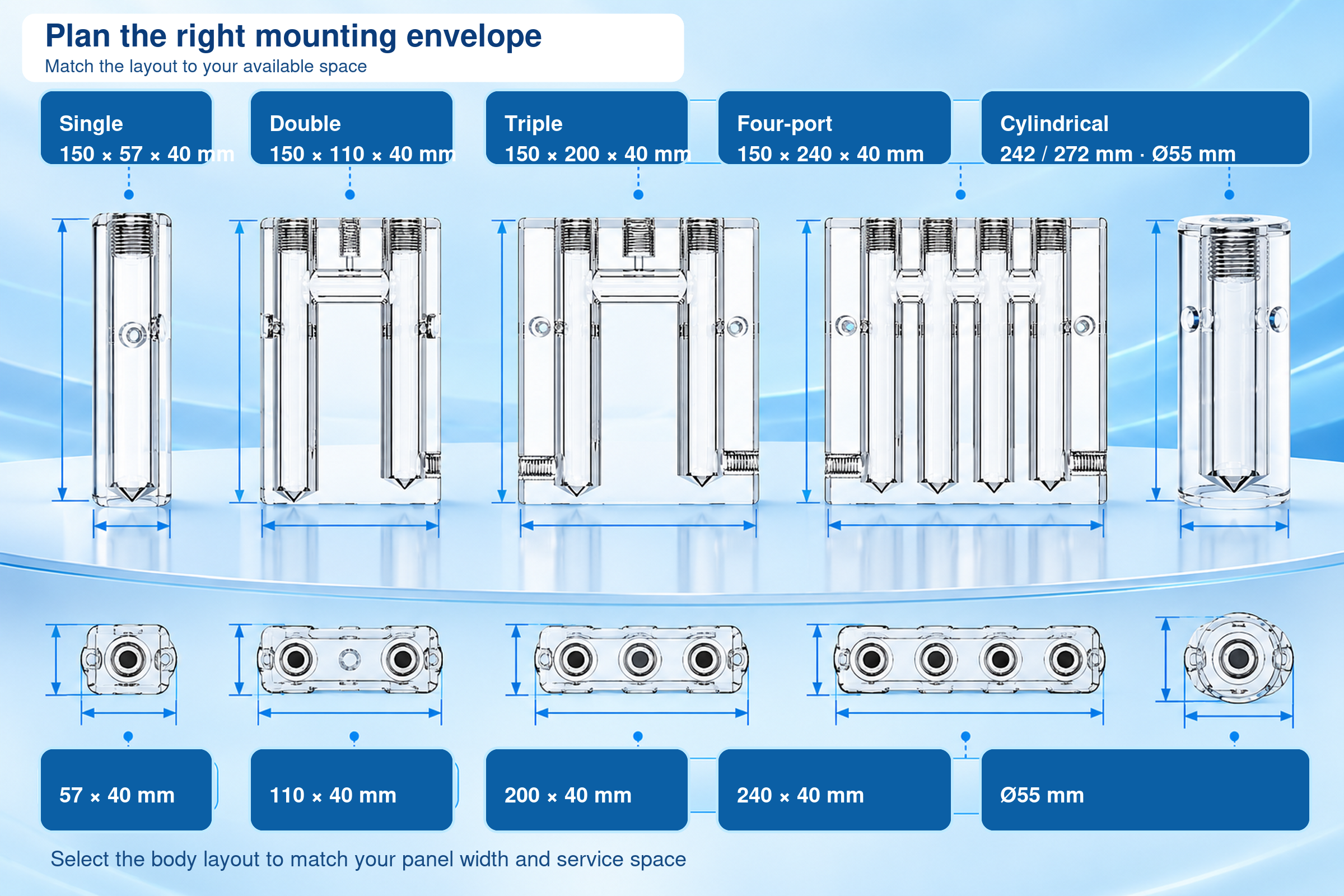

Flow-cell layoutsSingle-port, double-port, triple-port and four-port bodies
Sensor interface3/4-inch threaded mounting interface

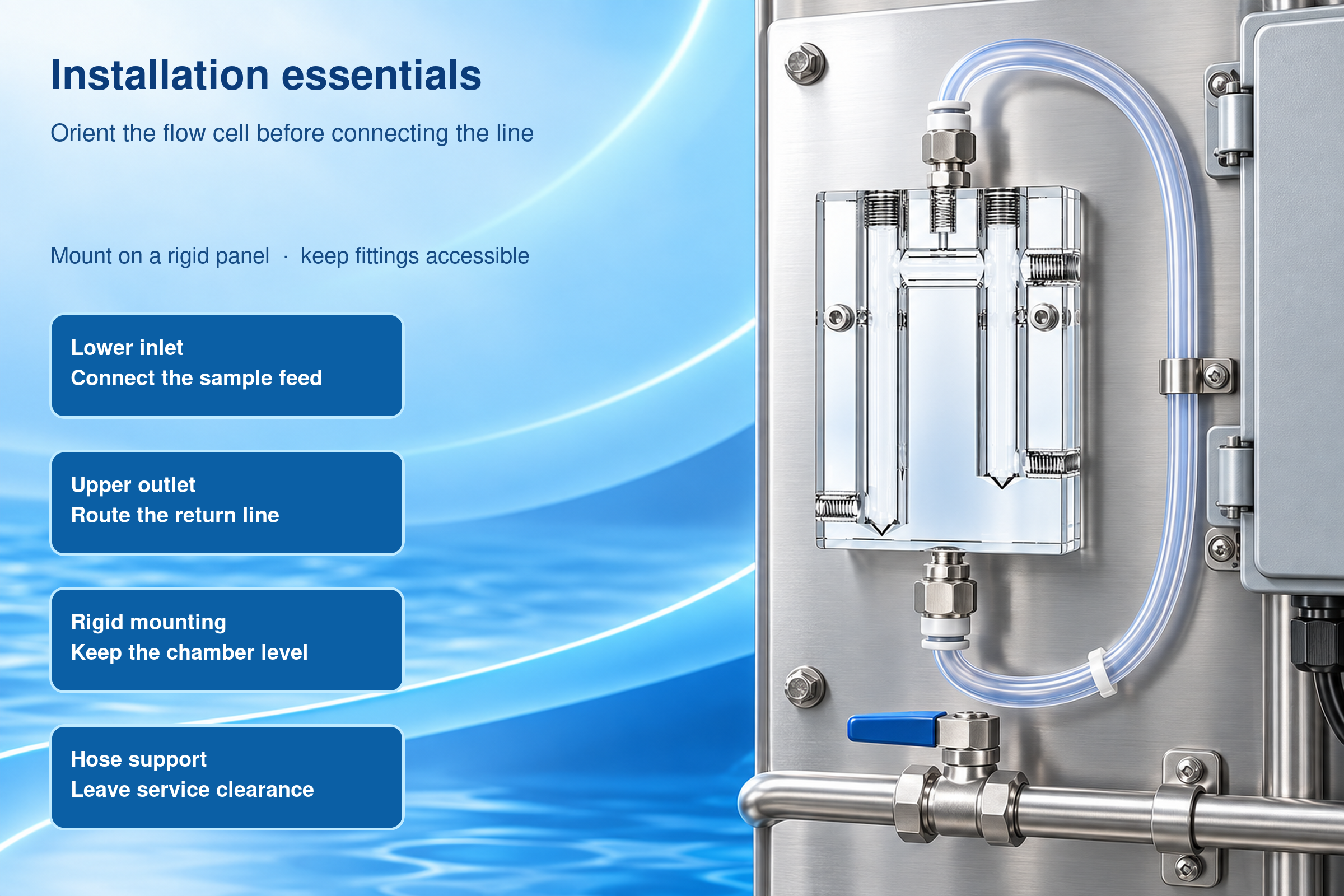

Flow directionSingle-port geometry: lower inlet and upper outlet; multi-port geometry: inlet / outlet can be selected for the installation

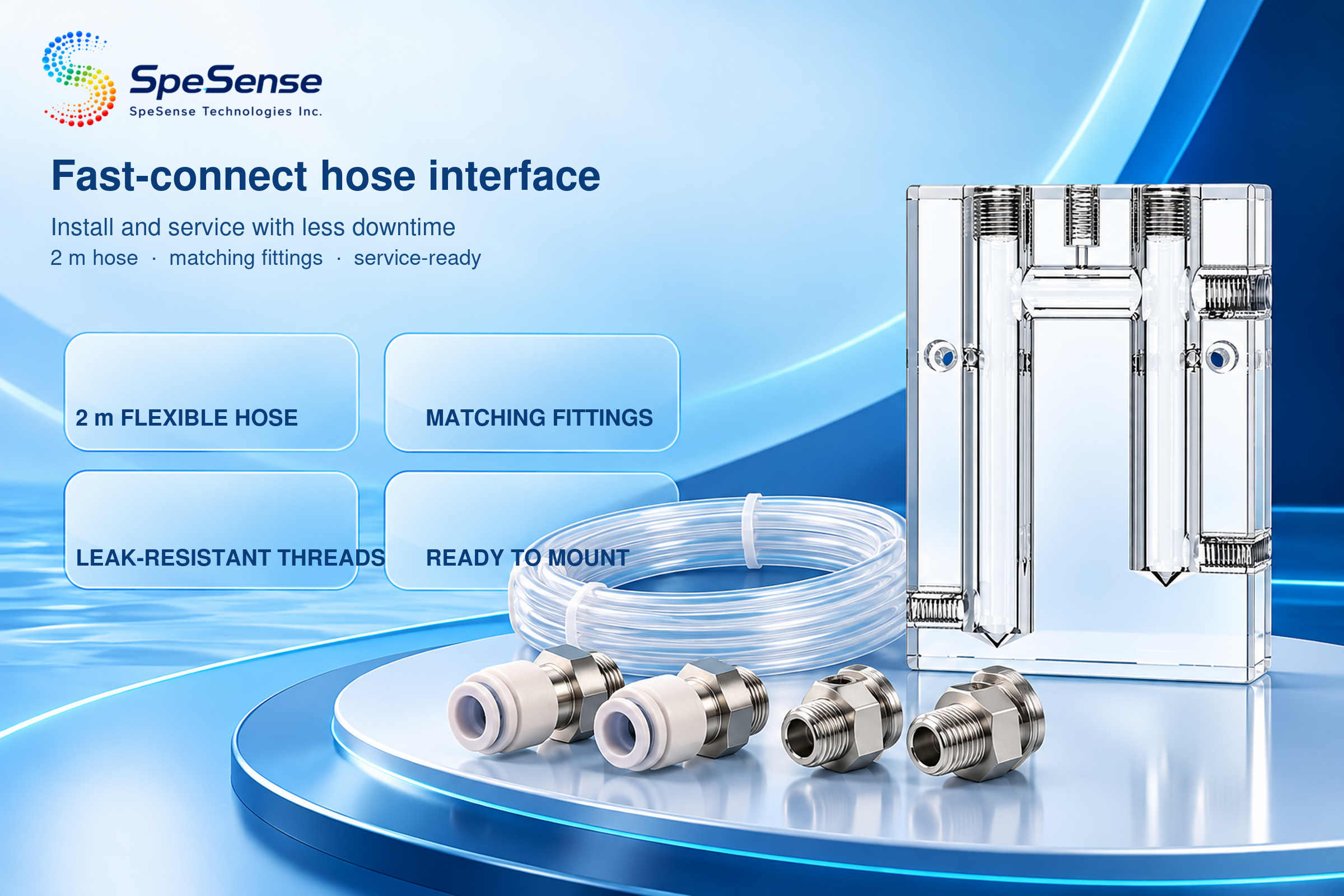

Hose connectionFast-connect fittings with supplied 2 m flexible hose

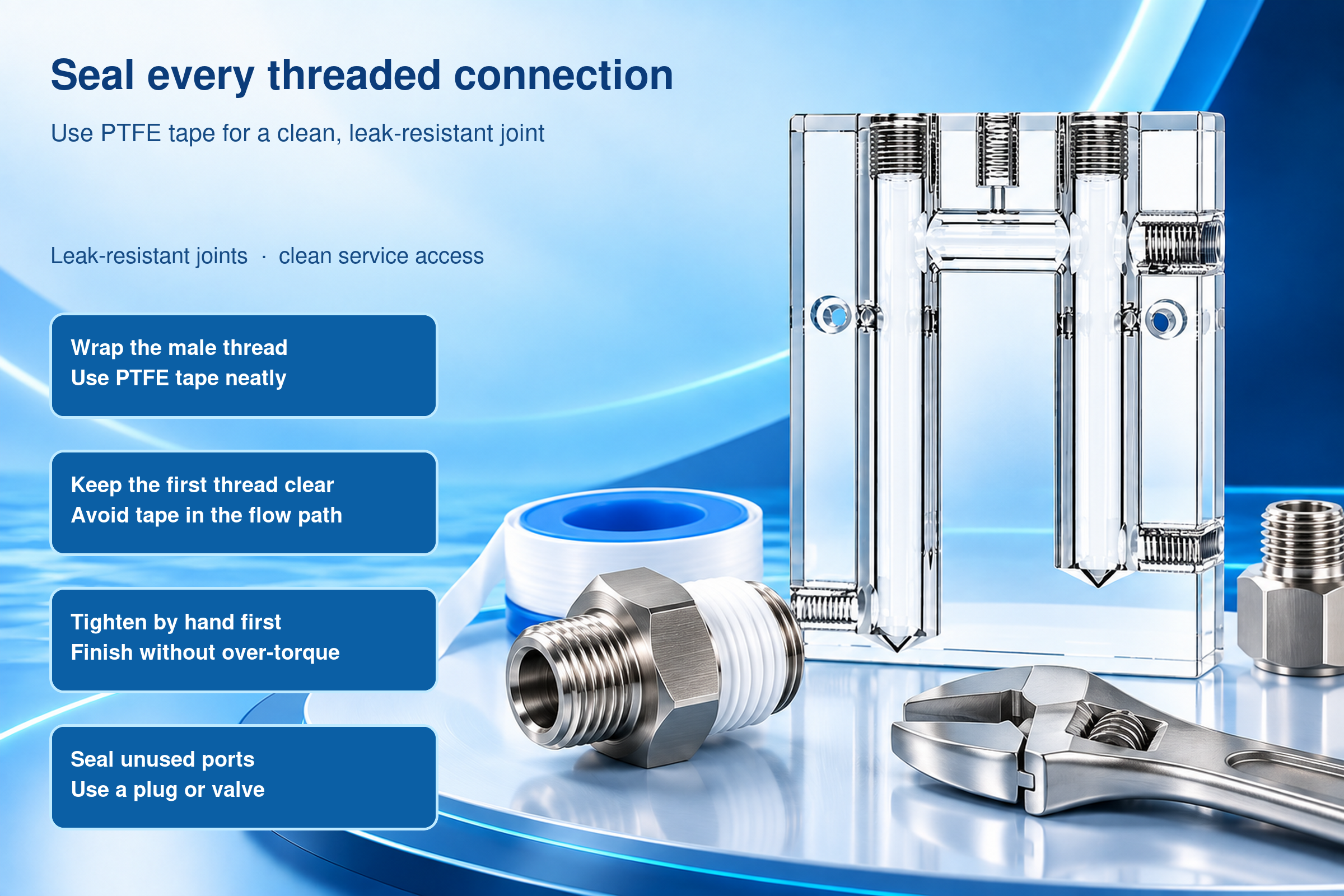

Sealing methodWrap PTFE tape on threaded connections; use plugs or valves on unused ports as required
Included accessoriesFlow cell, matching fittings, fixing screws and nuts, and 2 m hose; light-shield accessory on the applicable cylindrical configuration

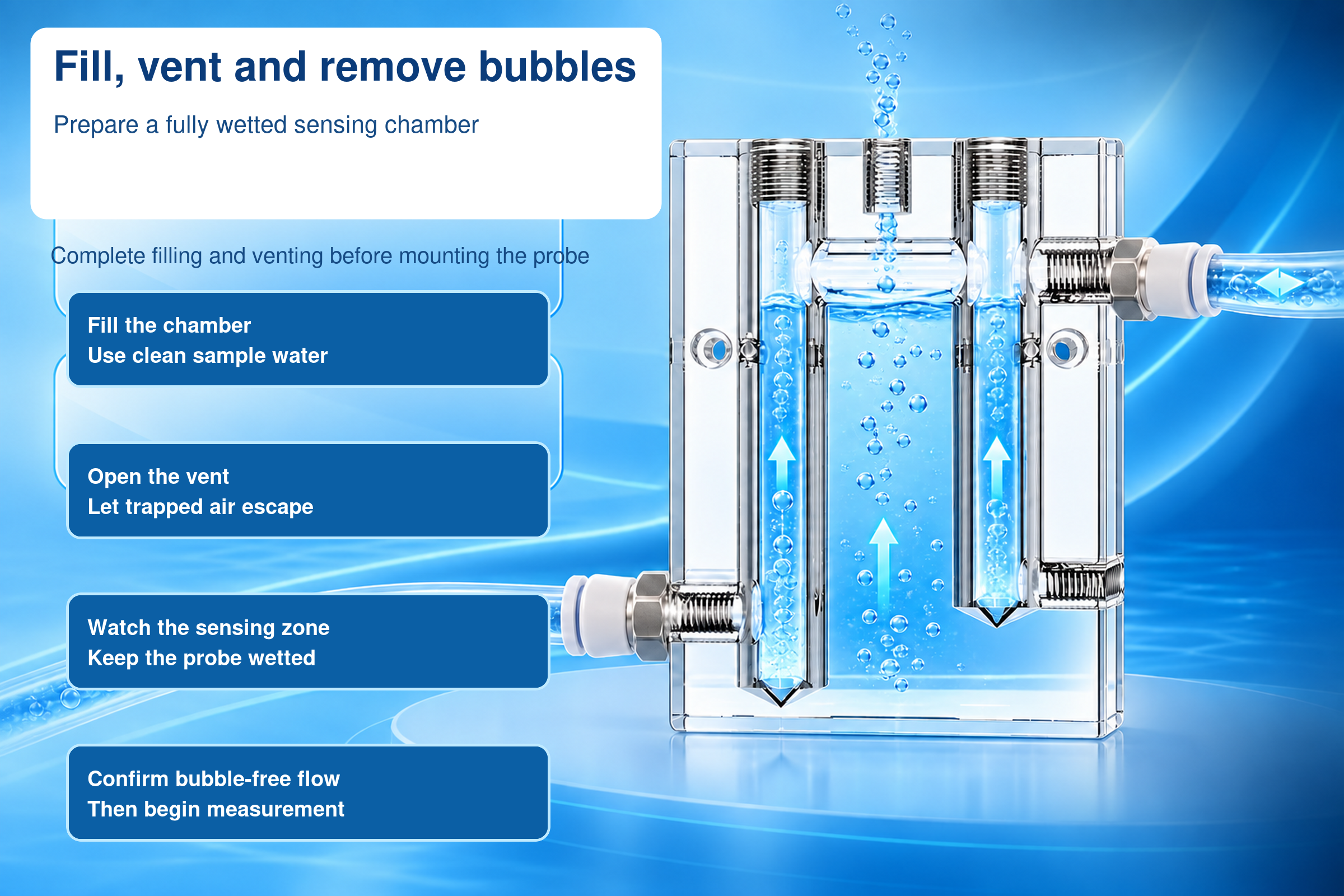

Measurement conditionFill the cell completely and keep the probe sensing end fully wetted; remove trapped air bubbles
