Multiparameter Water Quality Sonde

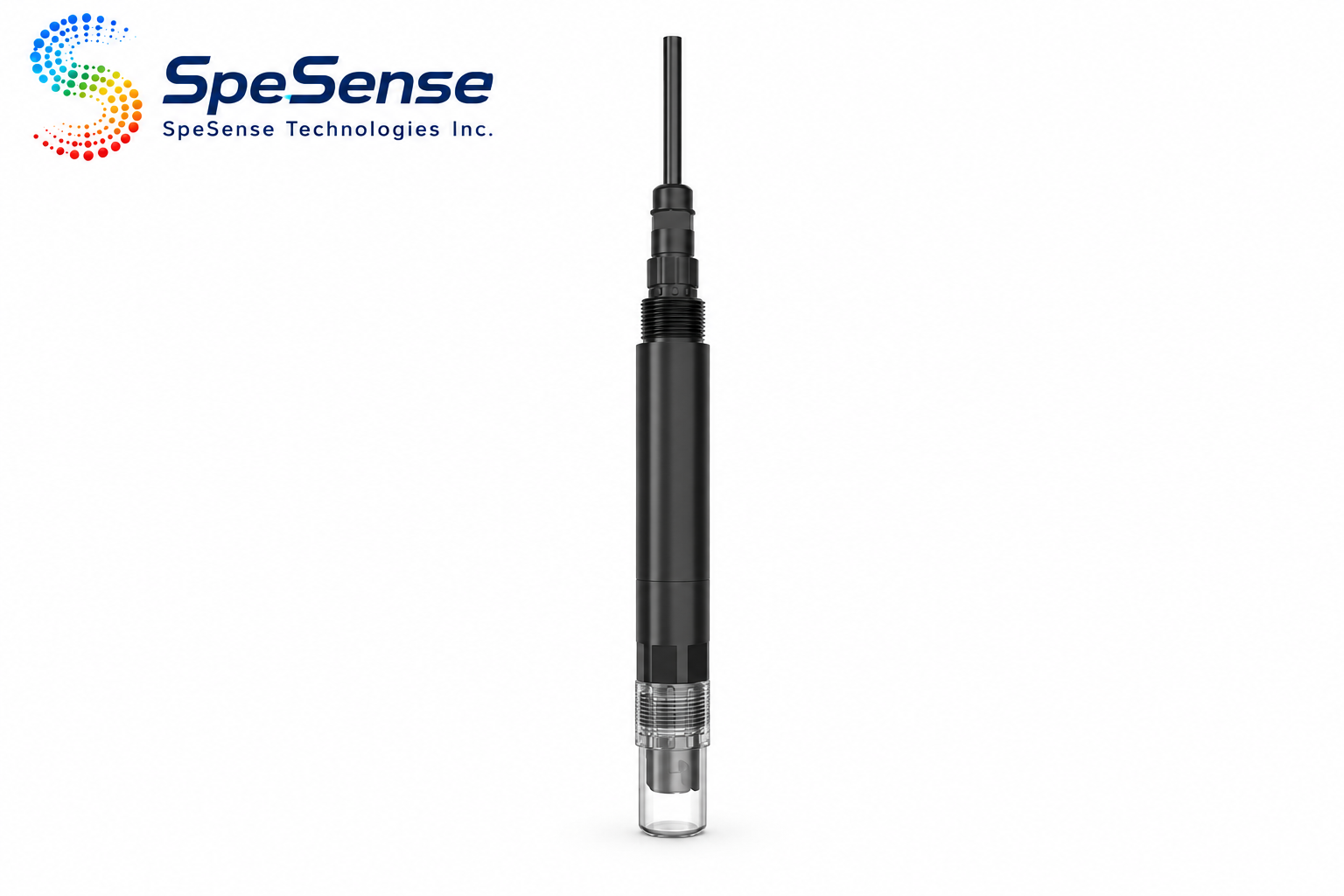

SS308-02
一体化离子变送器
产品亮点
● Eight ion selections cover common water-quality and process-monitoring requirements.

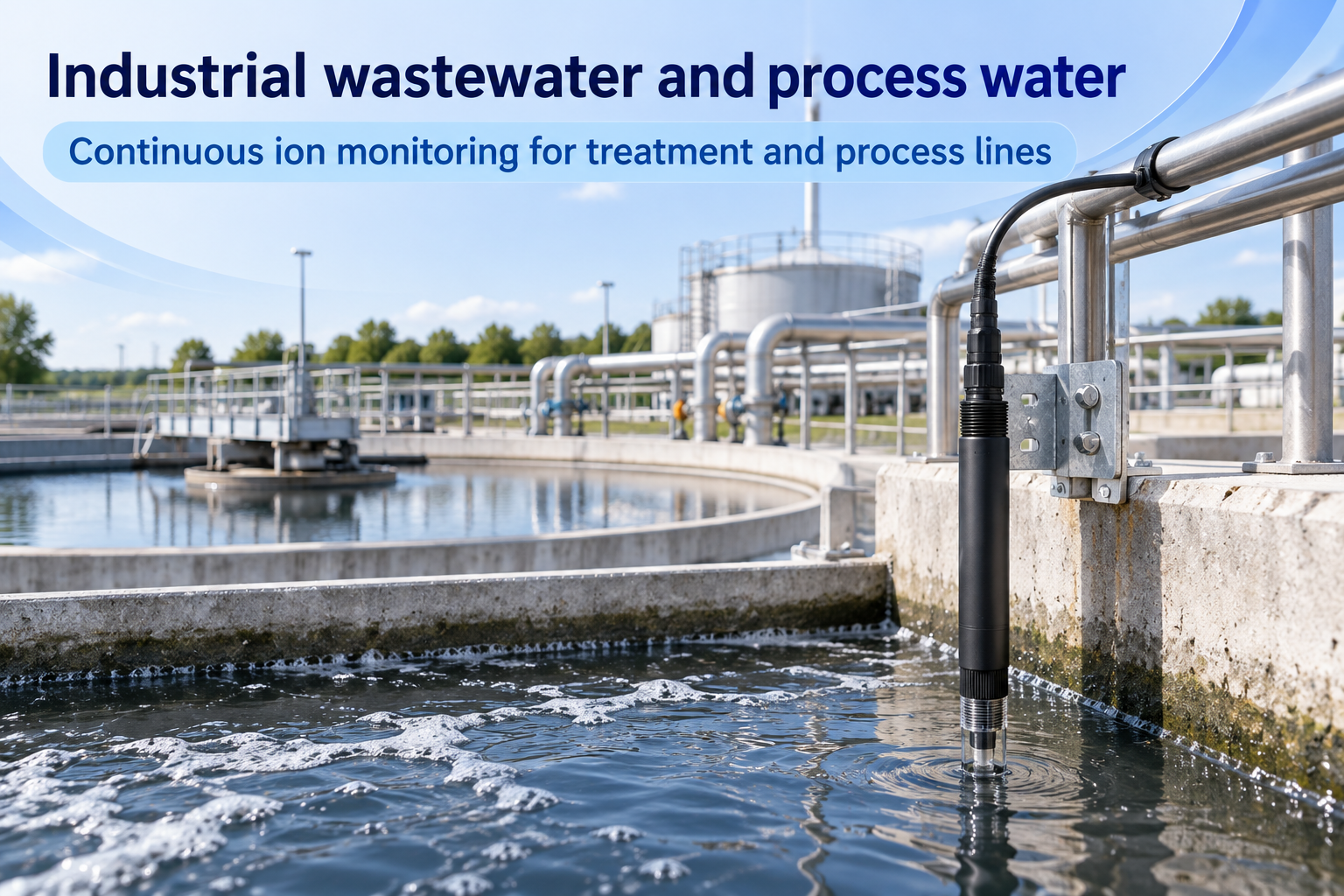

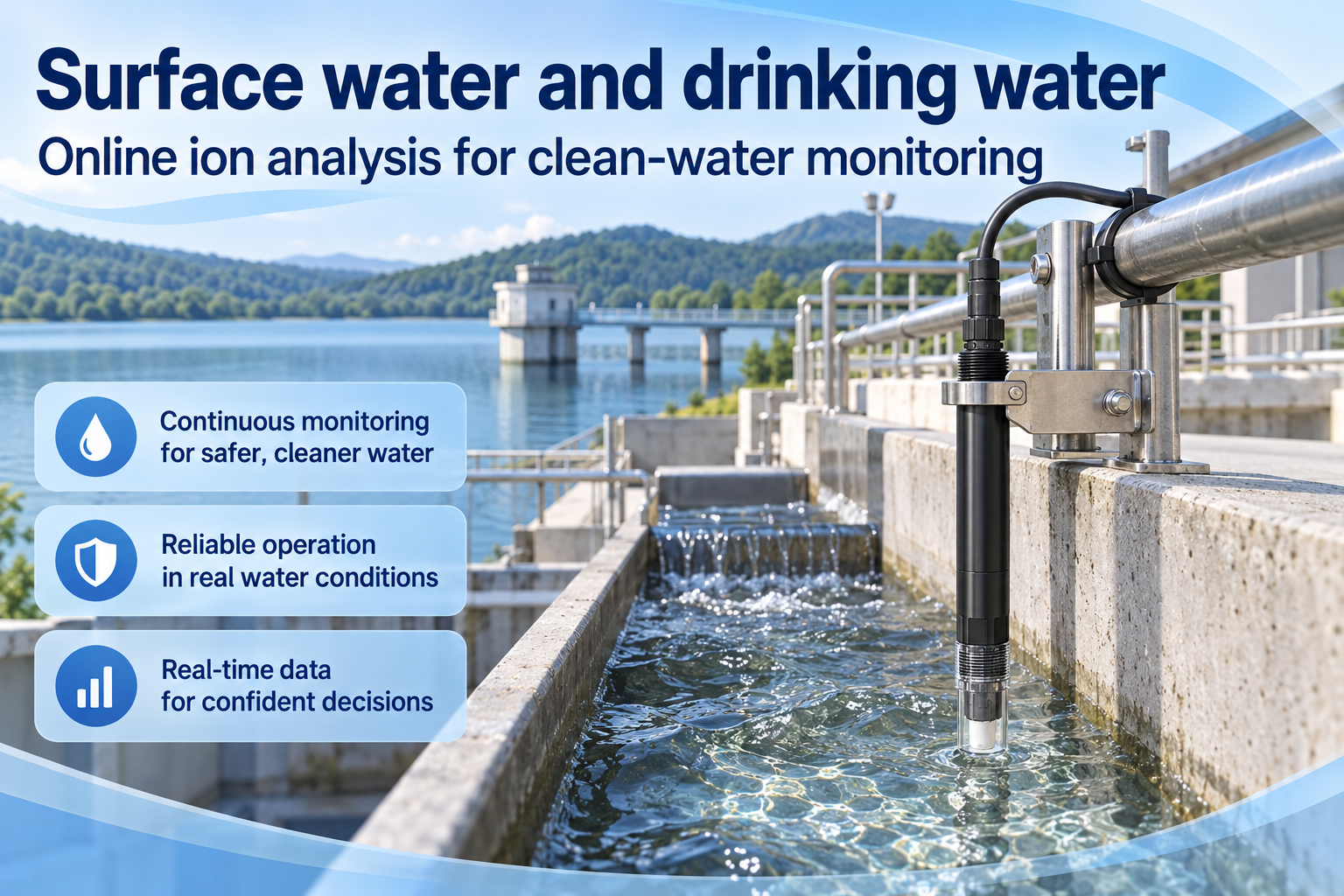

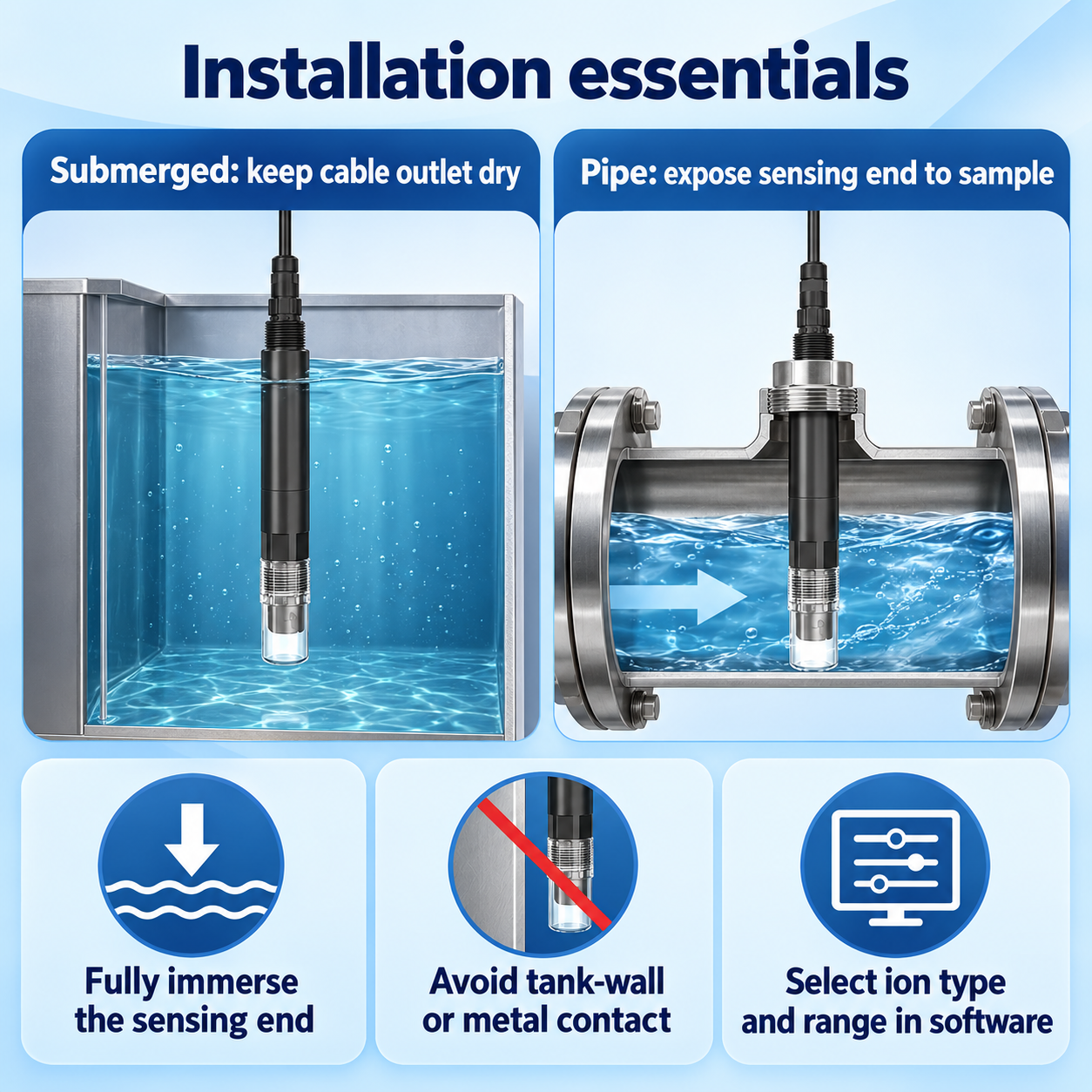

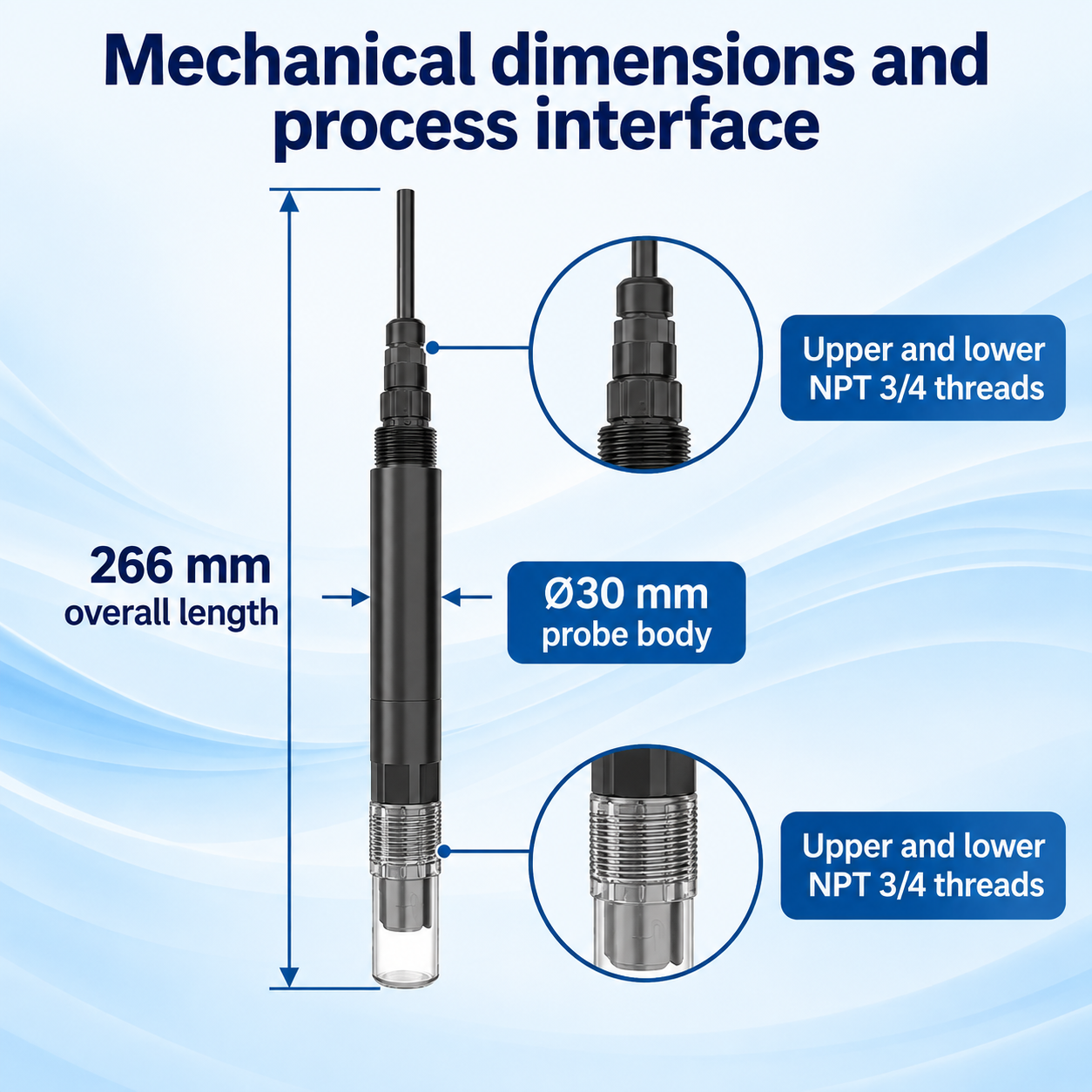

● Upper and lower NPT 3/4 threads support submerged or pipe installation.
● Modbus-RTU communication with configurable address and baud rate.

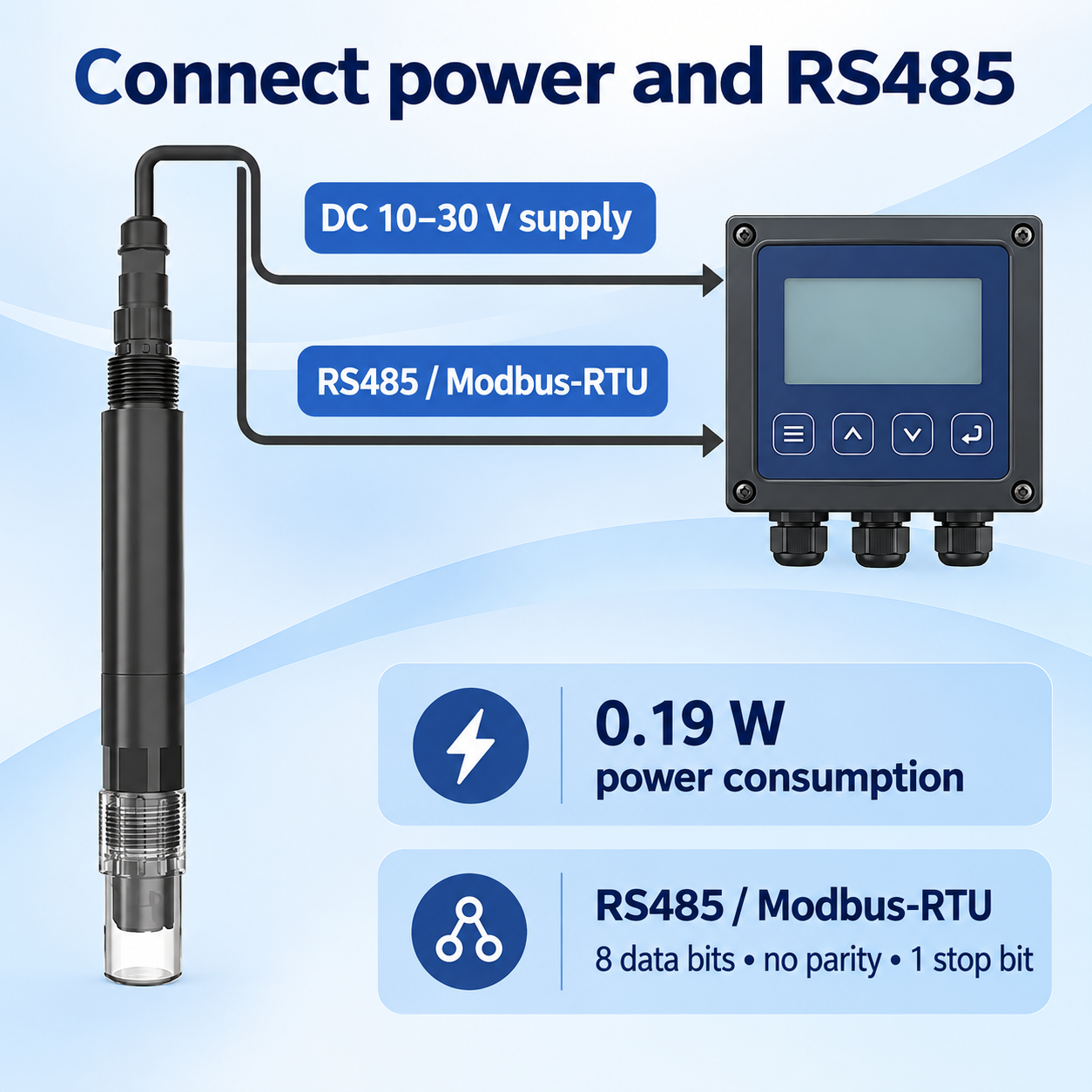

● Wide DC 10-30 V supply, IP68 probe protection and 0.2 MPa pressure resistance.
● Upper and lower NPT 3/4 threads support submerged or pipe installation.
● Modbus-RTU communication with configurable address and baud rate.
● Wide DC 10-30 V supply, IP68 probe protection and 0.2 MPa pressure resistance.
产品概述

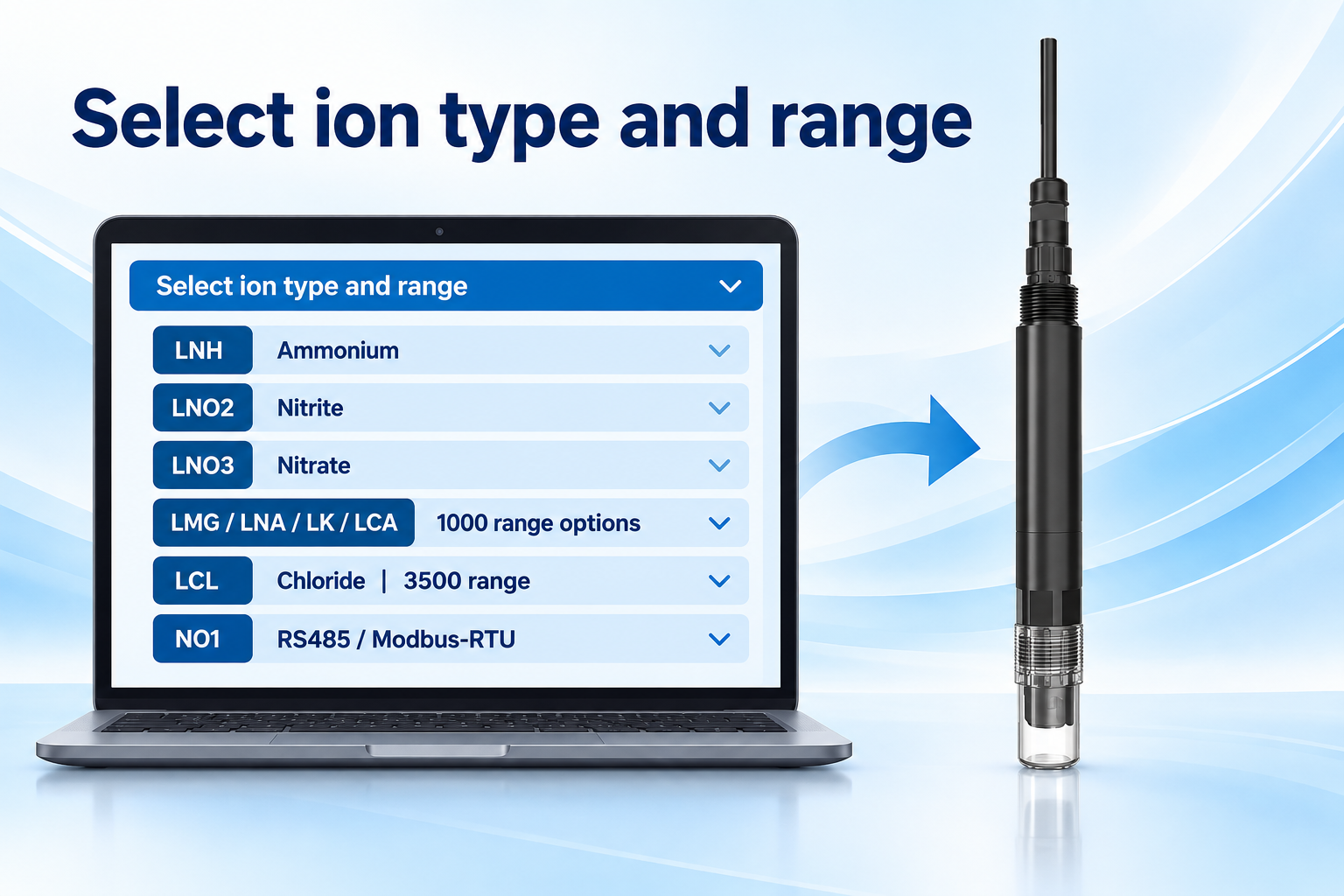

• Eight ion types are available: ammonium, nitrite, nitrate, magnesium, sodium, potassium, calcium and chloride.

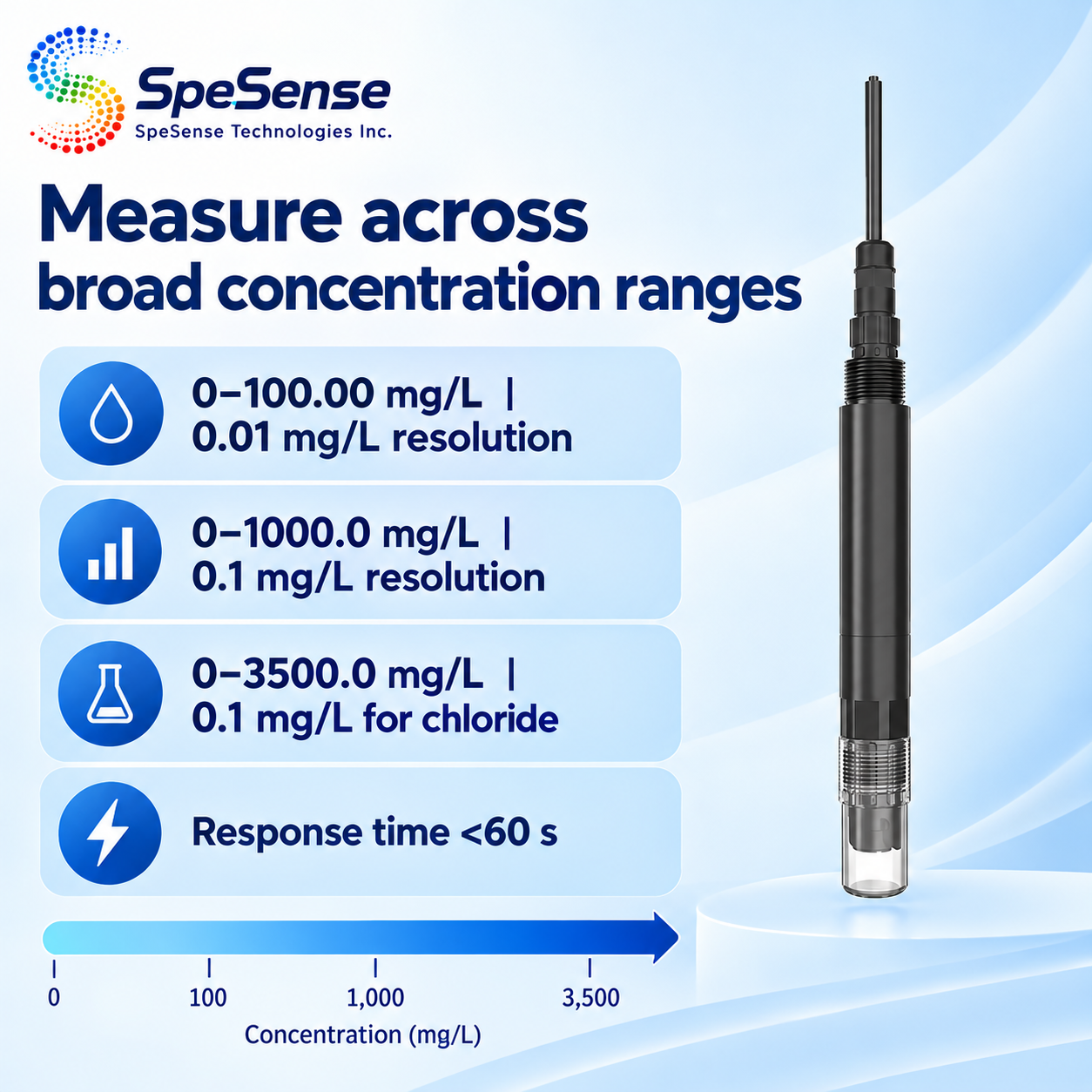

• Measurement ranges from 0-100 mg/L to 0-3500 mg/L, with up to 0.01 mg/L resolution.
• Automatic temperature compensation reduces environmental influence and improves measurement stability.

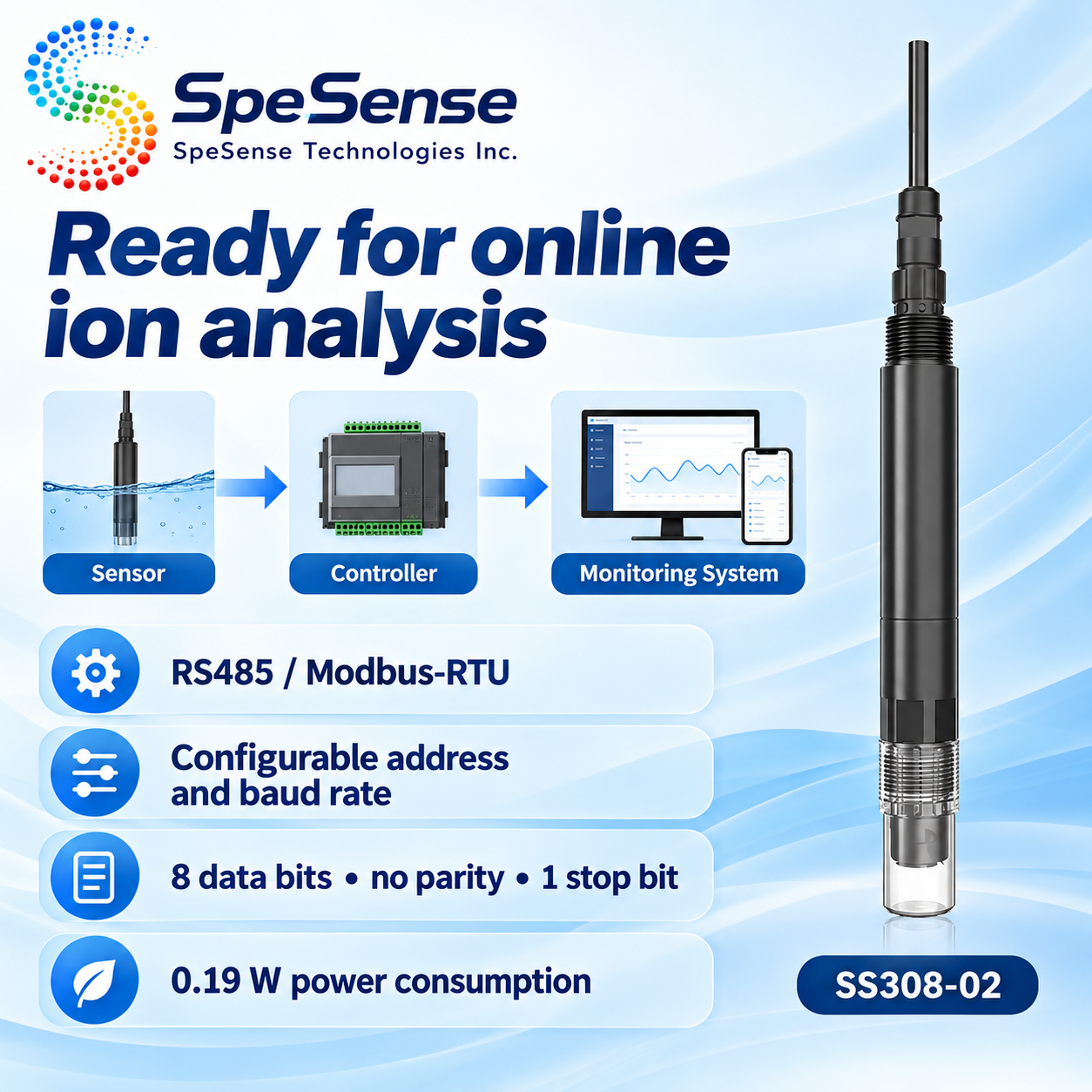

• RS485 Modbus-RTU interface with configurable address and baud rate.
| Item | Specification |
| Supply Voltage | DC 10-30 V |
| Power Consumption | 0.19 W |
| Ion Types | NH4+, NO2-, NO3-, Mg2+, Na+, K+, Ca2+ or Cl- selectable |
| Ion Measurement Range | 0-100.00 mg/L / 0.01 mg/L resolution; 0-1000.0 mg/L / 0.1 mg/L; 0-3500.0 mg/L / 0.1 mg/L for chloride |
| Measurement Error | 5% FS |
| Repeatability Error | ±1 mg/L |
| Response Time | <60 s |
| Operating Conditions | 0-50 °C; ion-specific pH intervals apply |
| Protection / Pressure | IP68; 0.2 MPa |
| Cable Length | 5 m standard; 10 m, 15 m or 20 m customizable |

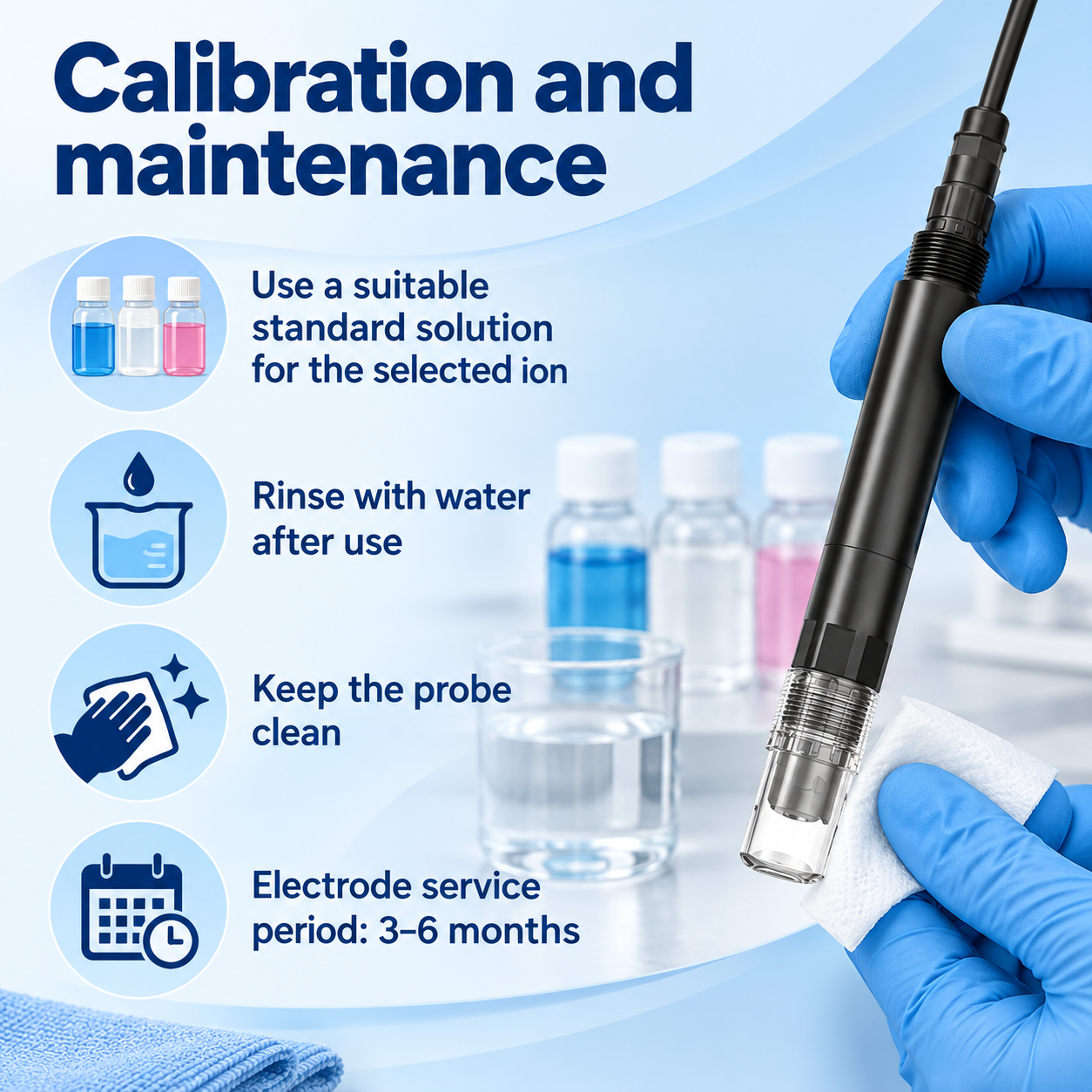

| Electrode Service Period | Approximately 3-6 months |
