pH Sensor
SS307-101
工业pH电极
产品亮点
● Rapid response and good repeatability.

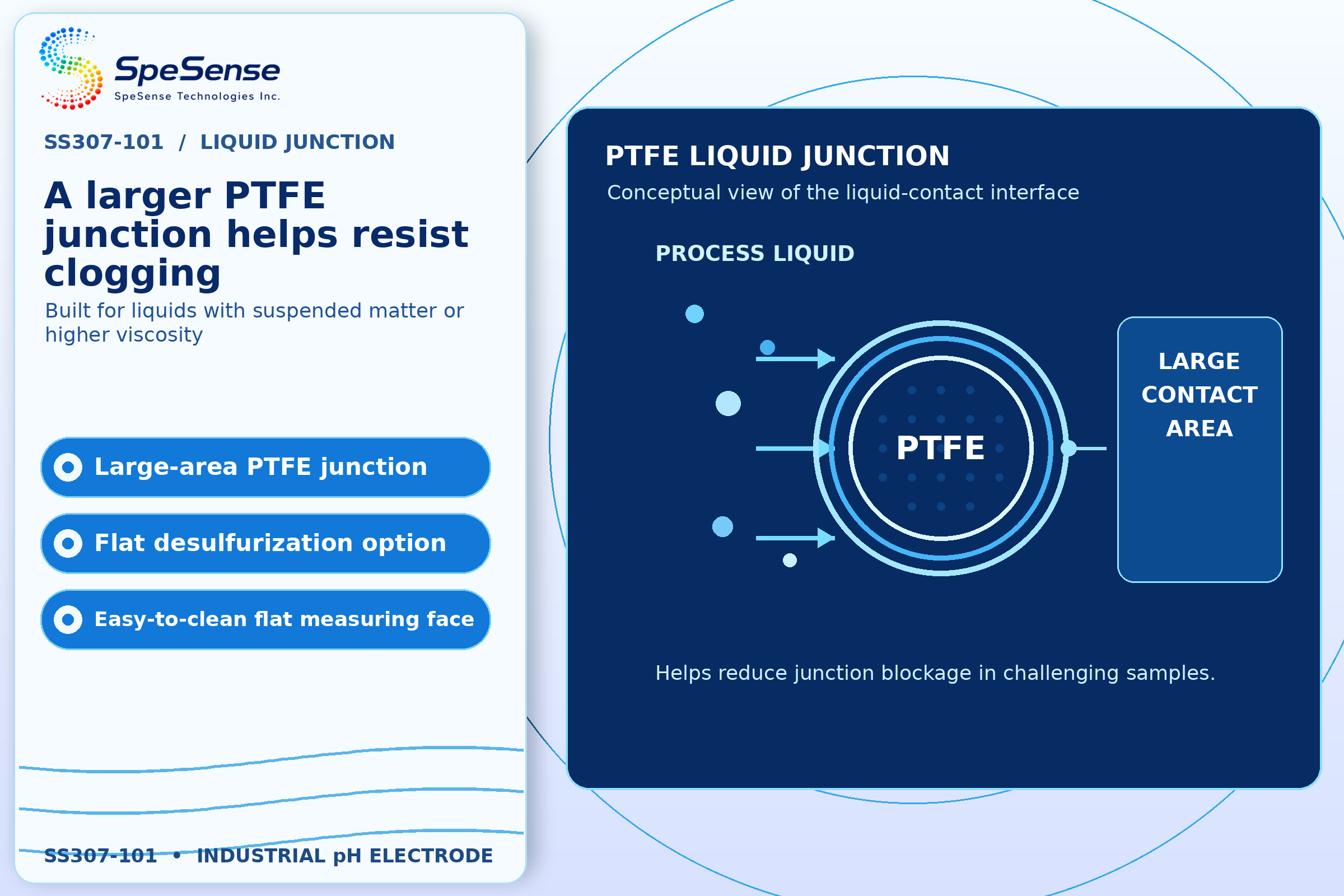

● Gel electrolyte and large PTFE junction resist clogging.
● Acid- and alkali-resistant options for demanding liquids.
● Temperature compensation can be selected for the electrode type.
● Gel electrolyte and large PTFE junction resist clogging.
● Acid- and alkali-resistant options for demanding liquids.
● Temperature compensation can be selected for the electrode type.
产品概述
•SS307-101 covers a family of indust ria l pH e lectrodes for

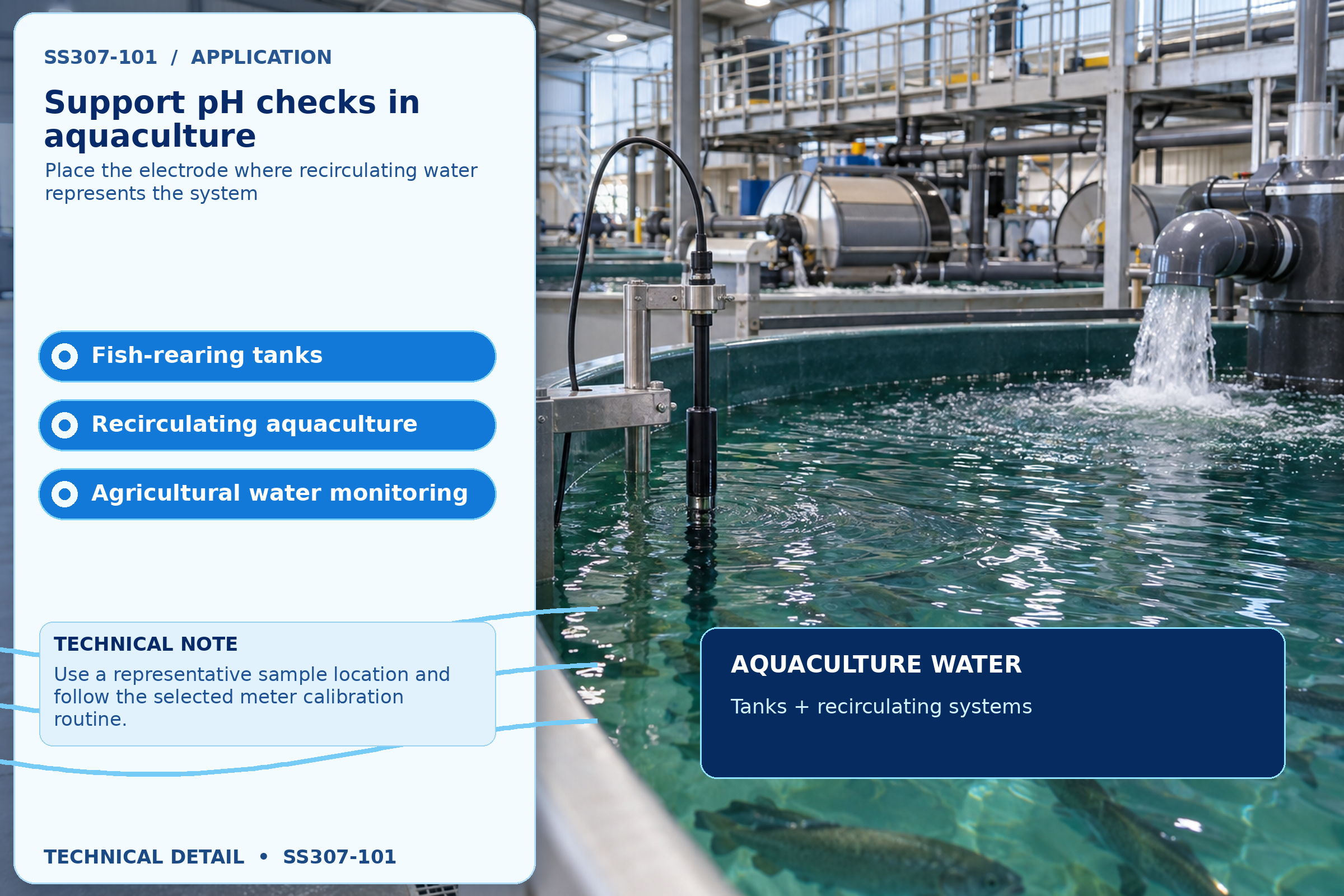

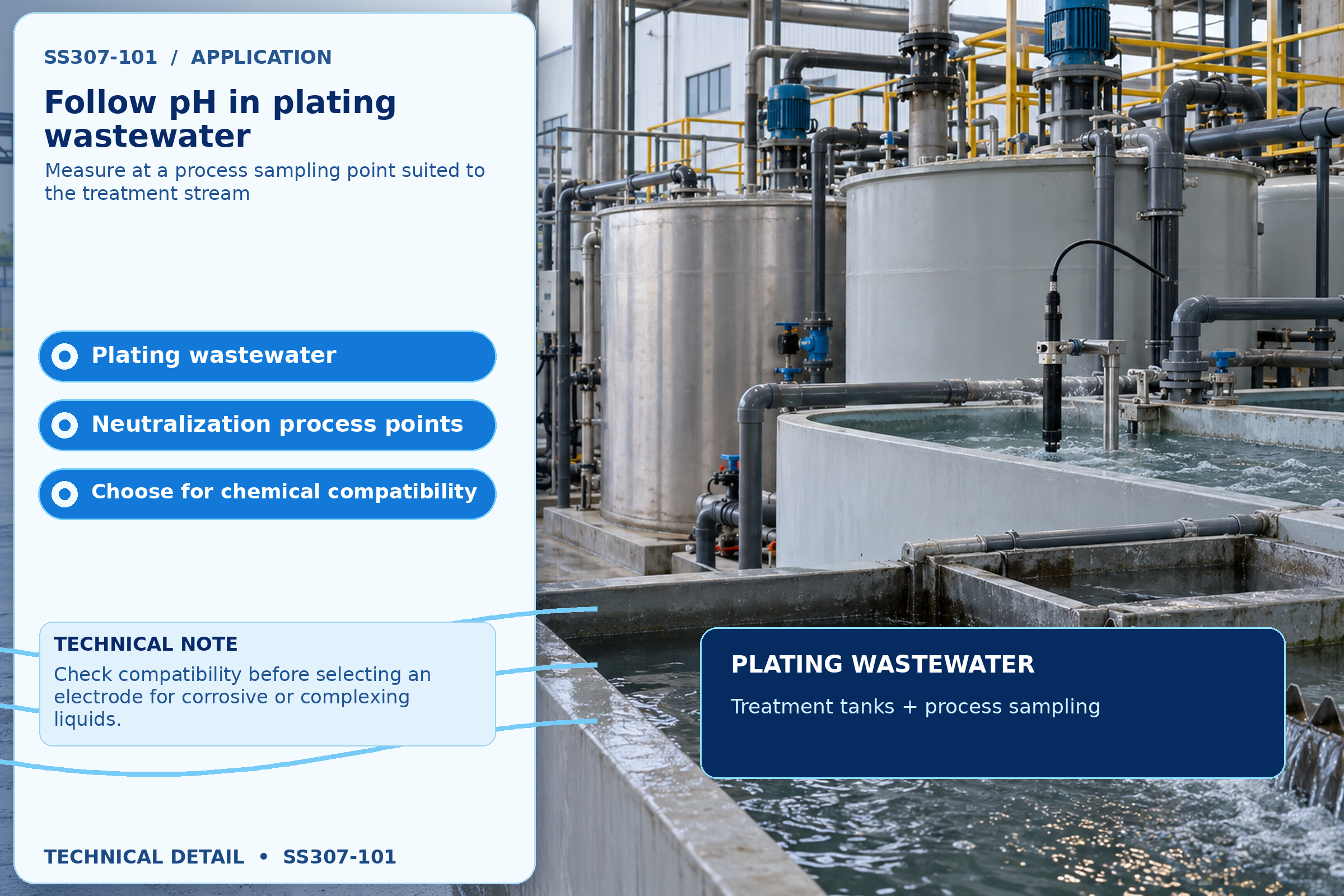

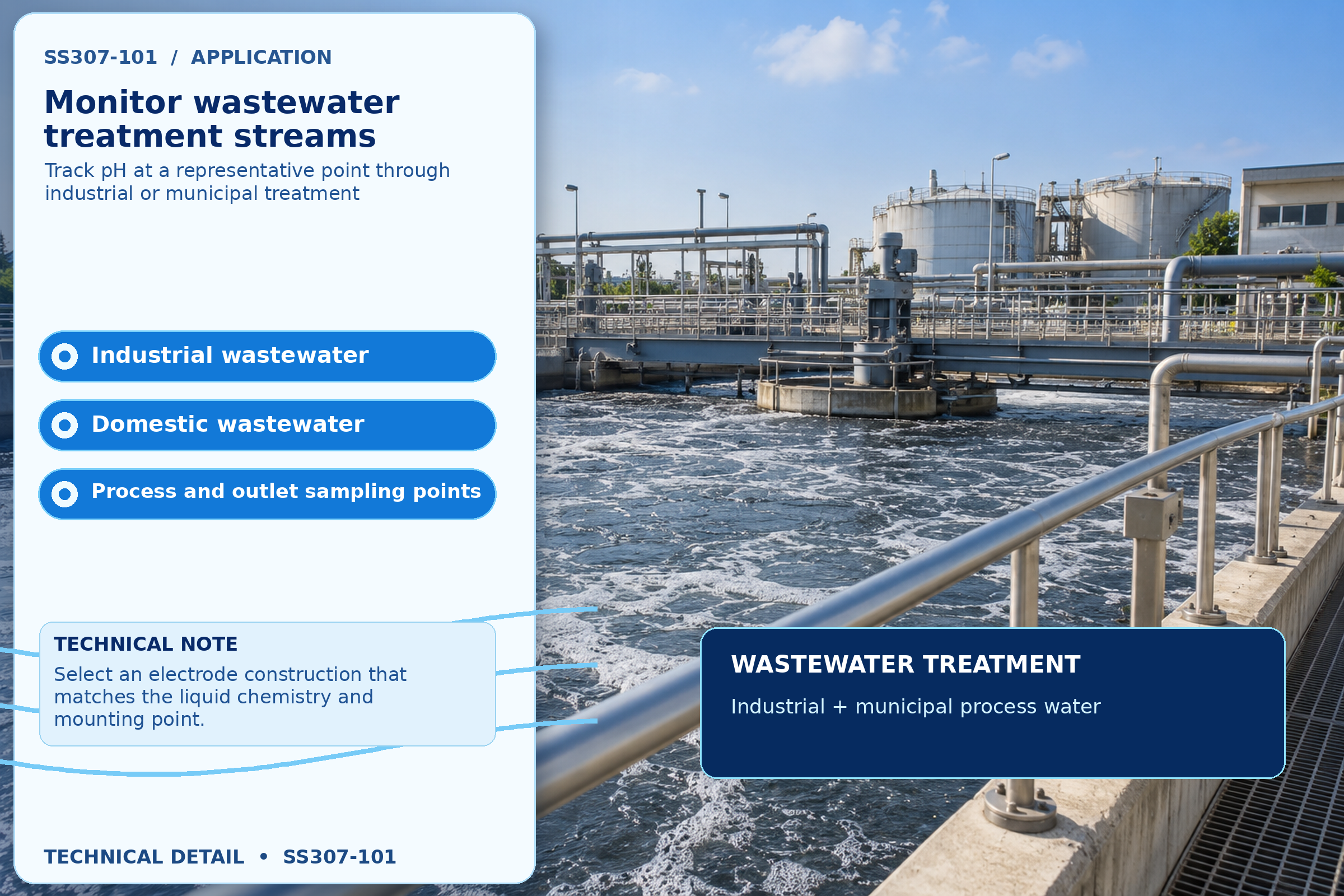

wastewater,agriculture,aquaculture and process-water
monitori ng .

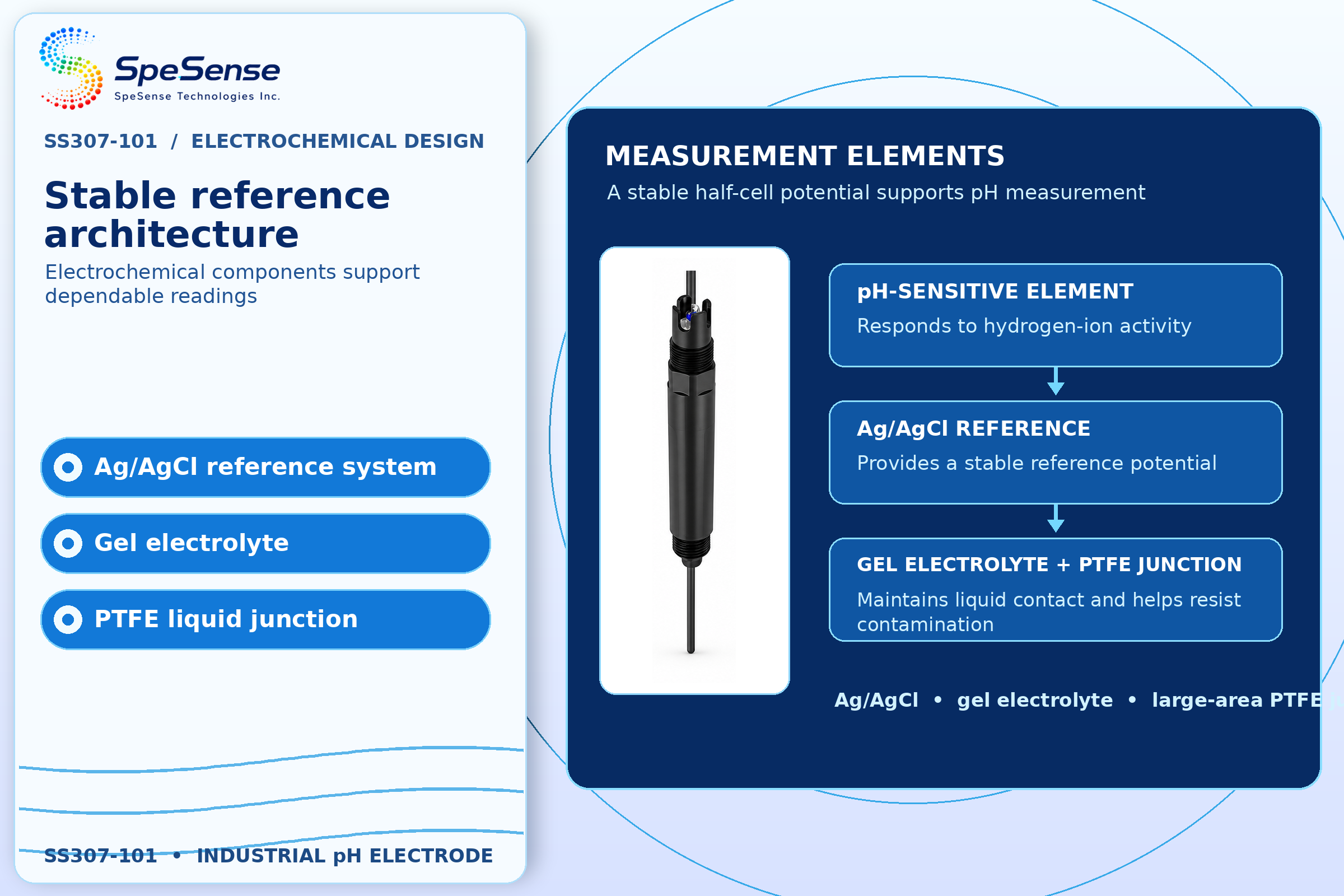

•The Ag/AgCl reference system,gel e lectrolyte and PTFE liquid
junction provide sta ble potentia l and resistance to fouling .
•Choose the electrode materia l and temperature-compensation
option that matc hes the liquid c hemistry and insta llation
| Item | Specification |

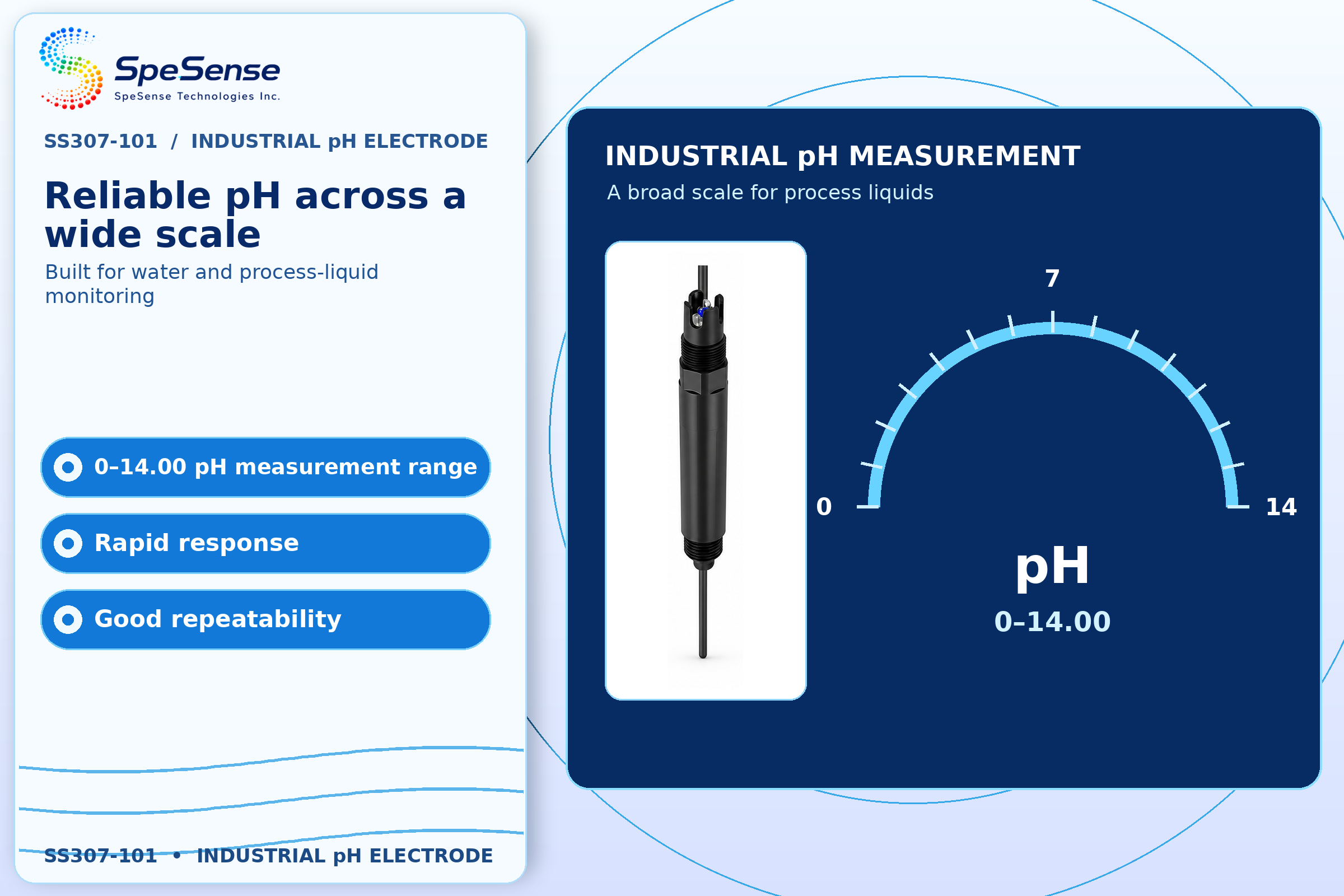

| pH Measurement Range | 0–14.00 pH |

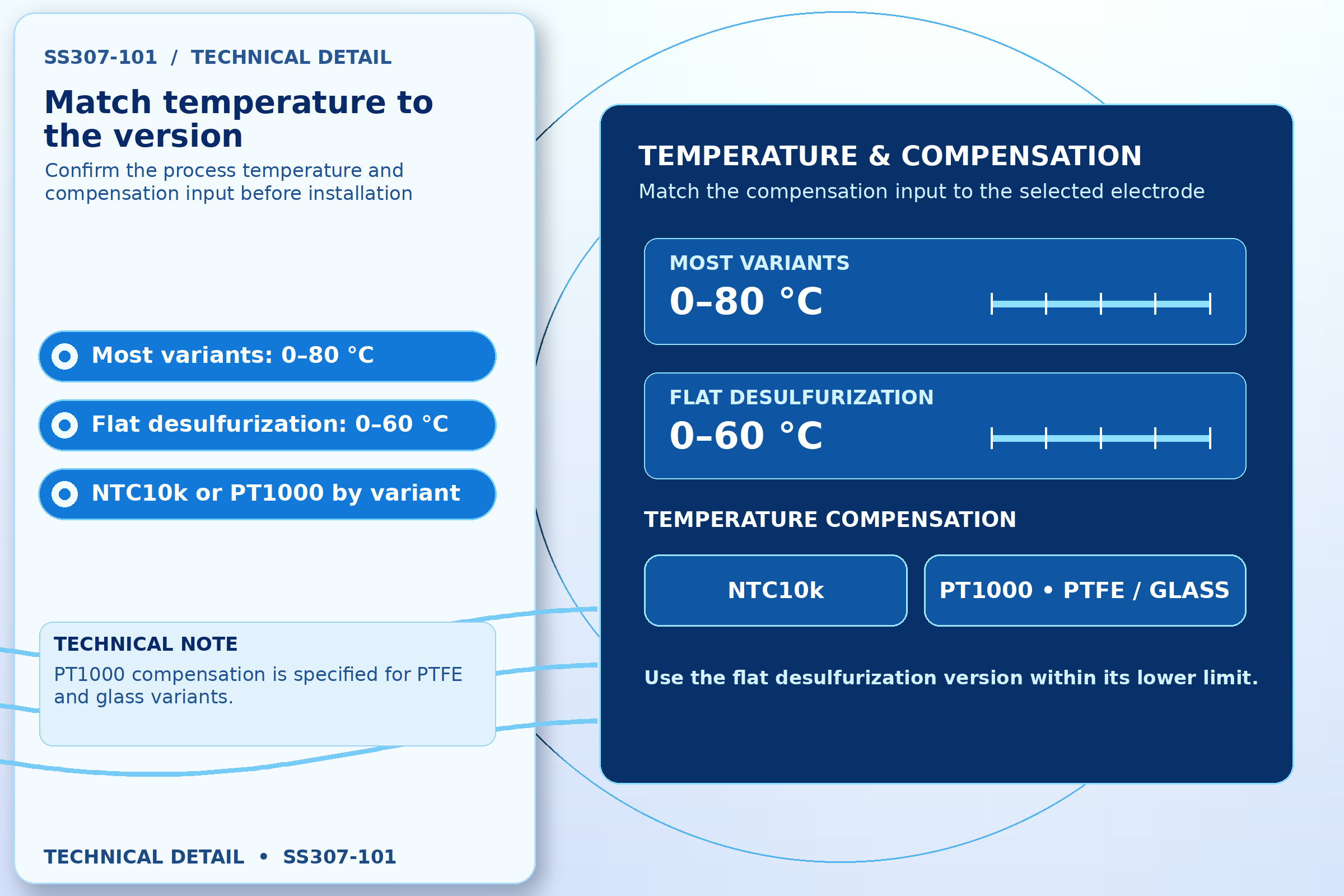

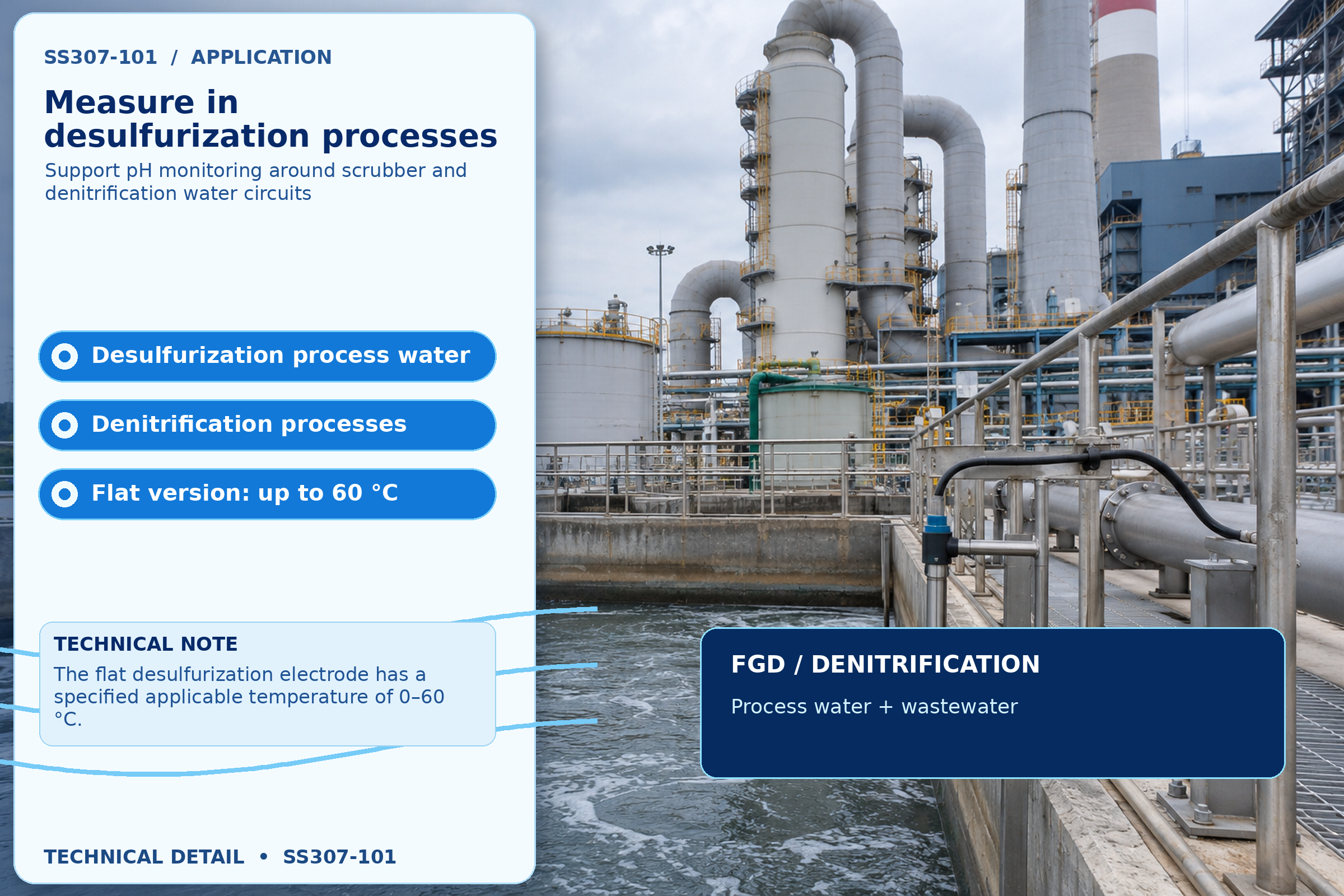

| Applicable Temperature | 0–80 °C; flat desulfurization variant: 0–60 °C |
| Pressure Resistance | 0.6 MPa |
| Internal Resistance | ≤250 MΩ at 25 °C; antimony variant excluded |
| Zero Potential | 7 ±0.2; antimony variant excluded |
| Theoretical Slope | ≥95% |
| Temperature Compensation | NTC10k; PT1000 for PTFE and glass variants |
| Cable Length | 5 m by default |

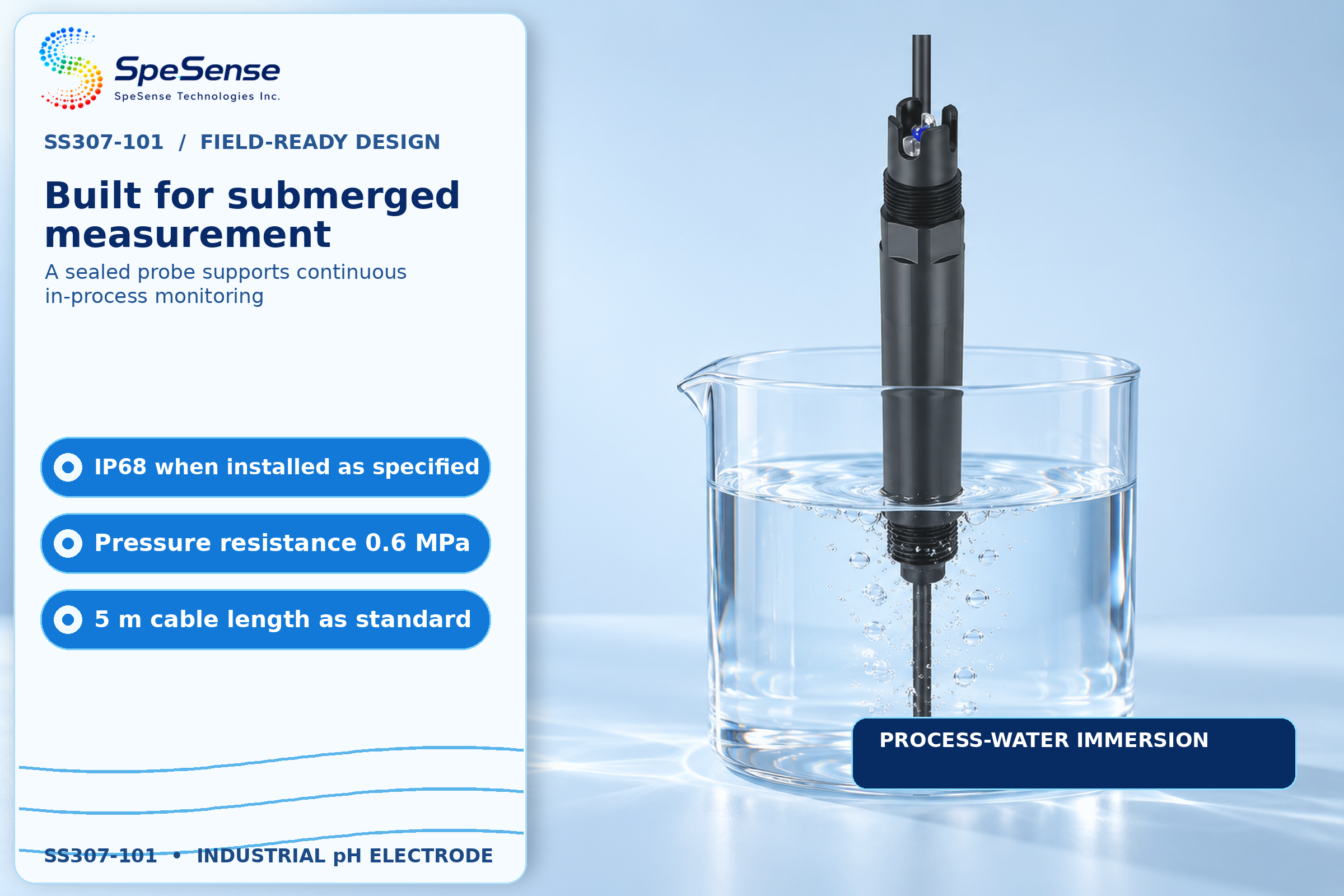

| Protection | IP68 when installed as specified |
| Electrolyte / Junction | Ag/AgCl reference, gel electrolyte, PTFE liquid junction |

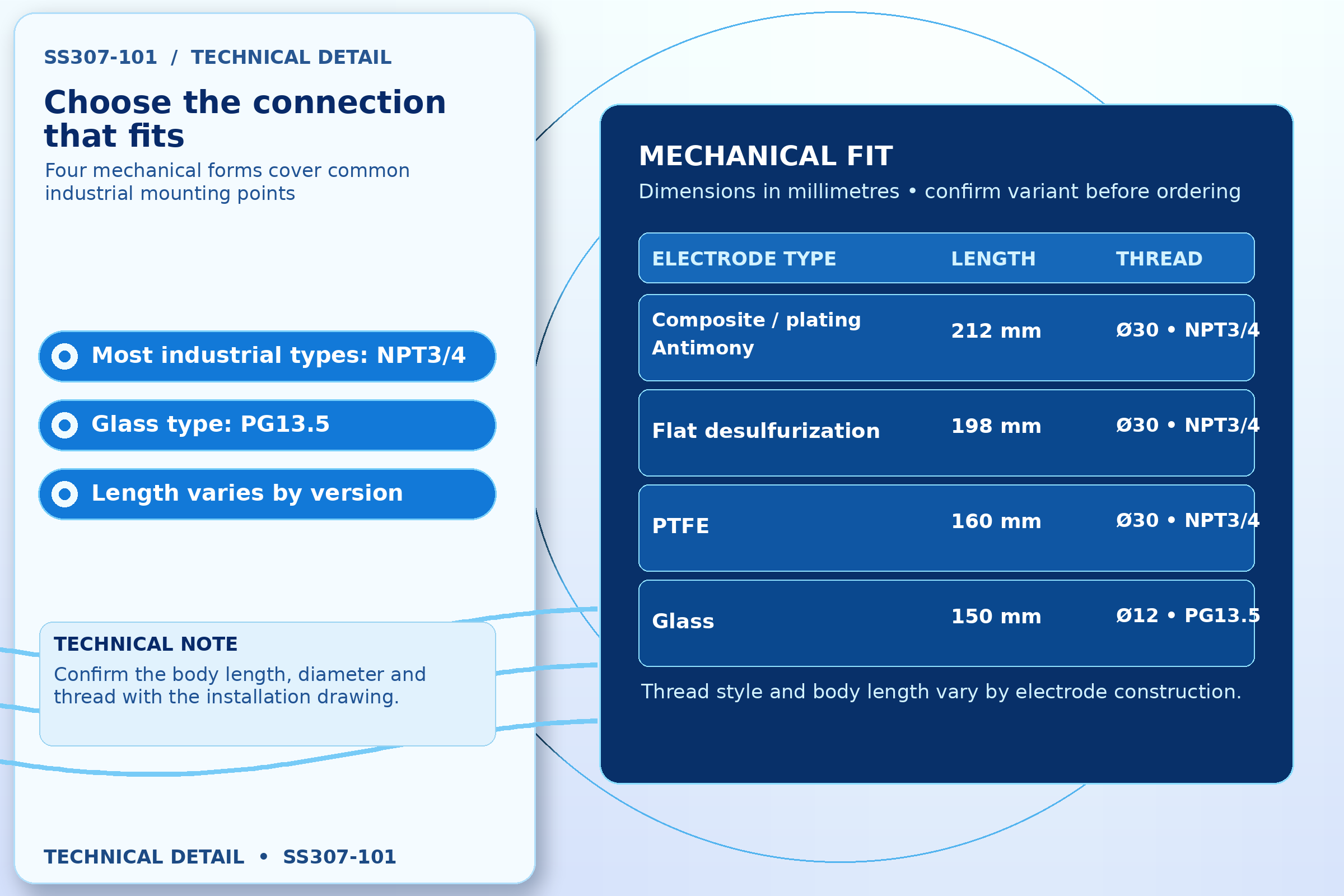

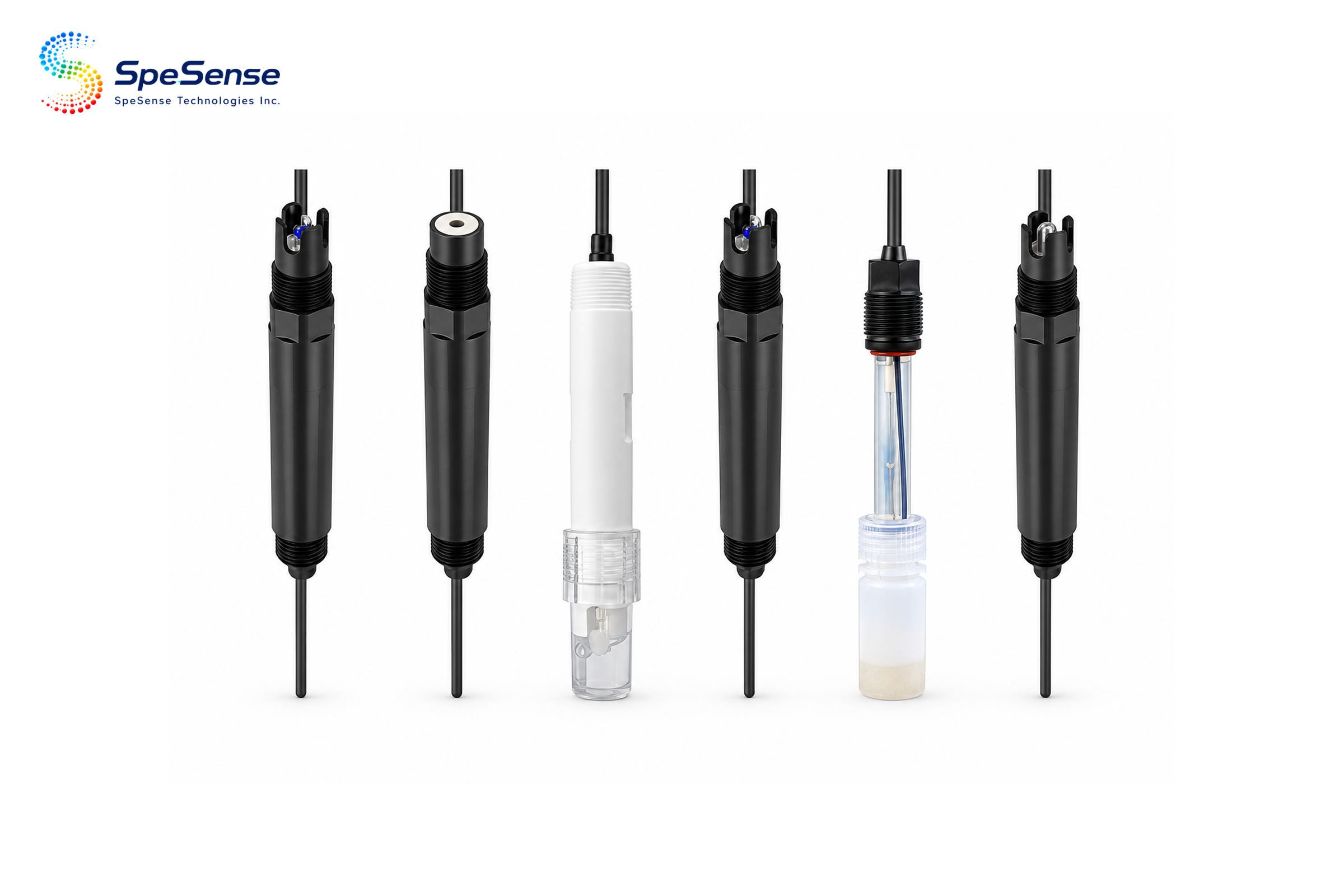

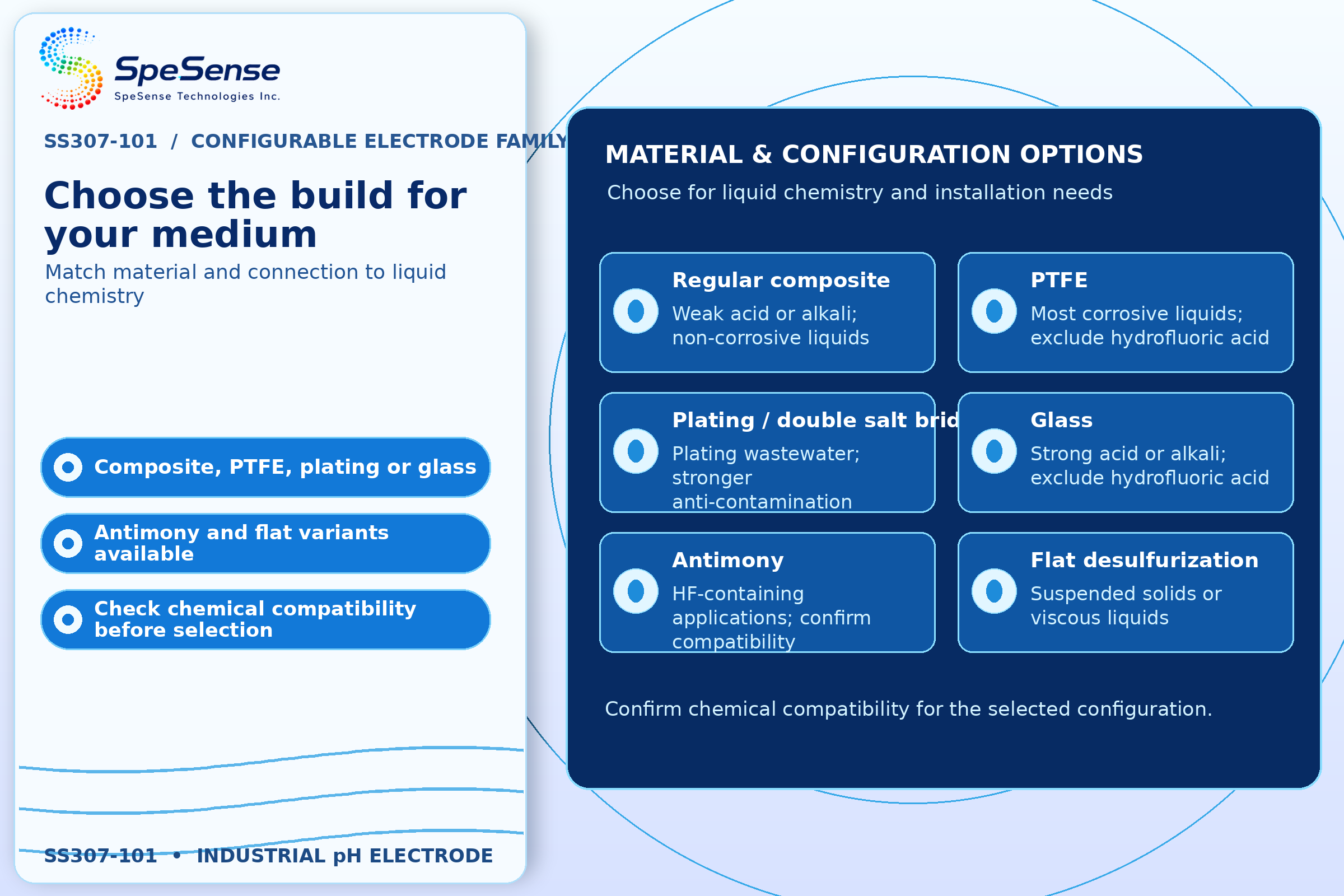

| Housing / Electrode Options | Composite, PTFE, plating, glass, antimony and flat desulfurization variants |

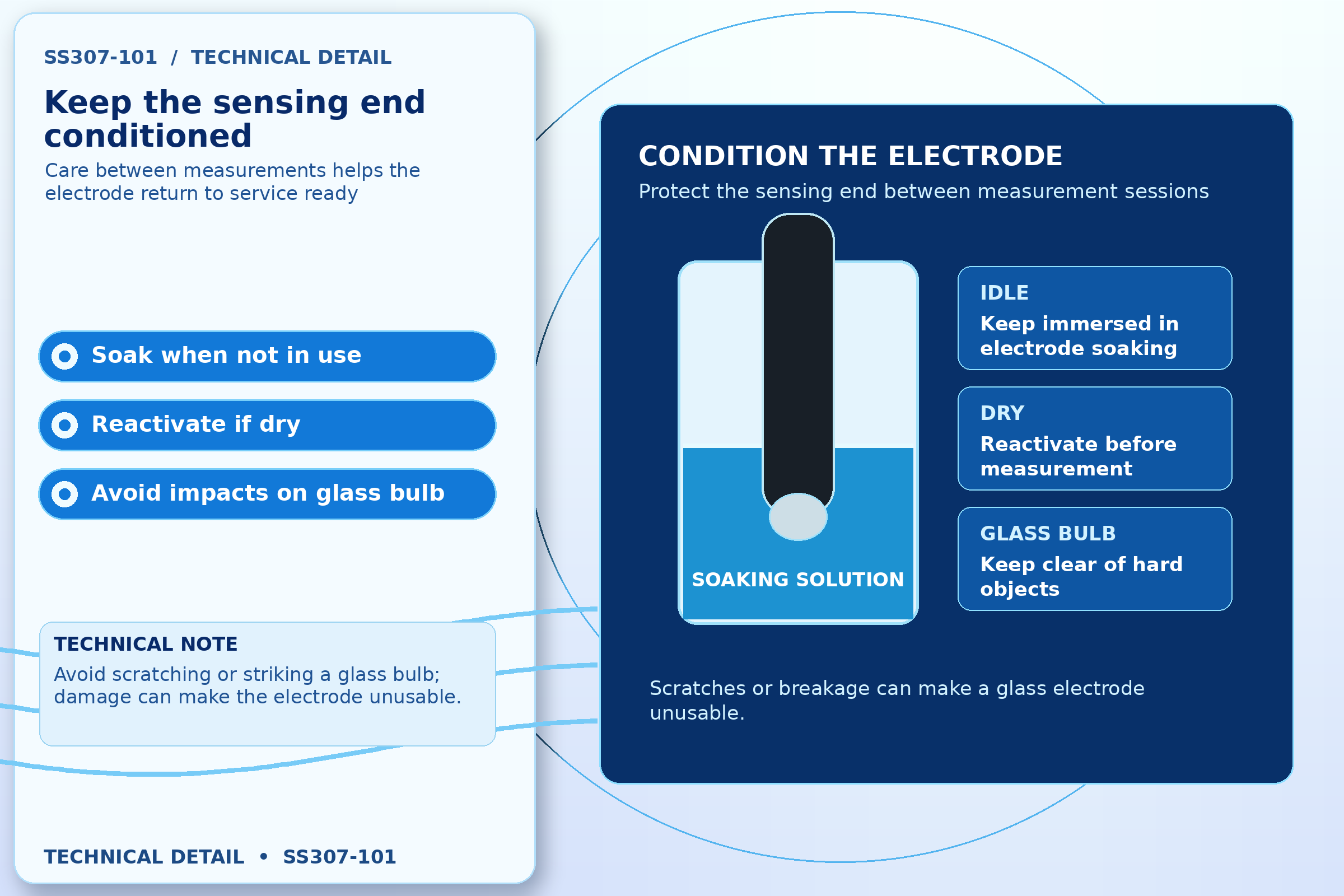

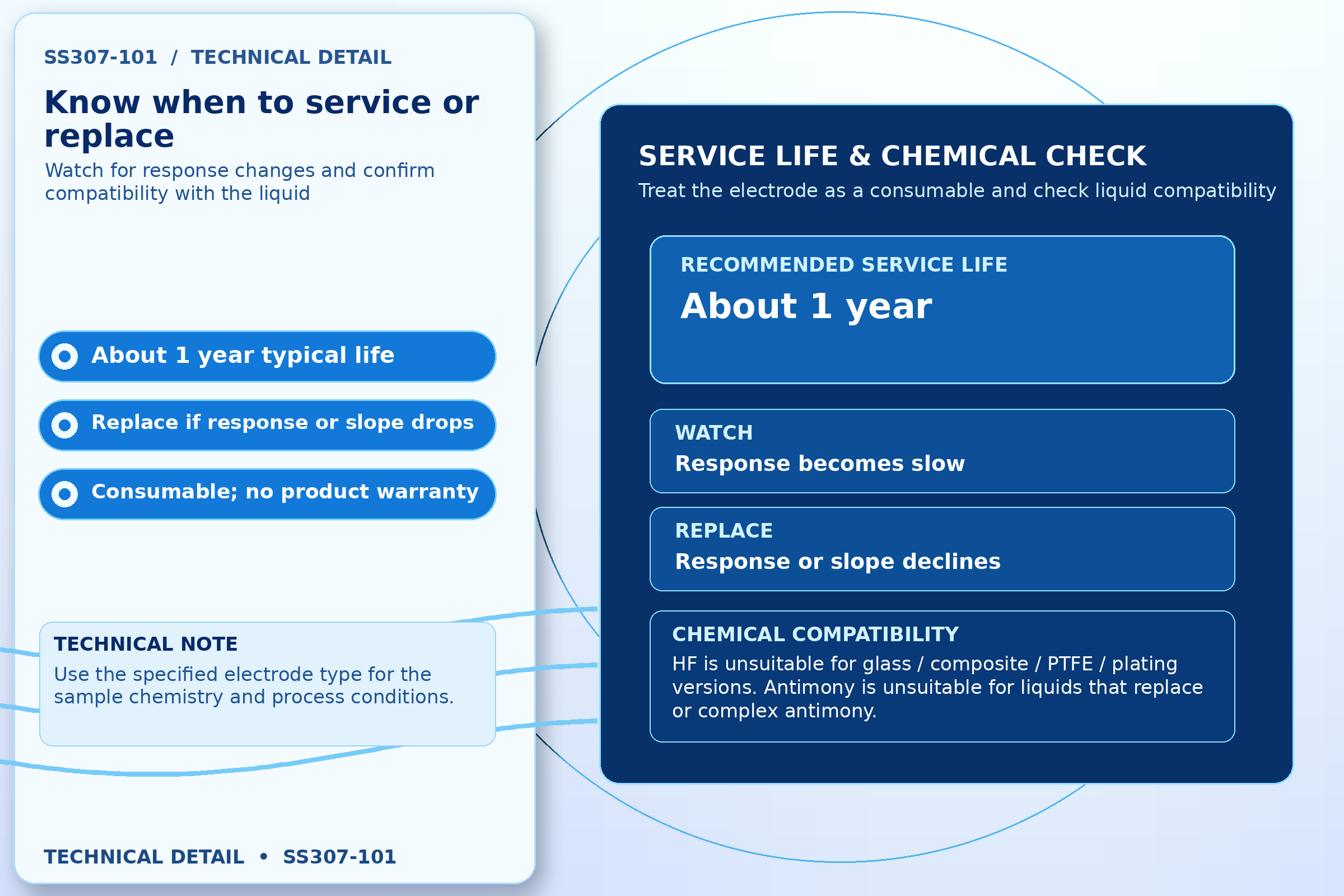

| Recommended Service Life | About 1 year; replace when response or slope declines |
