pH Sensor
SS307-02-ETH
工业级 pH 以太网变送器
产品亮点
● RJ45 Ethernet with TCP data upload.
● Static IP or DHCP, cross-gateway and DNS support.
● Automatic or manual temperature compensation.
● Wide-voltage DC 10–30 V input; configurable data-frame interval and server destination.
● Static IP or DHCP, cross-gateway and DNS support.
● Automatic or manual temperature compensation.
● Wide-voltage DC 10–30 V input; configurable data-frame interval and server destination.
产品概述

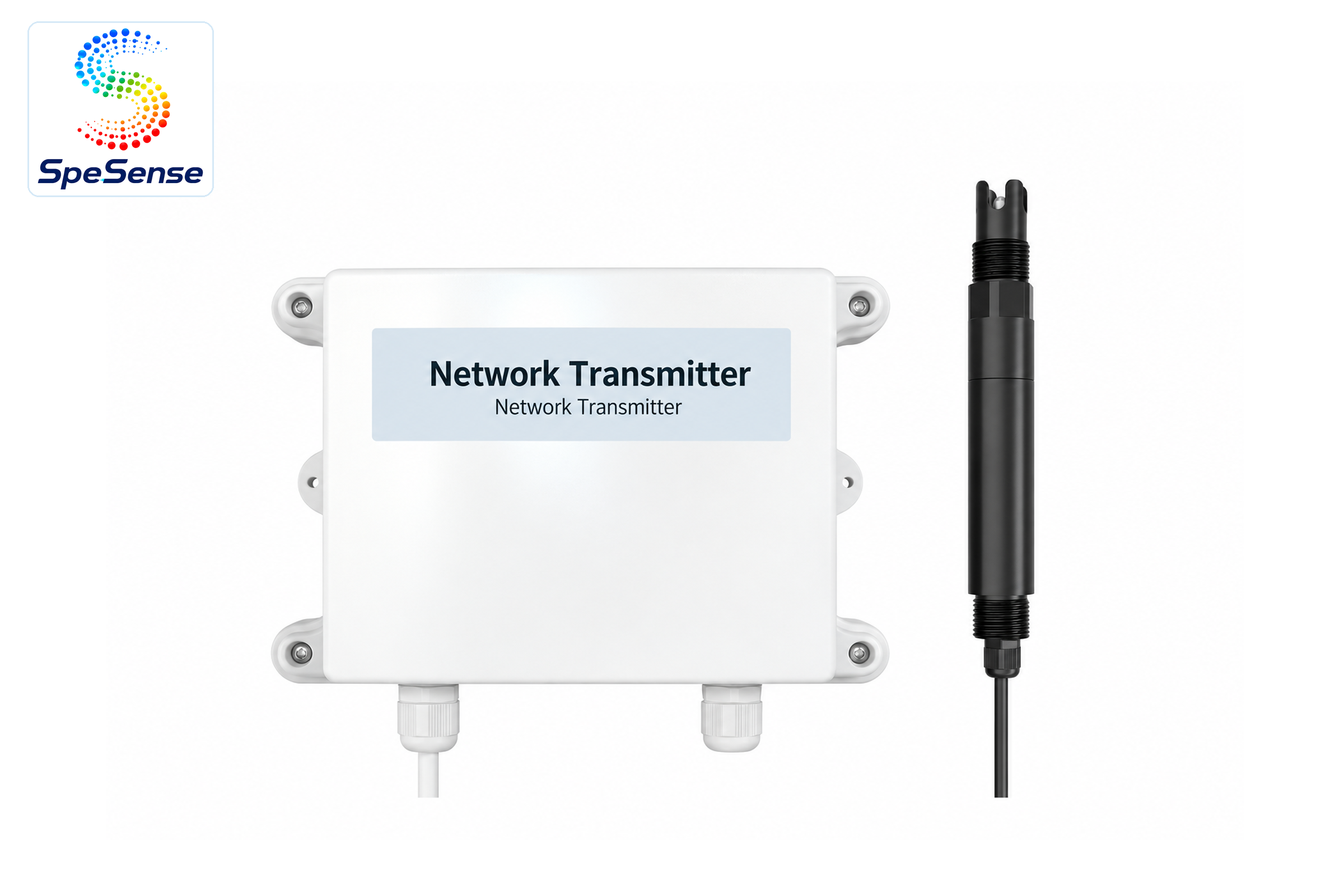

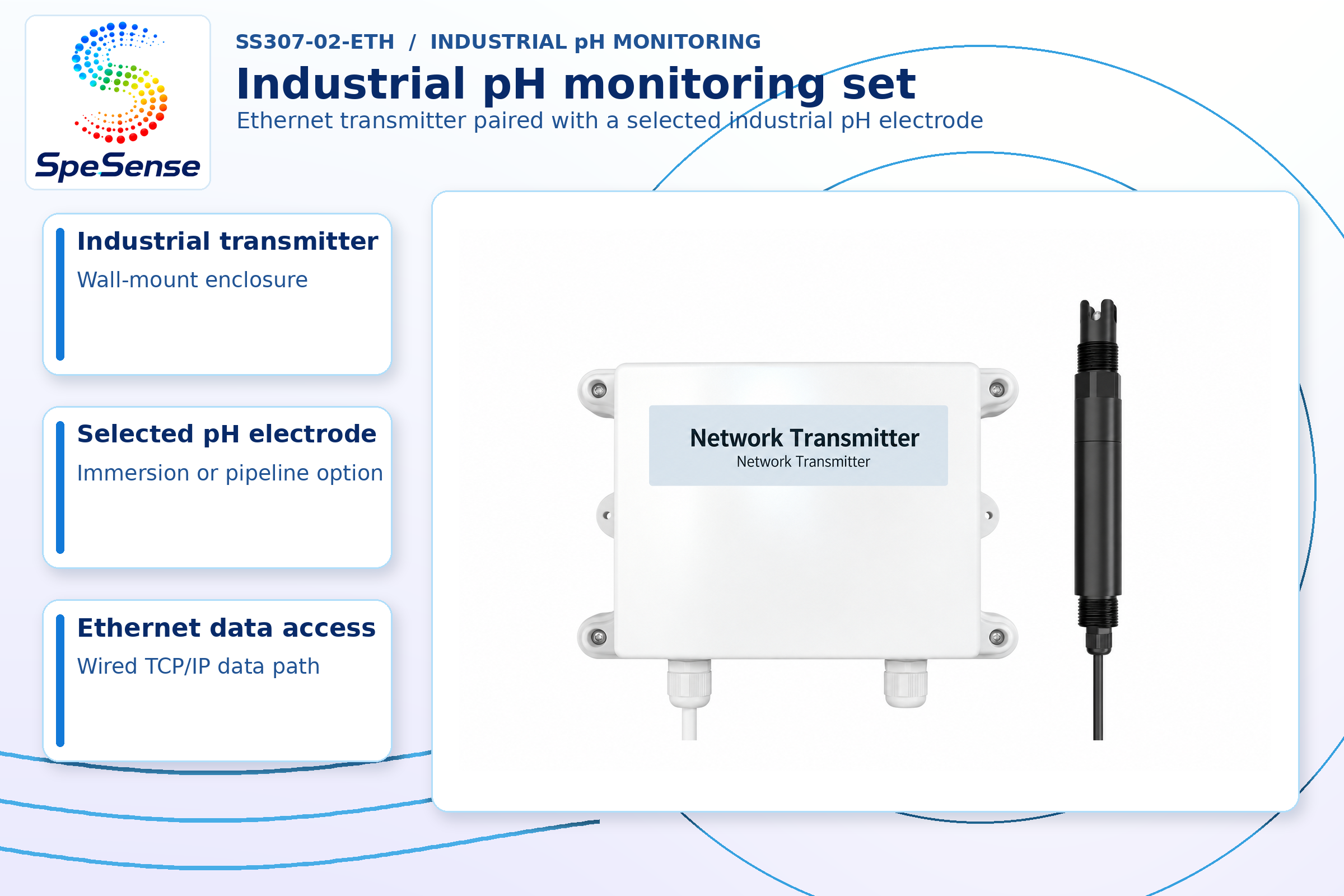

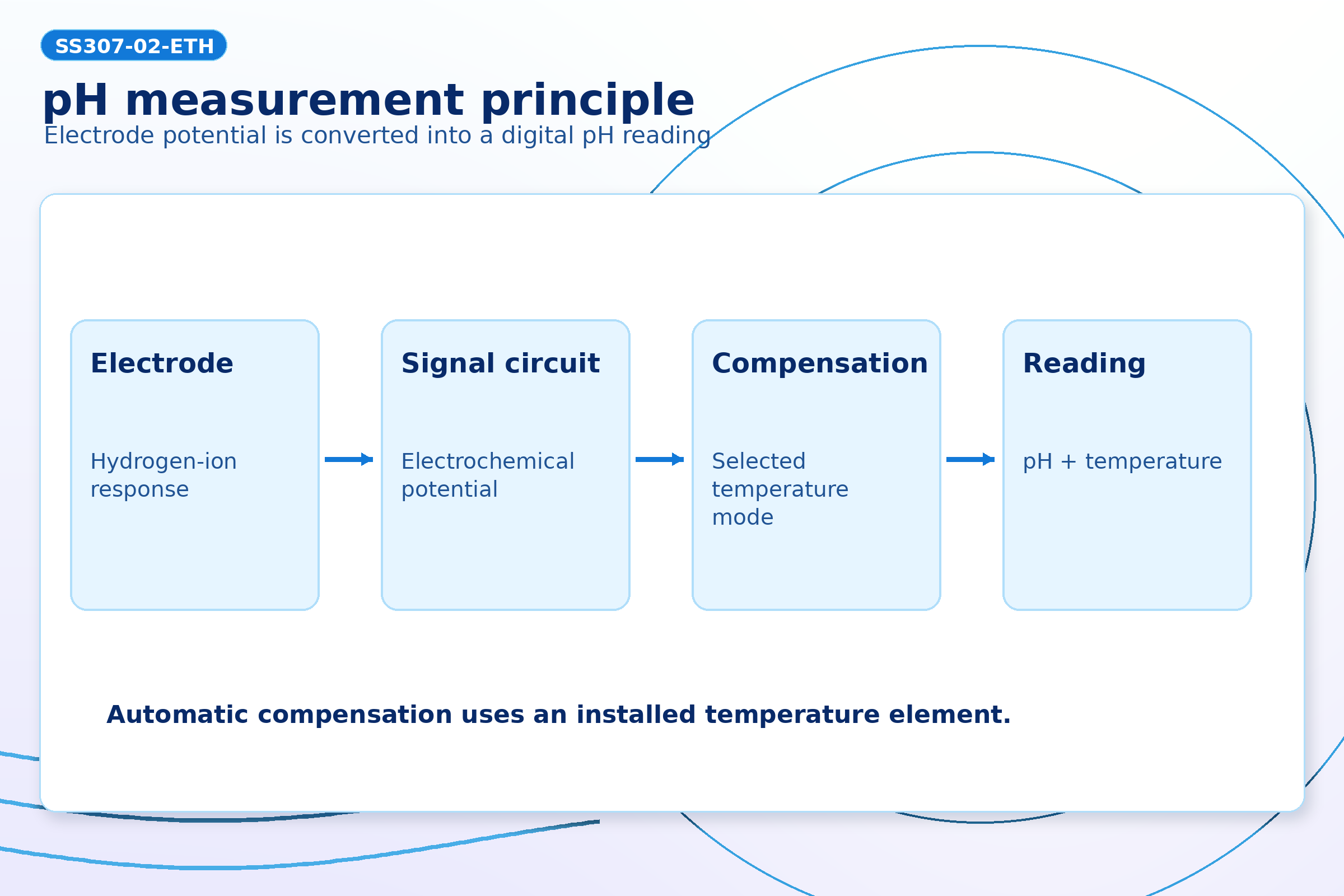

• SS307-02-ETH combines a pH/temperature acquisition circuit with RJ45 Ethernet communication.

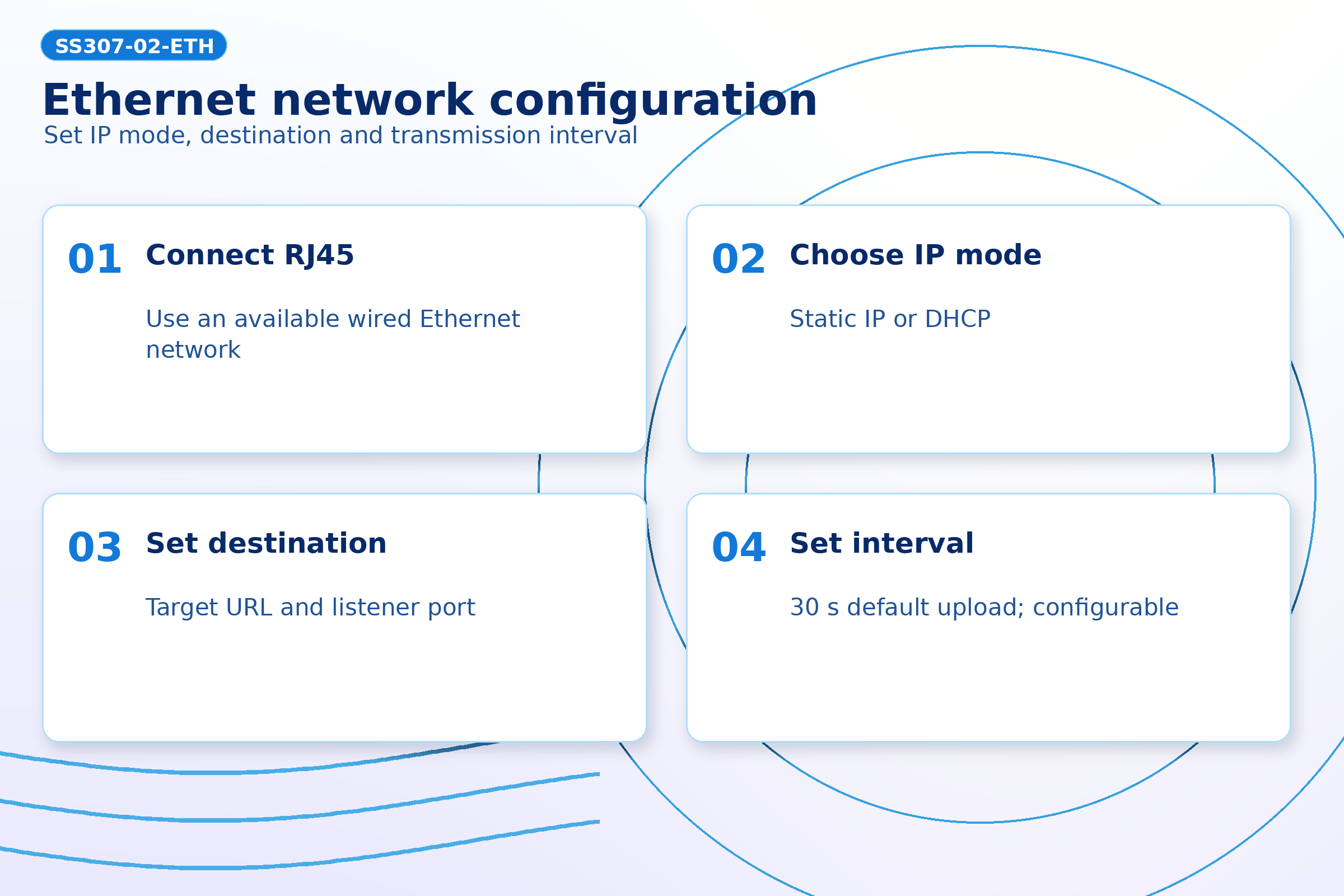

• Static-IP and DHCP modes, cross-gateway transmission and DNS domain-name resolution simplify network deployment.

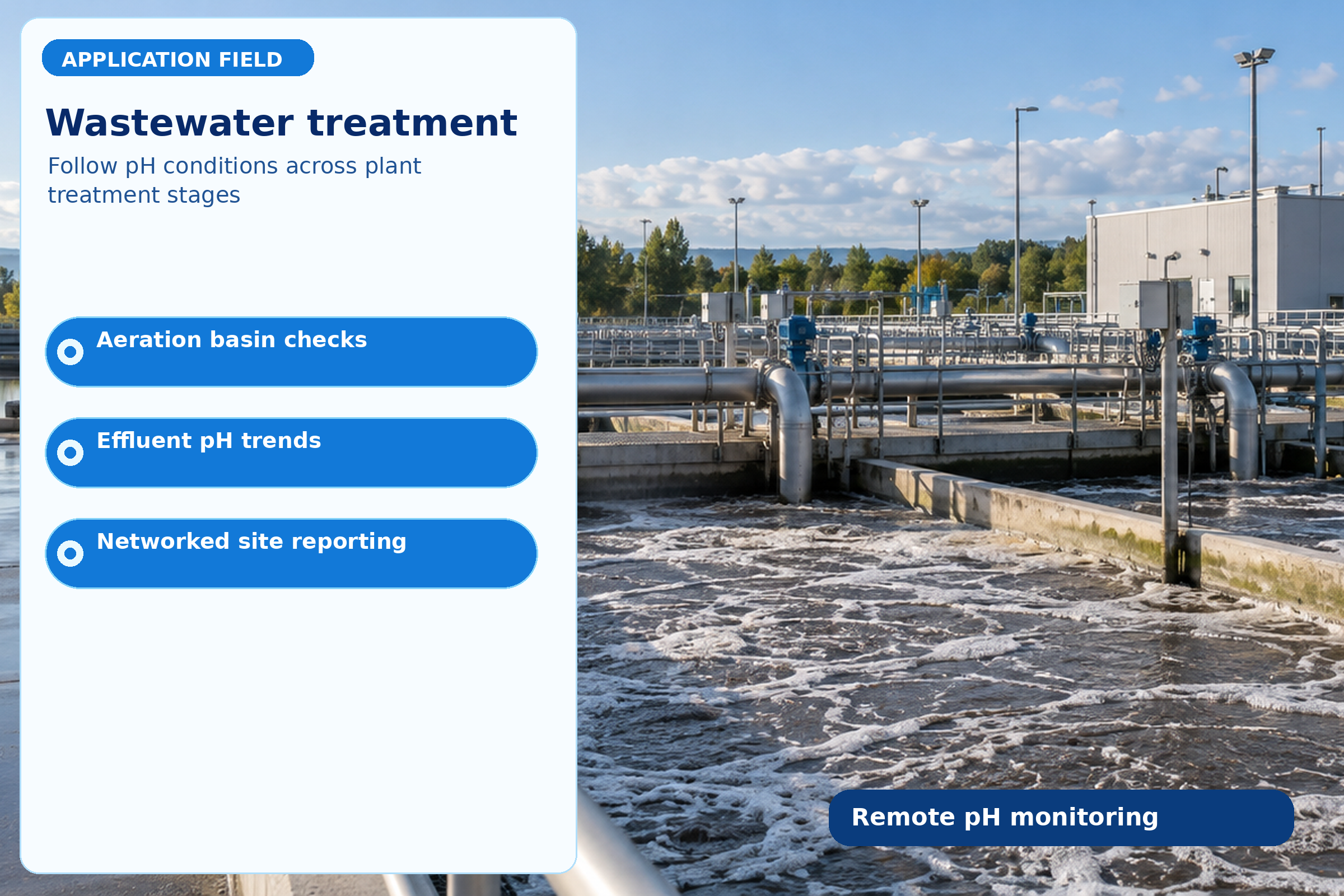

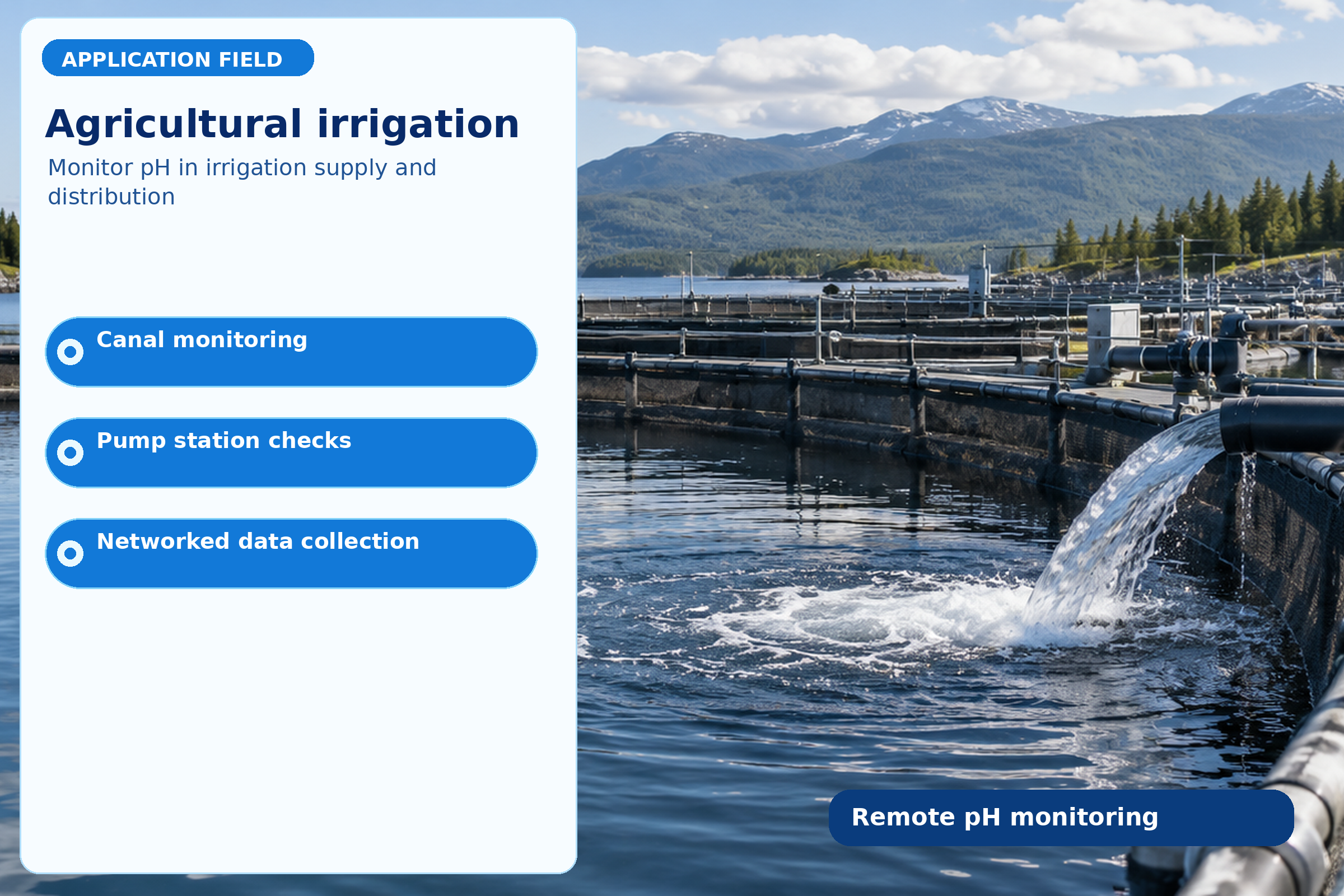

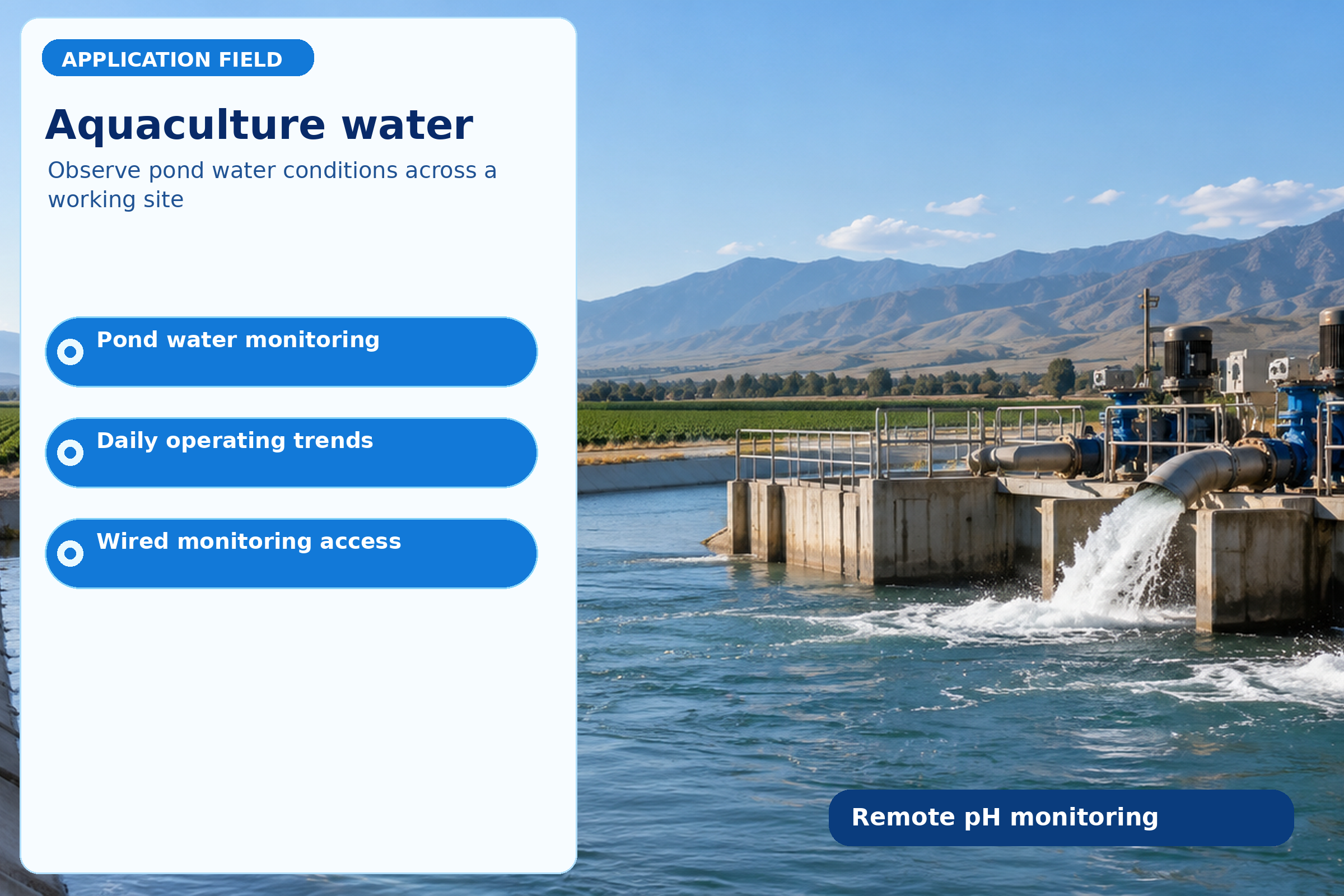

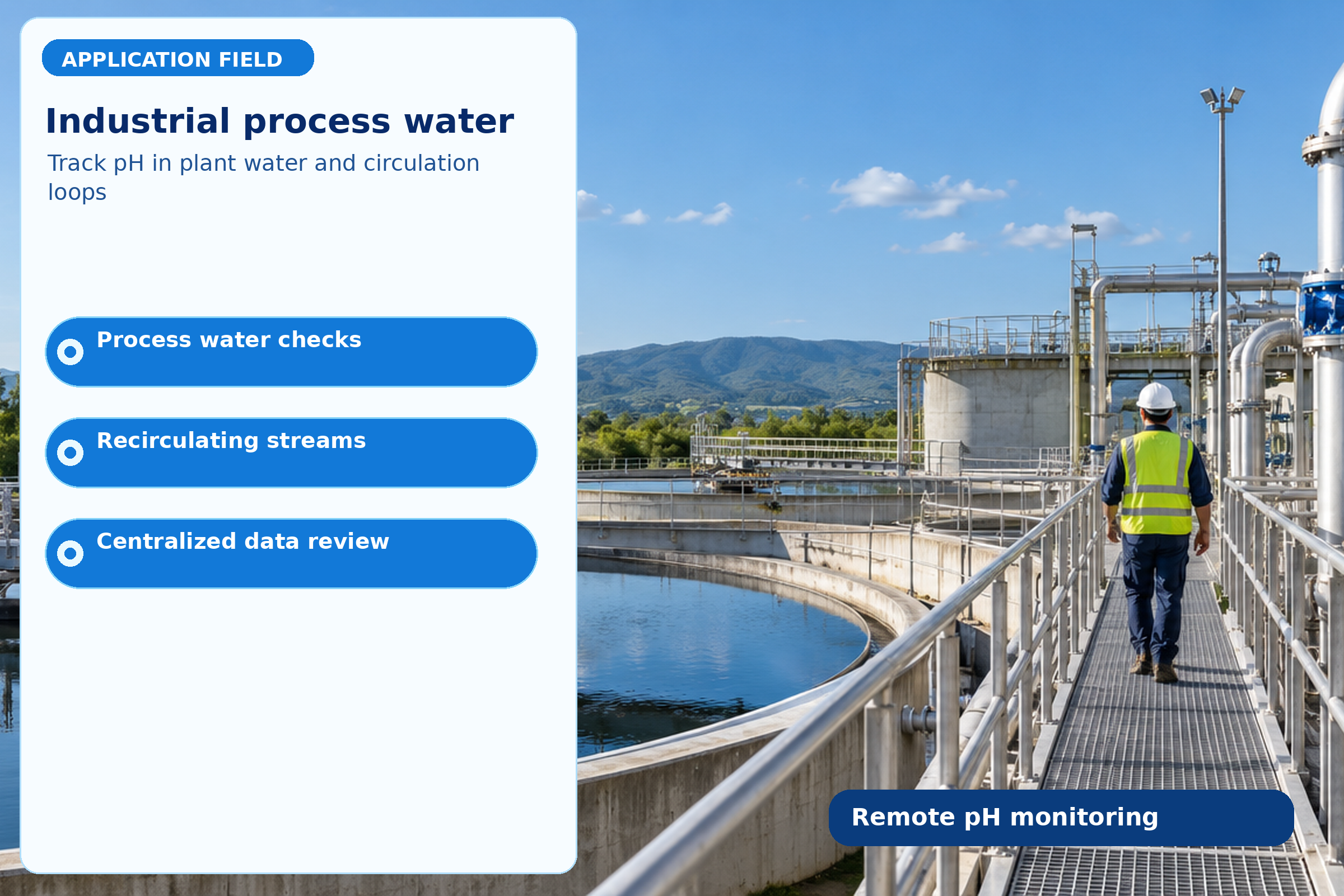

• It is suited to industrial wastewater, domestic wastewater, agriculture, aquaculture and other weakly acidic or weakly alkaline liquids.
| Item | Specification |
| Model | SS307-02-ETH |
| Power Supply | DC 10–30 V wide-voltage input |
| Power Consumption | 0.8 W typical |

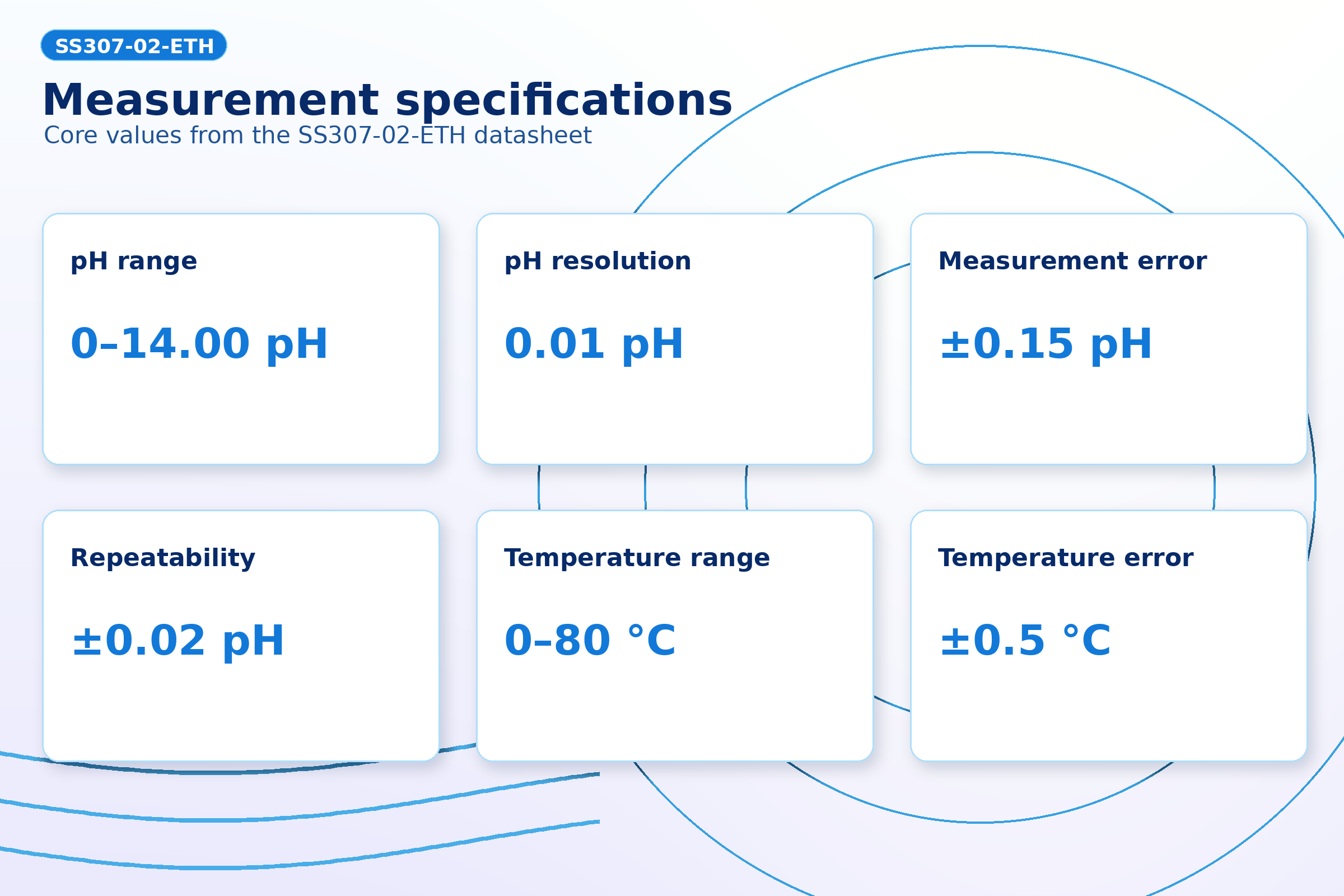

| pH Measurement Range | 0–14.00 pH |
| pH Resolution | 0.01 pH |
| pH Measurement Error | ±0.15 pH |
| pH Repeatability | ±0.02 pH |
| Temperature Range | 0–80 °C; flat desulfurization electrode: 0–60 °C |
| Temperature Resolution / Error | 0.1 °C / ±0.5 °C |

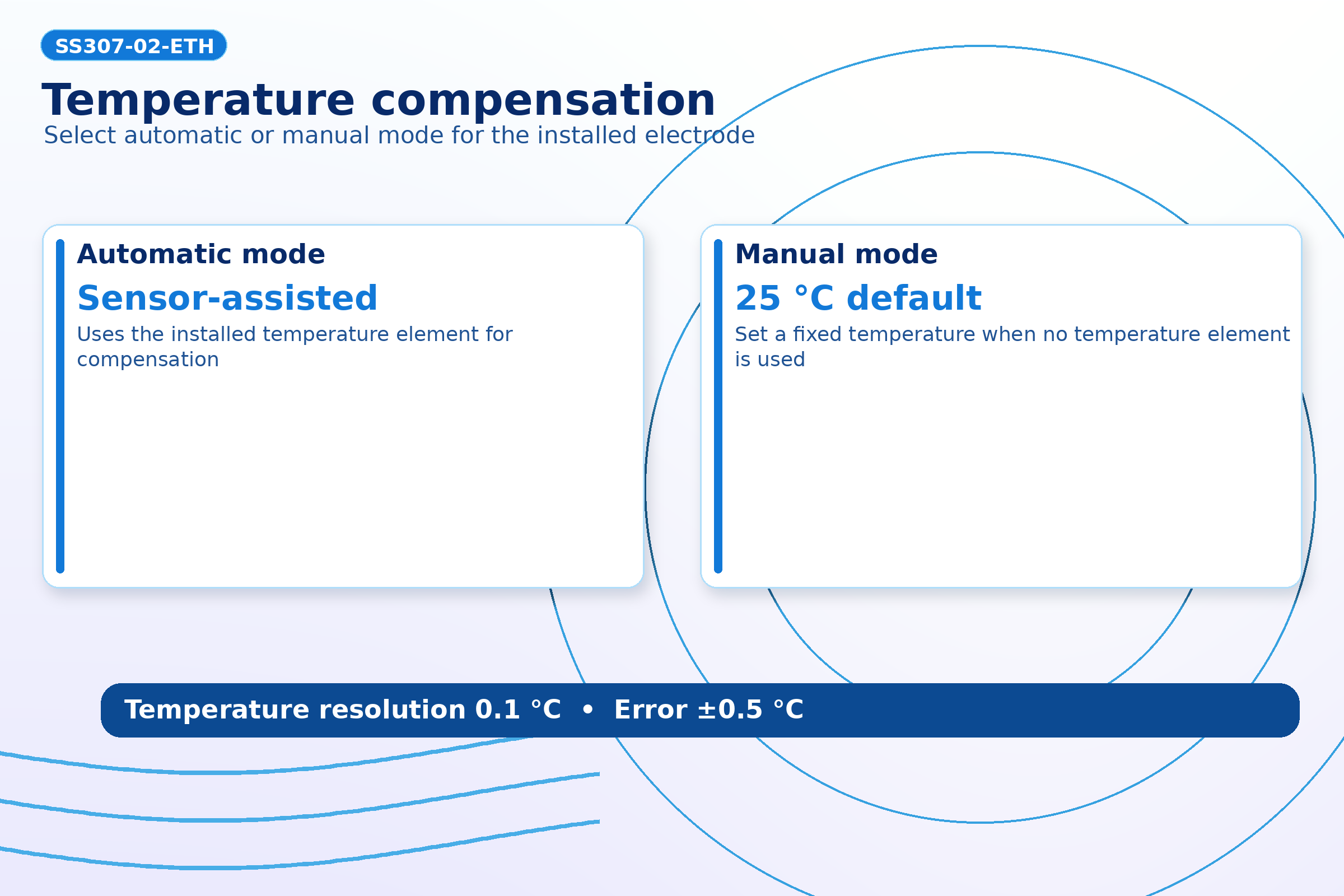

| Temperature Compensation | Automatic or manual; manual default 25 °C |
| Transmitter Environment | −40–60 °C; 0–95% RH, non-condensing |
| Electrode Pressure | 0.6 MPa |

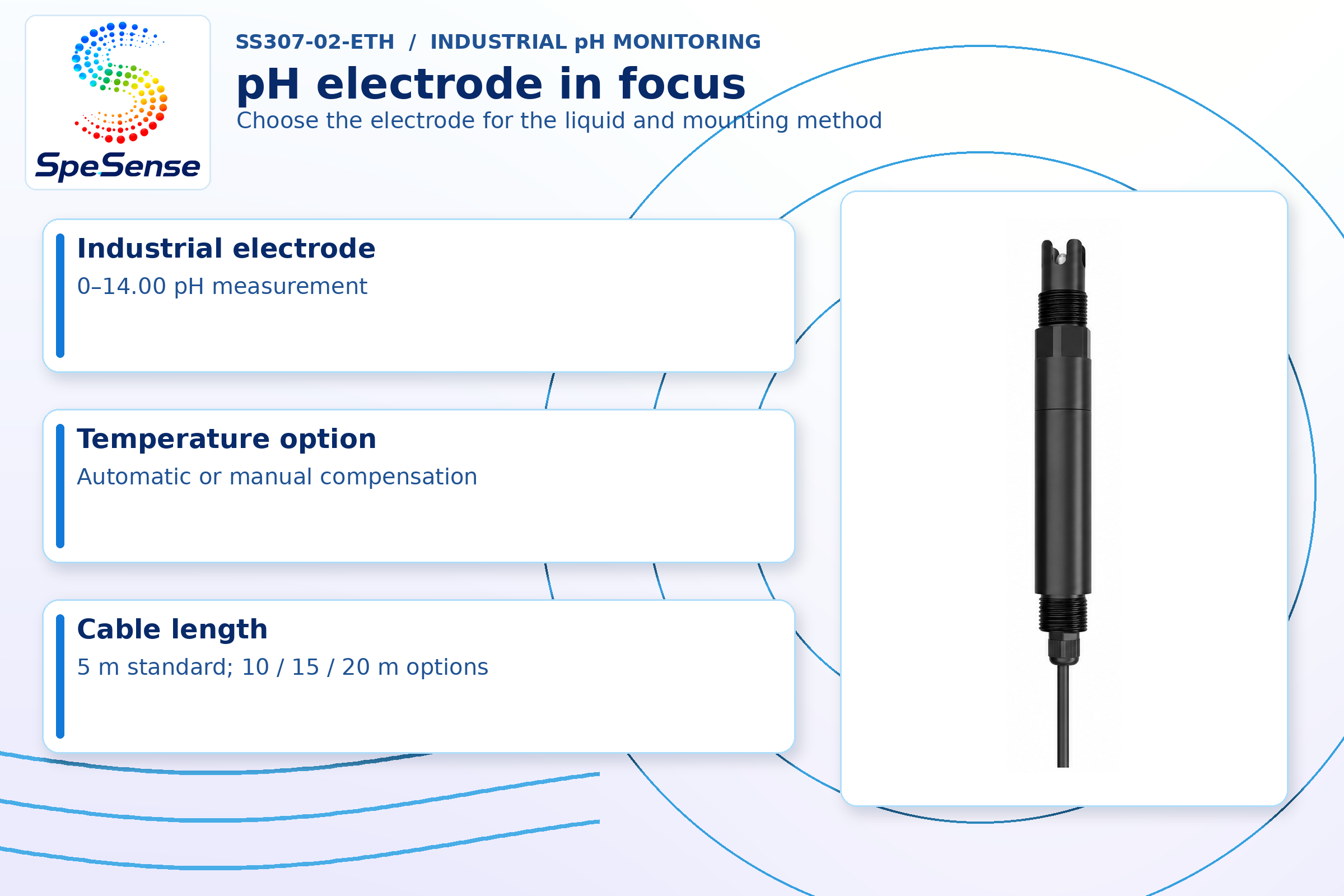

| Electrode Cable | 5 m default; 10/15/20 m customizable |

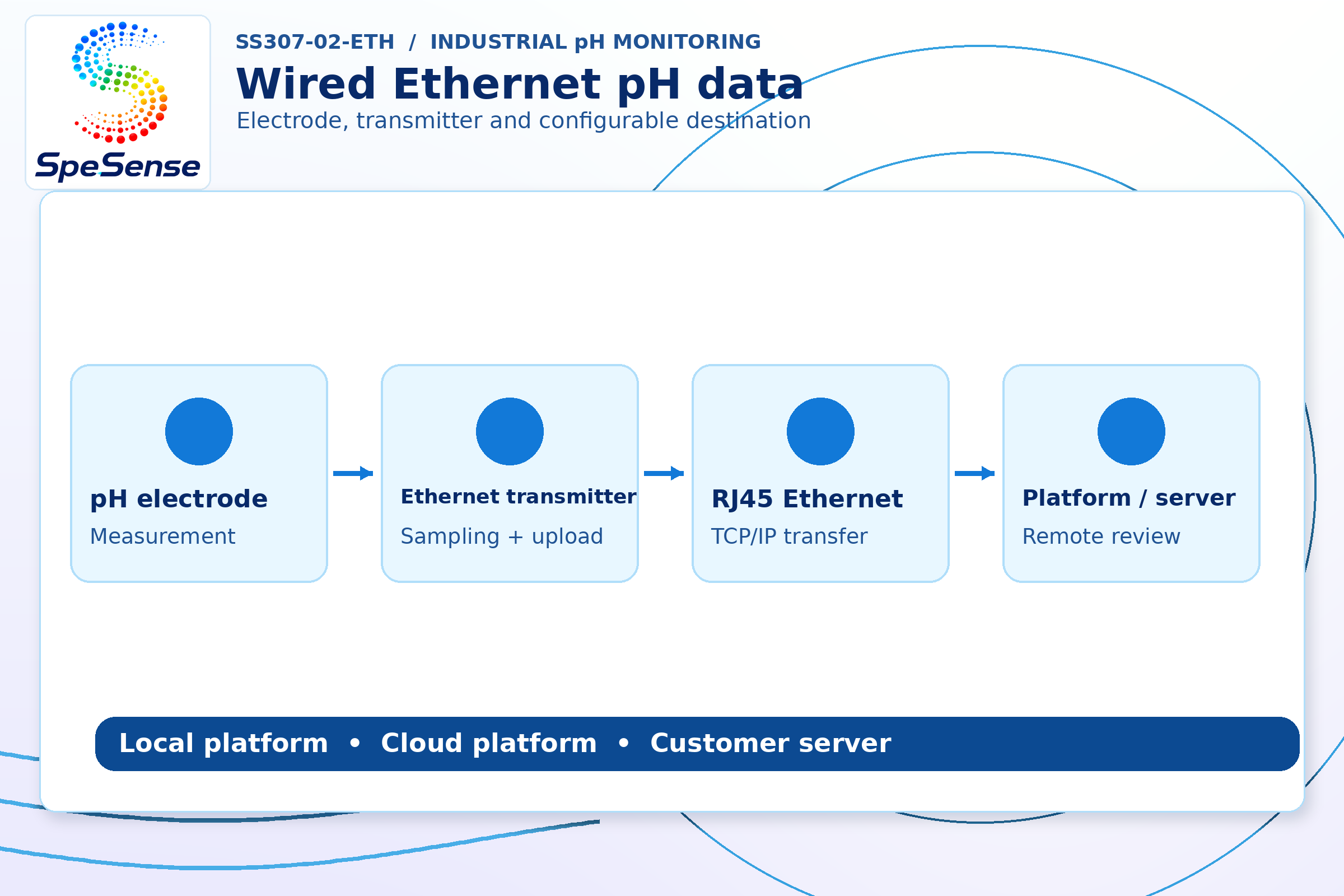

| Communication | RJ45 Ethernet; TCP upload; static IP or DHCP; DNS supported |
| Upload Interval | 30 s default; 1–60000 s configurable |

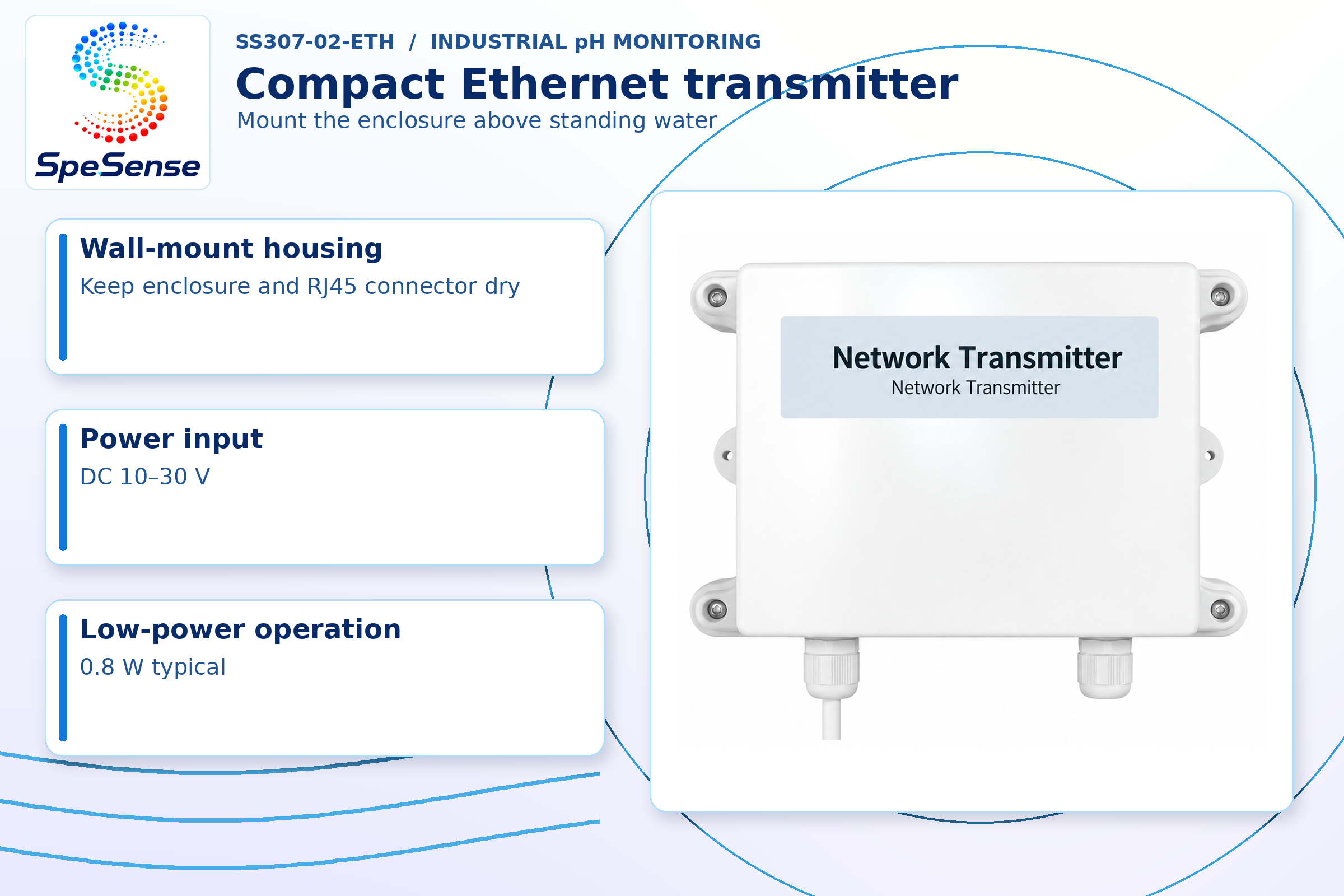

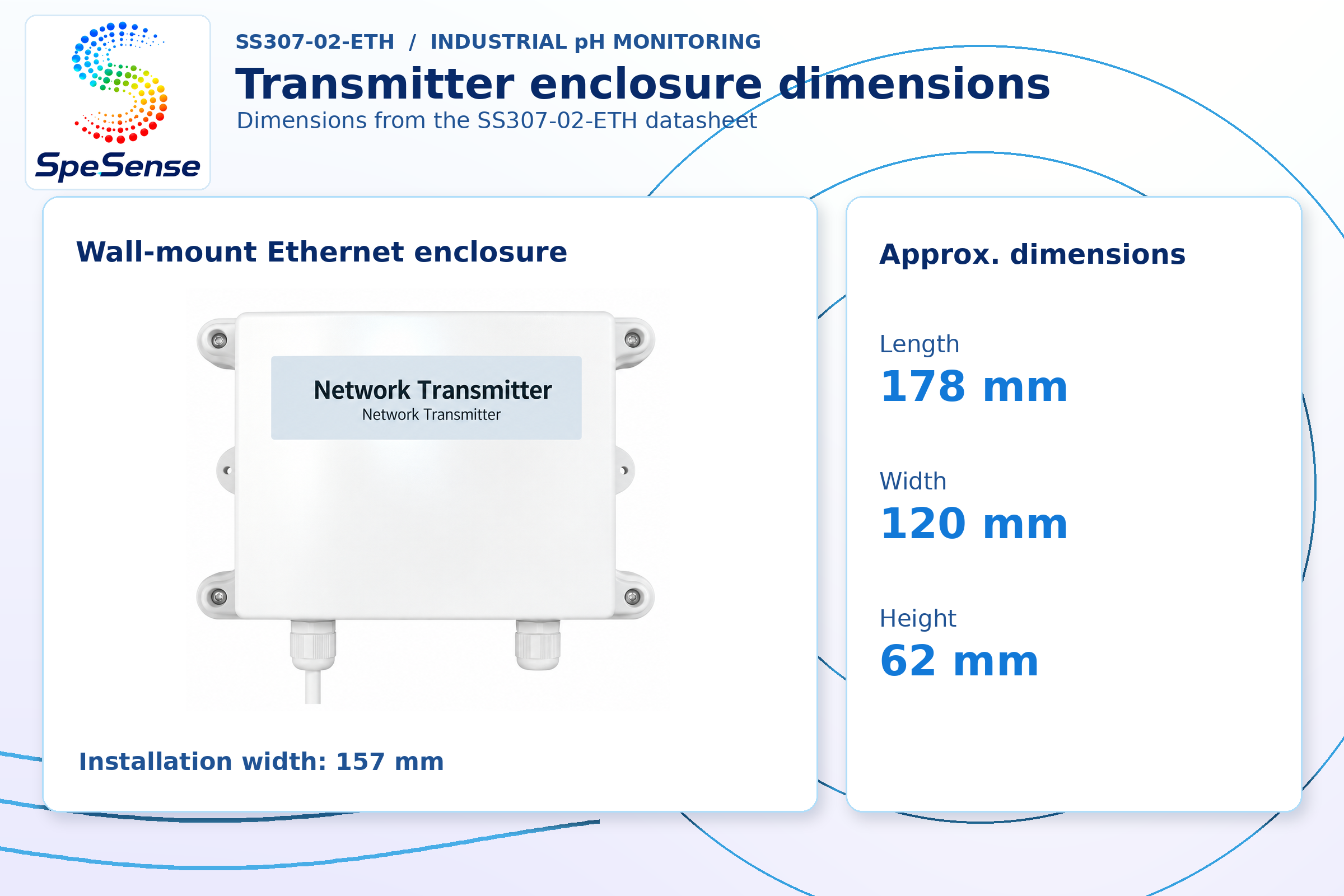

| Enclosure | Wall-mount enclosure; approximately 178 × 120 × 62 mm |
