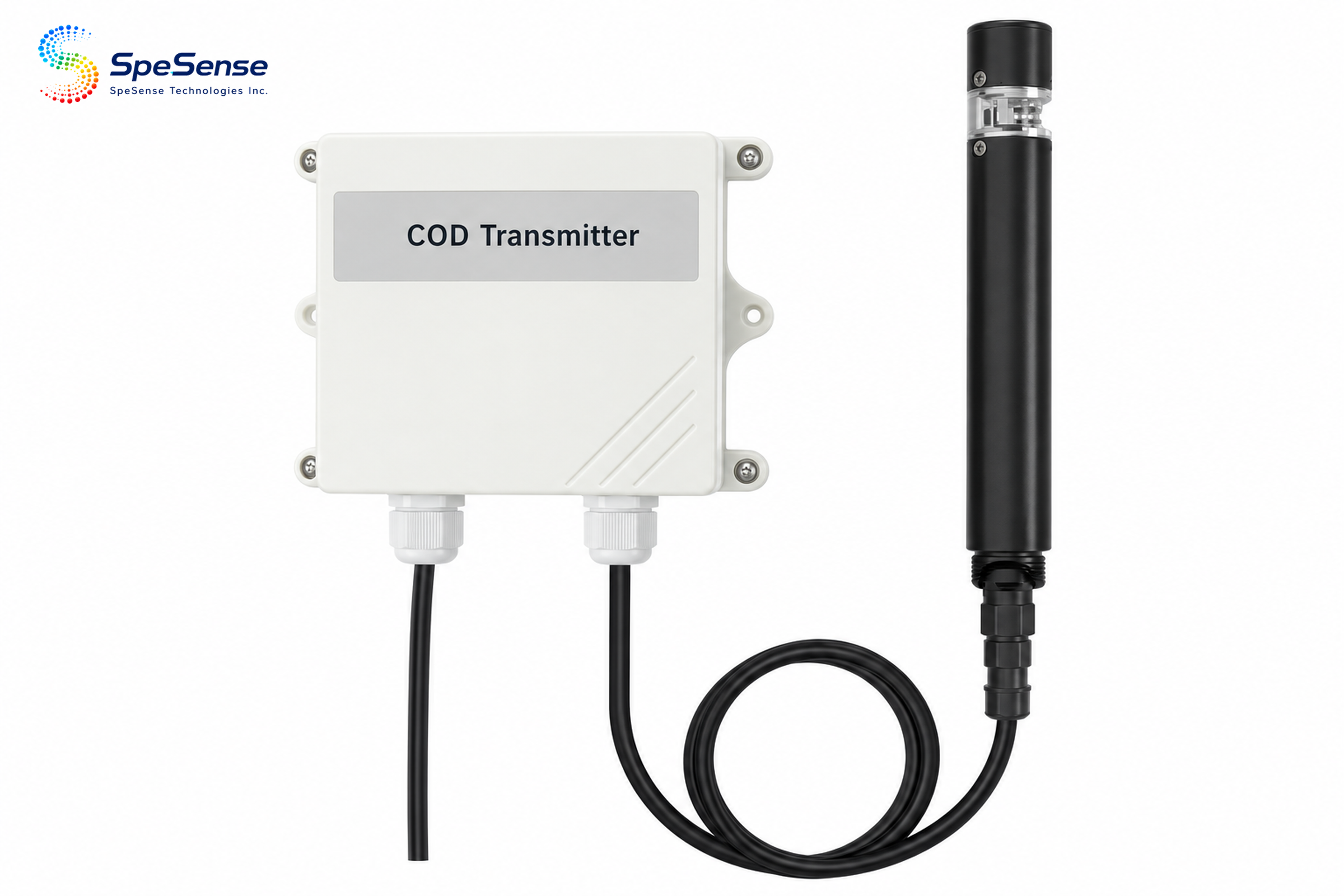

COD sensor
SS306-01-N01
自清洗 COD 变送器
产品亮点
● Reagent-free dual-wavelength UV absorption.

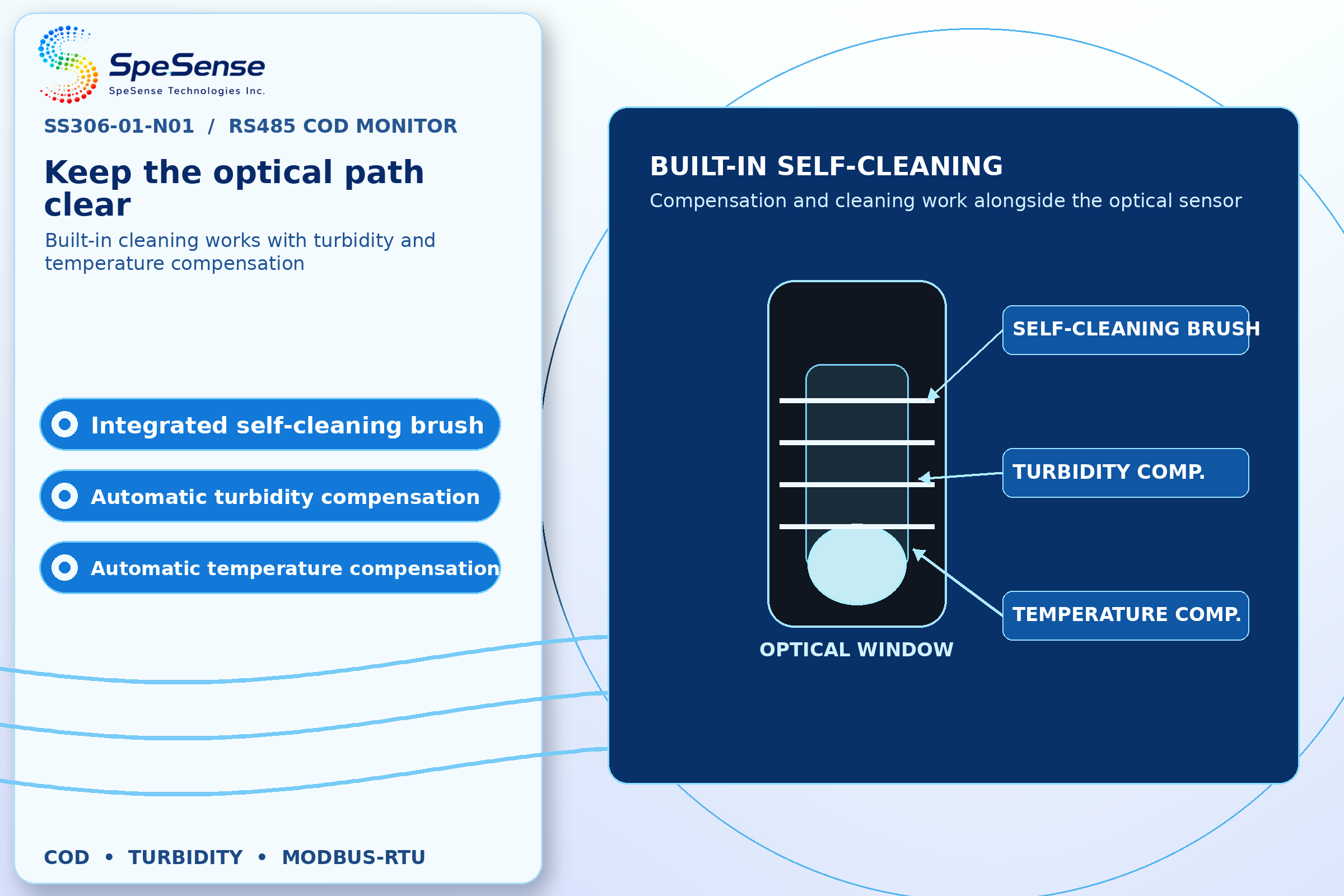

● Integrated self-cleaning against biofouling.
● Automatic turbidity and temperature compensation.
● Wide 9–30 VDC supply and configurable RS485 communication.
● Integrated self-cleaning against biofouling.
● Automatic turbidity and temperature compensation.
● Wide 9–30 VDC supply and configurable RS485 communication.
产品概述

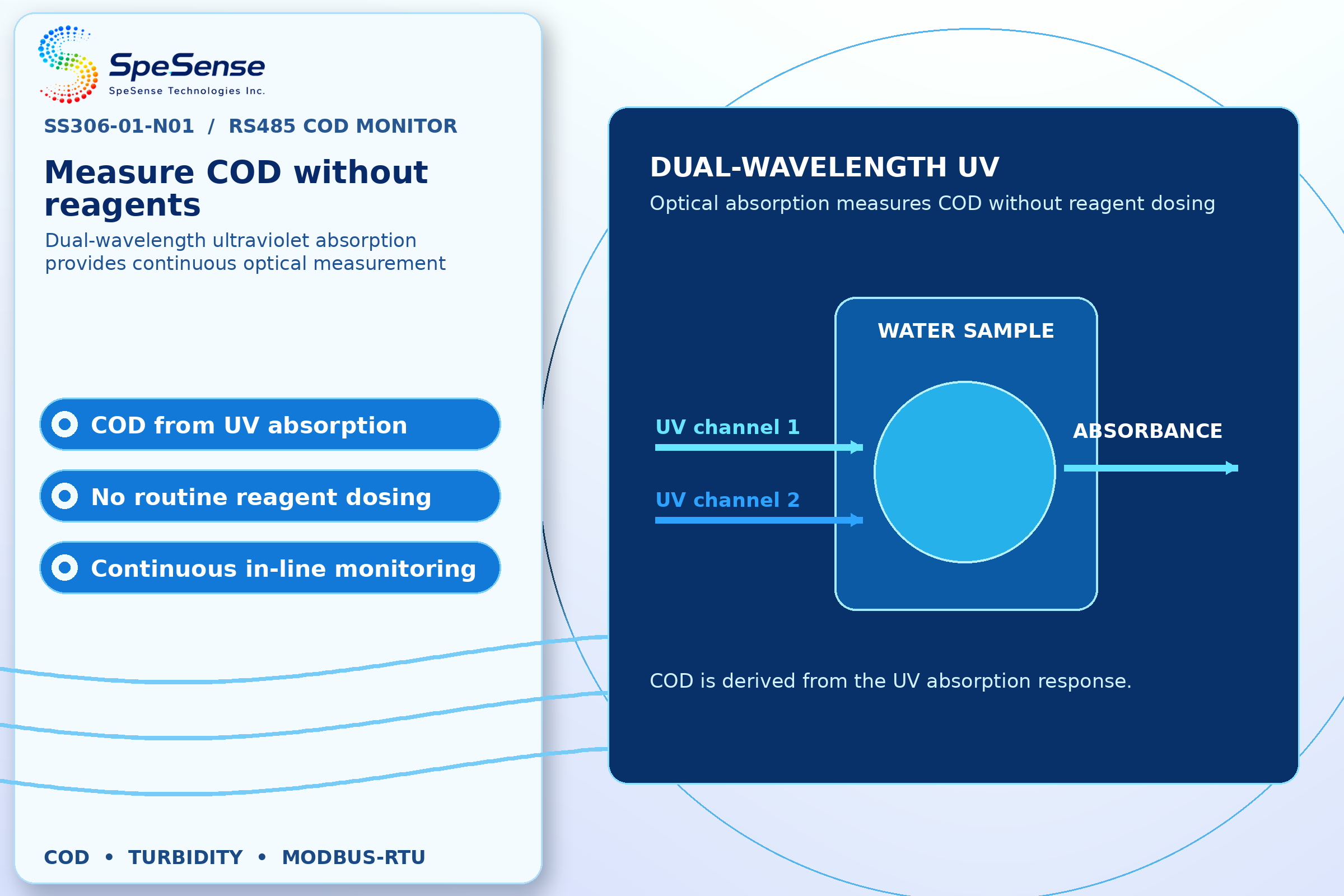

• SS306-01-N01 measures chemical oxygen demand (COD) using dual-wavelength ultraviolet absorption without chemical reagents.
• The integrated self-cleaning system reduces biofouling, with automatic temperature and turbidity compensation for field stability.

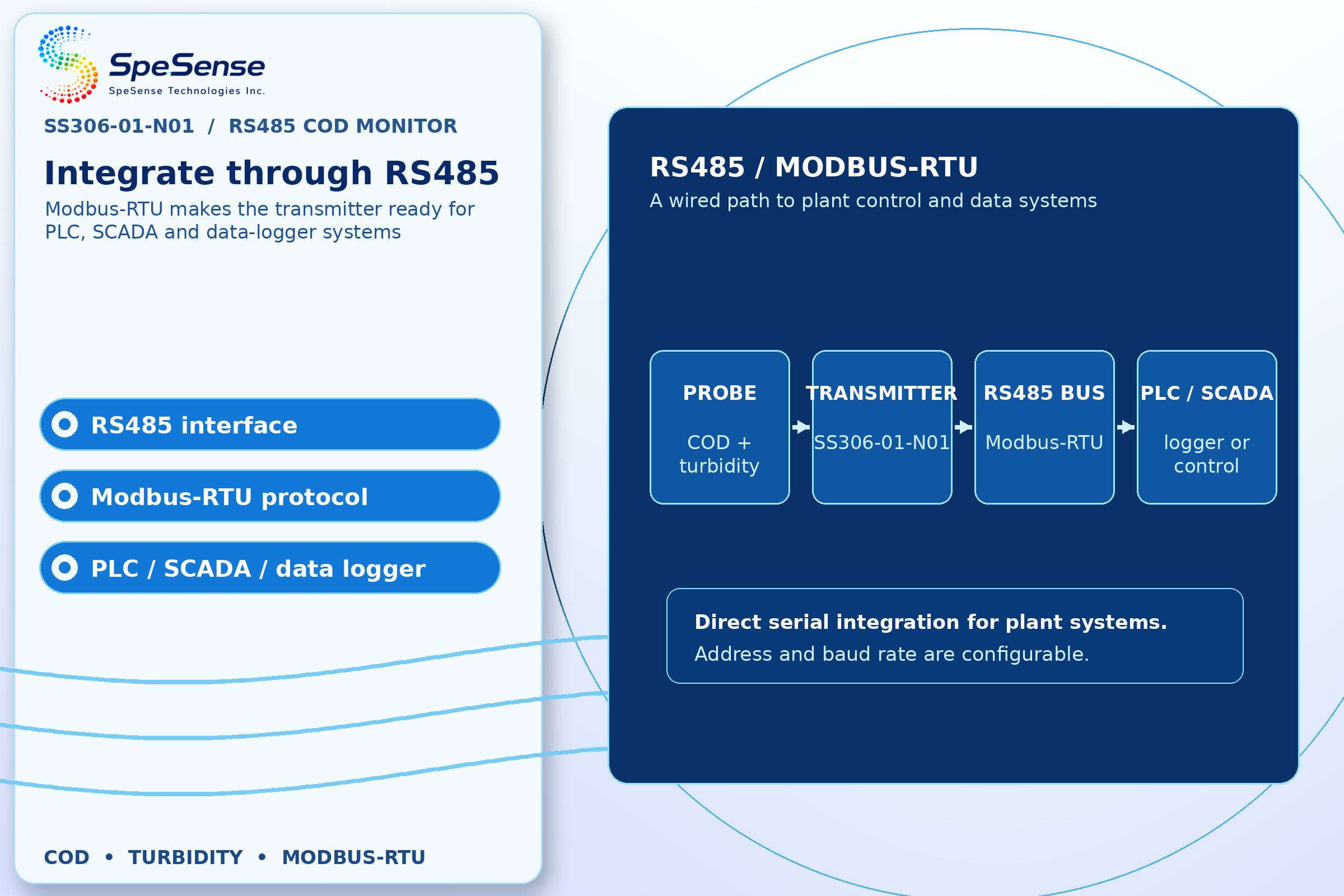

• Measured COD, turbidity and temperature data are available over RS485 Modbus-RTU for PLC, SCADA and data-acquisition integration.
| Item | Specification |

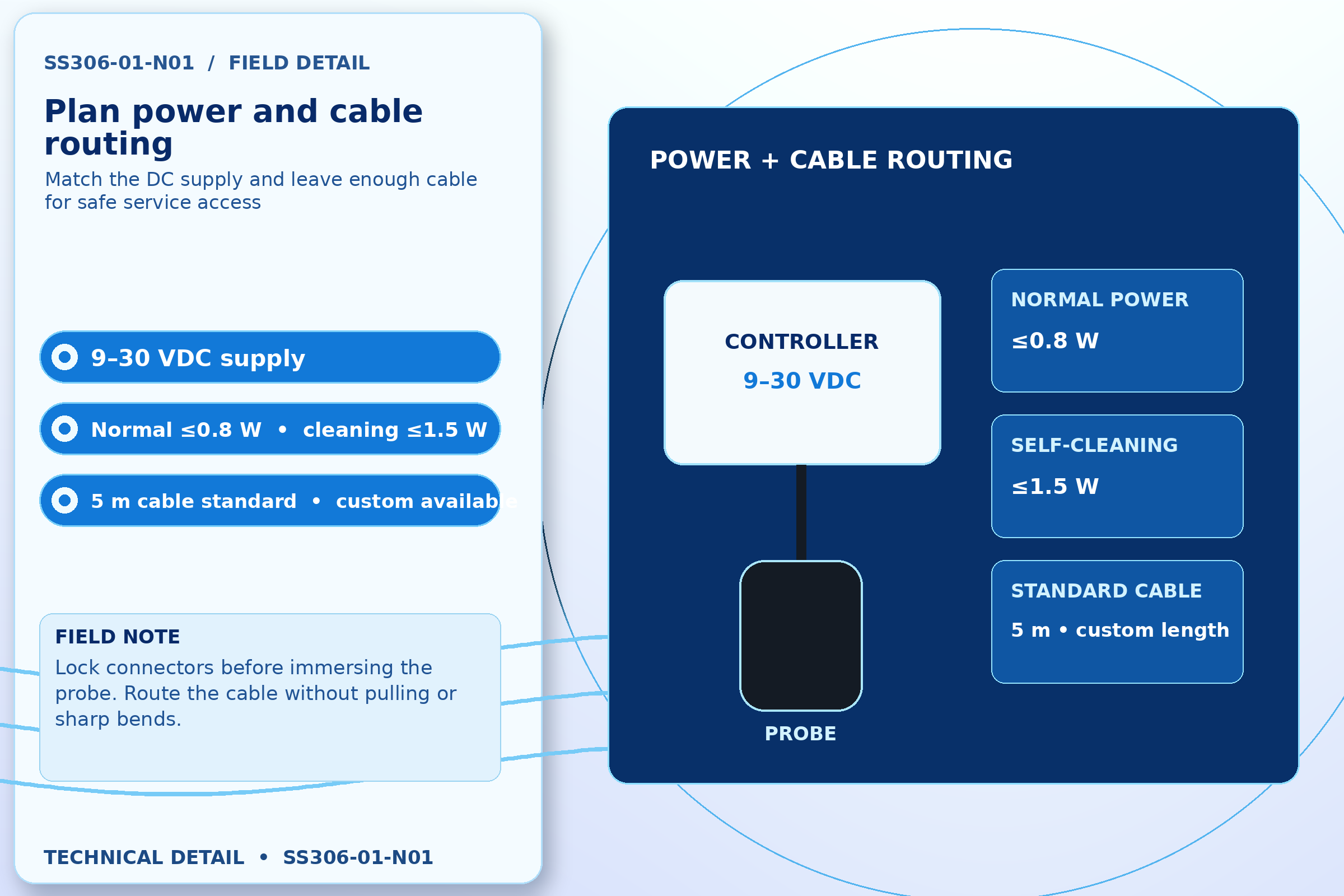

| Power Supply | DC 9–30 V |
| Typical Power Consumption | ≤0.8 W normal; ≤1.5 W during self-cleaning |

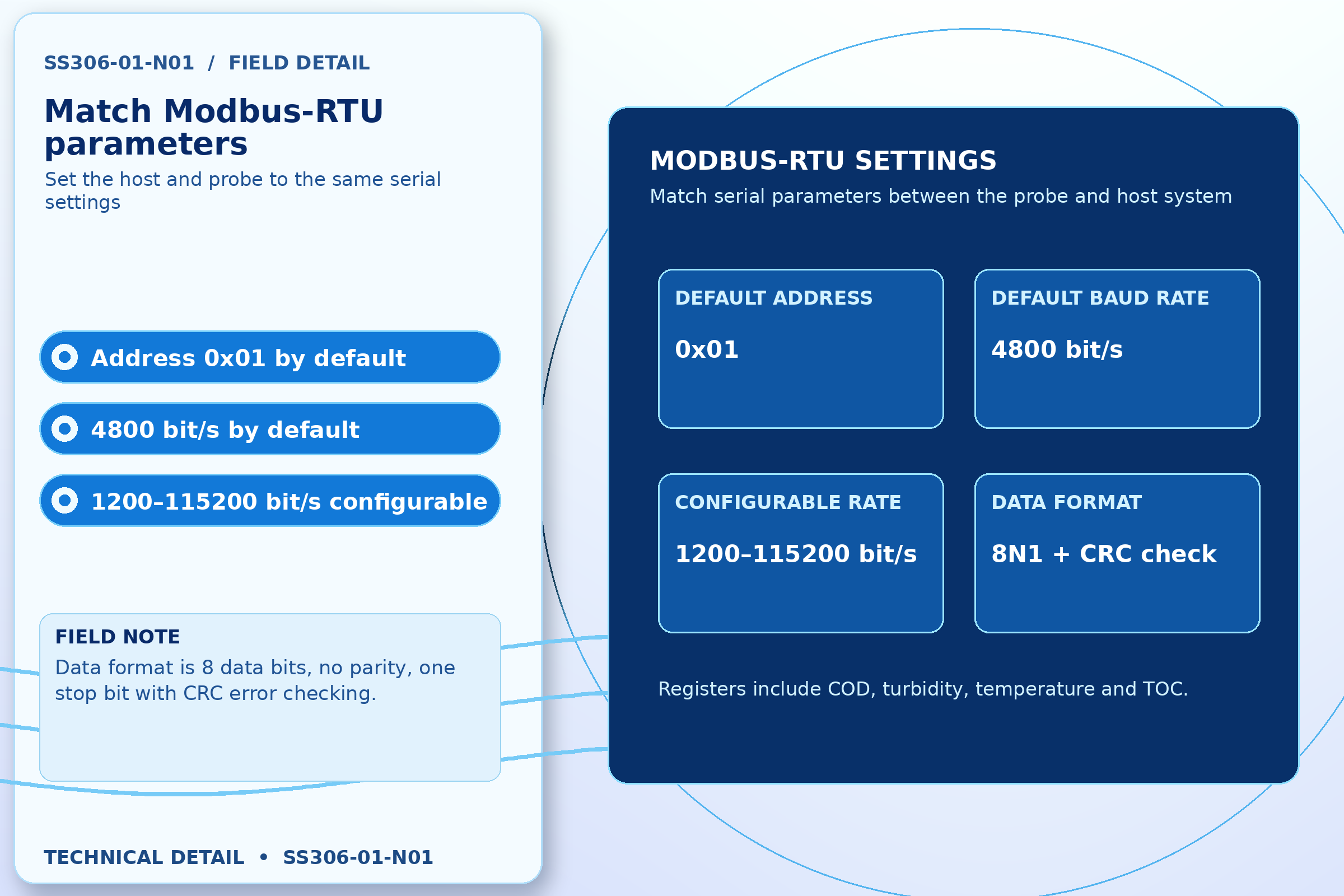

| Communication Interface | RS485; standard Modbus-RTU protocol |
| Baud Rate | 4800 bit/s default; 1200–115200 bit/s configurable |
| Measurement Principle | Dual-wavelength ultraviolet absorption |

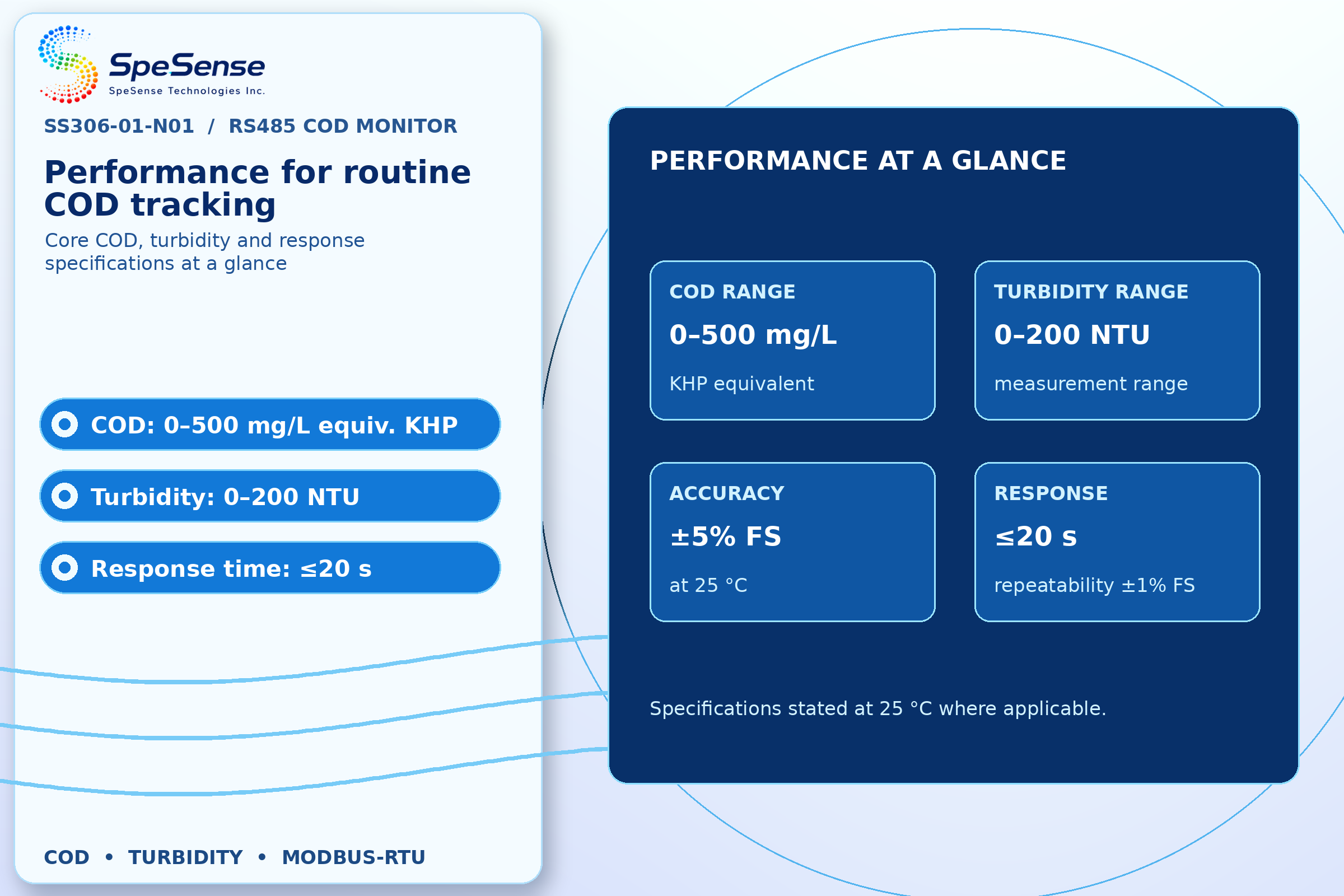

| COD Measurement Range | 0–500 mg/L equiv. KHP |
| Turbidity Measurement Range | 0–200 NTU |
| Measured Channels | COD, turbidity and temperature; TOC register available |
| COD Measurement Accuracy | ±5% FS equiv. KHP at 25 °C |
| Turbidity Accuracy | ±5% FS at 25 °C |
| COD Resolution | 0.1 mg/L |
| Turbidity Resolution | 0.1 NTU |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.5 °C |
| Repeatability | ±1% FS equiv. KHP at 25 °C |
| Response Time | ≤20 s |
| Operating Conditions | 0–40 °C |
| Ingress Protection | IP68 |
| Flow Velocity | <3 m/s |
| Probe Pressure Resistance | <0.1 MPa |

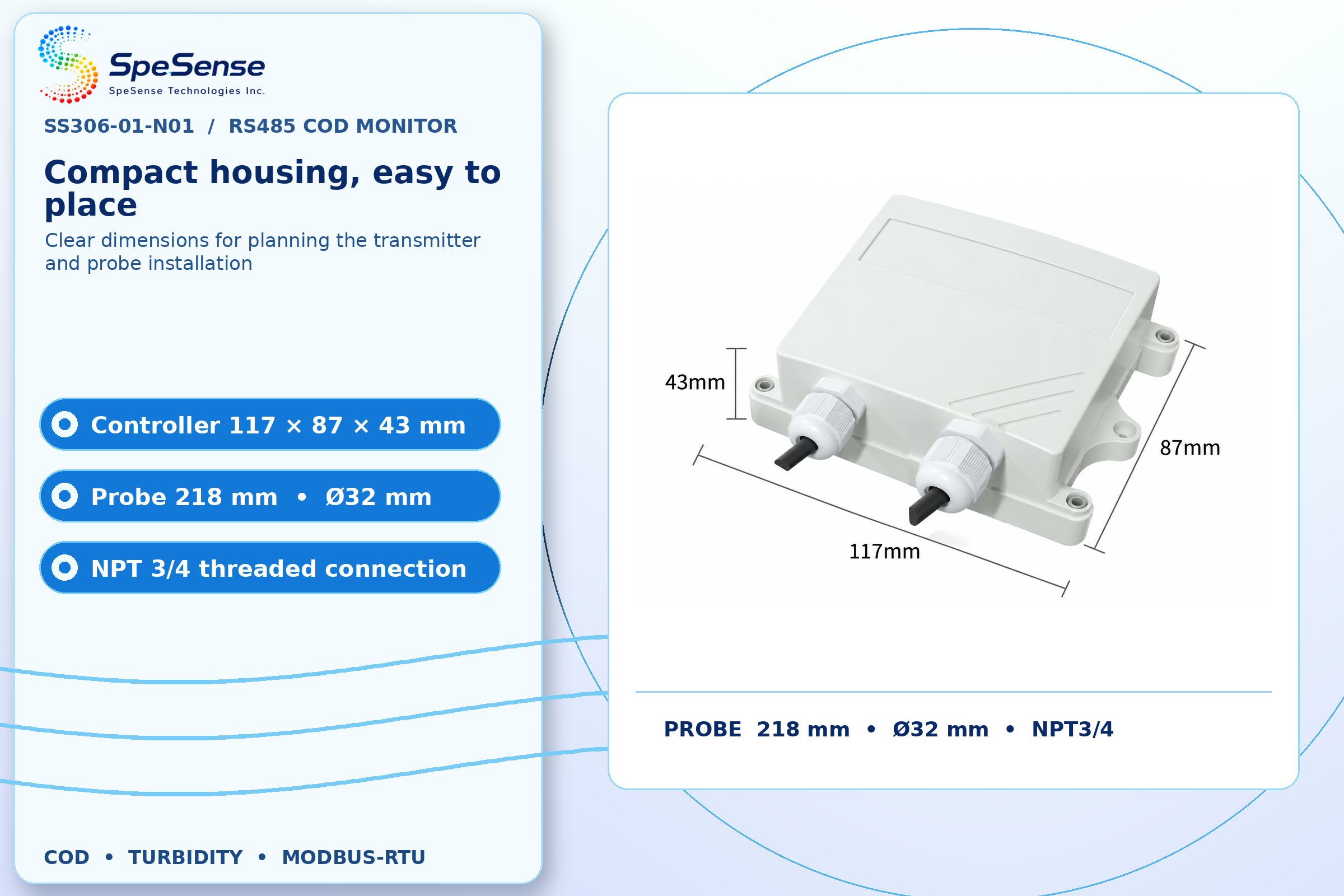

| Cable Length | 5 m by default; custom length available |
| Housing Material | Corrosion-resistant plastic and stainless steel |

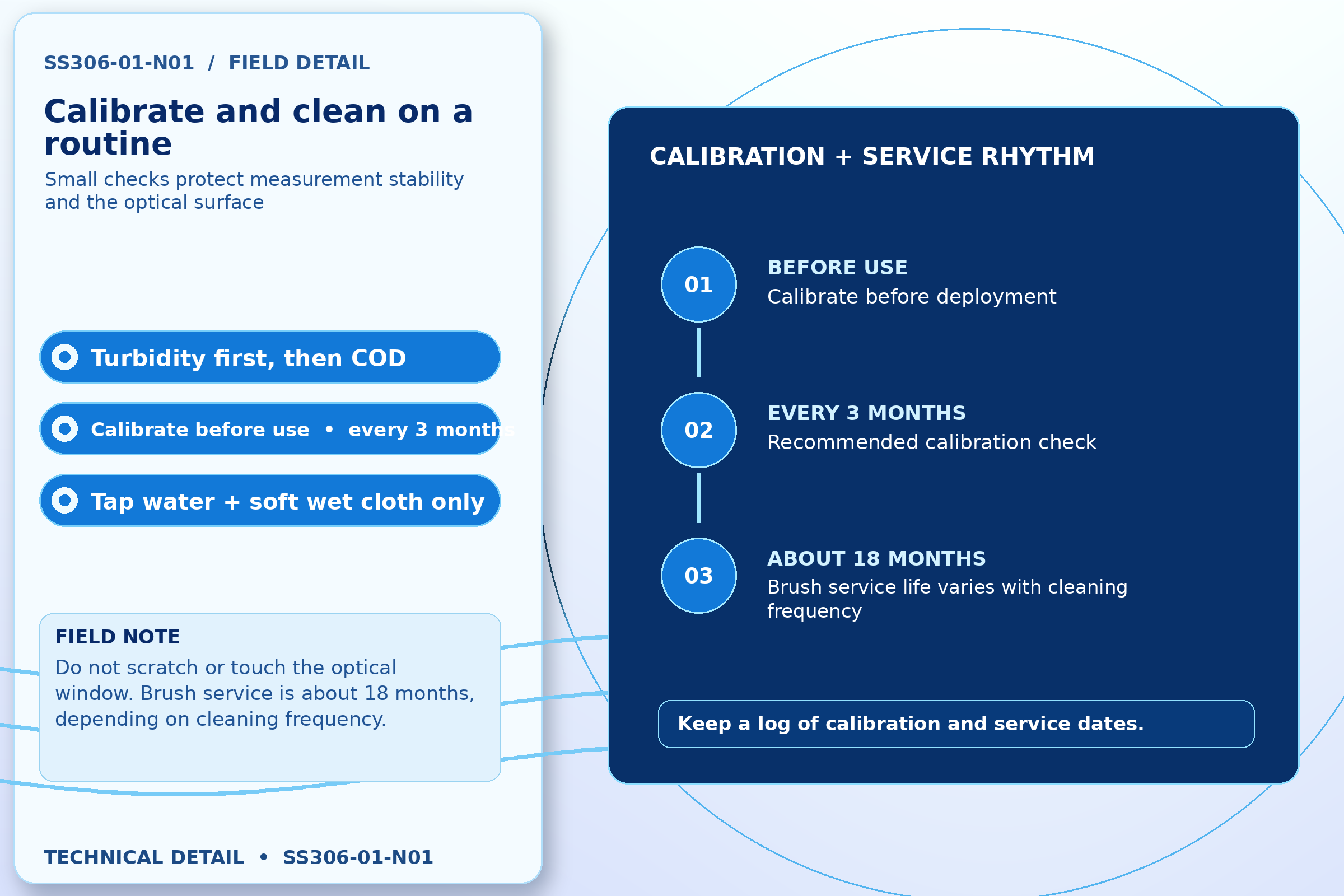

| Recommended Calibration / Maintenance | Every 3 months |
| Self-cleaning System Life | About 18 months; depends on cleaning frequency |
