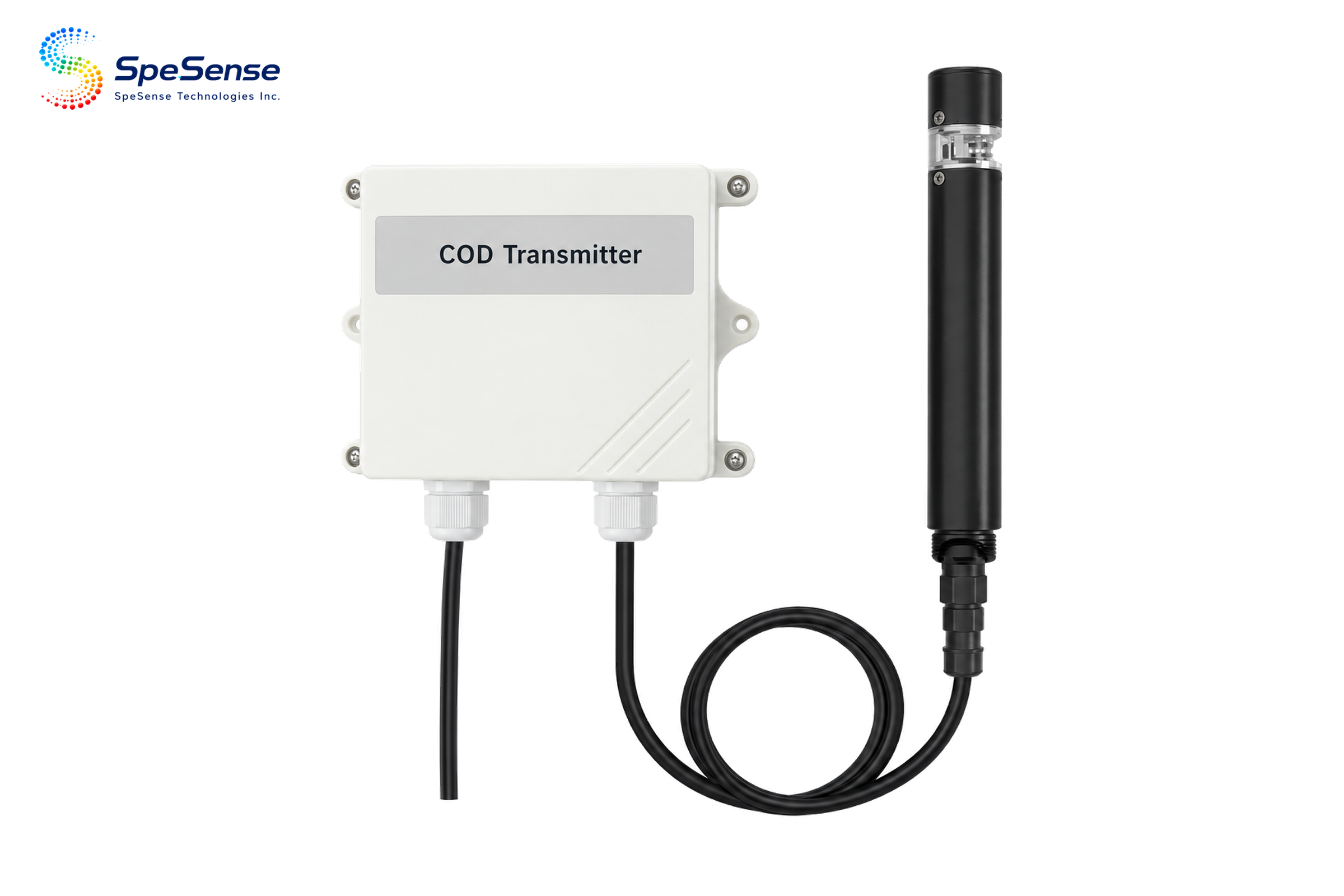

COD sensor
SS306-01-ANALOG
自清洗 COD 变送器
产品亮点
● Reagent-free dual-wavelength UV absorption.
● Integrated self-cleaning against biofouling.
● Automatic turbidity and temperature compensation.
● Wide 9–30 VDC supply; 0–10 V option uses 24 VDC.
● Integrated self-cleaning against biofouling.
● Automatic turbidity and temperature compensation.
● Wide 9–30 VDC supply; 0–10 V option uses 24 VDC.
产品概述

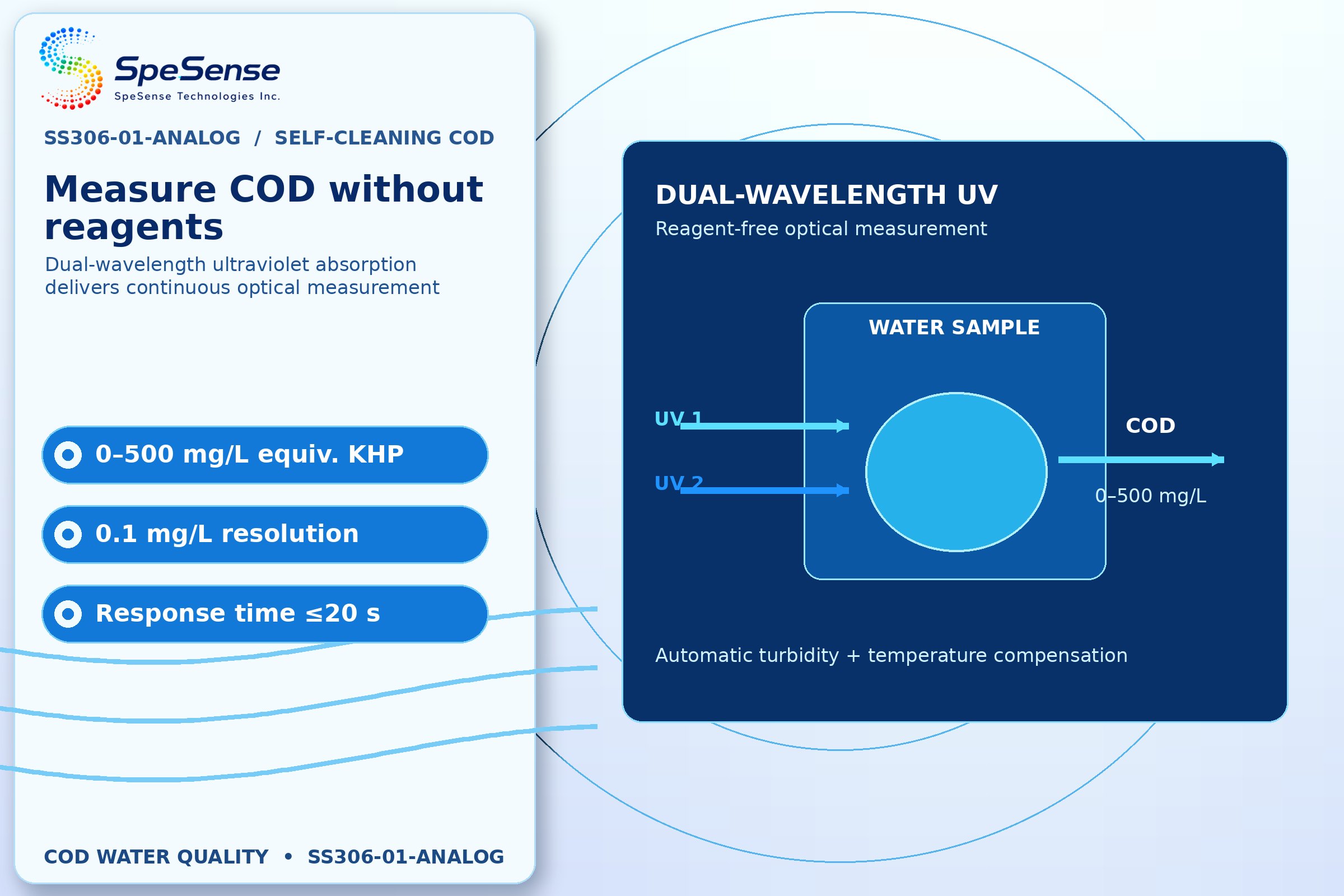

• SS306-01-ANALOG measures chemical oxygen demand (COD) using dual-wavelength ultraviolet absorption without chemical reagents.

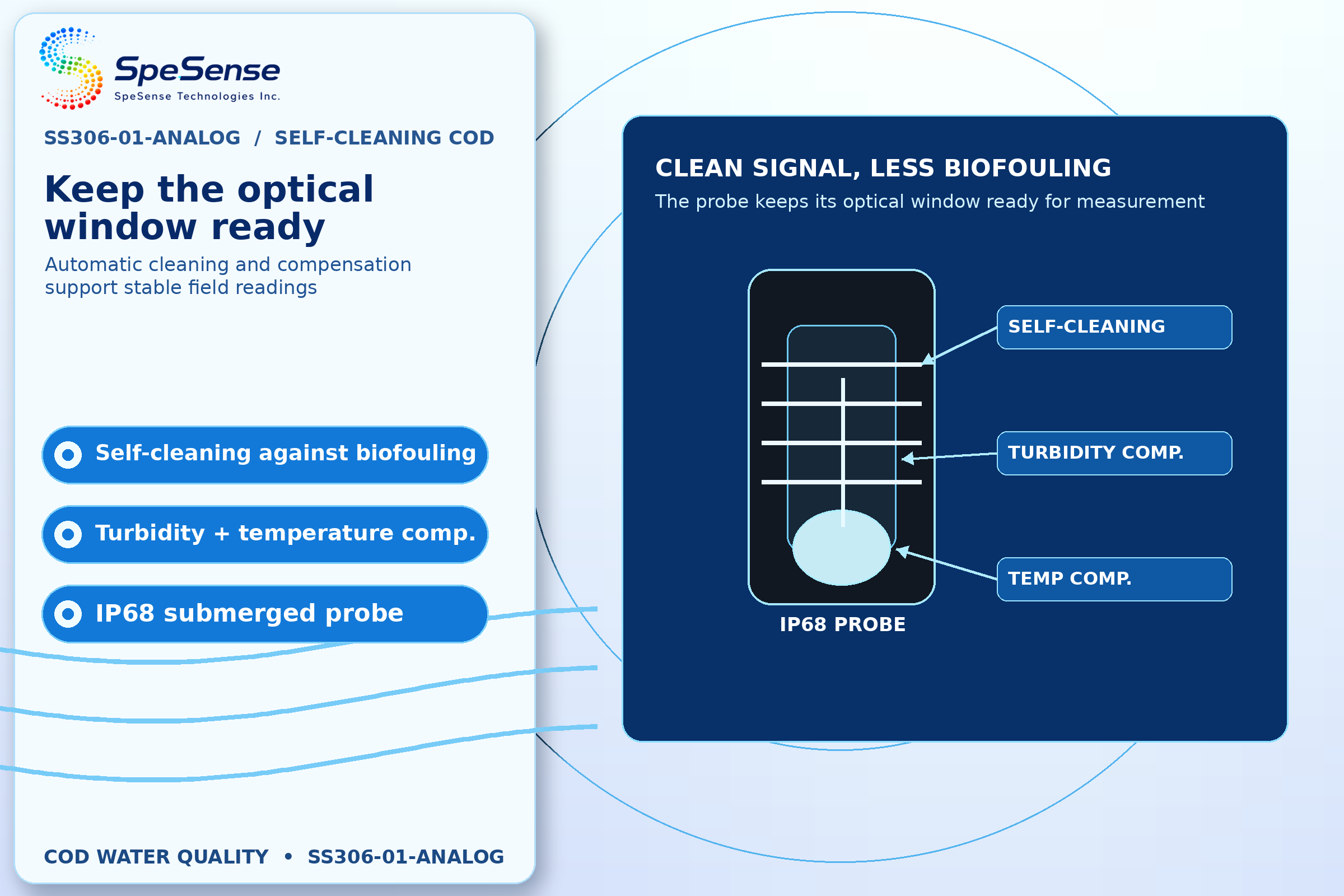

• The integrated self-cleaning system reduces biofouling, with automatic temperature and turbidity compensation for field stability.

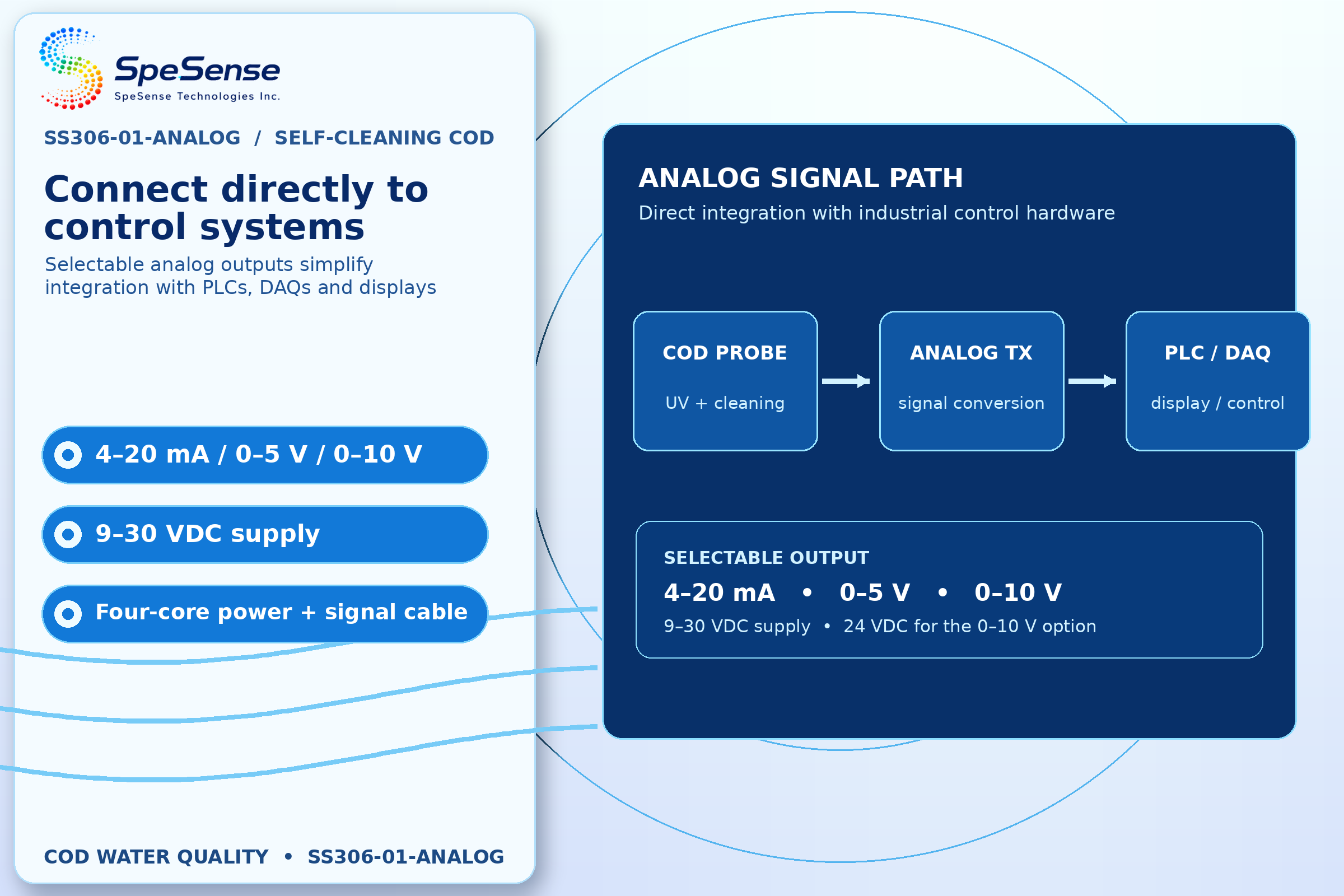

• Measured COD data are available through selectable 4–20 mA, 0–5 V or 0–10 V analog outputs for integration with controllers and data-acquisition systems.
| Item | Specification |
| Power Supply | DC 9–30 V; 0–10 V output requires DC 24 V |
| Typical Power Consumption | ≤1.5 W normal; ≤2.1 W during self-cleaning |
| Analog Outputs | 4–20 mA, 0–5 V or 0–10 V selectable |
| Measurement Principle | Dual-wavelength ultraviolet absorption |
| COD Measurement Range | 0–500 mg/L equiv. KHP |
| COD Measurement Accuracy | ±5% FS equiv. KHP at 25 °C |
| COD Resolution | 0.1 mg/L |
| Repeatability | ±1% FS equiv. KHP at 25 °C |
| Response Time | ≤20 s |

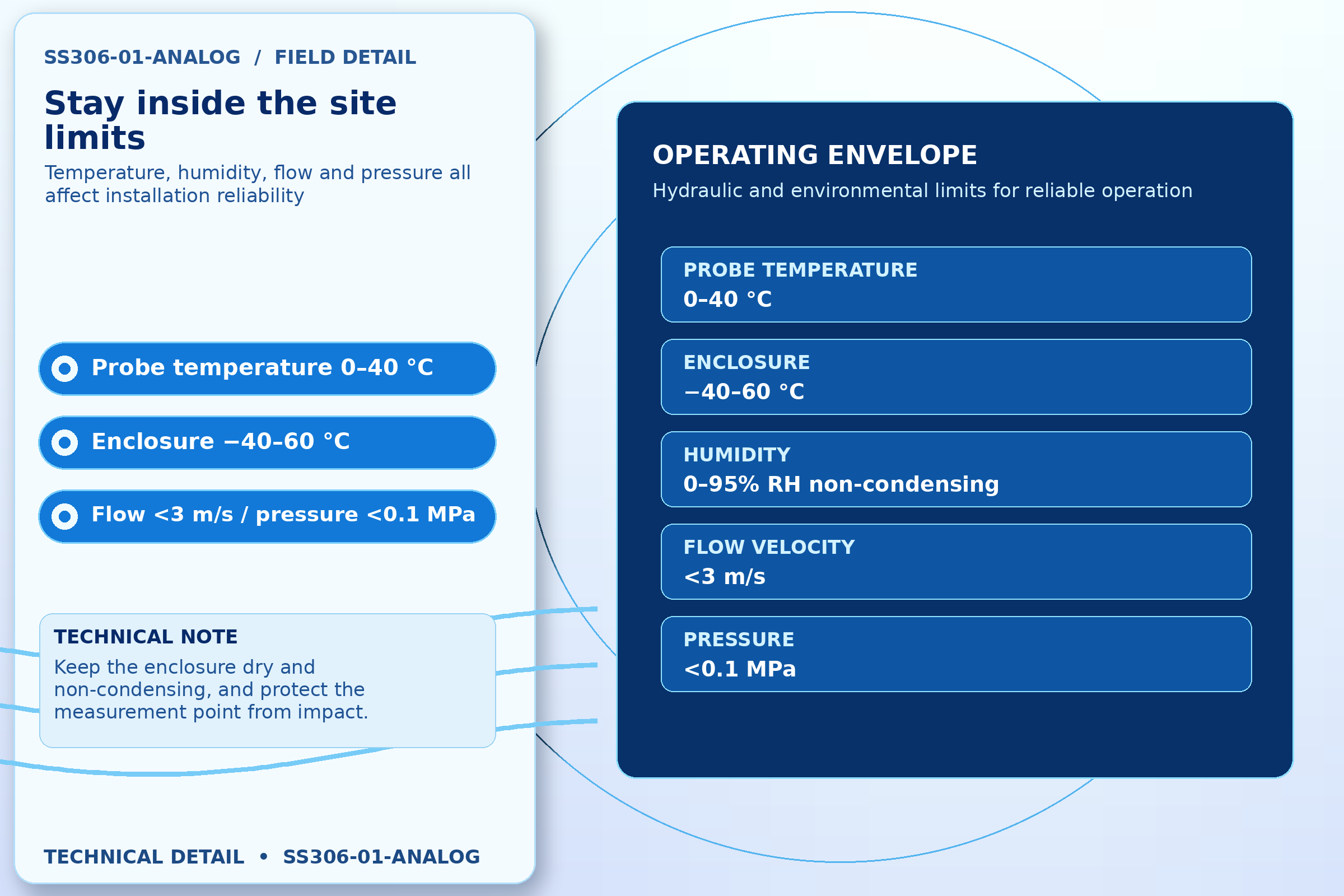

| Operating Conditions | Probe: 0–40 °C; enclosure: −40–60 °C, 0–95% RH non-condensing |
| Ingress Protection | Probe IP68; enclosure IP65 |
| Flow Velocity | <3 m/s |
| Probe Pressure Resistance | <0.1 MPa |
| Cable Length | 5 m by default; custom length available |
| Housing Material | Corrosion-resistant plastic and stainless steel |

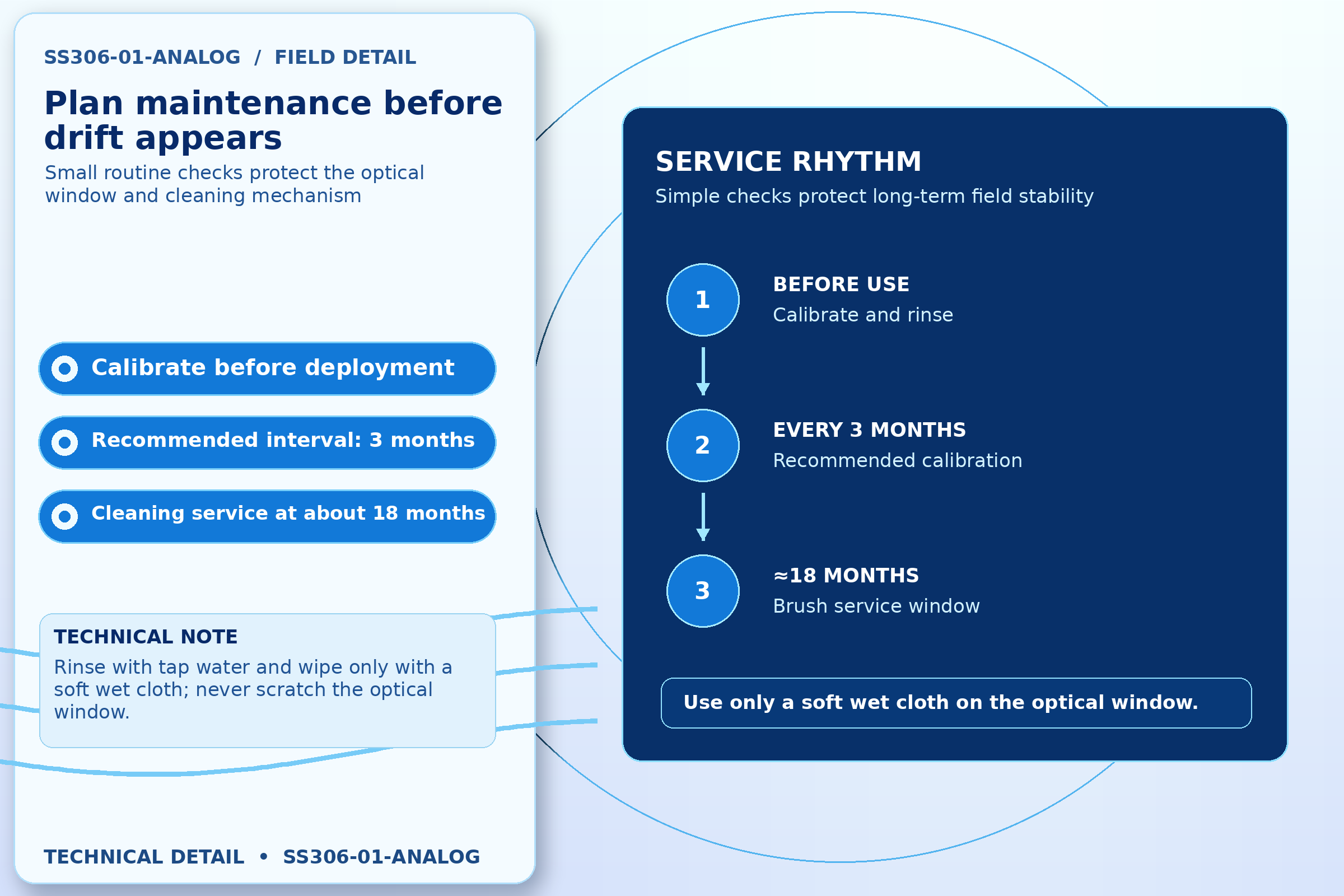

| Recommended Calibration / Maintenance | Every 3 months |
| Self-cleaning System Life | About 18 months; depends on cleaning frequency |
