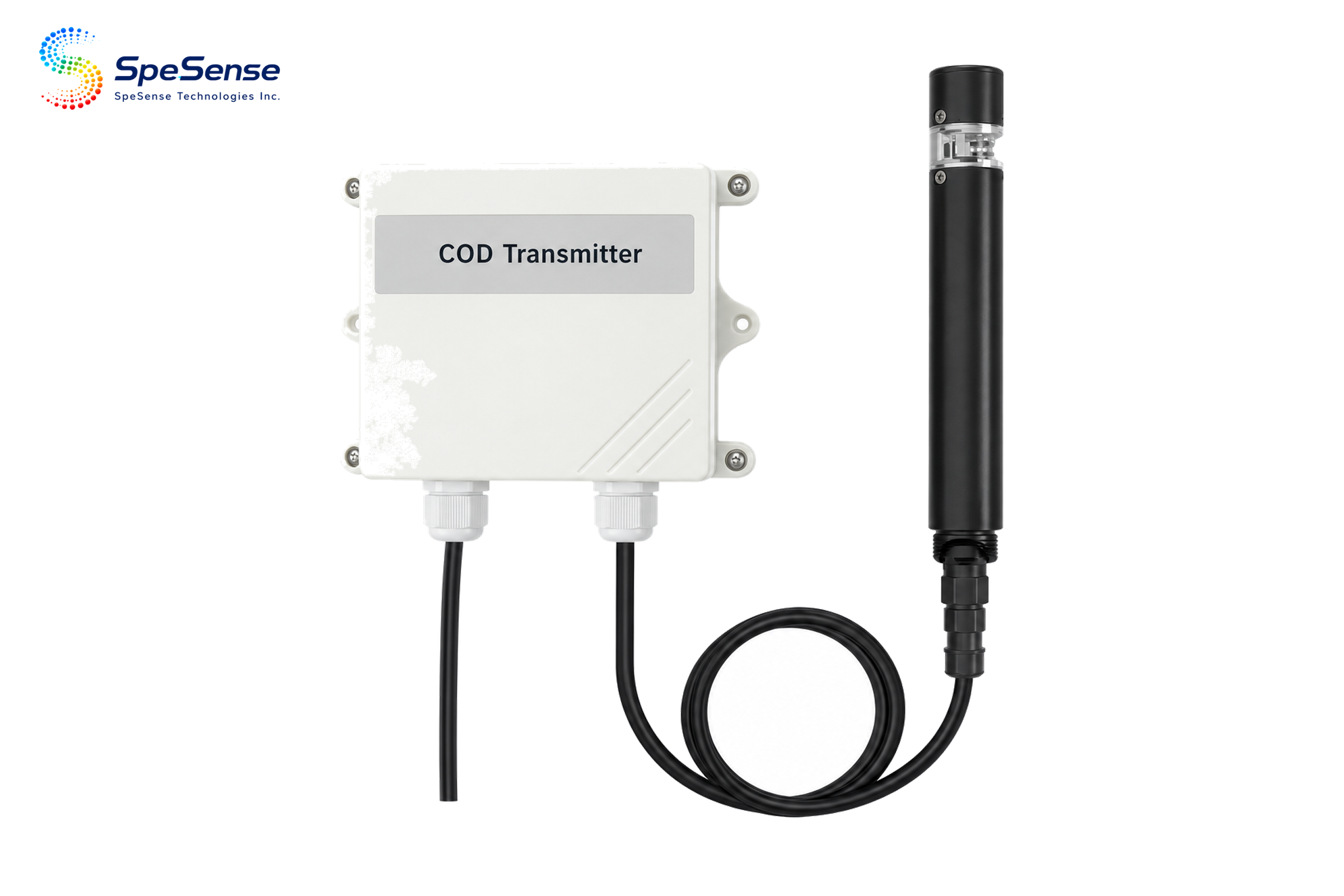

COD sensor
SS306-01-4G
自清洗 COD 变送器
产品亮点
● Reagent-free dual-wavelength UV absorption.
● Integrated self-cleaning against biofouling.
● Automatic turbidity and temperature compensation.
● Wide 12–30 VDC supply and low data traffic.
● Integrated self-cleaning against biofouling.
● Automatic turbidity and temperature compensation.
● Wide 12–30 VDC supply and low data traffic.
产品概述

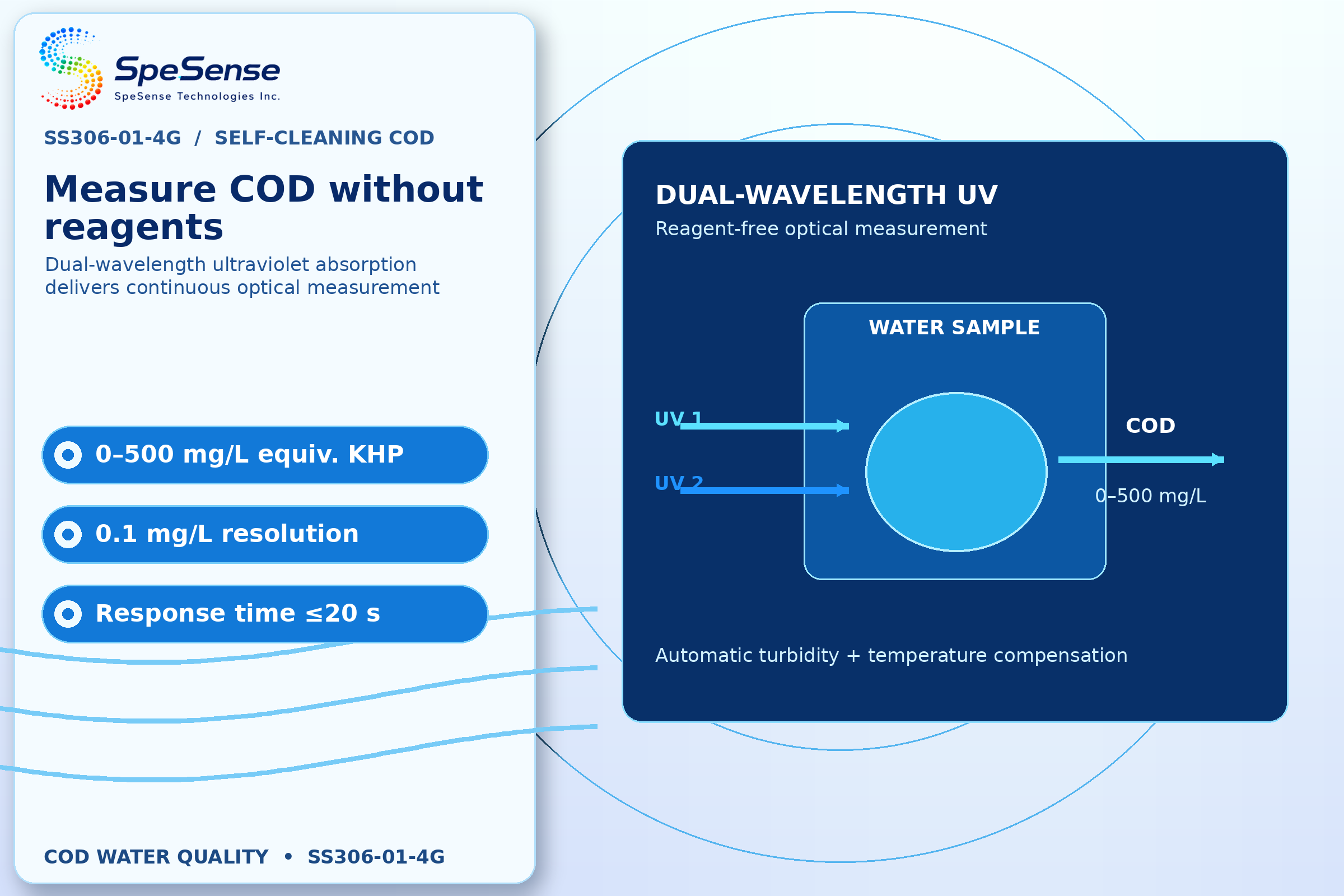

• SS306-01-4G measures chemical oxygen demand (COD) using dual-wavelength ultraviolet absorption without chemical reagents.

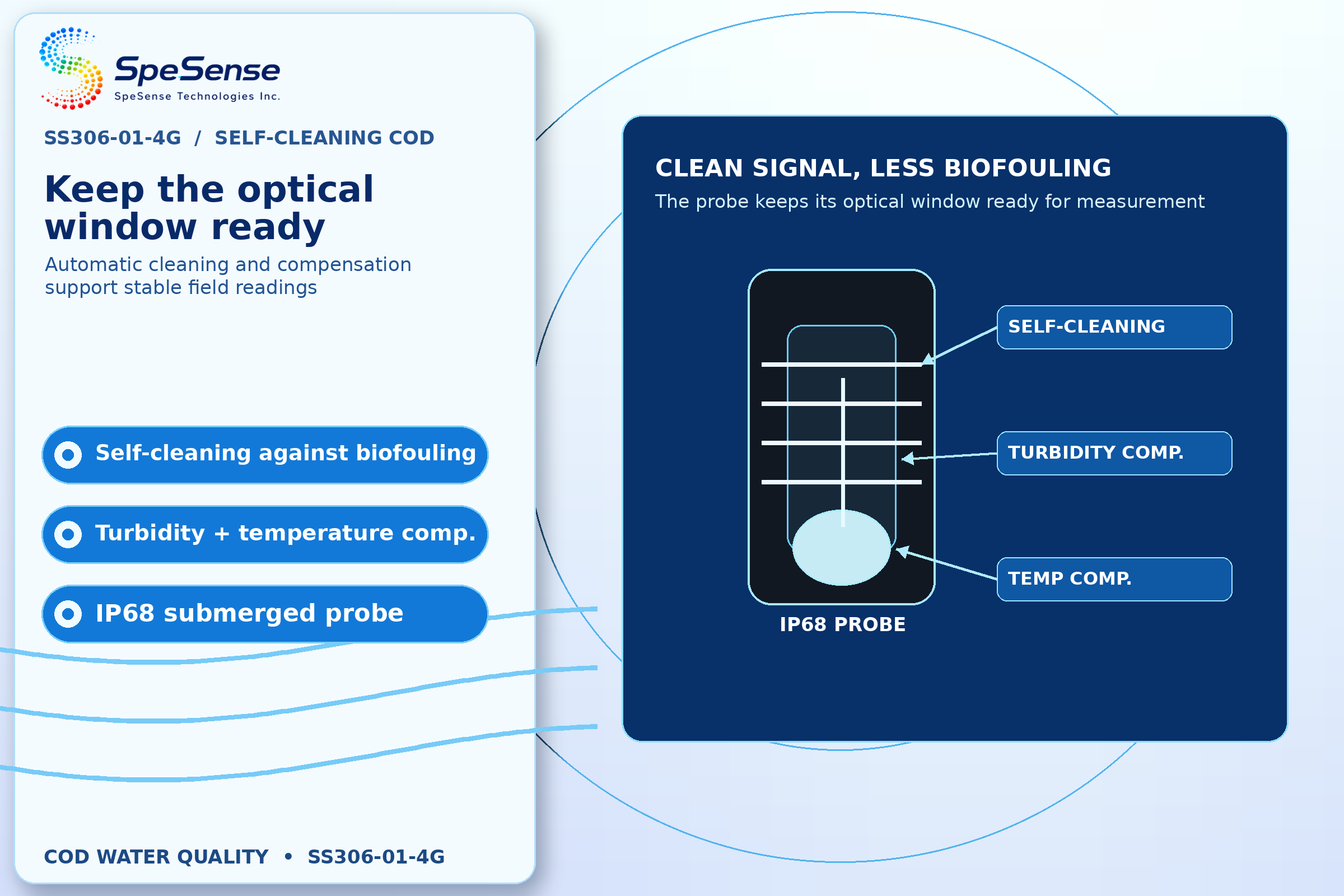

• The integrated self-cleaning system reduces biofouling, with automatic temperature and turbidity compensation for field stability.

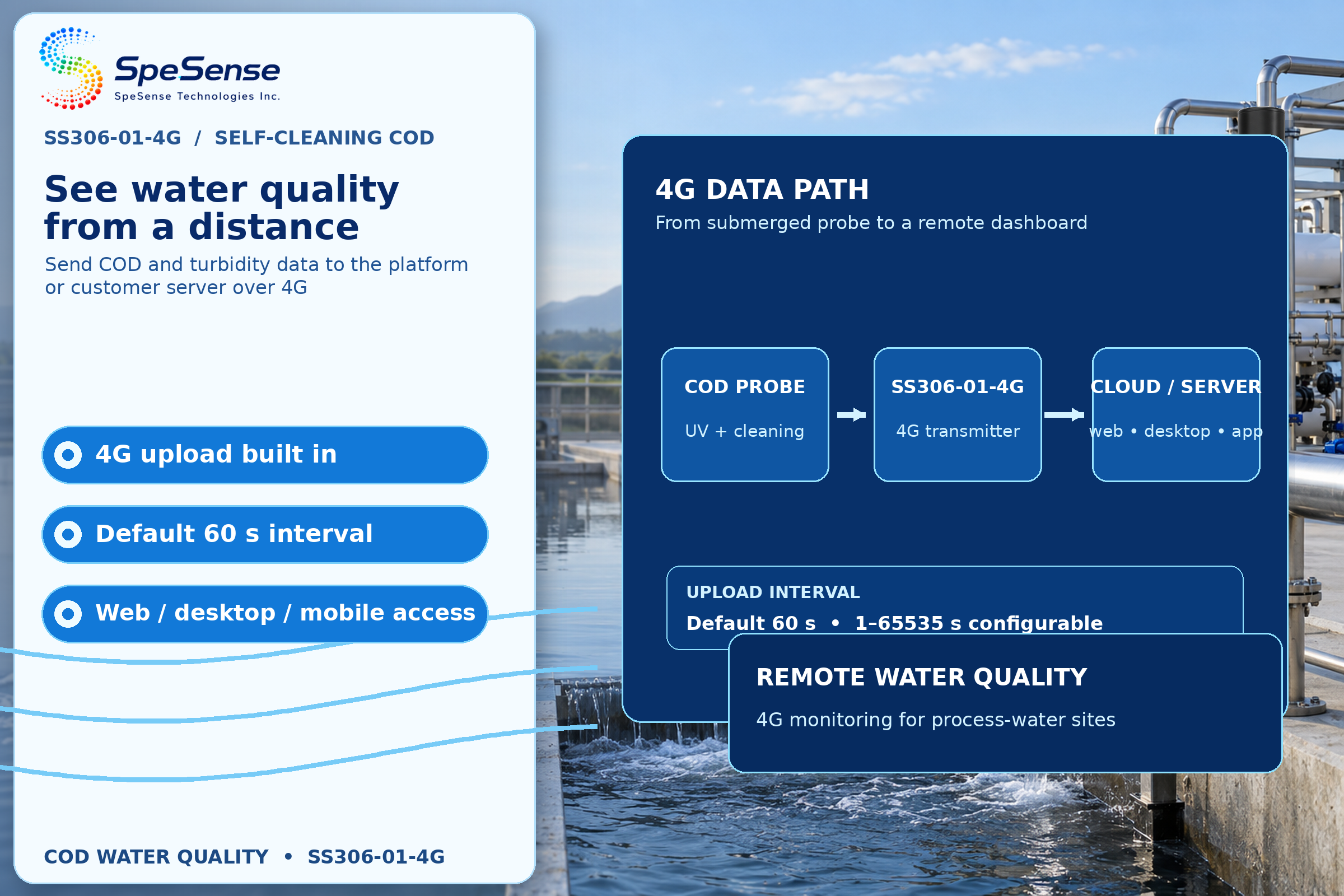

• Measured data can be uploaded over 4G to a customer server or cloud platform for web, desktop and mobile access.
| Item | Specification |
| Power Supply | DC 12–30 V |
| Typical Power Consumption | ≤0.8 W normal; ≤1.5 W during self-cleaning |
| Communication / Upload | 4G |
| Measurement Principle | Dual-wavelength ultraviolet absorption |

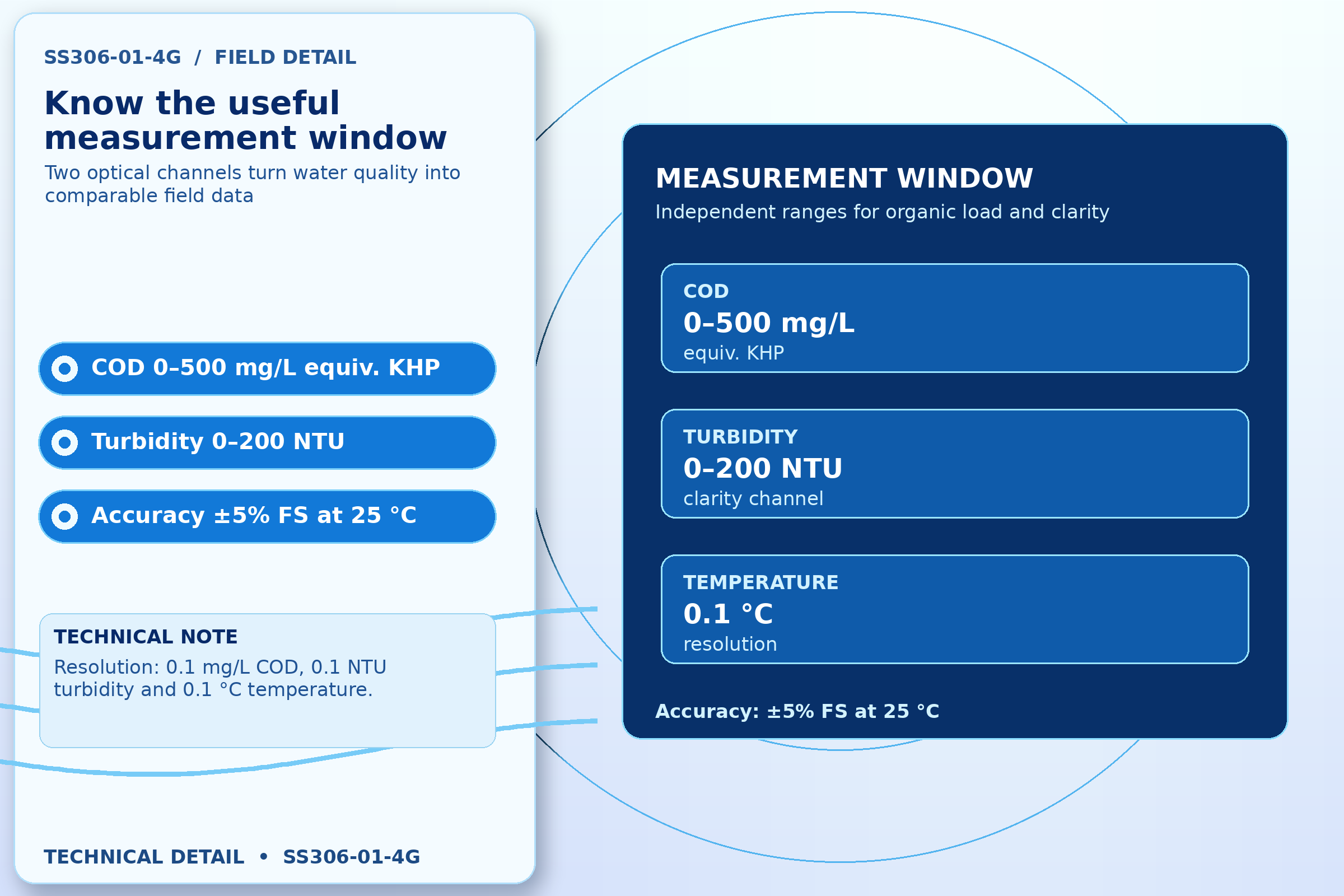

| COD Measurement Range | 0–500 mg/L equiv. KHP |
| Turbidity Measurement Range | 0–200 NTU |
| COD Measurement Accuracy | ±5% FS equiv. KHP at 25 °C |
| Turbidity Accuracy | ±5% FS at 25 °C |
| COD Resolution | 0.1 mg/L |
| Turbidity Resolution | 0.1 NTU |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.5 °C |
| Repeatability | ±1% FS equiv. KHP at 25 °C |
| Response Time | ≤20 s |

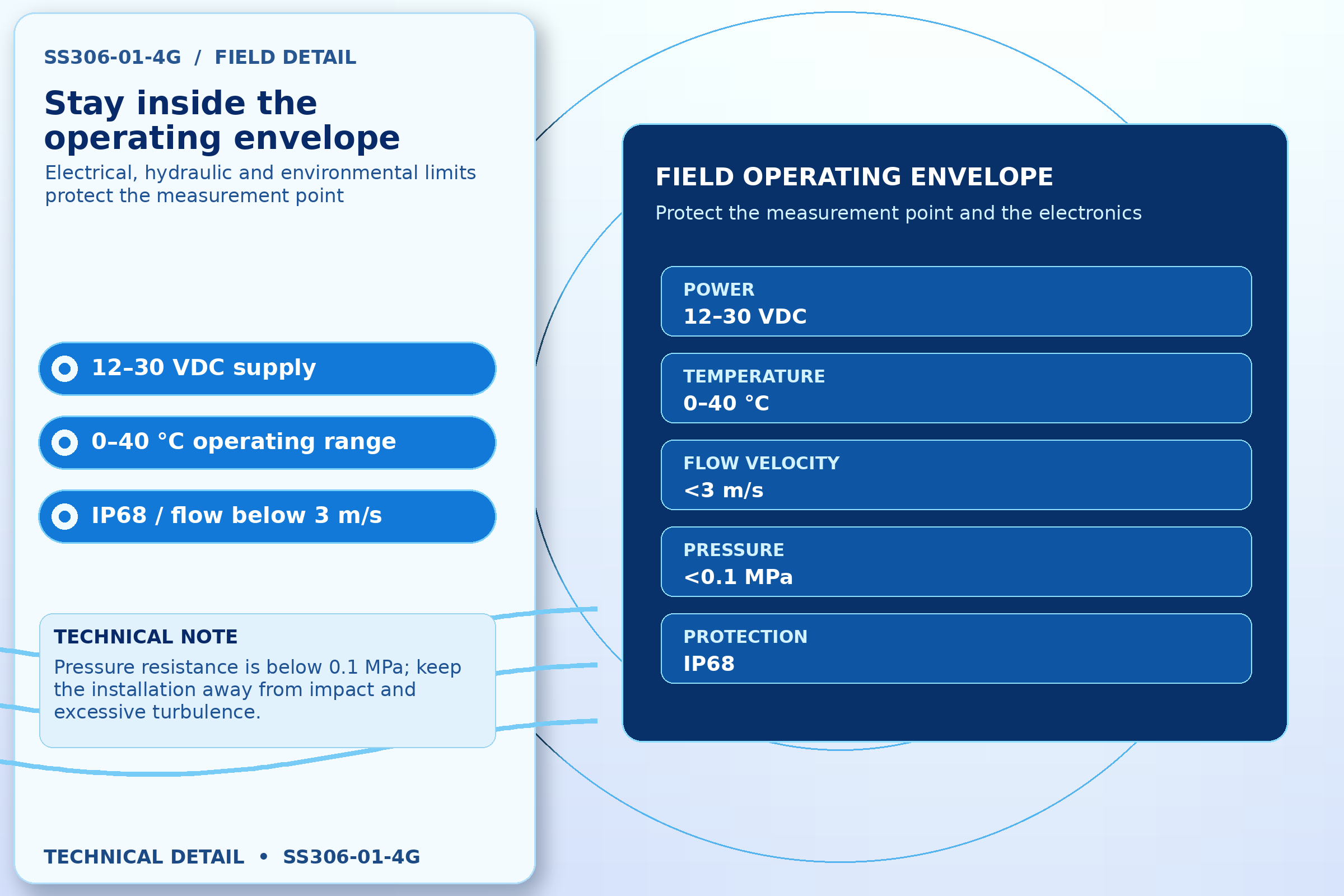

| Operating Conditions | 0–40 °C |
| Ingress Protection | IP68 |
| Flow Velocity | <3 m/s |
| Pressure Resistance | <0.1 MPa |

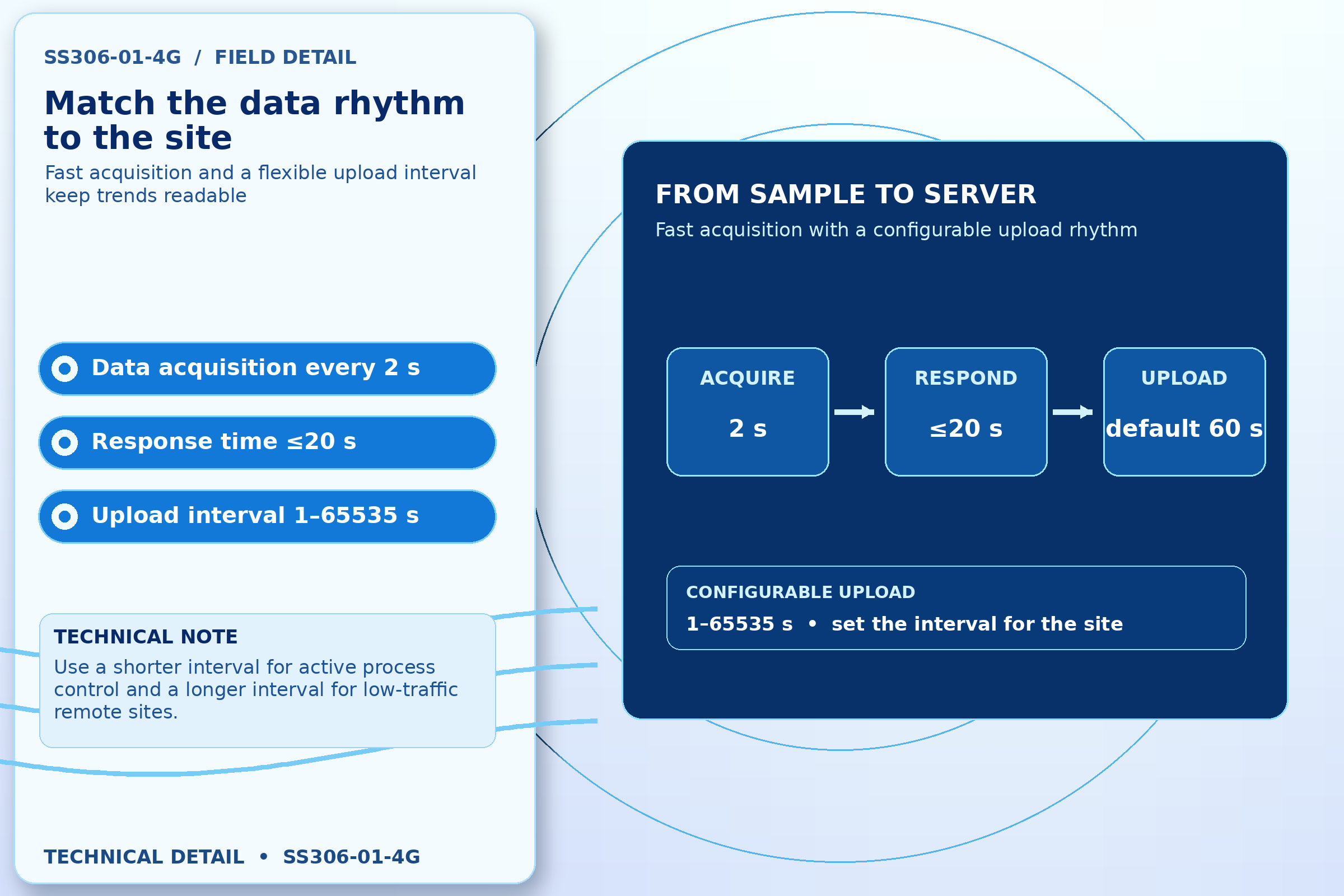

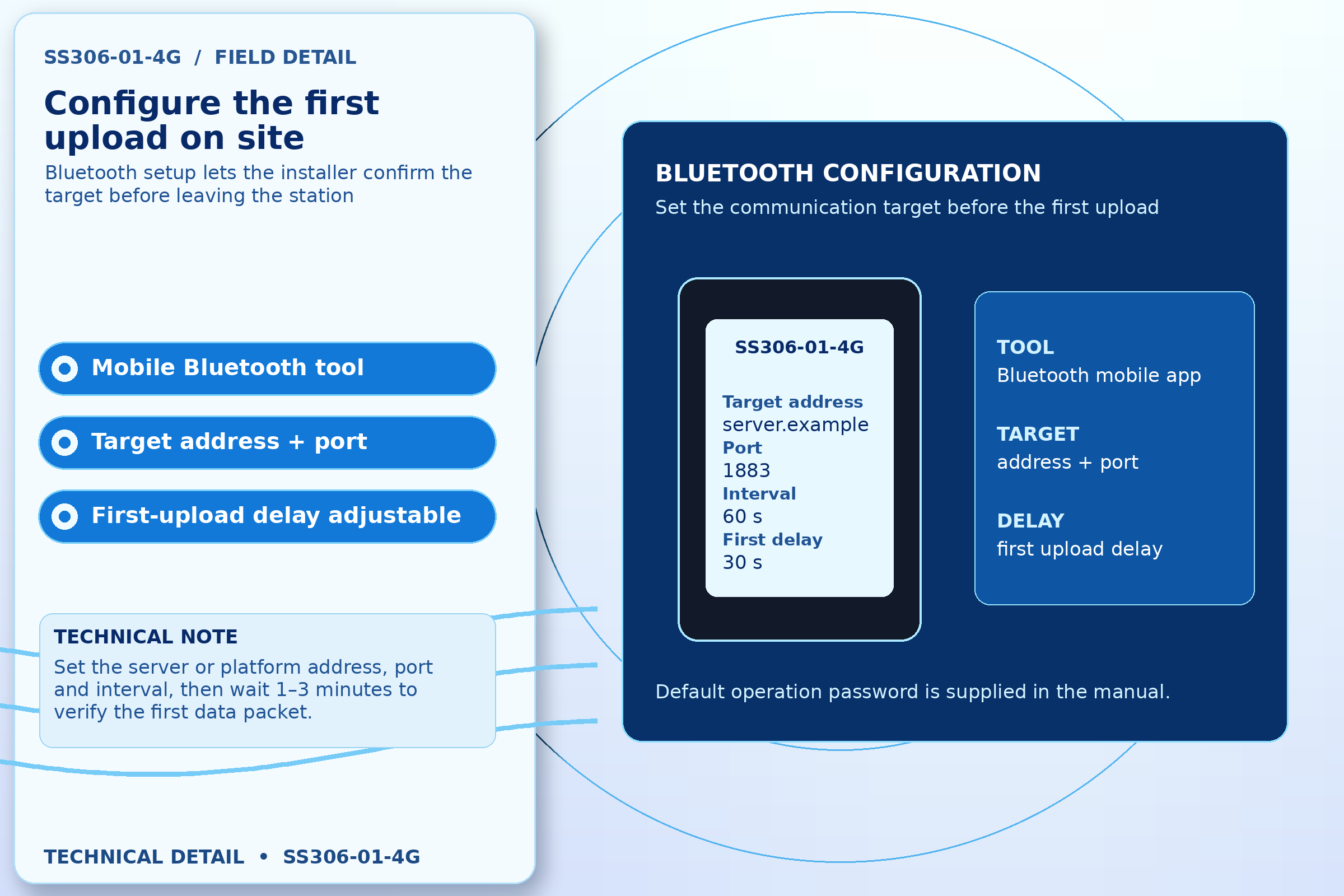

| Data Upload Interval | Default 60 s; 1–65535 s configurable |
| Data Acquisition Interval | 2 s |
| Cable Length | 5 m by default; custom length available |
| Housing Material | Corrosion-resistant plastic and stainless steel |

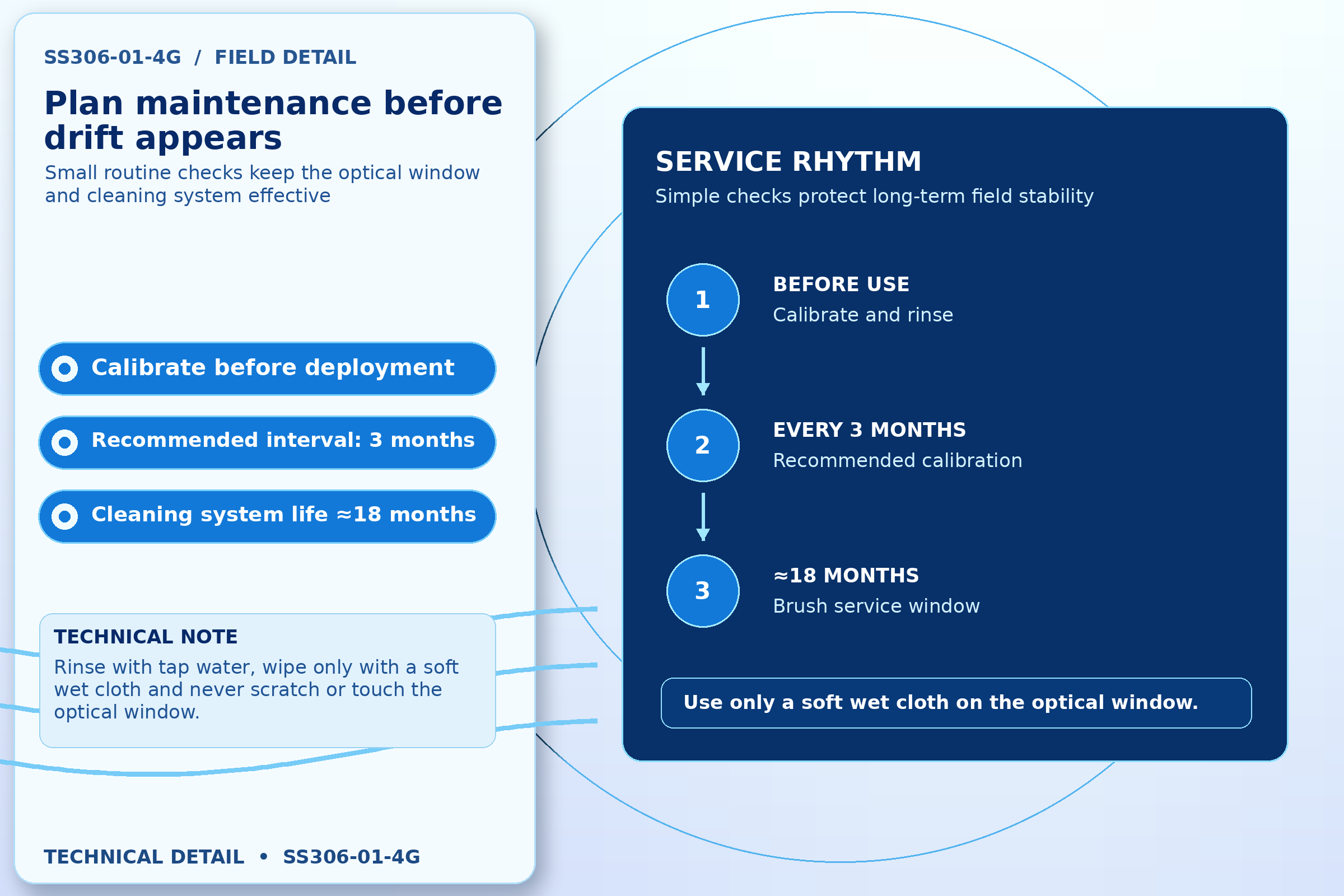

| Recommended Calibration / Maintenance | Every 3 months |
| Self-cleaning System Life | About 18 months; depends on cleaning frequency |
