Multiparameter Water Quality Sonde

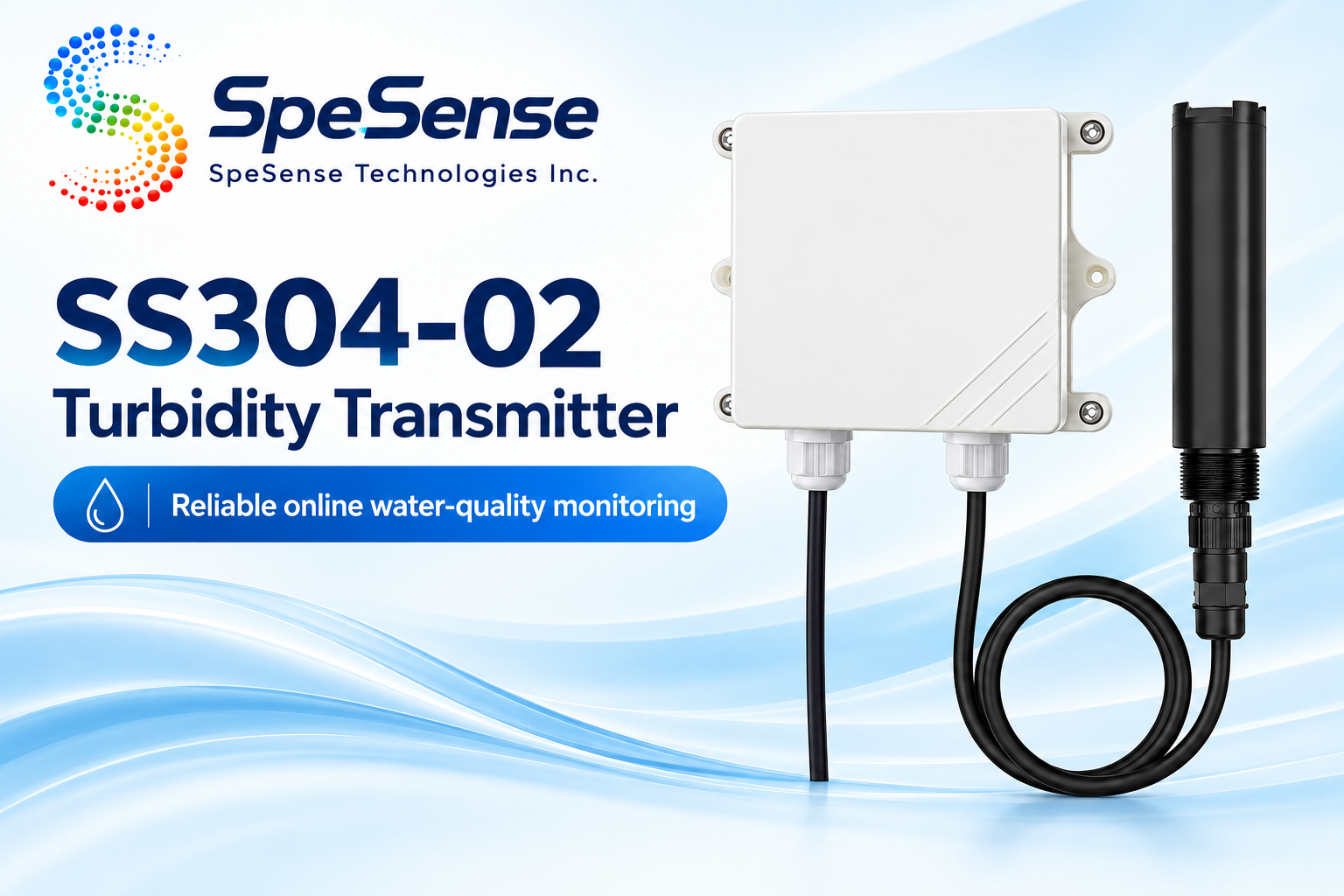

SS304-02
浊度变送器
产品亮点
● Infrared LED source and fiber-optic light path improve resistance to ambient-light interference.

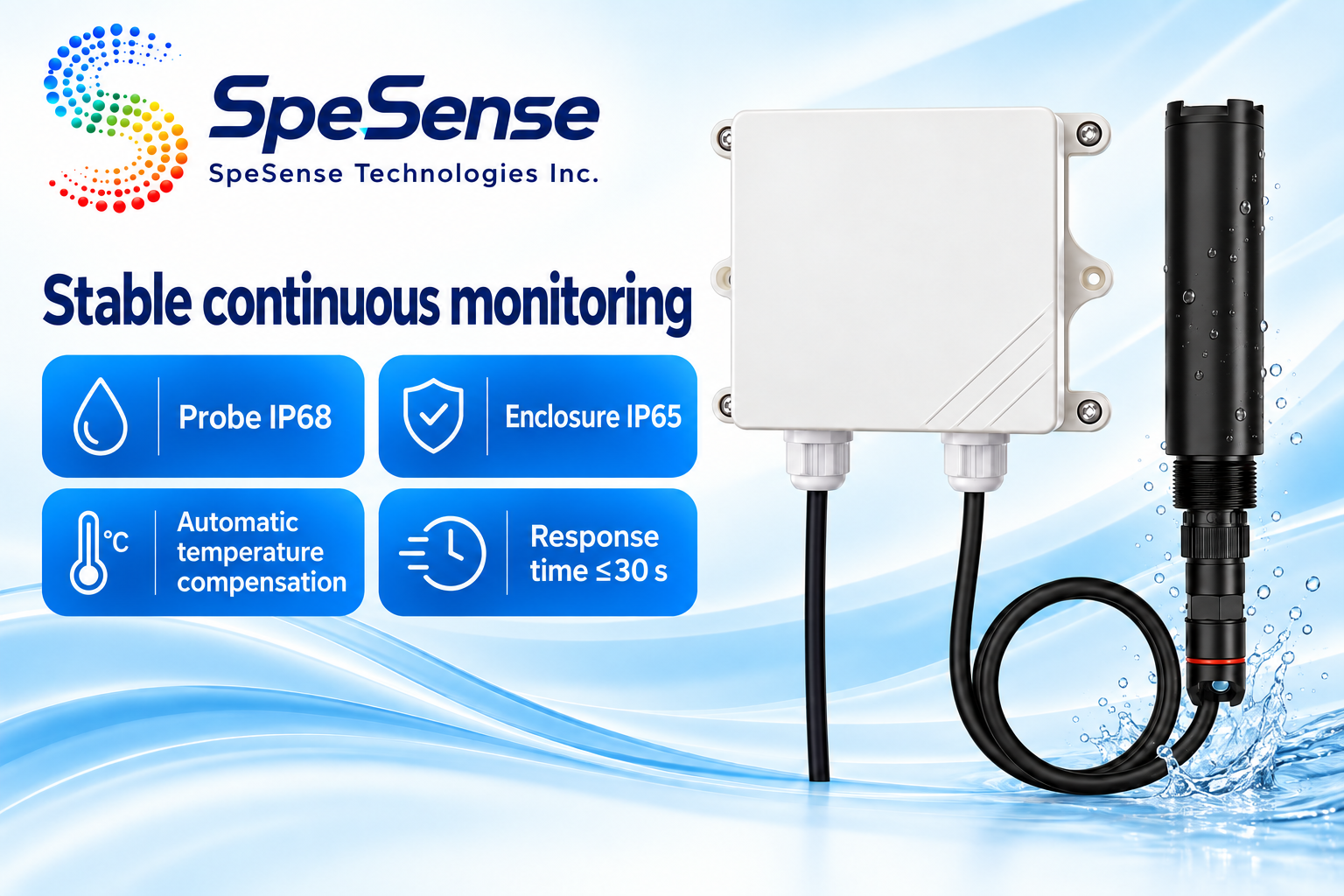

● Probe IP68 protection and wall-mount enclosure IP65 protection.
● Automatic temperature compensation supports stable continuous monitoring.
● Multiple output options support local, network and cloud-connected monitoring.
● Probe IP68 protection and wall-mount enclosure IP65 protection.
● Automatic temperature compensation supports stable continuous monitoring.
● Multiple output options support local, network and cloud-connected monitoring.
产品概述

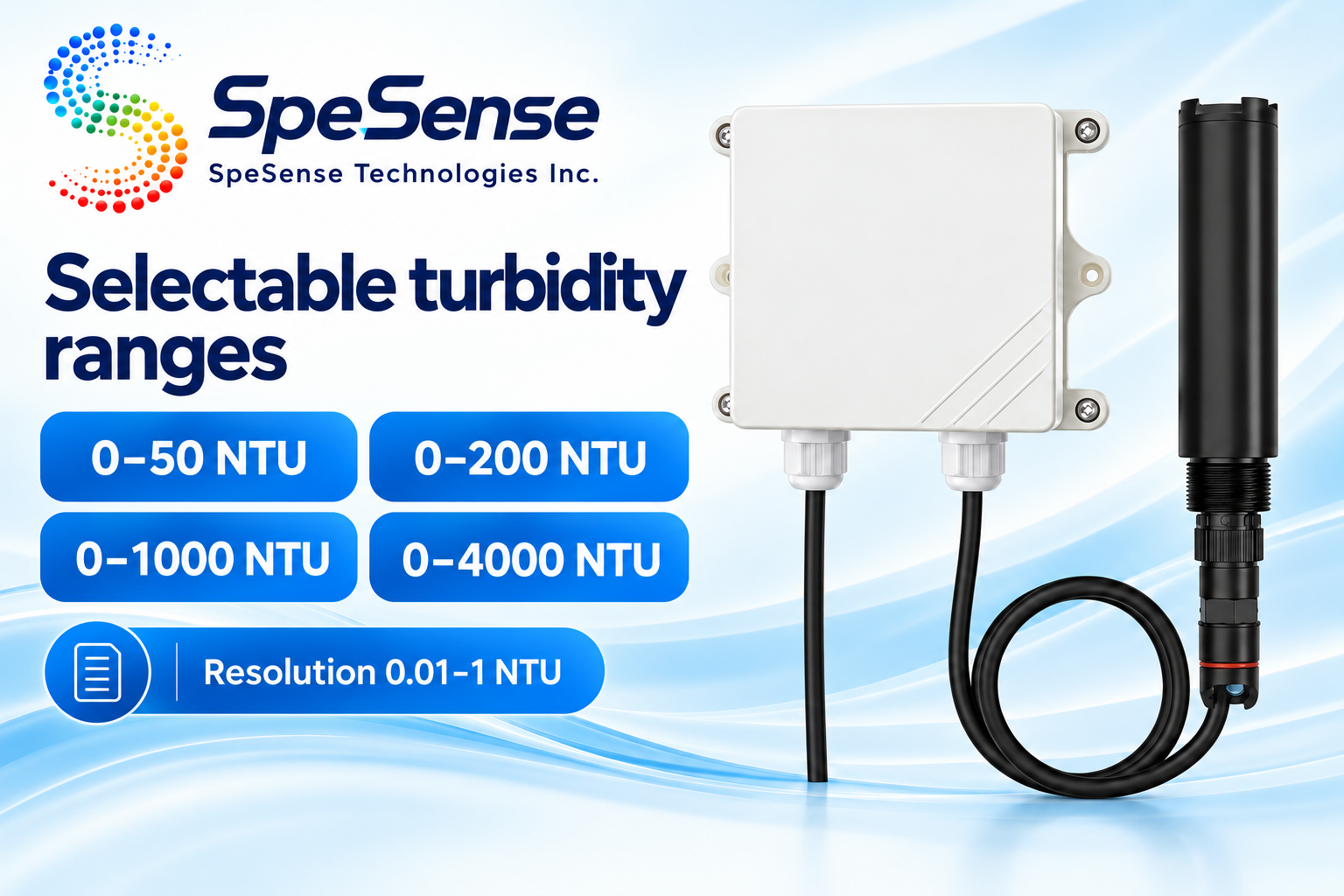

• Four selectable turbidity ranges: 0-50, 0-200, 0-1000 and 0-4000 NTU.
• Resolution from 0.01 to 1 NTU, depending on range, with a response time of 30 seconds or less.

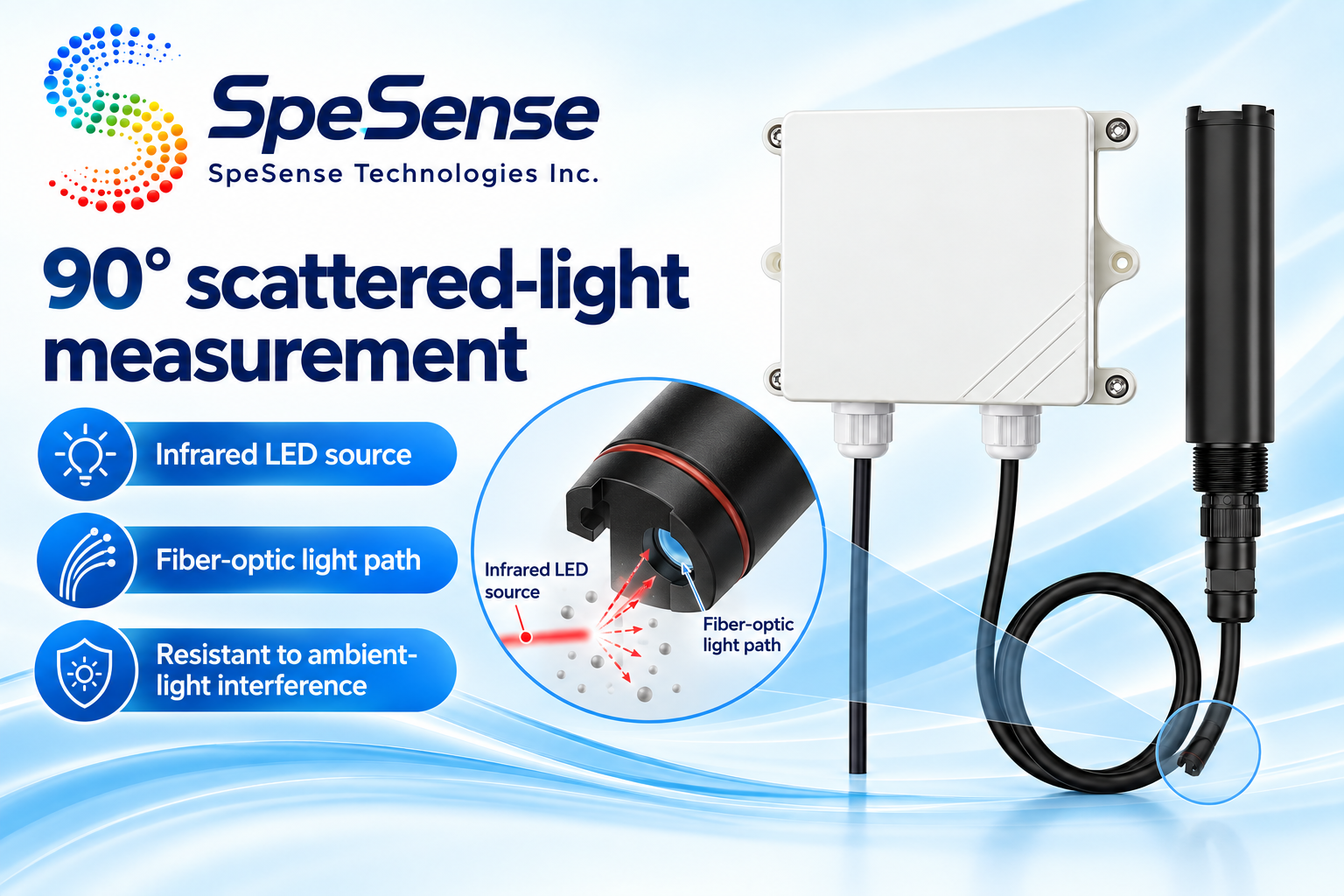

• Infrared 90-degree scattered-light measurement with filtering and automatic temperature compensation.

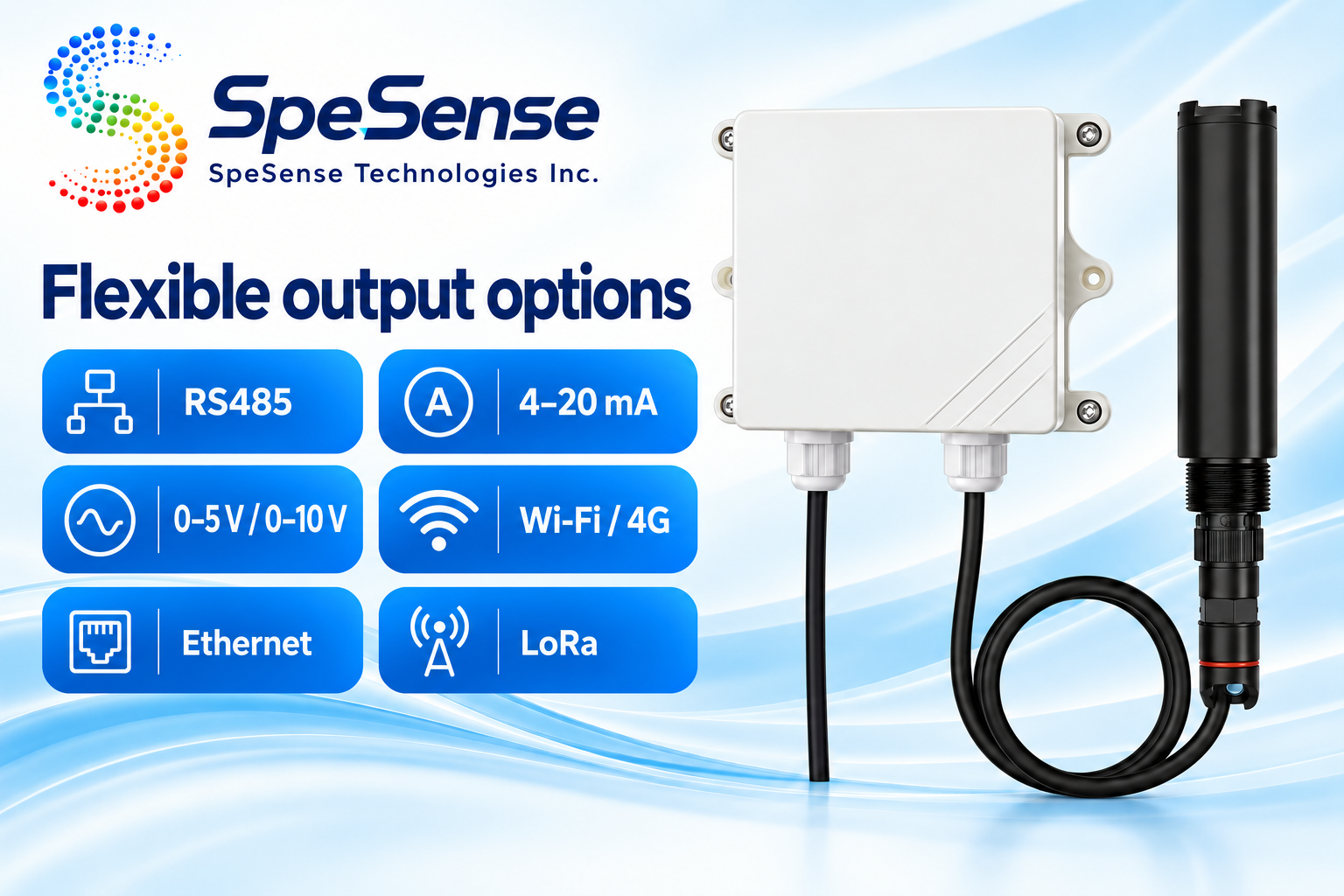

• Wall-mount enclosure with RS485, analog, Wi-Fi, 4G, Ethernet and LoRa options.
| Item | Specification |

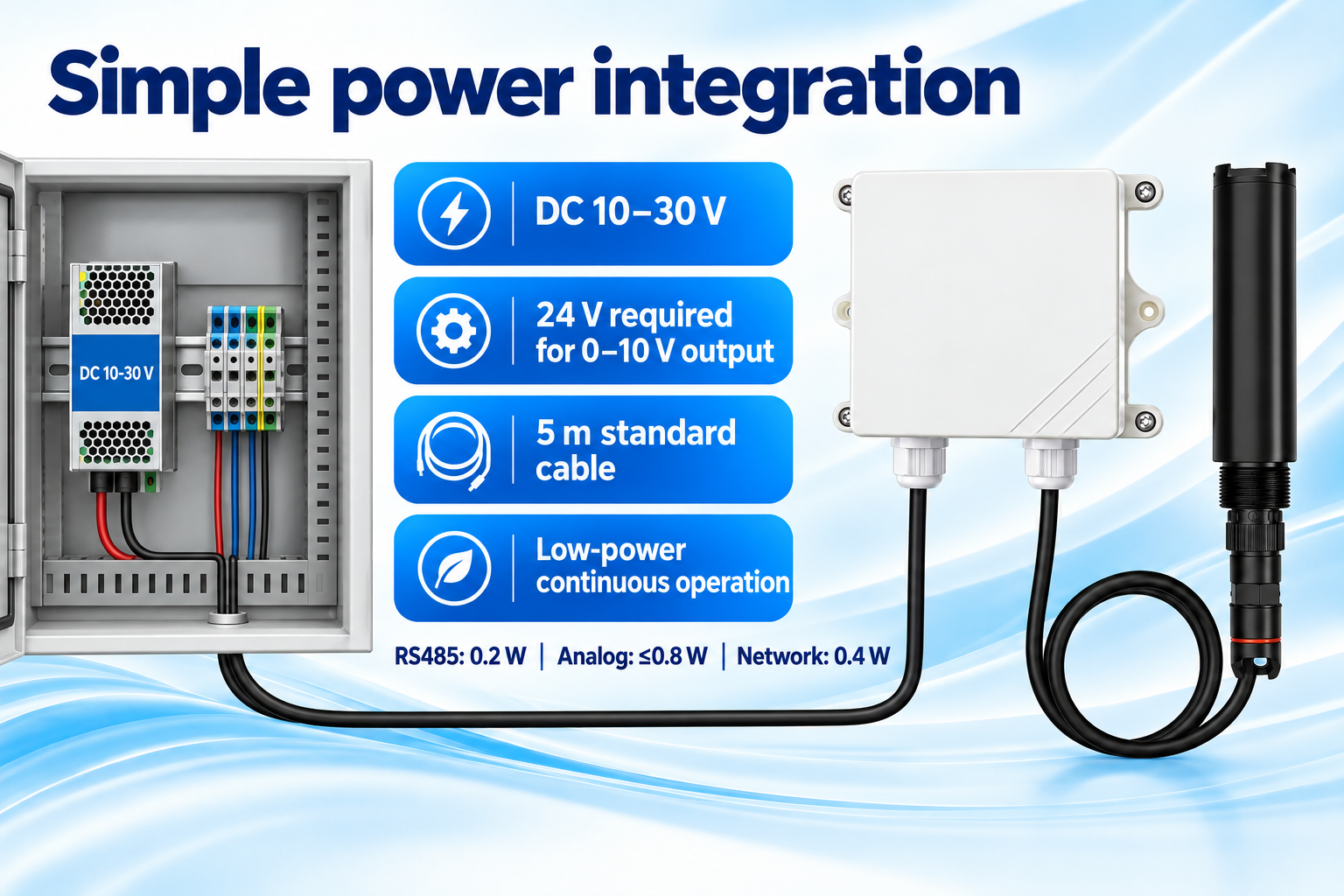

| Supply Voltage | DC 10-30 V; 0-10 V output requires DC 24 V |
| Turbidity Range | 0-50 NTU, 0-200 NTU, 0-1000 NTU or 0-4000 NTU |
| Resolution | 0.01 NTU (0-50); 0.1 NTU (0-200 and 0-1000); 1 NTU (0-4000) |
| Measurement Error | ±5% FS at 25 °C |
| Temperature Measurement Error | ±0.5 °C; temperature resolution 0.1 °C |
| Response Time | ≤30 s |
| Operating Conditions | Probe: 0-40 °C; enclosure: -40 to 60 °C, 0-95% RH non-condensing |
| Power Consumption | 0.2 W for RS485; ≤0.8 W for analog; 0.4 W for network versions |
| Measurement Principle | 90-degree scattered-light method with infrared LED and fiber-optic path |

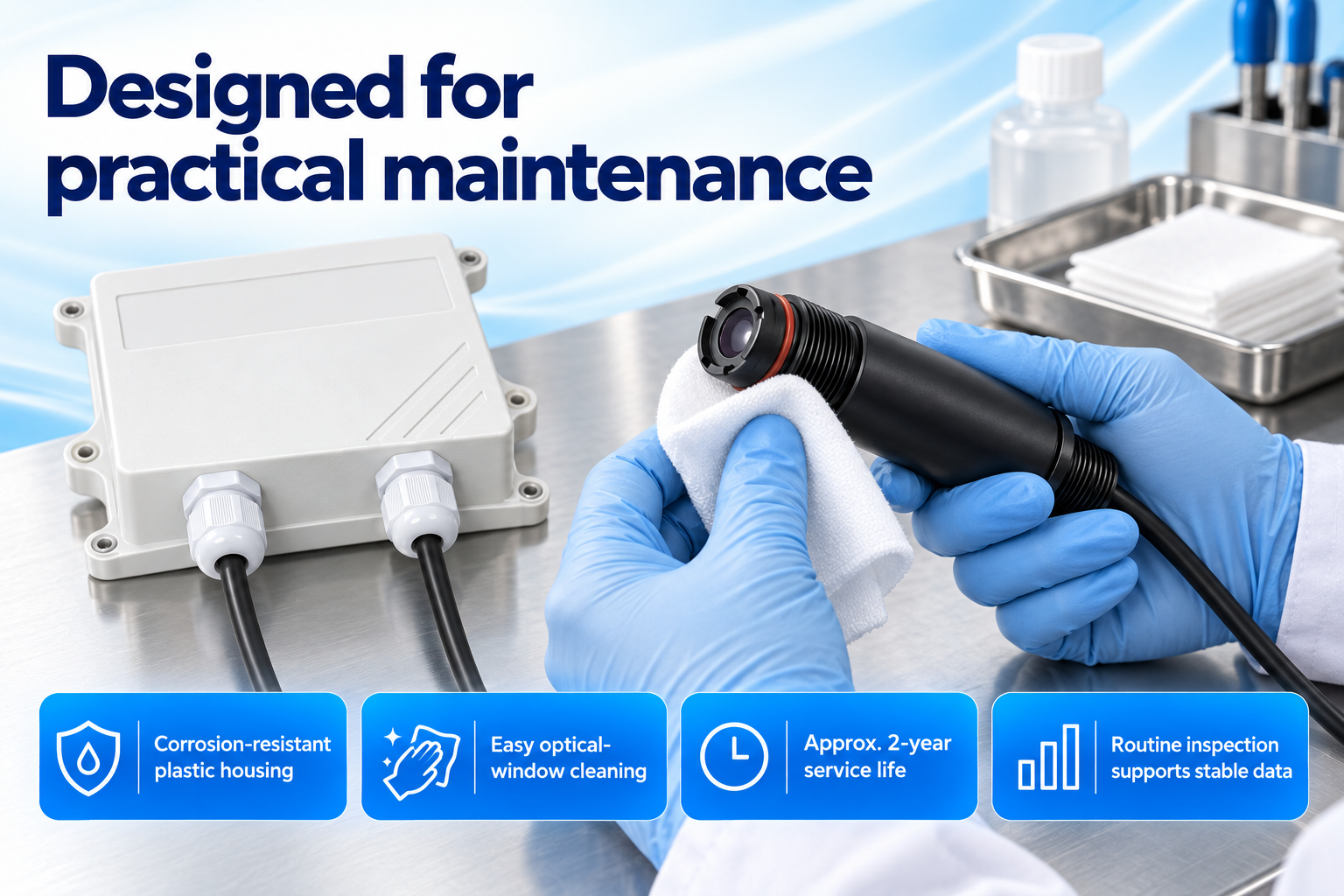

| Service Life | Approximately 2 years in normal use |
| Protection | Probe IP68; wall-mount enclosure IP65 |
| Cable Length | 5 m standard |
| Housing Material | Corrosion-resistant plastic |
