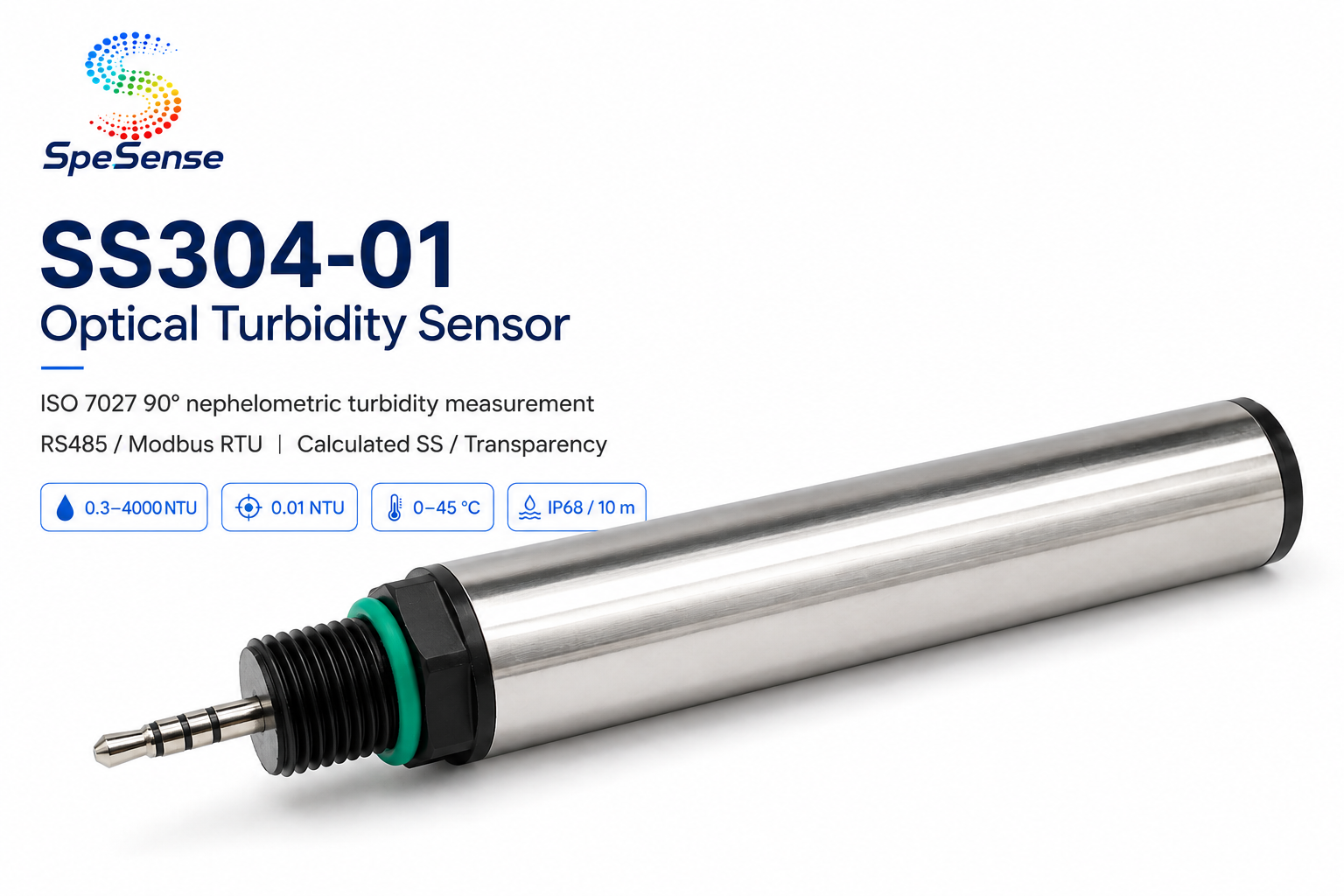

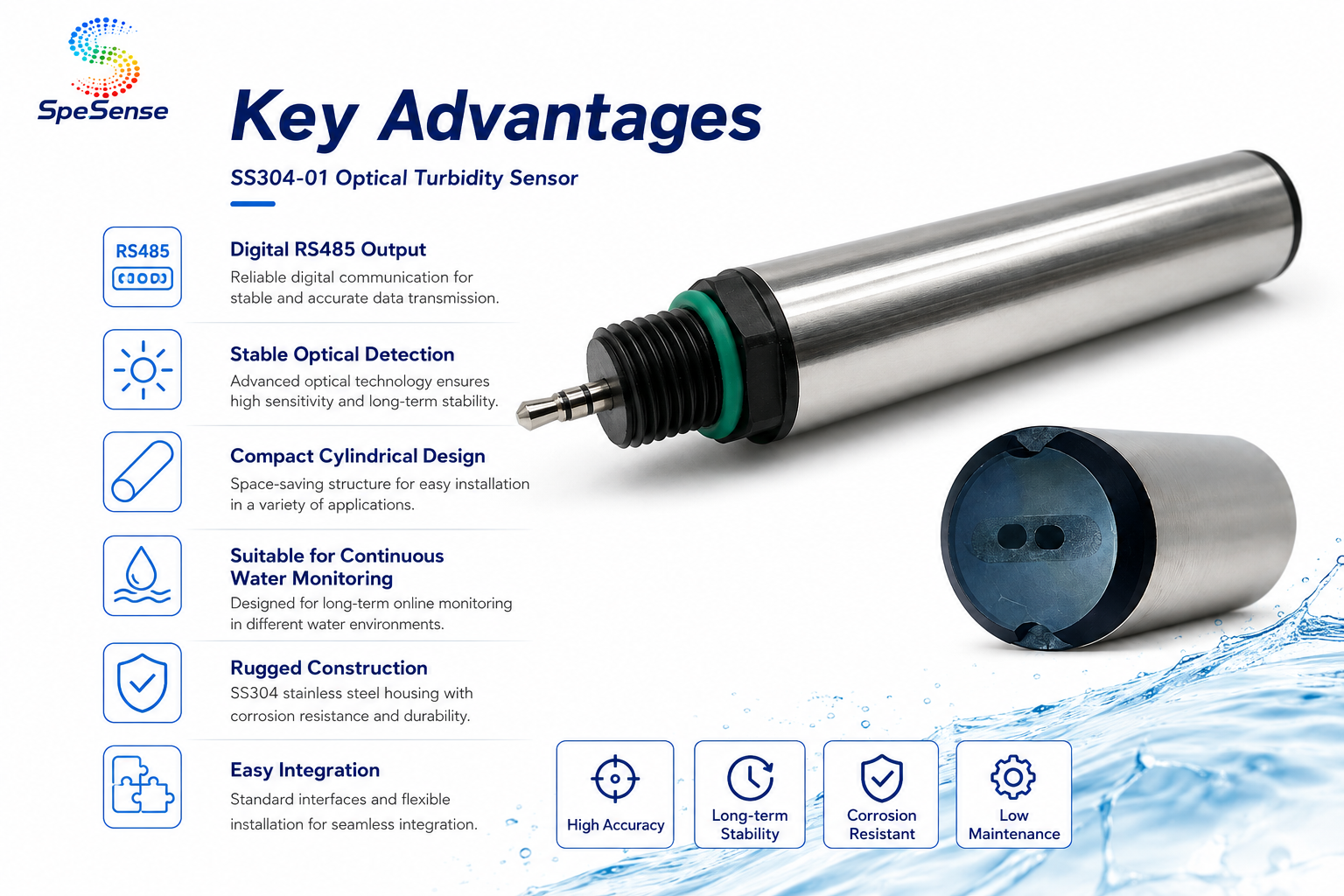

Turbidity Sensor

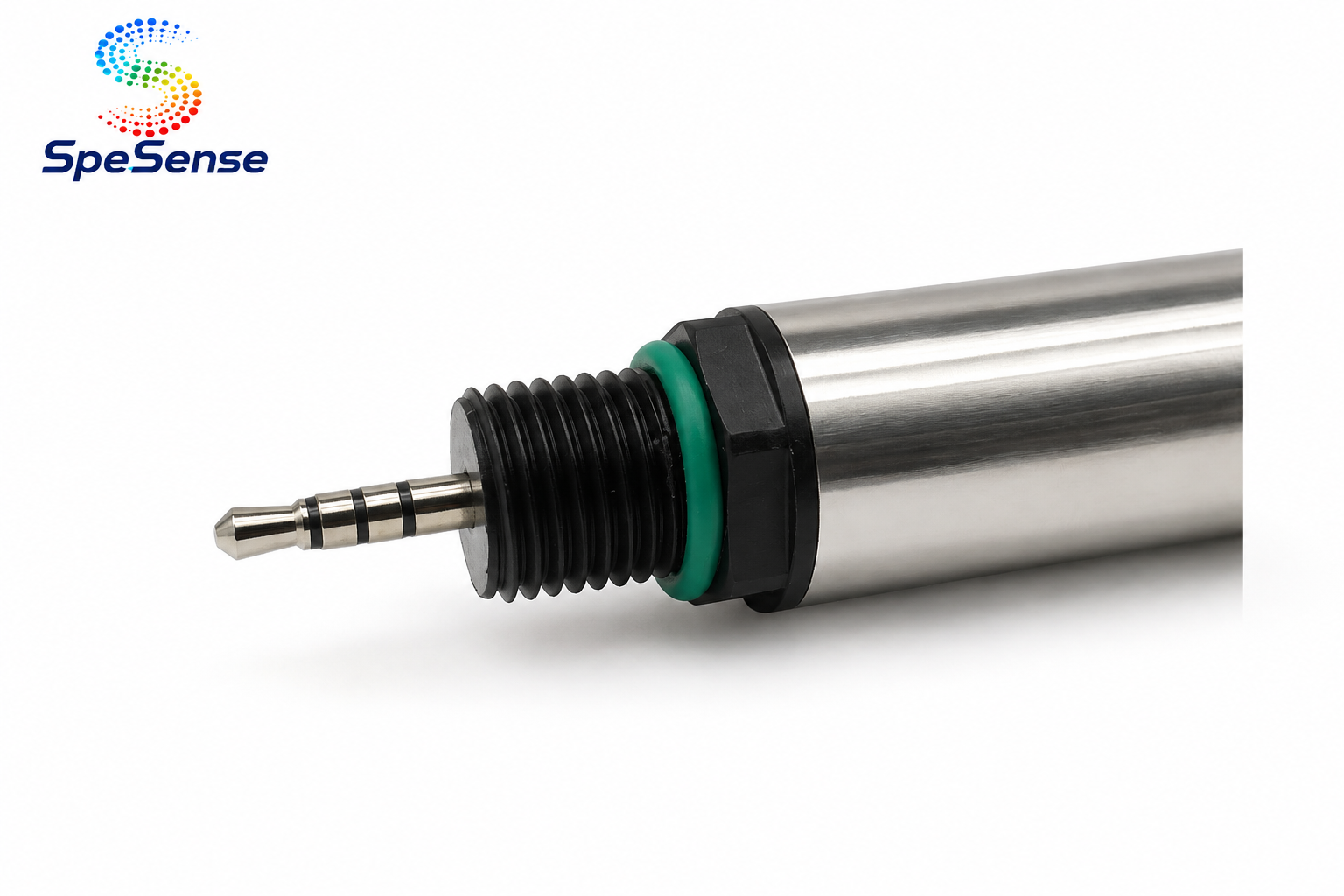

SS304-01
光学浊度传感器

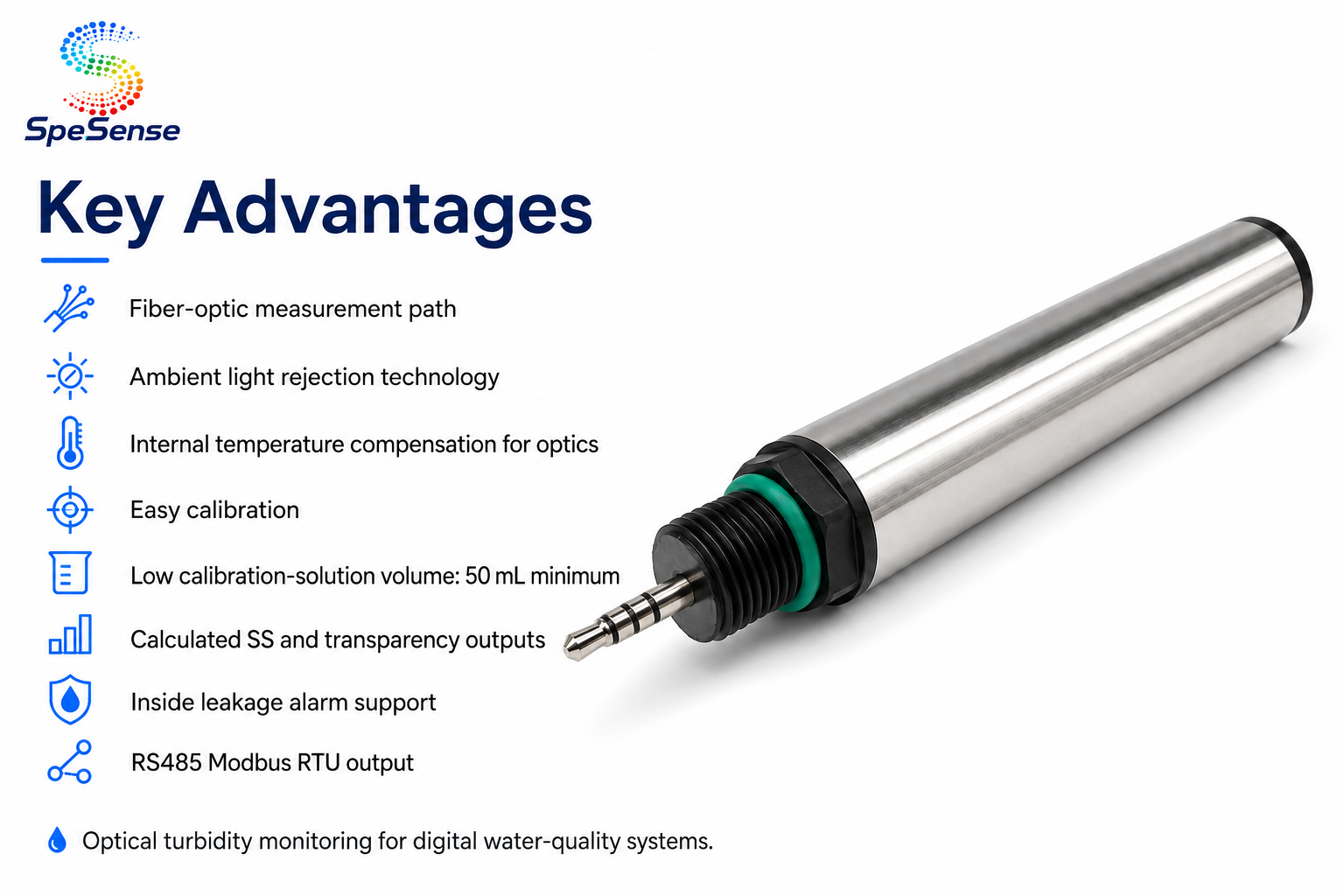

产品亮点
● Fiber-optic measurement path
● Ambient light rejection technology
● Internal temperature compensation for optics
● Easy calibration
● Low calibration-solution volume: 50 mL minimum
● Calculated SS and transparency outputs

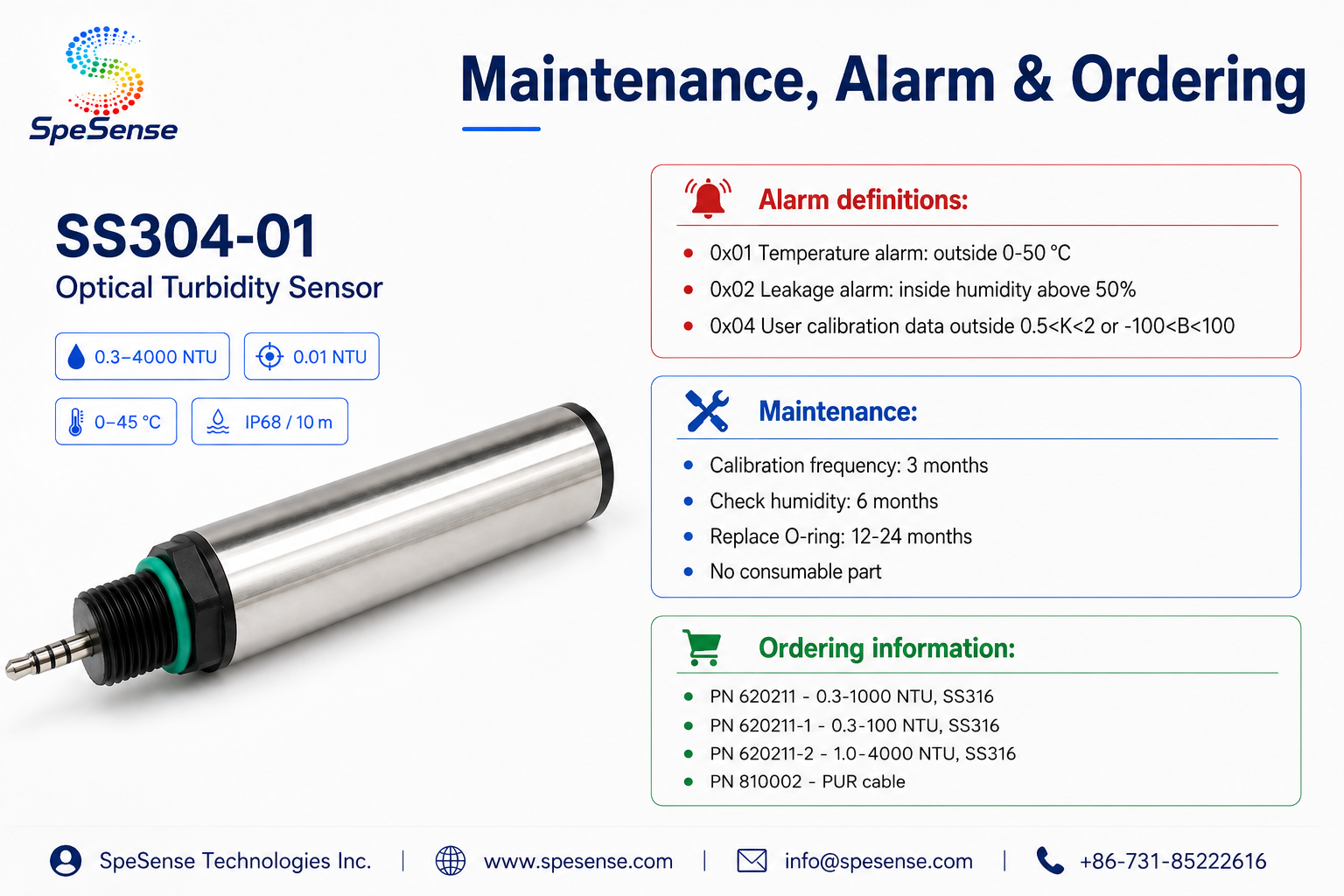

● Inside leakage alarm support

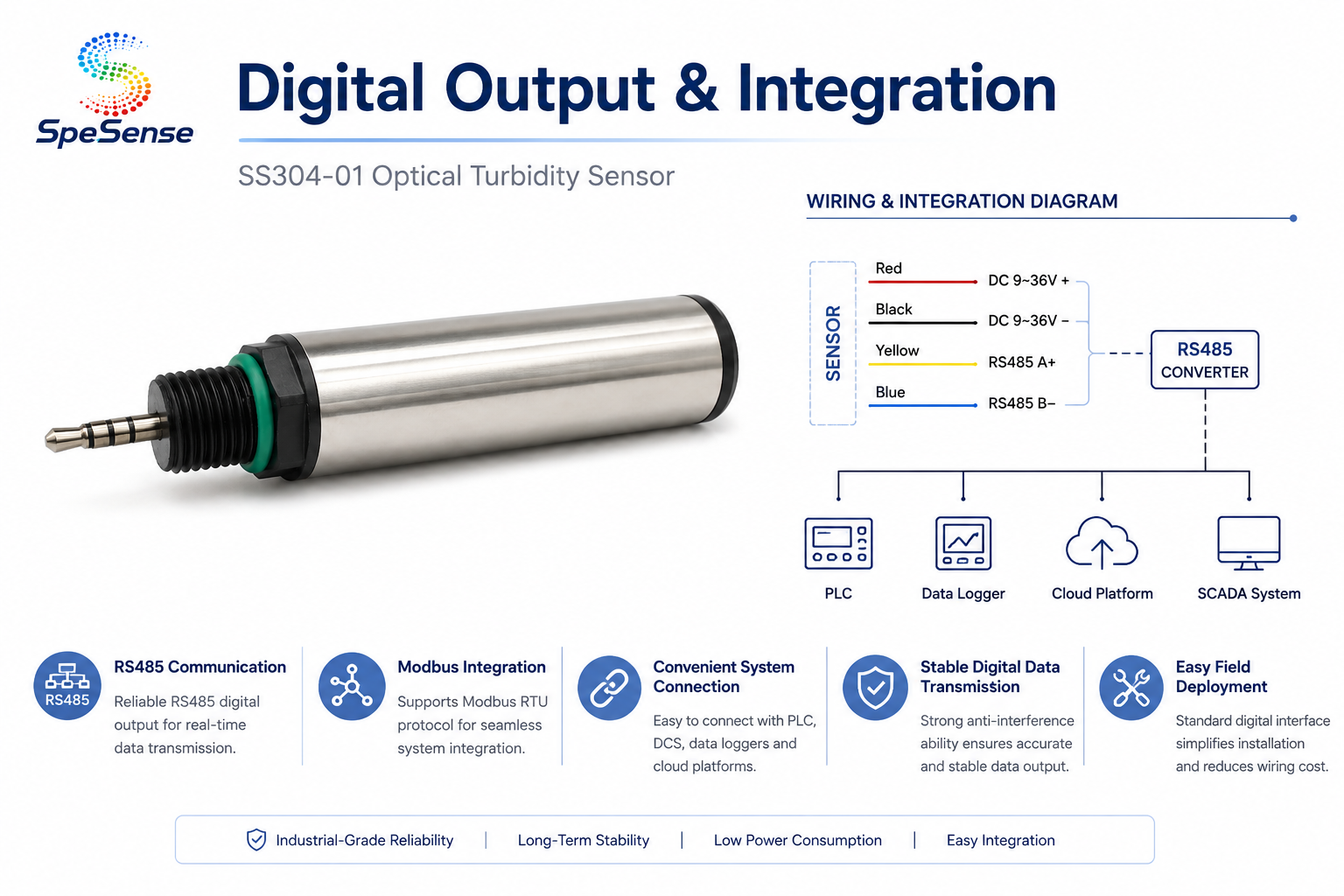

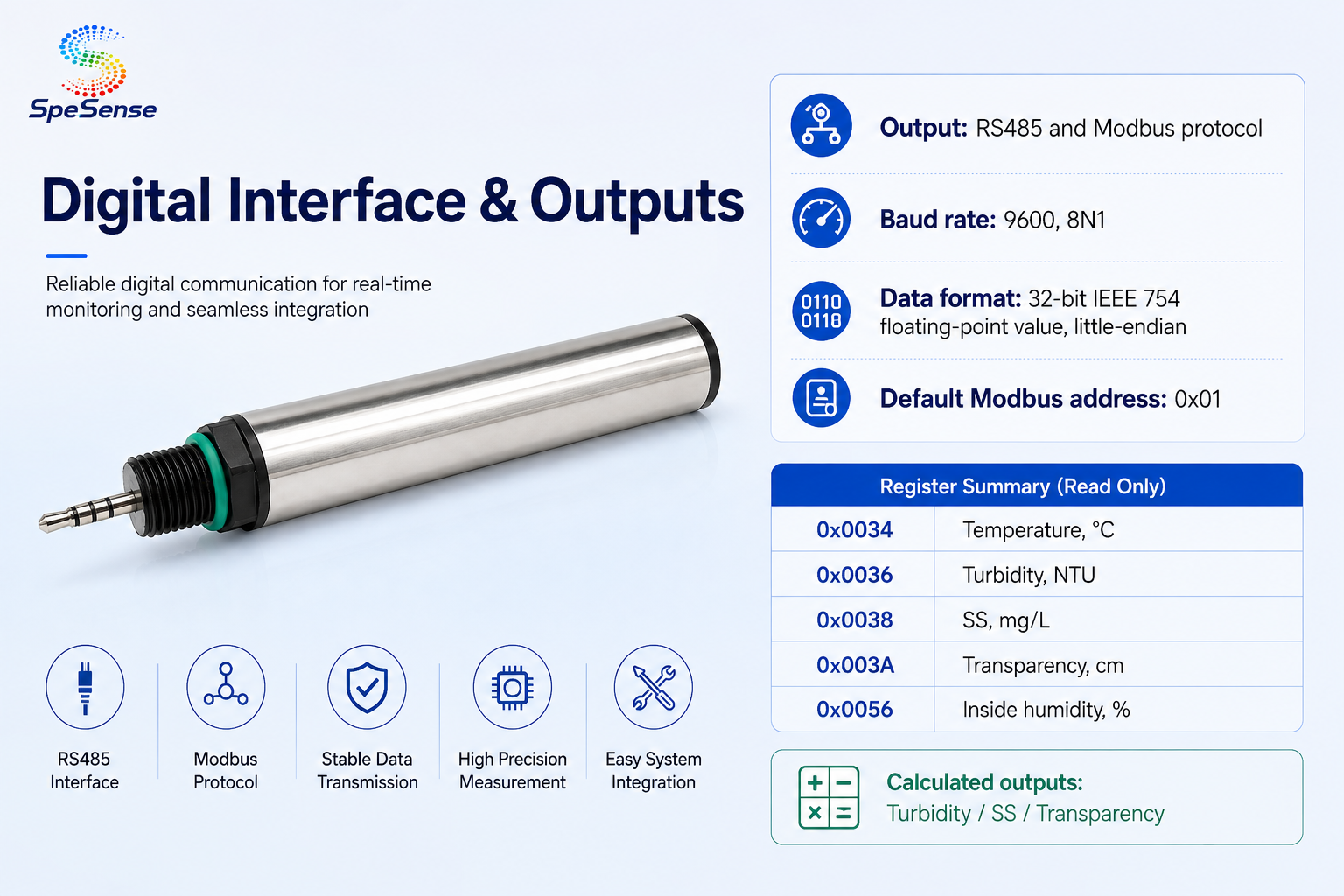

● RS485 Modbus RTU output
● Ambient light rejection technology
● Internal temperature compensation for optics
● Easy calibration
● Low calibration-solution volume: 50 mL minimum
● Calculated SS and transparency outputs
● Inside leakage alarm support
● RS485 Modbus RTU output
产品概述

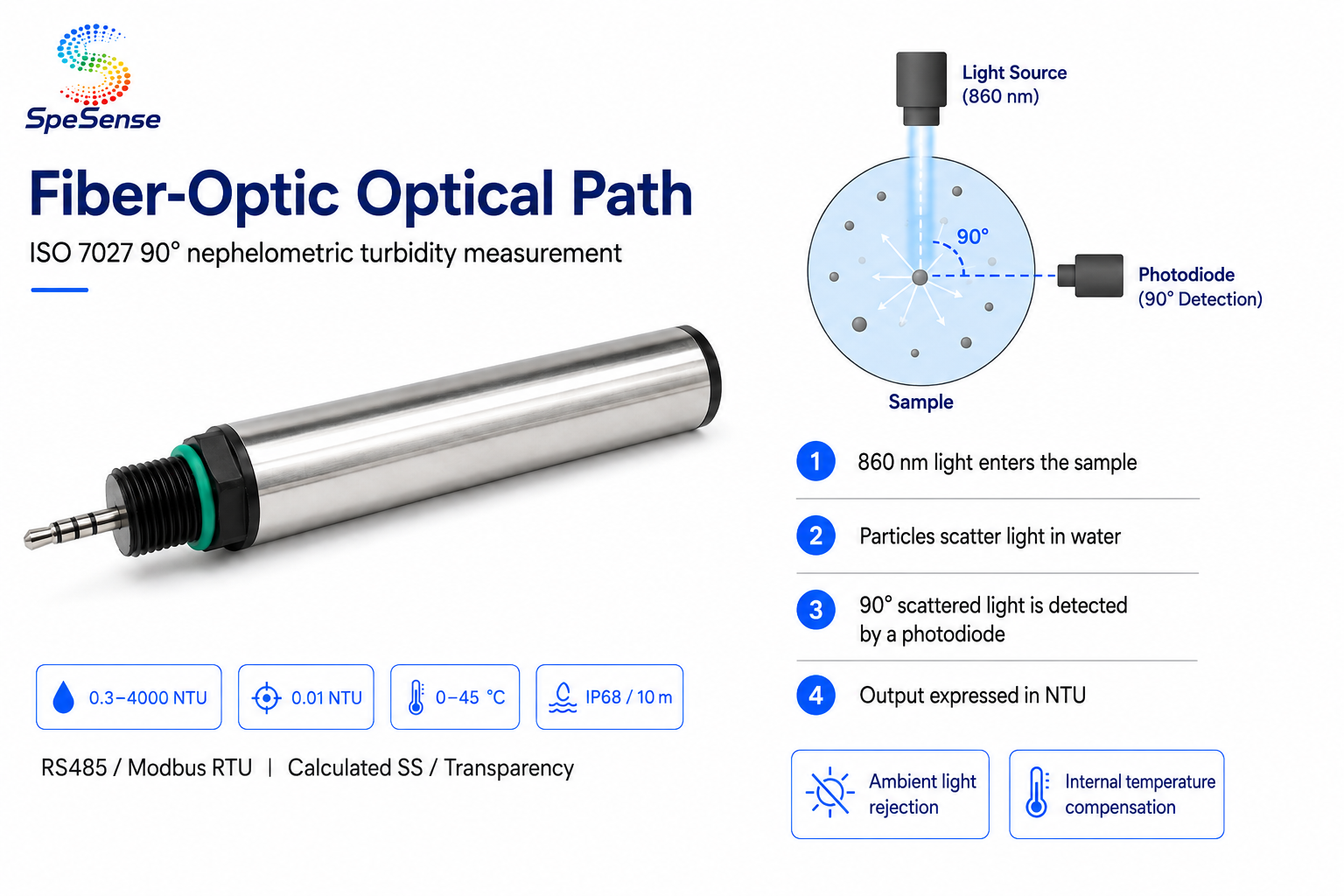

The SpeSense optical turbidity sensor uses a fiber-optic optical path. An 860 nm light source enters the sample and scatters from particles in the water; light scattered at 90 degrees is detected by a photodiode. The measurement follows the nephelometric technique and is expressed in nephelometric turbidity units (NTU), in accordance with ISO 7027.

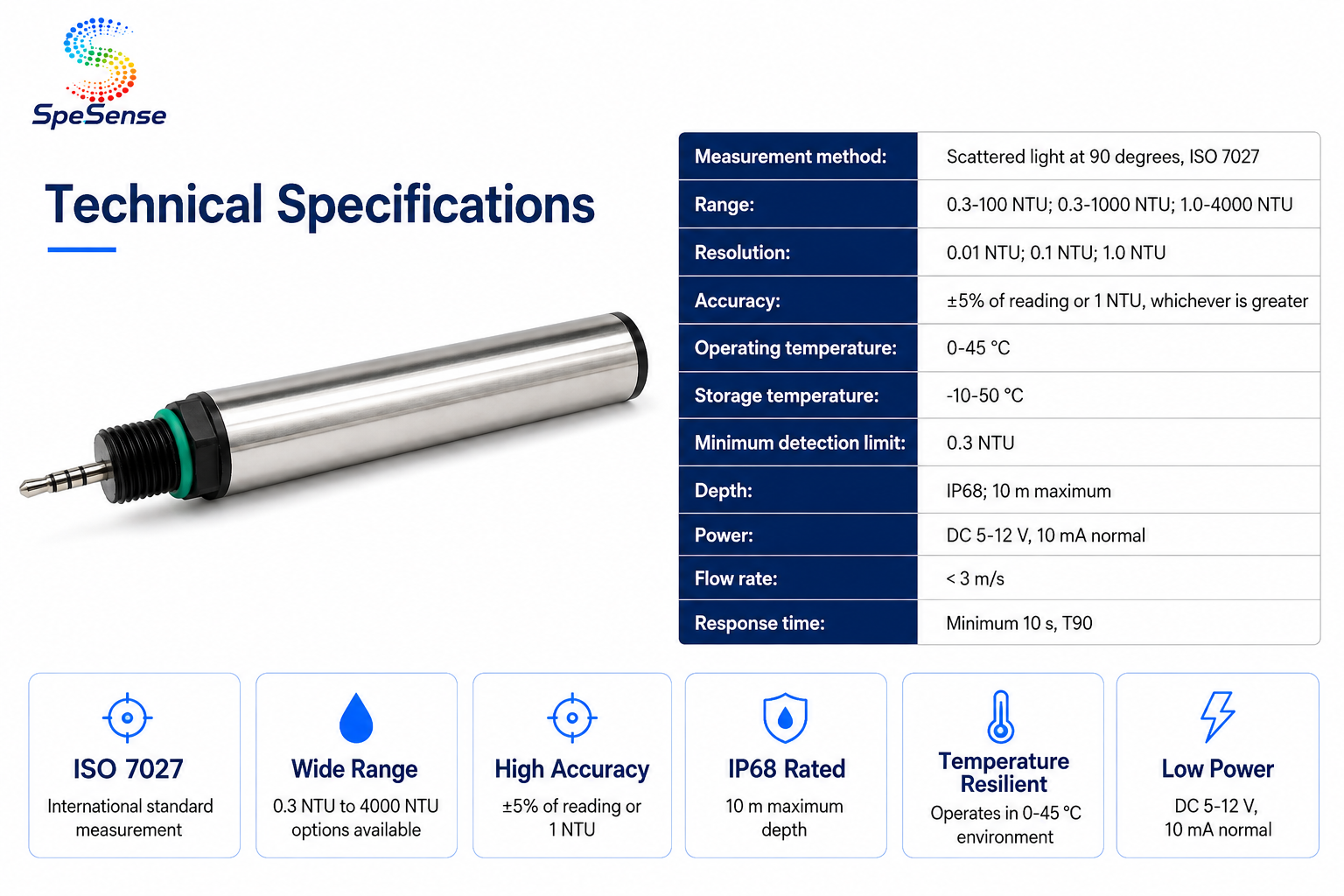

| Item | Specification |
| Measurement Method | Scattered light at 90 degrees, ISO 7027 |
| Range | 0.3-100 NTU; 0.3-1000 NTU; 1.0-4000 NTU |
| Resolution | 0.01 NTU; 0.1 NTU; 1.0 NTU |
| Accuracy | ±5% of reading or 1 NTU, whichever is greater |
| Operating Temperature | 0-45 °C |
| Storage Temperature | -10-50 °C |
| Minimum Detection Limit | 0.3 NTU |
| Warranty | 1 year |
| Depth | IP68; 10 m maximum |
| Power | DC 5-12 V, 10 mA normal |
