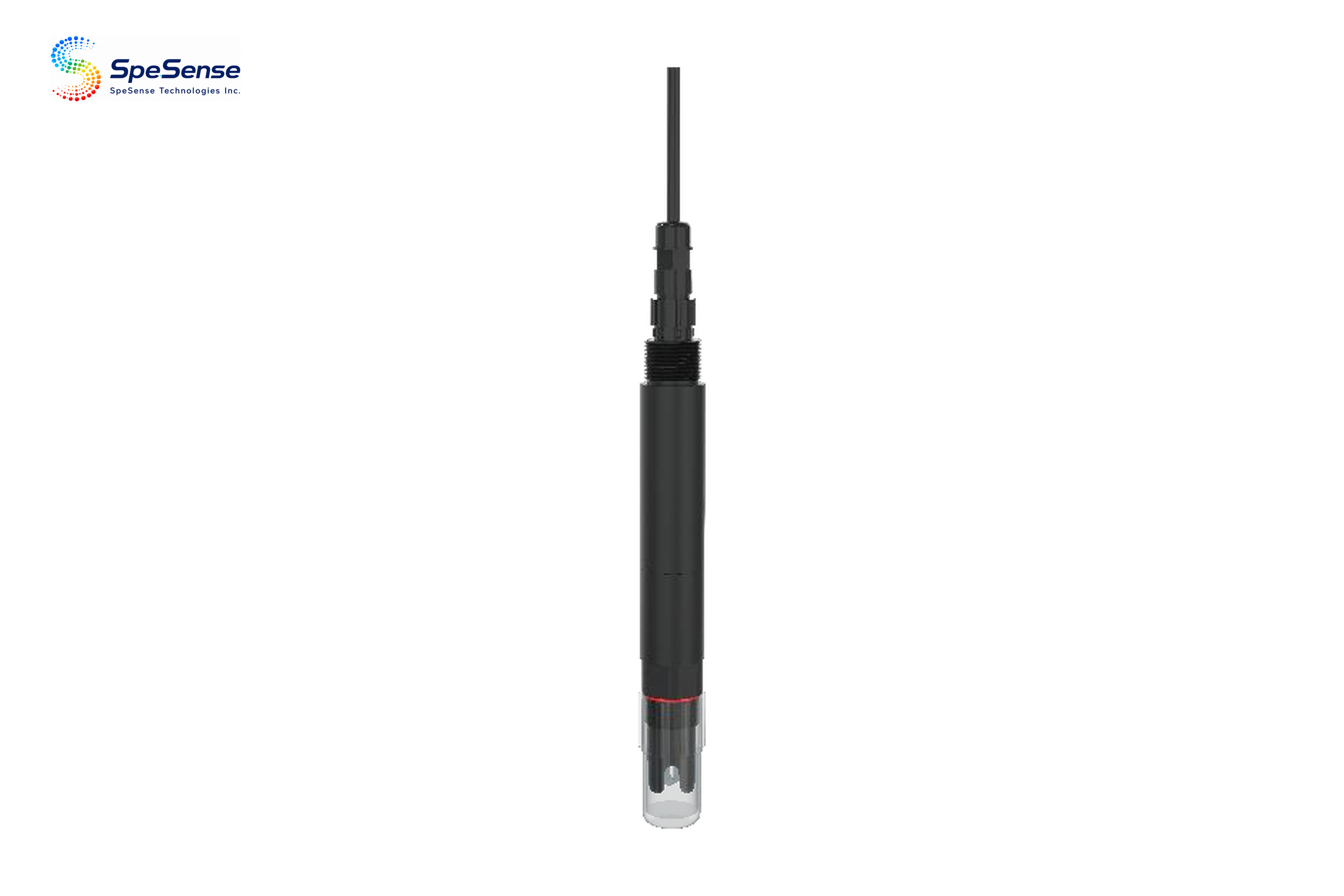

SS302-01
ORP Sensor

SS302-01

Industrial ORP Transmitter

Product Highlights

● Fast response, stable performance and automatic temperature compensation.
● High-purity platinum electrode resists acid, alkali and oxidation.

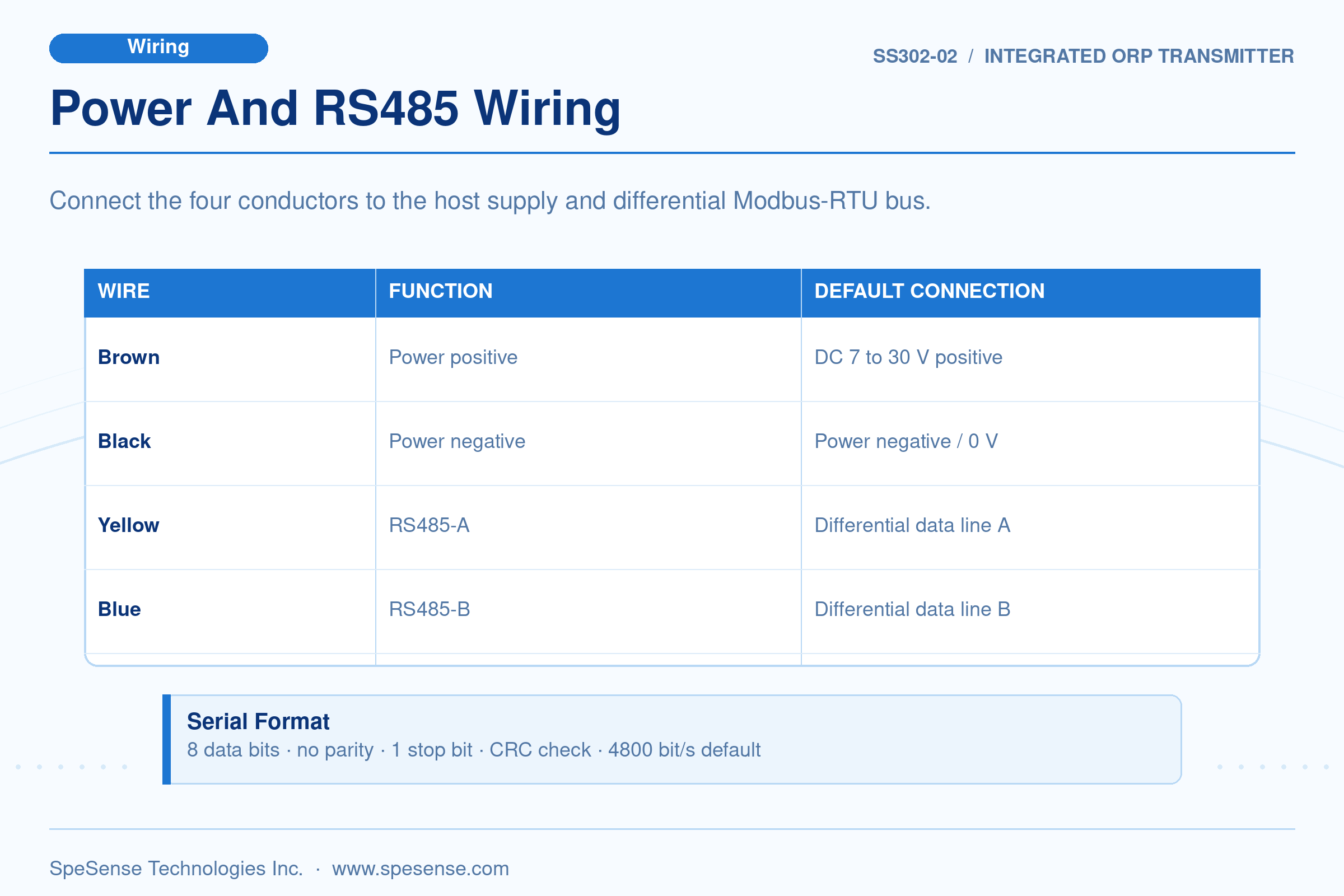

● Modbus-RTU, analog and wireless options for online integration.
Download PDF

Product Overview

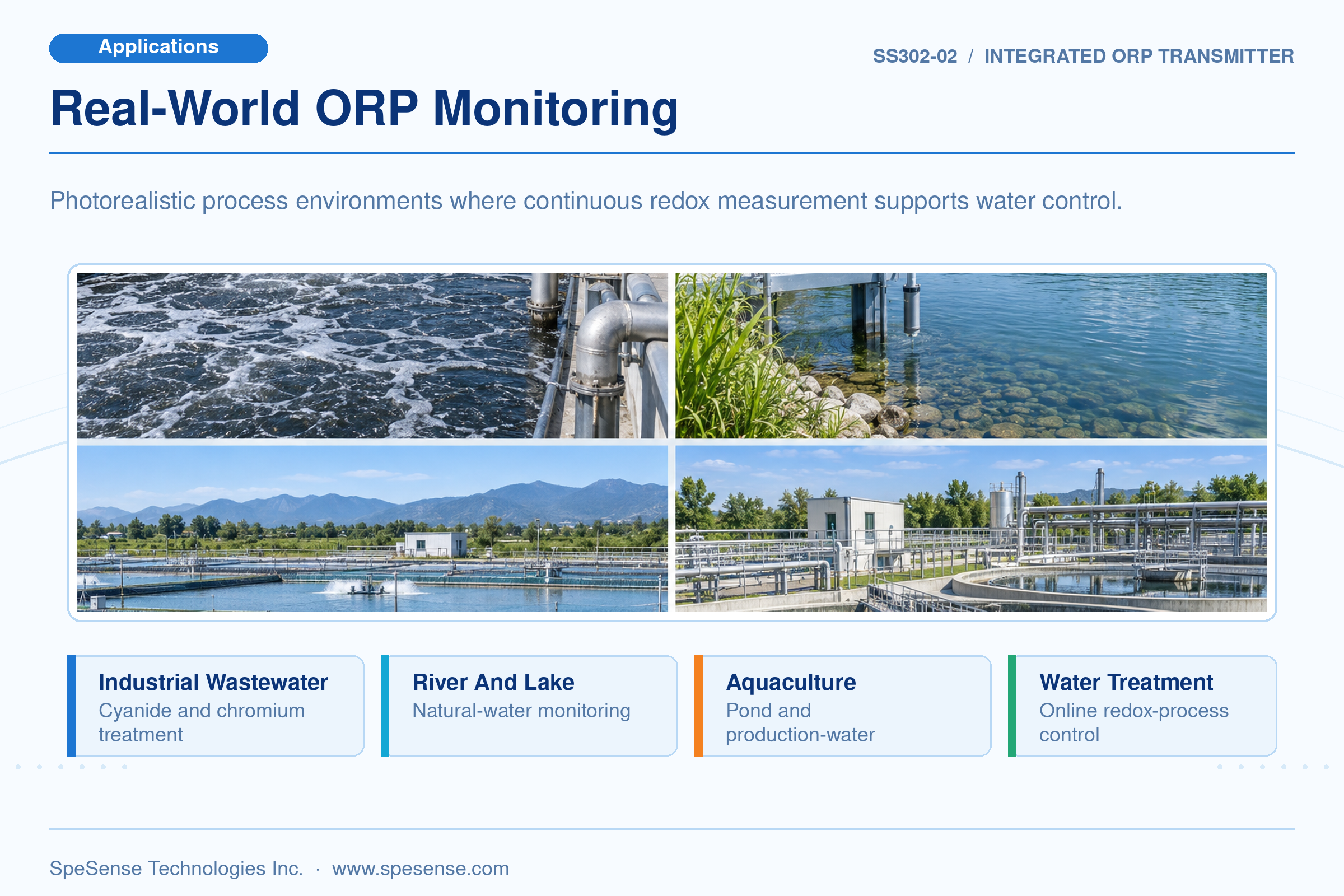

An online oxidation-reduction potential transmitter for process and wastewater monitoring. The high-purity platinum composite electrode provides strong acid, alkali and oxidation resistance with fast response and stable measurement.
ItemSpecification
ORP measurement range-1999 to 1999 mV; resolution 1 mV
ORP measurement error±10 mV
Supply voltageDC 10-30 V
Transmitter environment-20 to 80 °C; 0-95% RH, non-condensing
Electrode operating temperature0-80 °C
Electrode pressure resistance0.6 MPa
Electrode cable5 m standard; 10 m, 15 m and 20 m customizable
Electrode service lifeApproximately 1 year
