SS301-101
工业pH电极
产品亮点
● Fast response, good repeatability and stable thermal performance.

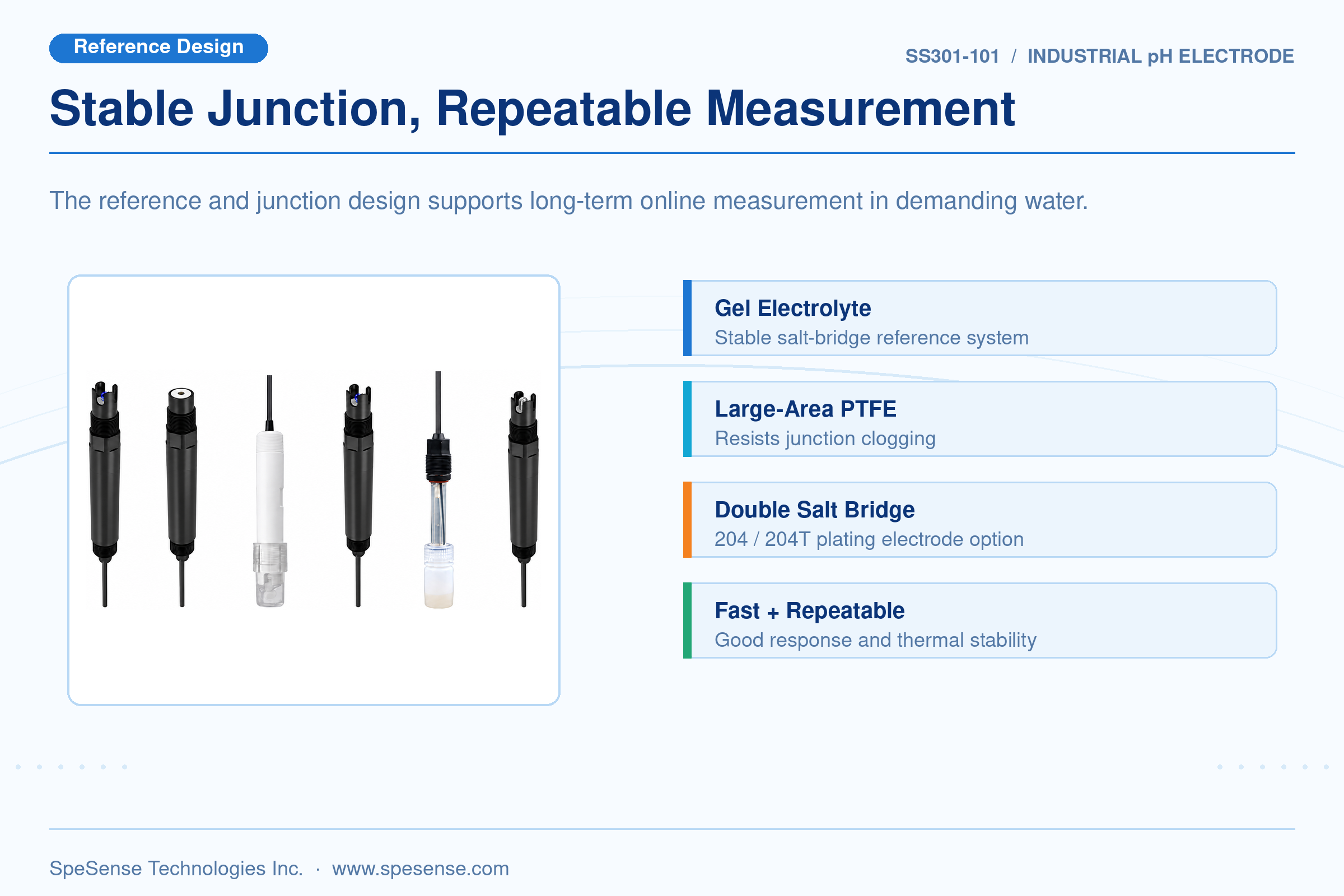

● Gel electrolyte salt bridge and large-area PTFE junction resist clogging.

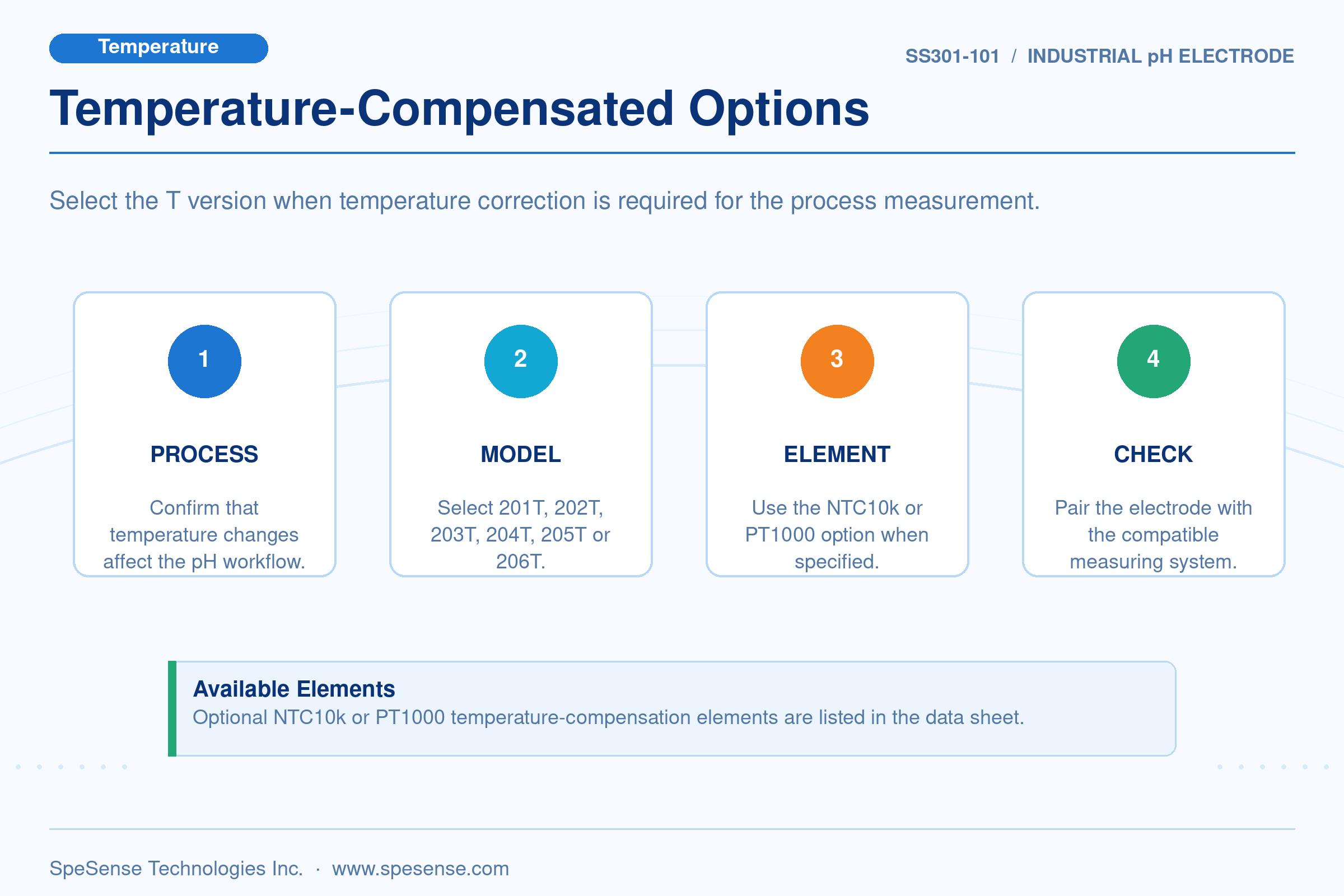

● Optional NTC10k or PT1000 temperature-compensation elements.
● Gel electrolyte salt bridge and large-area PTFE junction resist clogging.
● Optional NTC10k or PT1000 temperature-compensation elements.
产品概述

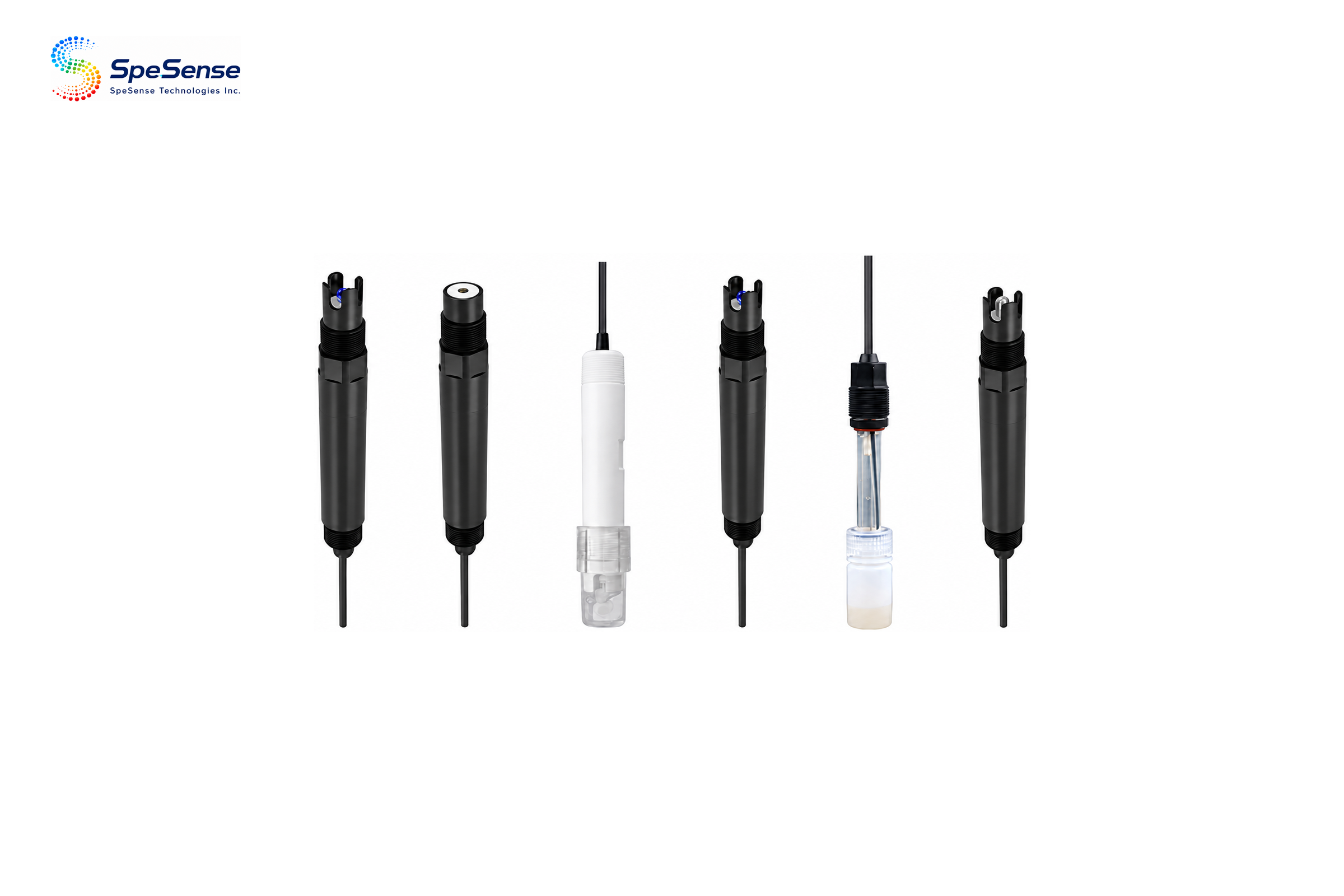

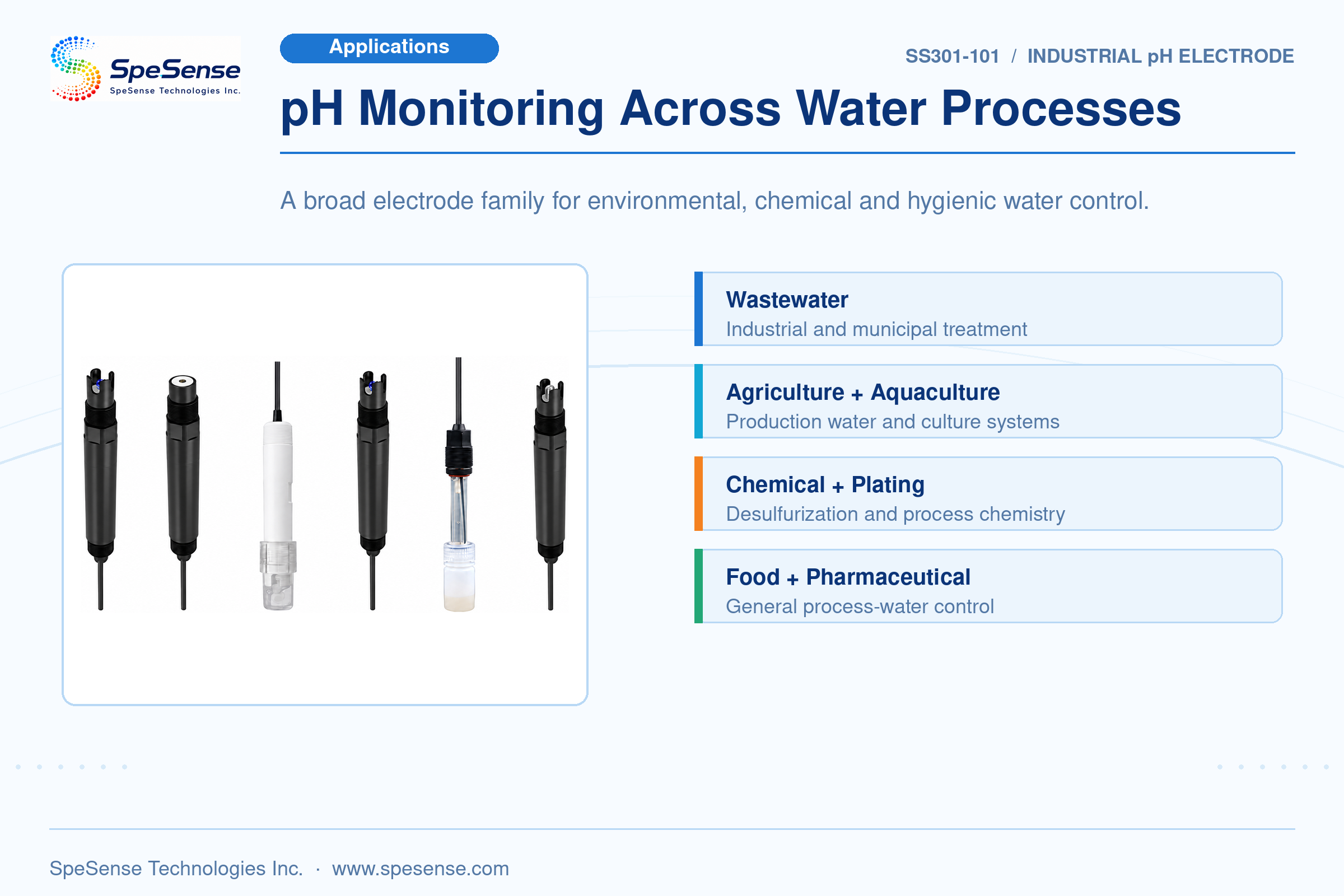

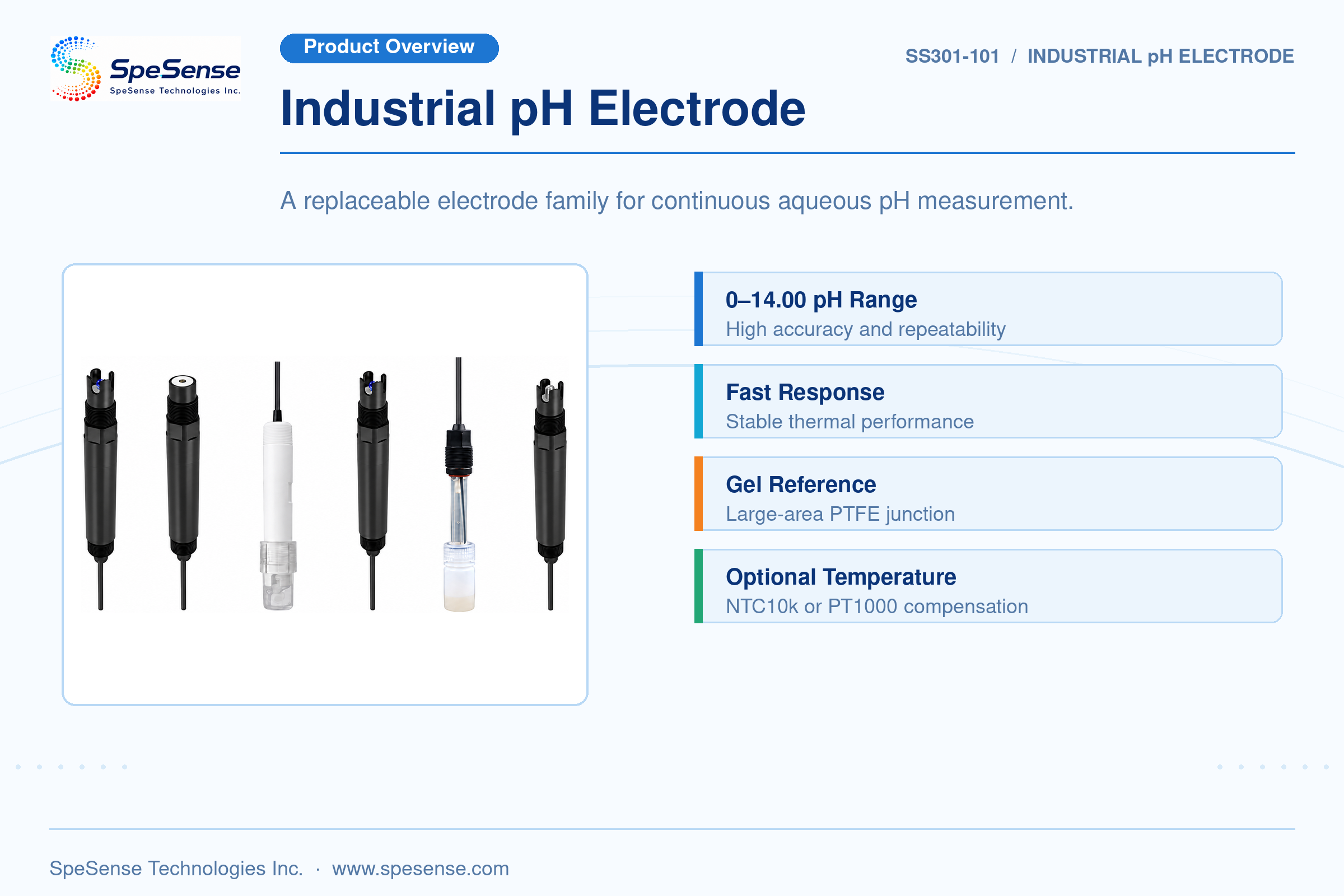

A family of industrial pH electrodes for continuous aqueous measurement. The range combines fast response, good repeatability and thermal stability with gel electrolyte reference systems and large-area PTFE junctions for long-term online use.

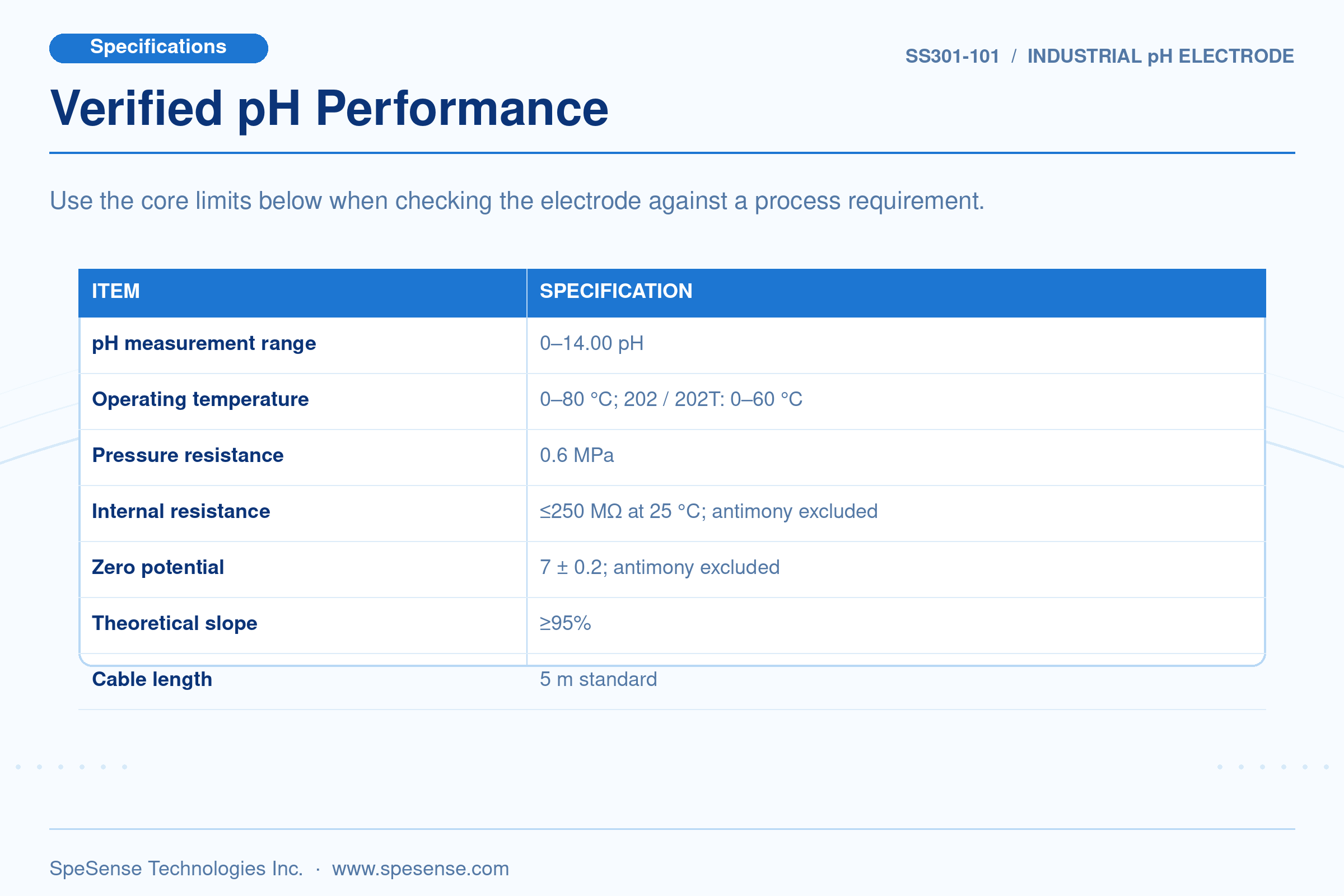

| Item | Specification |
| pH measurement range | 0-14.00 pH |
| Operating temperature | 0-80 °C; 202 / 202T flat desulfurization electrode: 0-60 °C |
| Pressure resistance | 0.6 MPa |
| Internal resistance | ≤250 MΩ at 25 °C; antimony electrode excluded |
| Zero potential | 7 ± 0.2; antimony electrode excluded |
| Theoretical slope | ≥95% |
| Cable length | 5 m standard |
