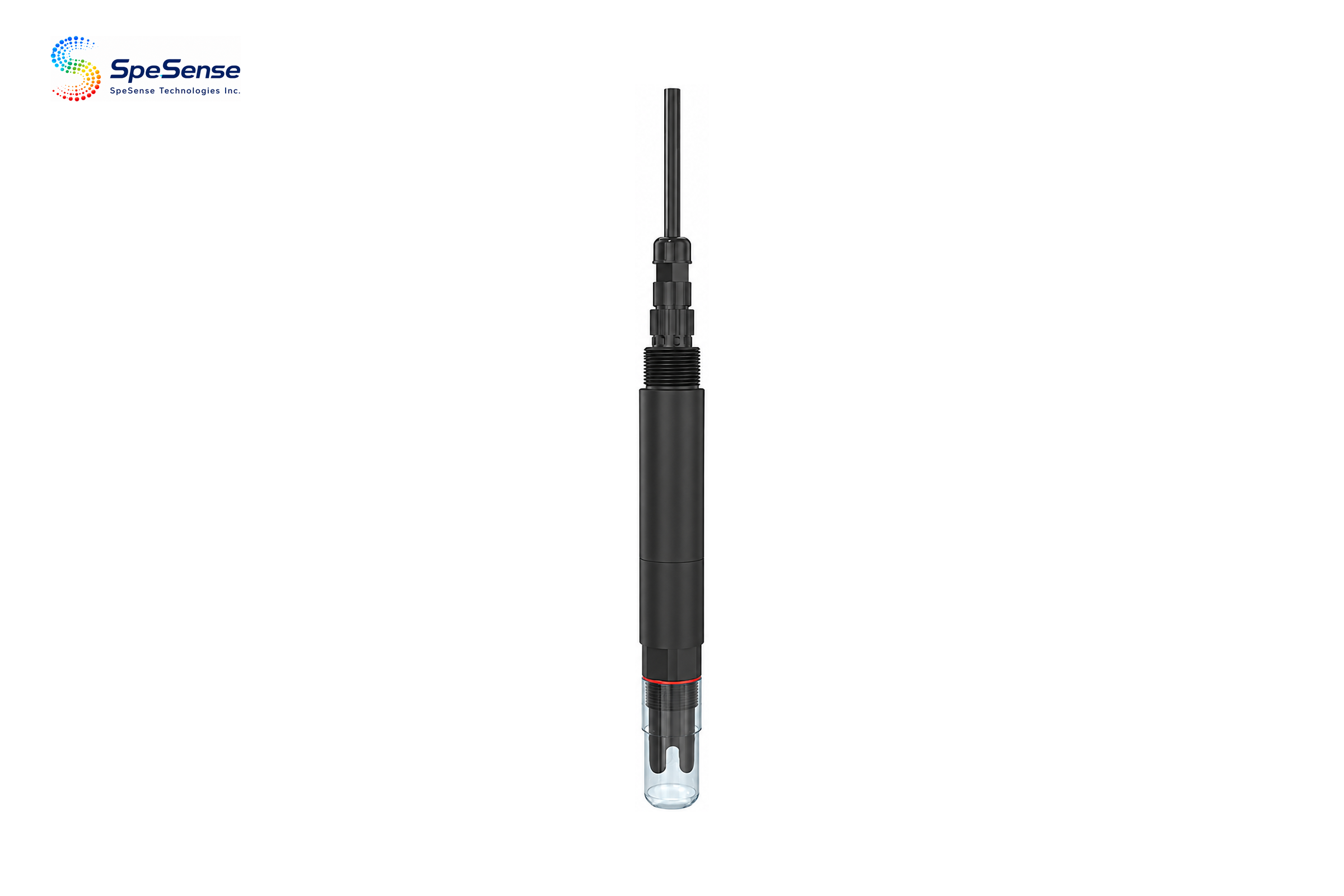

SS301-04
EC Sensor

SS301-04

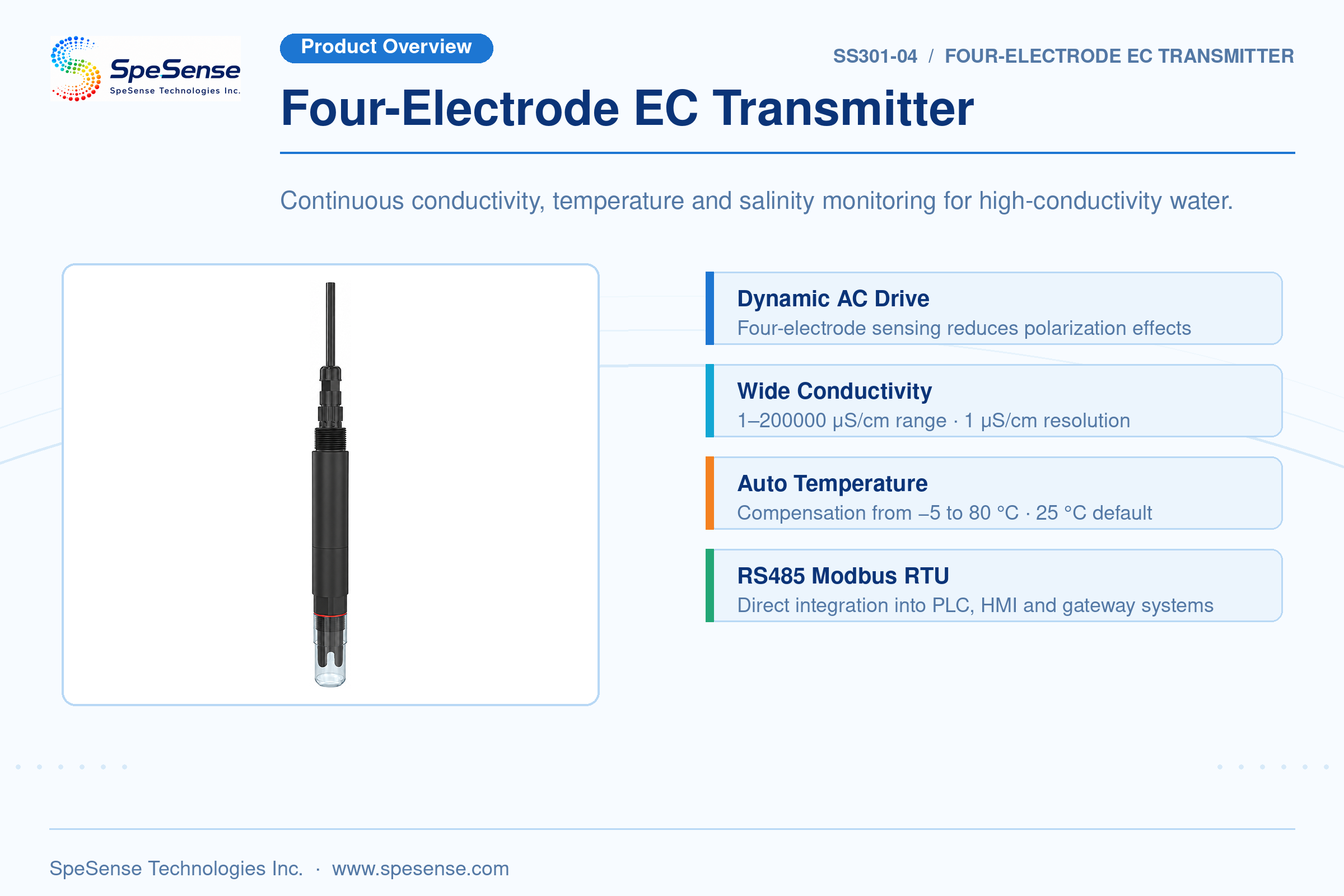

Four-Electrode EC Transmitter

Product Highlights

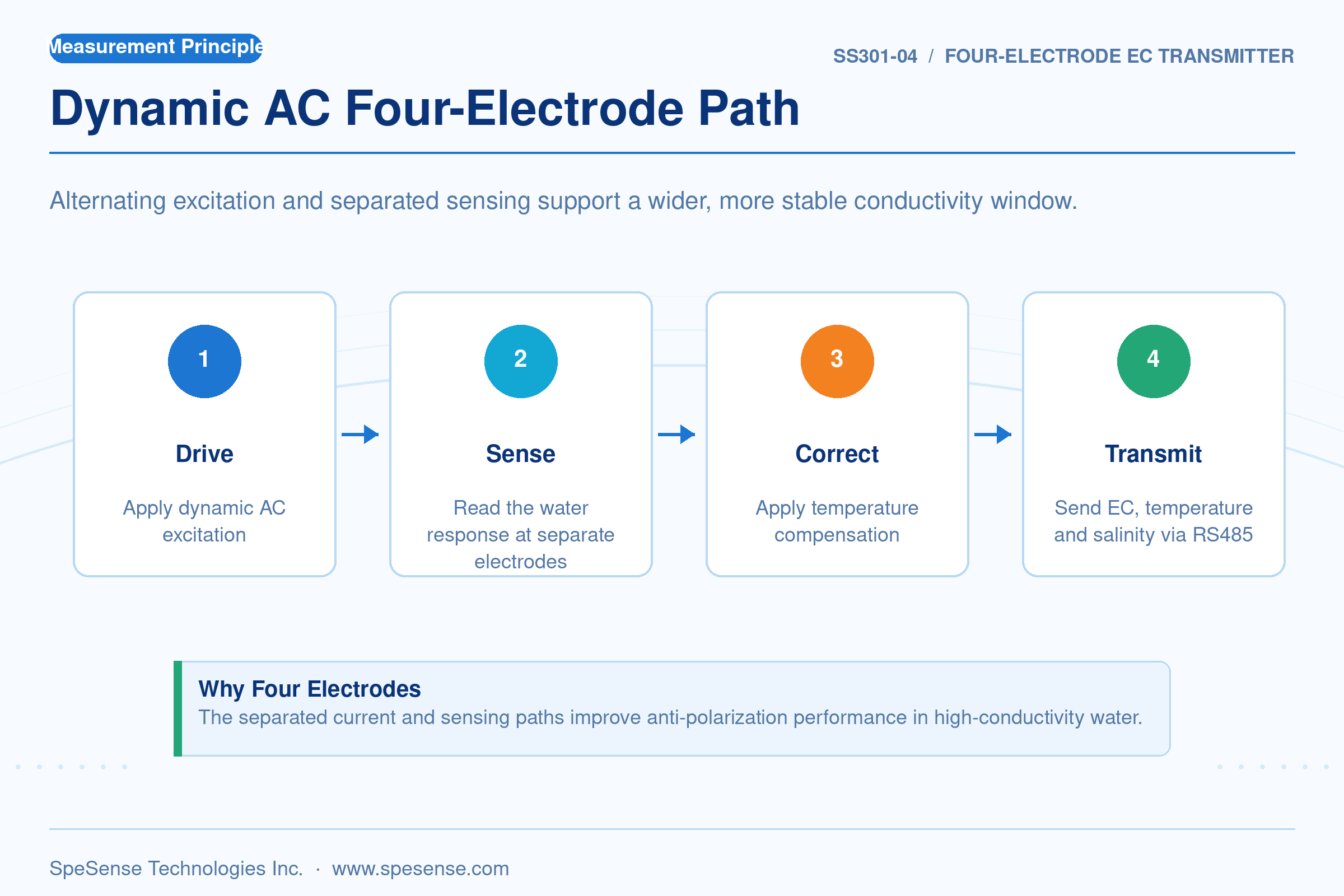

● Dynamic AC drive with four-electrode sensing.
● Improved anti-polarization performance.
● Automatic temperature compensation to a 25 °C default reference.
● 0.6 MPa pressure resistance.
Download PDF

Product Overview

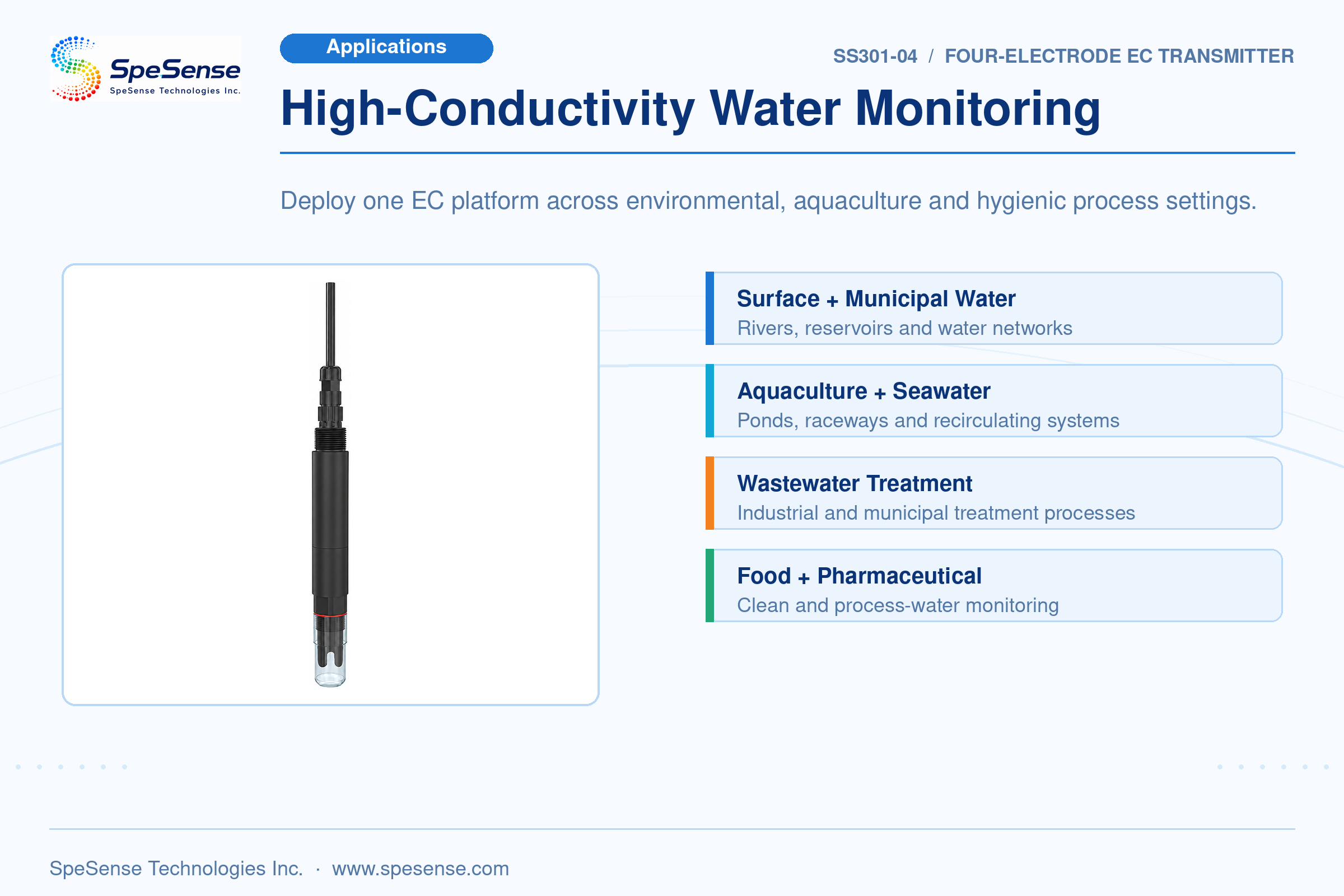

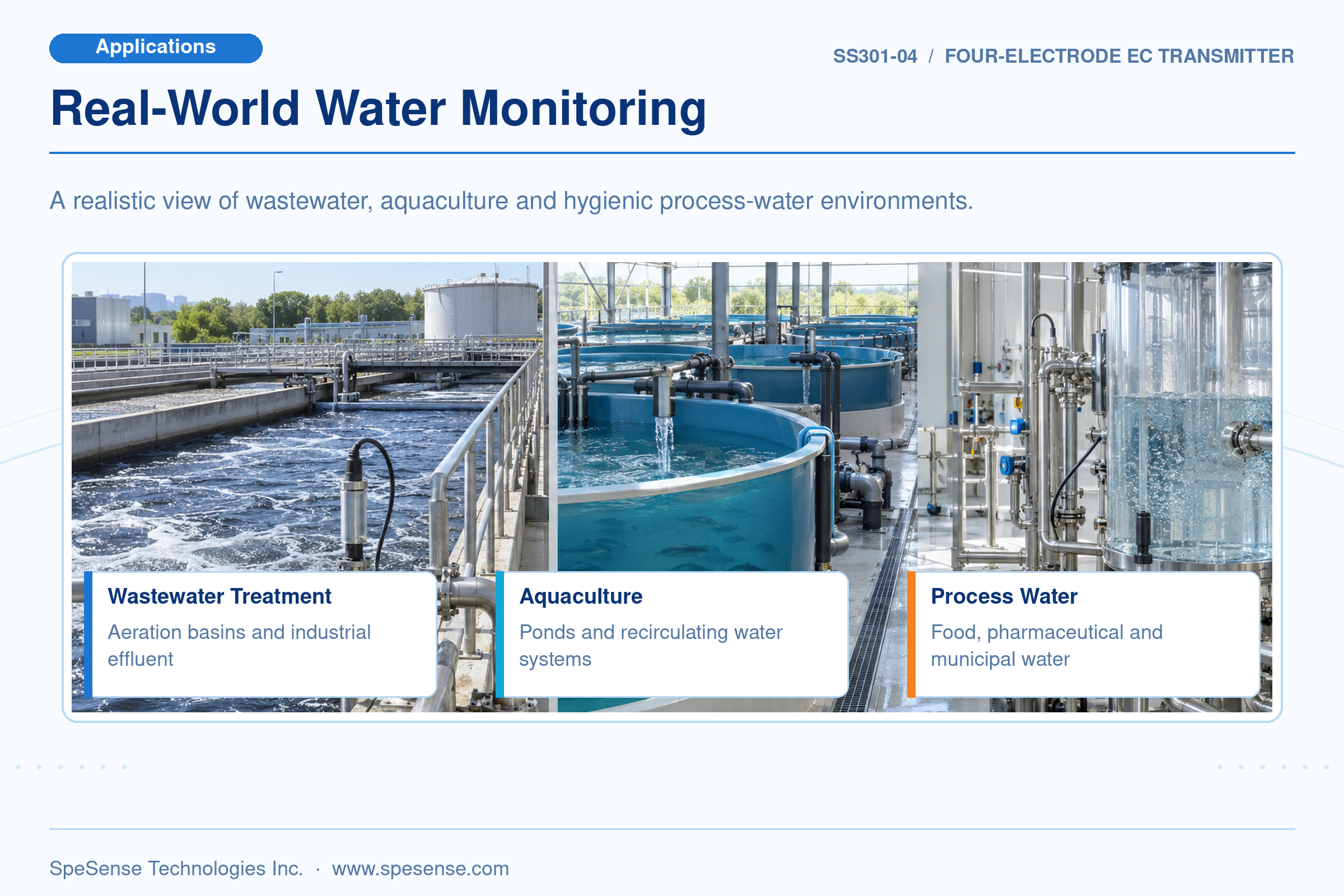

• Measures conductivity, temperature and calculated salinity in high-conductivity water. • Four-electrode construction expands the measurement range and improves anti-polarization performance. • Wide DC 7-30 V supply with configurable RS485 address and baud rate. • IP68 integrated construction for submerged, pipe and continuous process monitoring.
ItemSpecification

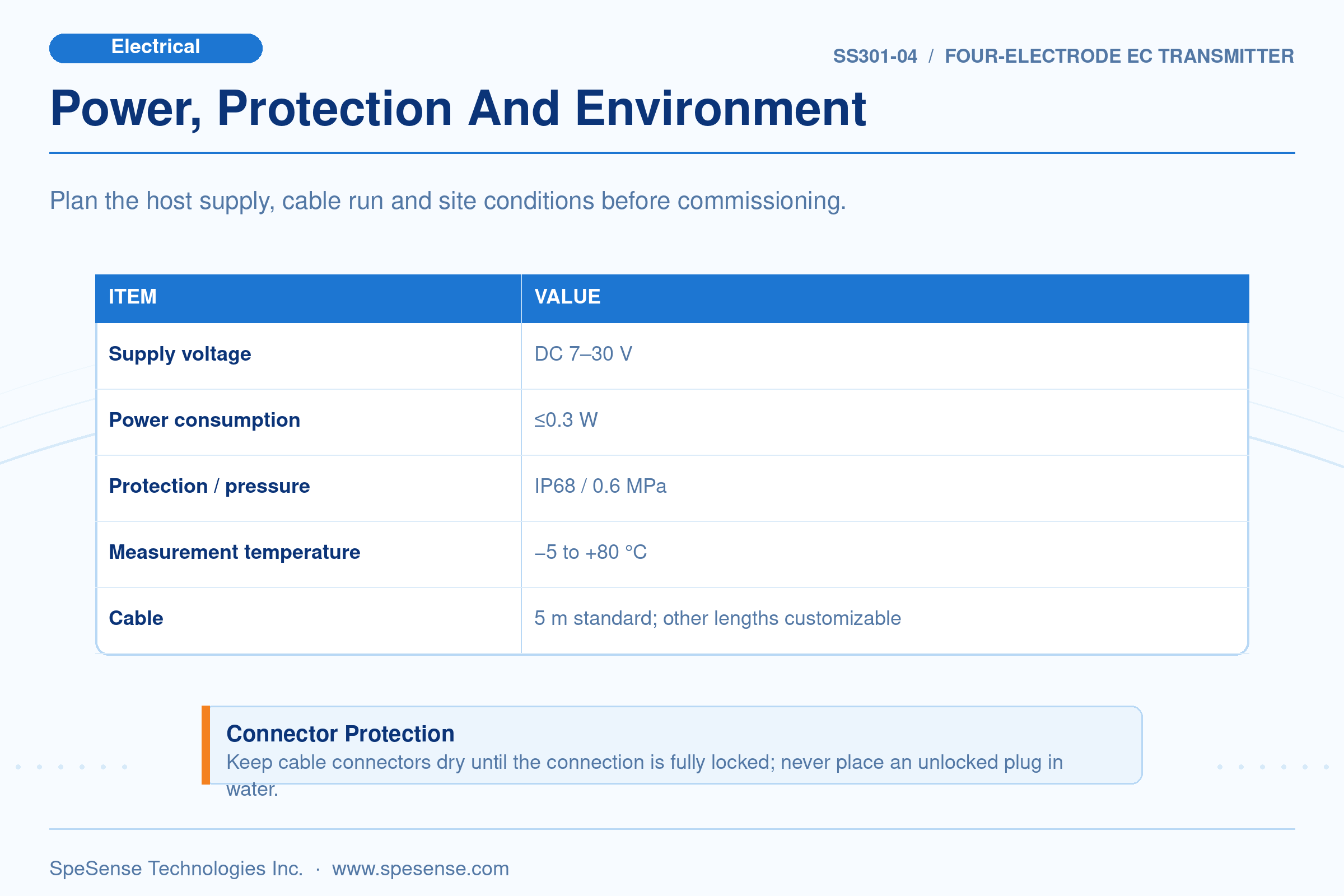

Supply VoltageDC 7-30 V
Power Consumption≤0.3 W

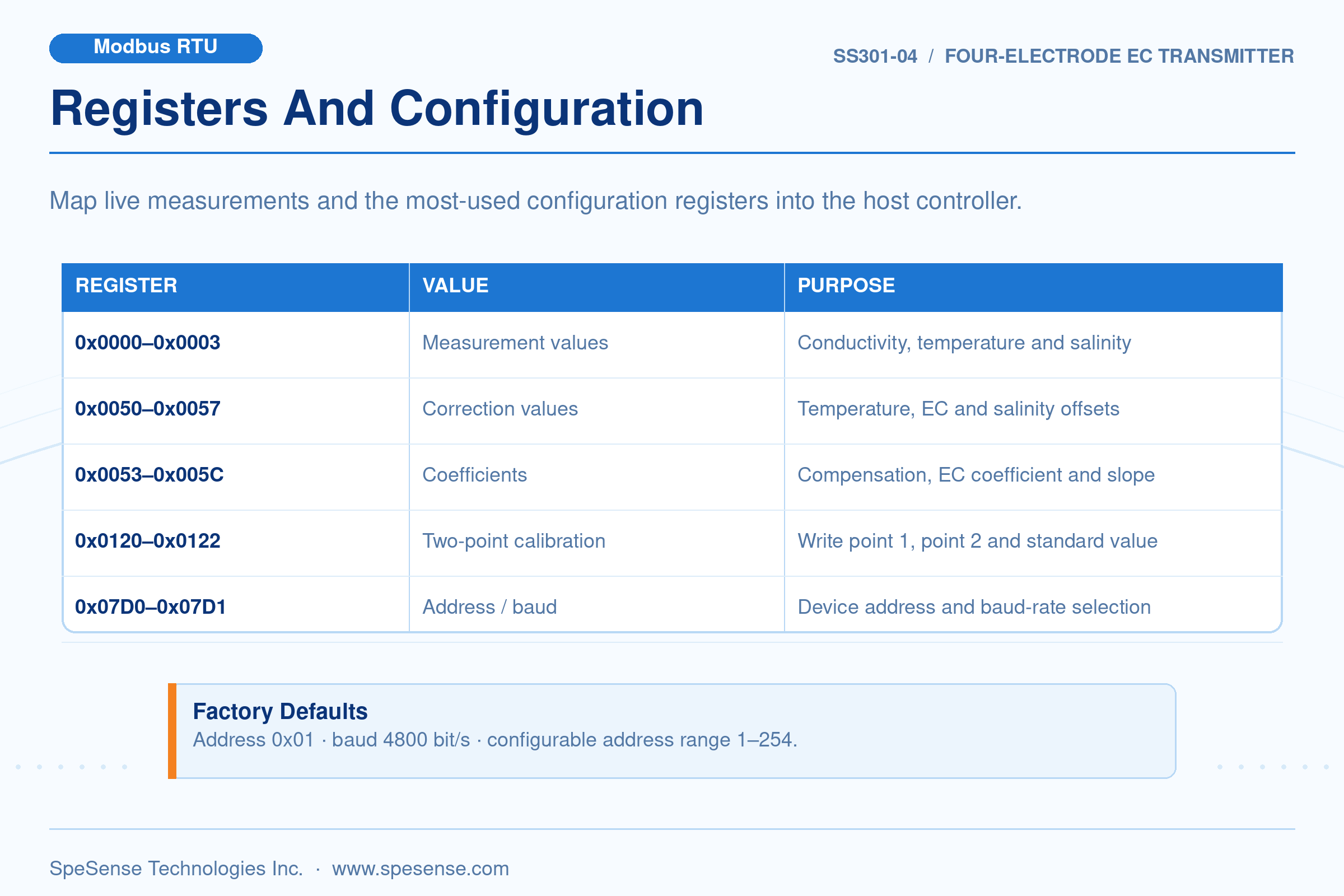

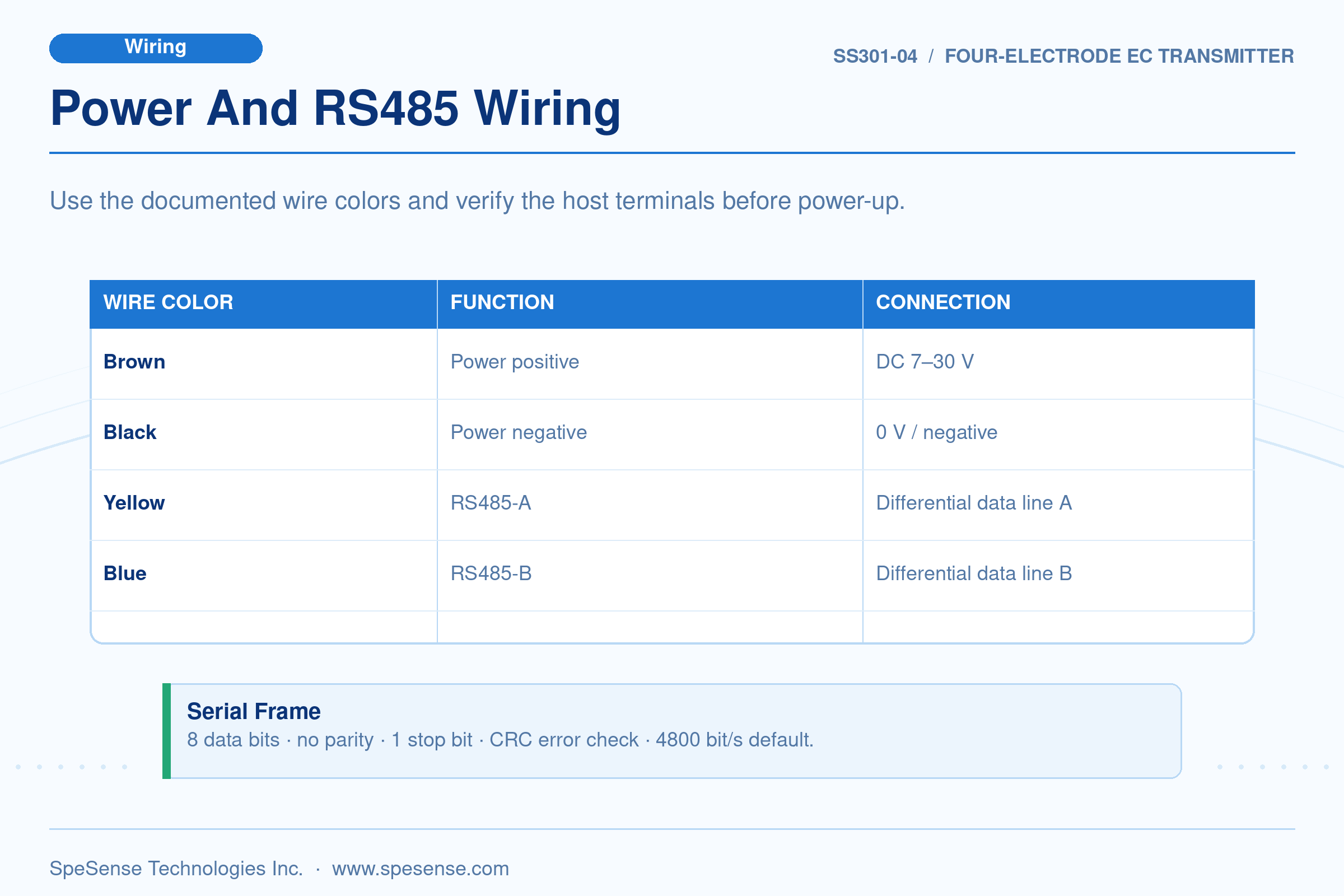

CommunicationRS485; Modbus-RTU; default 4800 bit/s; 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 configurable

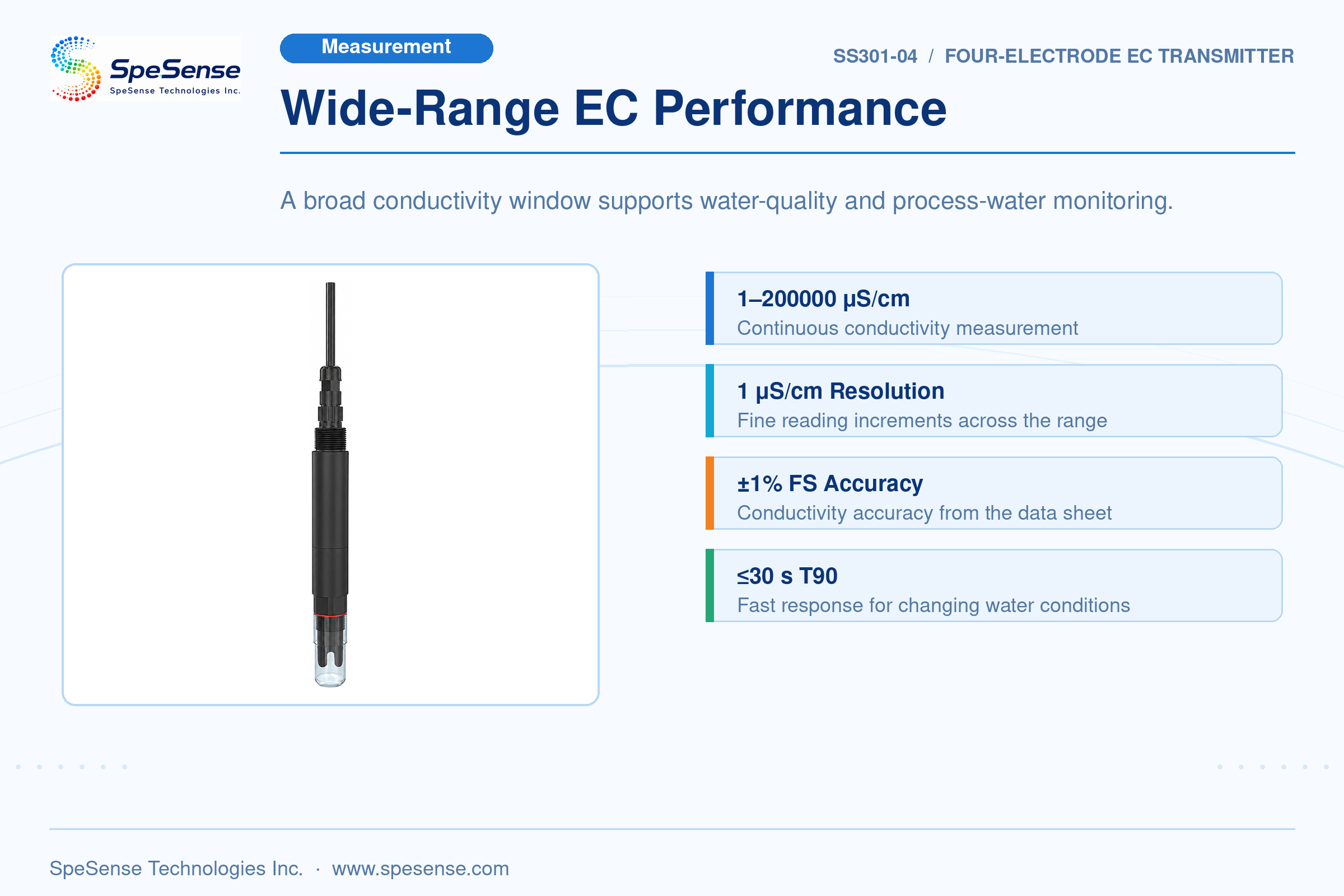

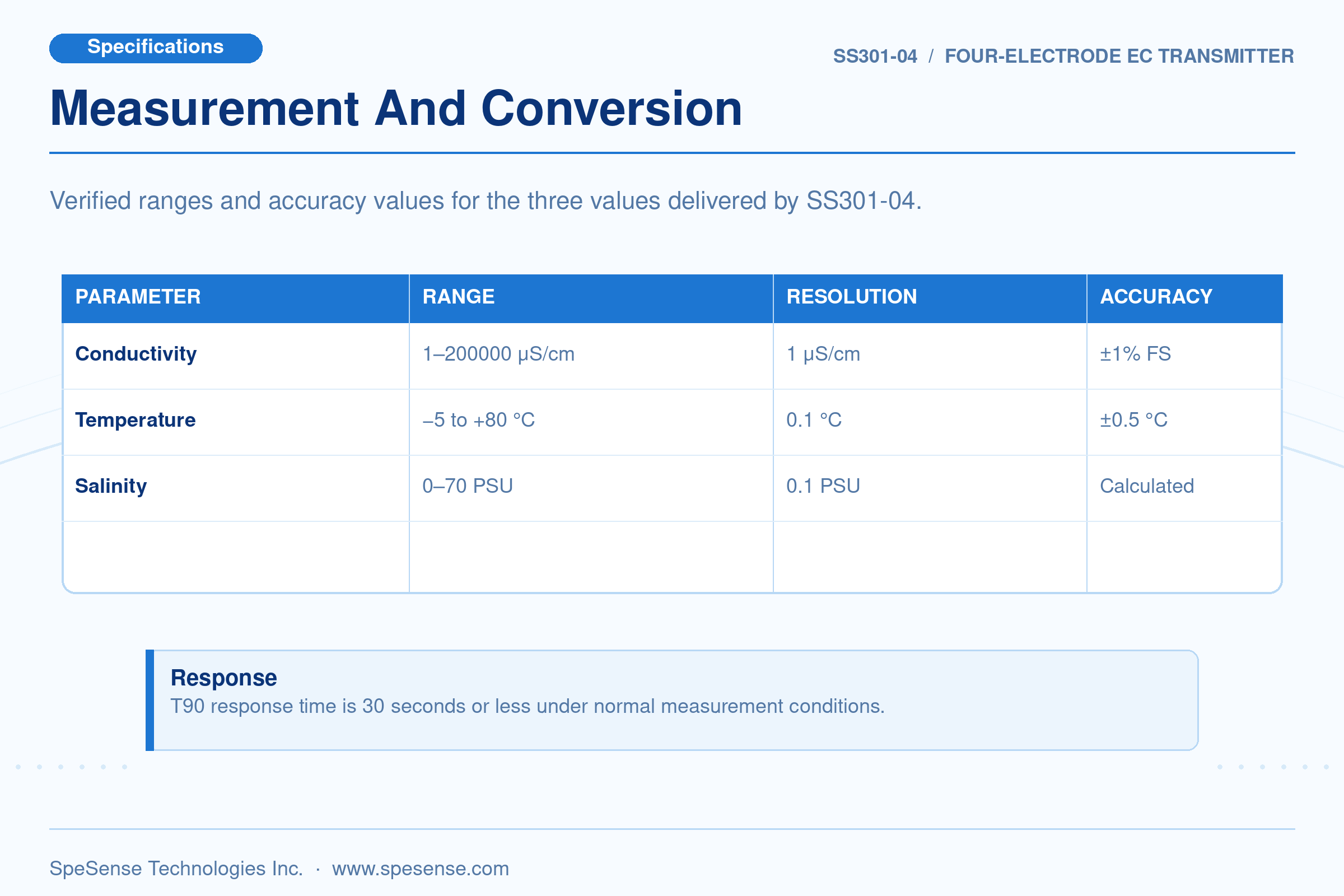

Conductivity Range / Resolution1-200000 μS/cm / 1 μS/cm
Conductivity Accuracy±1% FS
Salinity Range / Resolution0-70 PSU / 0.1 PSU
Temperature Range / Resolution-5 to +80 °C / 0.1 °C
Temperature Accuracy±0.5 °C

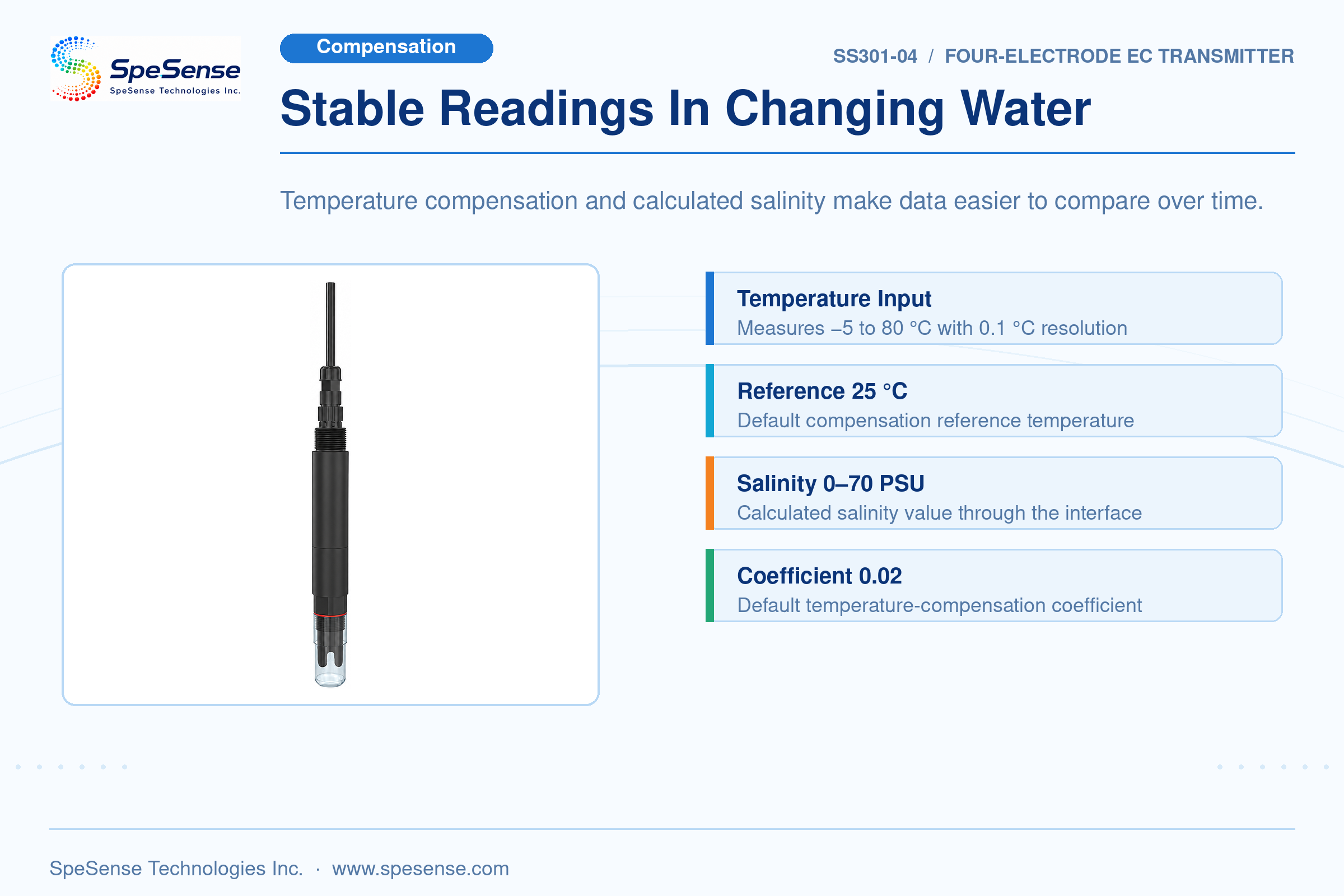

Temperature Compensation-5 to +80 °C; default reference 25 °C; coefficient 0.02 default

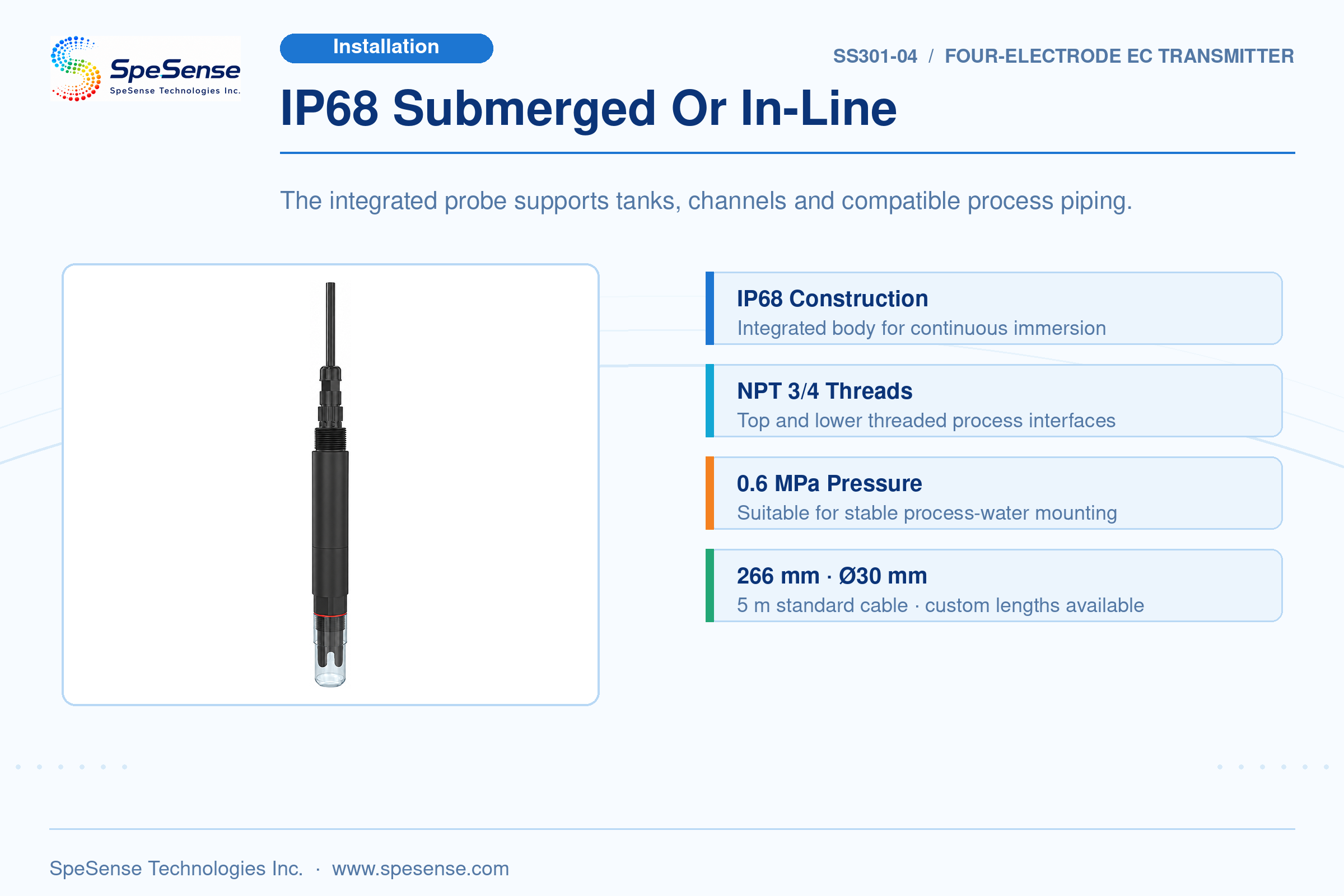

Protection / PressureIP68 / 0.6 MPa

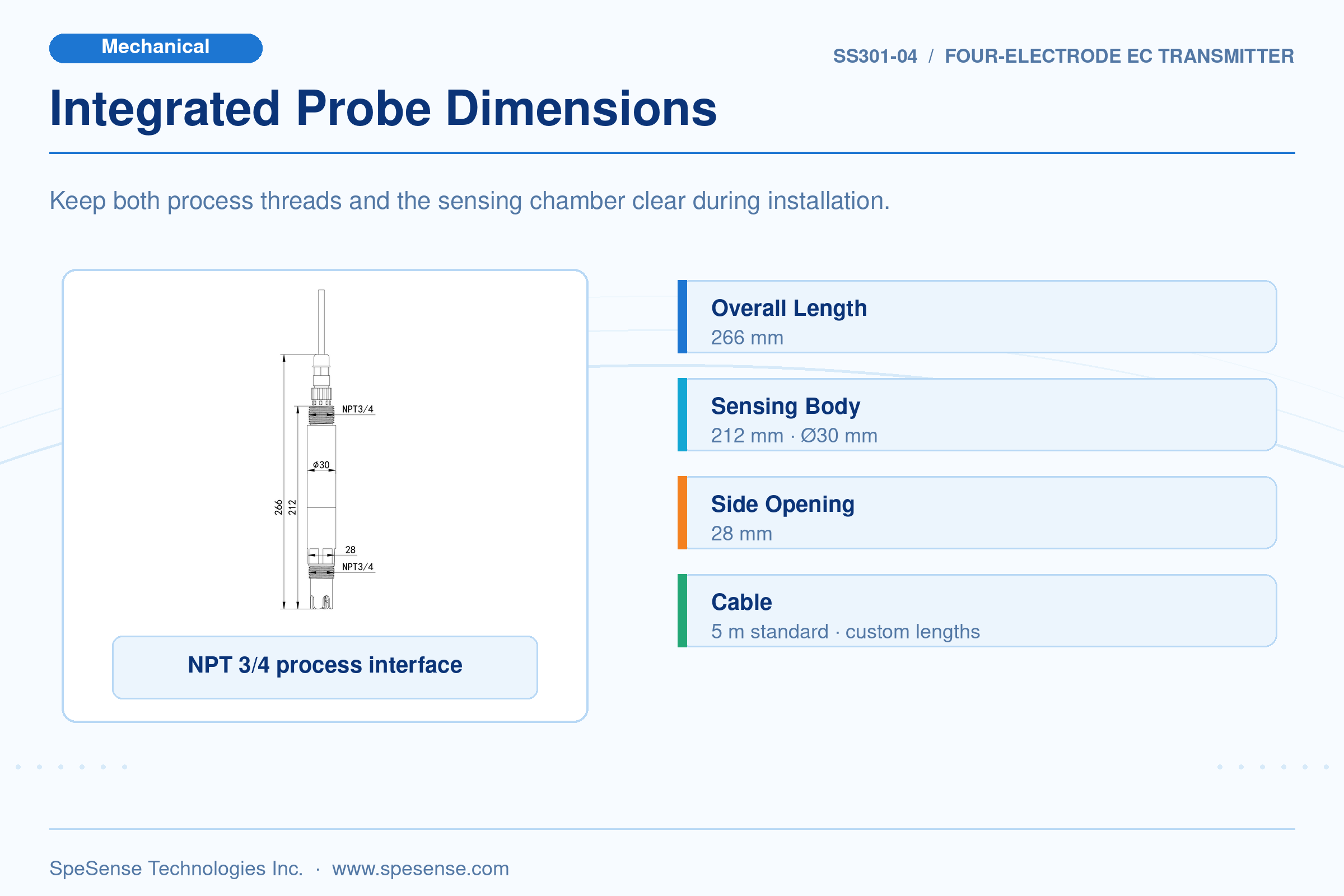

Cable Length5 m standard; other lengths customizable
