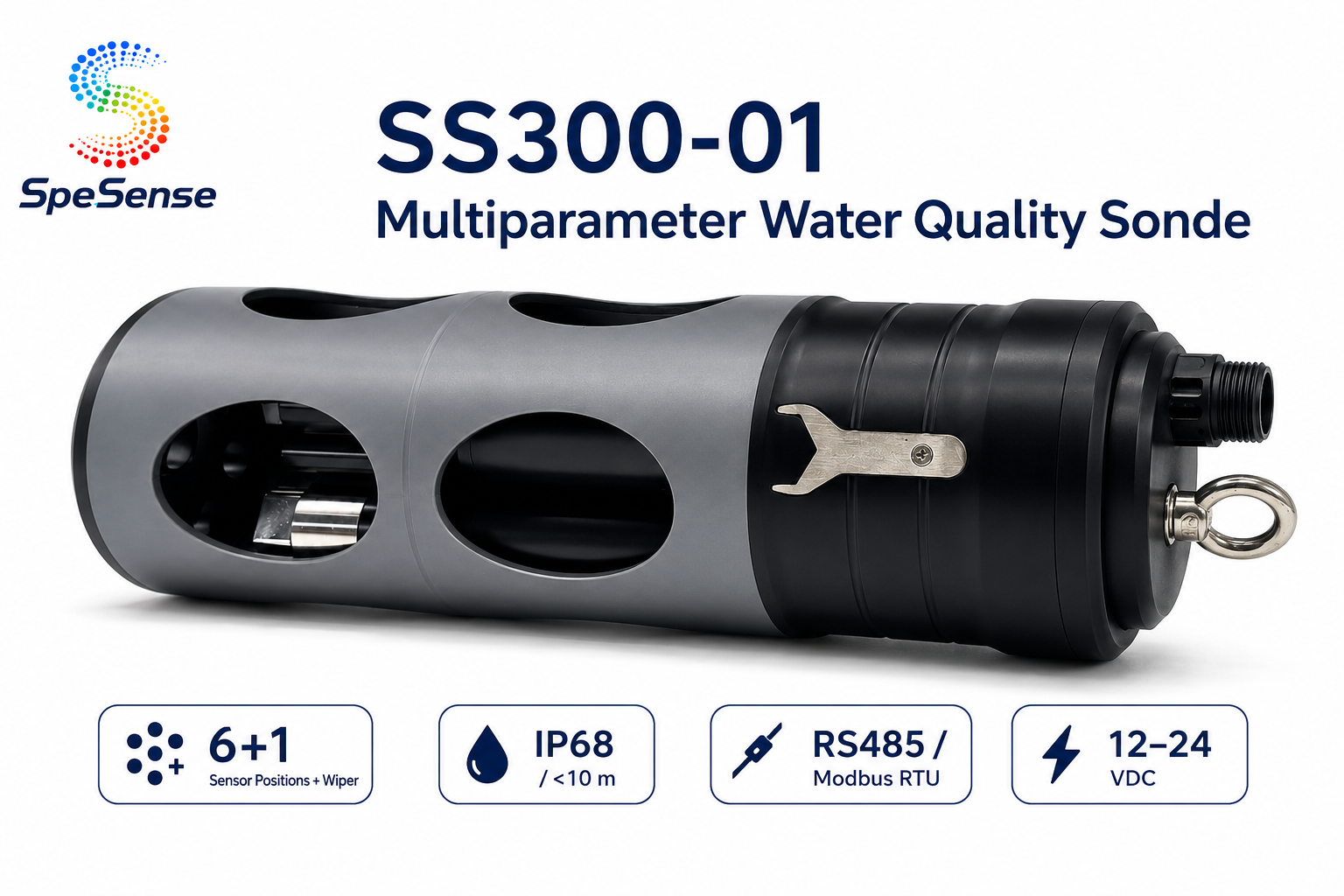

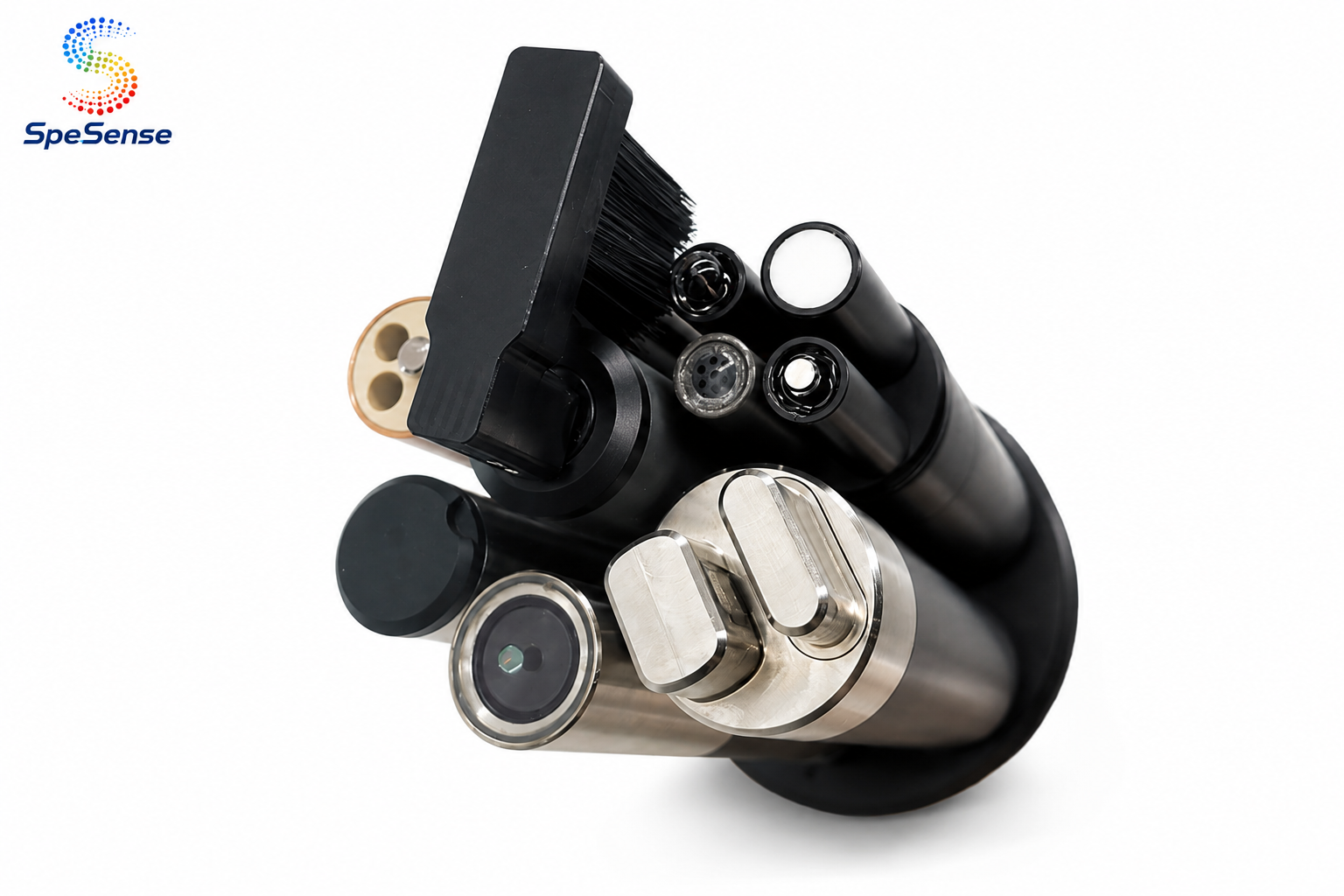

Multiparameter Water Quality Sonde
SS300-01
多参数水质监测仪
产品亮点

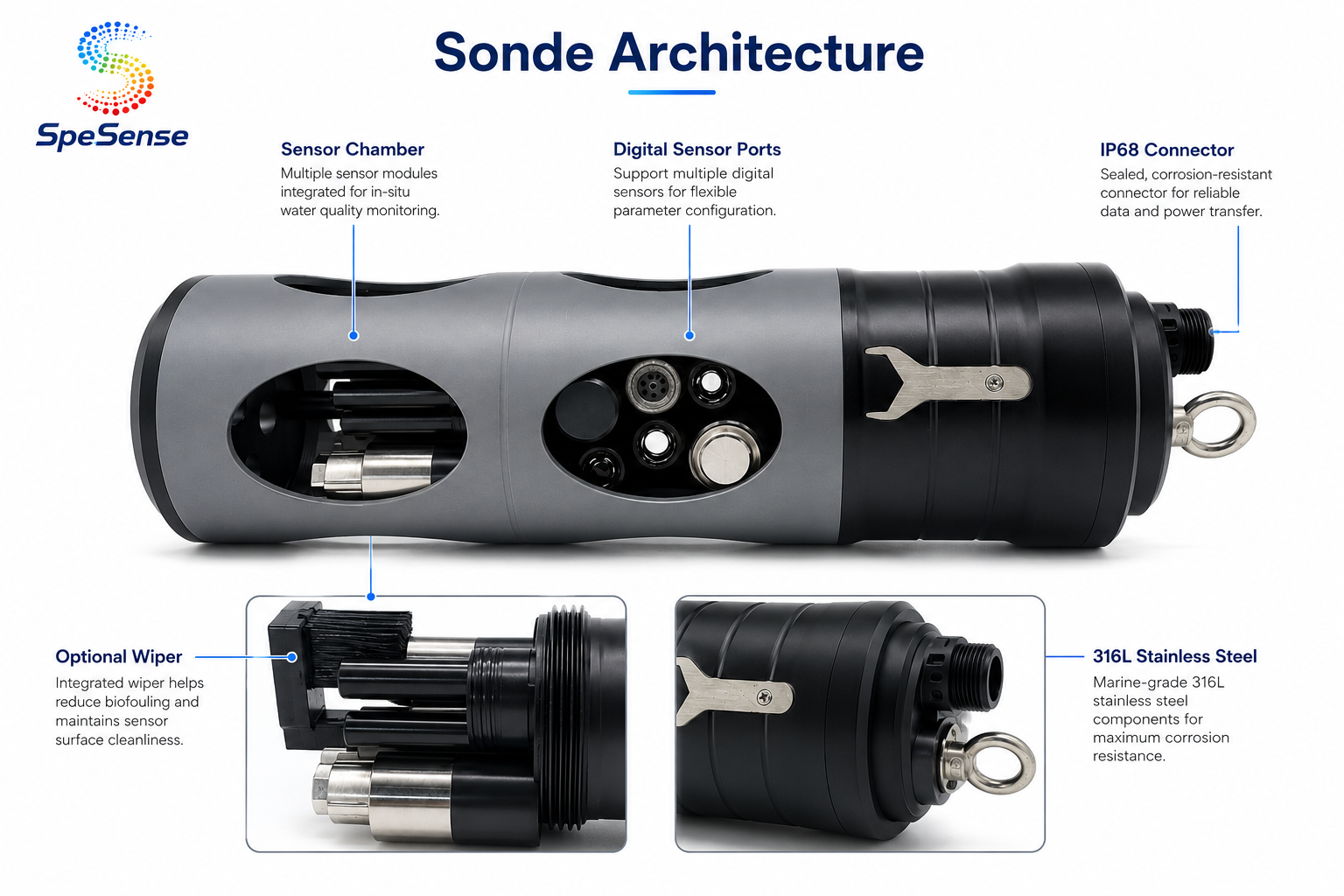

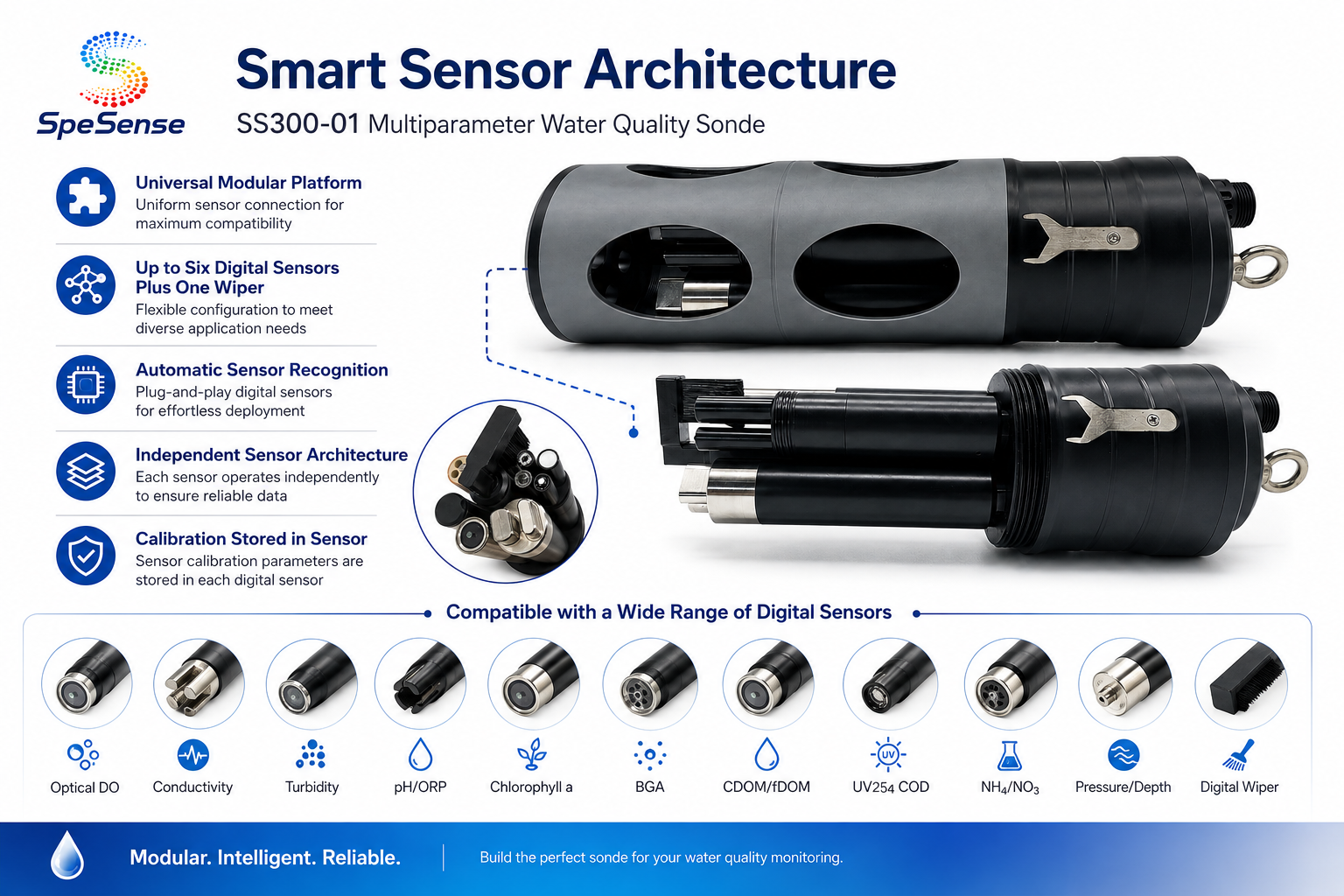

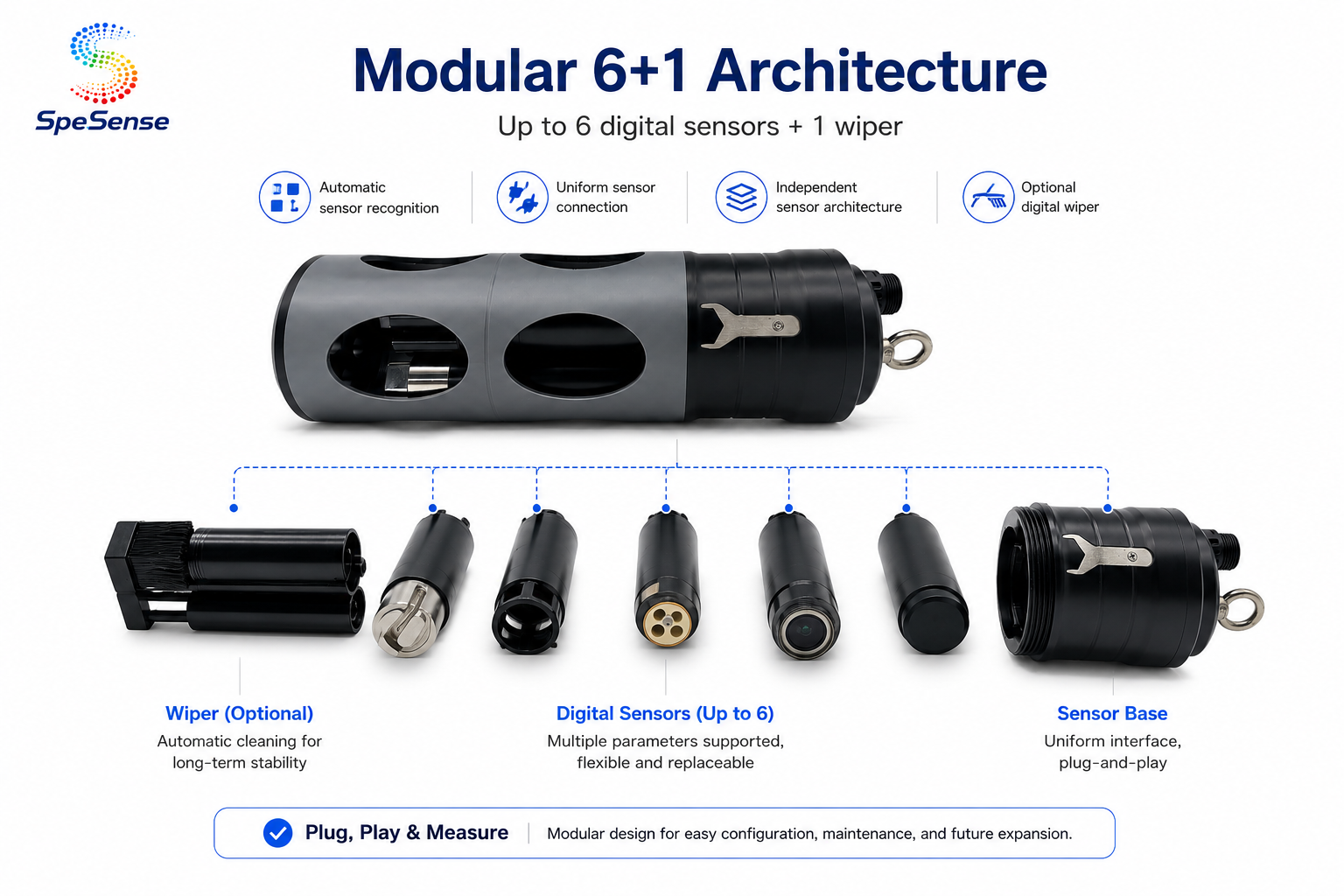

● Universal modular platform with uniform sensor connection
● Up to six digital sensors plus one wiper
● Automatic sensor recognition
● Sensor calibration parameters stored in each digital sensor
● RS485 and Modbus RTU communication
● Low-power operating mode

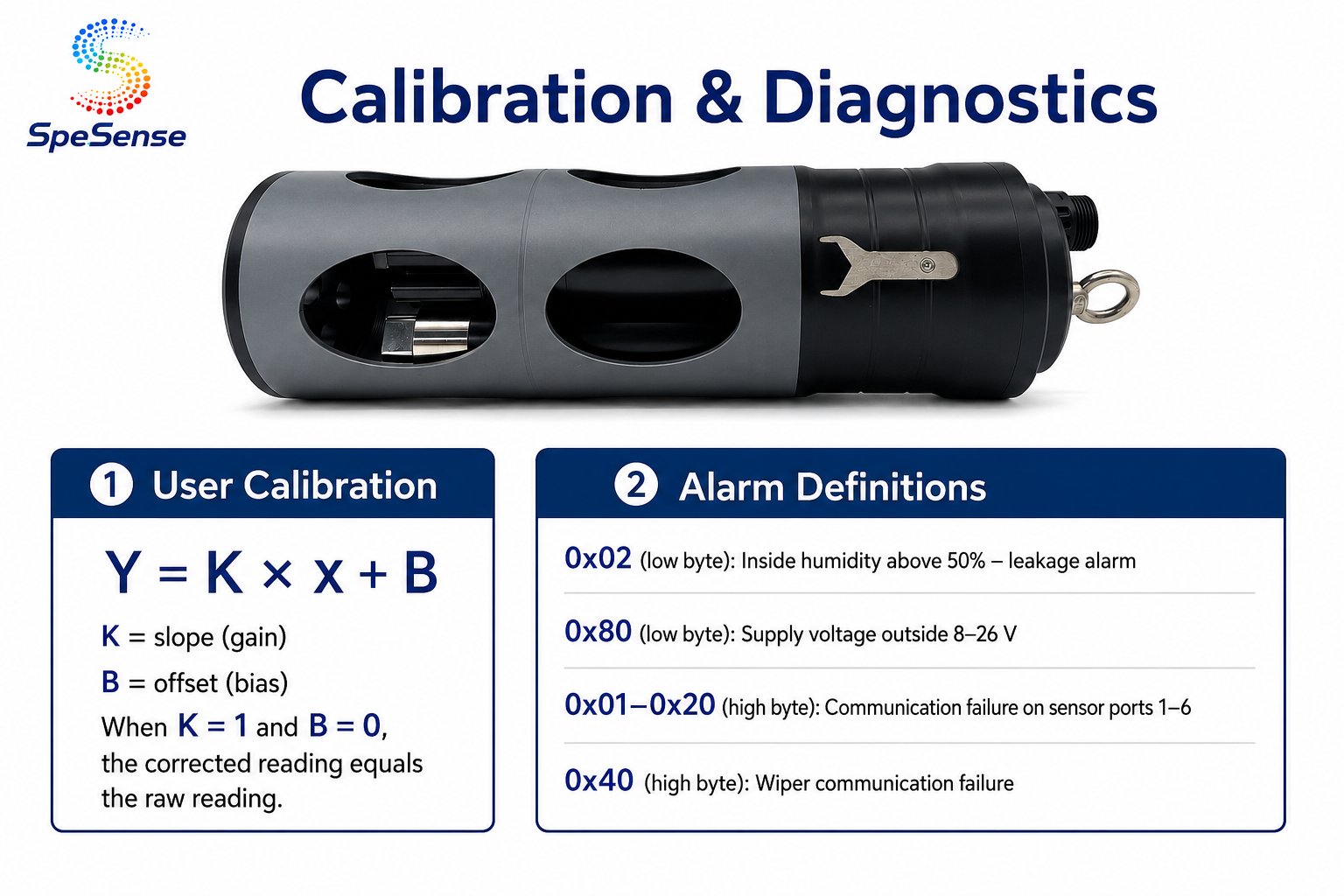

● Water-leakage alarm and port communication diagnostics
● Independent sensor architecture limits cross-impact from a failed sensor
● Up to six digital sensors plus one wiper
● Automatic sensor recognition
● Sensor calibration parameters stored in each digital sensor
● RS485 and Modbus RTU communication
● Low-power operating mode
● Water-leakage alarm and port communication diagnostics
● Independent sensor architecture limits cross-impact from a failed sensor
产品概述
Modular online sonde for simultaneous multi-parameter water-quality monitoring with automatic digital-sensor recognition, RS485 / Modbus RTU and optional wiper.

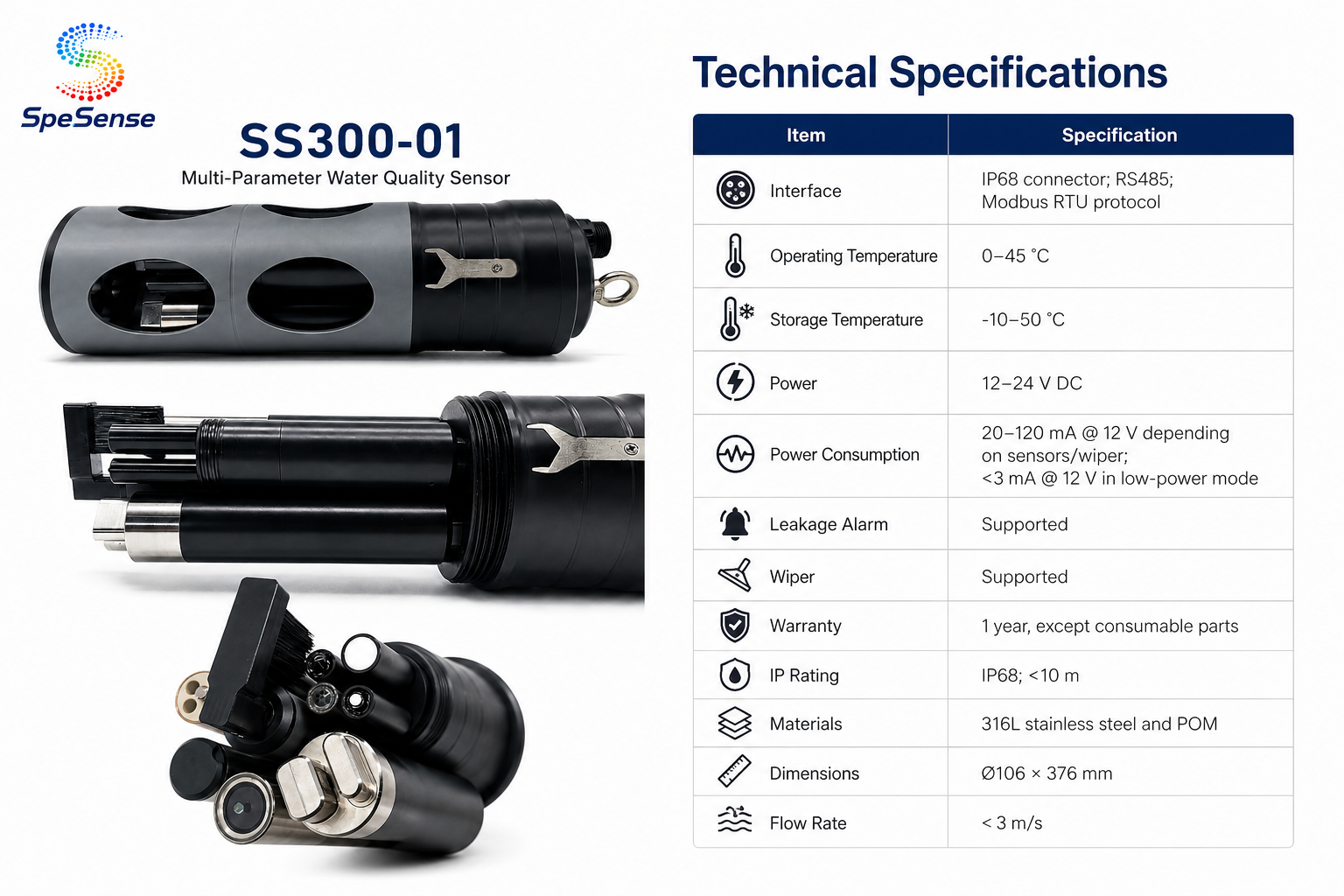

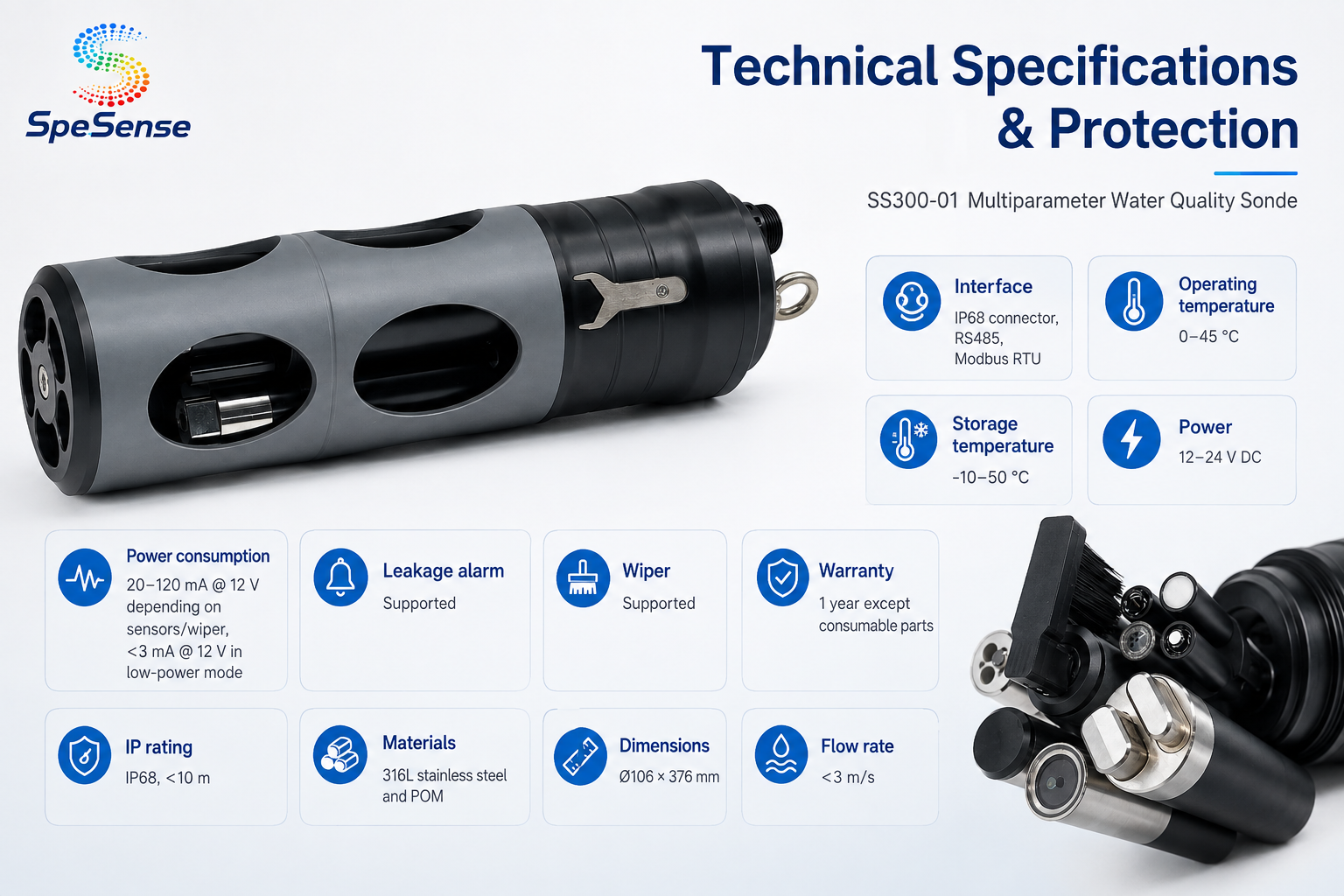

| Item | Specification |

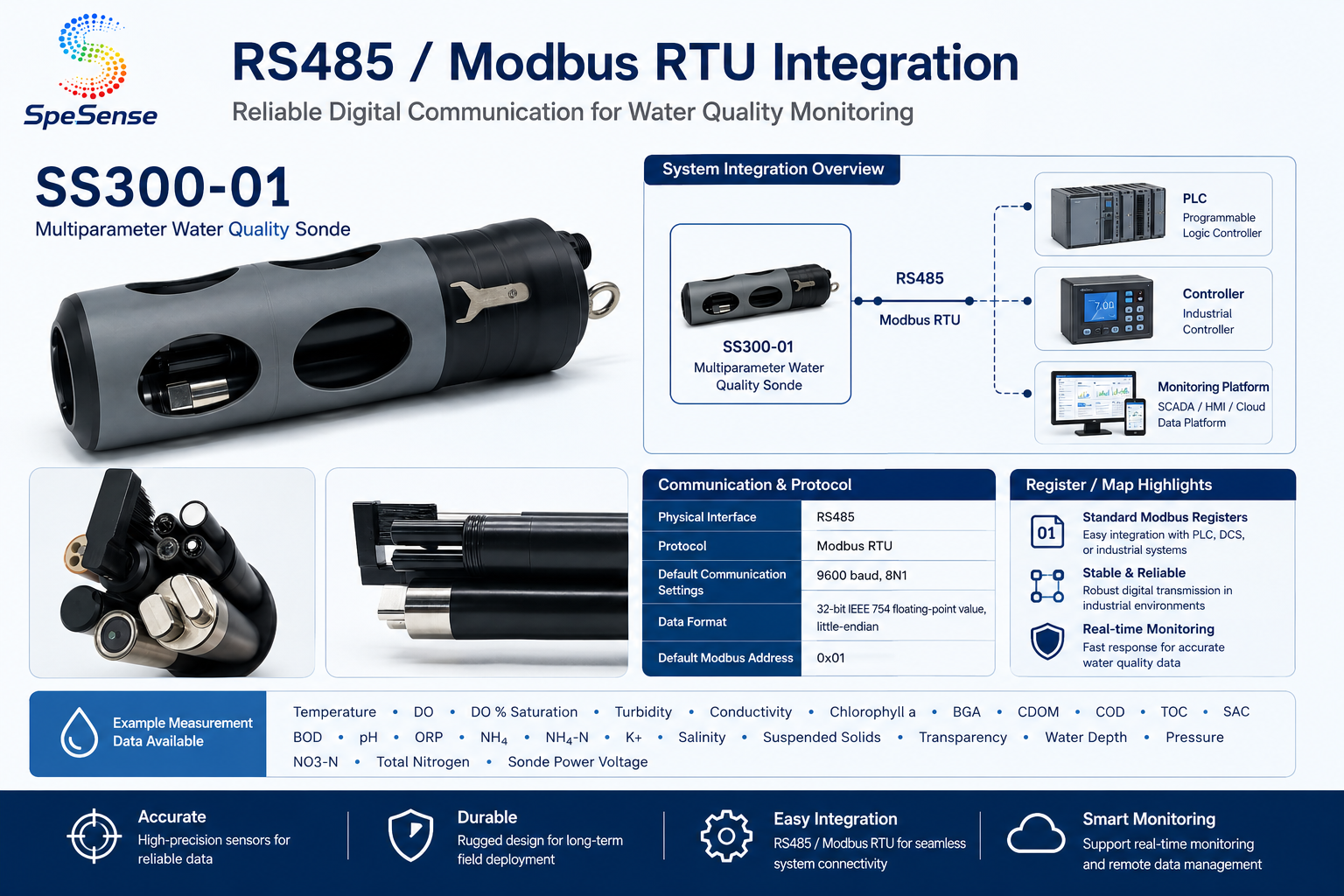

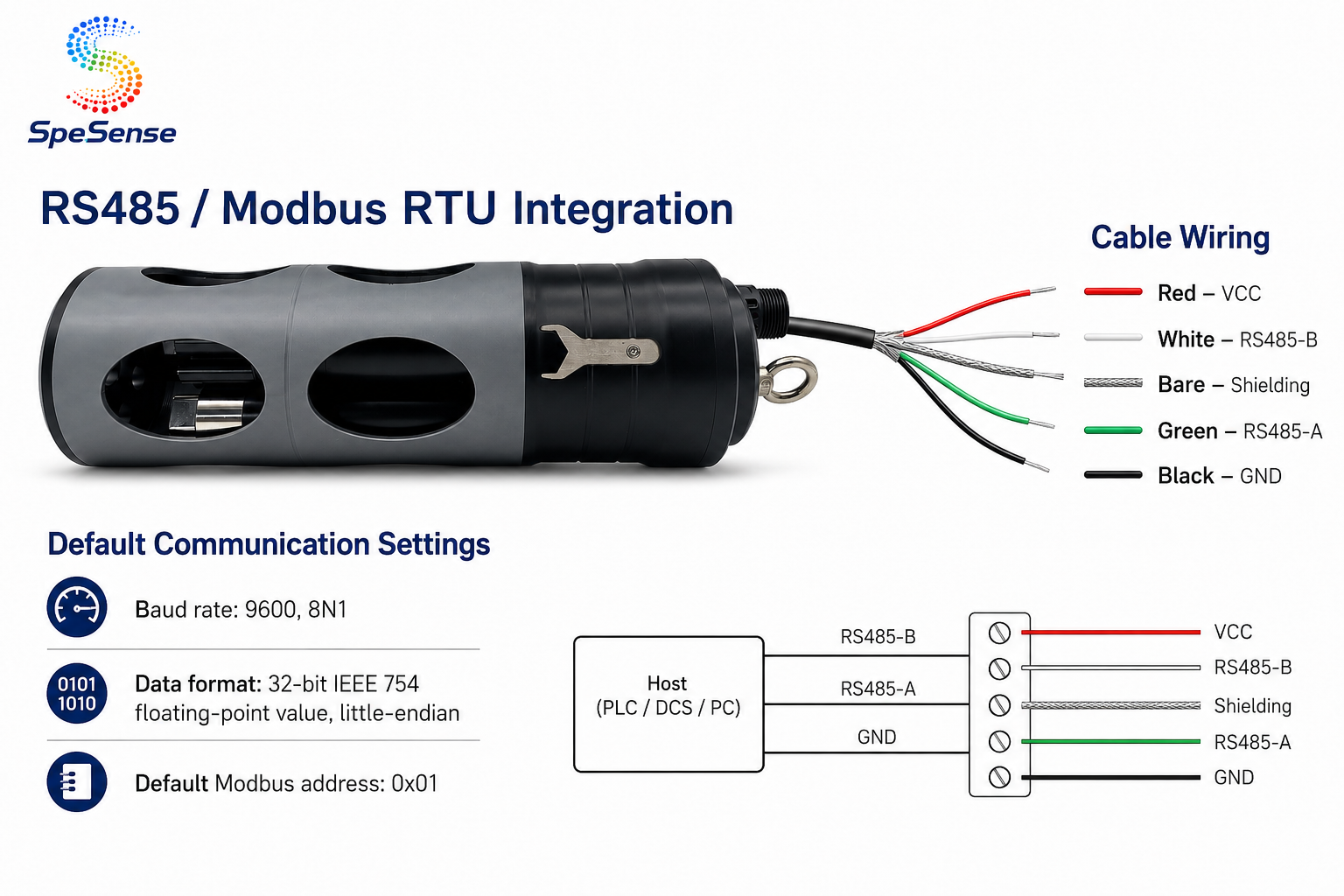

| Interface | IP68 connector; RS485; Modbus RTU protocol |
| Operating Temperature | 0-45 °C |
| Storage Temperature | -10-50 °C |
| Power | 12-24 V DC |
| Power Consumption | 20-120 mA @ 12 V depending on sensors/wiper; <3 mA @ 12 V in low-power mode |
| Leakage Alarm | Supported |
| Wiper | Supported |
| Warranty | 1 year, except consumable parts |
| IP Rating | IP68; <10 m |
| Materials | 316L stainless steel and POM |
| Dimensions | Ø106 × 376 mm |
| Flow Rate | < 3 m/s |

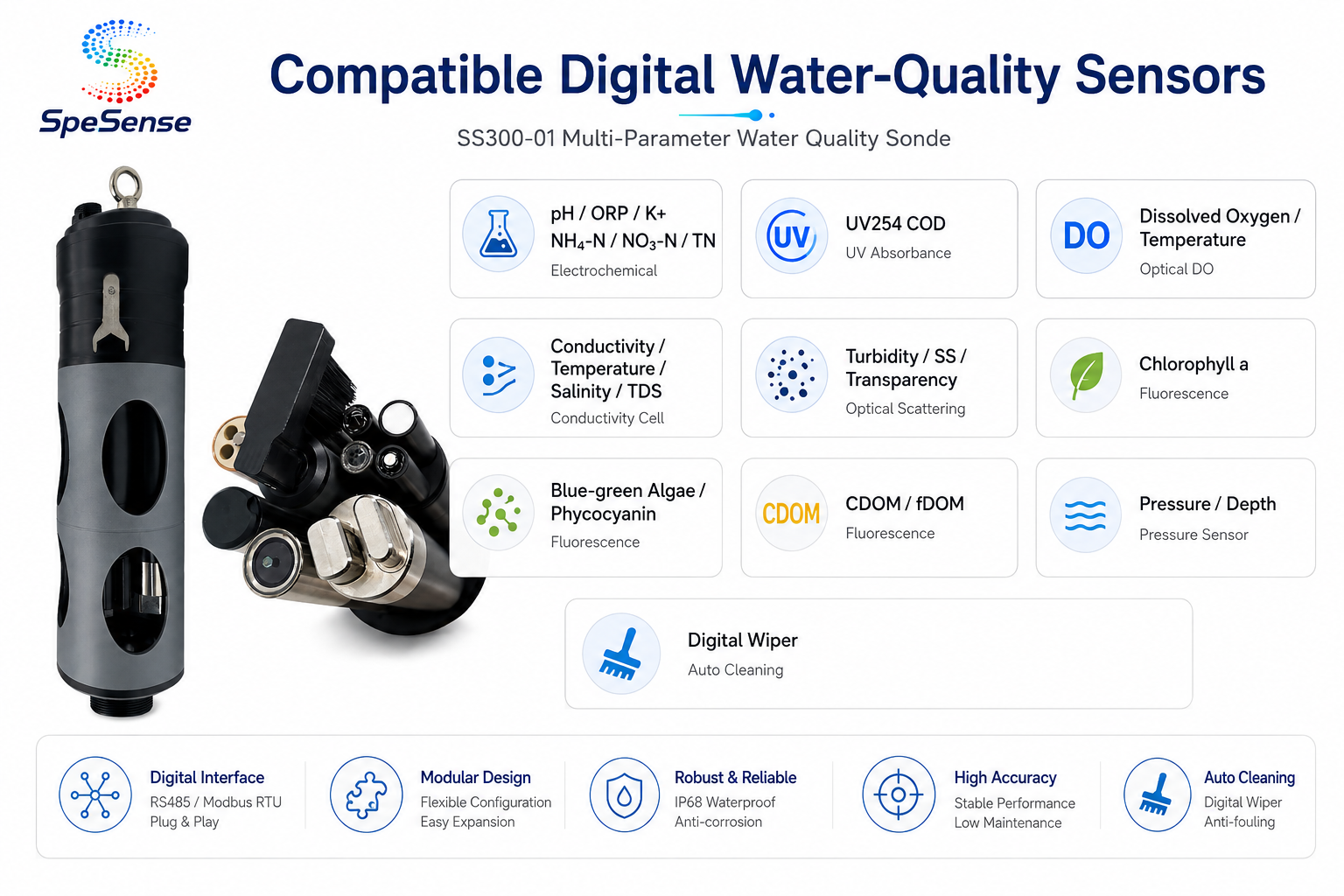

| Accuracy / Range / Response Time | Refer to installed digital sensor specification; sensor response time 2-45 s |
| Lifetime* | Refer to installed digital sensor specification |
| Maintenance / Calibration Frequency* | Refer to installed digital sensor specification |
