SS209-01
4G智能温室环境监测仪
产品亮点
● No field communication cabling or transmission-distance limitation.

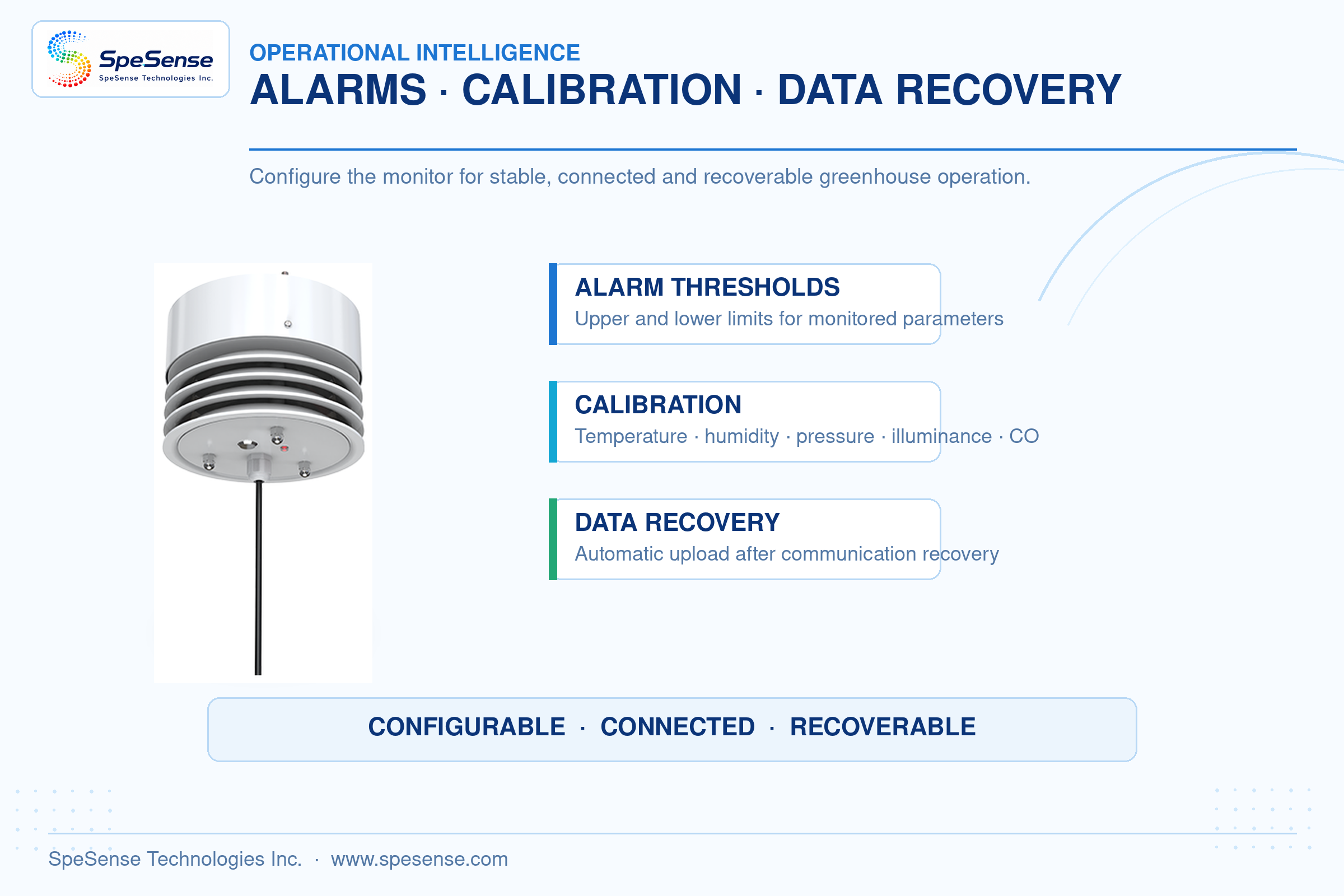

● Configurable upper and lower alarms with multi-parameter calibration.
● Online real-time data and battery-level monitoring.
● Default low-power operation with automatic data recovery upload.
● Configurable upper and lower alarms with multi-parameter calibration.
● Online real-time data and battery-level monitoring.
● Default low-power operation with automatic data recovery upload.
产品概述

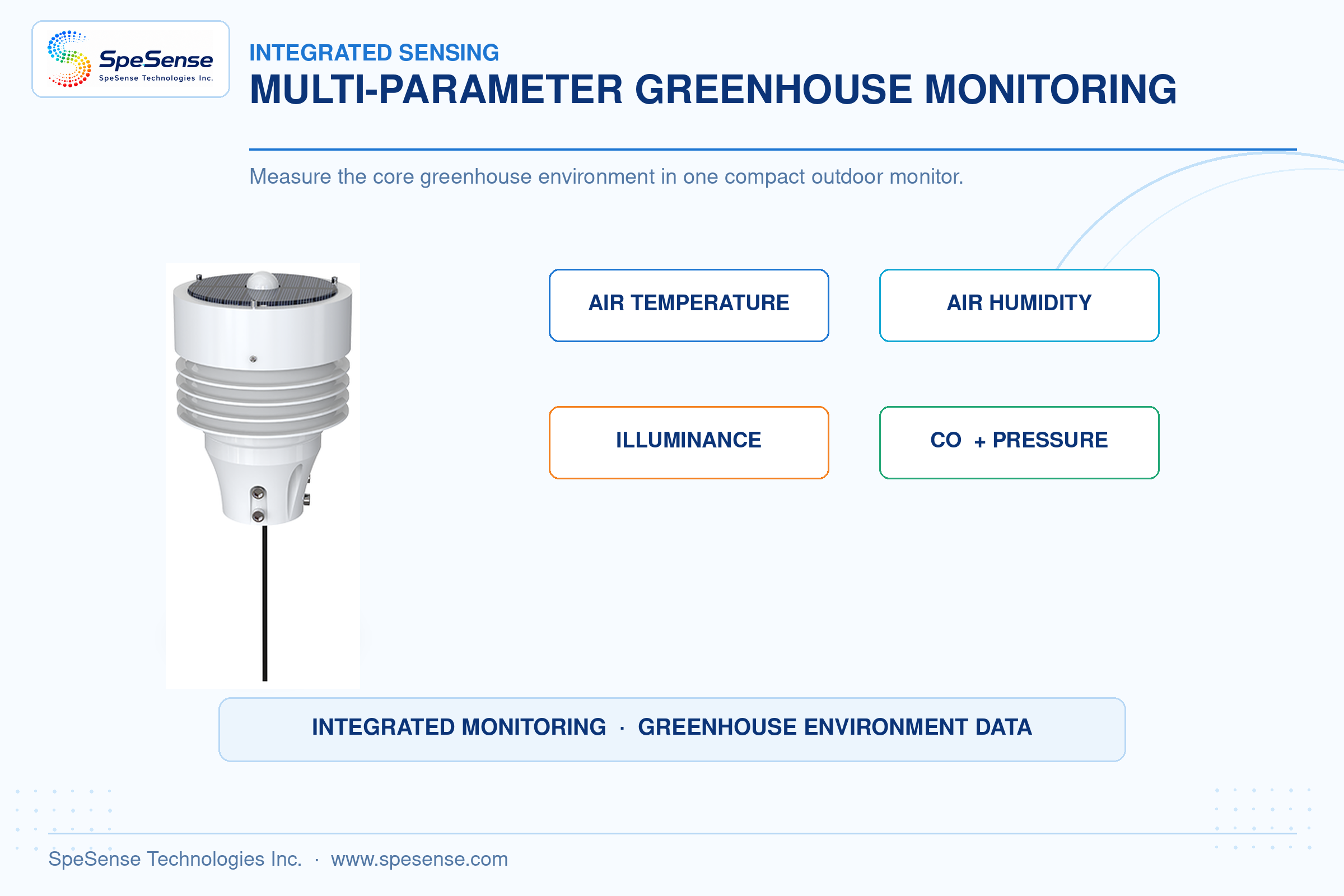

Integrates air temperature and humidity, illuminance, atmospheric pressure and CO2 monitoring in one unit.

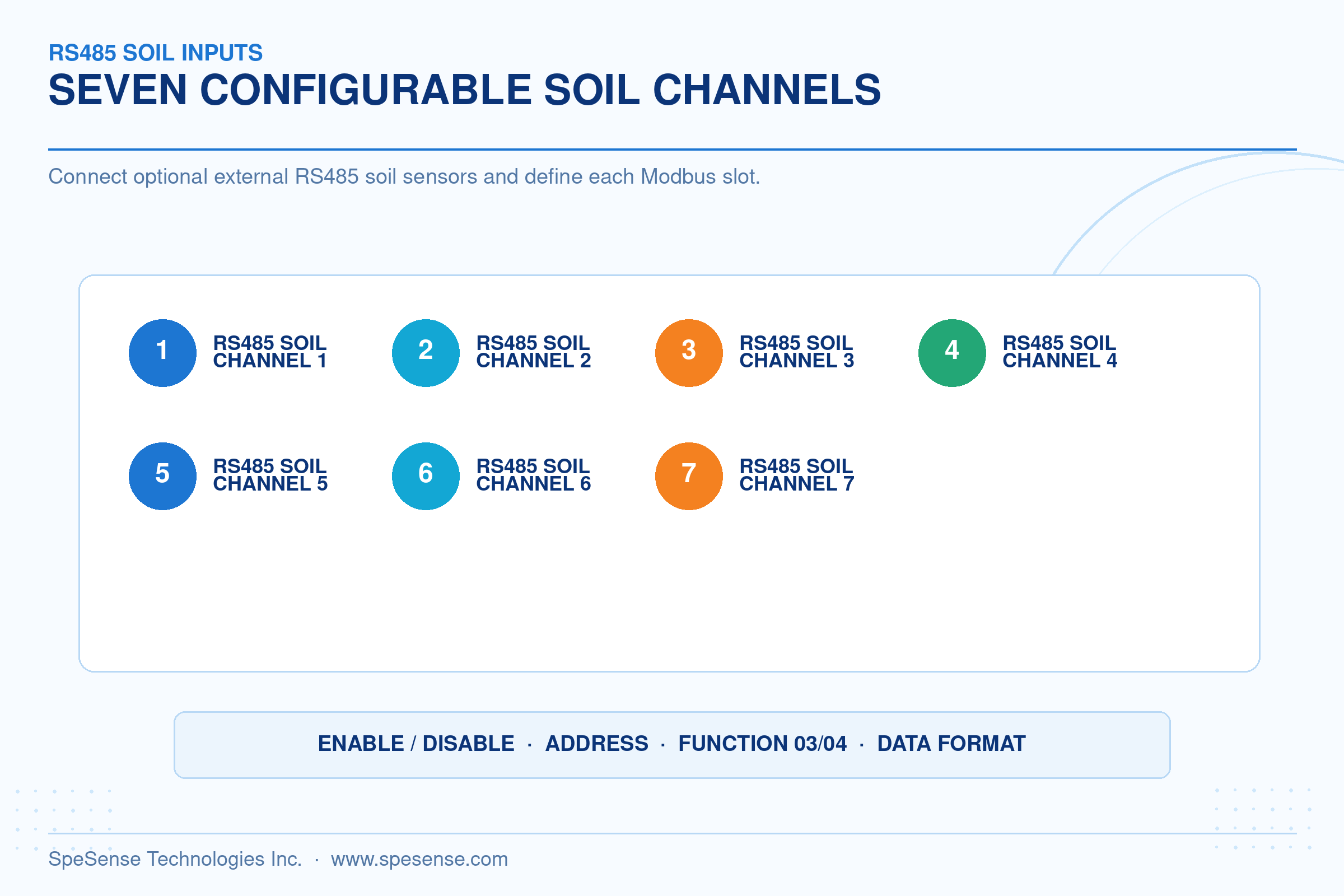

• Supports up to seven external RS485 soil-monitoring channels for configurable soil parameters.

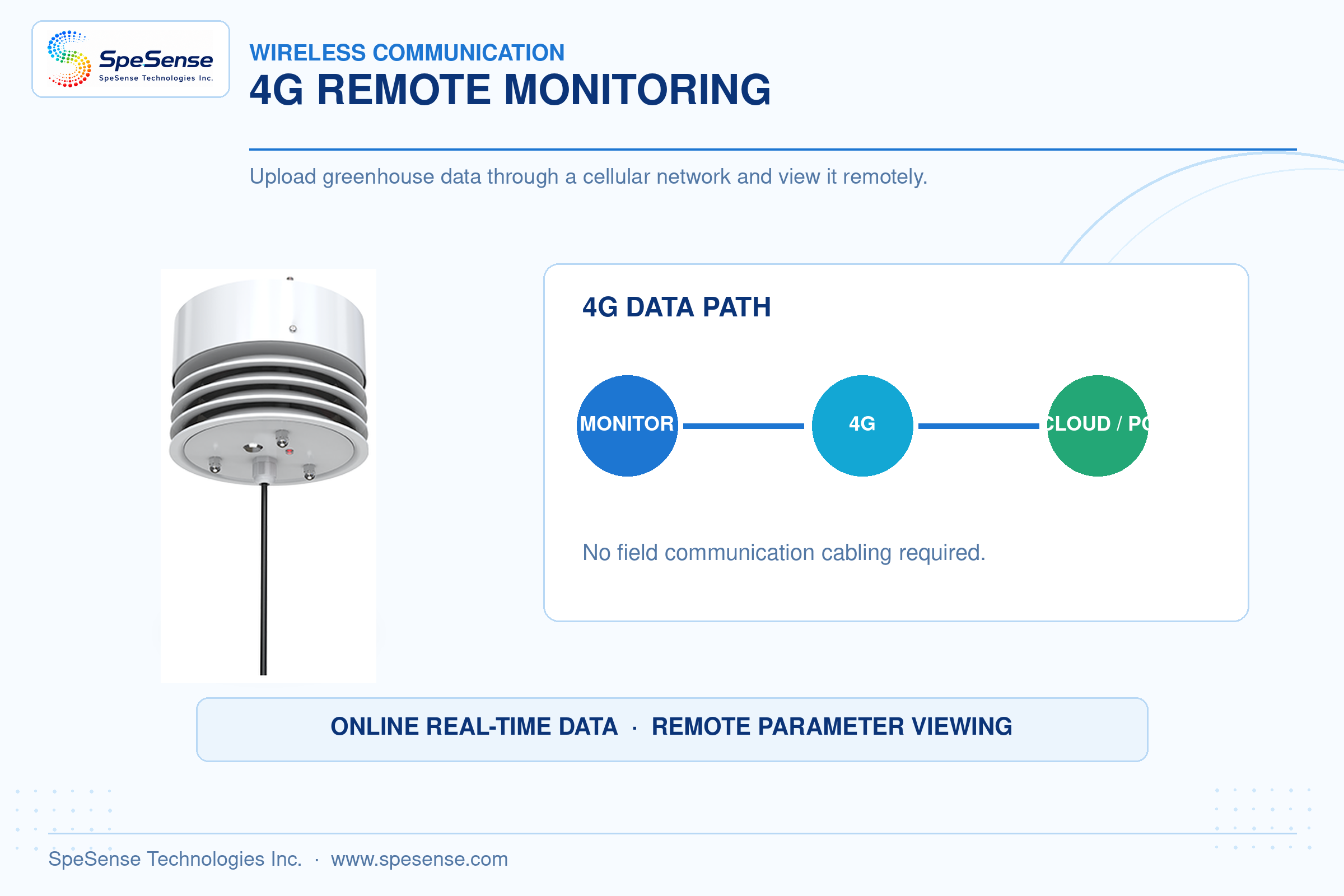

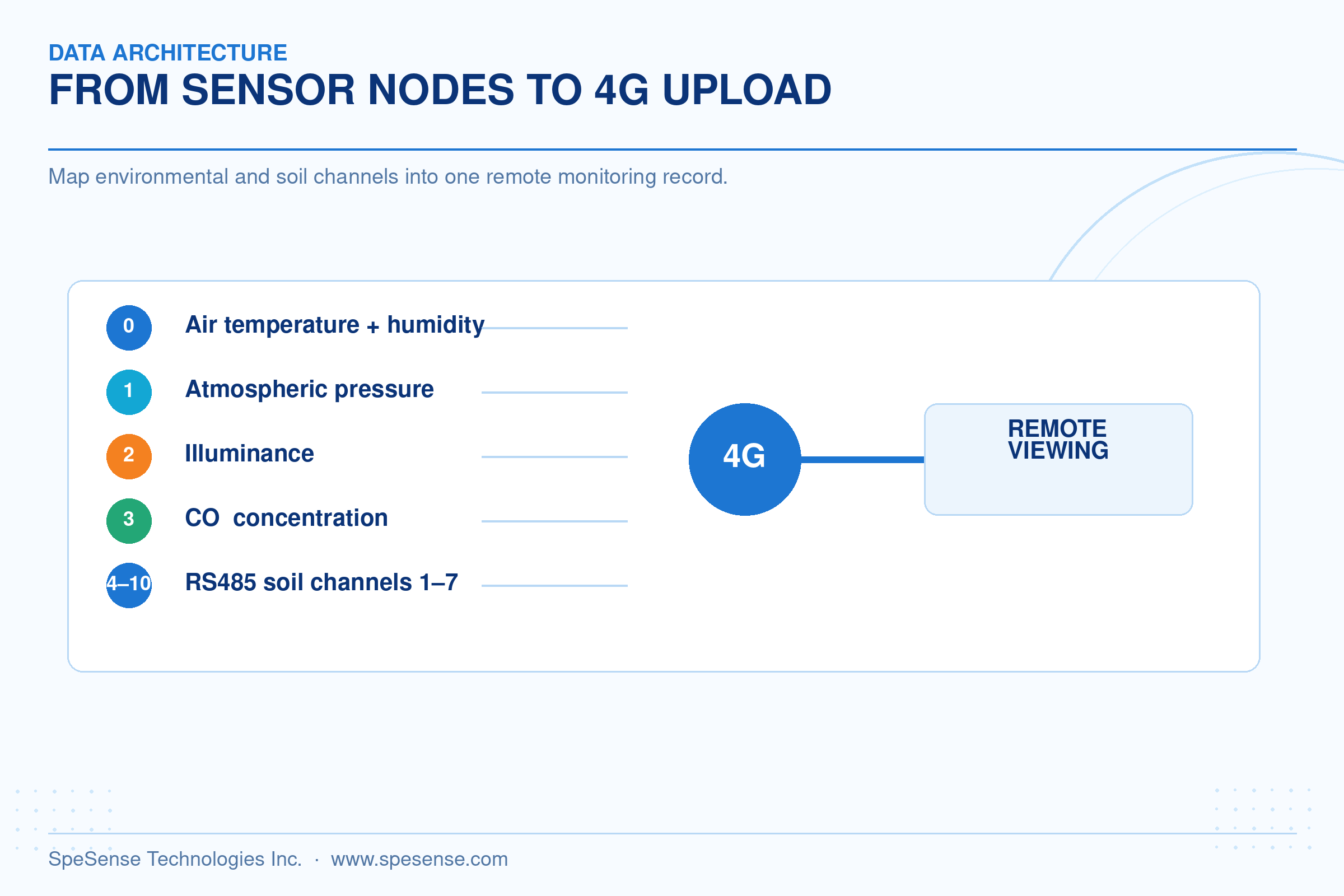

• Uploads data through a 4G cellular network and supports remote parameter viewing, alarm thresholds and calibration.

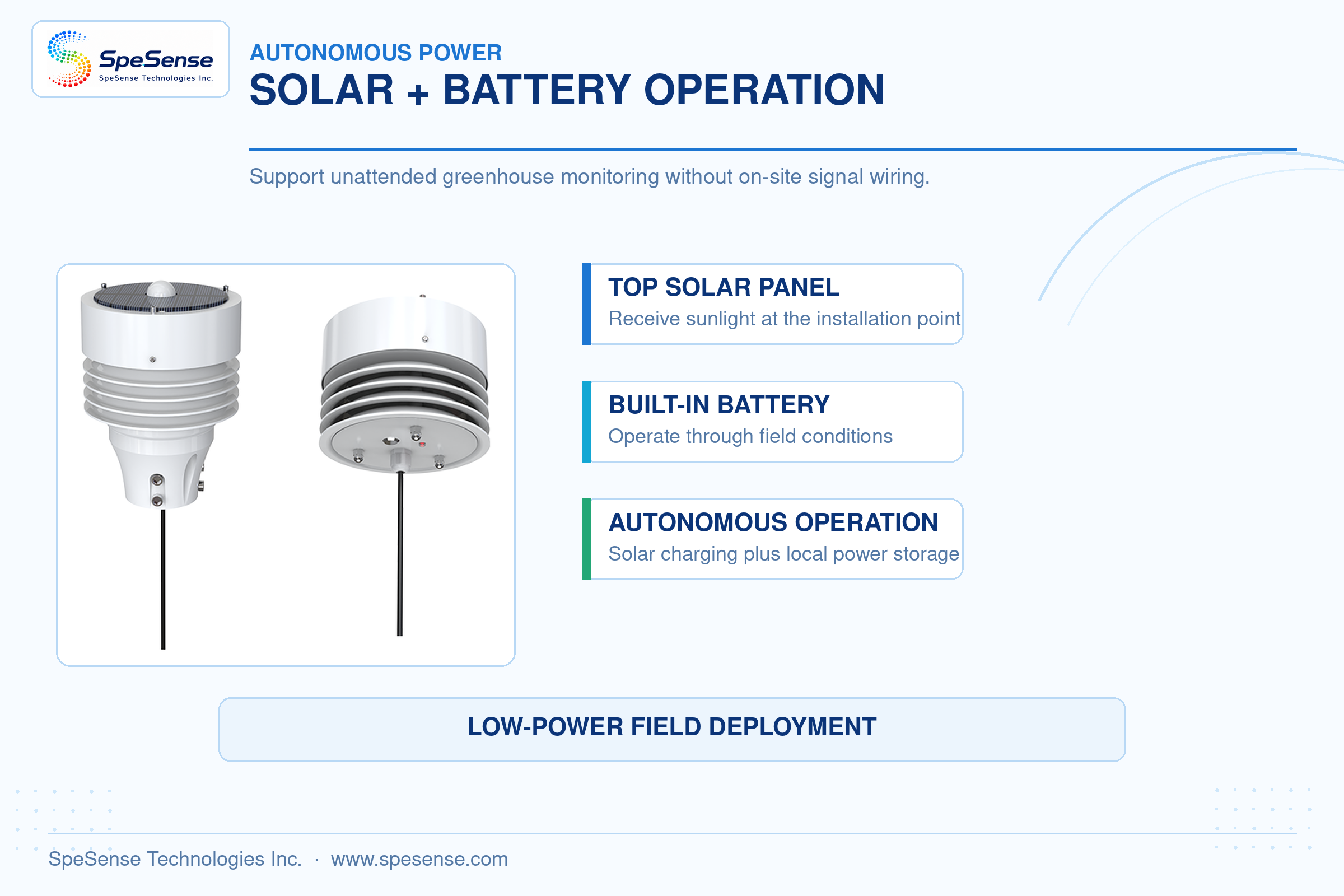

• Built-in battery and top-mounted solar panel support autonomous field operation without on-site signal wiring.
| Item | Specification |
| Power Supply | Built-in battery with integrated solar panel |
| Communication Interface | 4G cellular network |

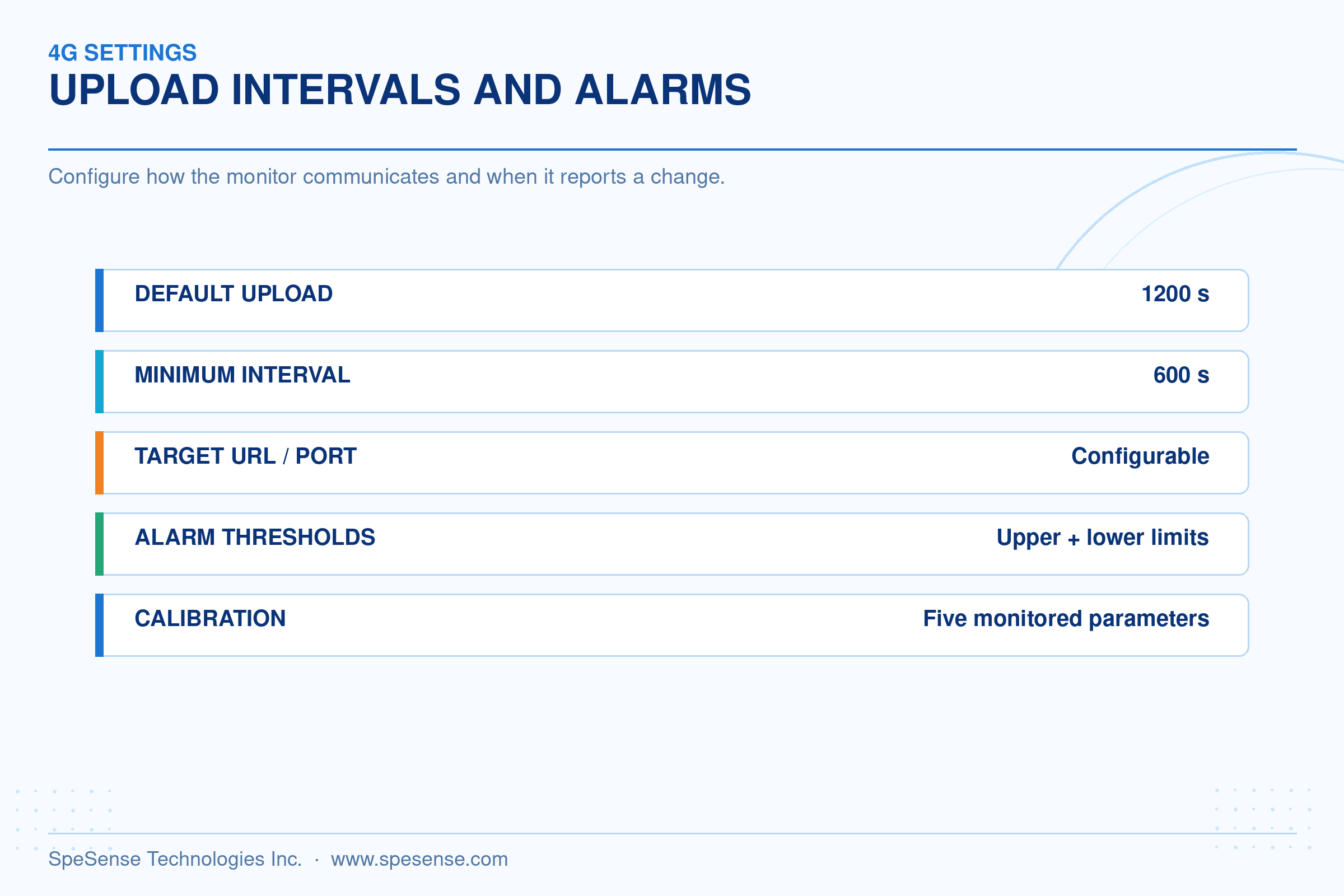

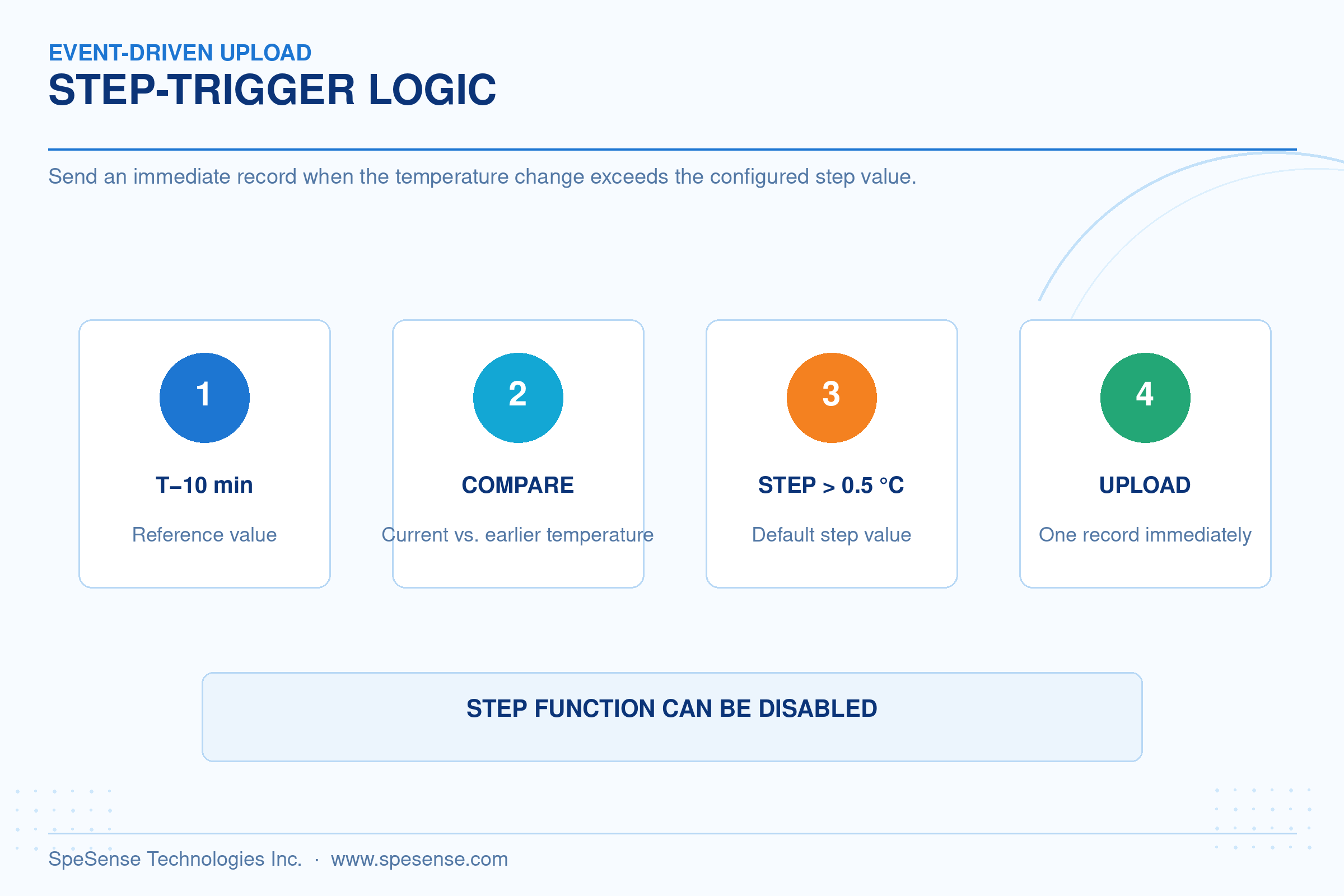

| Data Upload | 20 min by default; 10 min temperature step check with immediate trigger upload; step function can be disabled |

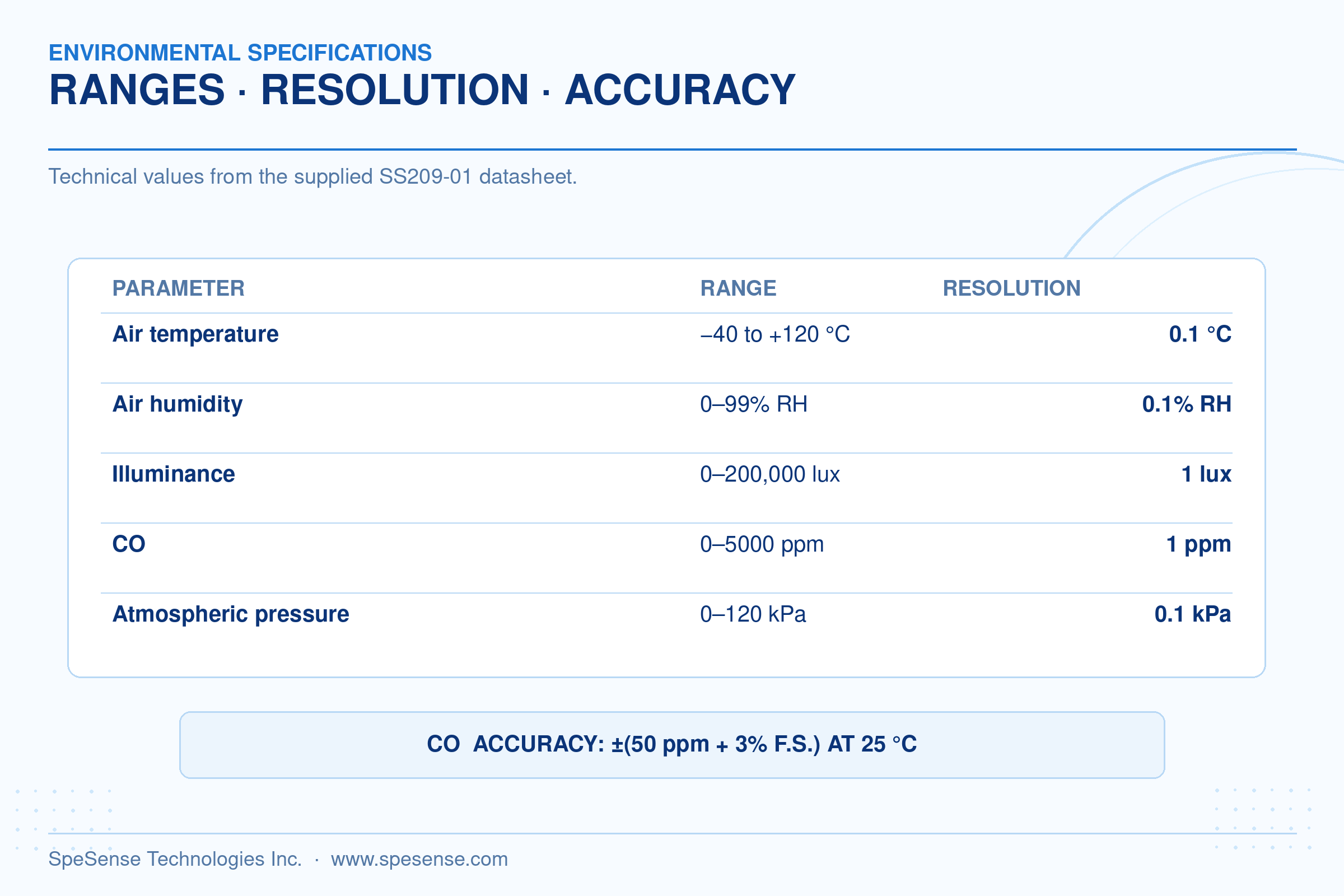

| Air Temperature Range | -40 to +120 °C |
| Air Temperature Resolution | 0.1 °C |
| Air Humidity Range | 0 to 99% RH |
| Air Humidity Resolution | 0.1% RH |
| External Soil Sensors | Compatible with RS485 soil sensors; up to 7 configurable channels |
| Illuminance Range | 0 to 200,000 lux |
| Illuminance Resolution | 1 lux |
| Illuminance Accuracy | ±7% at 25 °C |
| CO2 Range | 0 to 5000 ppm; effective range 400 to 5000 ppm |
| CO2 Resolution | 1 ppm |
| CO2 Accuracy | ±(50 ppm + 3% F.S.) at 25 °C |
| Atmospheric Pressure Range | 0 to 120 kPa |
| Atmospheric Pressure Resolution | 0.1 kPa |
| Atmospheric Pressure Accuracy | ±0.15 kPa at 25 °C and 101 kPa |
| Transmitter Circuit Environment | -20 to +60 °C; 0 to 95% RH, non-condensing |

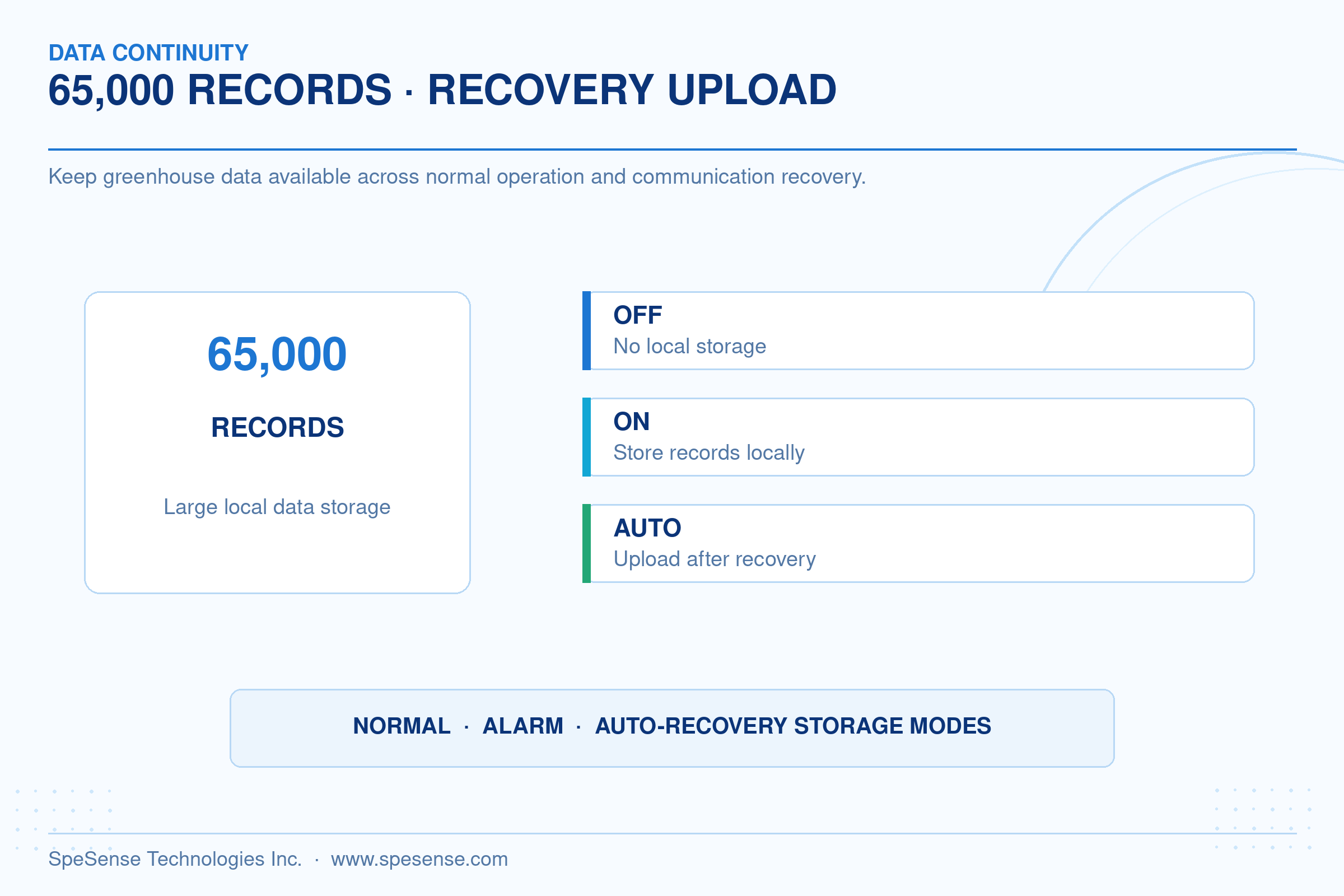

| Data Storage | 65,000 records |
