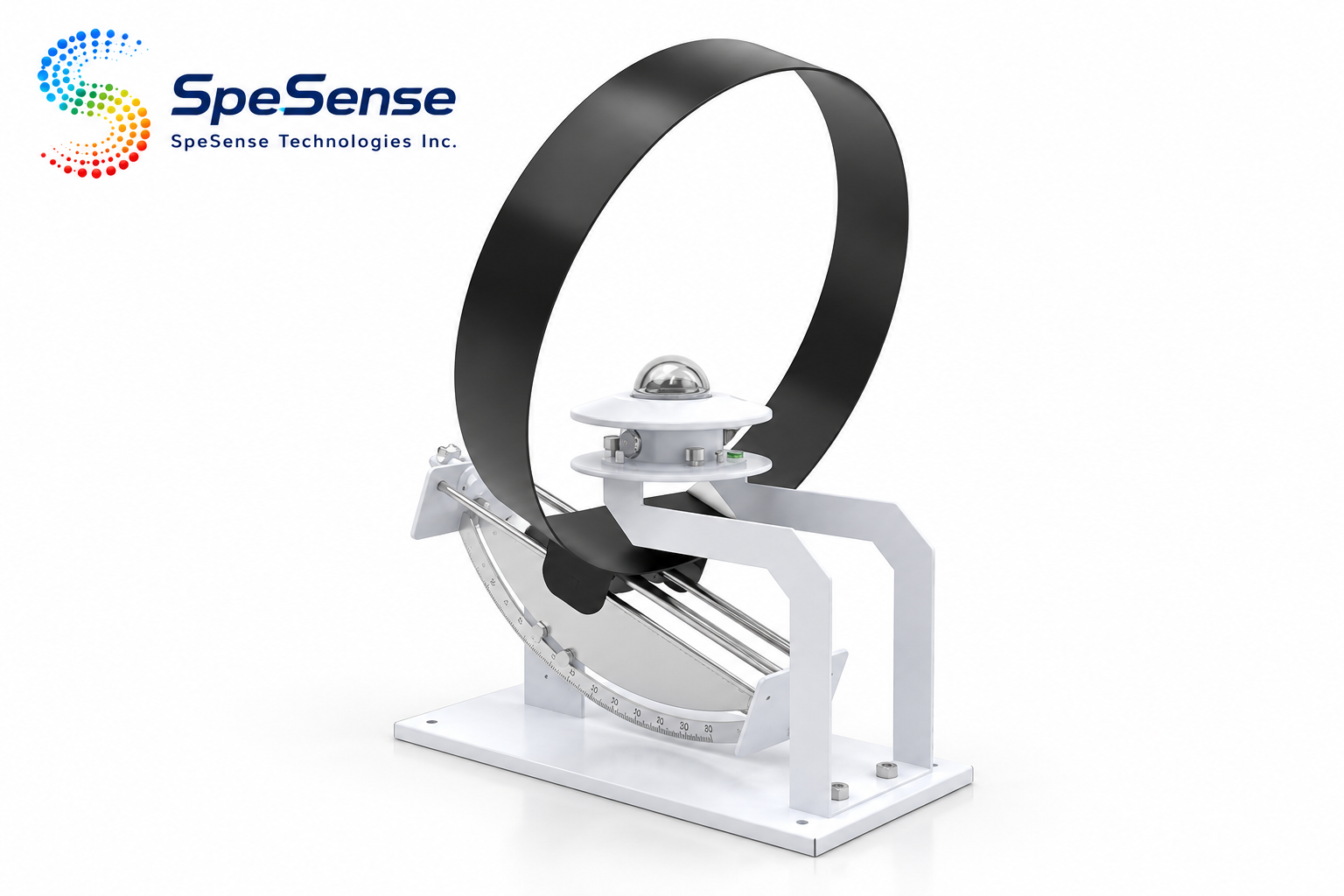

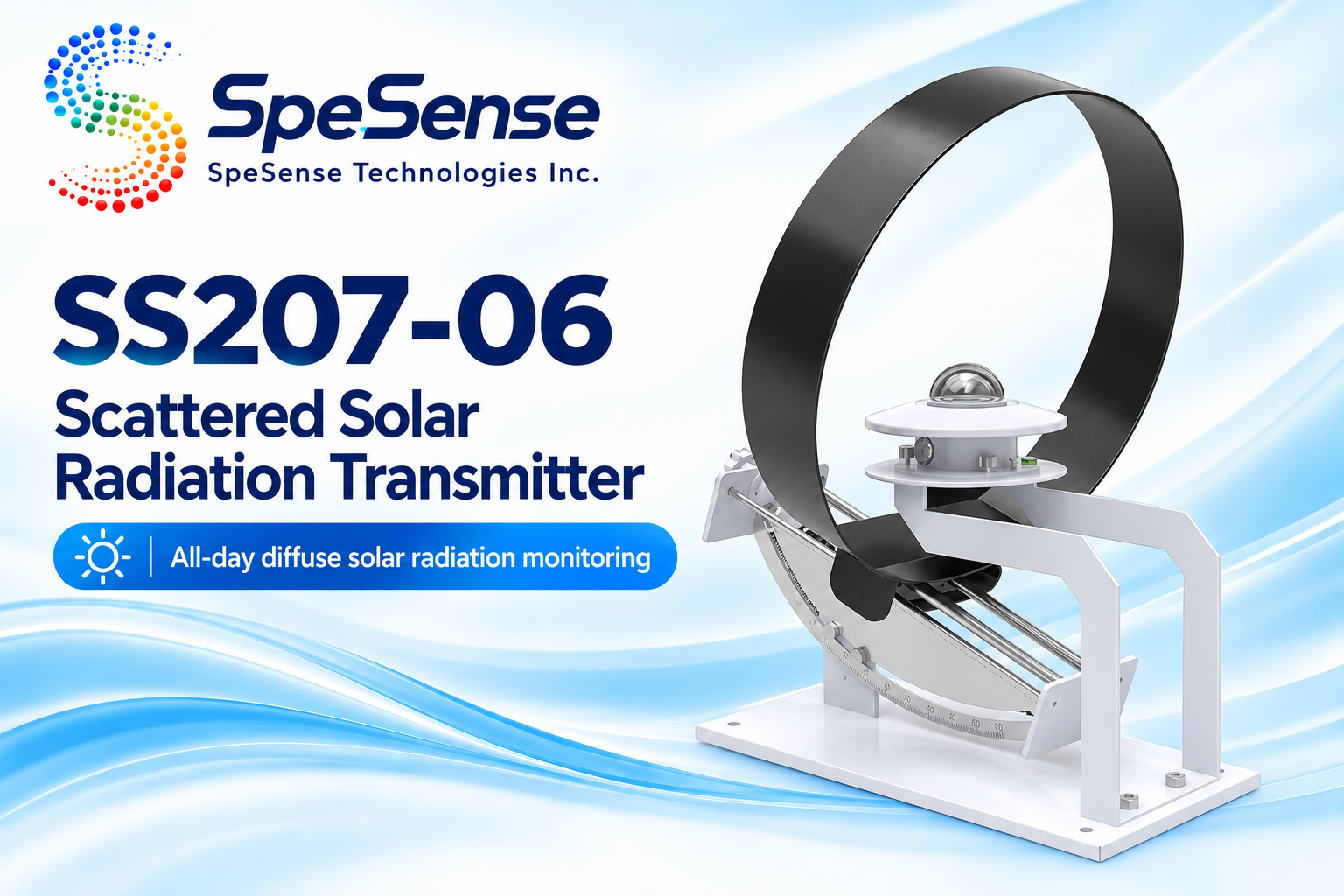

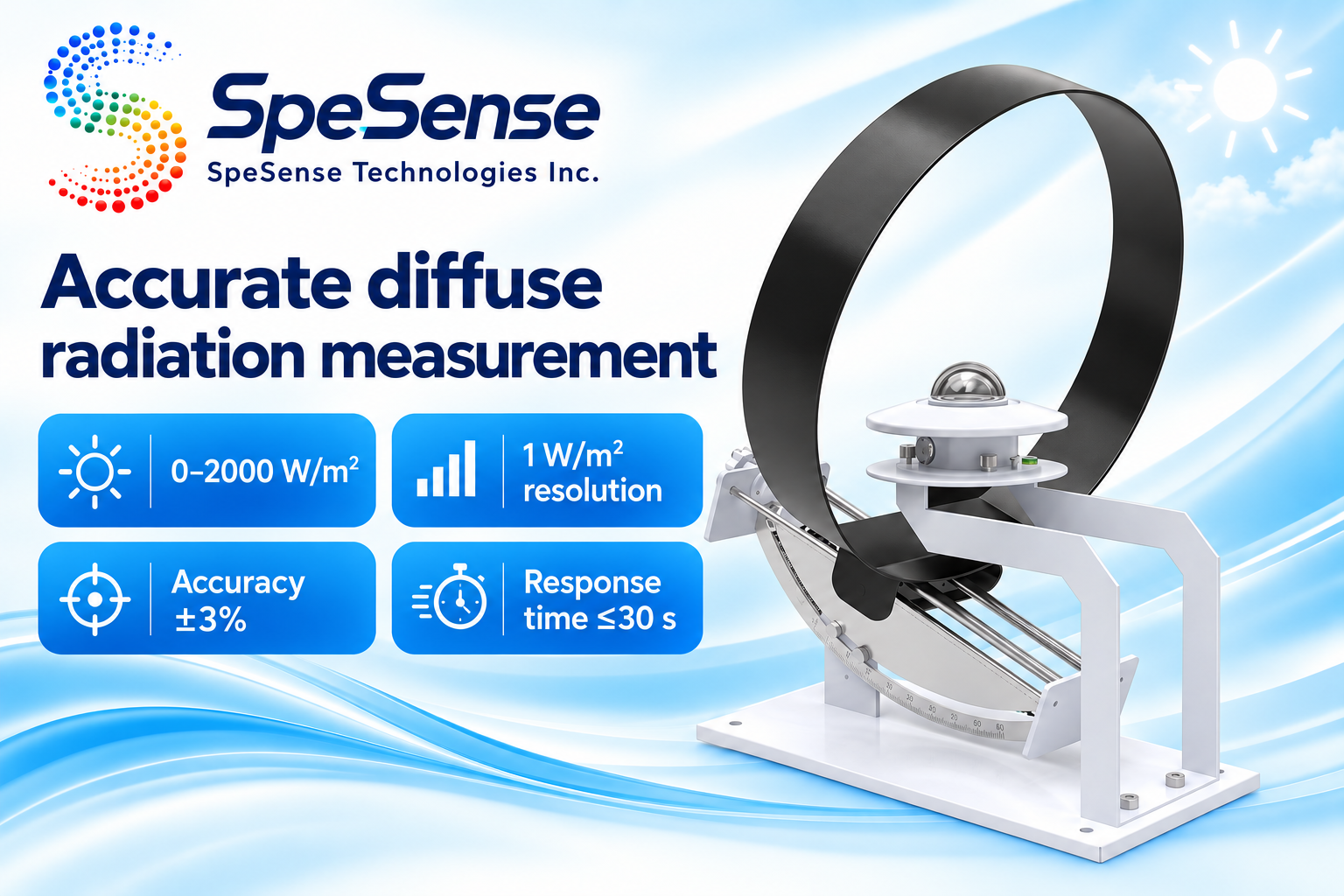

Radiation Sensor
SS207-06
散射太阳辐射变送器
产品亮点

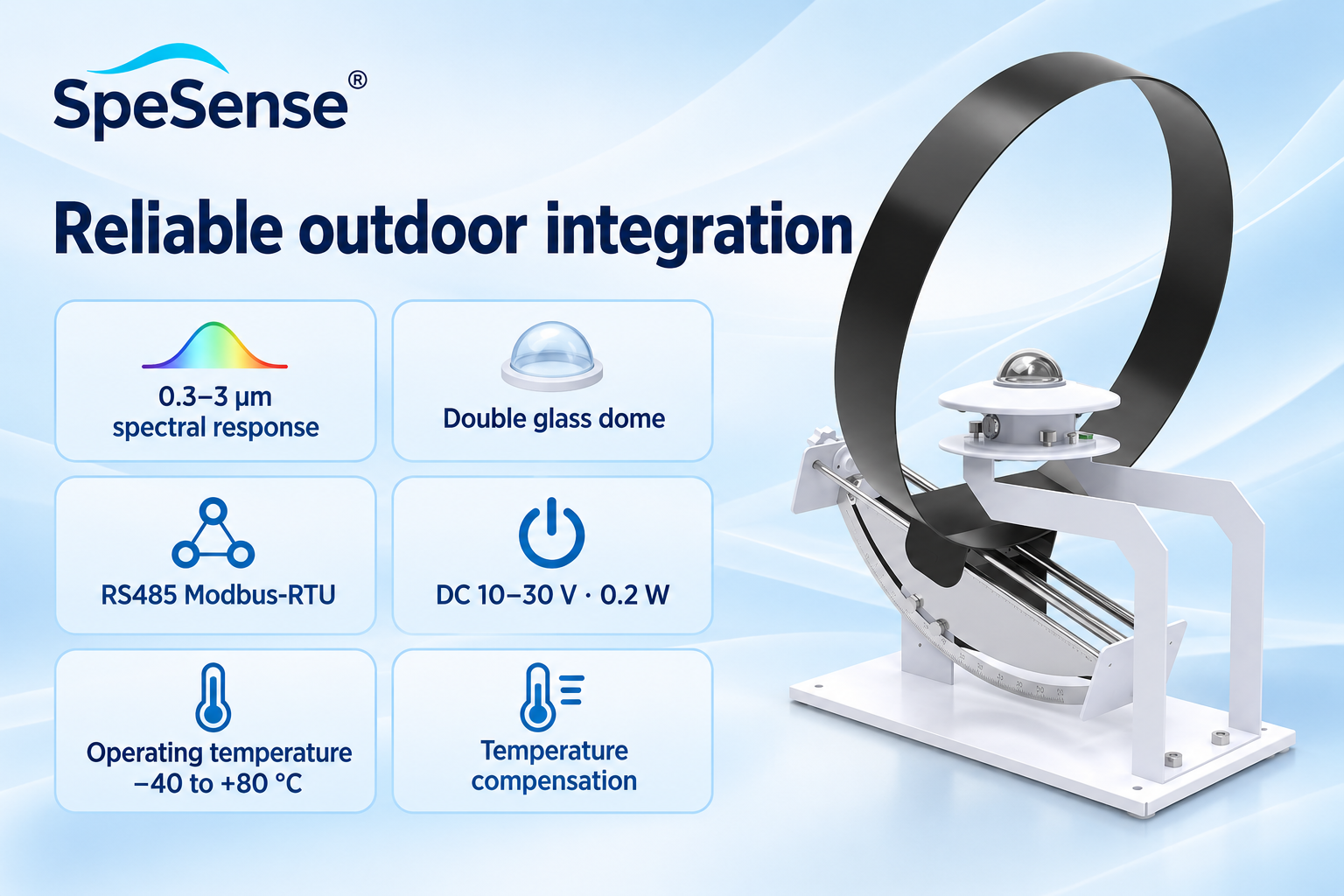

● Thermopile sensing element for accurate solar radiation measurement.

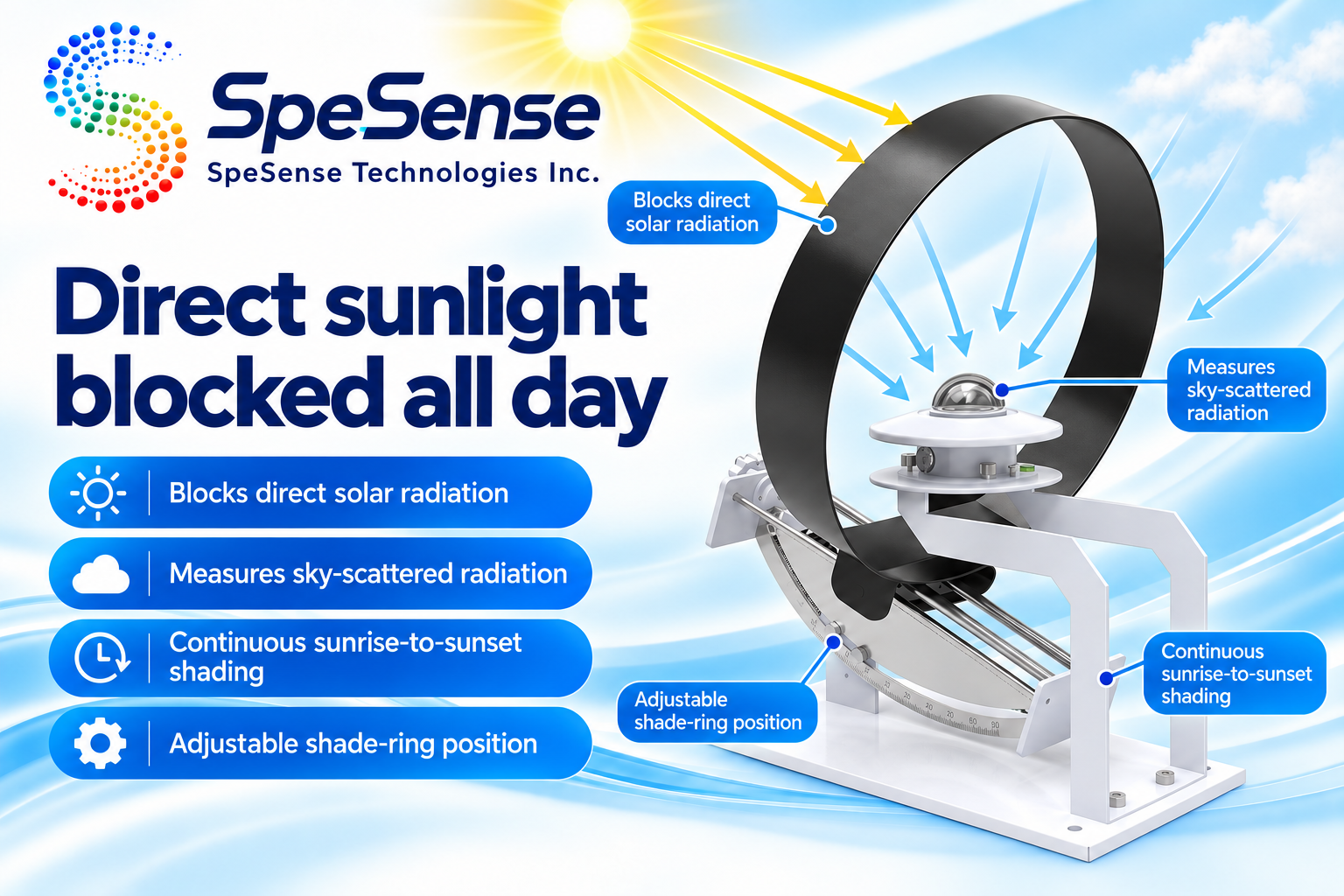

● Shade ring tracks latitude and solar declination for all-day direct-light blocking.
● 0.3-3 μm optical response with high-transmittance double glass dome.
● Robust aluminum structure for continuous outdoor operation.
● Shade ring tracks latitude and solar declination for all-day direct-light blocking.
● 0.3-3 μm optical response with high-transmittance double glass dome.
● Robust aluminum structure for continuous outdoor operation.
产品概述

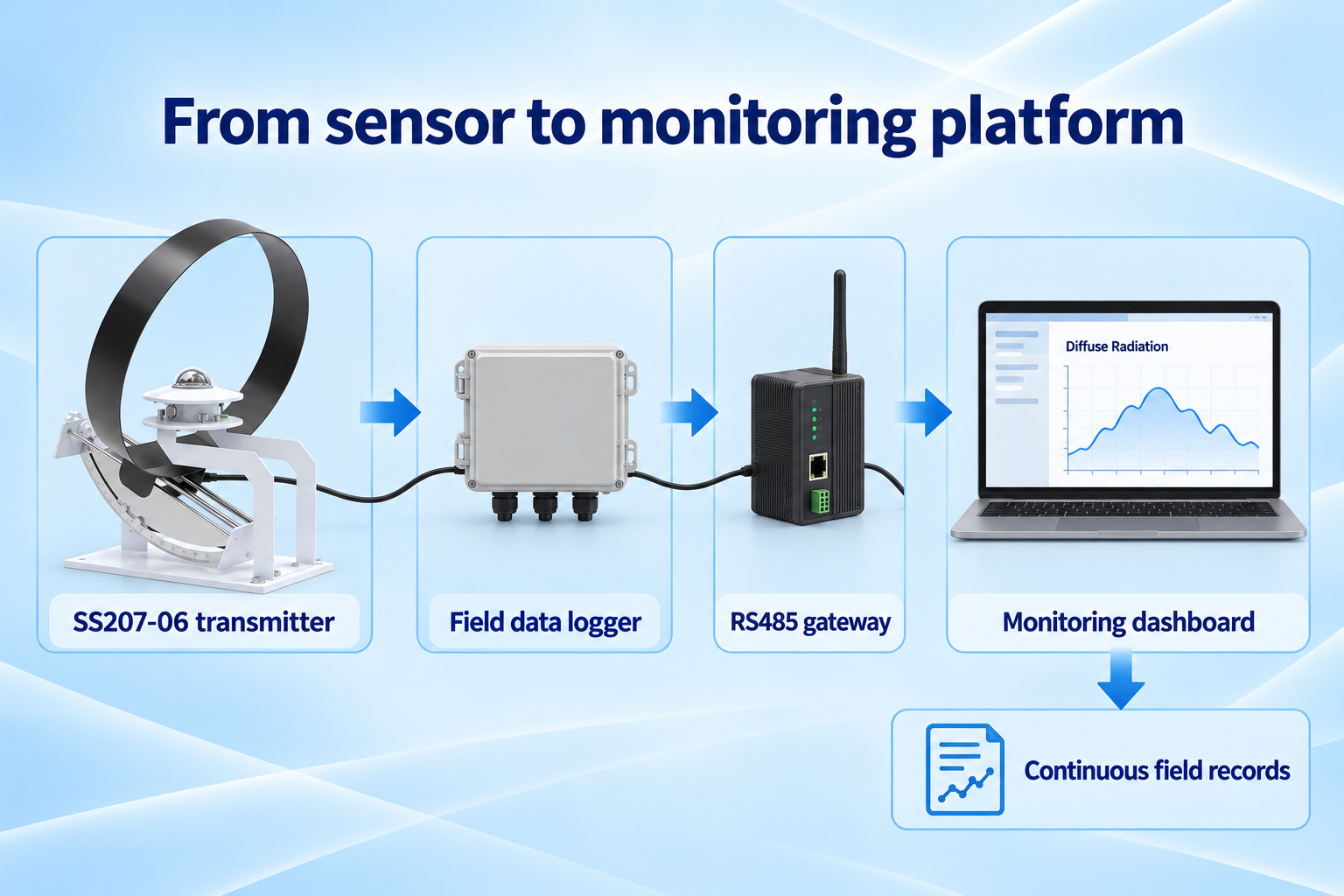

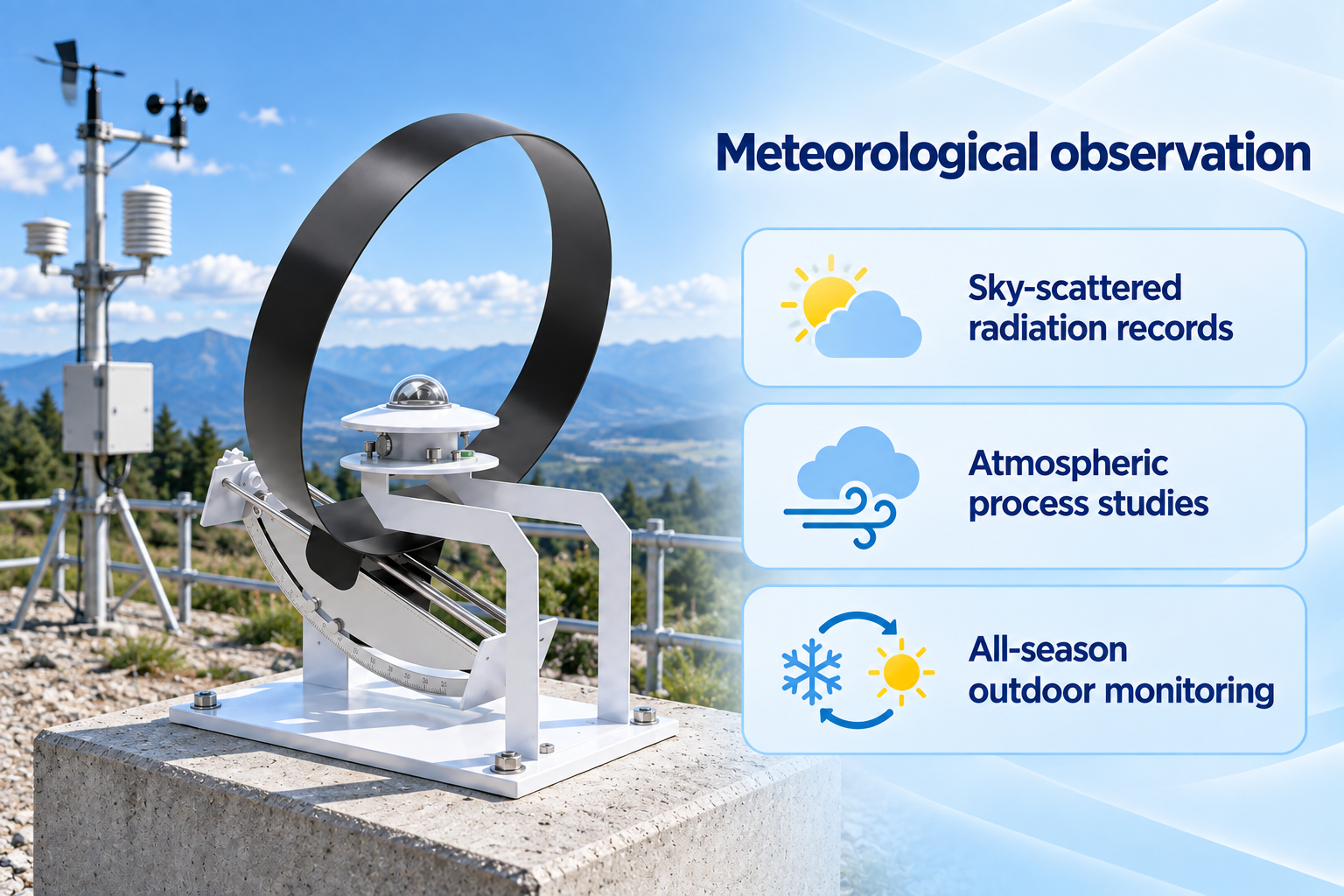

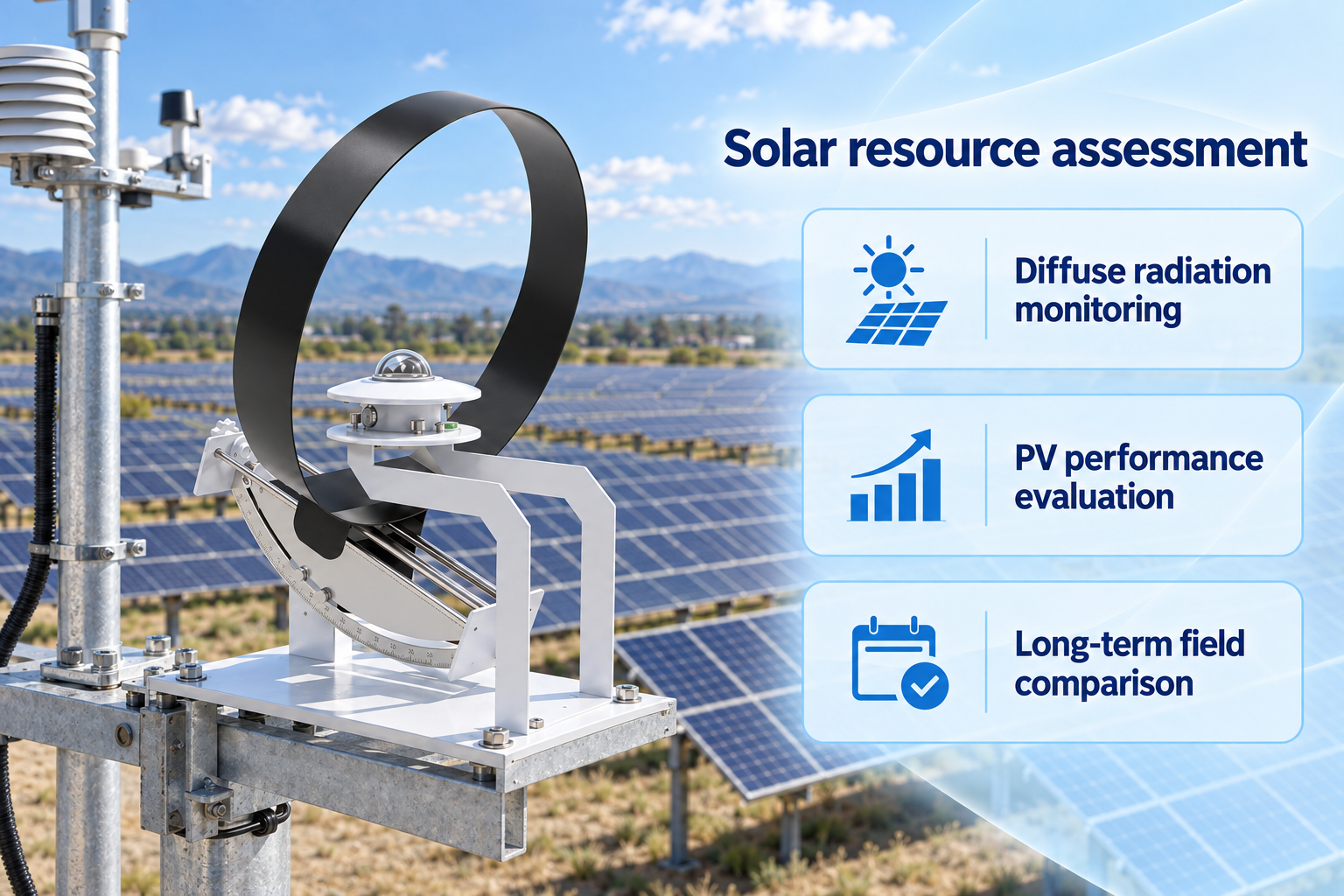

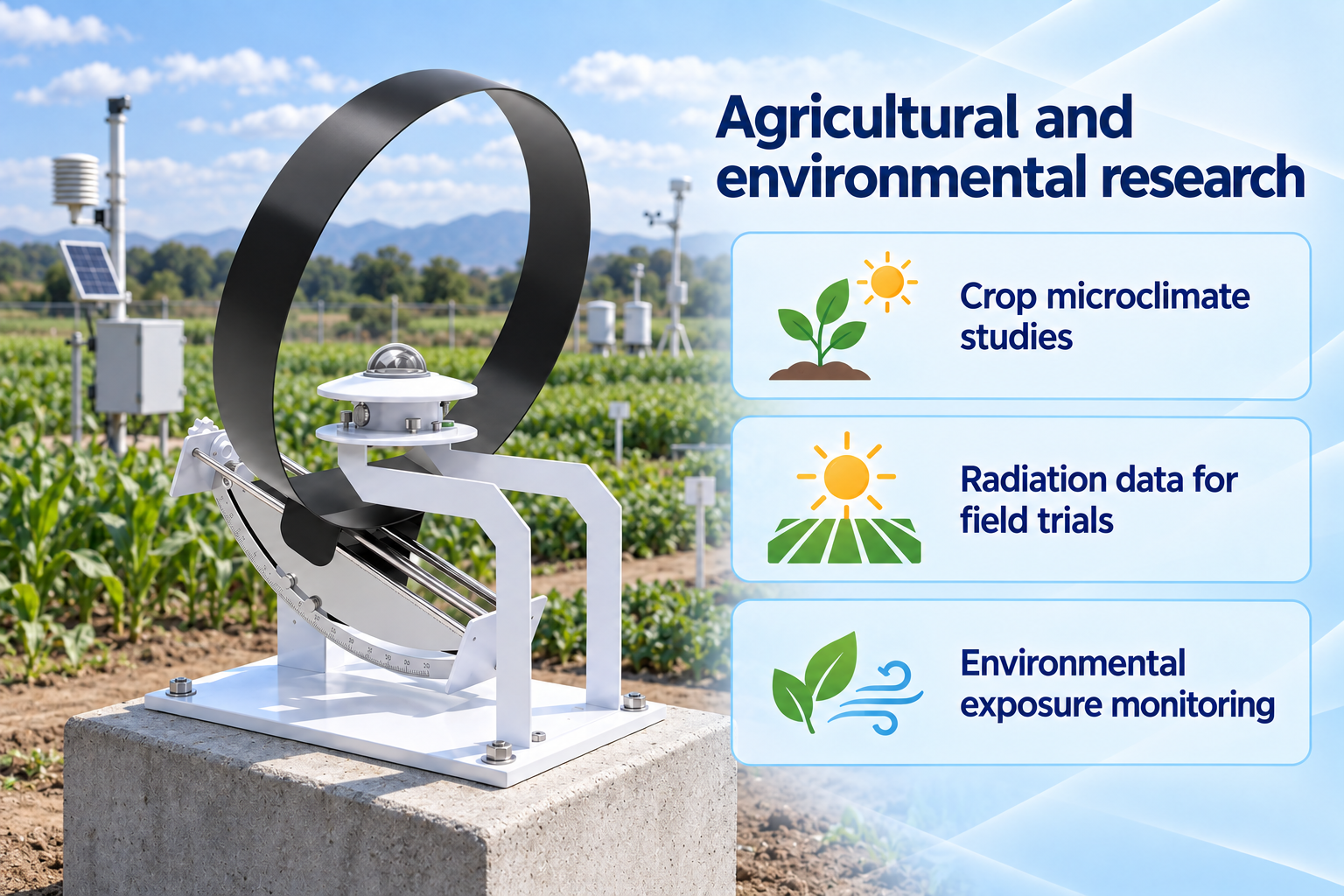

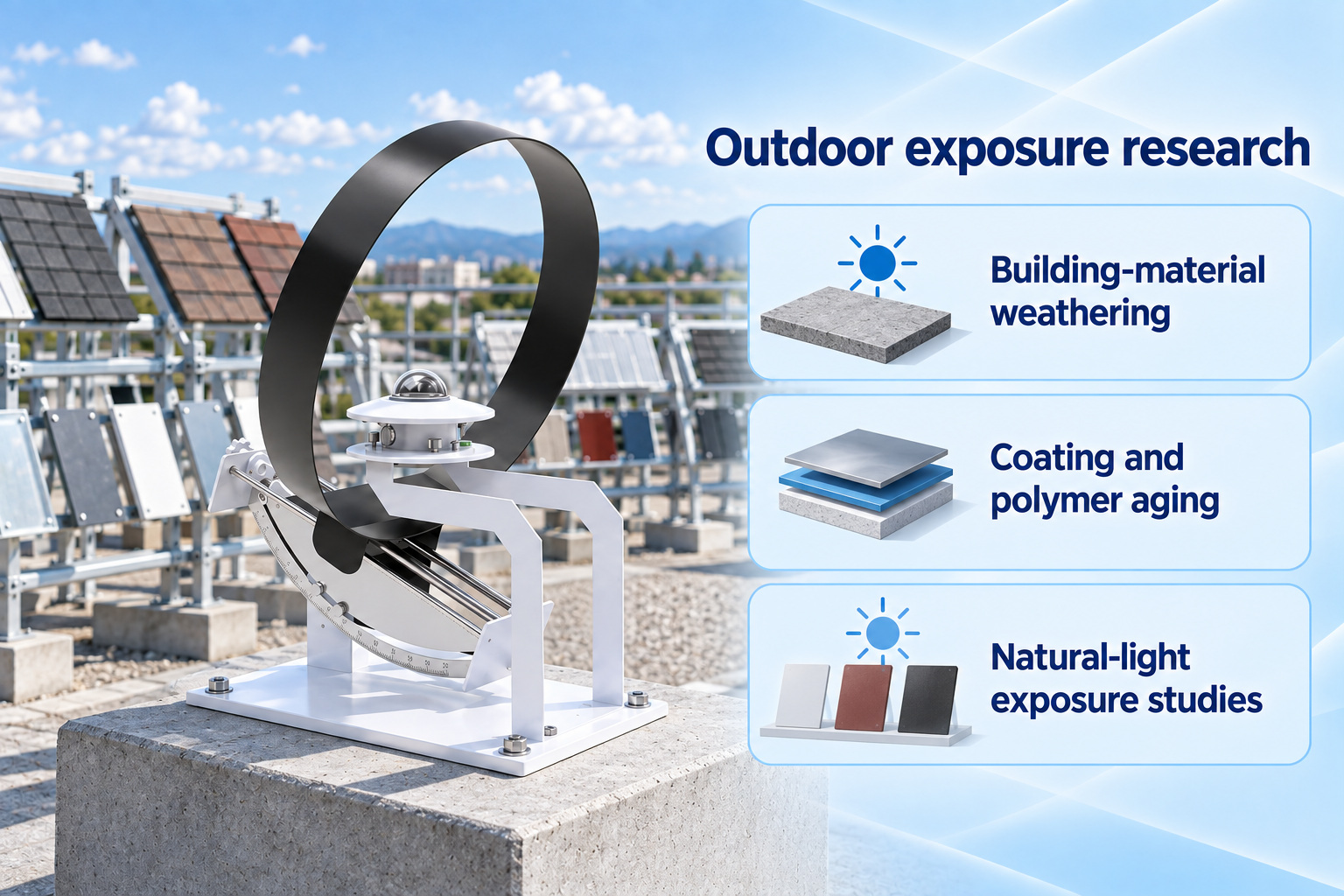

A thermopile-based transmitter for measuring sky-scattered solar radiation across the 0.3-3 μm spectral range. A continuously adjustable shade ring blocks direct sunlight from sunrise to sunset, while temperature compensation and RS485 Modbus-RTU communication support long-term outdoor monitoring.
| Item | Specification |
| Supply / Power | DC 10-30 V; 0.2 W |
| Measurement / Resolution | 0-2000 W/m²; 1 W/m² |
| Spectral Range / Sensitivity | 0.3-3 μm; 7-14 μV·W⁻¹·m² |
| Accuracy / Nonlinearity | ±3%; ≤±3% |
| Response Time (95%) | ≤30 s |
| Operating Conditions | -40 to +80 °C; 0-95% RH, non-condensing |
| Internal Resistance | 200-400 Ω |
| Directional / Cosine / Tilt Response | ≤±30 W/m²; ≤±5%; ≤2% |
| Temperature Response / Annual Stability | ≤±3% (-30 to +50 °C); ≤±3% |

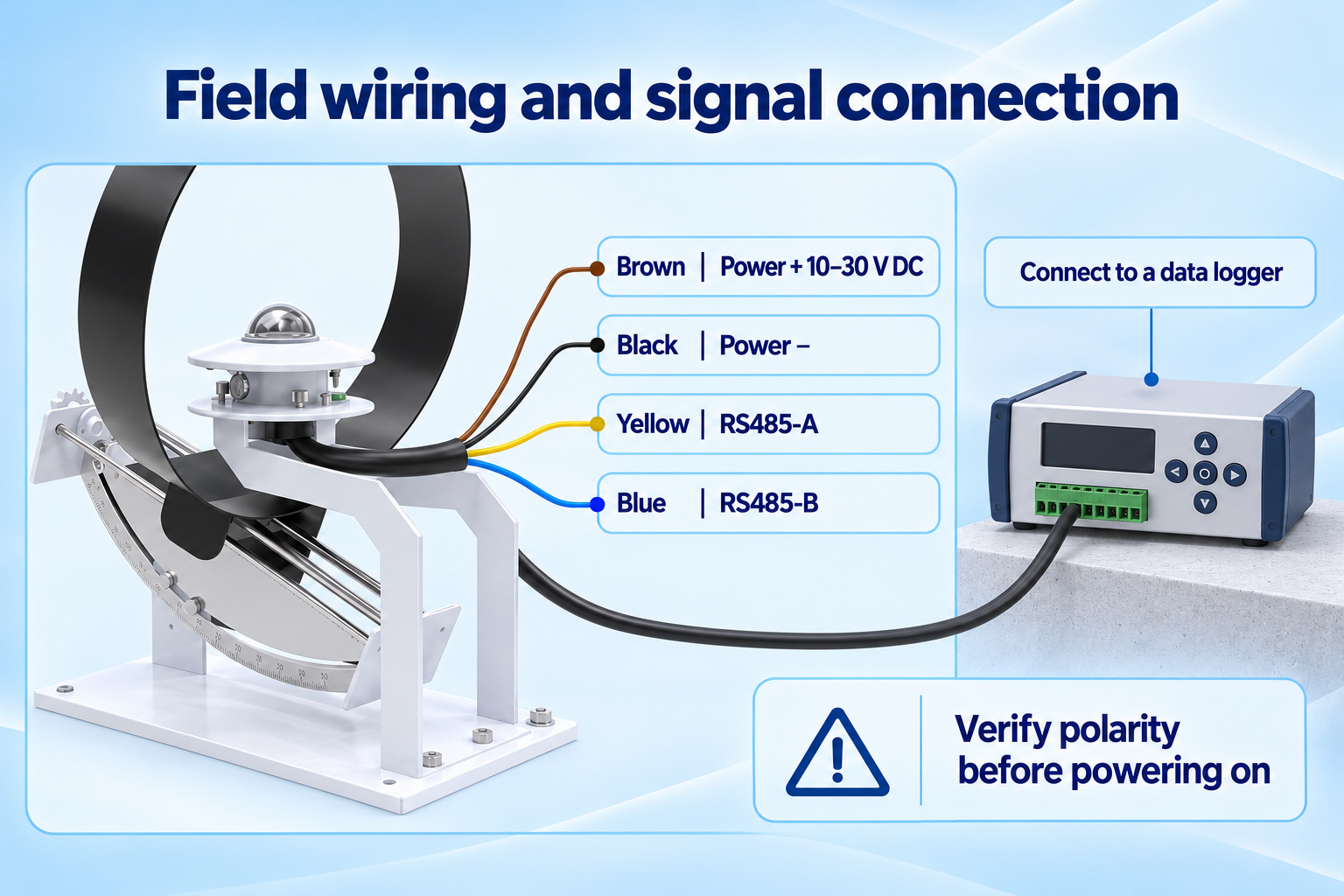

| Zero Drift / Interface | ≤6 W/m²; RS485 Modbus-RTU |
| Communication Defaults | 2400 / 4800 / 9600 bit/s configurable; 4800 default |

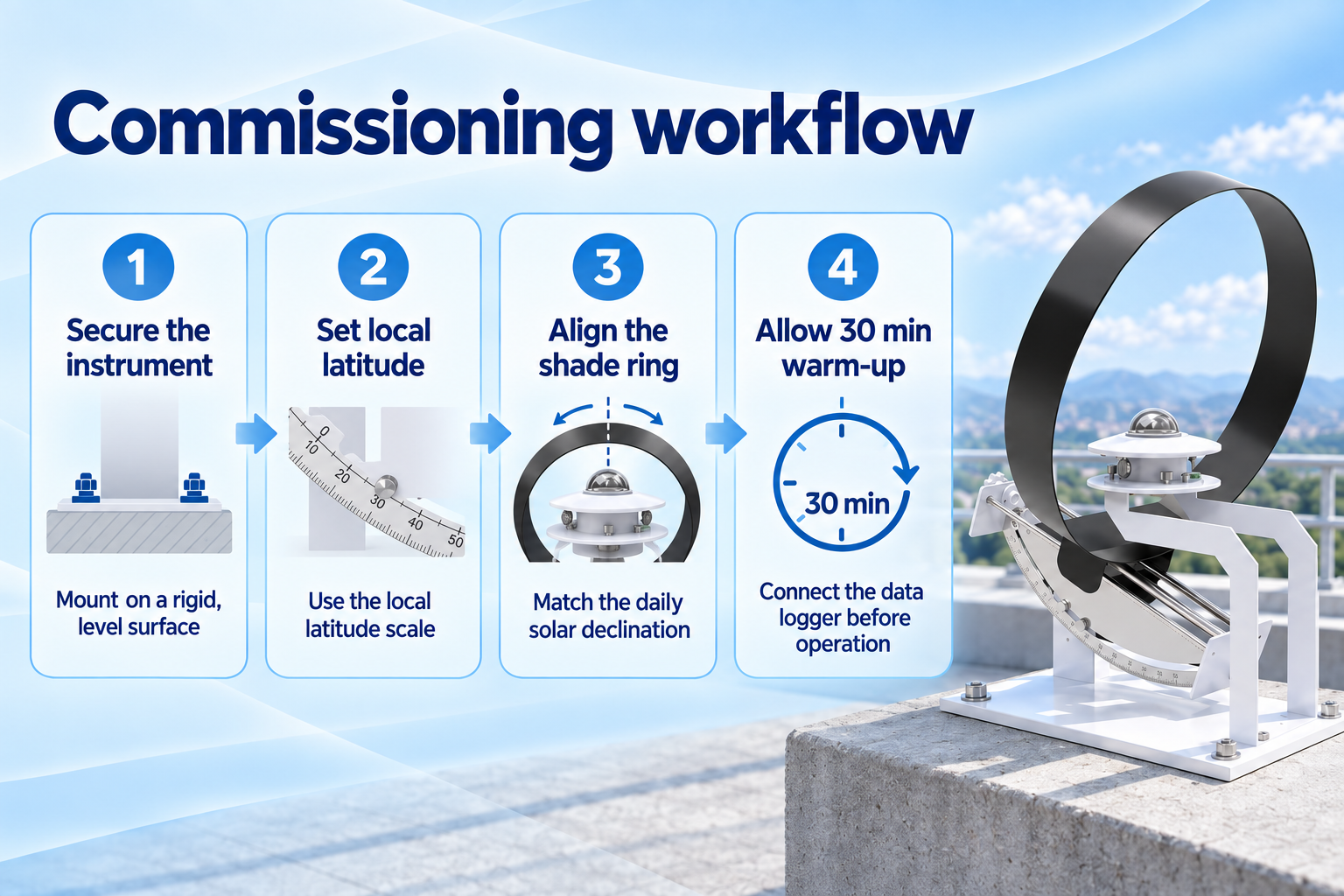

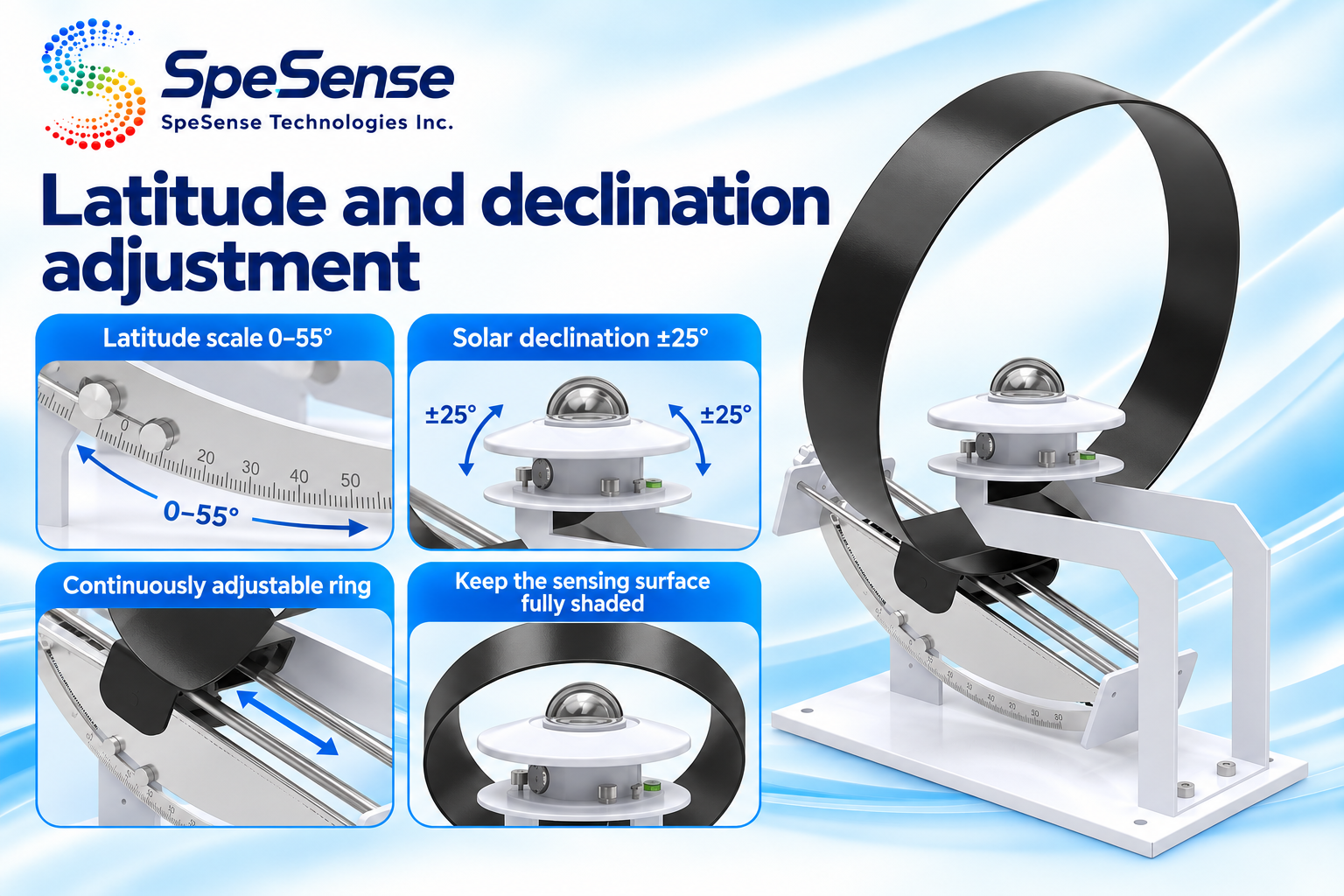

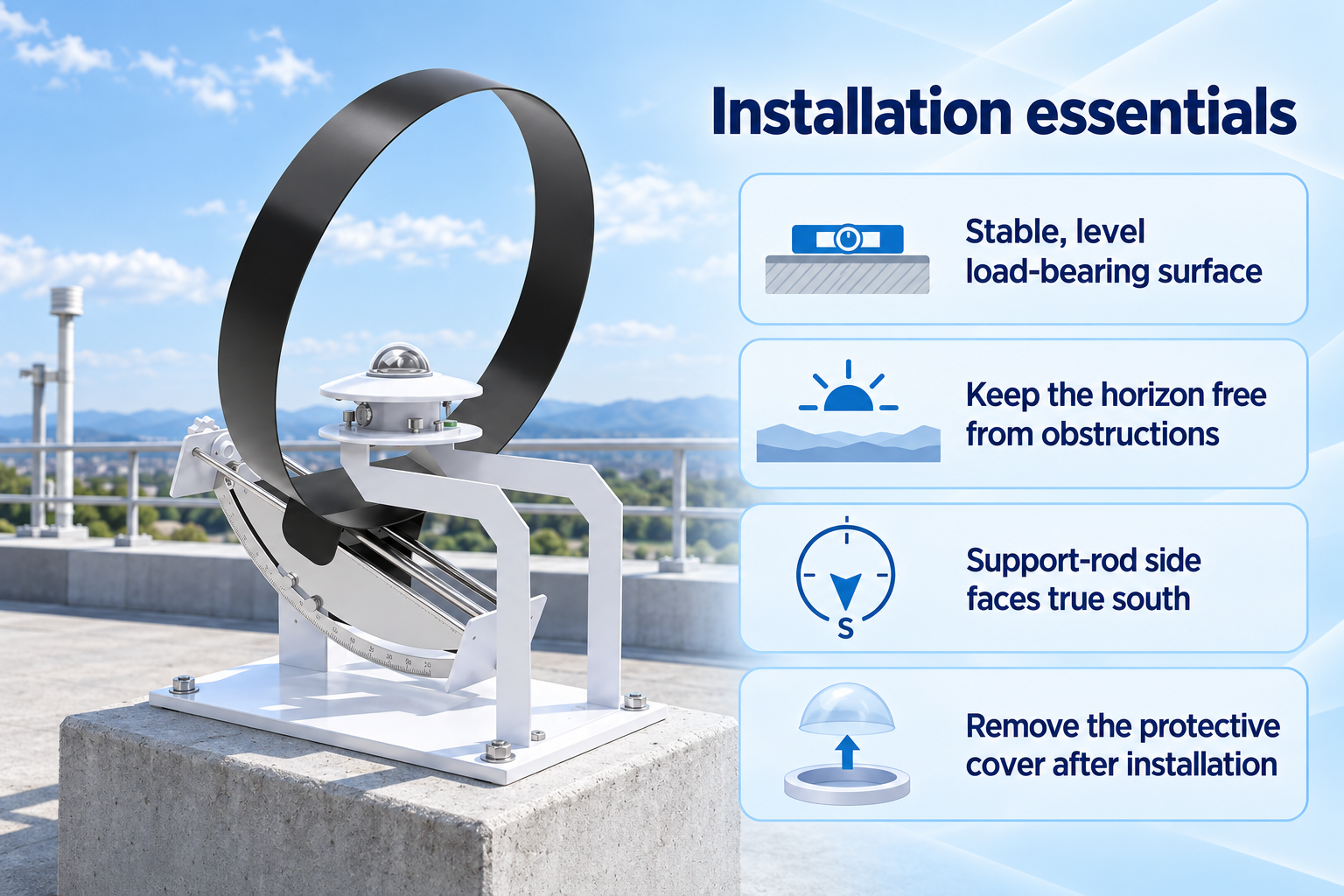

| Latitude / Declination | 0-55° latitude scale; ±25° declination |
| Shade Ring Diameter | Ø400 mm |
