Radiation Sensor

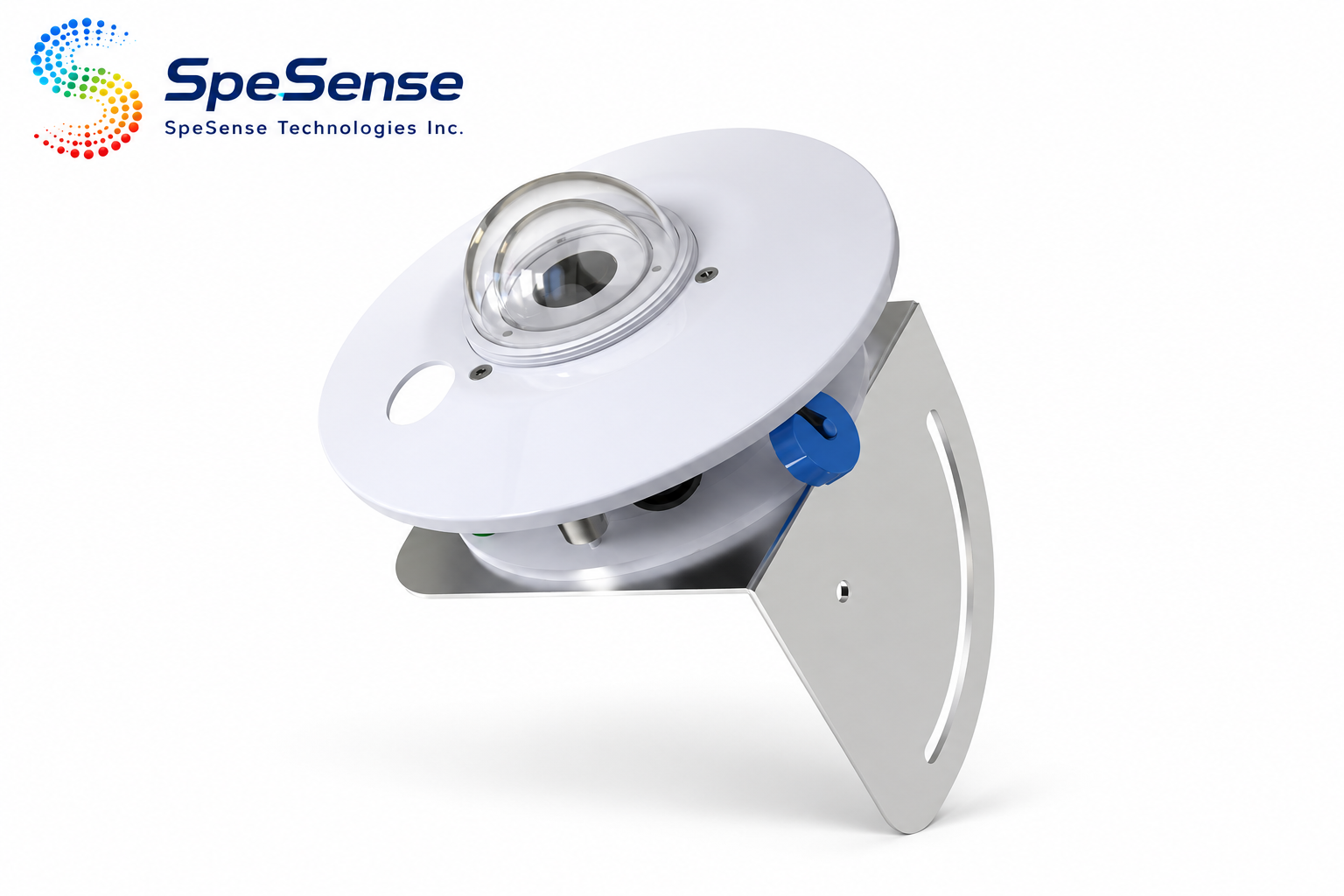

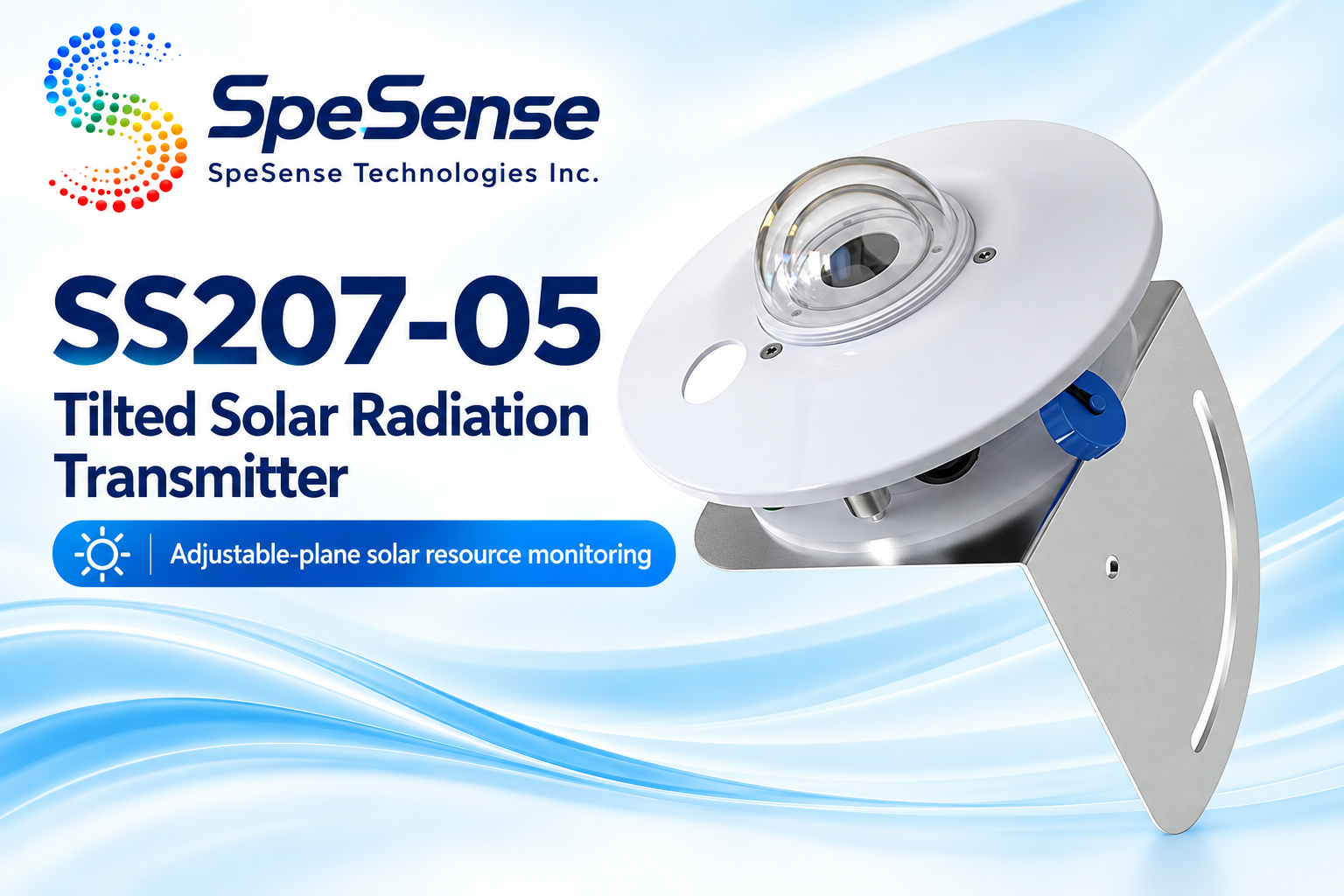

SS207-05
倾斜太阳辐射变送器
产品亮点

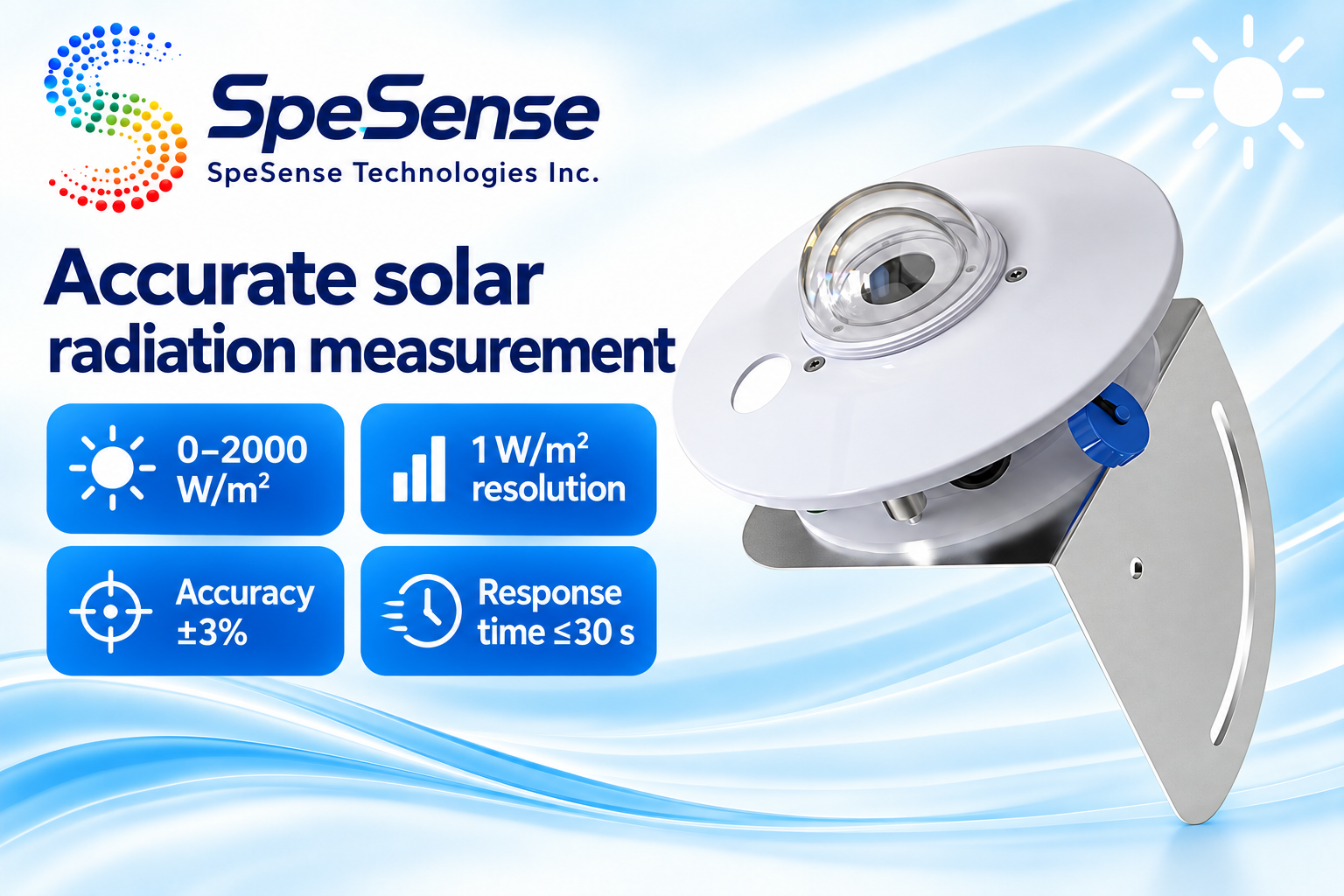

● Thermopile sensing element for accurate solar radiation measurement.

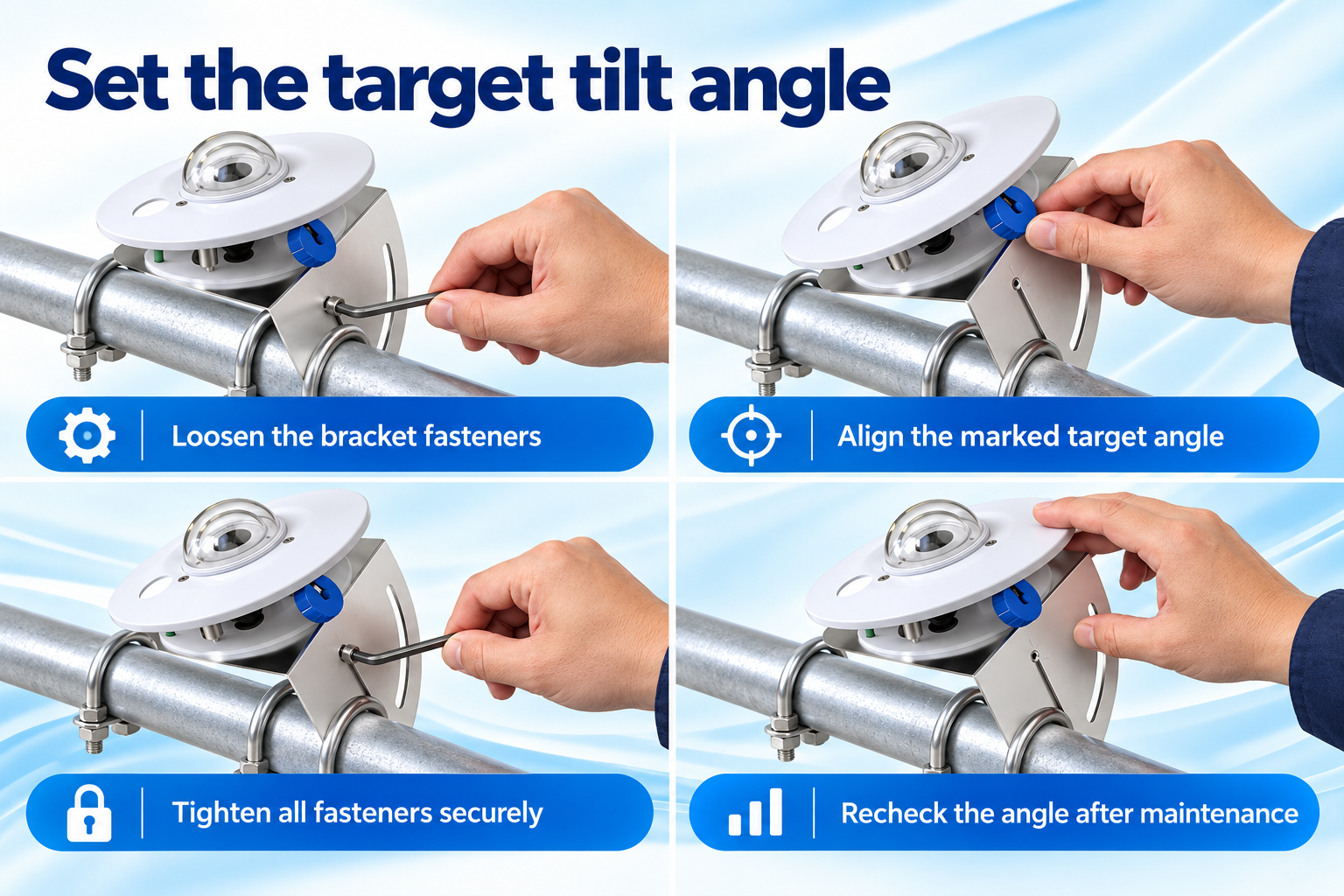

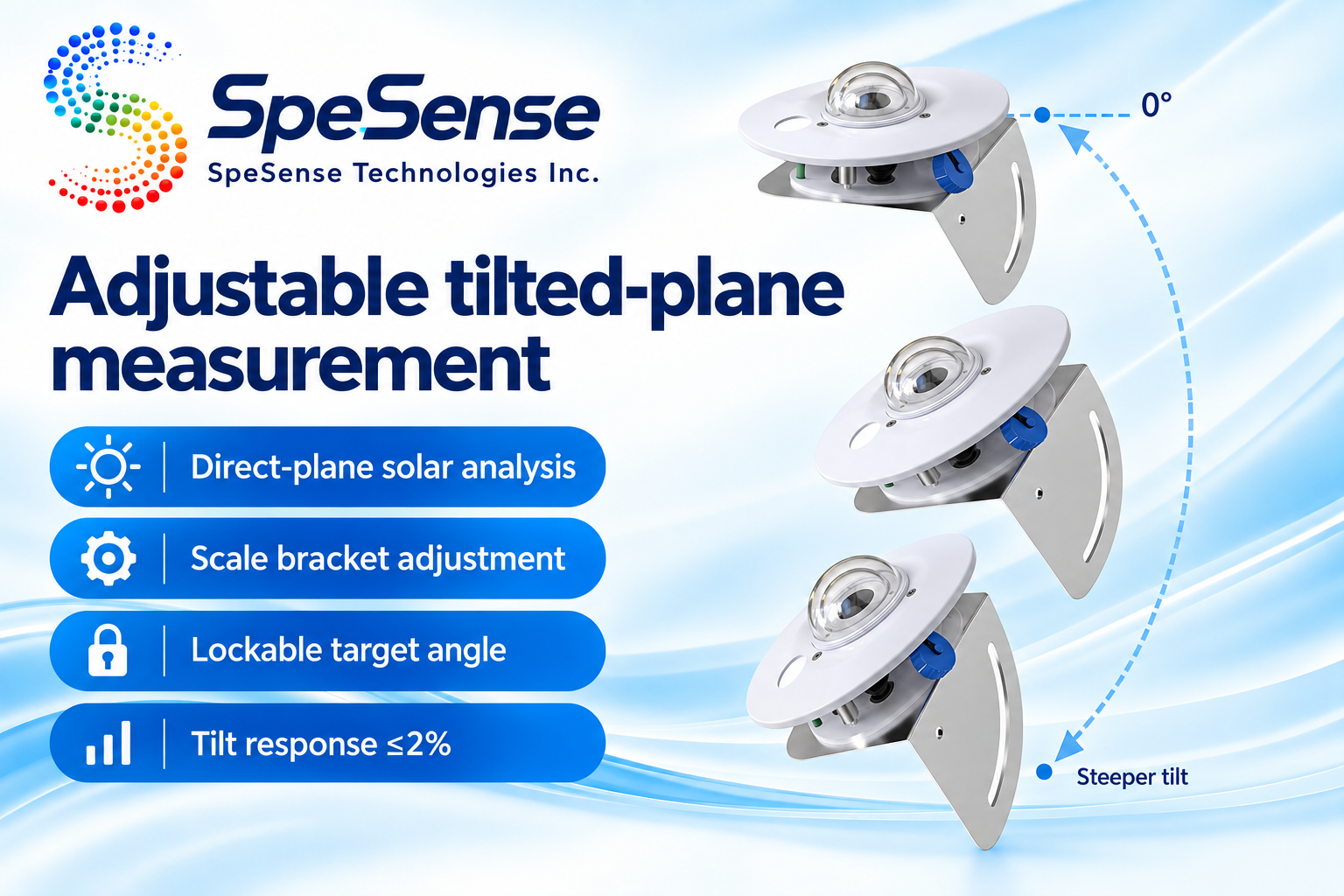

● Adjustable tilt angle with a scale bracket for direct-plane analysis.
● Temperature compensation improves accuracy under changing conditions.

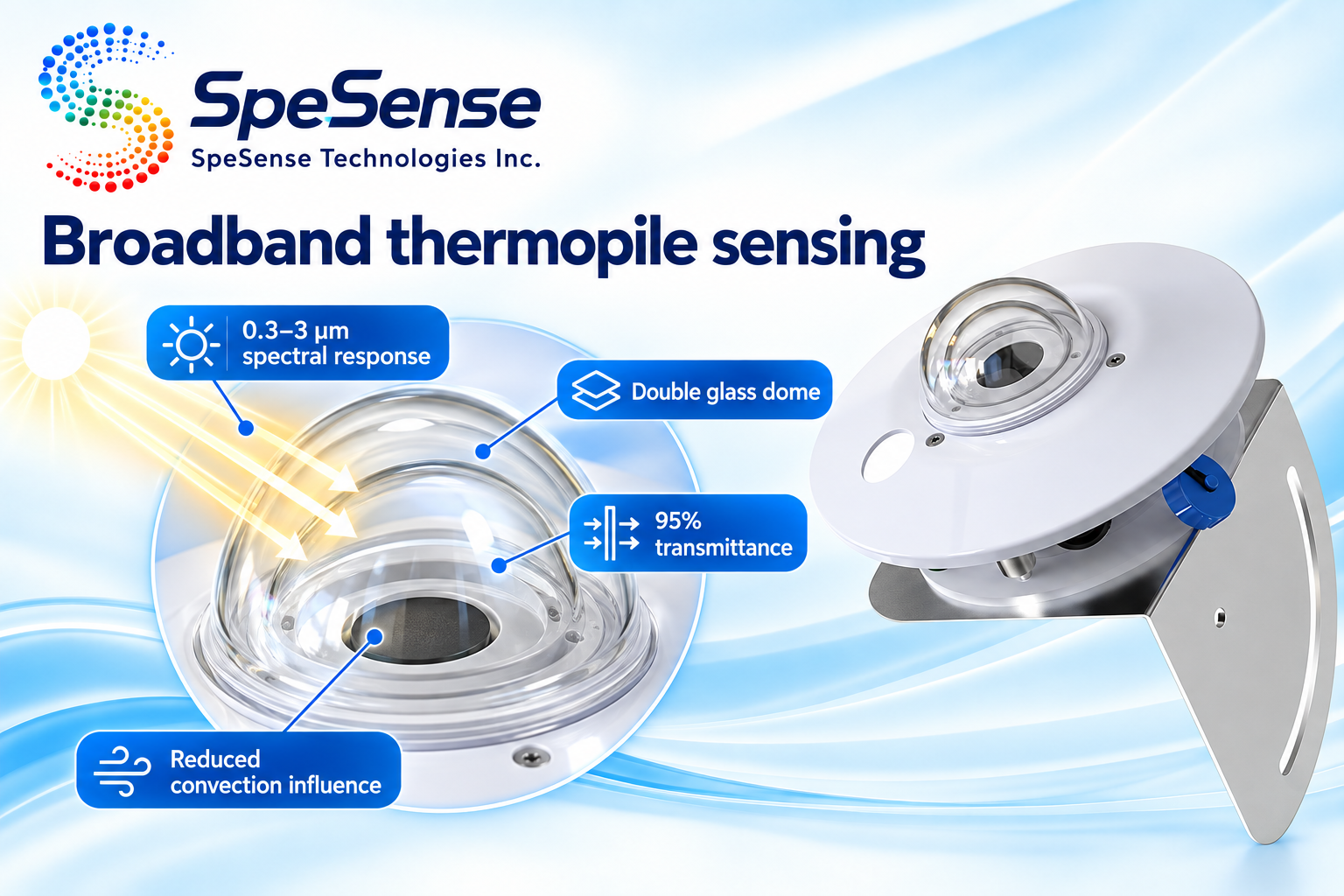

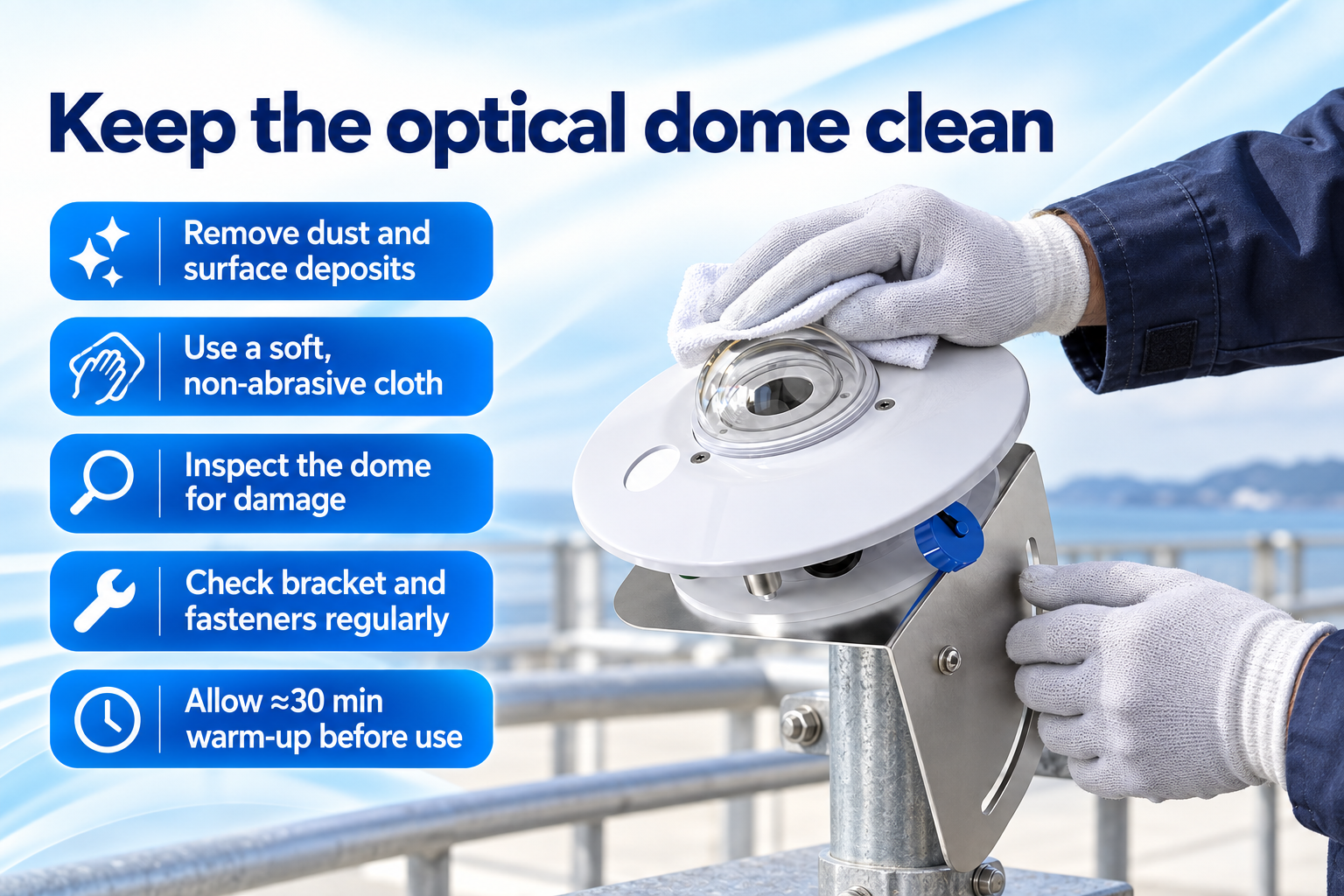

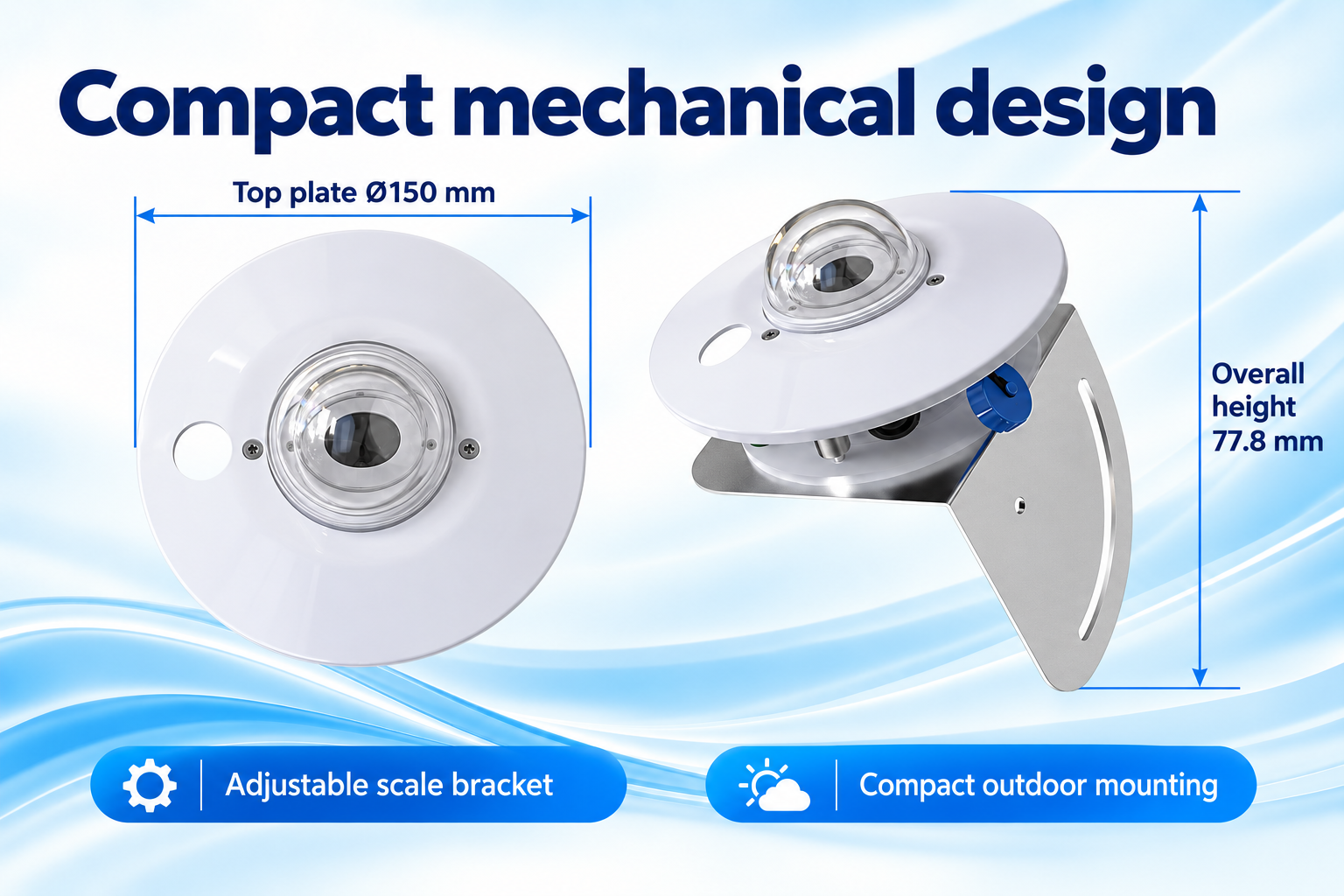

● Compact housing with a double glass dome and 95% transmittance.
● Adjustable tilt angle with a scale bracket for direct-plane analysis.
● Temperature compensation improves accuracy under changing conditions.
● Compact housing with a double glass dome and 95% transmittance.
产品概述

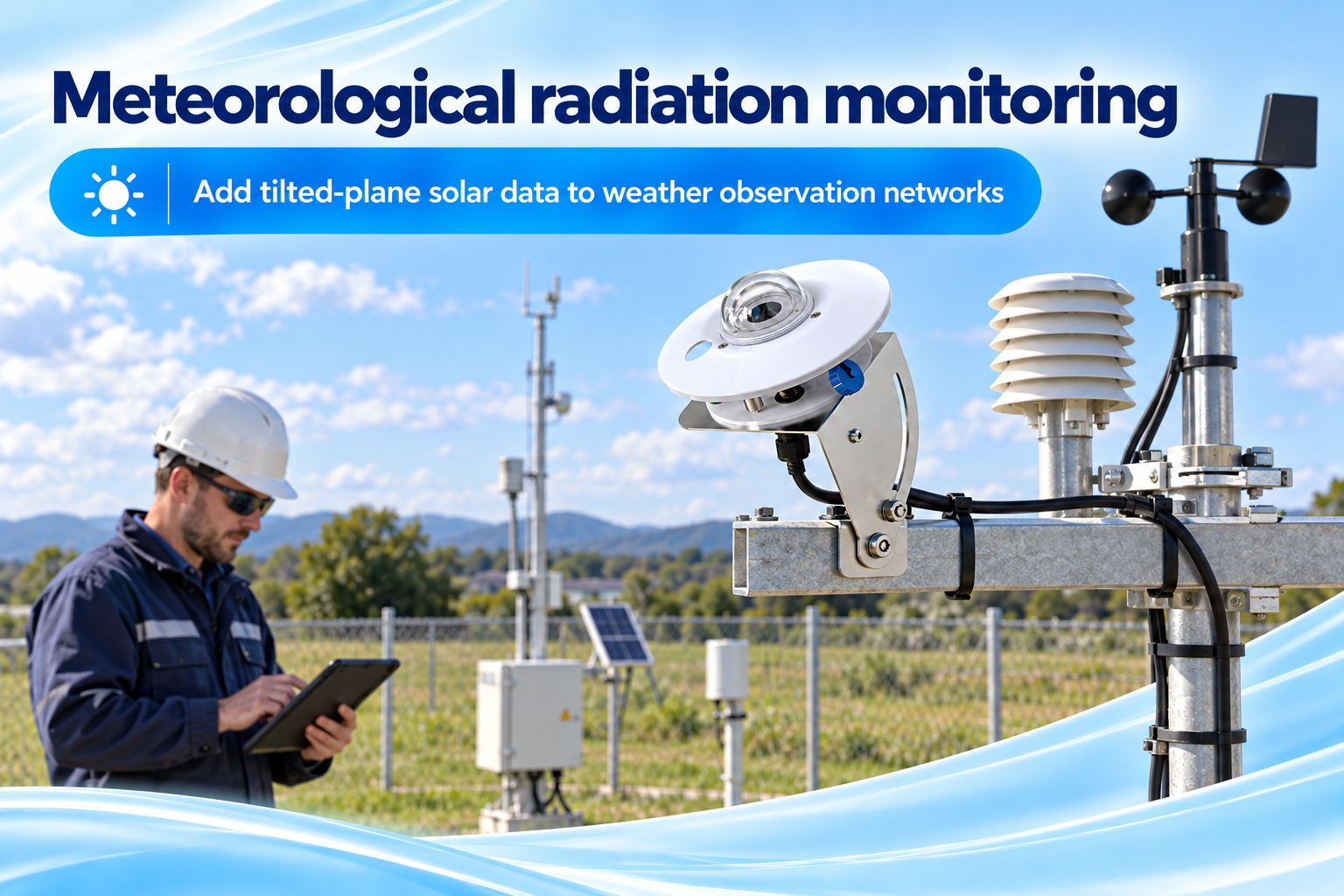

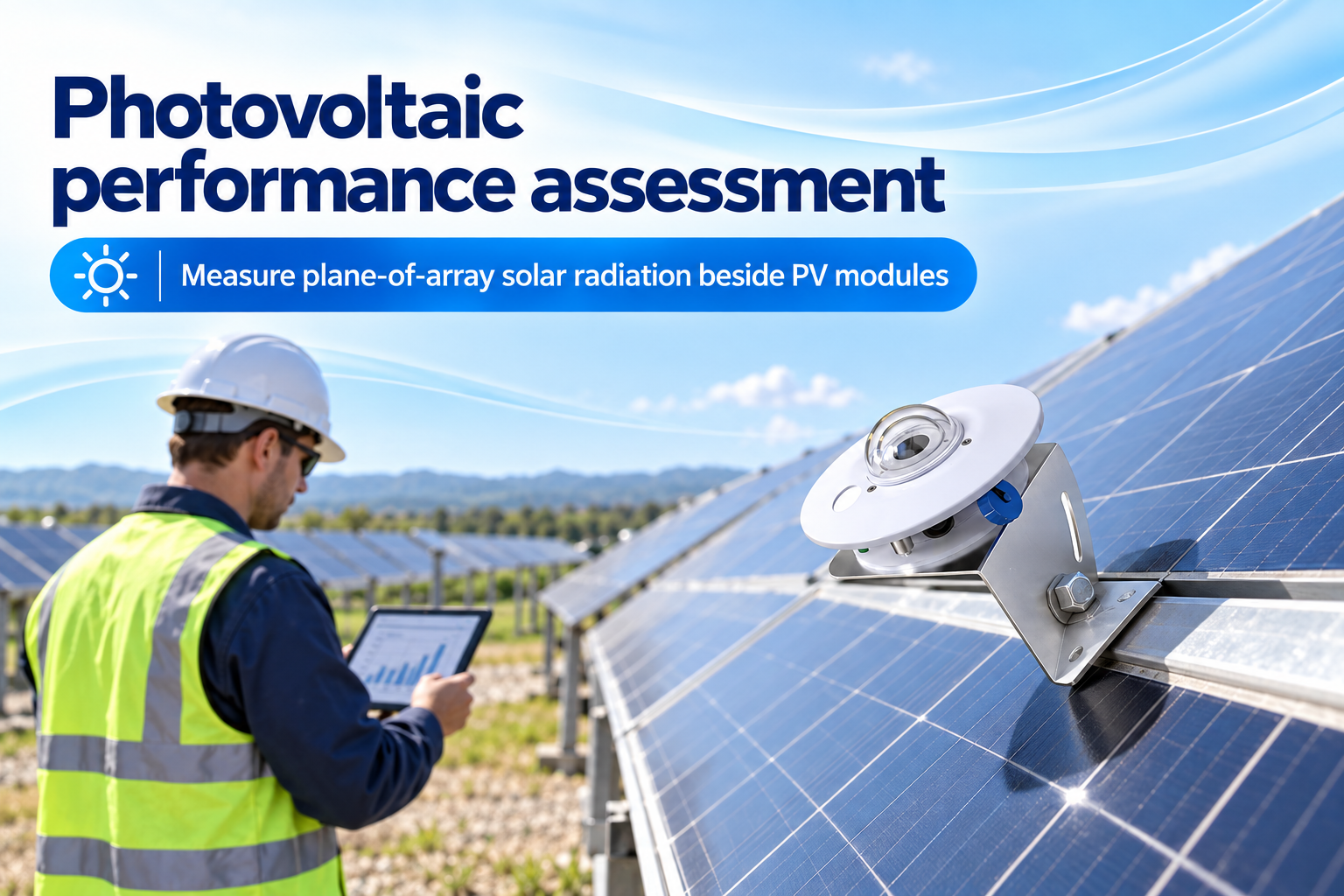

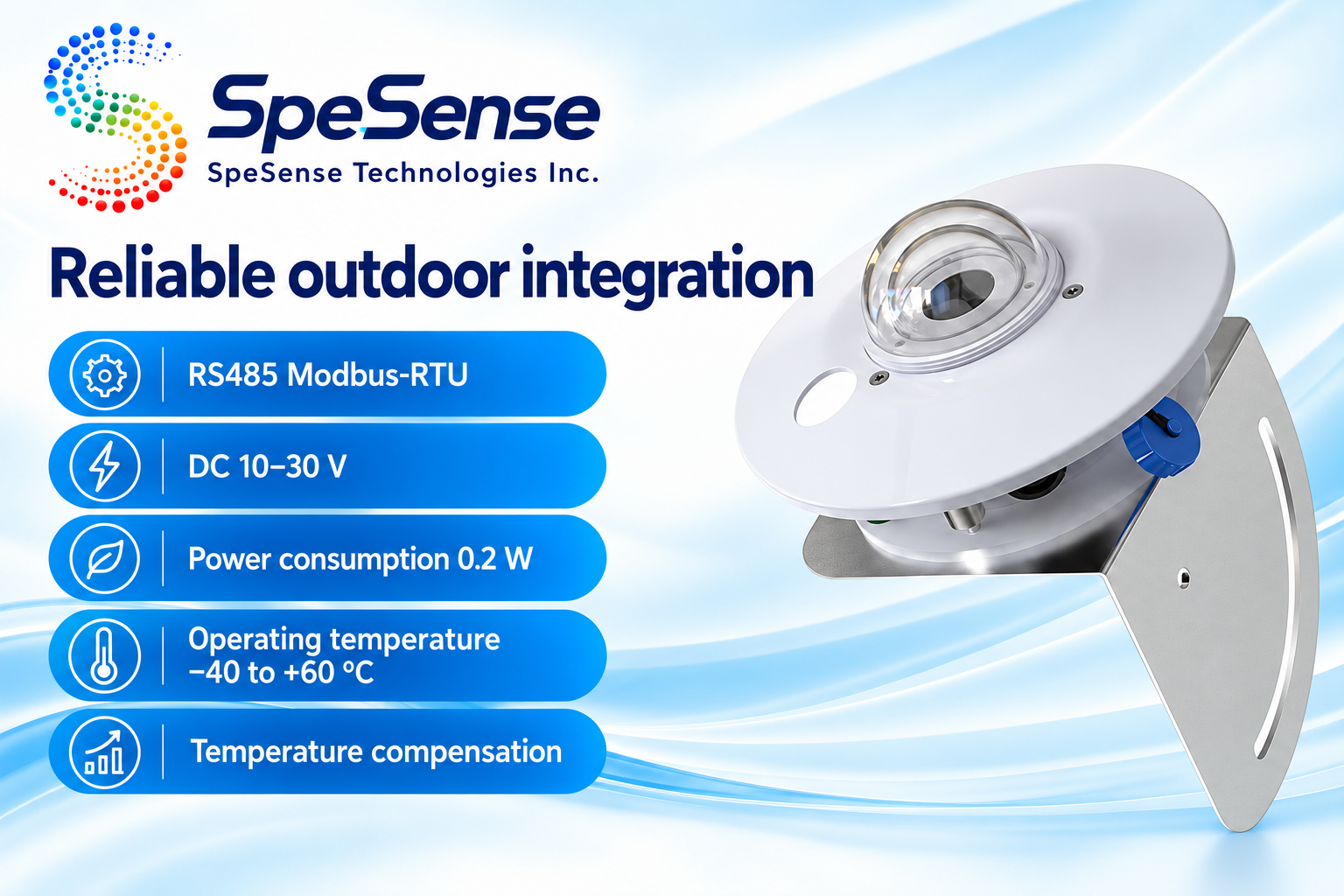

A thermopile-based transmitter for measuring solar radiation on an adjustable tilted plane across the 0.3-3 μm spectral range. Its double glass dome, temperature compensation and RS485 Modbus-RTU interface support accurate solar-energy assessment in outdoor environments.
| Item | Specification |
| Supply / Power | DC 10-30 V; 0.2 W |
| Measurement / Resolution | 0-2000 W/m²; 1 W/m² |
| Spectral Range / Sensitivity | 0.3-3 μm; 7-14 μV·W⁻¹·m² |
| Accuracy / Nonlinearity | ±3%; ≤±3% |
| Response Time (95%) | ≤30 s |
| Operating Conditions | -40 to +60 °C; 0-95% RH, non-condensing |
| Internal Resistance | 200-400 Ω |
| Directional / Cosine / Tilt Response | ≤±30 W/m²; ≤±5%; ≤2% |
| Temperature Response / Annual Stability | ≤±3% (-30 to +50 °C); ≤±3% |

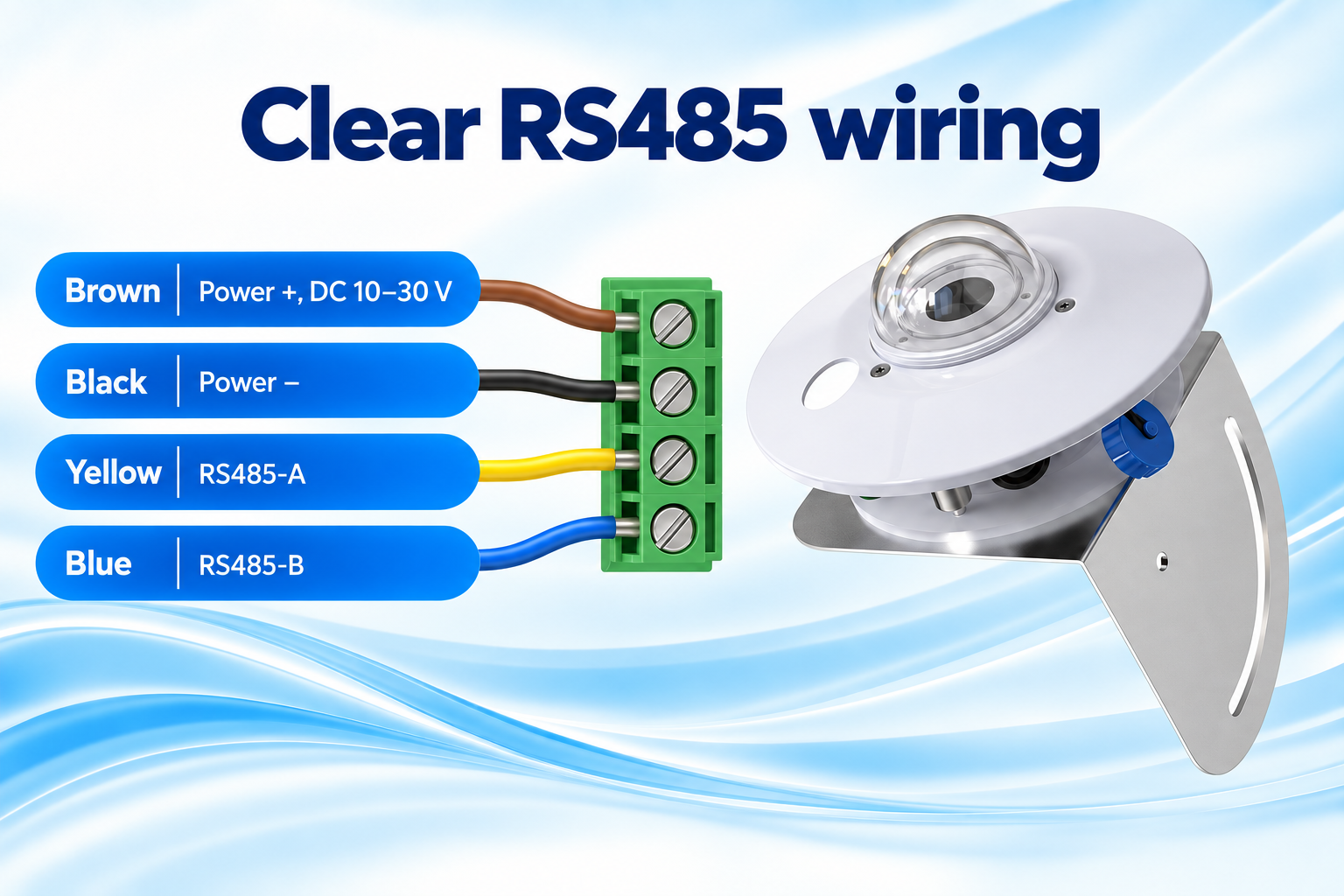

| Zero Drift / Interface | ≤6 W/m²; RS485 Modbus-RTU |
| Communication Defaults | 4800 bit/s default; address and baud rate configurable |
