Radiation Sensor
SS207-04
紫外辐射传感器
产品亮点
● Sensitive detector and high-transmission optical material
● IP67 protection for outdoor use.

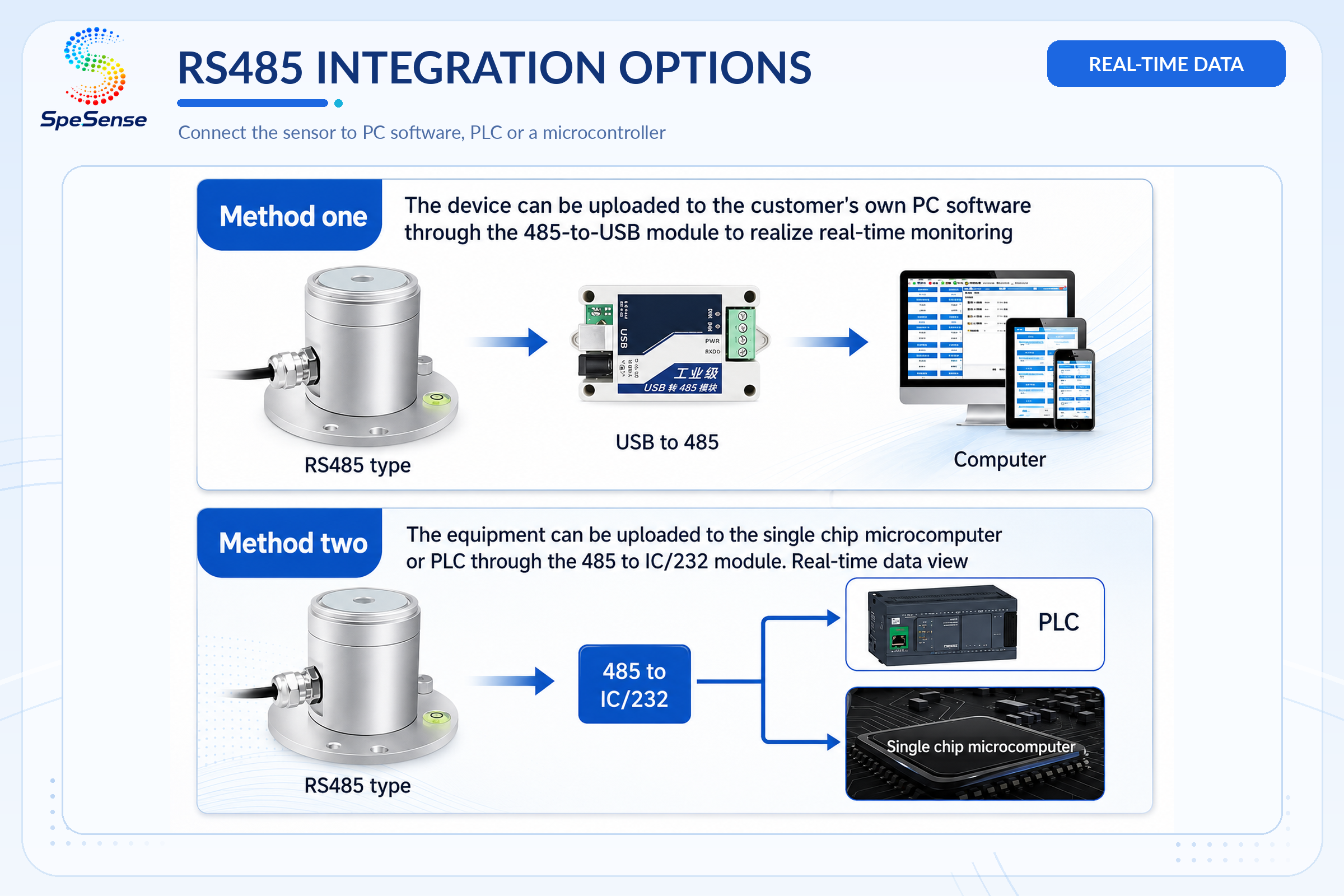

● Long-distance RS485 communication.
● IP67 protection for outdoor use.
● Long-distance RS485 communication.
产品概述

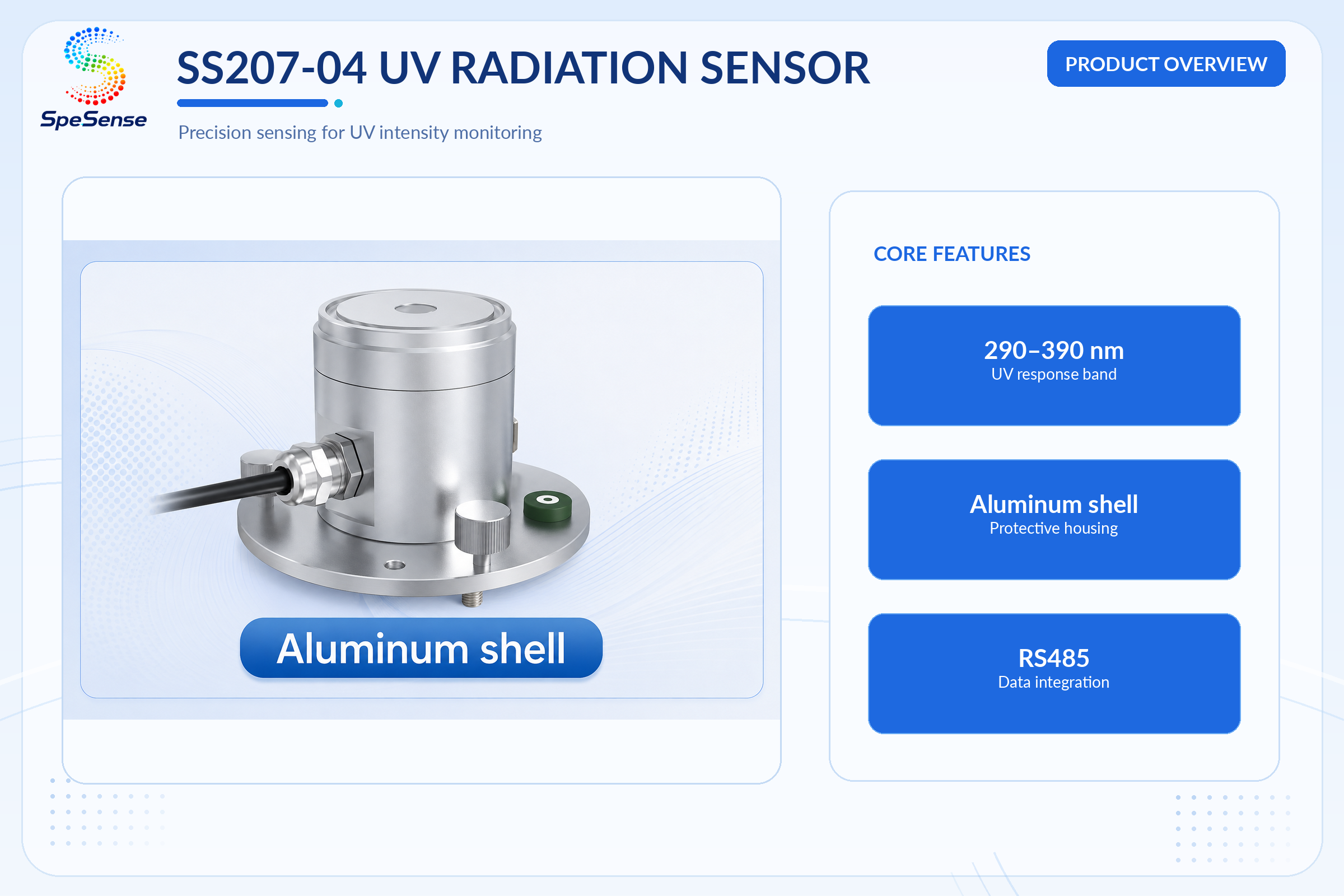

High-sensitivity UV measurement across 290–390 nm.
IP67 protection with RS485 and analog output options.
| Item | Specification |

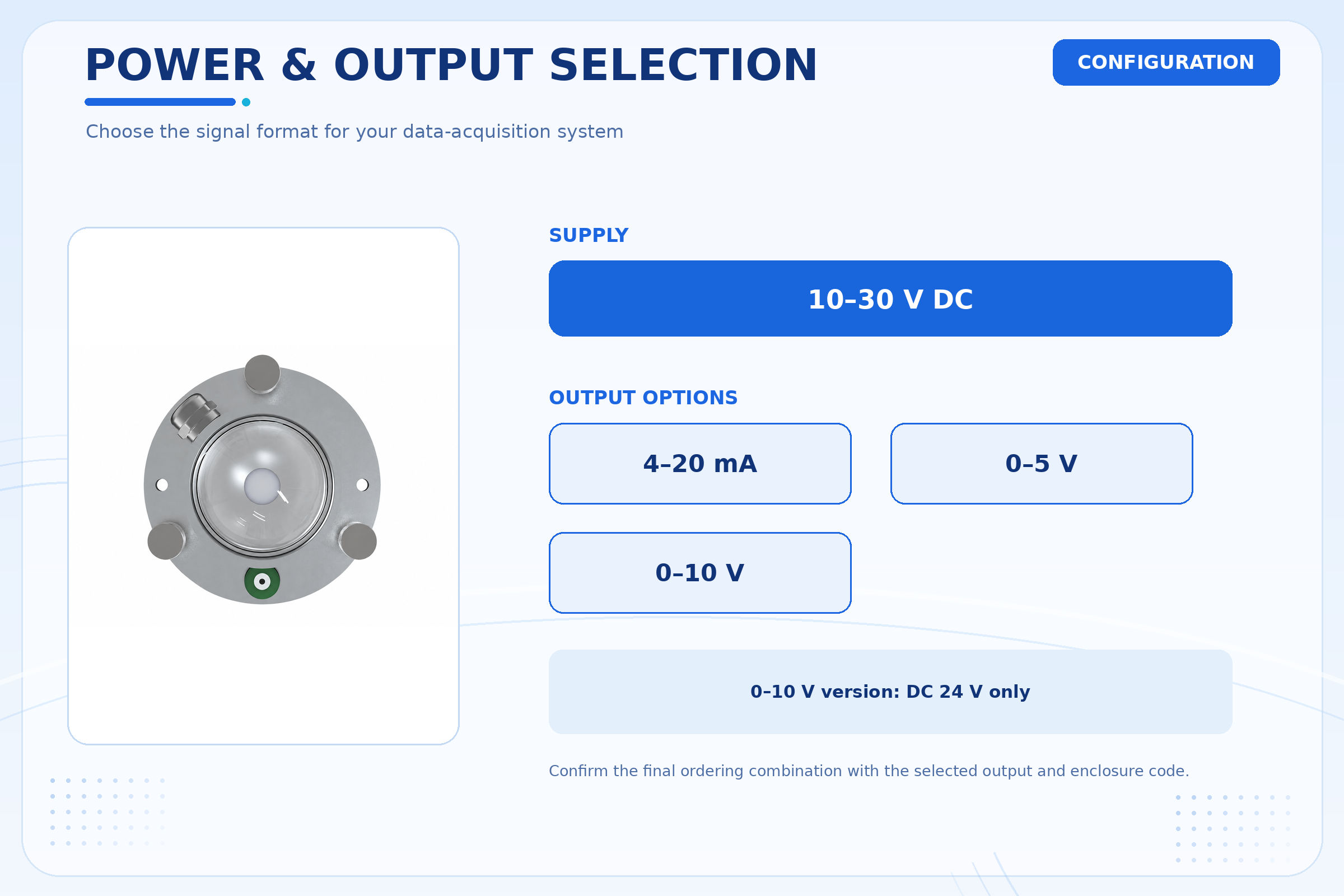

| Power supply | 10–30 V DC; 0–10 V version: DC 24 V only |
| Maximum power consumption | RS485: 0.06 W; analog output: 0.6 W |

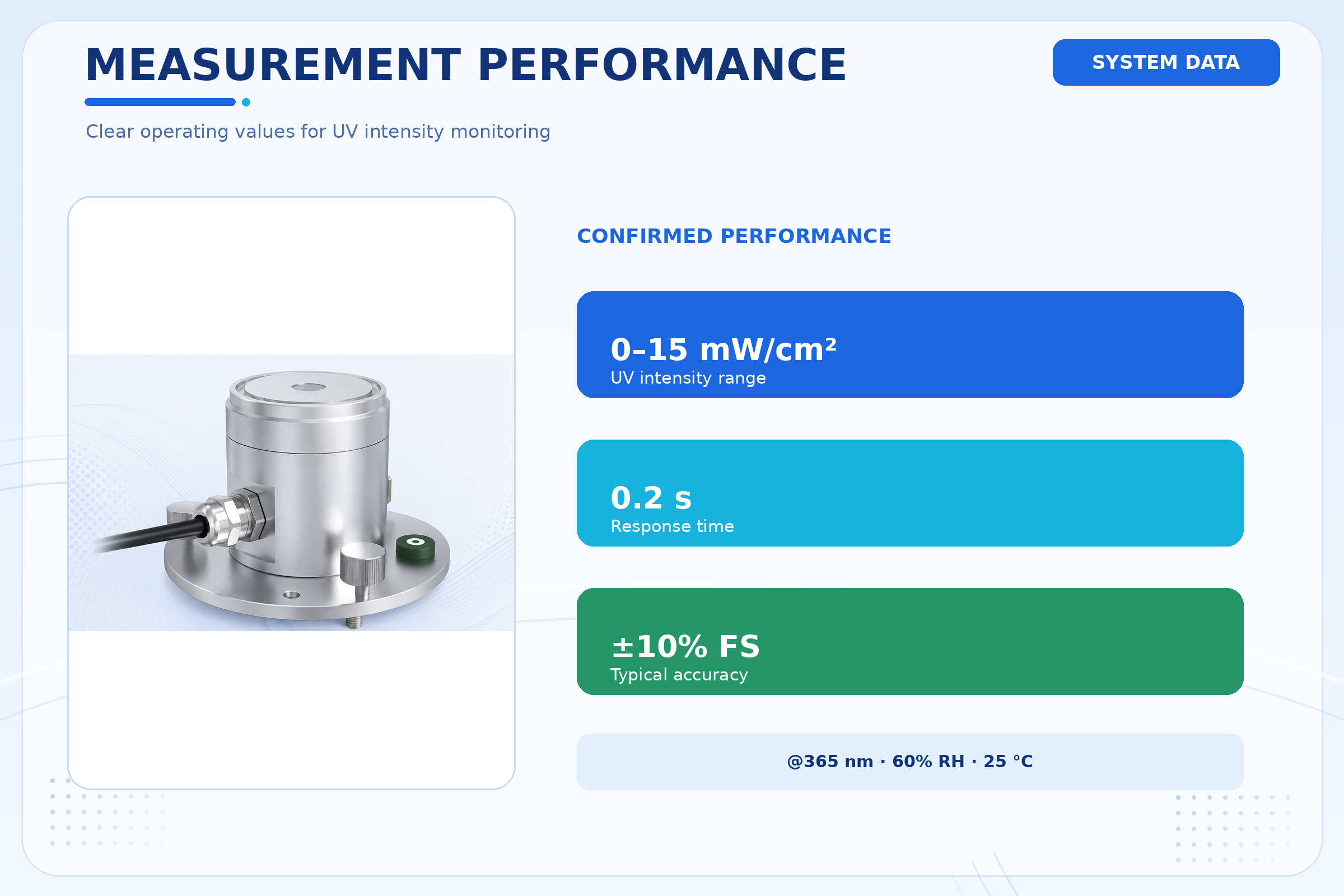

| Typical accuracy | ±10% FS (@365 nm, 60%RH, 25 °C) |
| UV intensity range | 0–15 mW/cm² |

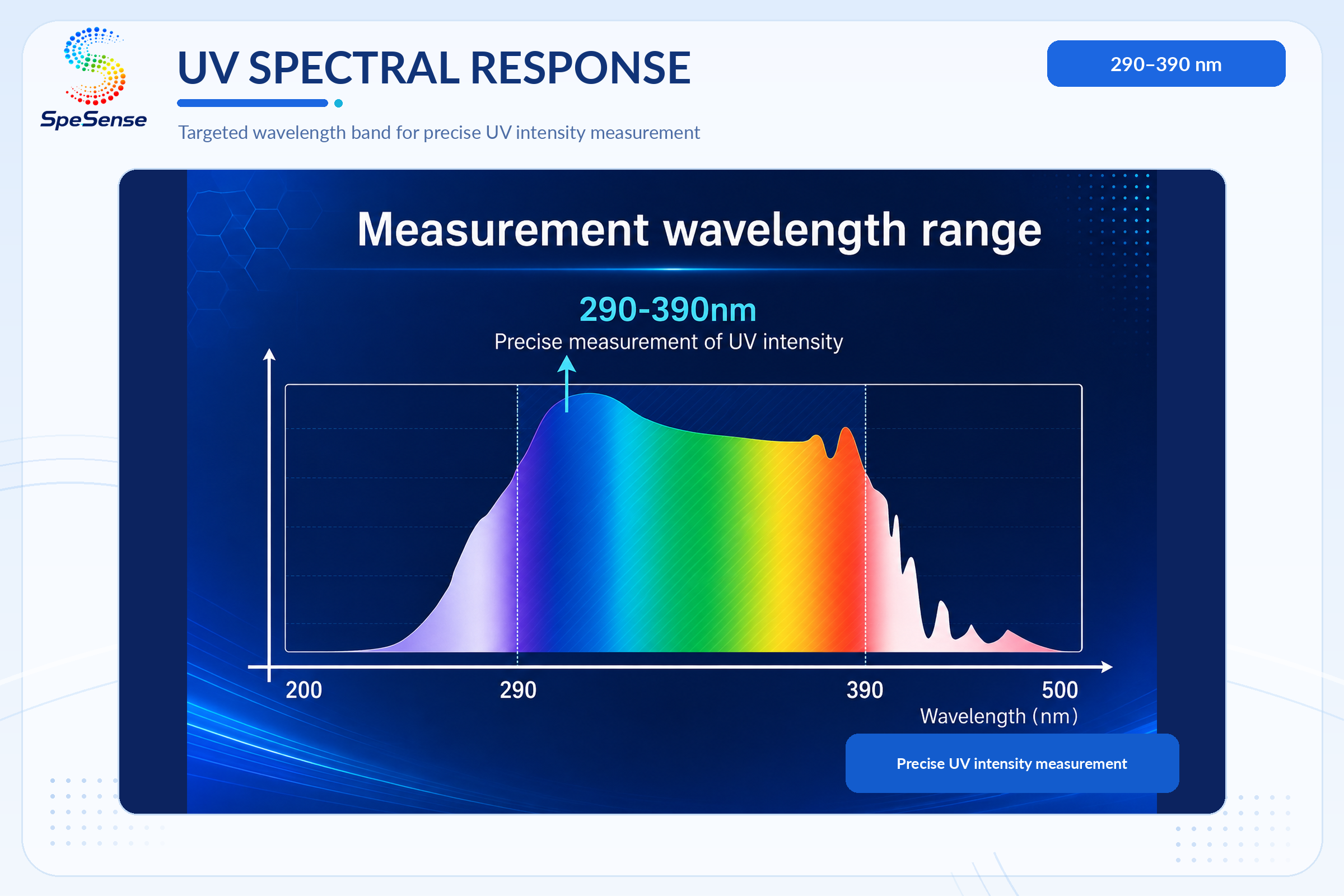

| Measurement wavelength range | 290–390 nm |
| Response time — UV intensity | 0.2 s |
| Response time — UV index | 0.2 s |

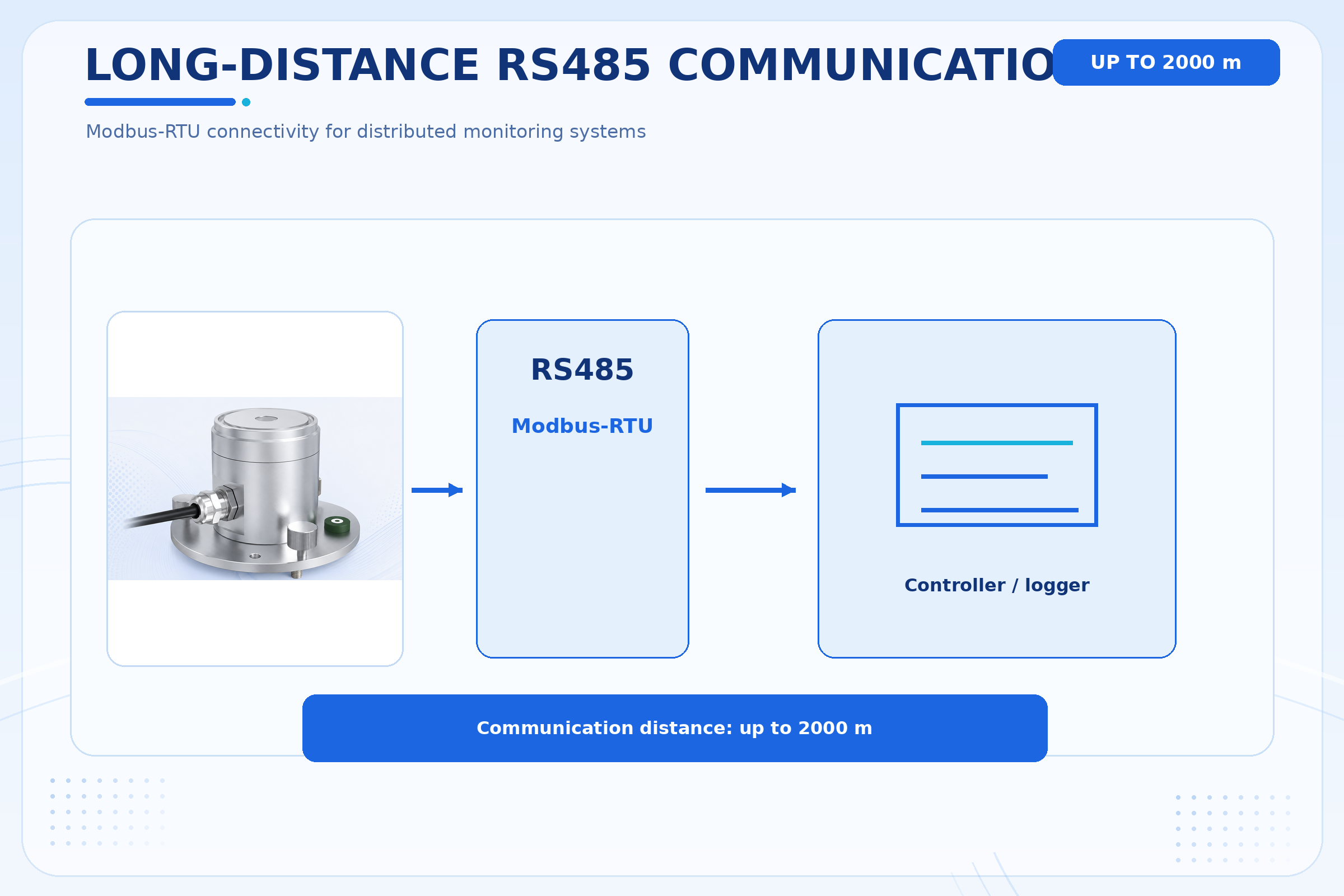

| RS485 communication distance | Up to 2000 m |

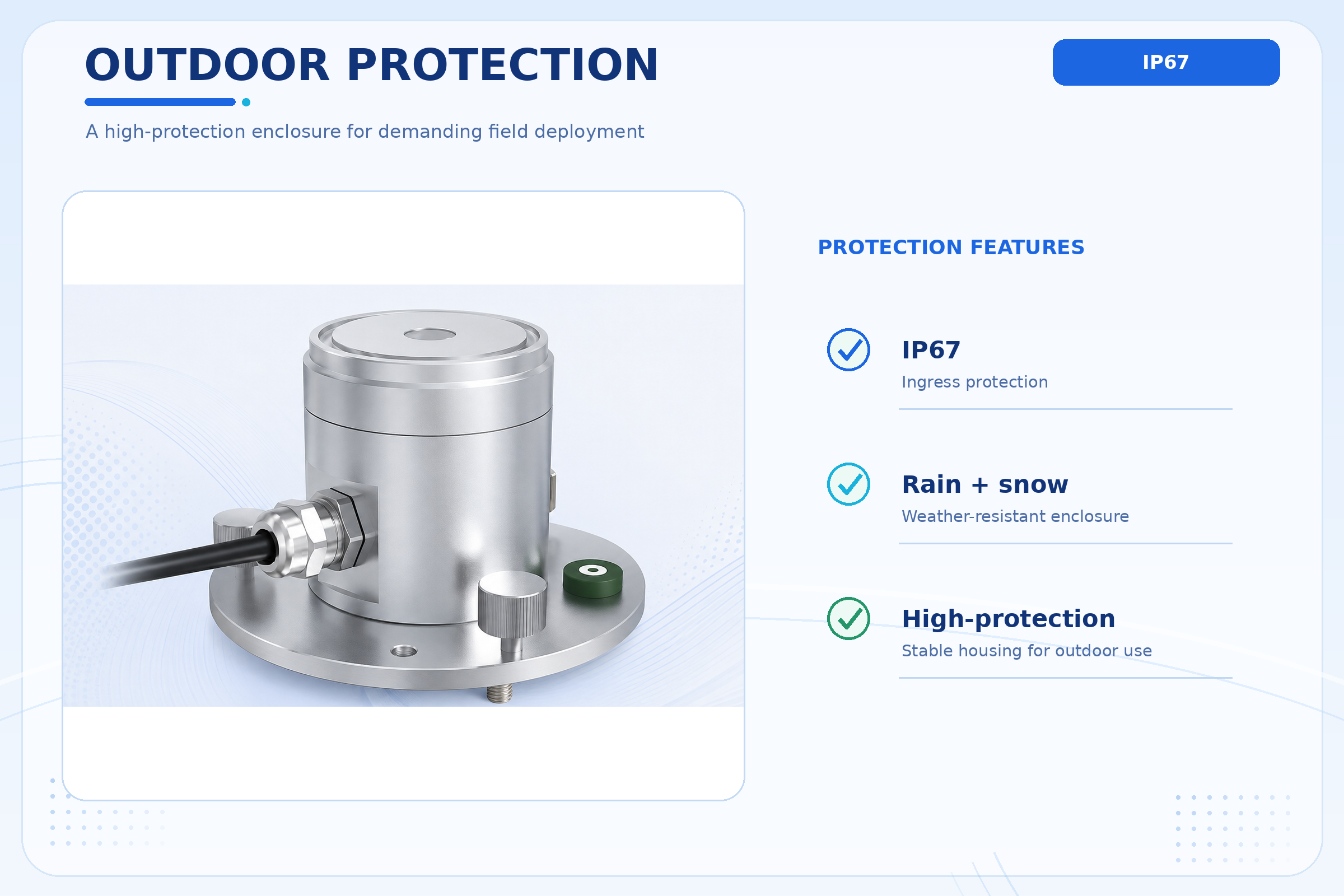

| Ingress protection | IP67 |
| Enclosure / weather resistance | High-protection enclosure; rain- and snow-resistant |

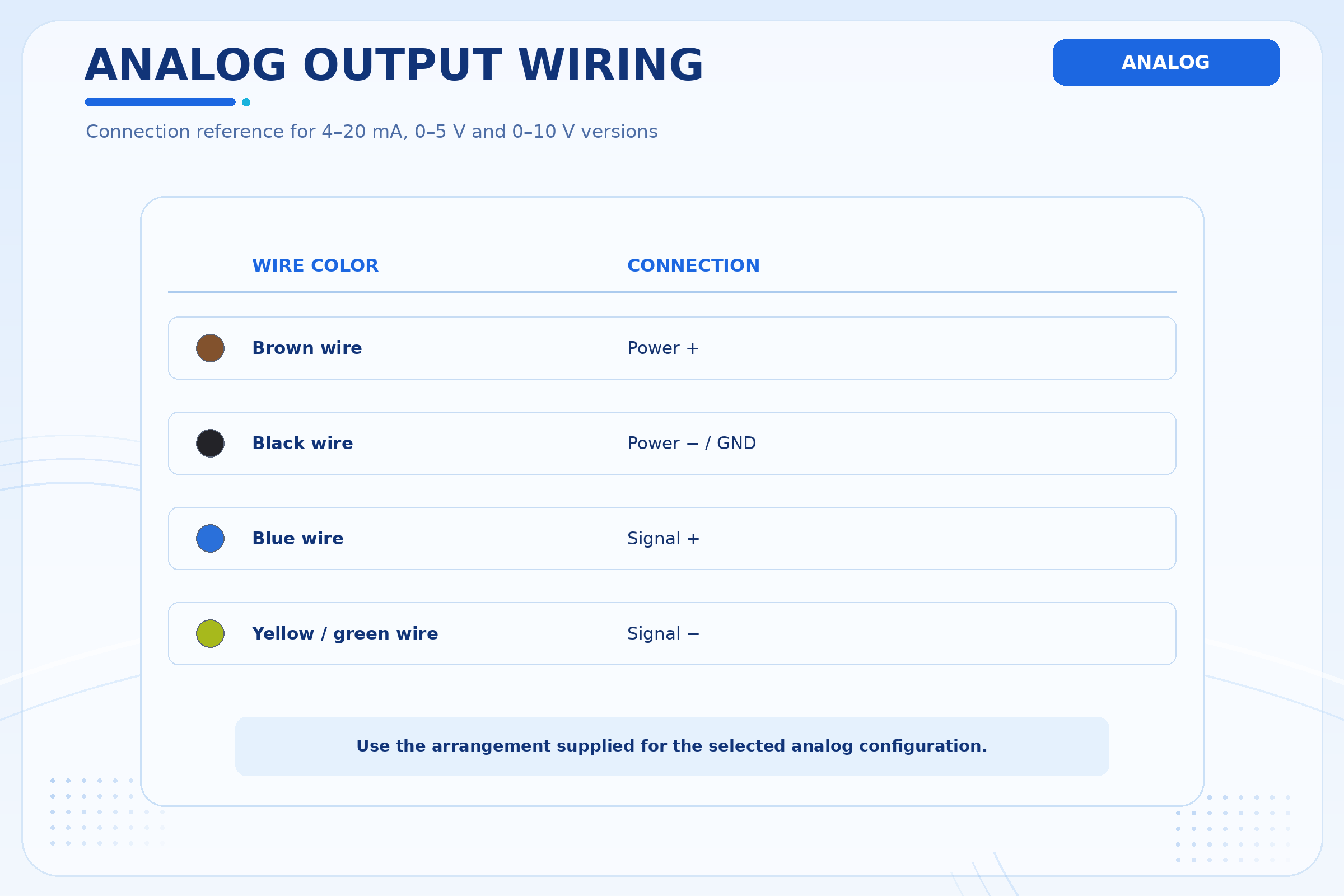

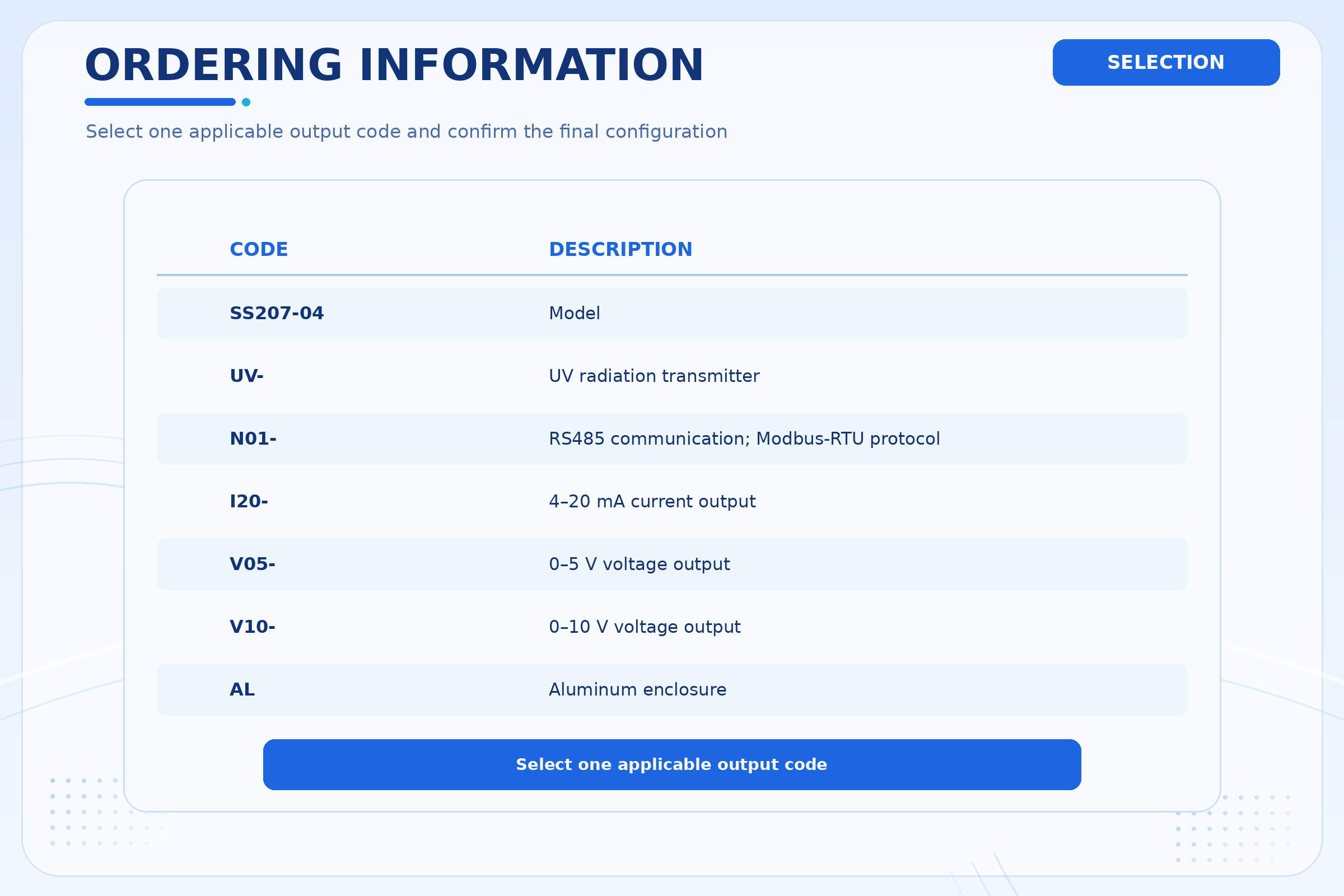

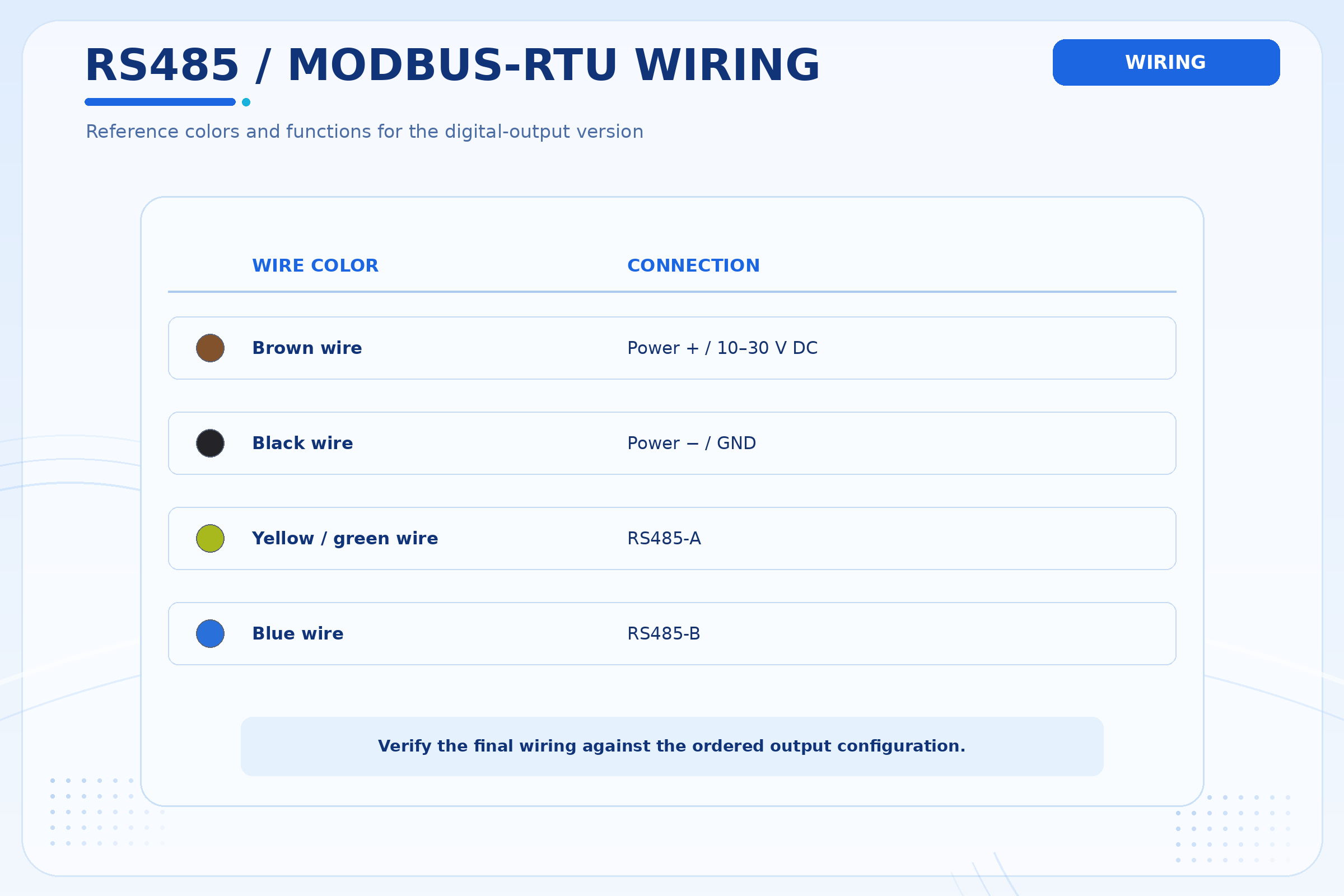

| Output signal | RS485 (Modbus-RTU) / 4–20 mA / 0–5 V / 0–10 V |
