Radiation Sensor
SS207-03
太阳辐射传感器

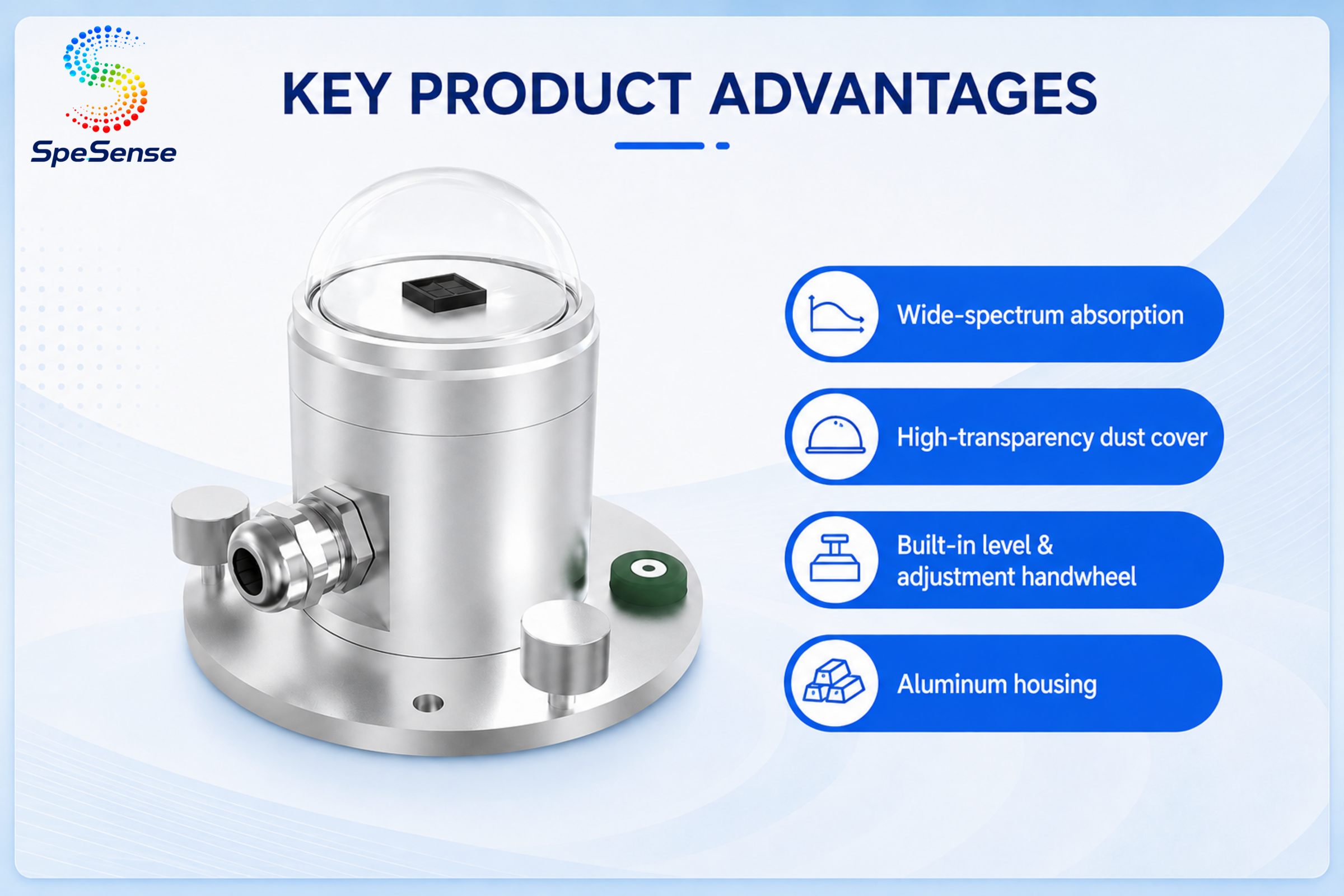

产品亮点

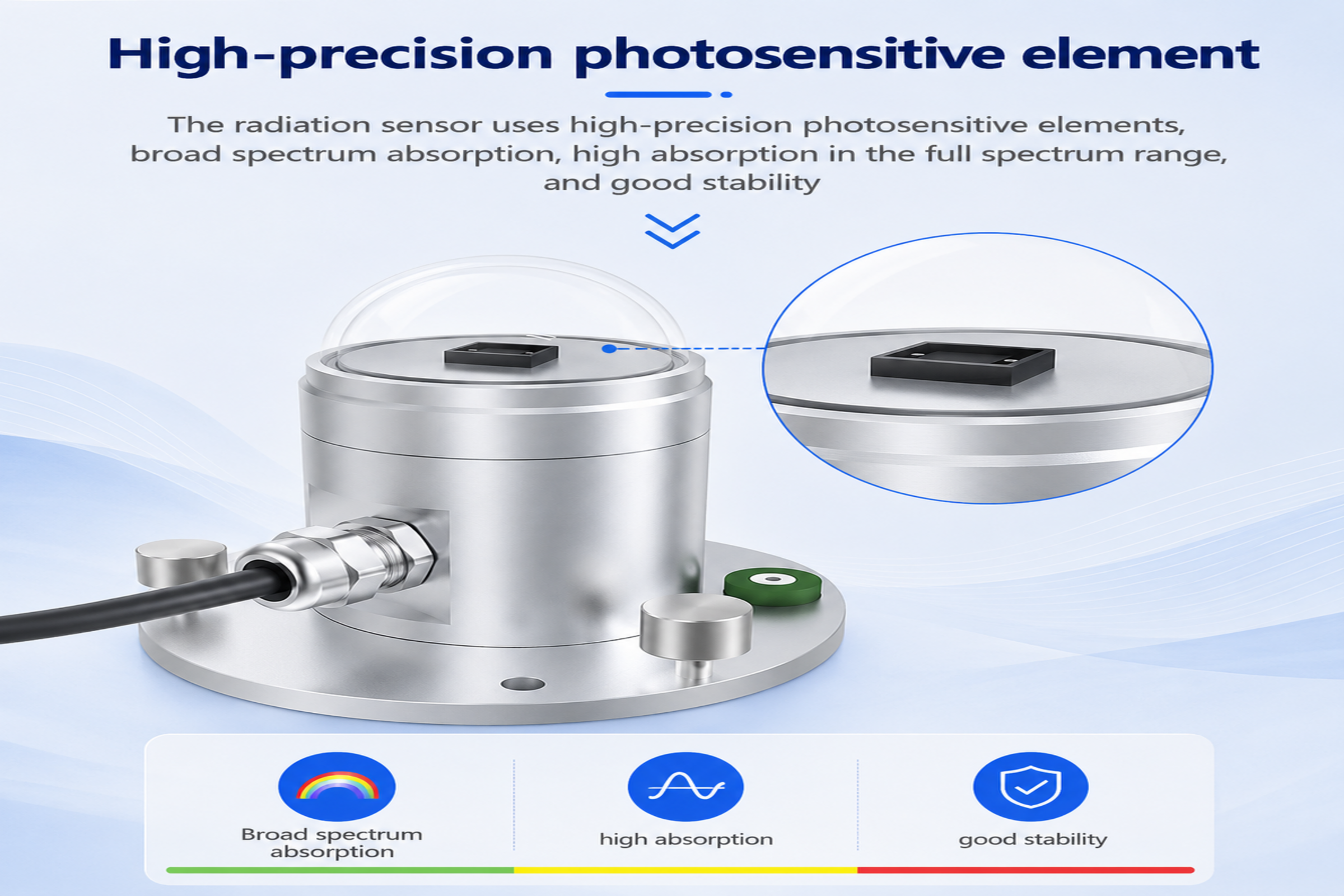

● High-precision photosensitive element with wide spectrum absorption.

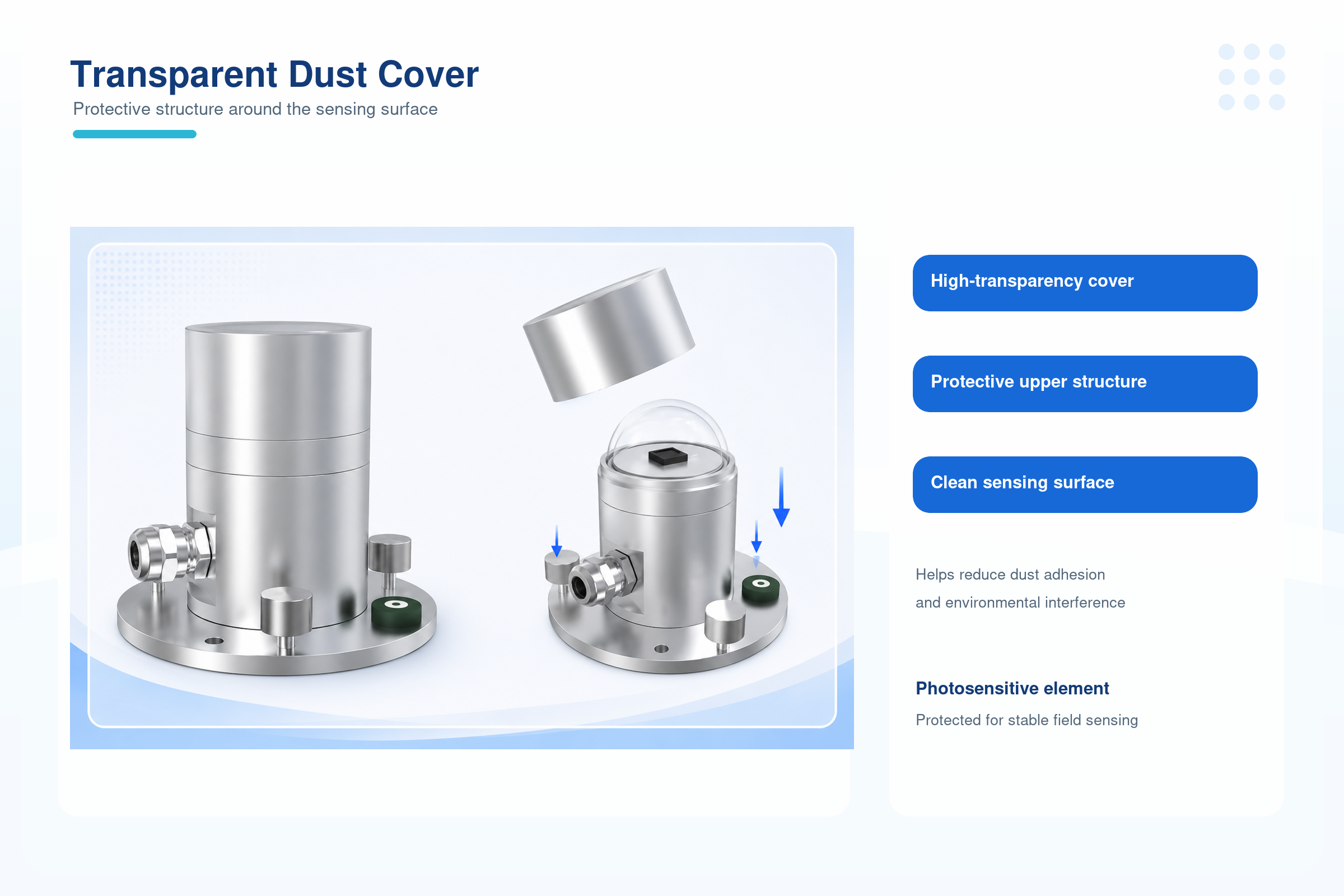

● High-transparency dust cover with surface treatment to reduce dust adhesion.

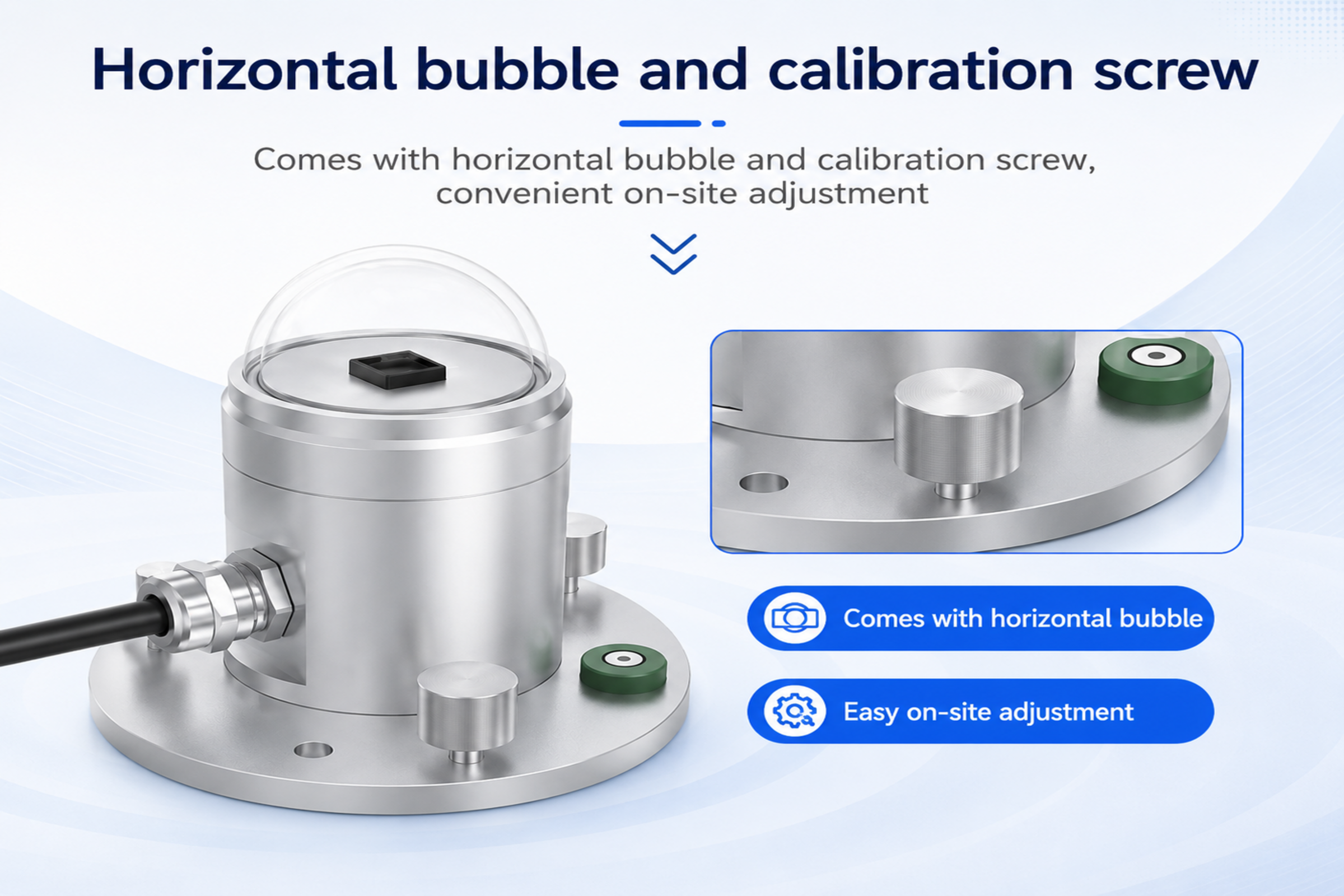

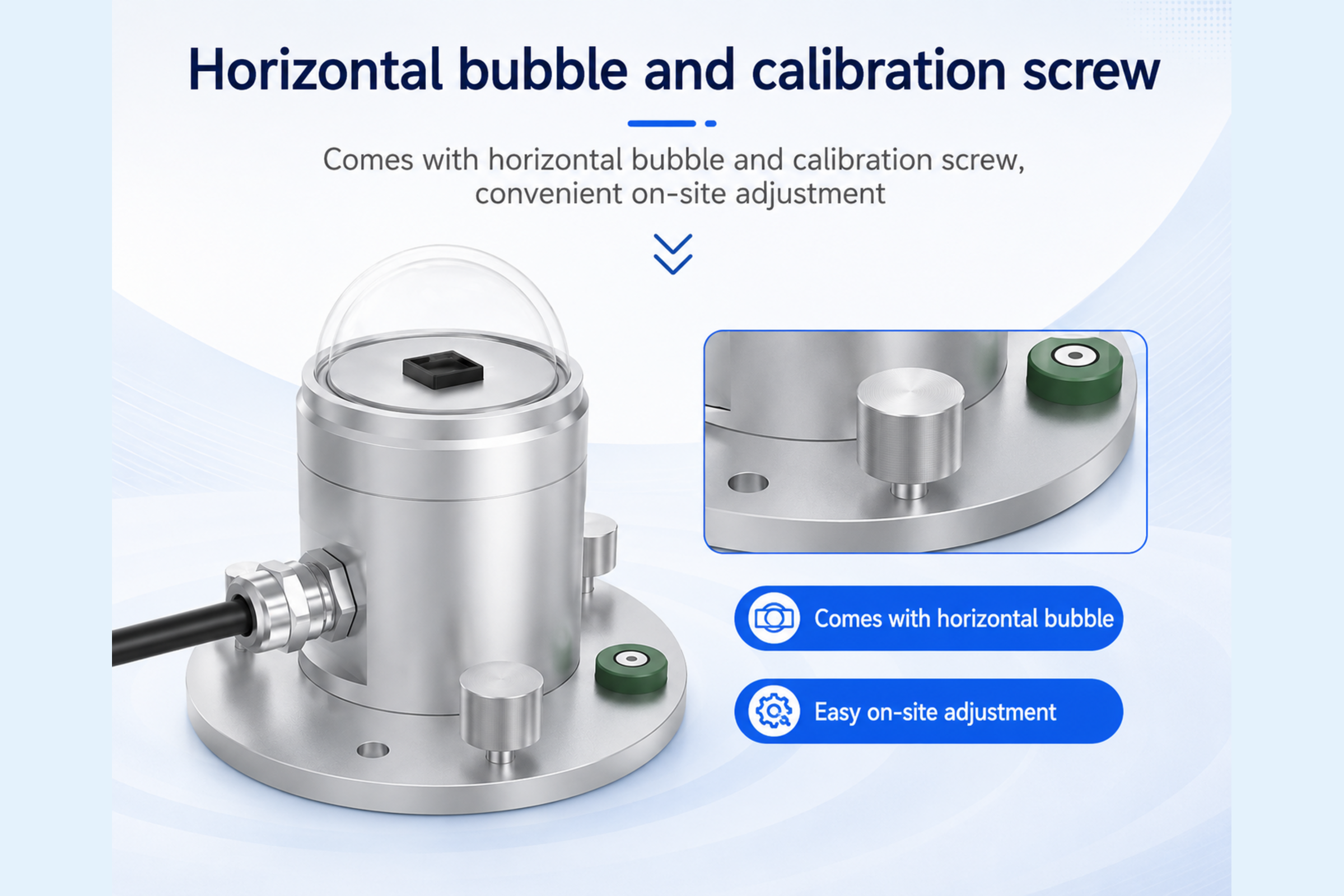

● Built-in level and adjustment handwheel for convenient field leveling.

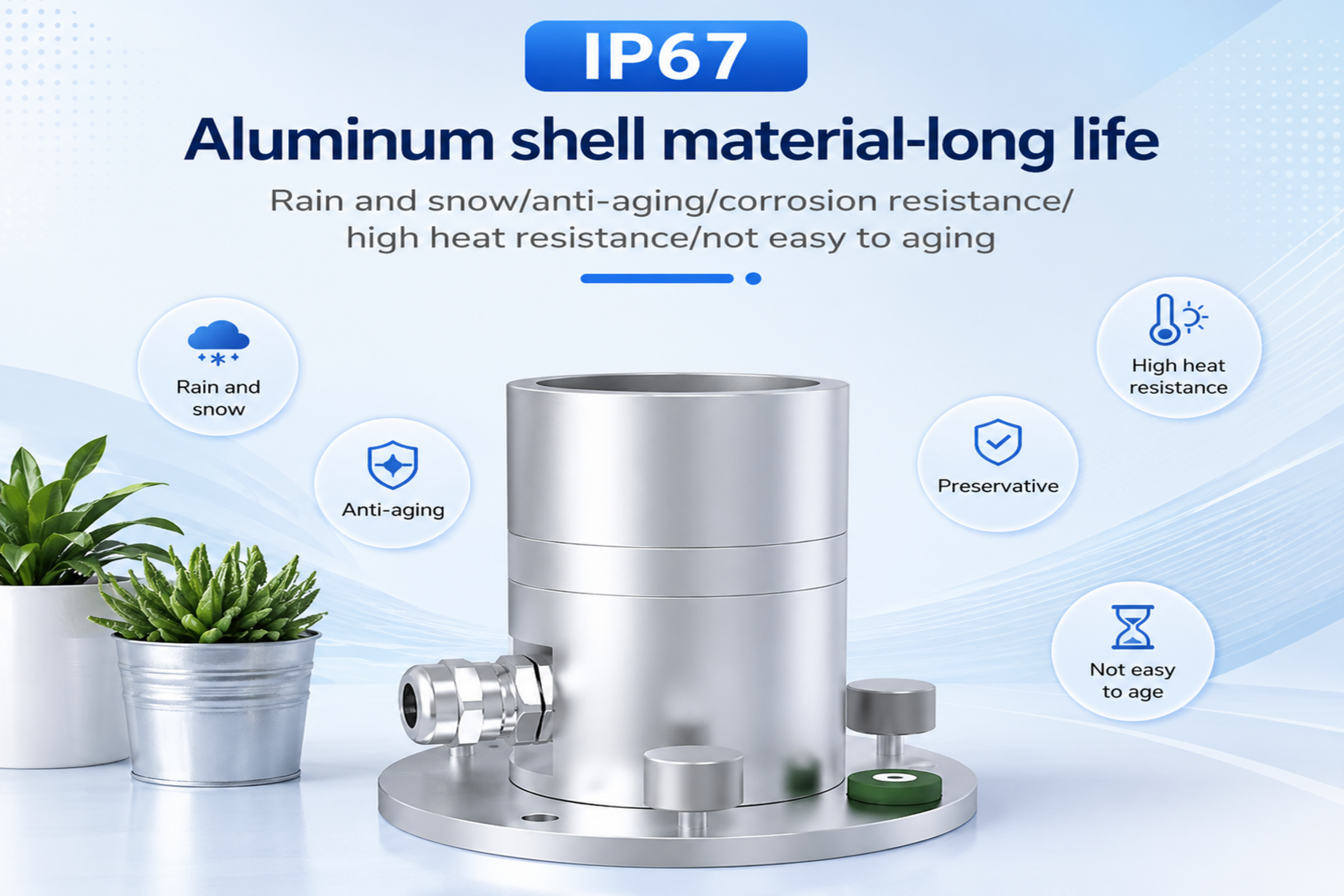

● Aluminum housing with a high protection level.
● Wide-voltage supply options for both analog and RS485 configurations.
● High-transparency dust cover with surface treatment to reduce dust adhesion.
● Built-in level and adjustment handwheel for convenient field leveling.
● Aluminum housing with a high protection level.
● Wide-voltage supply options for both analog and RS485 configurations.
产品概述
Photoelectric sensor for total solar radiation measurement across a broad spectrum.
| Item | Specification |

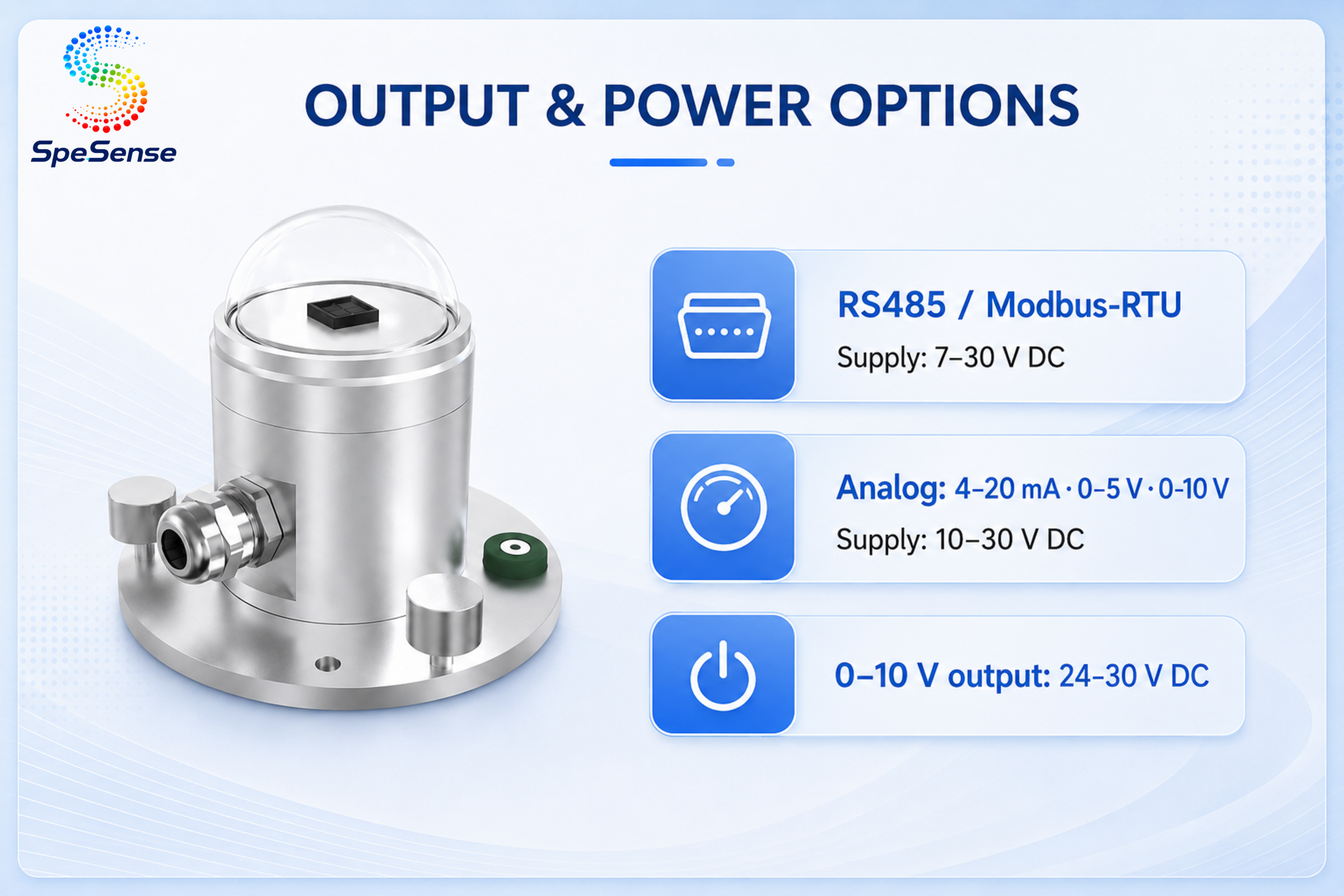

| Power Supply (RS485) | 7–30 V DC |
| Power Supply (Analog) | 10–30 V DC |
| 0–10 V Supply Requirement | 24–30 V DC |

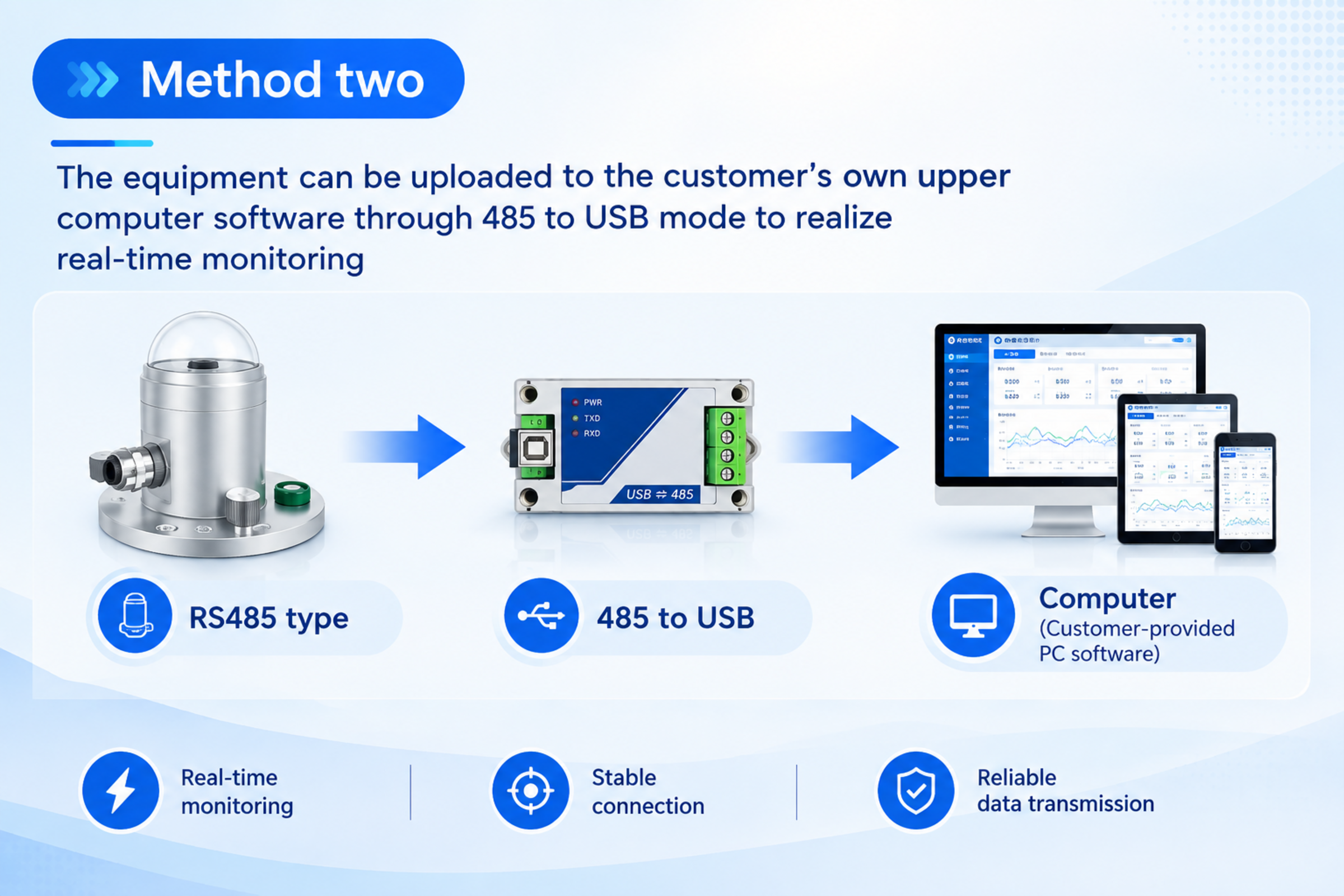

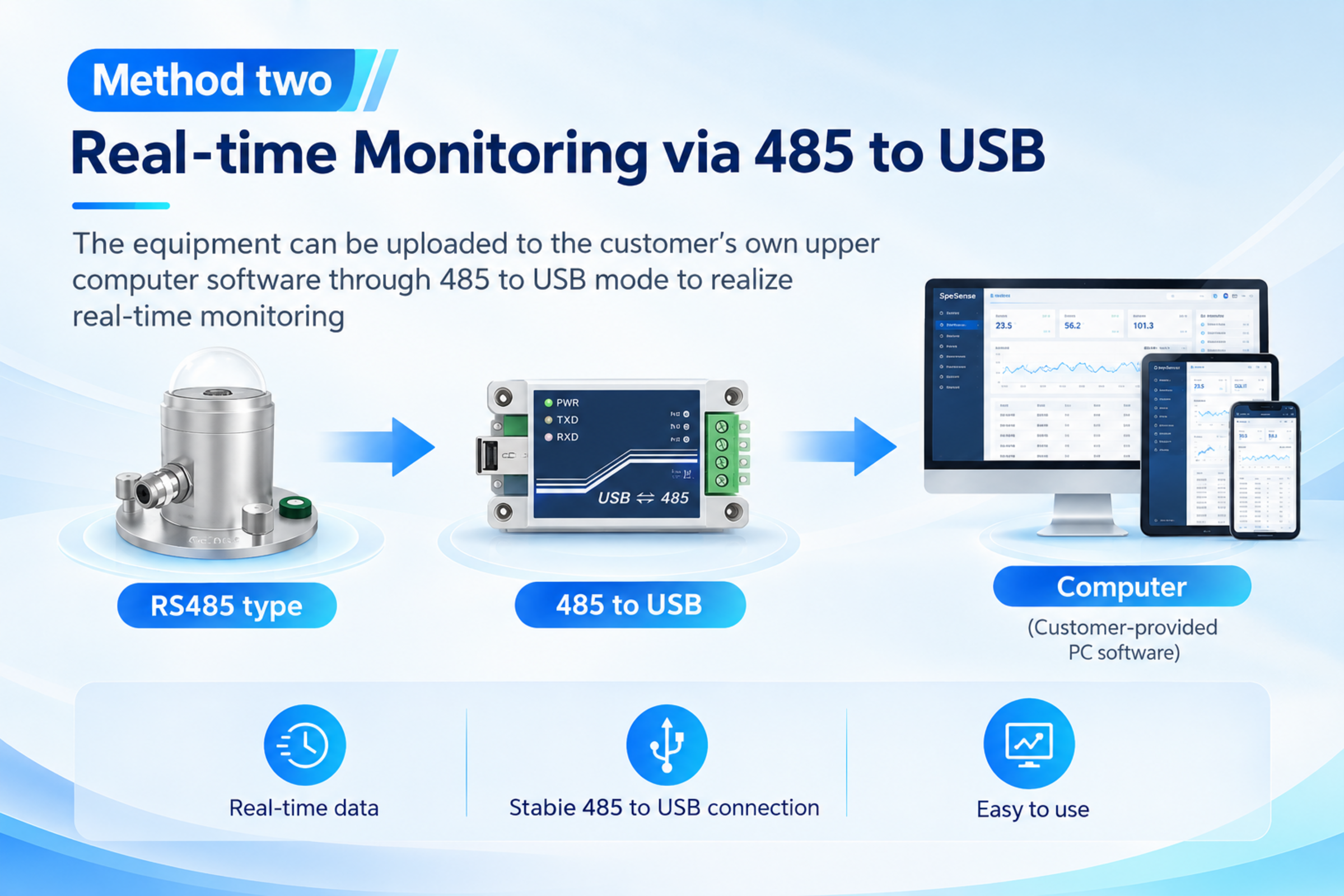

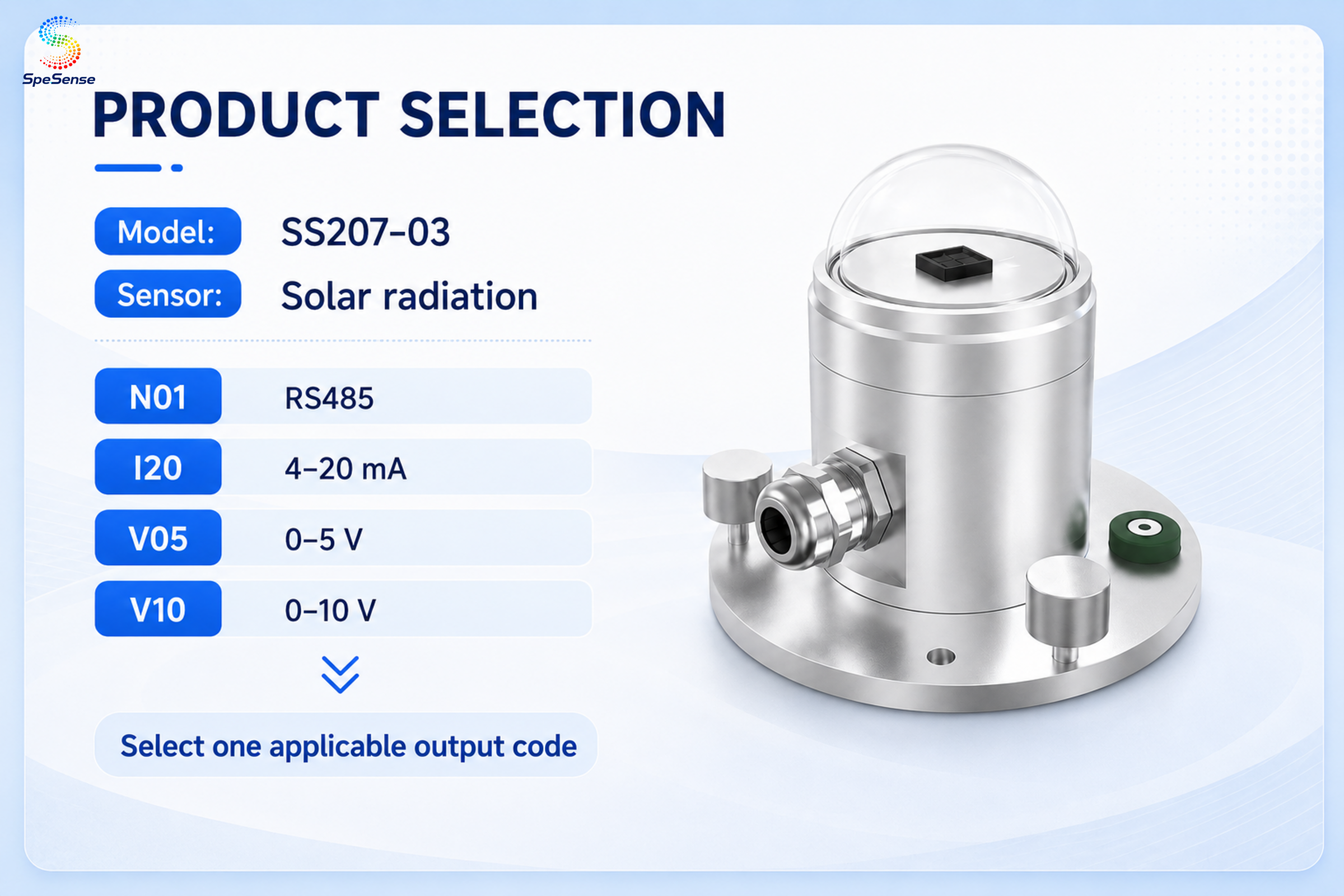

| Output | RS485 Modbus-RTU / 4–20 mA / 0–5 V / 0–10 V |
| Power Consumption | 0.06 W (RS485); 0.6 W (analog outputs) |

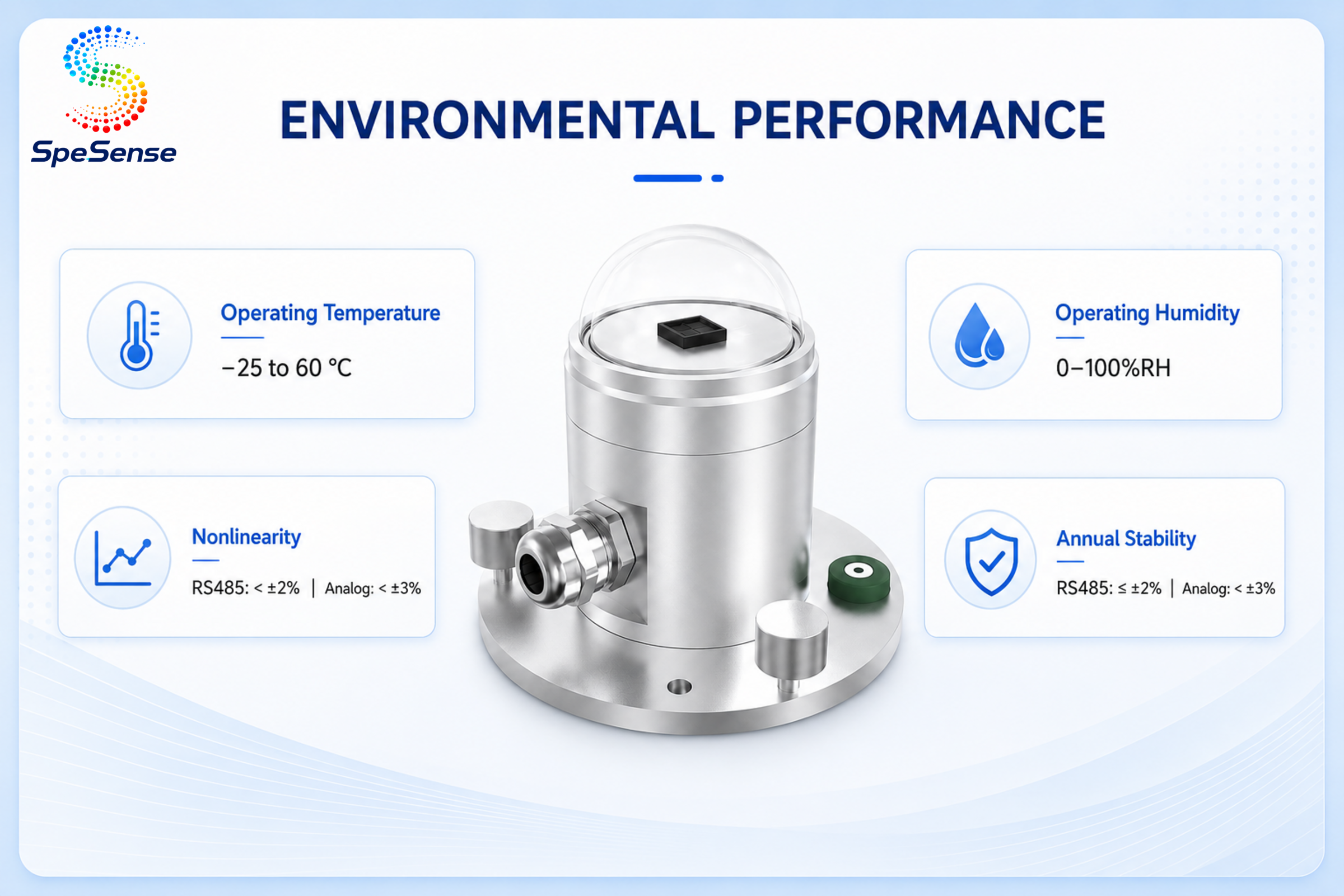

| Operating Humidity | 0–100%RH |
| Operating Temperature | −25 to 60 °C |
| Measurement Target | Sunlight |

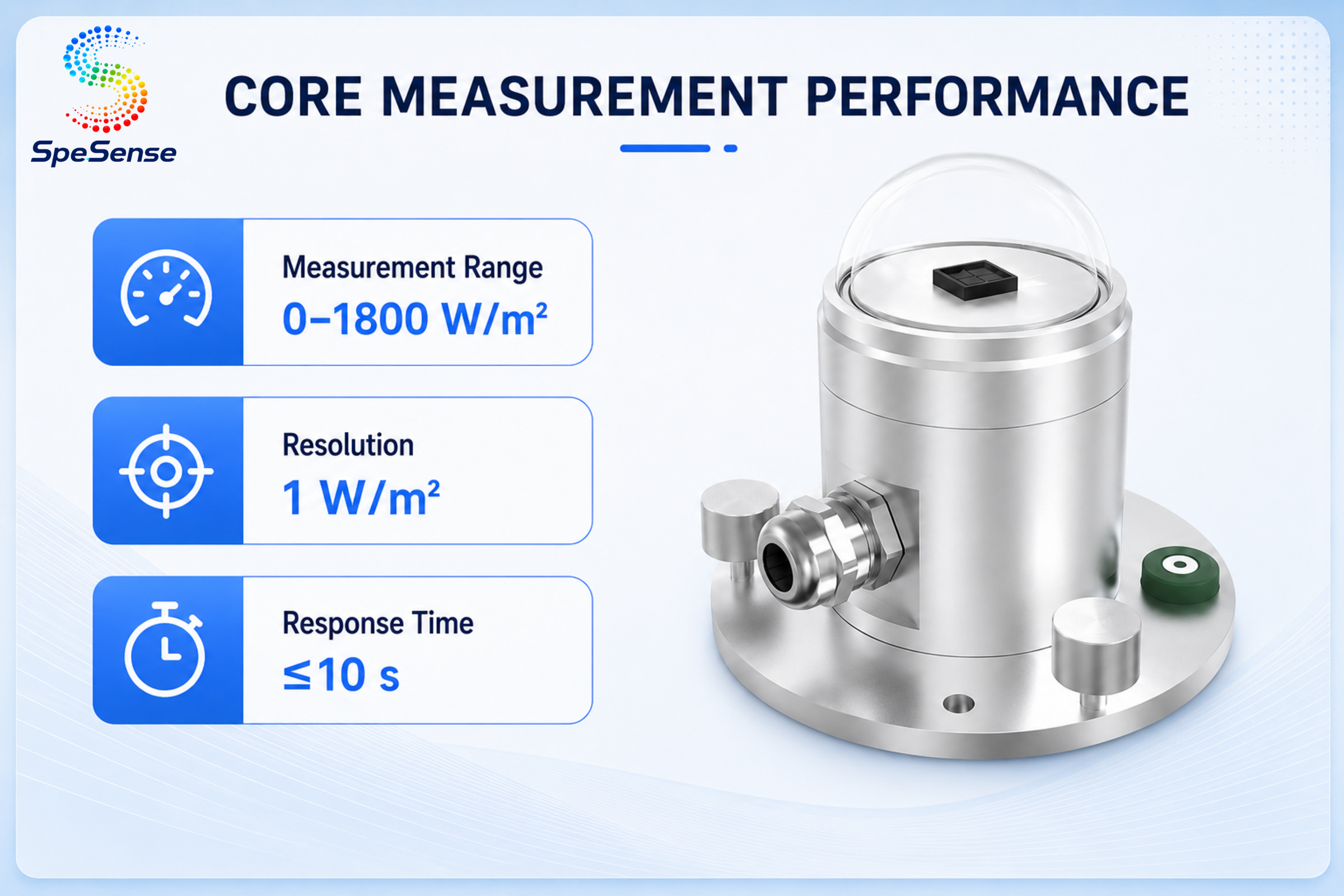

| Measurement Range | 0–1800 W/m² |
| Resolution | 1 W/m² |
| Response Time | ≤10 s |
| Nonlinearity | RS485: < ±2%; analog outputs: < ±3% |
| Annual Stability | RS485: ≤ ±2%; analog outputs: < ±3% |
