SS206-10
雪深传感器
产品亮点

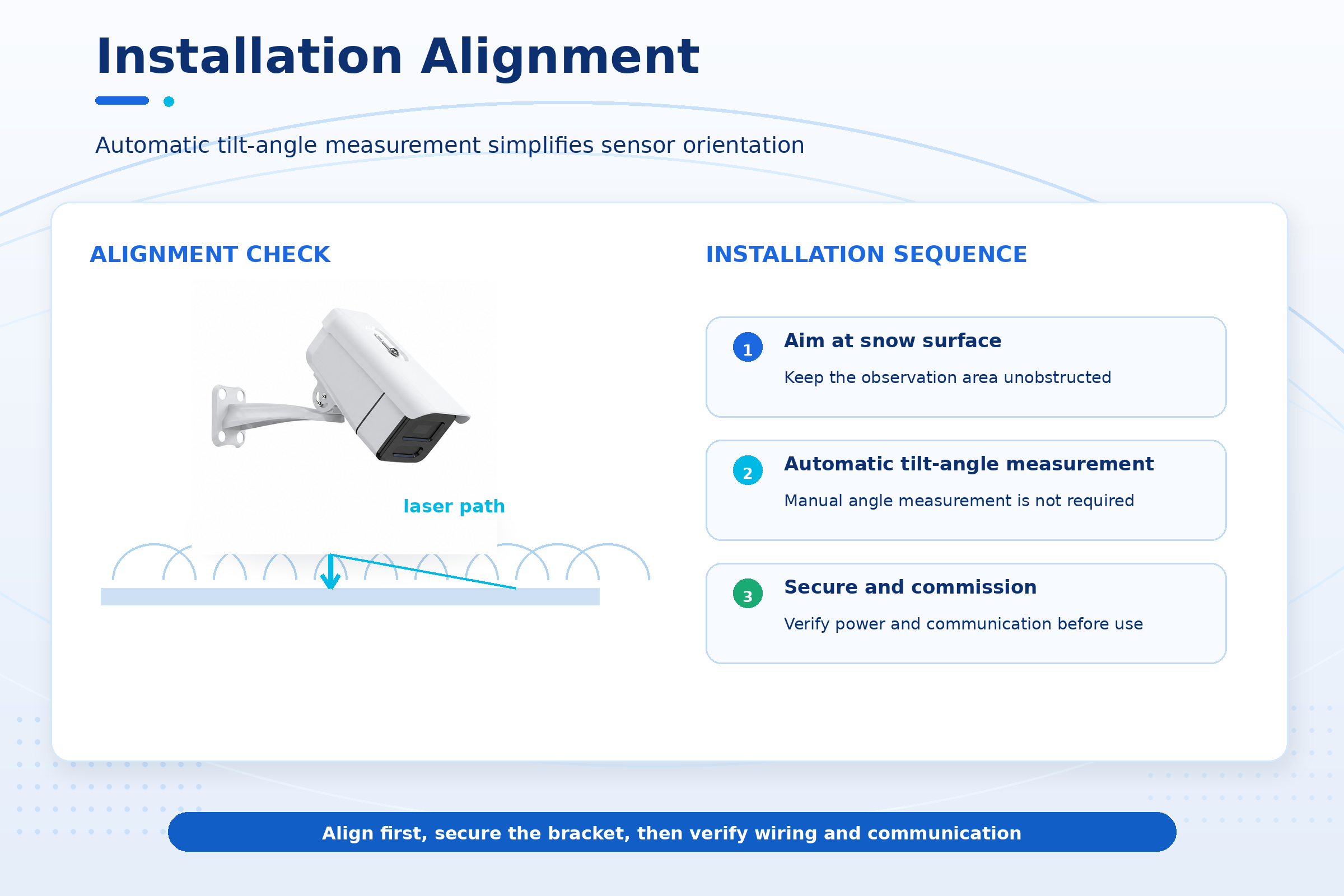

● Automatic tilt-angle measurement removes the need for manual angle measurement during installation.
● IP65 protection supports long-term outdoor operation.

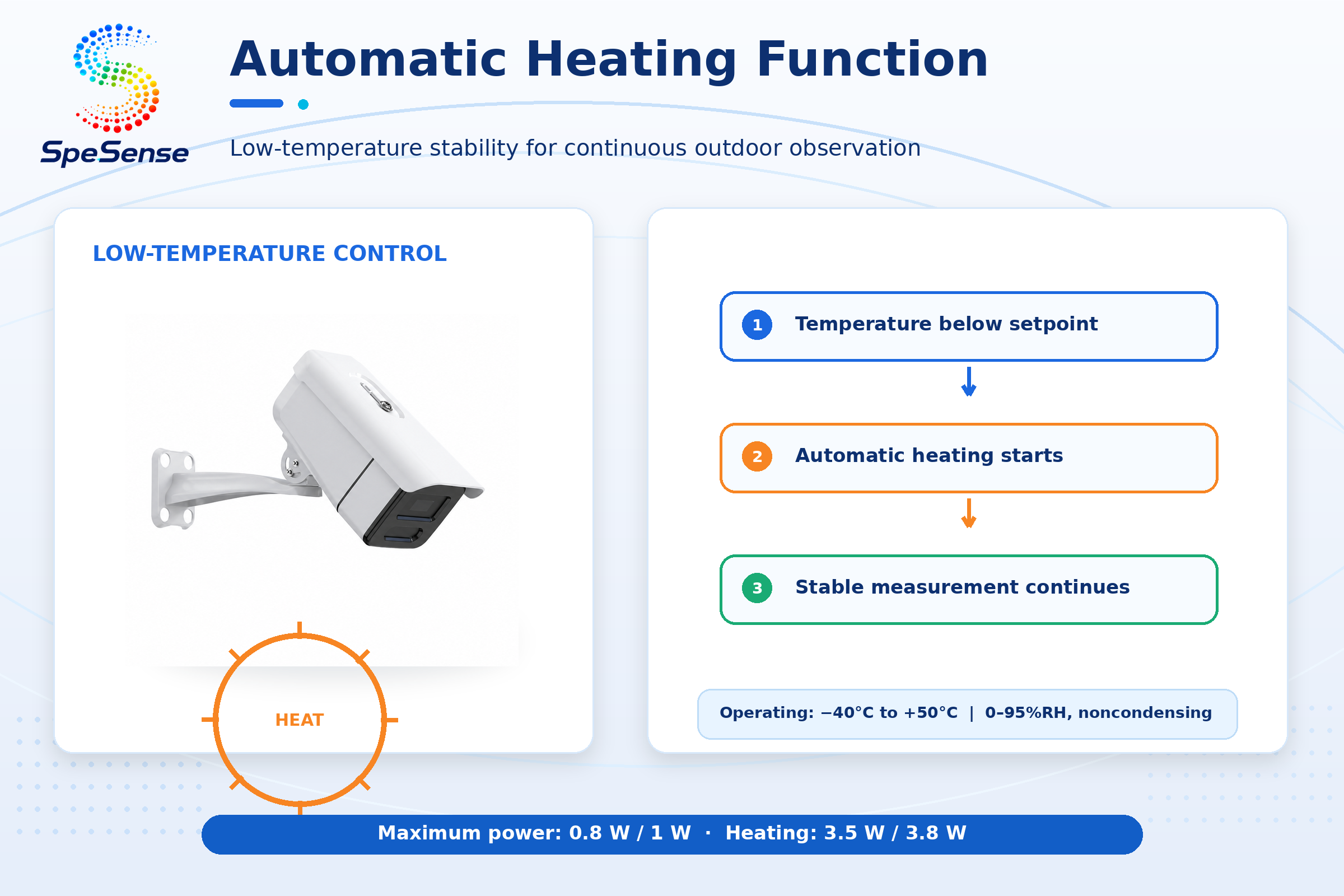

● Automatic heating starts below the configured temperature to help maintain measurement stability.

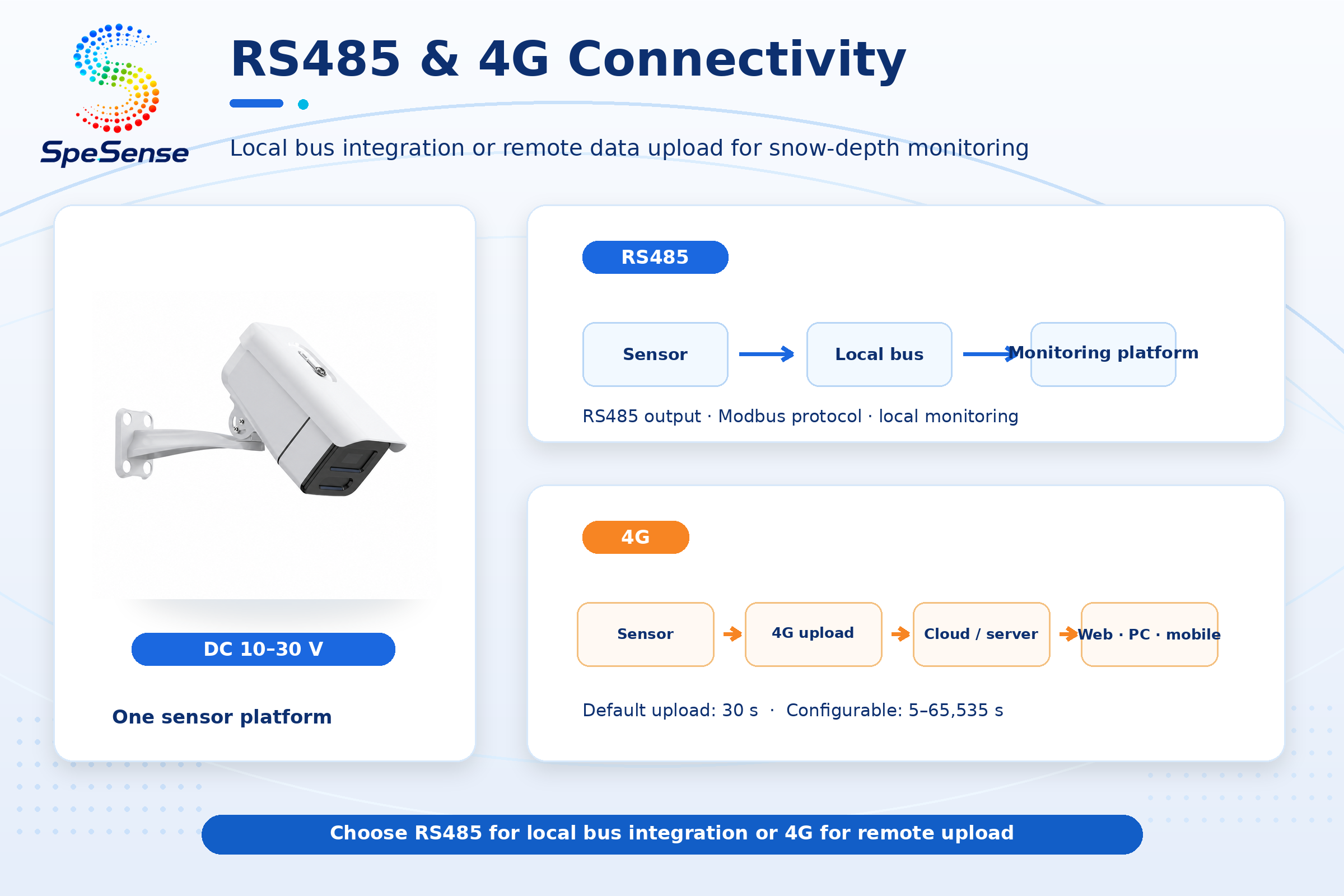

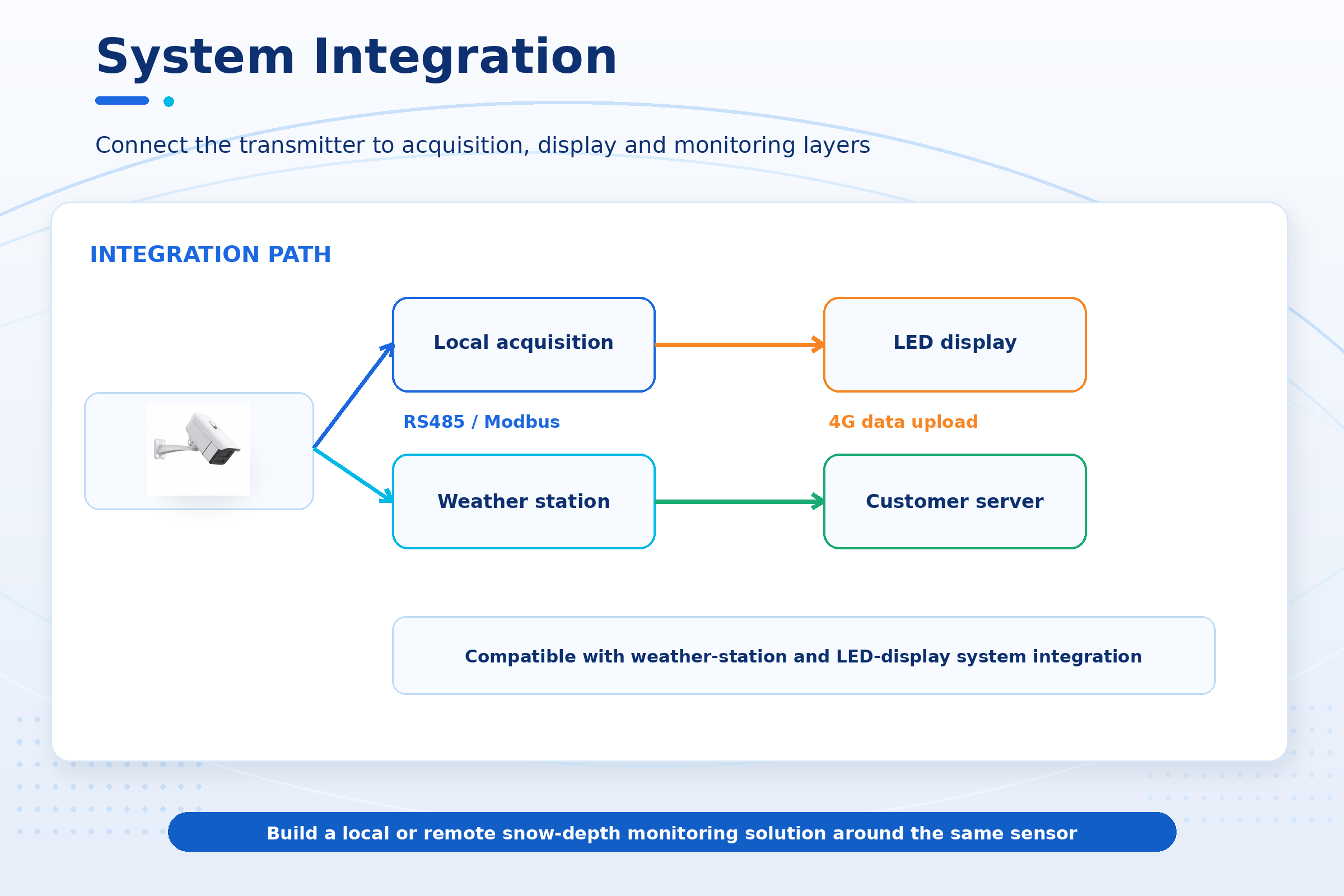

● RS485 and 4G configurations support local and remote monitoring.
● IP65 protection supports long-term outdoor operation.
● Automatic heating starts below the configured temperature to help maintain measurement stability.
● RS485 and 4G configurations support local and remote monitoring.
产品概述

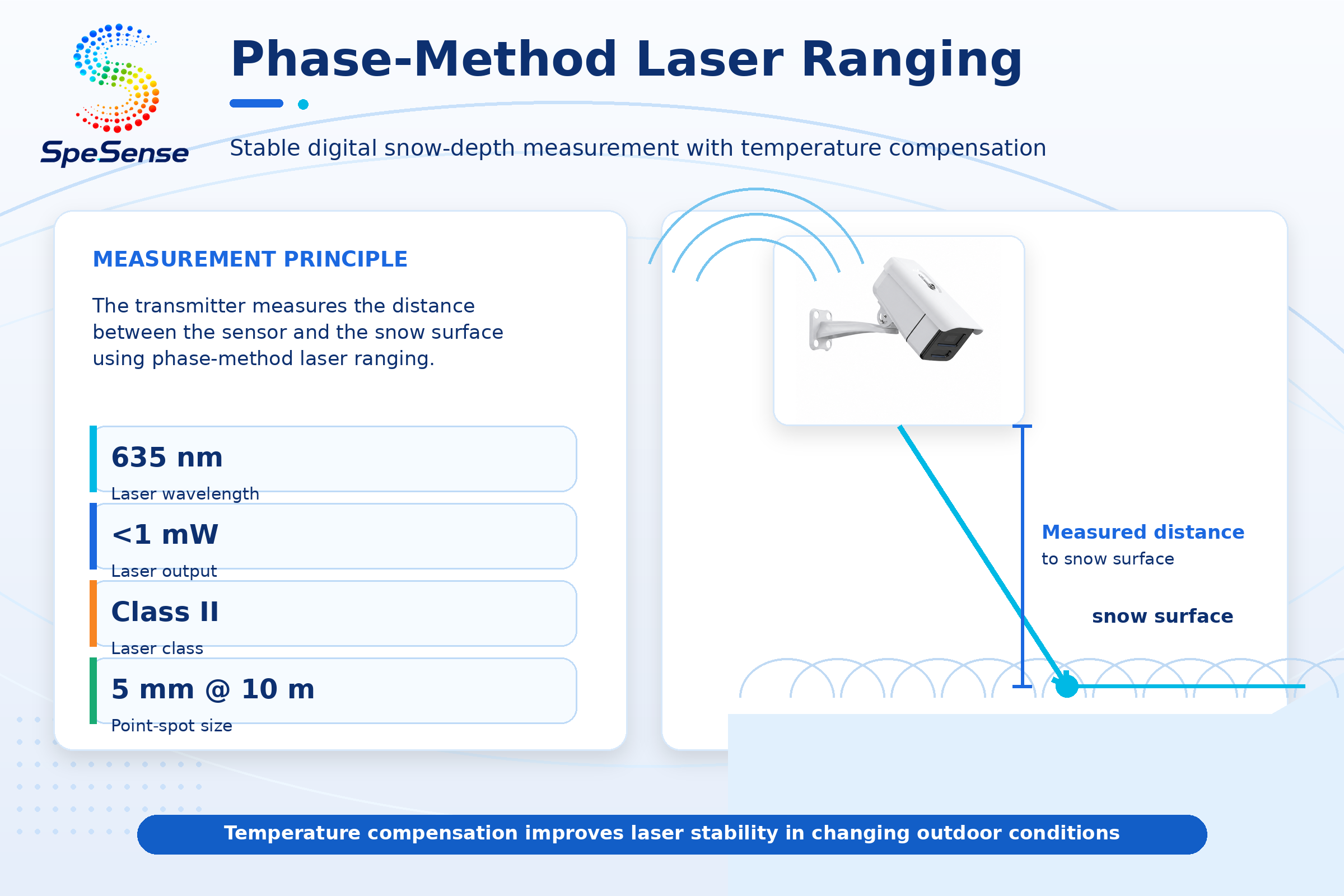

• SS206-10 uses phase-method laser ranging and temperature compensation to provide digital snow depth measurement.
• Stable observation continuity is maintained in heavy snow and blizzard conditions, supporting real-time snow depth monitoring.

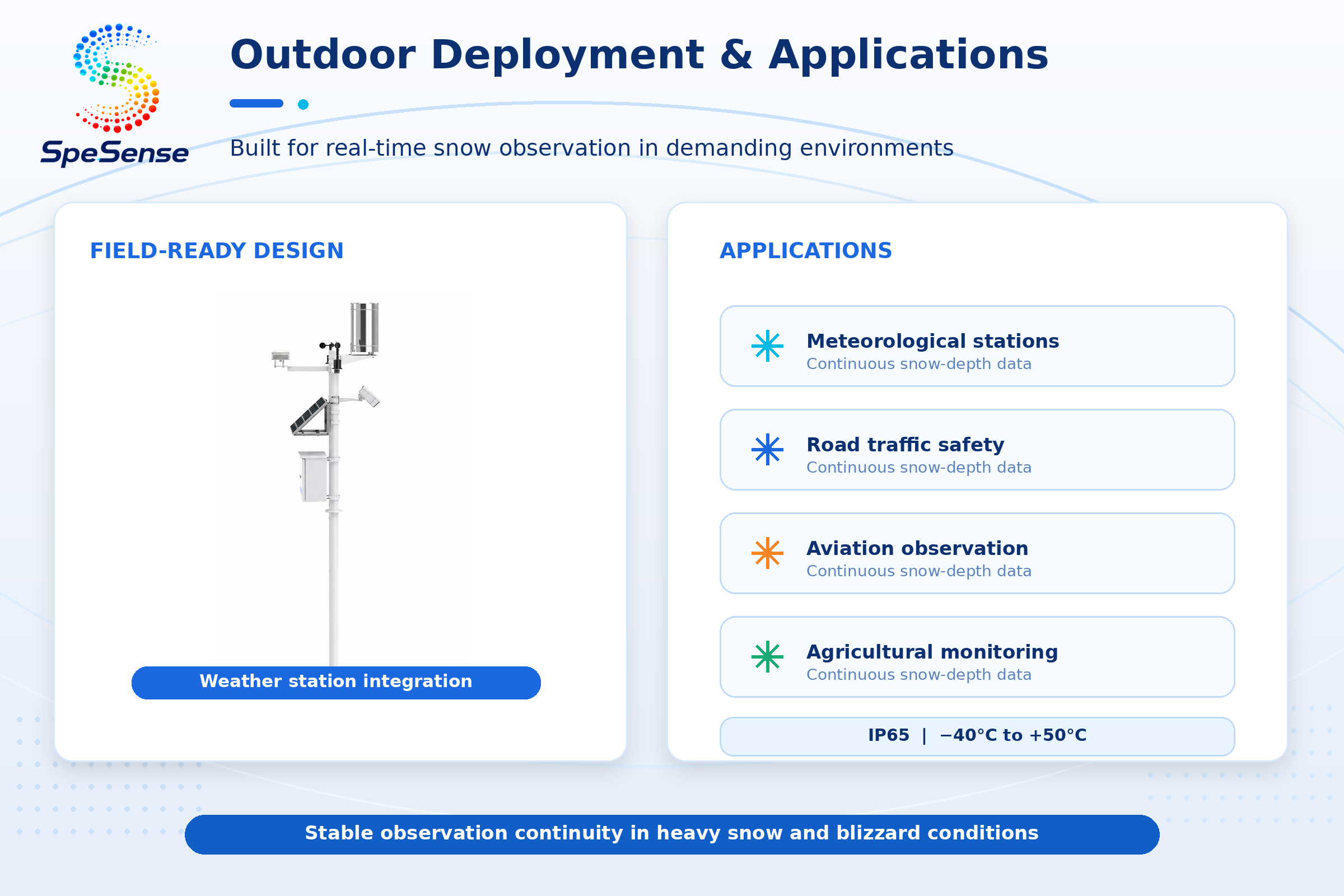

• The sensor is suitable for meteorological stations, monitoring systems, road traffic safety, aviation and agricultural applications.
| Item | RS485 Version | 4G Version |

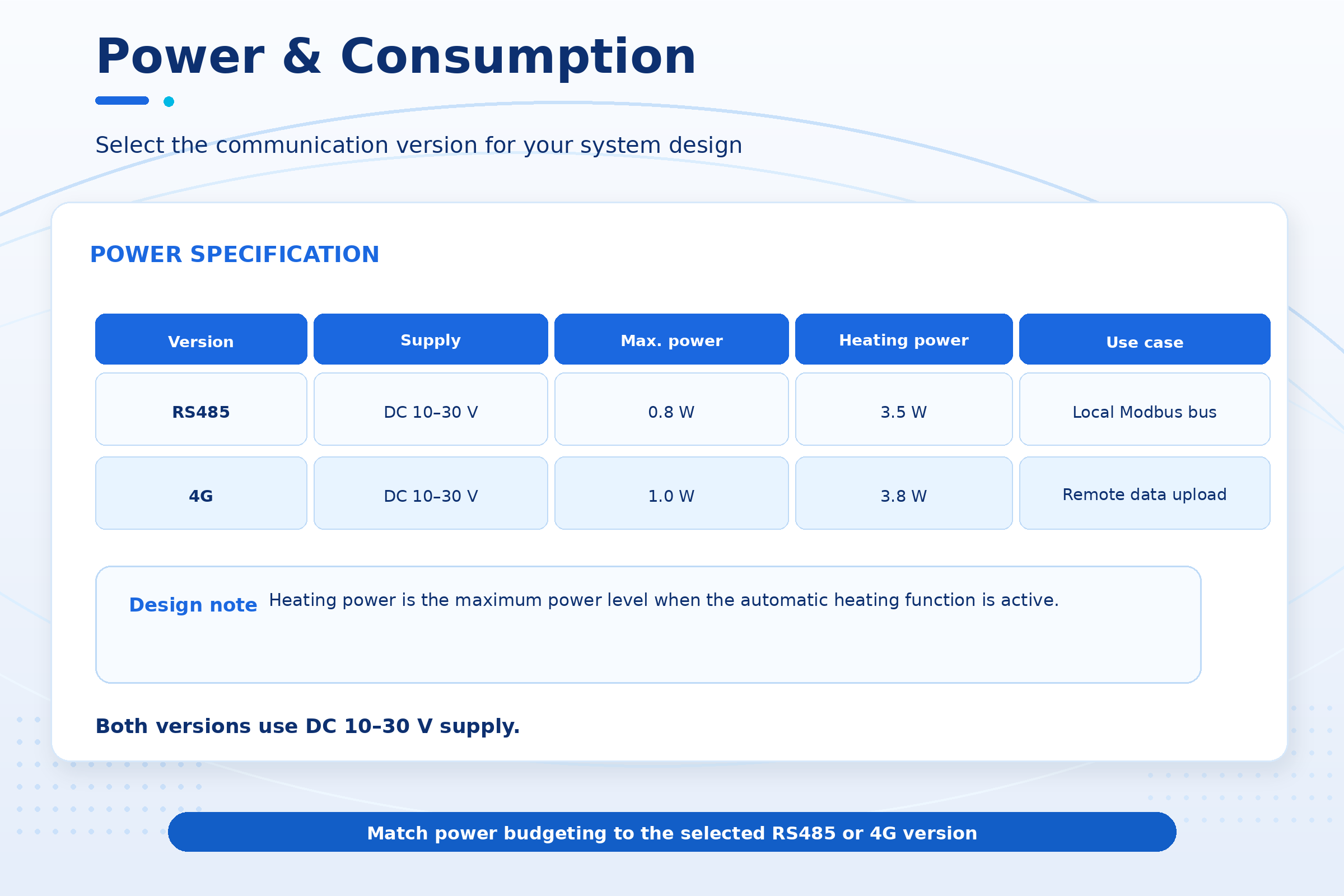

| Power supply | DC 10–30 V | DC 10–30 V |
| Maximum power consumption | 0.8 W (3.5 W when heating) | 1 W (3.8 W when heating) |

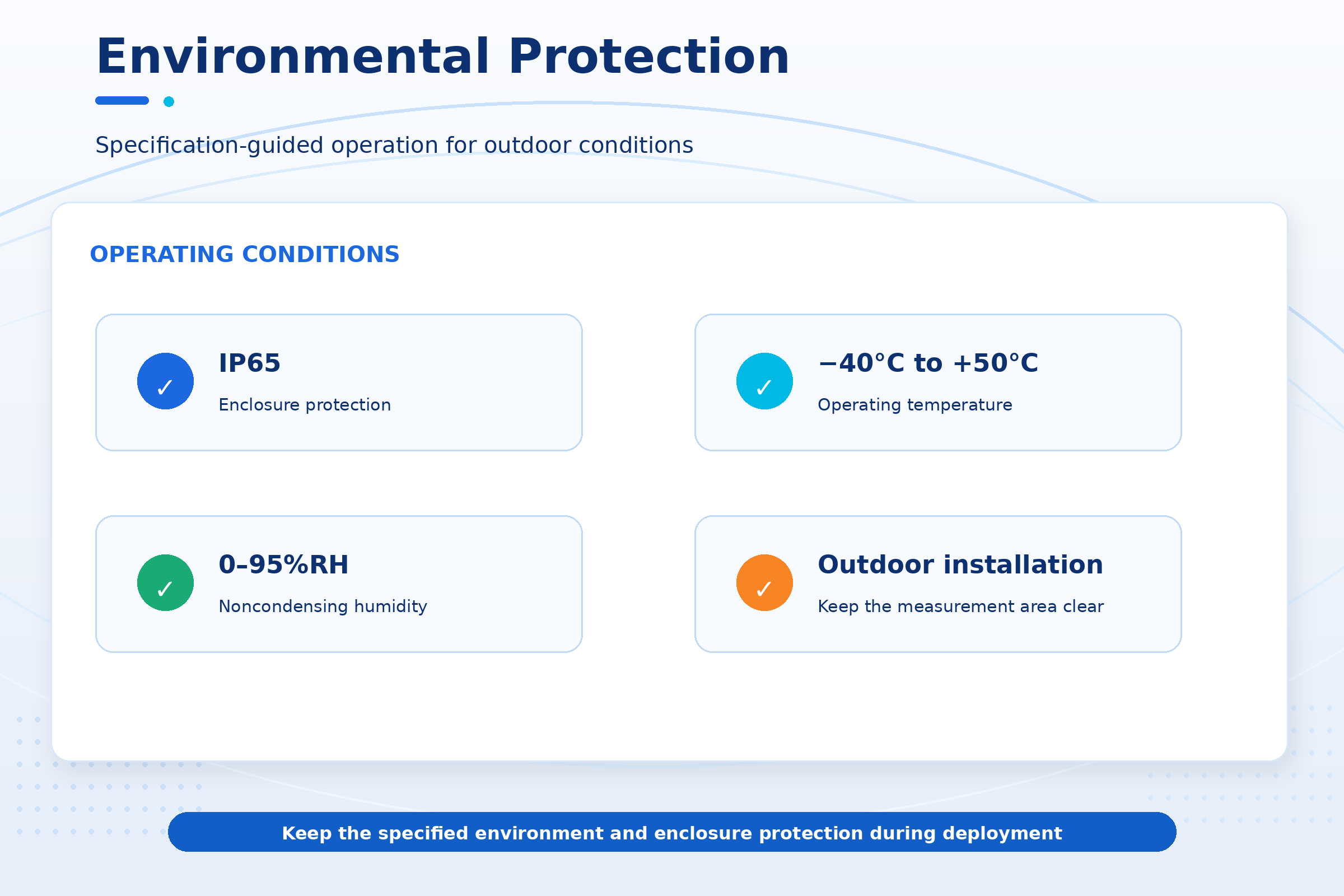

| Operating environment | −40°C to +50°C; 0–95%RH, non-condensing | −40°C to +50°C; 0–95%RH, non-condensing |

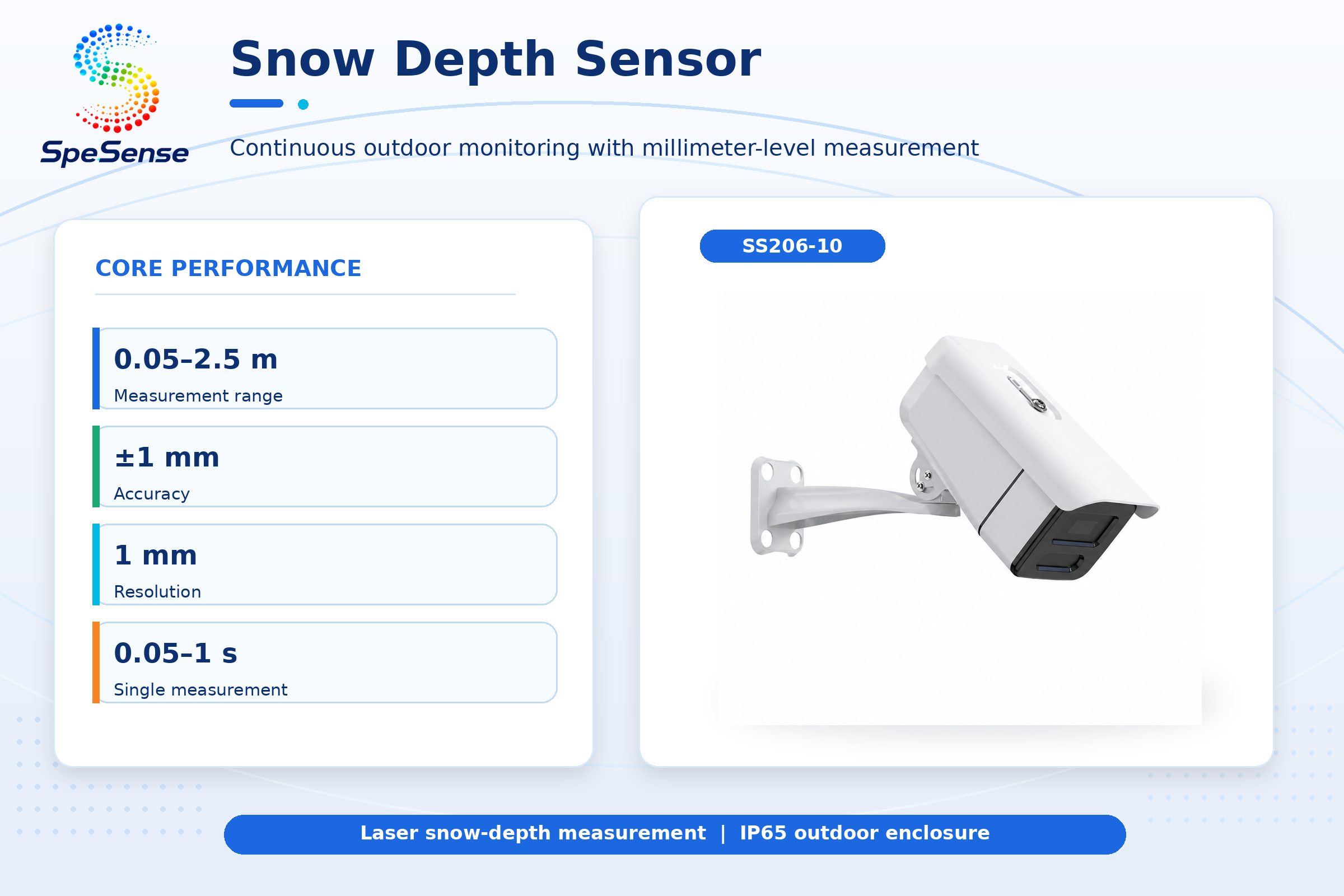

| Resolution | 1 mm | 1 mm |
| Accuracy | ±1 mm | ±1 mm |
| Measurement range | 0.05–2.5 m | 0.05–2.5 m |

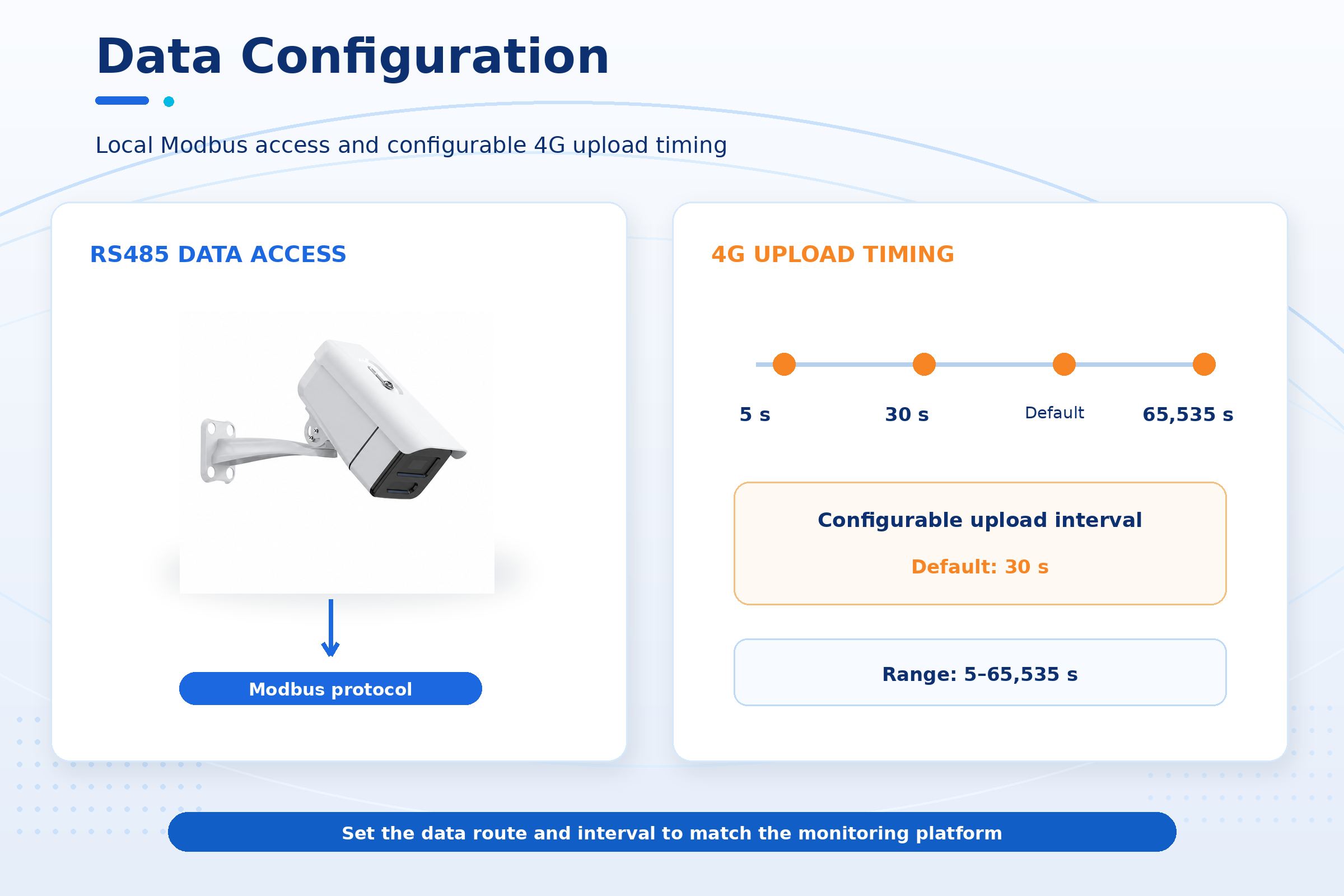

| Output / data upload | RS485 (Modbus protocol) | 4G upload; default 30 s per upload, configurable from 5 s to 65,535 s |

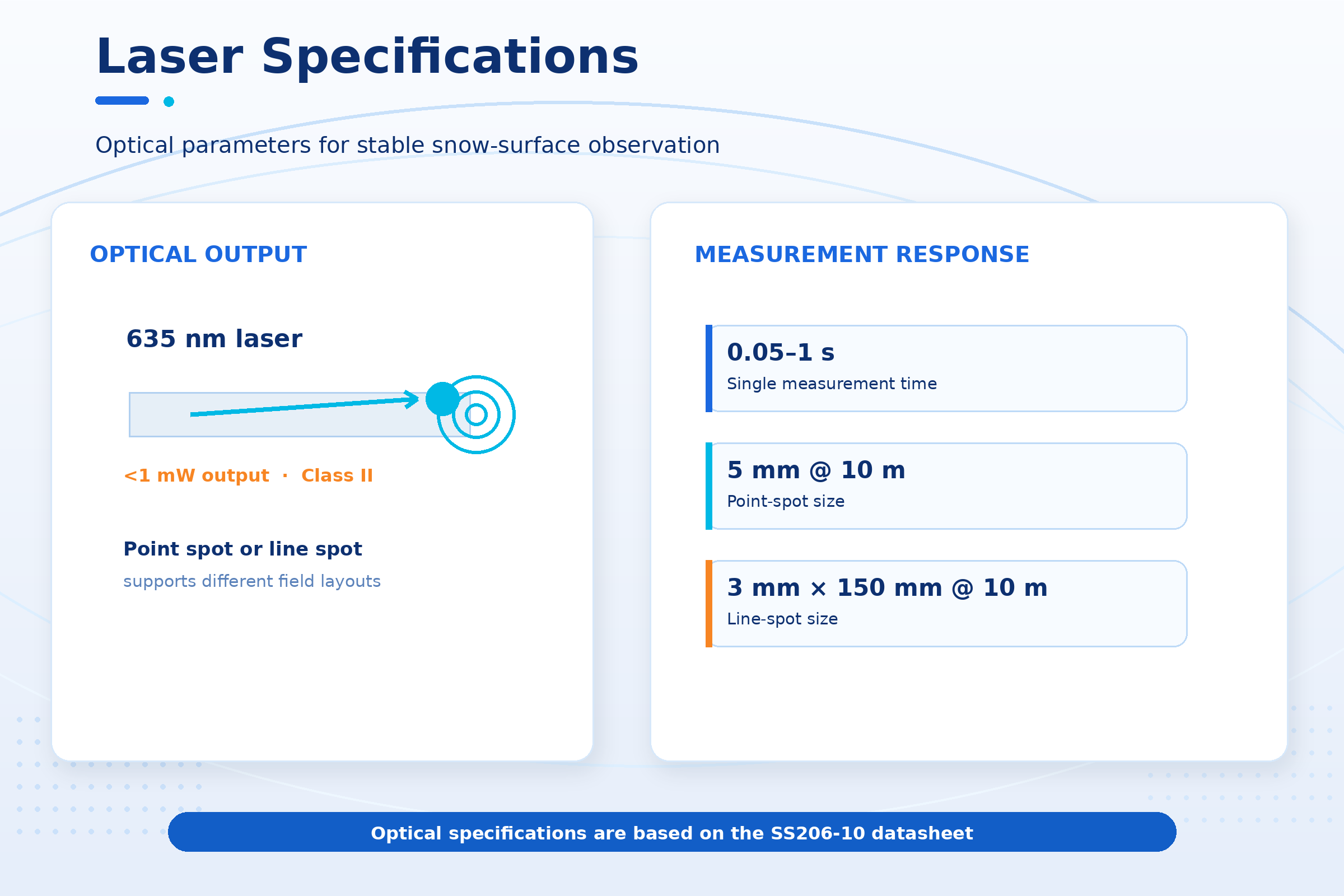

| Laser type | 635 nm, <1 mW | 635 nm, <1 mW |
| Laser class | Class II | Class II |
| Single measurement time | 0.05–1 s | 0.05–1 s |
| Spot size | Point spot: 5 mm @ 10 m; line spot: 3 mm × 150 mm @ 10 m | Point spot: 5 mm @ 10 m; line spot: 3 mm × 150 mm @ 10 m |
