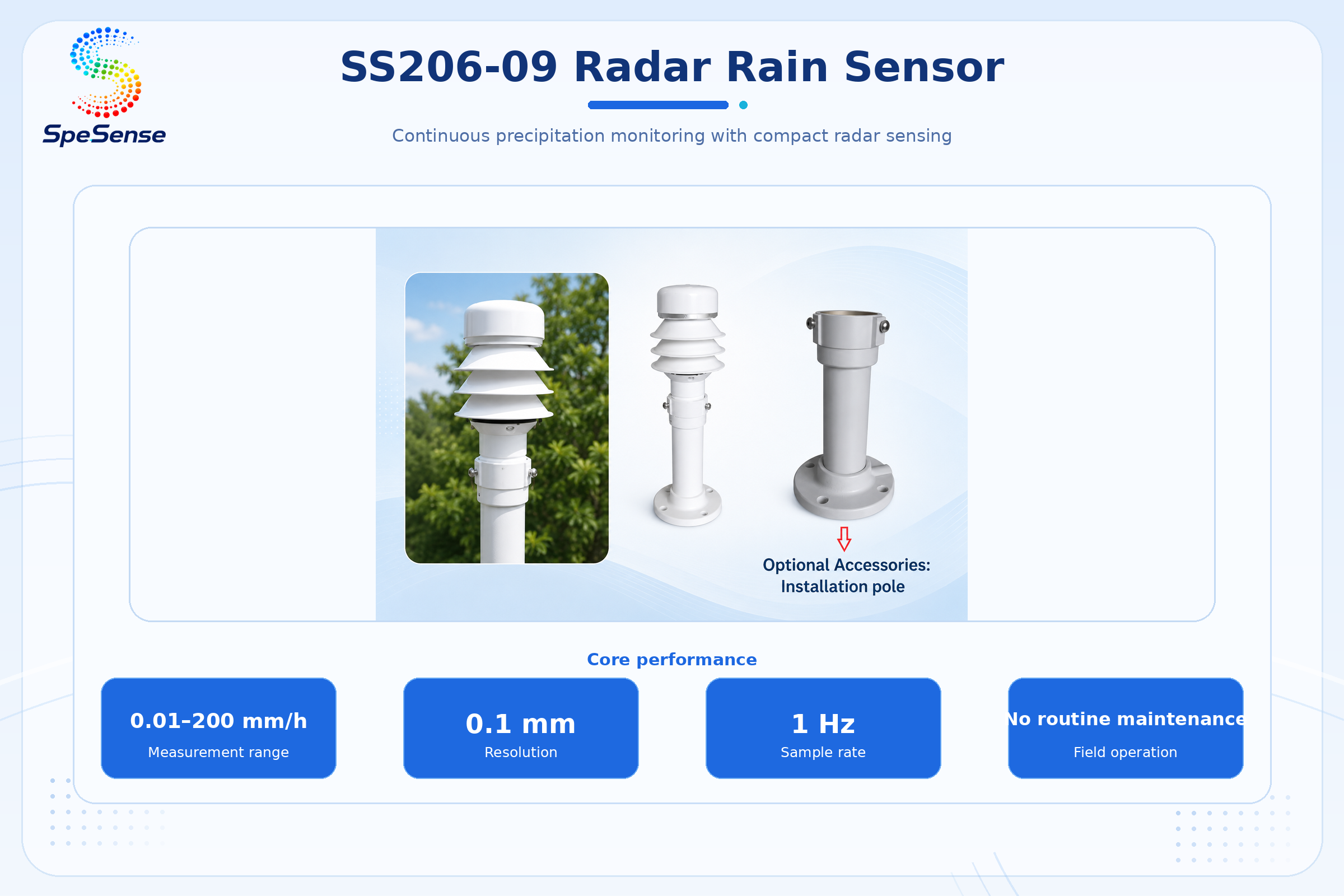

Rain Gauge Sensor

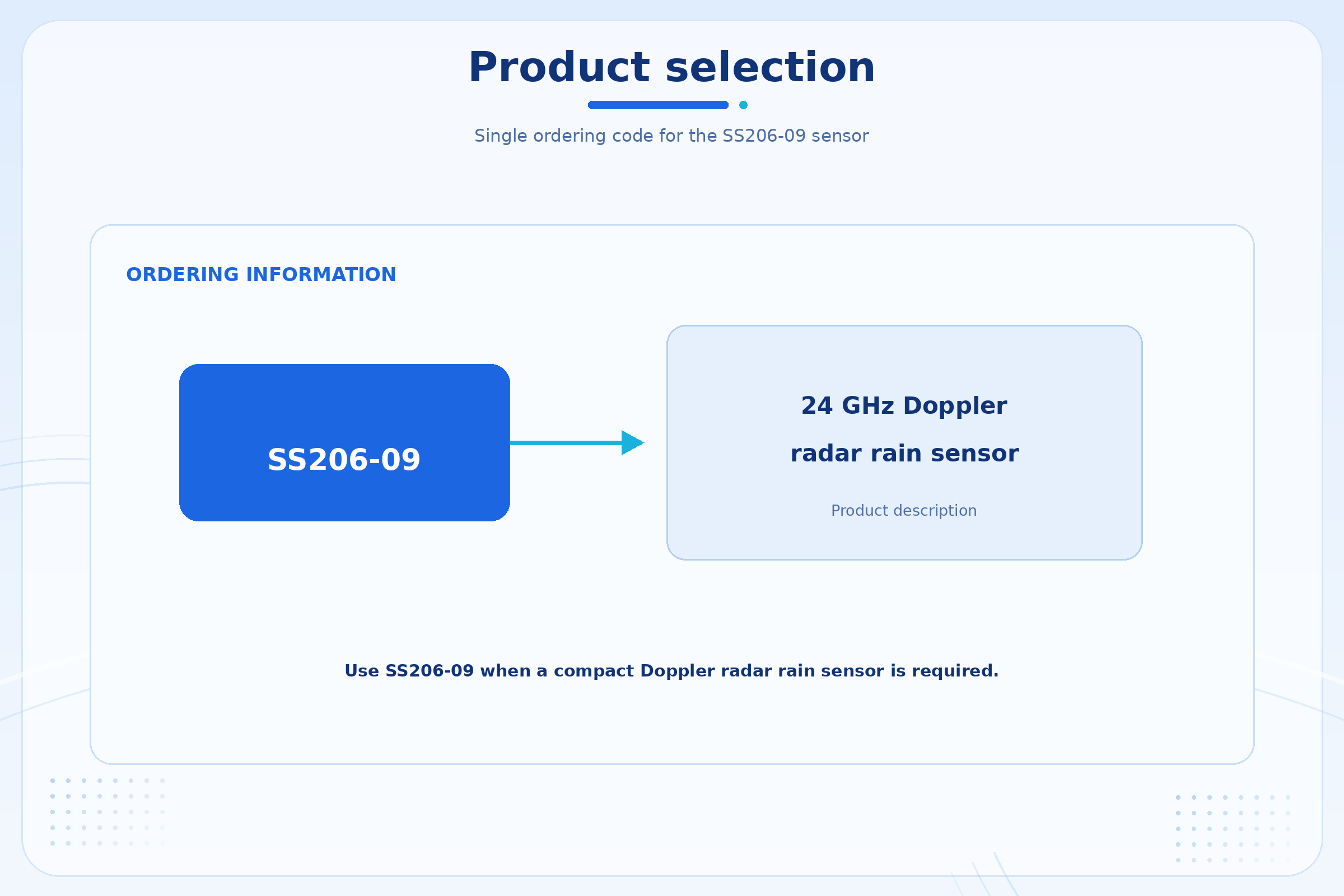

SS206-09
雷达雨量传感器
产品亮点
● Advanced 24 GHz Doppler radar measurement.
● 0.1 mm resolution with 1 Hz sampling.
● Compact design with no routine maintenance.
● 0.1 mm resolution with 1 Hz sampling.
● Compact design with no routine maintenance.
产品概述

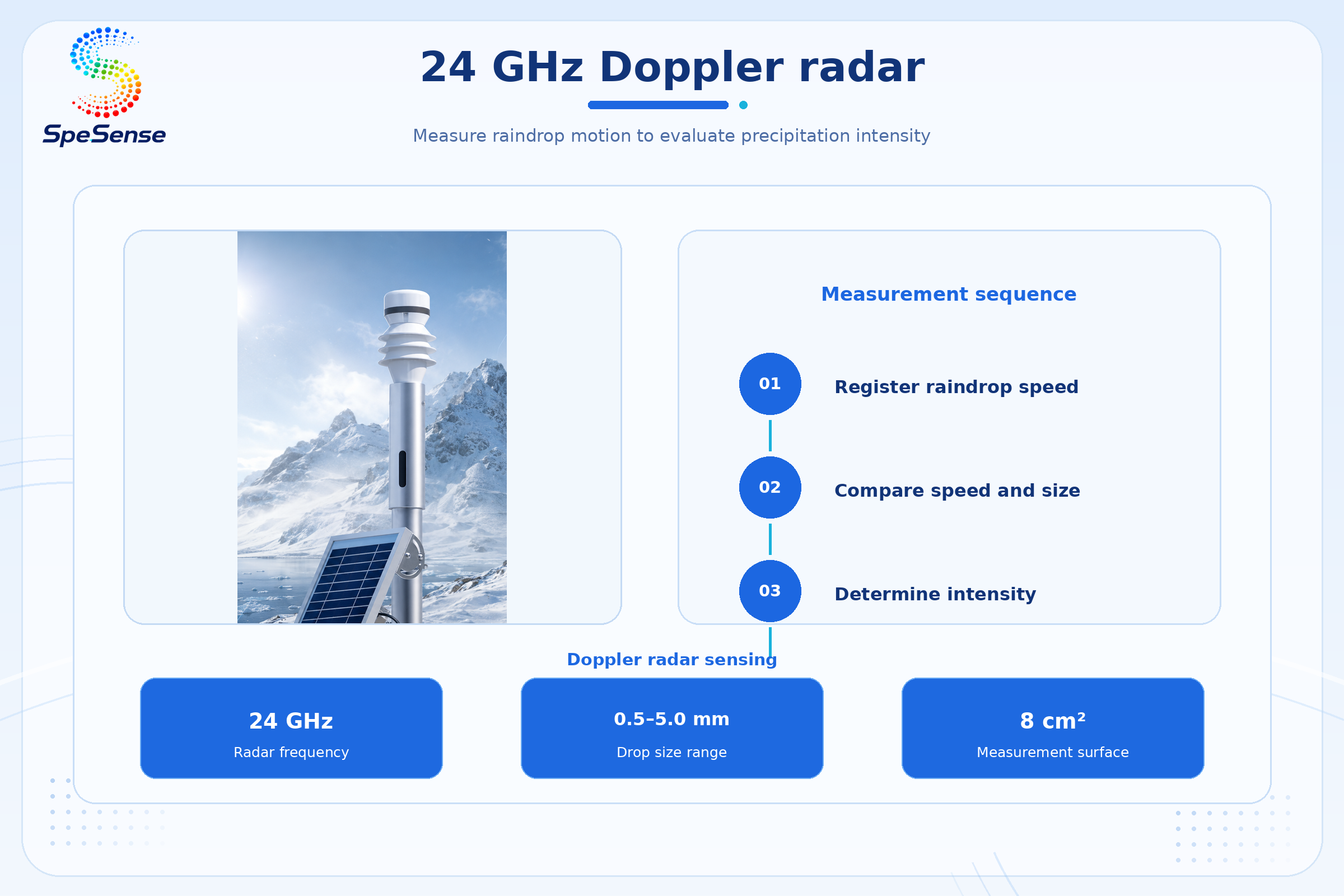

Registers raindrop speed and size to determine precipitation intensity.
Provides compact radar sensing with no routine maintenance.
| Item | Specification |

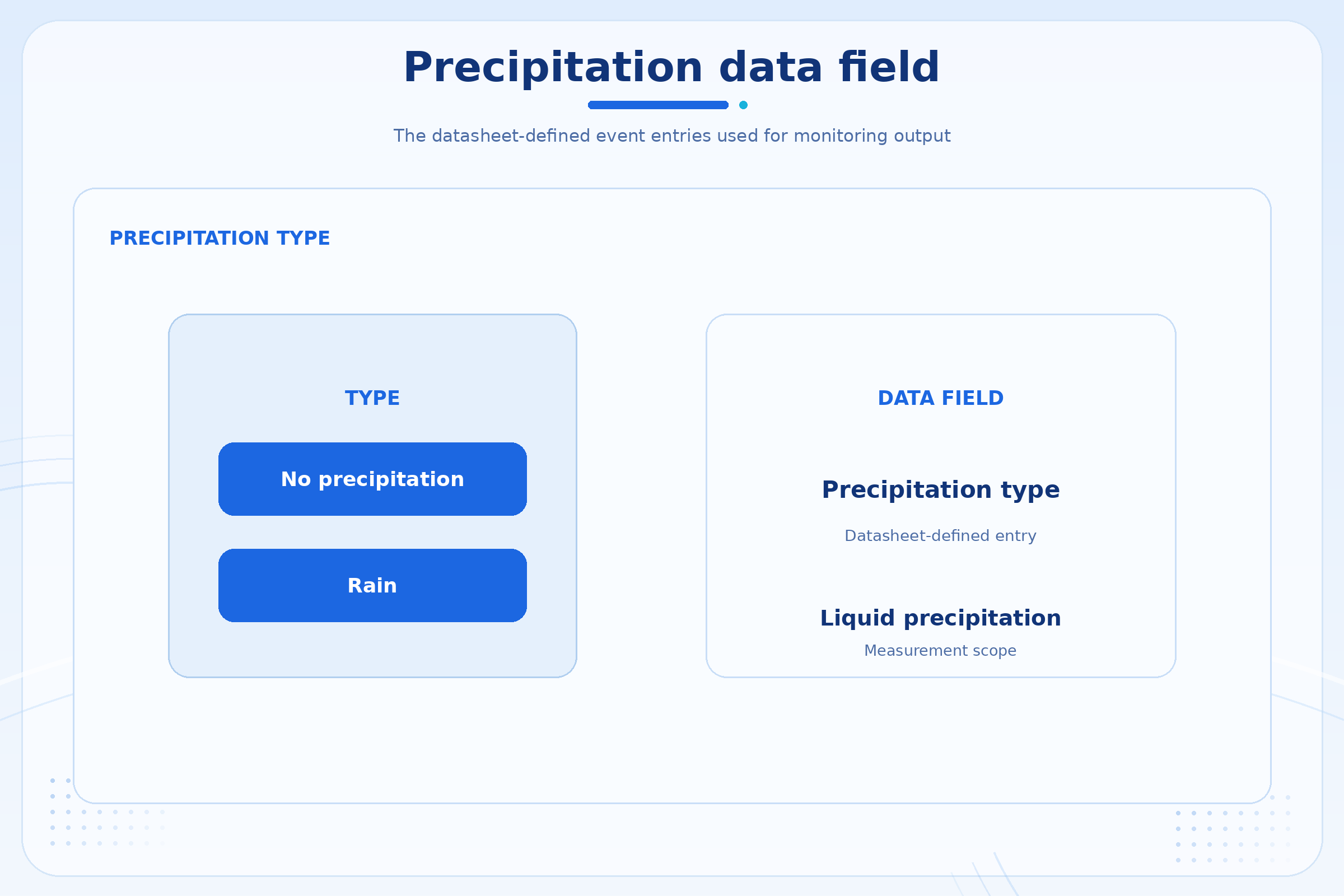

| Precipitation type | No precipitation, Rain |

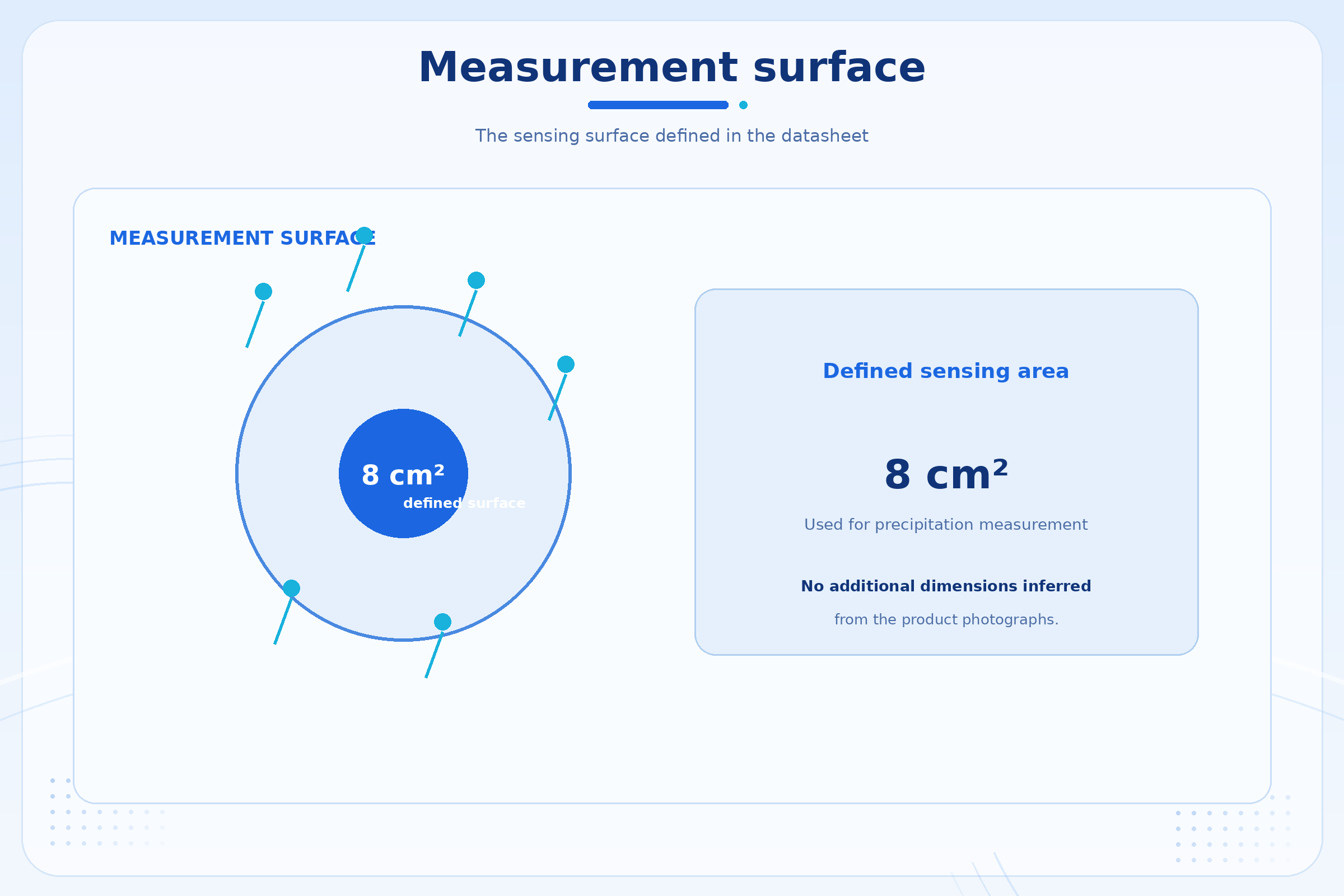

| Measurement surface | 8 cm² |

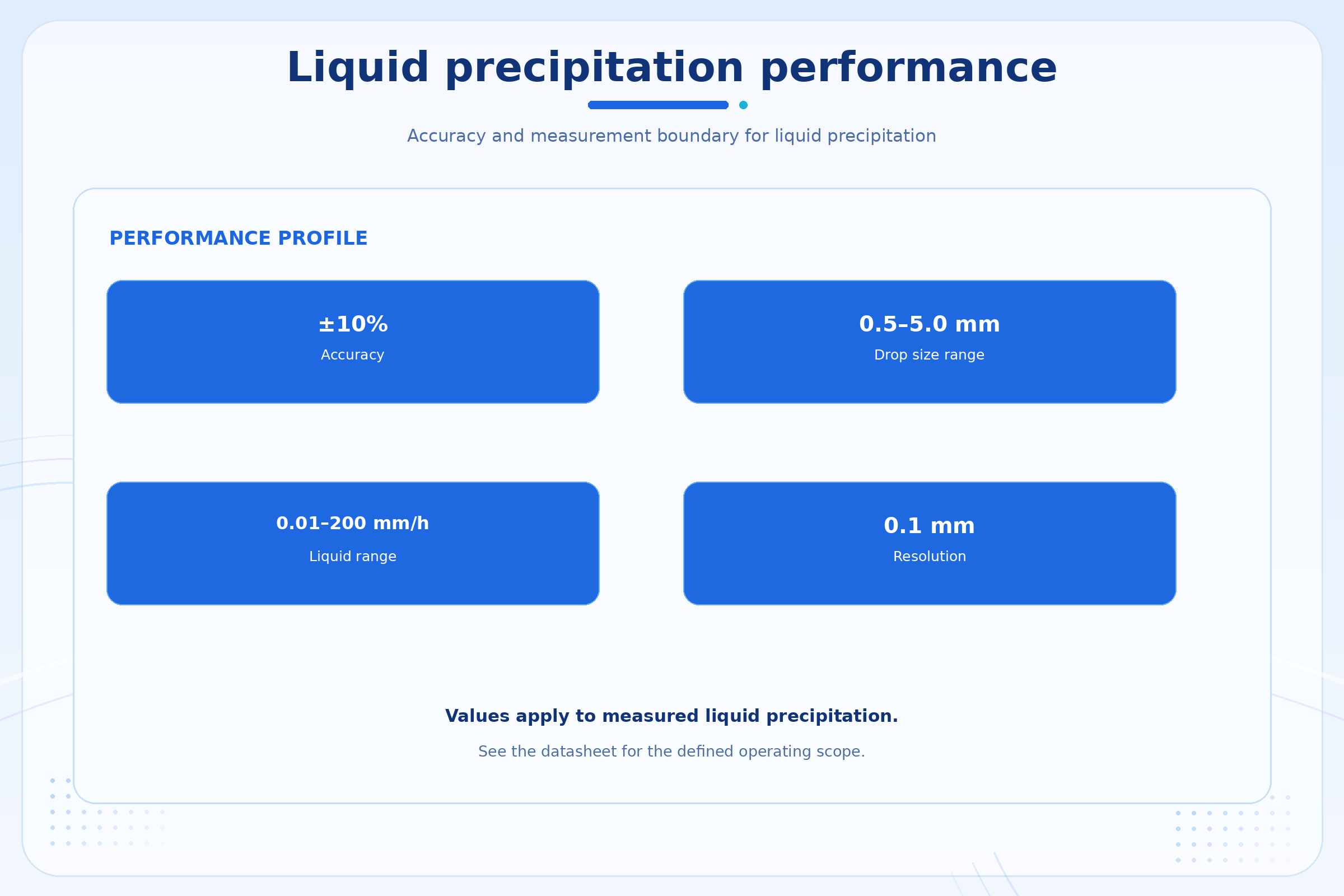

| Measurement range | 0.01–200 mm/h (liquid precipitation) |
| Accuracy | ±10% of the measured value for liquid precipitation |
| Measuring drop size range | 0.5–5.0 mm |
| Resolution | 0.1 mm |
| Sample rate | 1 measurement per second |

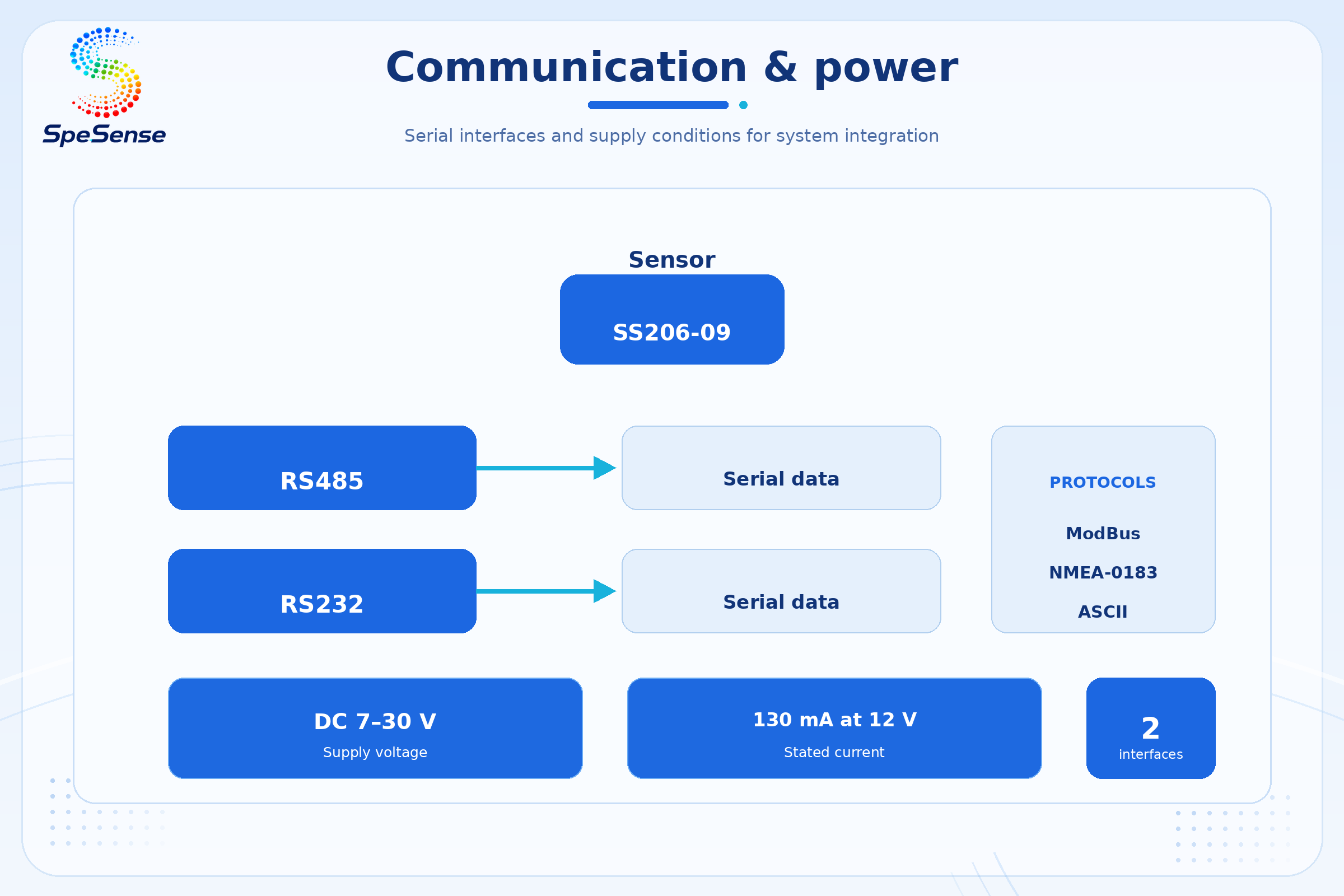

| Communication interface | RS485 / RS232 |

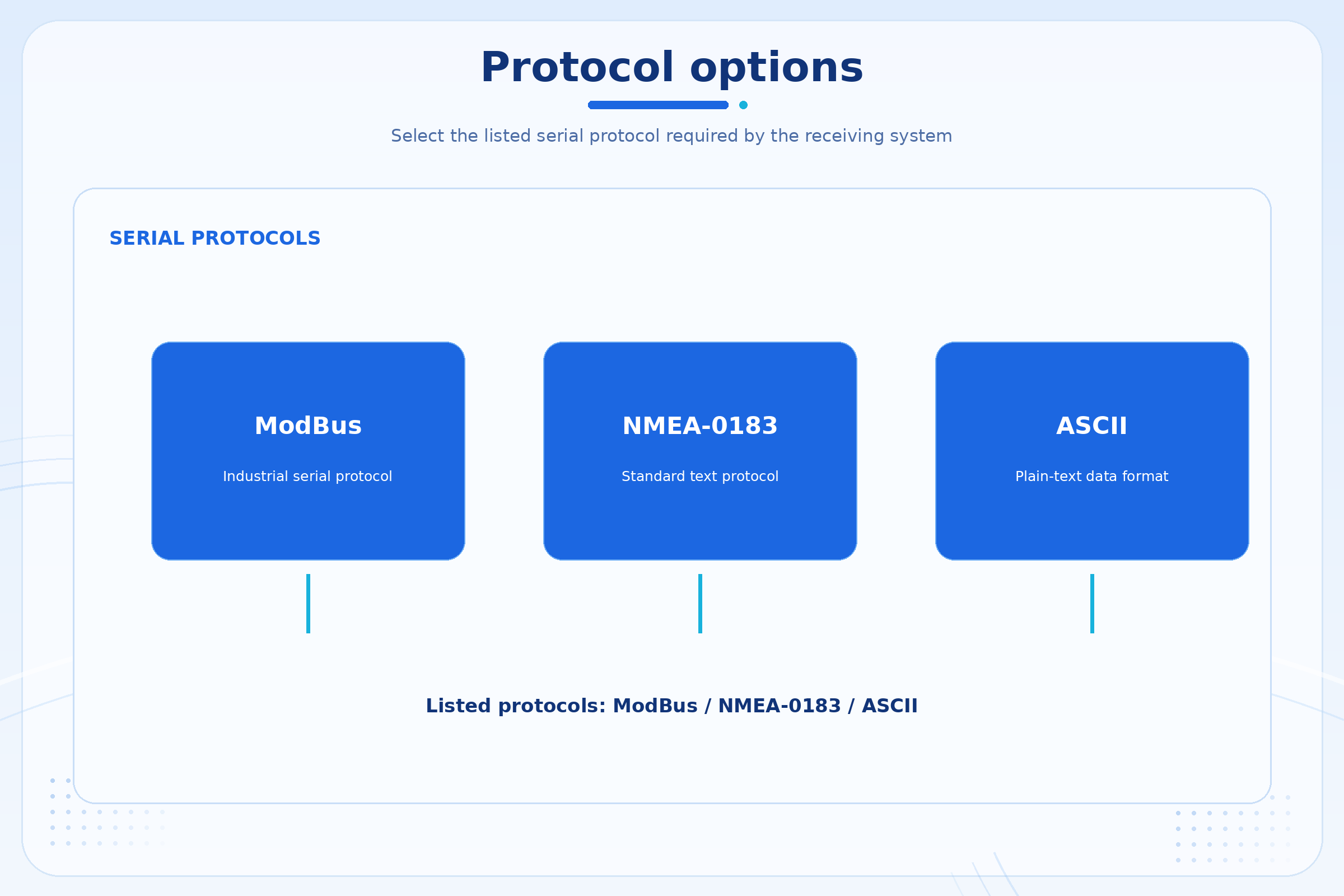

| Protocol | ModBus / NMEA-0183 / ASCII |
| Supply voltage | DC 7–30 V; 130 mA at 12 V |

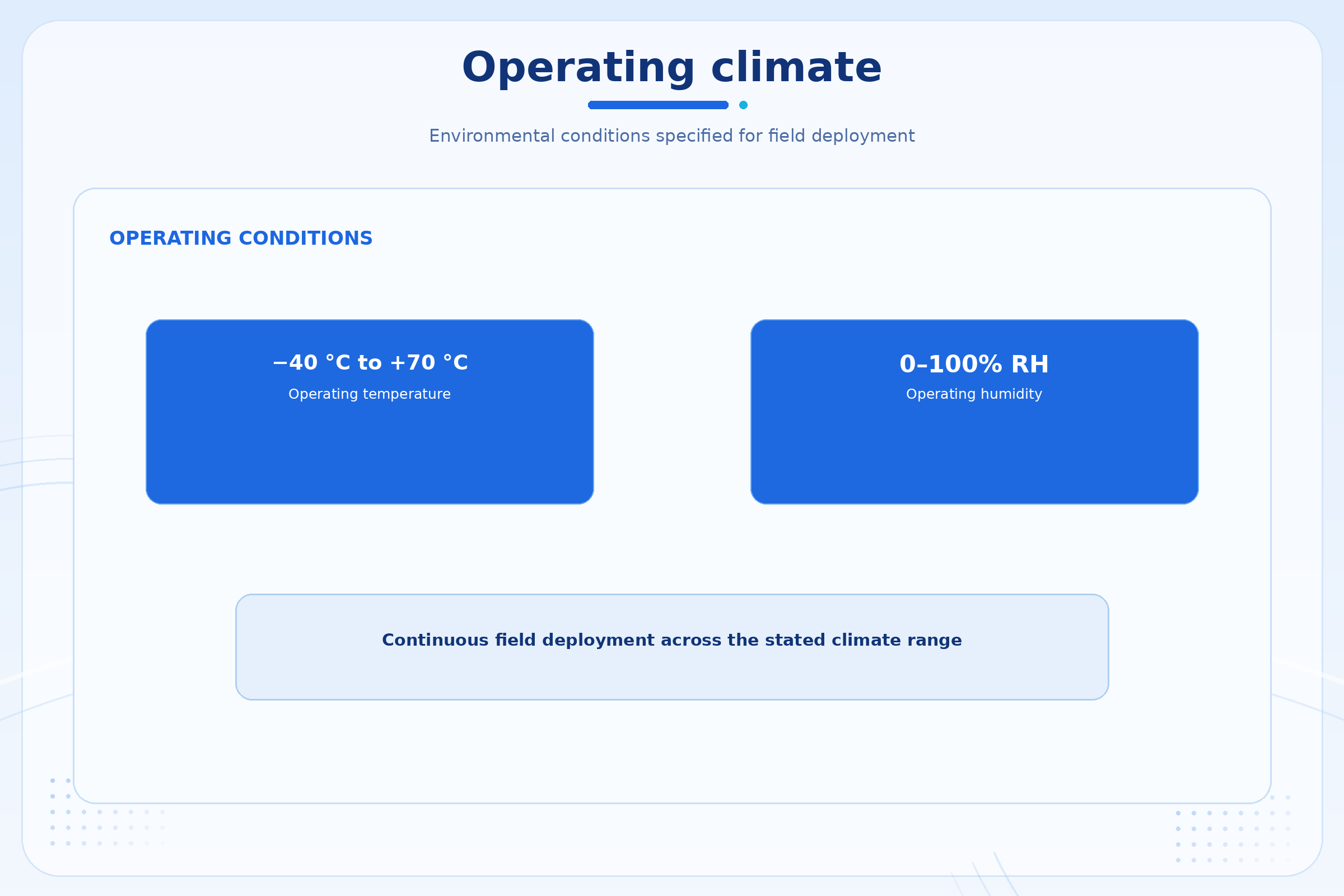

| Operating temperature | −40 °C to +70 °C |
| Operating humidity | 0–100% RH |

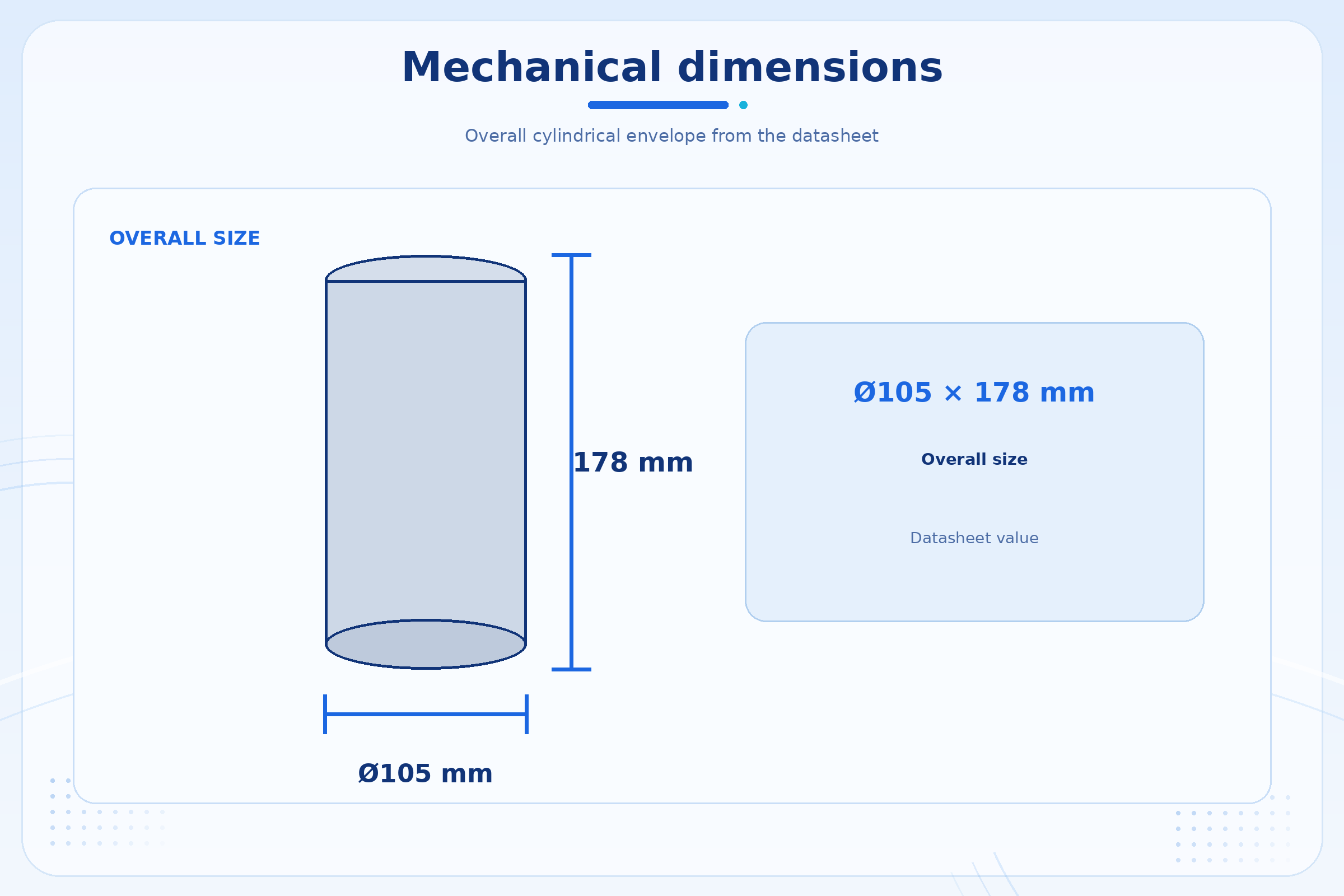

| Overall size | Ø105 × 178 mm |

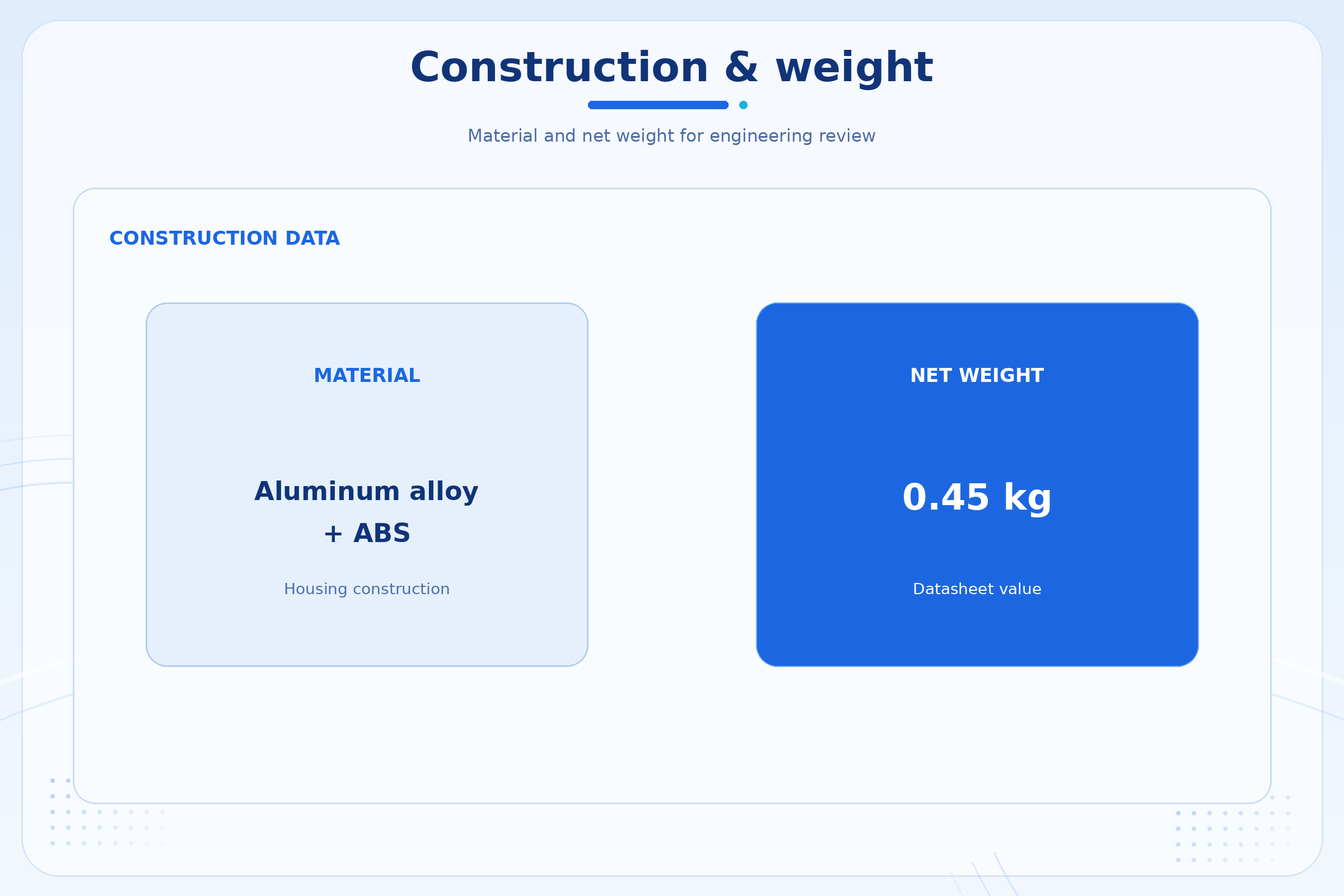

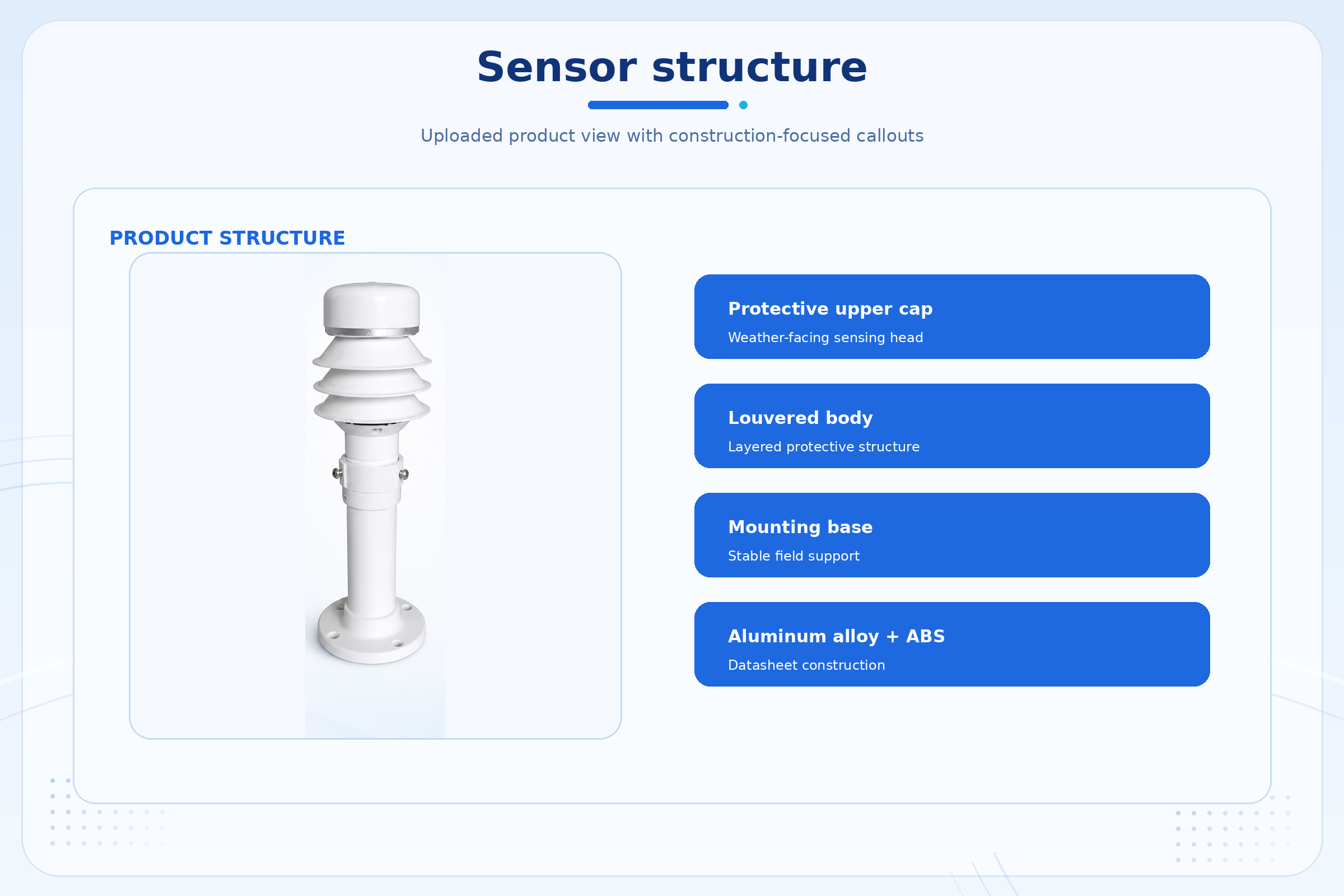

| Material | Aluminum alloy + ABS |
| Net weight | 0.45 kg |
