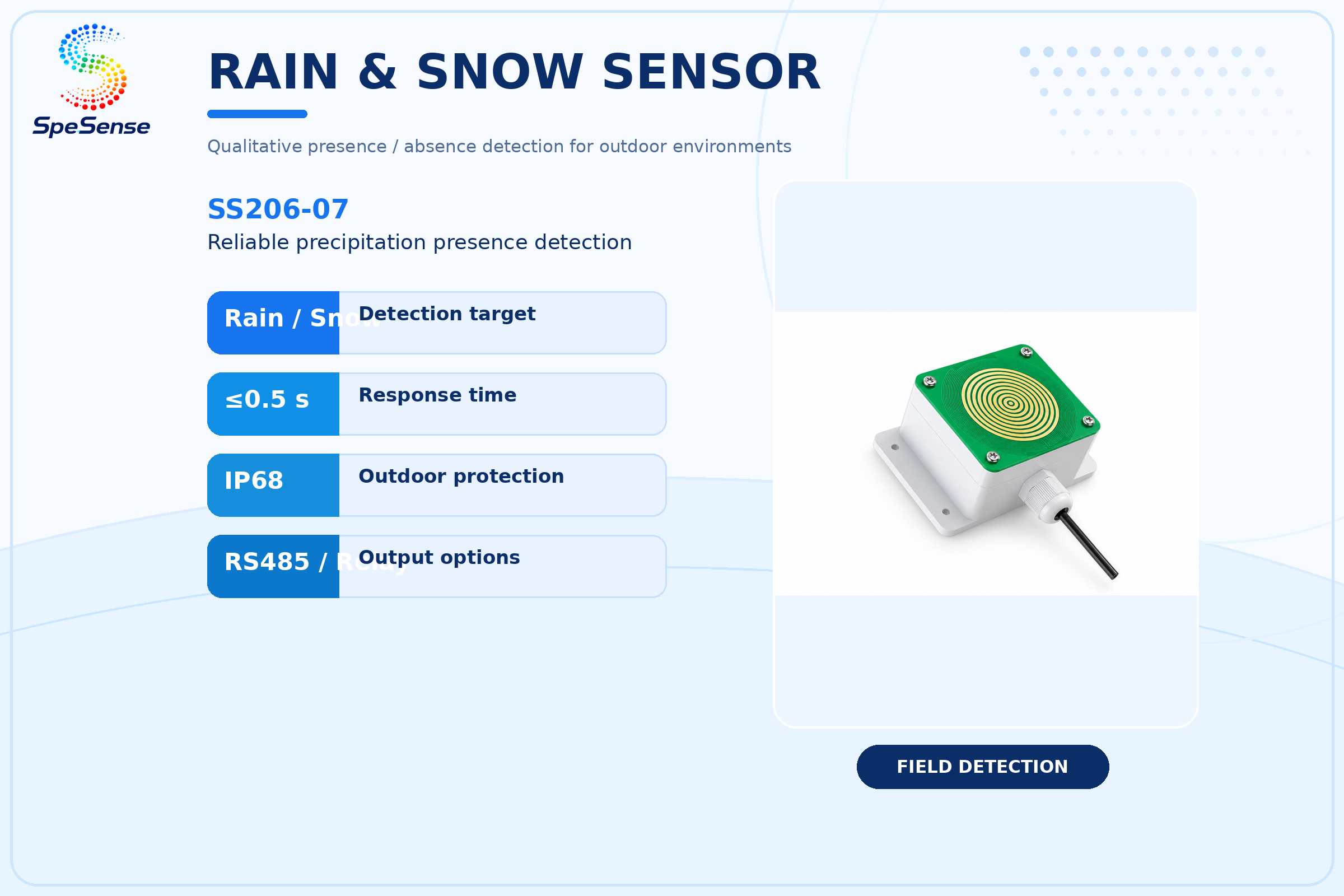

Rain Gauge Sensor
SS206-07
雨雪传感器
产品亮点

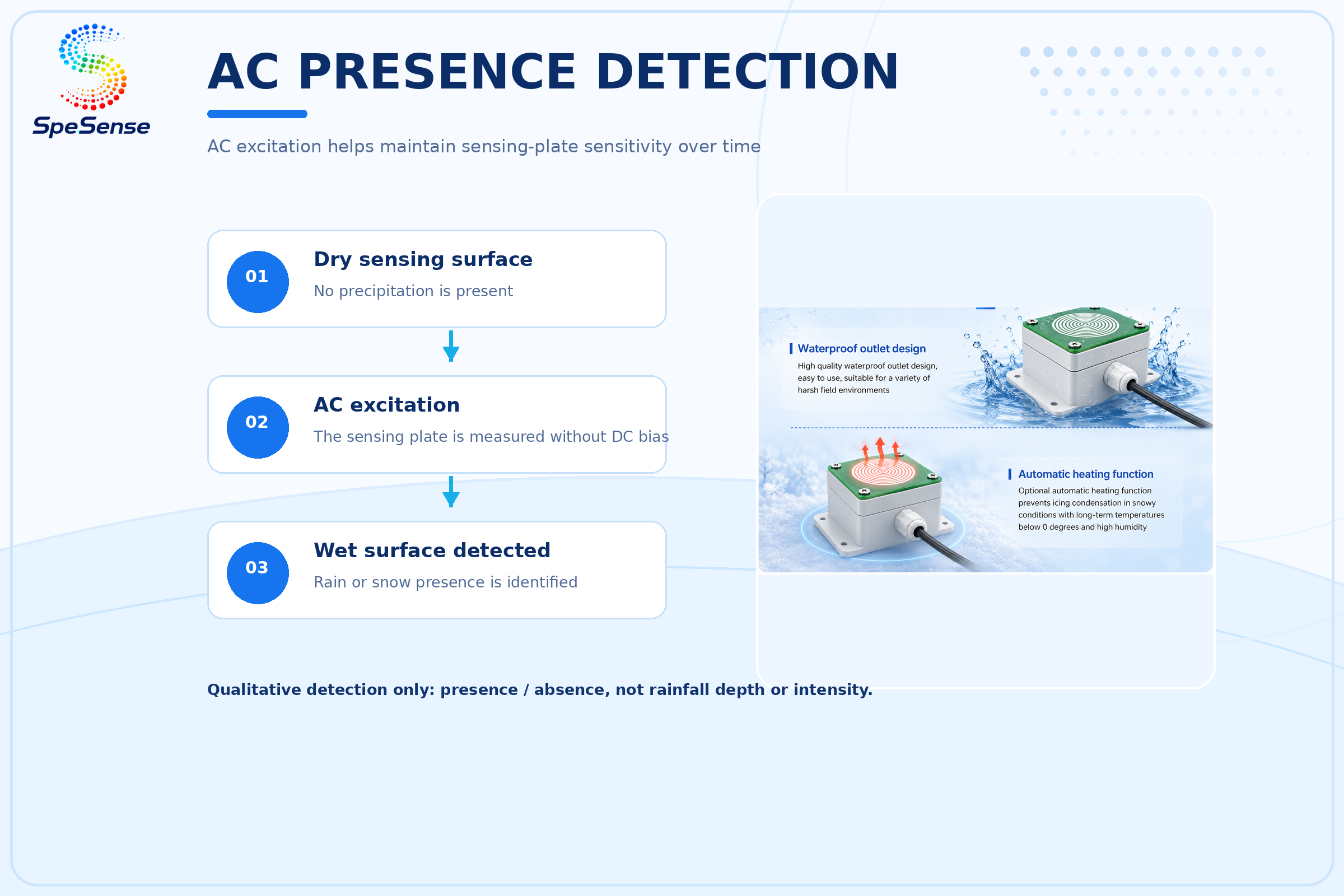

● AC measurement helps prevent oxidation of the sensing plate.
● IP68 design supports long-term outdoor operation.

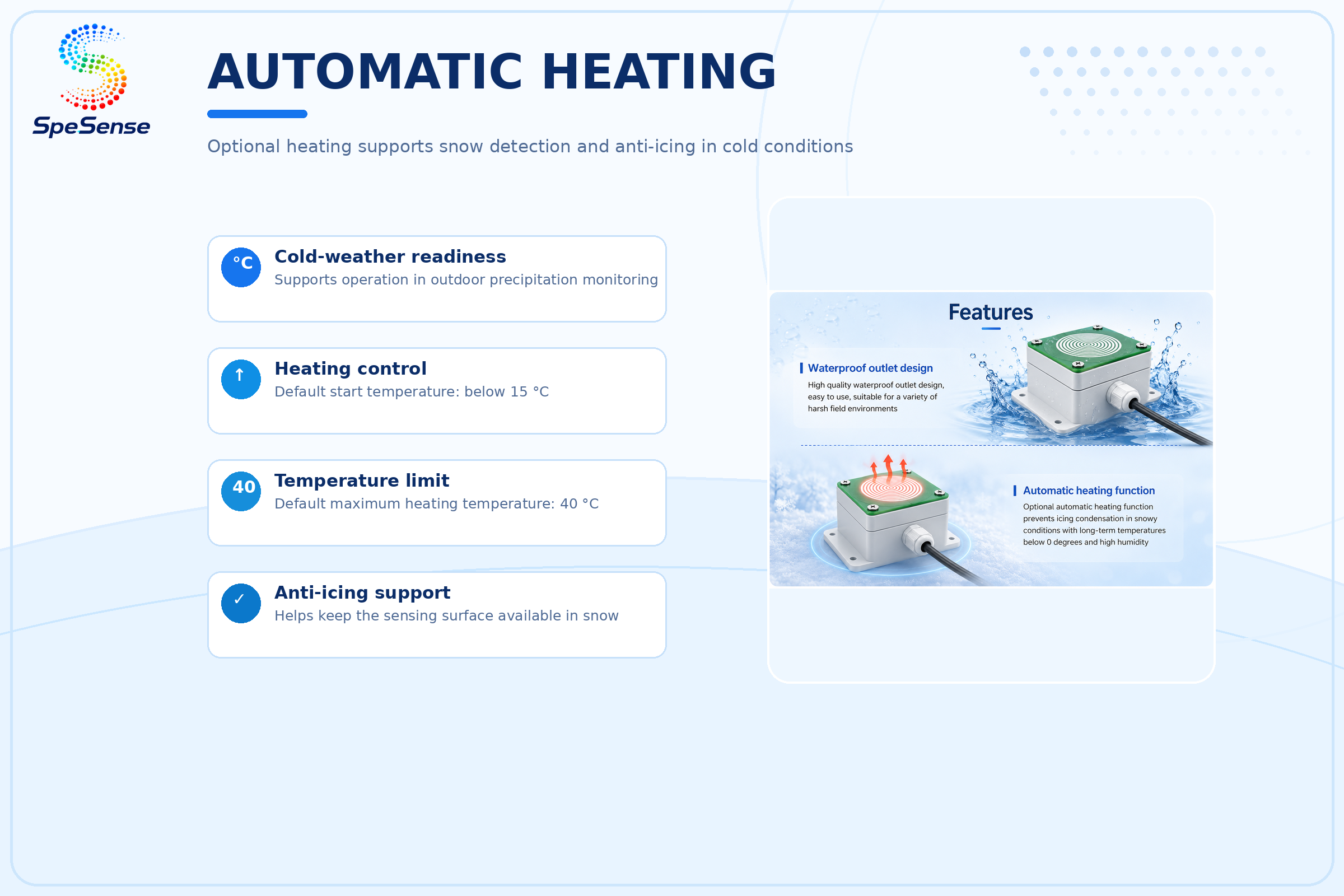

● Optional heating supports snow detection and anti-icing in cold,humid conditions.

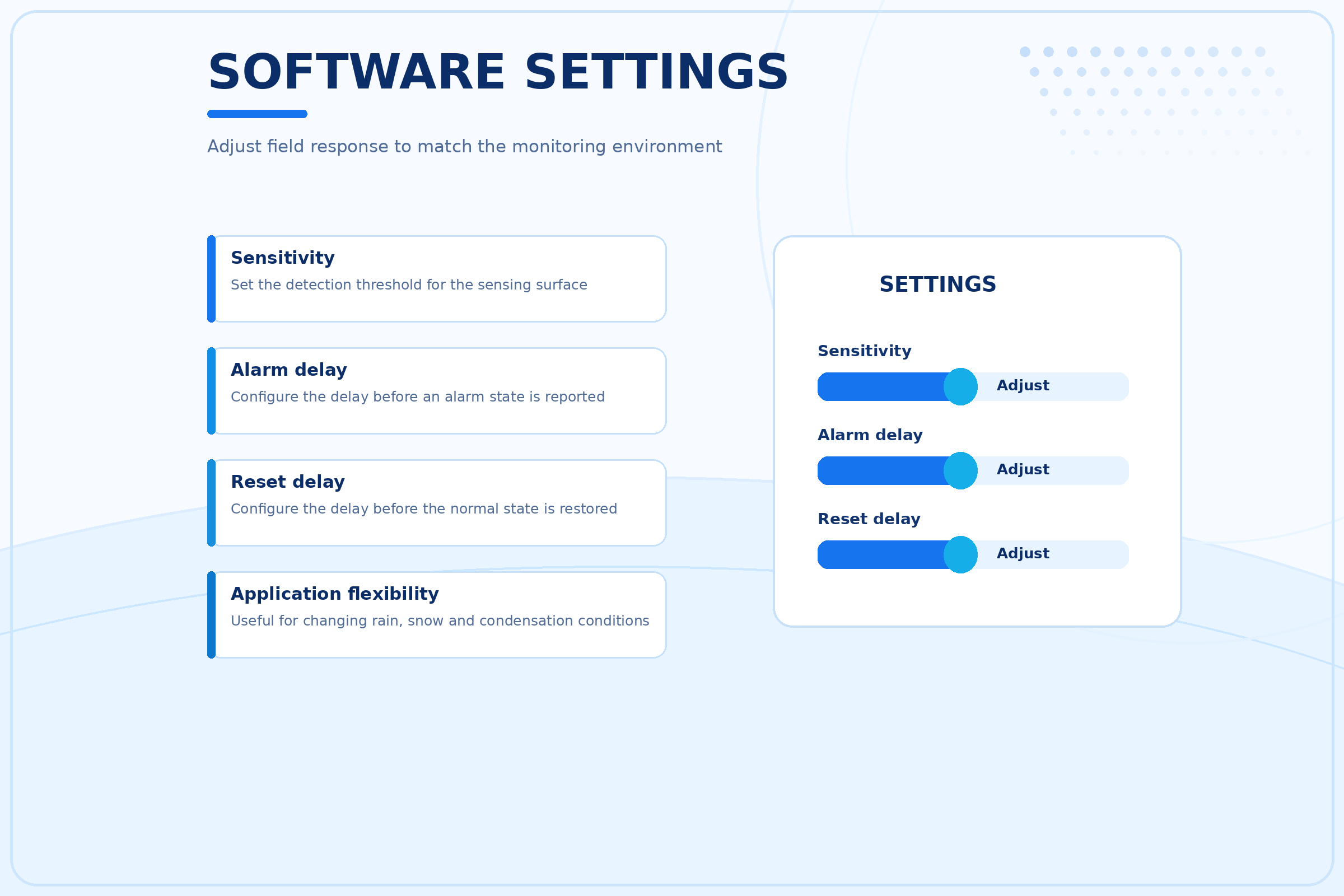

● Adjustable sensitivity and alarm/reset delay improve field flexibility.

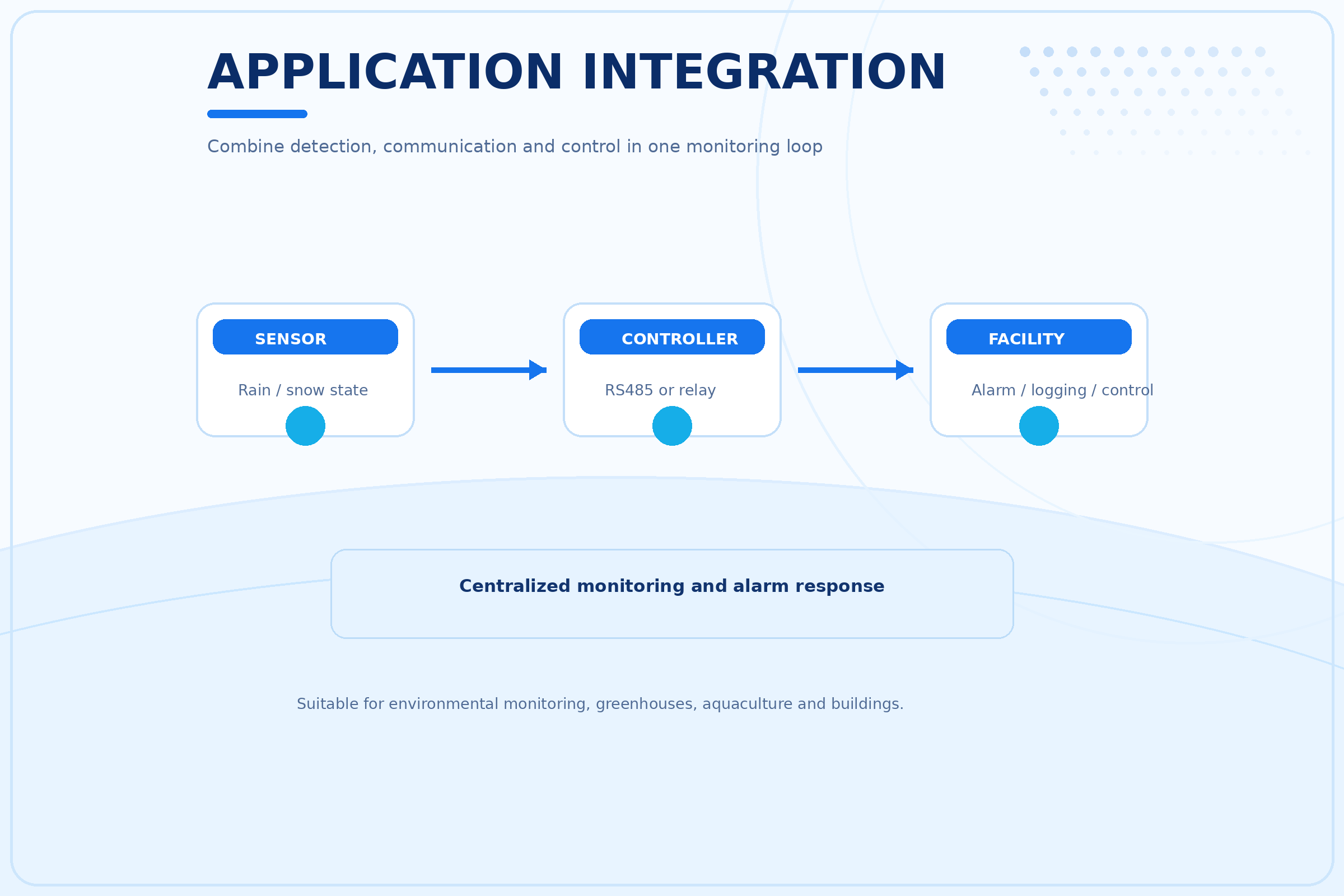

● RS485 and relay output options support centralized monitoring.
● IP68 design supports long-term outdoor operation.
● Optional heating supports snow detection and anti-icing in cold,humid conditions.
● Adjustable sensitivity and alarm/reset delay improve field flexibility.
● RS485 and relay output options support centralized monitoring.
产品概述

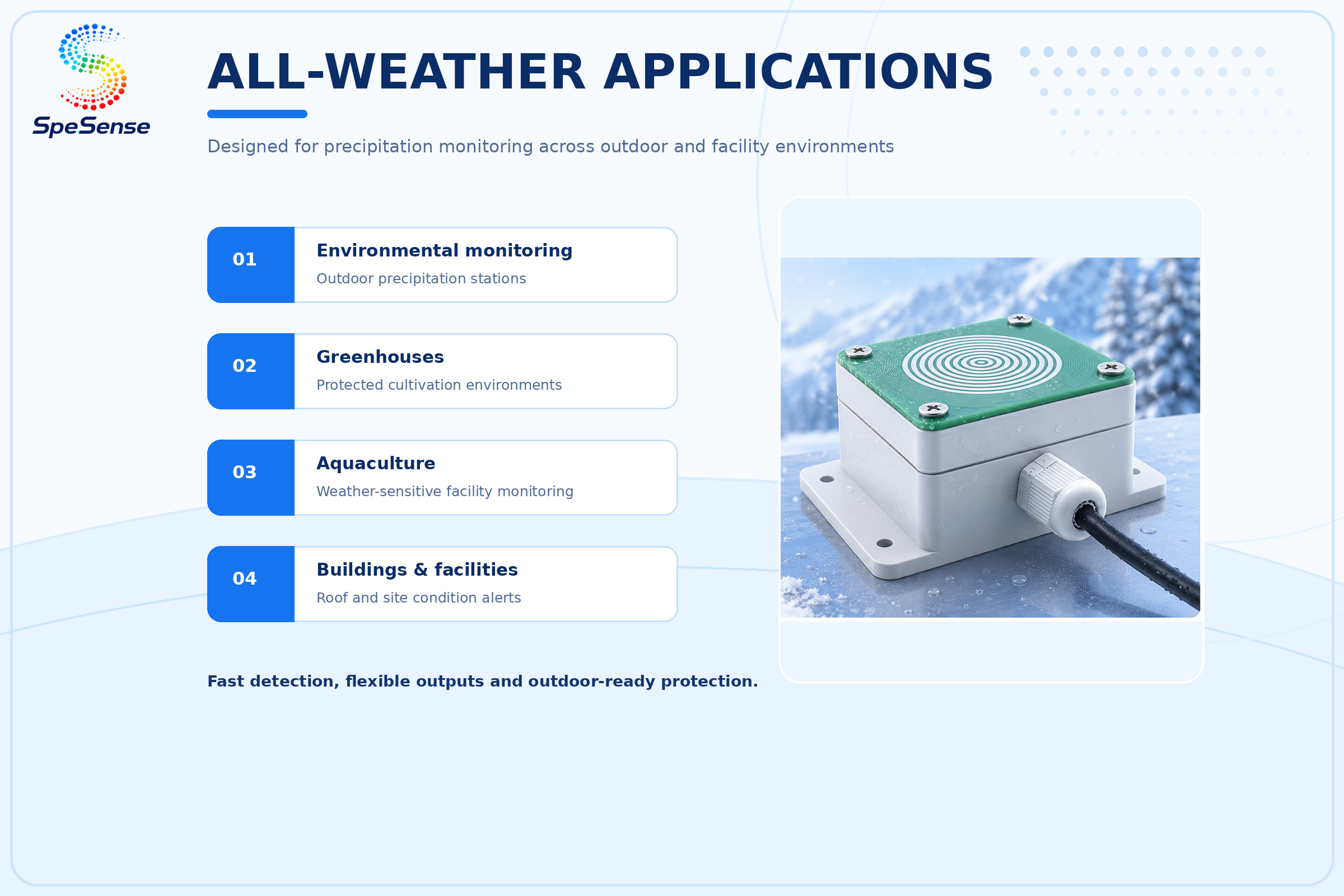

Qualitative sensor for detecting the presence or absence of rain and snow in outdoor environments.

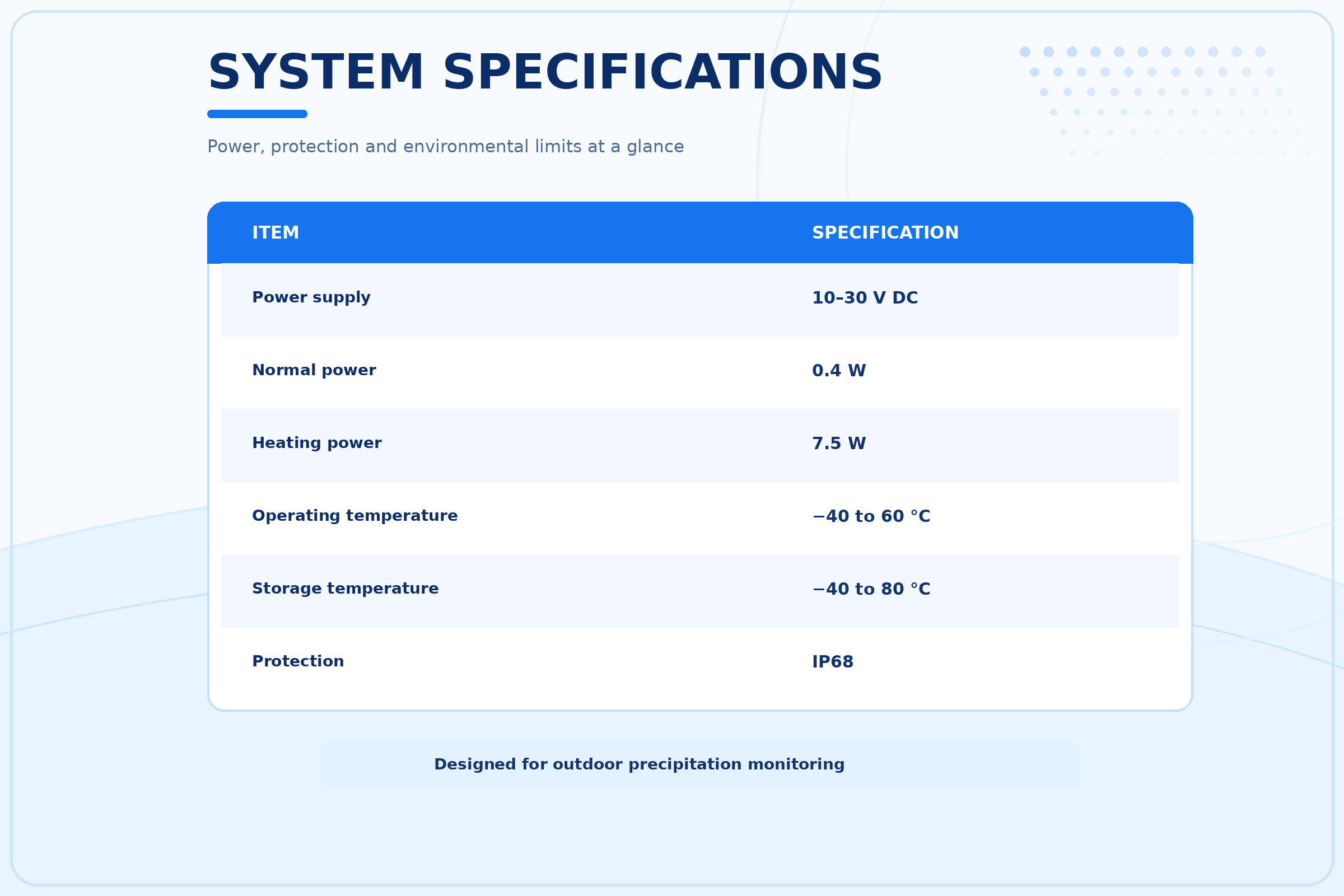

| Item | Specification |
| Power Supply | 10–30 V DC |
| Normal Power Consumption | 0.4 W |
| Heating Power Consumption | 7.5 W |
| Operating Temperature | −40 to 60 °C |
| Storage Temperature | −40 to 80 °C |
| Parameter Setting | Software setting |

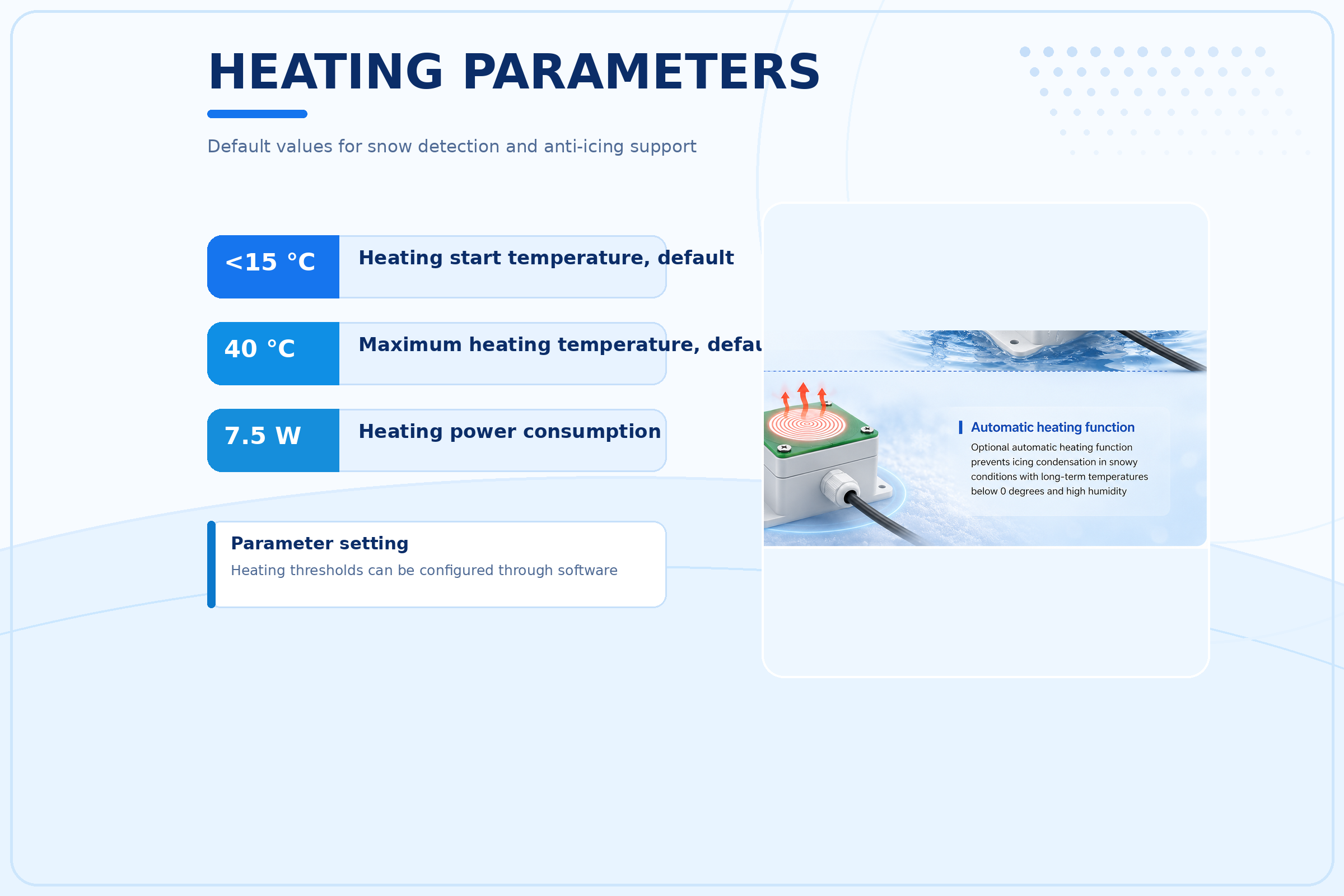

| Heating Start Temperature | <15 °C (default) |
| Maximum Heating Temperature | 40 °C (default) |

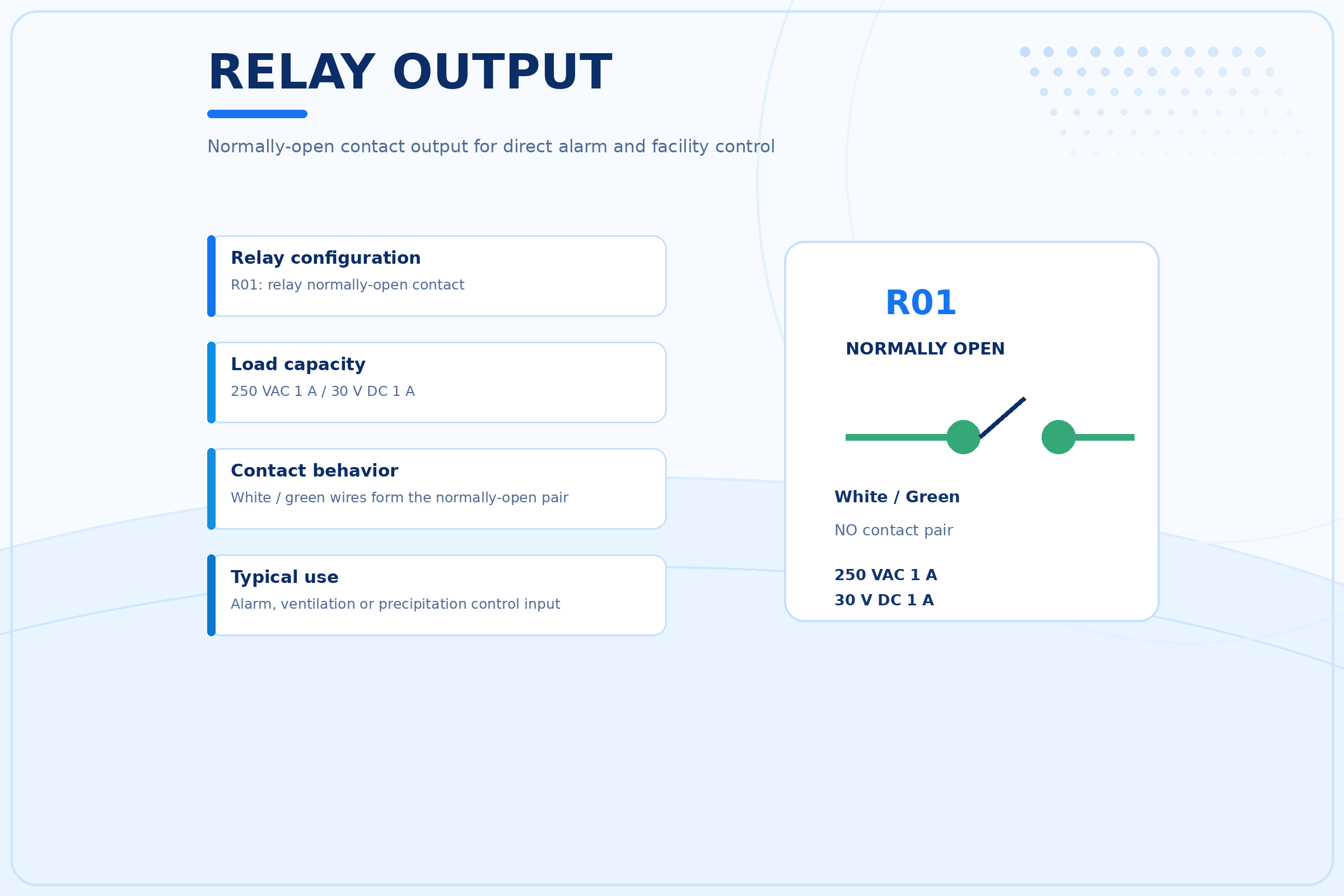

| Relay Load Capacity | 250 VAC 1 A / 30 V DC 1 A |

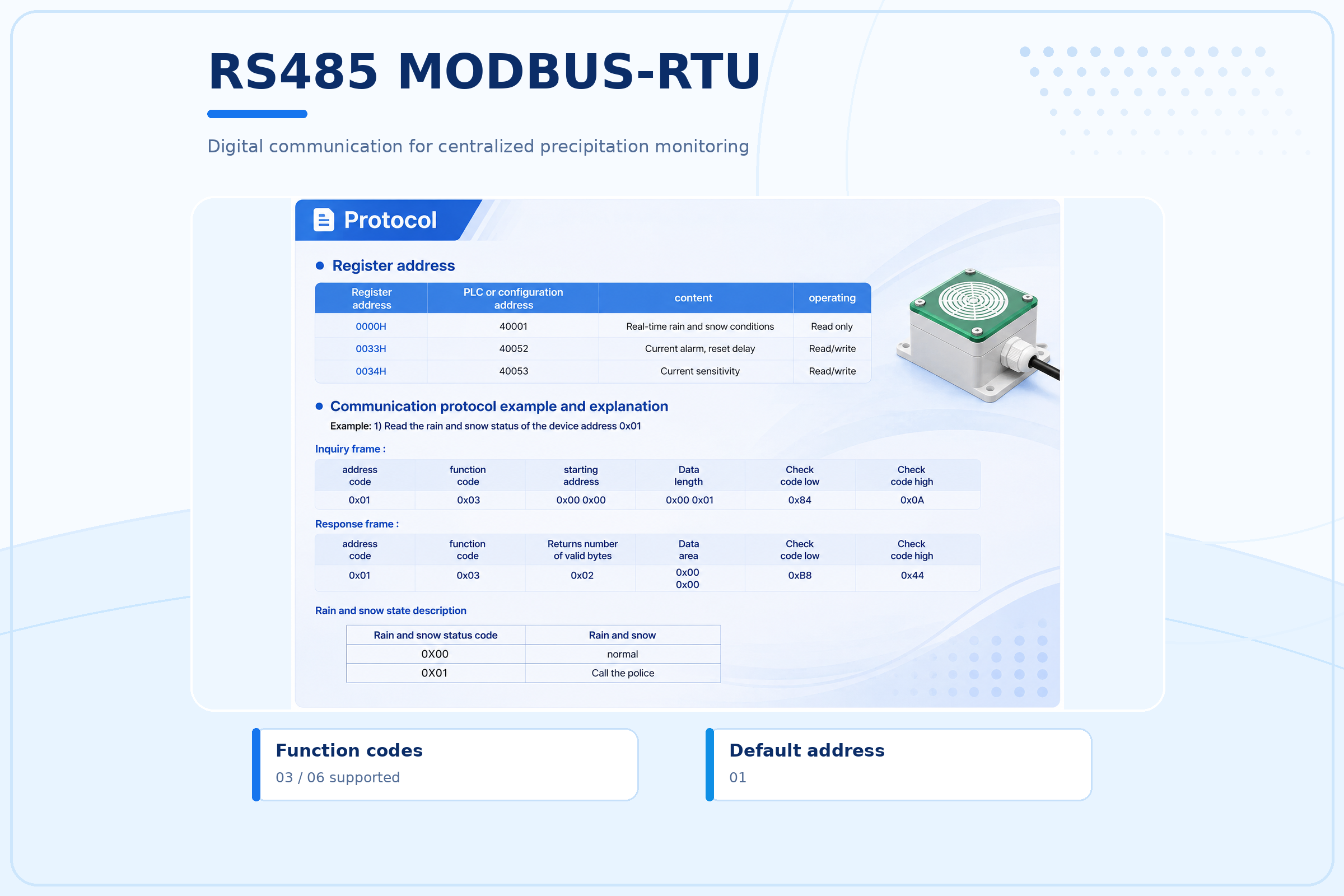

| Default Modbus Address | 01 |

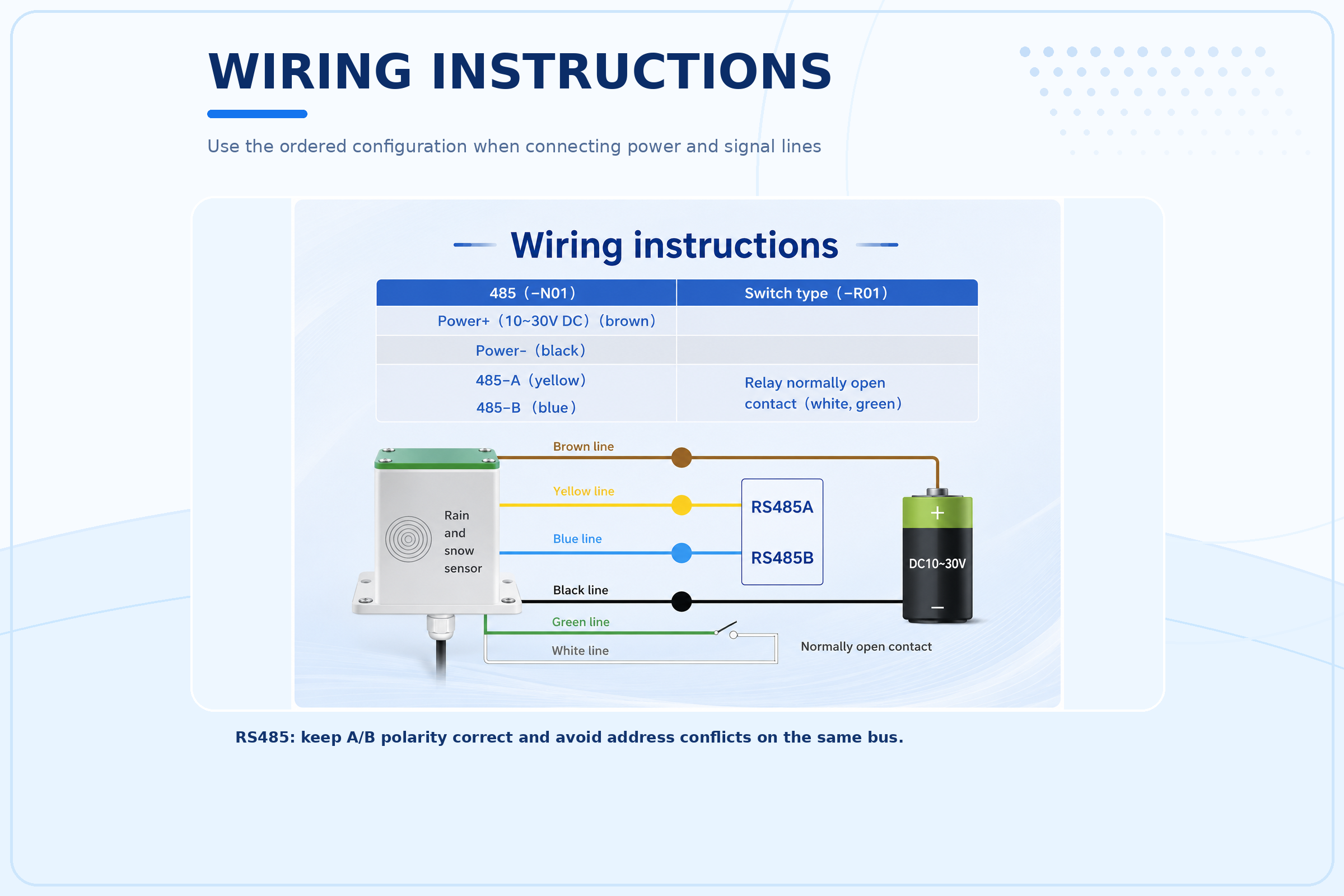

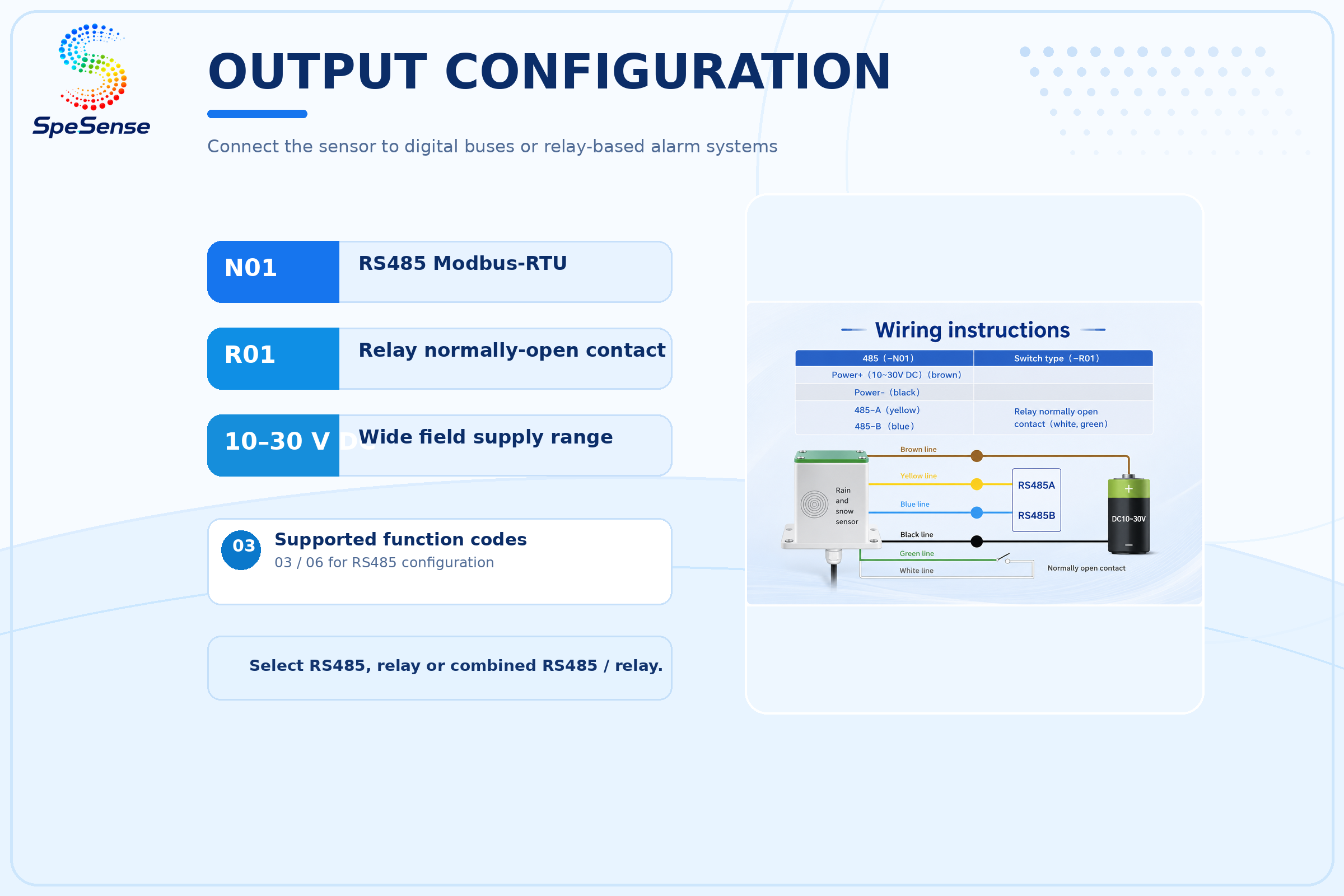

| Output Signal | RS485 / relay |
| Supported Function Codes | 03 / 06 |
