Rain Gauge Sensor
SS206-06
蒸发量传感器
产品亮点
● 304 stainless-steel construction resists corrosion and supports long service life.

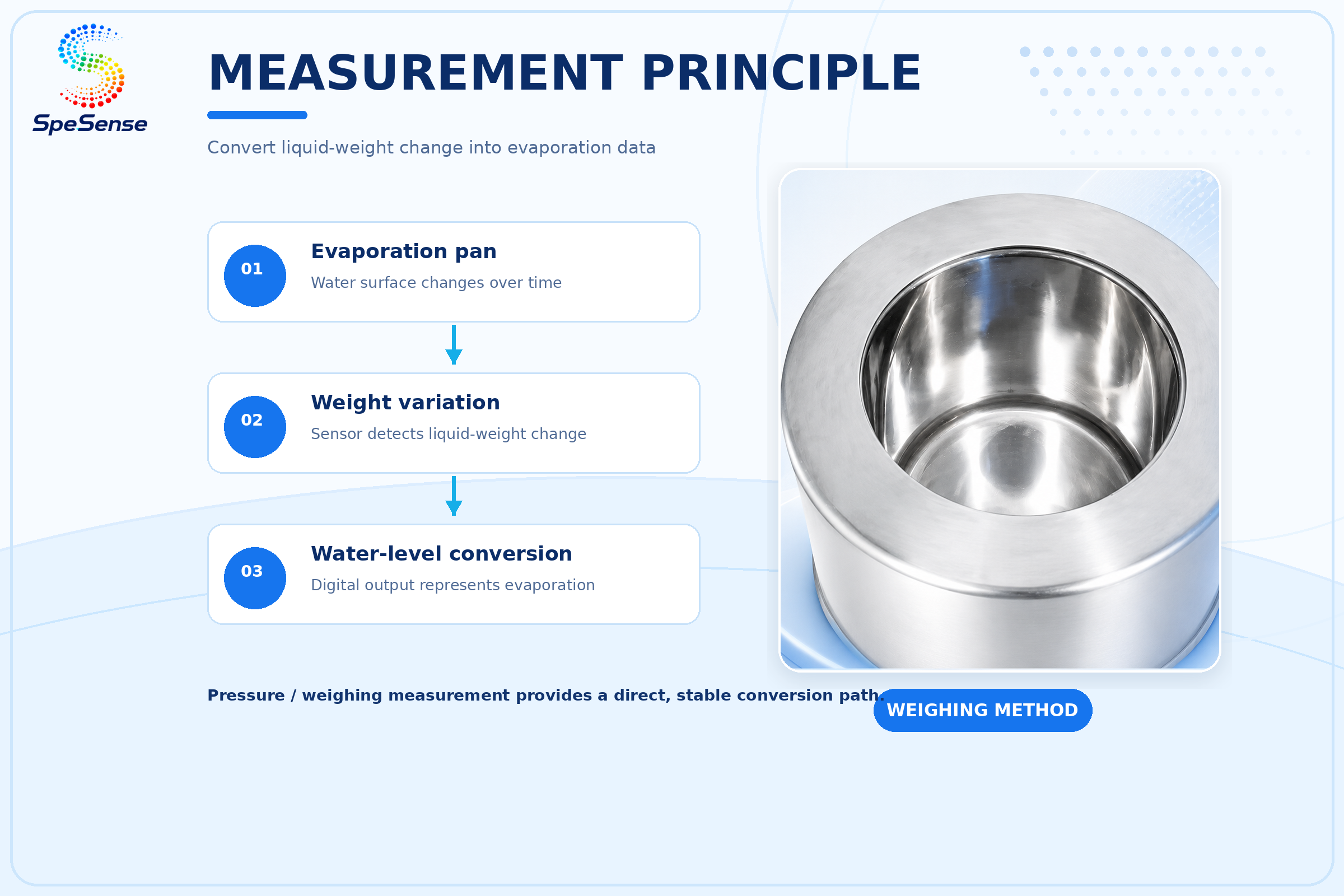

● Pressure-based weighing principle provides more precise and scientific evaporation measurement.

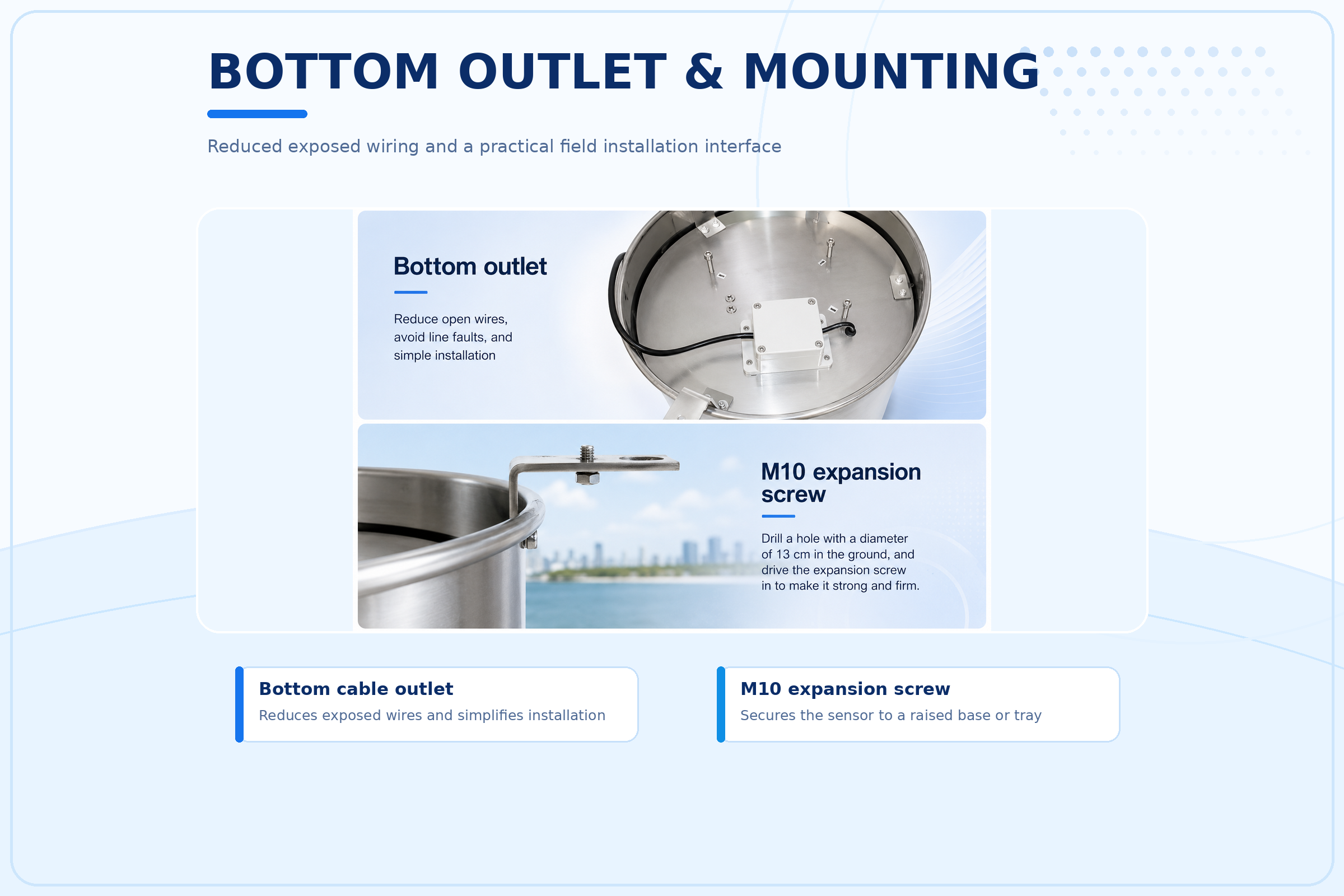

● Bottom cable outlet reduces exposed wiring and simplifies installation.

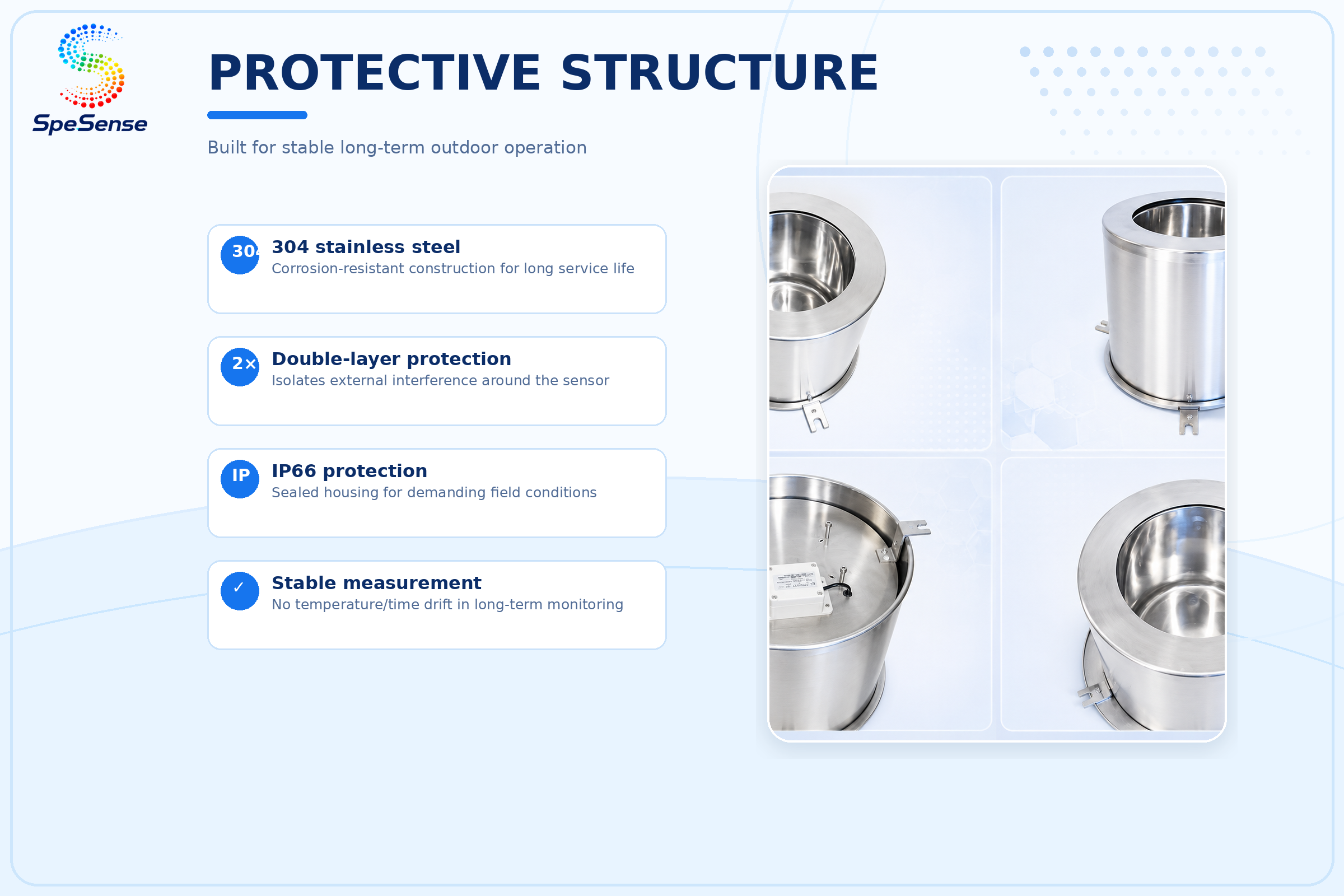

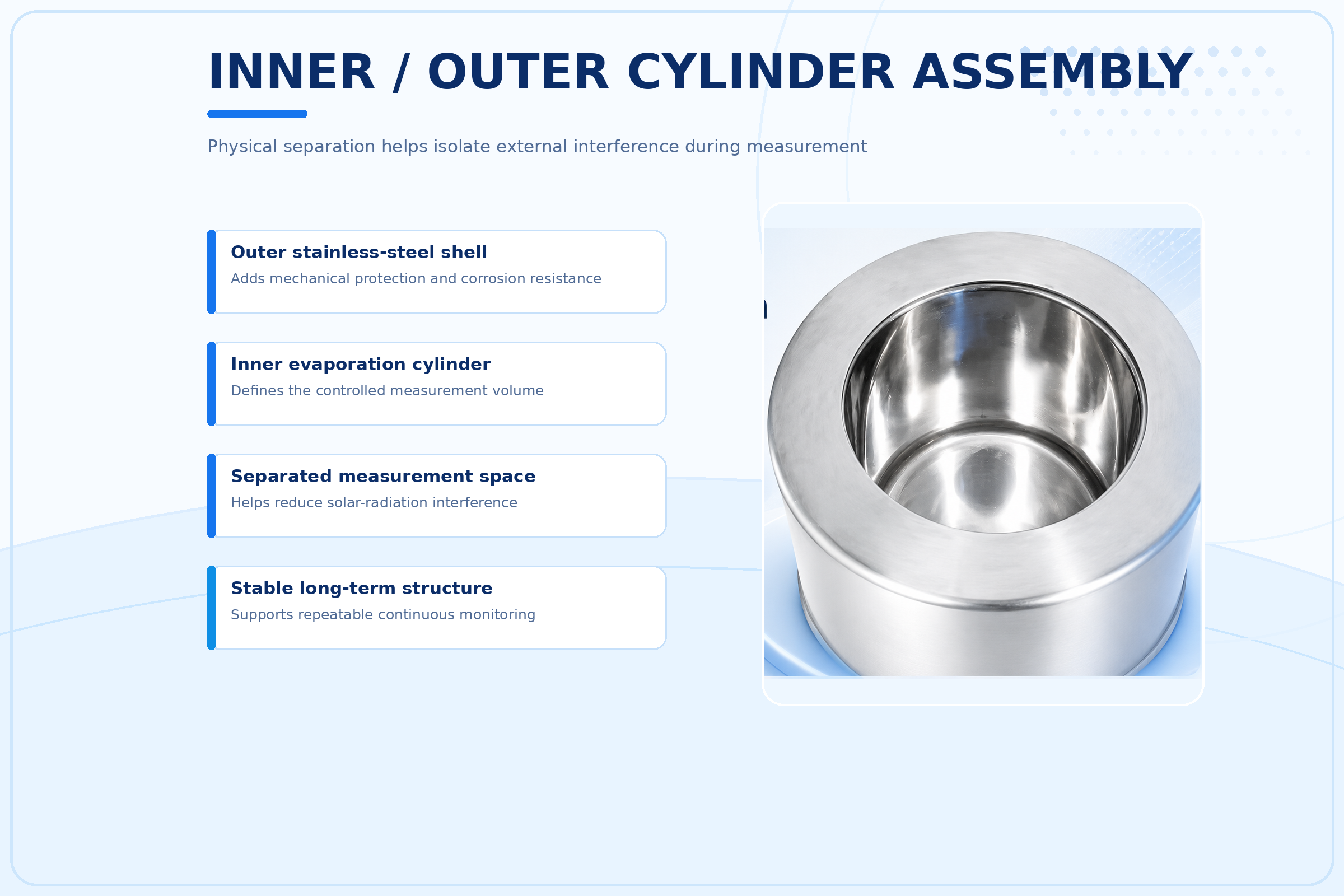

● Double-layer protective structure isolates external interference.
● Wide 10–30 V DC power supply for field integration.
● Bottom cable outlet reduces exposed wiring and simplifies installation.
● Pressure-based weighing principle provides more precise and scientific evaporation measurement.
● Bottom cable outlet reduces exposed wiring and simplifies installation.
● Double-layer protective structure isolates external interference.
● Wide 10–30 V DC power supply for field integration.
● Bottom cable outlet reduces exposed wiring and simplifies installation.
产品概述

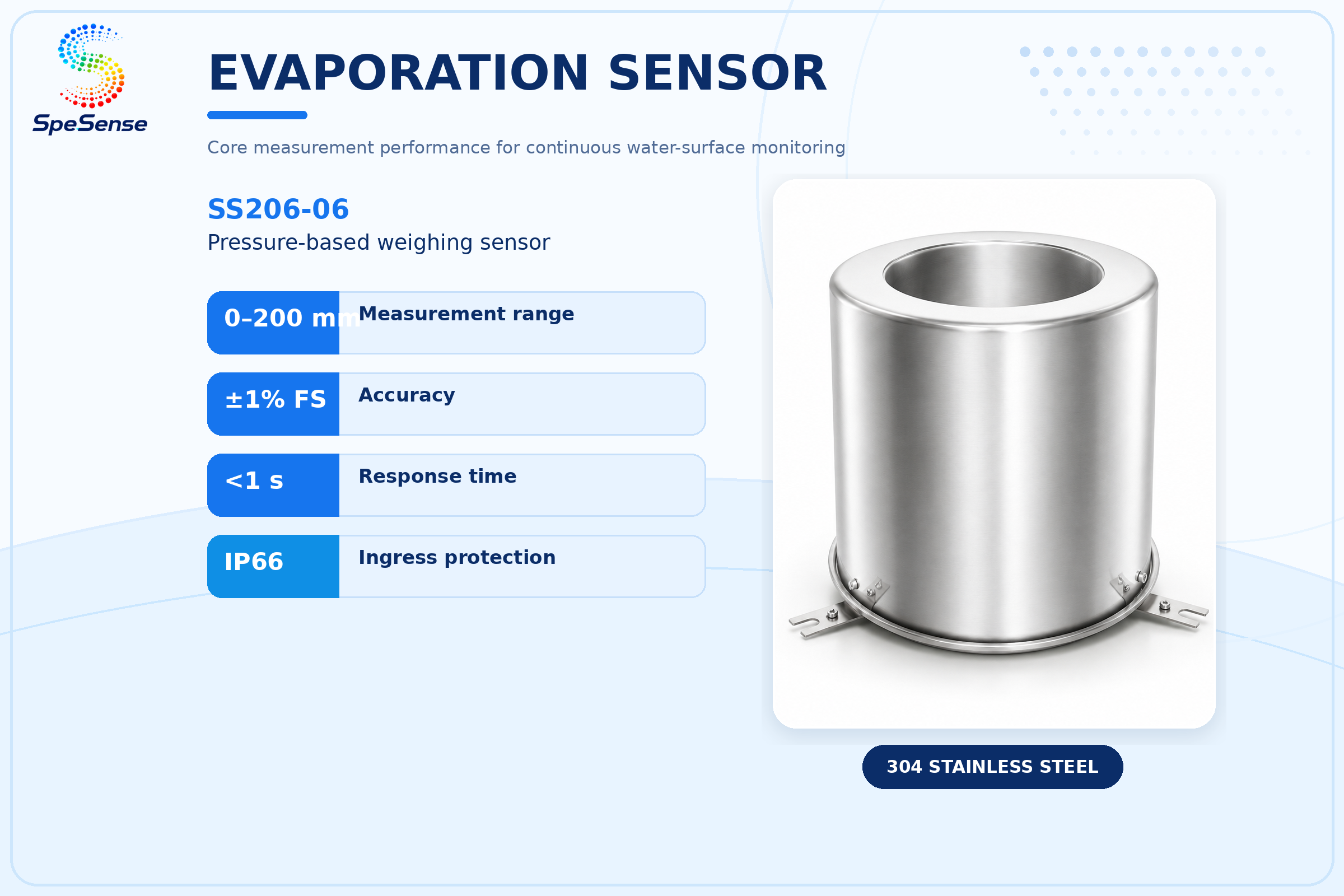

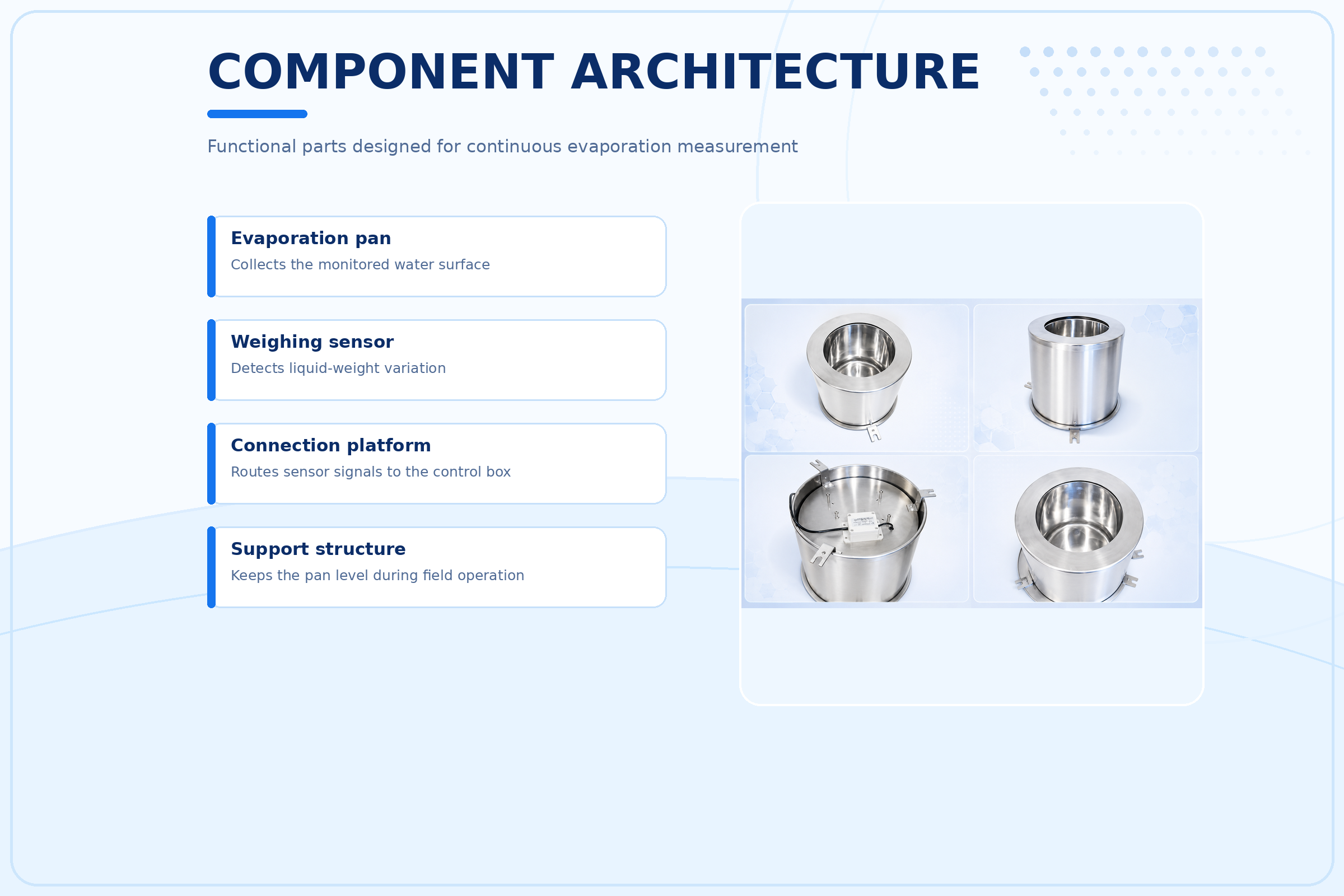

Pressure-type weighing sensor for continuous water-surface evaporation monitoring.

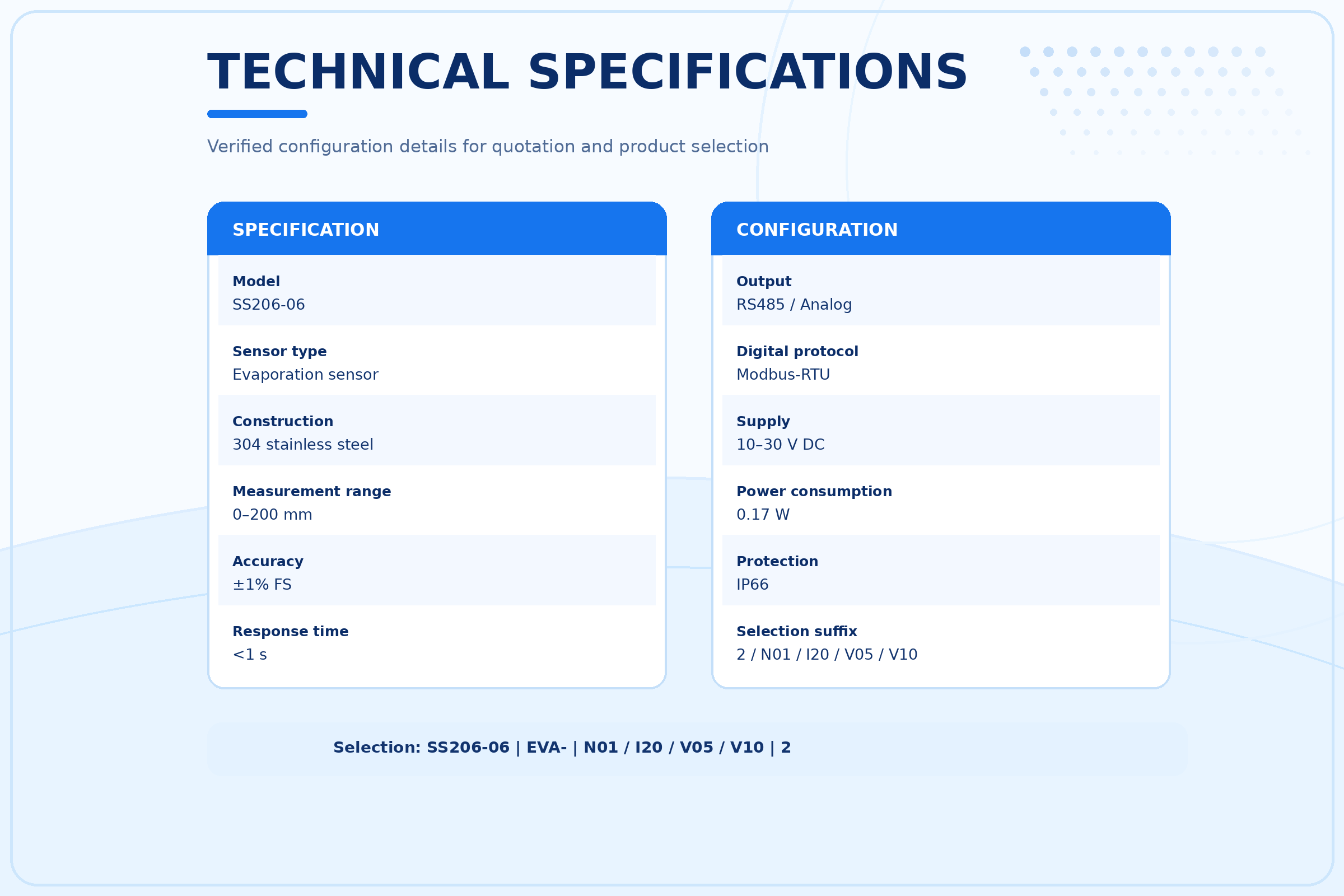

| Item | Specification |
| Power Supply | 10–30 V DC |
| Power Consumption | 0.17 W |
| Measurement Range | 0–200 mm |
| Measurement Accuracy | ±1% FS |
| Response Time | <1 s |

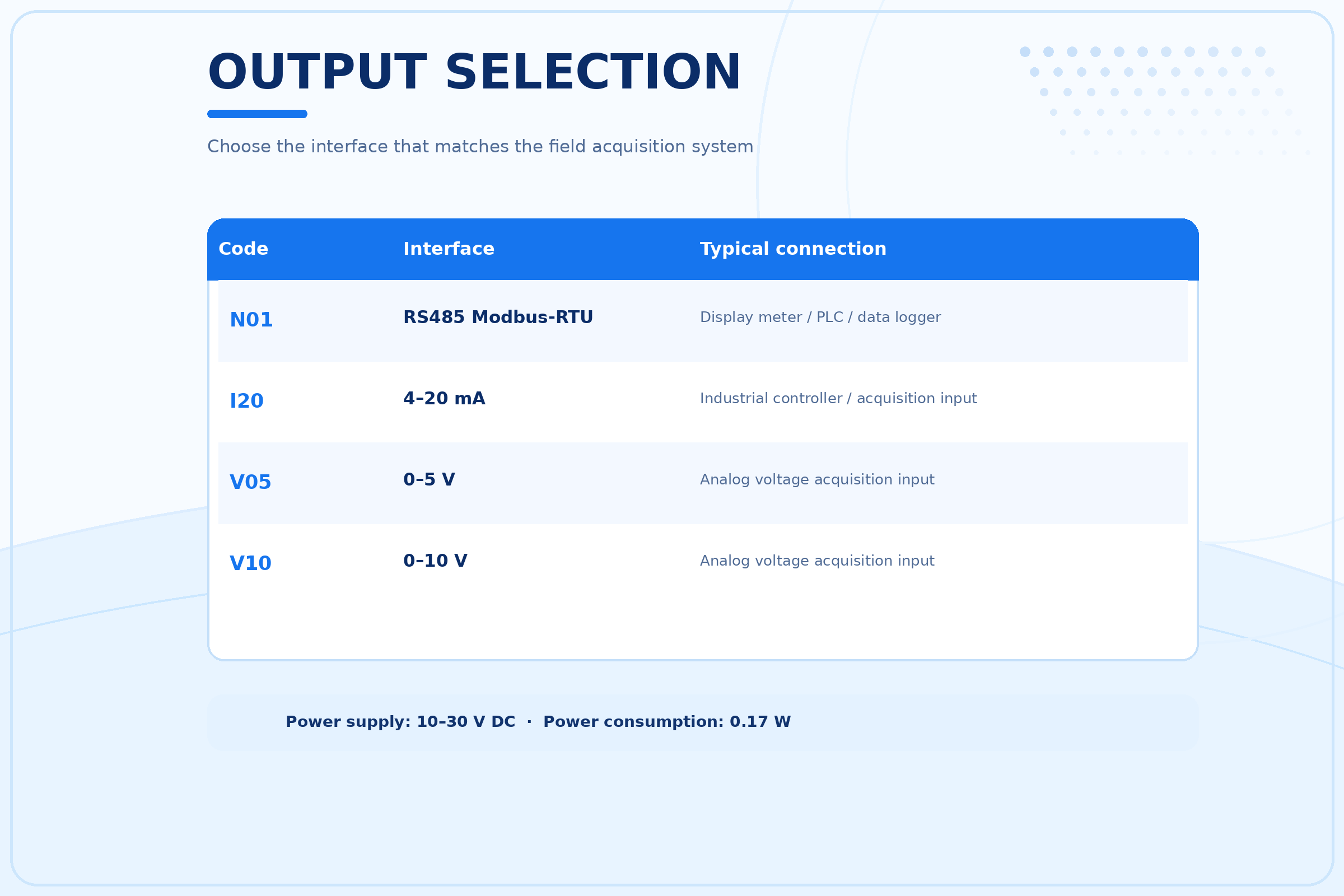

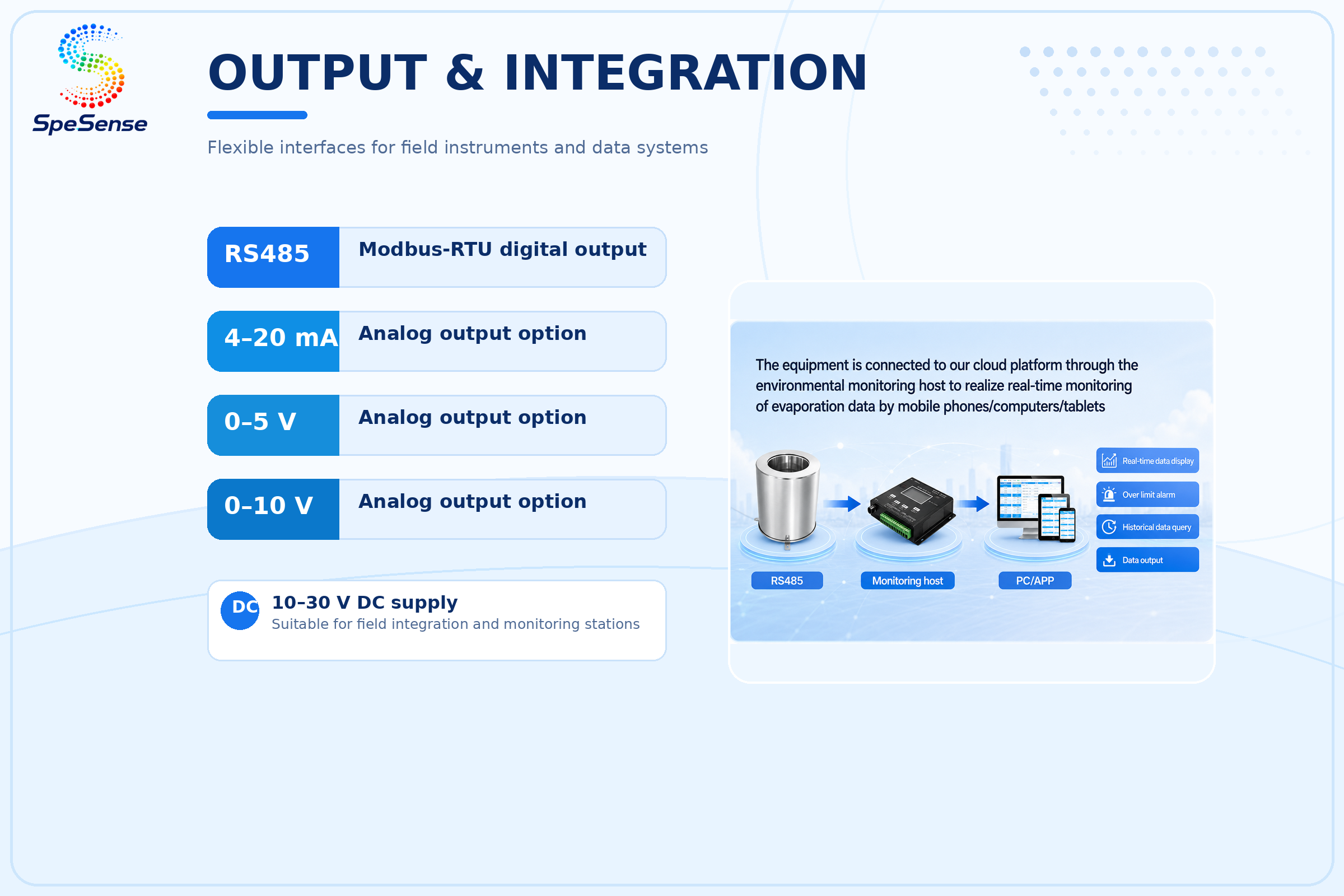

| Output Type | RS485 Modbus-RTU; 4–20 mA / 0–5 V / 0–10 V options |
| Ingress Protection | IP66 |

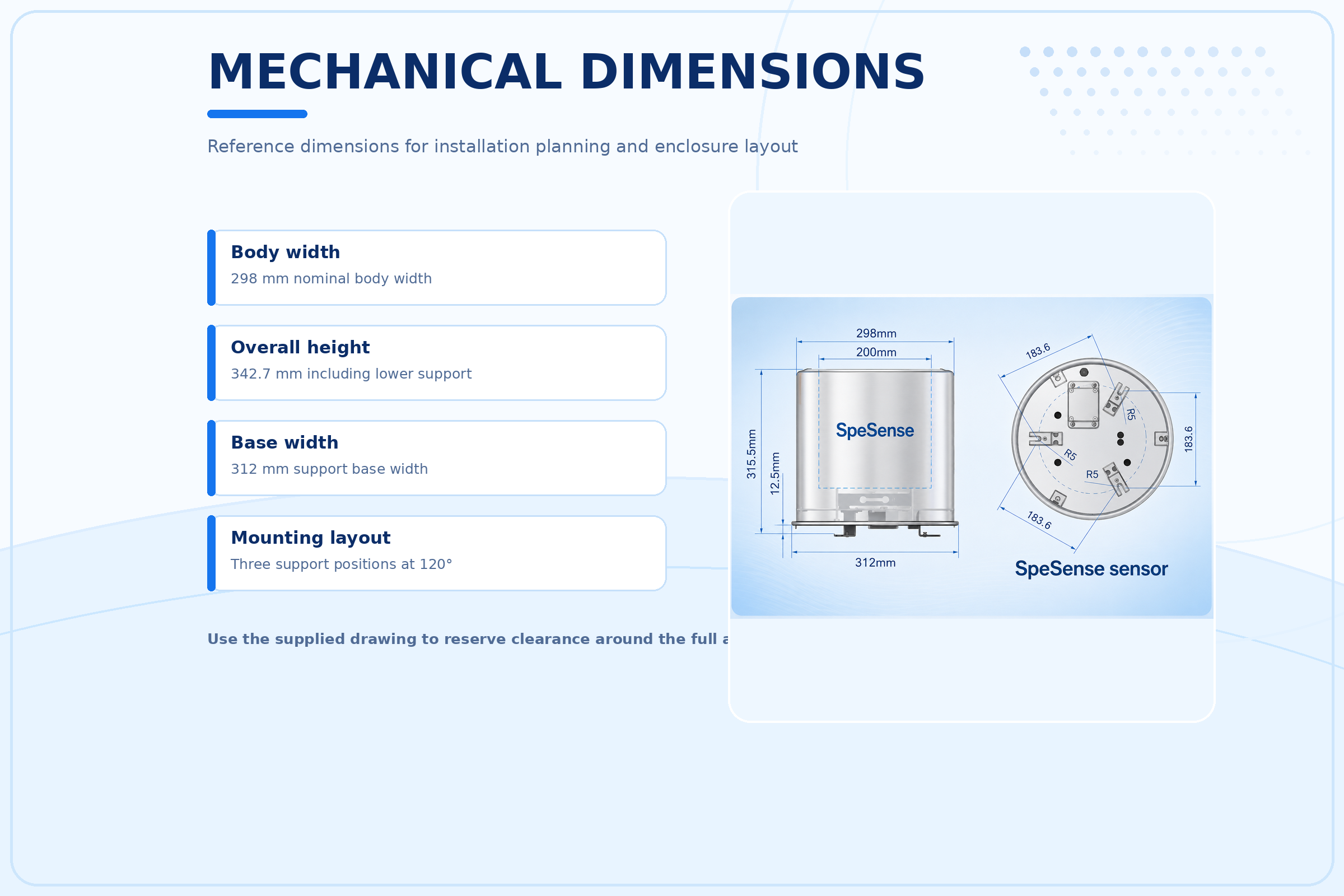

| Inner Cylinder Diameter | 18.4 cm |
| Inner Cylinder Height | 20 cm |

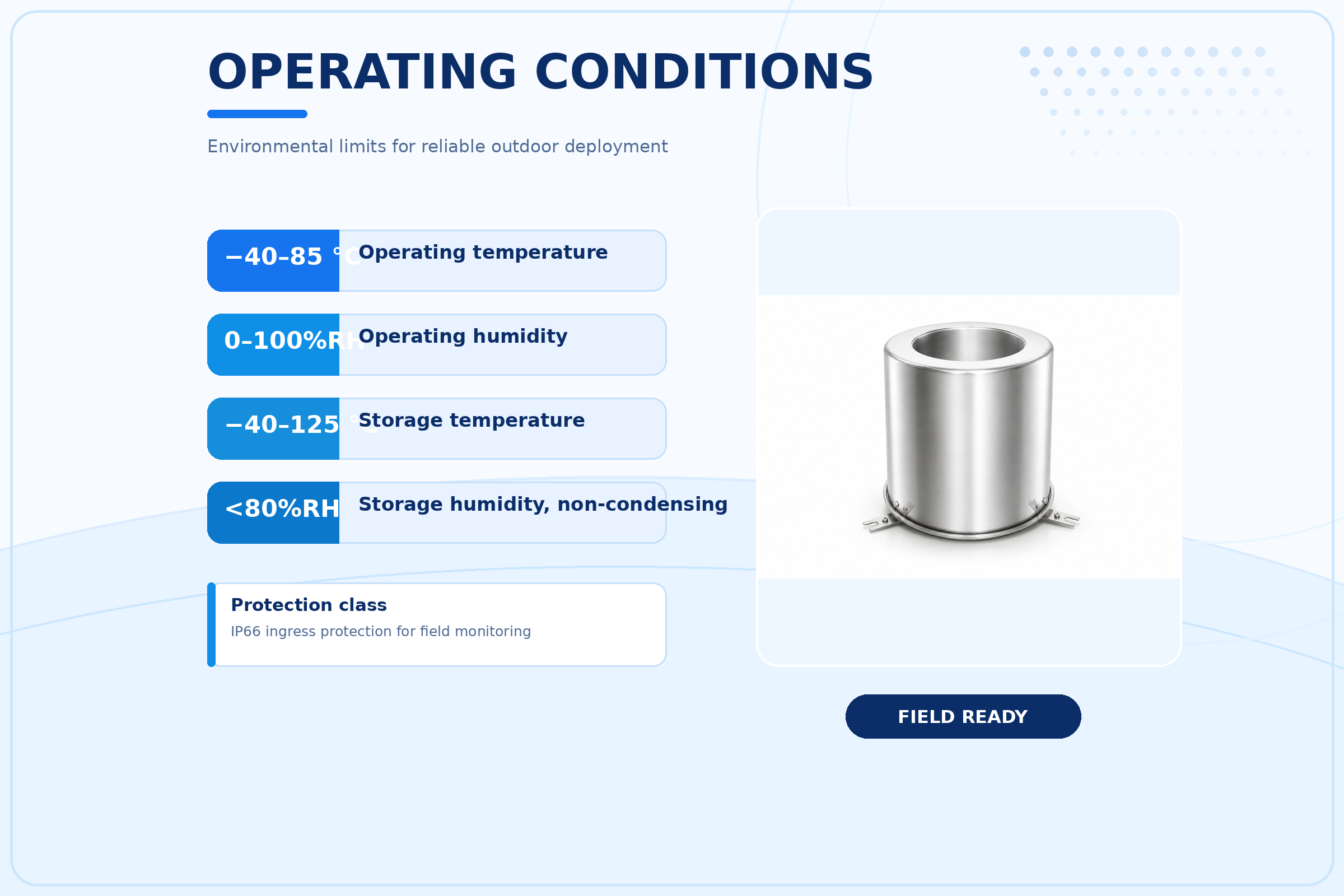

| Operating Temperature | −40 to 85 °C |
| Operating Humidity | 0–100%RH |
| Storage Temperature | −40 to 125 °C |
| Storage Humidity | <80% (non-condensing) |
| Construction | 304 stainless steel |
