Rain Gauge Sensor
SS206-05

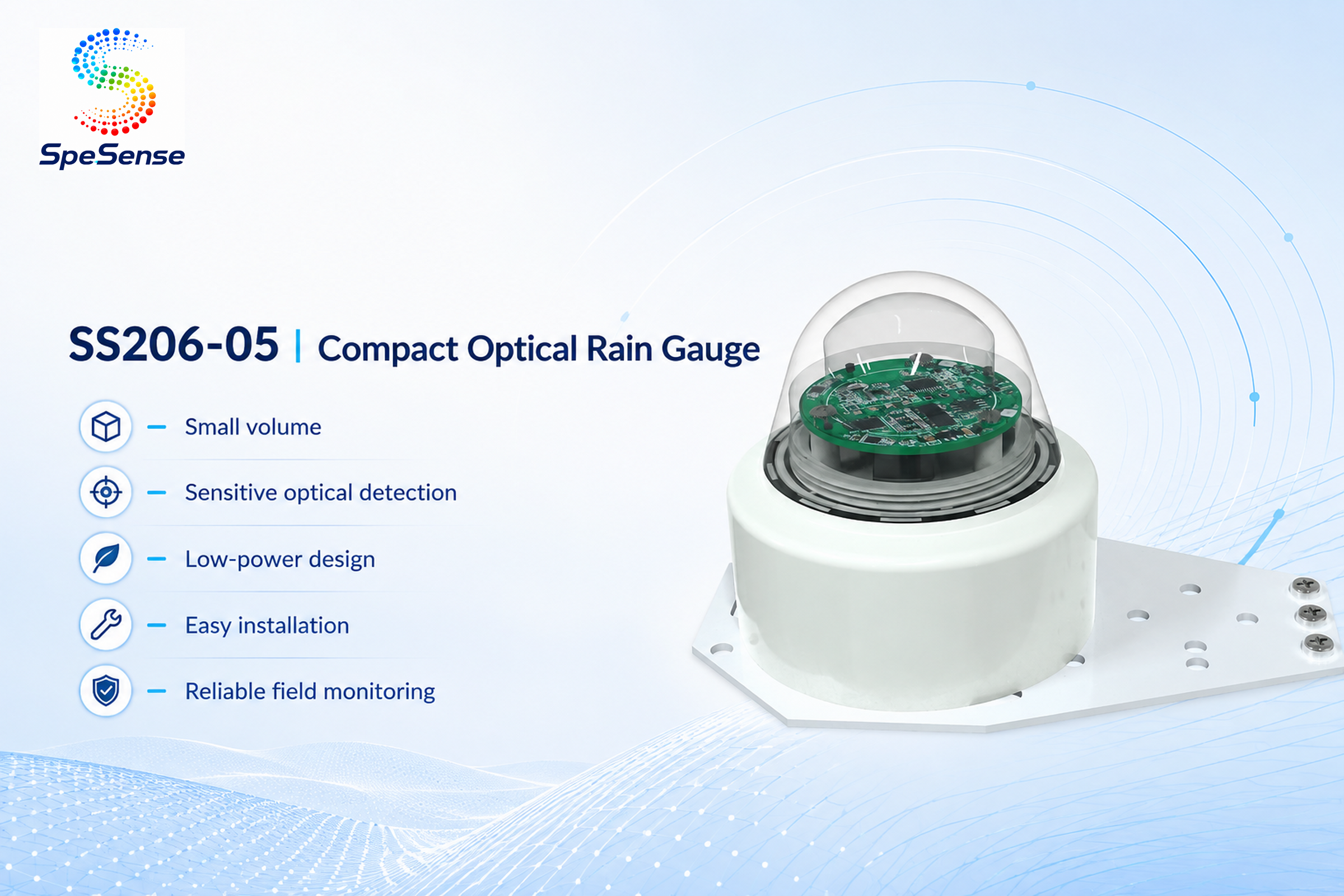

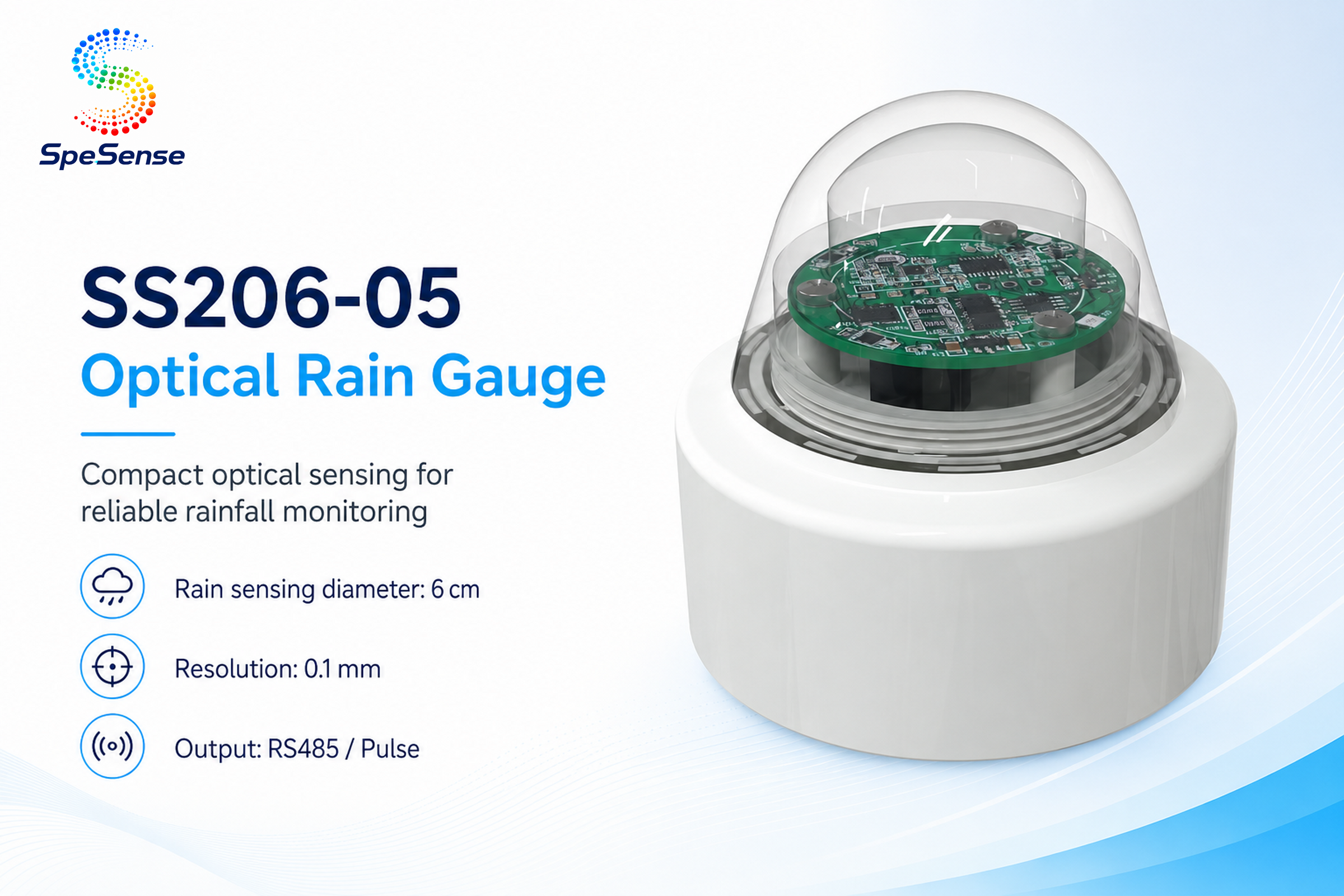

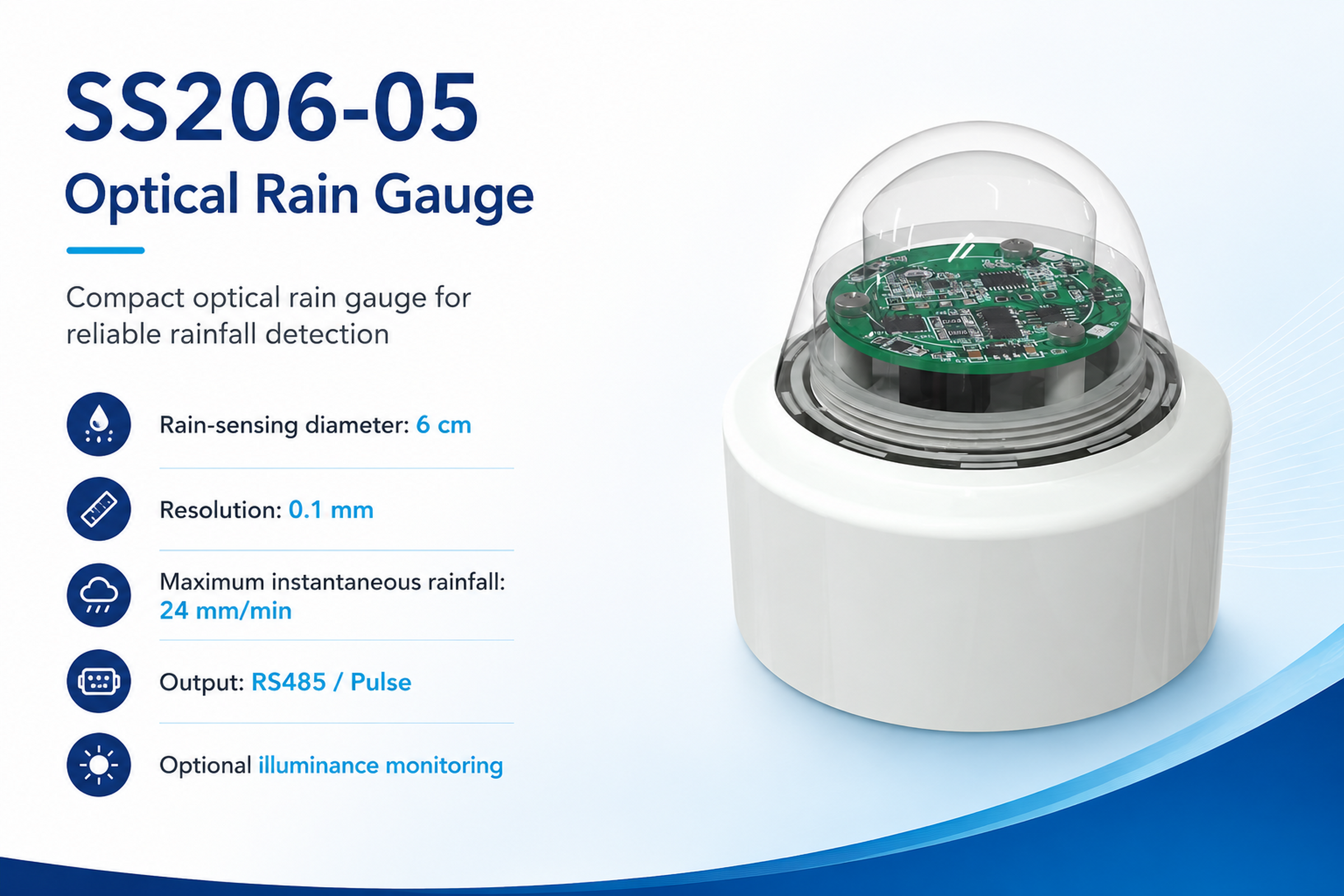

Optical Rain Gauge
Product Highlights
● Small size,light weight and simple installation.
● Low-power design for energy-saving field deployment.
● High reliability in high-temperature and high humidity environments.

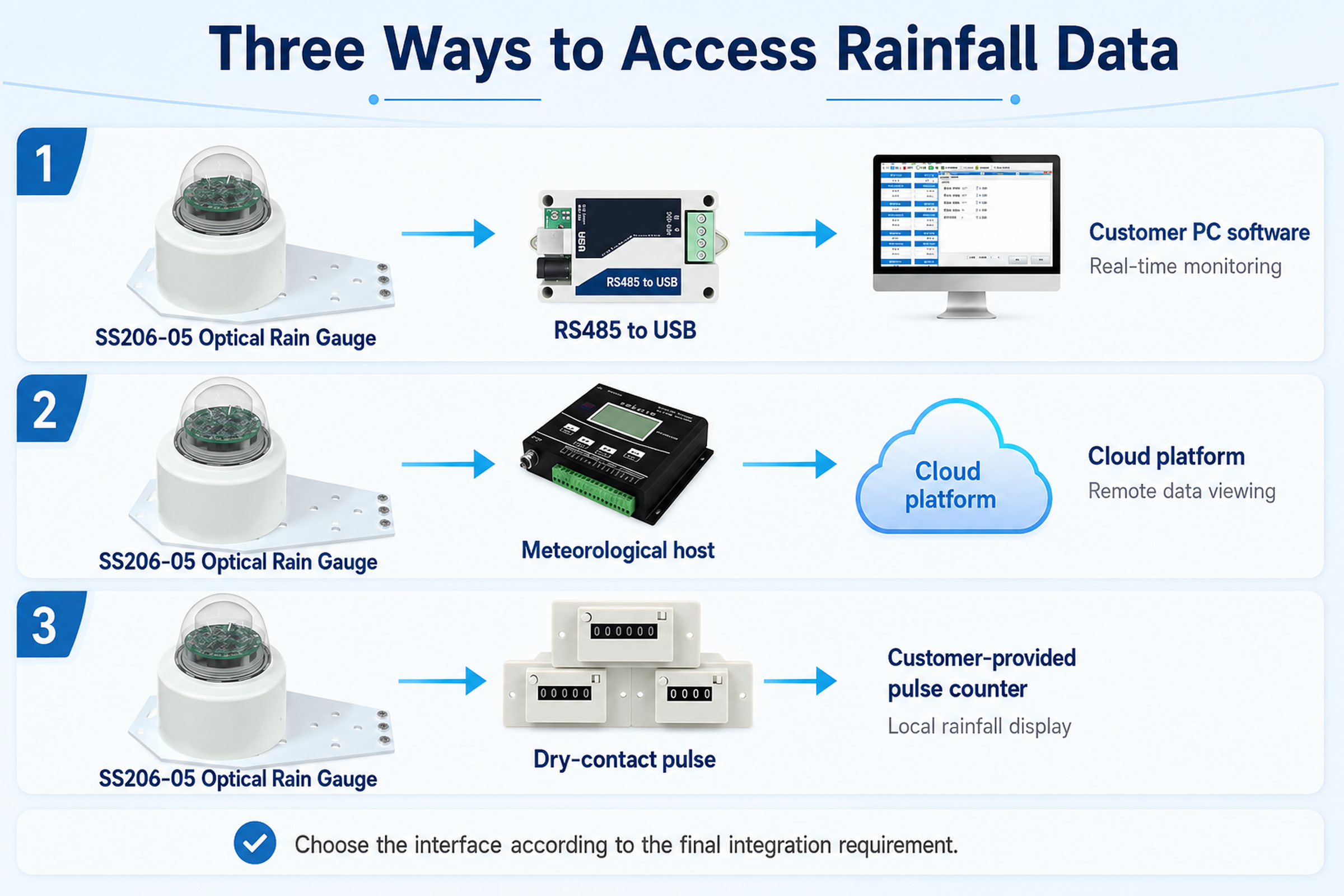

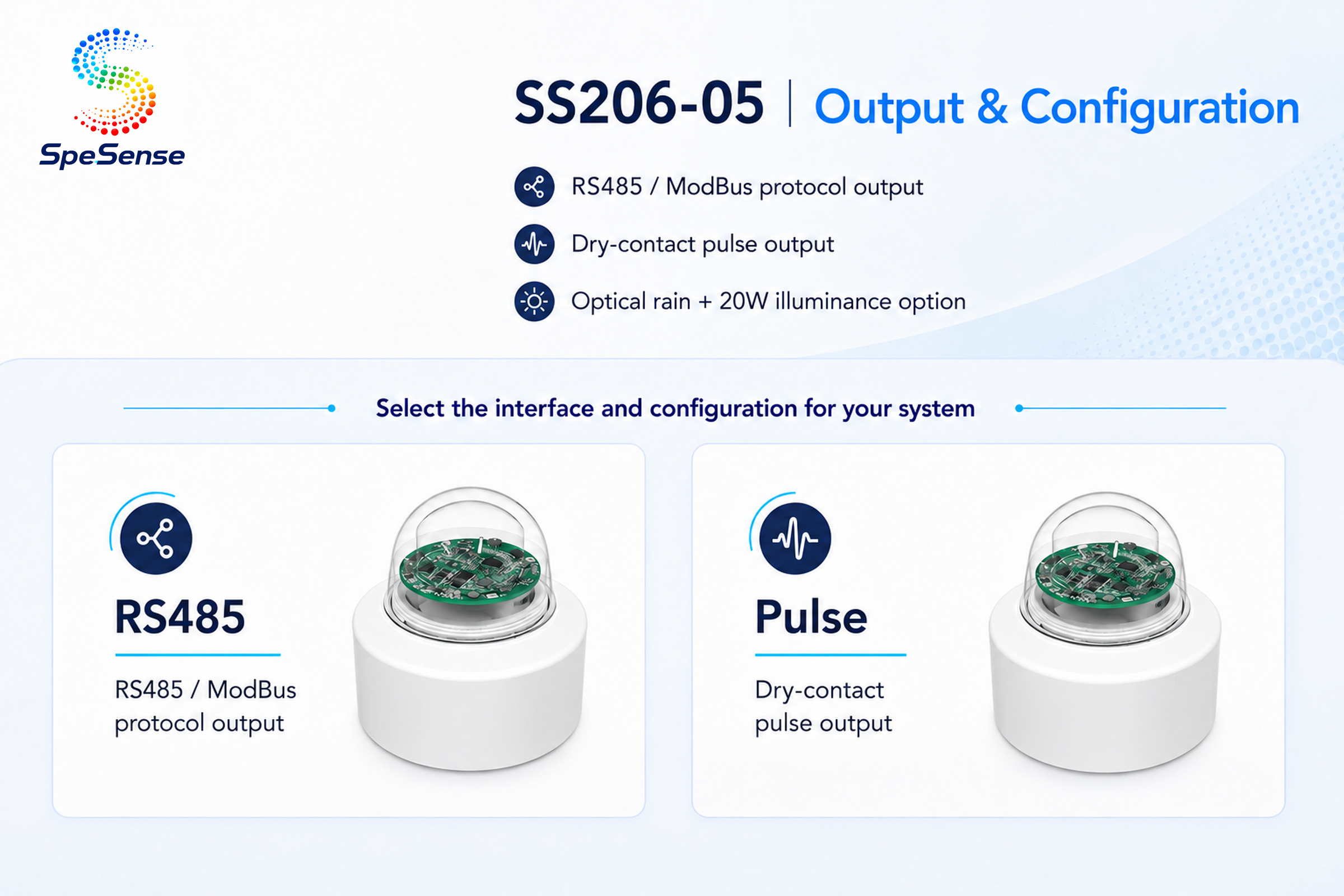

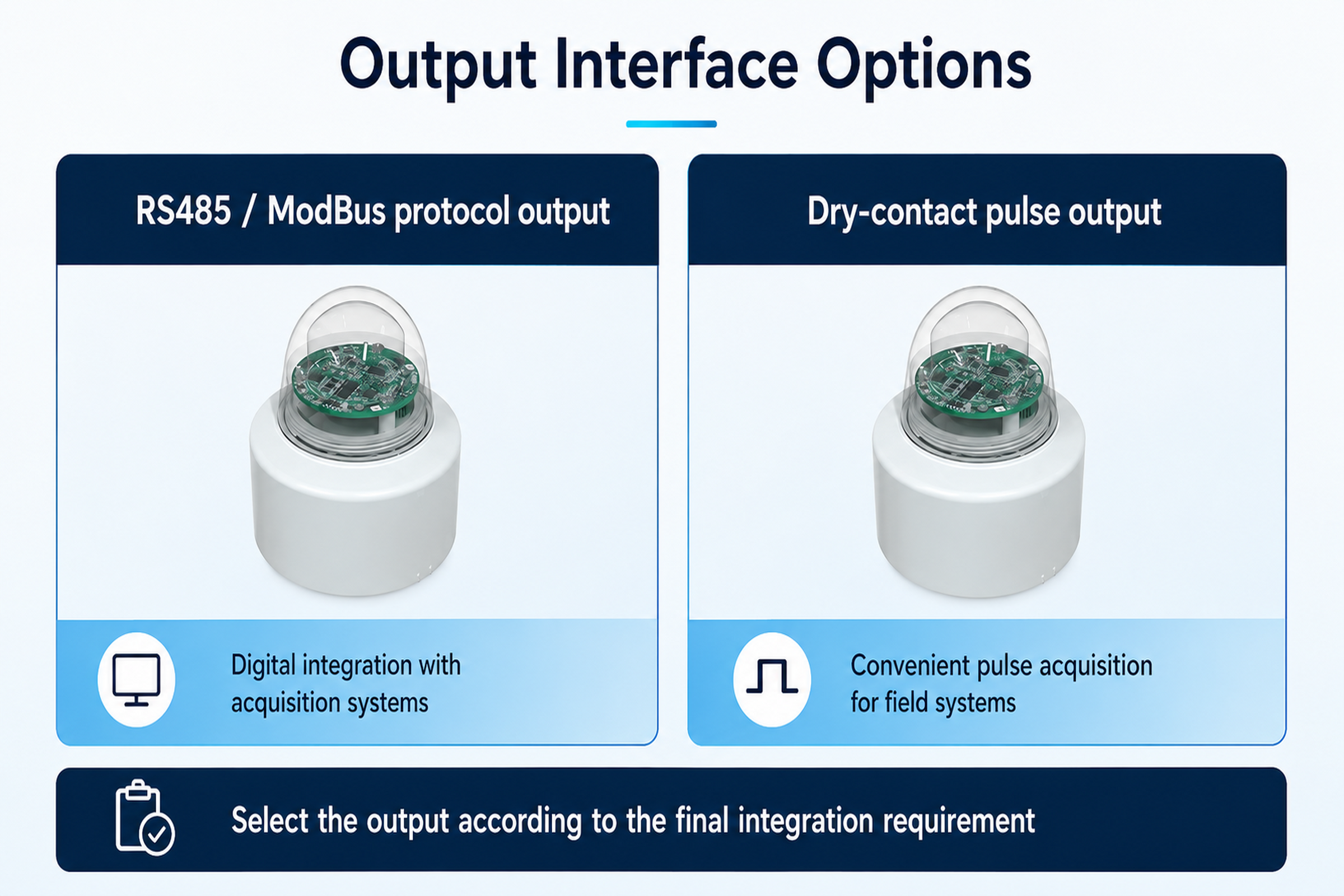

● Optical measurement with dry-contact pulse output for convenient acquisition.
● Low-power design for energy-saving field deployment.
● High reliability in high-temperature and high humidity environments.
● Optical measurement with dry-contact pulse output for convenient acquisition.
Product Overview

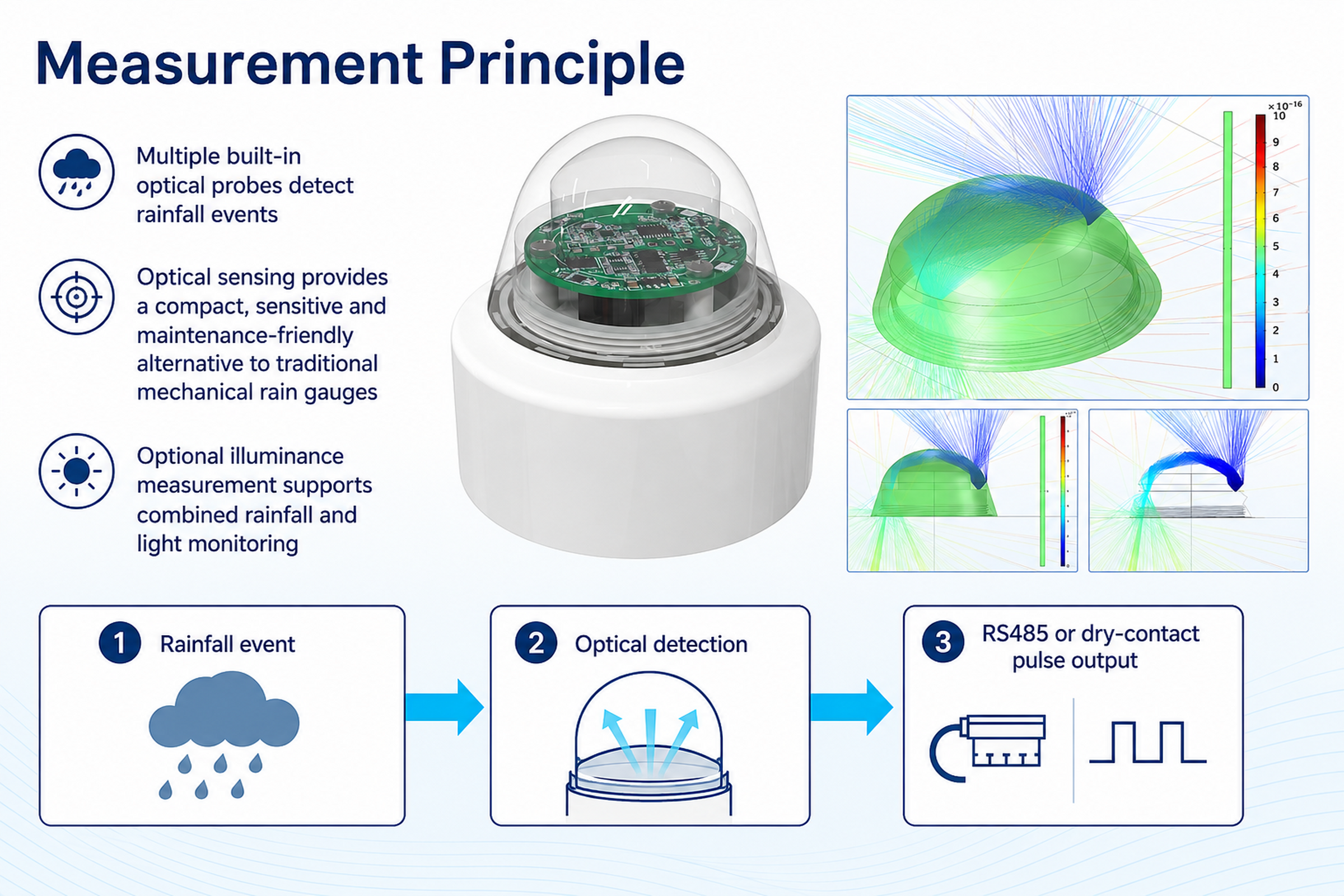

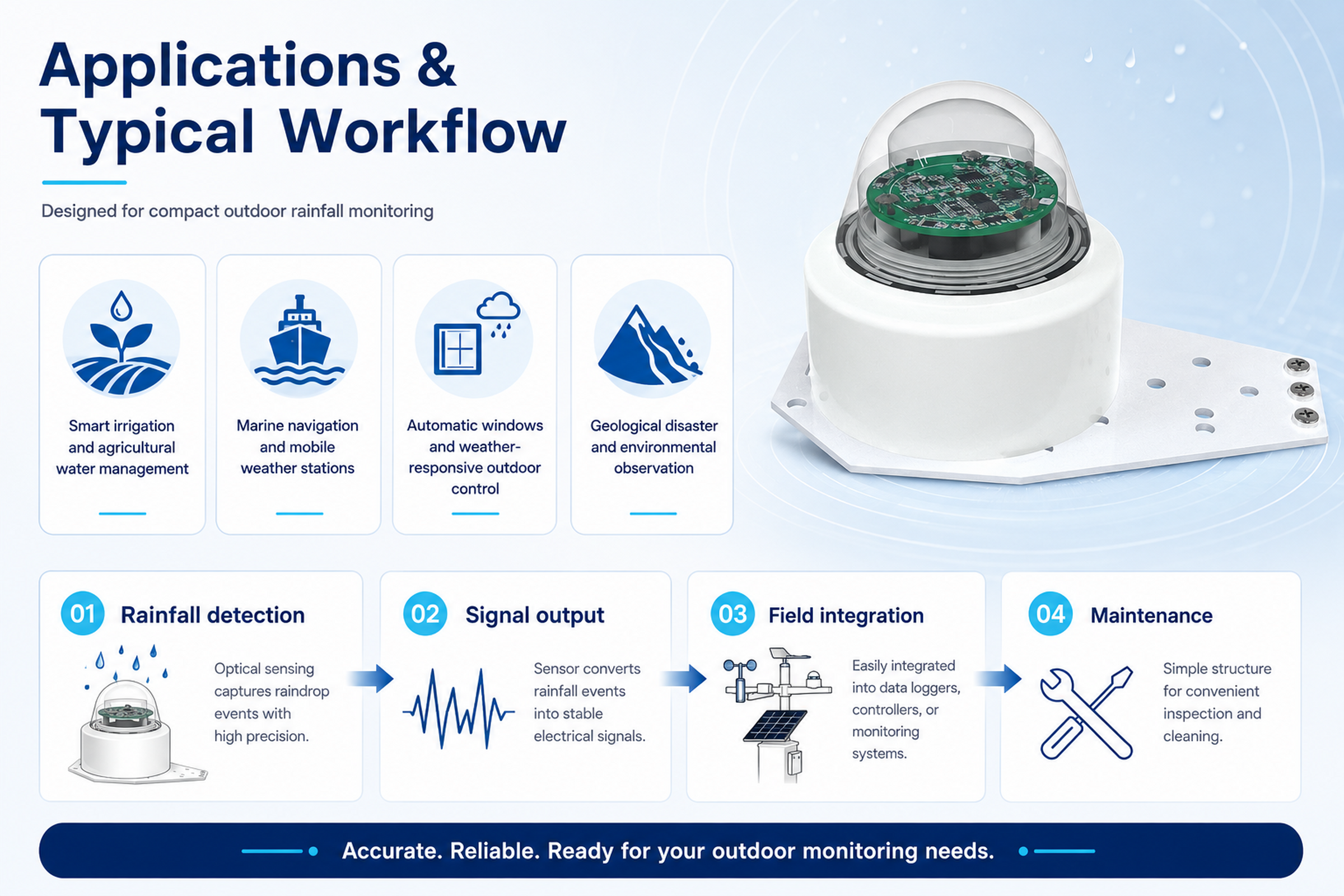

The SpeSense SS206-05 Optical Rain Gauge is designed for rainfall detection and monitoring using optical sensing technology. It provides an alternative to conventional mechanical rain gauges for environmental monitoring systems that require precipitation detection and data collection. The sensor is suitable for automatic weather stations, agricultural meteorology, outdoor environmental monitoring and smart monitoring networks where optical rainfall sensing can support weather observation and automated data acquisition.

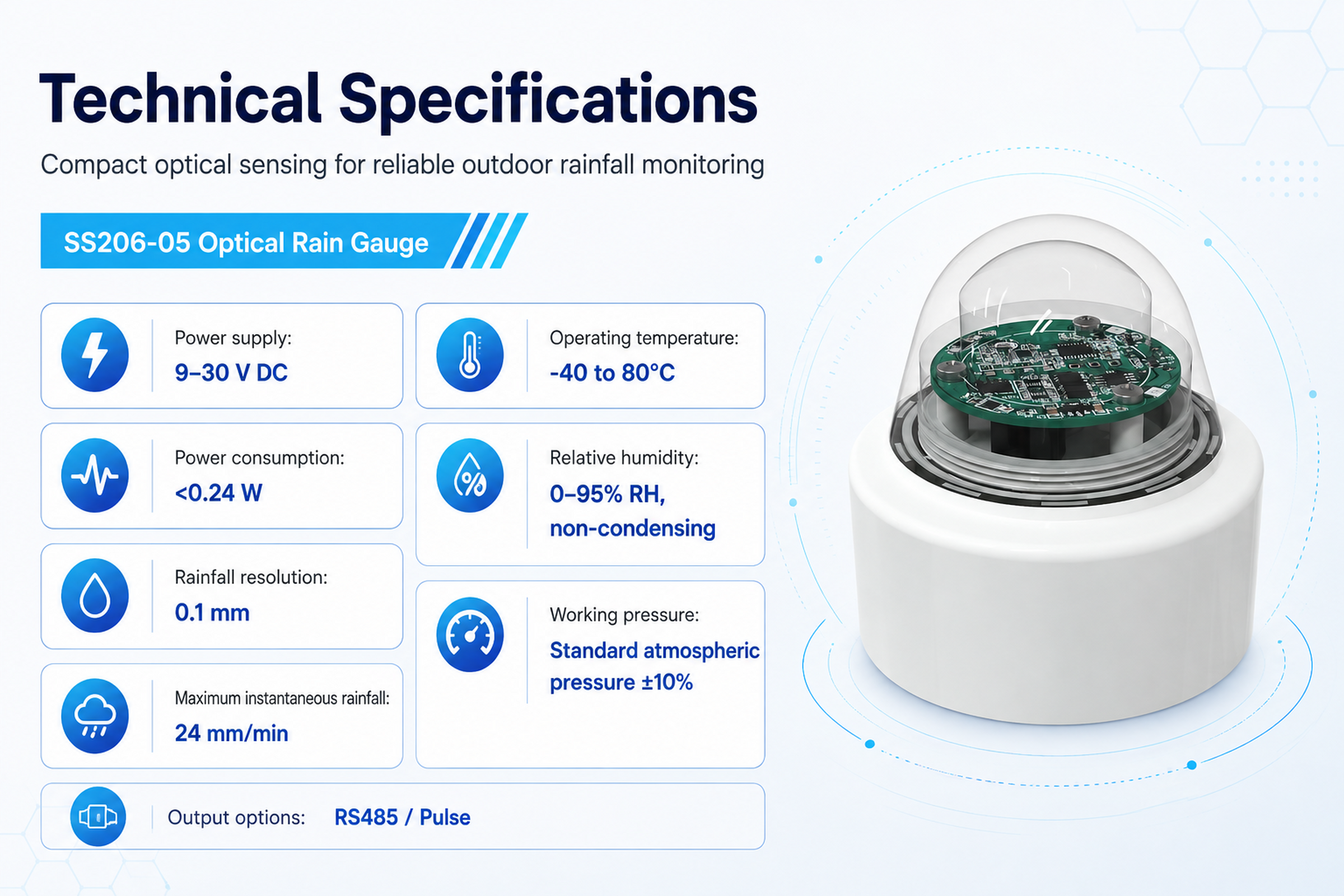

| Item | Specification |

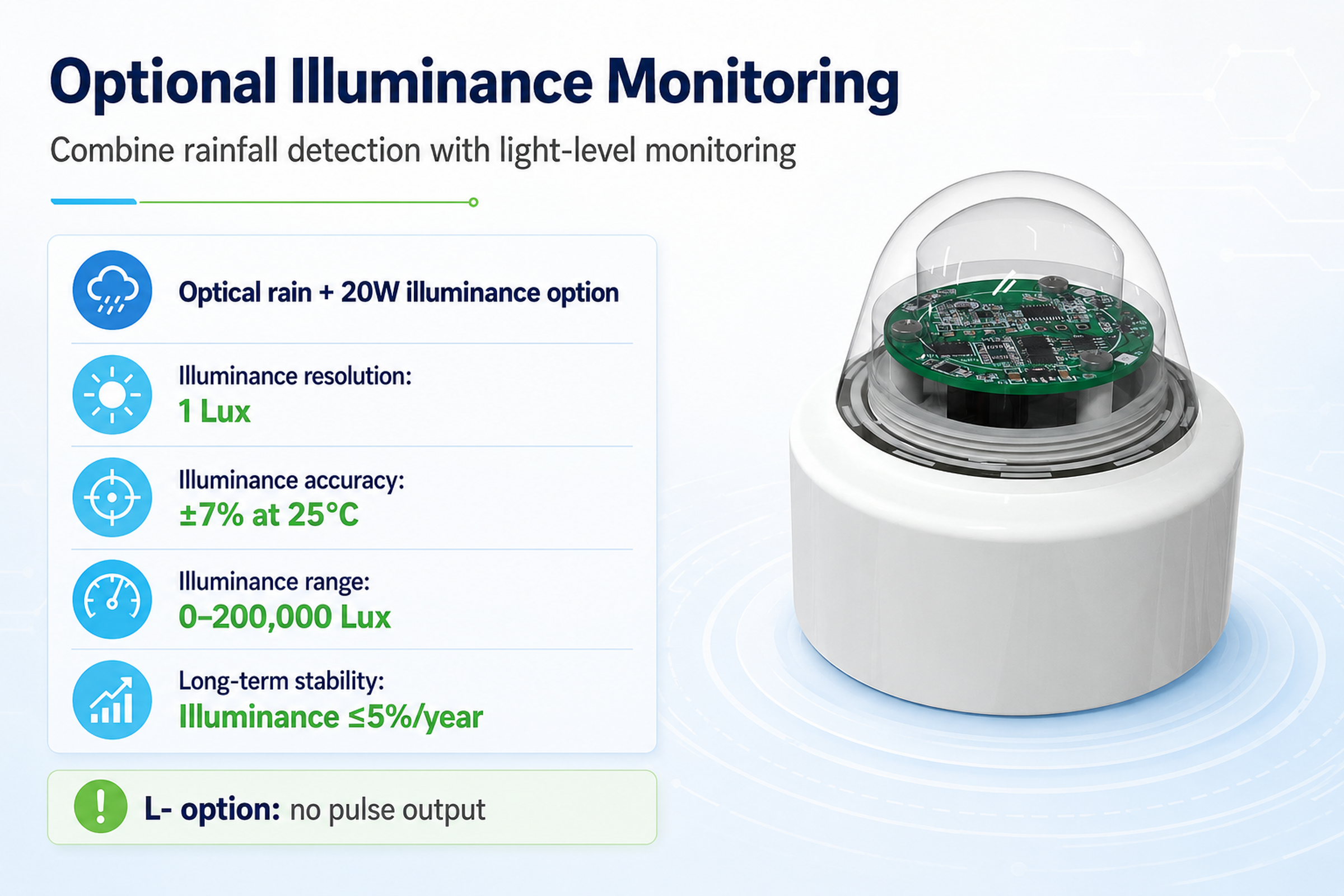

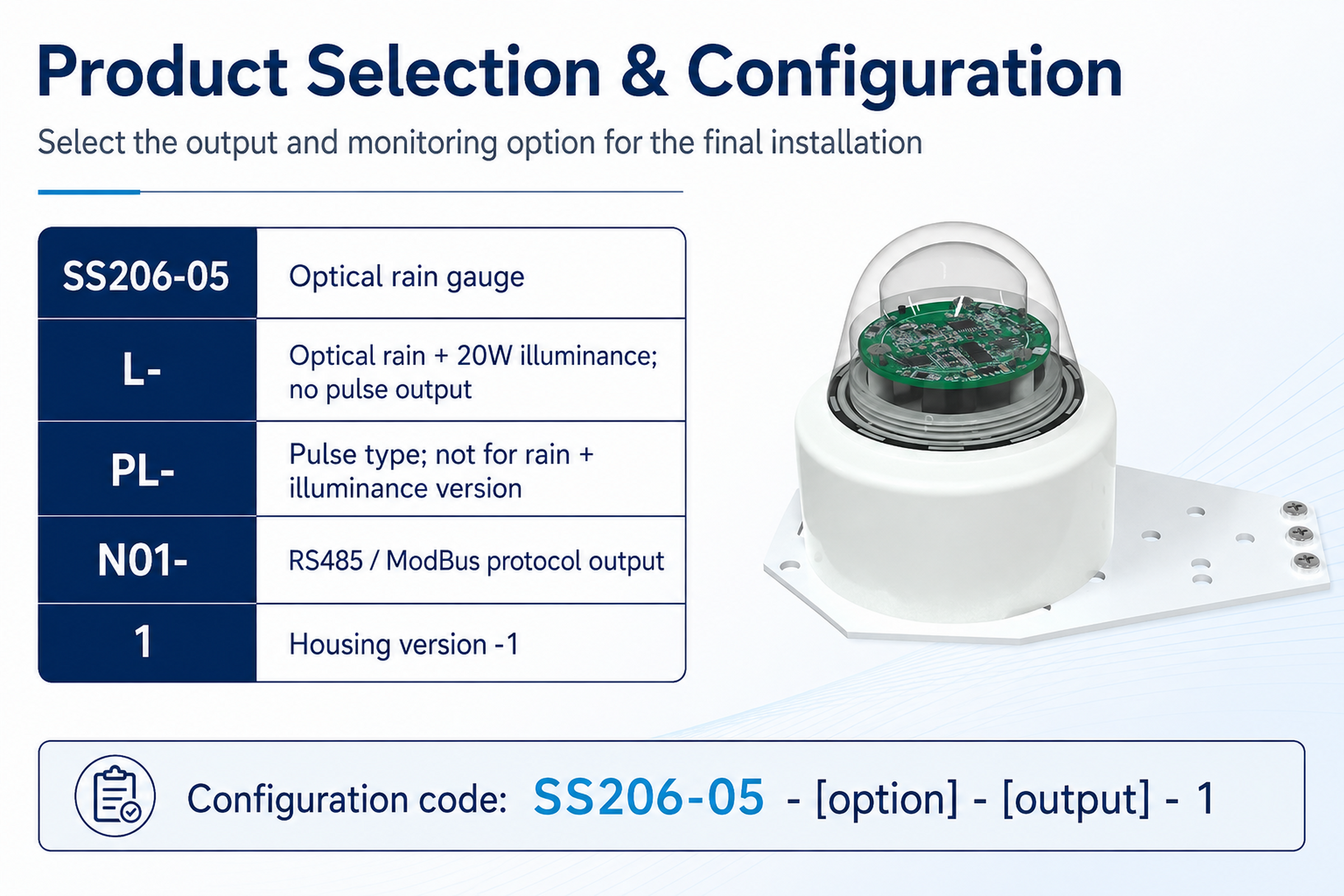

| Product Type | Optical Rain Gauge / Optical Rain Gauge + 20W Illuminance option |
| Rain-sensing Diameter | 6 cm |
| Power Supply | 9-30 V DC |
| Power Consumption | <0.24 W |
| Rainfall Resolution | Standard 0.1 mm |
| Maximum Instantaneous Rainfall | 24 mm/min |
| Transmitter Temperature / Humidity | -40 to 80°C, 0-95% relative humidity, non-condensing |
| Working Pressure Range | Standard atmospheric pressure ±10% |
