Rain Gauge Sensor
SS206-04
称重式雨量计
产品亮点
● Wide precipitation intensity range up to 1800 mm/h.
● Heating option enables snow measurement and prevents winter freezing.
● Automatic drainage when water volume reaches 80%of capacity.

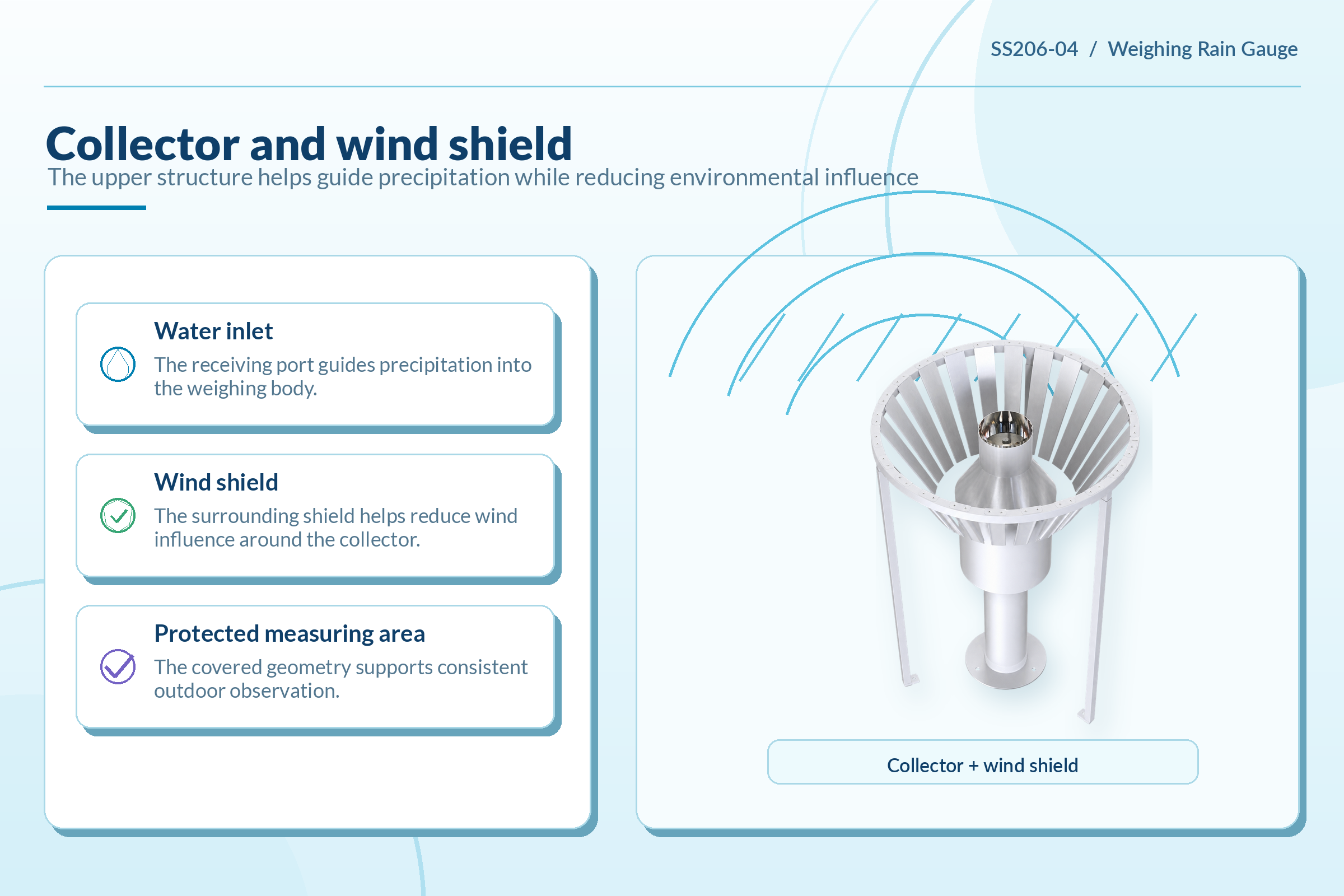

● Convex housing design reduces wind influence and evaporation.
● RS485 Modbus-RTU and pulse outputs for flexible data acquisition.
● Heating option enables snow measurement and prevents winter freezing.
● Automatic drainage when water volume reaches 80%of capacity.
● Convex housing design reduces wind influence and evaporation.
● RS485 Modbus-RTU and pulse outputs for flexible data acquisition.
产品概述

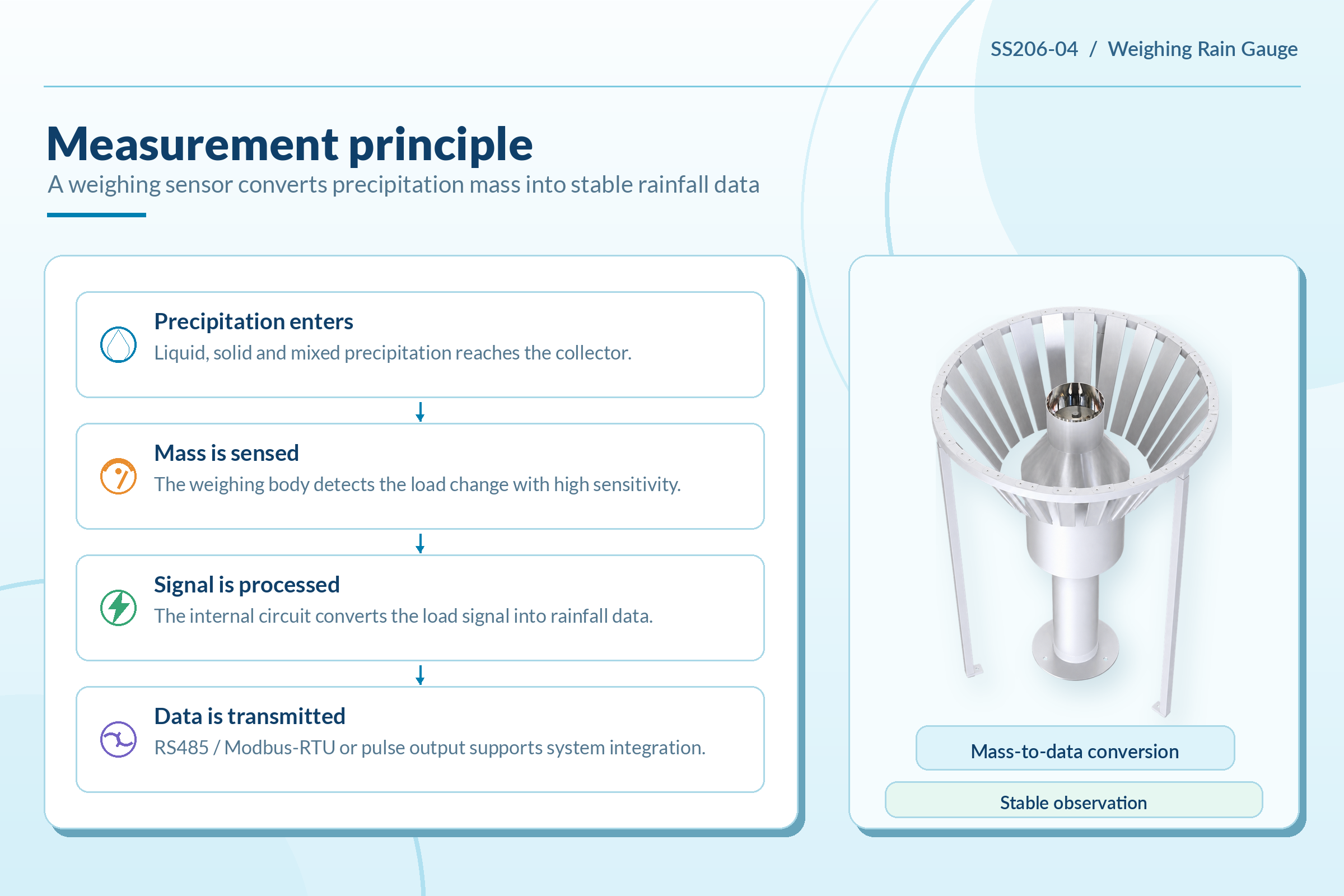

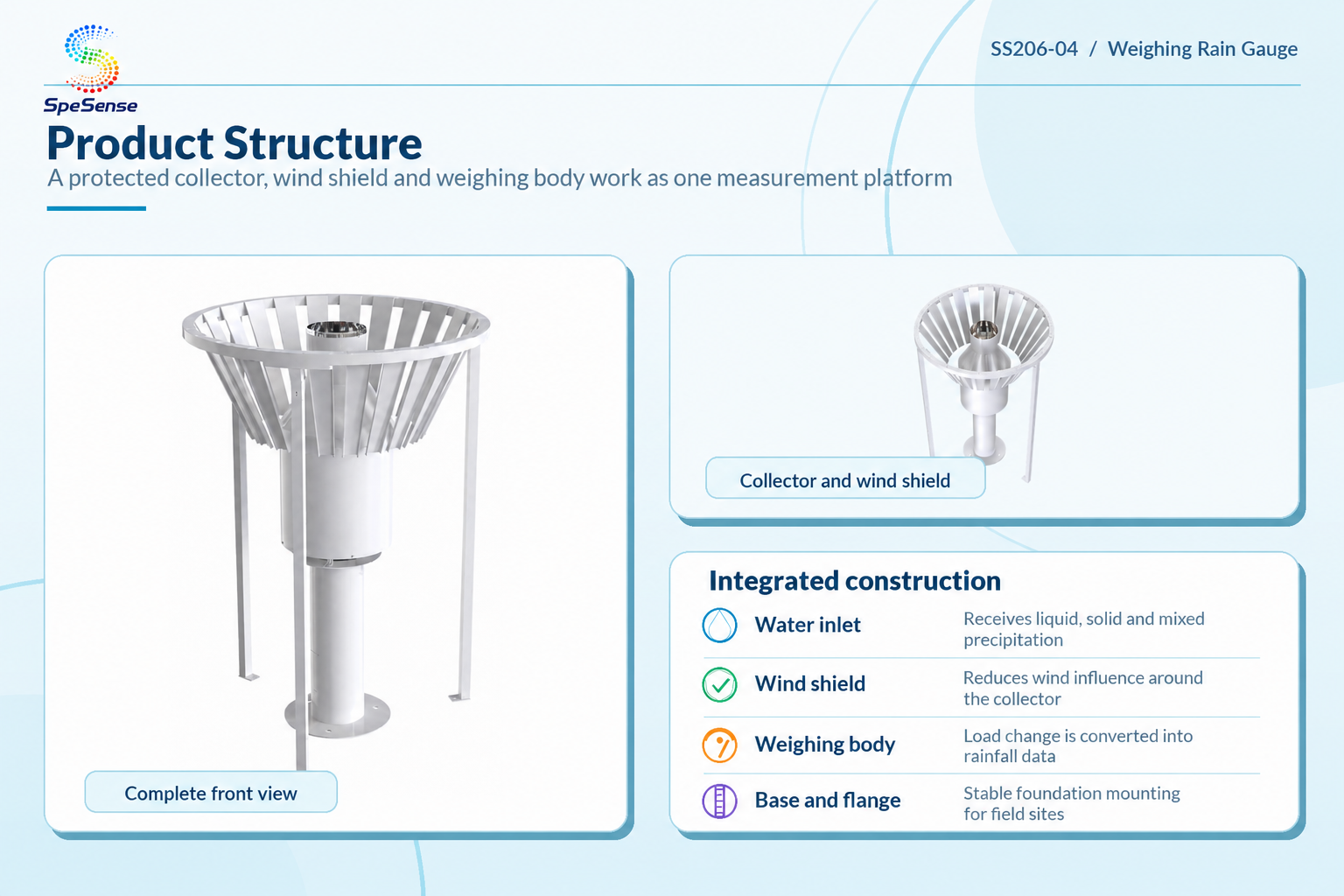

• SS206-04 uses weighing technology and a high-precision sensor to measure precipitation intensity and accumulated precipitation.

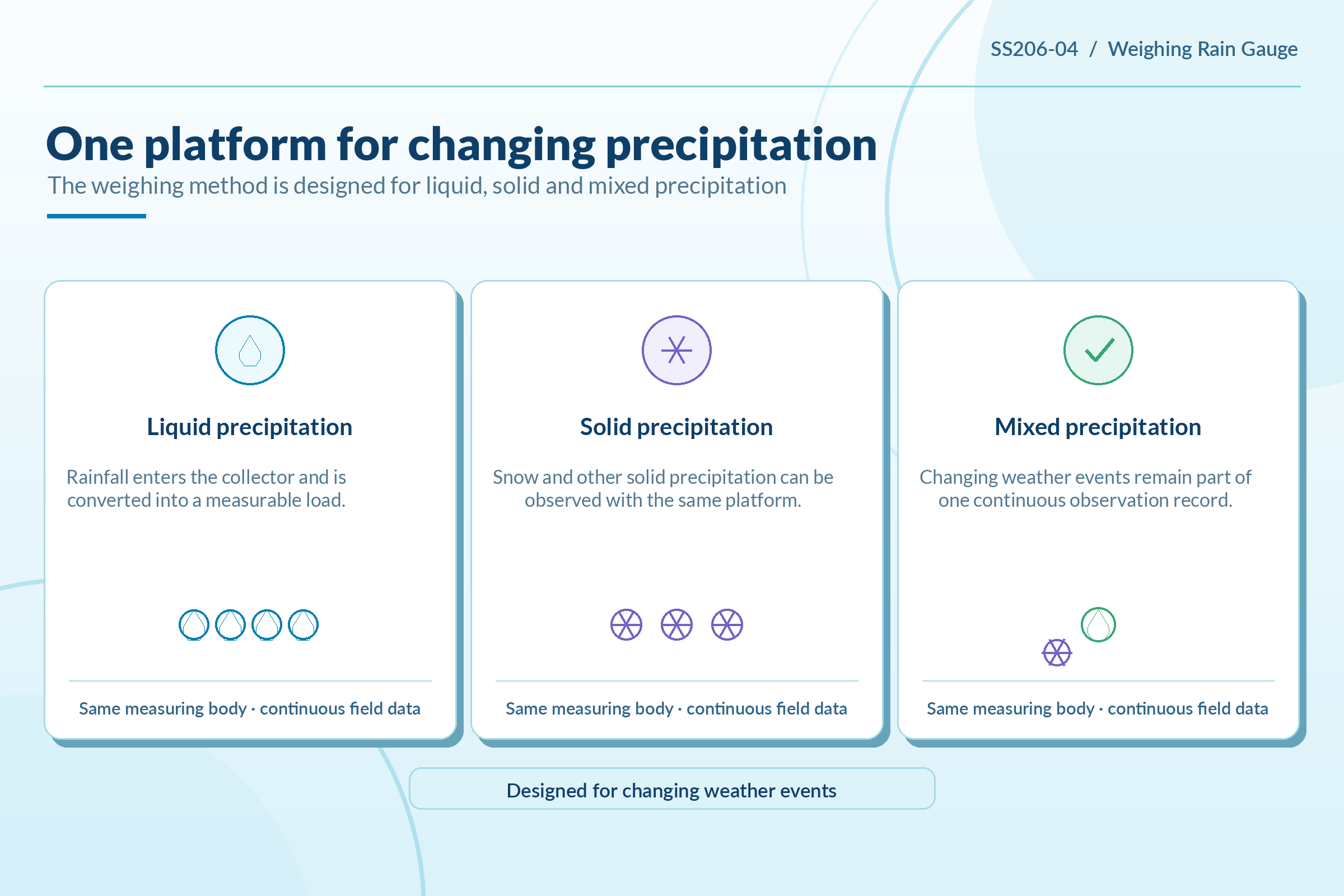

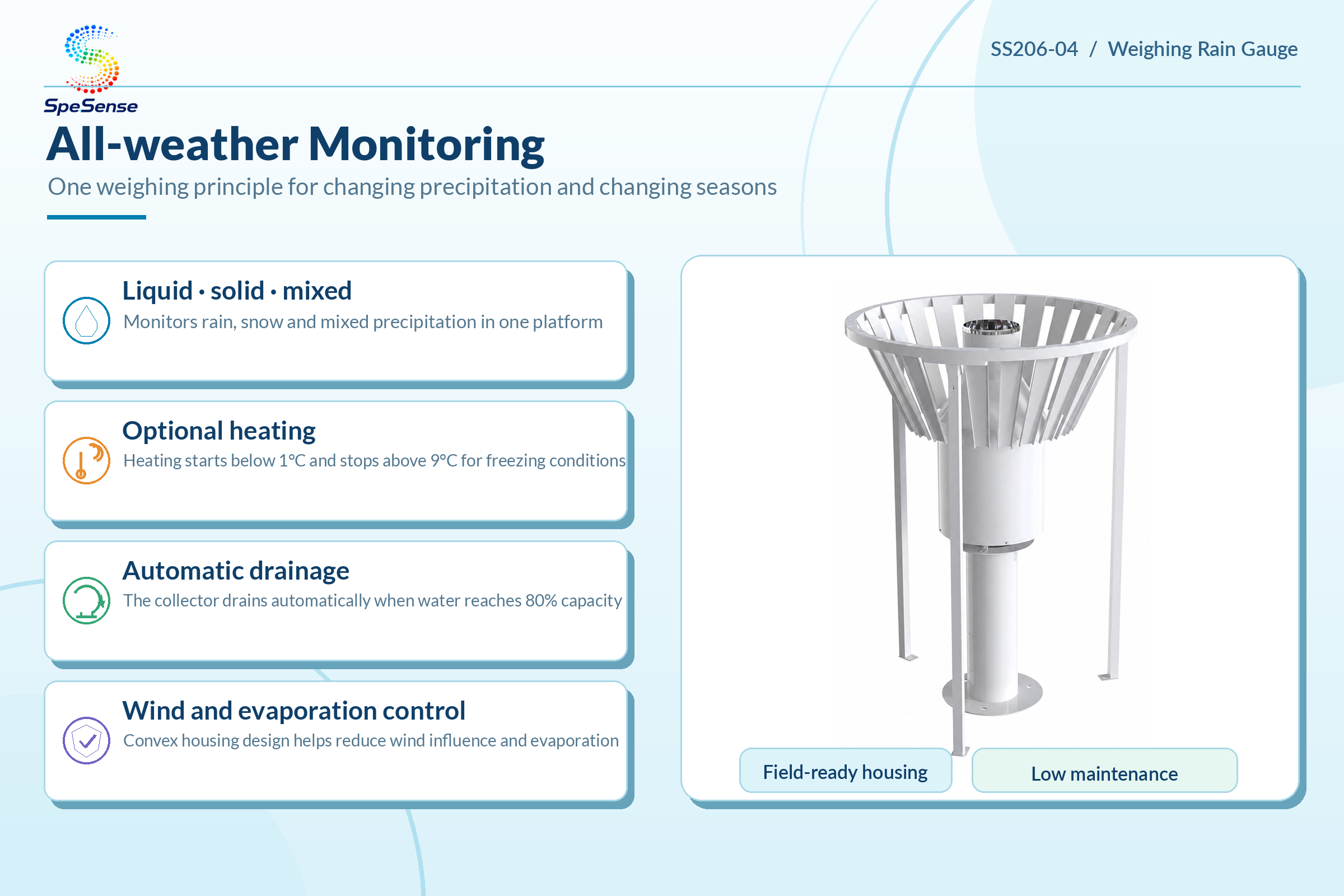

• It supports all-type precipitation monitoring, including solid, liquid and mixed precipitation, and can be equipped with an automatic heating option for cold and freezing conditions.

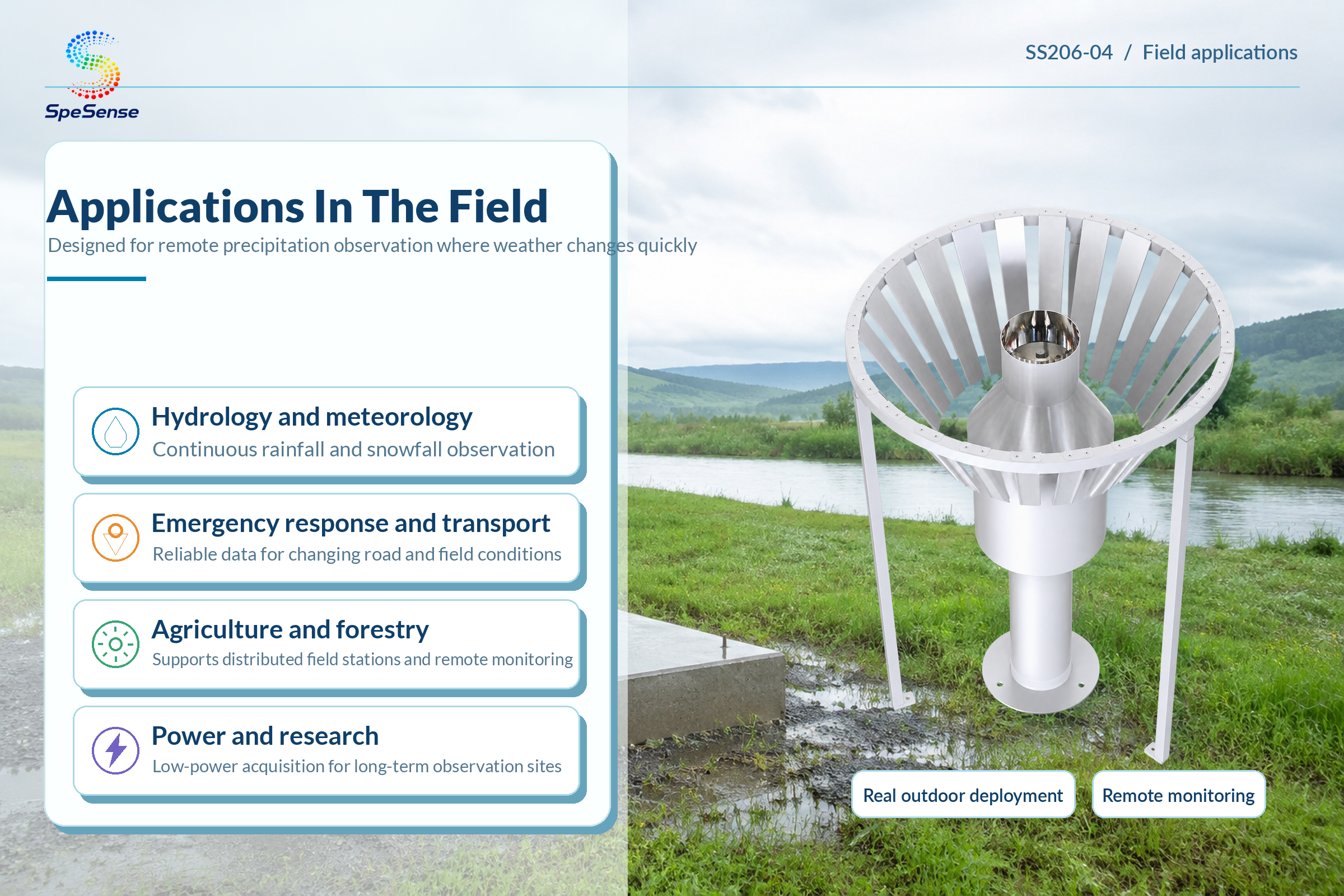

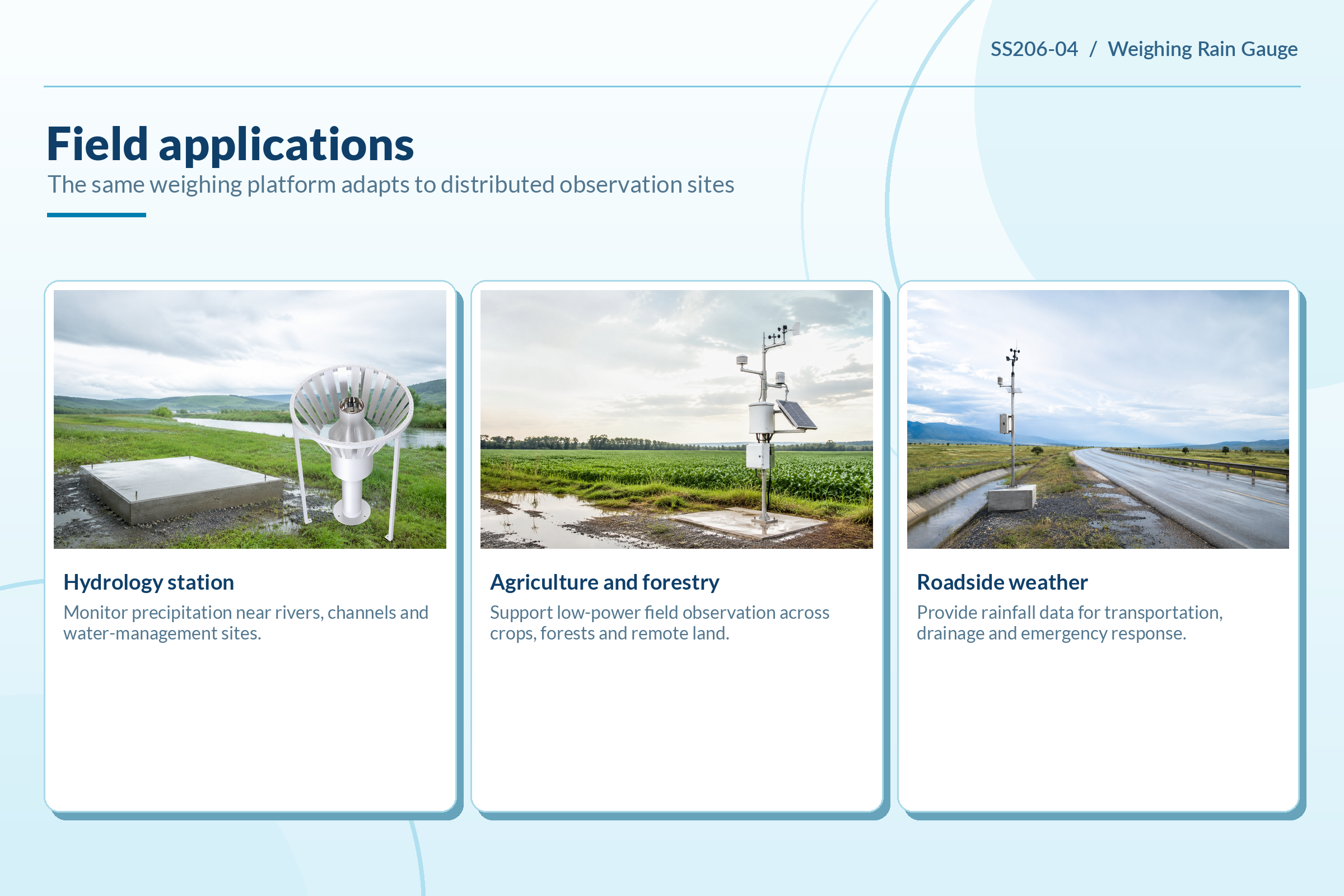

• Low-power operation, convenient installation, low maintenance and simple calibration make it suitable for hydrology, meteorology, emergency response, transportation, agriculture, forestry, power and research applications.

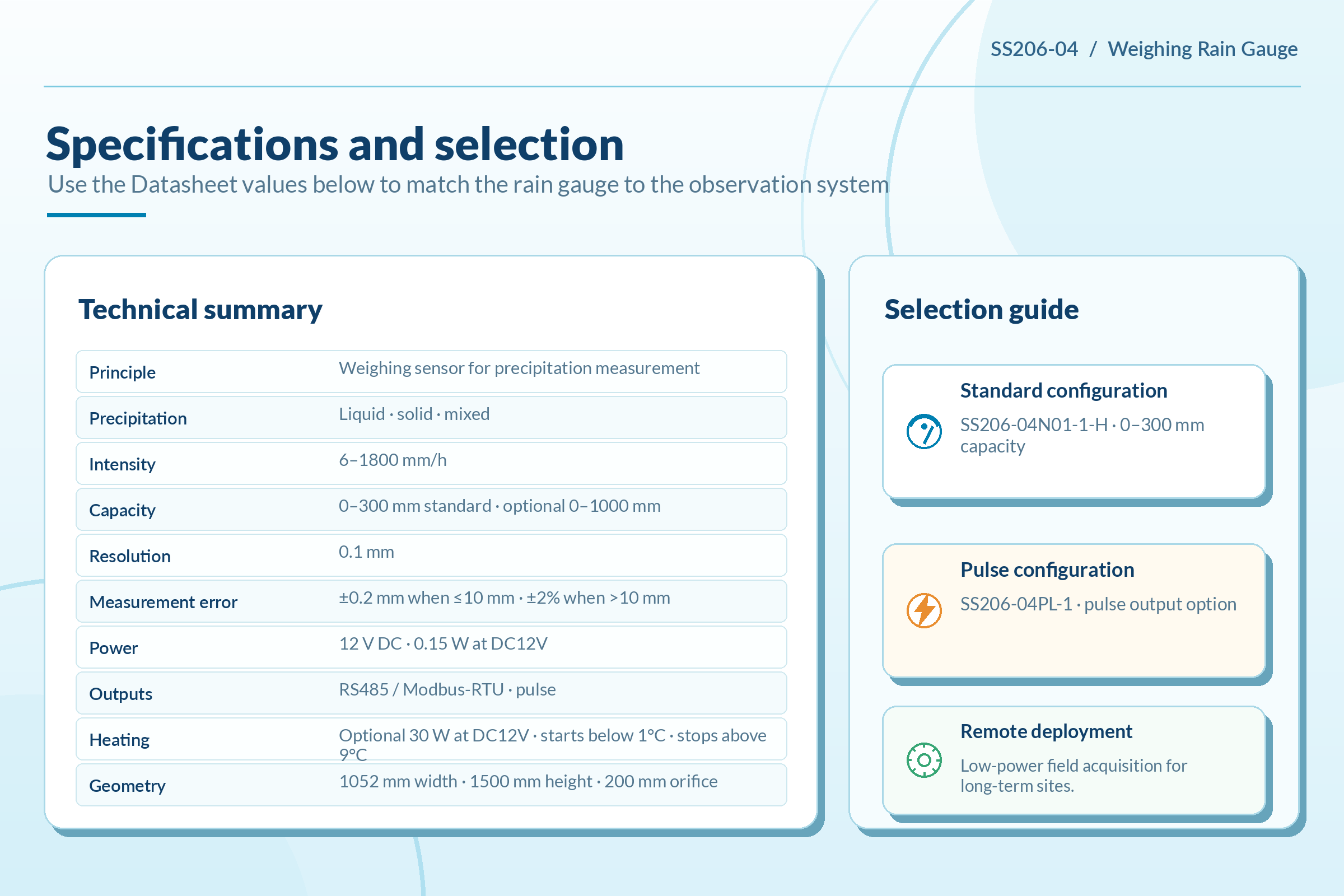

| Item | Specification |
| Power supply | 12 V DC |
| Power consumption | 0.15 W at DC12V |
| Heating power | 30 W optional, DC12V supply |

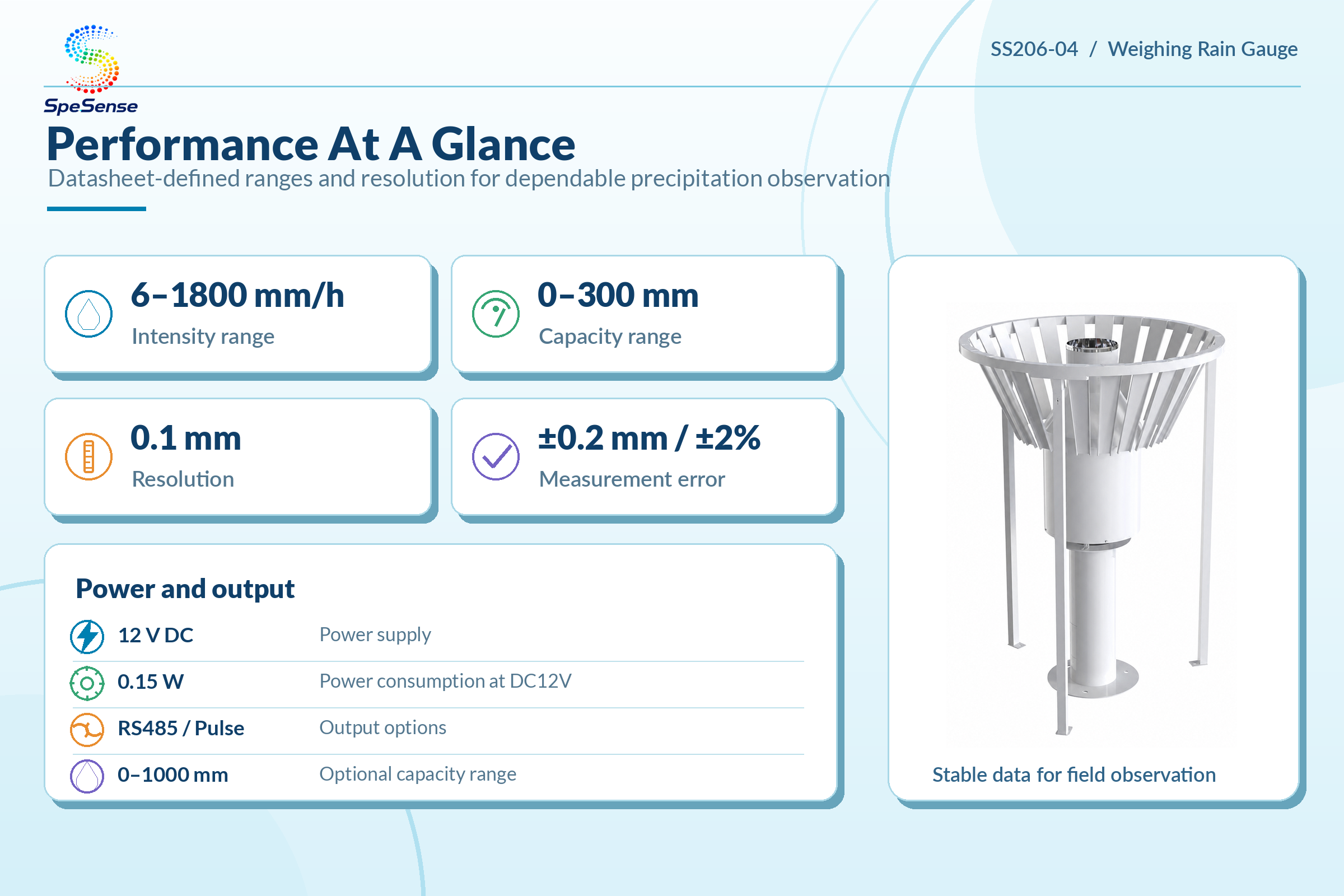

| Precipitation intensity range | 6-1800 mm/h |
| Capacity / rainfall range | 0-300 mm; optional 0-1000 mm |
| Resolution | 0.1 mm |

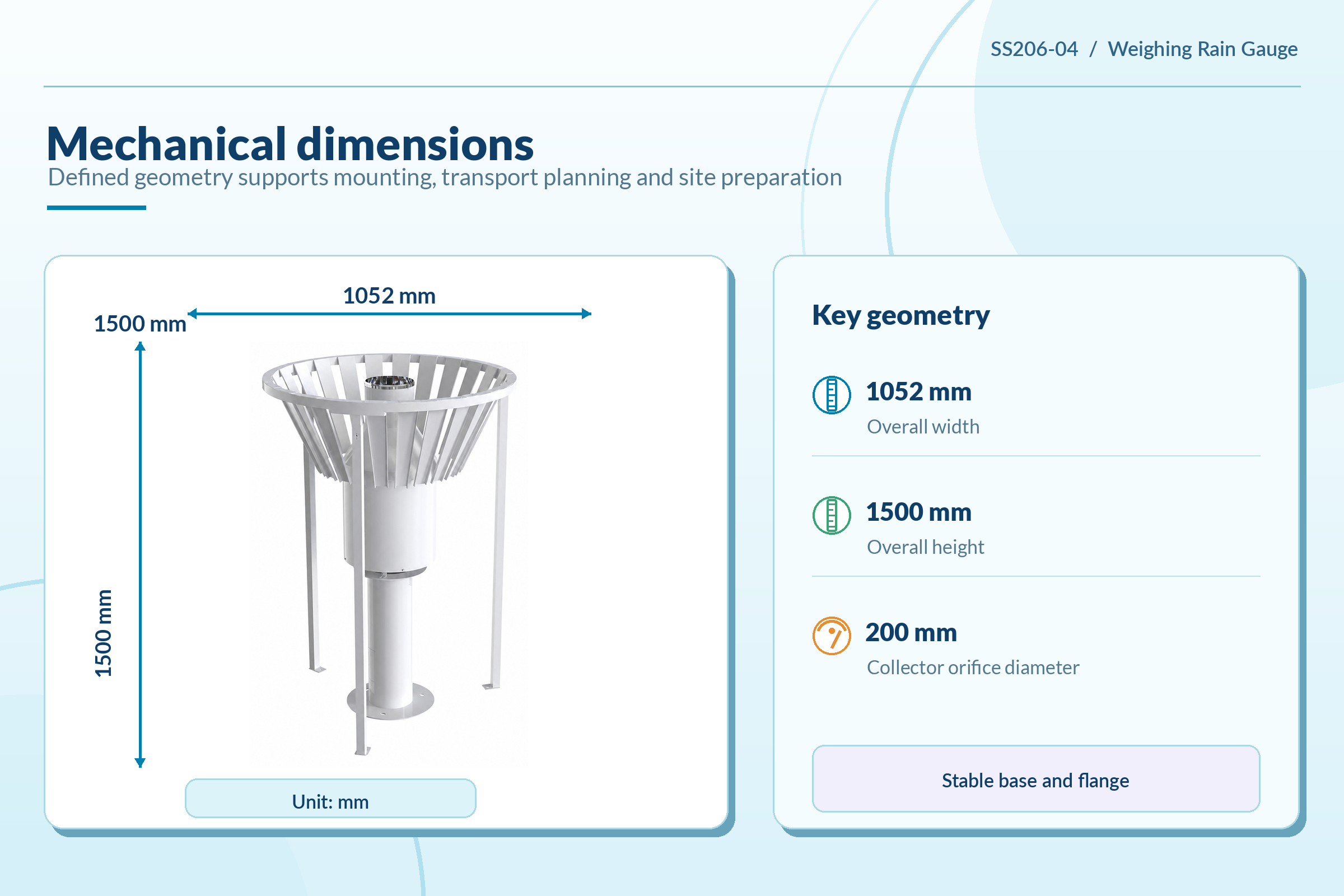

| Collector orifice inner diameter | φ200 mm; tolerance +0 to +0.6 mm |
| Measurement error | ±0.2 mm when ≤10 mm; ±2% when >10 mm |
| Transmitter operating condition | -35°C to +65°C; 0-95%RH, non-condensing |

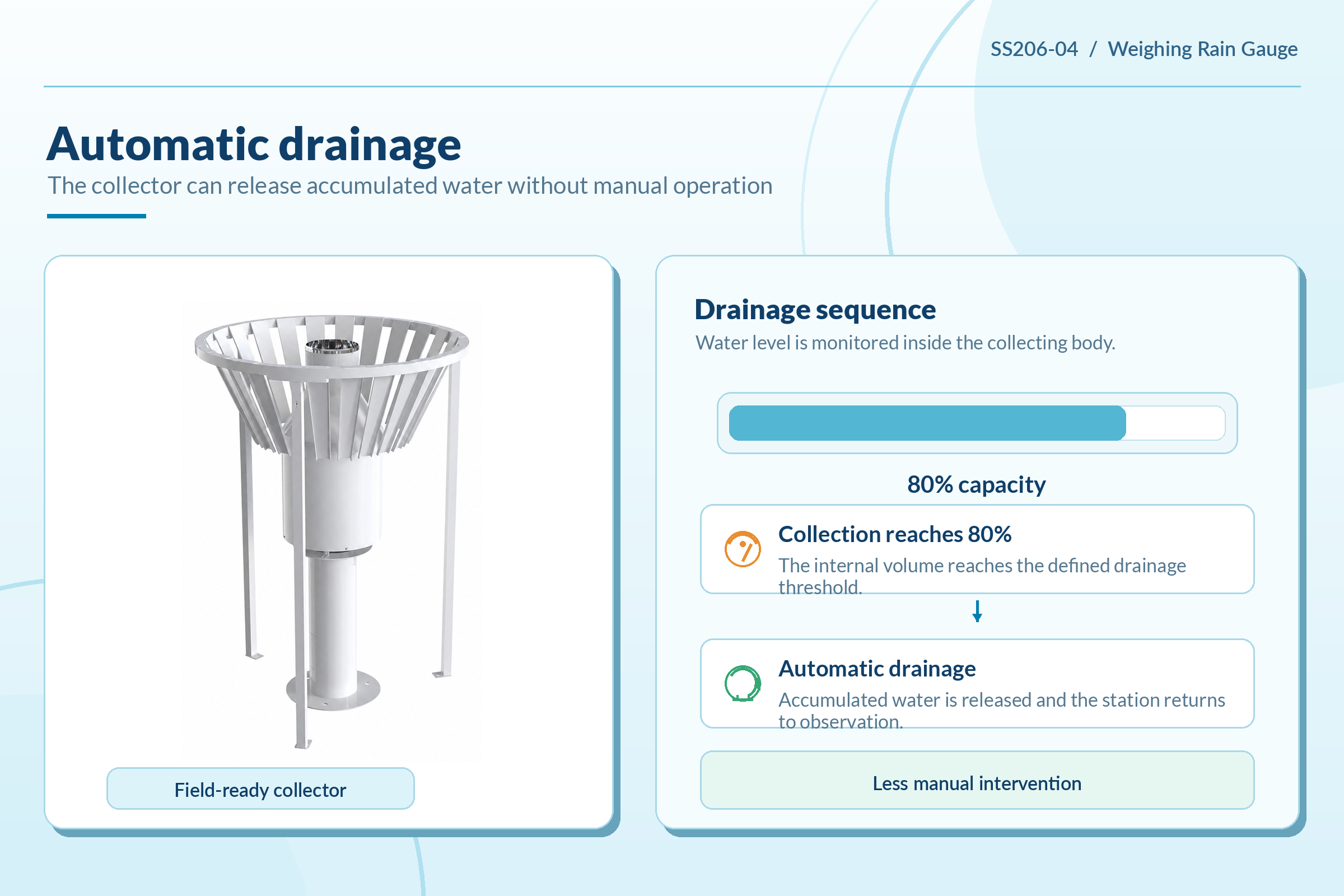

| Automatic drainage | Drains automatically when water volume reaches 80% of capacity |

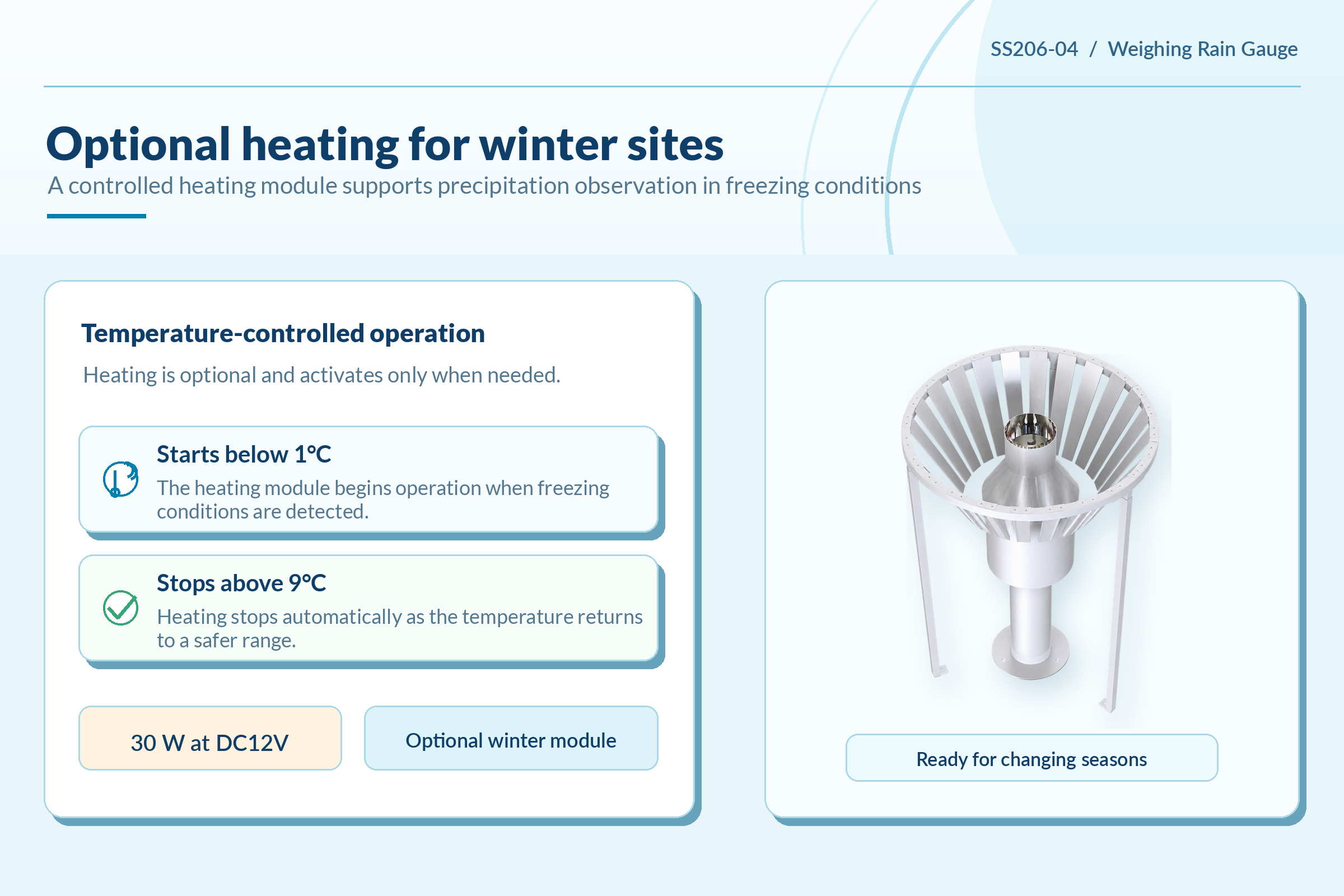

| Heating control | Optional automatic heating starts below 1°C and stops above 9°C |

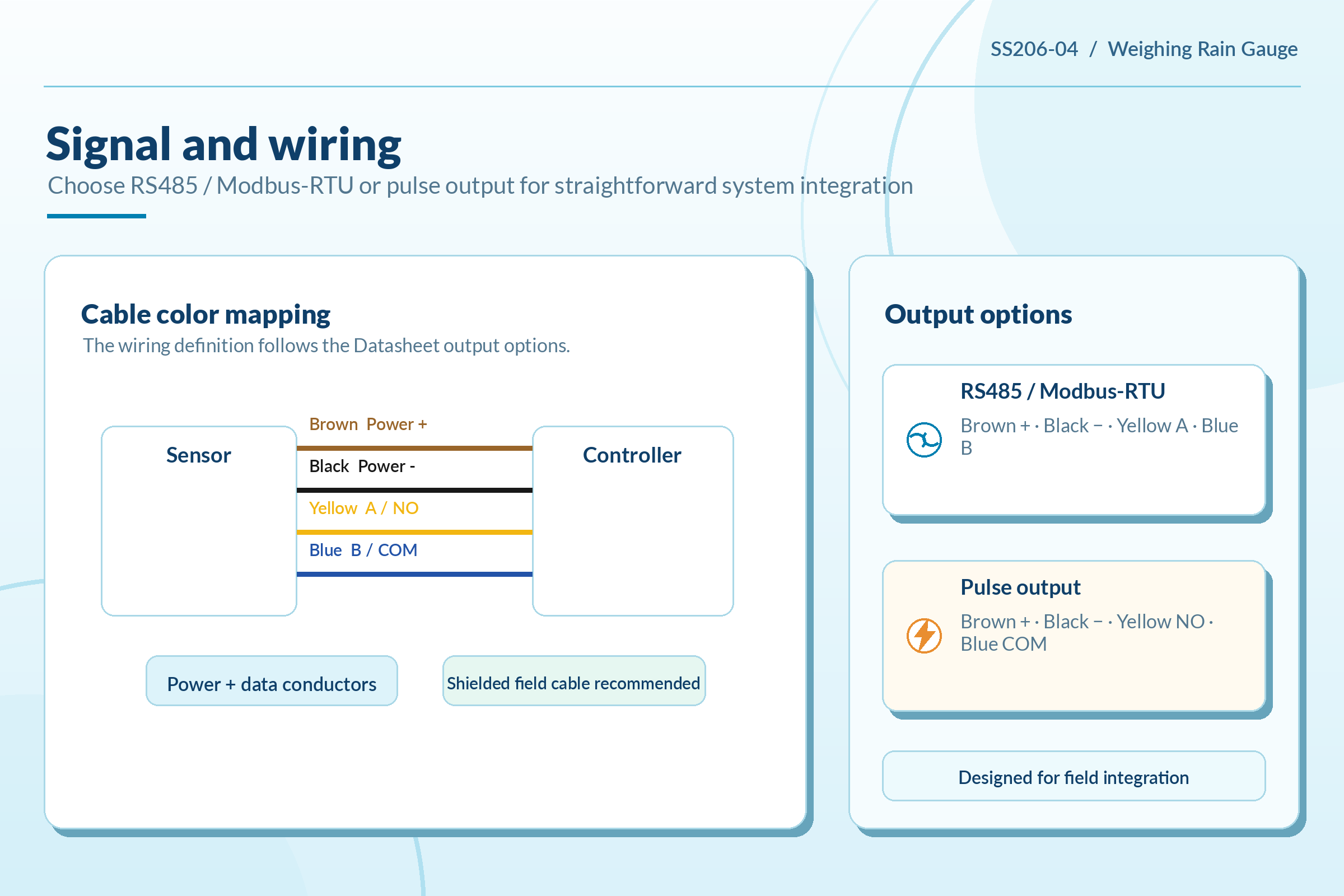

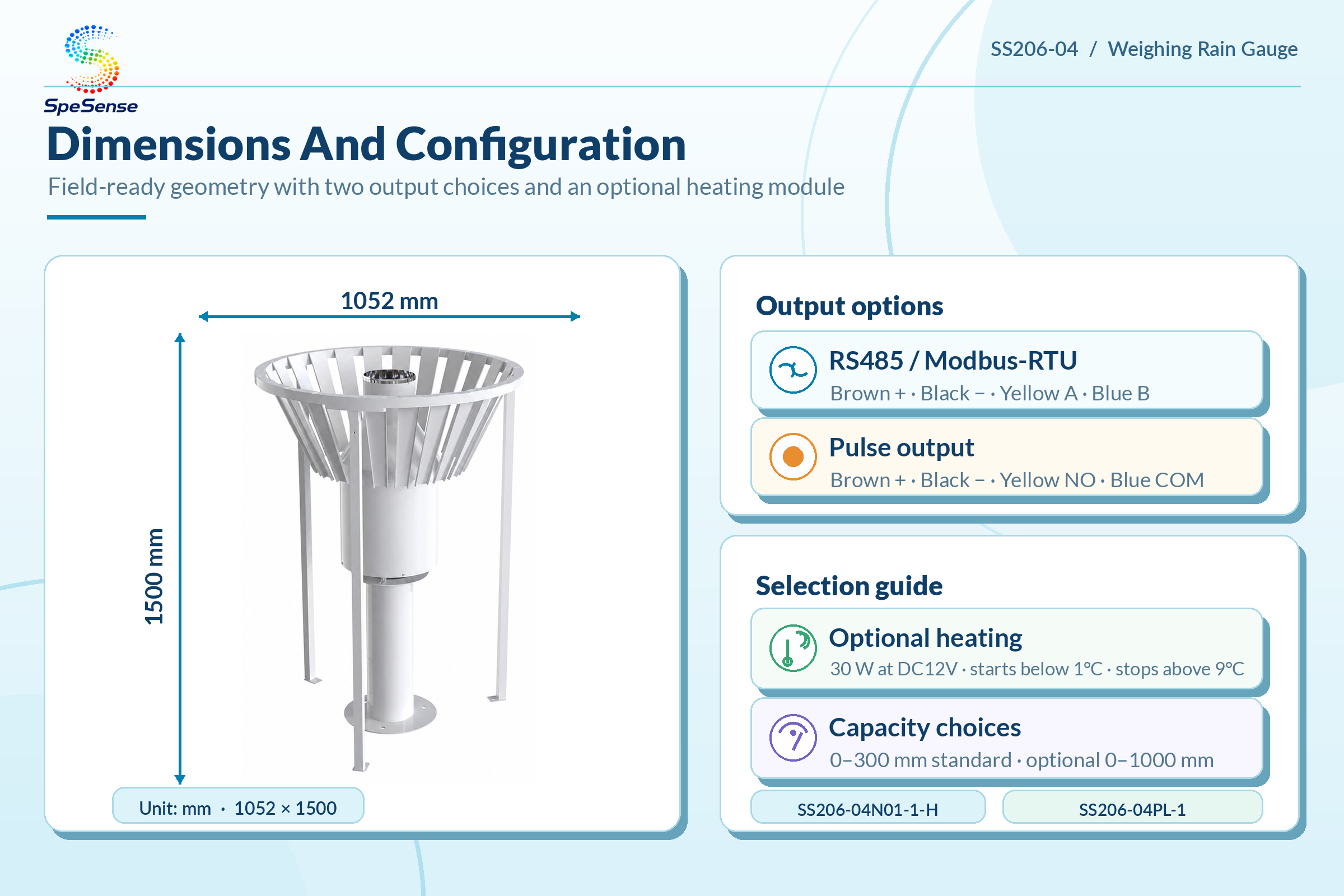

| Outputs | RS485 Modbus-RTU / pulse signal |
| Applicable standard reference | Organized according to SL21-2015 precipitation observation specification and weighing precipitation sensor functional requirements |
