Rain Gauge Sensor
SS206-02
不锈钢翻斗式雨量计
产品亮点

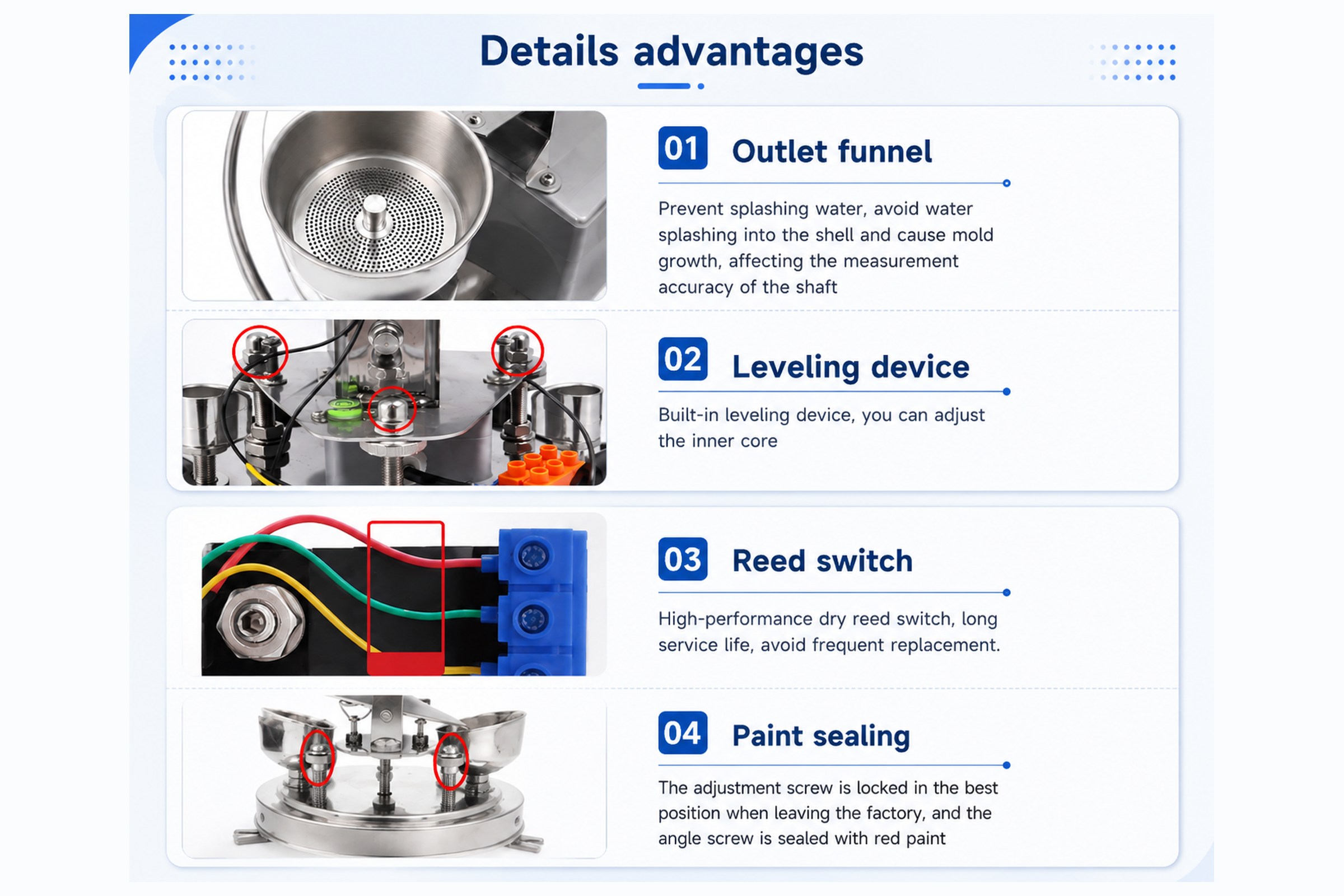

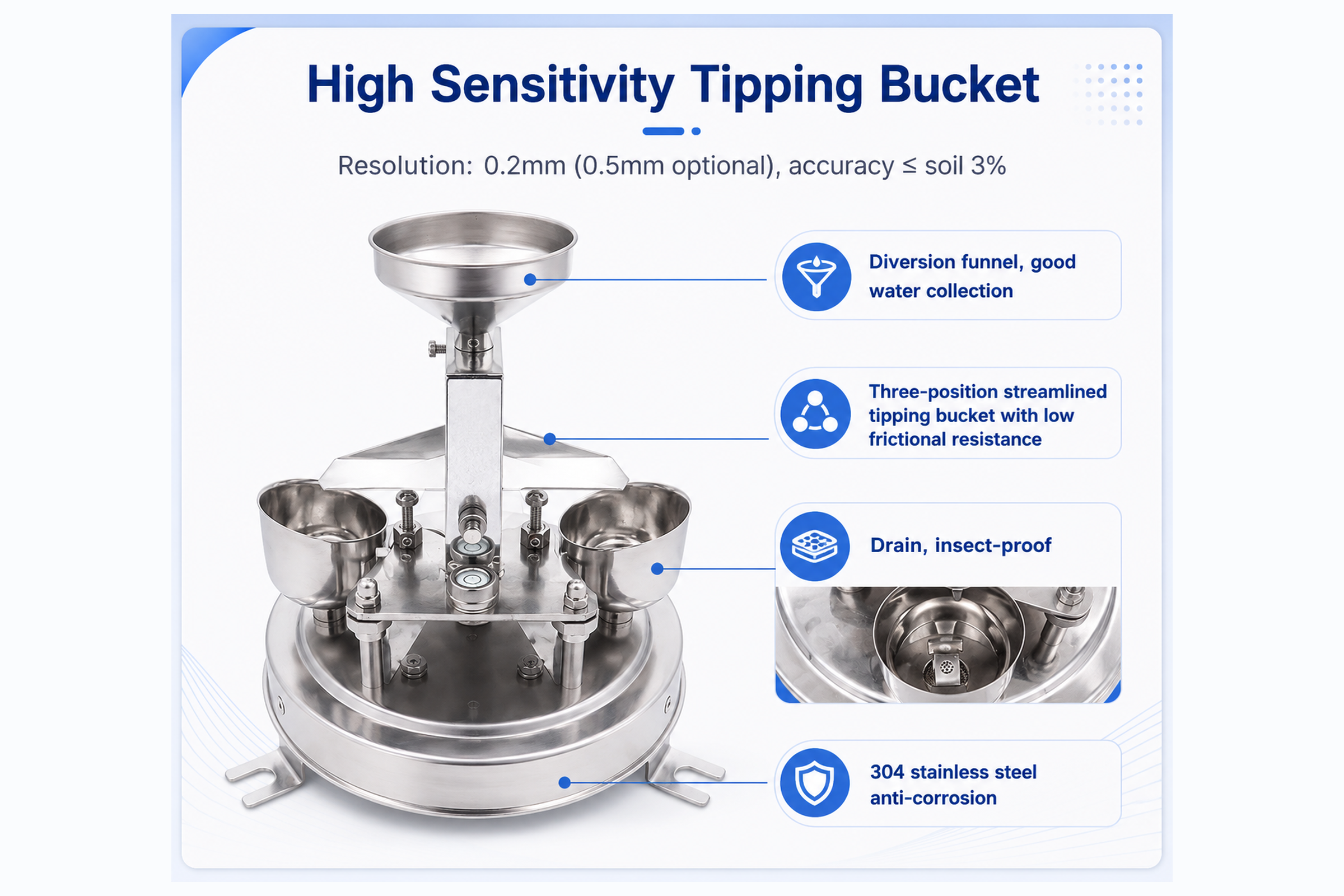

● Outlet funnel helps prevent splashing and protects measurement accuracy.
● Built-in leveling device supports fast field adjustment.

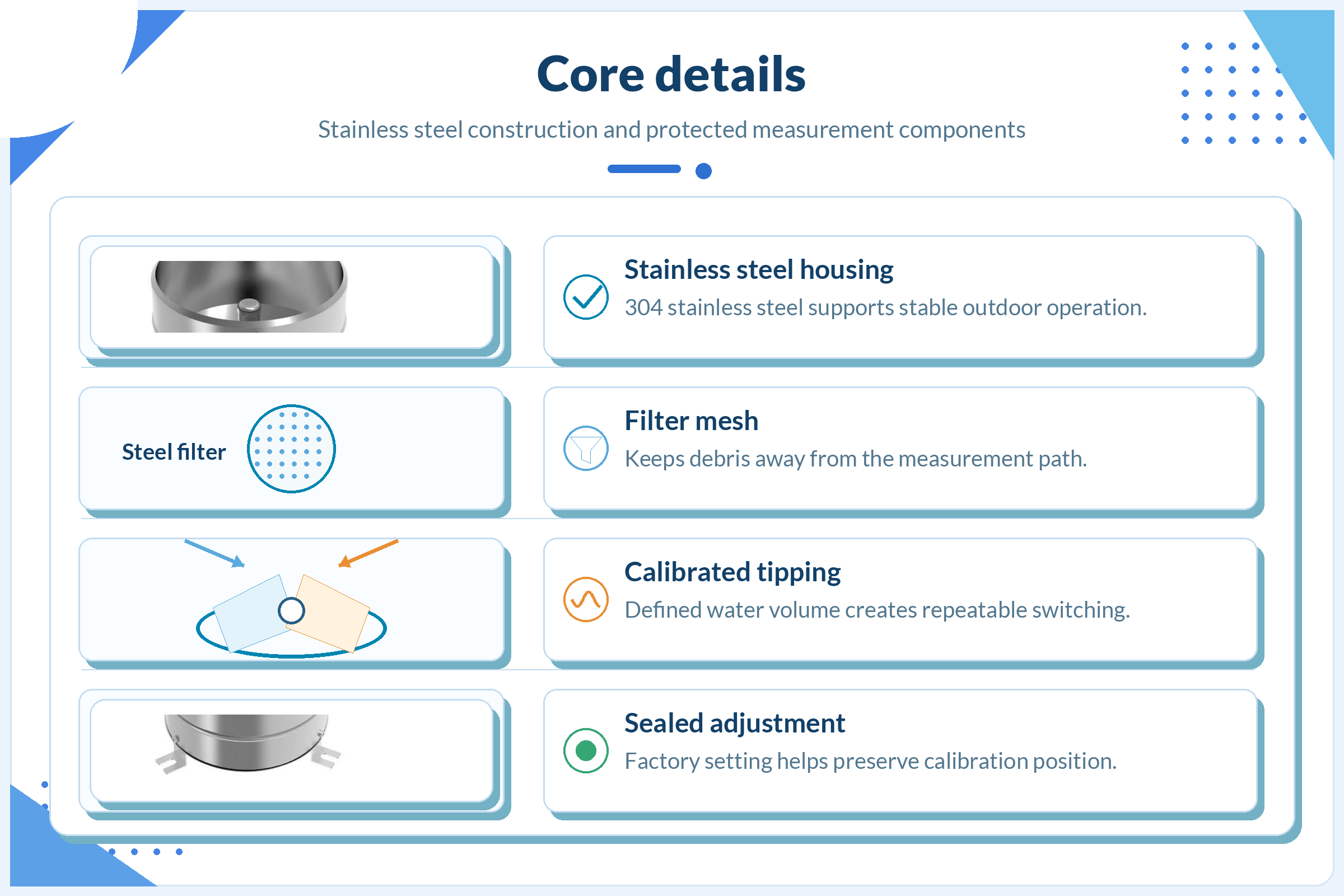

● High-performance dry reed switch offers sensitive response and long service life.

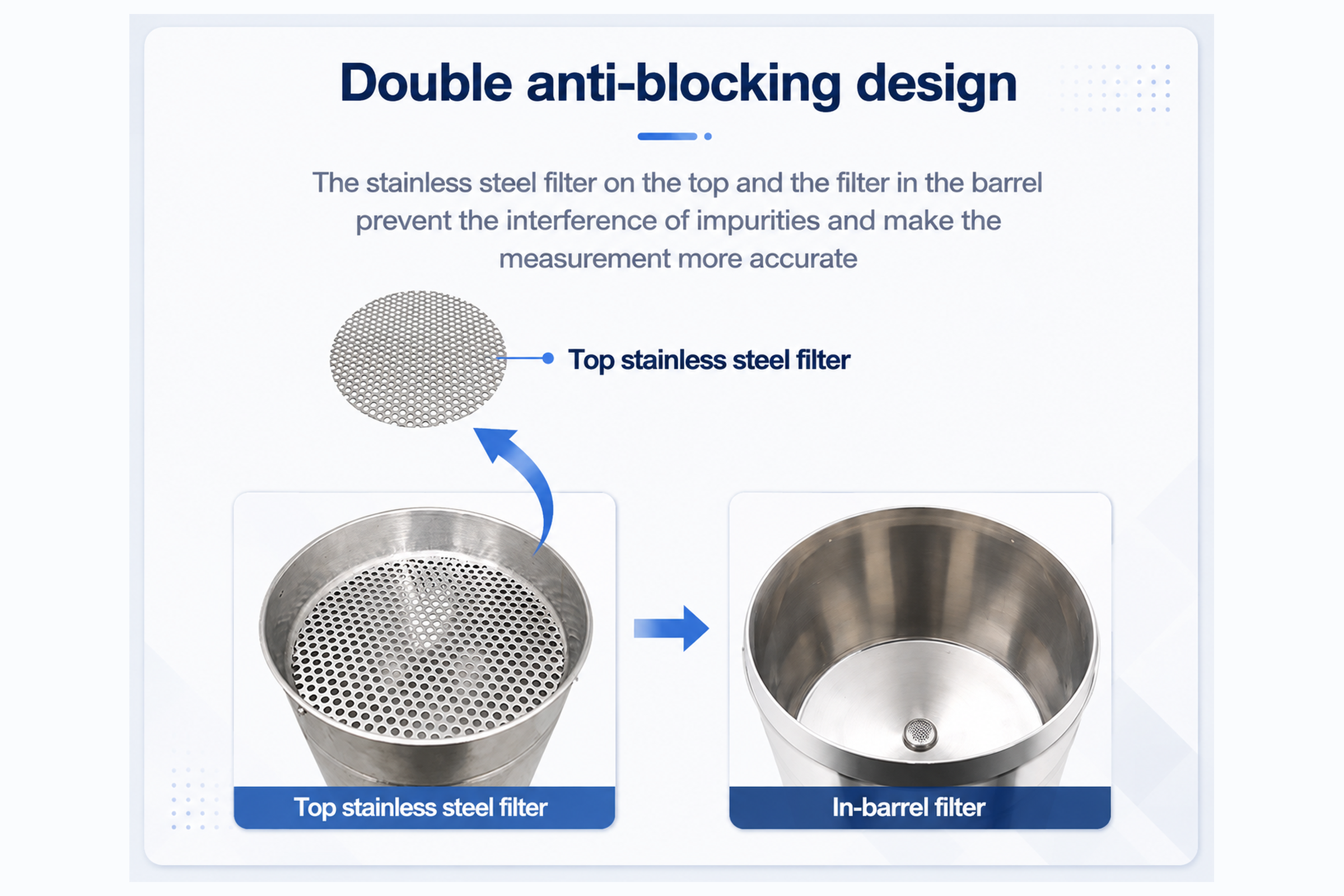

● Filter mesh helps prevent debris from blocking downstream flow.
● Stainless steel case supports demanding outdoor rainfall monitoring.
● Built-in leveling device supports fast field adjustment.
● High-performance dry reed switch offers sensitive response and long service life.
● Filter mesh helps prevent debris from blocking downstream flow.
● Stainless steel case supports demanding outdoor rainfall monitoring.
产品概述

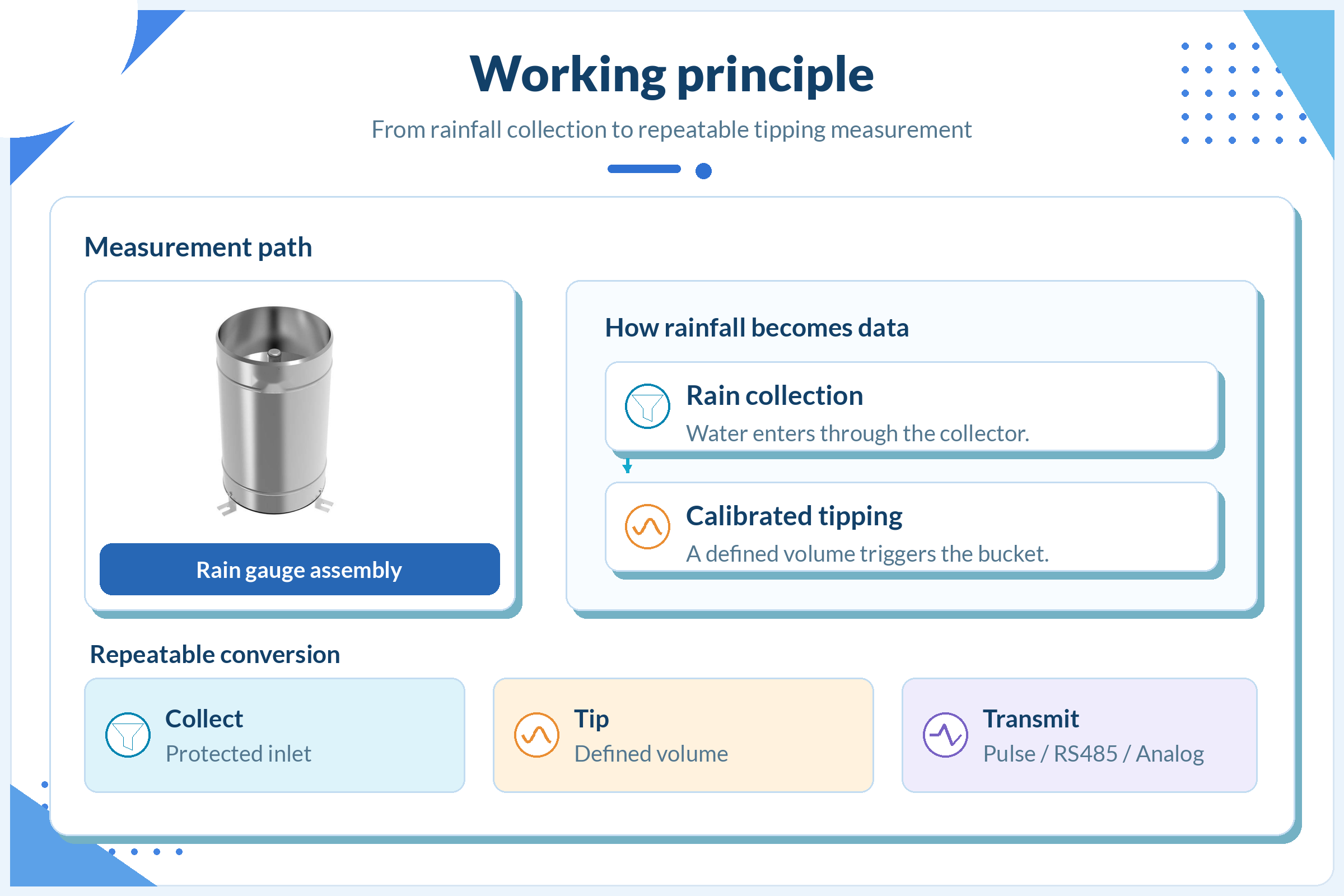

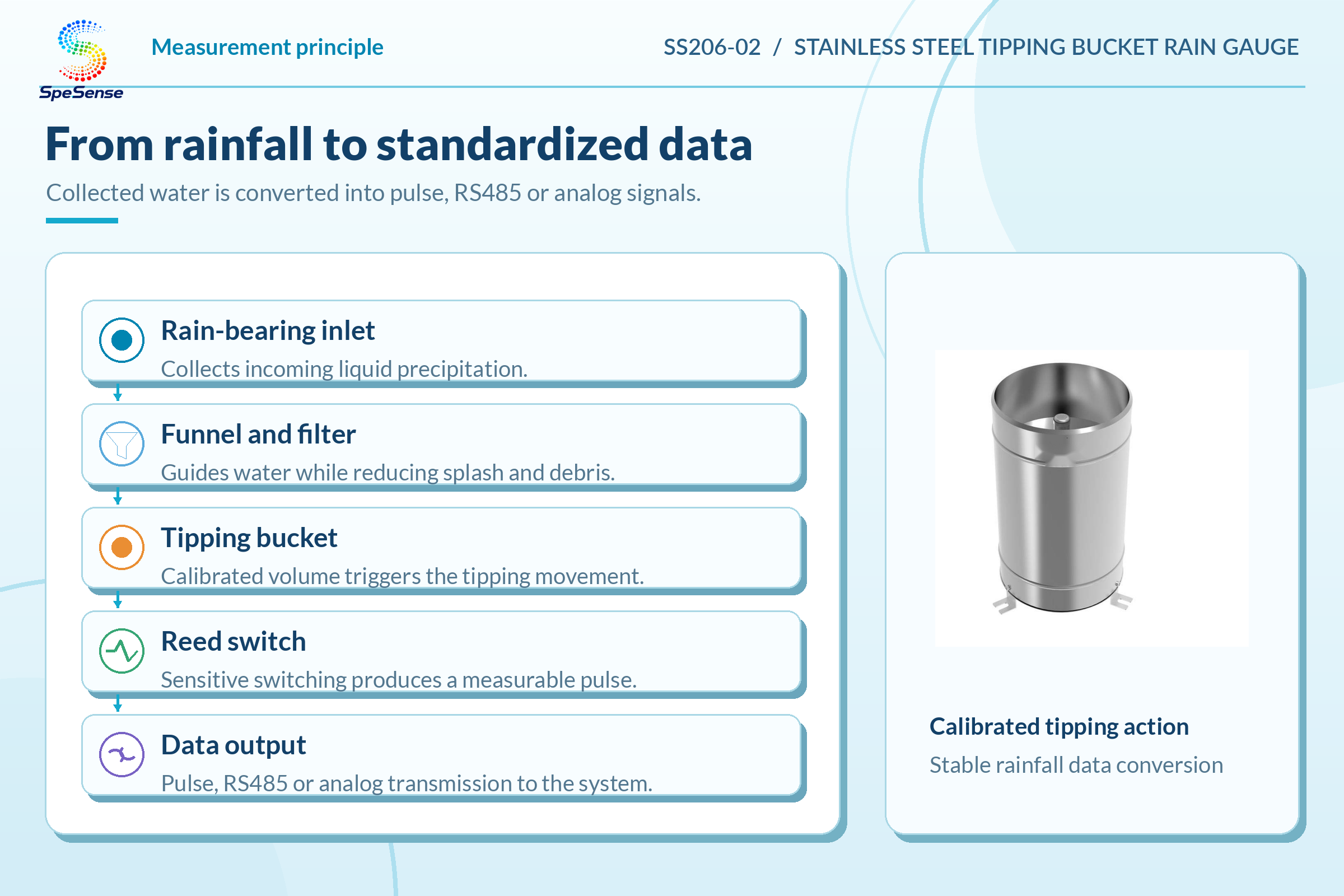

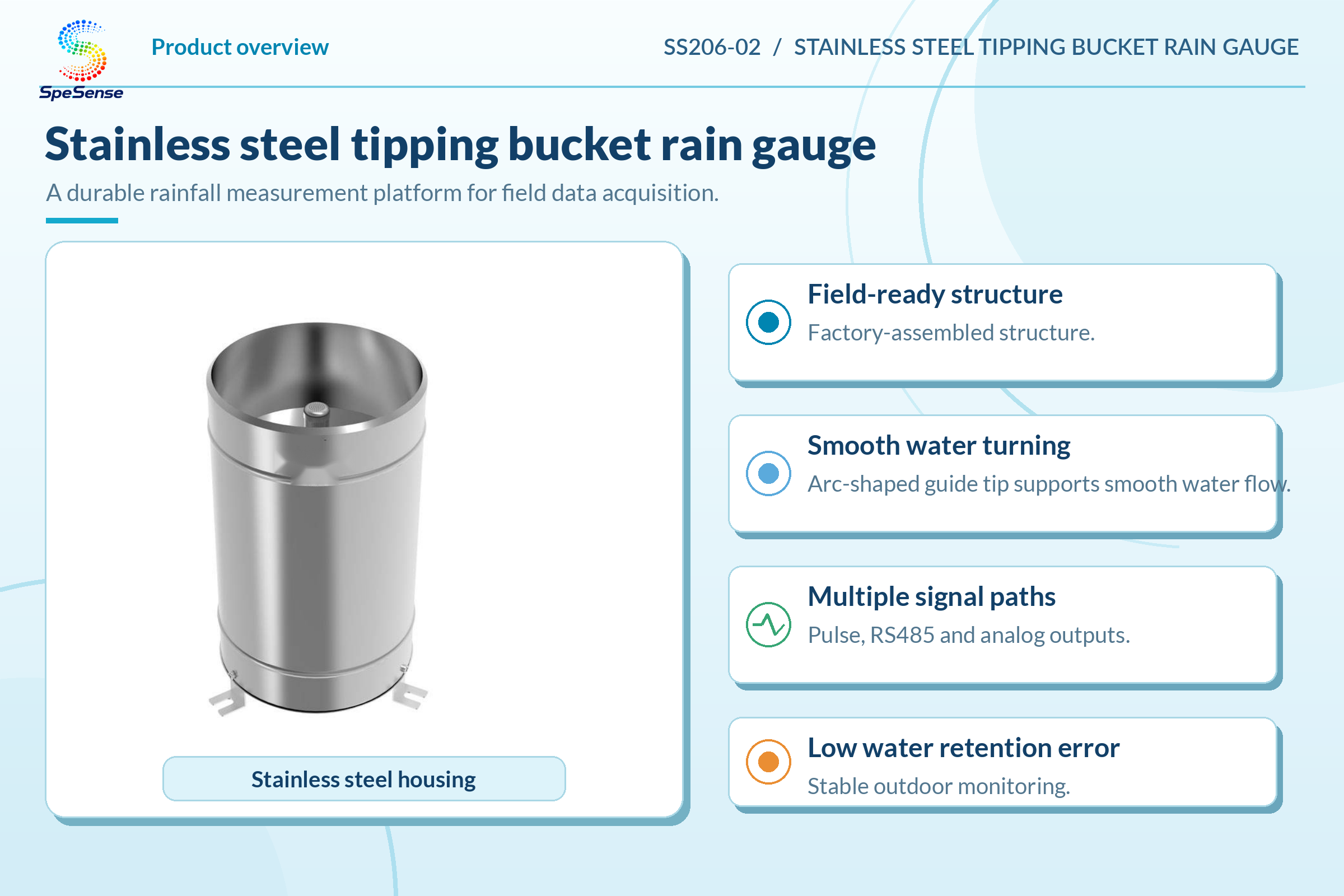

SS206-02 is a stainless steel tipping bucket rain gauge for rainfall measurement in meteorological, hydrological, agricultural and environmental monitoring applications. It converts collected rainfall into pulse, RS485 or analog signals for data acquisition systems.

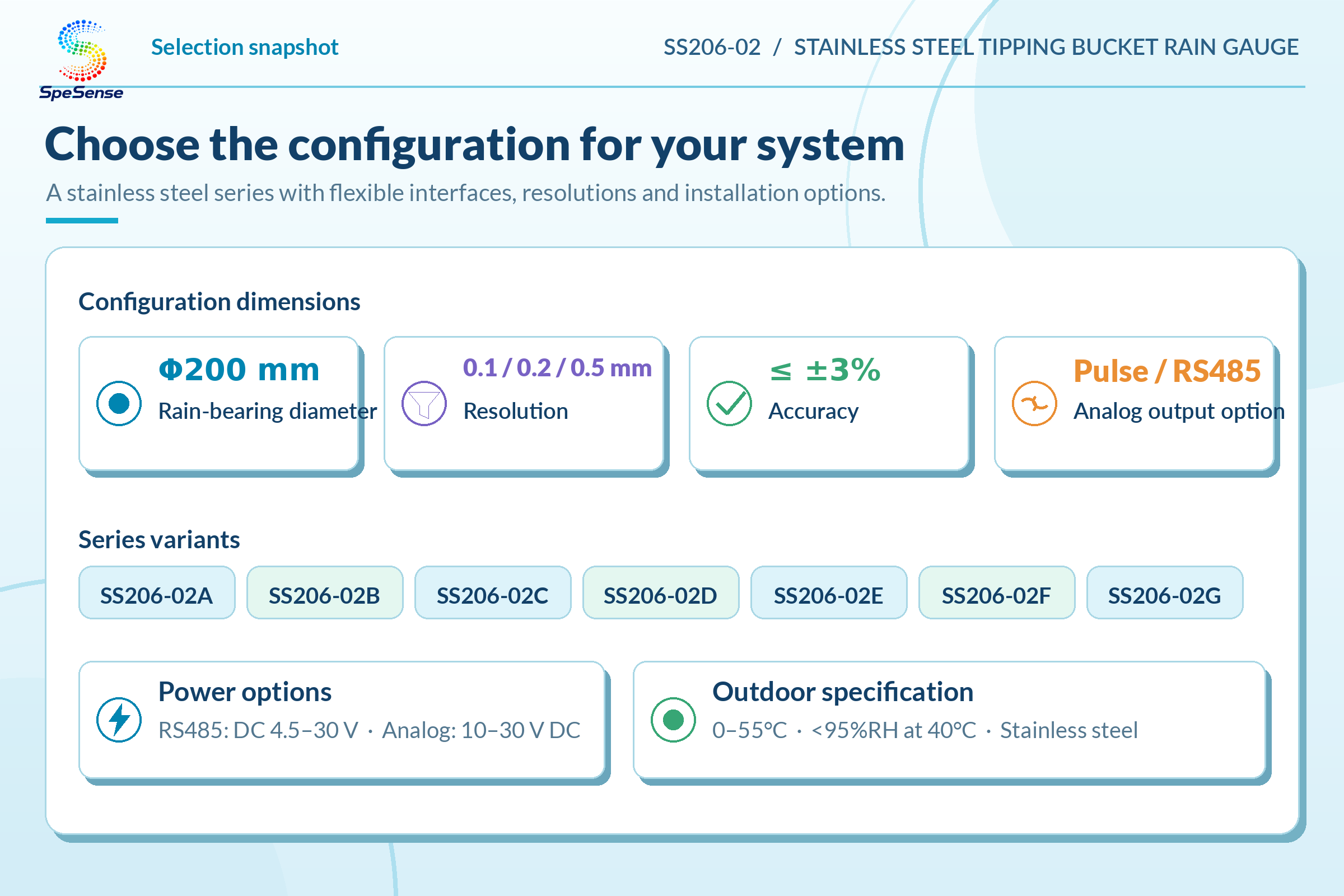

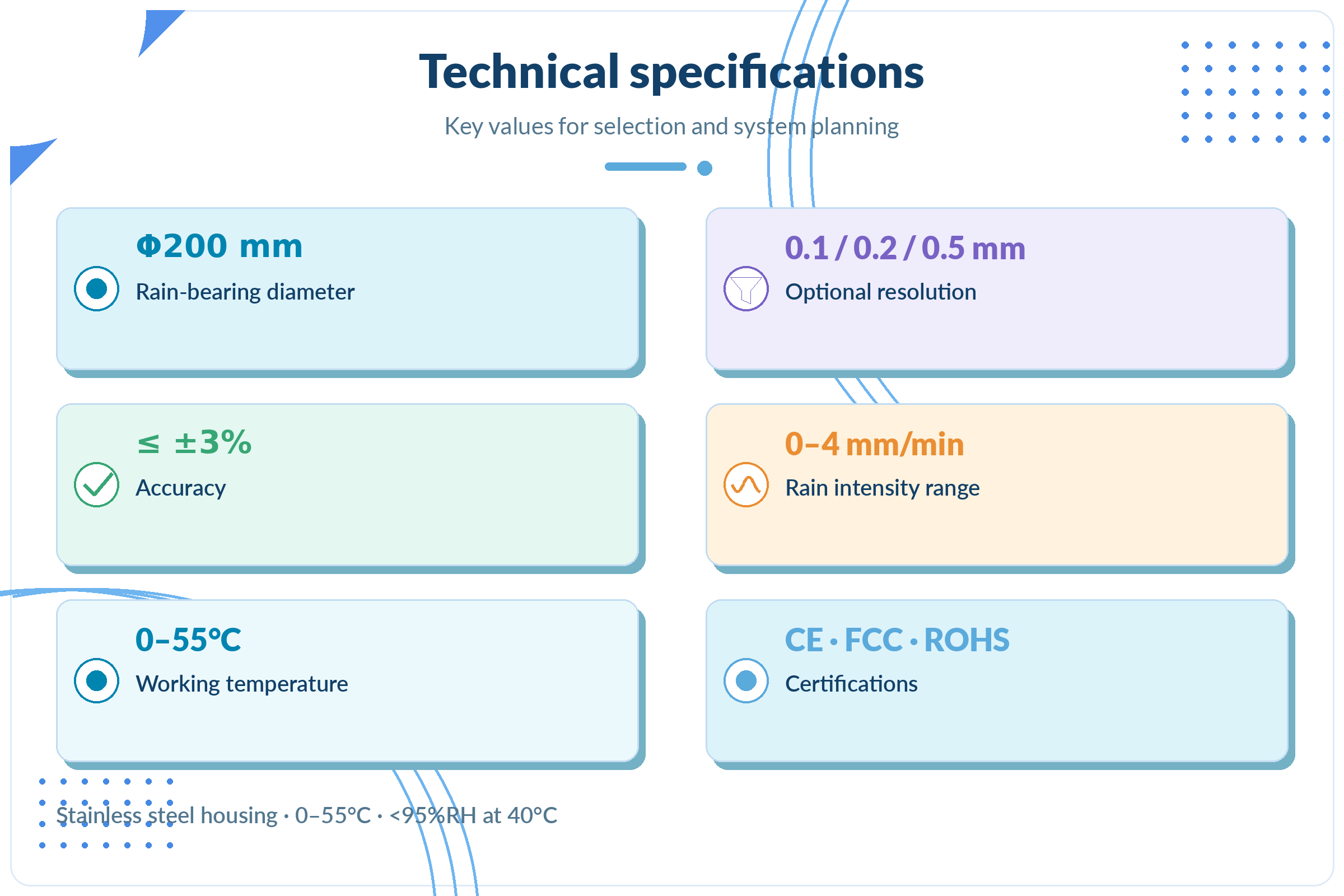

| Item | Specification |

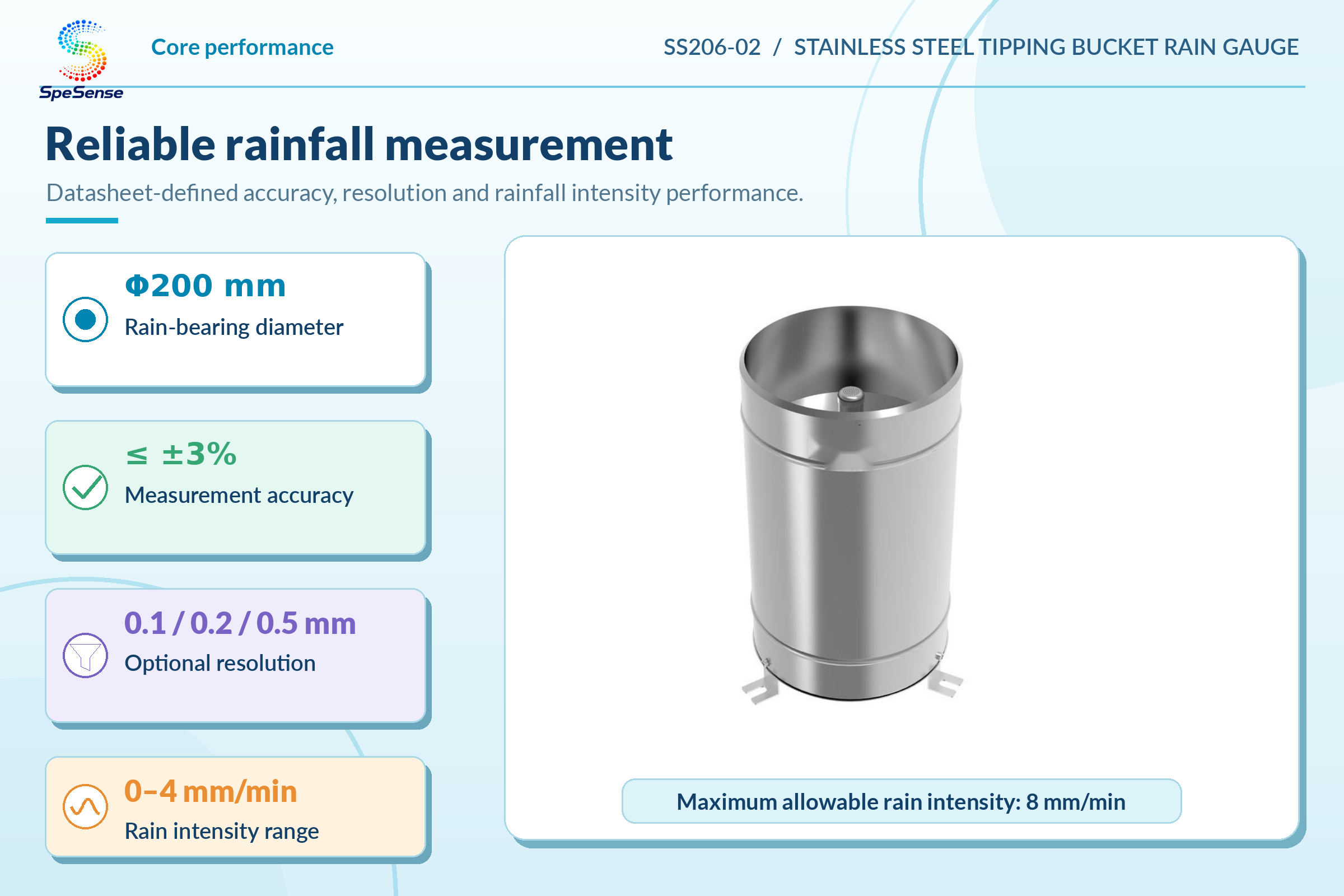

| Rain-bearing diameter | Φ200 mm |
| Resolution | 0.1 mm / 0.2 mm / 0.5 mm optional |
| Accuracy | ≤ ±3% |
| Blade angle | 40° to 45° |
| Rain intensity range | 0 mm to 4 mm/min; maximum allowable rain intensity 8 mm/min |
| Working environment | 0°C to +55°C; <95%RH at 40°C |
| Material | Stainless steel |

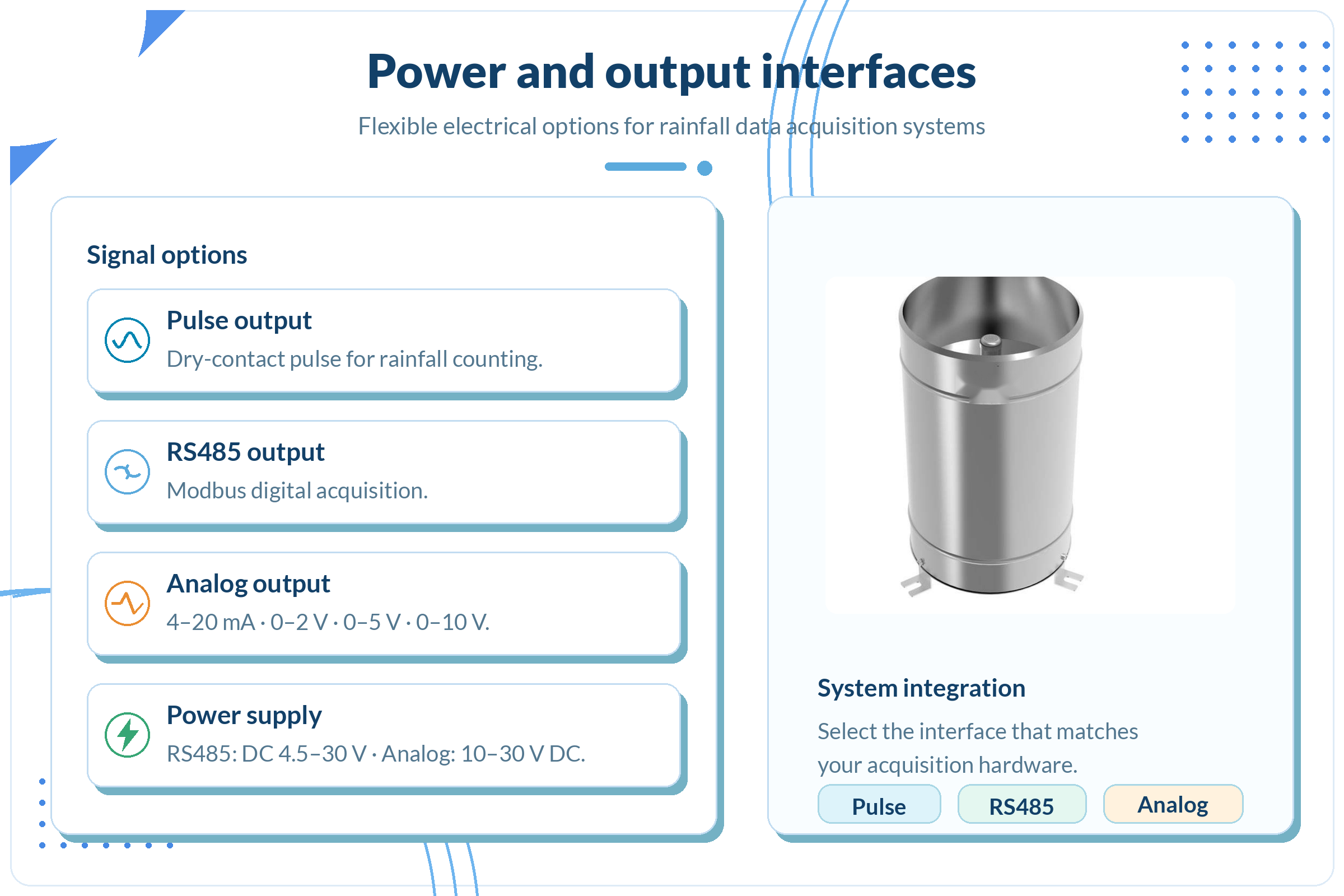

| Output signal options | Pulse / RS485 / 4-20 mA / 0-2 V / 0-5 V / 0-10 V |
| Certifications | CE, FCC, ROHS |
