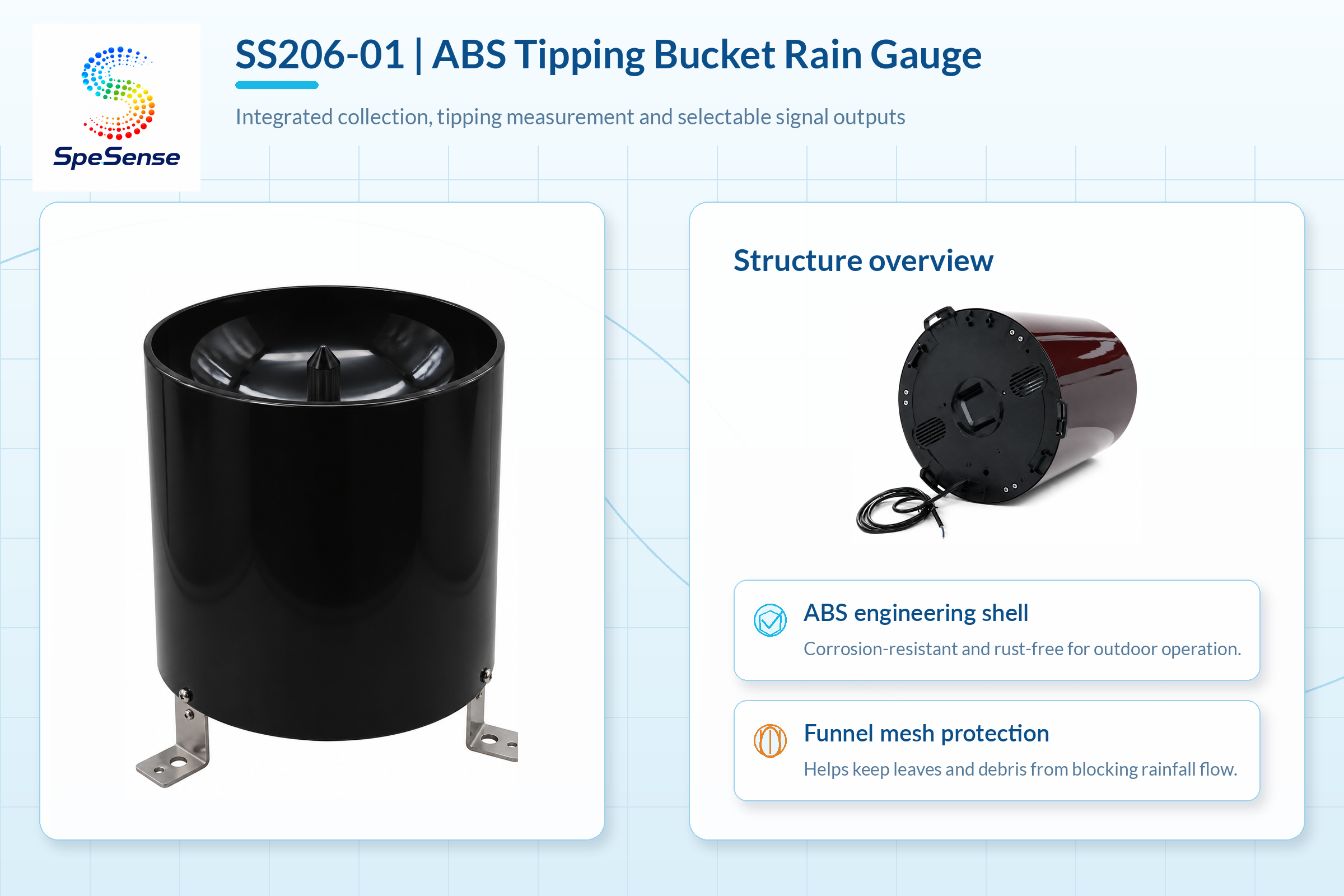

Rain Gauge Sensor
SS206-01
ABS翻斗式雨量计
产品亮点

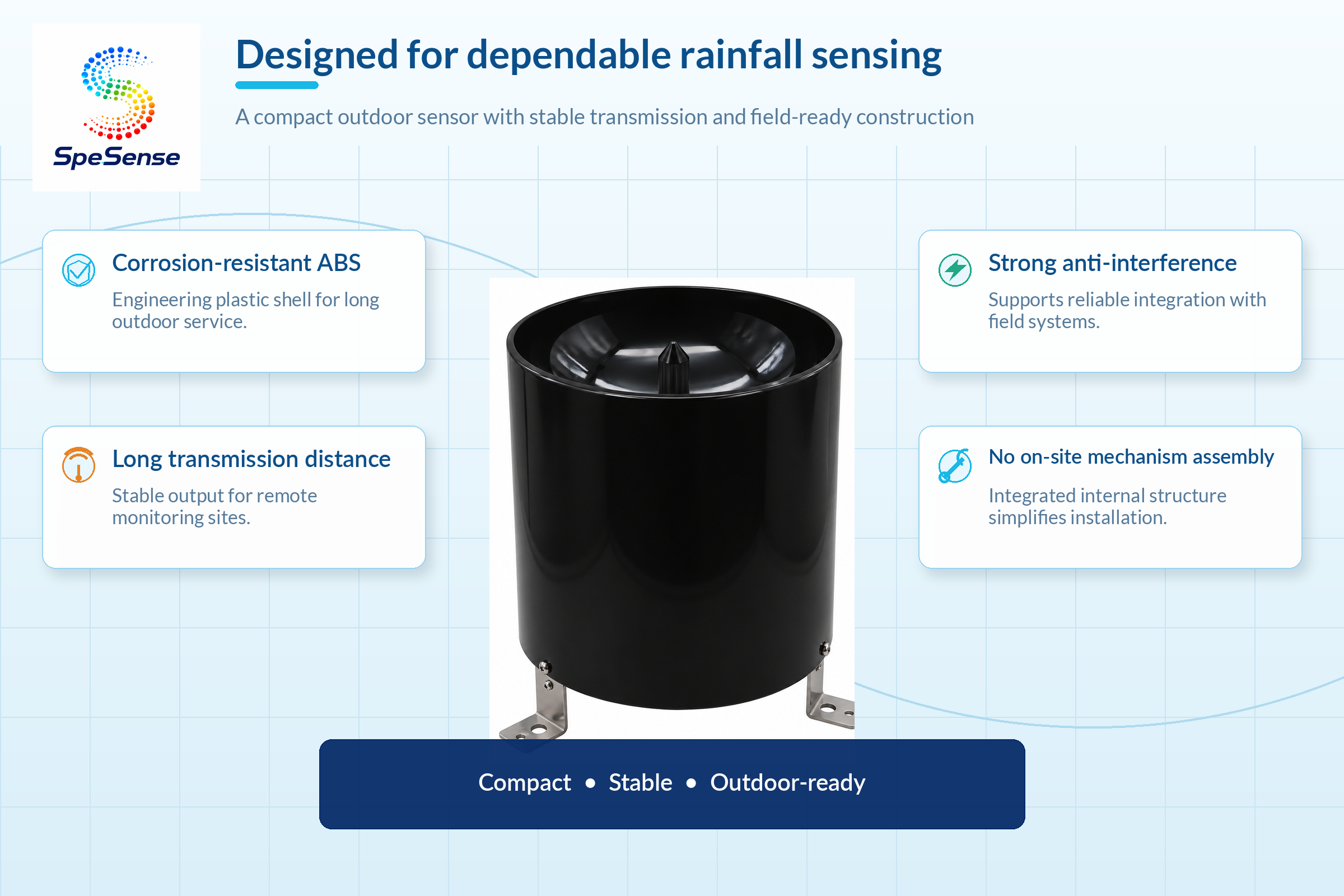

● ABS engineering plastic shell,corrosion-resistant and rust-free for outdoor operation.
● Integrated internal structure;no internal mechanism assembly is required on site.

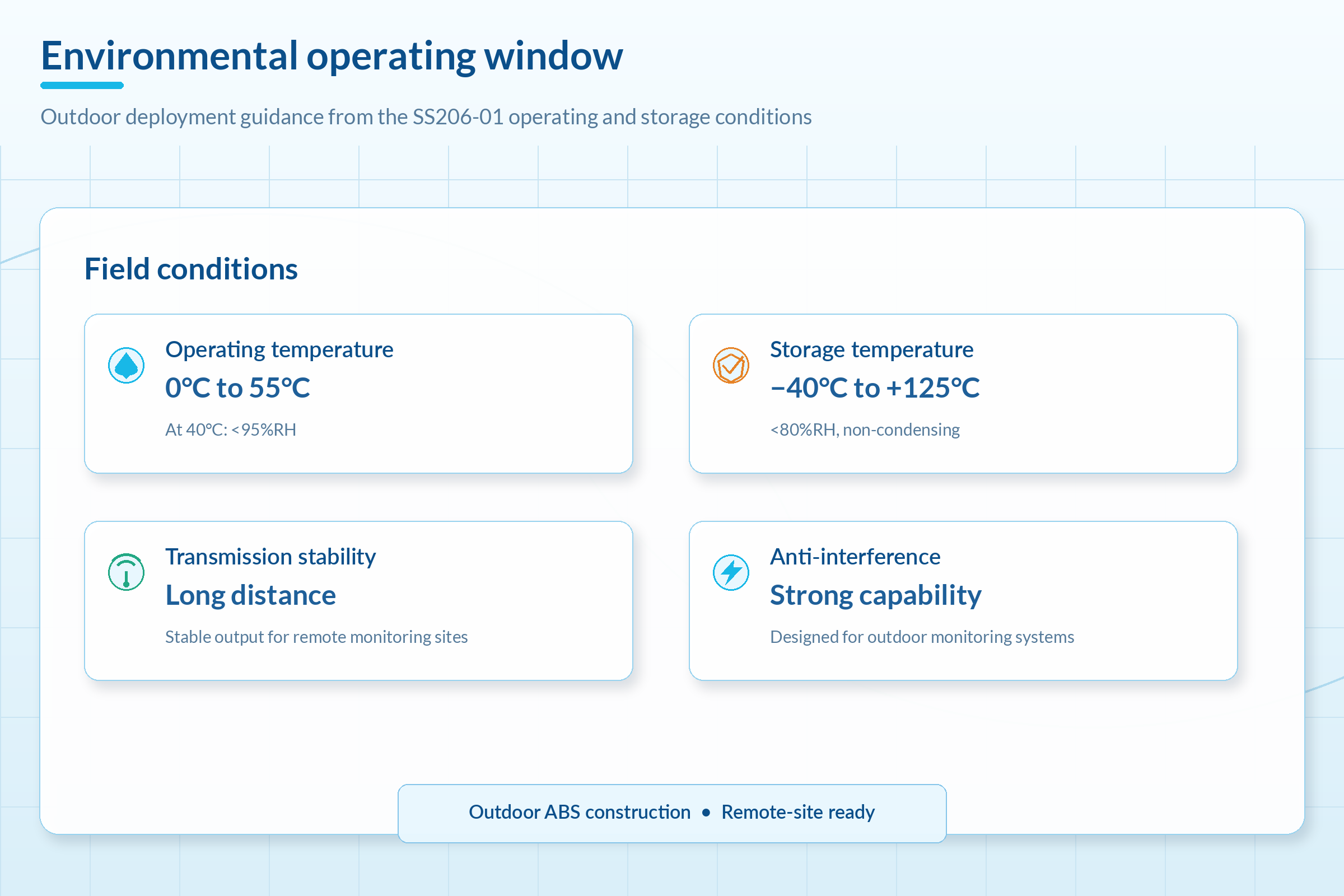

● Good linearity,long transmission distance and strong anti-interference capability.
● Funnel mesh design helps prevent leaves and debris from blocking rainfall flow.

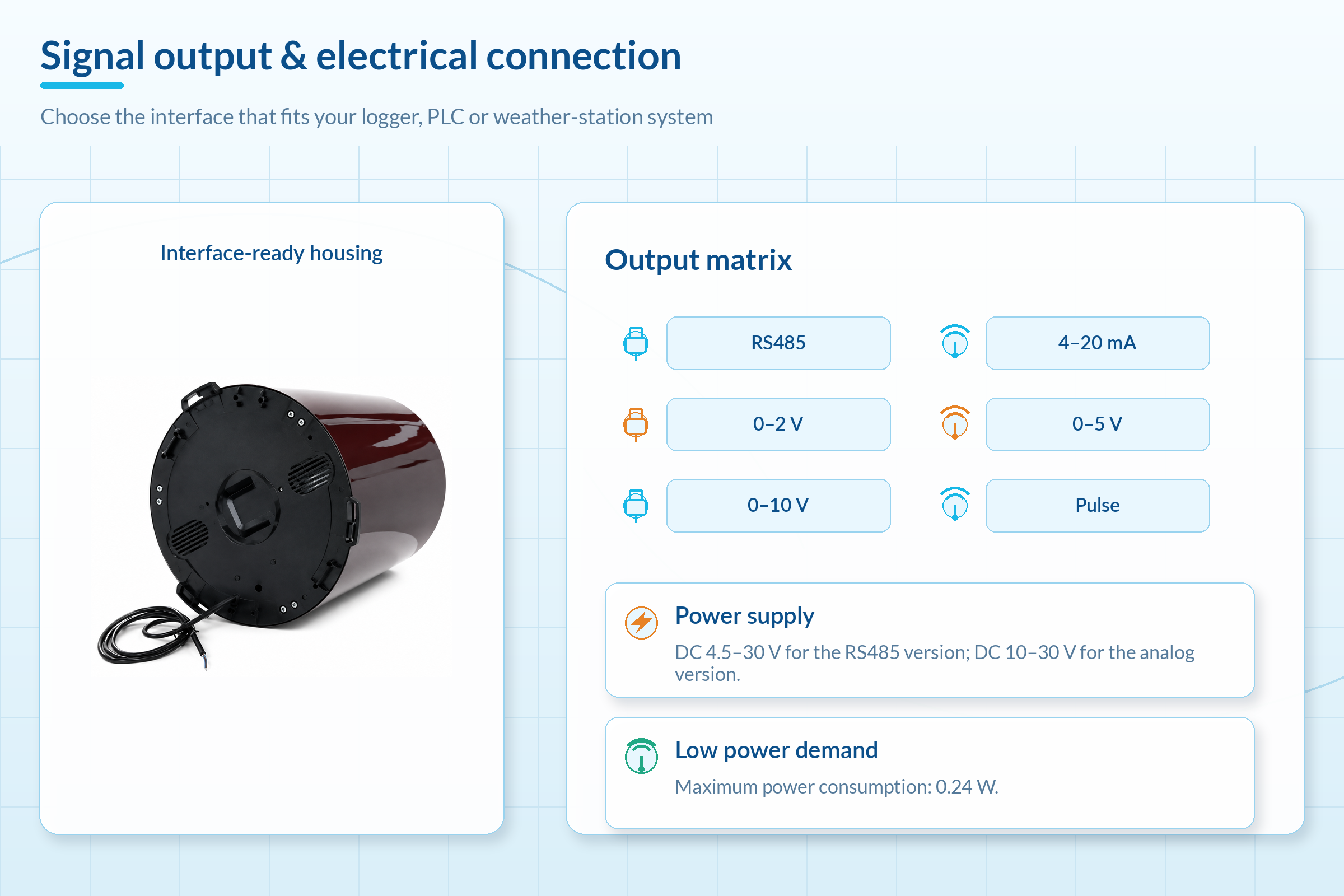

● Multiple output options support integration with data loggers,PLCs and weather-station systems.
● Integrated internal structure;no internal mechanism assembly is required on site.
● Good linearity,long transmission distance and strong anti-interference capability.
● Funnel mesh design helps prevent leaves and debris from blocking rainfall flow.
● Multiple output options support integration with data loggers,PLCs and weather-station systems.
产品概述

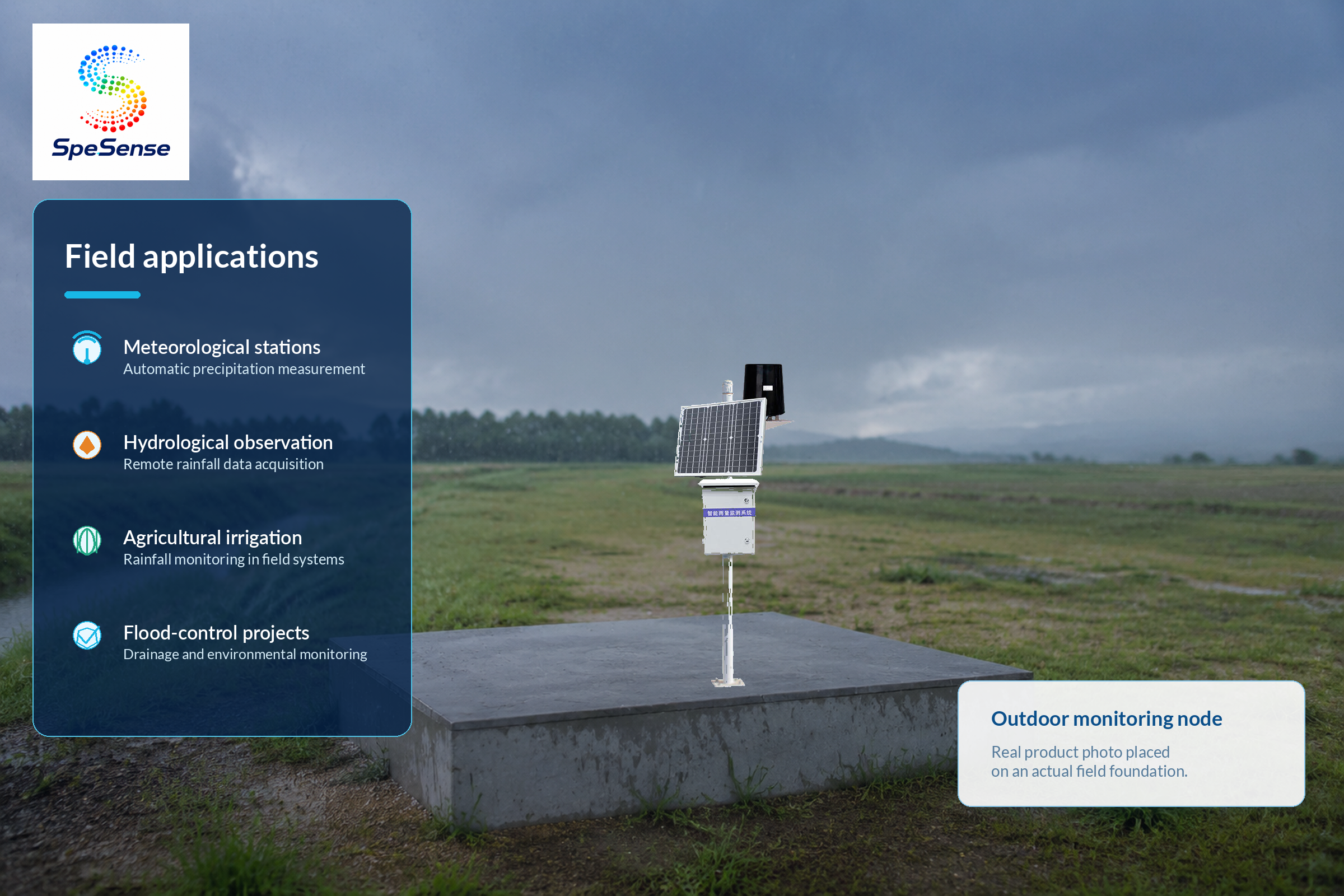

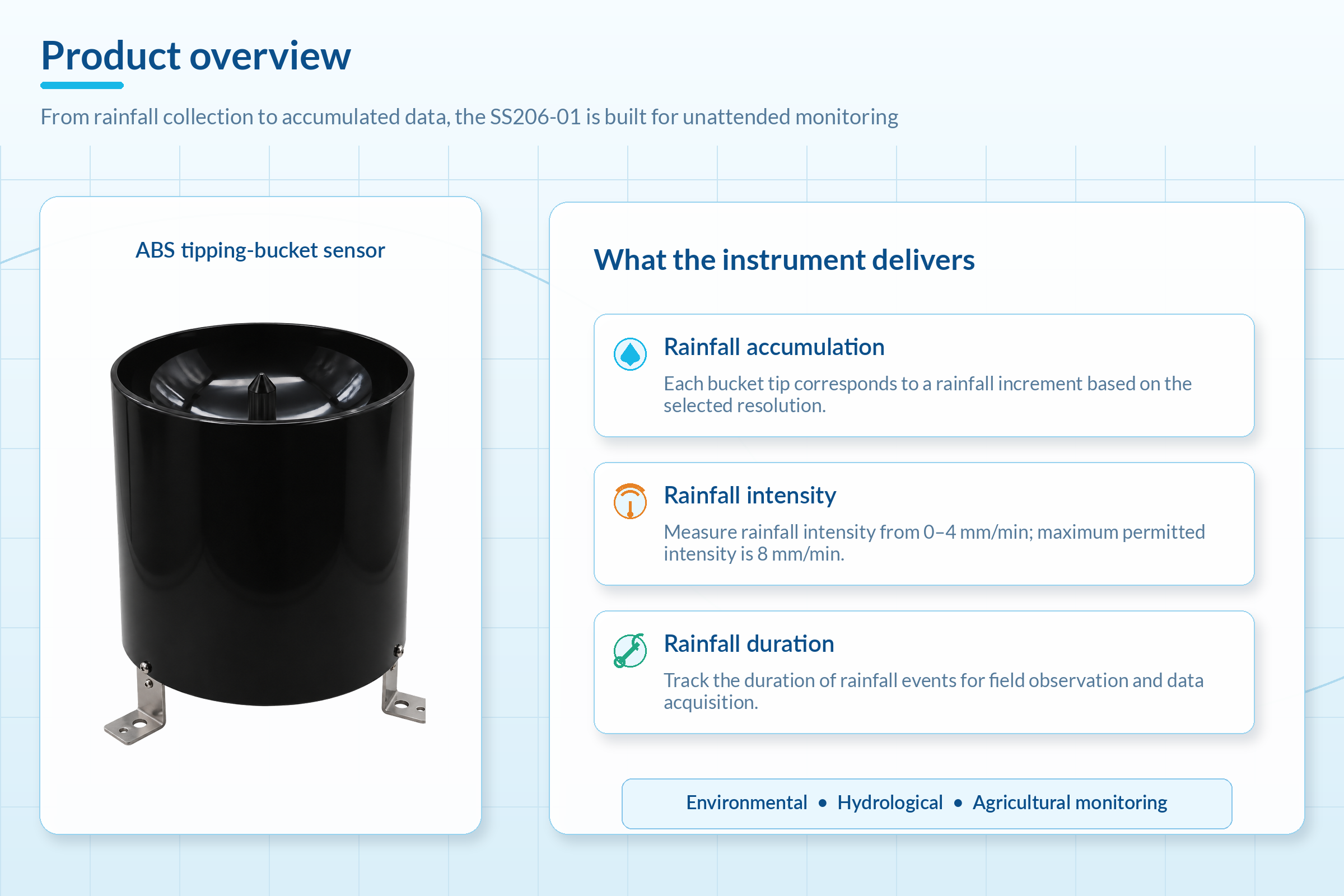

SS206-01 is an ABS tipping-bucket rain gauge designed for automated rainfall measurement in environmental, hydrological, agricultural and weather-station applications.

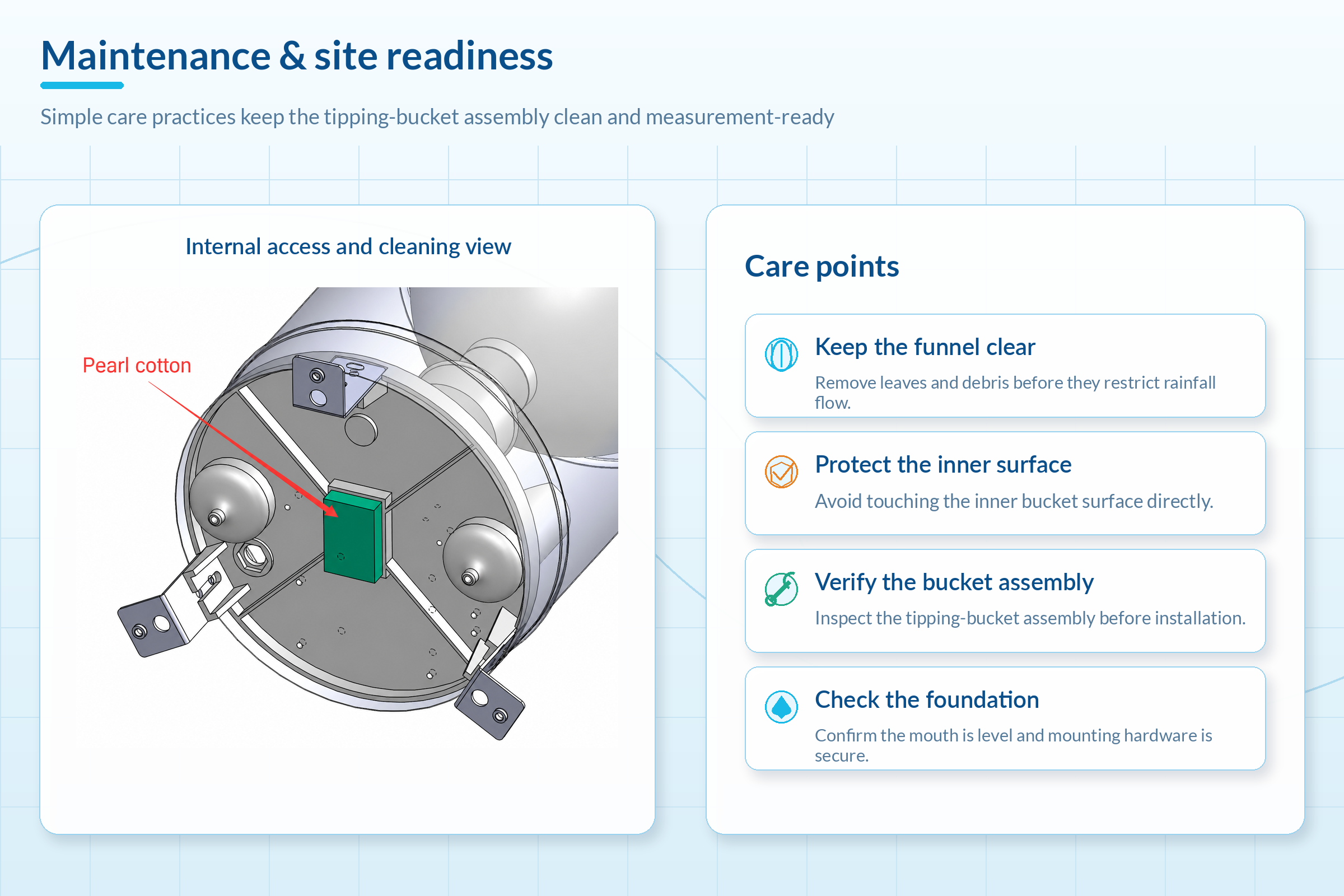

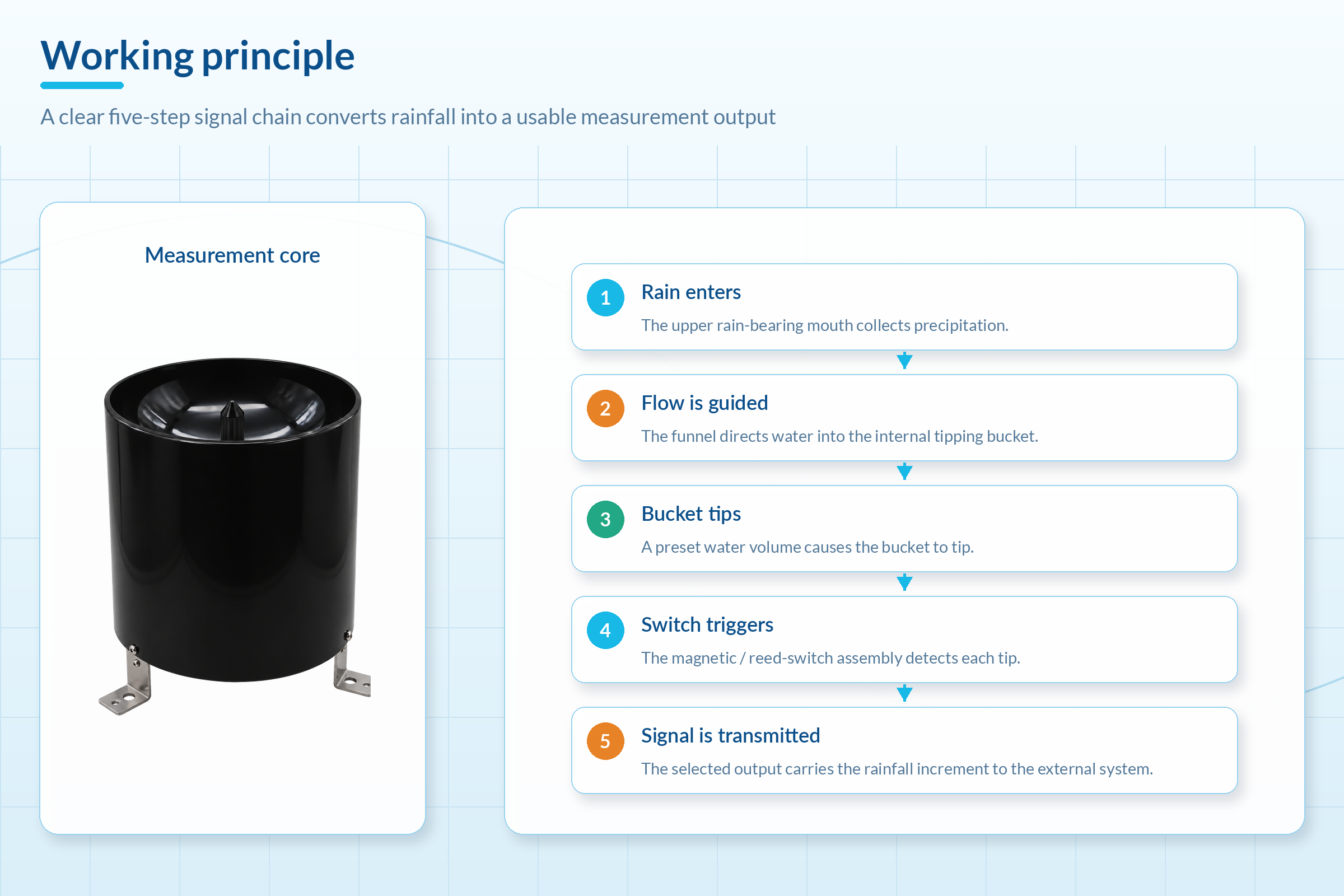

The instrument uses a tipping-bucket mechanism inside an integrated ABS housing. Rainwater enters through the collection mouth and is guided to the bucket assembly; each bucket tip generates a pulse or digital output that can be accumulated for rainfall calculation.

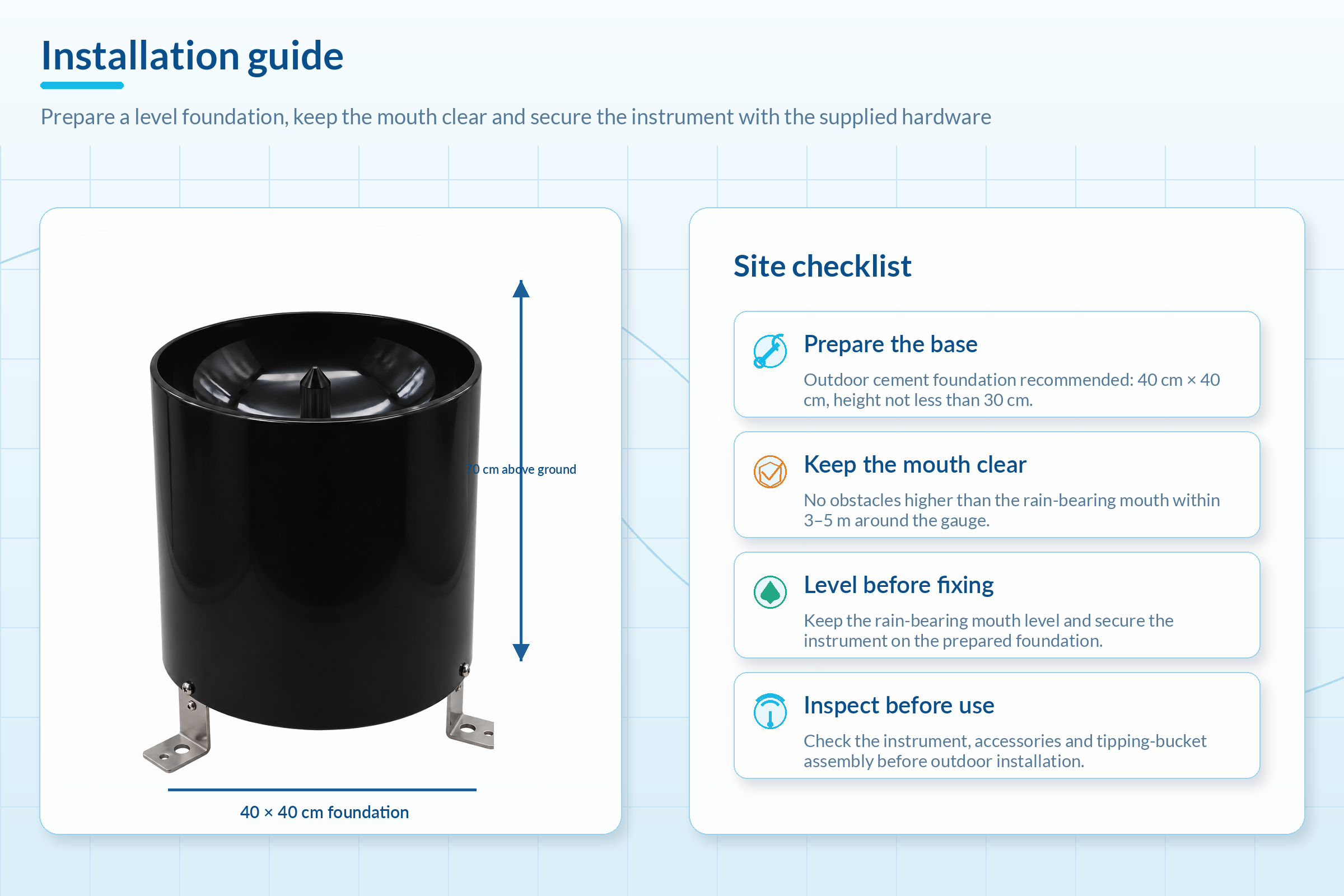

The product is compact and easy to install, with stable output, long transmission distance and strong anti-interference performance for outdoor monitoring sites.

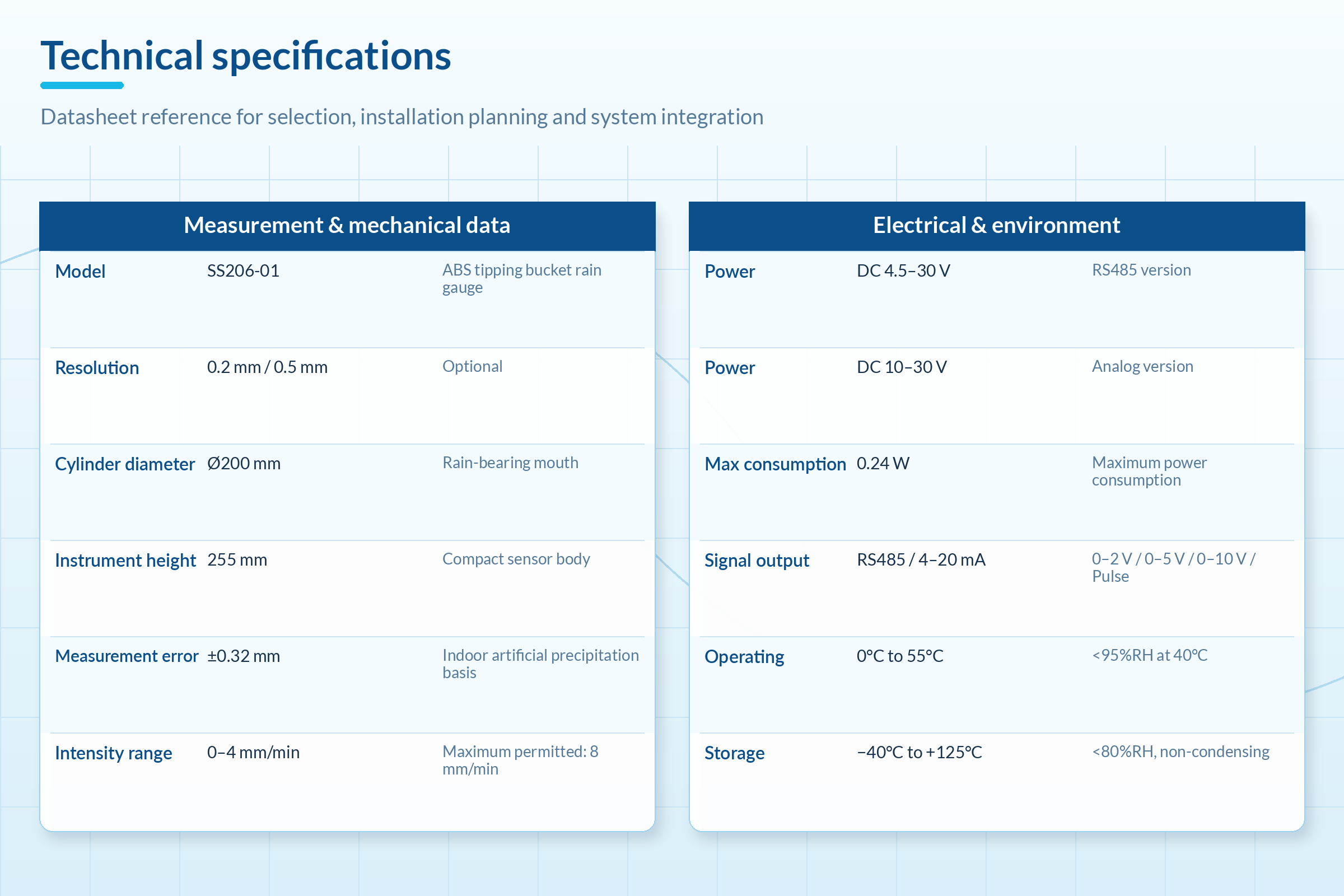

| Item | Specification |
| Model | SS206-01 |
| Product type | ABS tipping bucket rain gauge |

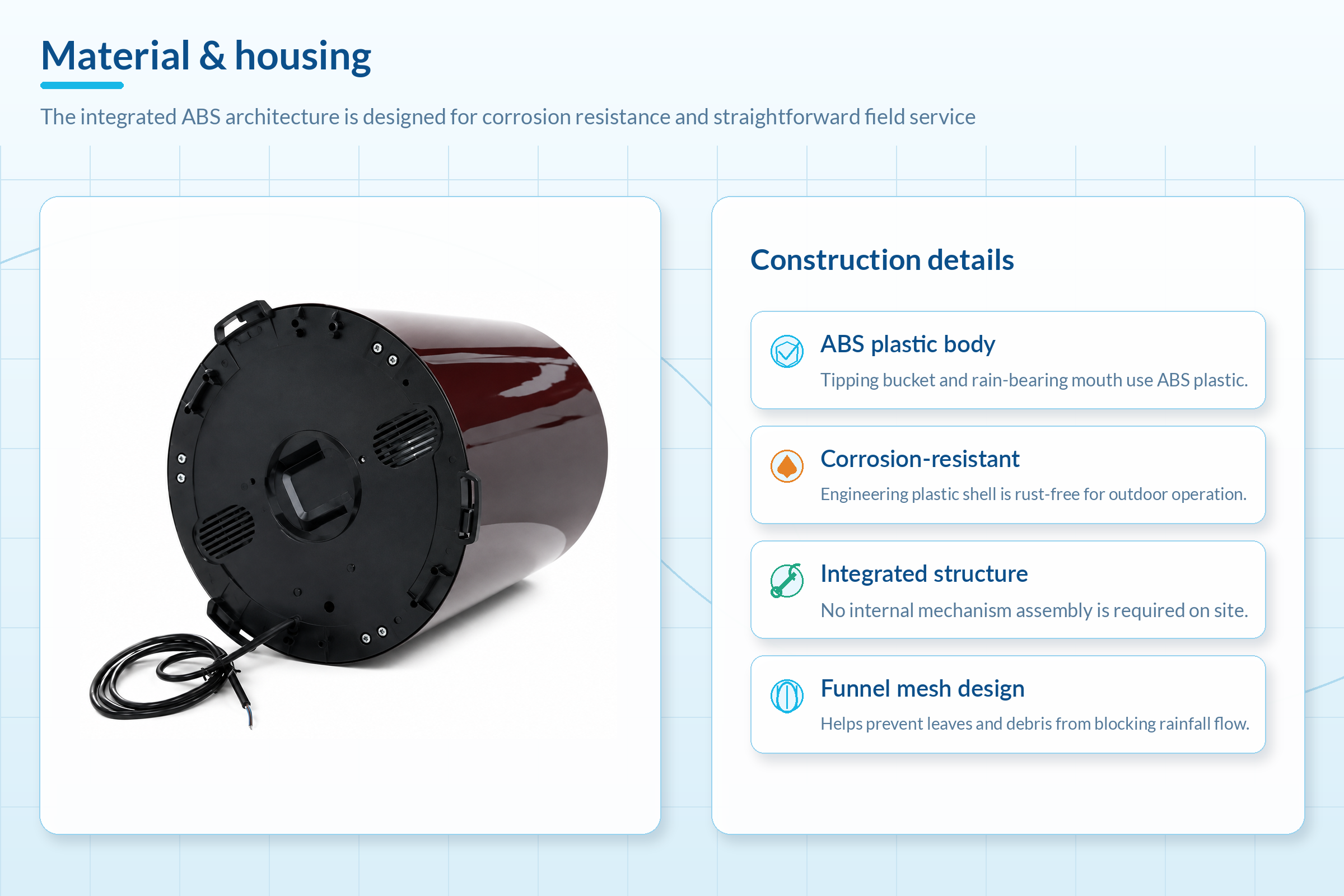

| Tipping bucket material | ABS plastic |
| Rain-bearing mouth material | ABS plastic |

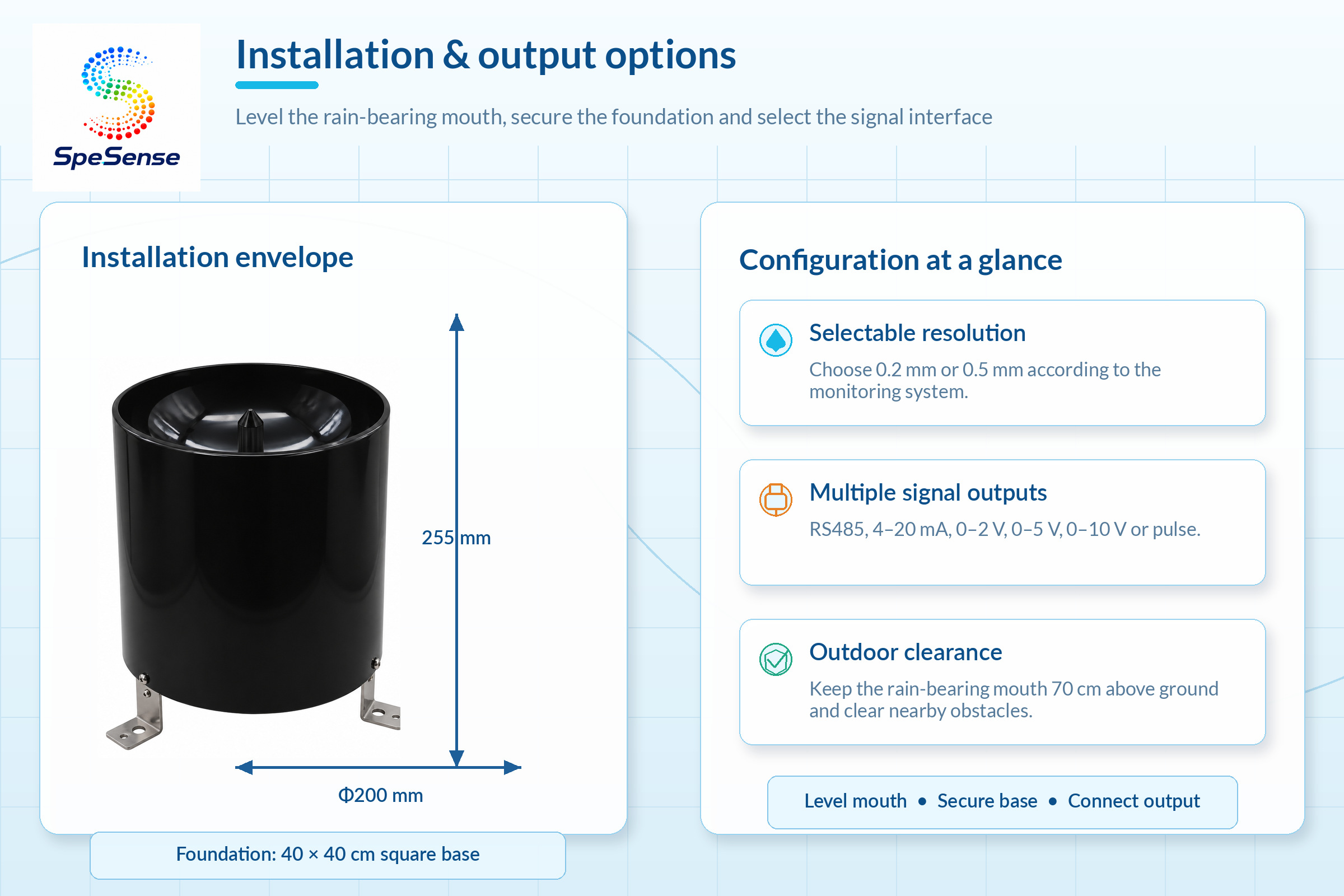

| Cylinder diameter | Φ200 mm |
| Instrument height | 255 mm |

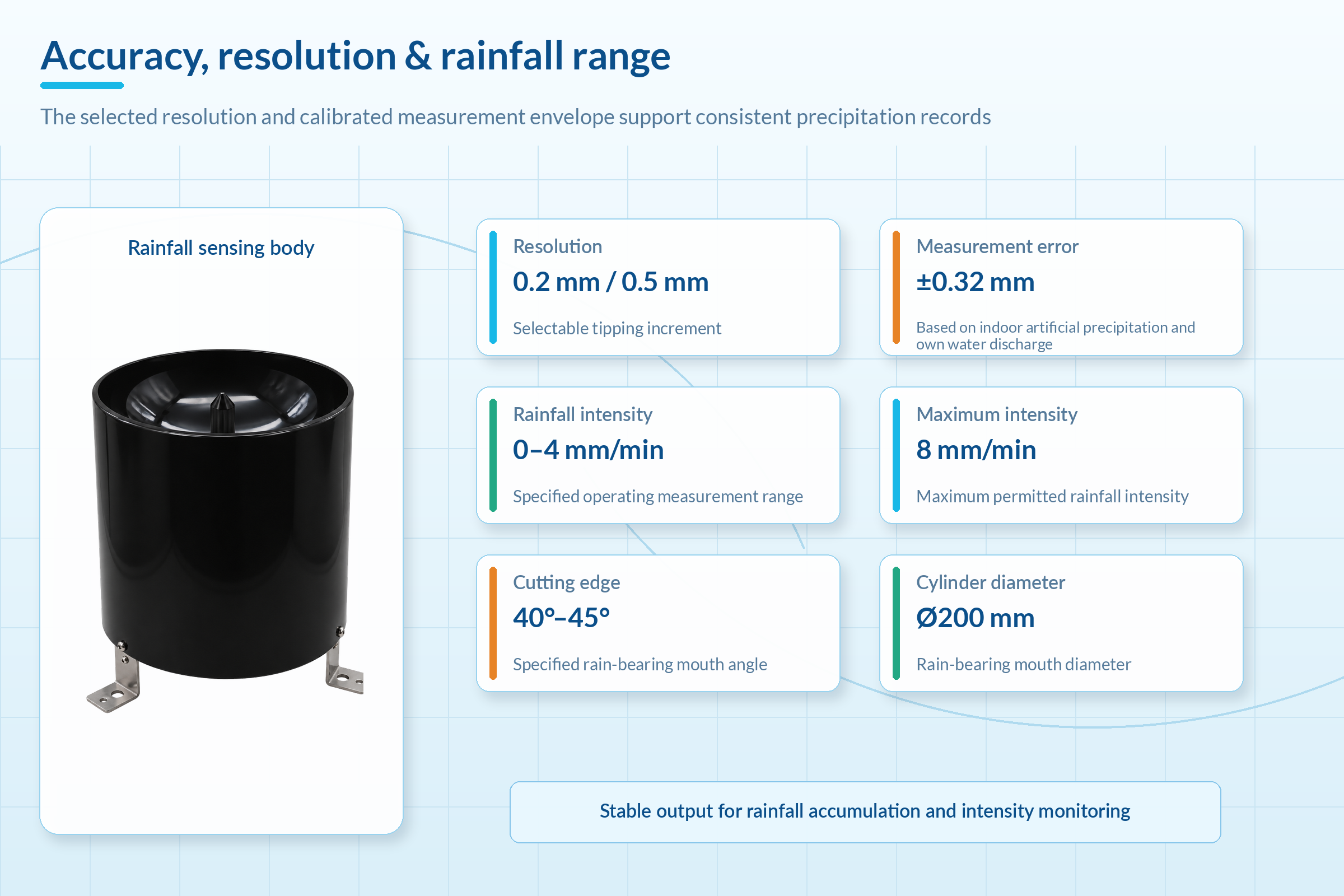

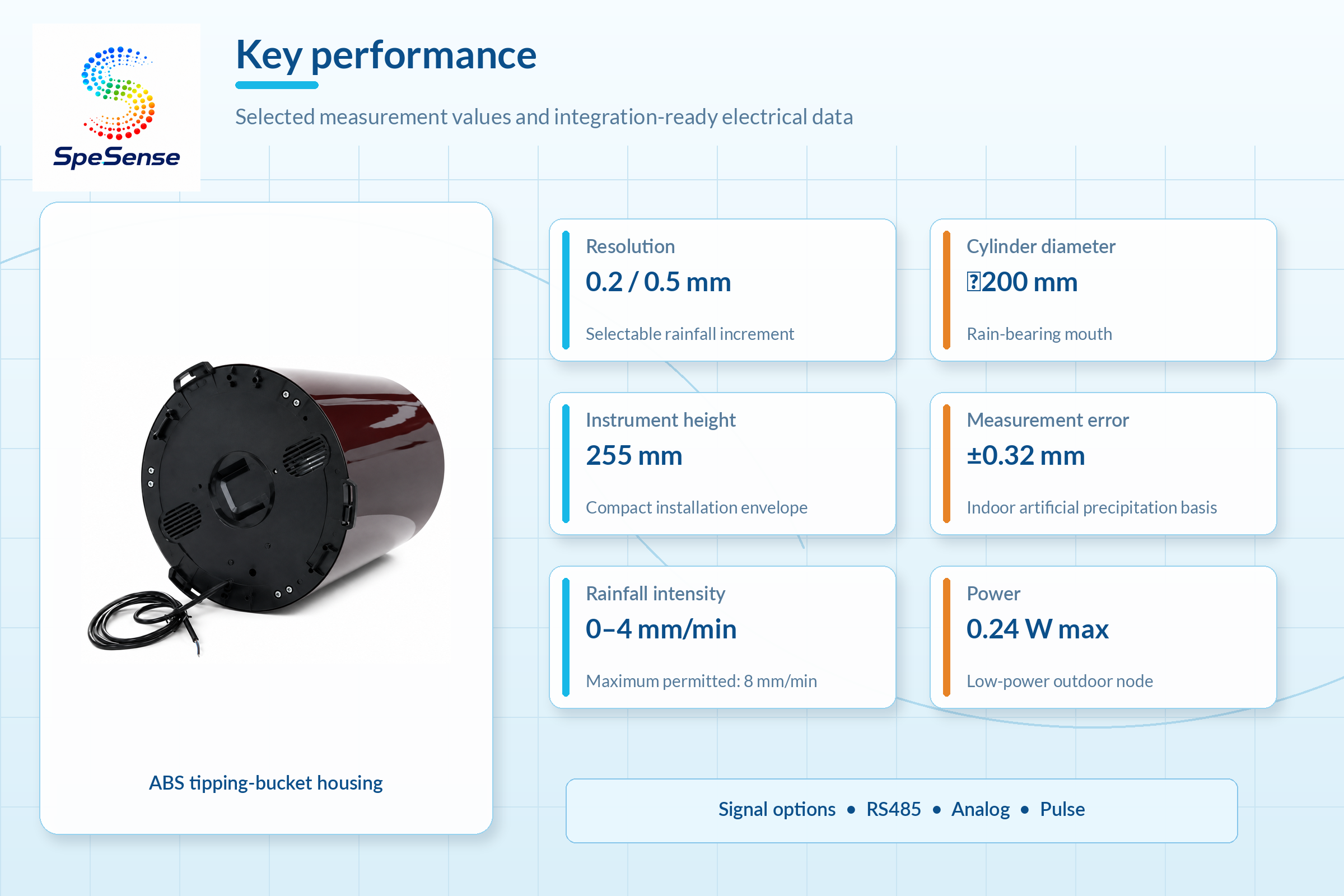

| Resolution | 0.2 mm / 0.5 mm optional |
| Measurement error | ±0.32 mm, based on indoor artificial precipitation and the instrument’s own water discharge |
| Rainfall intensity range | 0-4 mm/min |
| Maximum permitted rainfall intensity | 8 mm/min |
