llluminance Sensor
SS205-01
壁挂式照度传感器
产品亮点
● High-precision illuminance detection with selectable measuring ranges.

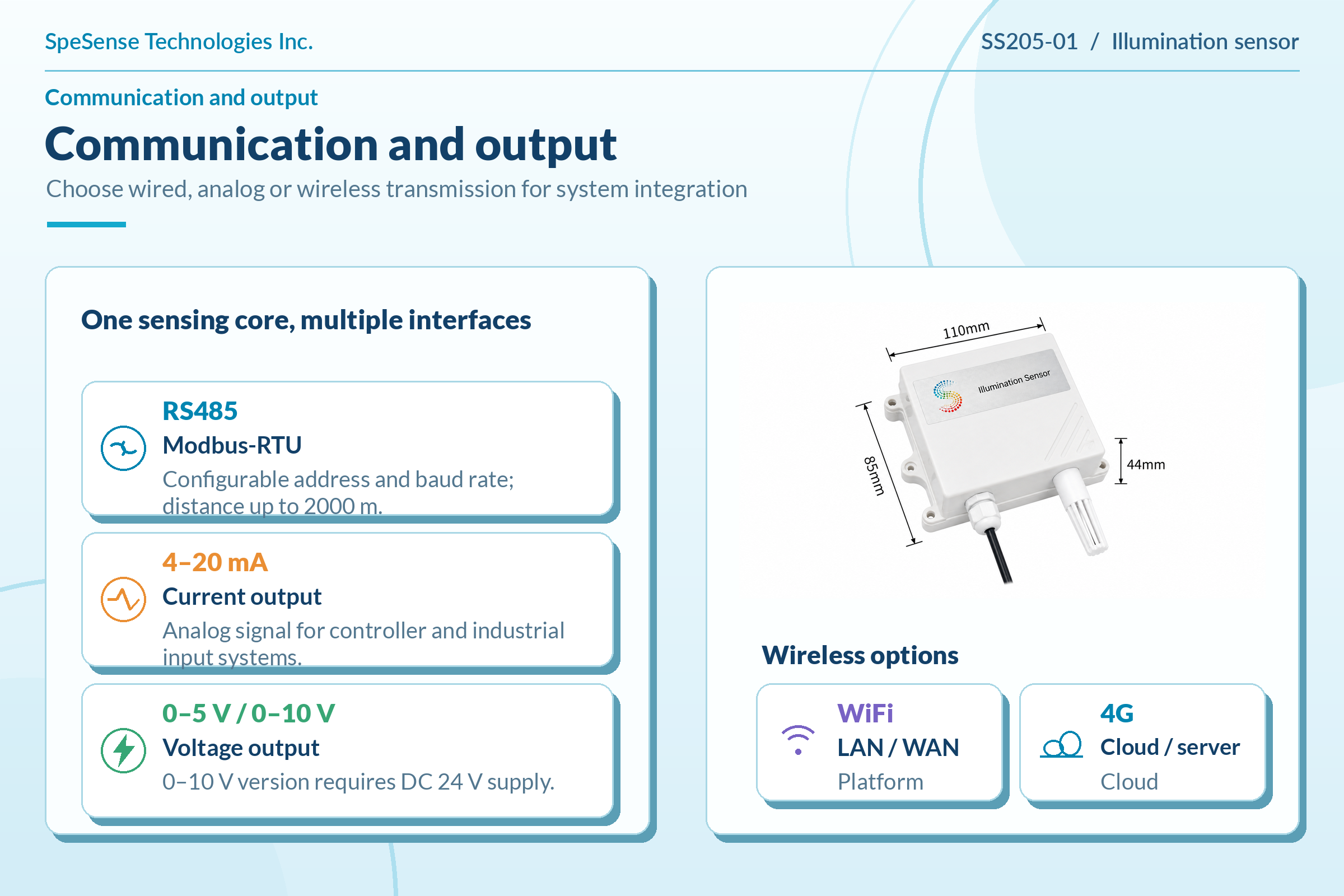

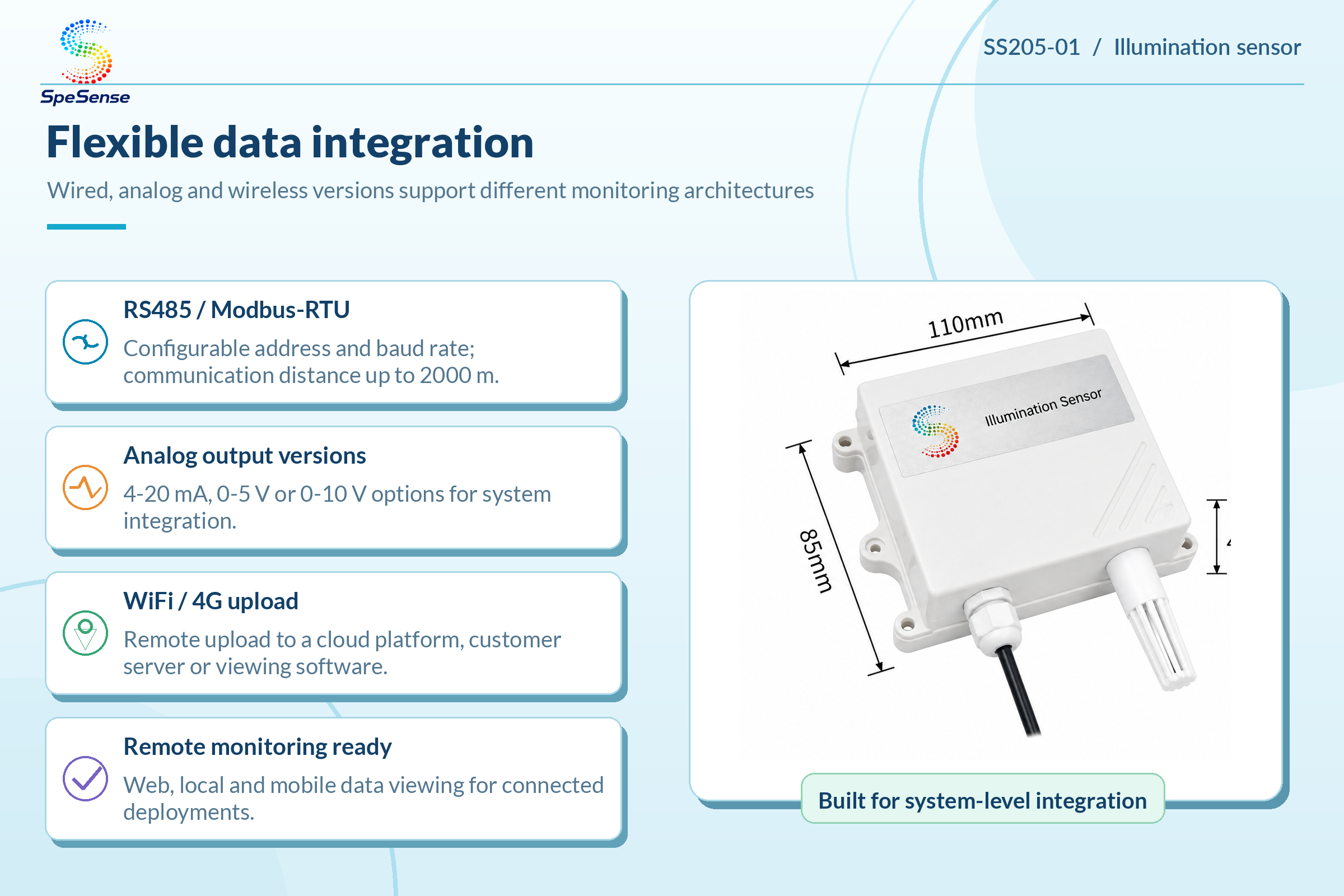

● RS485 Modbus-RTU communication with configurable address and baud rate.

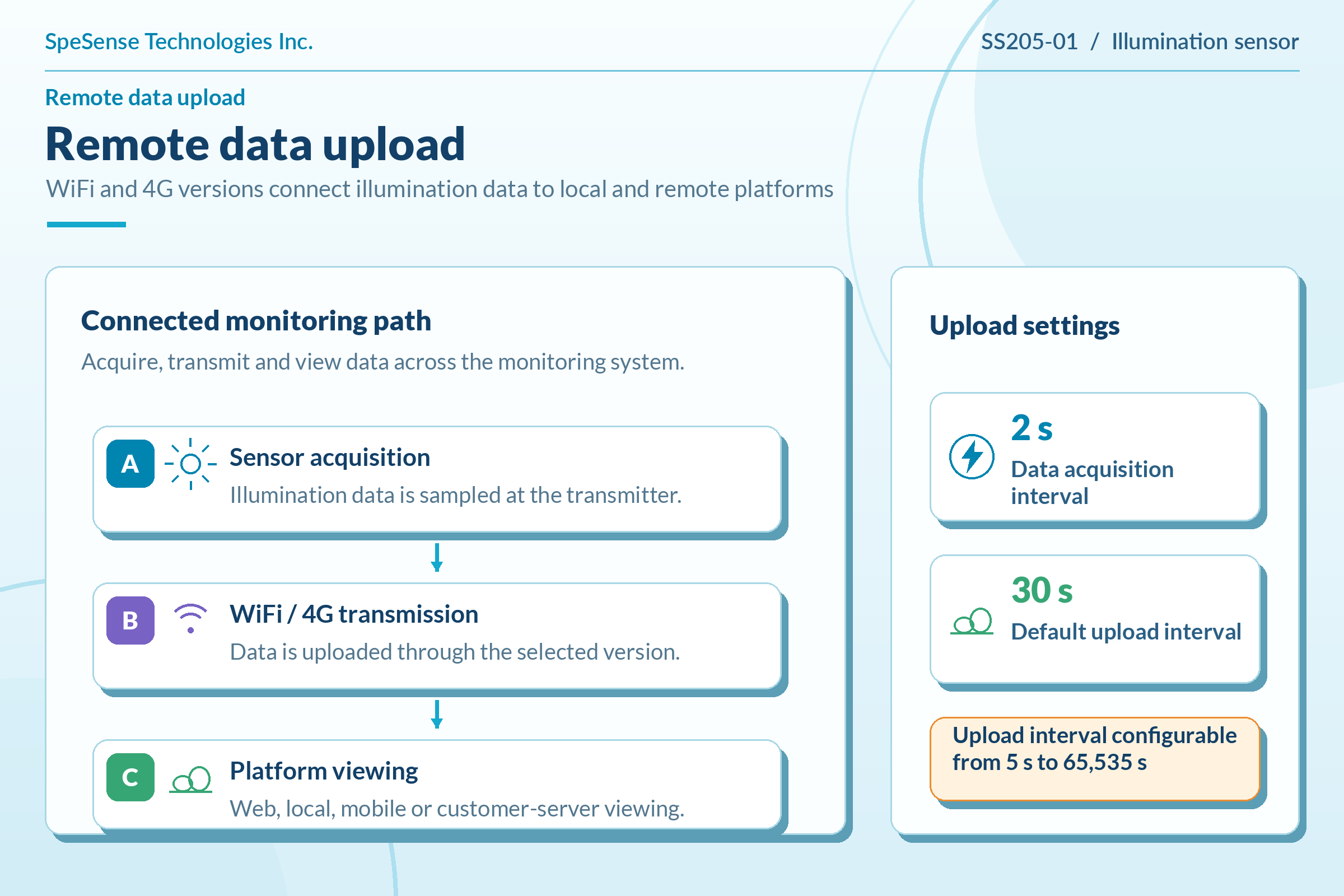

● WiFi /4G versions support remote upload and monitoring platforms.
● Waterproof wall-mounted enclosure suitable for outdoor and harsh environments.
● Optional high-accuracy illumination range with maximum error of 4%.
● RS485 Modbus-RTU communication with configurable address and baud rate.
● WiFi /4G versions support remote upload and monitoring platforms.
● Waterproof wall-mounted enclosure suitable for outdoor and harsh environments.
● Optional high-accuracy illumination range with maximum error of 4%.
产品概述

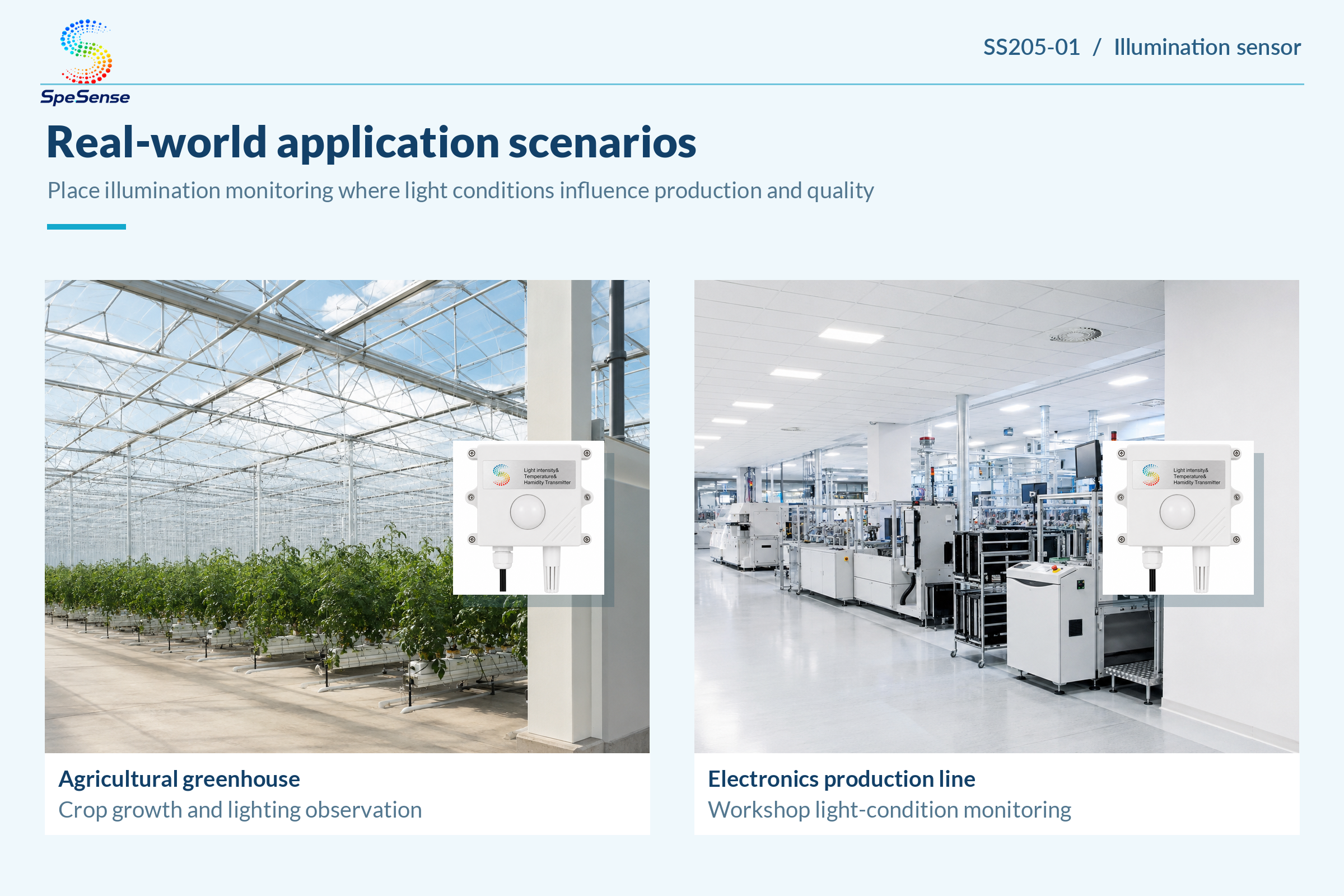

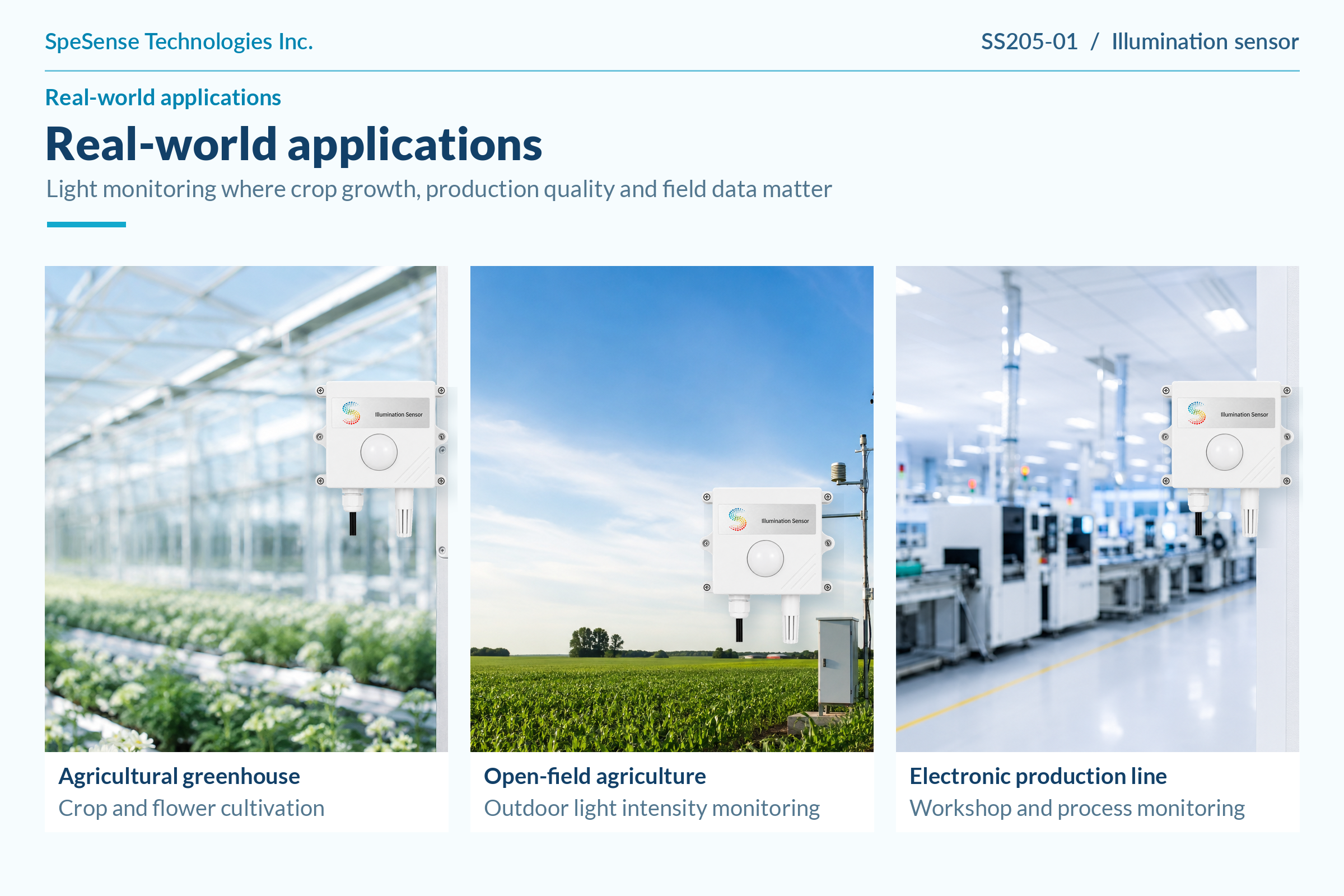

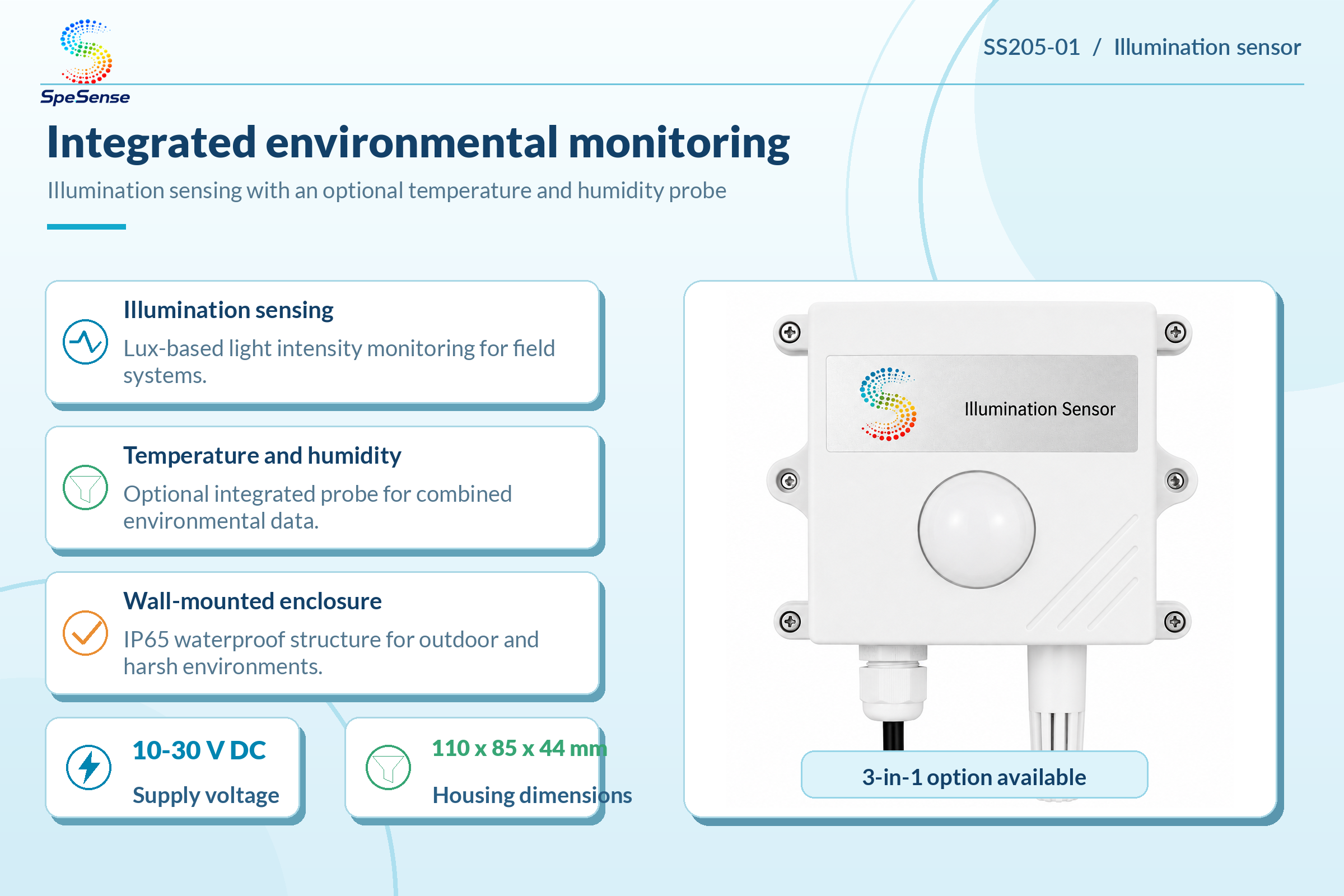

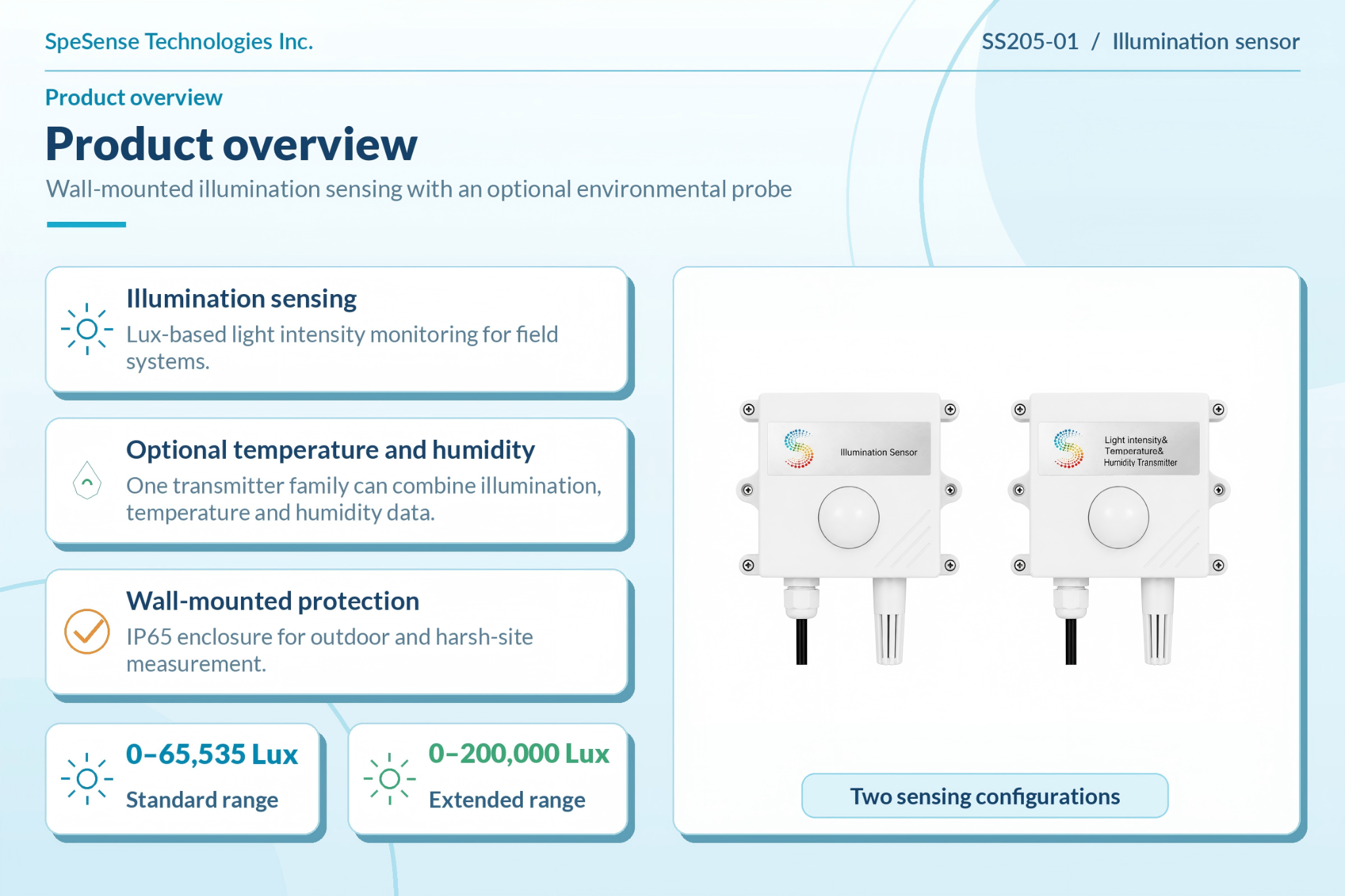

SS205-01 is a high-precision illumination sensor for Lux-based light intensity monitoring. The device adopts a wall-mounted waterproof enclosure and supports RS485 Modbus-RTU, WiFi and 4G data transmission for agricultural greenhouses, flower cultivation, open-field agriculture and electronic production lines.
| Item | Specification |
| Supply voltage | 10-30 VDC; 0-10 V output version requires DC 24 V |

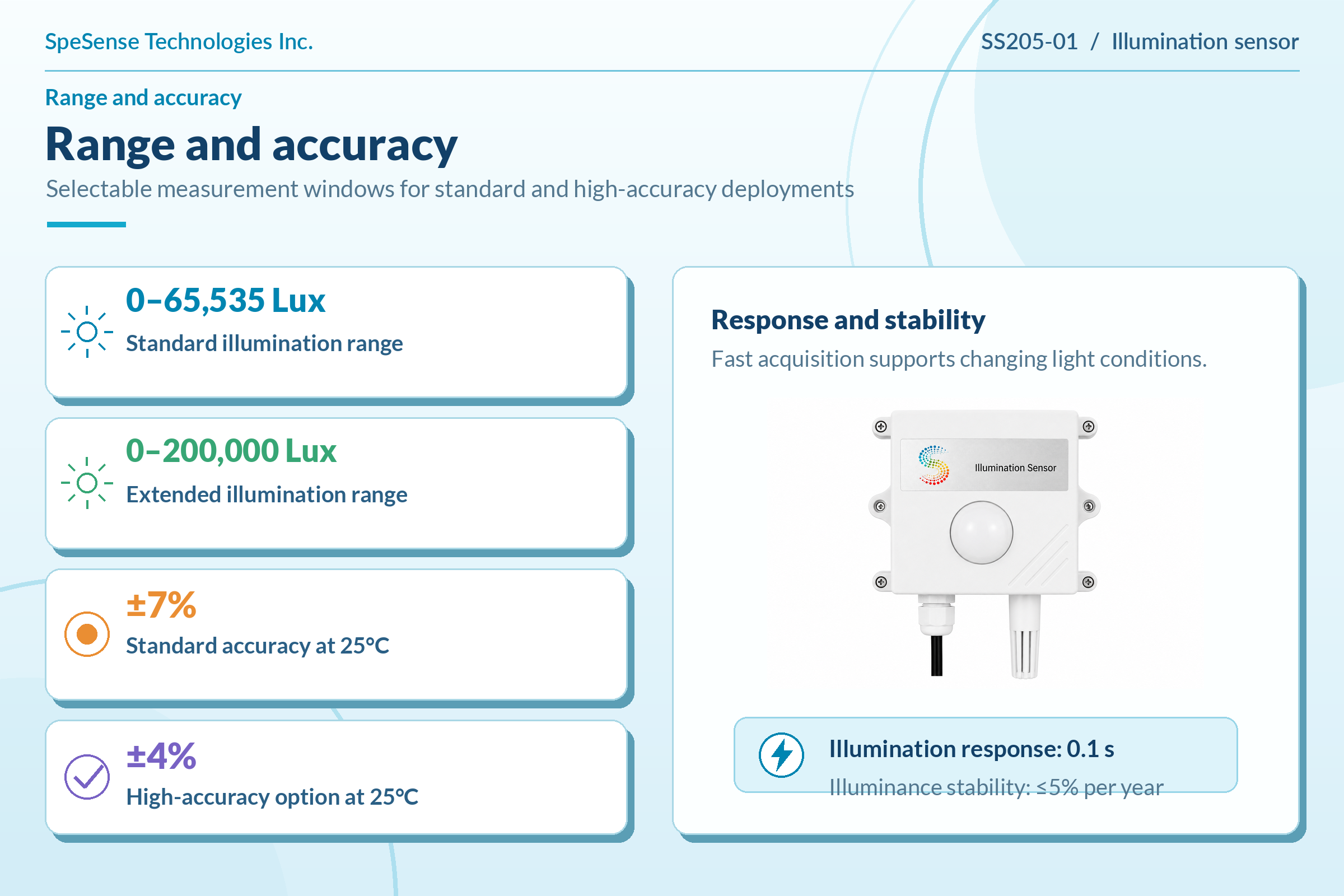

| Illuminance range | 0-65535 Lux; 0-200,000 Lux selectable |

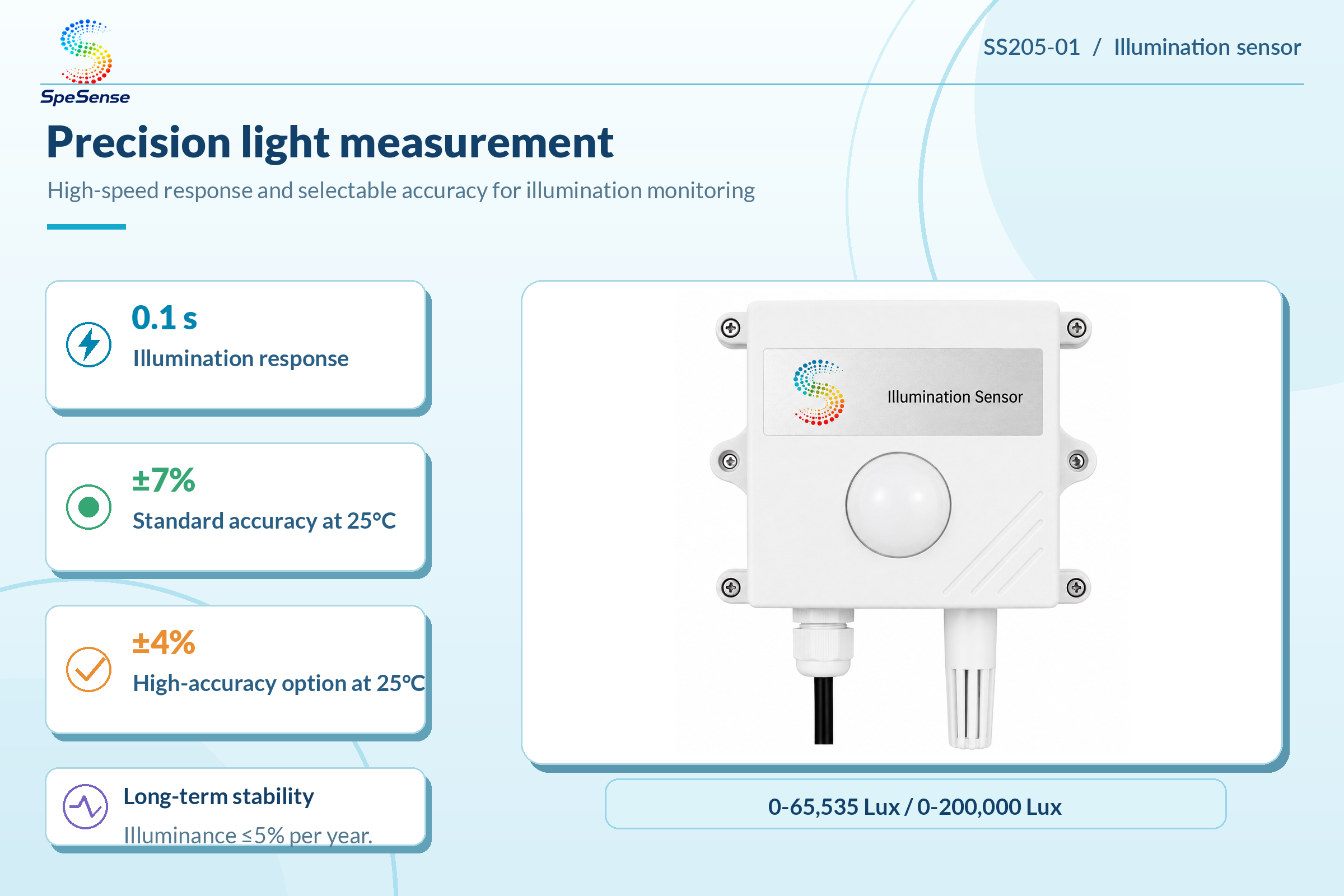

| Illuminance accuracy | Standard: ±7% at 25°C; high-accuracy option: ±4% at 25°C |
| Working environment | -40°C to +60°C; 0%RH to 95%RH, non-condensing |
| Long-term stability | Illuminance ≤5%/year; temperature ≤0.1°C/year; humidity ≤1%/year |
| Response time | Illuminance 0.1 s; humidity ≤6 s; temperature ≤18 s at 1 m/s airflow |

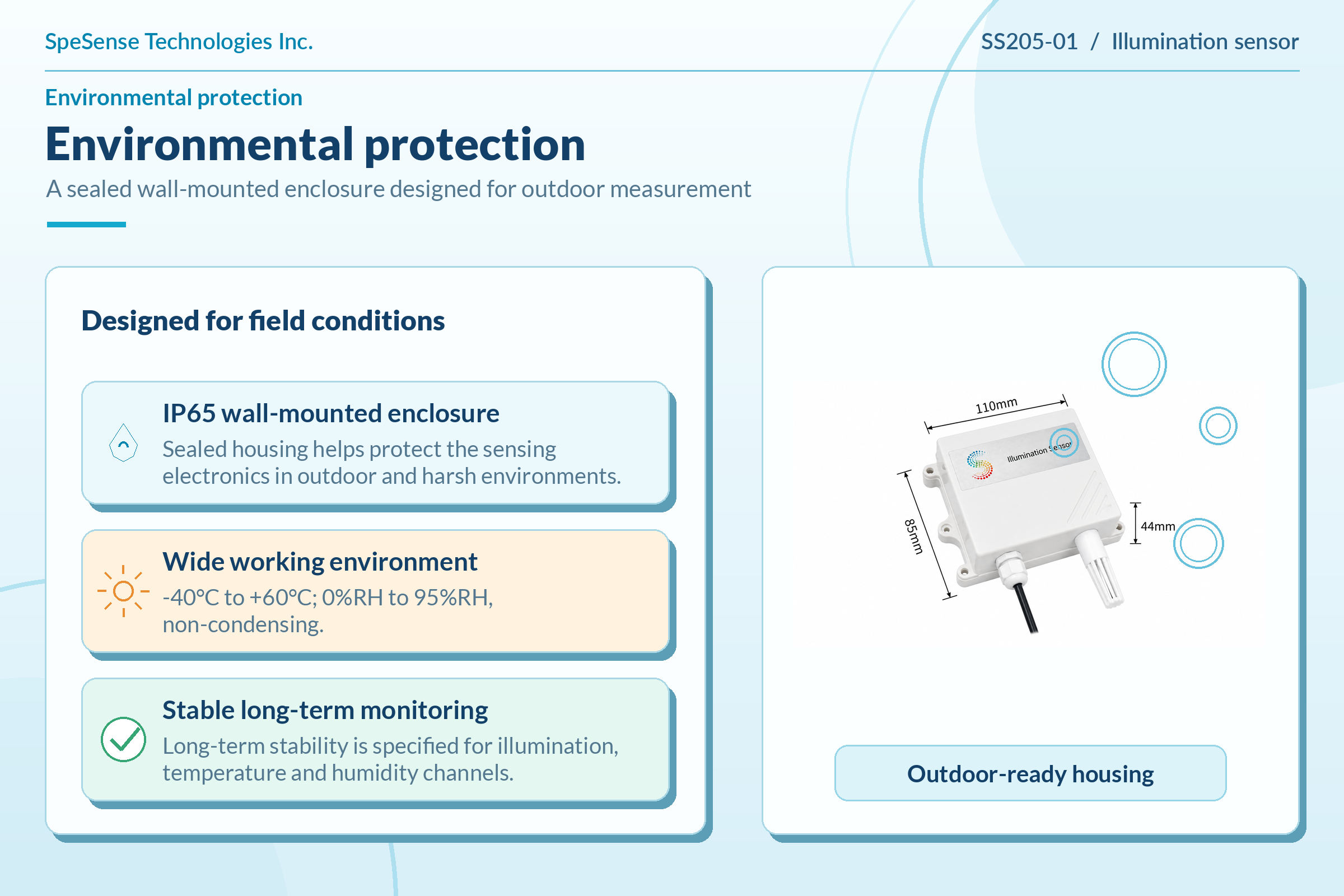

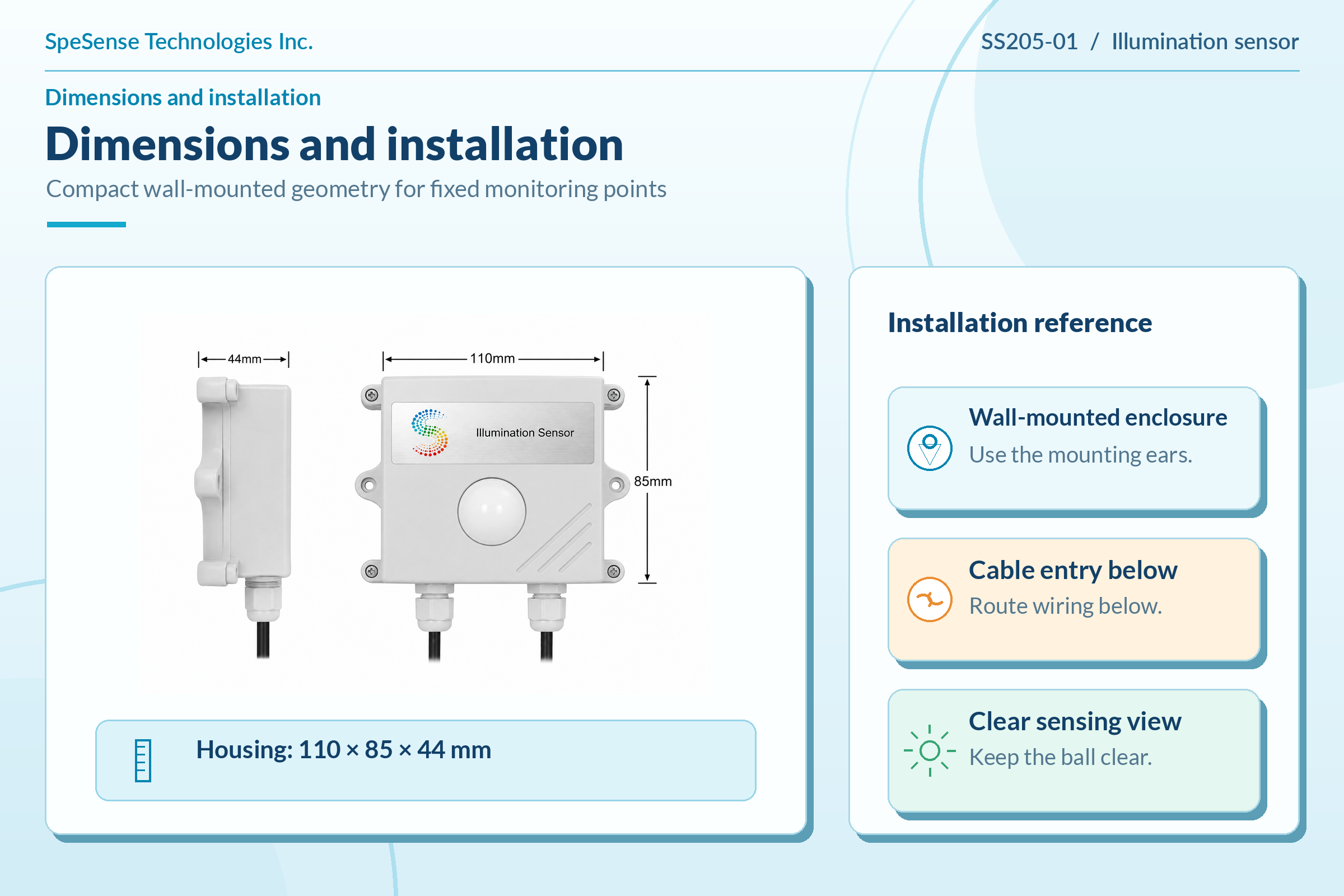

| Protection / installation | IP65 wall-mounted waterproof enclosure |
