Soil Sensor

SS204-04

四合一土壤养分传感器

产品亮点

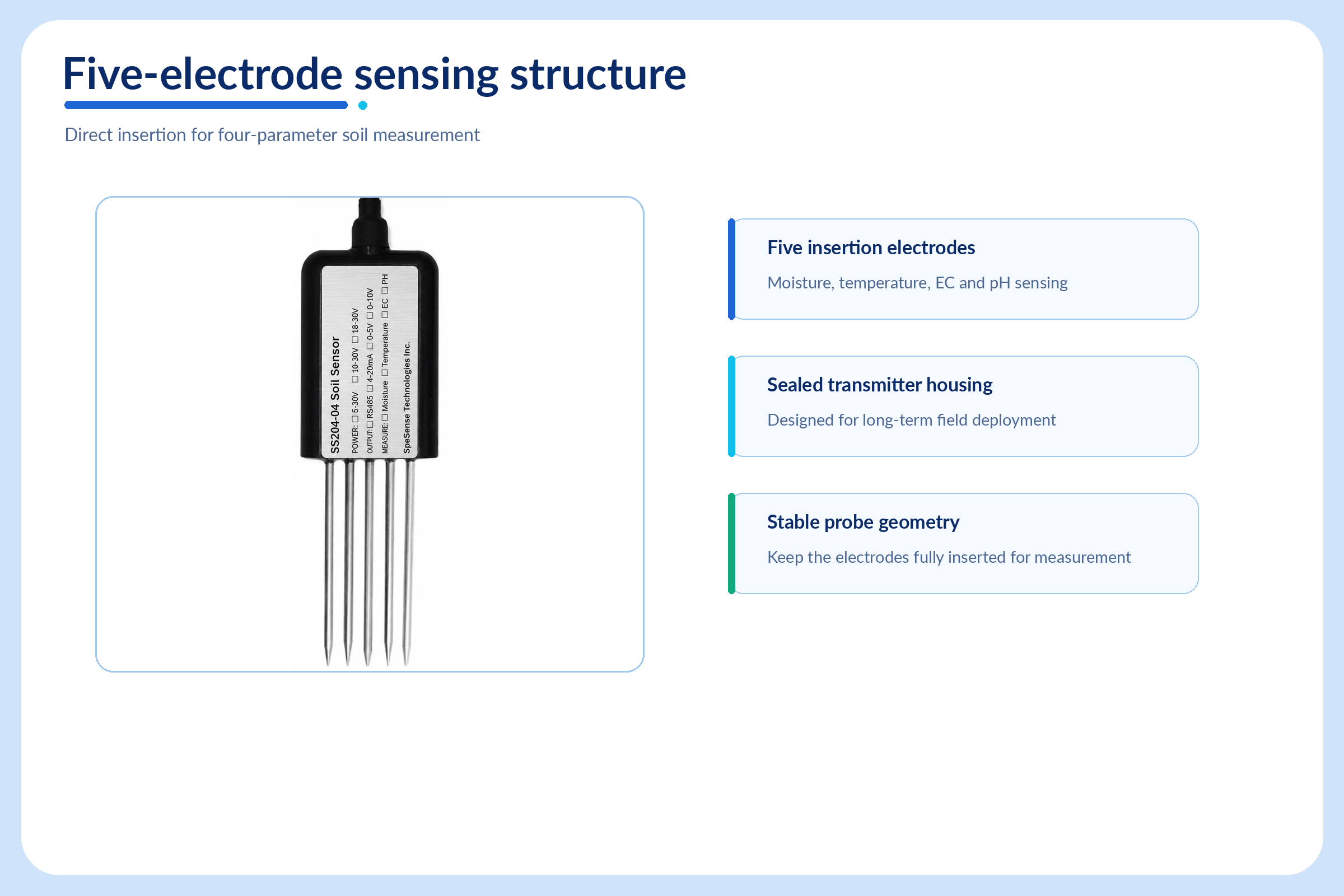

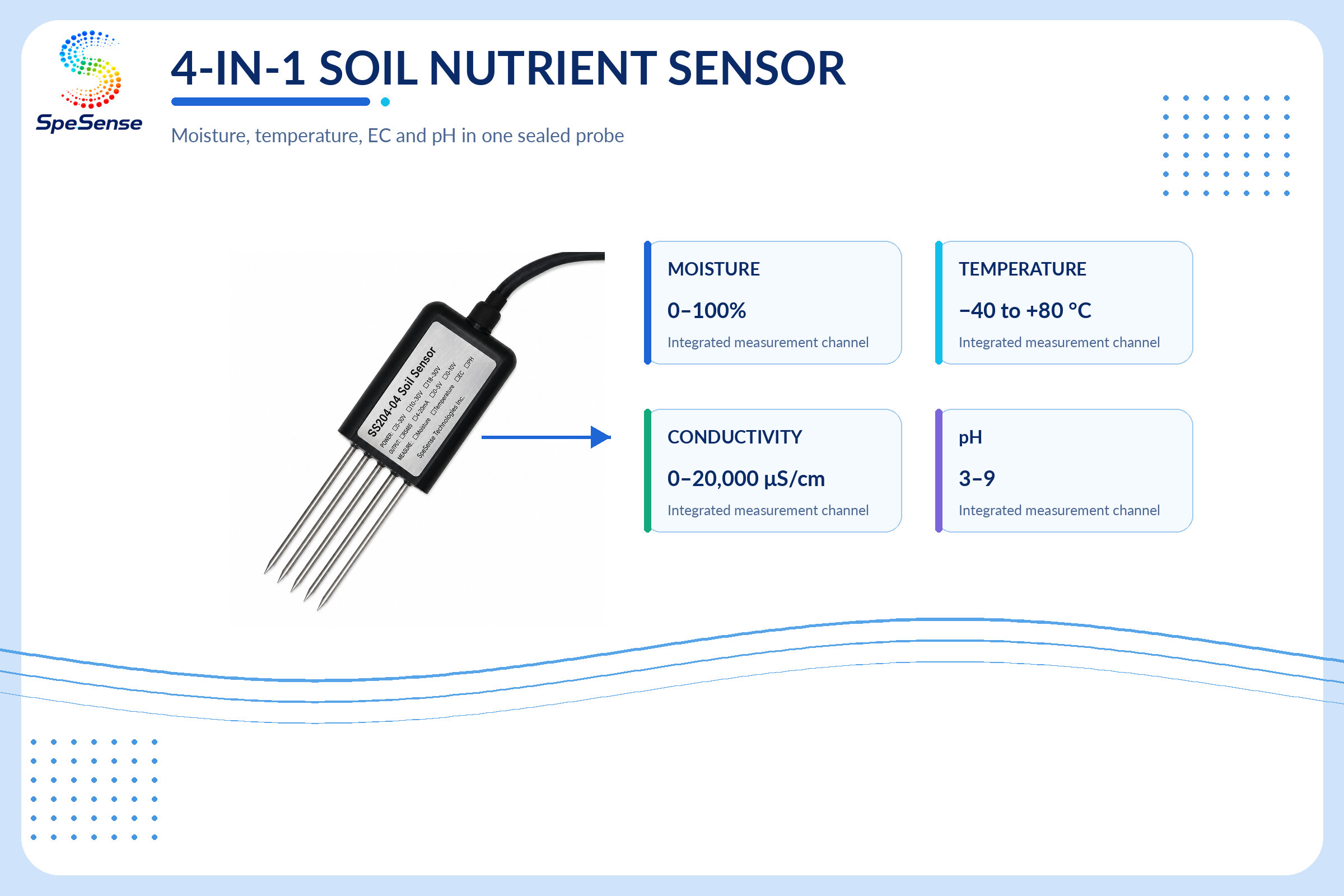

● Four-parameter measurement combines moisture, temperature, EC and pH.
● Dielectric-constant measurement reflects volumetric soil-water content.

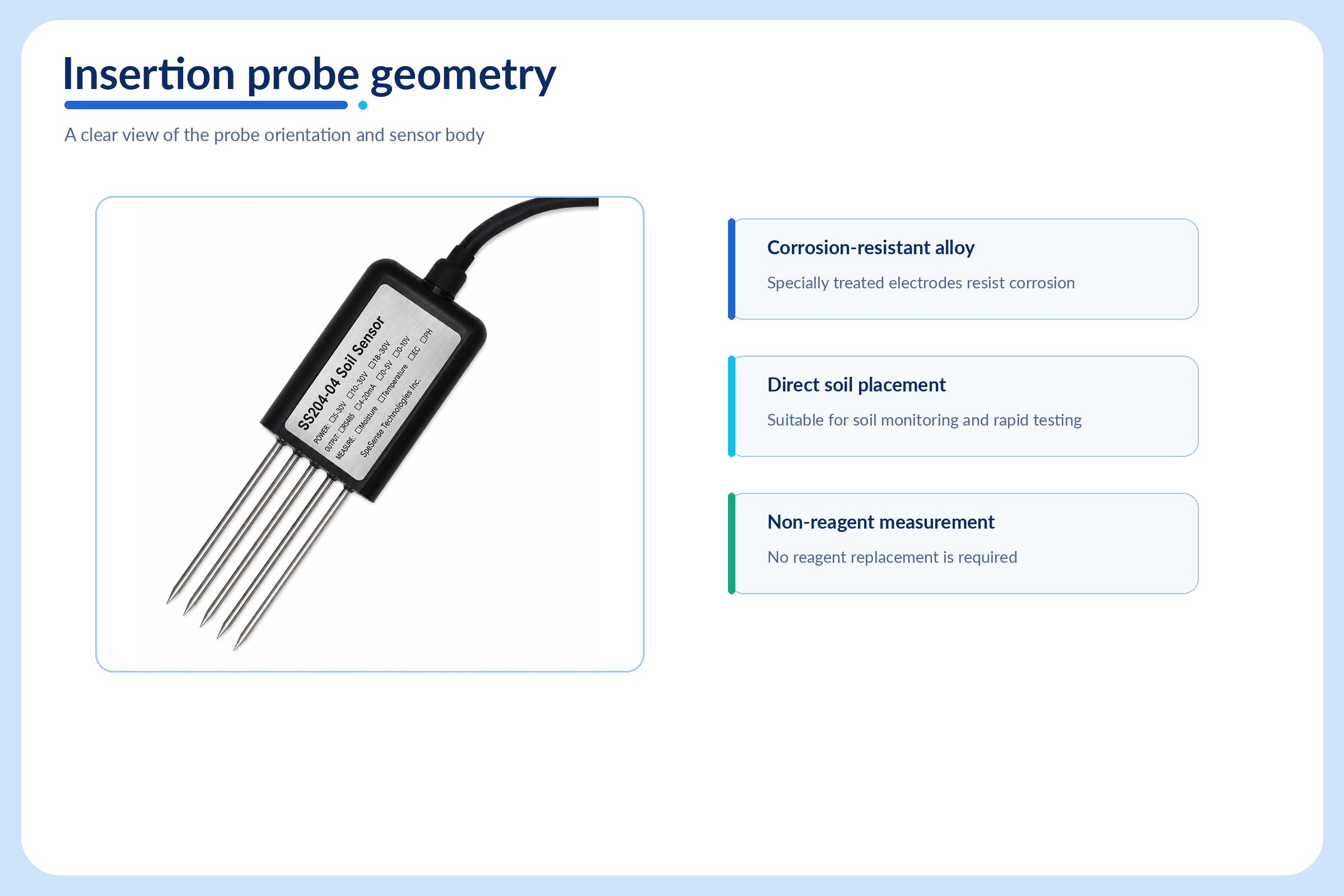

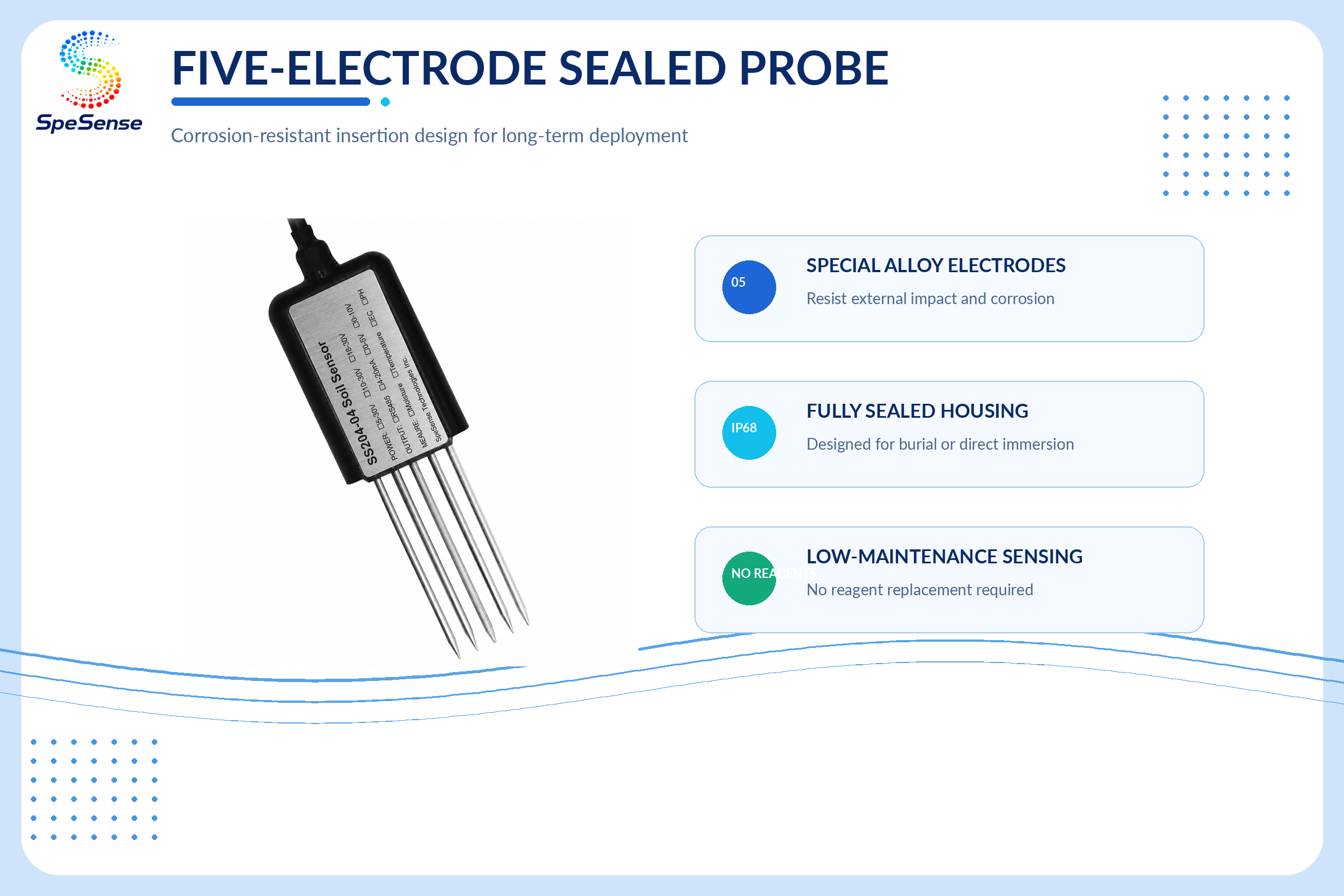

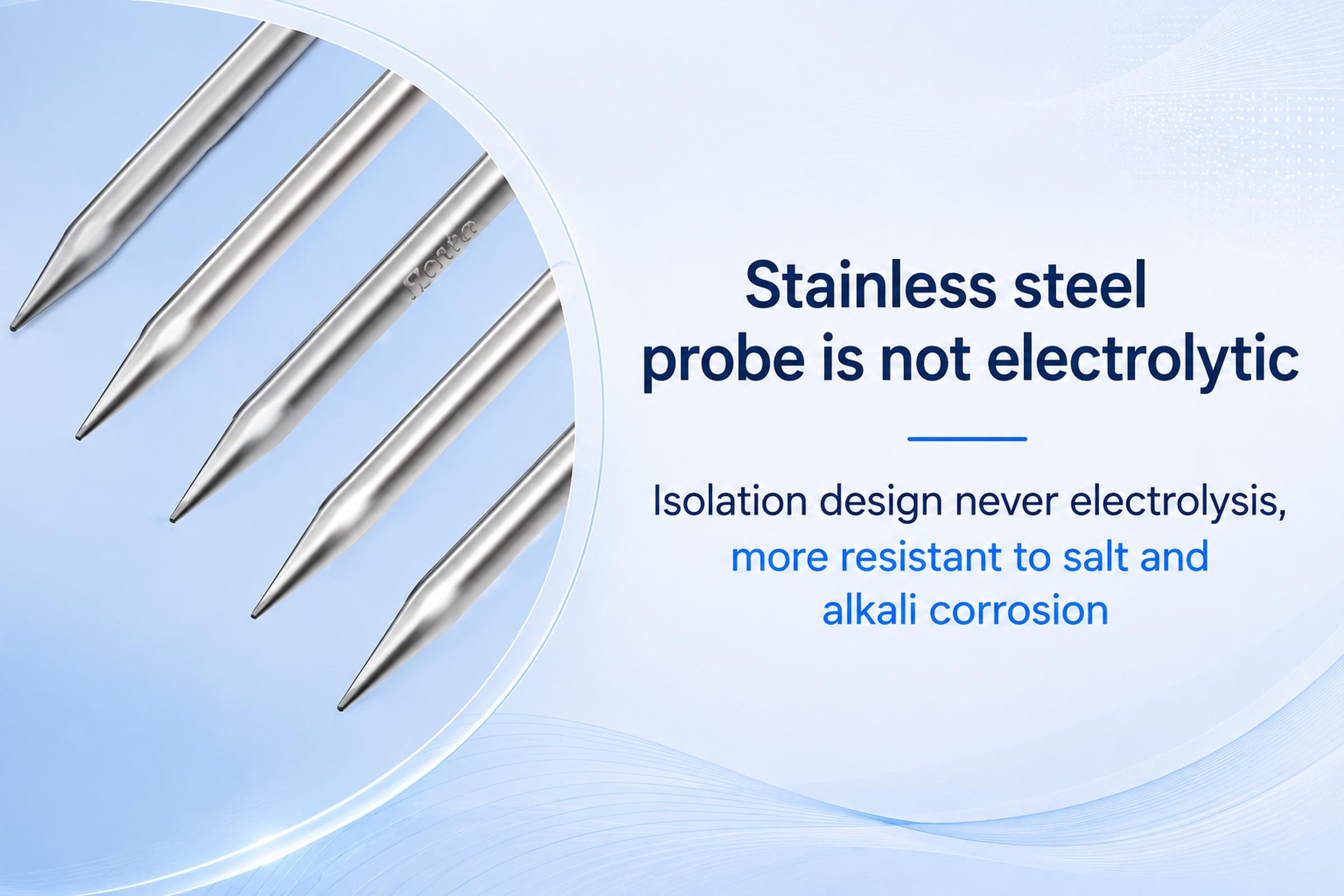

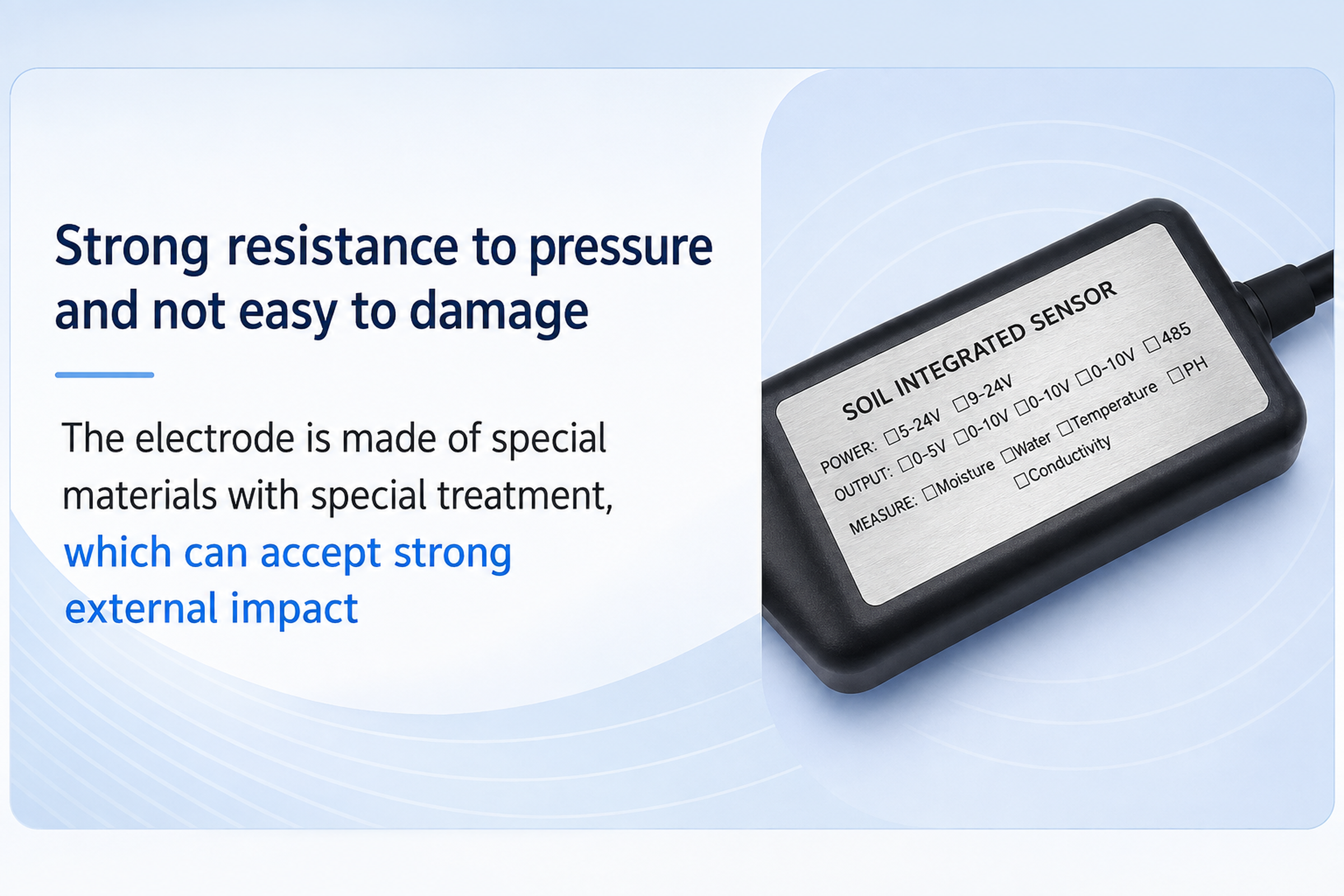

● Specially treated alloy electrodes resist external impact and corrosion.

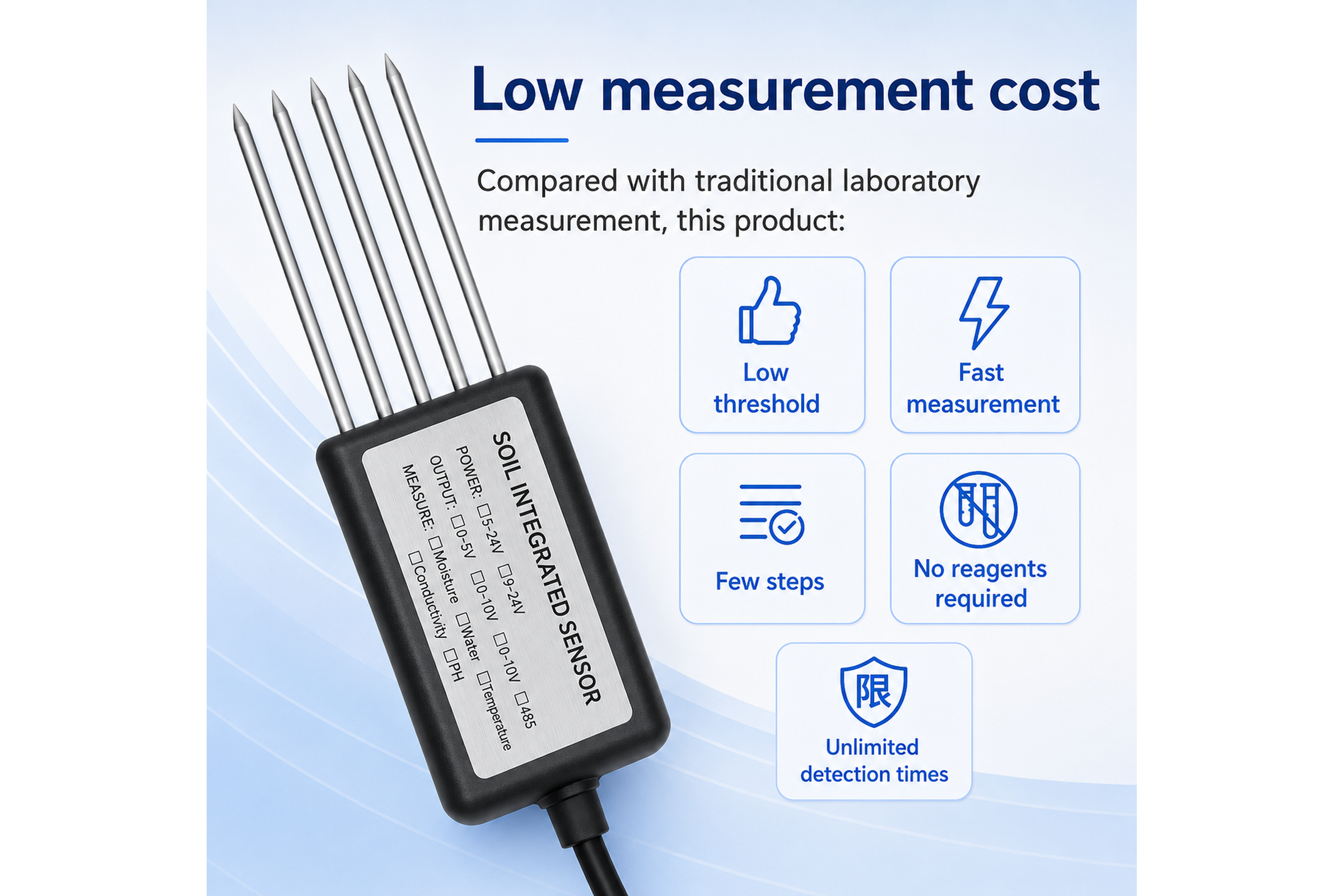

● No reagents are required; the source states there is no limit on detection count.
● Low-power design supports wake, sample, upload and sleep workflows.

下载PDF

产品概述

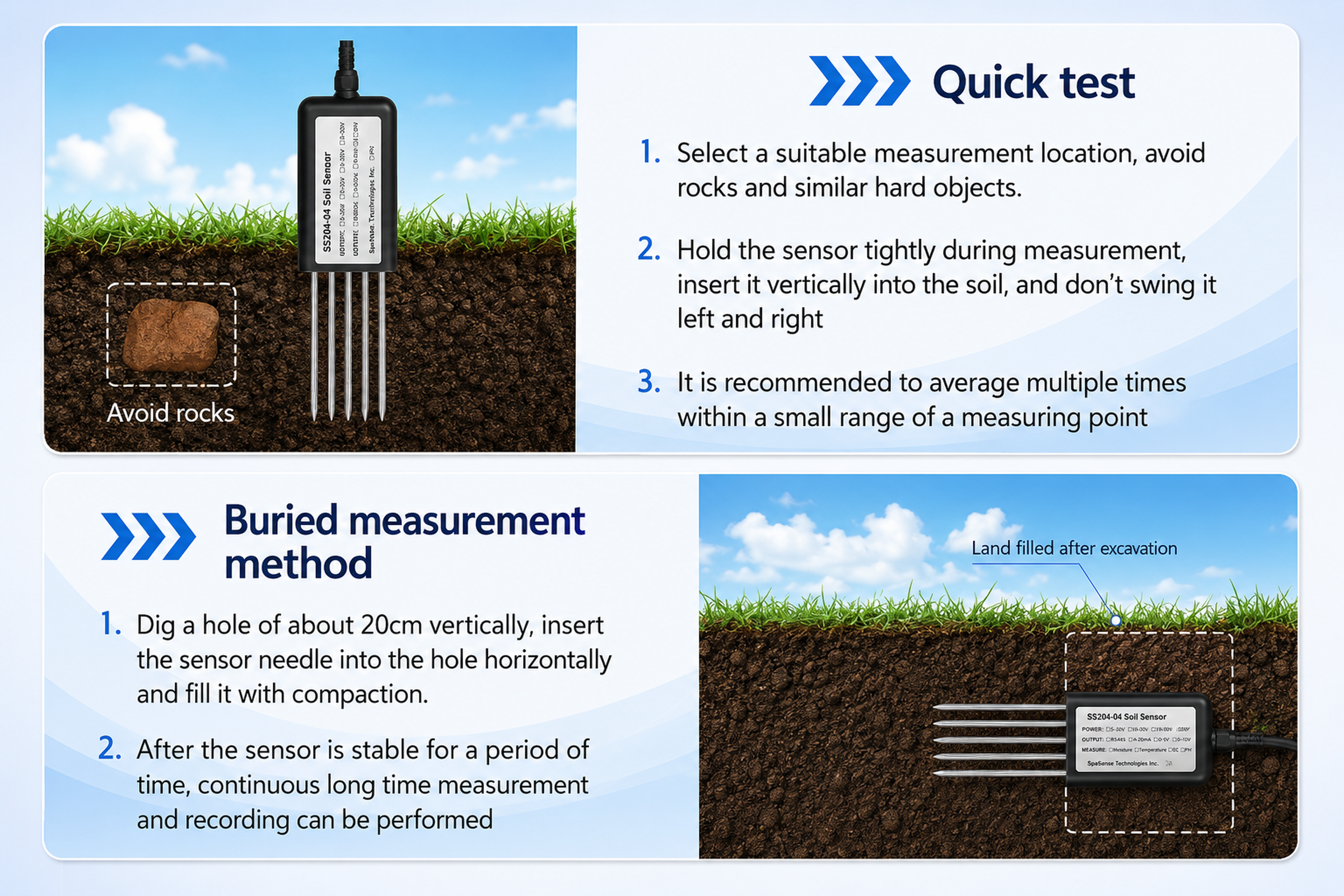

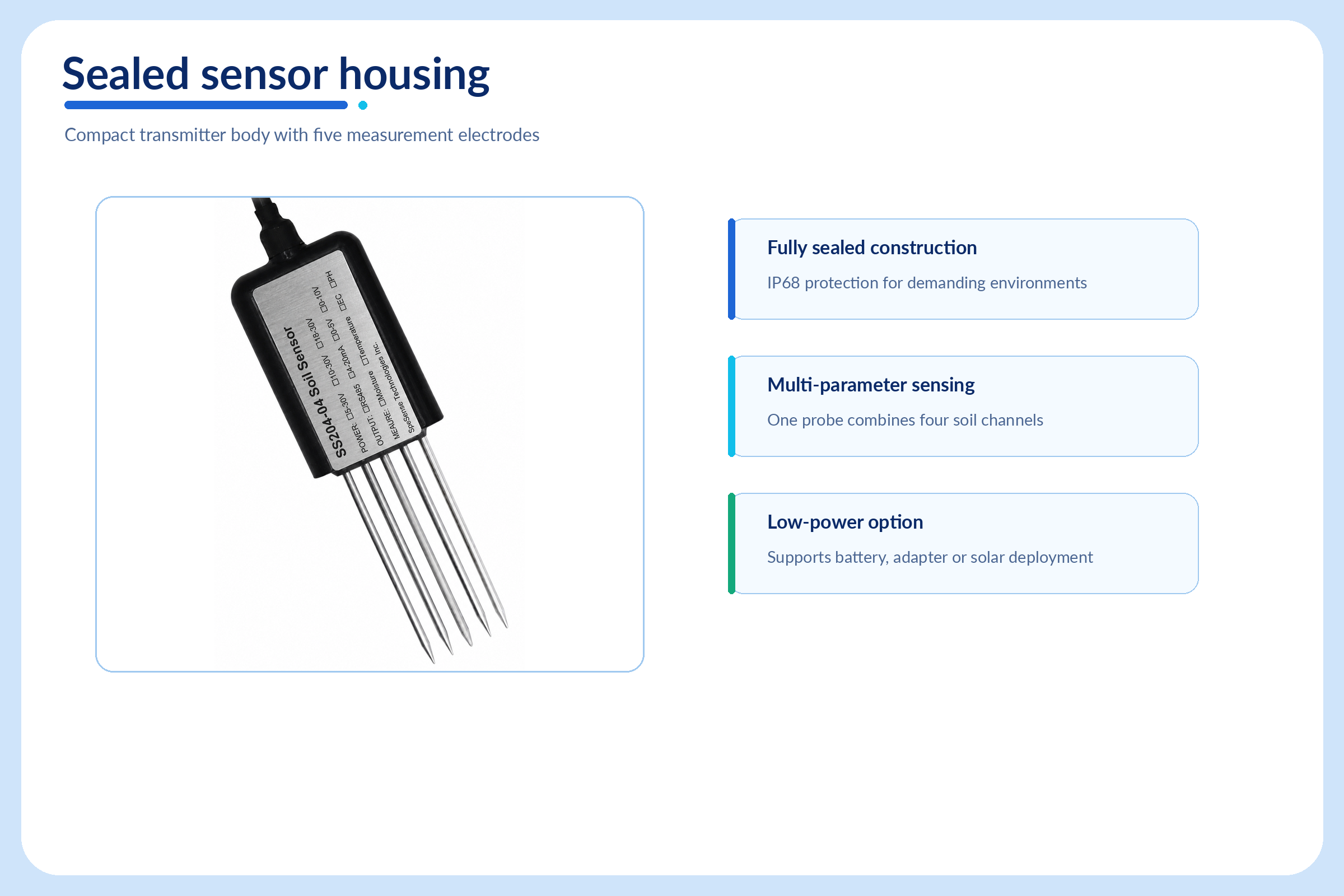

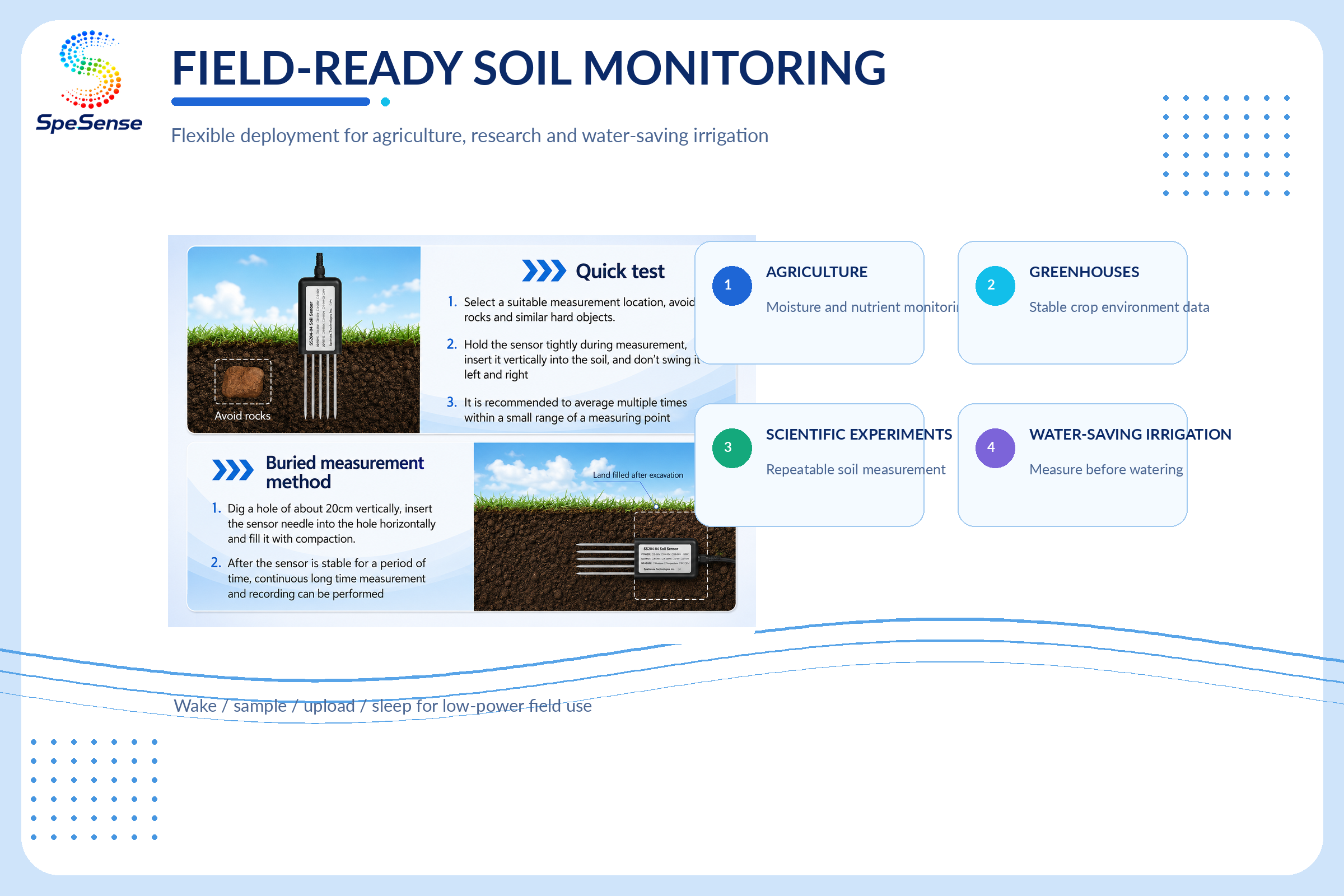

• Measures soil volumetric moisture, soil temperature, electrical conductivity and pH. • The fully sealed probe is designed for long-term burial or direct immersion in water. • Low-power wake/sleep operation supports battery, adapter or solar-powered field deployment.

Item	Specification
Moisture Measurement Range	0–100% volumetric moisture
Moisture Resolution	0.1%
Moisture Accuracy	±2% from 0–50% (@30% moisture, 25 °C); ±3% from 50–100% (@60% moisture, 25 °C)
Electrical Conductivity Range	0–20,000 μS/cm
Electrical Conductivity Resolution	1 μS/cm
Electrical Conductivity Accuracy	±3% FS from 0–10,000 μS/cm; ±5% FS from 10,000–20,000 μS/cm (brown soil, 60% RH, 25 °C)
Soil Temperature Range	−40 to +80 °C
Soil Temperature Resolution	0.1 °C
Soil Temperature Accuracy	±0.5 °C (@25 °C)
Soil pH Range	3–9 pH
Soil pH Resolution	0.1
Operating Temperature	−20 to +60 °C
Core Chip Temperature Rating	85 °C
Power Supply	DC 4.5–30 V (standard); DC 3.6–30 V (low-power)
Standard Power Consumption	0.5 W (@24 V DC)
Low-power Consumption	Sleep: 31 μA; operating: 20 mA; average: 127 μA
Response Time	≤1 s (standard); ≤5 s (low-power)
Stabilization Time	≤5 min
Protection Level	IP68
Probe Material	Special corrosion-resistant electrodes

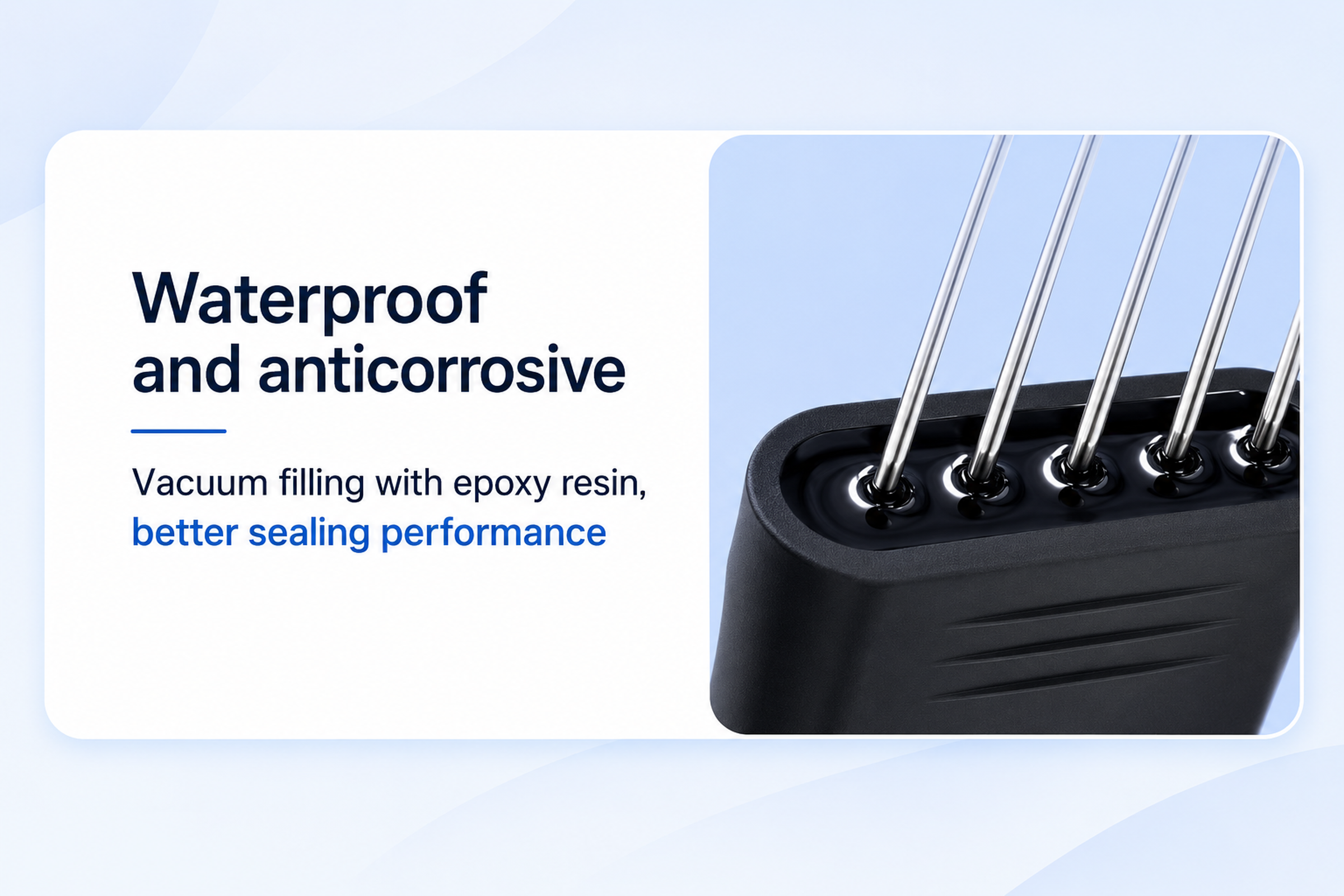

Sealing Material	Black flame-retardant epoxy resin
Default Cable Length	2 m; customizable as required

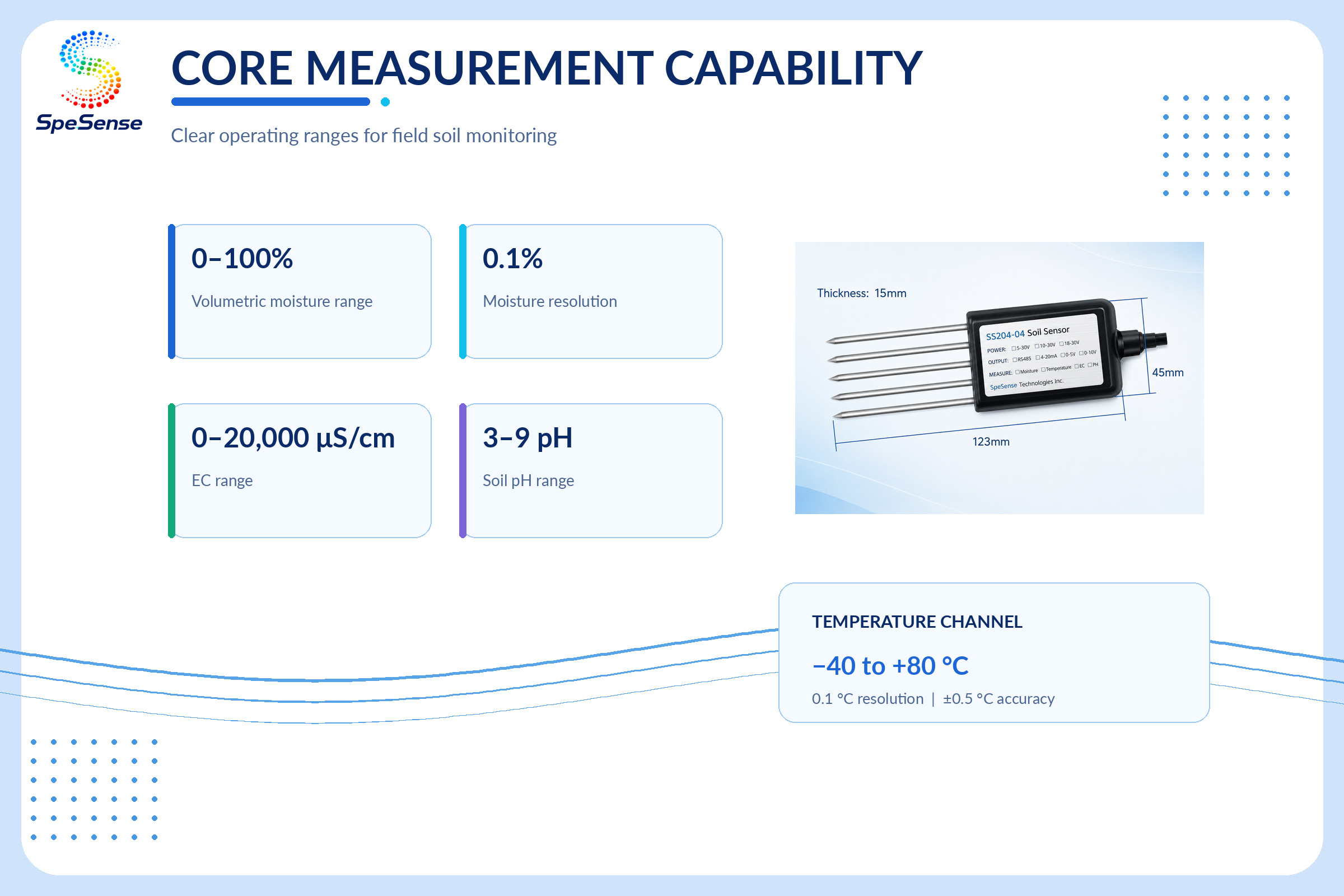

Dimensions	45 × 15 × 127 mm

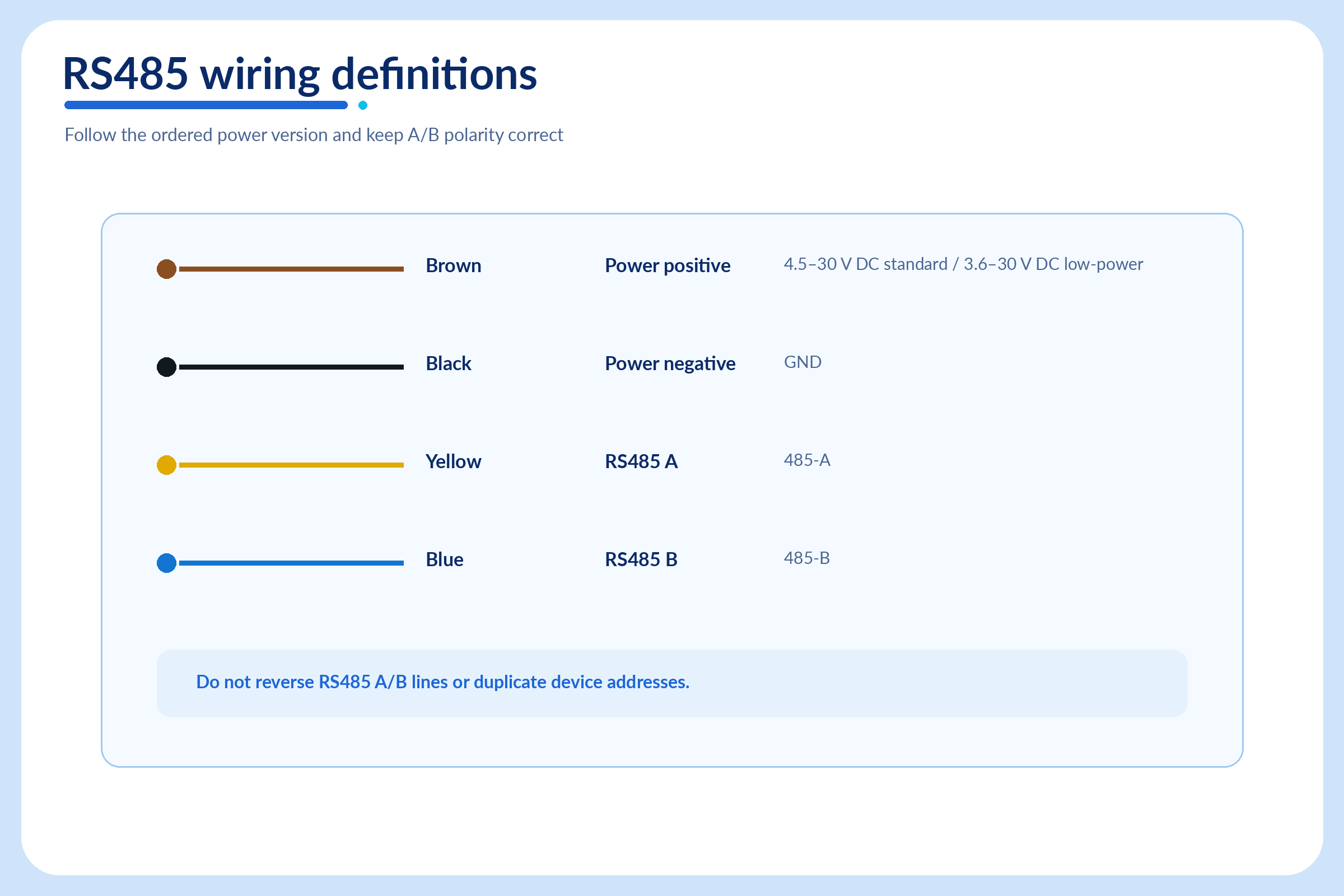

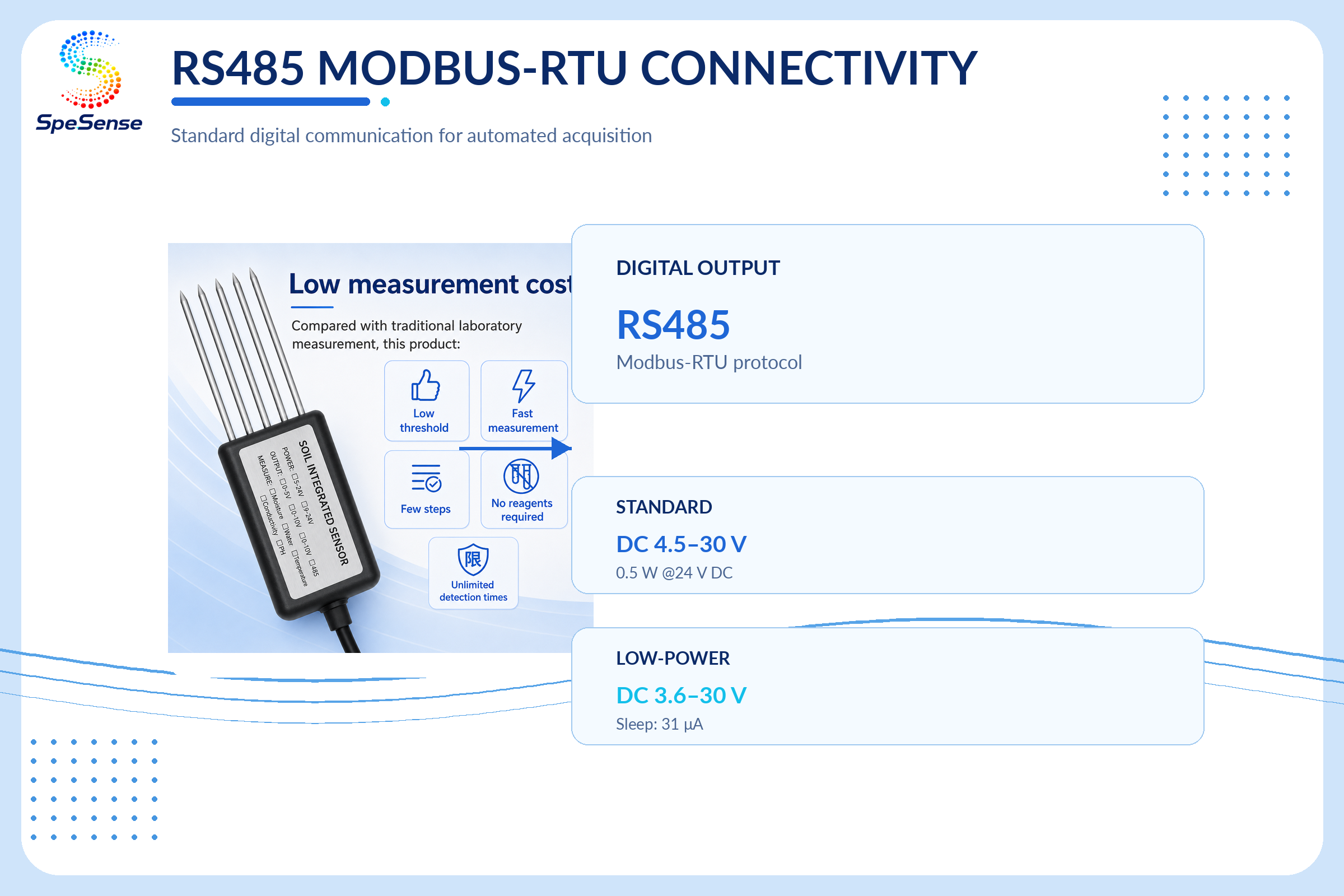

Output Signal	RS485 (Modbus protocol)
