SS203-06
Temperature Humidity Sensor

SS203-06

Grain Moisture Sensor

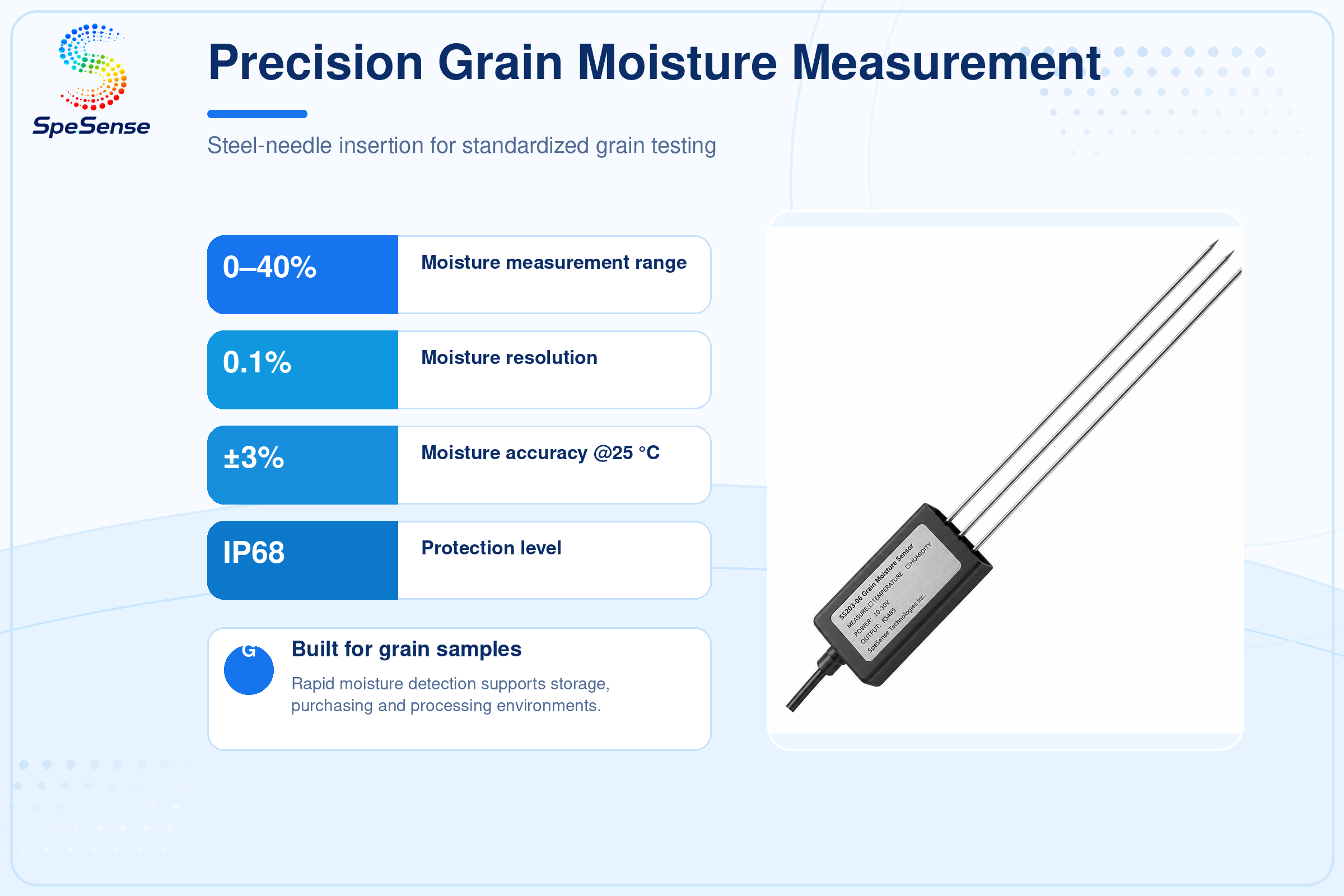

Product Highlights

● Fast response, high accuracy and good interchangeability.

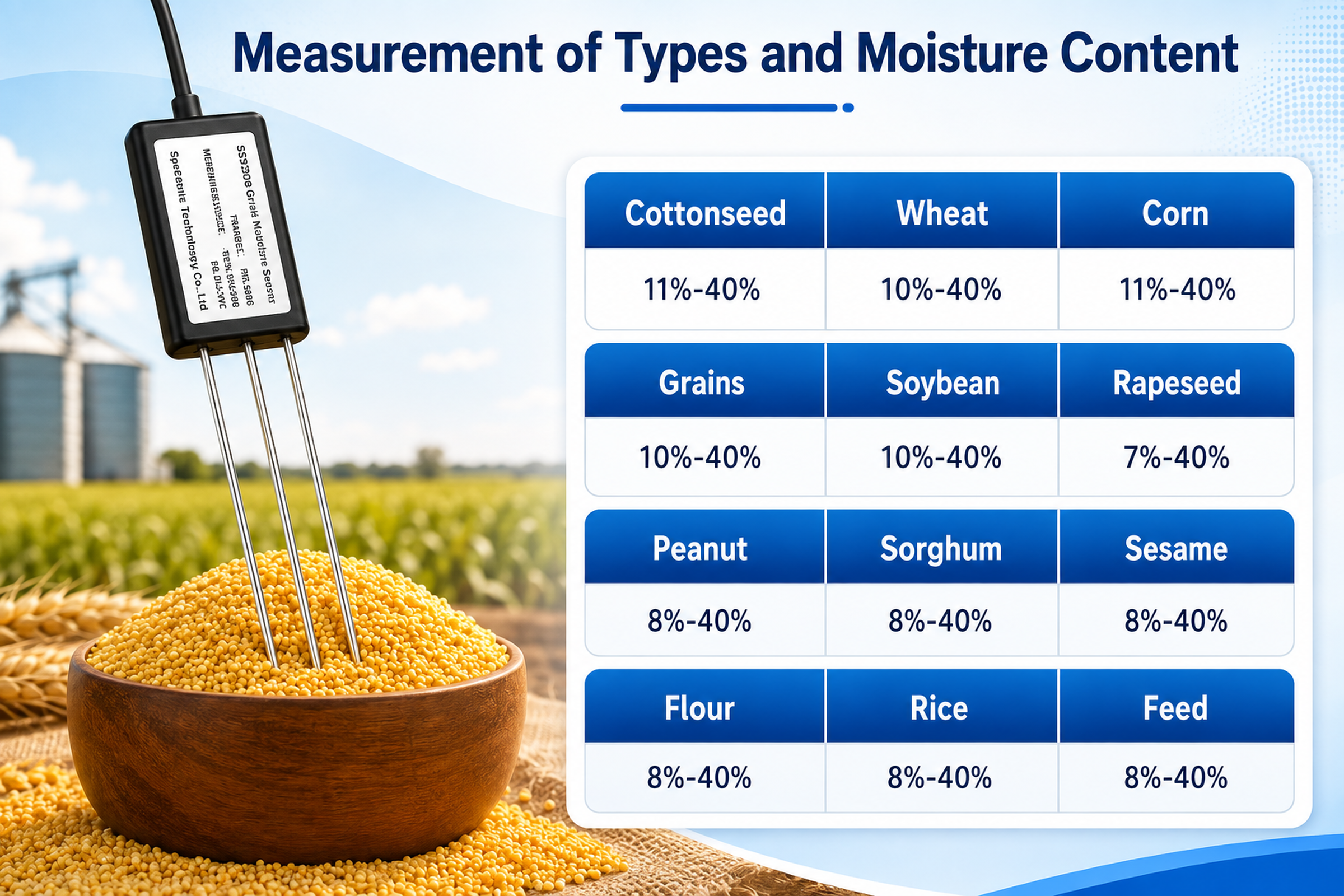

● Supports measurement of wheat, corn, rice, soybeans and other common grains.
● Alloy electrodes resist external impact during insertion measurement.
● Fully sealed construction supports long-term dynamic detection.
● Simple operation for storage, purchasing and processing sites.
Download PDF

Product Overview

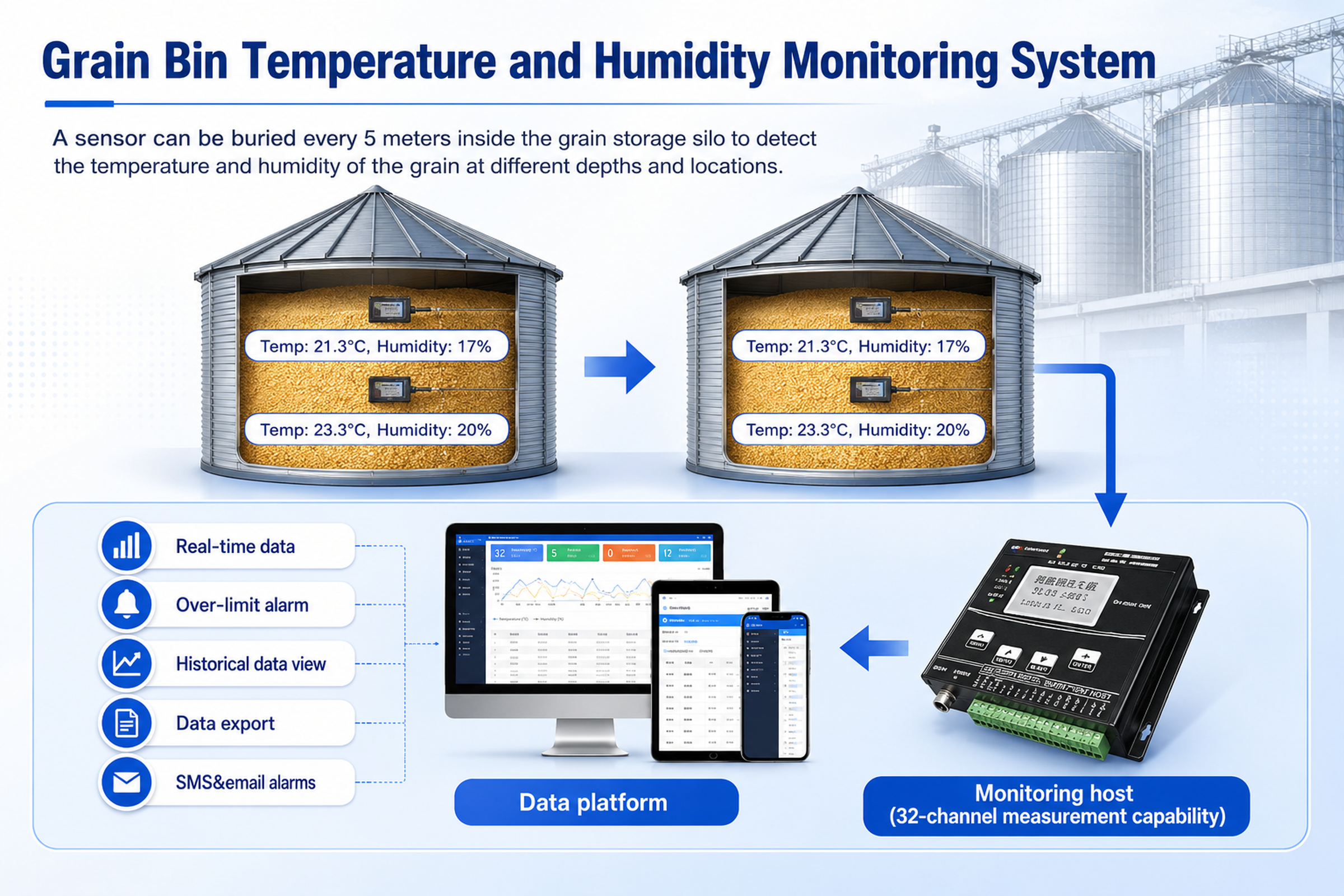

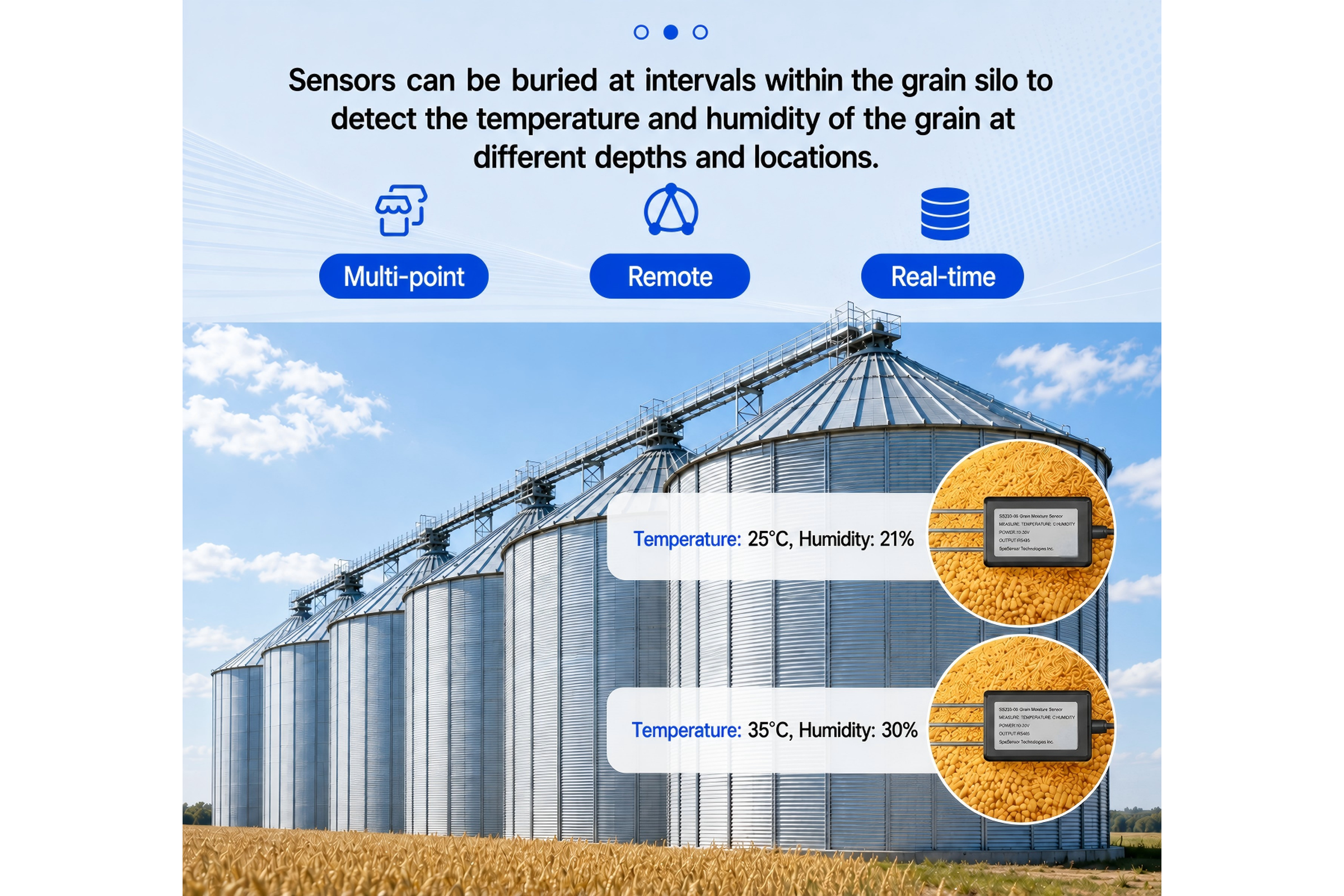

The SpeSense SS203-06 Grain Moisture Sensor is designed for moisture measurement in grain storage, purchasing, processing and feed production. It supports moisture assessment for common grains such as wheat, corn, rice and soybeans, helping users monitor grain condition during handling and storage. Its sealed probe design and RS485 Modbus communication make it suitable for automated grain monitoring systems, agricultural processing facilities and grain quality management applications.
ItemSpecification
Moisture Measurement Range0–40% volumetric moisture; overview states 7–40% for common grains
Moisture Resolution0.1%
Moisture Accuracy±3% (@25 °C)
Temperature Measurement Range−40 to +80 °C
Temperature Resolution0.1 °C
Temperature Accuracy±0.5 °C (@25 °C)

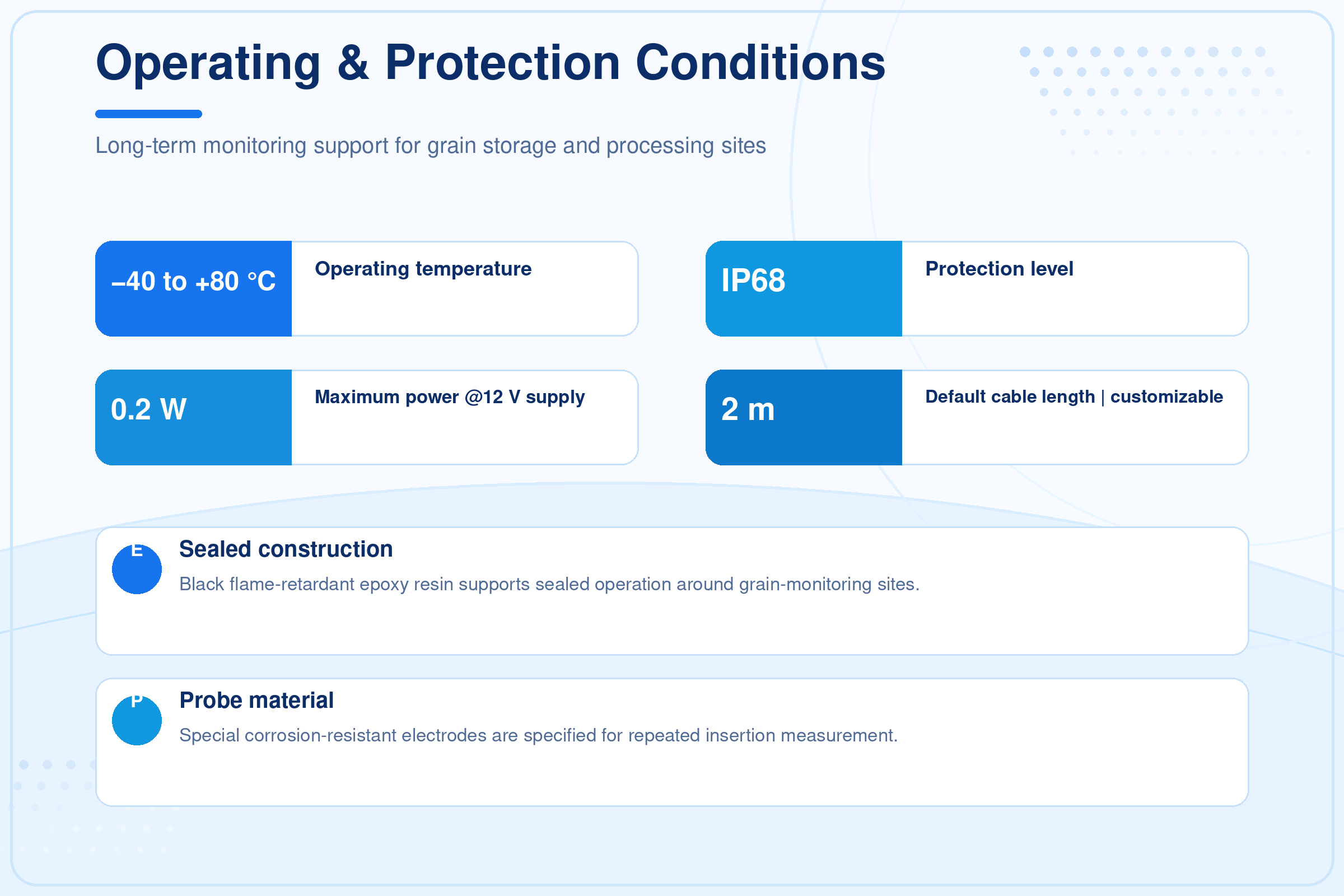

Operating Temperature−40 to +80 °C
Power SupplyDC 10–30 V
Maximum Power Consumption0.2 W (12 V supply)
Protection LevelIP68
Probe MaterialSpecial corrosion-resistant electrodes
Sealing MaterialBlack flame-retardant epoxy resin
Default Cable Length2 m; customizable as required

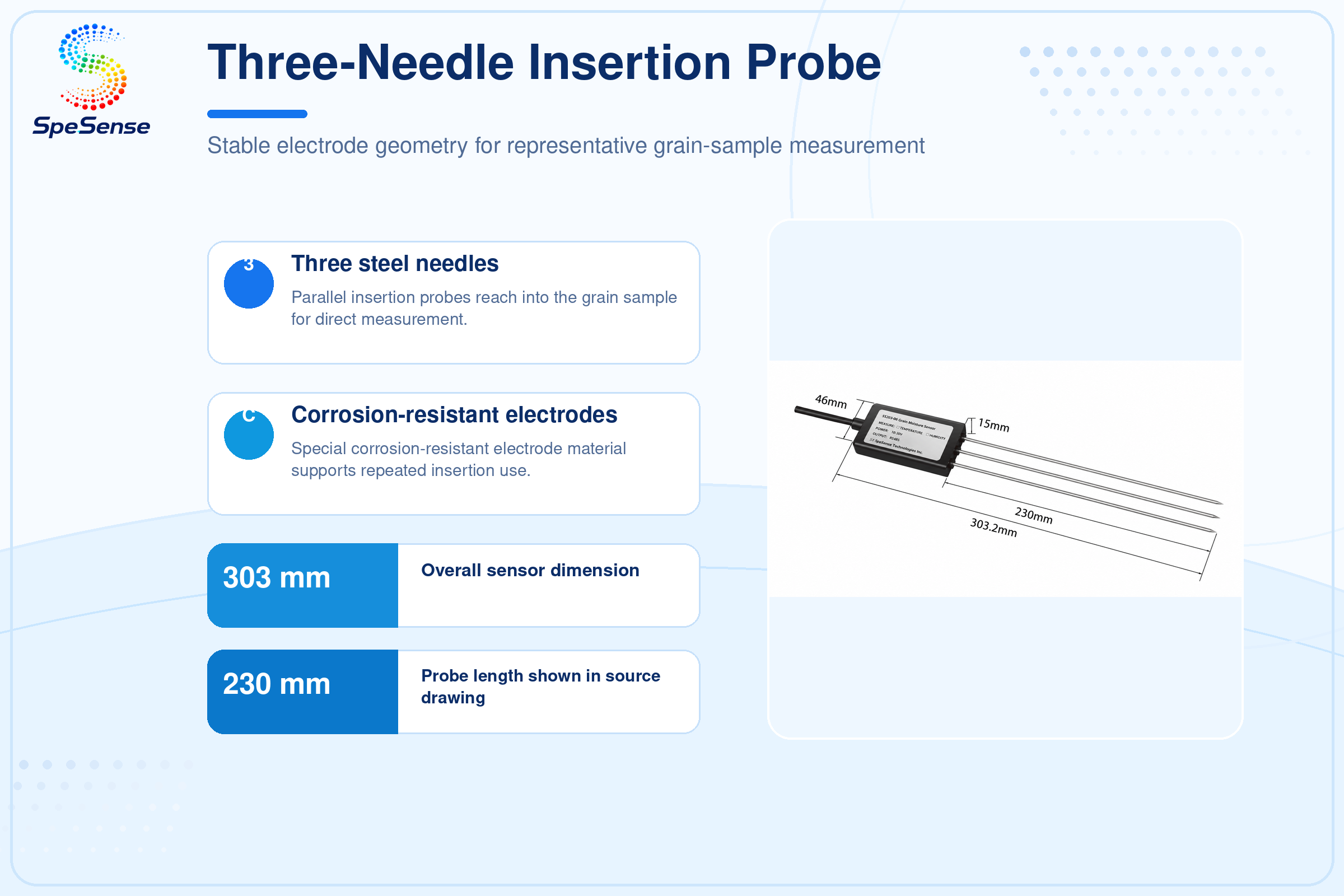

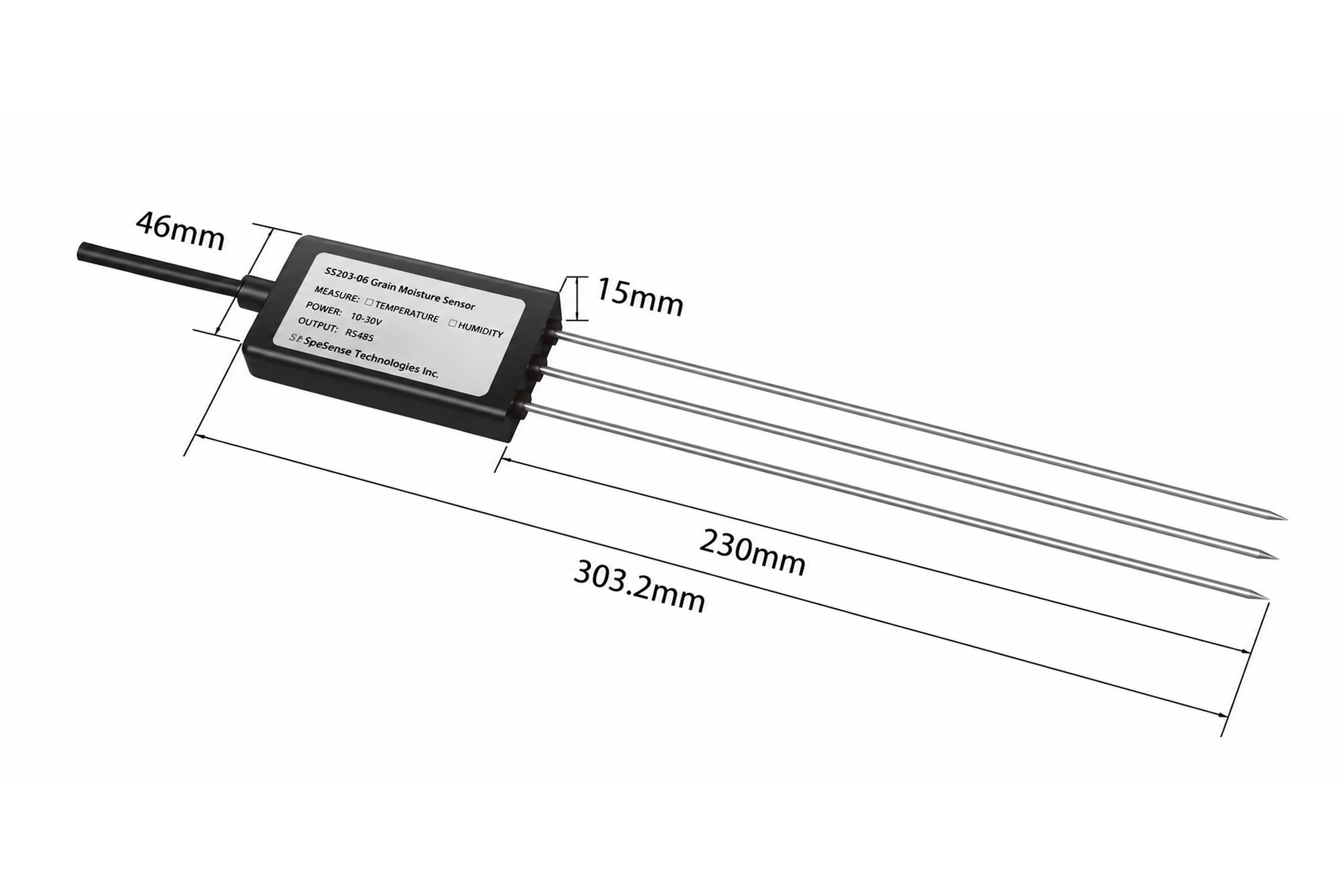

Dimensions46 × 15 × 303 mm

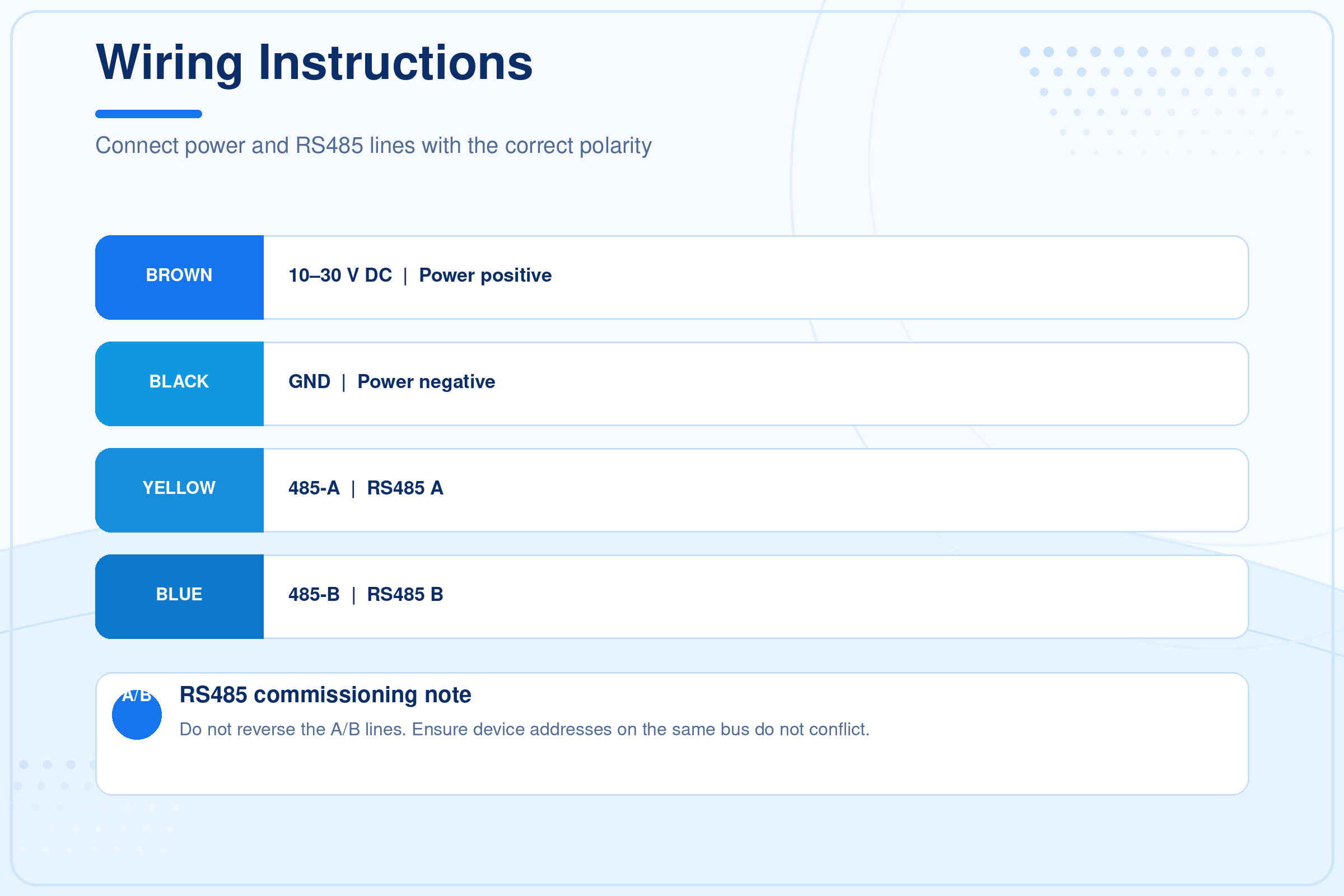

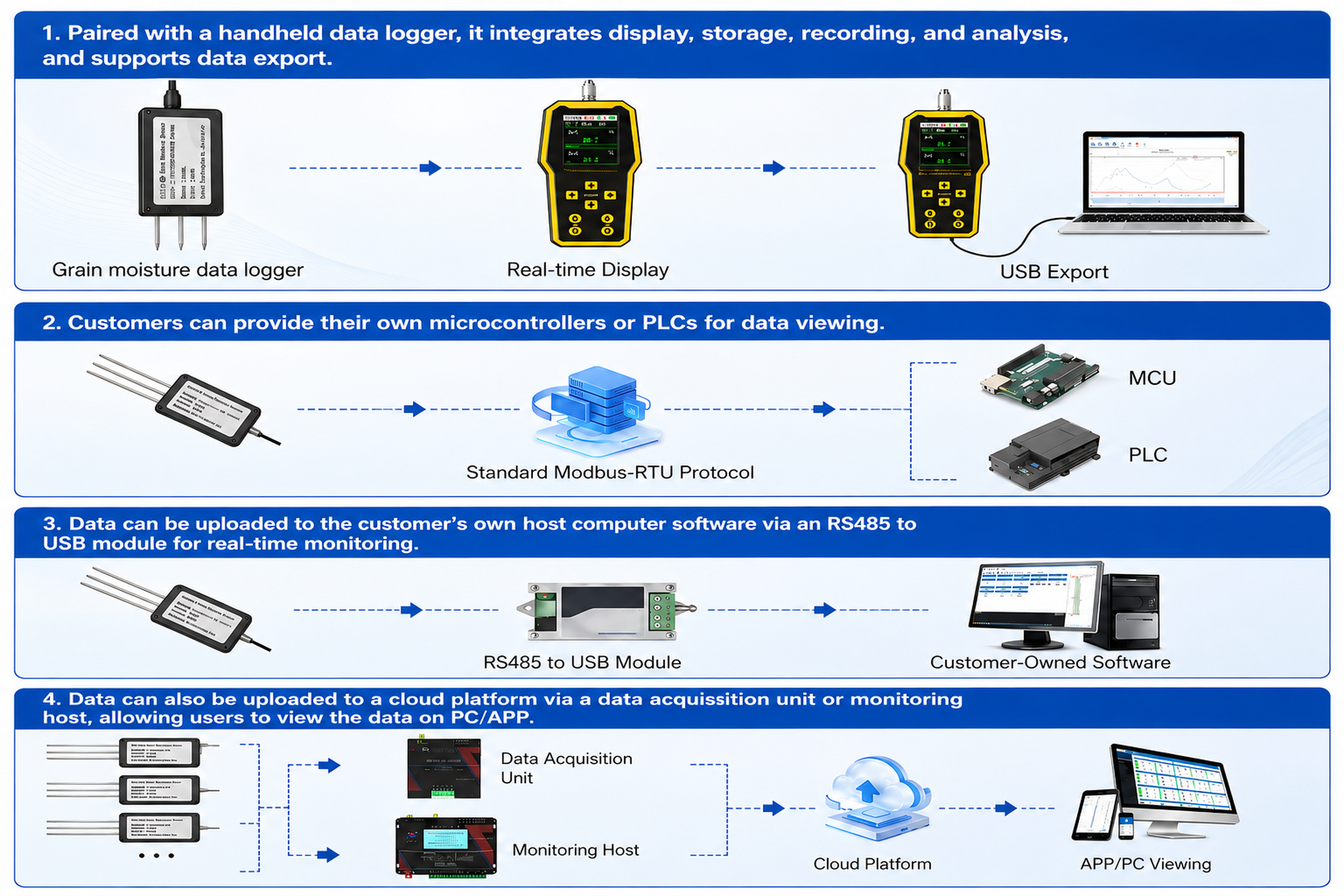

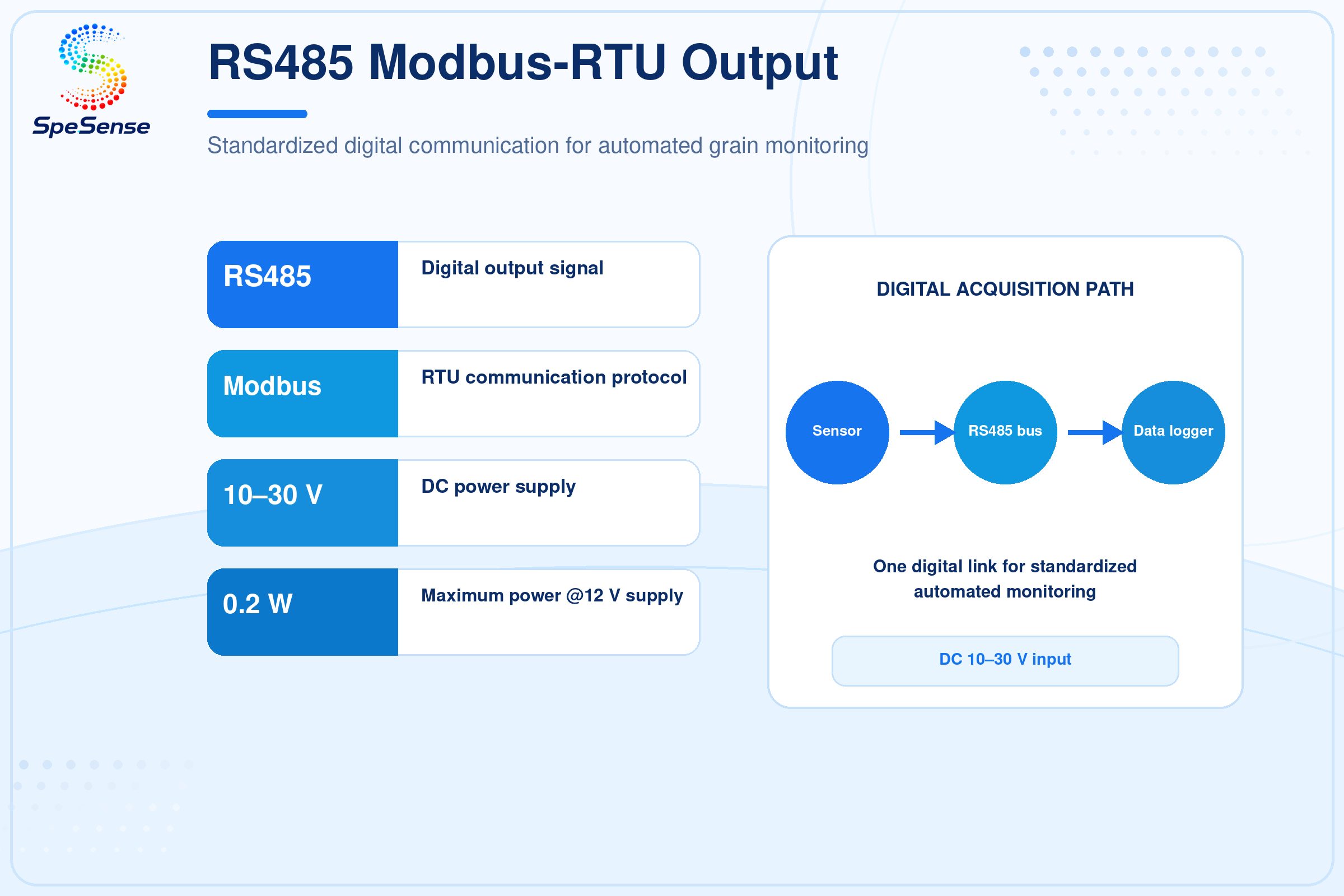

Output SignalRS485 (Modbus protocol)
