Temperature Humidity Sensor
SS203-05
叶片温湿度及叶面湿度传感器
产品亮点

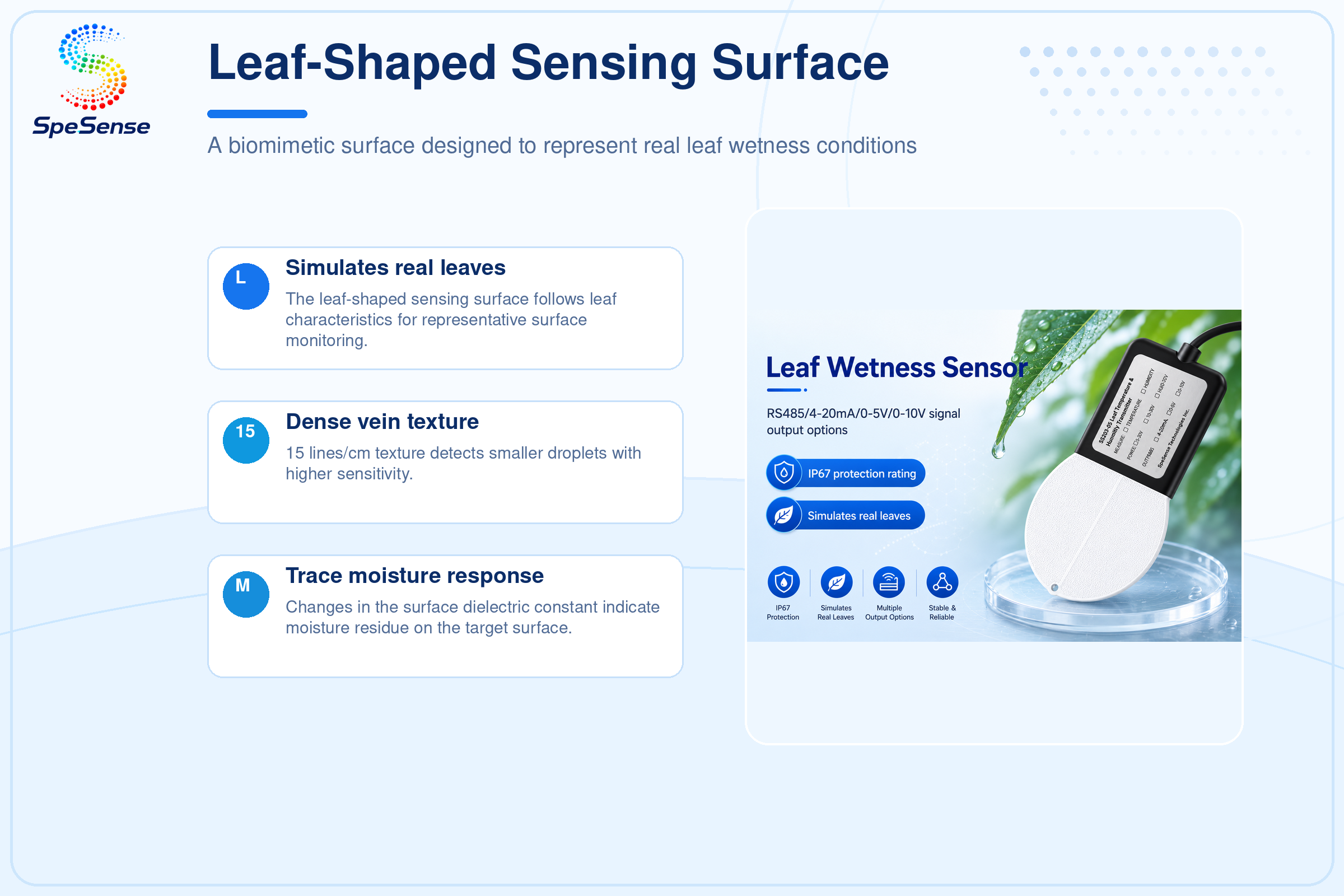

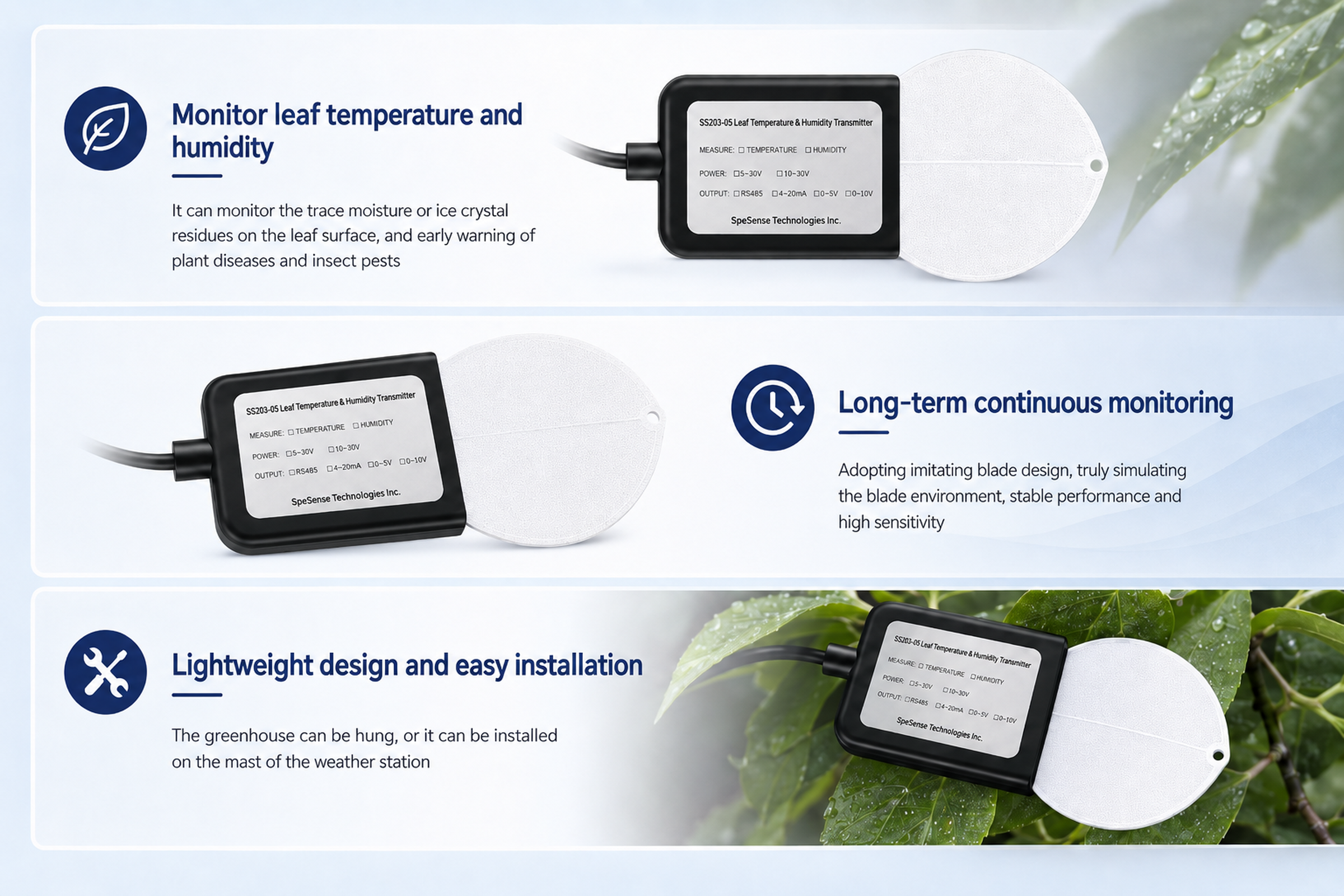

● Leaf-shaped sensing surface realistically simulates leaf characteristics.
● Dense vein texture (15 lines/cm) detects smaller droplets with higher sensitivity.
● Fast response, high accuracy and good interchangeability.

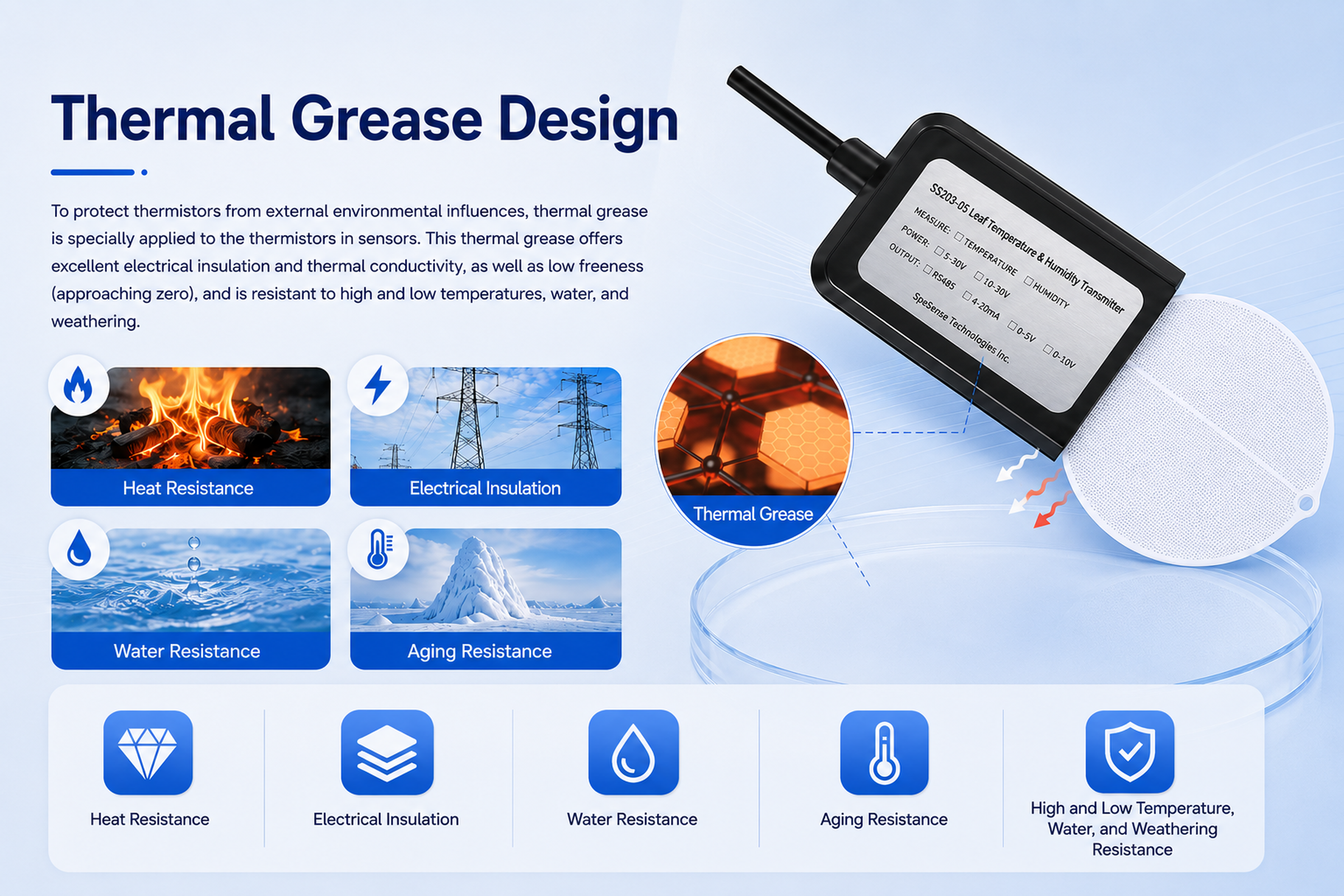

● Black flame-retardant epoxy encapsulation supports waterproof, moisture-resistant operation.

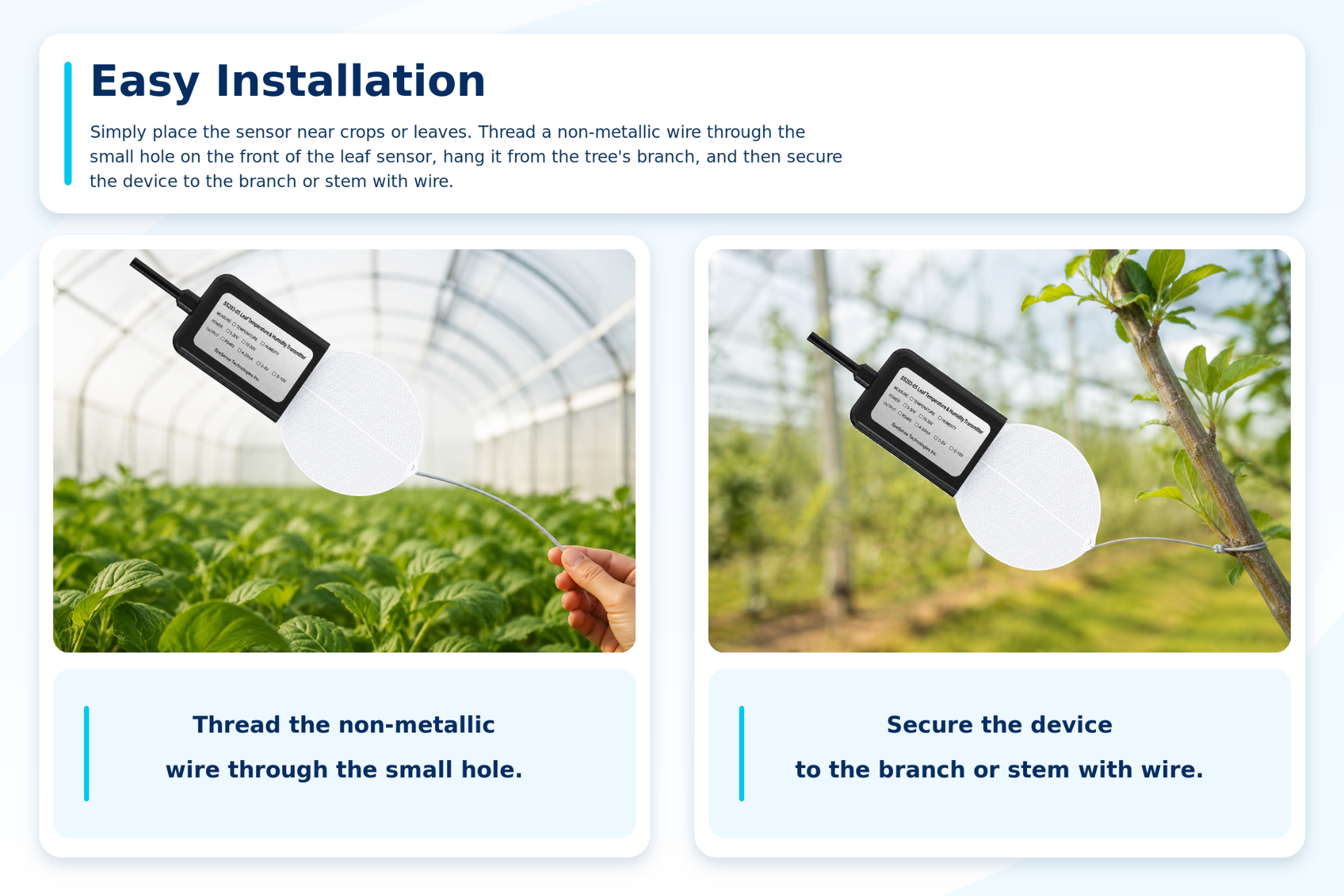

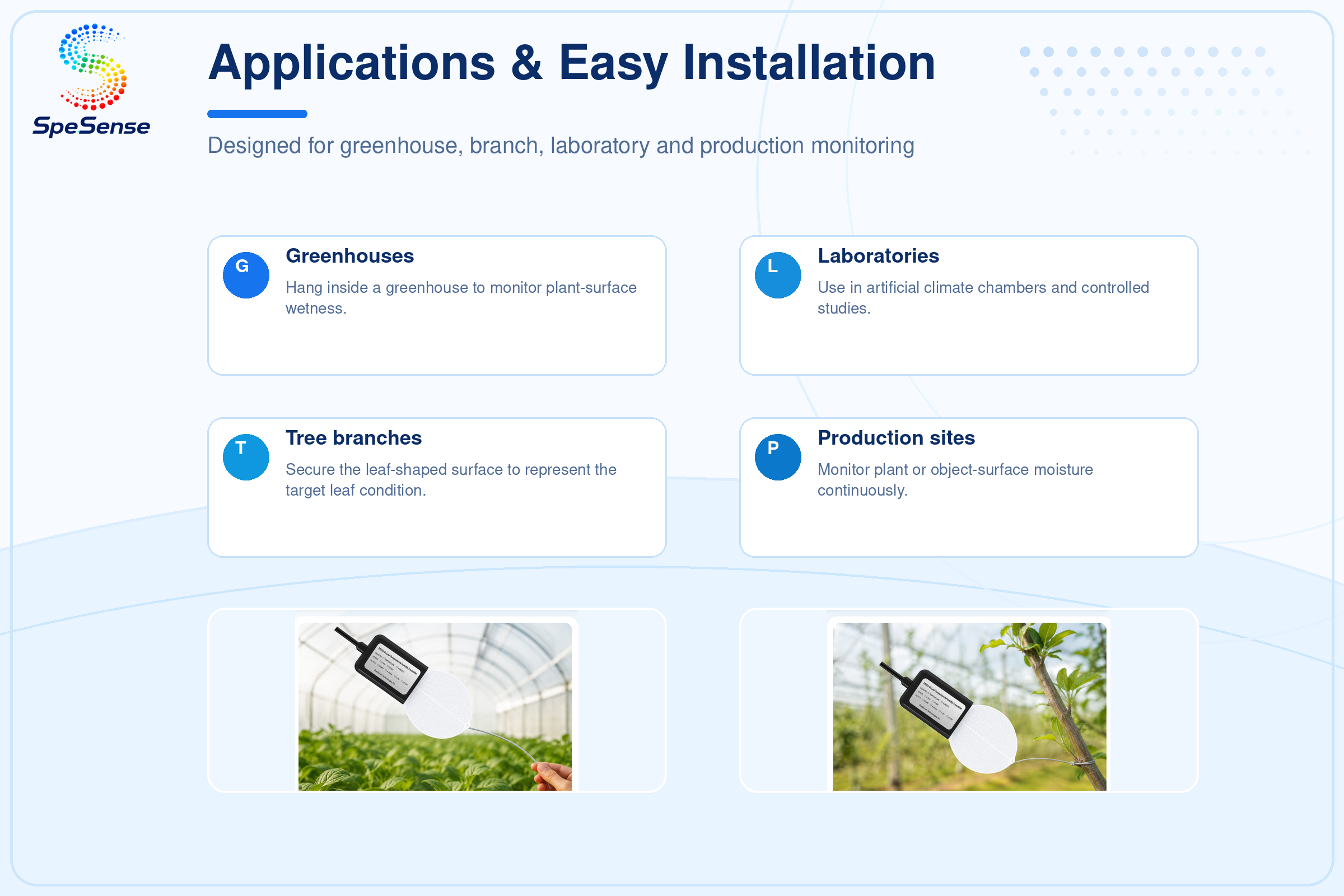

● Easy installation for greenhouses, tree branches and continuous monitoring sites.
● Dense vein texture (15 lines/cm) detects smaller droplets with higher sensitivity.
● Fast response, high accuracy and good interchangeability.
● Black flame-retardant epoxy encapsulation supports waterproof, moisture-resistant operation.
● Easy installation for greenhouses, tree branches and continuous monitoring sites.
产品概述

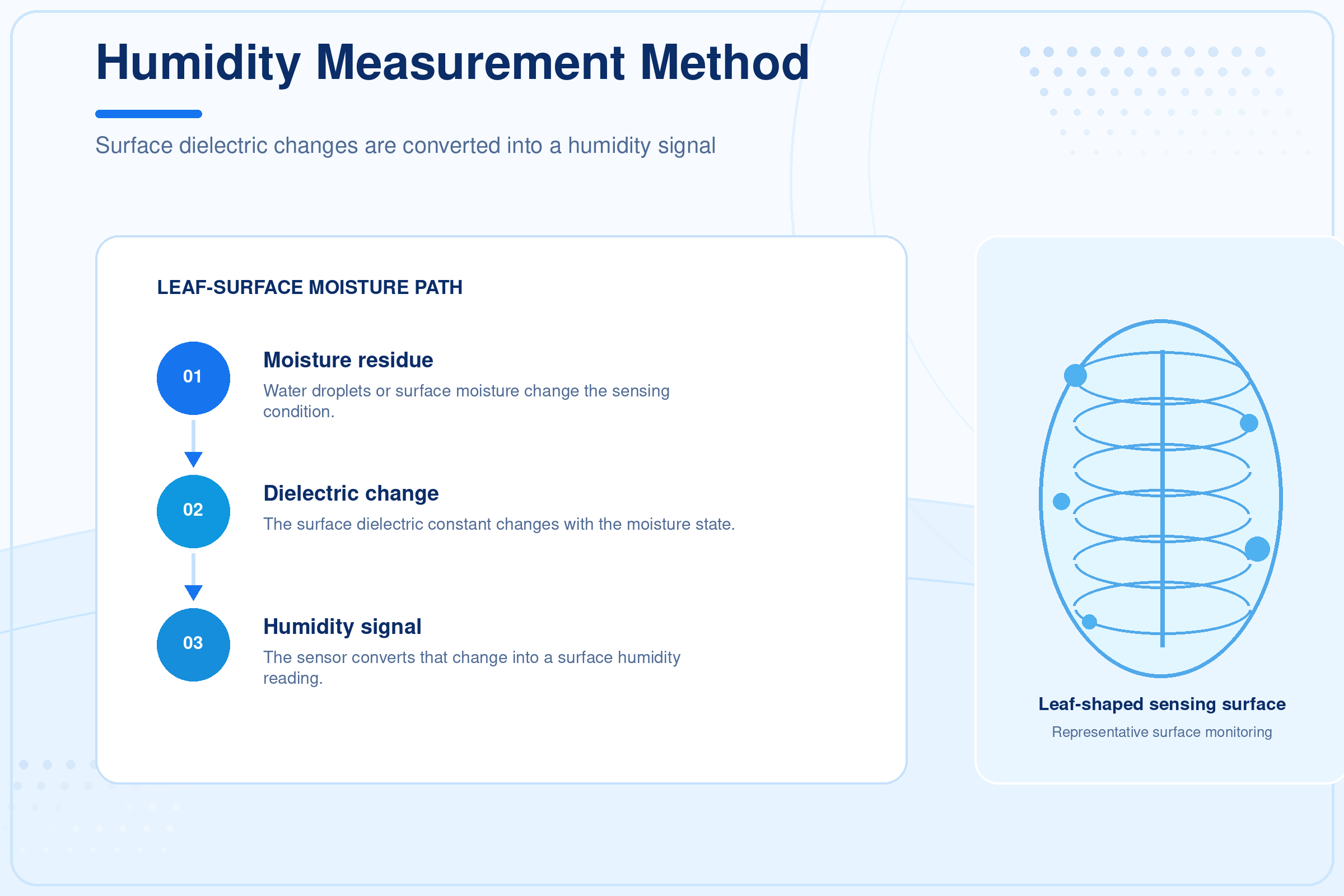

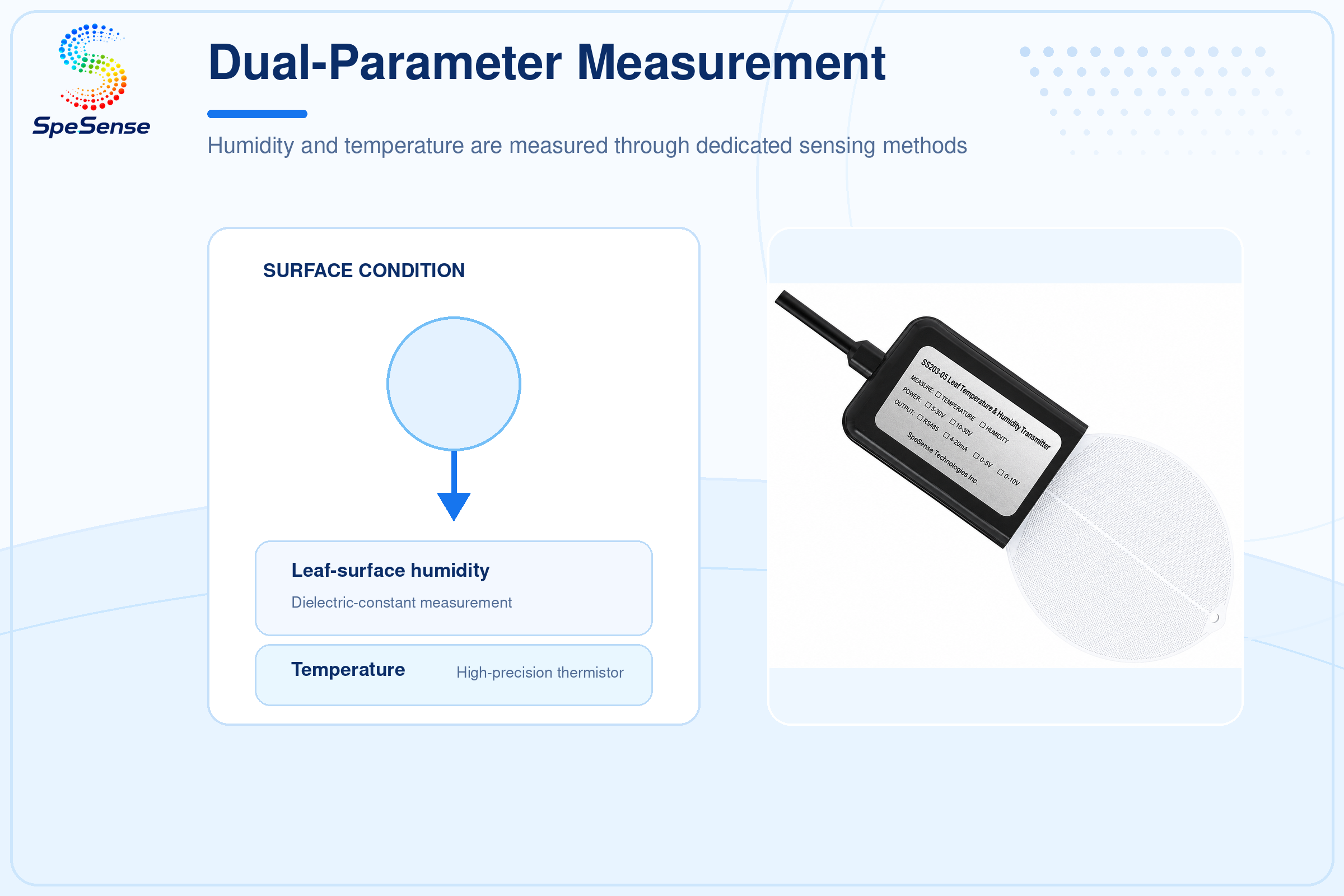

Leaf-shaped sensor for continuous monitoring of leaf
surface wetness/humidity and temperature in plant and
object-surface environments.
| Item | Specification |

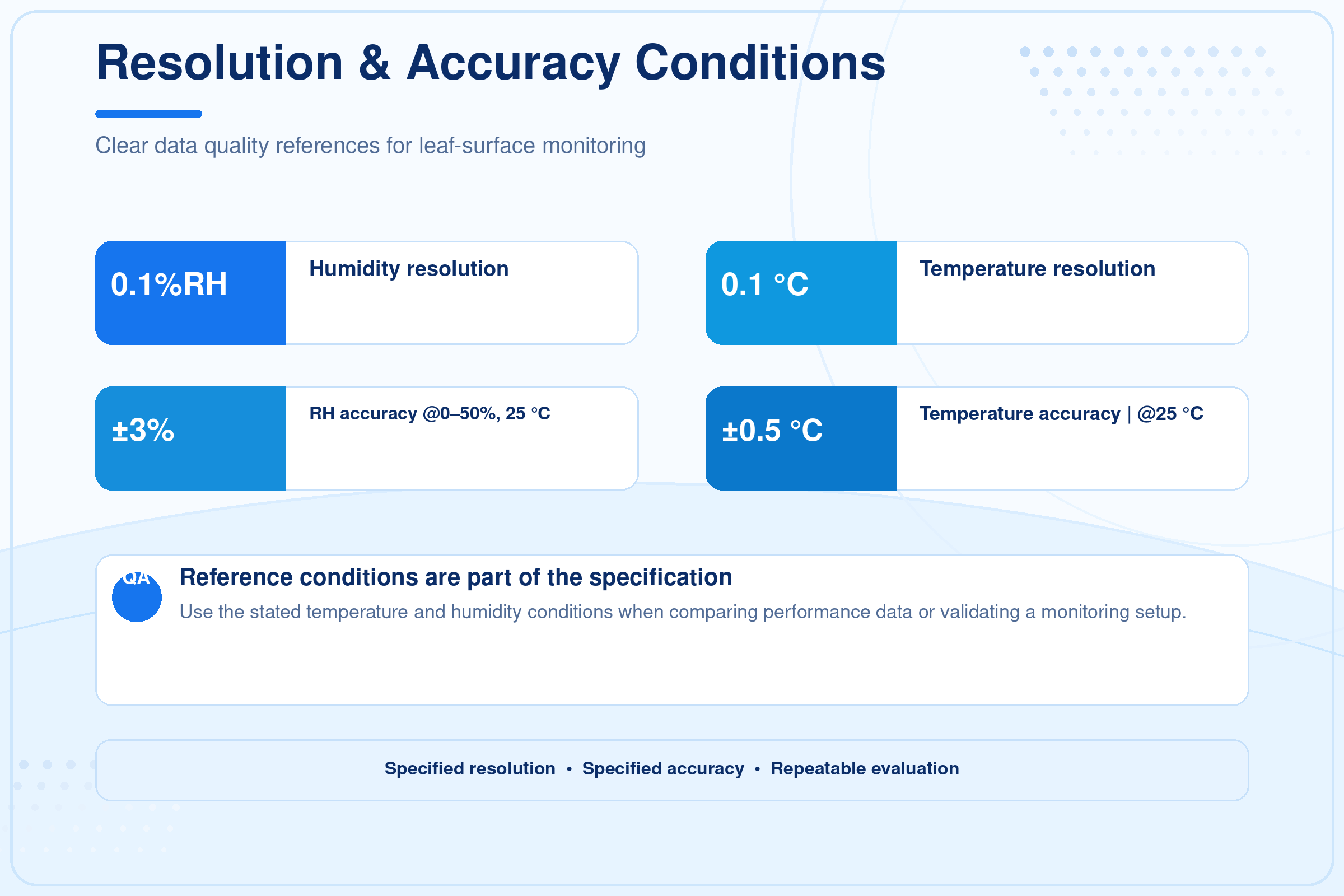

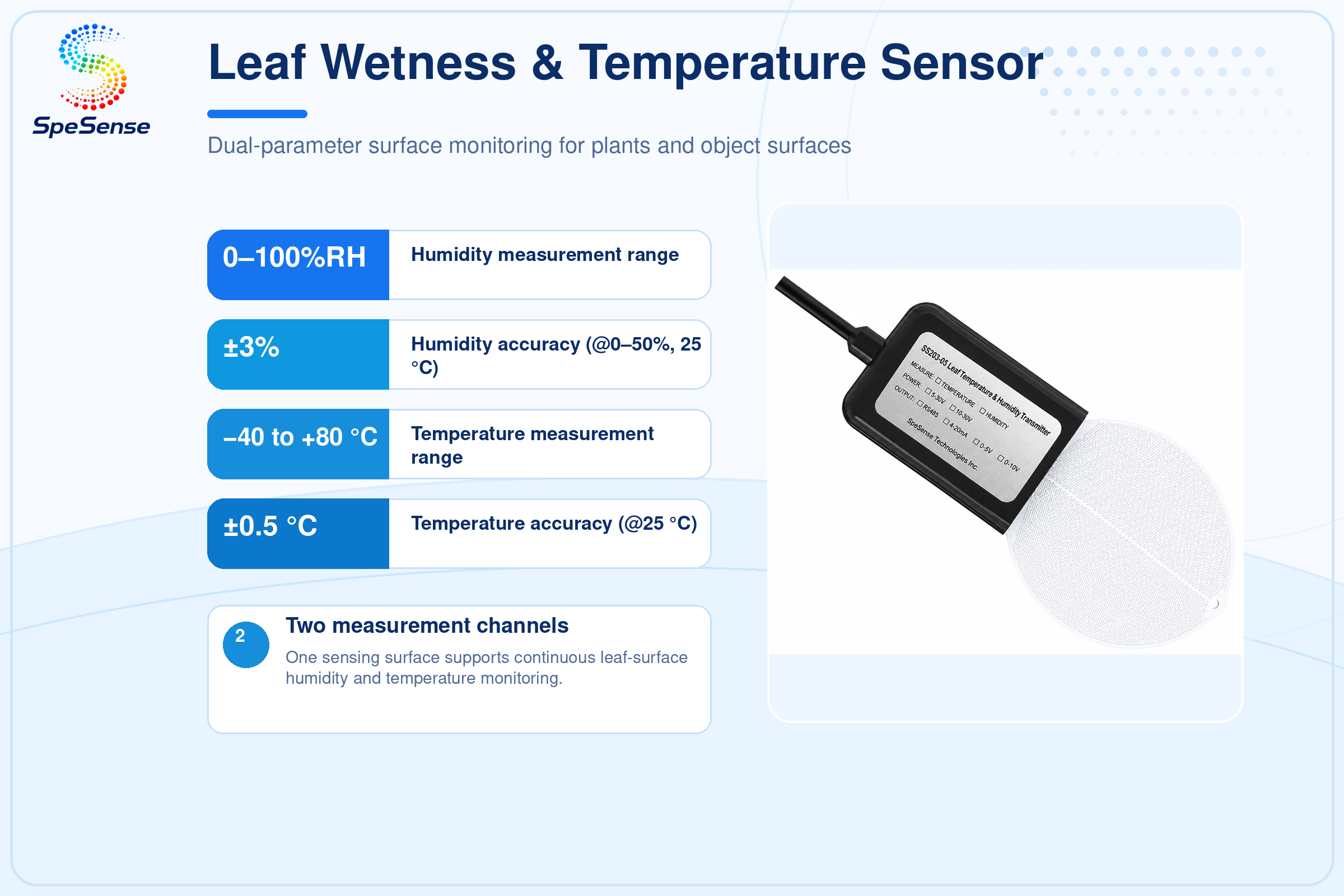

| Humidity Measurement Range | 0–100%RH |
| Humidity Resolution | 0.1%RH |
| Humidity Accuracy | ±3% (@0–50%, 25 °C) |

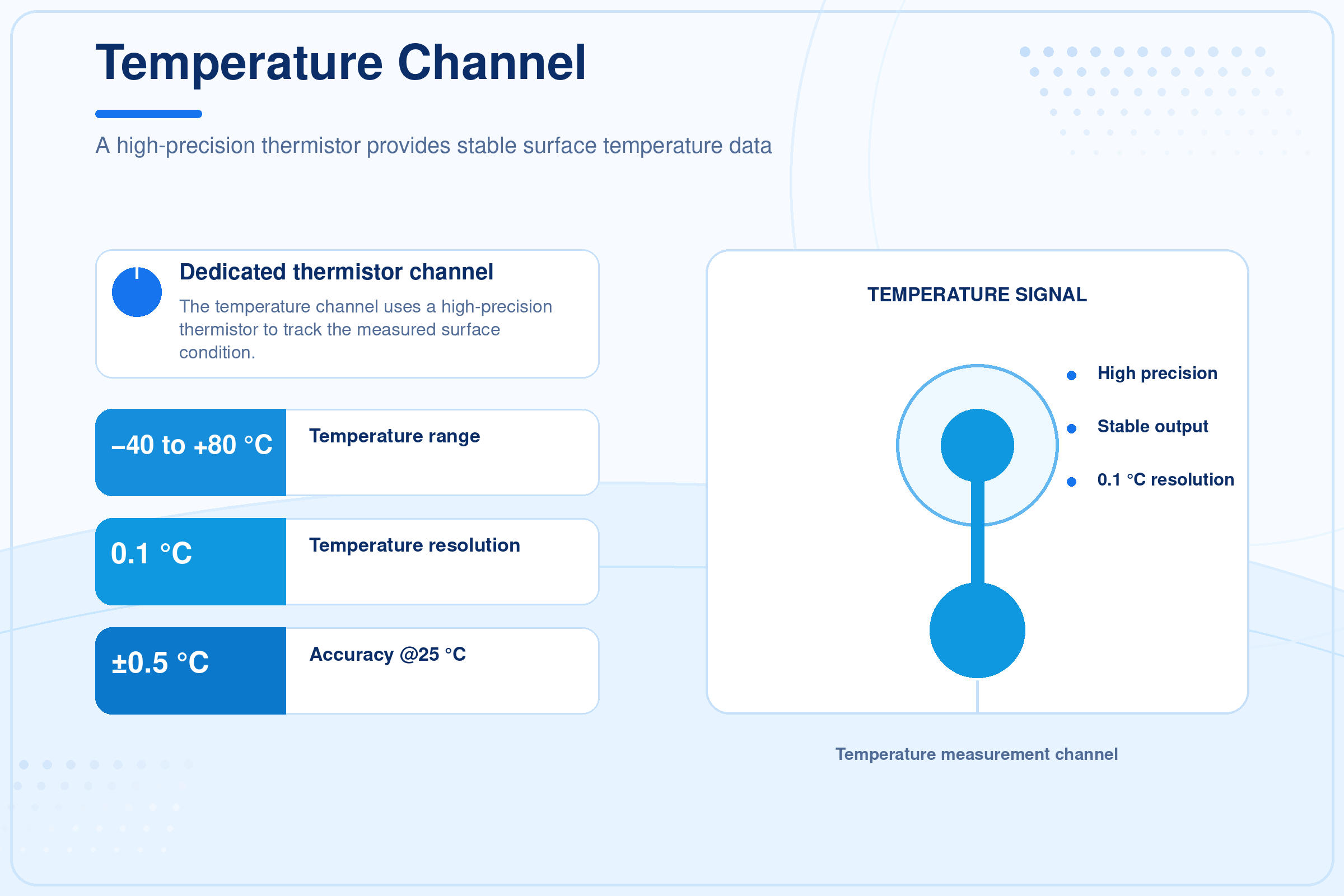

| Temperature Measurement Range | −40 to +80 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.5 °C (@25 °C) |
| Operating Temperature | −40 to +60 °C |

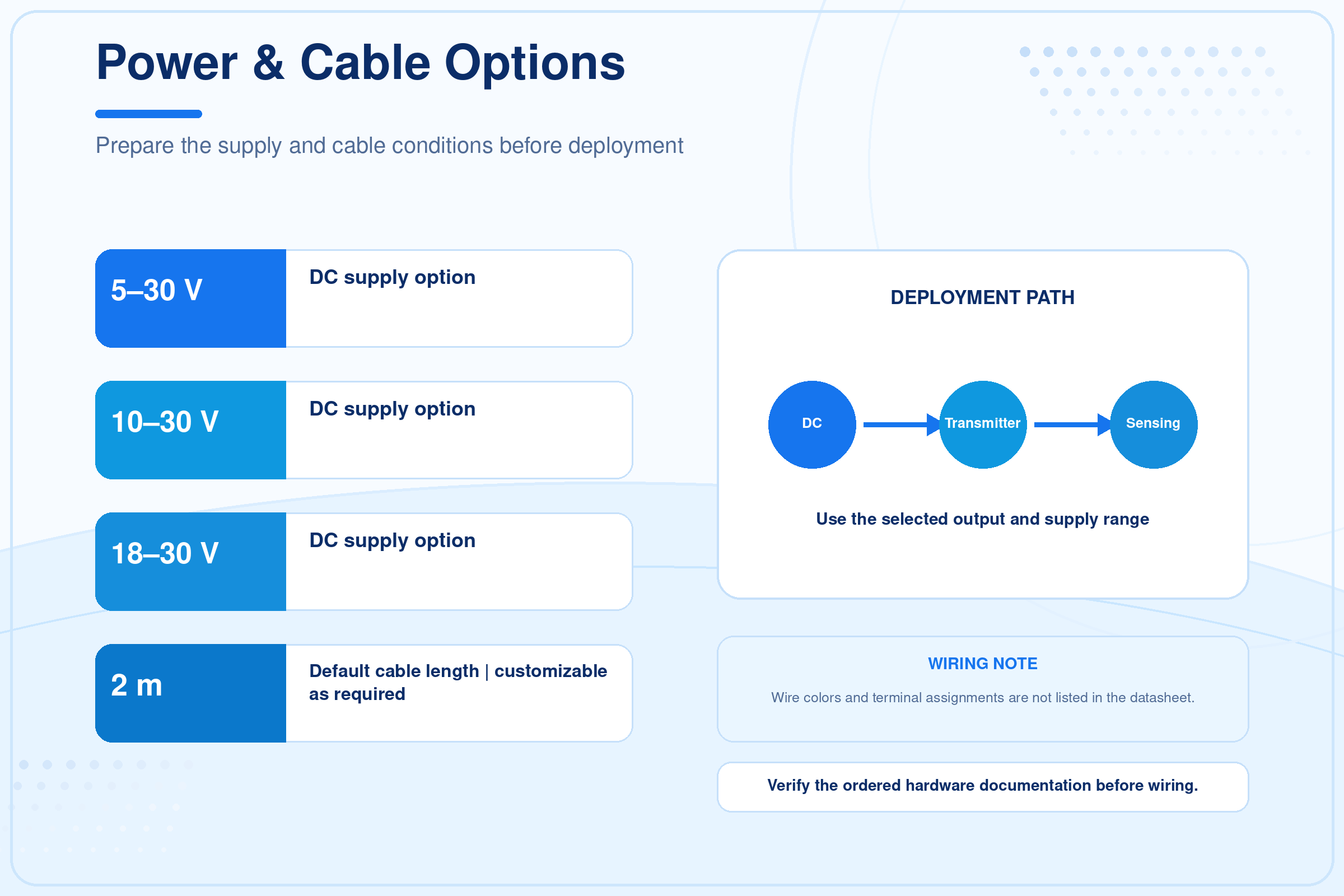

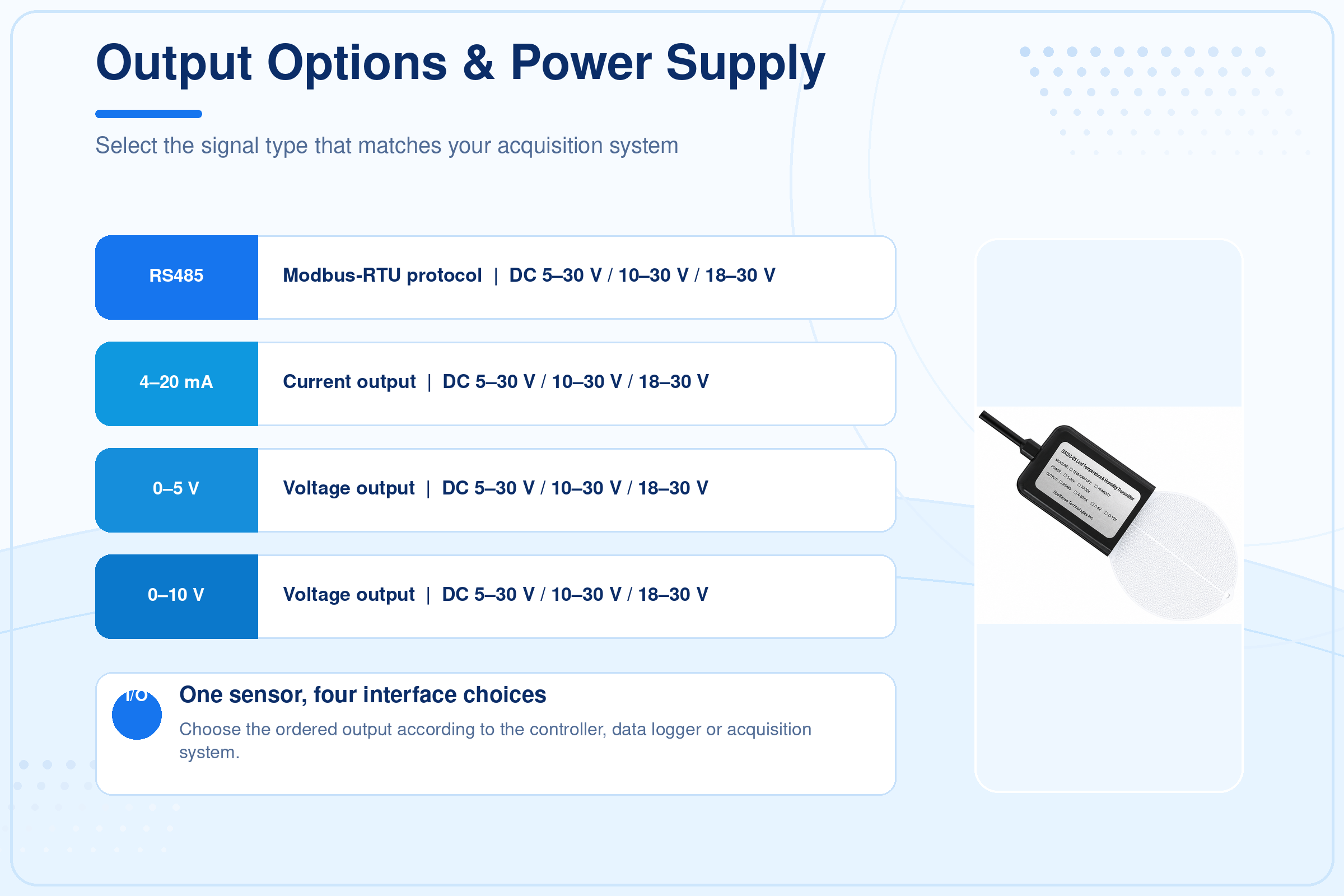

| Power Supply | DC 5–30 V / 10–30 V / 18–30 V |
| Maximum Power Consumption | 0.75 W (12 V DC supply) |

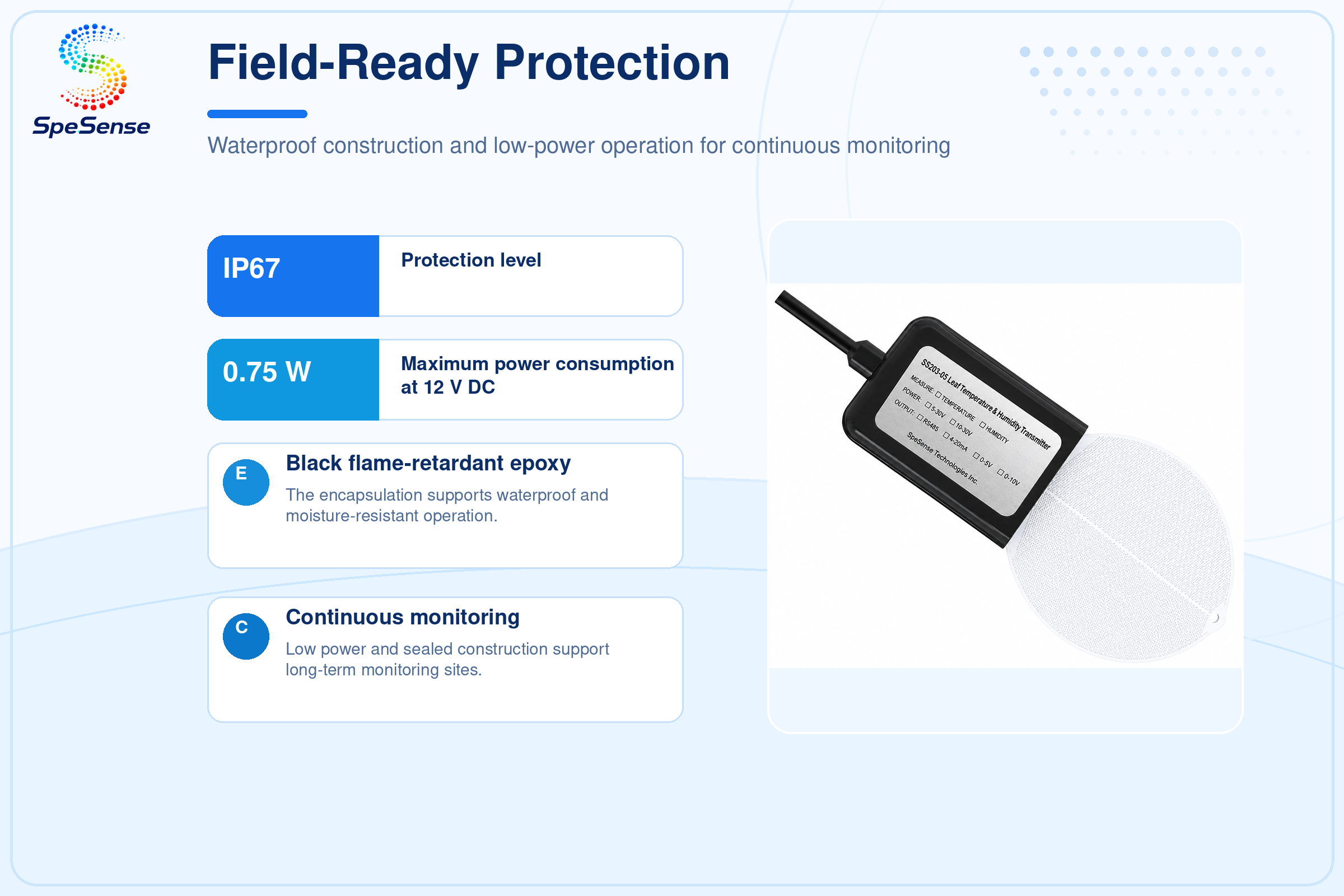

| Protection Level | IP67 |
| Sealing Material | Black flame-retardant epoxy resin |
| Default Cable Length | 2 m; customizable as required |

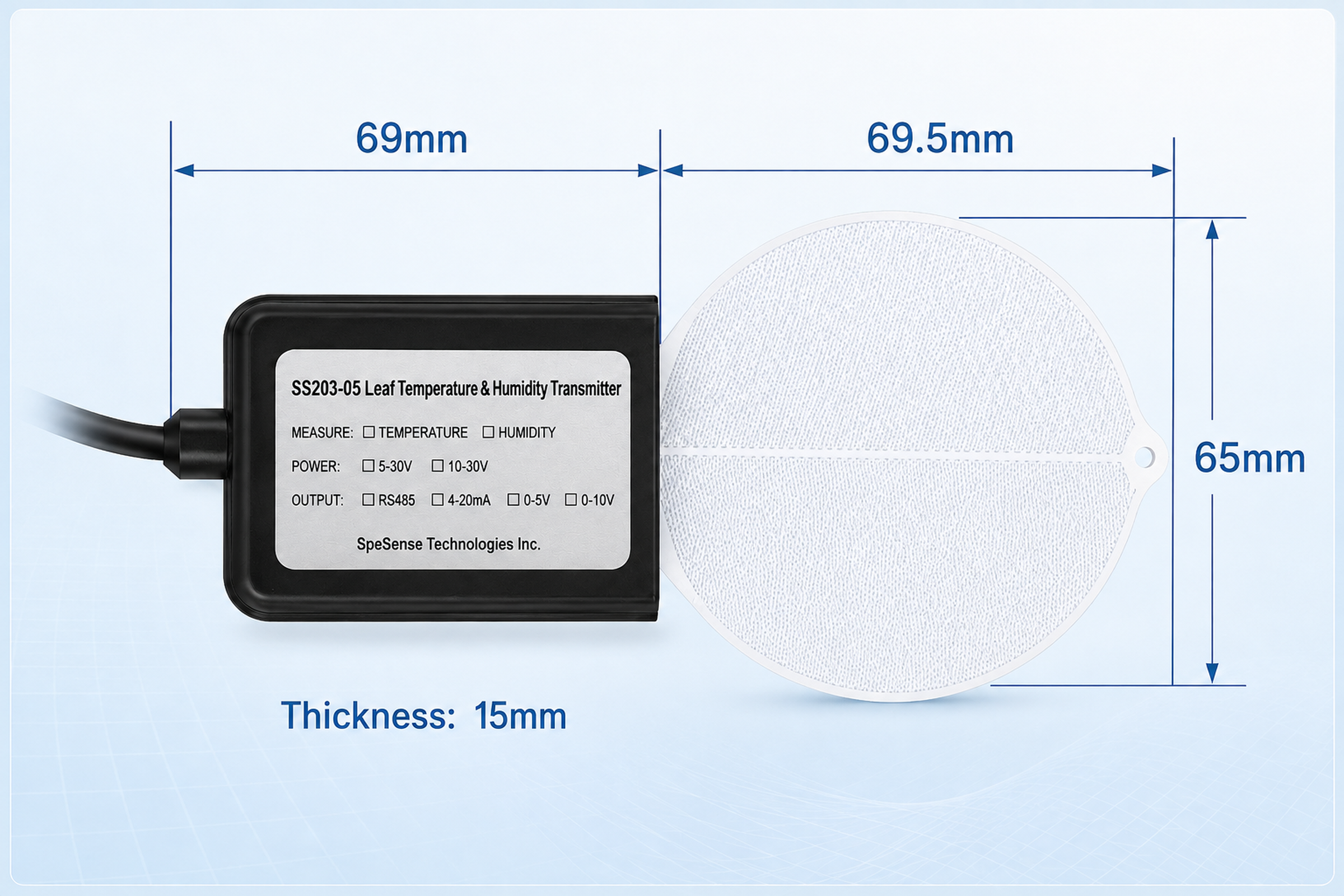

| Dimensions | 65 × 15 × 138.5 mm |
