Noise Sensor
SS200-03
蘑菇形噪声传感器
产品亮点

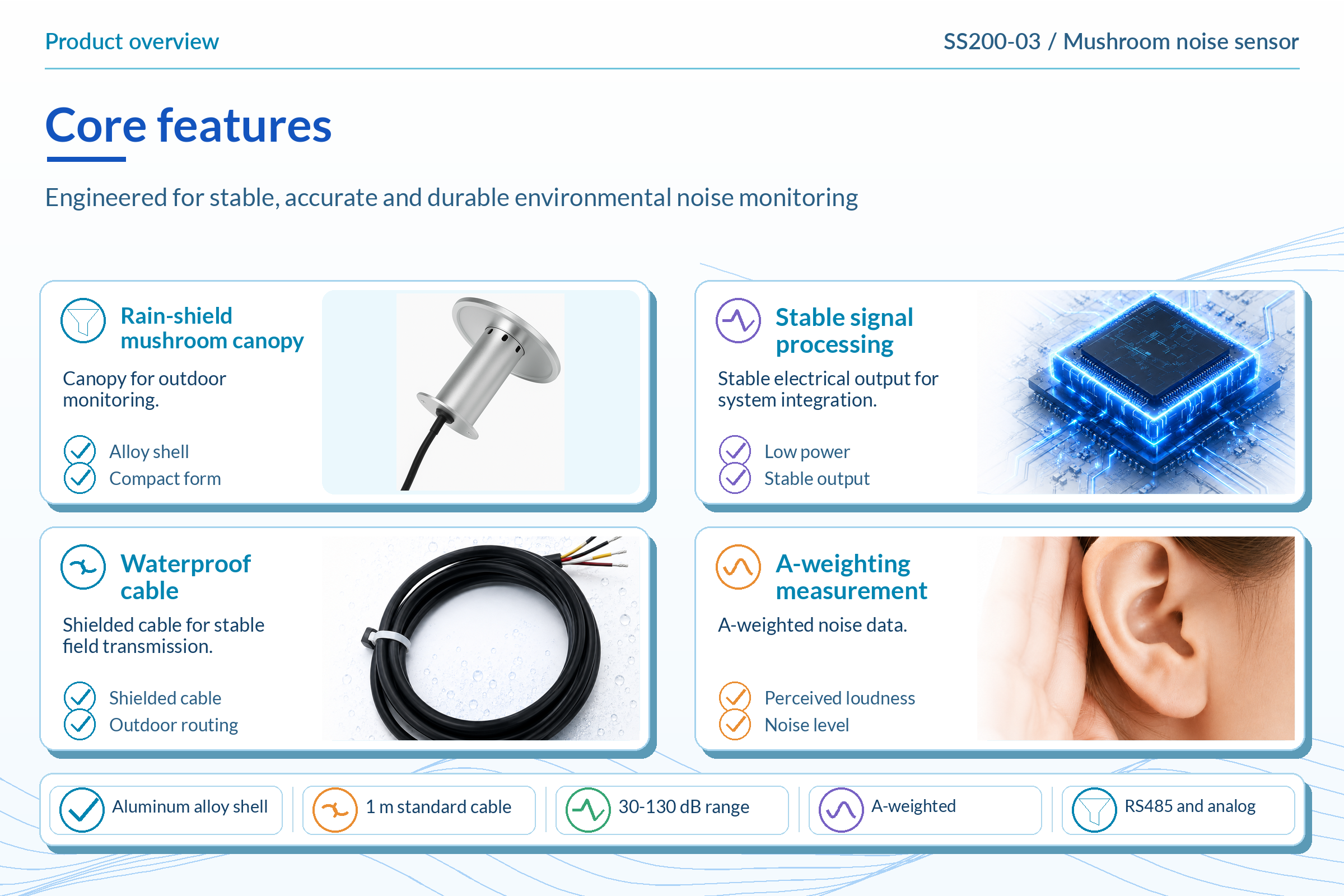

● Sleek industrial design with all-aluminum construction.

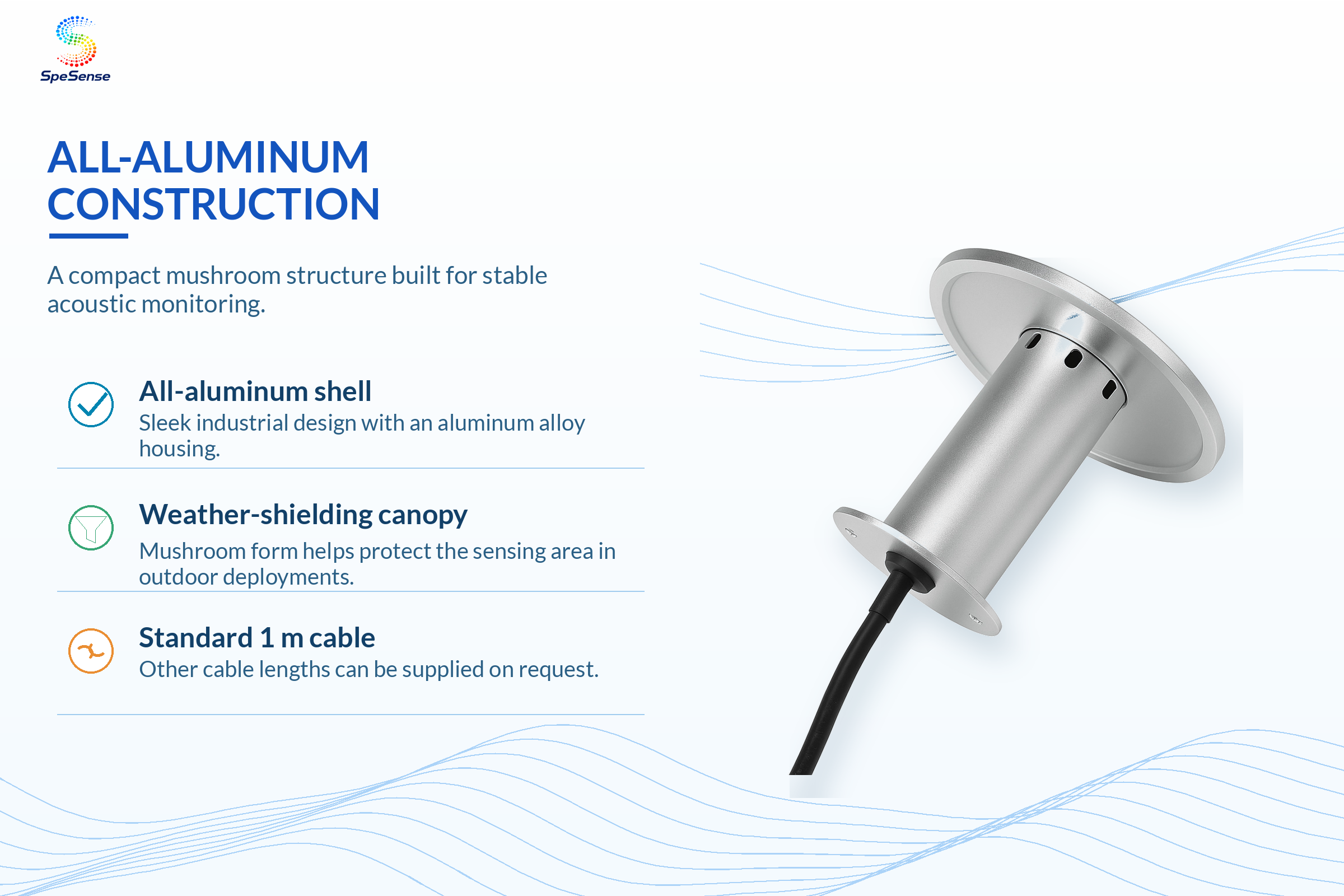

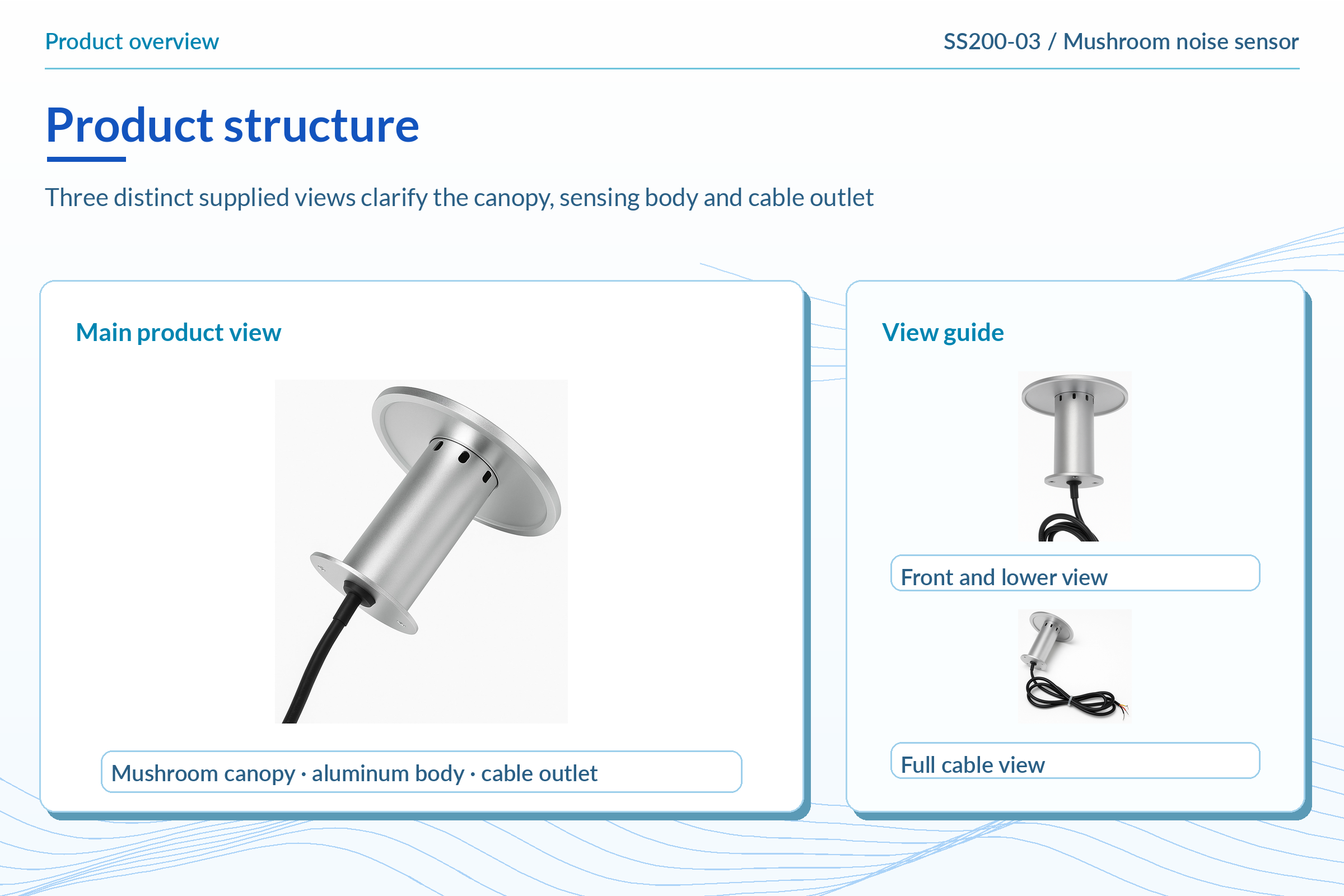

● Compact mushroom structure with weather shielding canopy.

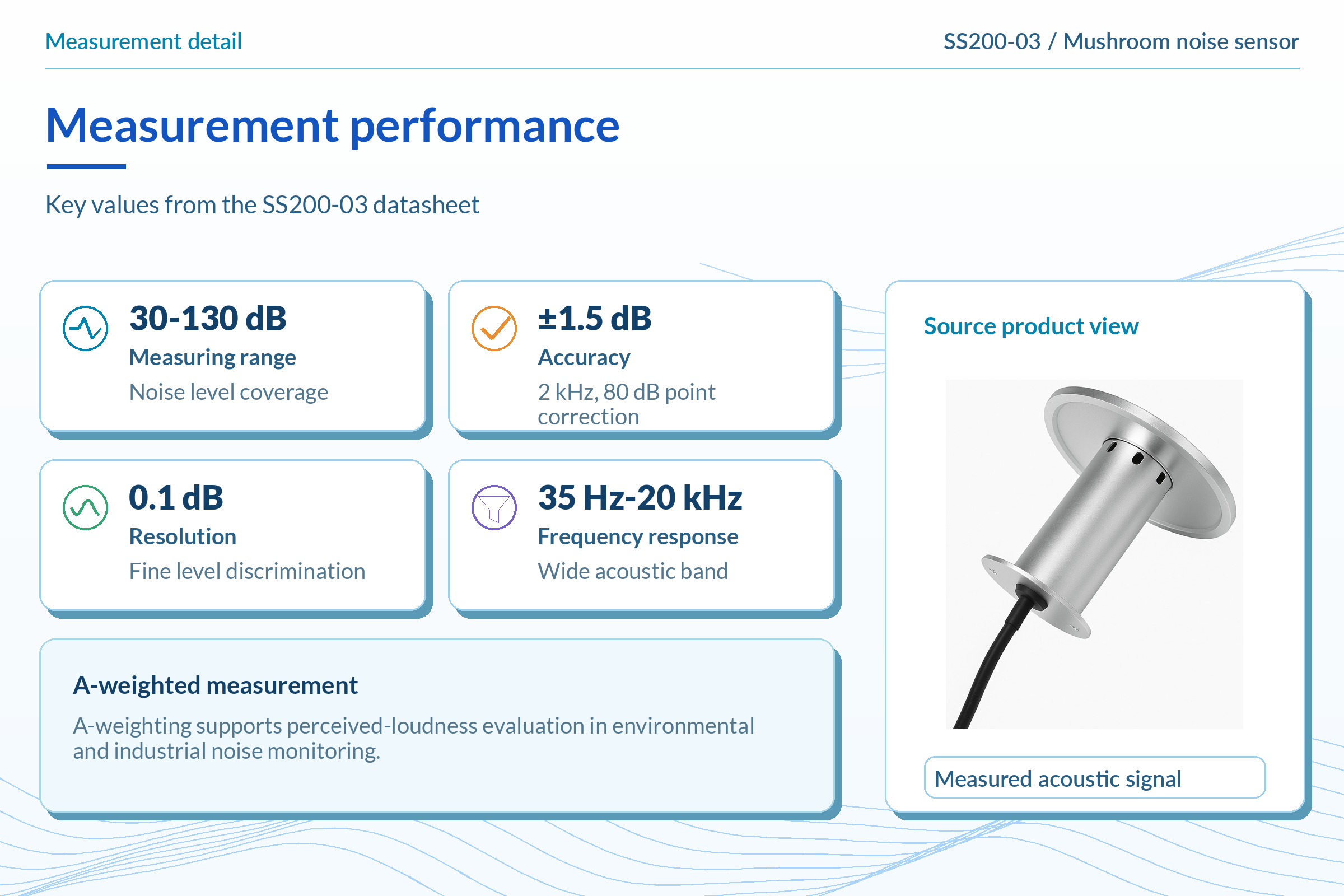

● ±1 .5 dB accuracy and 0.1 dB resolution.

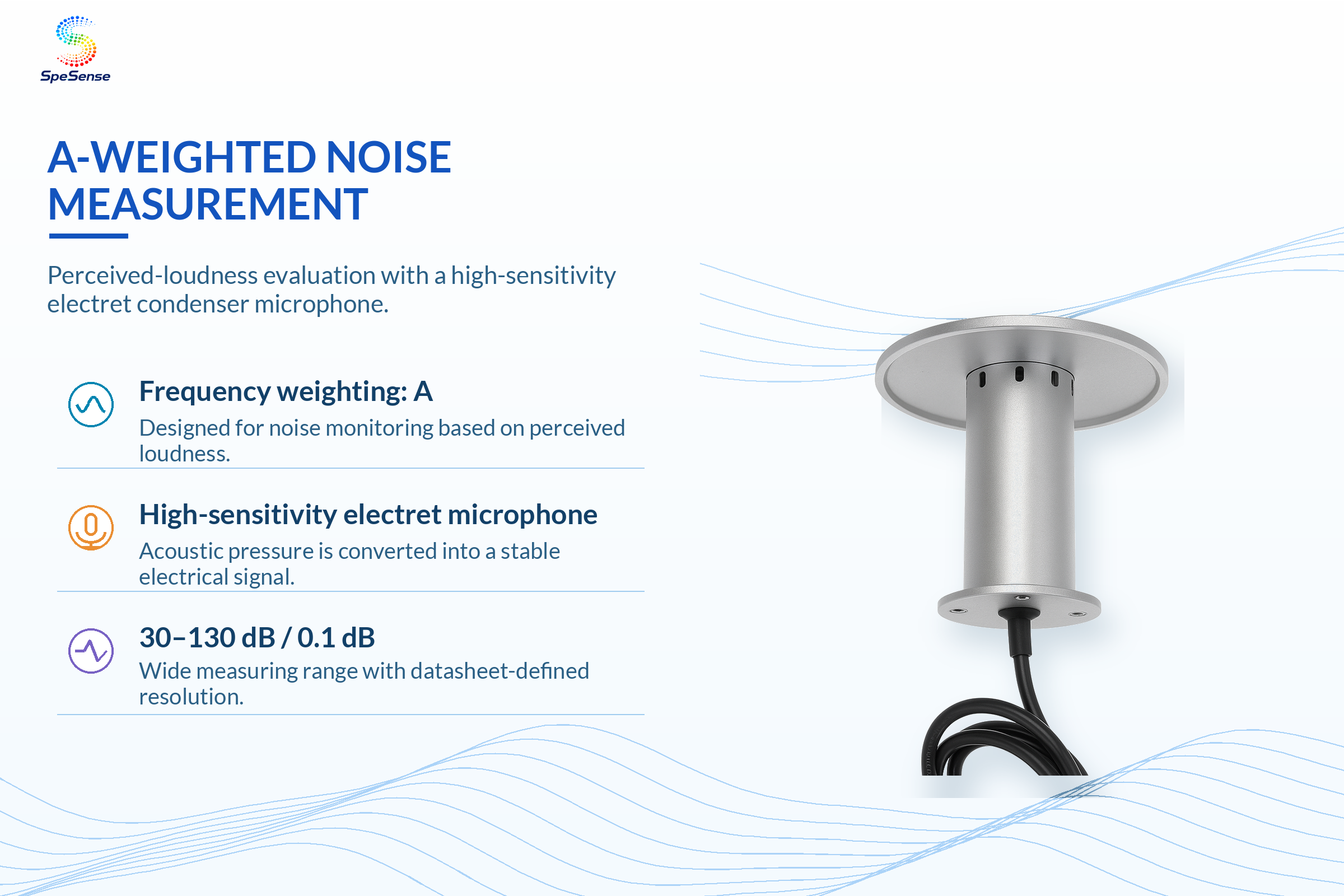

● A-weighted noise measurement for perceived loudness evaluation.

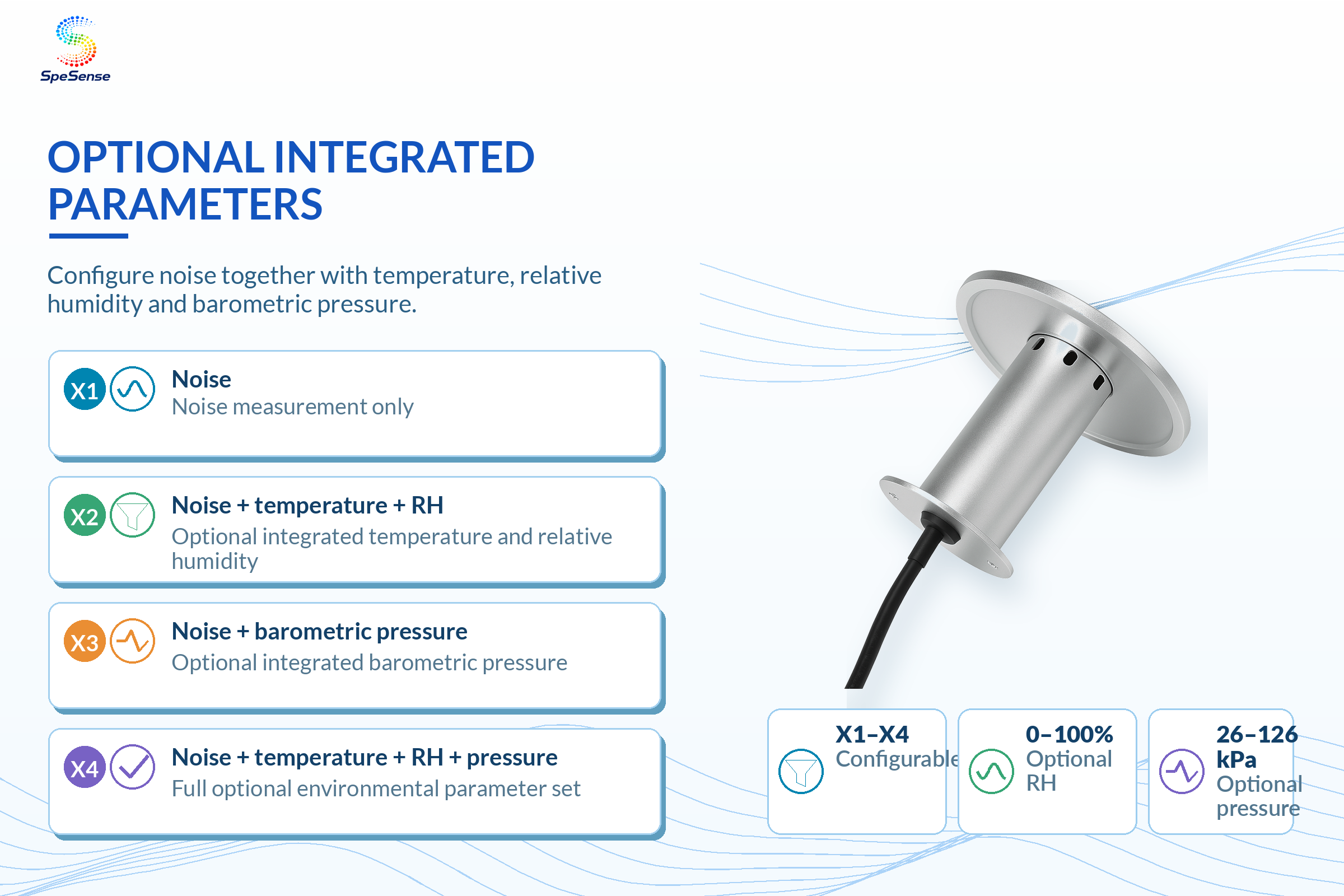

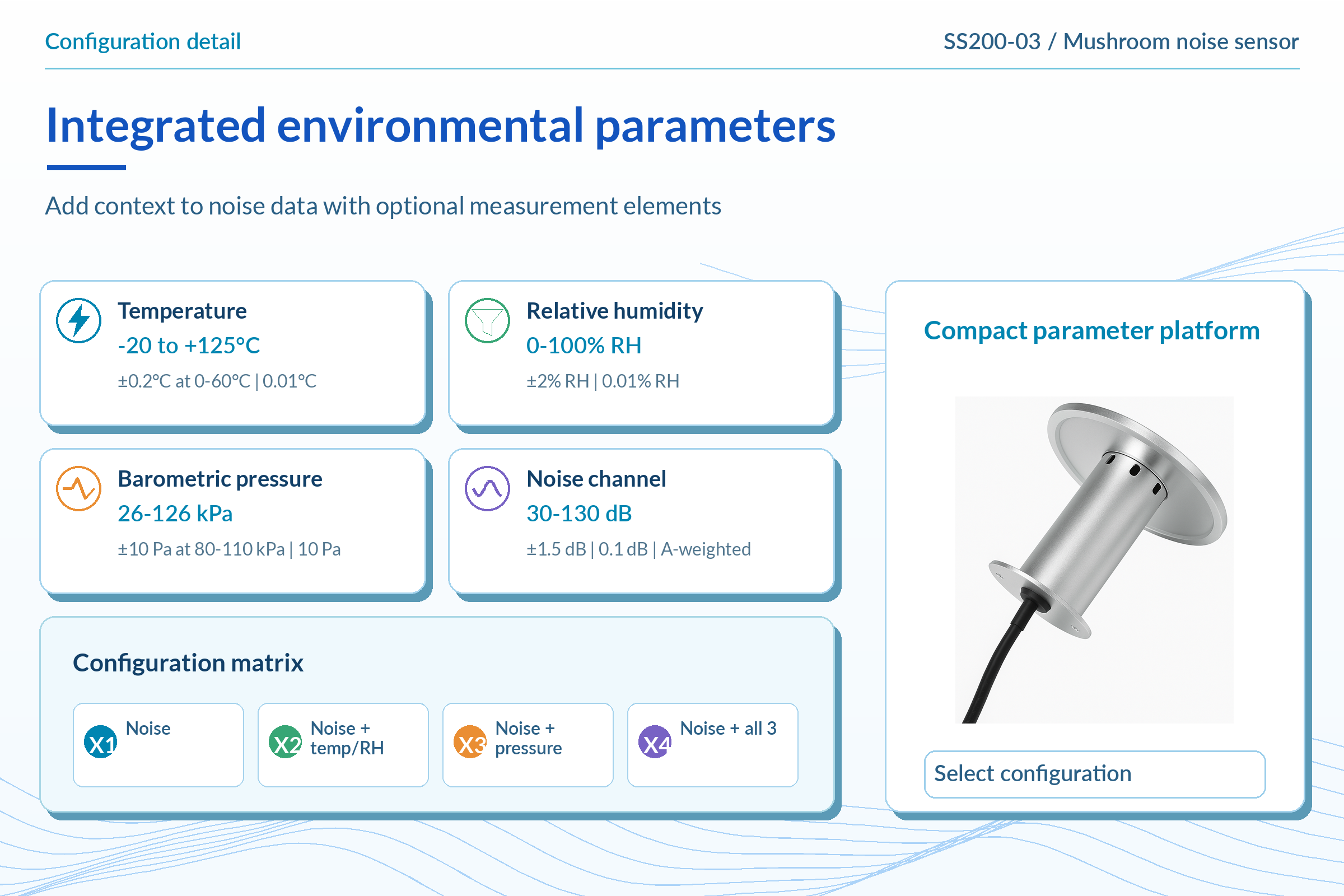

● Supports customization of integrated measurement parameters.
● Compact mushroom structure with weather shielding canopy.
● ±1 .5 dB accuracy and 0.1 dB resolution.
● A-weighted noise measurement for perceived loudness evaluation.
● Supports customization of integrated measurement parameters.
产品概述
Compact aluminum acoustic sensor for stable noise monitoring with optional environmental parameters.
SS200-03 is designed for detecting and monitoring environmental sound levels. The sensing core is a high-sensitivity electret condenser microphone that converts sound vibration into electrical signals for reliable data output.

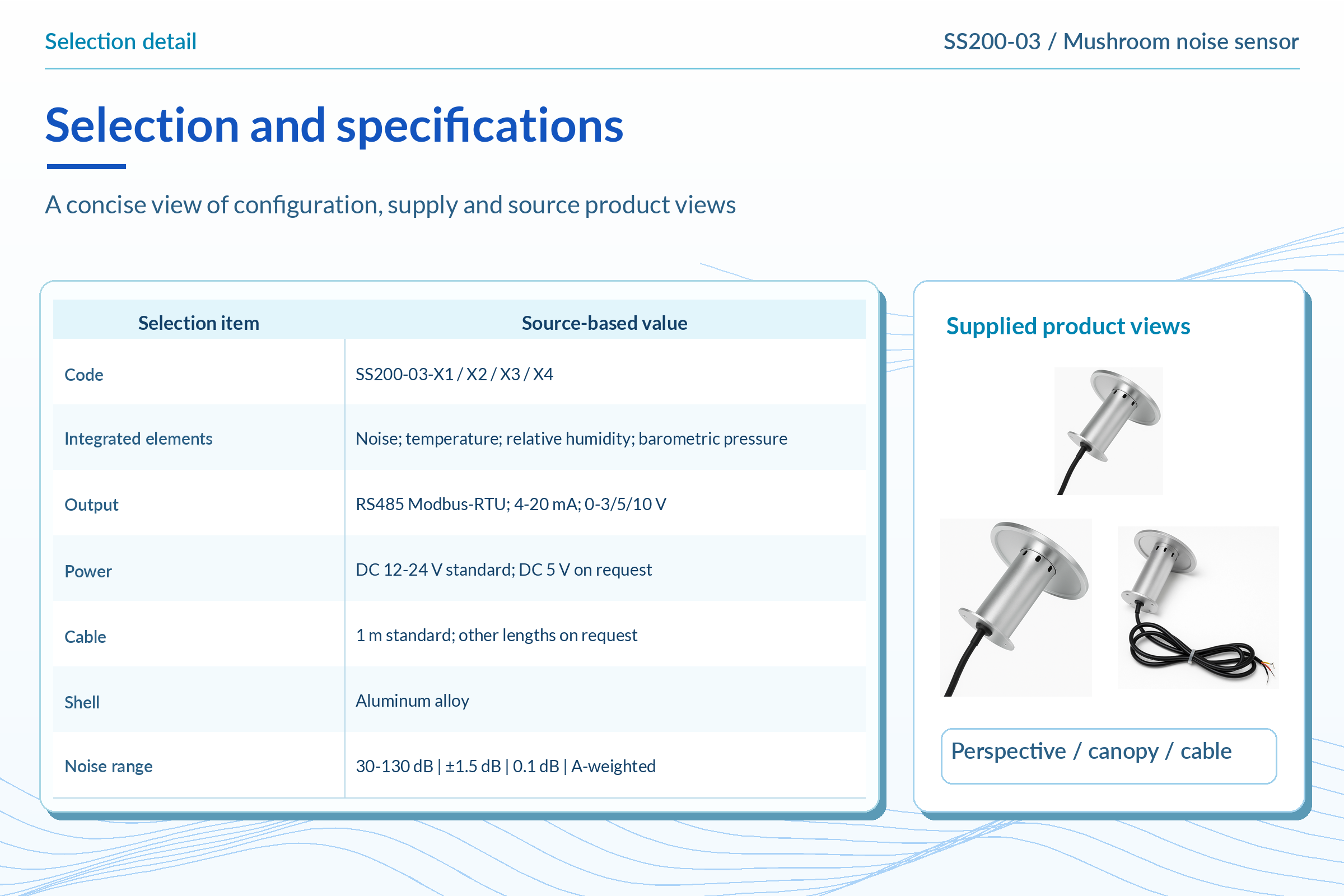

| Item | Specification |

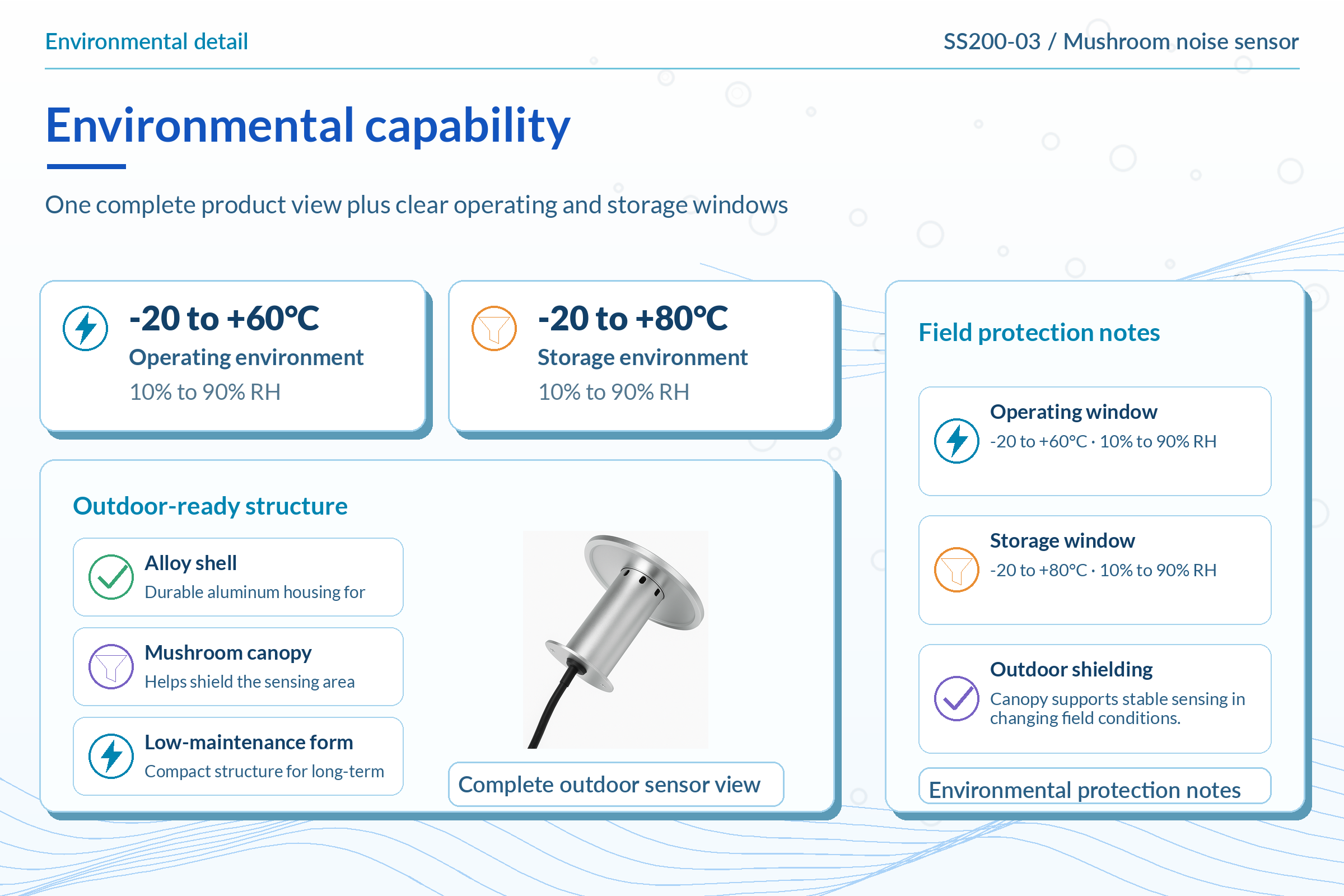

| Operating environment | -20°C to +60°C @ 10% to 90% RH |
| Storage | -20°C to +80°C @ 10% to 90% RH |

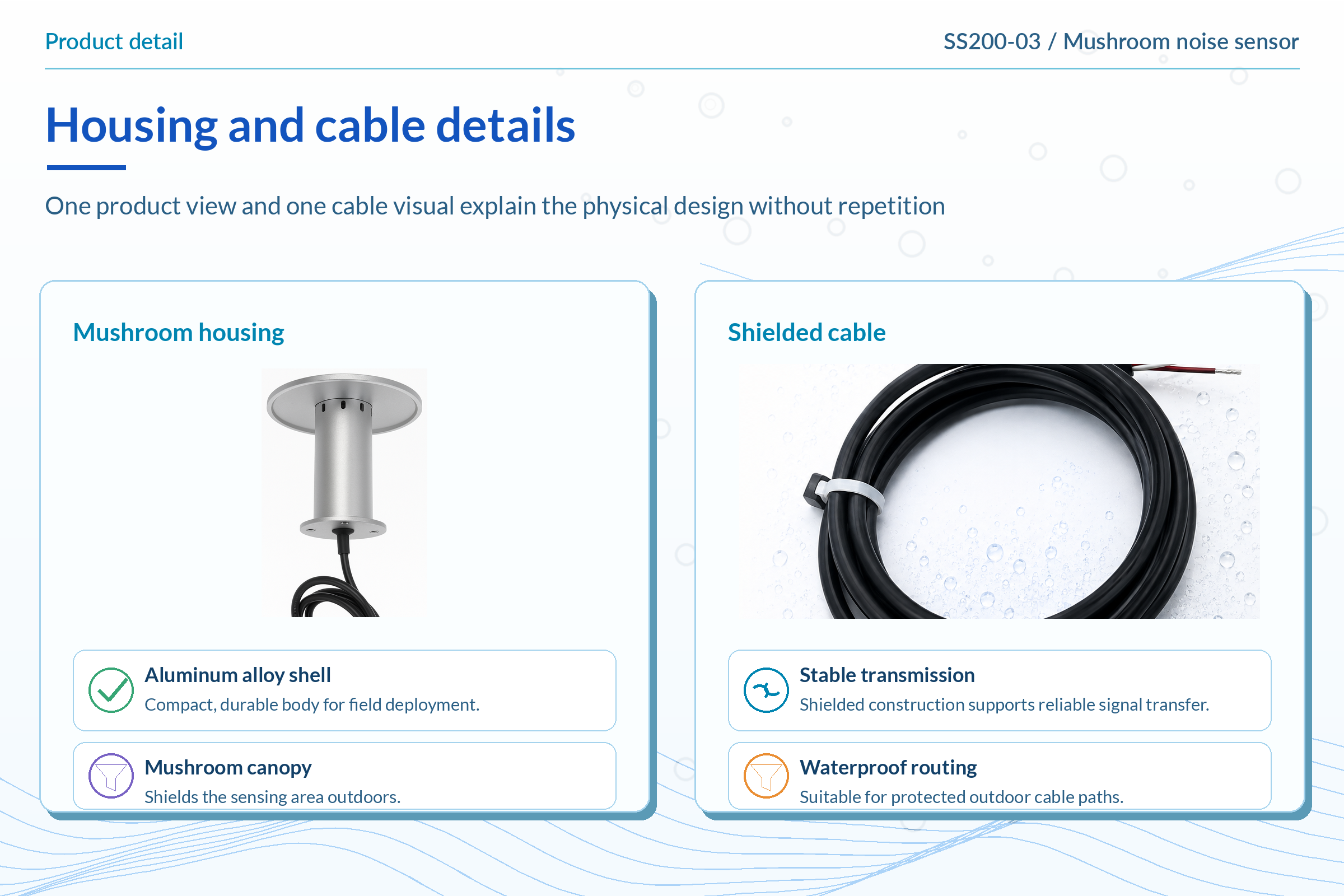

| Shell material | Aluminum alloy |
| Cable length | 1 m standard; other lengths on request |

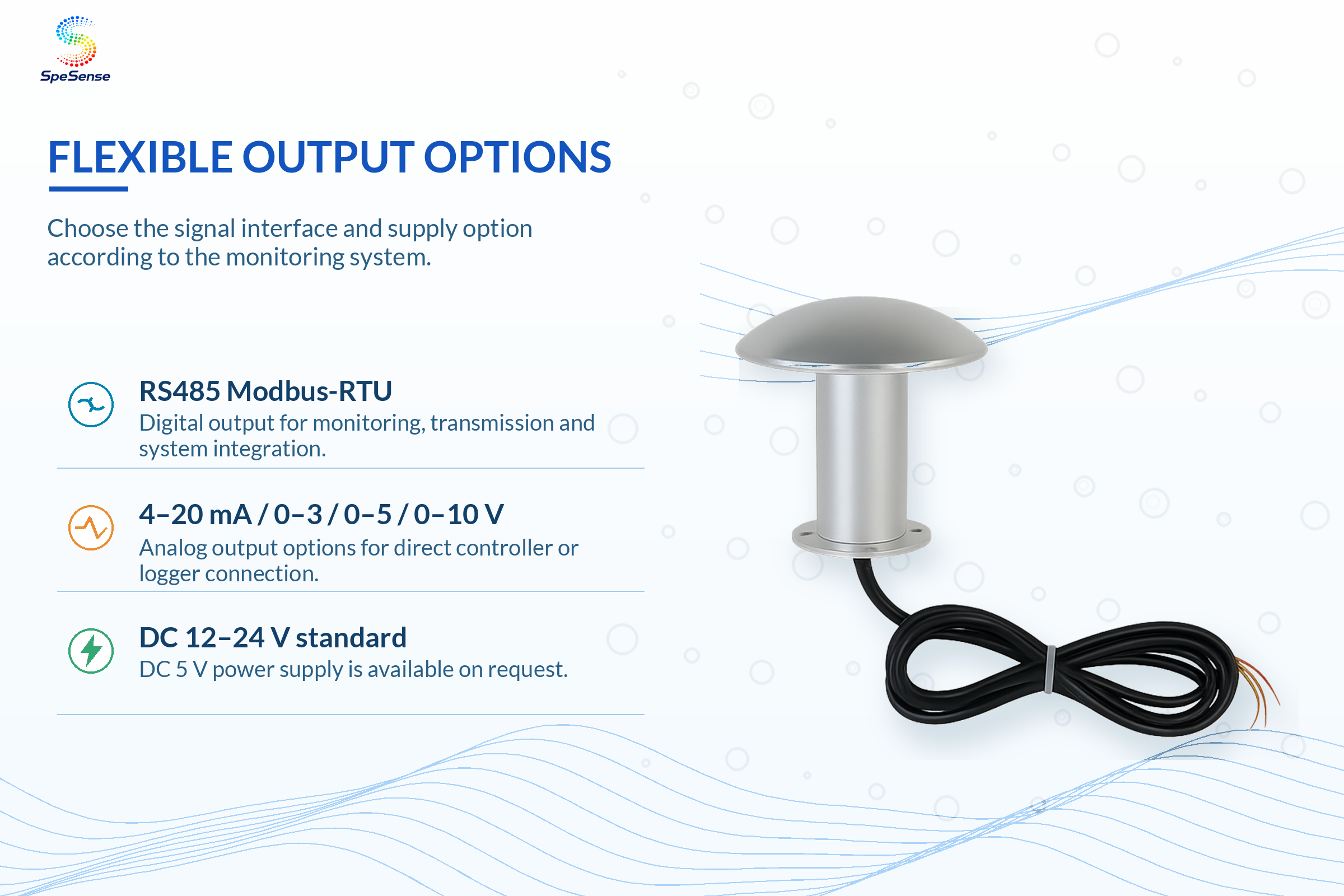

| Power supply | DC 12-24 V standard; DC 5 V on request |
| Output signal | RS485 Modbus-RTU; 4-20 mA; 0-3 V / 0-5 V / 0-10 V |
