Noise Sensor
SS200-02
墙装式噪声传感器
产品亮点

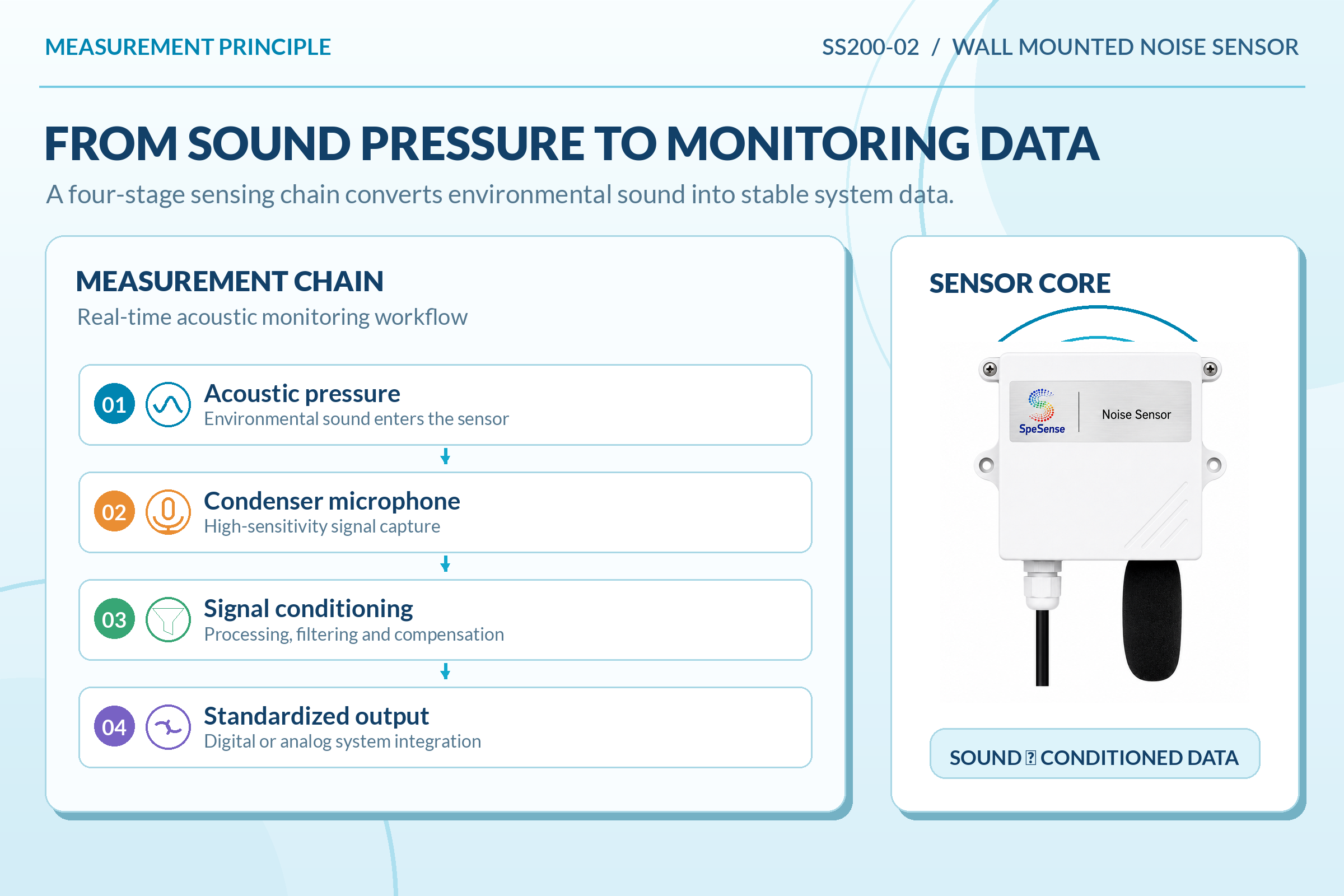

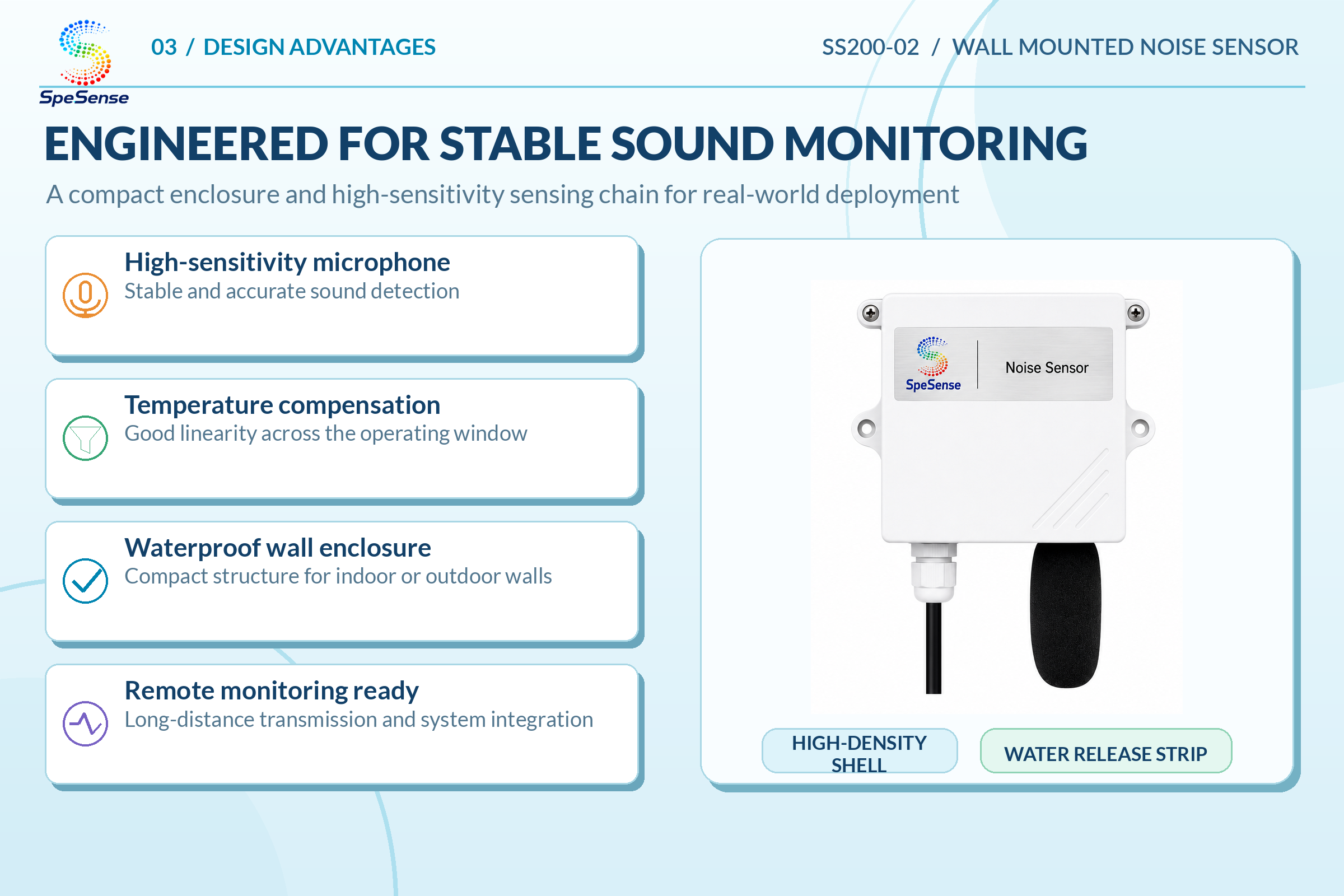

● High-sensitivity condenser microphone for stable and accurate sound detection.

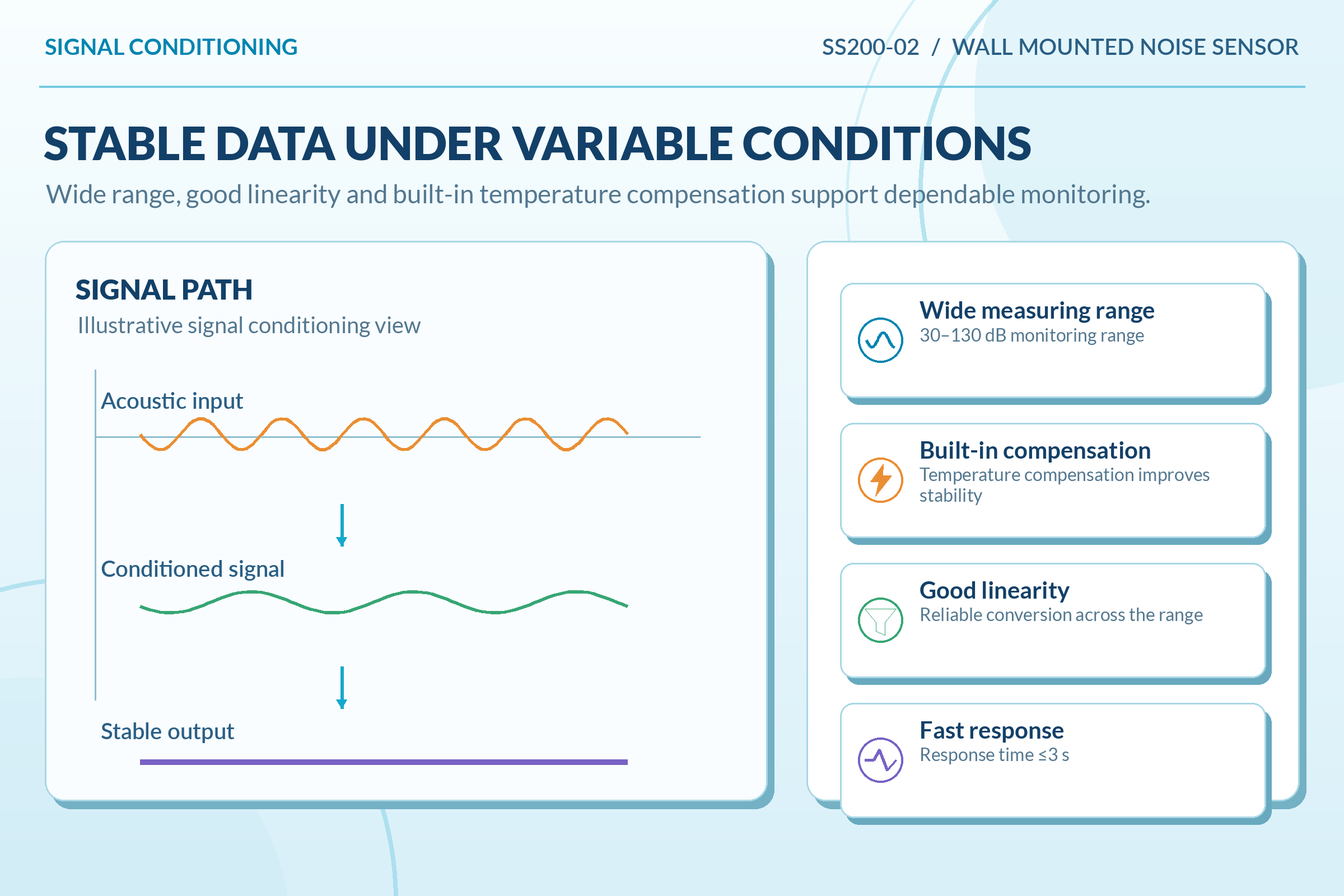

● Wide measuring range,good linearity and built-in temperature compensation.

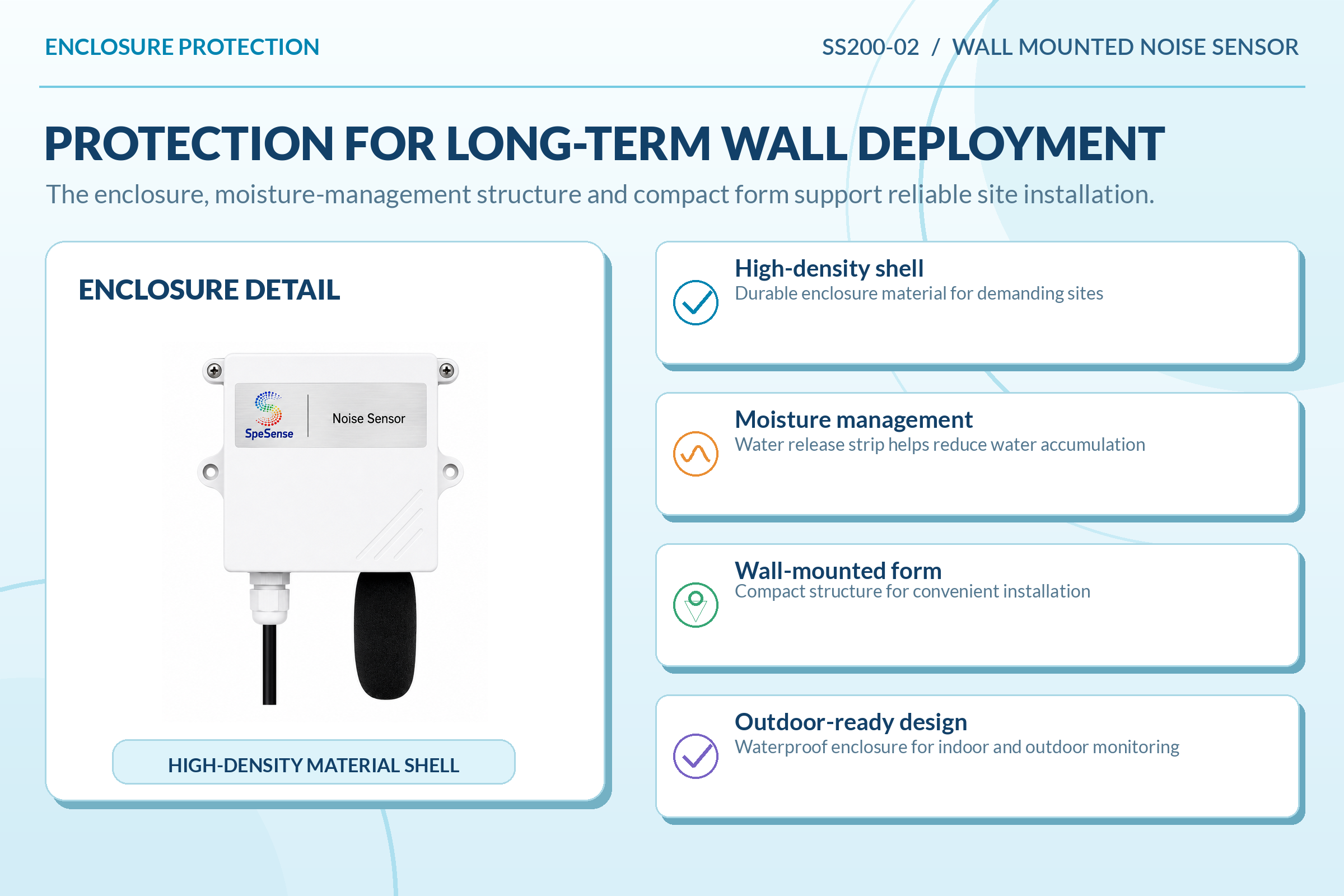

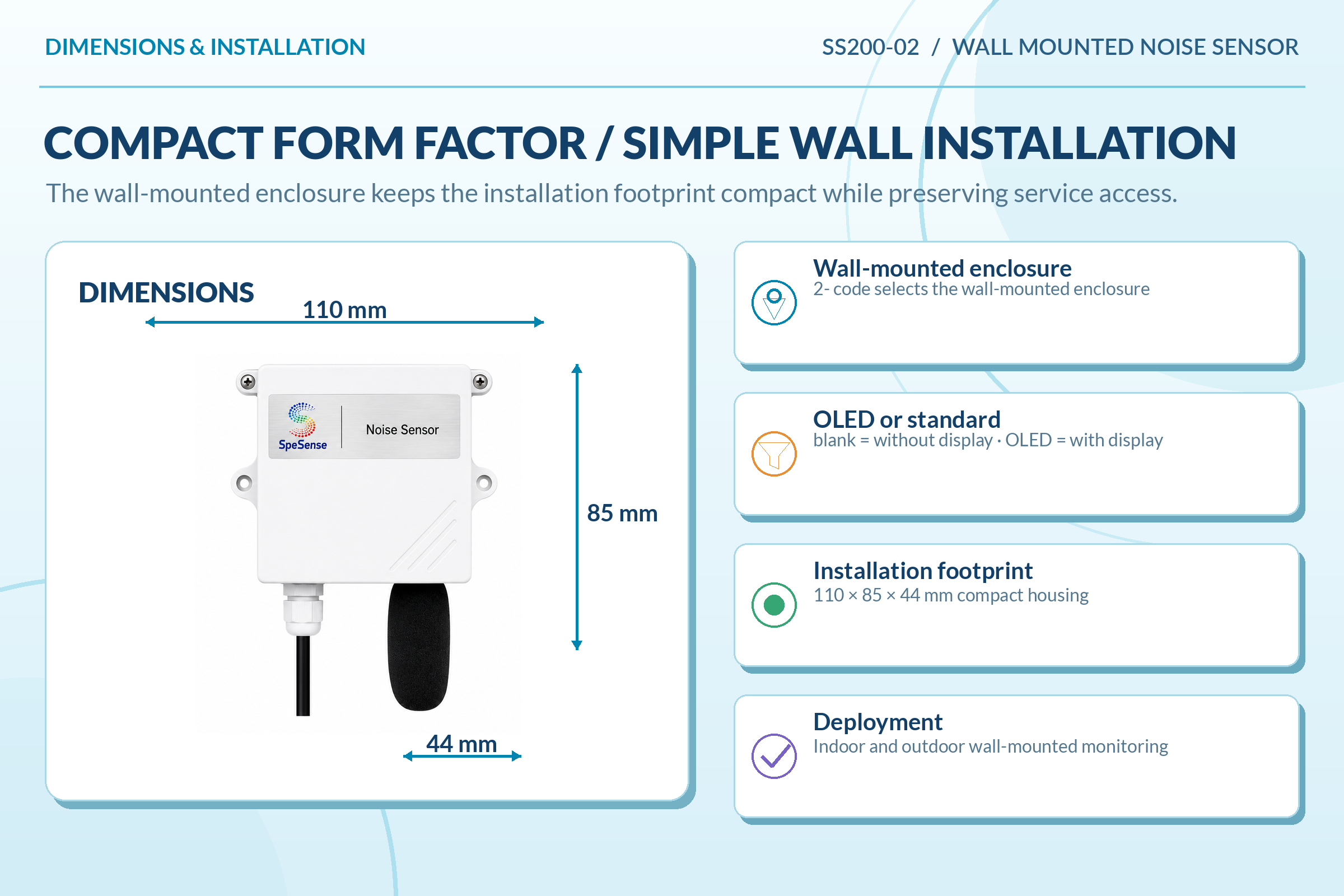

● Wall-mounted waterproof enclosure with compact structure and convenient installation.

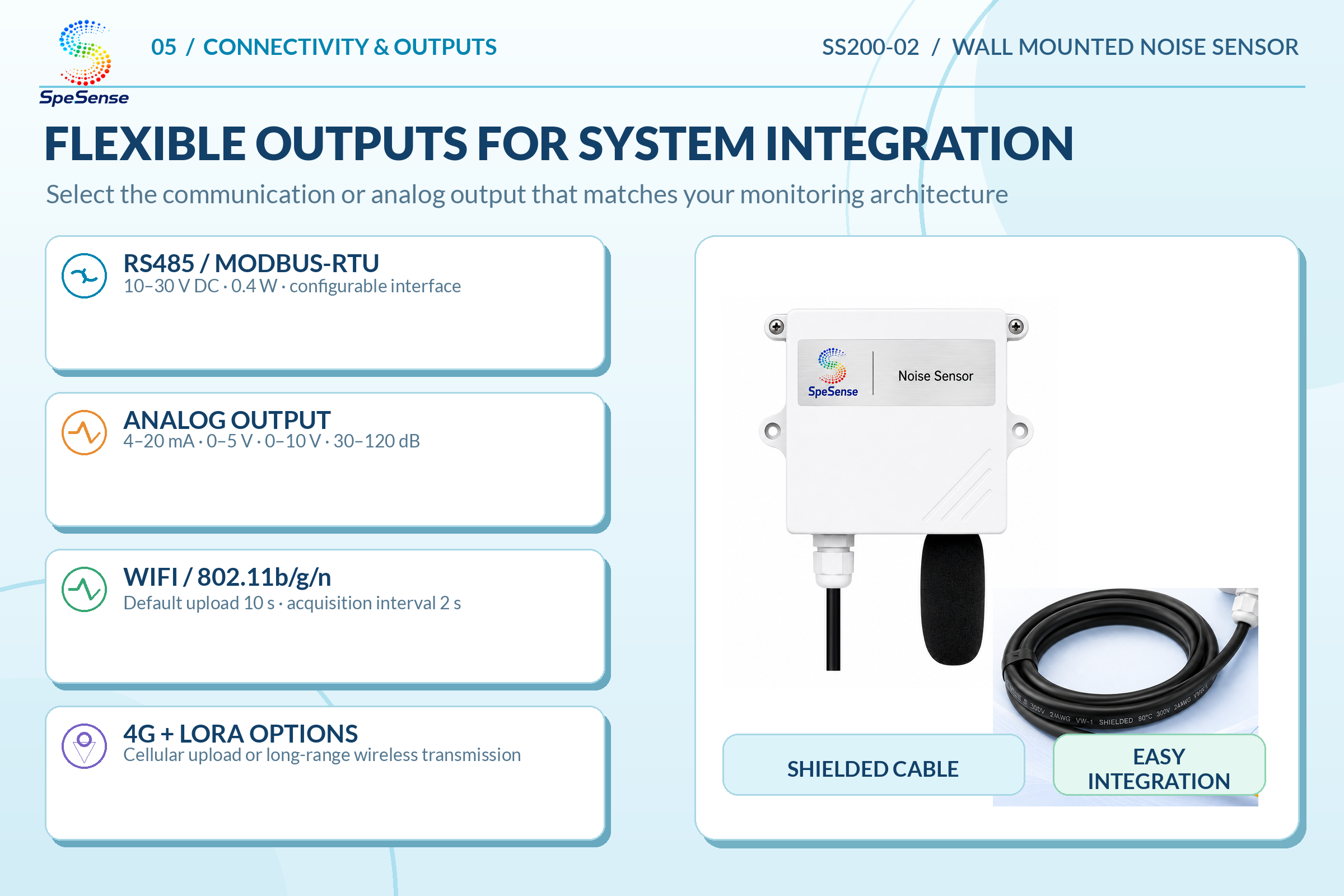

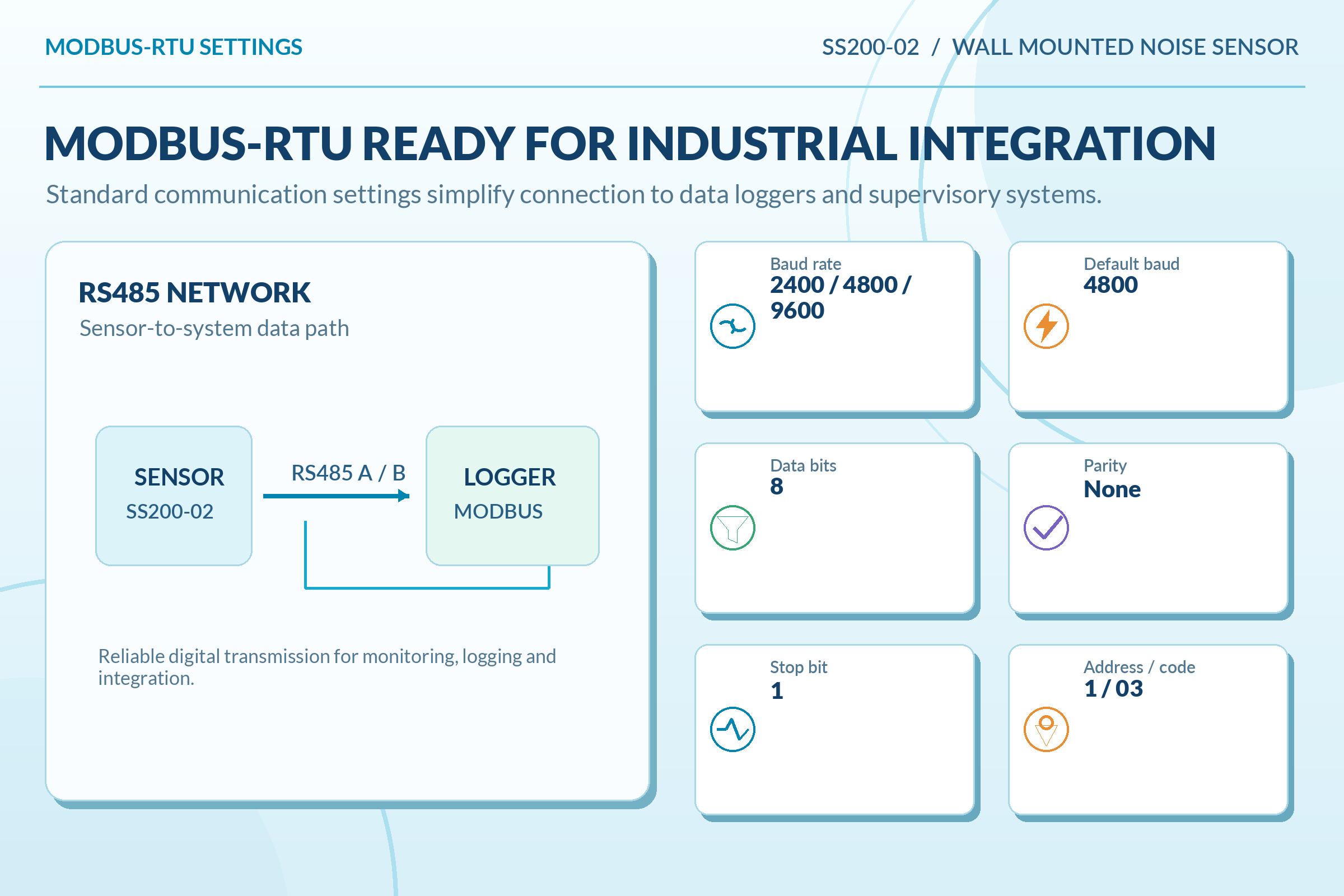

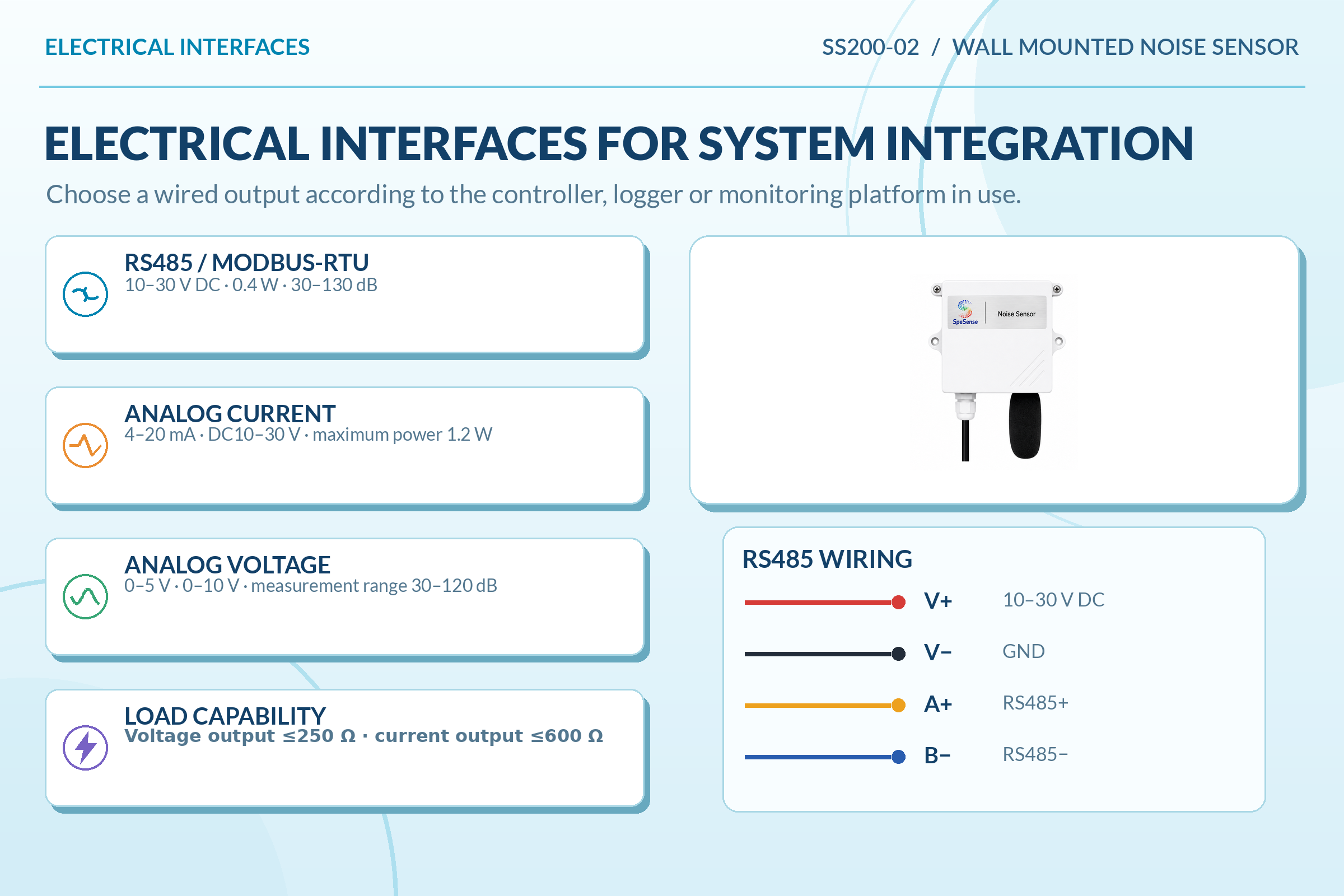

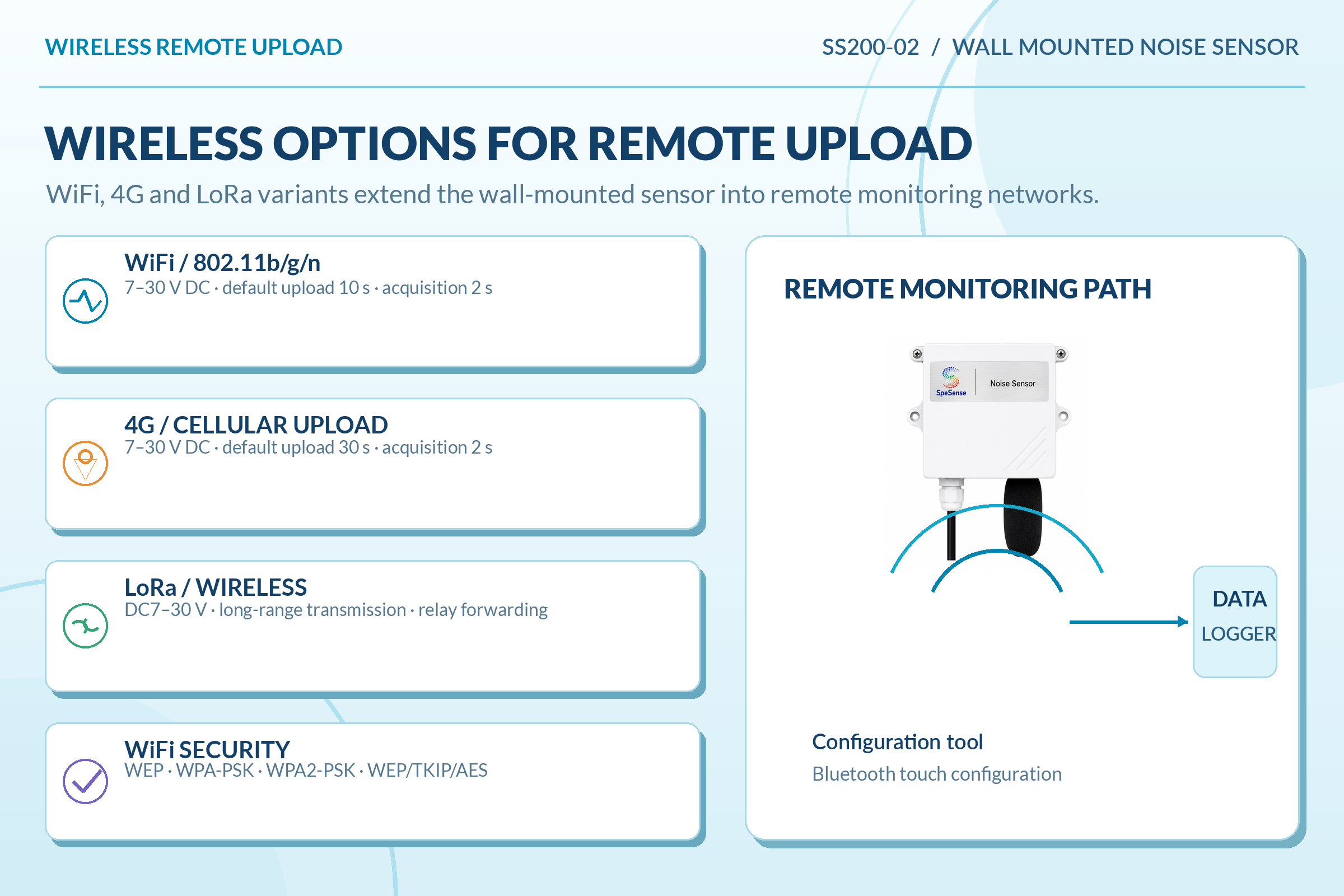

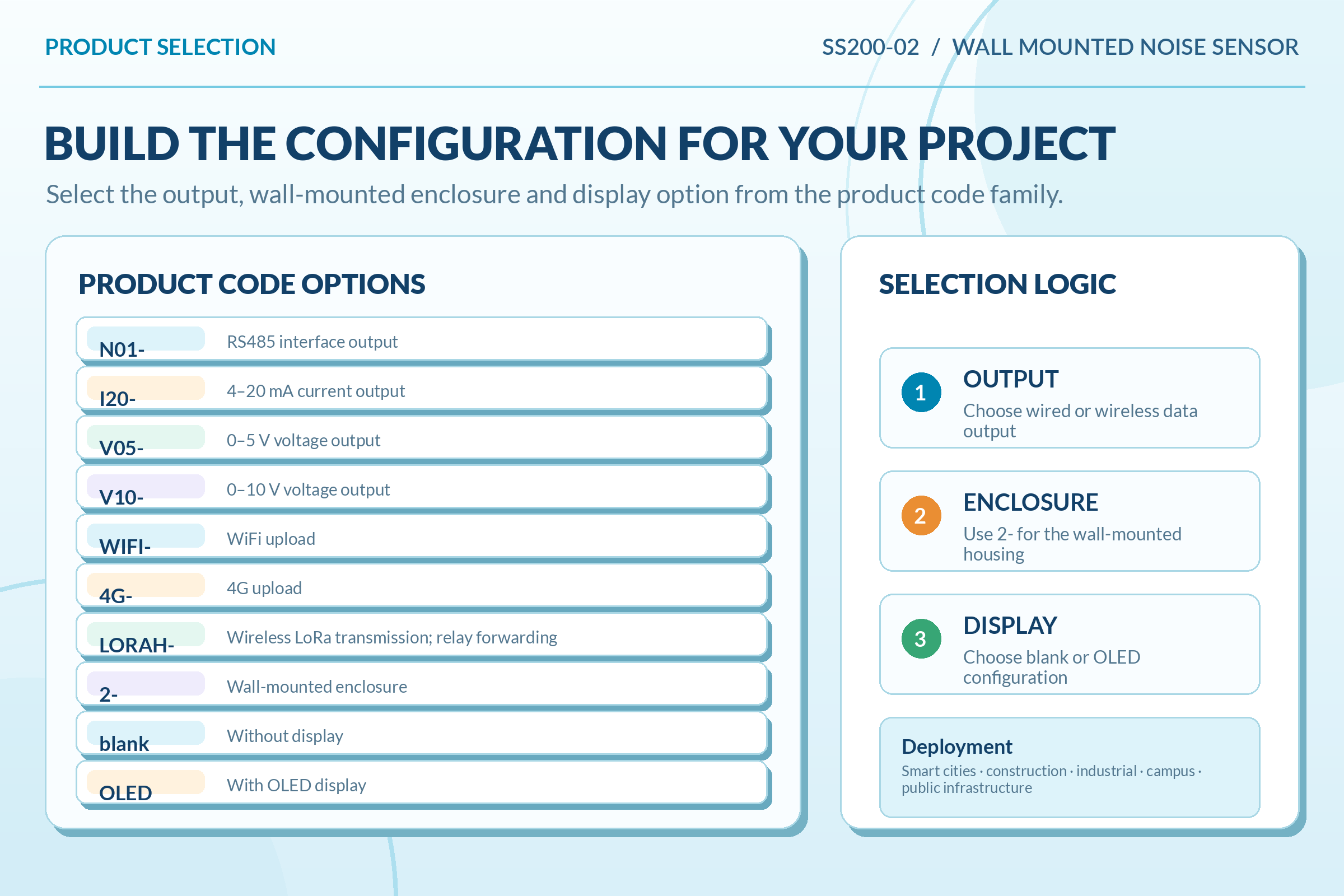

● Multiple outputs:RS485,analog 4-20 mA /0-5 V /0-10 V,WiFi,4G and LoRa.
● Designed for long-distance transmission and remote monitoring applications.
● Wide measuring range,good linearity and built-in temperature compensation.
● Wall-mounted waterproof enclosure with compact structure and convenient installation.
● Multiple outputs:RS485,analog 4-20 mA /0-5 V /0-10 V,WiFi,4G and LoRa.
● Designed for long-distance transmission and remote monitoring applications.
产品概述
SS200-02 is a high-precision wall-mounted noise sensor designed for environmental and industrial sound monitoring. It delivers accurate and reliable sound level measurement for homes, offices, workshops, vehicles, factories, construction sites and other monitoring applications.

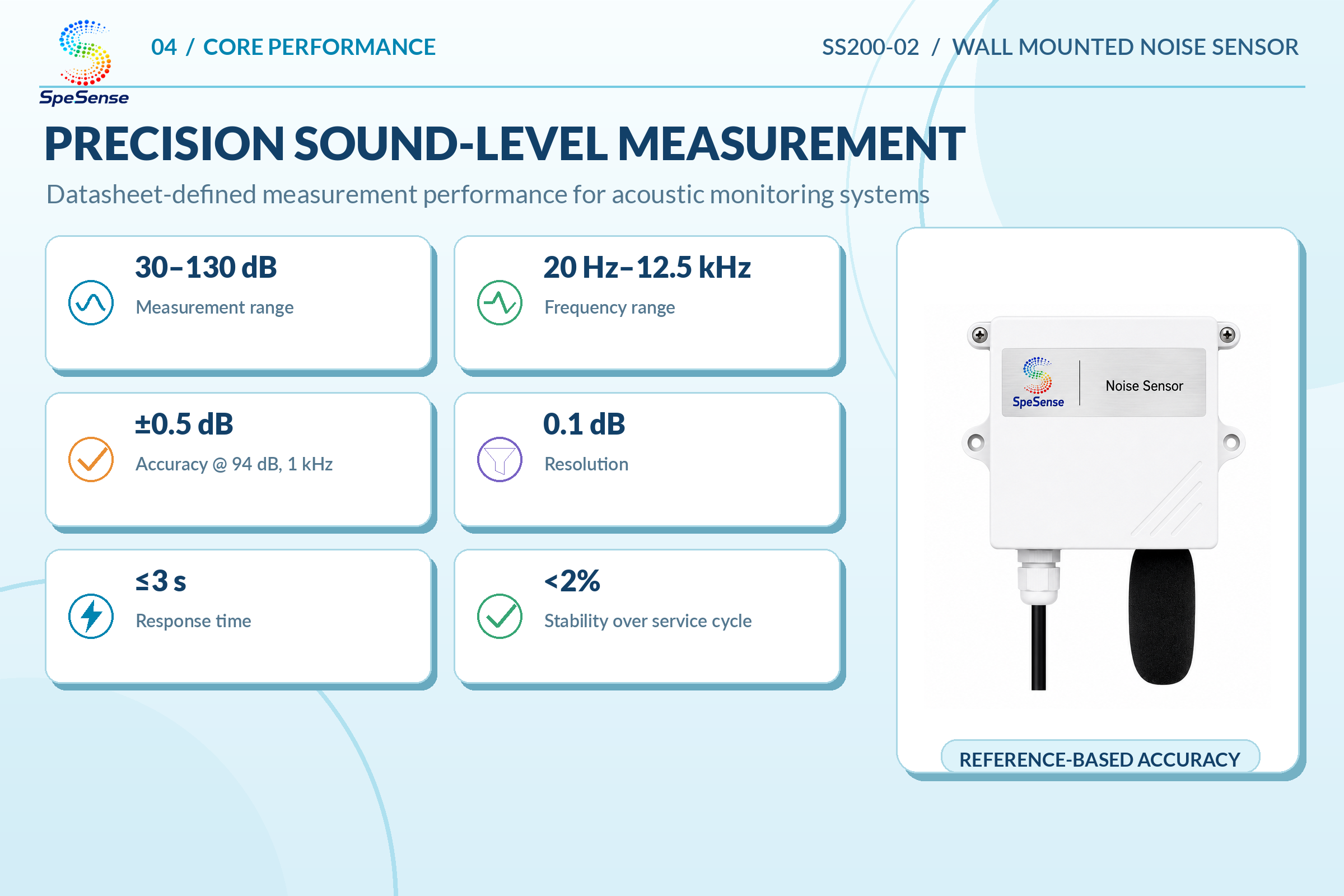

| Item | Specification |
| Resolution | 0.1 dB |
| Frequency range | 20 Hz-12.5 kHz |
| Response time | ≤3 s |
| Stability | <2% over service cycle |
| Accuracy | ±0.5 dB at reference tone, 94 dB @ 1 kHz |
| Working environment | -20°C to +60°C; 0-95%RH, non-condensing |
