Ultrasonic Wind Sensor
SS103U-05
三维超声波风速风向仪

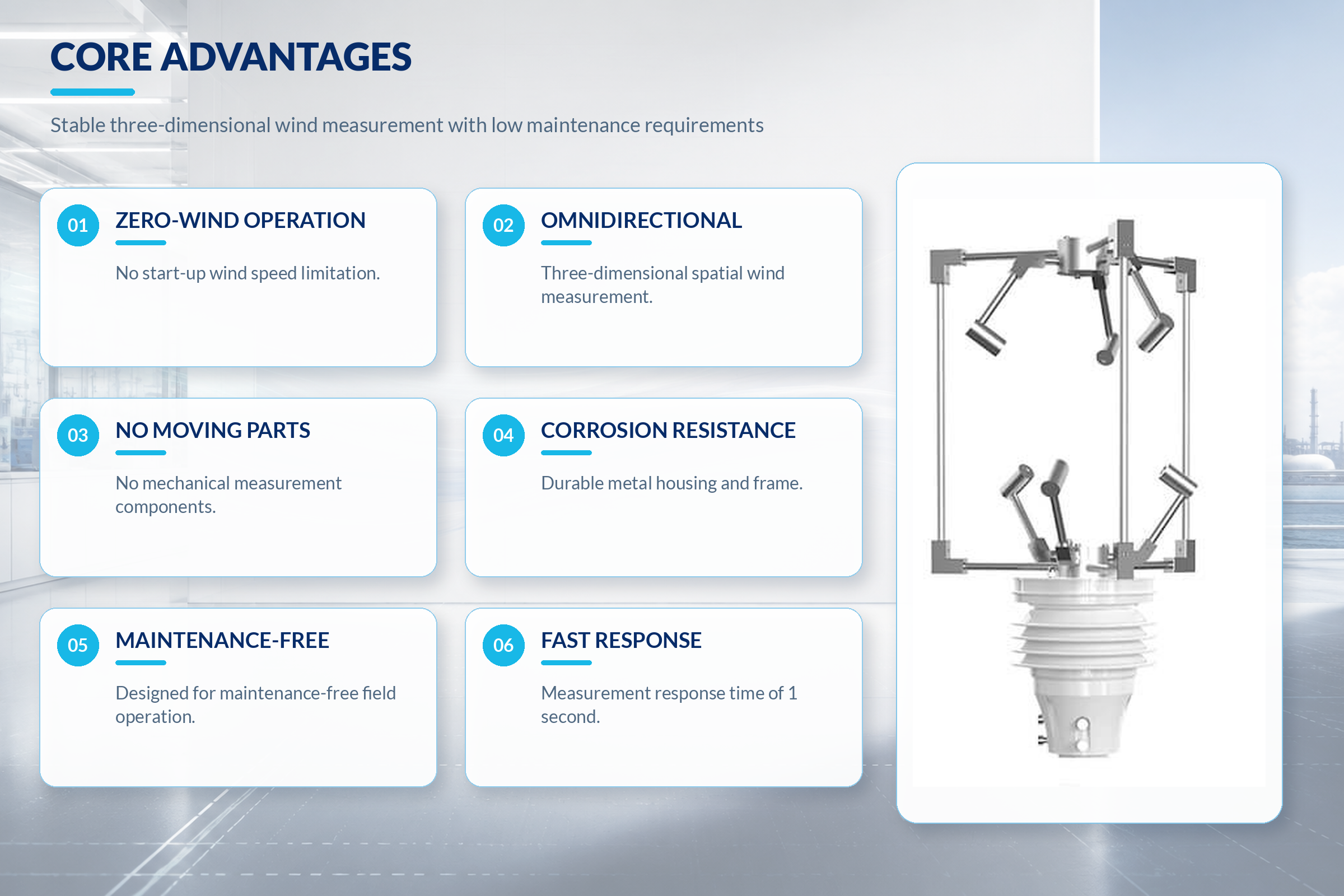

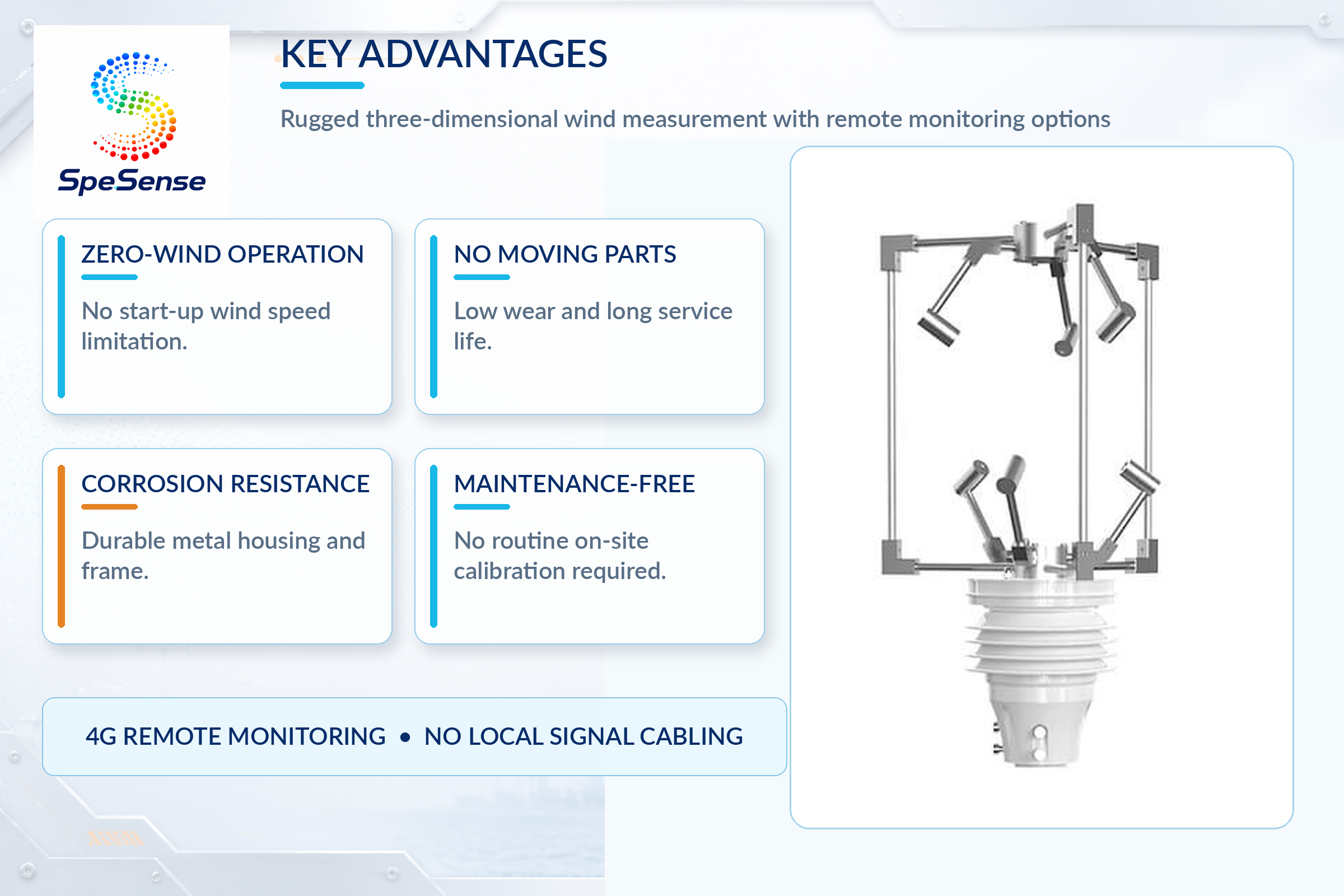

产品亮点
● No start-up wind speed limitation; supports zero-wind operation and omnidirectional measurement.
● No moving measurement components, resulting in low wear and long service life.

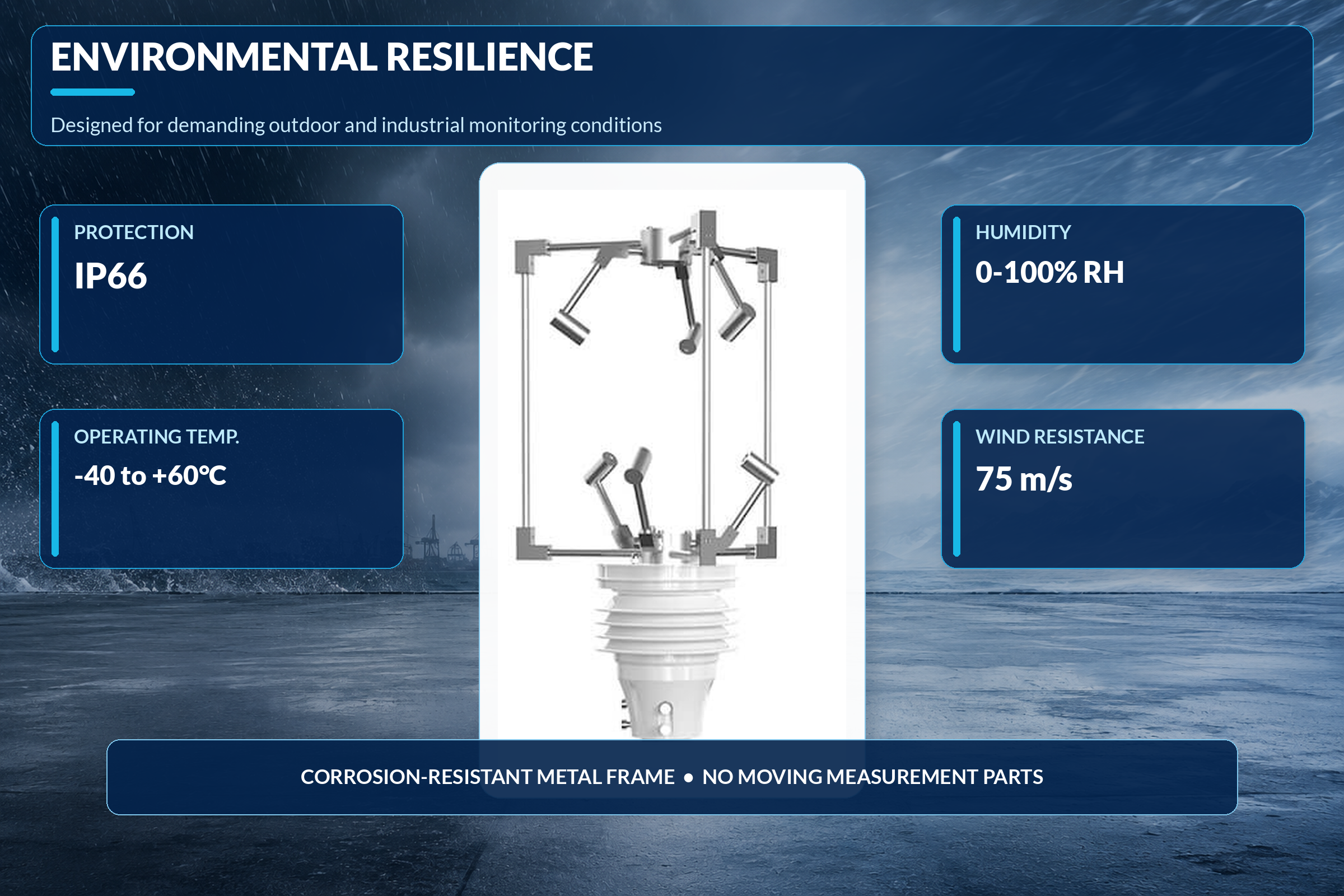

● Metal housing/frame provides strong corrosion resistance, durability and environmental adaptability.
● No routine maintenance or on-site calibration required.
● 4G version enables remote data monitoring without local communication cabling.
● No moving measurement components, resulting in low wear and long service life.
● Metal housing/frame provides strong corrosion resistance, durability and environmental adaptability.
● No routine maintenance or on-site calibration required.
● 4G version enables remote data monitoring without local communication cabling.
产品概述

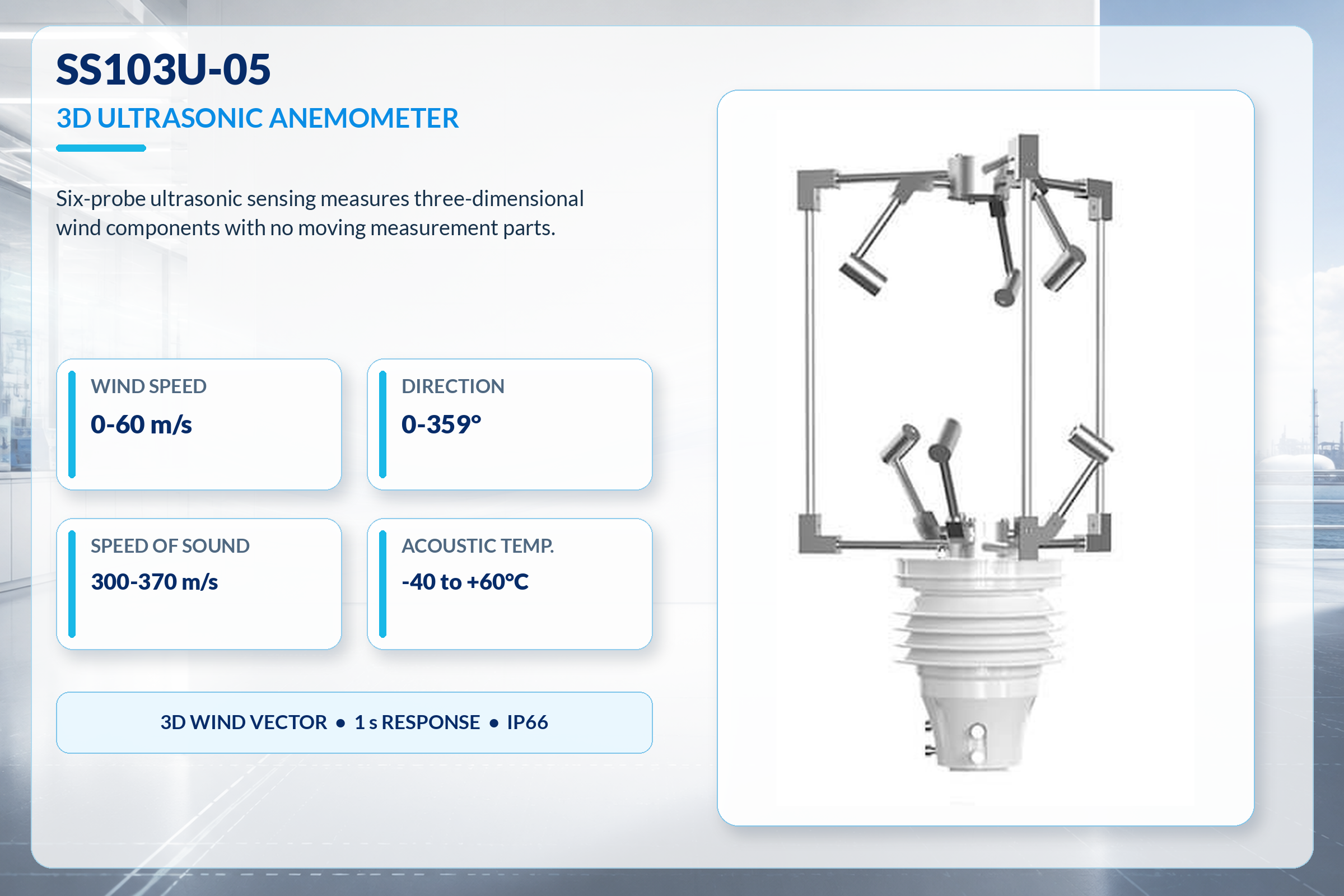

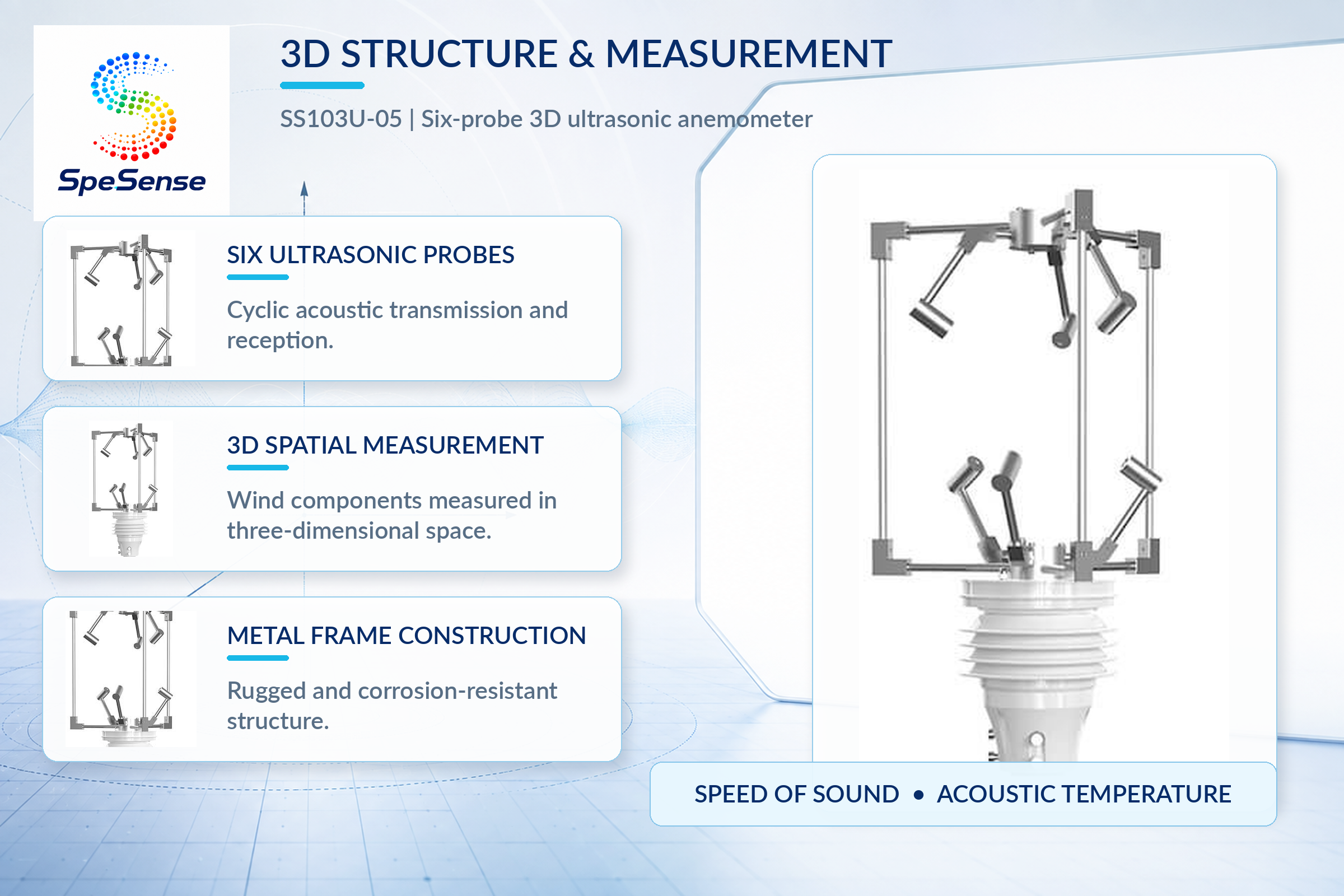

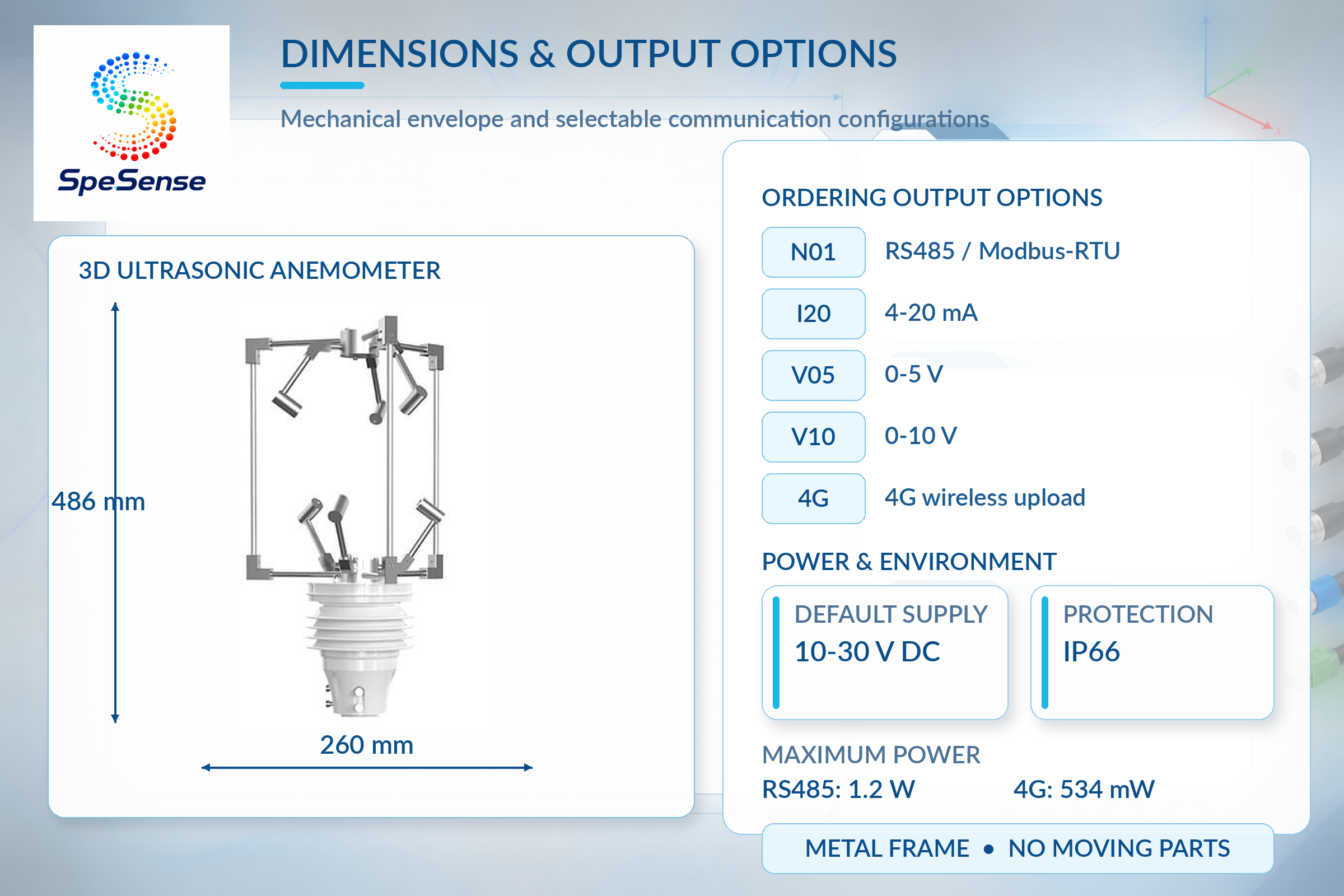

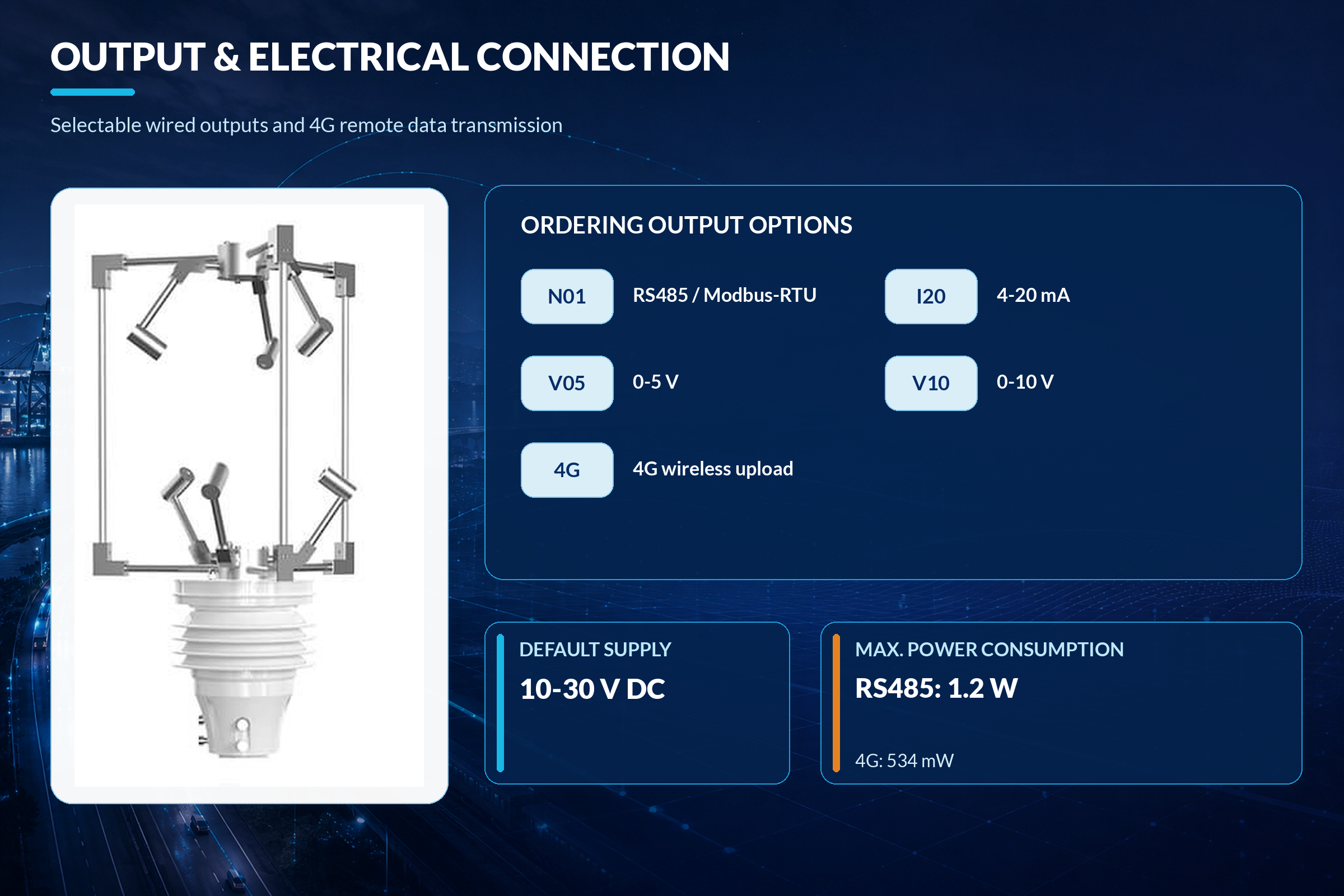

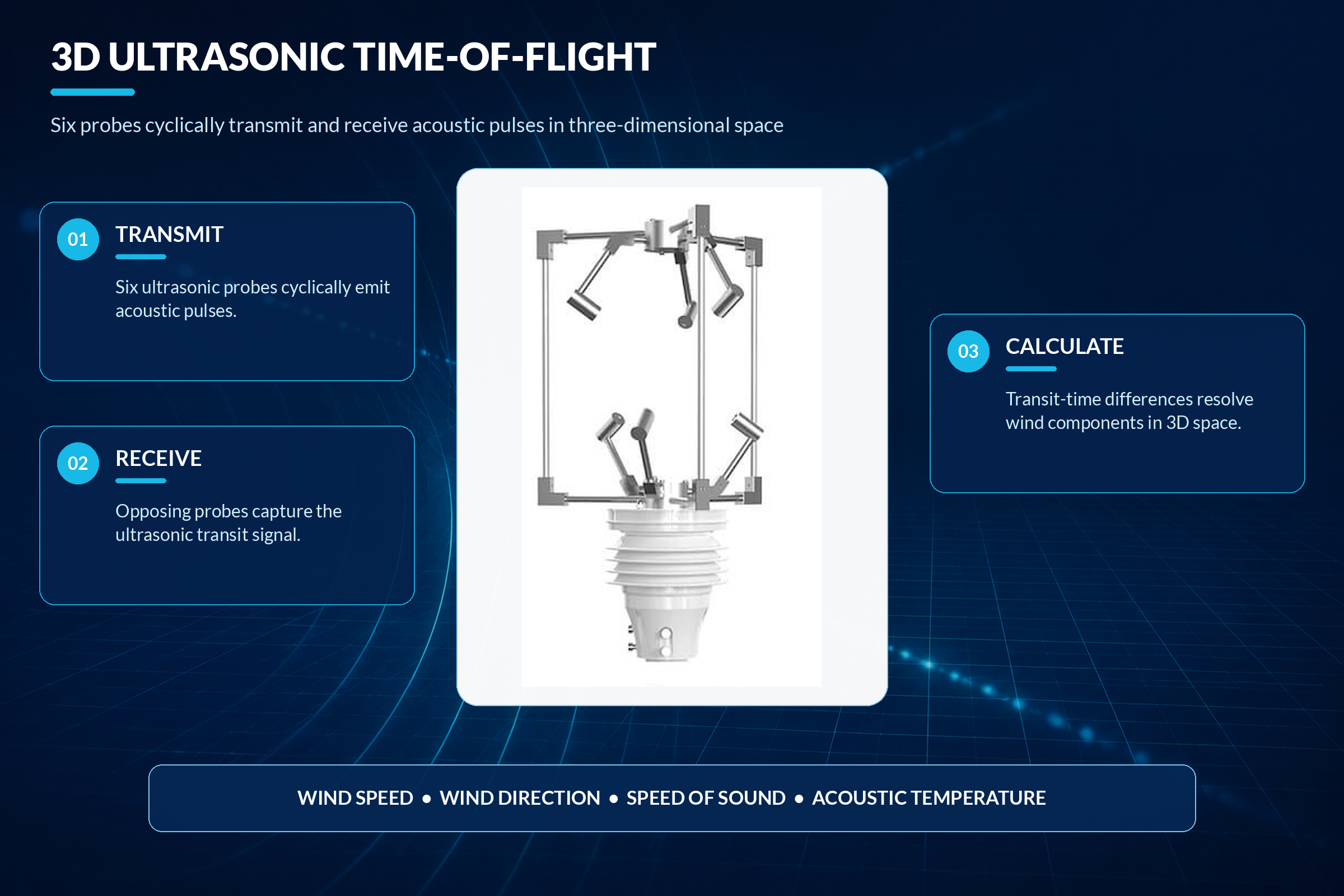

Three-dimensional ultrasonic sensor for simultaneous measurement of wind speed, wind direction, speed of sound and acoustic temperature, with RS485 and 4G communication options.

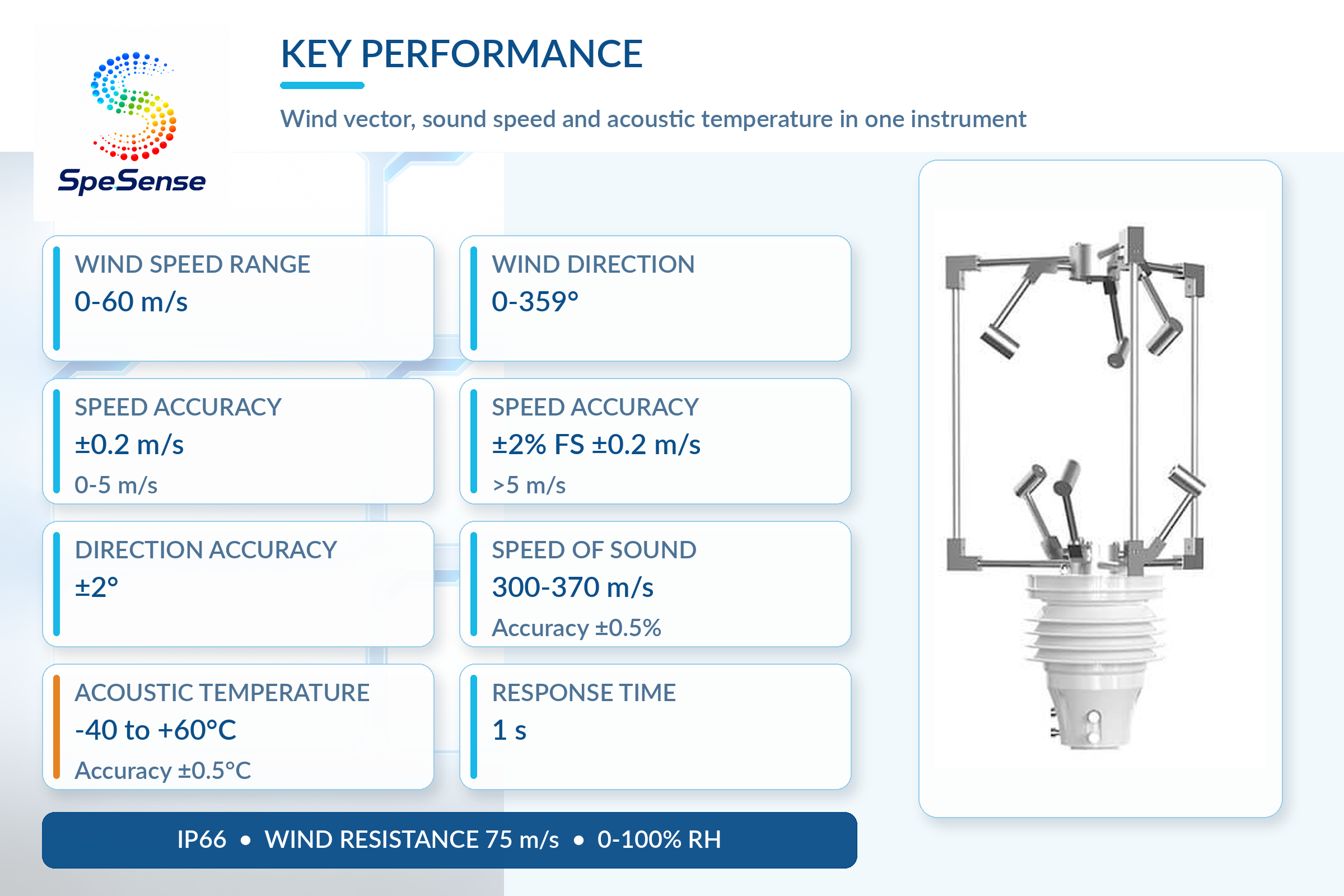

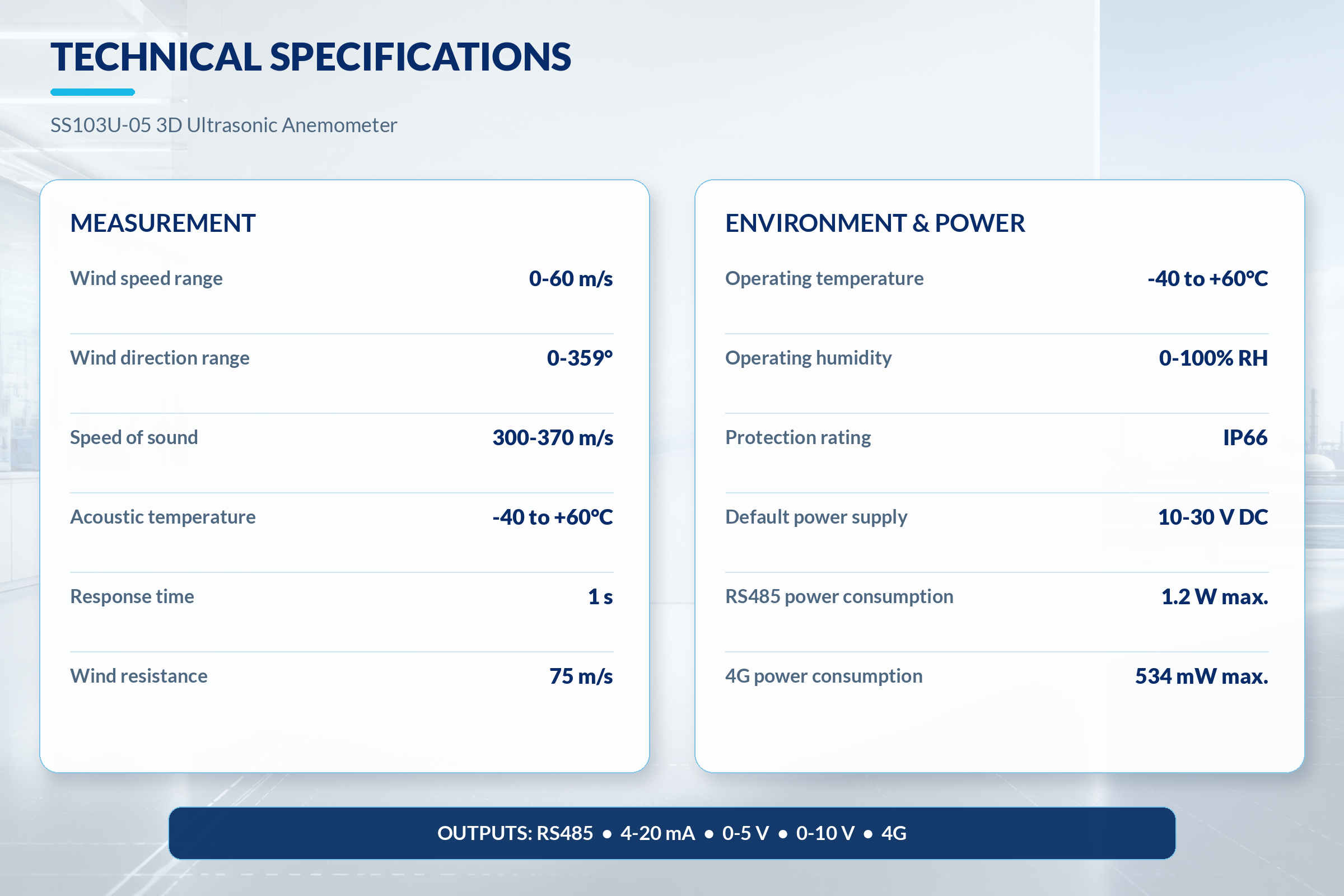

| Item | Specification |
| Default Power Supply | 10–30 V DC |
| Maximum Power Consumption | RS485 version: 1.2 W; 4G version: 534 mW |

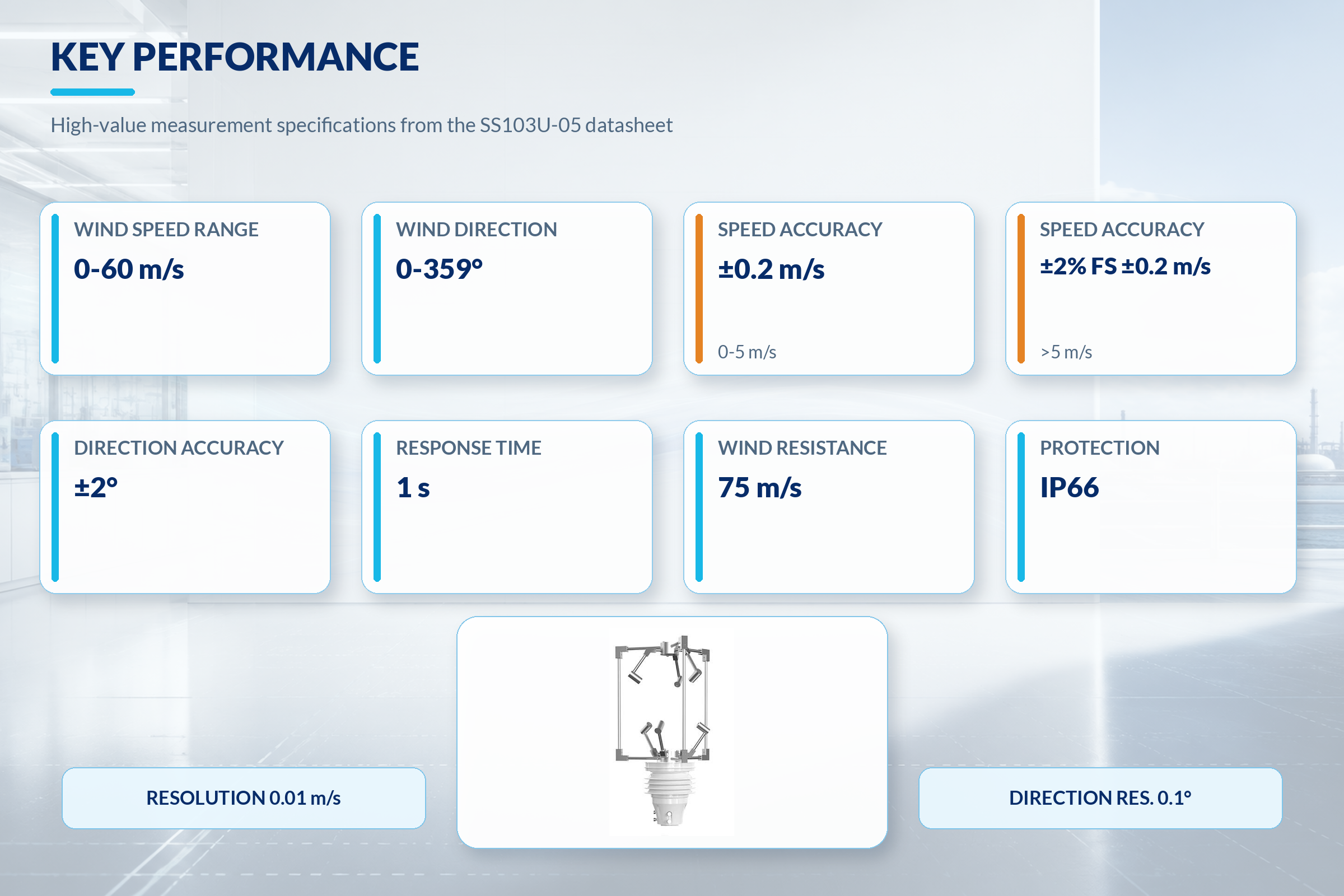

| Wind Speed Range | 0–60 m/s |
| Wind Direction Range | 0–359° |

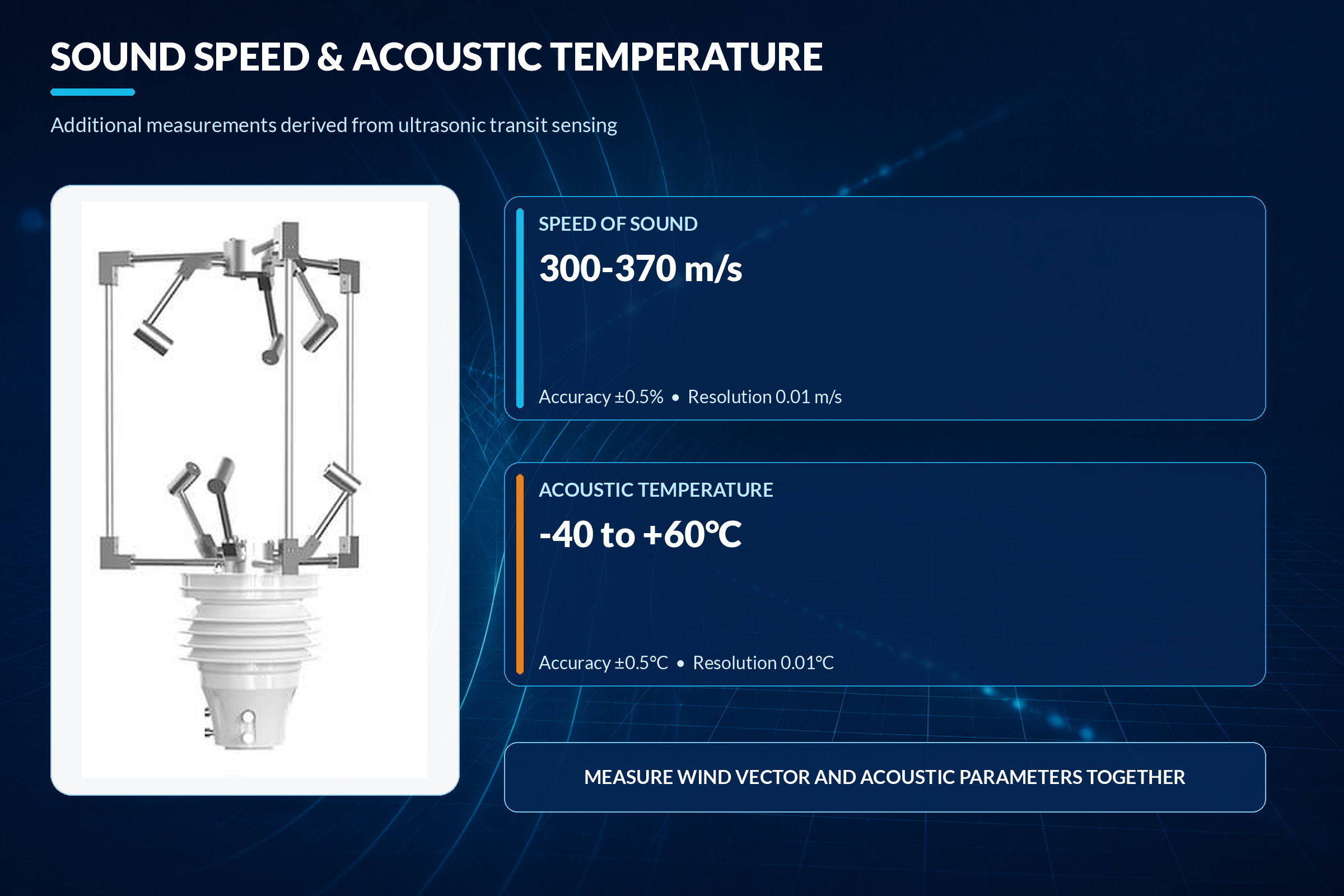

| Speed of Sound Range | 300–370 m/s |
| Acoustic Temperature Range | −40 to +60°C |
| Wind Speed Accuracy | ±0.2 m/s (0–5 m/s); ±2% FS ±0.2 m/s (>5 m/s) |
| Wind Direction Accuracy | ±2° |
| Speed of Sound Accuracy | ±0.5% |
| Acoustic Temperature Accuracy | ±0.5°C |
| Wind Speed Resolution | 0.01 m/s |
| Wind Direction Resolution | 0.1° |
