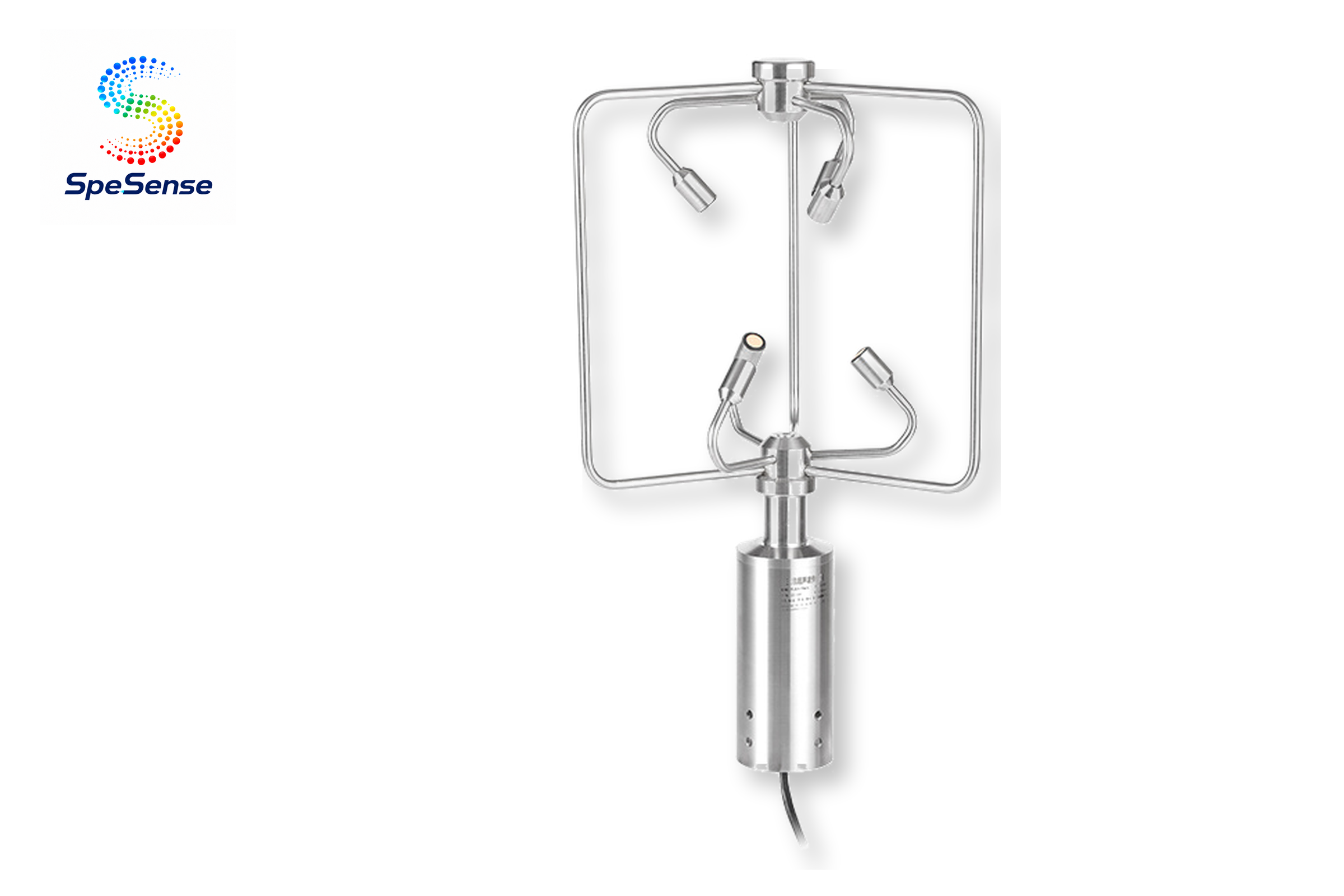

Ultrasonic Wind Sensor
SS103U-03
3D 超声波风速风向传感器
产品亮点

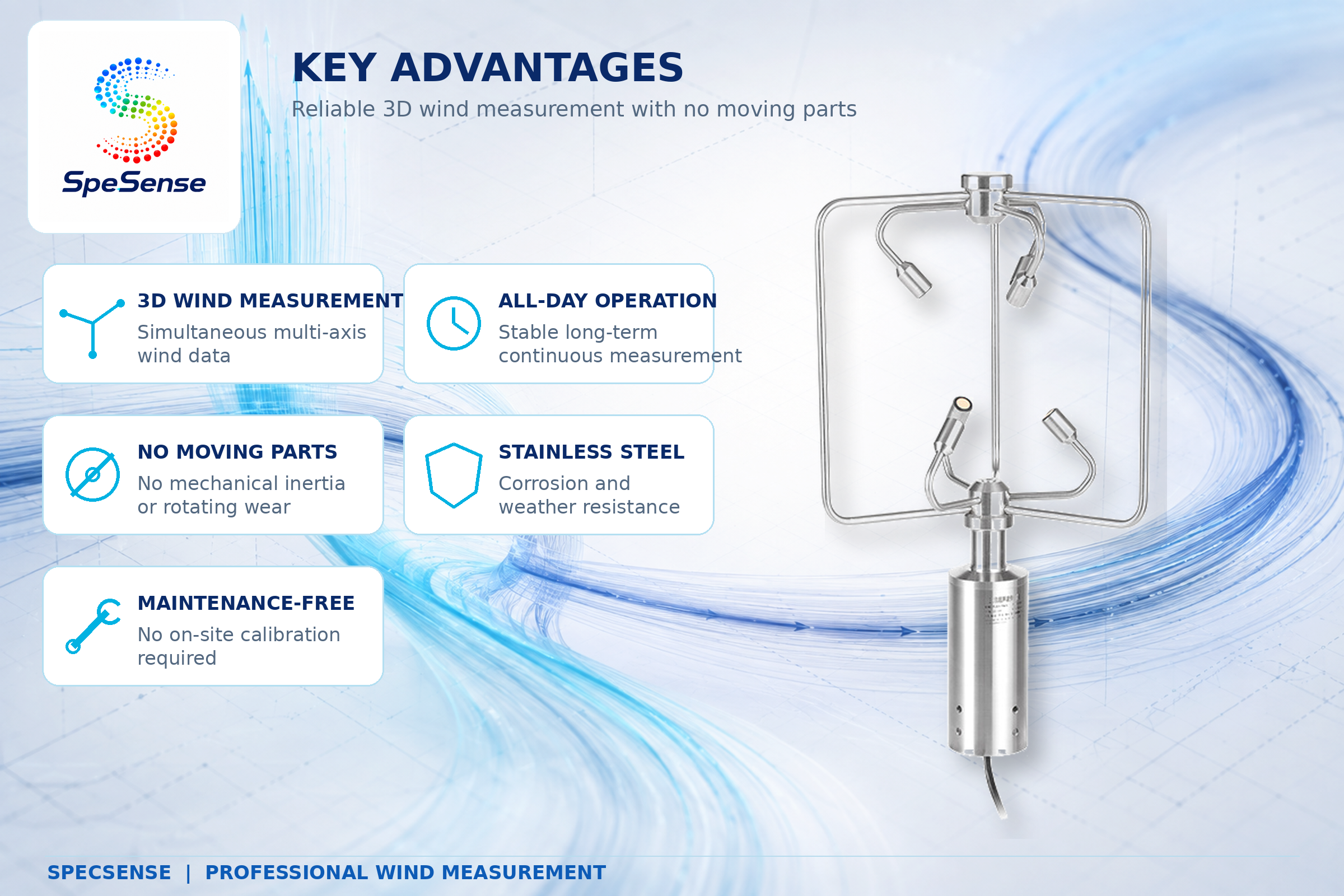

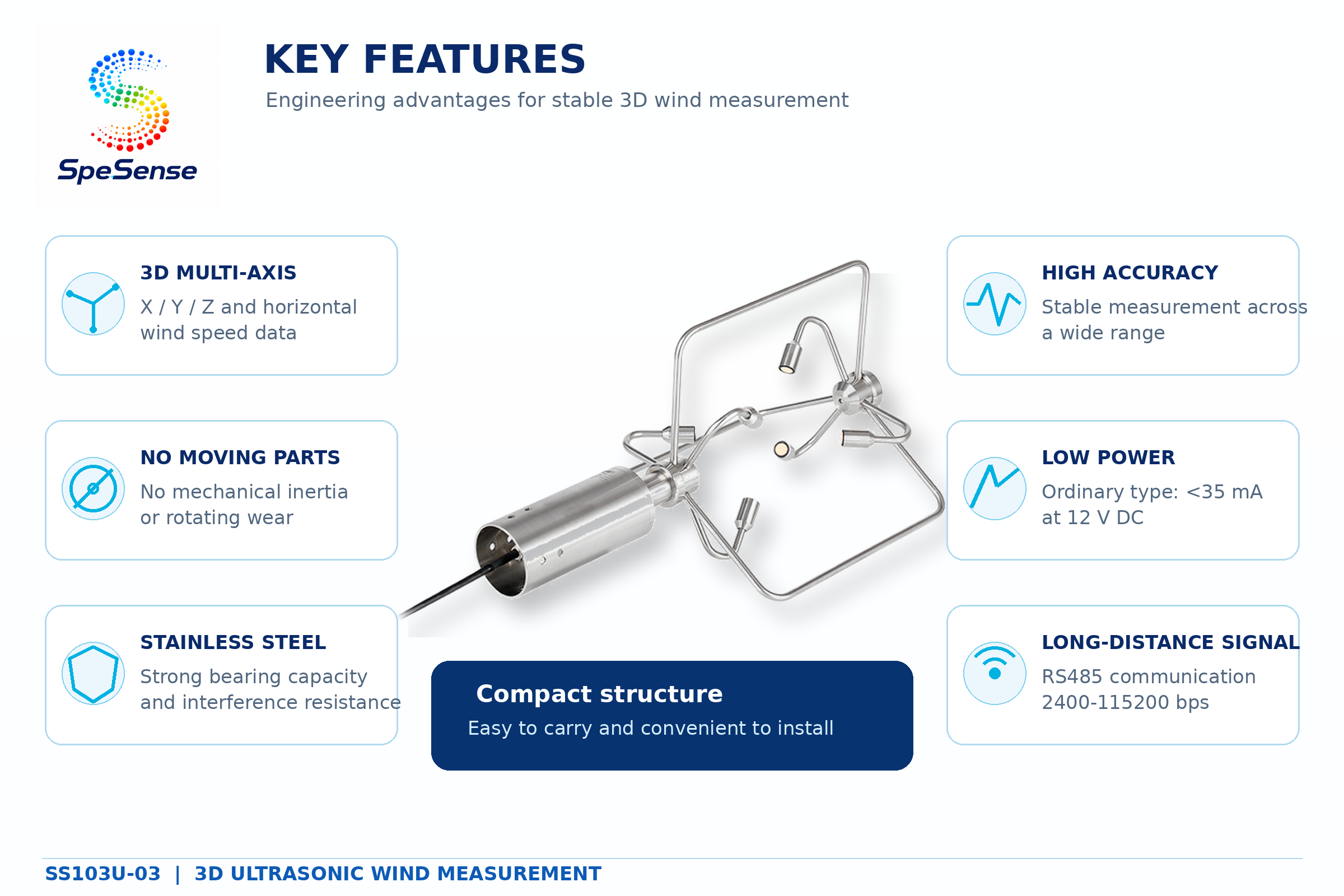

● Beautiful and compact structure with moderate size, easy to carry and install.

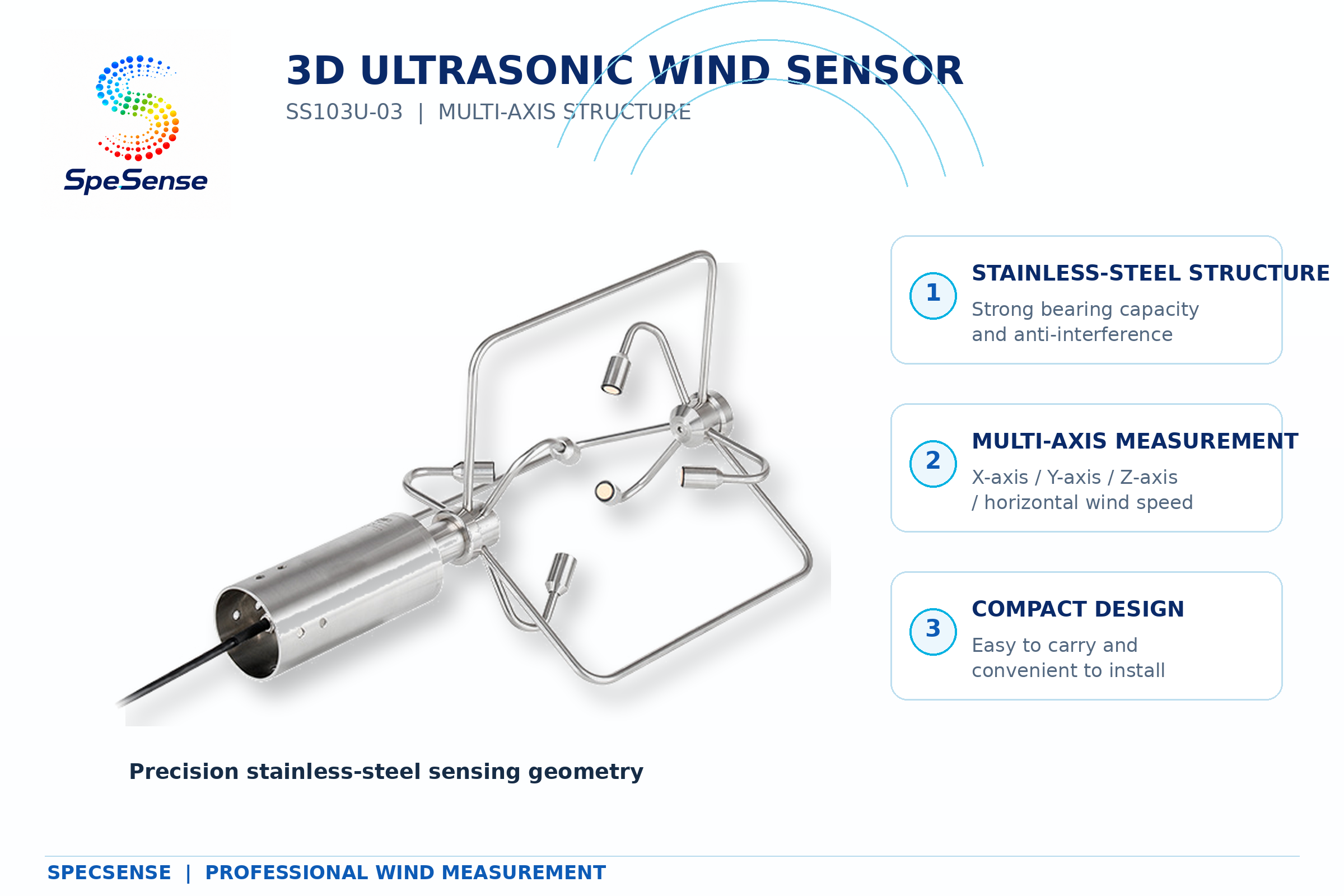

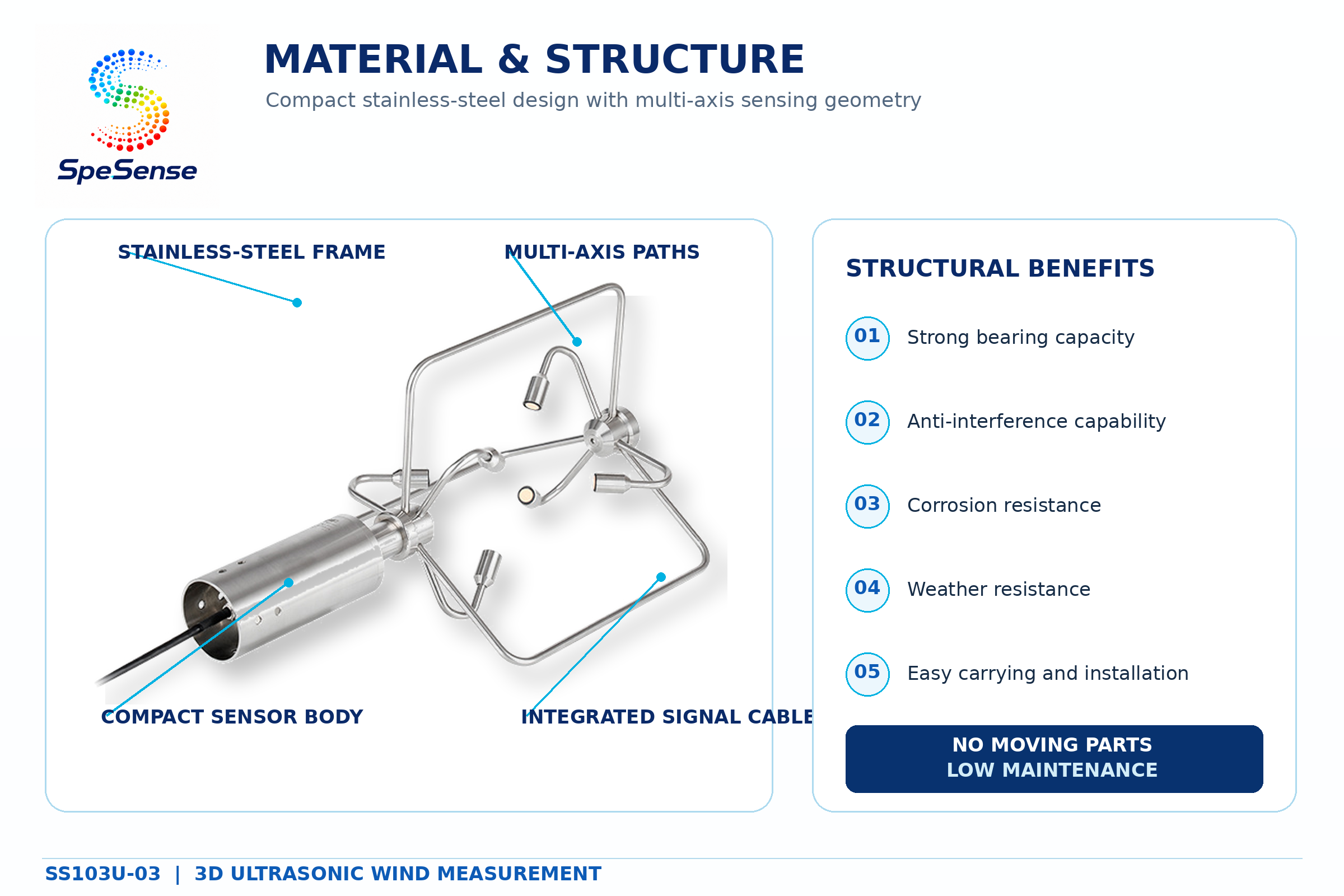

● Stainless-steel construction enhances bearing capacity and anti-interference capability for stable measurement.
● Good stability, small size and refined appearance.
● High measurement accuracy, wide measuring range and good long-term stability.
● Strong corrosion resistance, weather resistance and low power consumption.
● Wide power adaptability and long signal transmission distance.
● Stainless-steel construction enhances bearing capacity and anti-interference capability for stable measurement.
● Good stability, small size and refined appearance.
● High measurement accuracy, wide measuring range and good long-term stability.
● Strong corrosion resistance, weather resistance and low power consumption.
● Wide power adaptability and long signal transmission distance.
产品概述

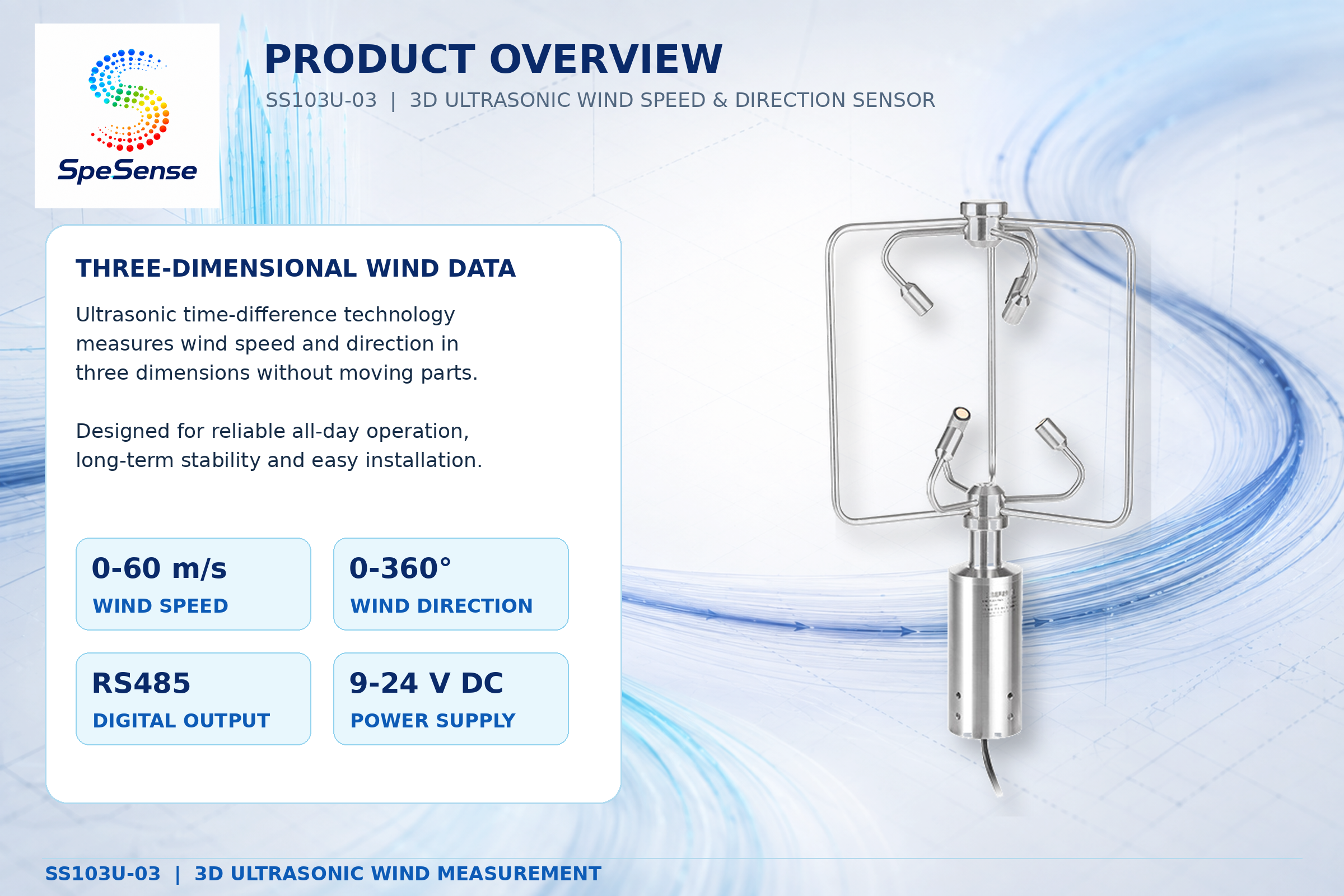

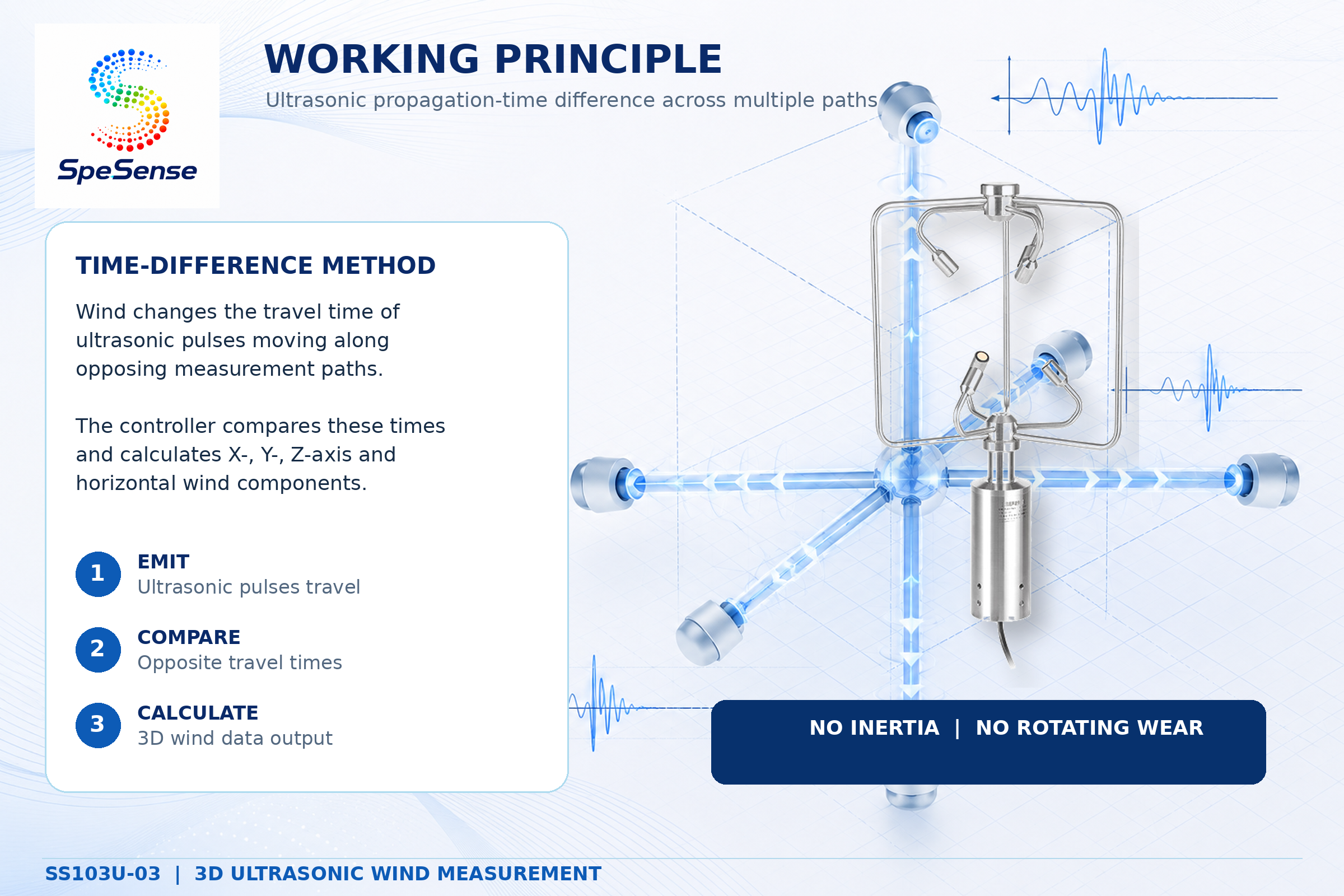

Three-dimensional ultrasonic wind sensor for simultaneous wind speed and wind direction measurement, designed for stable long-term monitoring without moving mechanical components.

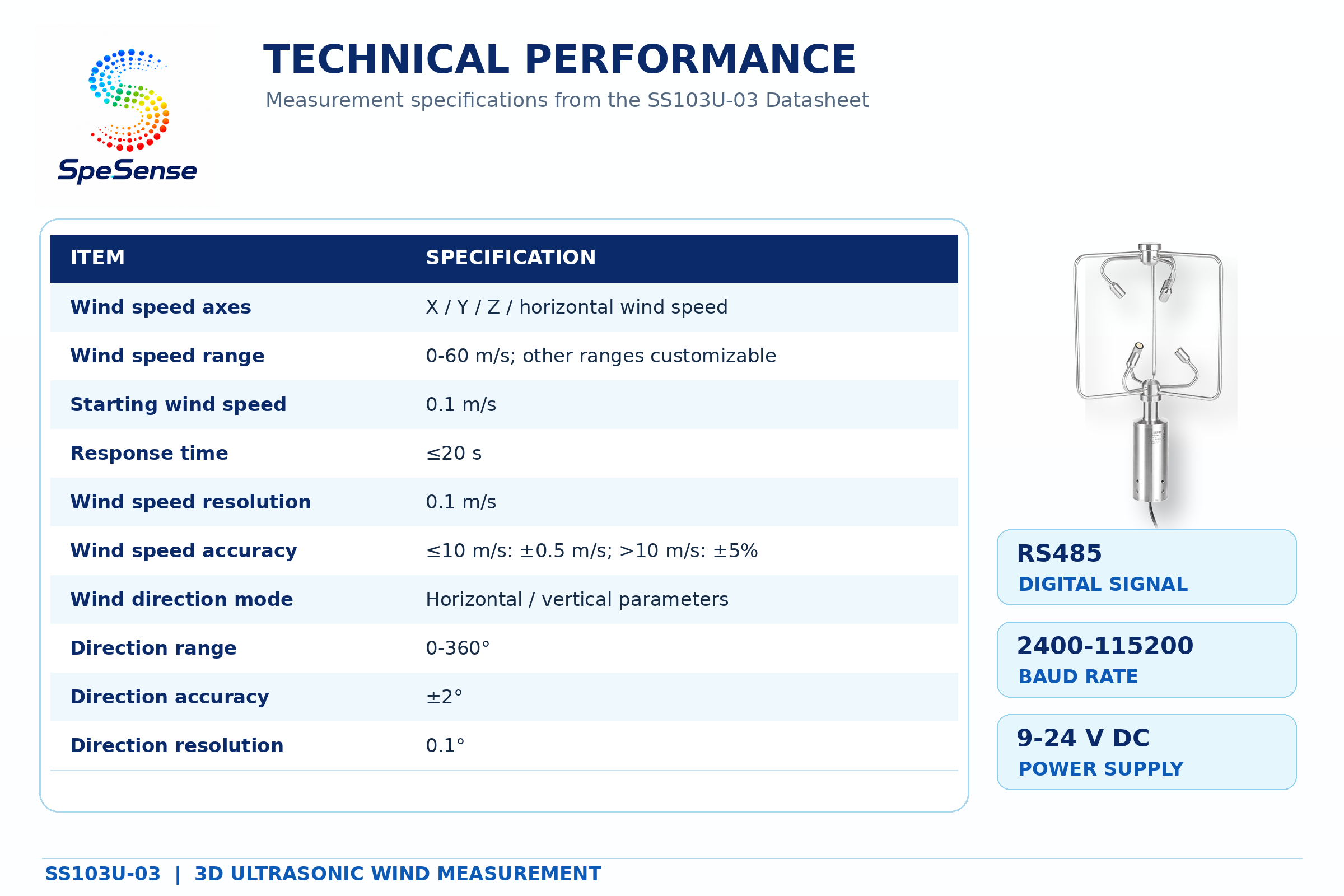

| Item | Specification |
| Wind Speed Measurement Axes | X-axis / Y-axis / Z-axis / horizontal wind speed |

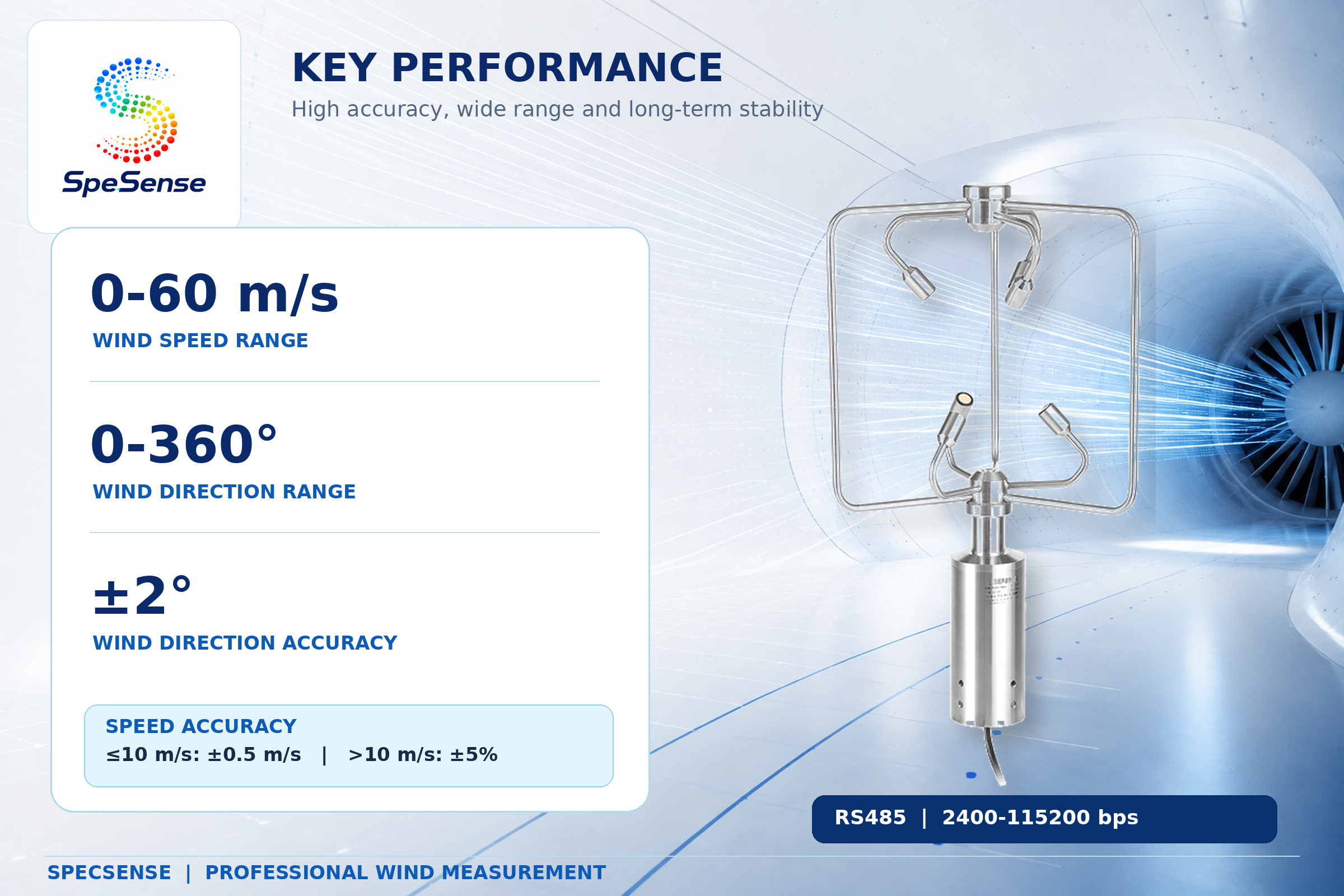

| Wind Speed Measuring Range | 0–60 m/s (other ranges need customization) |
| Starting Wind Speed | 0.1 m/s |
| Response Time | ≤20 s |
| Wind Speed Resolution | 0.1 m/s |
| Wind Speed Accuracy | ≤10 m/s: ±0.5 m/s; >10 m/s: ±5% |
| Wind Direction Mode | Horizontal / vertical wind direction parameters |
| Wind Direction Measuring Range | 0–360° |
| Wind Direction Accuracy | ±2° |
| Wind Direction Resolution | 0.1° |

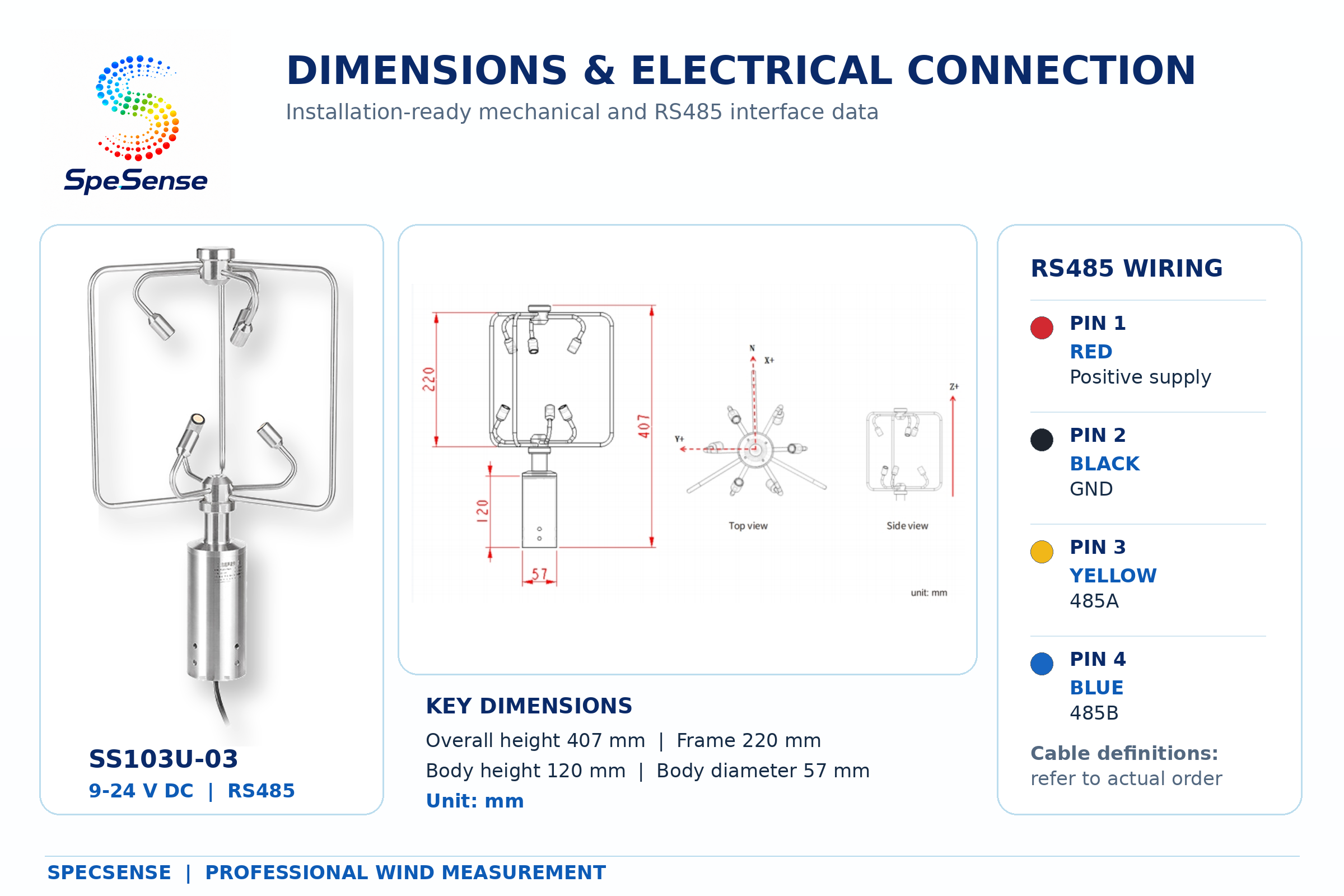

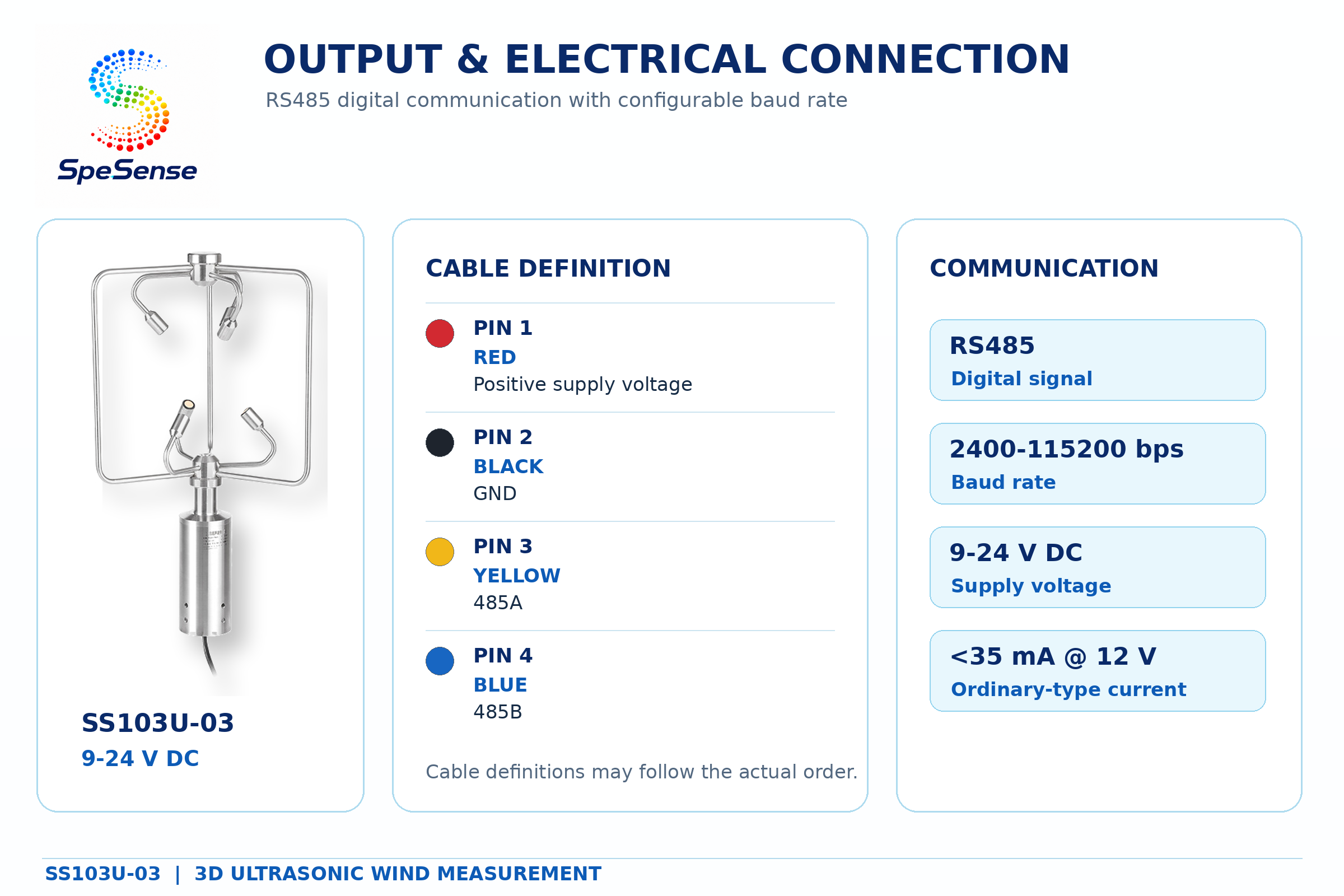

| Digital Signal | RS485 |
| Baud Rate | 2400–115200 |
| Power Supply Voltage | 9–24 V DC |
| Operating Current | Ordinary type: <35 mA (12 VDC) |
| Operating Temperature | −20°C to +70°C |
| Operating Humidity | 0%–99.9% RH |
