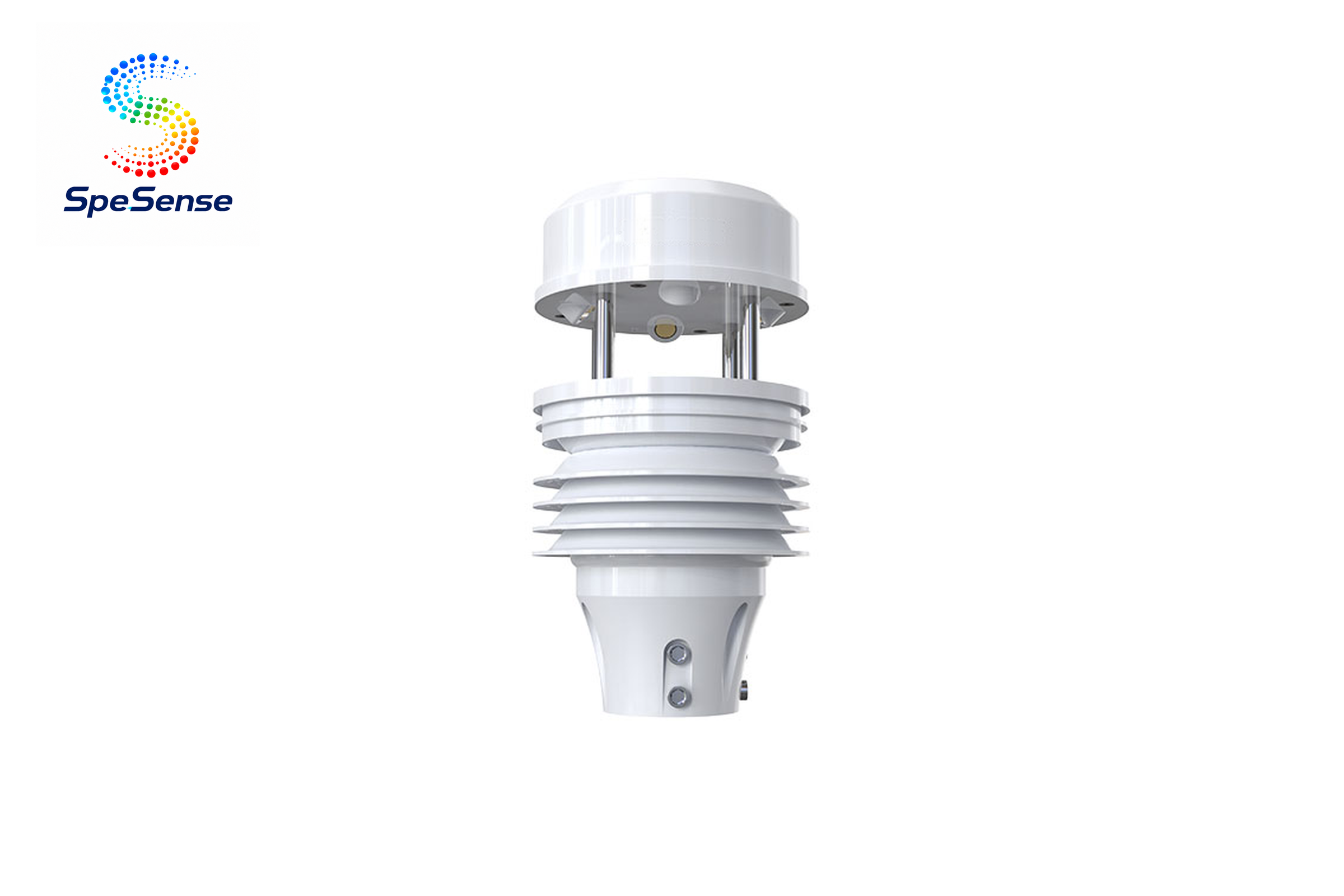

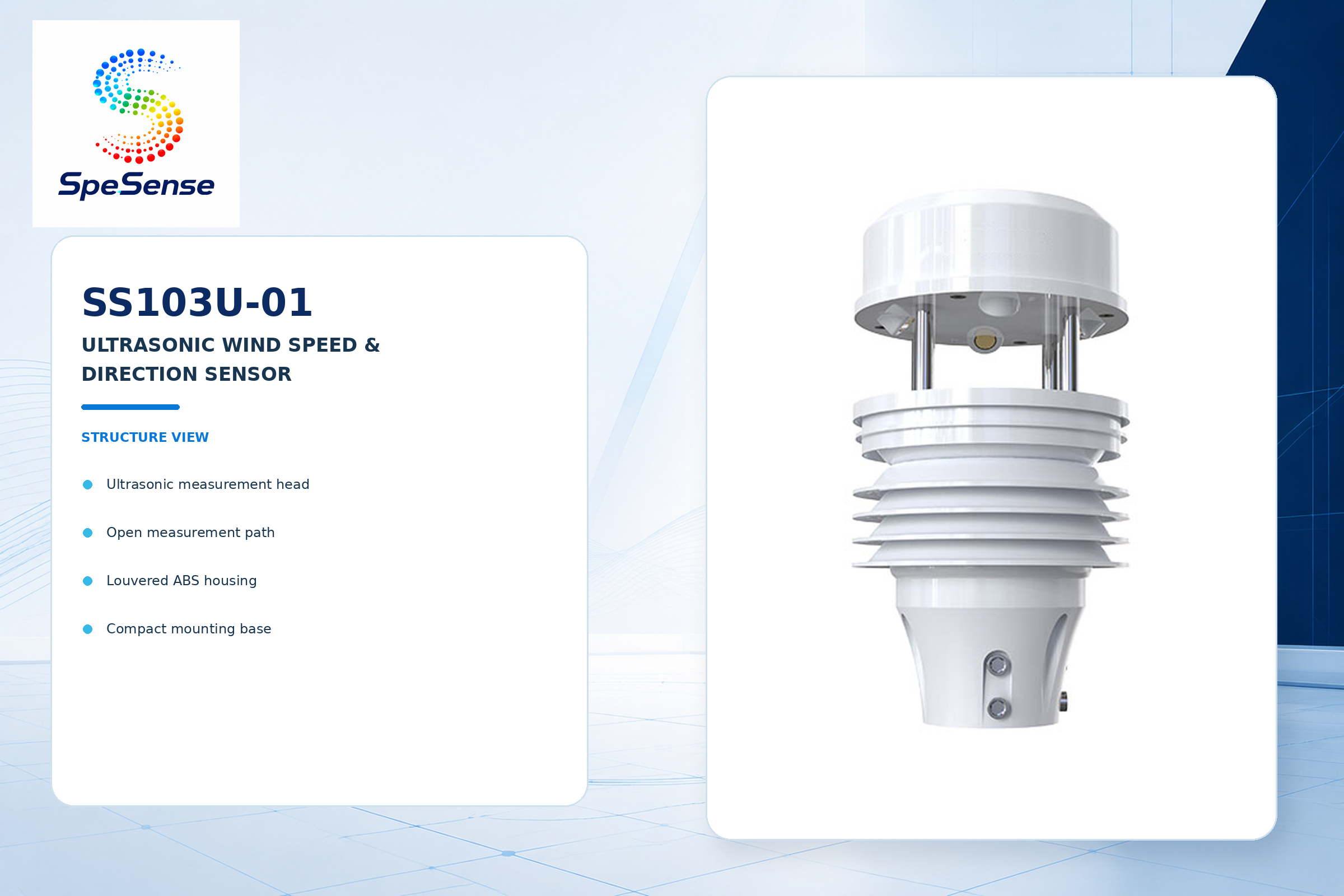

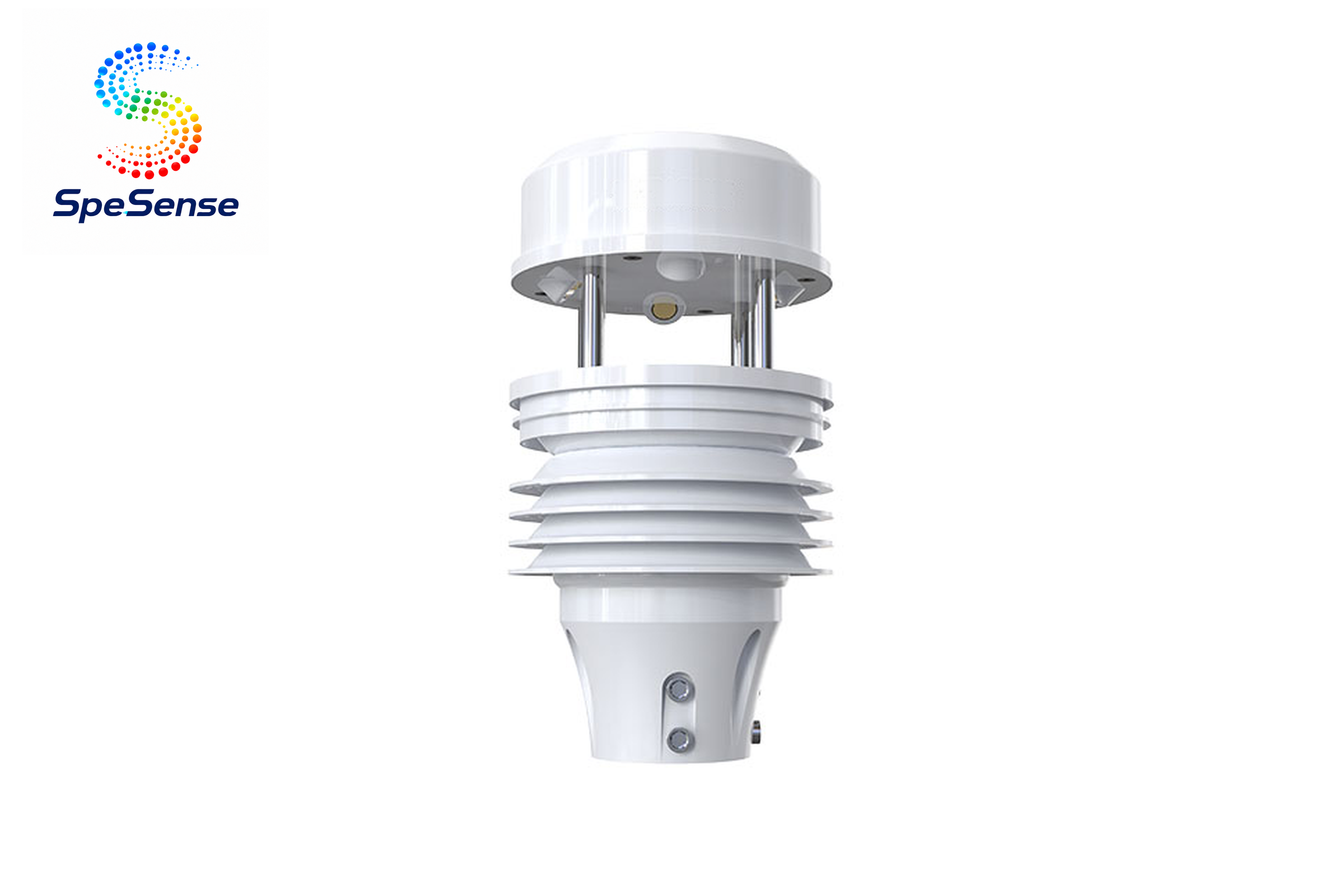

Ultrasonic Wind Sensor
SS103U-01
超声波风速风向变送器
产品亮点
● No starting wind speed limitation; works at zero wind speed and supports full 360° measurement.

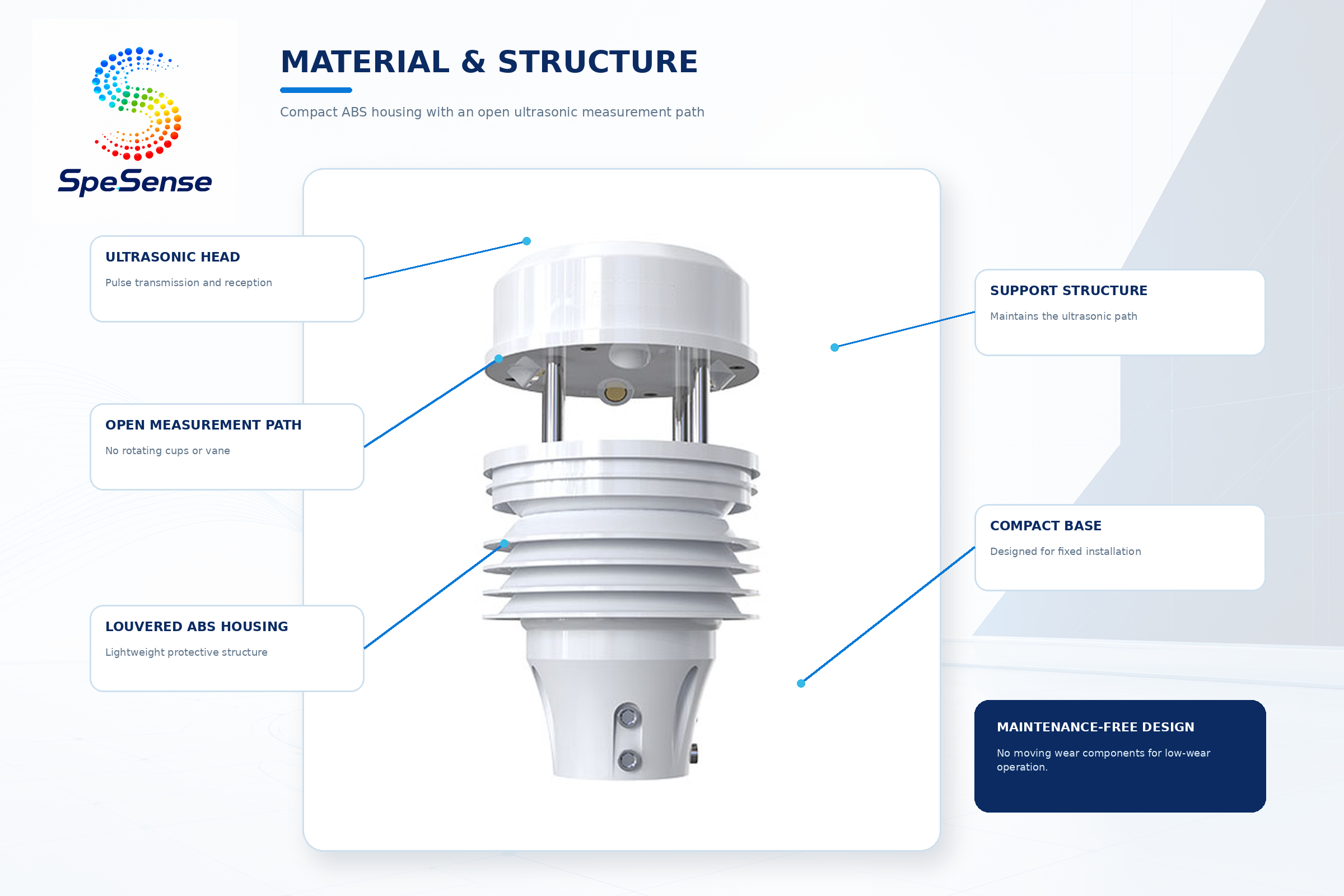

● No moving wear components, low wear and long service life.
● Random-error identification technology helps maintain low dispersion error and stable output even under strong wind conditions.
● Standard RS485 communication interface with Modbus-RTU protocol; communication address and baud rate are configurable and the maximum communication distance is 2000 m.

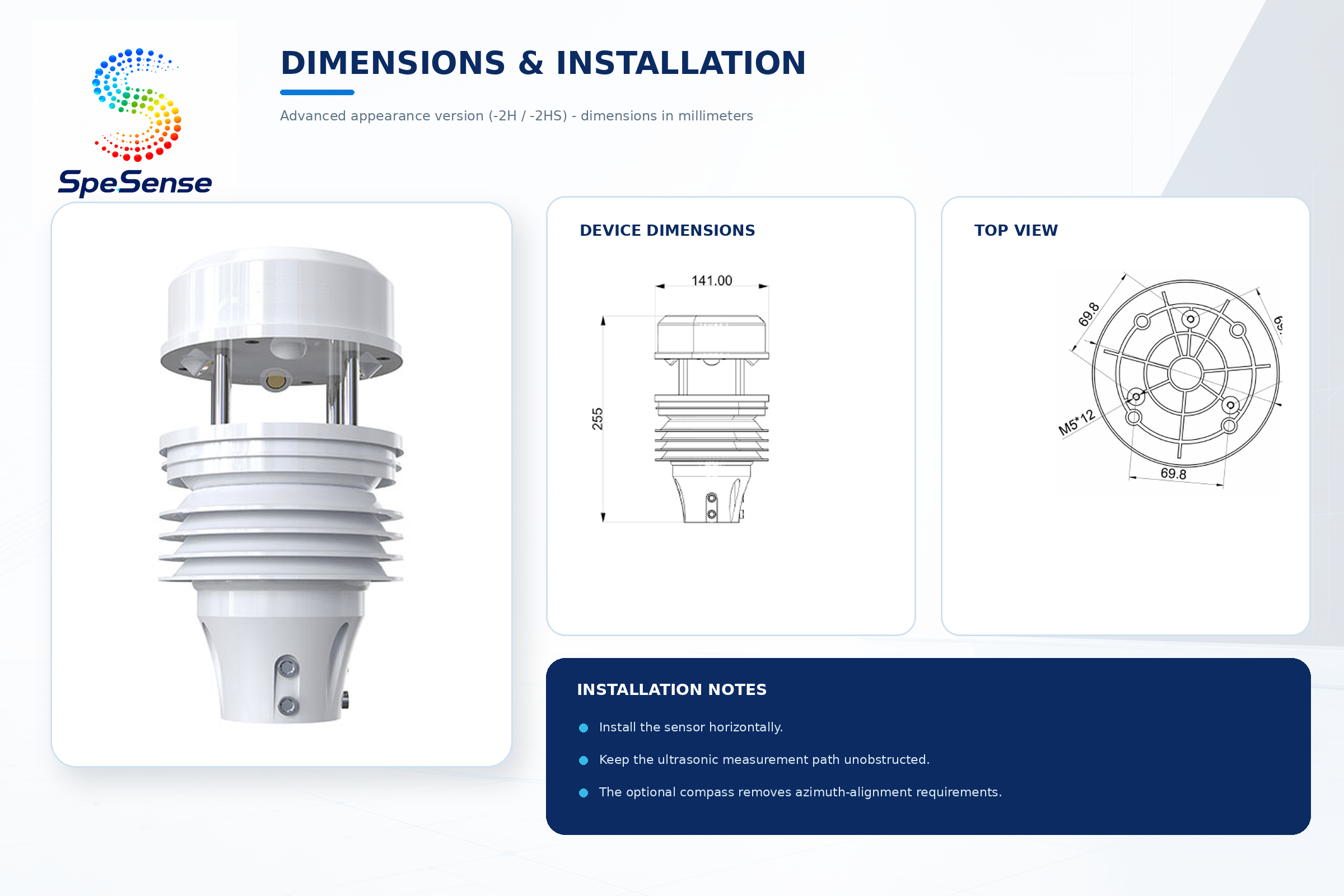

● Optional built-in electronic compass enables horizontal installation without orientation requirements.
● No moving wear components, low wear and long service life.
● Random-error identification technology helps maintain low dispersion error and stable output even under strong wind conditions.
● Standard RS485 communication interface with Modbus-RTU protocol; communication address and baud rate are configurable and the maximum communication distance is 2000 m.
● Optional built-in electronic compass enables horizontal installation without orientation requirements.
产品概述

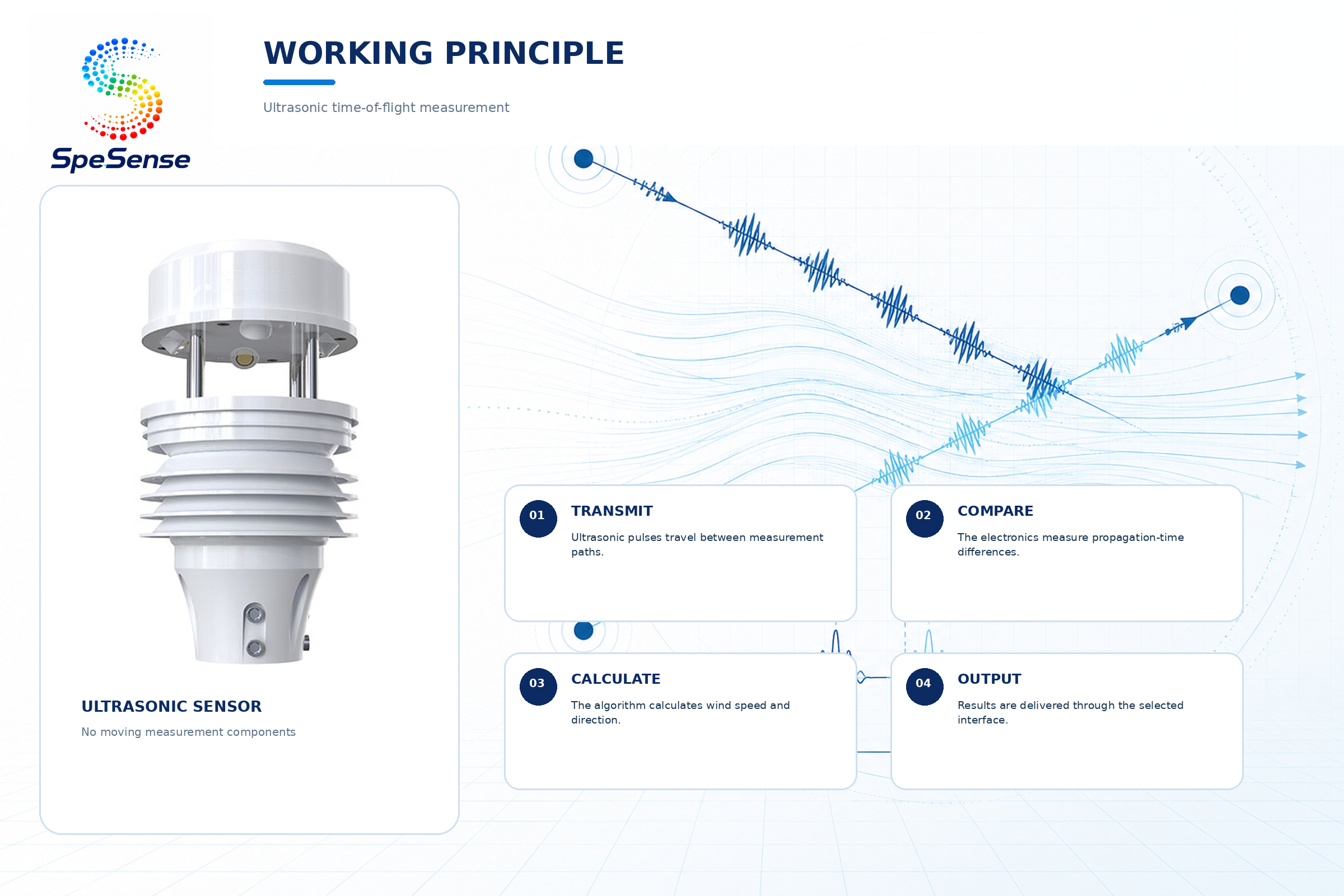

SS103U-01 is an ultrasonic wind speed and wind direction measuring instrument developed on the basis of the ultrasonic principle.
It calculates wind speed and wind direction by measuring the time difference of transmitted and received ultrasonic pulses. The sensor can measure instantaneous wind speed and wind direction simultaneously and supports RS485 output.

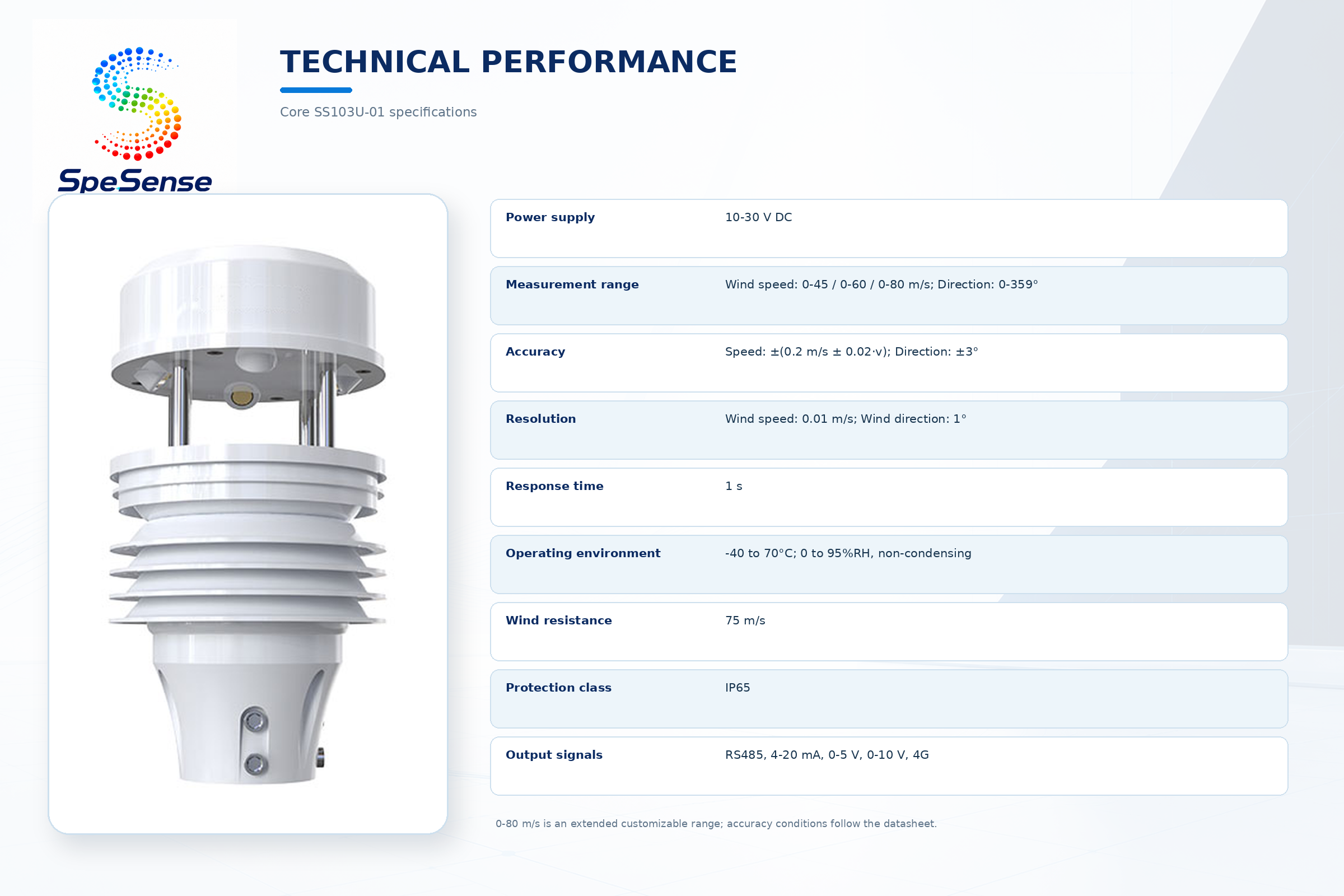

| Item | Specification |

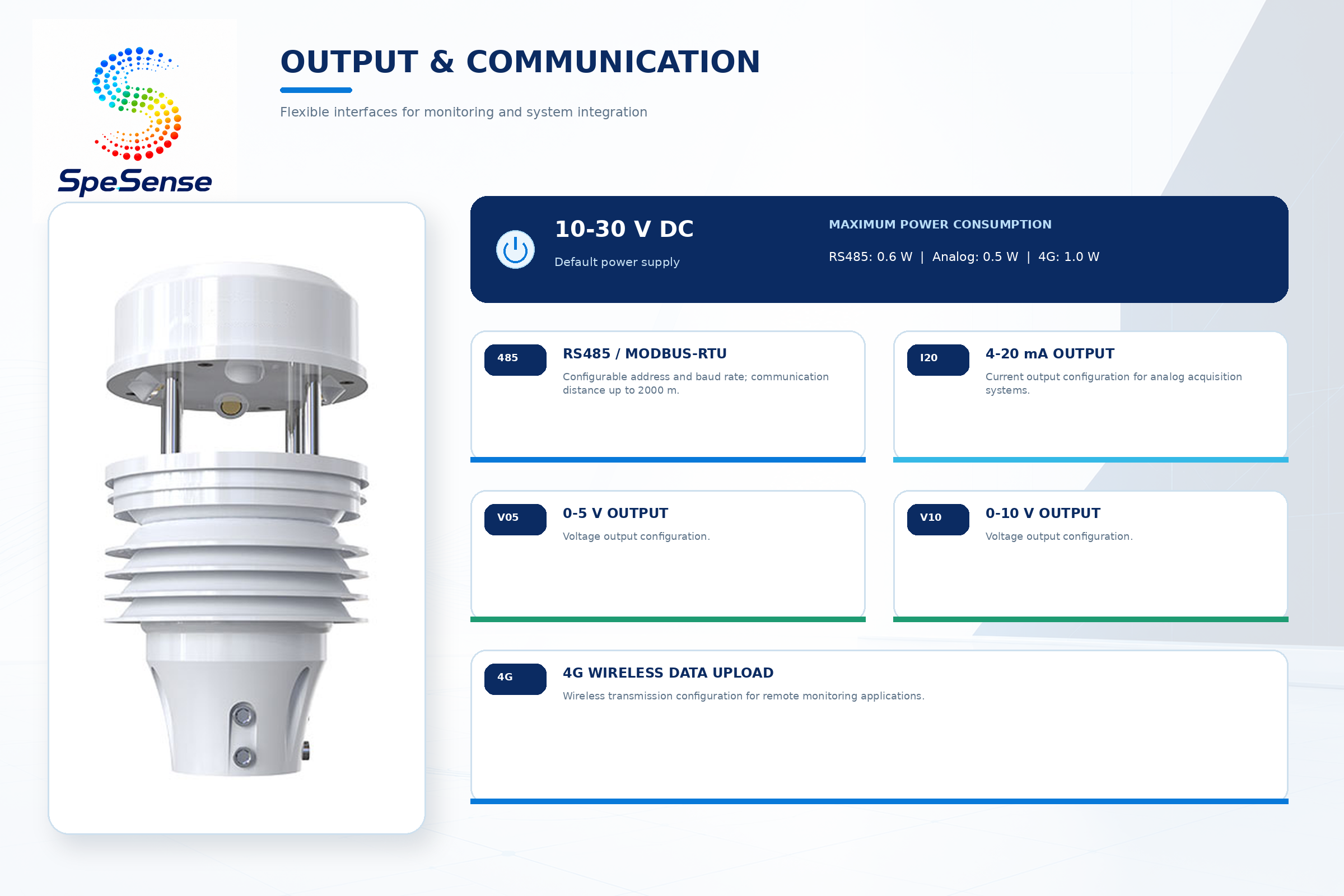

| Default Power Supply | 10–30 V DC |
| Maximum Power Consumption | RS485: 0.6 W; Analog: 0.5 W; 4G: 1.0 W |
| Measurement Range | Wind speed: 0–45 m/s, 0–60 m/s, 0–80 m/s (extended range, not standard; customizable); wind direction: 0–359° |
| Accuracy | Wind speed: ±(0.2 m/s ± 0.02·v) (0–20 m/s, 60% RH, 25°C); wind direction: ±3° (60% RH, 25°C) |
| Resolution | Wind speed: 0.01 m/s; wind direction: 1° |

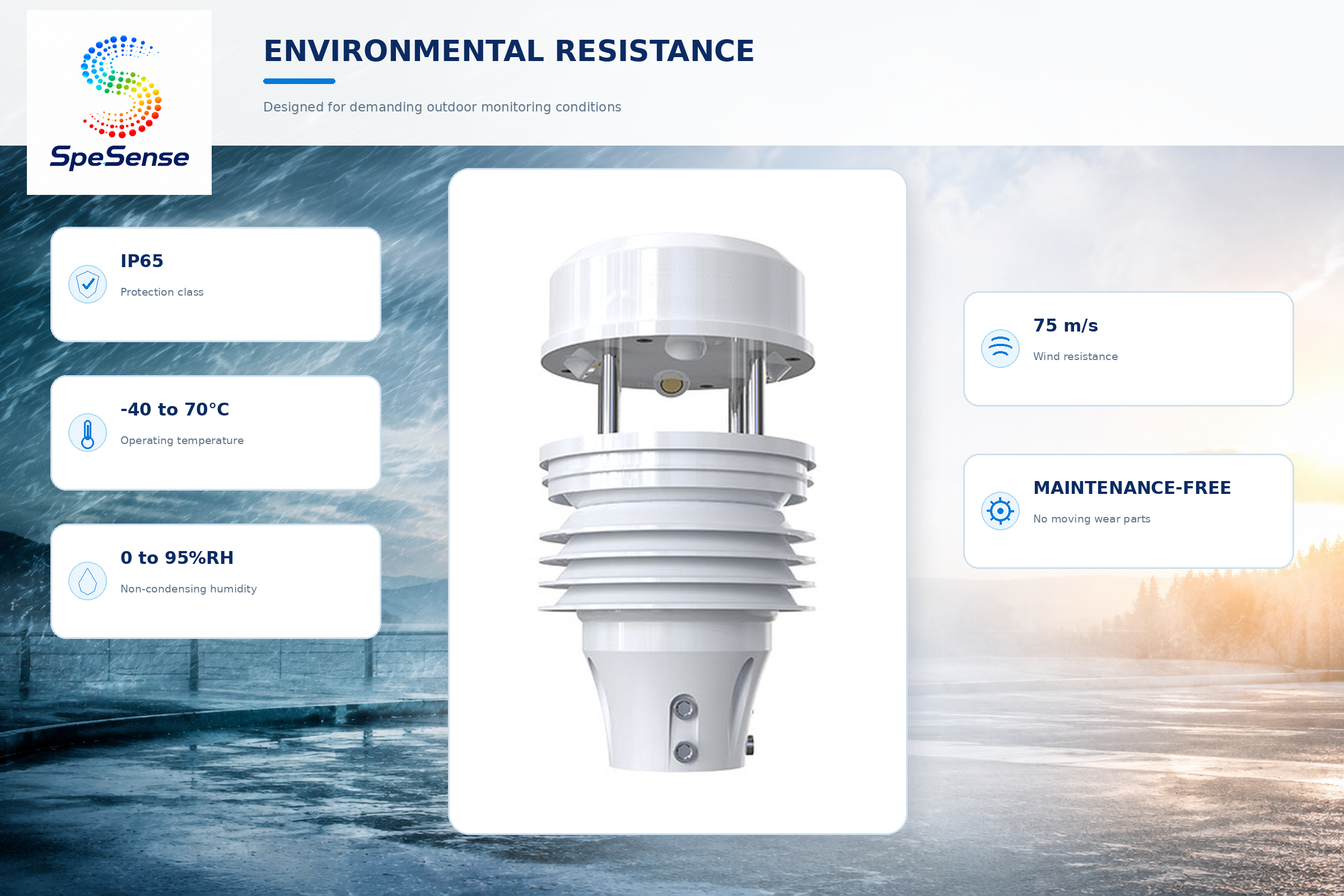

| Operating Temperature & Humidity | −40 to +70°C; 0 to 95% RH, non-condensing |
| Wind Resistance | 75 m/s |
| Response Time | 1 s |
| Protection Class | IP65 |
| Output Signals | 4–20 mA; 0–5 V; 0–10 V; RS485 (Modbus-RTU); 4G via China Mobile / China Unicom / China Telecom mobile network |
