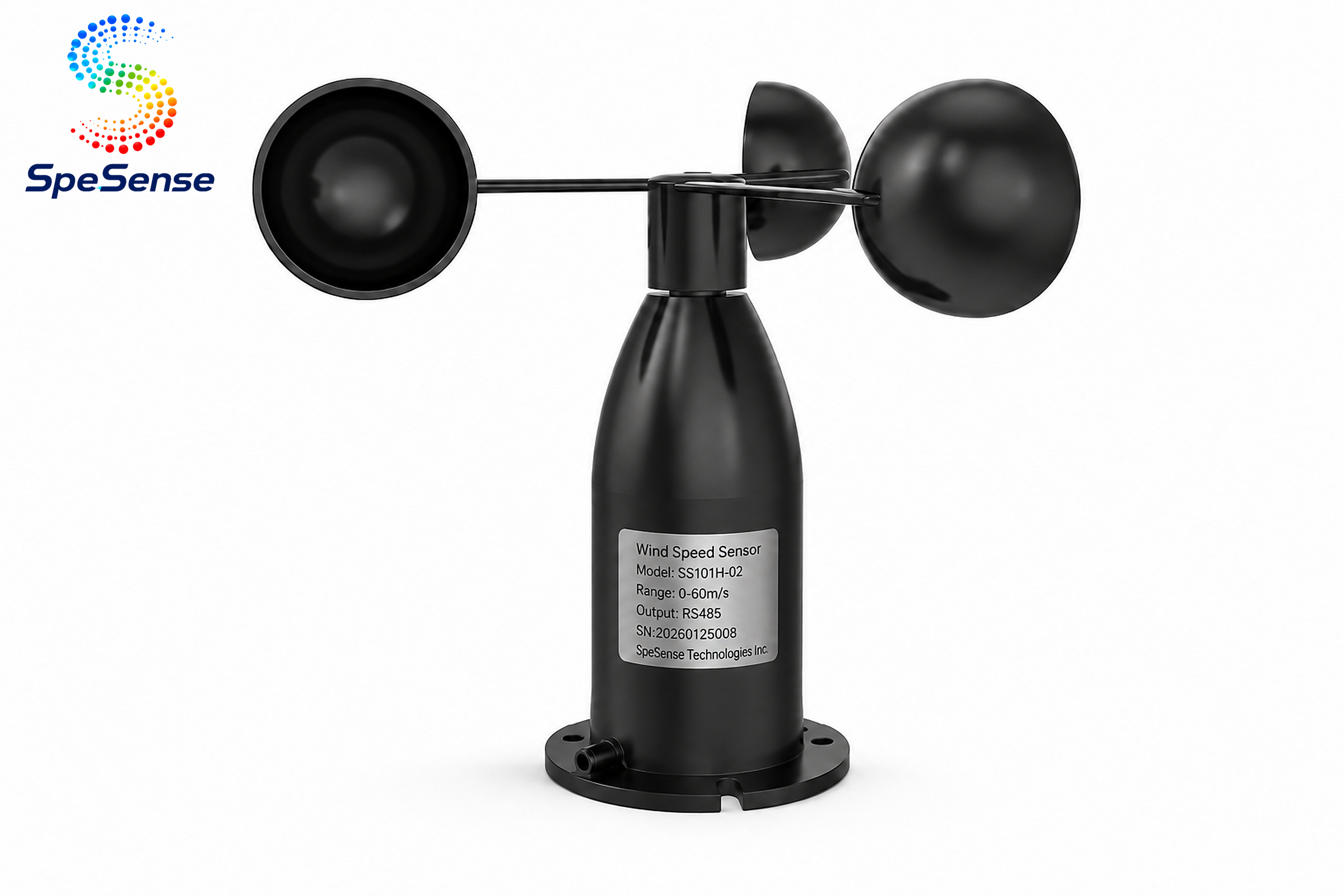

Cup&Vane Wind Sensor
SS101H-02
风速传感器

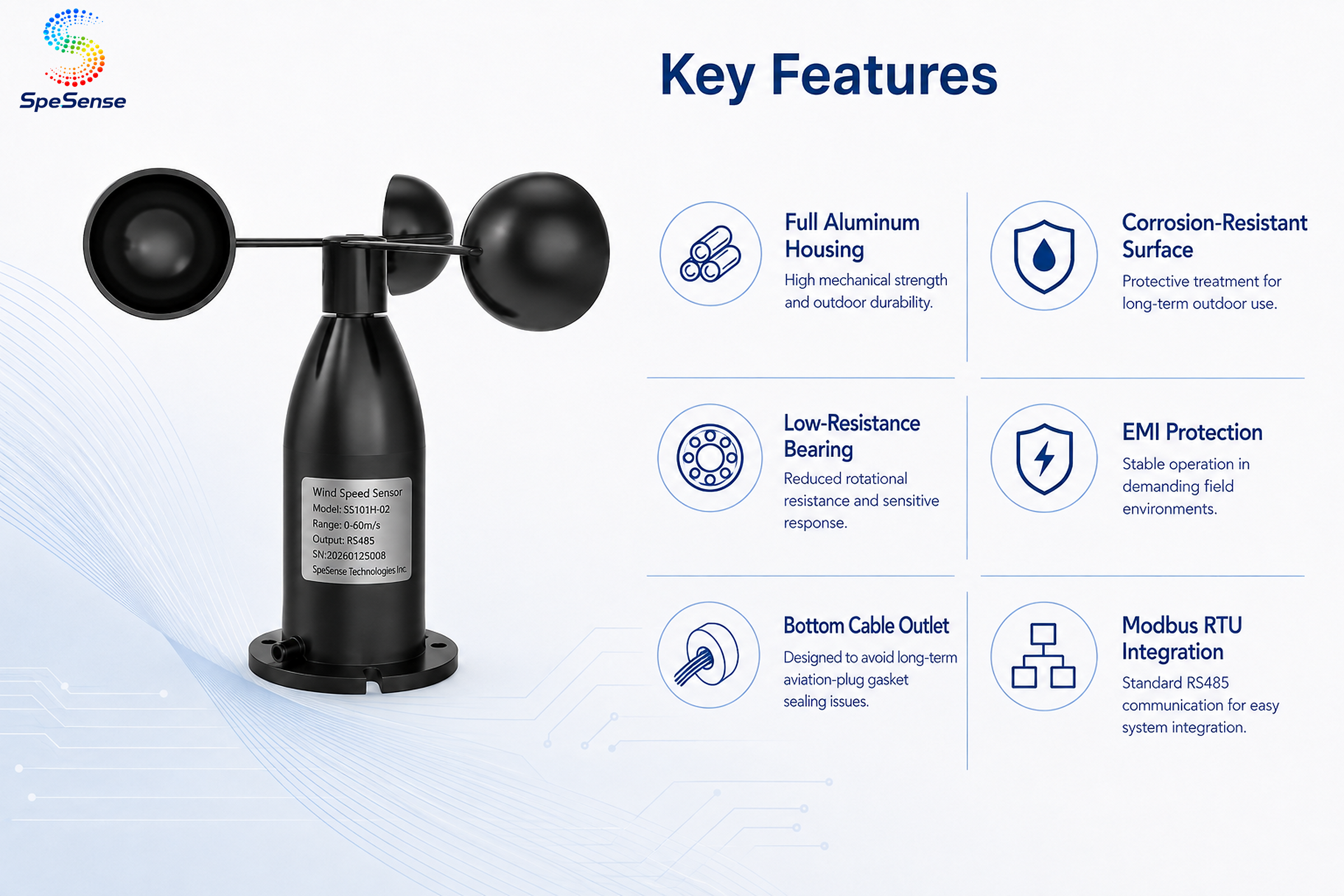

产品亮点

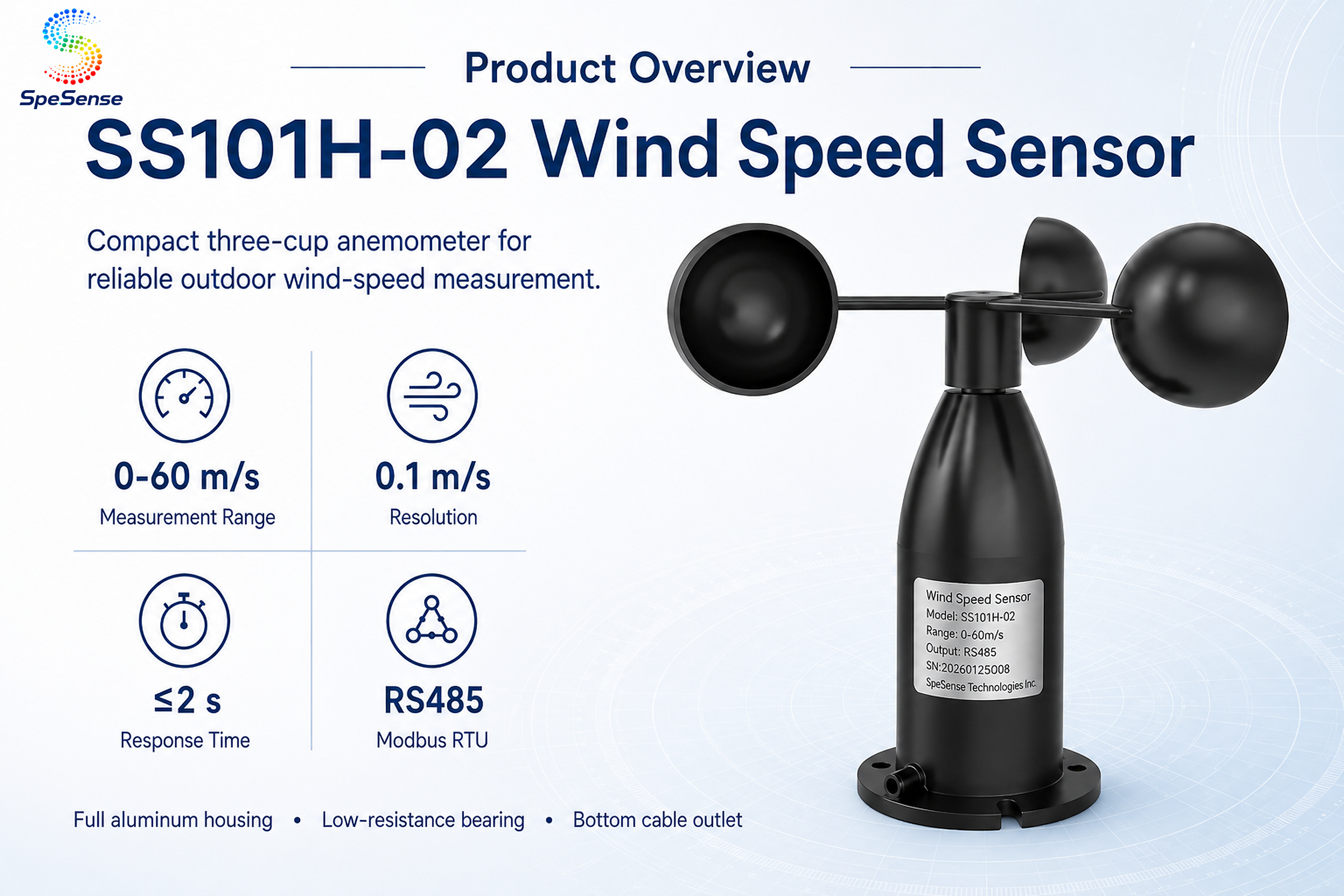

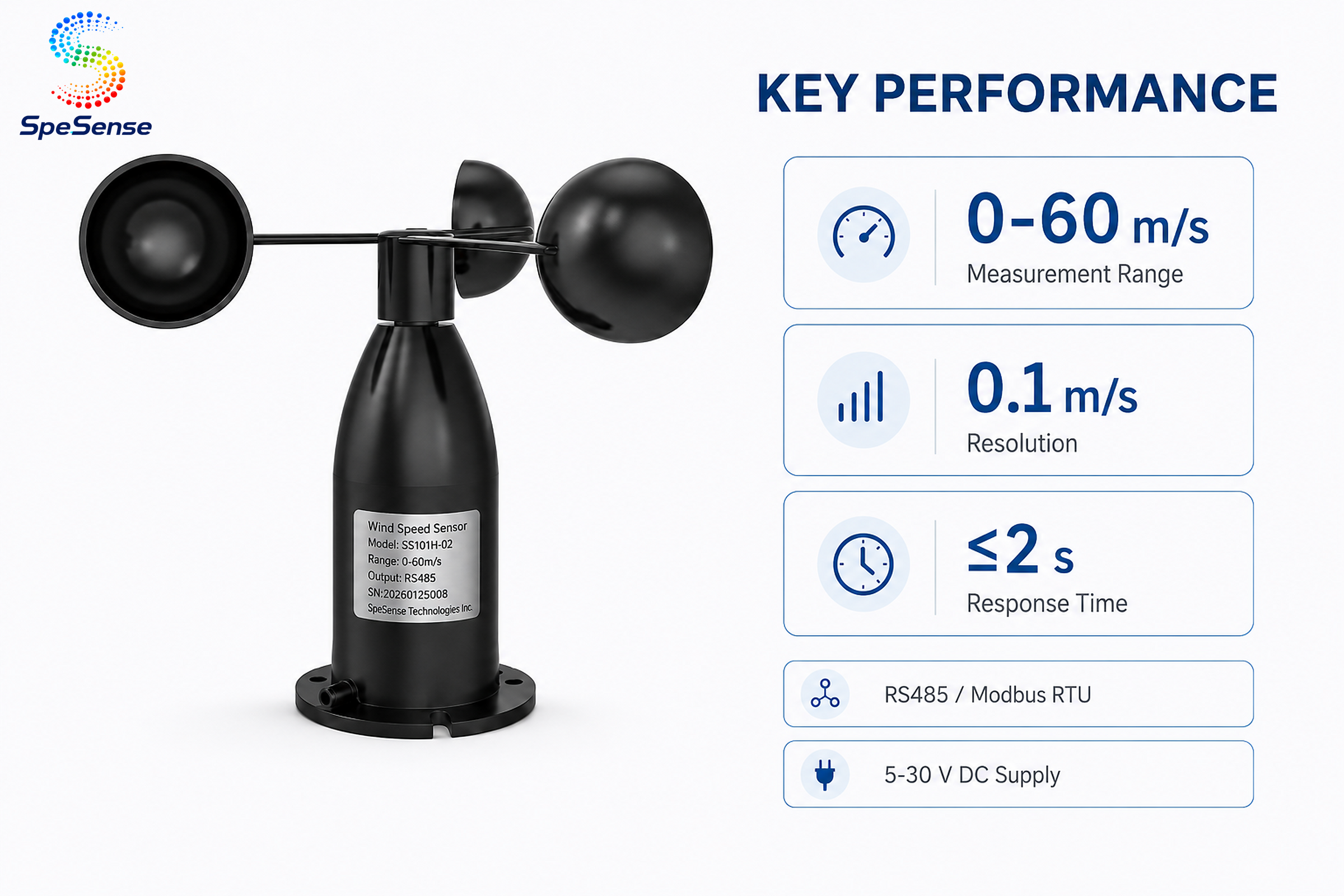

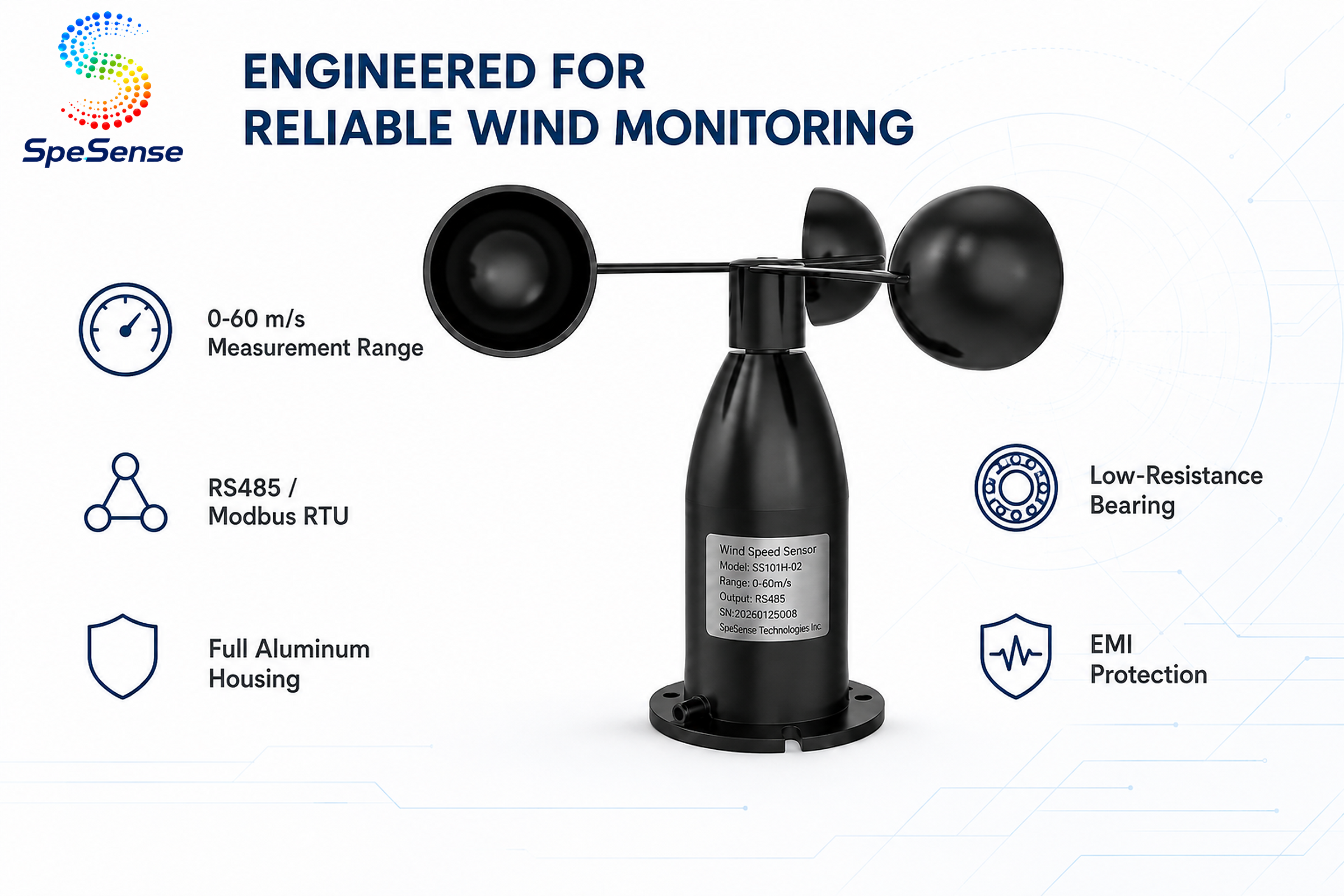

● 0-60 m/s measuring range with 0.1 m/s resolution for RS485 and
analog configurations.
● Electromagnetic-interference protection for stable field operation.
● Bottom cable outlet eliminates the long-term sealing issue associated with aging aviation-plug rubber gaskets.
● High-performance bearing design provides low rotational resistance
and sensitive response.

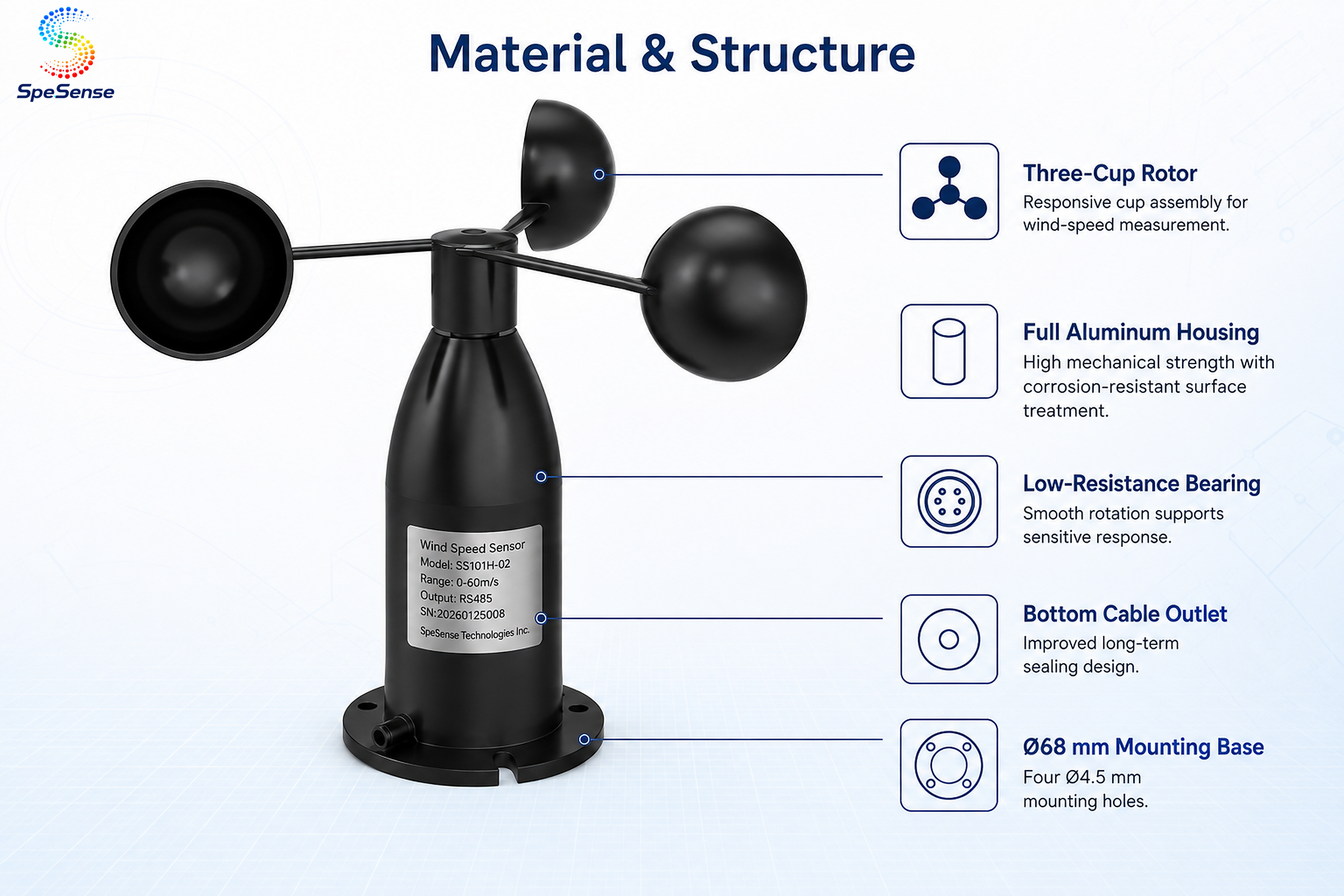

● Full aluminum housing provides high mechanical strength, corrosion
resistance and outdoor durability.
analog configurations.
● Electromagnetic-interference protection for stable field operation.
● Bottom cable outlet eliminates the long-term sealing issue associated with aging aviation-plug rubber gaskets.
● High-performance bearing design provides low rotational resistance
and sensitive response.
● Full aluminum housing provides high mechanical strength, corrosion
resistance and outdoor durability.
产品概述

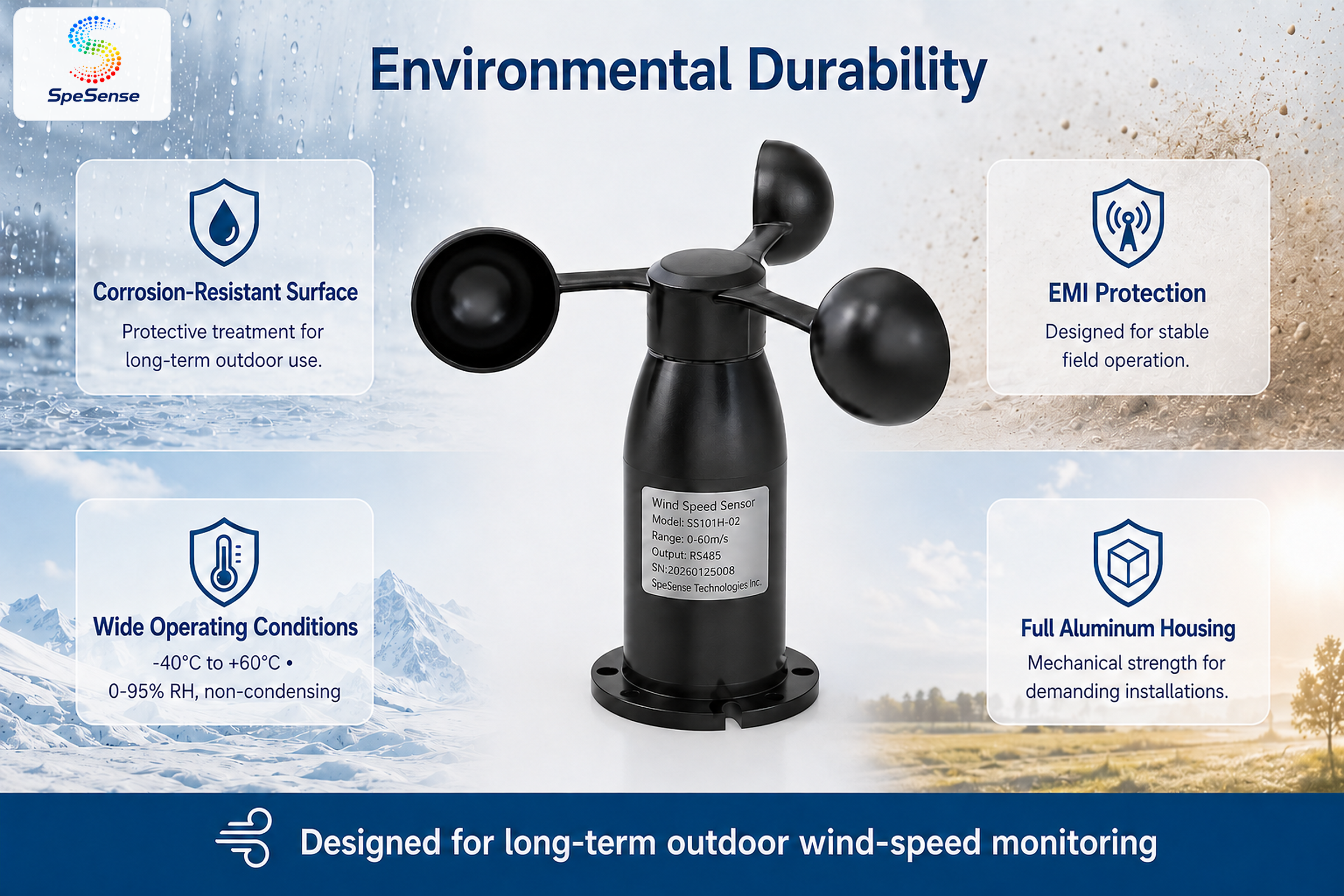

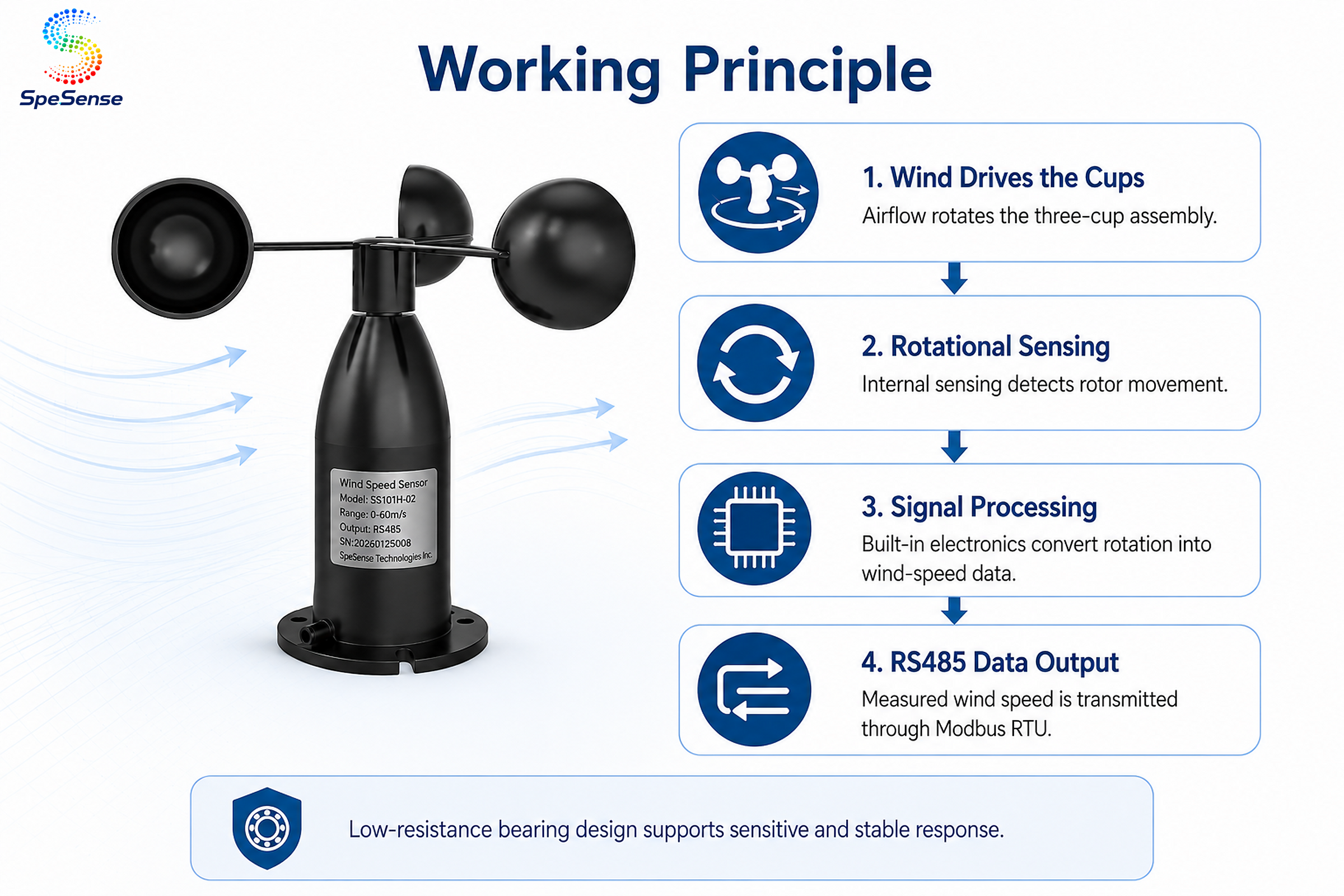

SS10-01 is a high-reliability digital wind speed sensor for stable and accurate environmental monitoring. A non-contact magnetic sensing system converts cup rotation into an electrical signal linearly related to horizontal wind speed. Sealed internal and rotating parts help resist water, salt spray and sand intrusion in demanding installations.
| Measuring range | 0-30 m/s or 0-60m/s |
| Starting wind speed | <= 0.5 m/s |
| Accuracy | +/-0.5 m/s (<5 m/s); +/-3% FS (>=5 m/s) |
| Wind resistance | >70 m/s for 30 min |
| Output signal | 4-20 mA; 0-5 VDC; 0-10 VDC; pulse (1 m/s = 6.667 pulses); RS485 Modbus |
| Operating voltage | 15-30 VDC; pulse versions: 5 V / 12 V / 24 V |
| Operating temperature | -20 to +85 °C |
| Storage temperature | -40 to +125 °C |
| Operating humidity | 0-95% RH, non-condensing |
| Protection level | IP65 |
| Electrostatic protection | 15 kV |
| Main material | Aluminum alloy / polyester coating; integrated wind-cup structure |
| Electrical connection | M12 connector |
