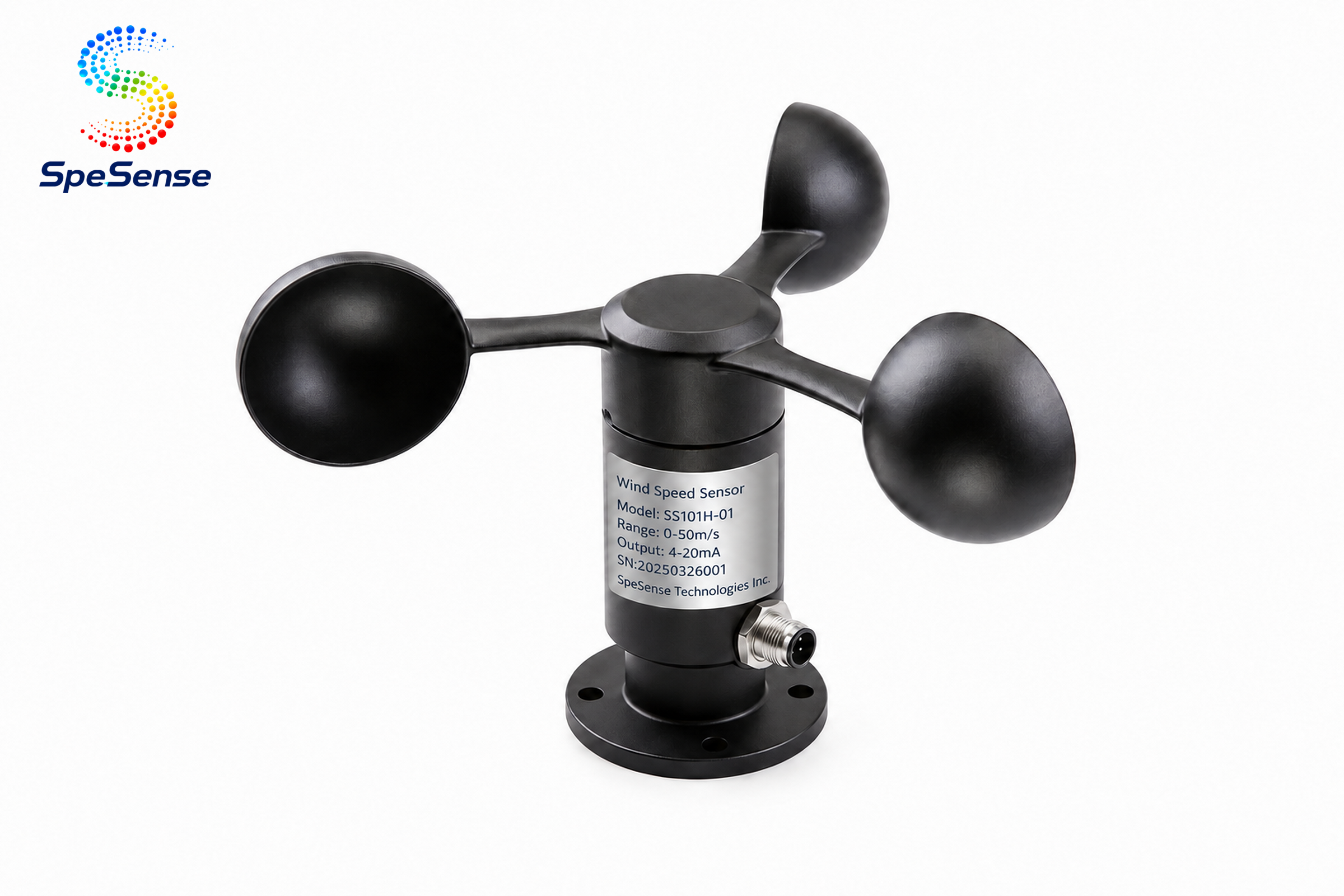

Cup&Vane Wind Sensor
SS101H-01
风速传感器
产品亮点

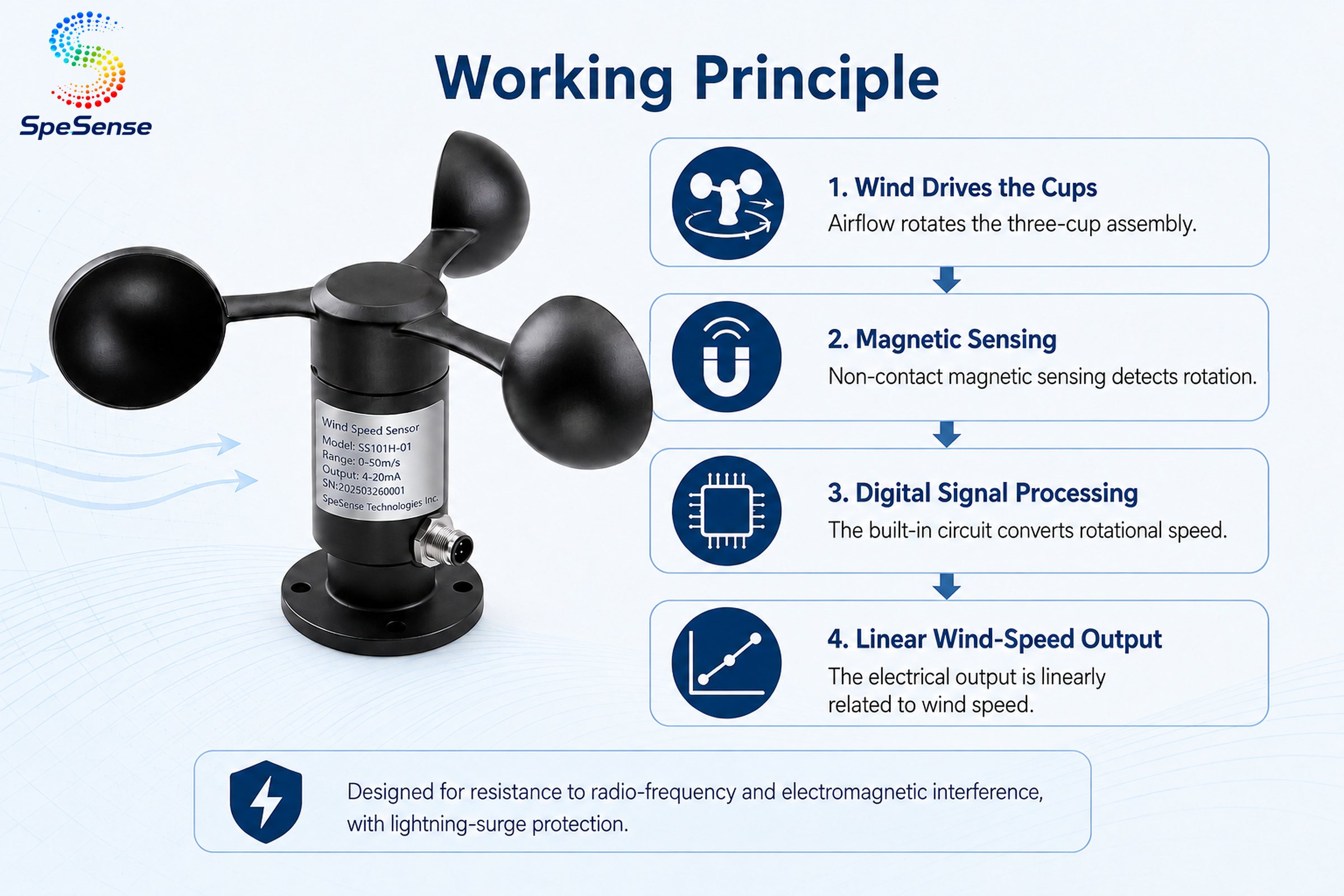

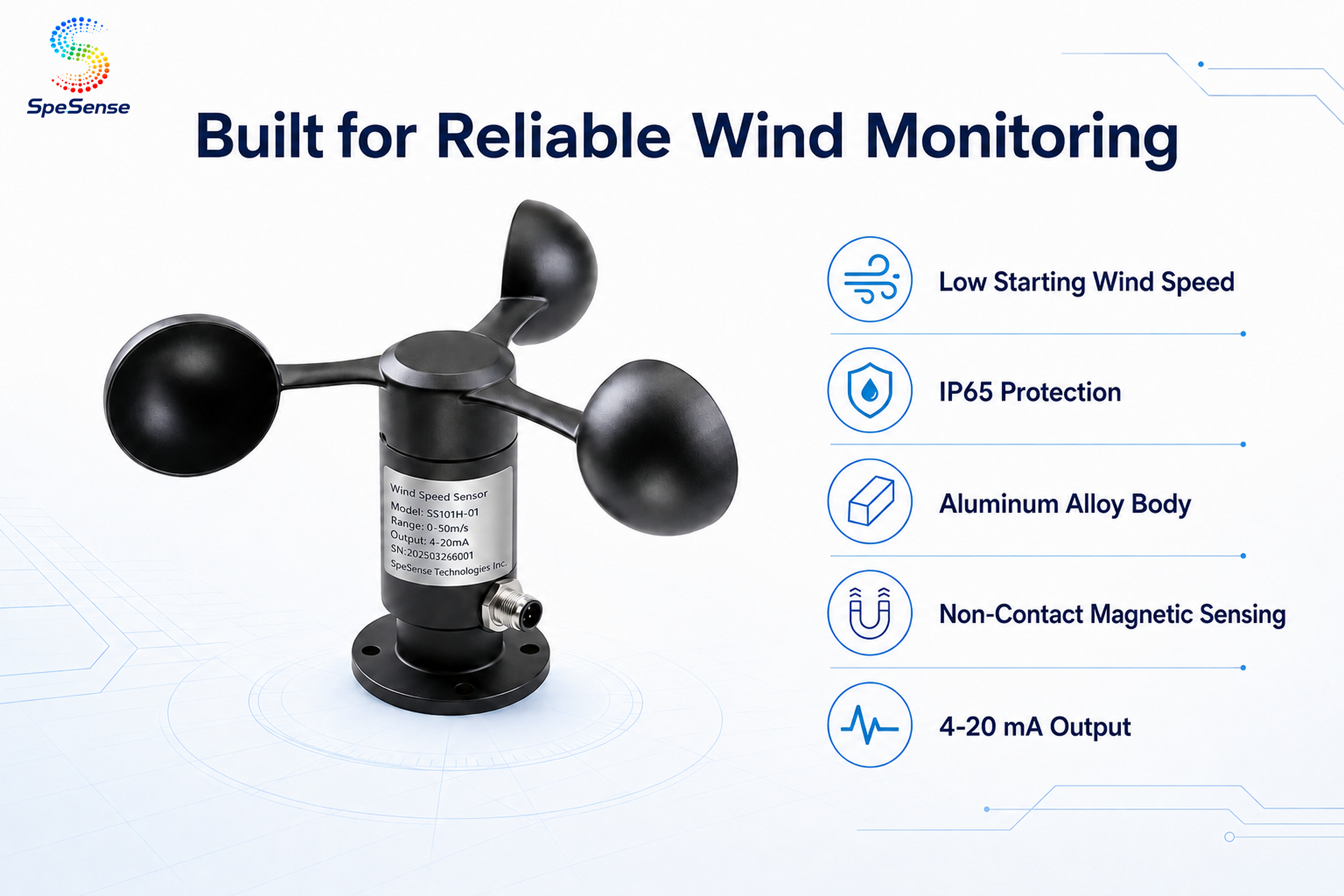

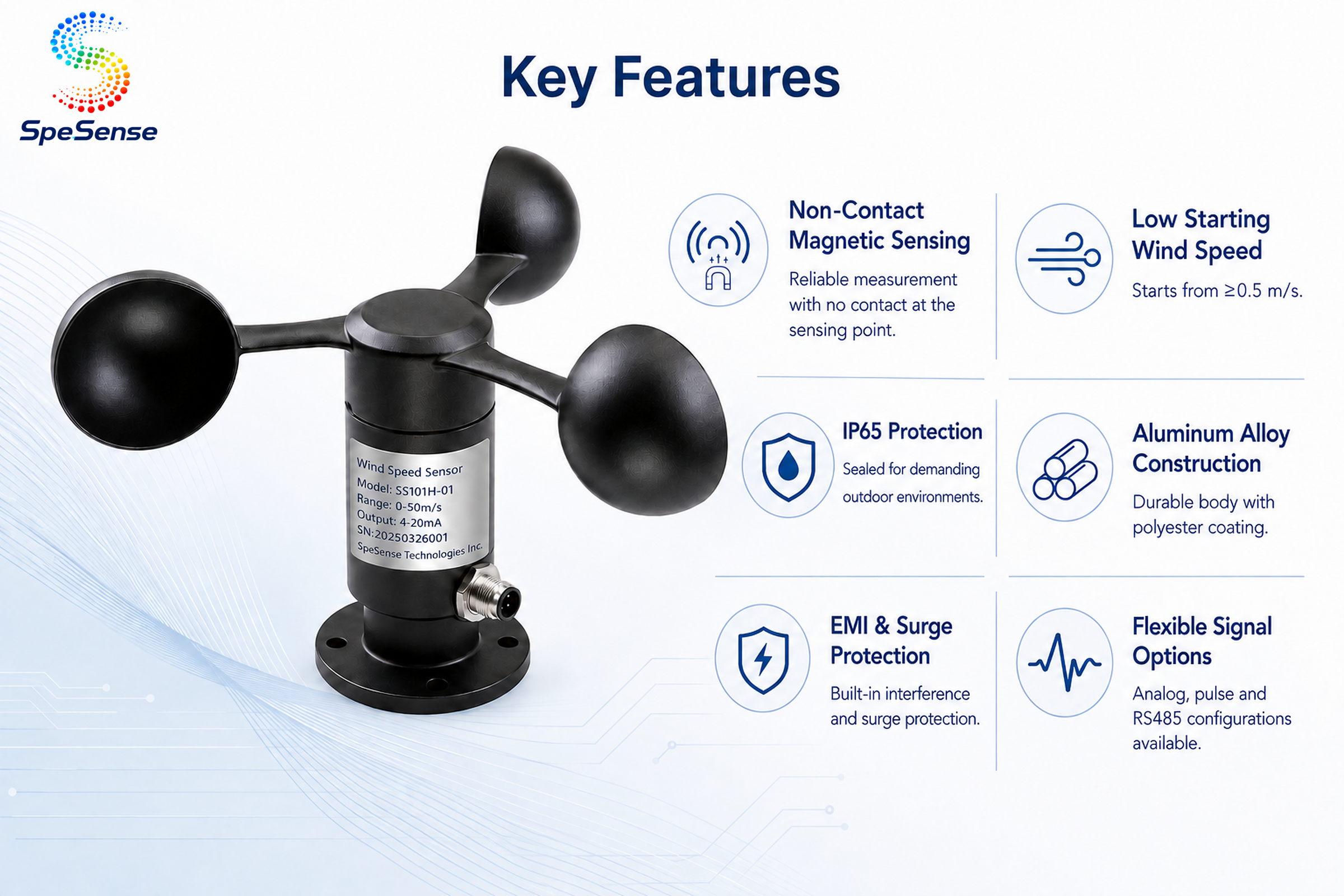

● Non-contact magnetic sensing principle for reliable wind-speed measurement.
● Wide wind-speed range with low starting wind speed.
● Built-in high-performance sensing and digital signal-processing
circuit.
● Fault-tolerant circuit design to improve protection againstincorrect wiring.
● Multiple signal outputs: analog, pulse and RS485 (Modbus).
● CE EMC-oriented design with multi-level lightning and surge protection stated in the source.

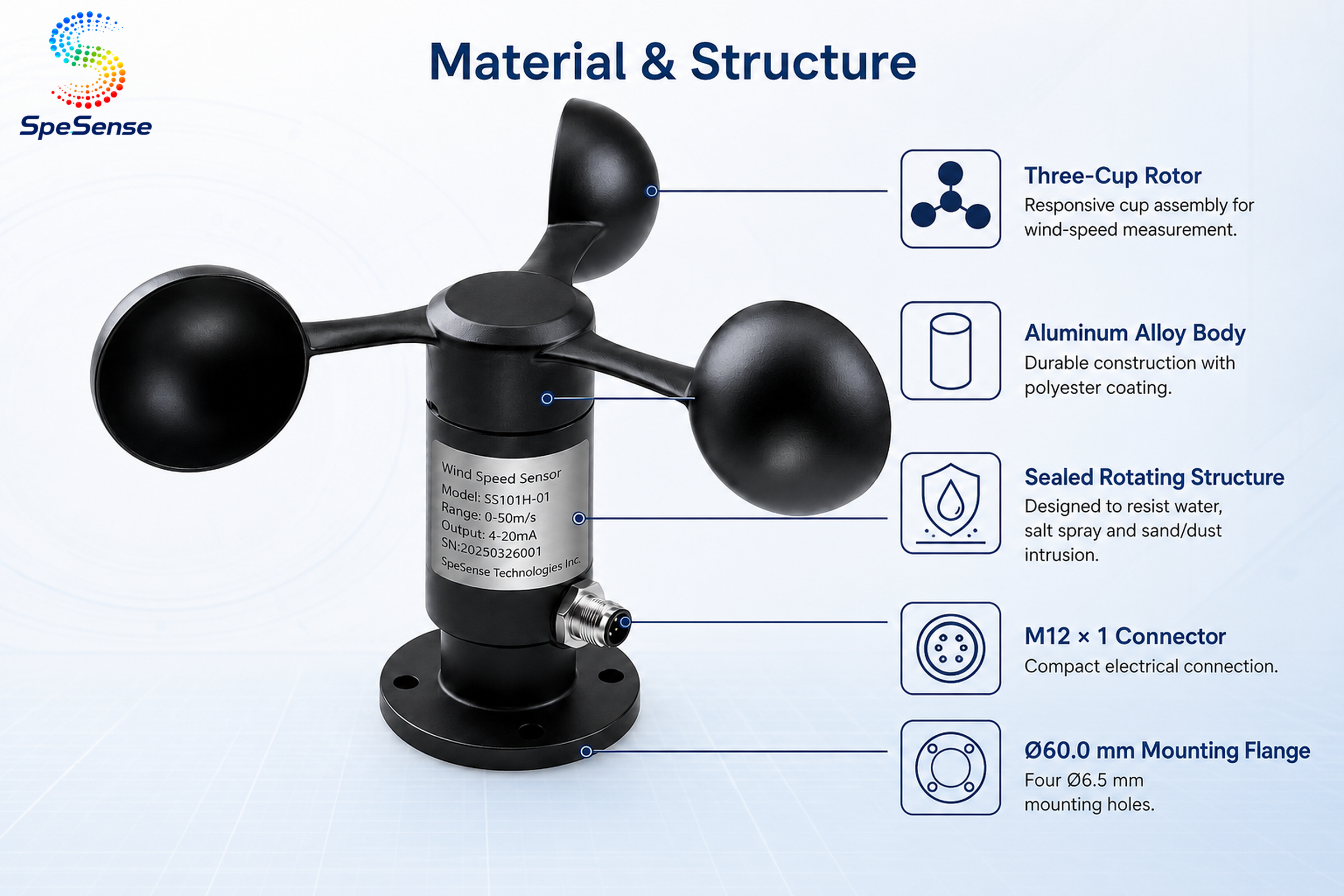

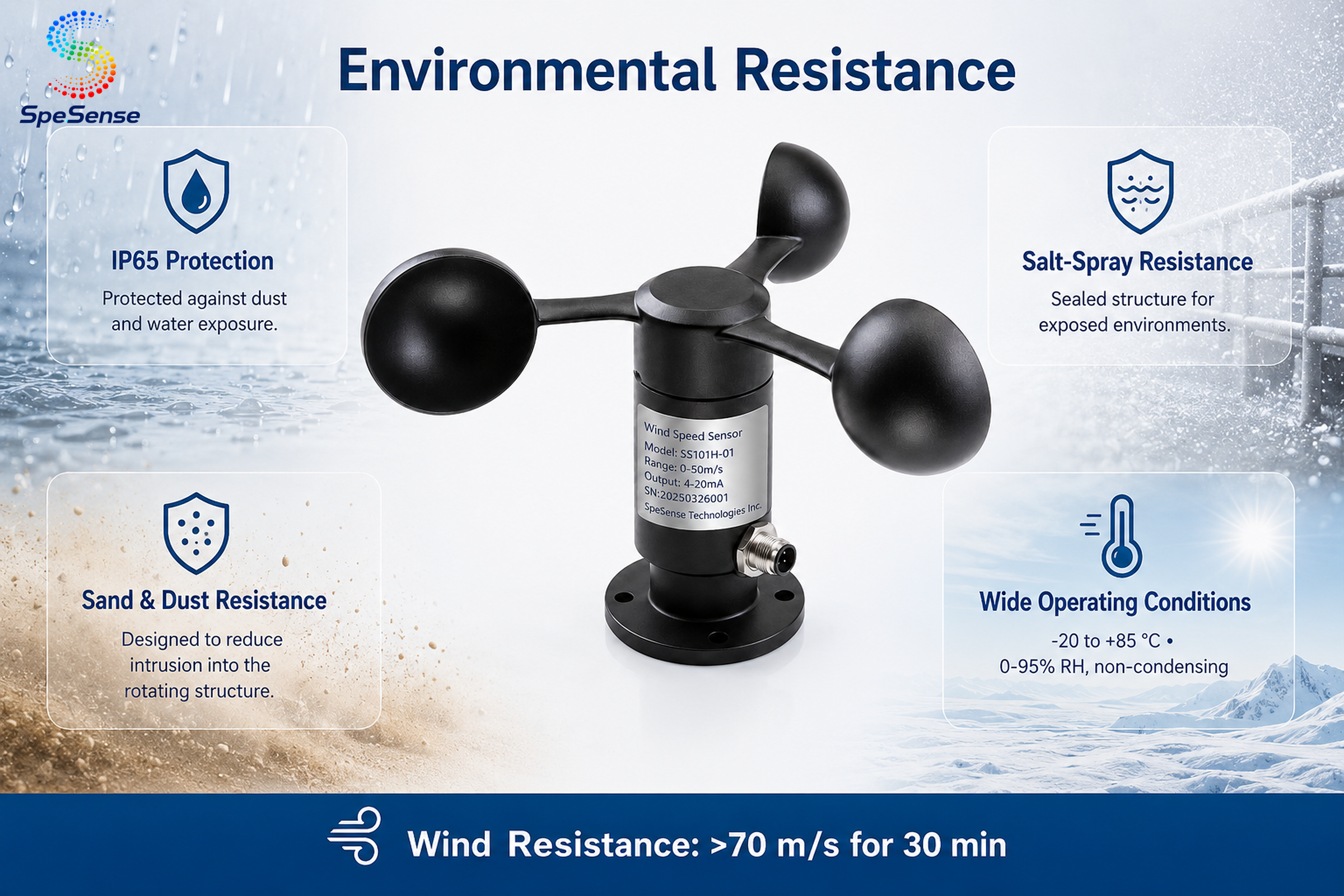

● Sealed structure for water, salt-spray and sand/dust resistance.
● Wide supply options, including 15-30 VDC for standard configurations and dedicated pulse supplies.
● Wide wind-speed range with low starting wind speed.
● Built-in high-performance sensing and digital signal-processing
circuit.
● Fault-tolerant circuit design to improve protection againstincorrect wiring.
● Multiple signal outputs: analog, pulse and RS485 (Modbus).
● CE EMC-oriented design with multi-level lightning and surge protection stated in the source.
● Sealed structure for water, salt-spray and sand/dust resistance.
● Wide supply options, including 15-30 VDC for standard configurations and dedicated pulse supplies.
产品概述

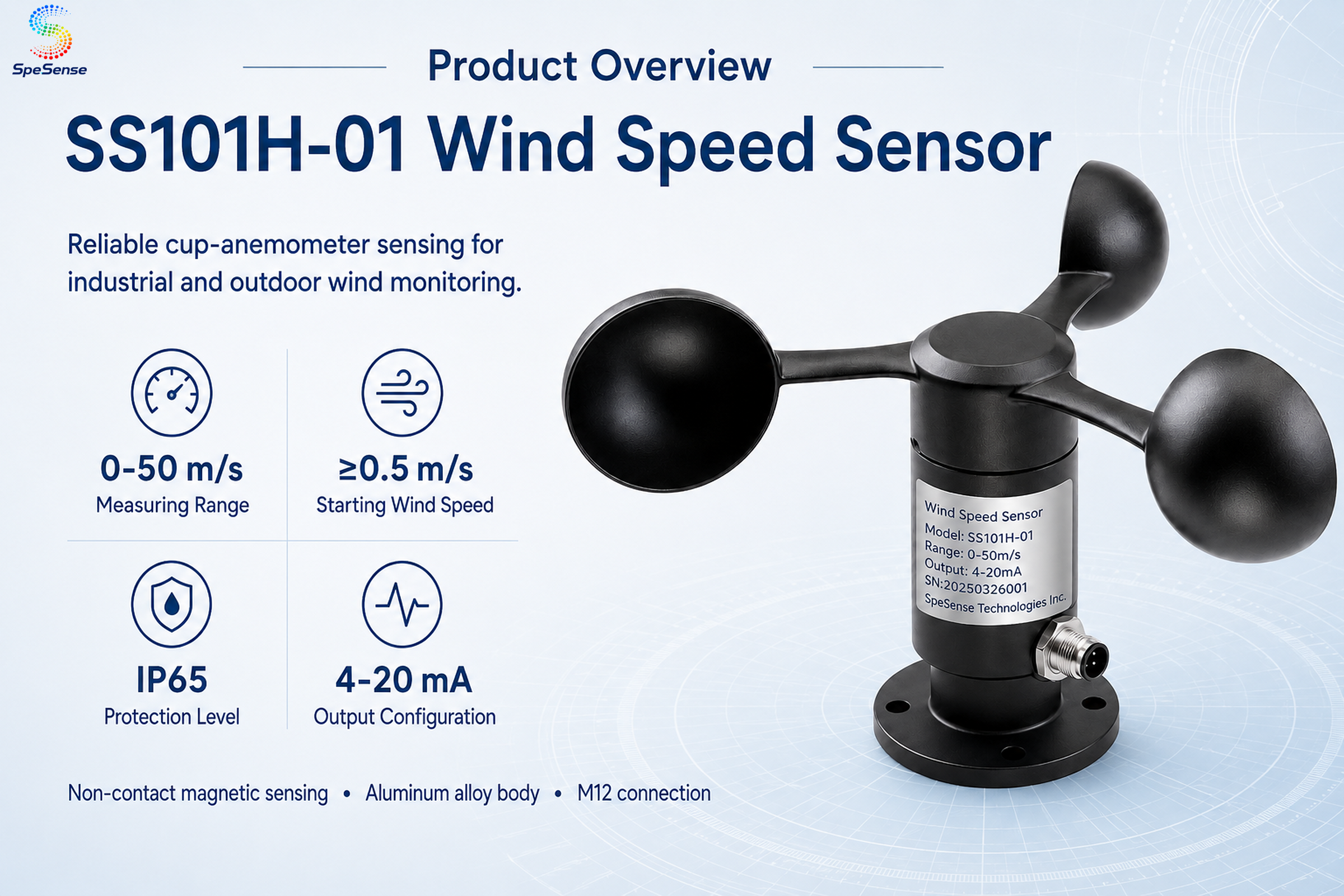

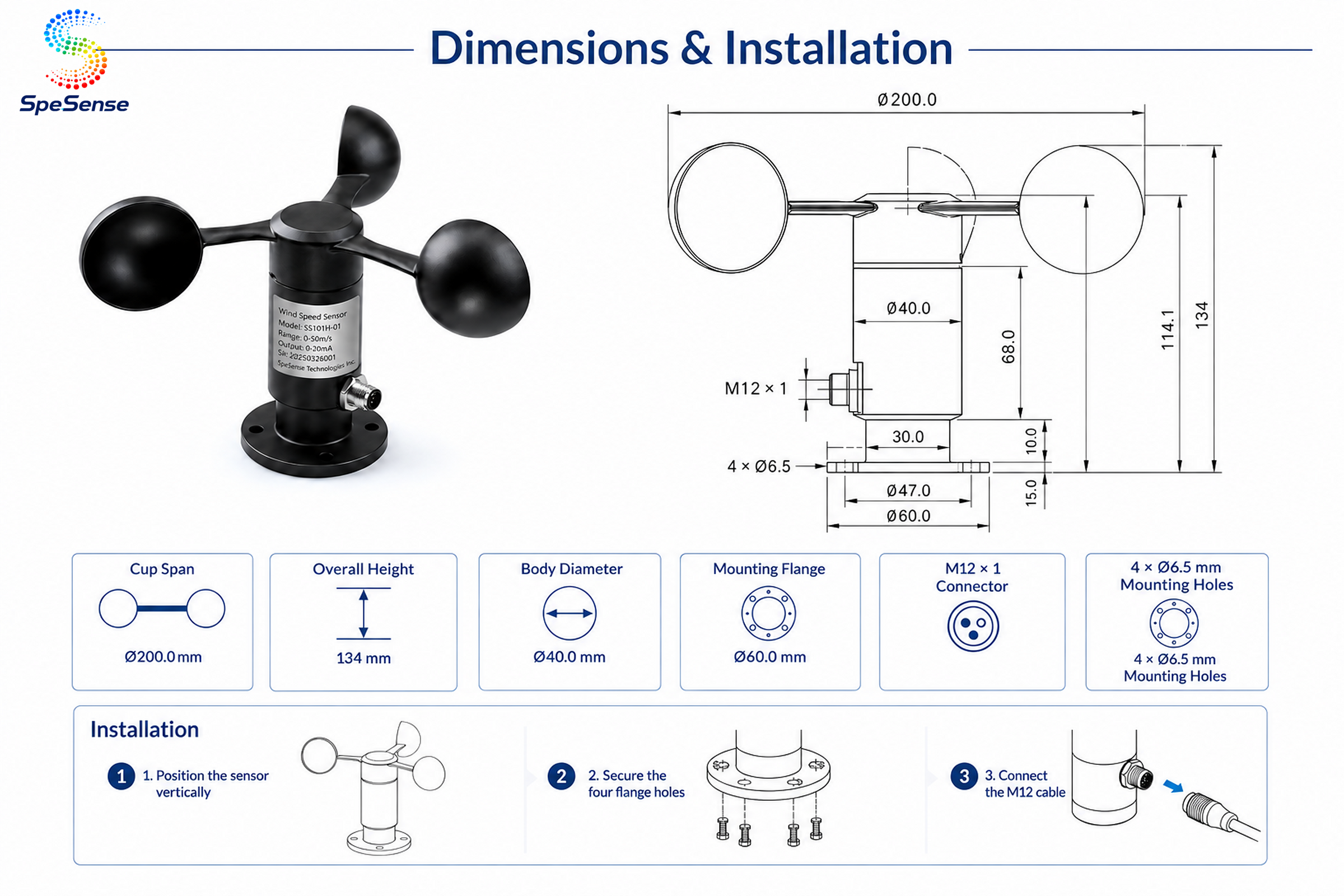

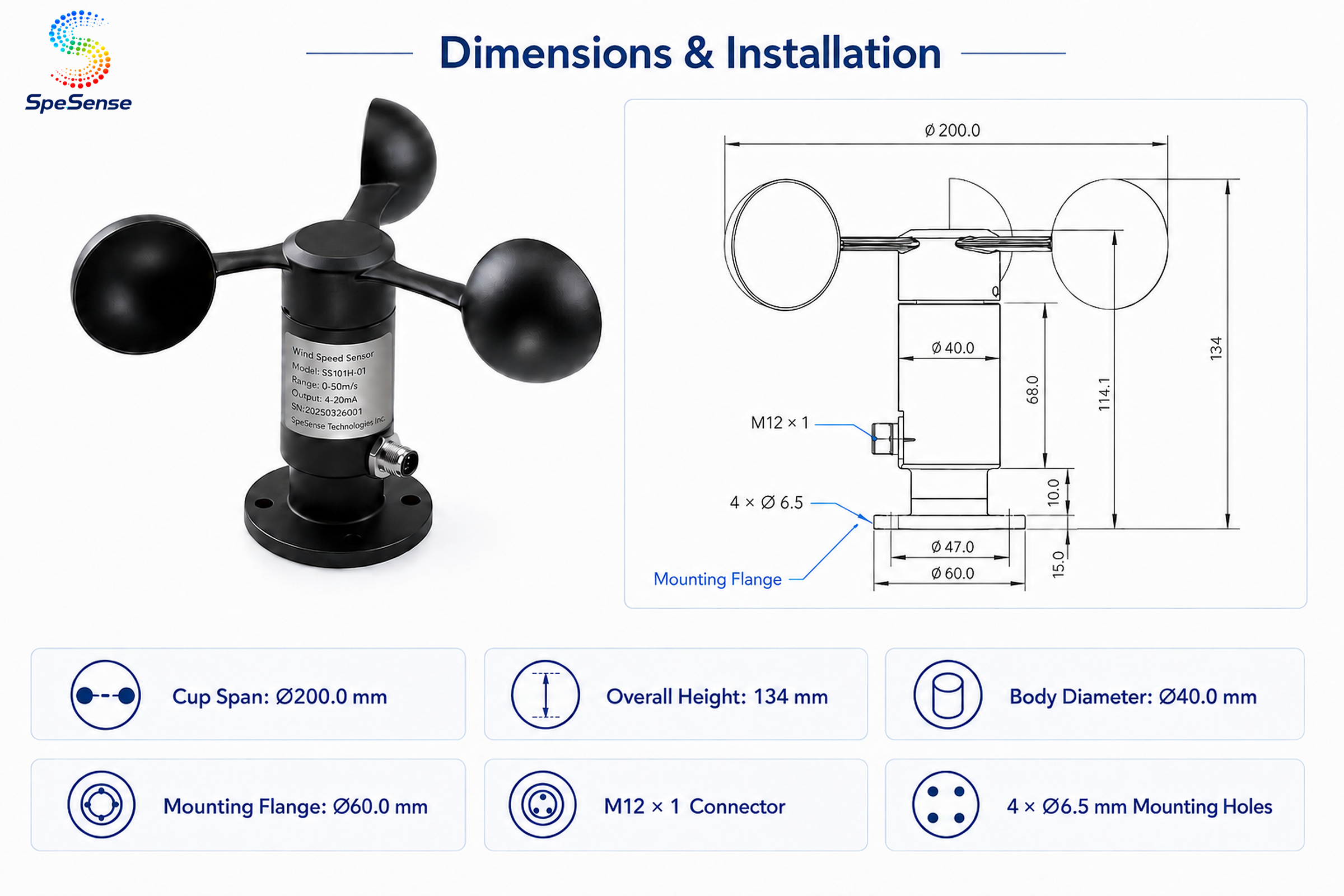

Rugged cup-anemometer wind speed sensor for stable industrial and outdoor monitoring, with multiple analog, pulse and RS485 output options.

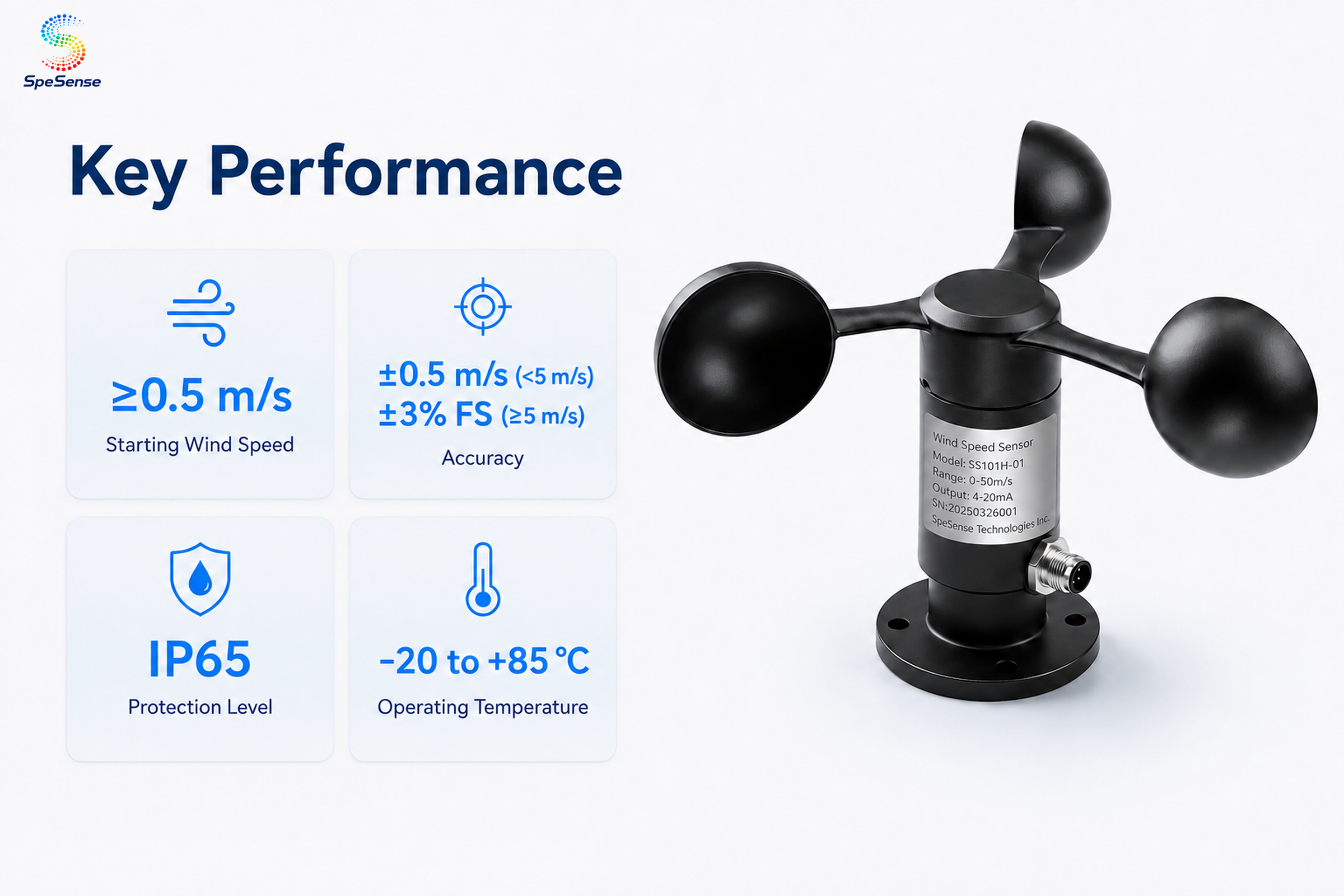

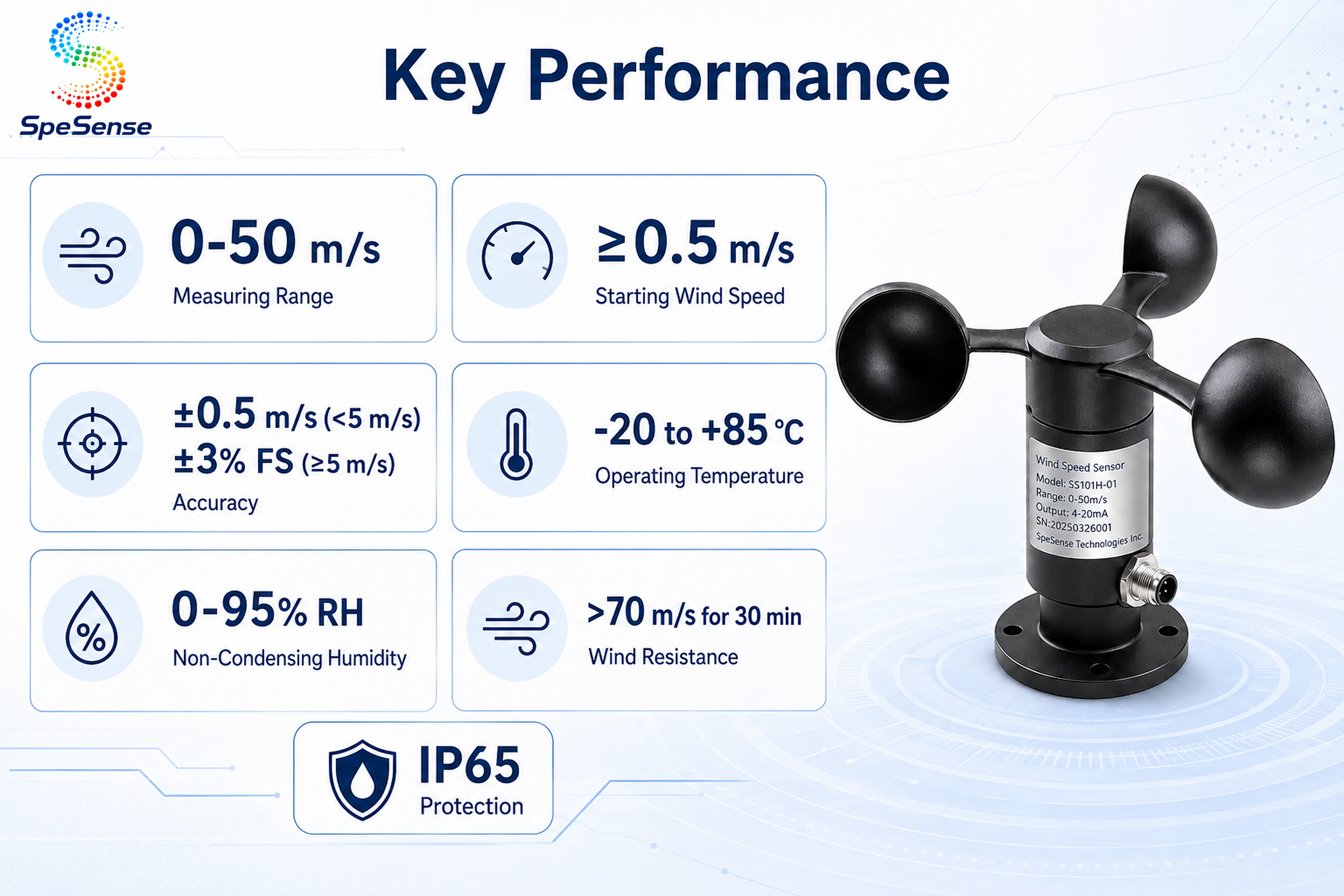

| Item | Specification |
| Measuring Range | 0–30 m/s; 0–50 m/s |
| Starting Wind Speed | ≥0.5 m/s |
| Accuracy | ±0.5 m/s (<5 m/s); ±3% FS (≥5 m/s) |
| Operating Voltage | 15–30 VDC; 5 V / 12 V / 24 V for pulse configurations |

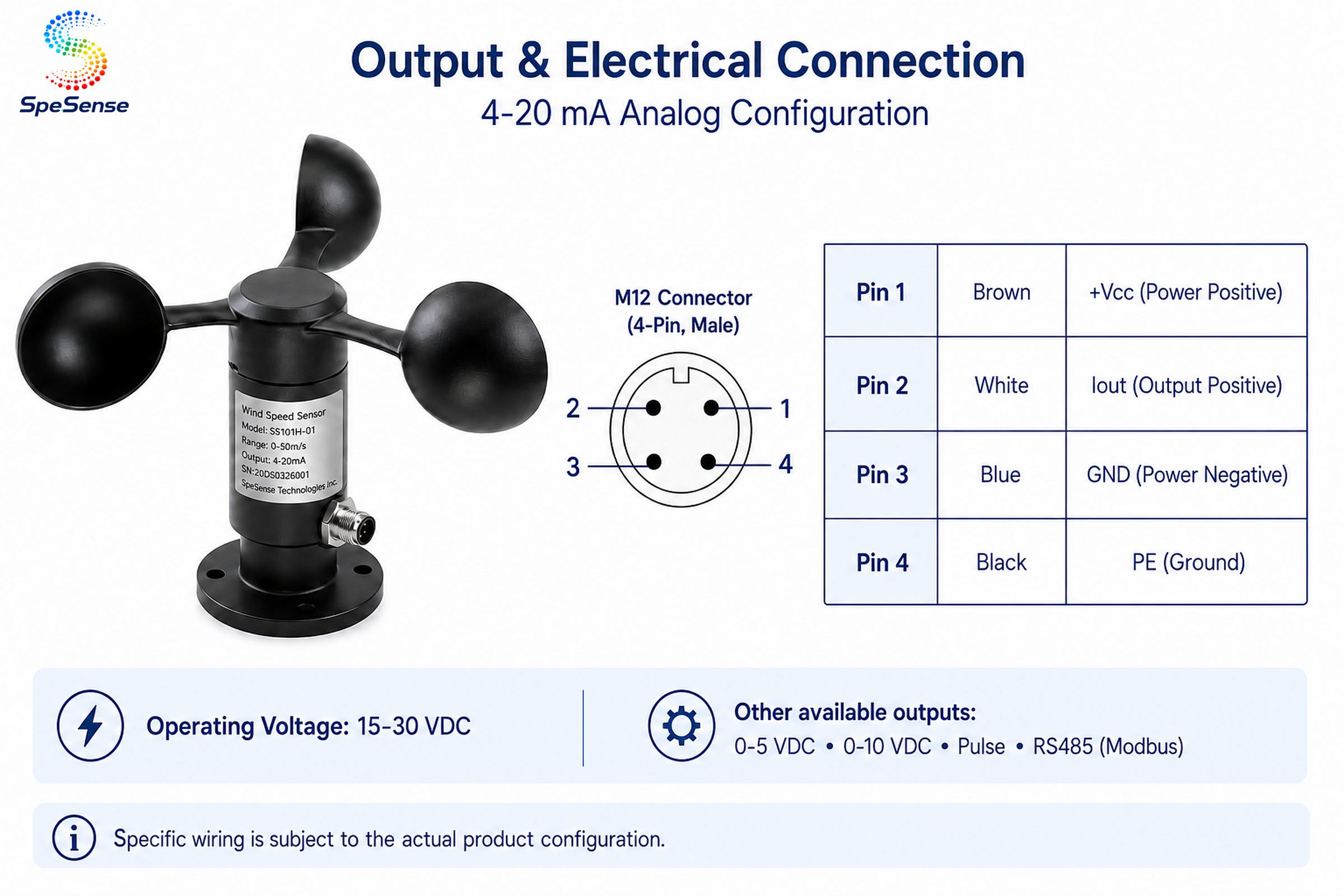

| Output Signal | 4–20 mA; 0–5 VDC; 0–10 VDC; pulse (1 m/s = 6.667 pulses); RS485 (Modbus) |
| Operating Temperature | −20 to +85 °C |
| Operating Humidity | 0–95% RH, non-condensing |
| Wind Resistance | >70 m/s for 30 min |
| Protection Level | IP65 |
| Main Material | Aluminum alloy / polyester coating |
| Additional Group Pulse | Ordinary model: Level 3 (2 kV, 100 kHz), Class B; lightning-resistant model: Level 4 (4000 V, 100 kHz), Class B |
| Surge | Ordinary model: Class 1 (common mode 500 V, differential mode 250 V, Class B); lightning-resistant model: Class 4 (common mode 4000 V, differential mode 2000 V), Class B |
