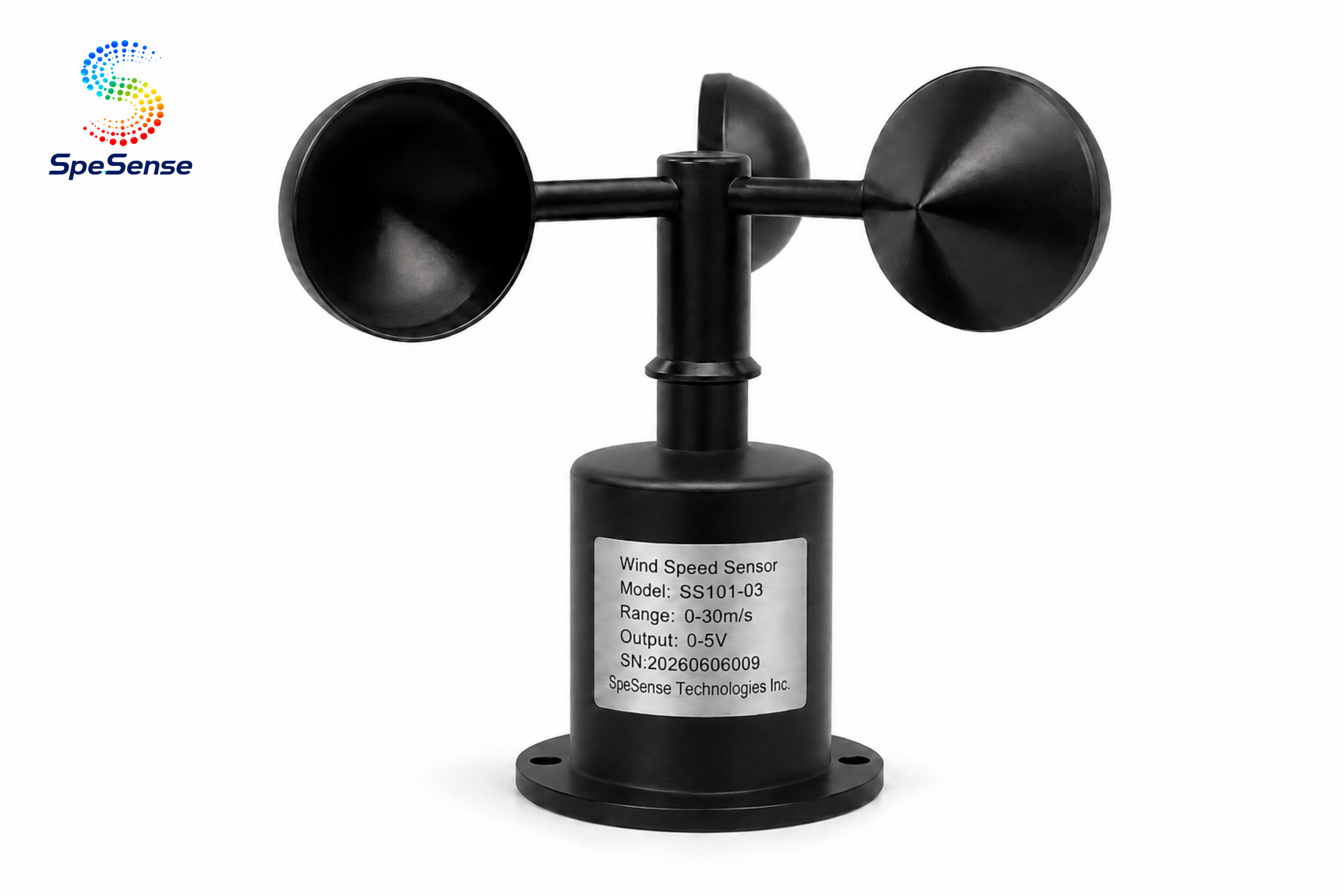

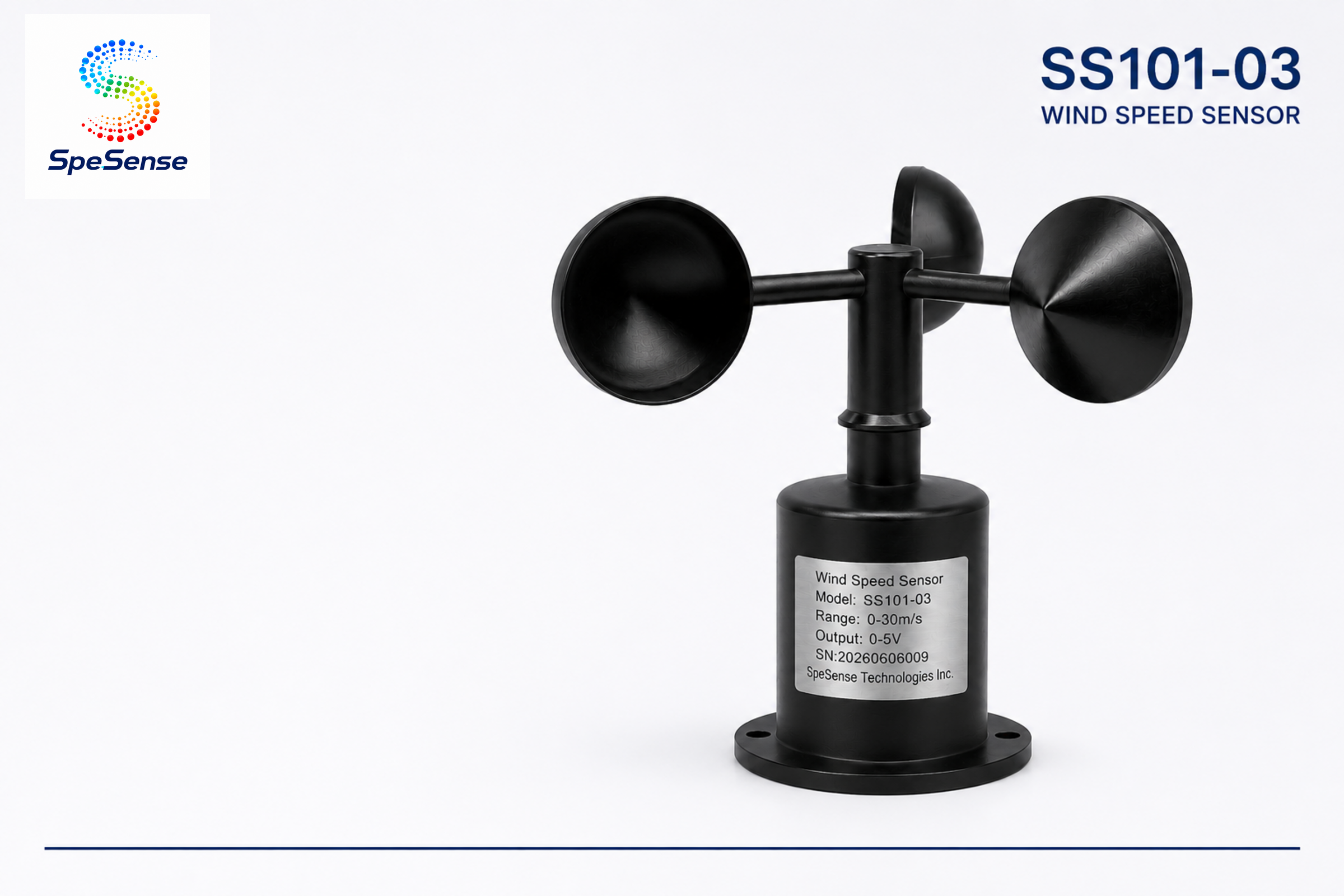

Cup&Vane Wind Sensor
SS101-03
风速传感器
产品亮点

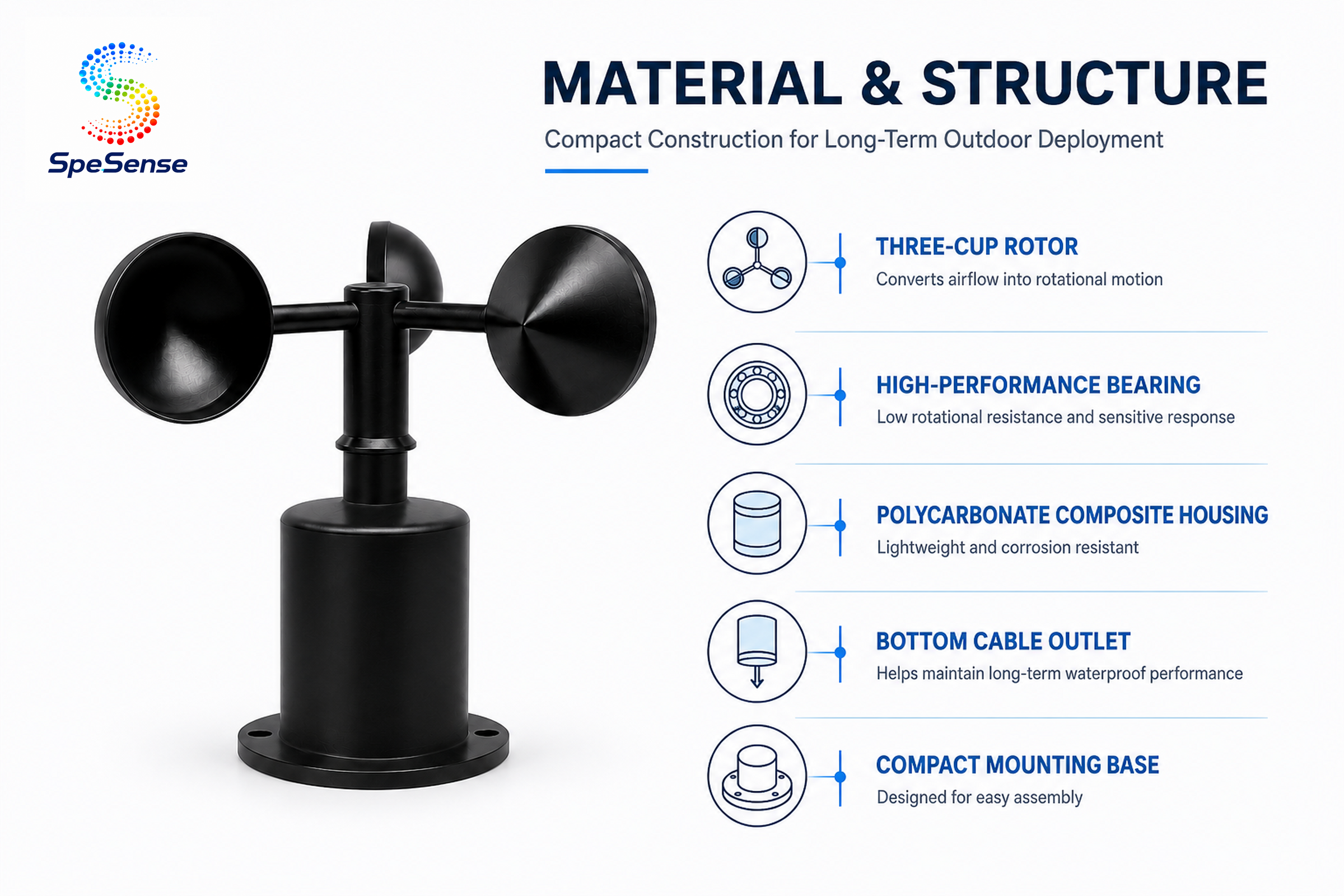

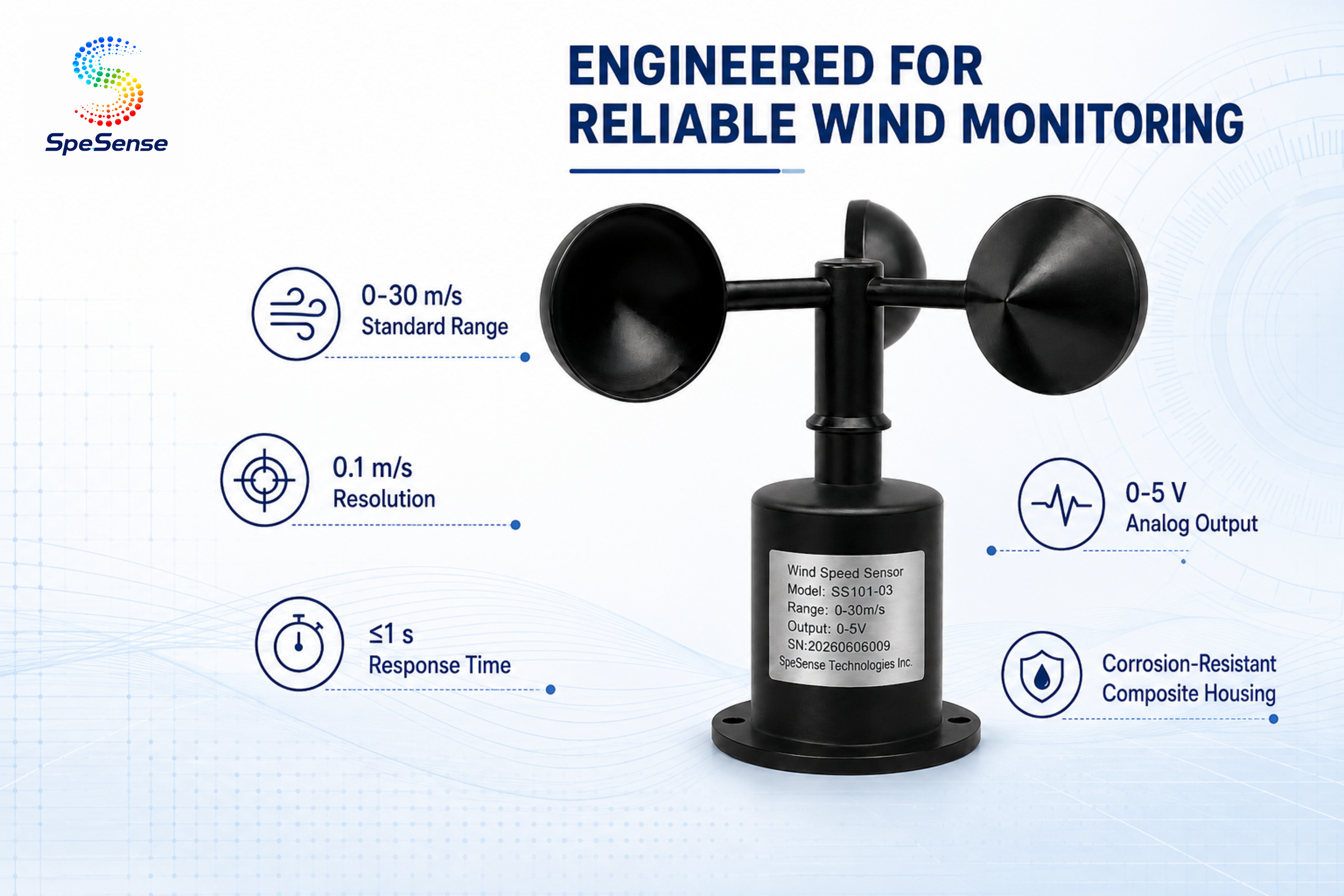

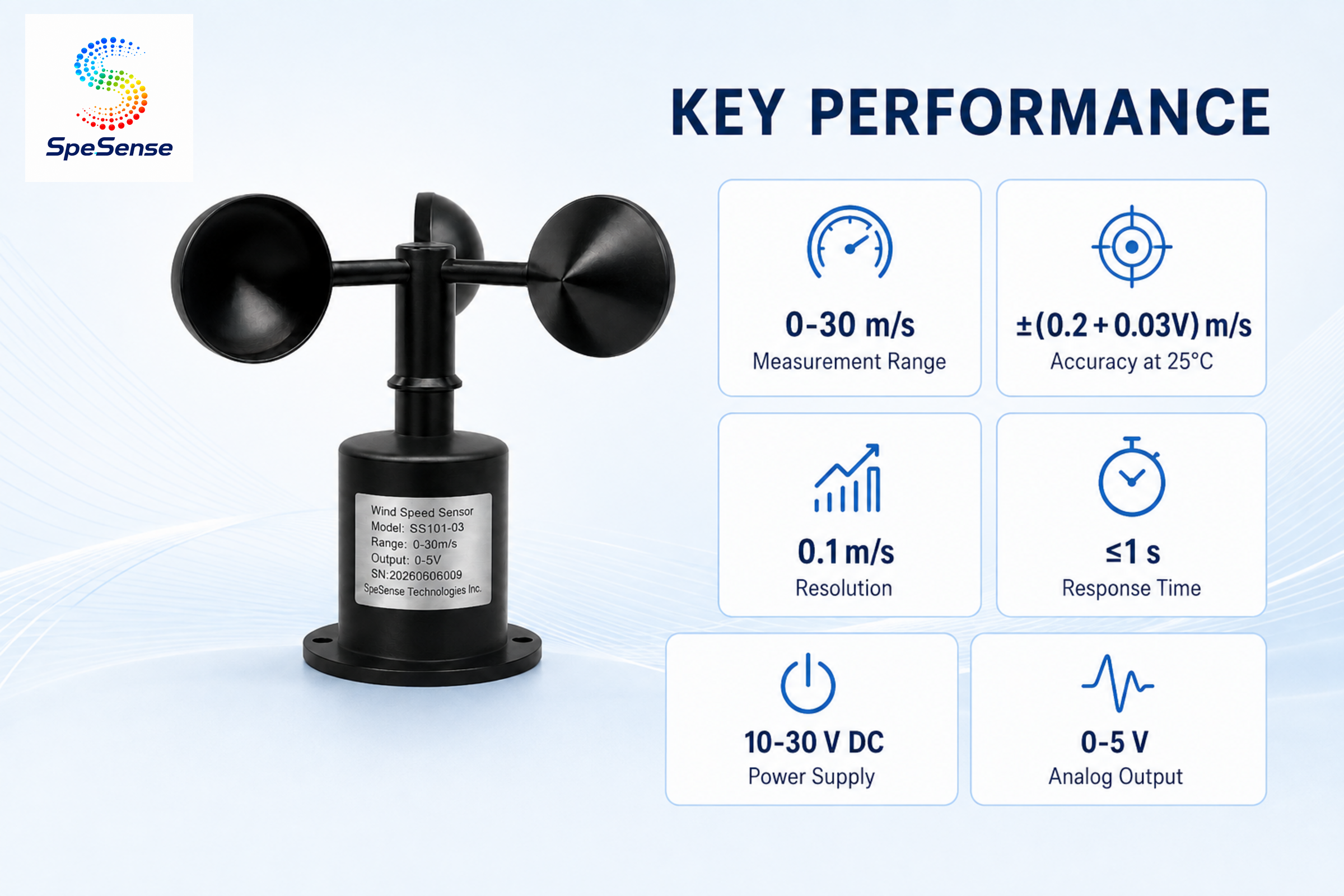

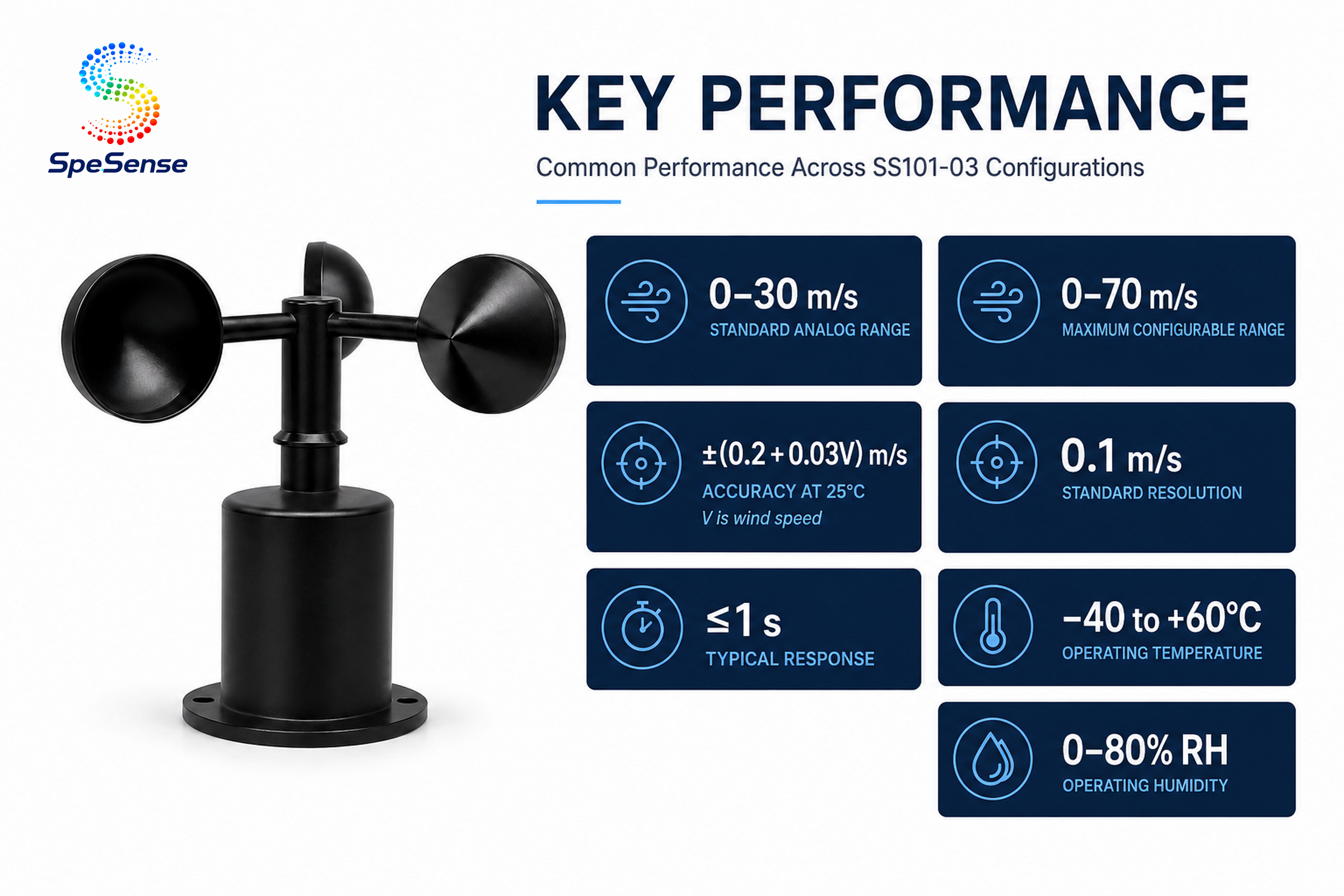

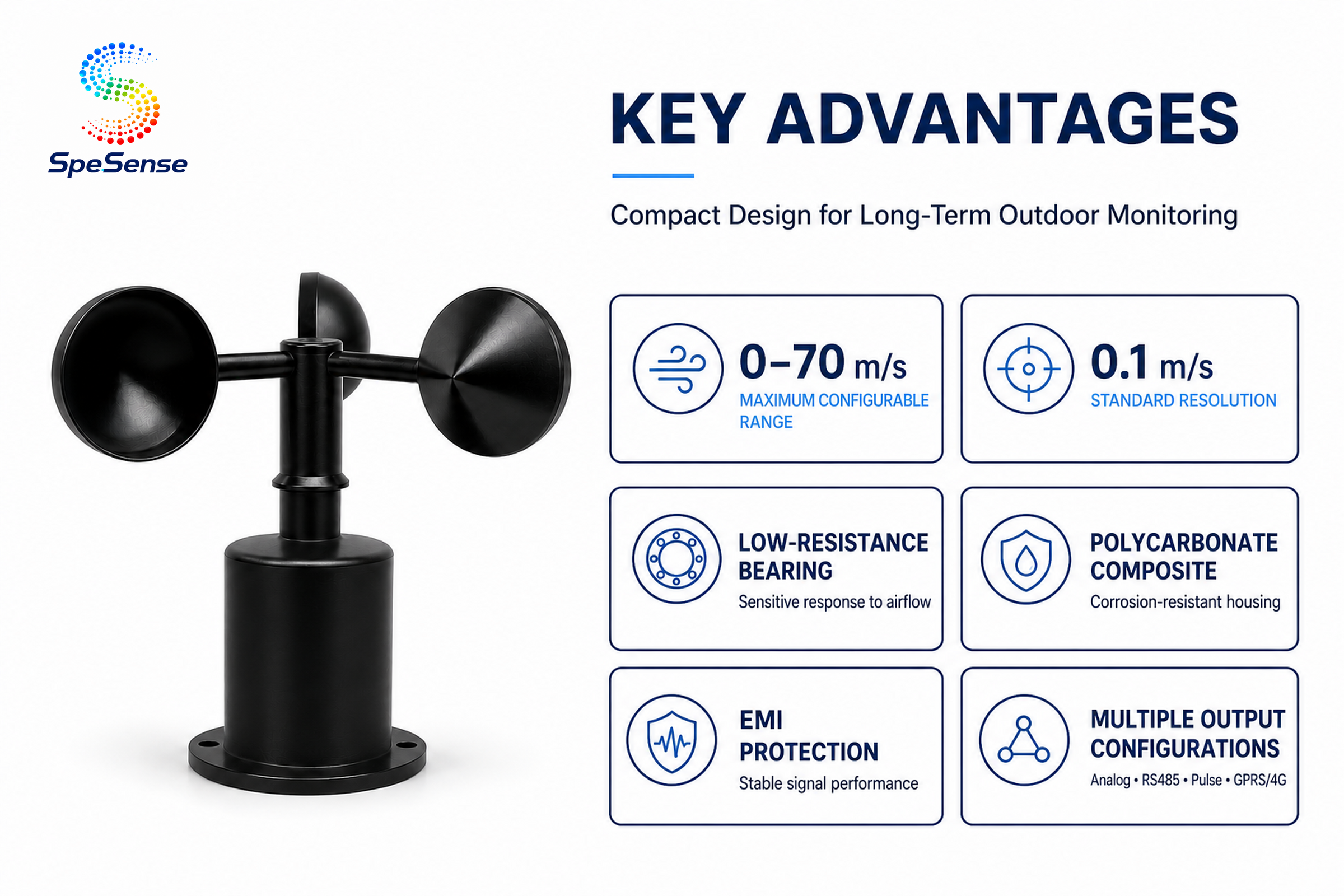

● 0–30 m/s standard analog range, customizable up to 0–70 m/s; 0.1 m/s standard resolution. ● Polycarbonate composite housing with corrosion resistance for long- term outdoor use.
● High-performance bearing design with low rotational resistance and sensitive response.
● Bottom cable outlet helps maintain long-term waterproof performance.
● Electromagnetic interference protection.
● Available RS485 Modbus, analog, pulse, GPRS/4G and dedicated 5 V configurations.
● Analog versions can support both three-wire and four-wire connection methods.

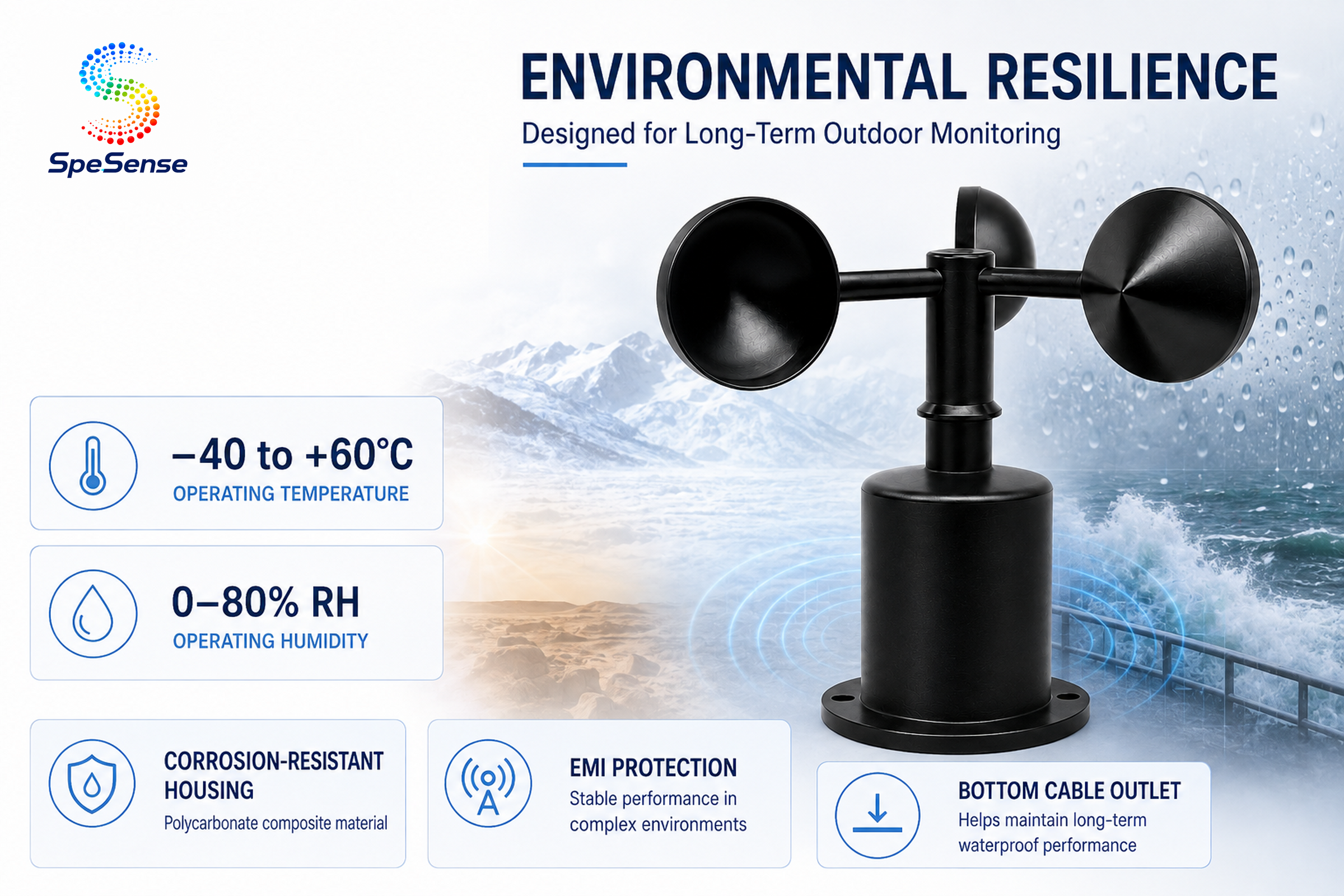

● Operating environment: -40 to +60 °C and 0–80% RH
● High-performance bearing design with low rotational resistance and sensitive response.
● Bottom cable outlet helps maintain long-term waterproof performance.
● Electromagnetic interference protection.
● Available RS485 Modbus, analog, pulse, GPRS/4G and dedicated 5 V configurations.
● Analog versions can support both three-wire and four-wire connection methods.
● Operating environment: -40 to +60 °C and 0–80% RH
产品概述

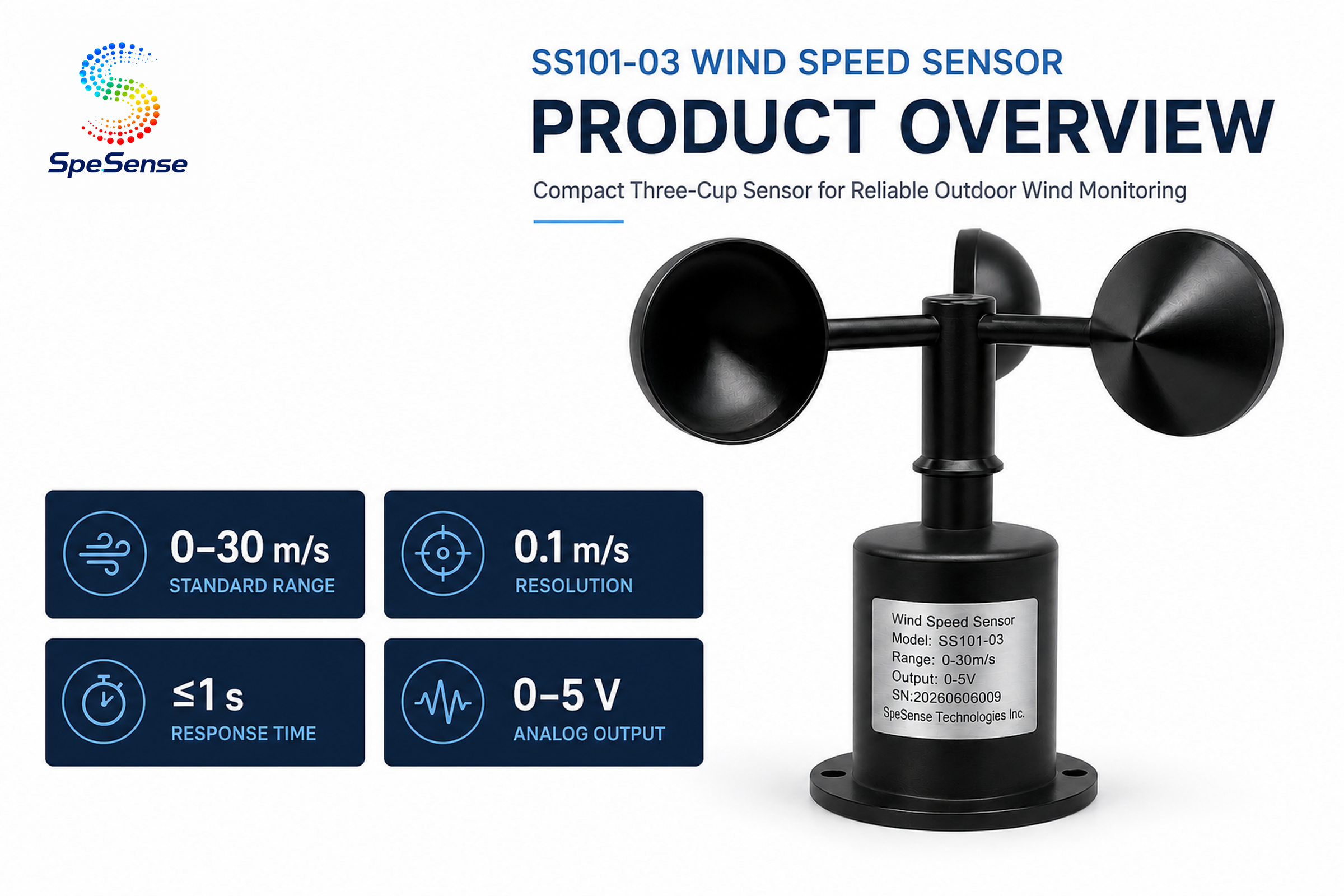

Compact three-cup wind speed sensor with polycarbonate composite housing and multiple output configurations for long-term outdoor monitoring.

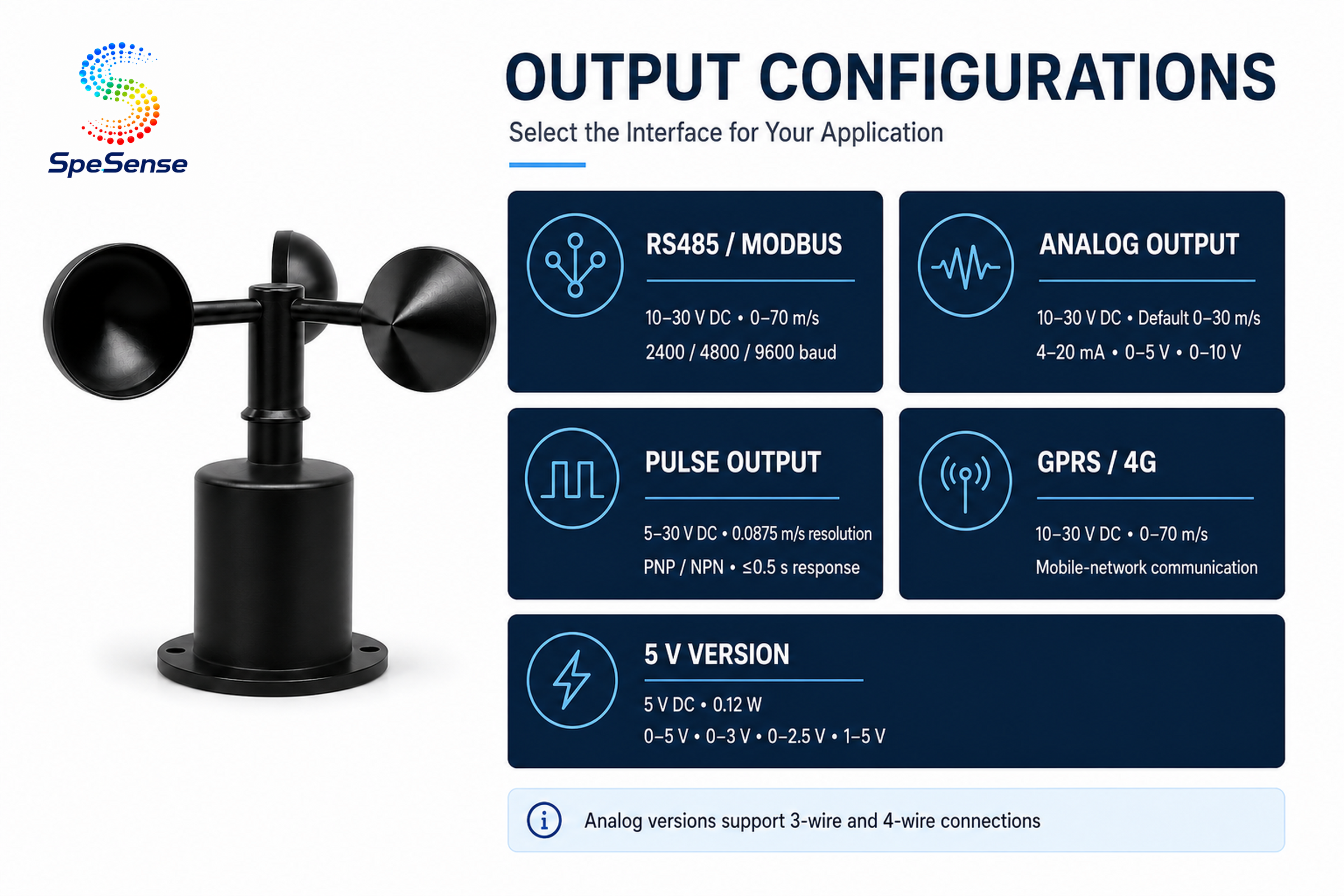

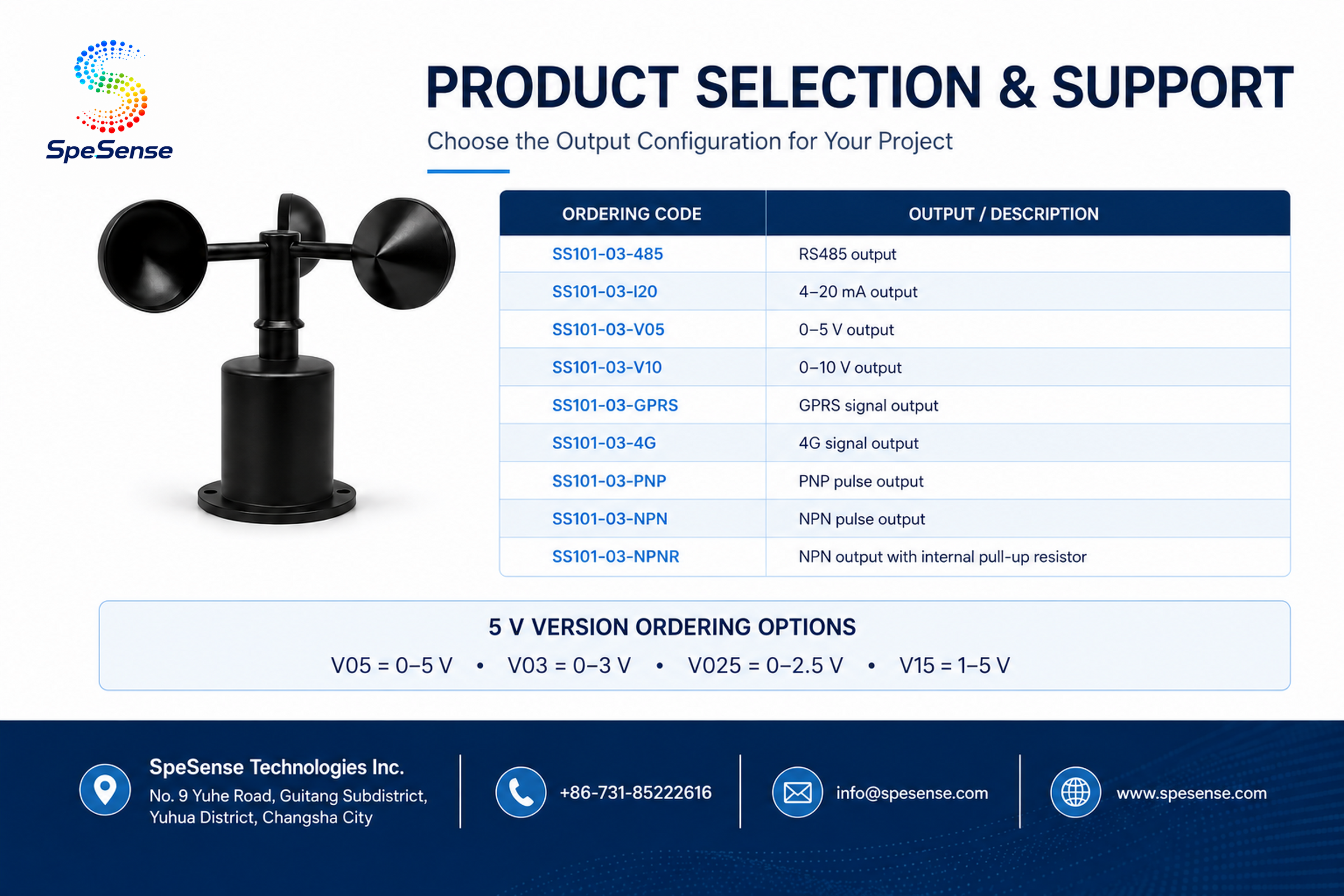

| Configuration | Power / Measurement | Interface / Output |
| RS485 / Modbus | 10–30 V DC; 0–70 m/s; 0.1 m/s; ≤1 s | 2400/4800(default)/9600 baud; 8N1; address 1; function 03/04 |
| Analog | 10–30 V DC; default 0–30 m/s, optional 0–70 m/s; 0.1 m/s; ≤1 s | 4–20 mA; 0–5 V / 0–10 V; voltage output resistance ≤250 Ω; current load ≤600 Ω |
| Pulse | 5–30 V DC; 0–70 m/s; 0.0875 m/s; ≤0.5 s | Pulse output; PNP ≥100 mA; NPN ≥100 mA |
| GPRS / 4G | 10–30 V DC; ≤0.3 W; 0–70 m/s; 0.1 m/s; ≤1 s | GPRS/GSM or 4G mobile-network communication as specified in the source |
| 5 V Version | 5 V DC; 0.12 W; default 0–30 m/s, optional 0–70 m/s; 0.1 m/s; ≤1 s | Selectable 0–5 V / 0–3 V / 0–2.5 V / 1–5 V; output resistance ≤250 Ω |
