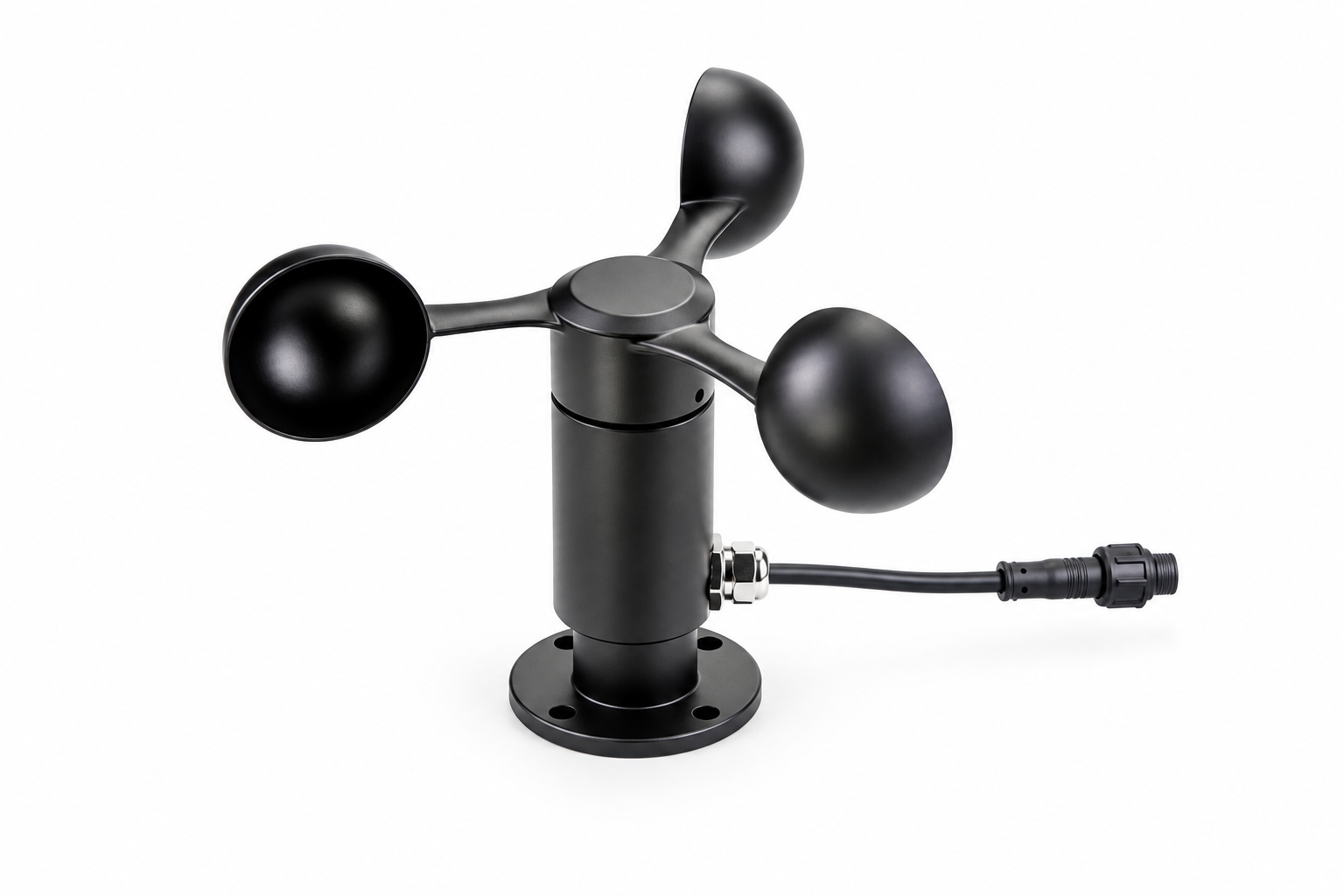

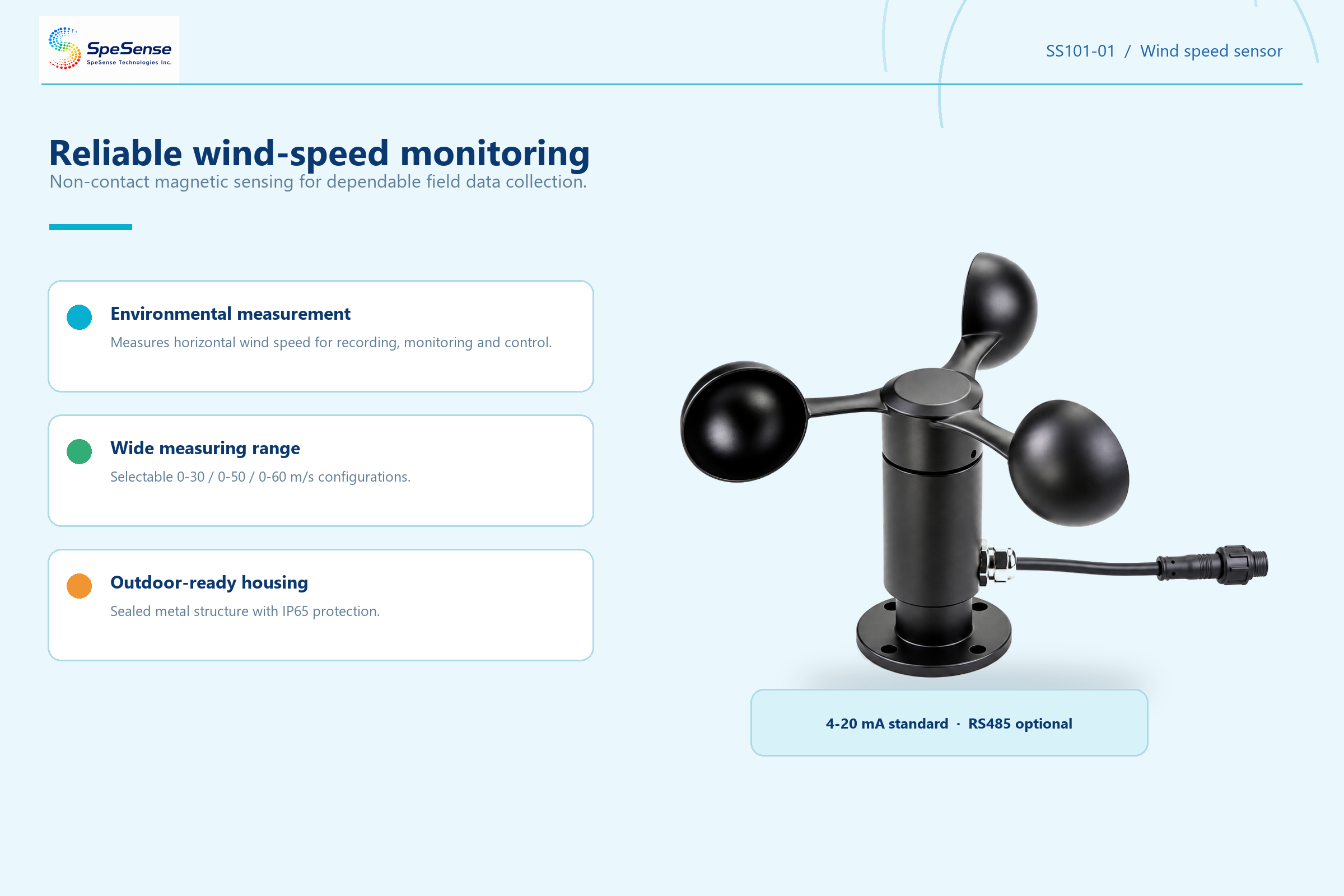

Cup&Vane Wind Sensor
SS101-01
风速传感器
产品亮点
● Non-contact magnetic sensing measurement.
● Built-in high-performance sensor for accurate and reliable data collection.
● Wide measurement range with low starting wind speed.
● Full-metal housing with corrosion resistance and strong wind resistance.
● Fault-tolerant circuit protection and multi-level lightning and surge protection design.
● Built-in high-performance sensor for accurate and reliable data collection.
● Wide measurement range with low starting wind speed.
● Full-metal housing with corrosion resistance and strong wind resistance.
● Fault-tolerant circuit protection and multi-level lightning and surge protection design.
产品概述
Overview

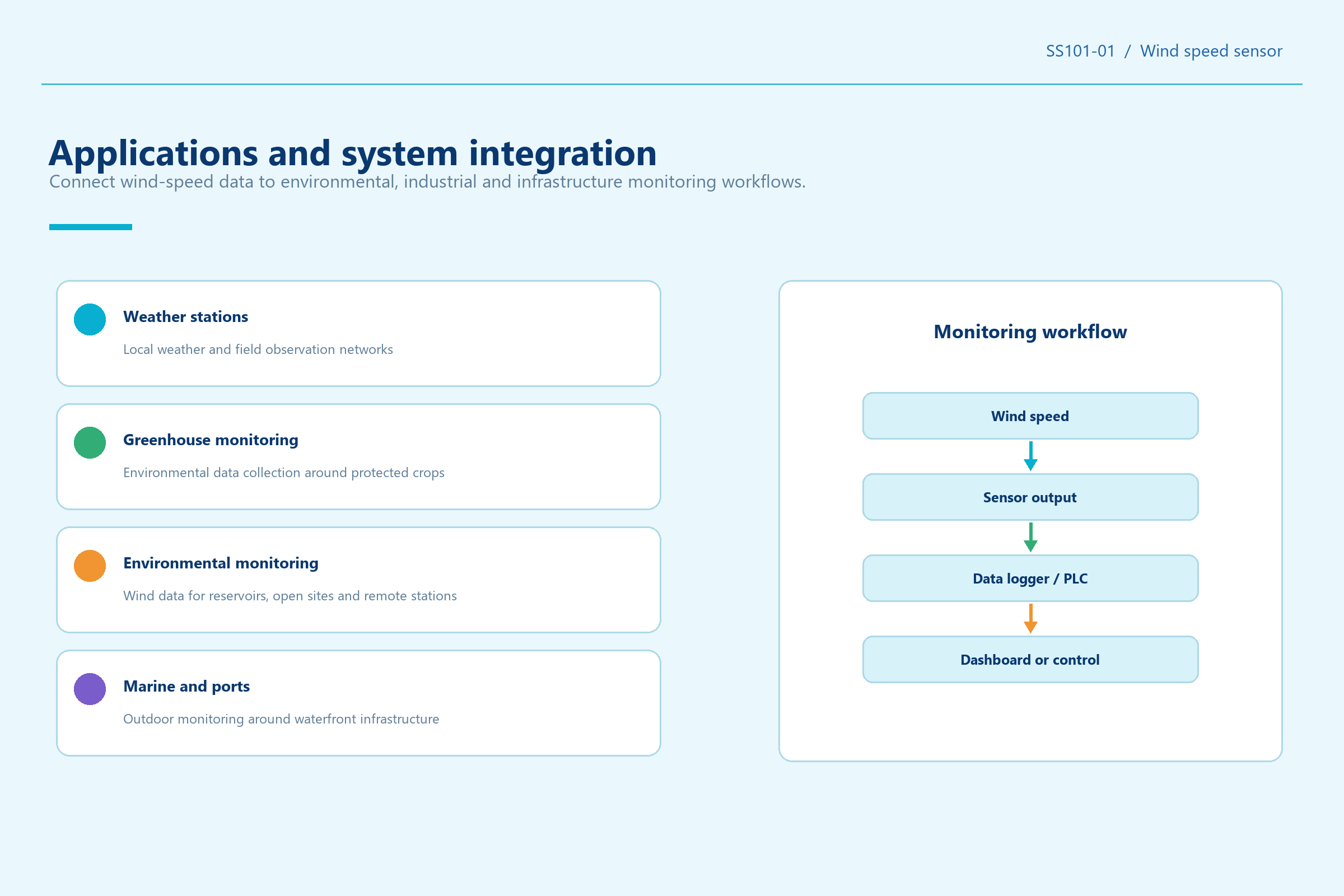

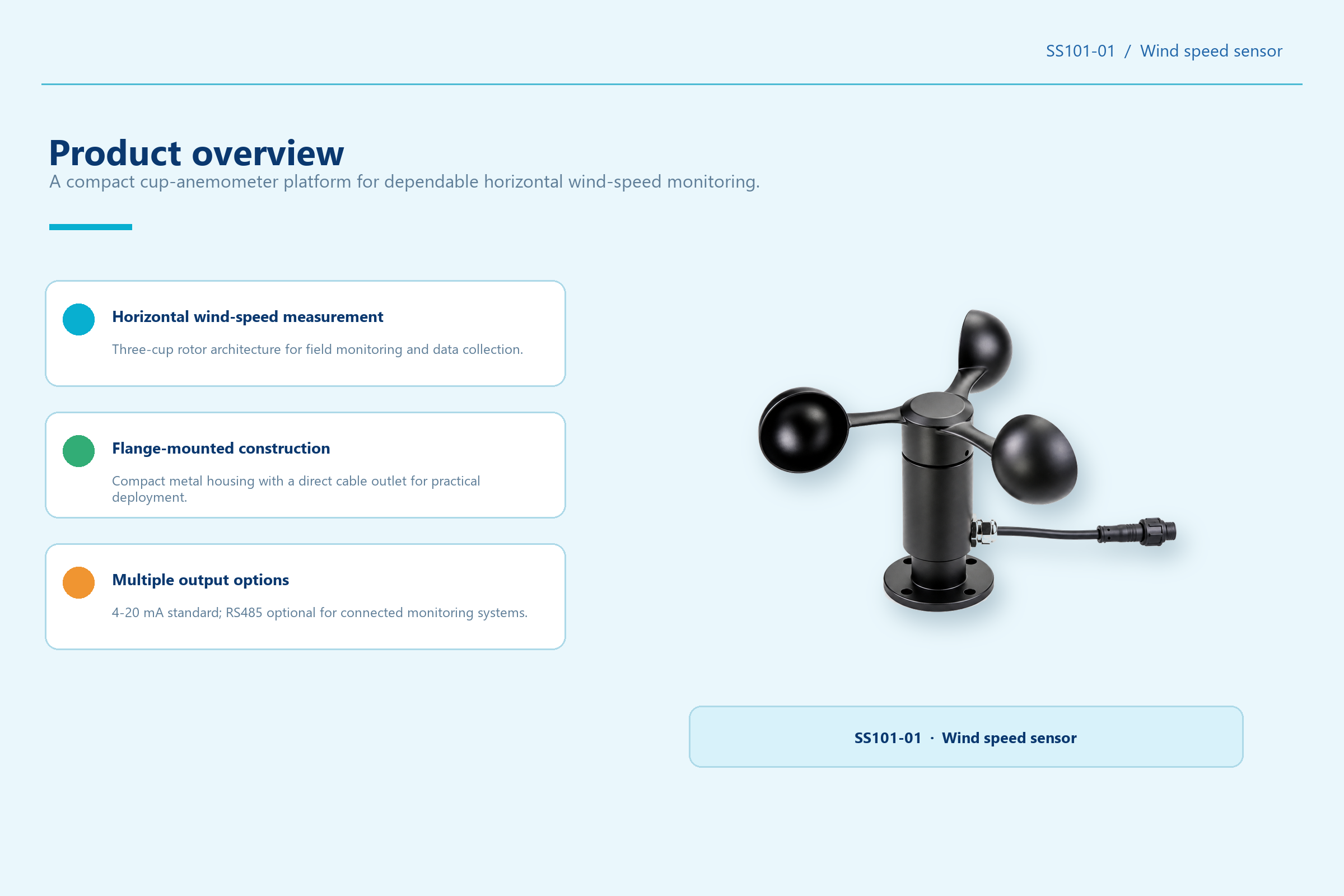

• SS101-01 measures environmental wind speed and converts wind cup rotation into an electrical signal for recording and control.

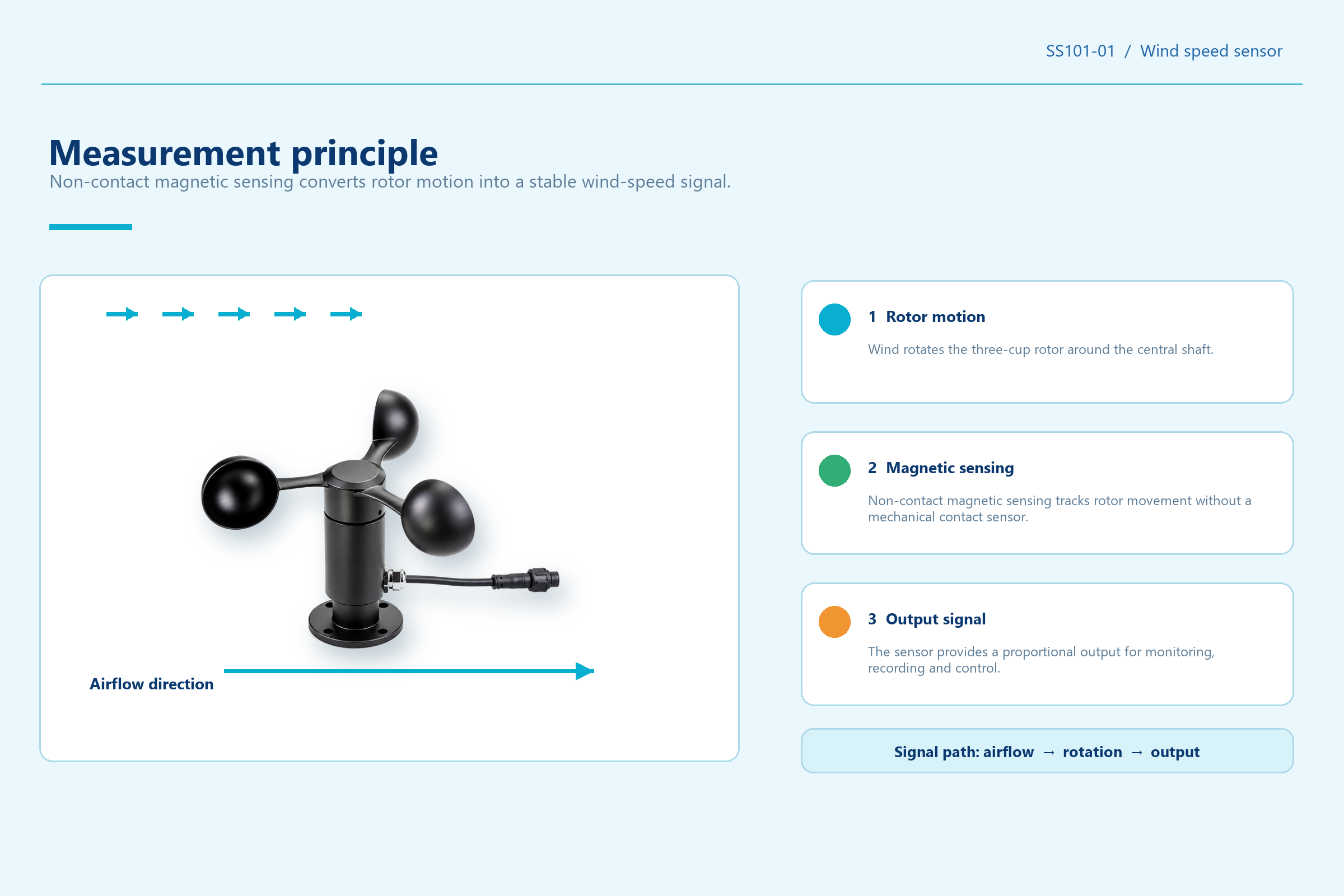

• The sensor uses non-contact magnetic sensing, an integrated digital circuit and a sealed metal structure designed for outdoor monitoring applications.

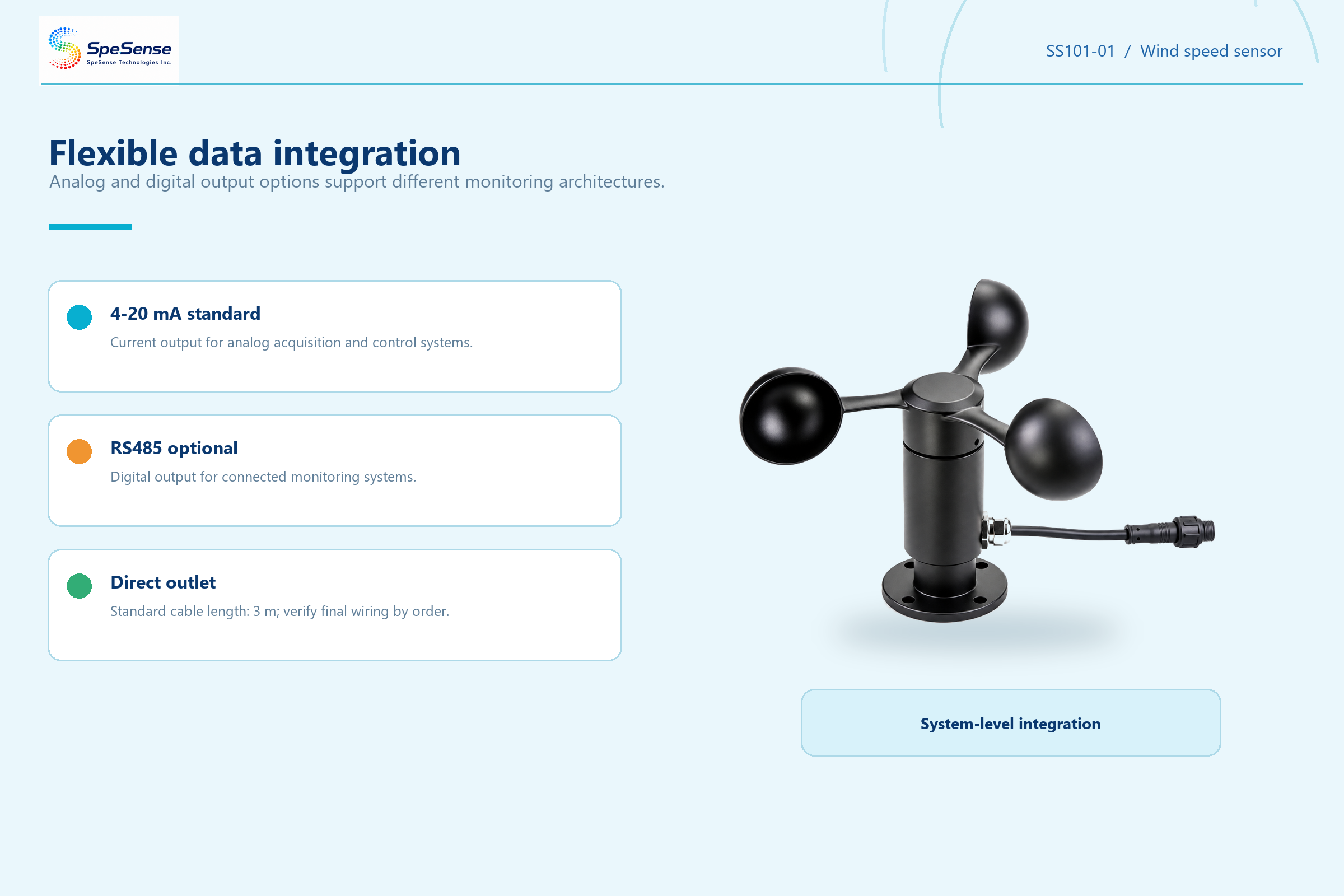

• Analog and digital output configurations are available according to the selected order configuration.
| Item | Specification |
| Product model | SS101-01 |

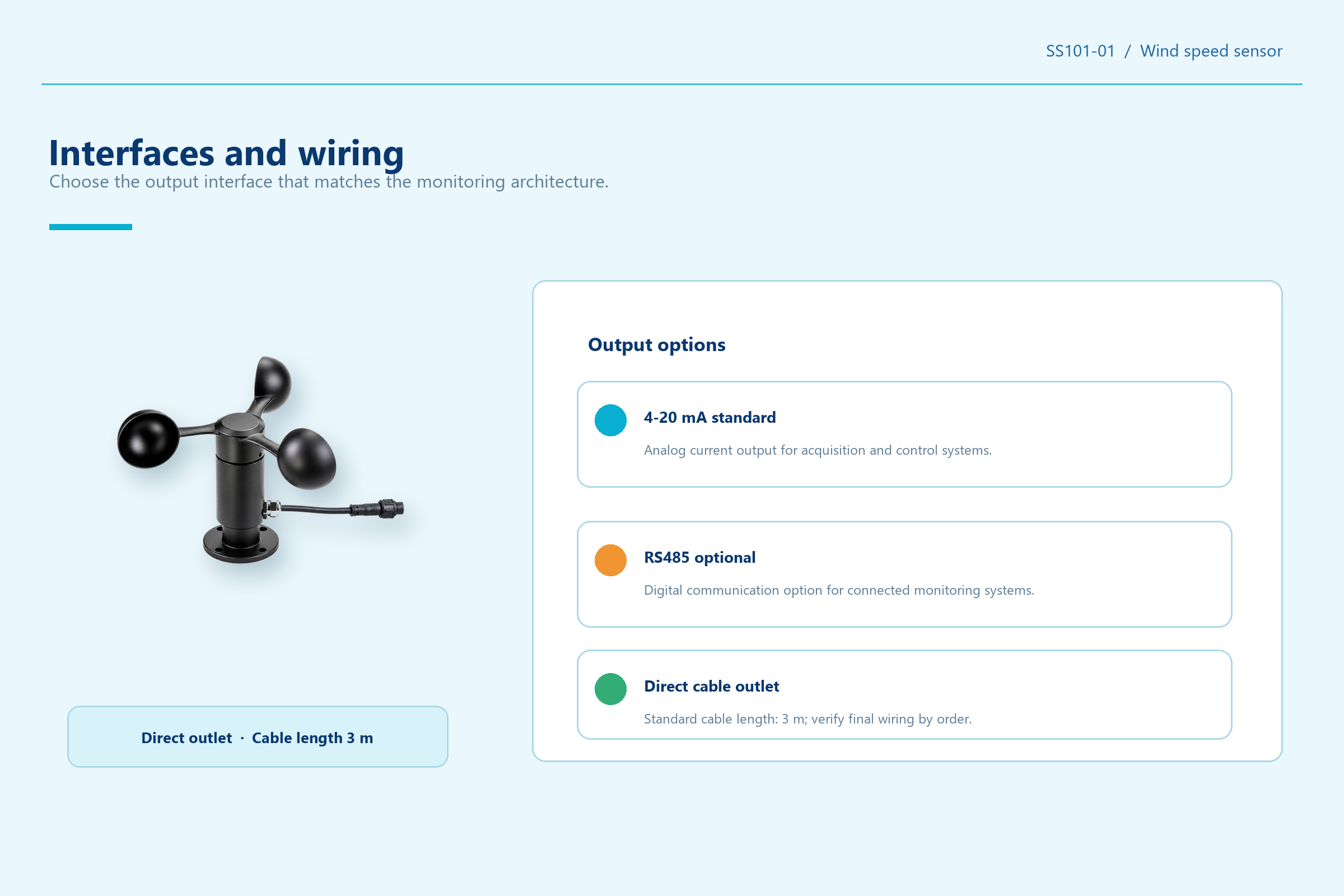

| Output signal | 4-20 mA standard; RS485 optional; 0-5 V optional as listed on the product webpage |
| Power supply | DC 12-30 V |

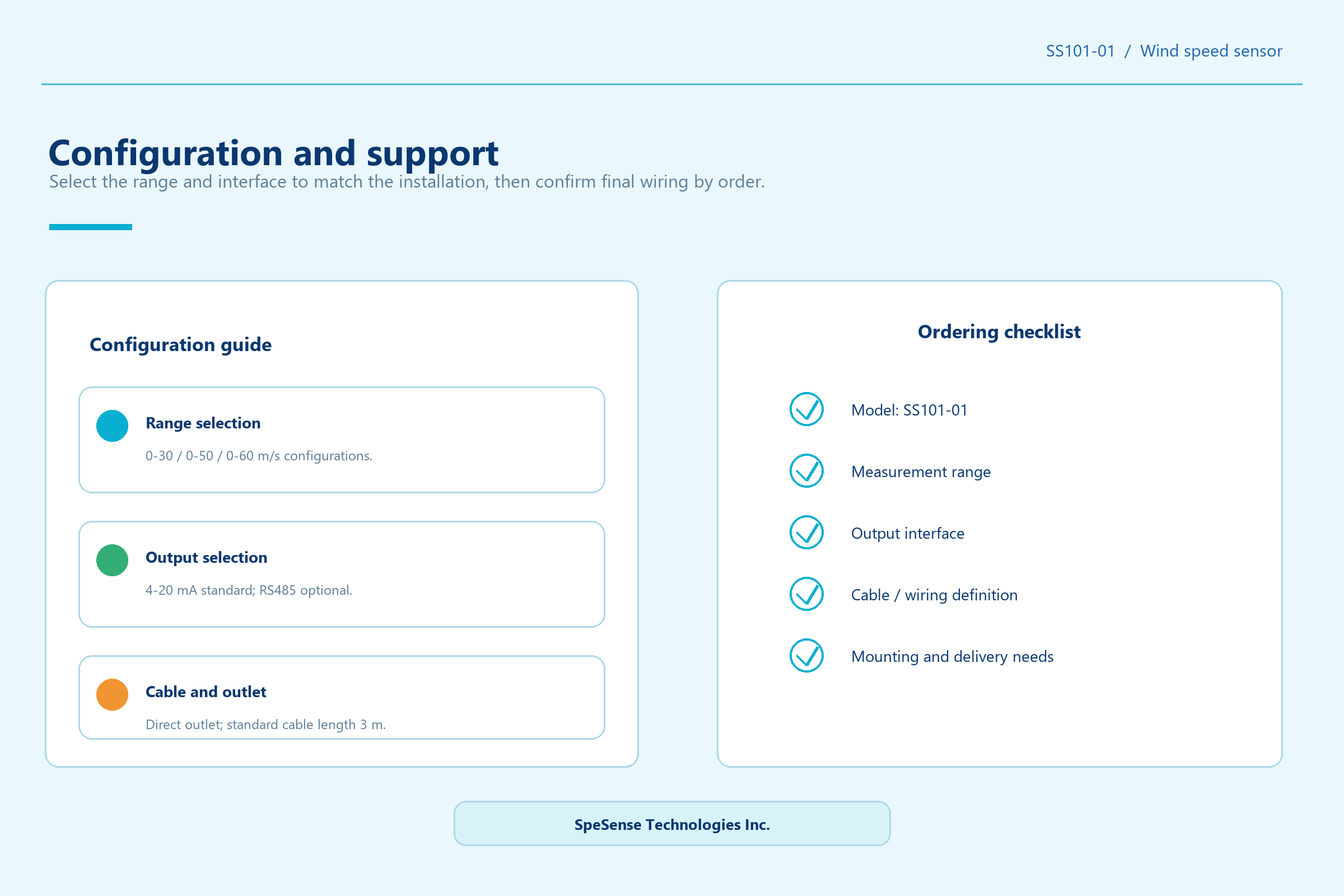

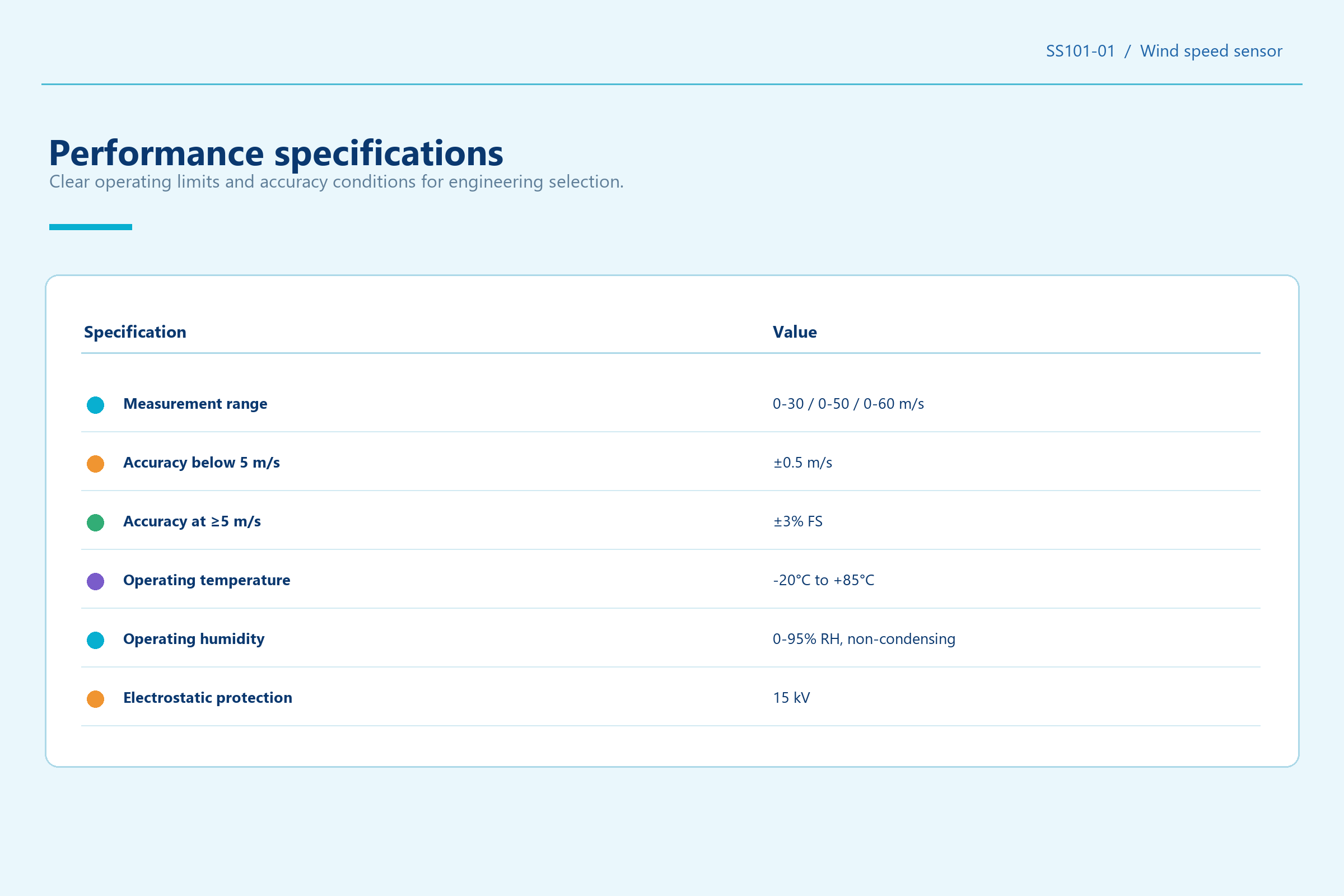

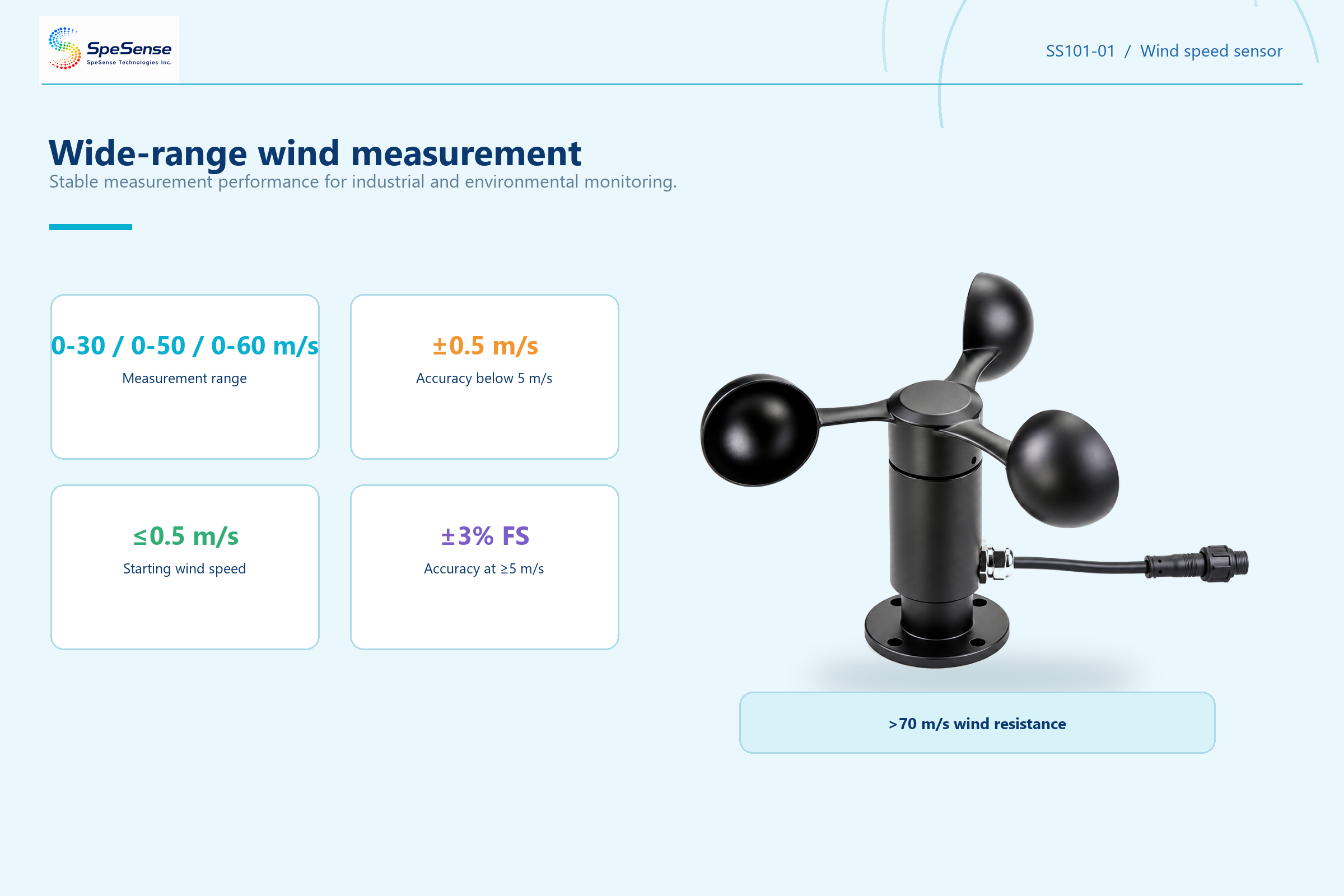

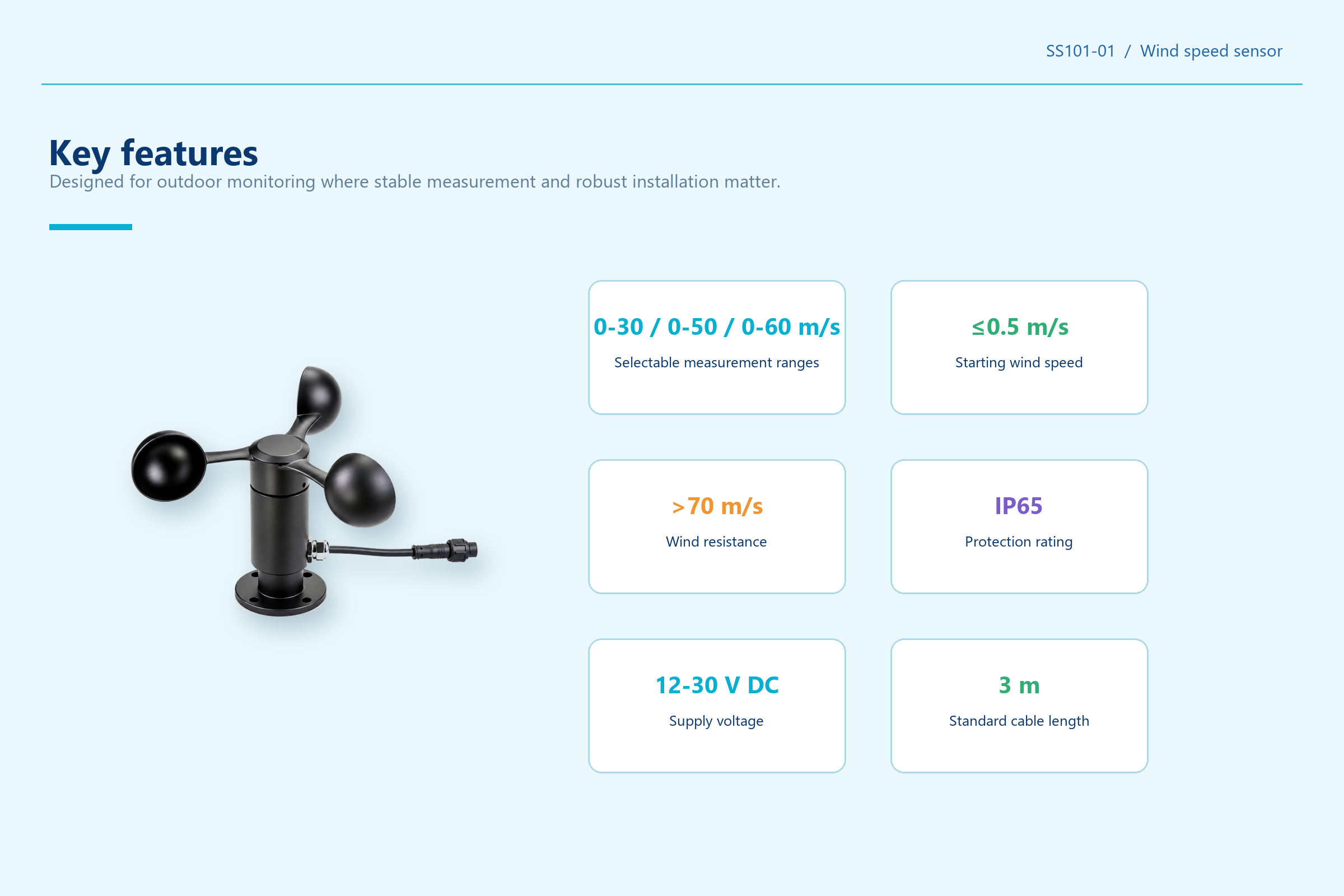

| Measuring range | 0-30 m/s, 0-50 m/s or 0-60 m/s |
| Starting wind speed | ≤0.5 m/s |
| Accuracy | ±0.5 m/s (<5 m/s); ±3% FS (≥5 m/s) |

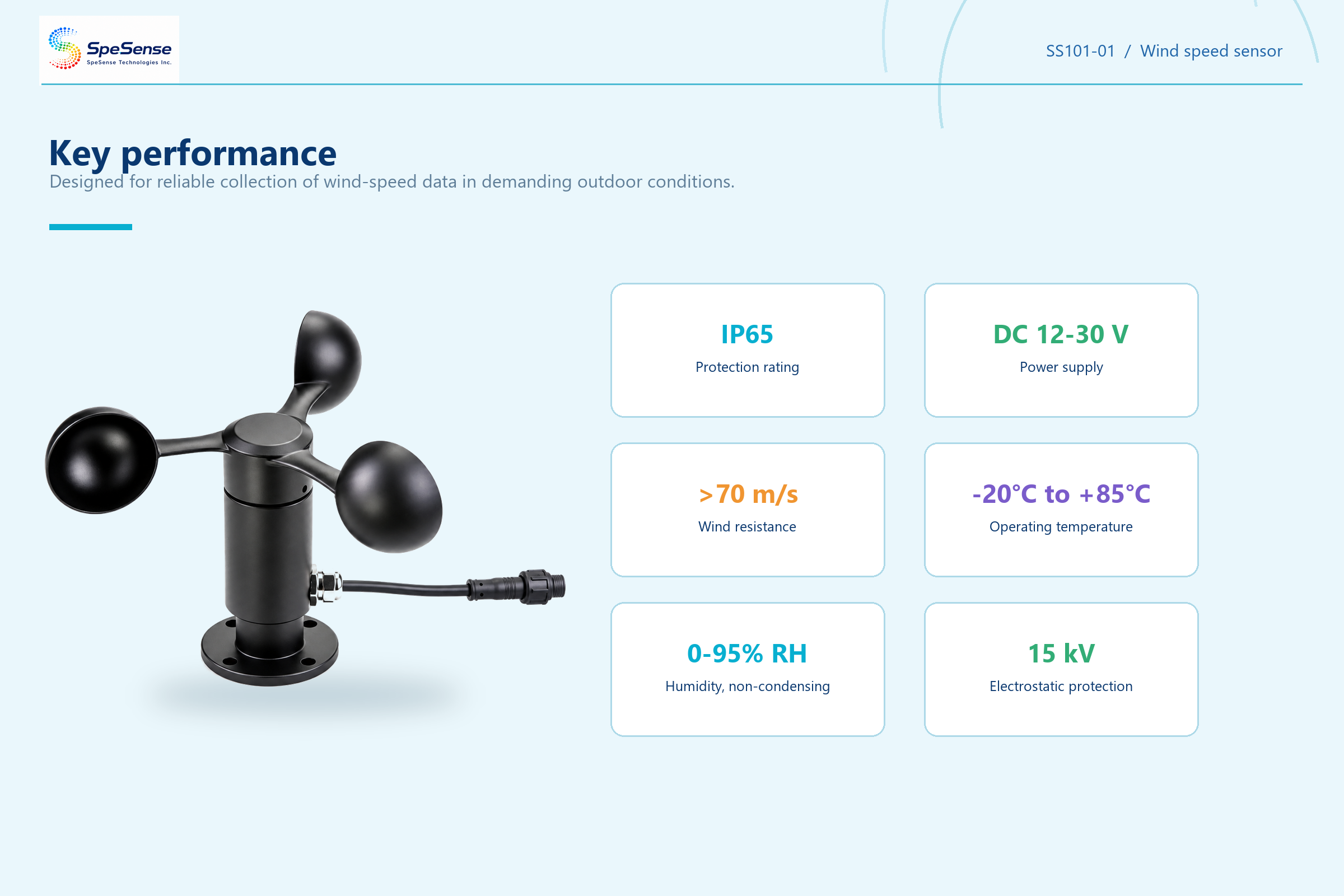

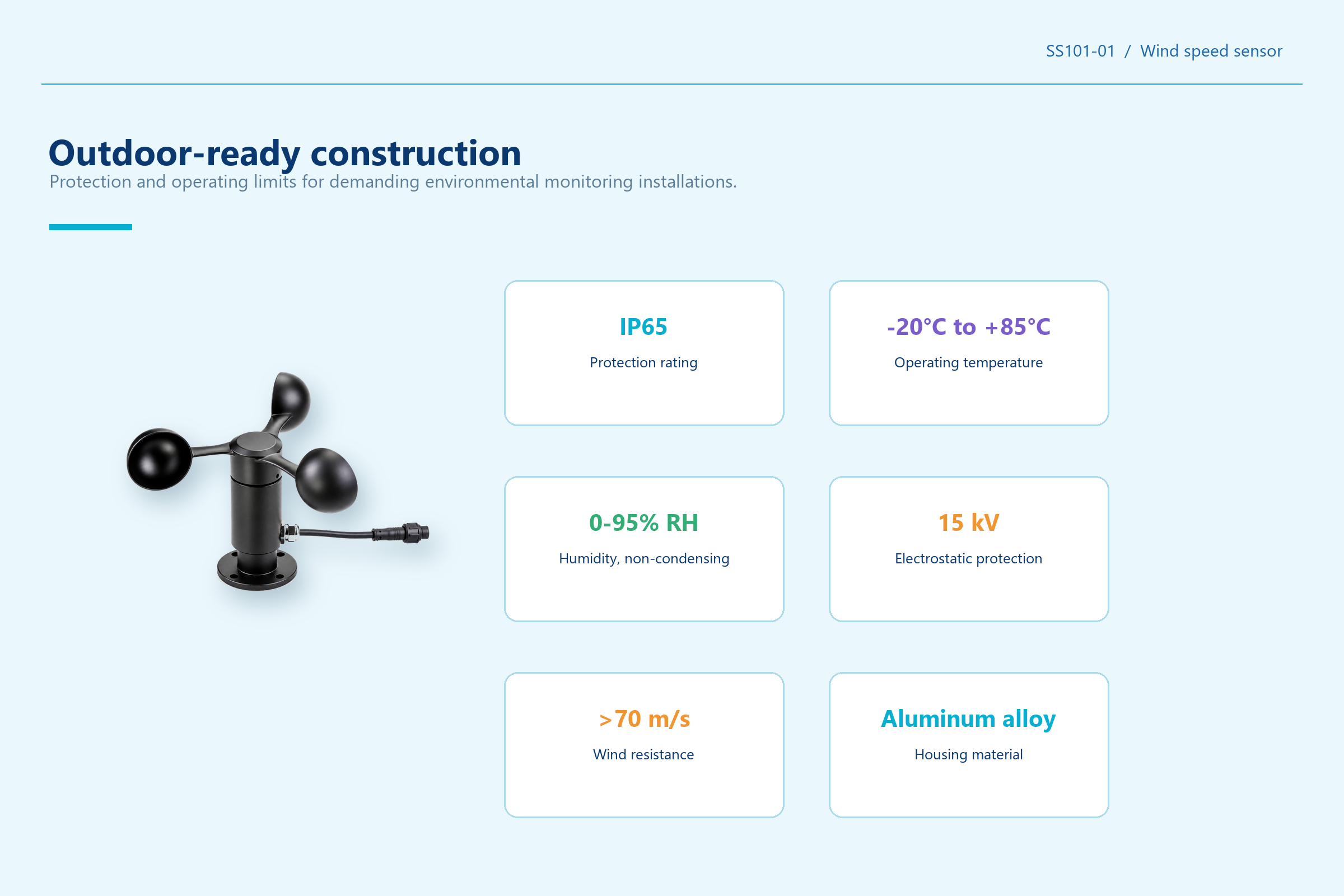

| Wind resistance | >70 m/s |
| Operating temperature | -20°C to +85°C |
| Operating humidity | 0-95% RH, non-condensing |
| Electrostatic protection | 15 kV |
| Protection rating | IP65 |
| Housing / wind cup material | Aluminum alloy / polyester coating |

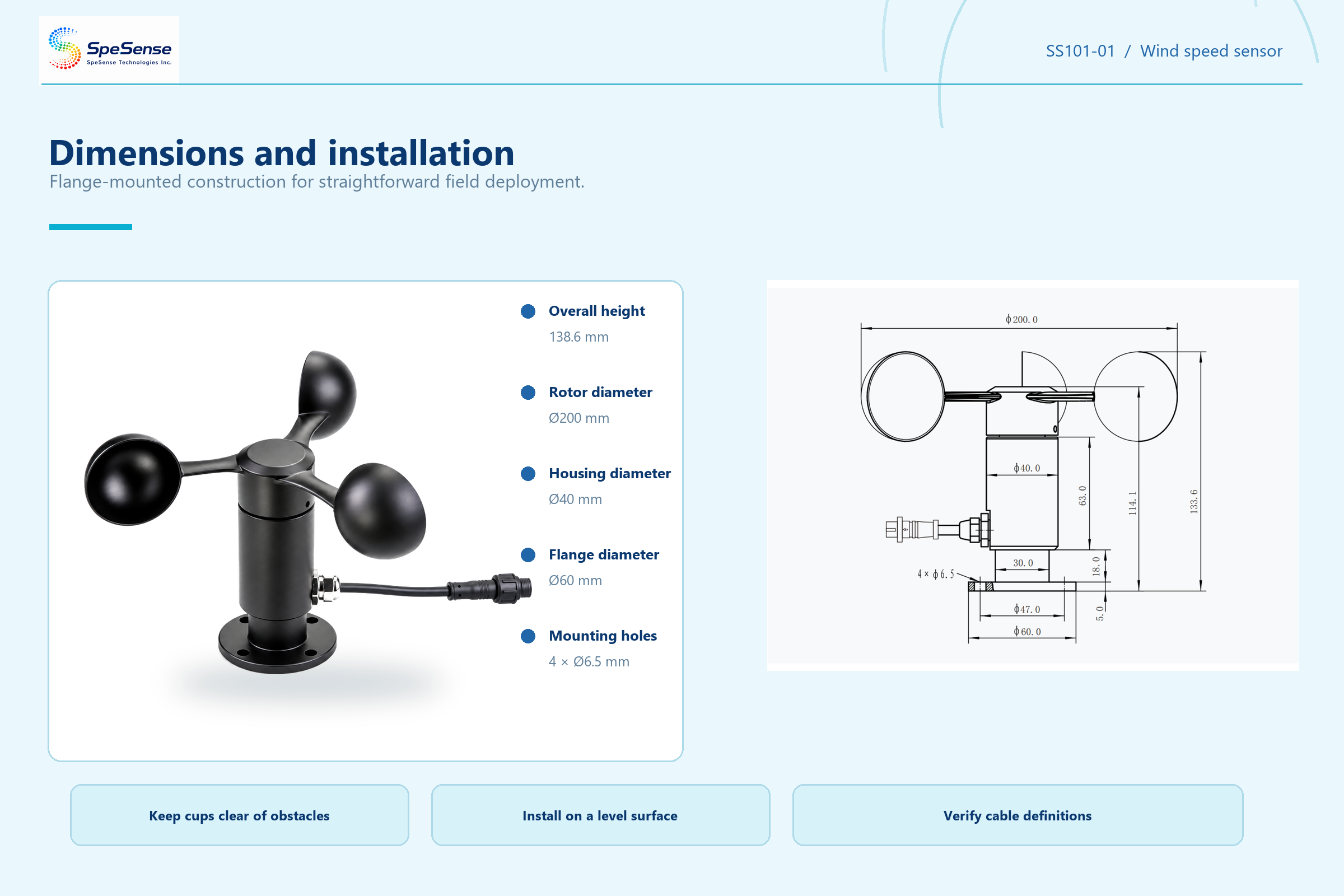

| Electrical connection | Direct outlet; standard cable length 3 m |
