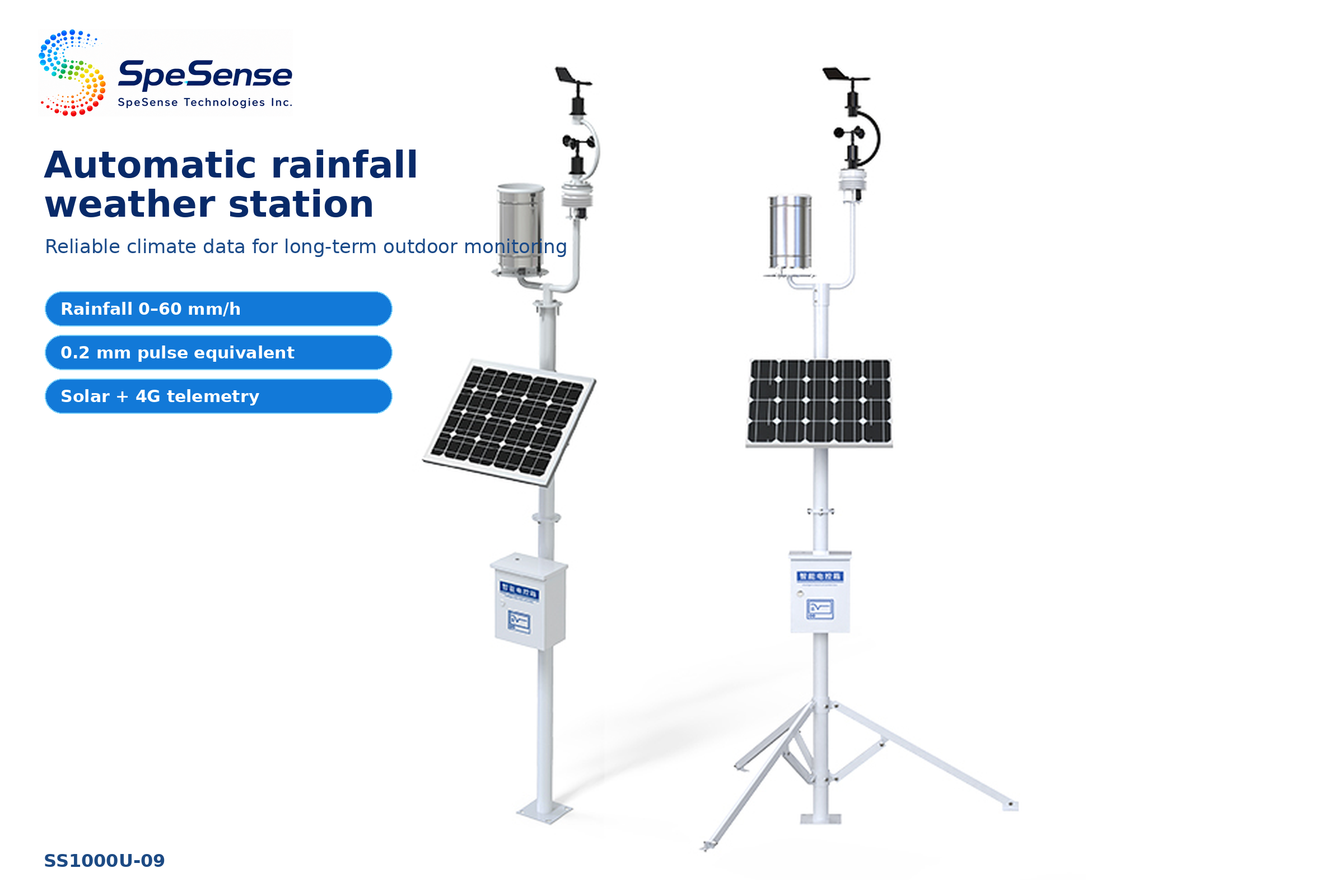

Ultrasonic Weather Station
SS1000U-09
自动雨量气象站
产品亮点
● Solar charging and a wide-temperature gel battery enable unattended deployment.
● 4G automatic upload provides web and mobile access to current data and alarms.

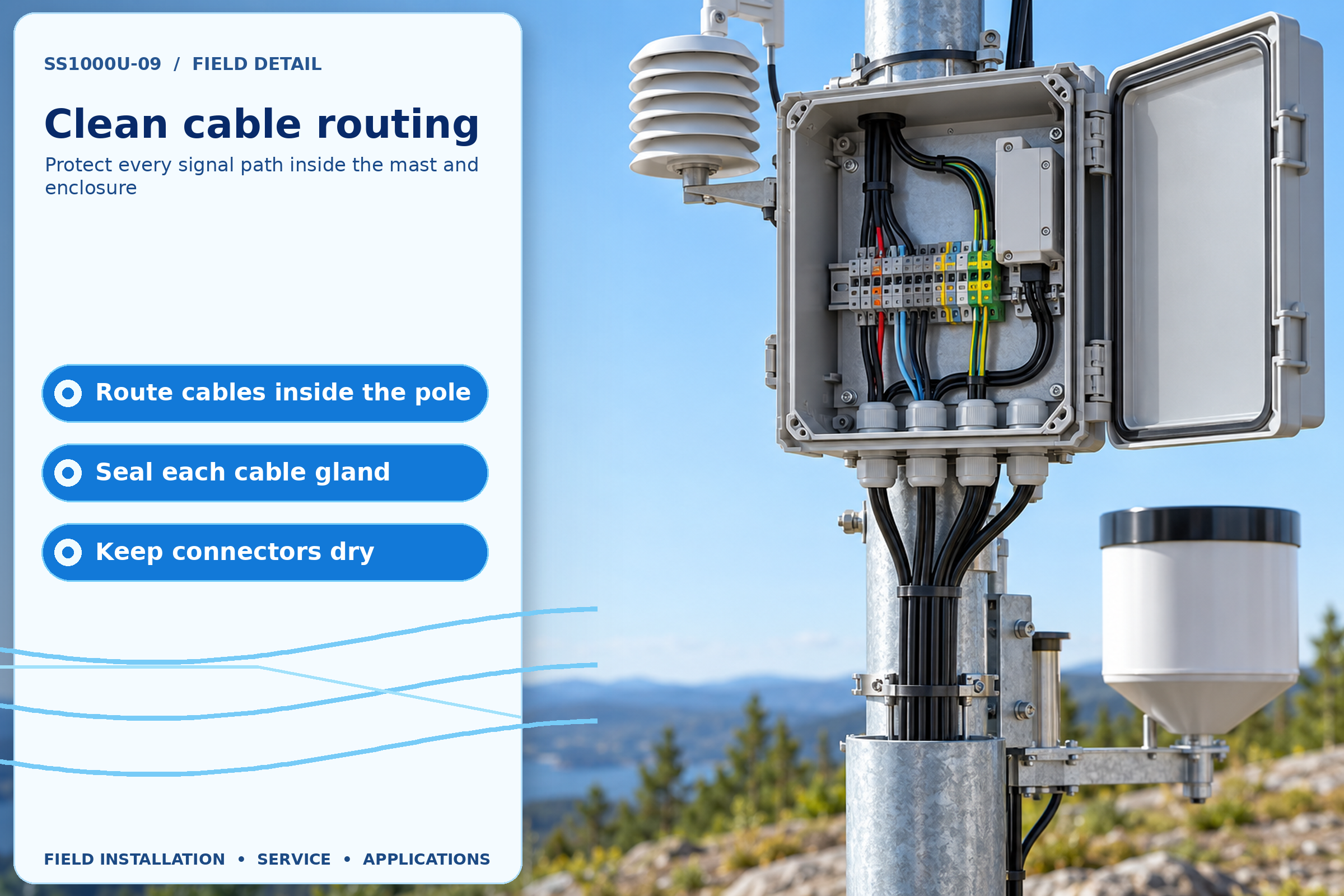

● U-shaped installation design and internal cable routing reduce interference and cable aging.
● 4G automatic upload provides web and mobile access to current data and alarms.
● U-shaped installation design and internal cable routing reduce interference and cable aging.
产品概述

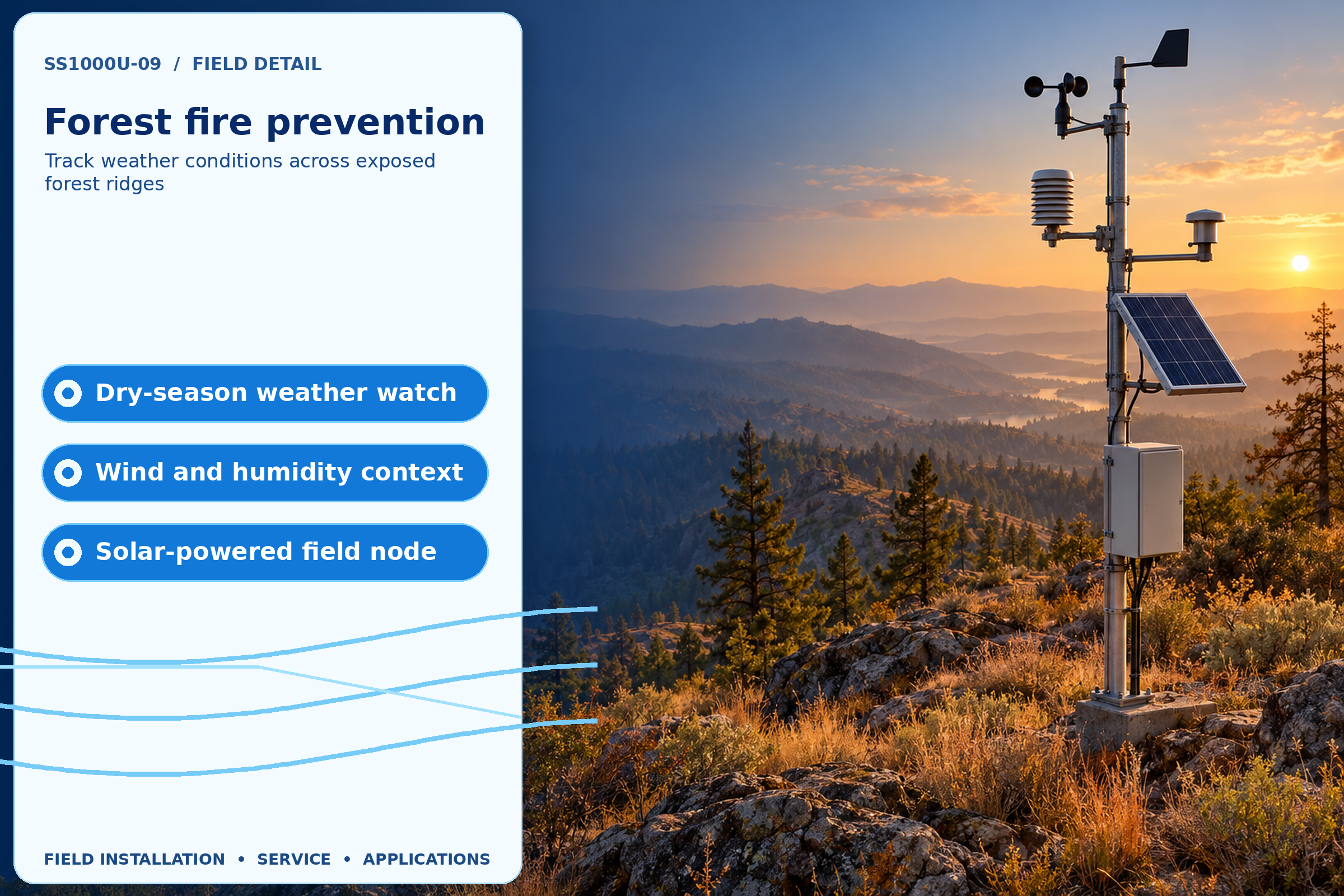

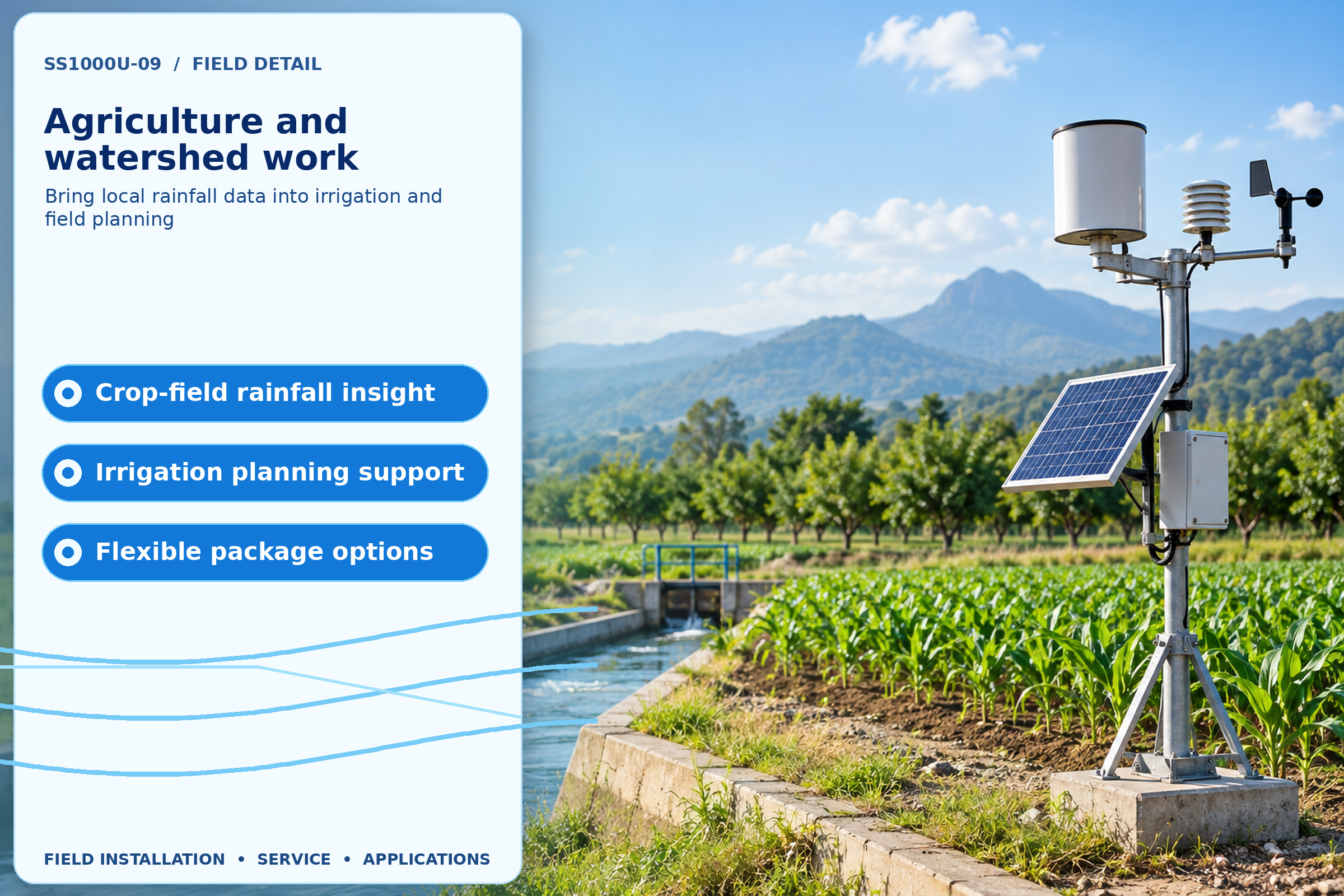

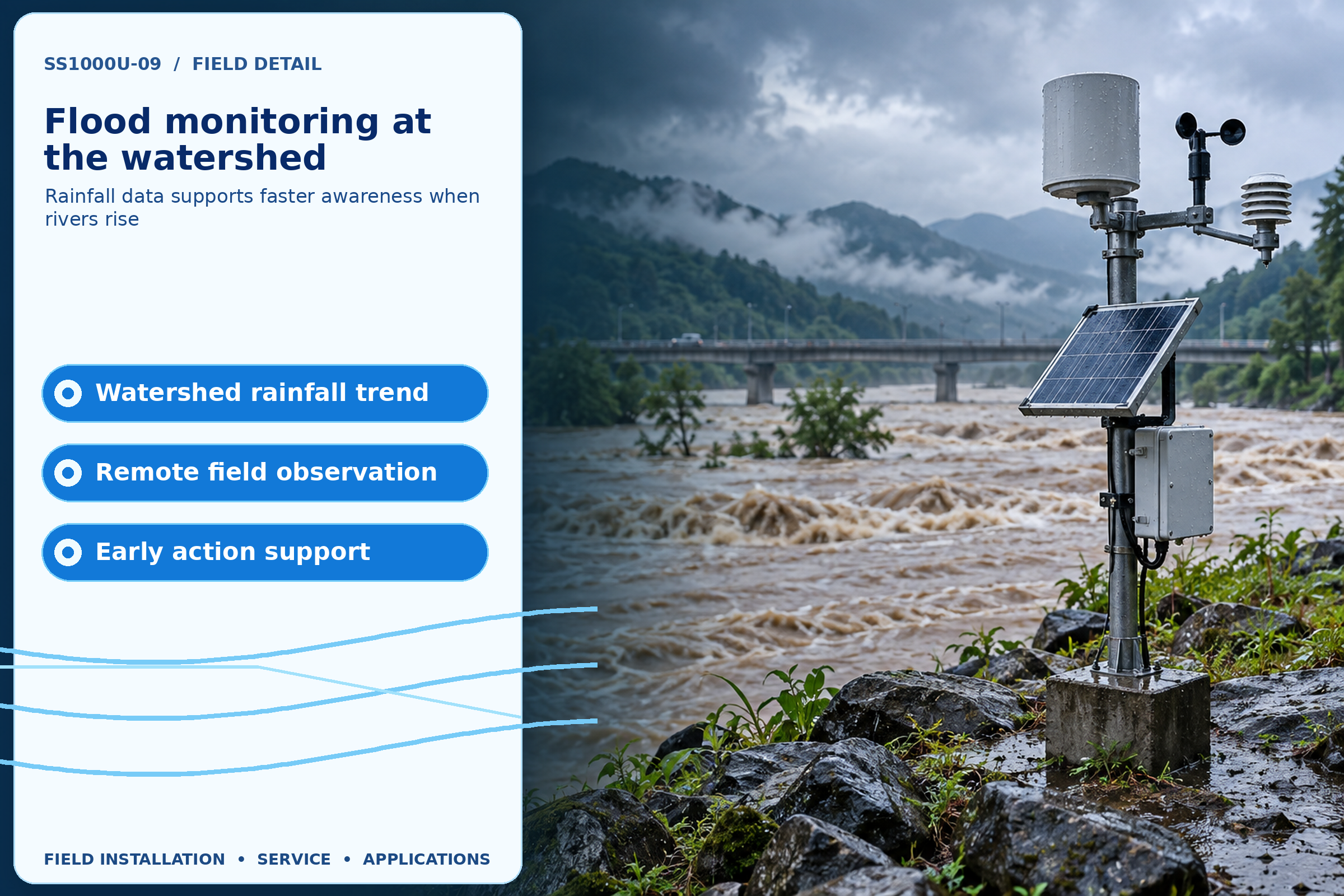

• Designed for long-term outdoor monitoring where grid power is unavailable, including flood, forest-fire and watershed observation.

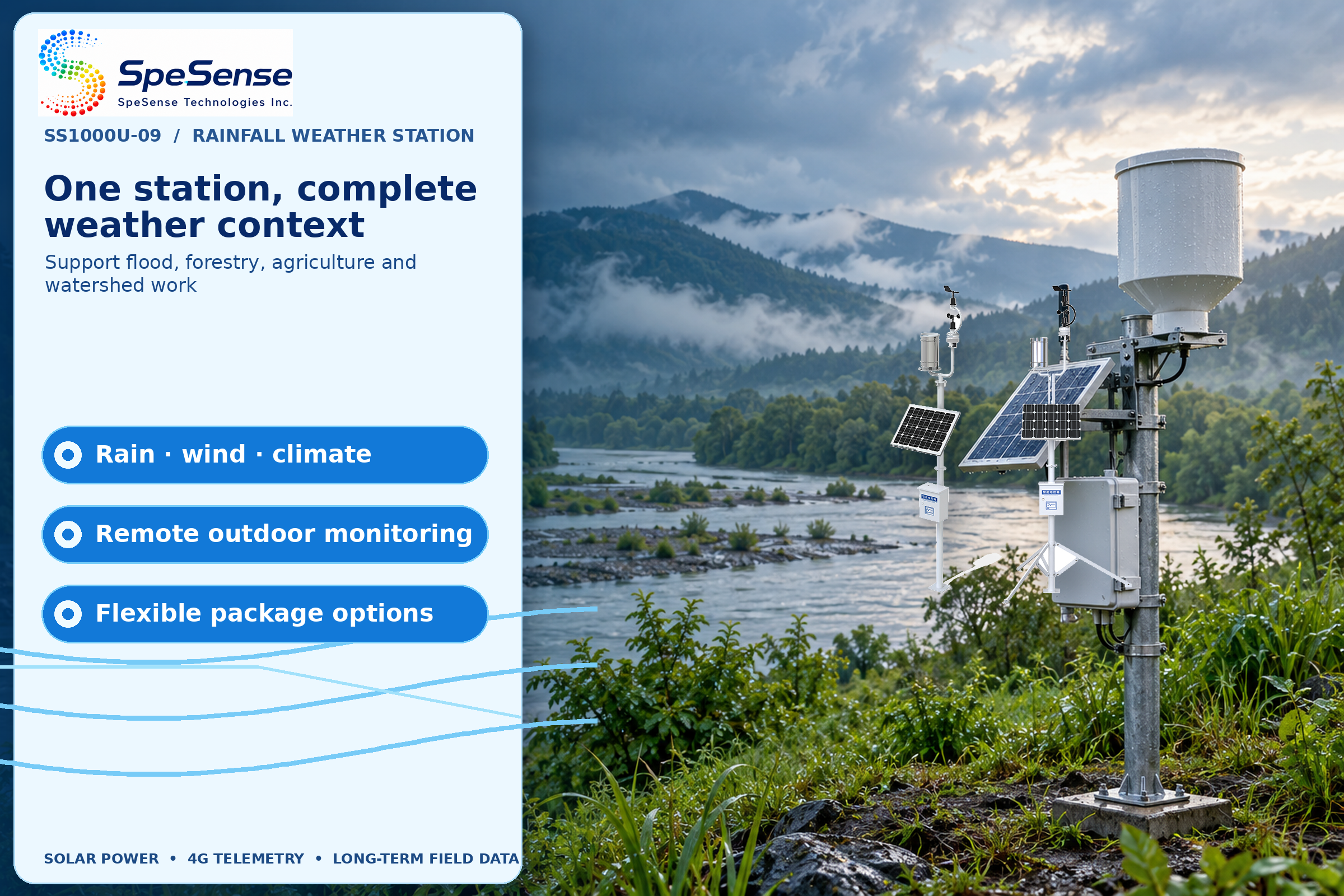

• Collects rainfall, wind speed, wind direction, temperature, relative humidity and atmospheric pressure according to the selected configuration.

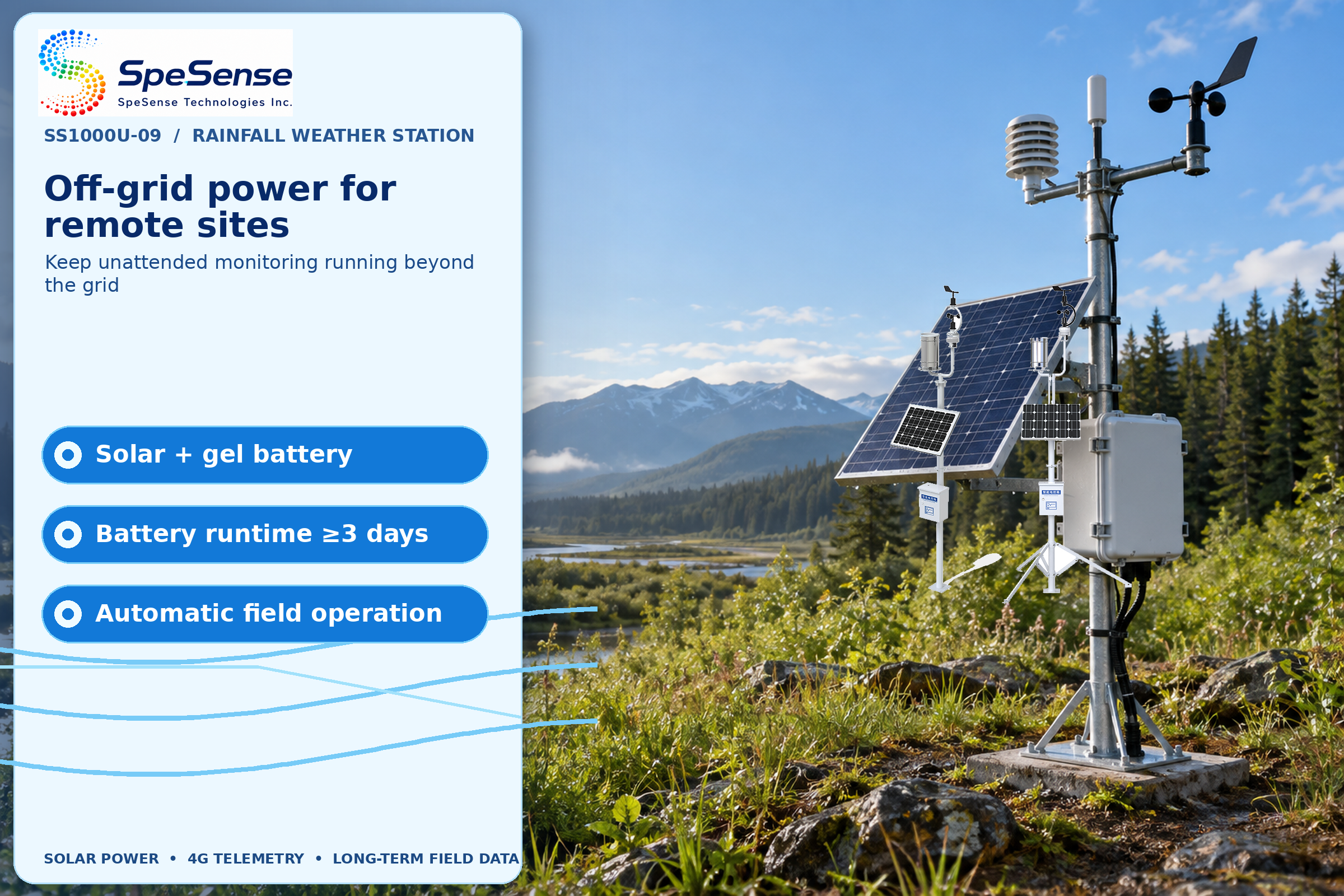

• A solar power system with a wide-temperature maintenance-free gel battery supports autonomous field operation.

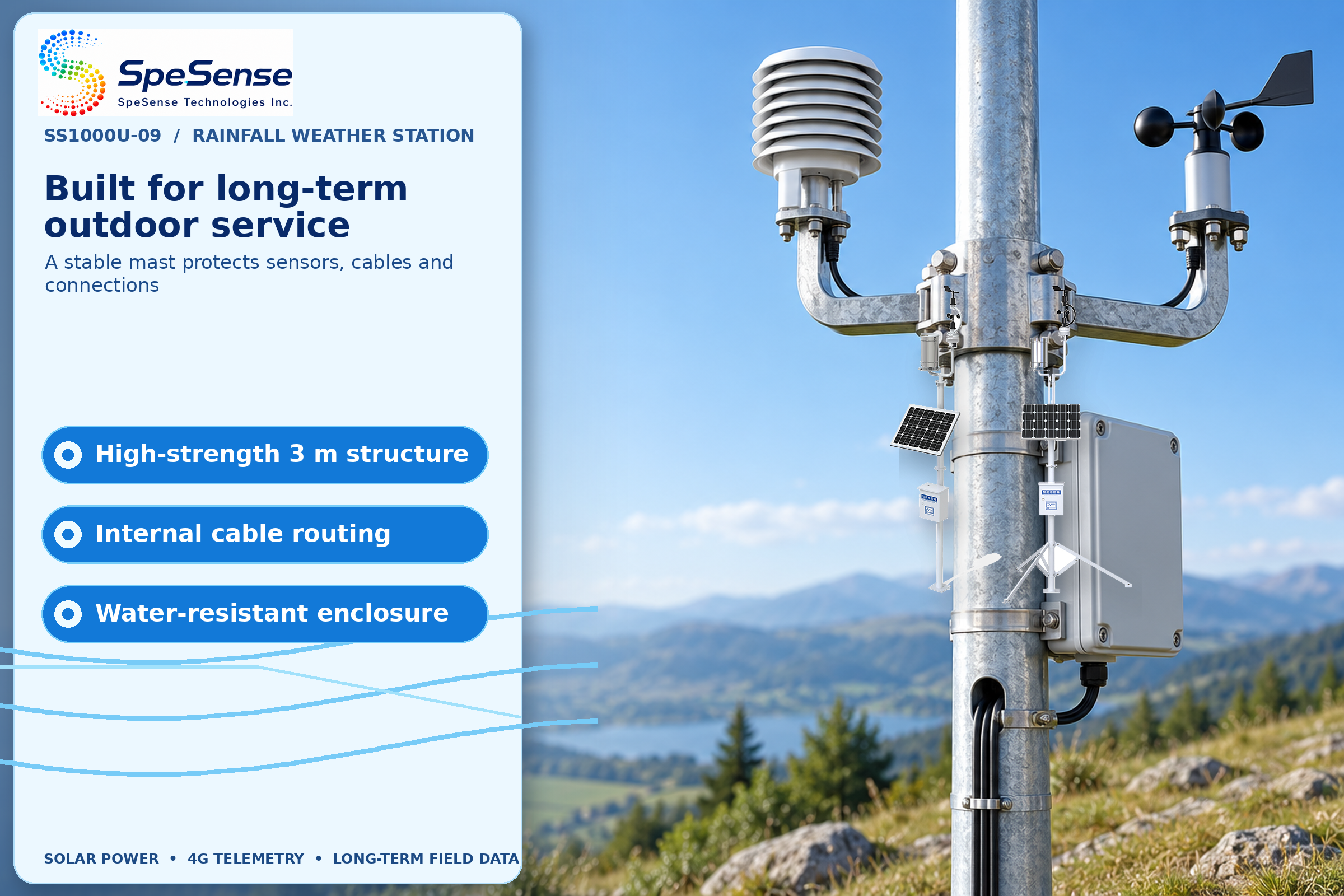

• U-shaped support geometry, a 3 m mounting structure and internal cable routing improve stability and protection in severe weather.
| Measured element | Range / capability | Accuracy / response |

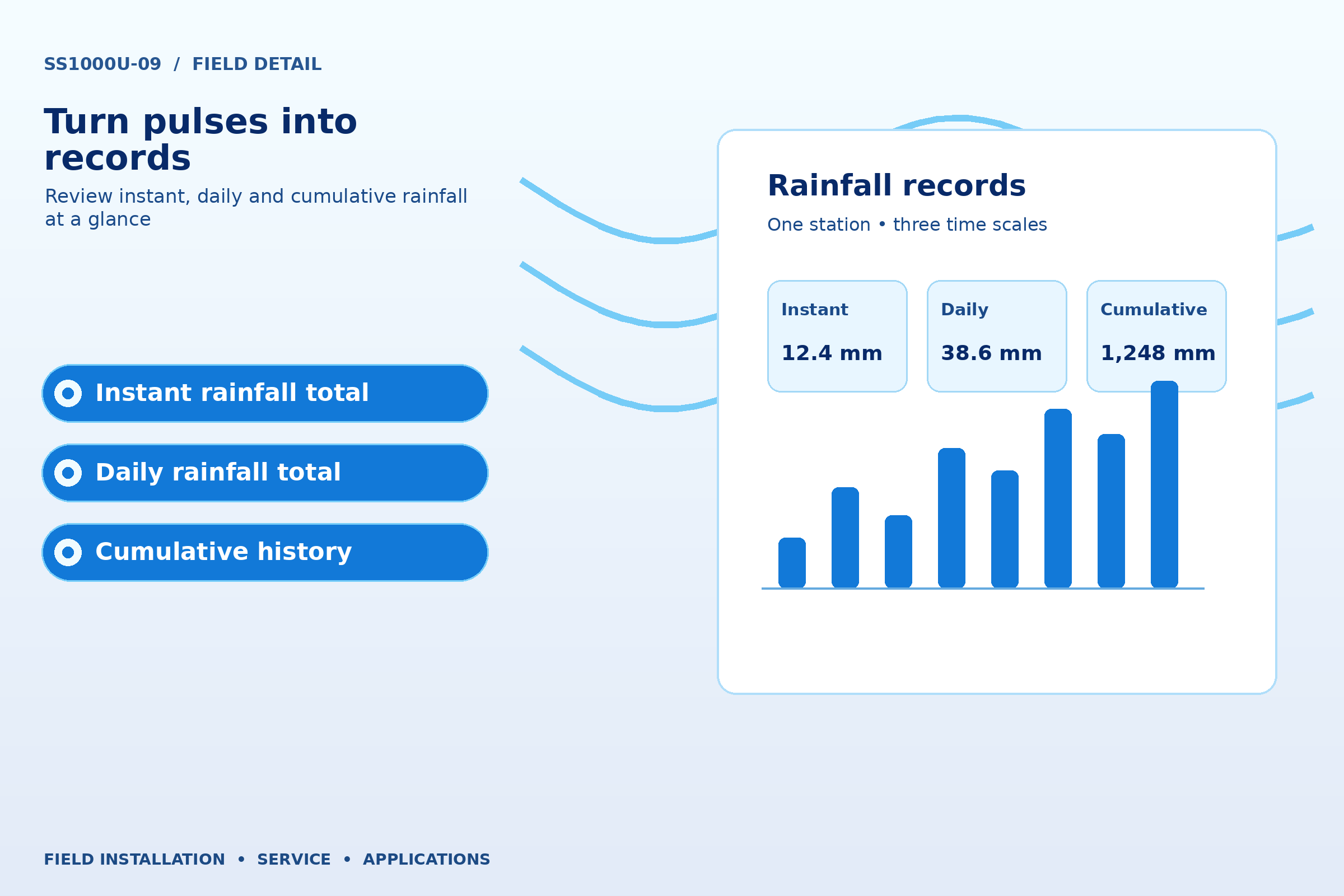

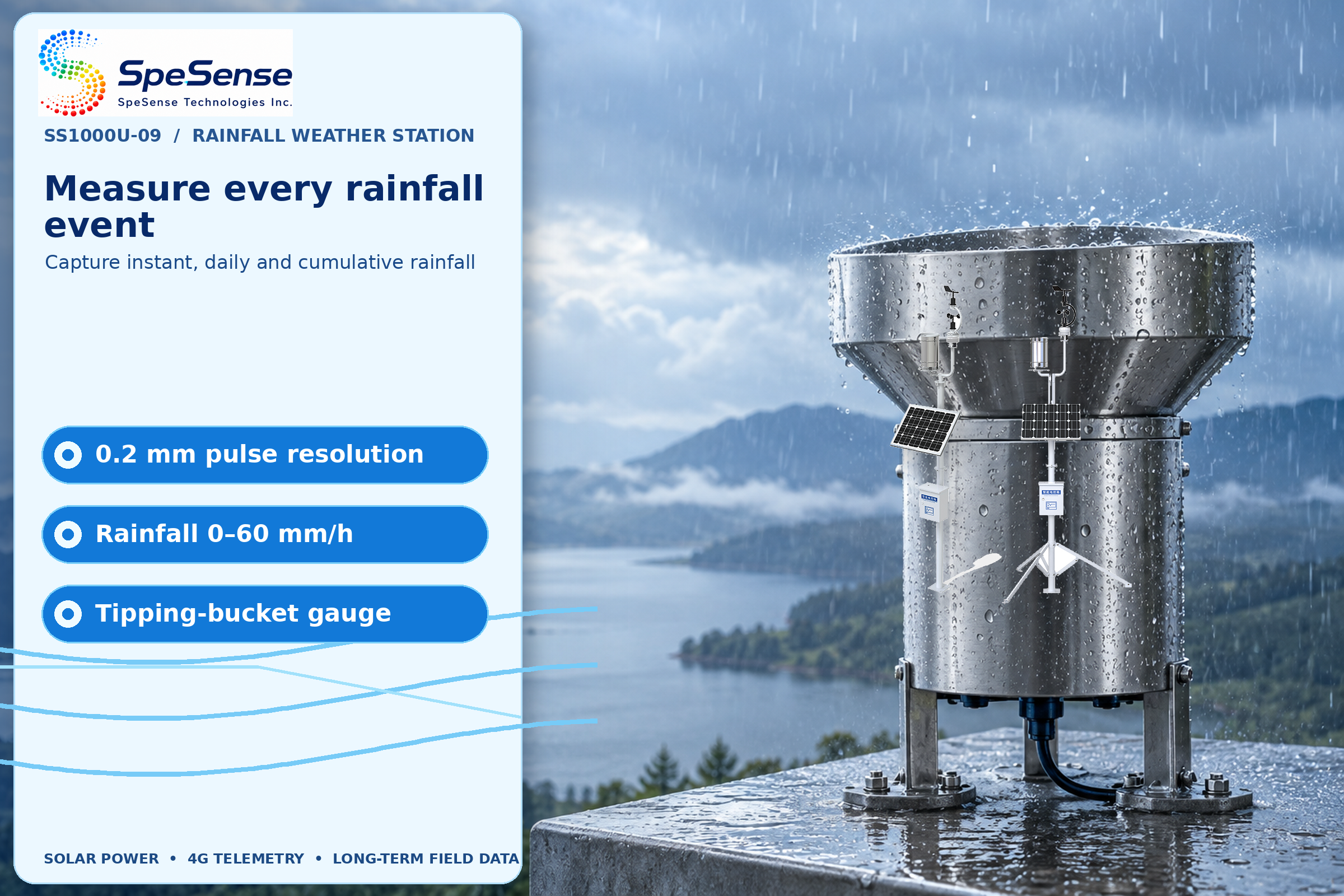

| Rainfall | 0–60 mm/h measurement; 0.2 mm pulse equivalent | Uploads instantaneous, daily, current and cumulative rainfall values |

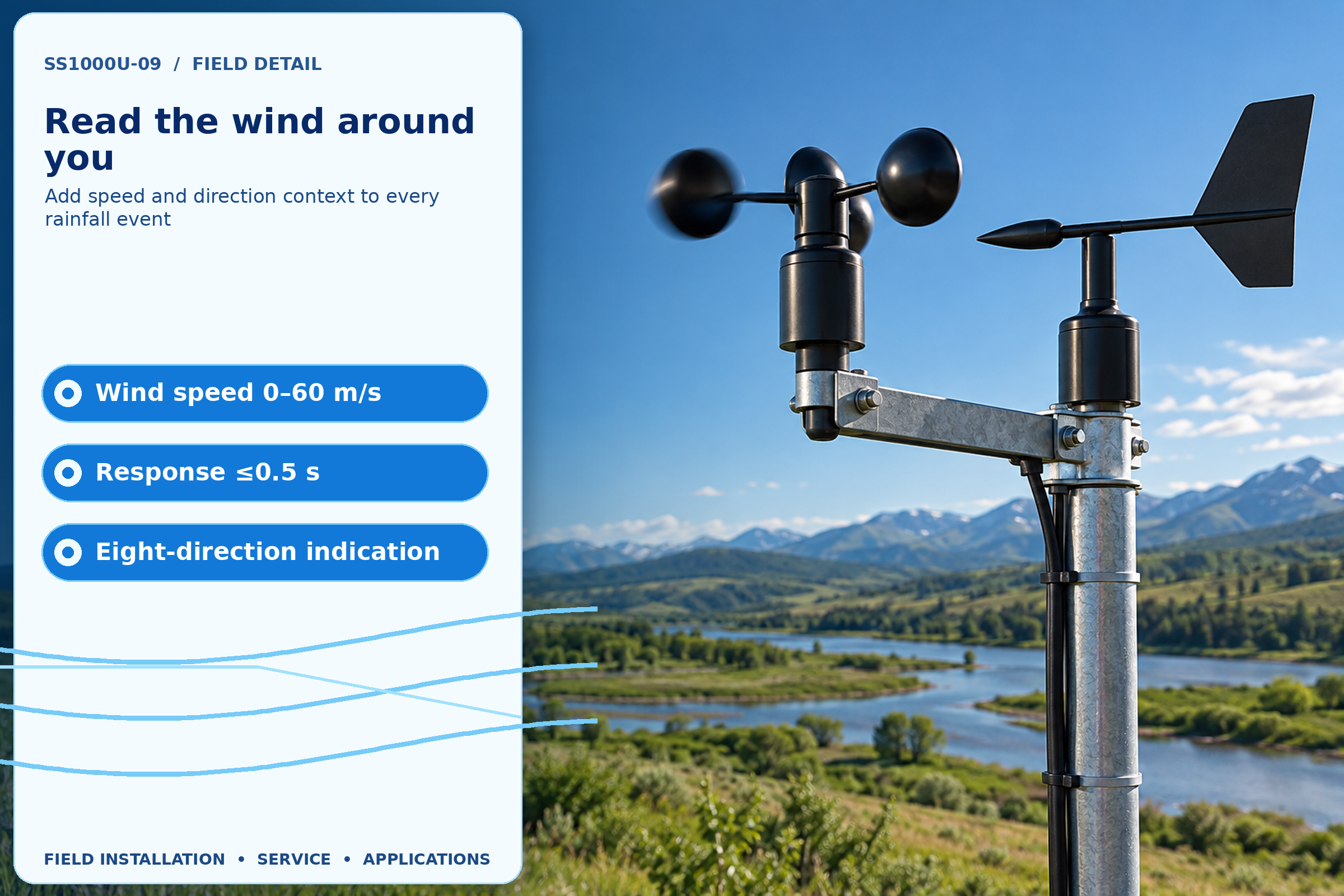

| Wind speed | 0–60 m/s | Accuracy ±0.3 m/s; dynamic response ≤0.5 s |

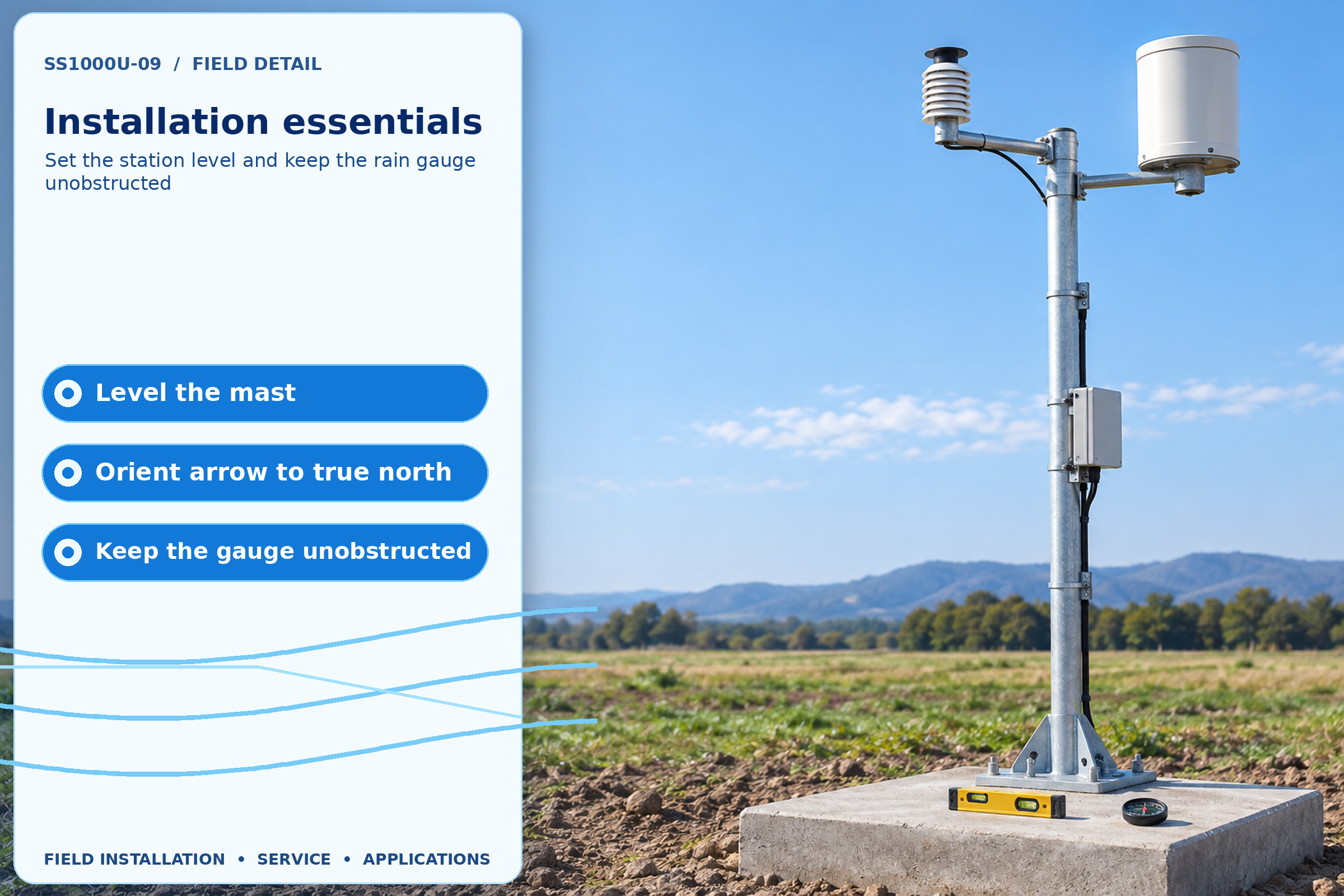

| Wind direction | Eight-direction indication | Point the sensor arrow north during installation |
| Temperature | −20 to +60 °C | Integrated louver-box temperature / humidity module |
| Relative humidity | 0–100%RH | Integrated louver-box temperature / humidity module |
| Atmospheric pressure | 0–120 kPa | Pressure channel from the louver-box module |

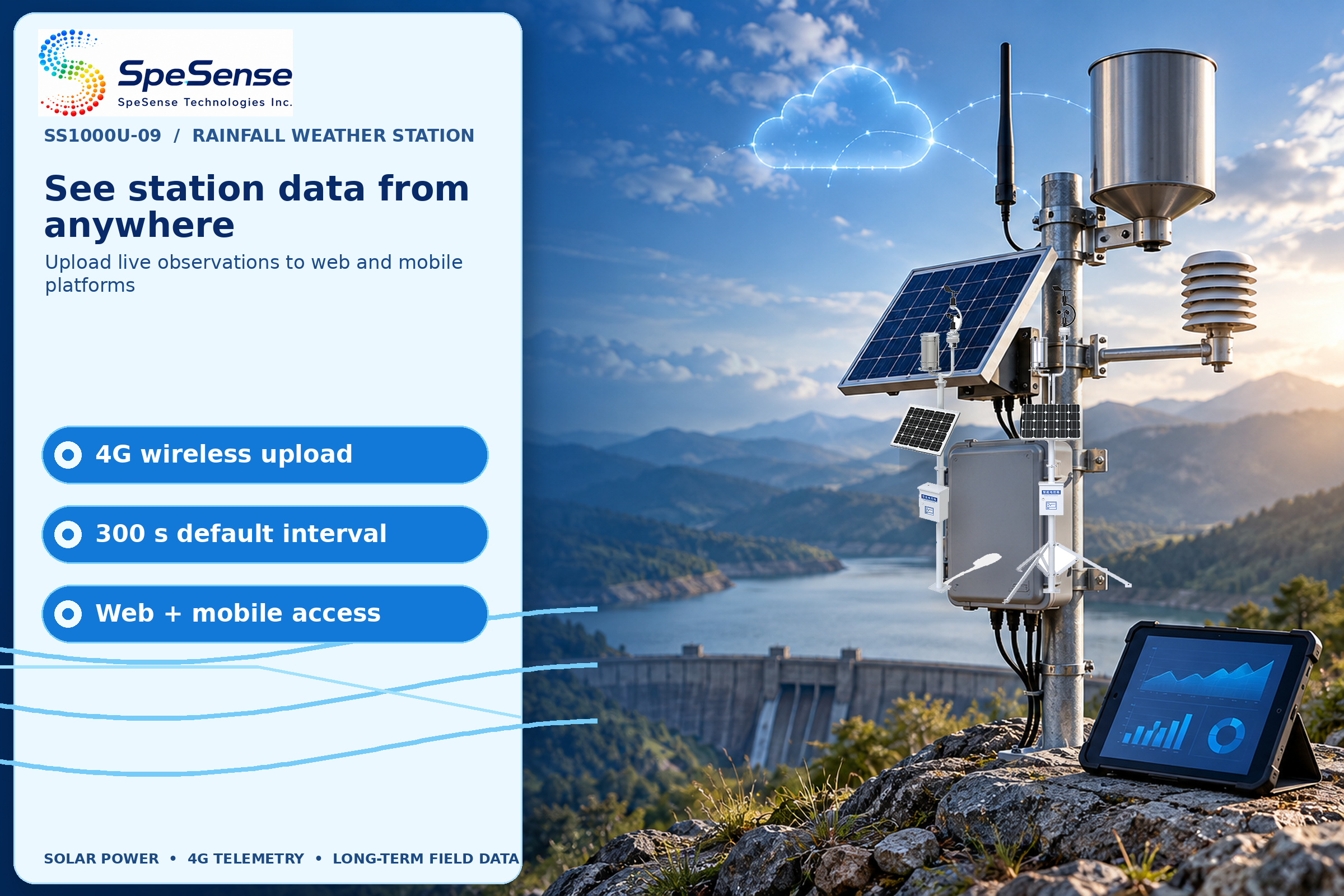

| Data upload | 4G; 300 s default interval | Solar-powered station uploads to the configured monitoring platform |

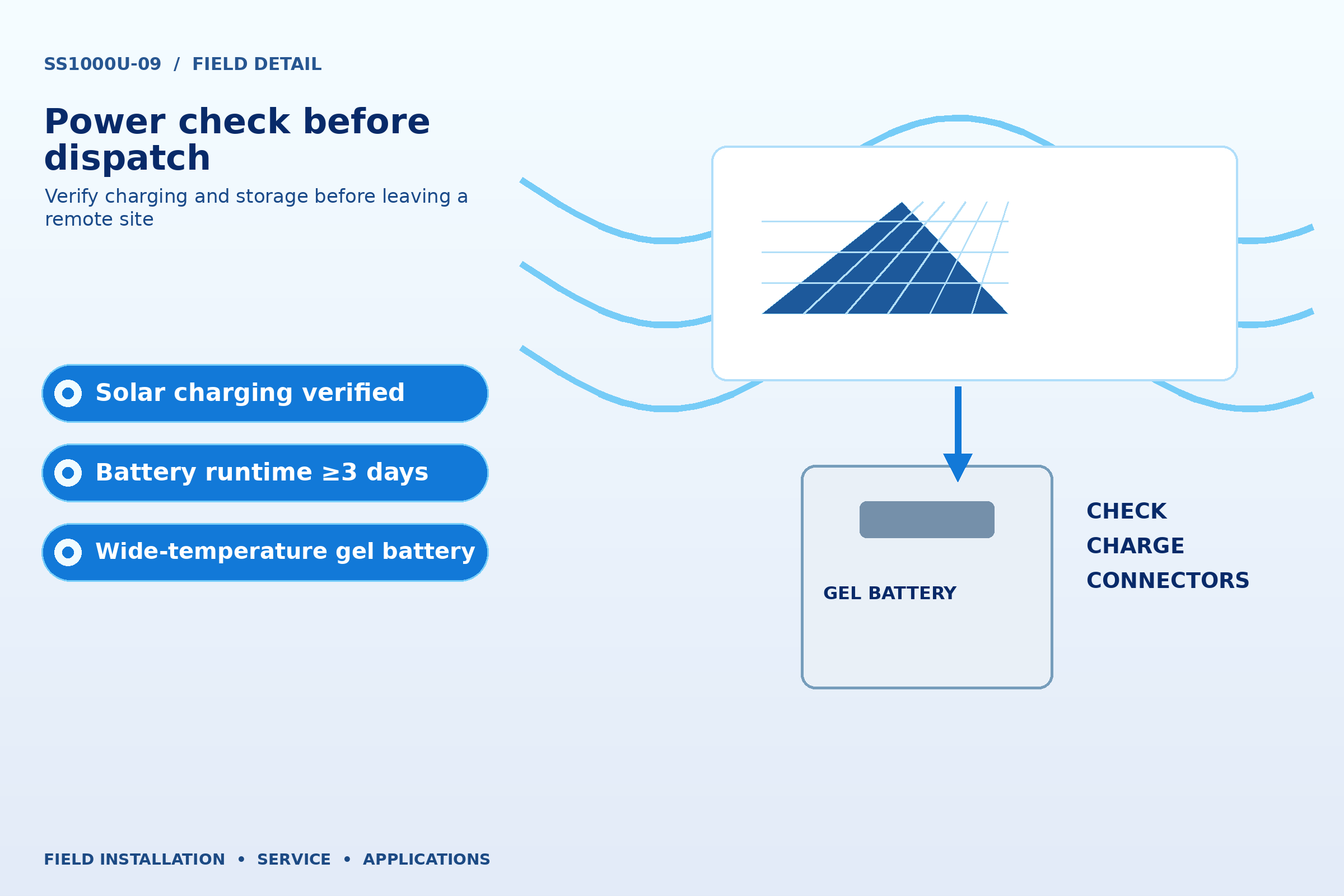

| Power autonomy | Battery runtime ≥3 days | Solar panel and wide-temperature maintenance-free gel battery |
