SS1000U-06
积温光照气象站
产品亮点
● Configurable 20-65535 s upload interval; 300 s default.

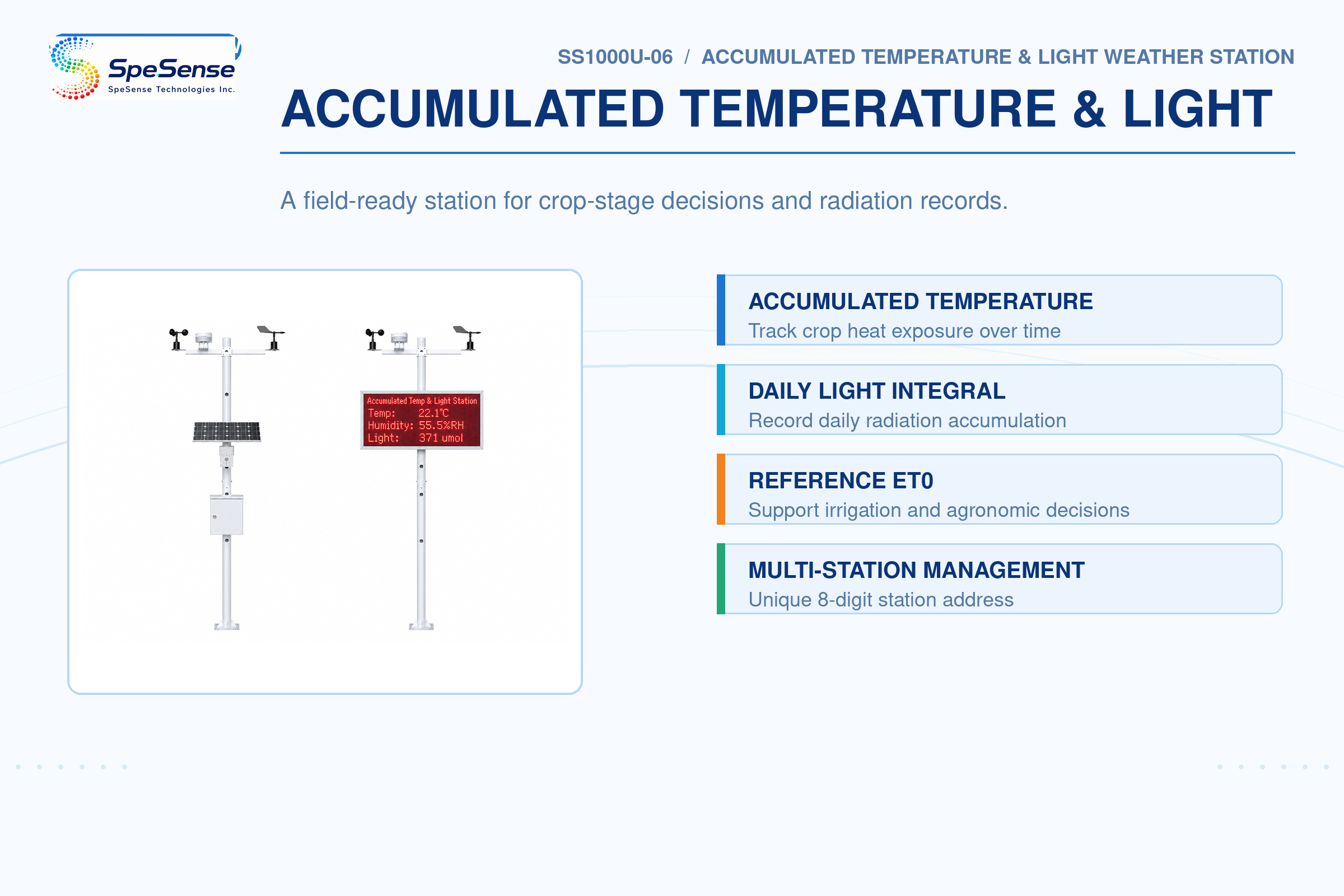

● Accumulated temperature and light calculations for crop growth stages.

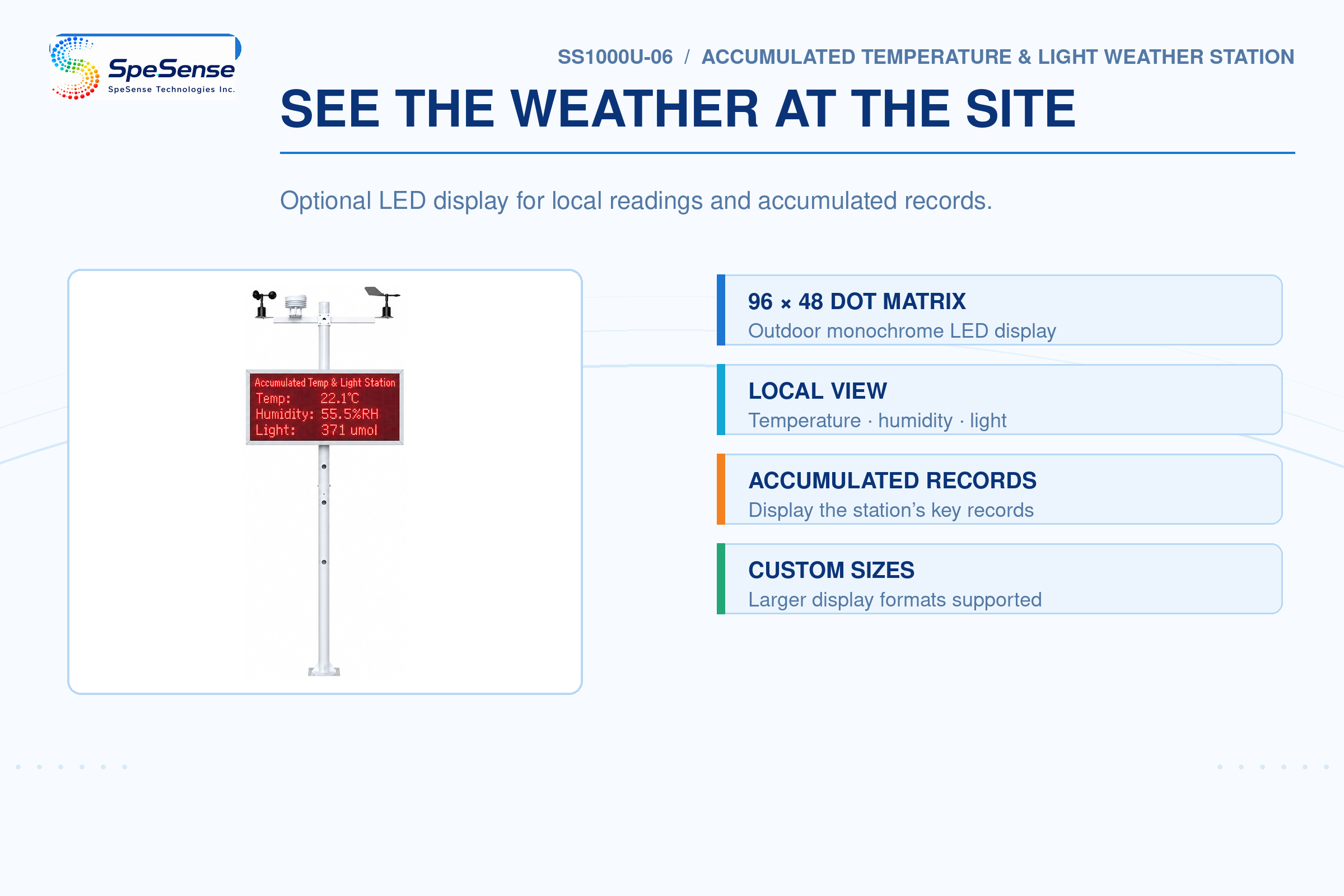

● Optional outdoor monochrome LED display, default 96 × 48 dots.
● Unique 8-digit device address for multi-station management.
● Accumulated temperature and light calculations for crop growth stages.
● Optional outdoor monochrome LED display, default 96 × 48 dots.
● Unique 8-digit device address for multi-station management.
产品概述

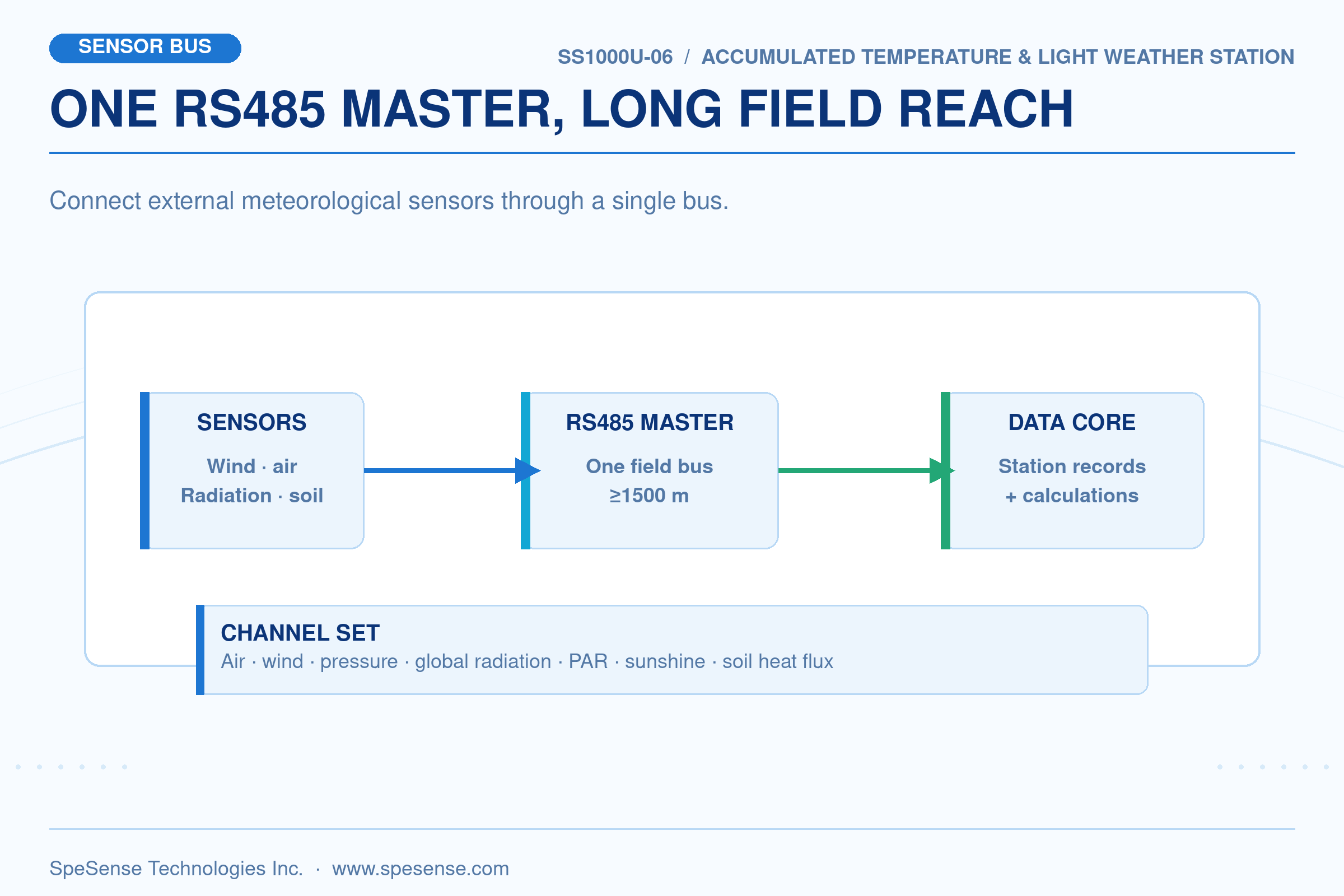

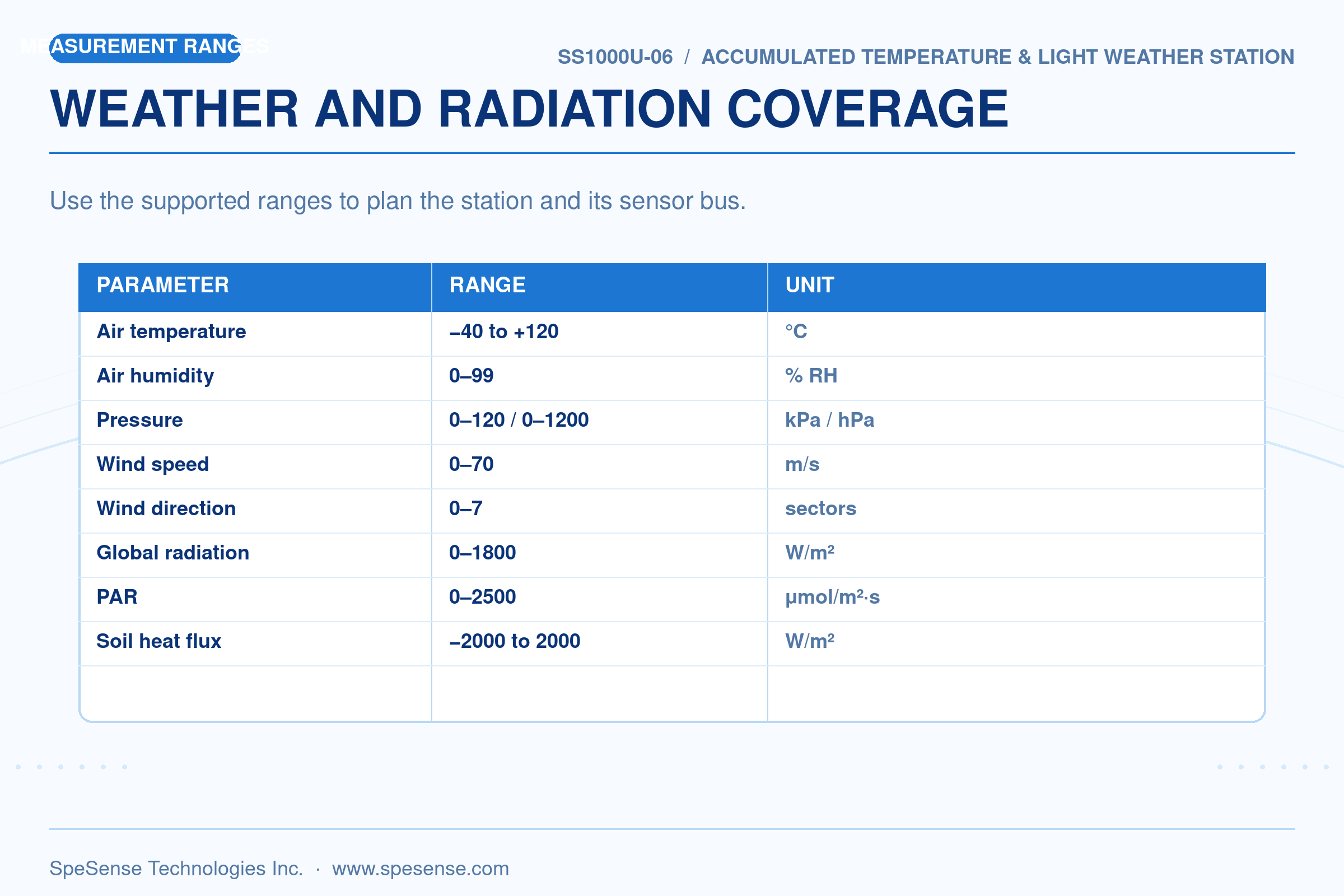

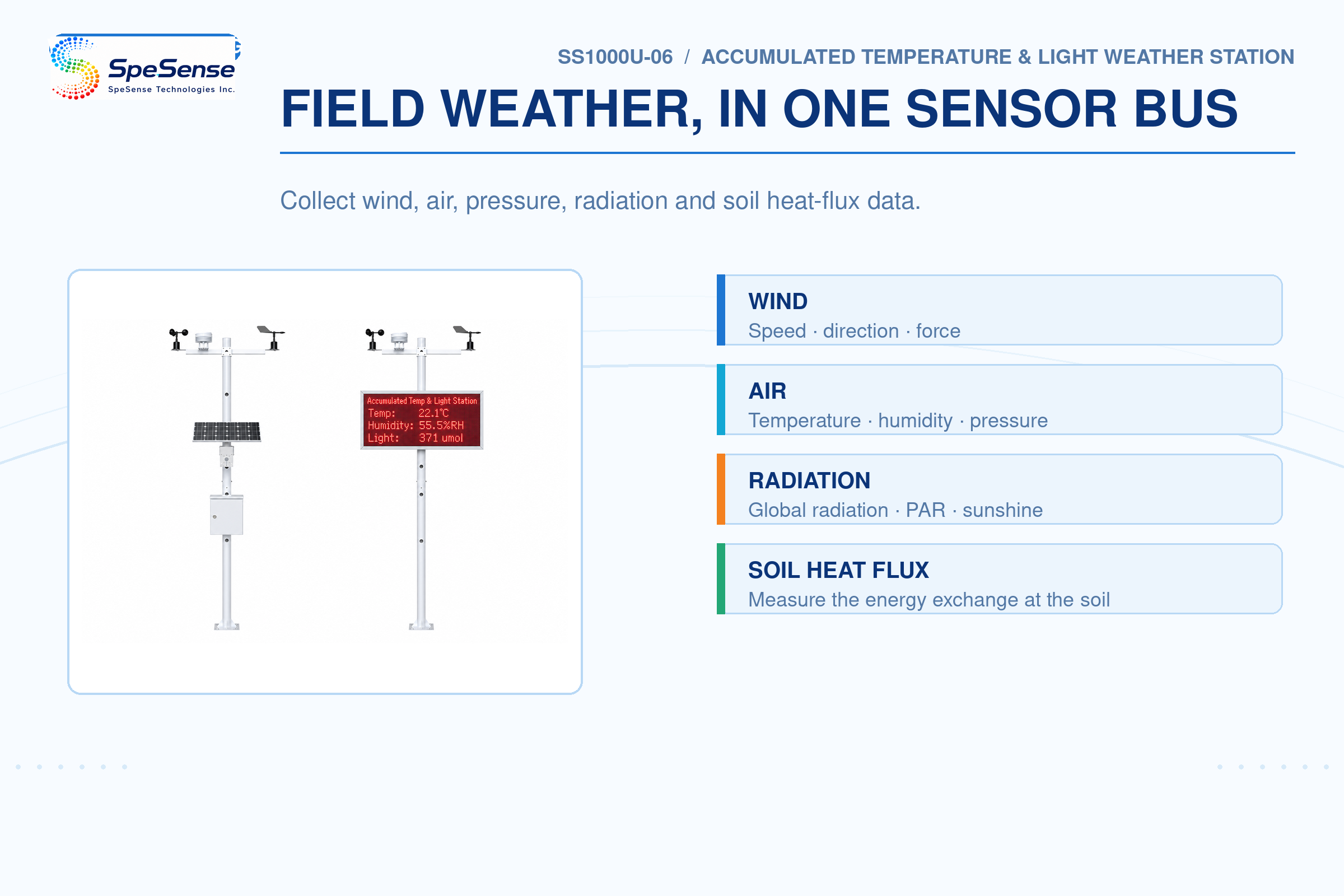

• Collects air, wind, pressure, radiation and soil heat-flux data through one RS485 sensor bus.

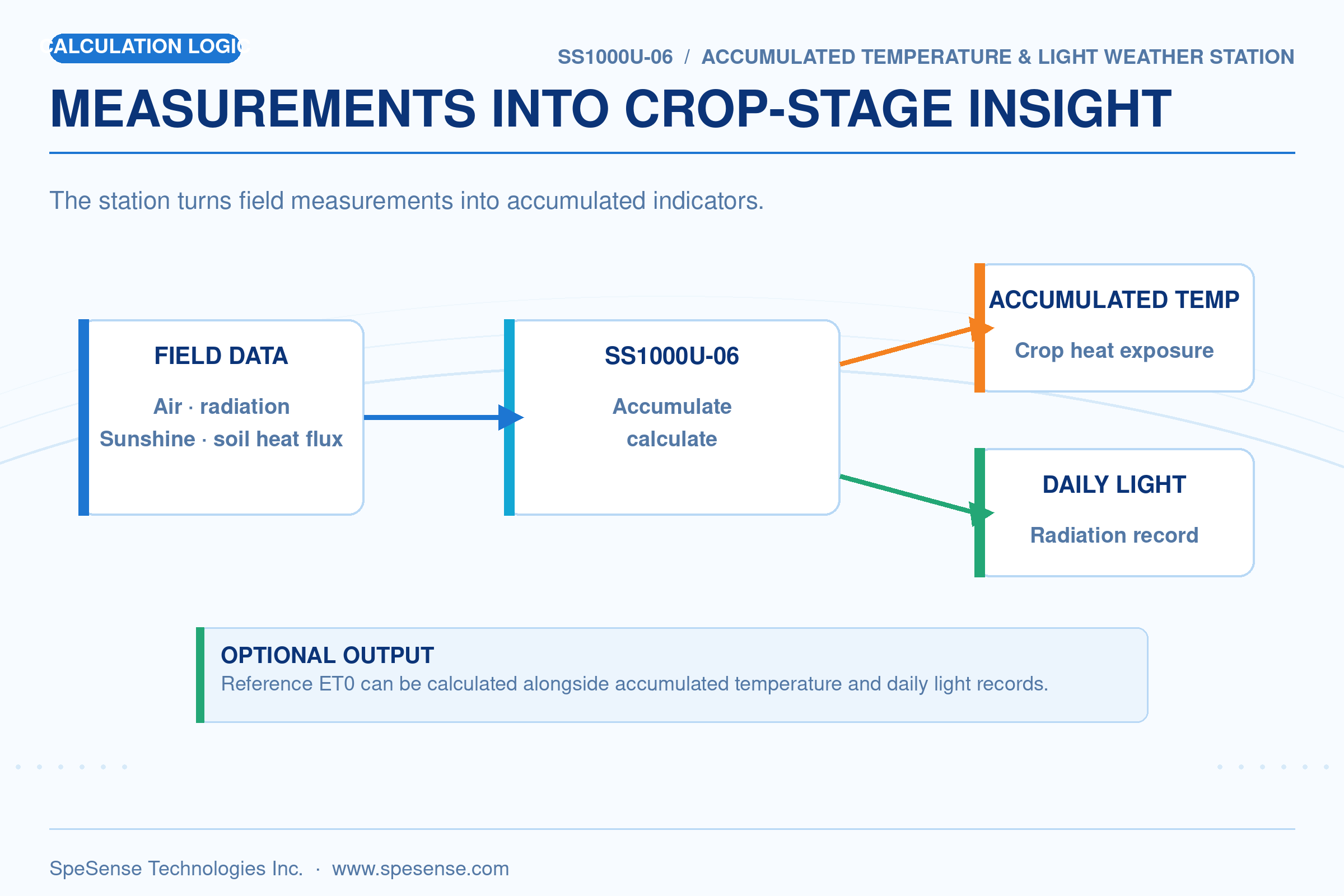

• Calculates accumulated temperature, daily light integral and reference ET0 from the measured data.

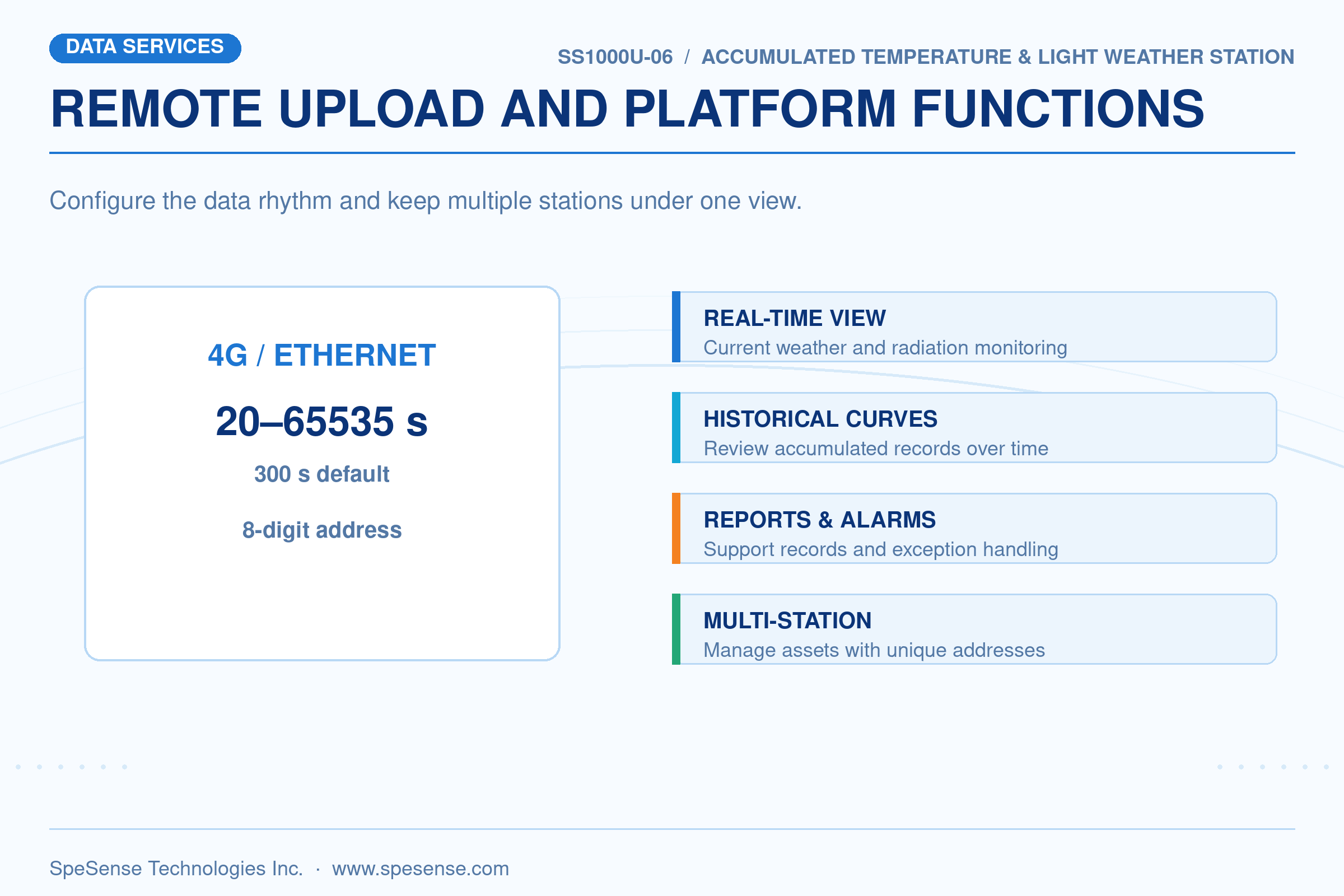

• Uploads measurements to a remote platform and exposes the data through a Modbus-RTU slave interface.

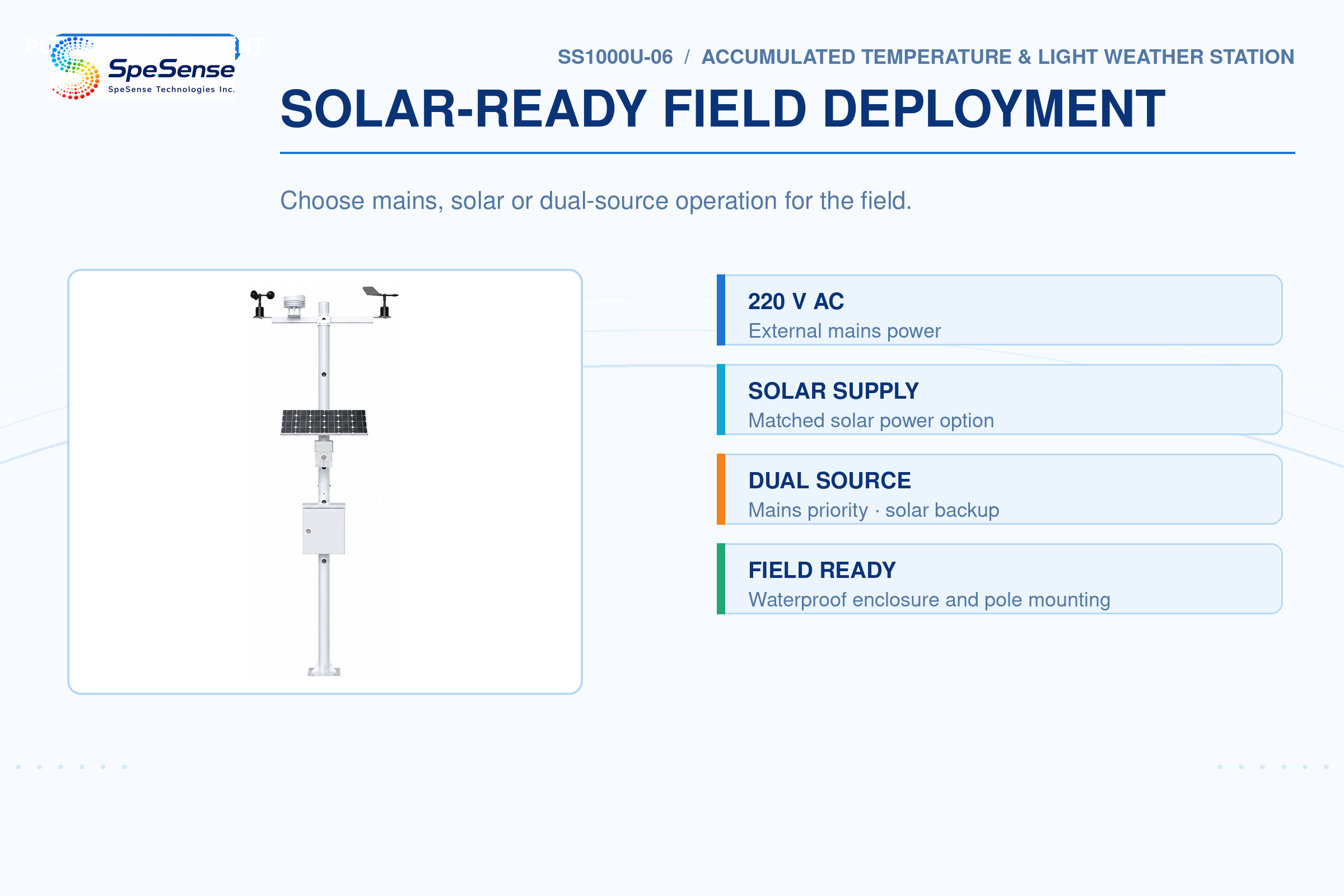

• Supports mains power, solar power or uninterrupted dual-source operation for unattended field use.
| Item | Specification |

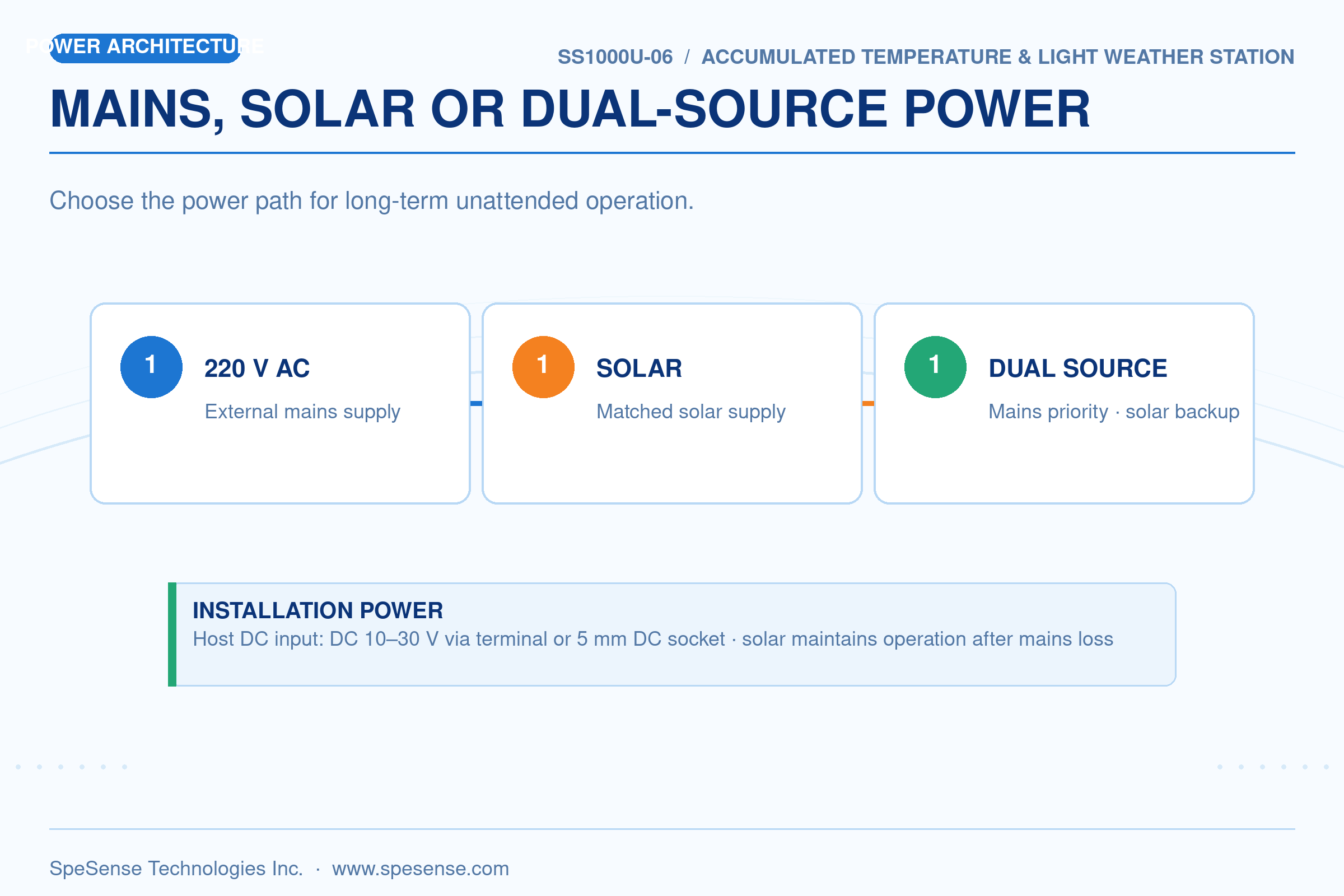

| System Power Options | 220 V AC external power, matched solar supply, or dual supply |
| Dual-Supply Operation | Mains power has priority; solar supply maintains operation after a mains outage |

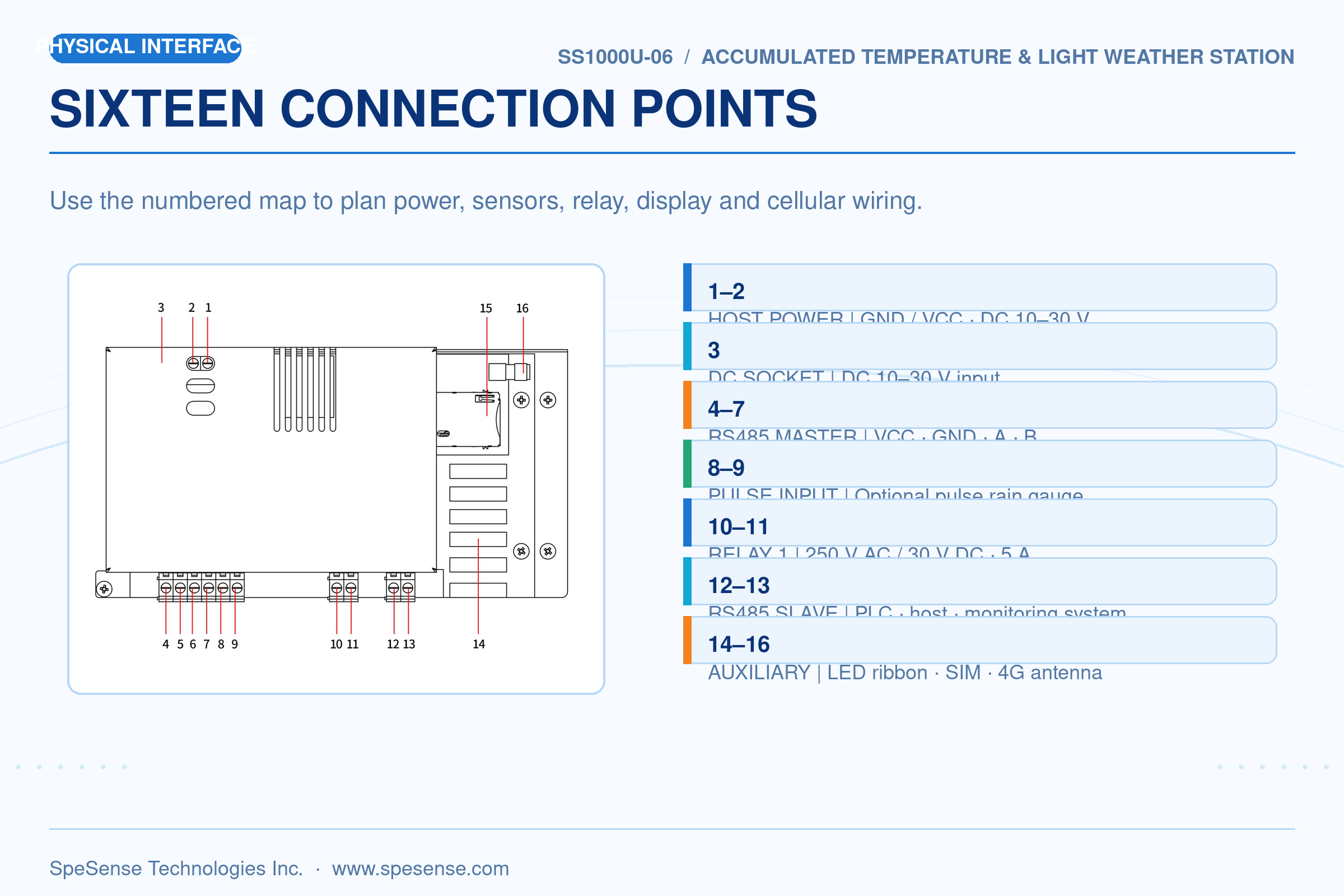

| Host DC Input | DC 10-30 V via terminal or 5 mm DC socket |

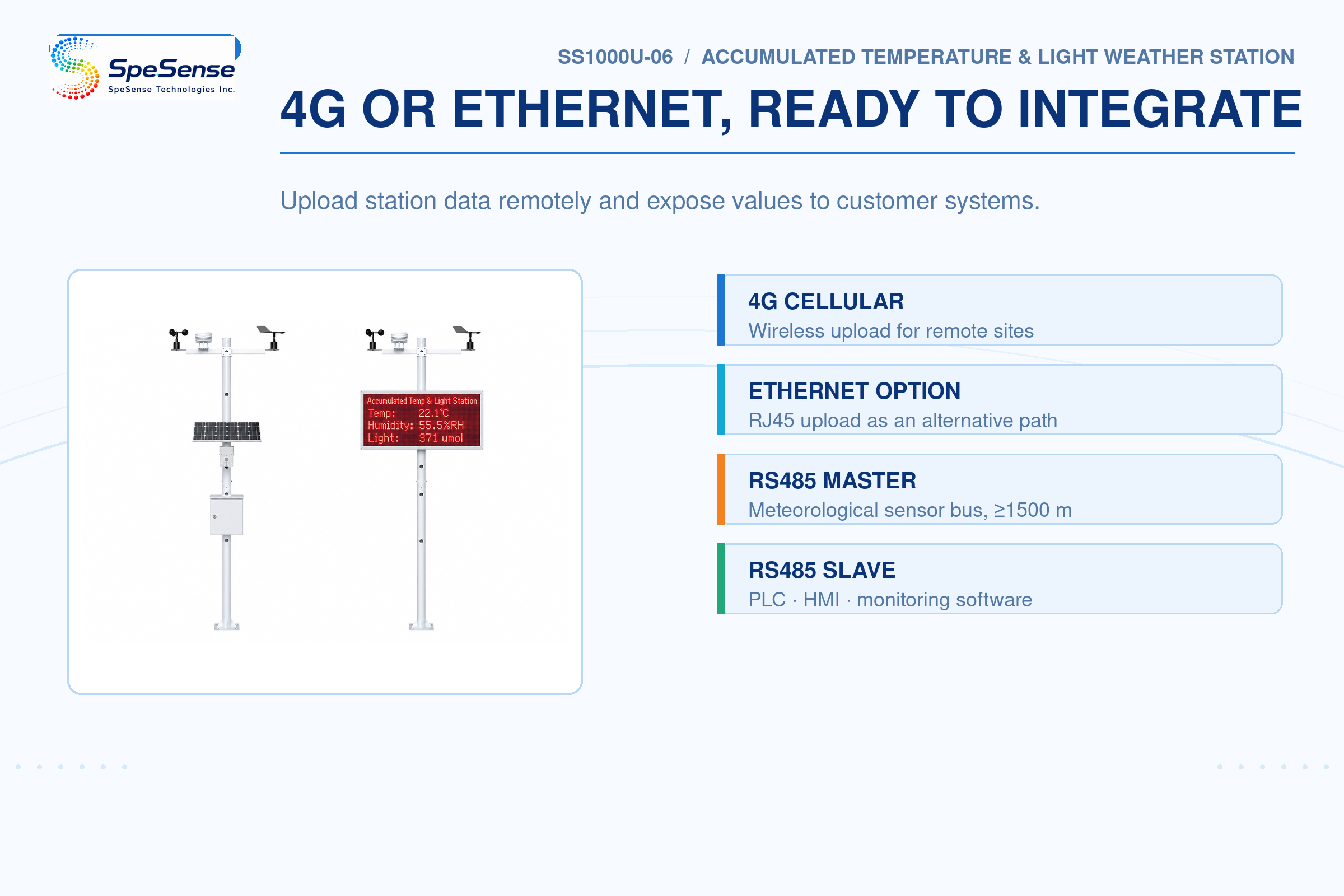

| Wireless Upload | 4G cellular communication; Ethernet upload available as an alternative |
| Upload Interval | 20-65535 s configurable; 300 s default |
| Sensor Communication | 1 × RS485 master; communication distance ≥1500 m |

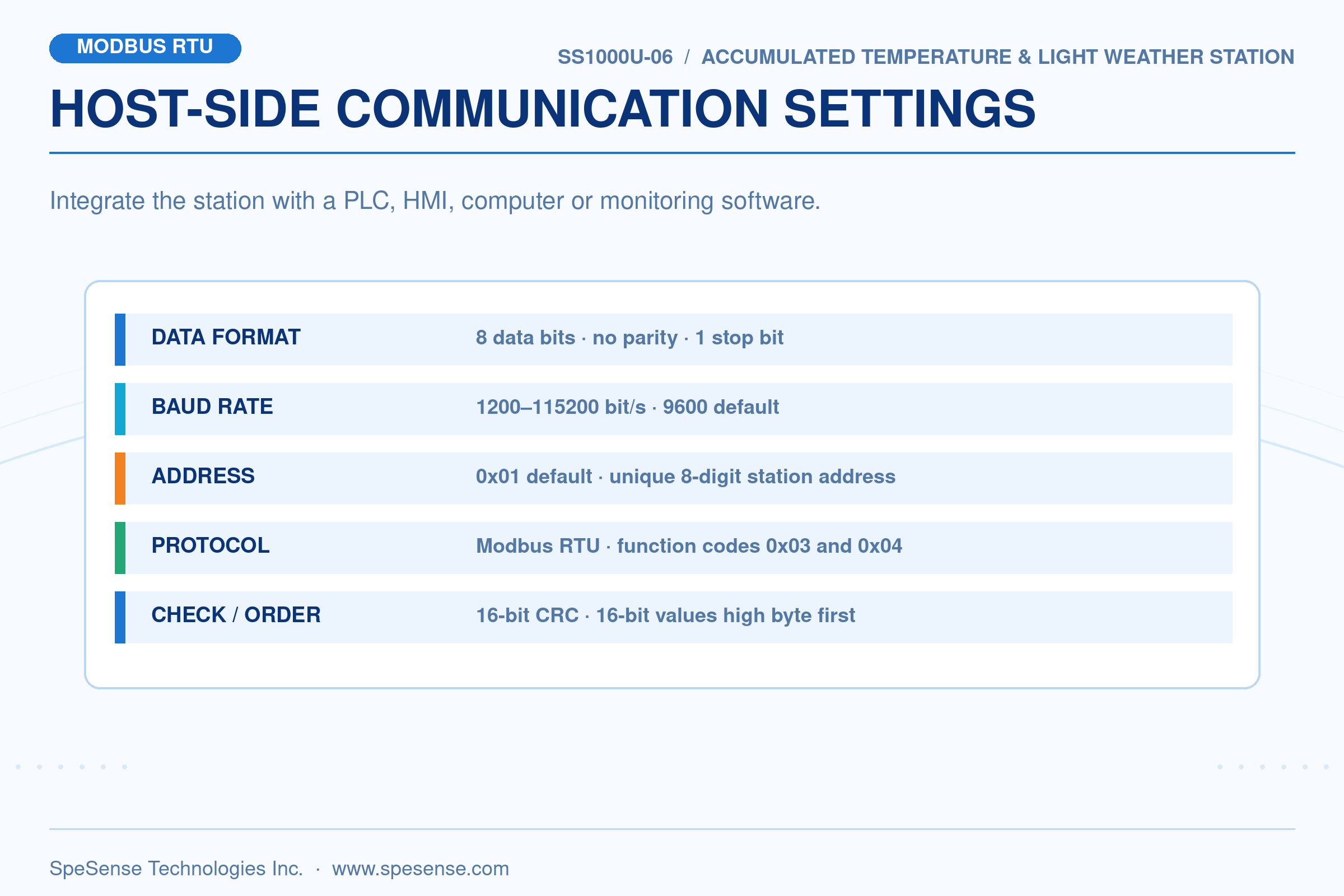

| System Integration | 1 × RS485 slave for a PLC, supervisory host, HMI or monitoring software |
| LED Display Interface | Optional 96 × 48 monochrome dot-matrix display; larger custom sizes supported |
| Relay Output | 1 dry-contact relay standard; second relay optional |
| Relay Capacity | 250 V AC / 30 V DC, 5 A |
| Device Address | Unique 8-digit station address |
