SS1000U-05
农业温室小型气象站
产品亮点
● Configurable 20-65535 s upload interval.
● Remote relay status viewing and manual control.
● Optional 96 × 48 dot-matrix outdoor display.
● Unique 8-digit device address for asset management.
● Remote relay status viewing and manual control.
● Optional 96 × 48 dot-matrix outdoor display.
● Unique 8-digit device address for asset management.
产品概述

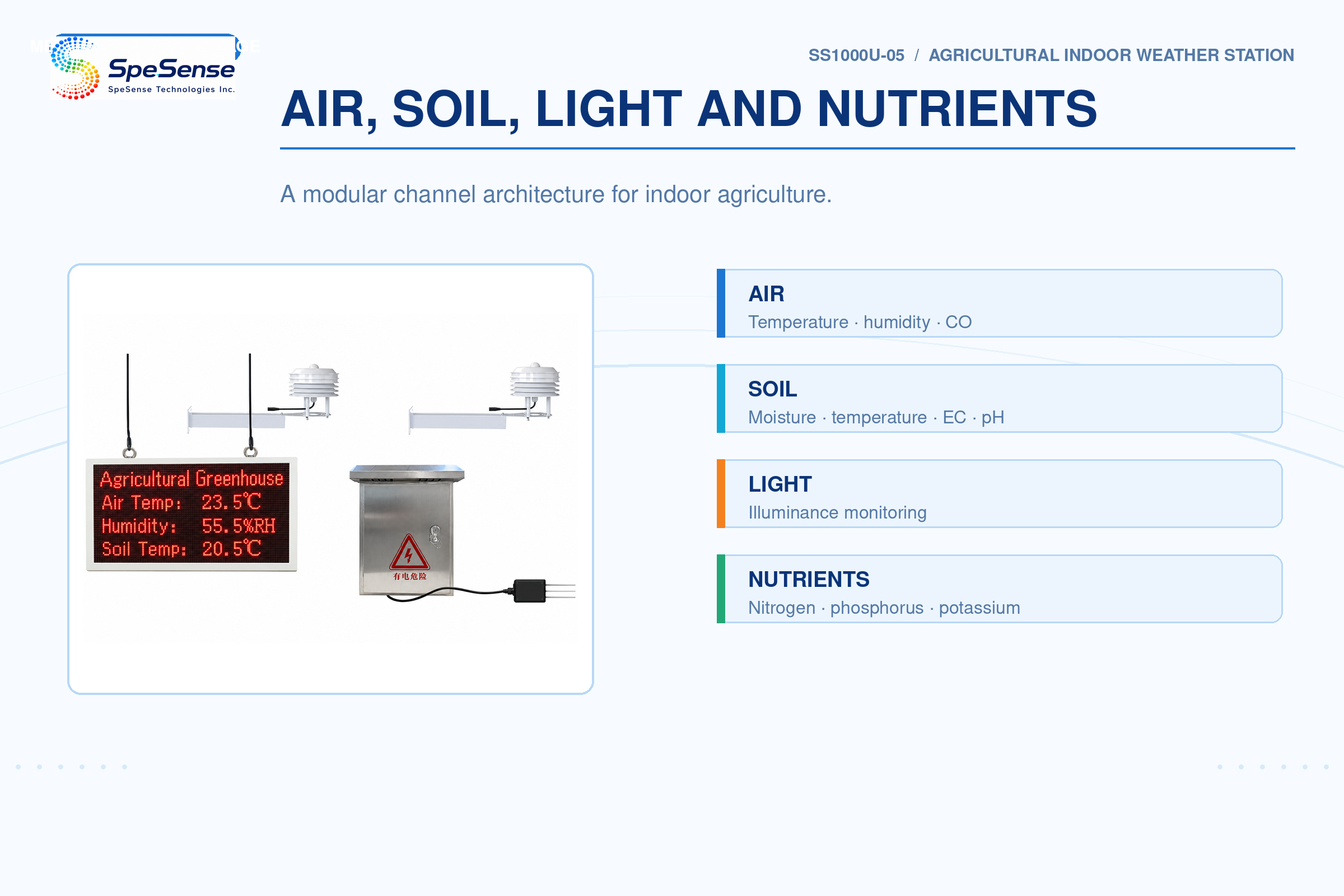

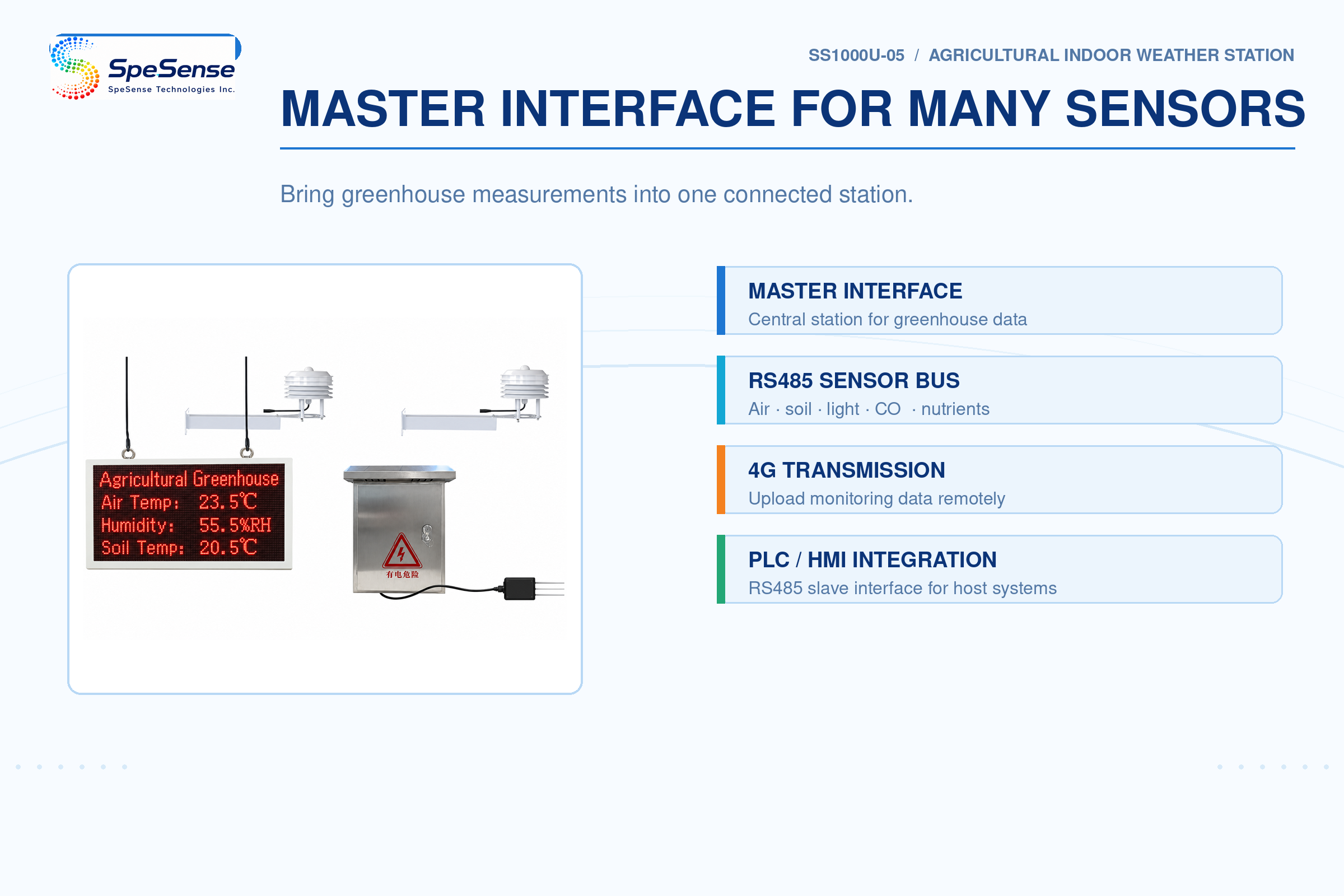

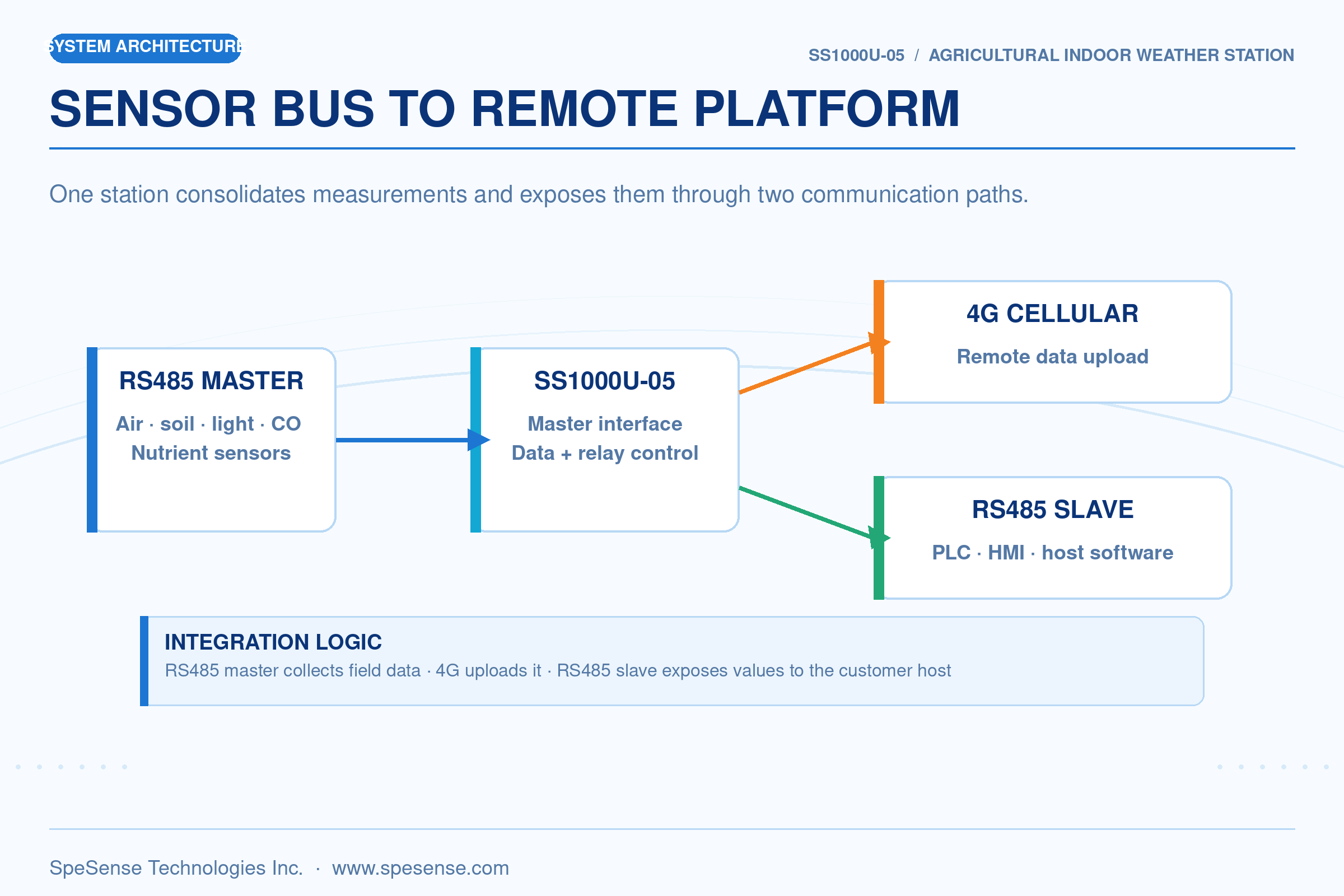

• Collects data from RS485 air, soil, light, CO2 and nutrient sensors through one master interface.

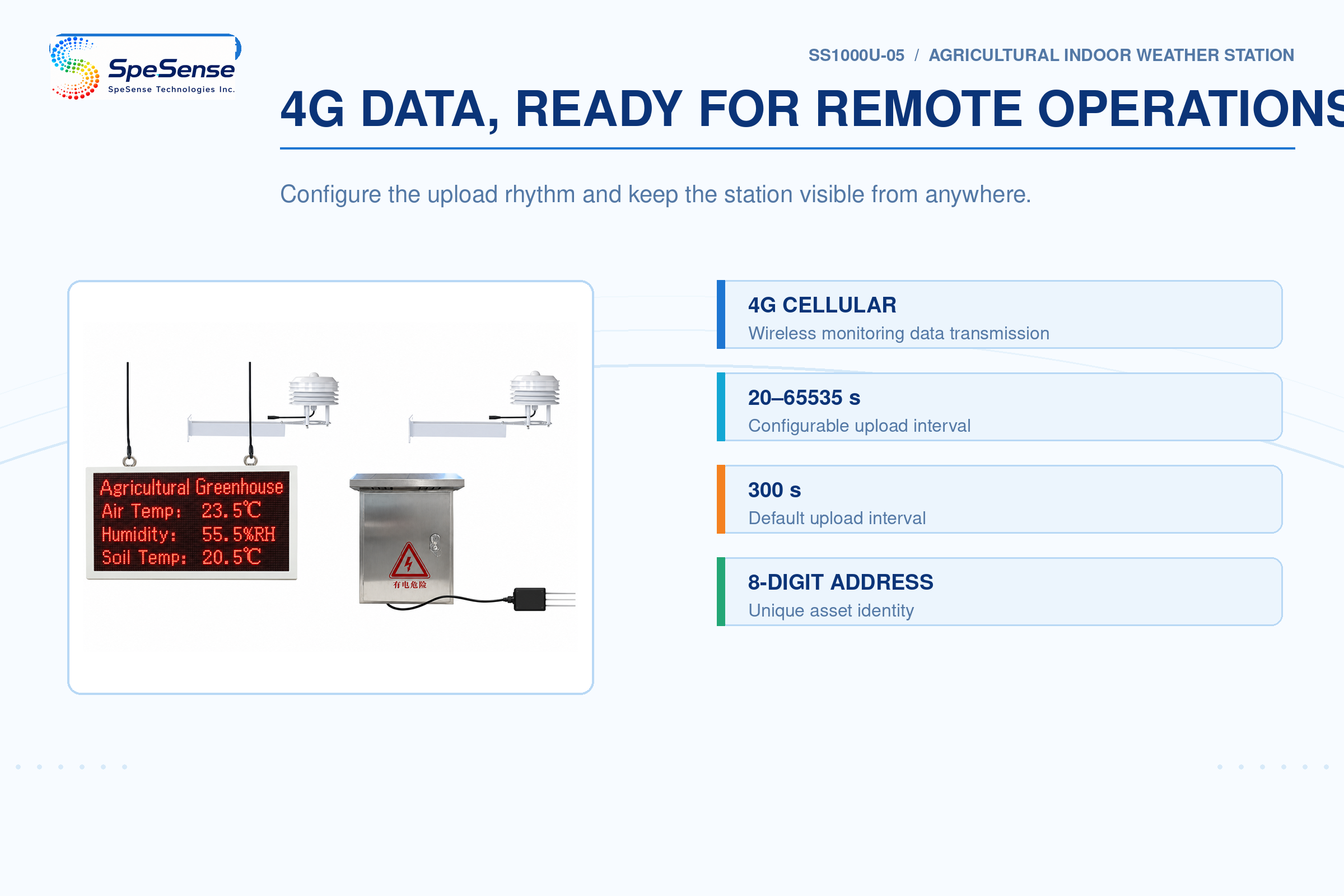

• Uploads monitoring data through 4G and exposes the collected values through a Modbus-RTU slave interface.

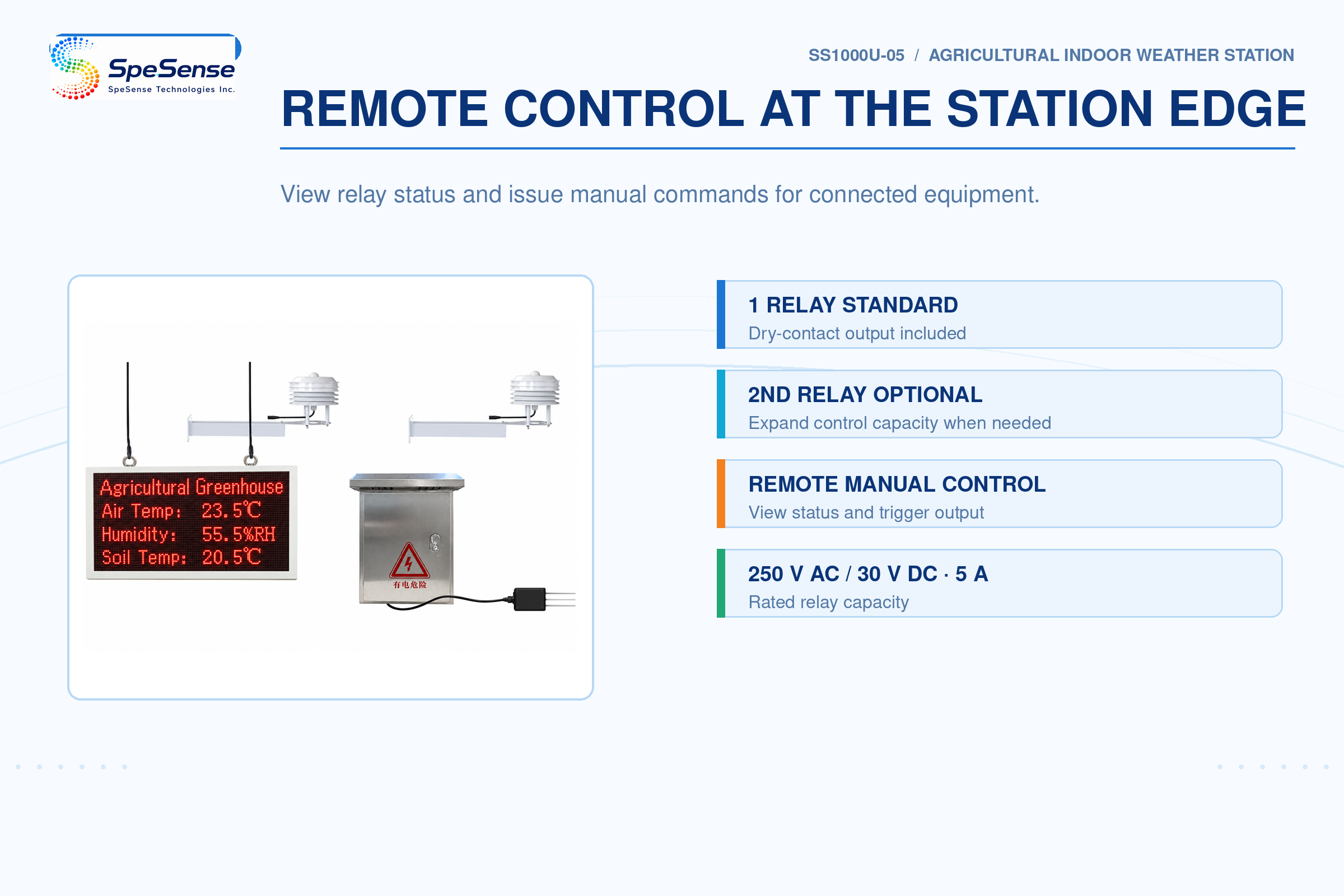

• Provides one relay output as standard, with a second relay available as an option for remote manual control.

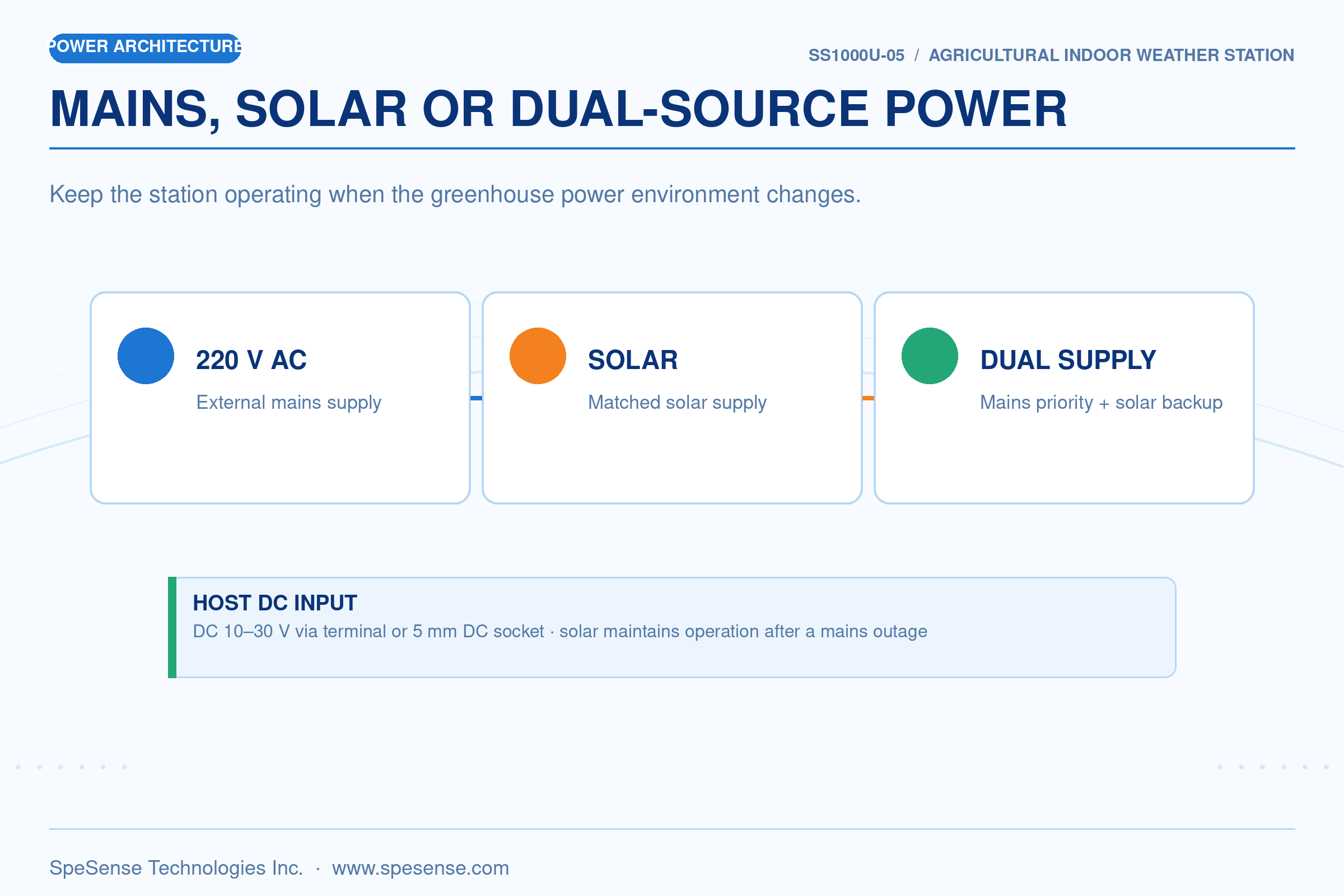

• Supports mains power, solar power or uninterrupted dual-source operation.
| Item | Specification |
| System Power Options | 220 V AC external power, matched solar supply, or dual supply |
| Dual-Supply Operation | Mains power has priority; the solar supply maintains operation after a mains outage |
| Host DC Input | DC 10-30 V via terminal or 5 mm DC socket |
| Wireless Upload | 4G cellular communication |

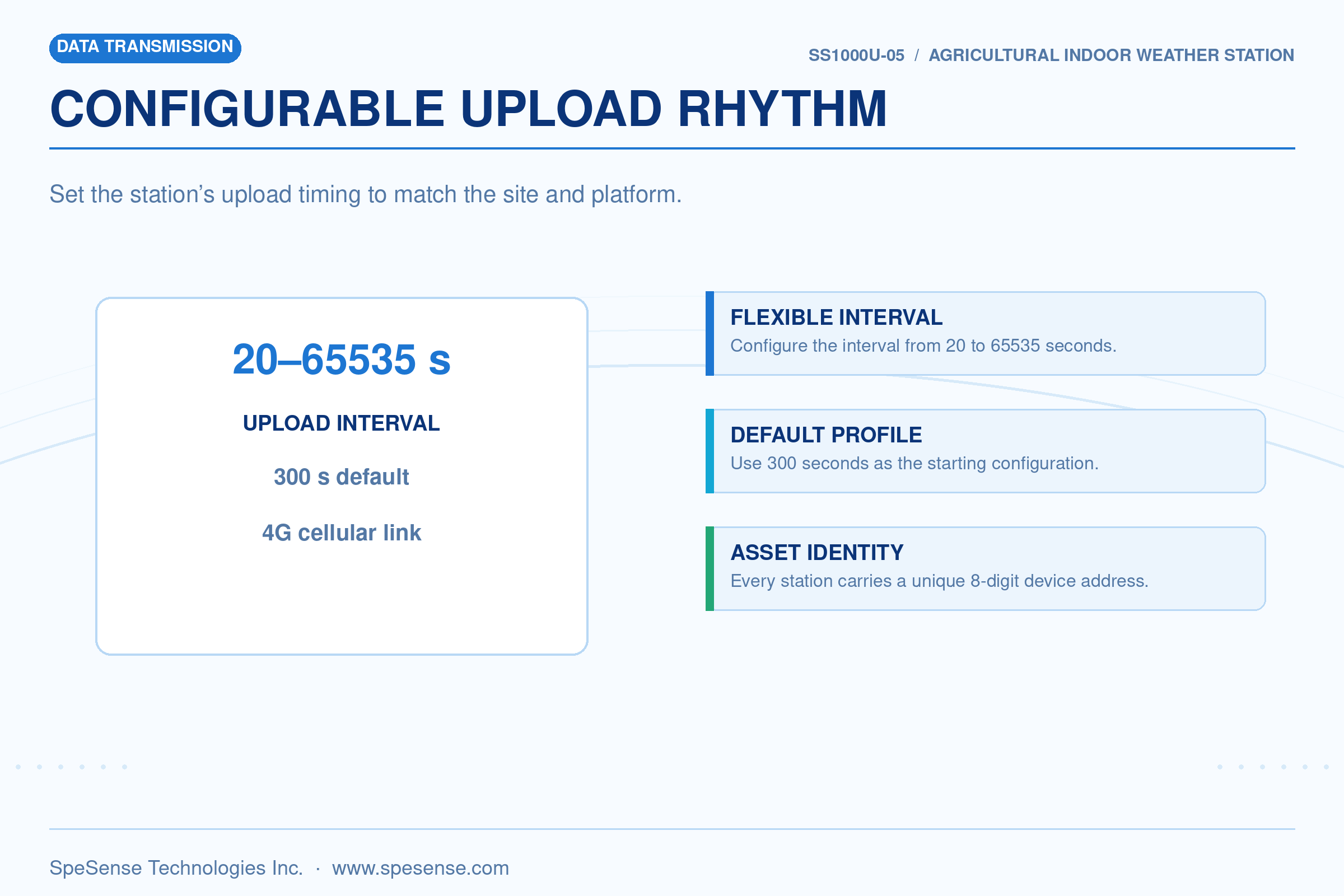

| Upload Interval | 20-65535 s configurable; 300 s default |
| Sensor Communication | 1 × RS485 master; communication distance ≥1500 m |

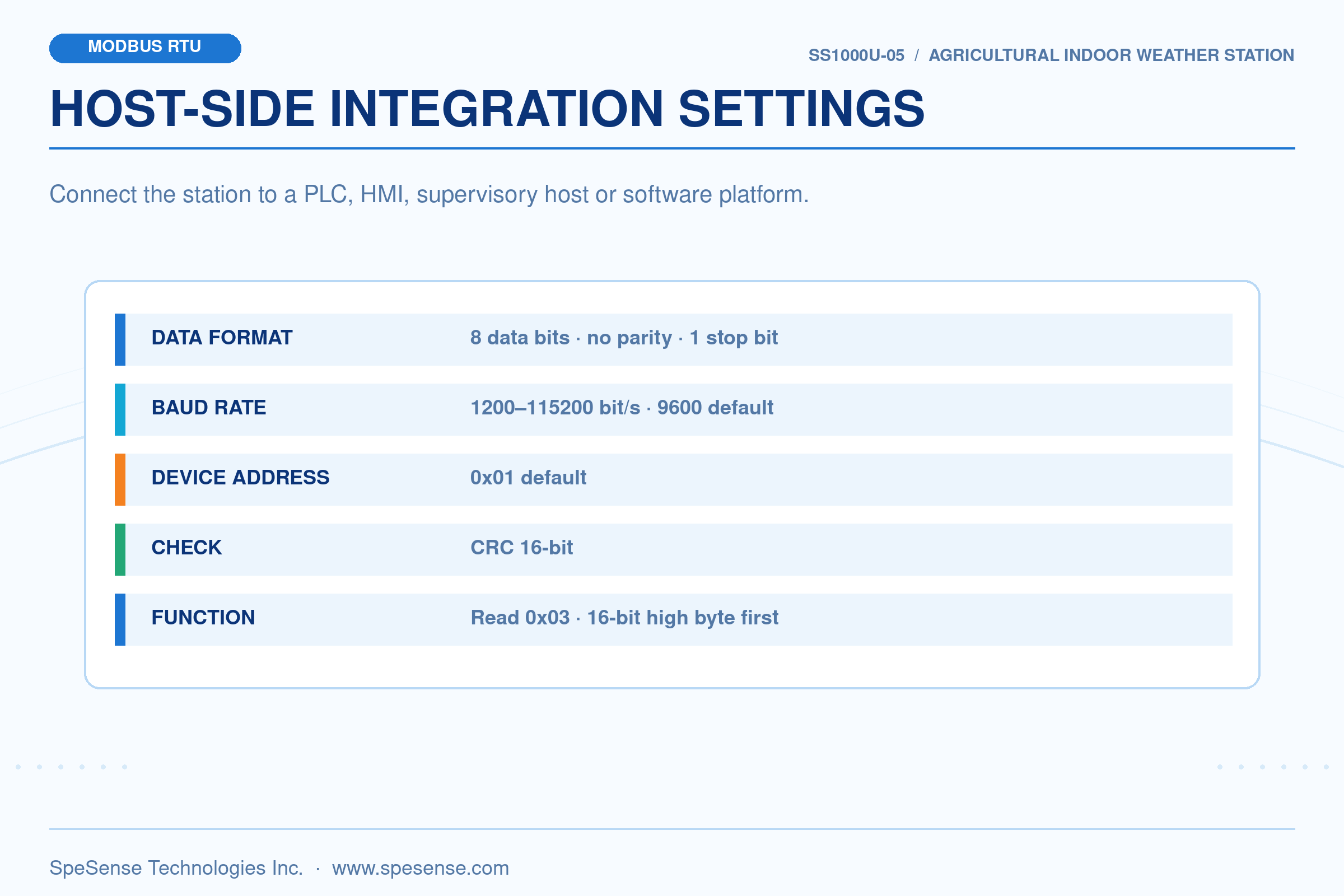

| System Integration | 1 × RS485 slave for a PLC, supervisory host, HMI or monitoring software |
| LED Display Interface | 1 × interface for an optional 96 × 48 monochrome dot-matrix display |

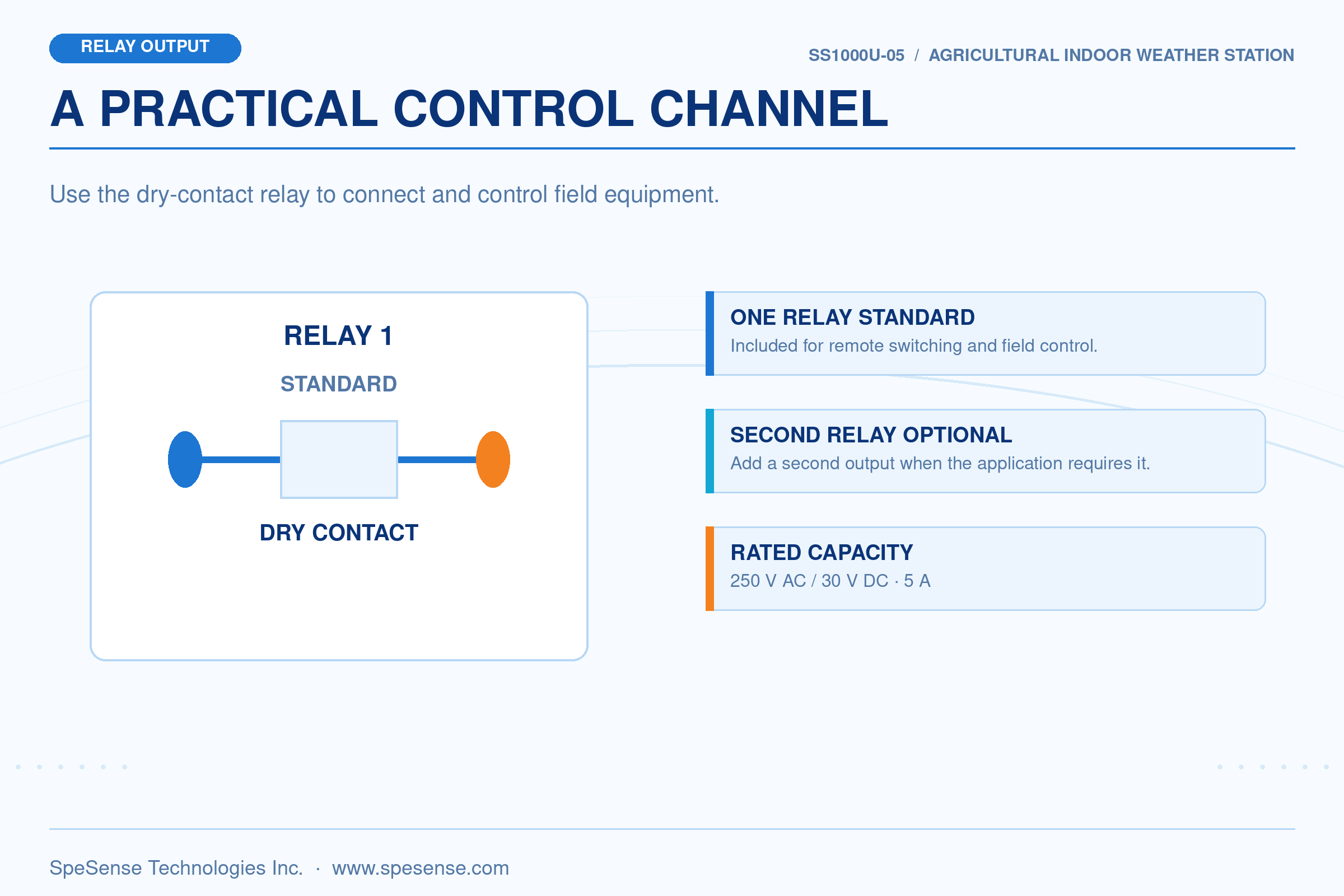

| Relay Output | 1 dry-contact relay standard; second relay optional |
| Relay Capacity | 250 V AC / 30 V DC, 5 A |
