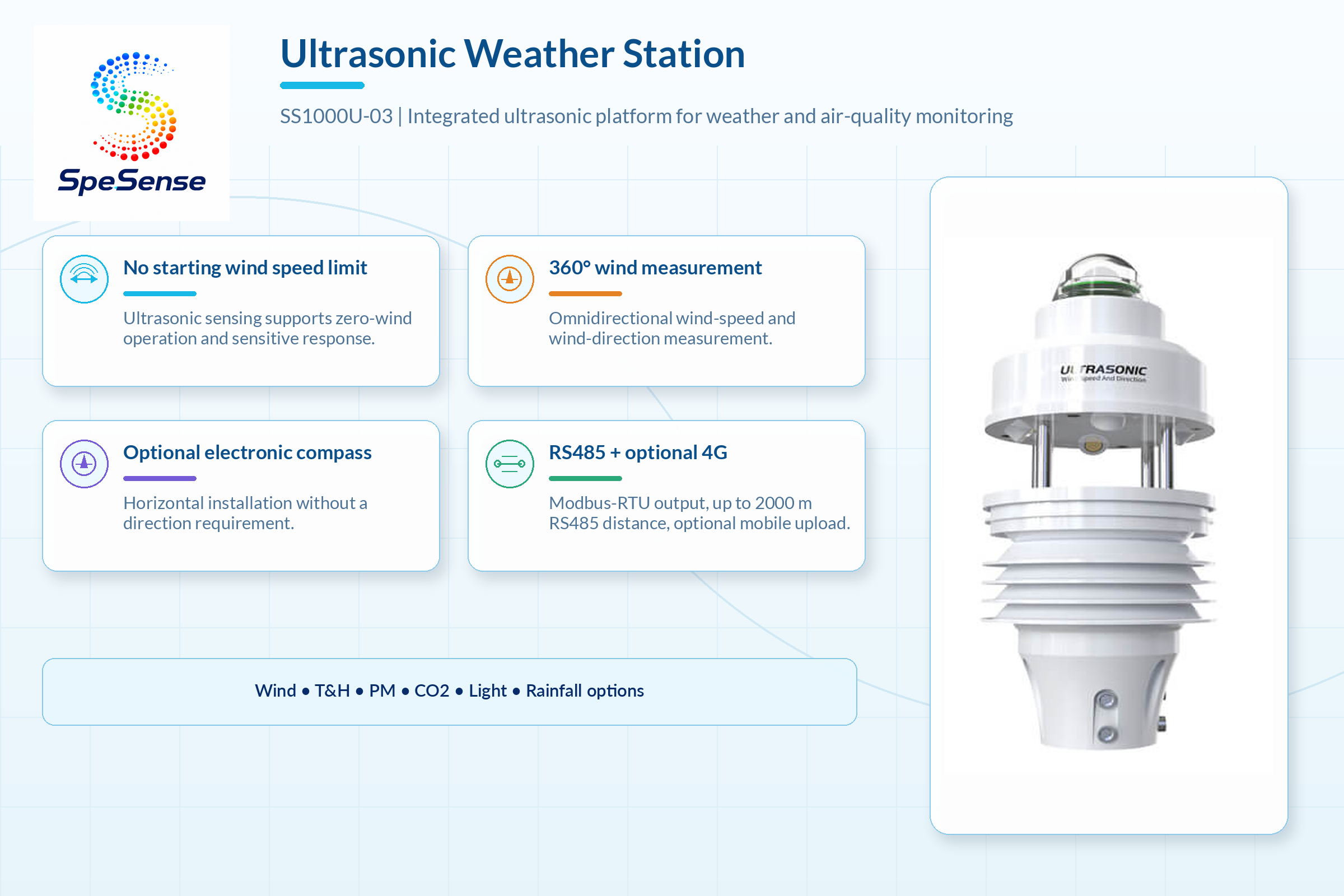

Ultrasonic Weather Station
SS1000U-03
超声波一体化气象站
产品亮点

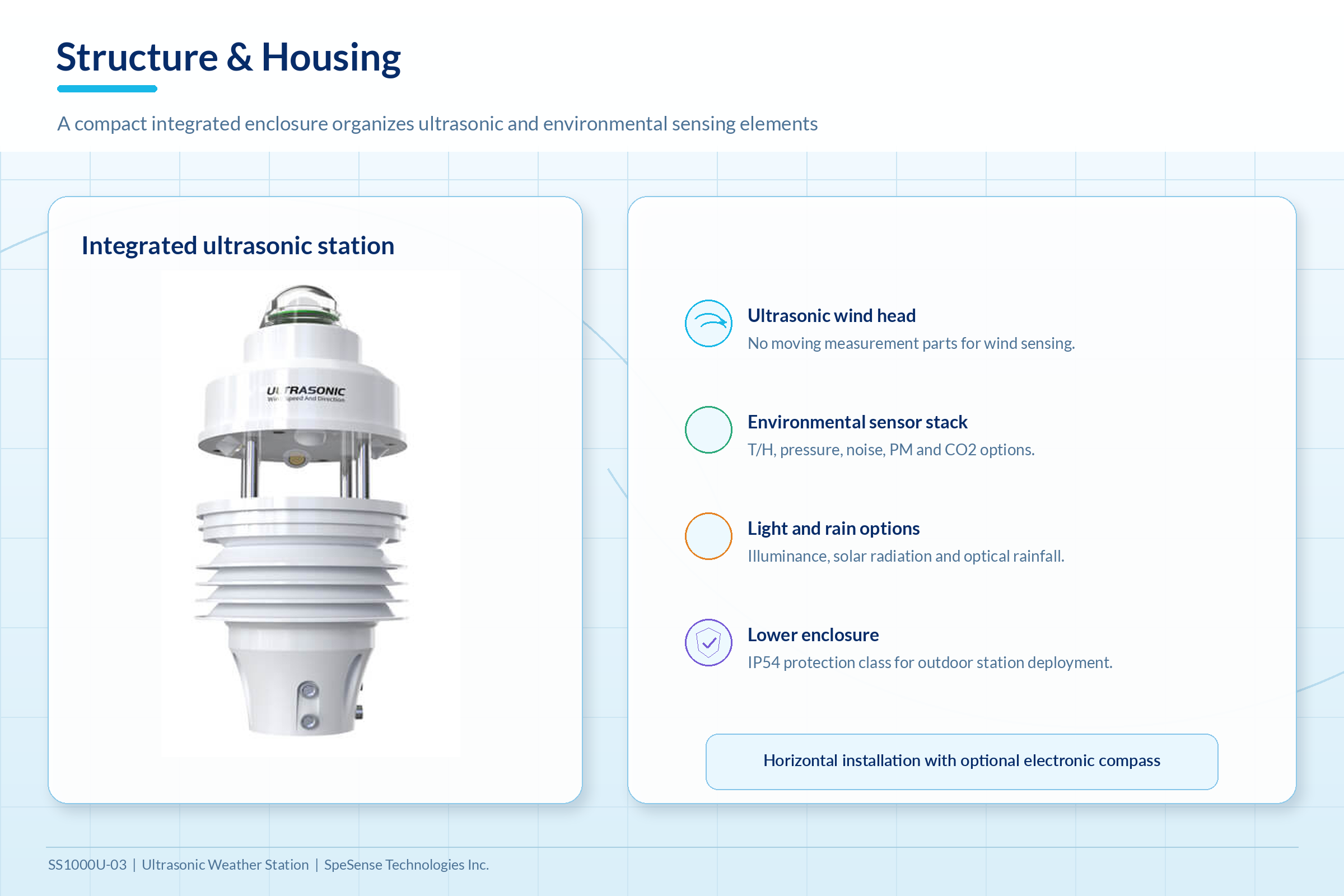

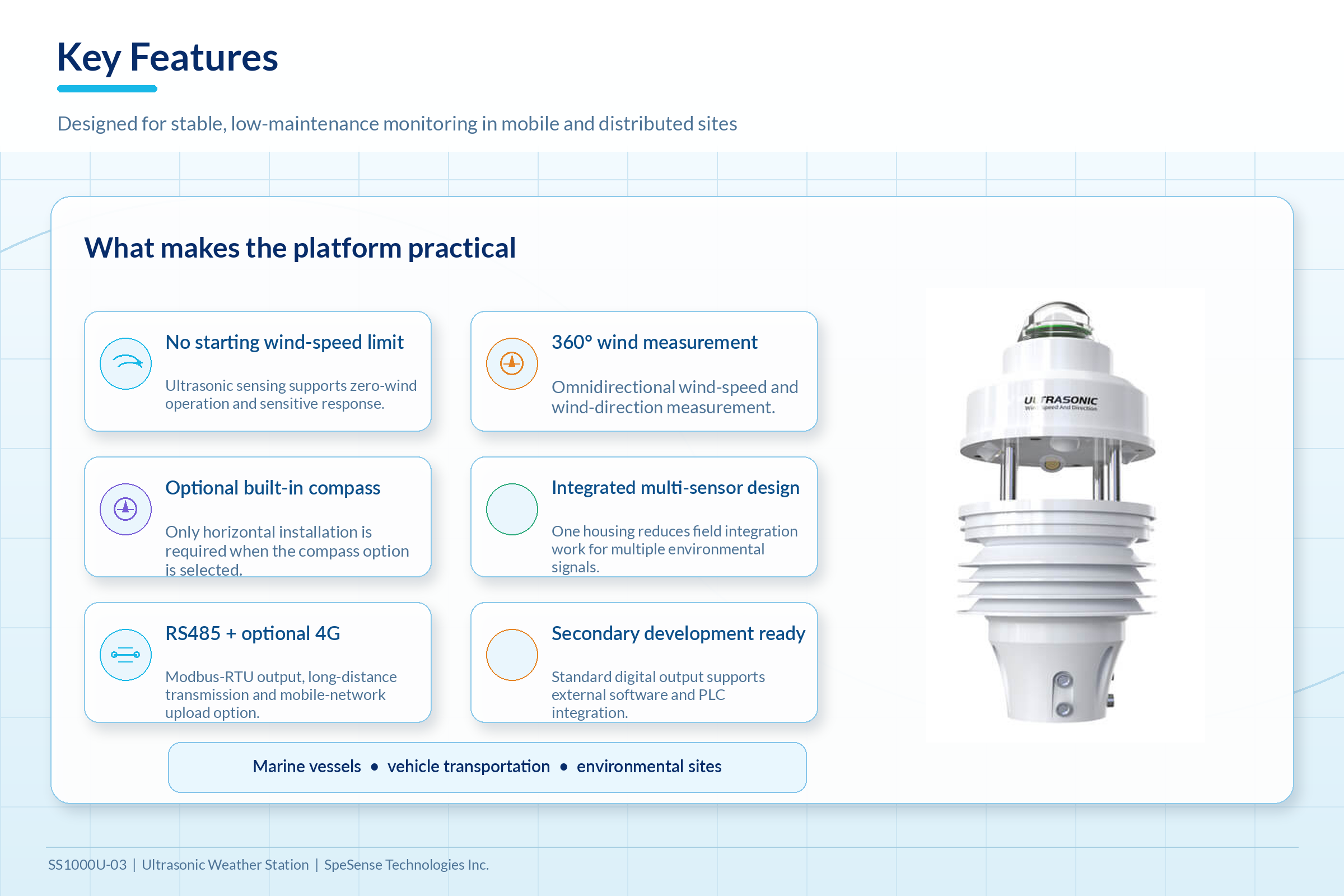

● Integrated multi-sensor design for convenient installation.

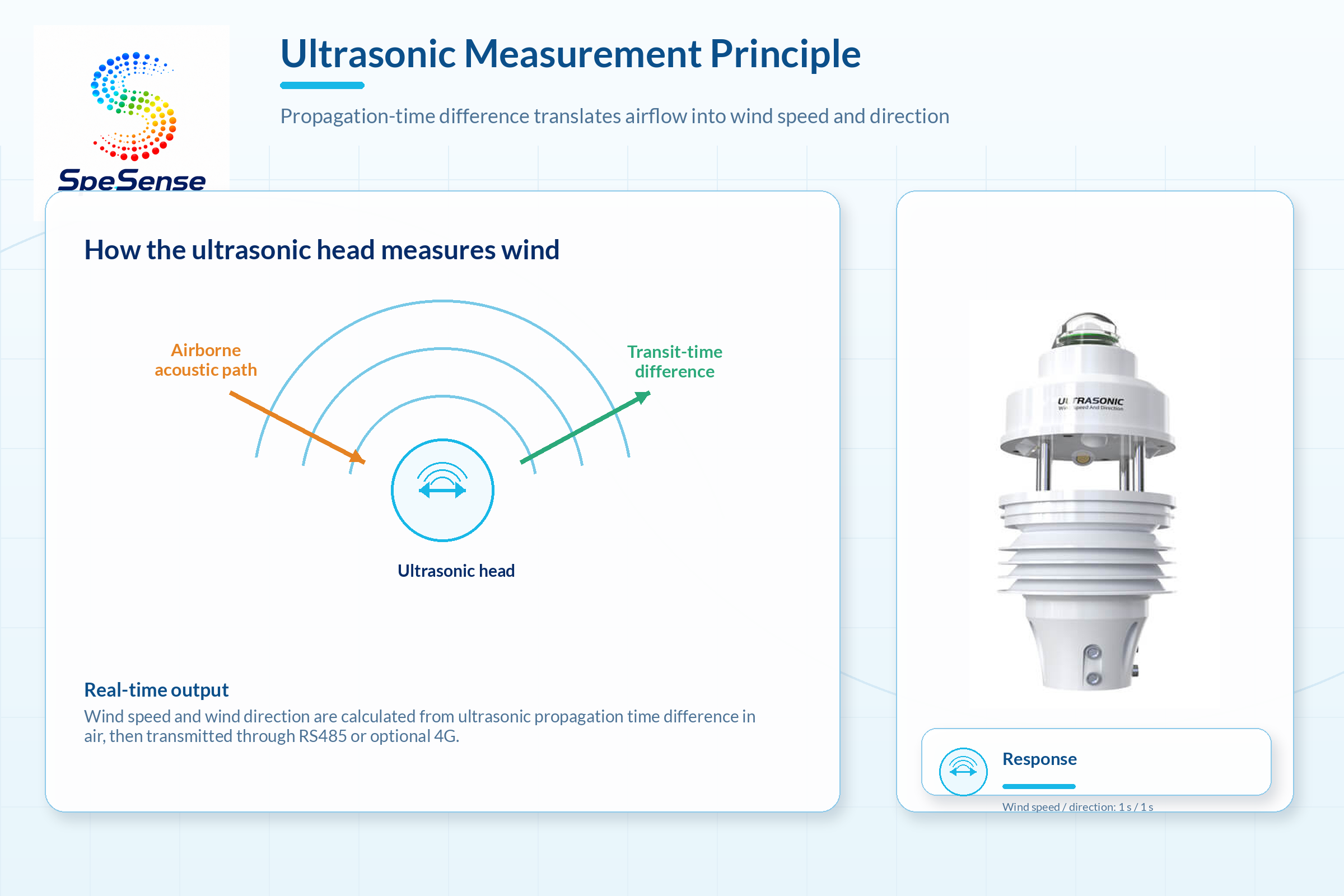

● Ultrasonic wind measurement with no starting wind speed limitation, zero-wind operation and 360° omnidirectional measurement.
● Precise noise collection with measuring range up to 30–120 dB.
● Simultaneous PM2.5 and PM10 acquisition with 0– 1000 μg/m³ range and 1 μg/m³ resolution.
● Stable RS485 communication circuit and optional built-in electronic compass.
● Ultrasonic wind measurement with no starting wind speed limitation, zero-wind operation and 360° omnidirectional measurement.
● Precise noise collection with measuring range up to 30–120 dB.
● Simultaneous PM2.5 and PM10 acquisition with 0– 1000 μg/m³ range and 1 μg/m³ resolution.
● Stable RS485 communication circuit and optional built-in electronic compass.

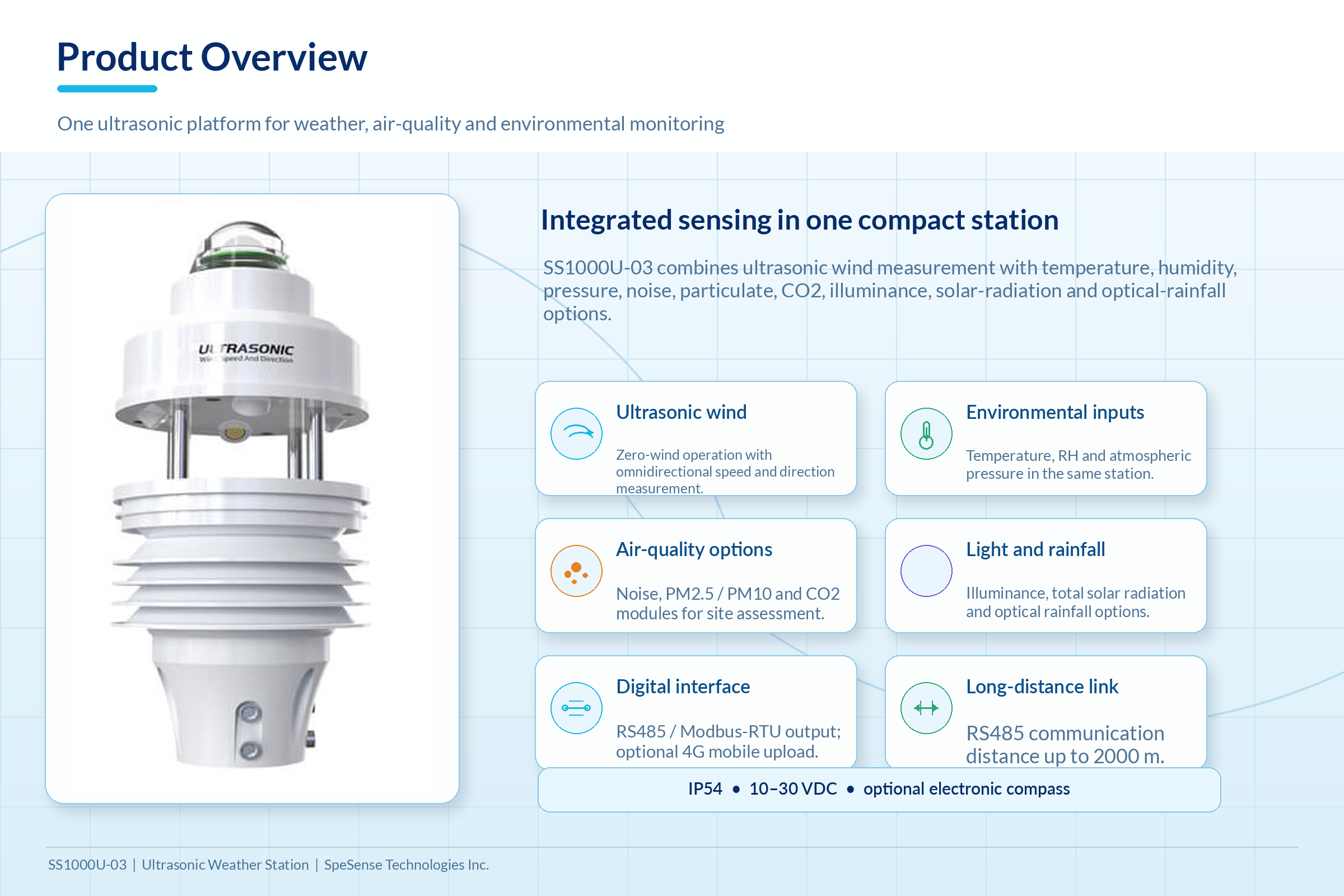

产品概述
Integrated ultrasonic weather station for environmental monitoring, combining wind, air quality, meteorological and optical measurements with RS485 / Modbus-RTU communication.

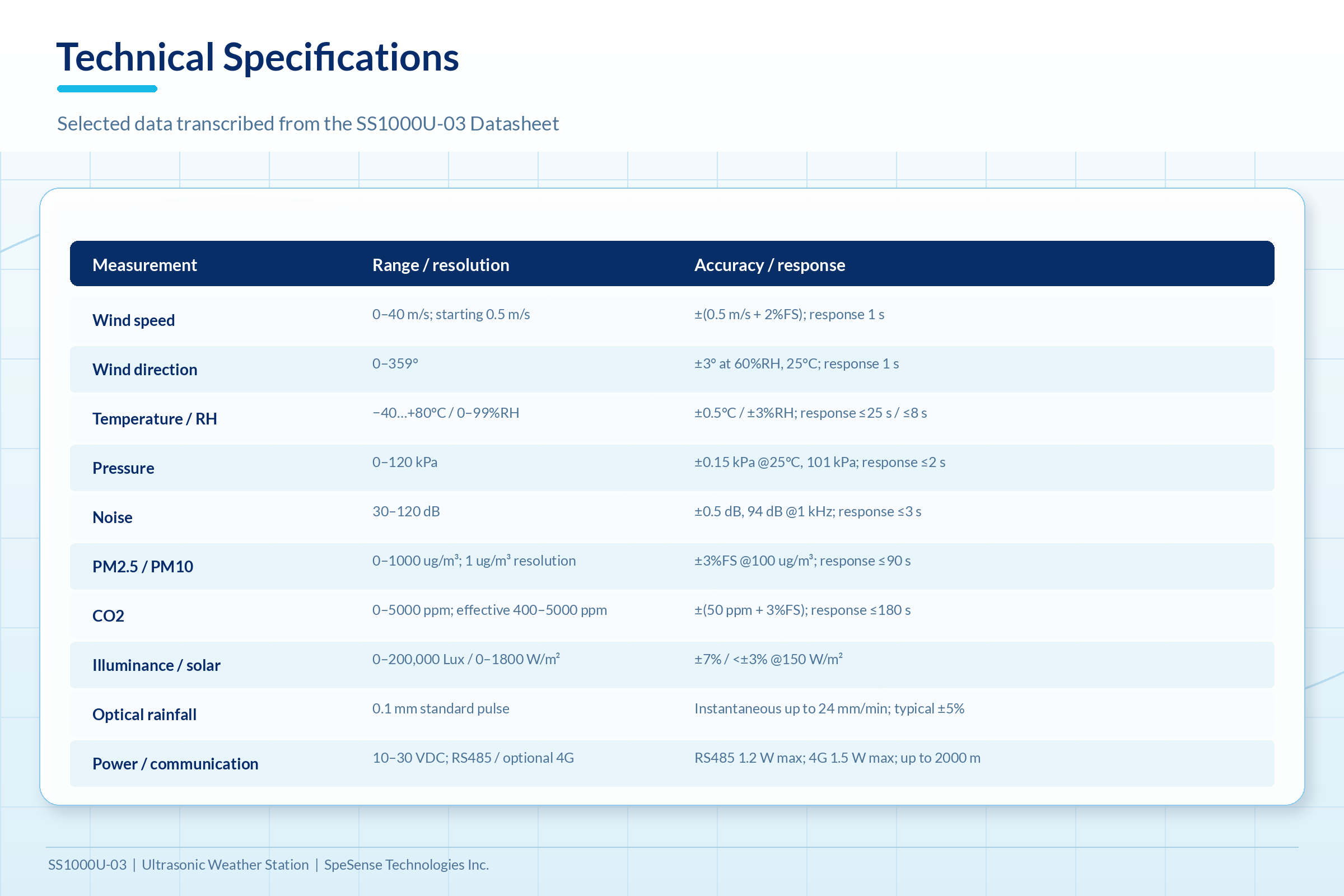

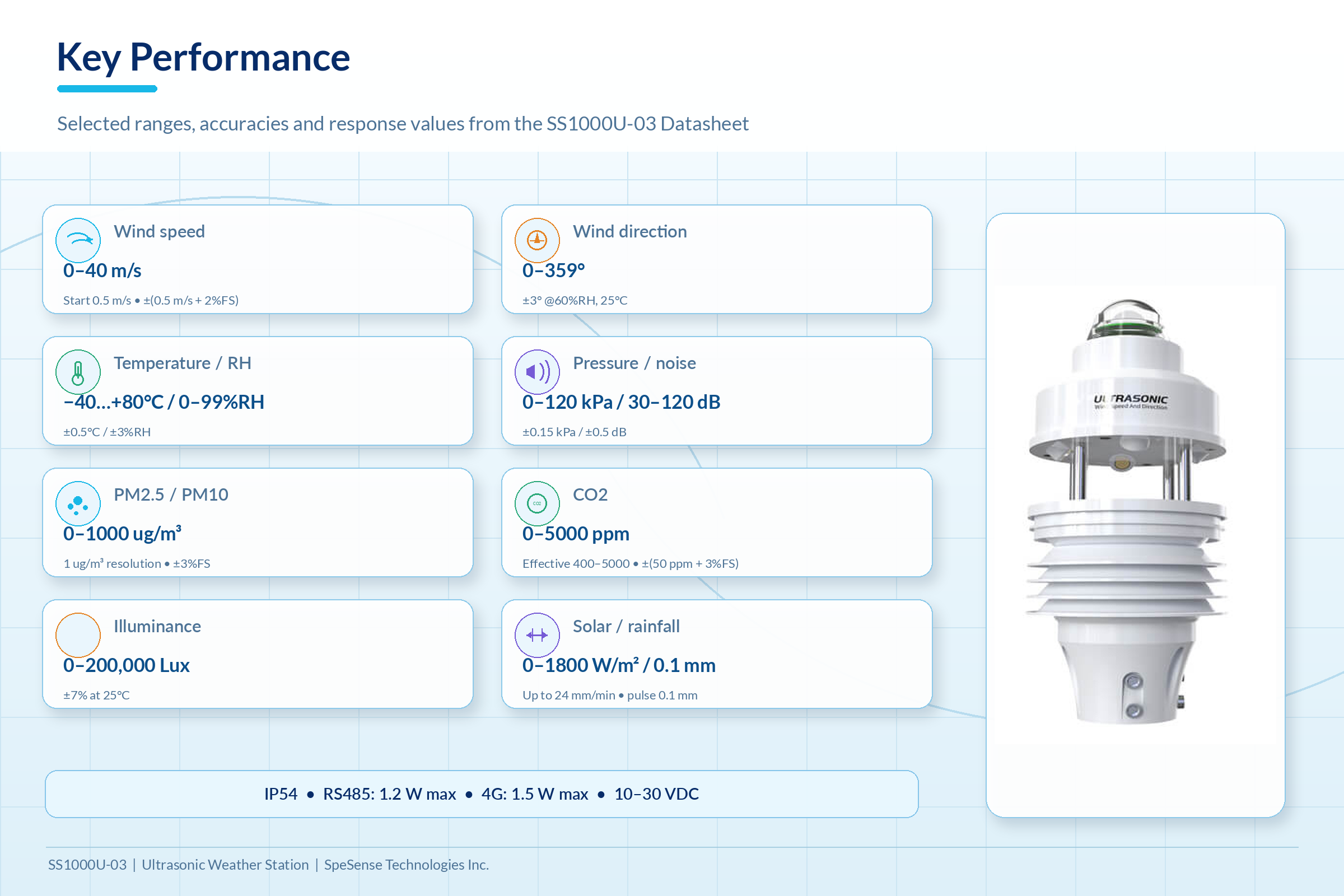

| Item | Specification |
| Default Power Supply | 10-30 VDC |
| Maximum Power Consumption | RS485: 1.2 W; 4G: 1.5 W |

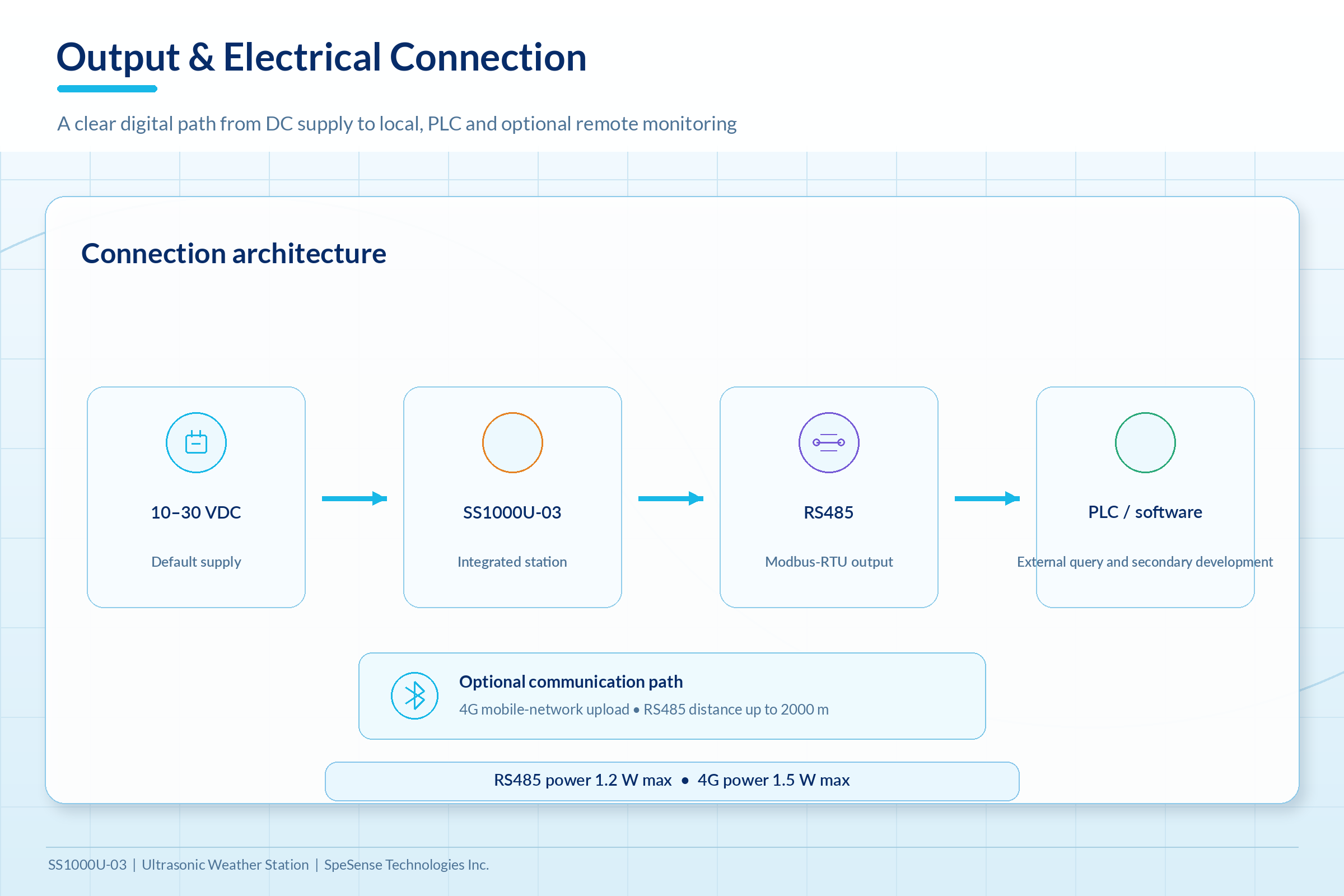

| Communication Protocol | Standard Modbus-RTU protocol |
| Output Signal | RS485; optional 4G transmission via mobile network |
| Communication Distance | Up to 2000 m through RS485 communication |

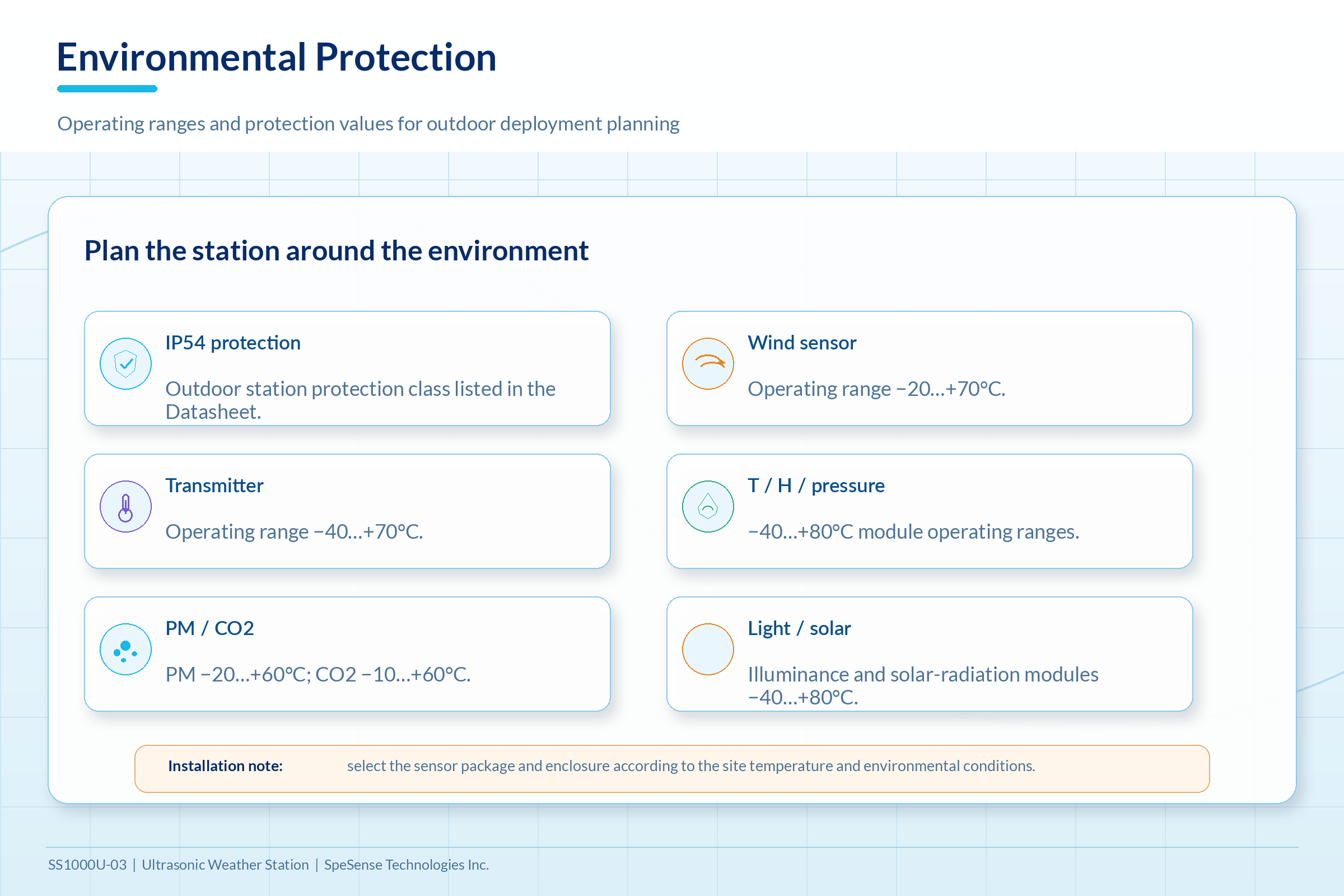

| Protection Class | IP54 |
| Compass Option | Optional built-in electronic compass; horizontal installation without direction requirement |
