Ultrasonic Weather Station
SS1000U-02
智能超声波气象站
产品亮点
● Integrated multi-sensor design for convenient installation.

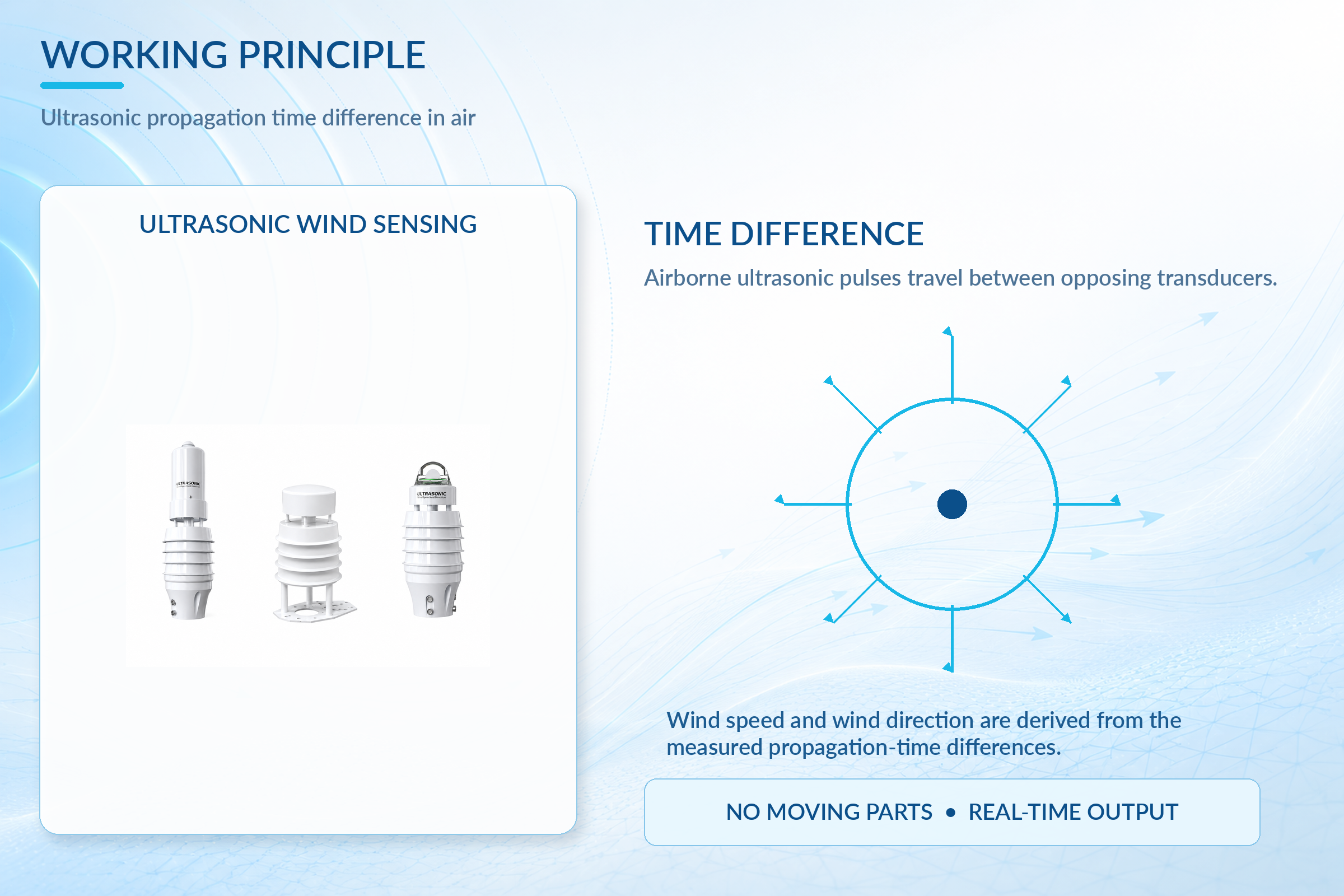

● Ultrasonic wind measurement with no angle limitation and 360-degree all-direction sensing.
● Noise monitoring with an available range of 30-120 dB.
● PM2.5 and PM10 simultaneous collection, 0-1000 μg/m³ range and 1 μg/m³ resolution.
● Dedicated RS485 circuit for stable long-distance communication.
● Optional electronic compass for orientation-free horizontal installation.
● Ultrasonic wind measurement with no angle limitation and 360-degree all-direction sensing.
● Noise monitoring with an available range of 30-120 dB.
● PM2.5 and PM10 simultaneous collection, 0-1000 μg/m³ range and 1 μg/m³ resolution.
● Dedicated RS485 circuit for stable long-distance communication.
● Optional electronic compass for orientation-free horizontal installation.
产品概述

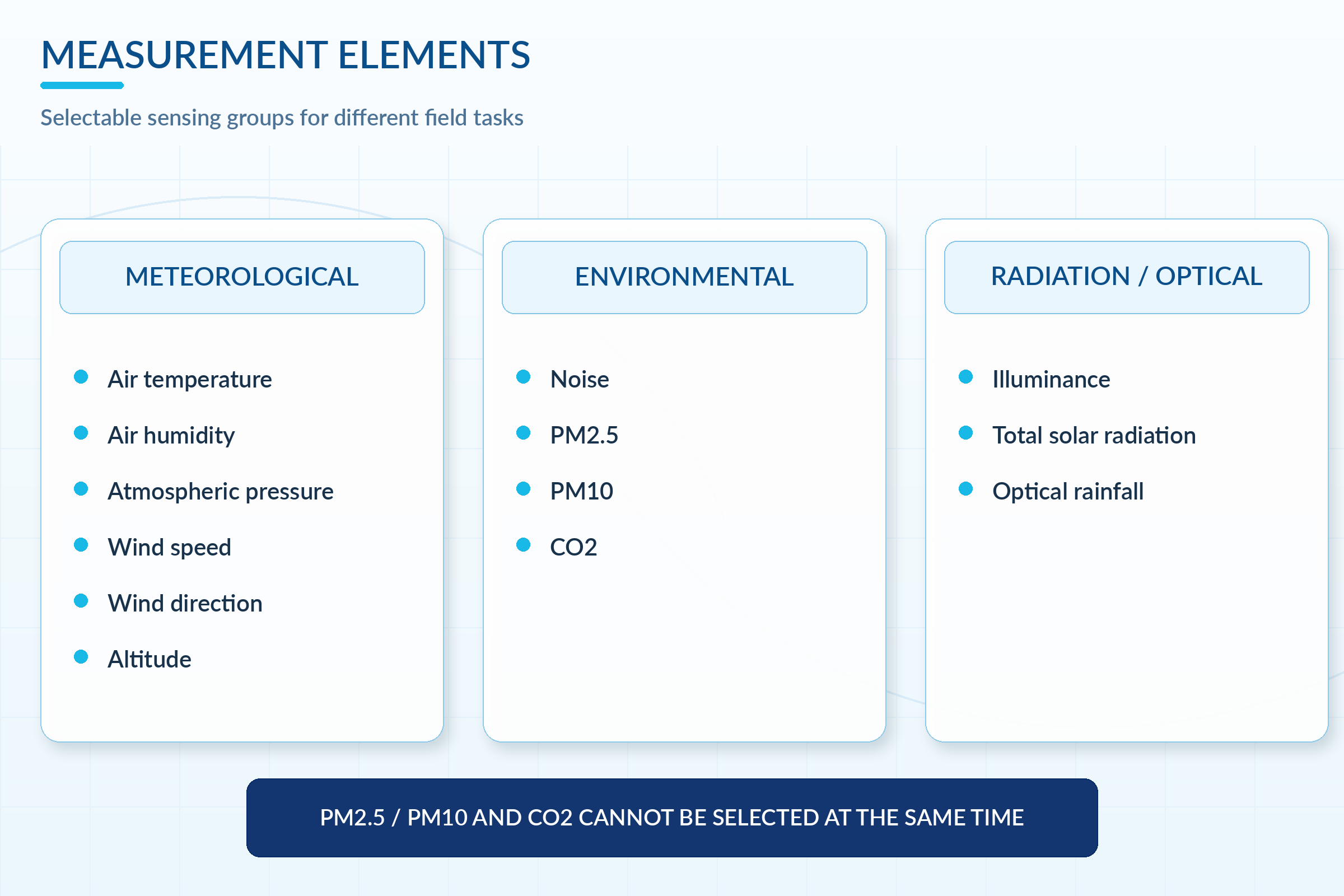

Integrated ultrasonic weather station for wind, temperature, humidity, air pressure, noise, particulate matter, light and rainfall monitoring with RS485 Modbus-RTU communication.

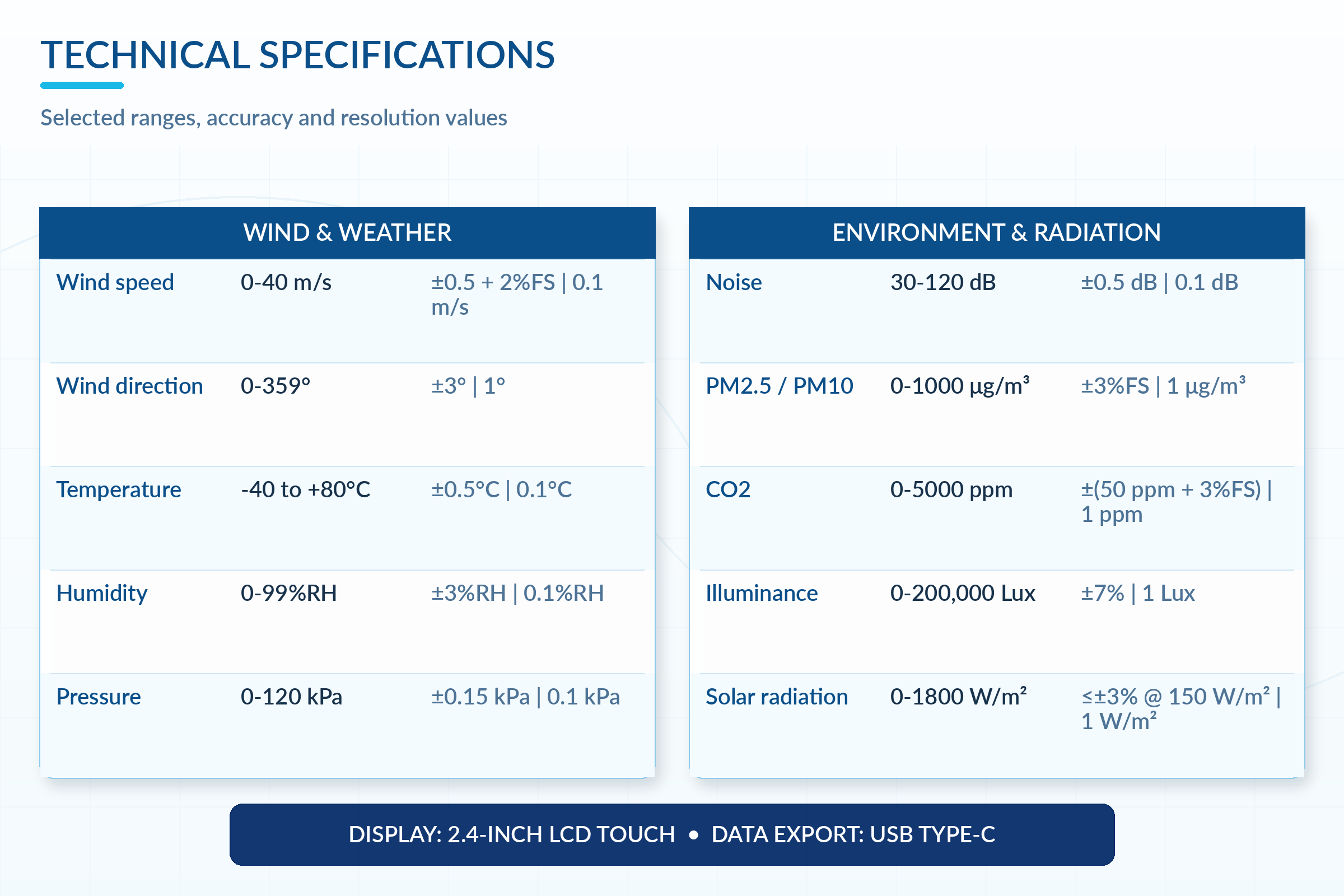

| Item | Specification |
| Default Power Supply | 10-30 VDC |
| Maximum Power Consumption | RS485: 1.2 W; 4G: 1.5 W |
| Communication Protocol | Standard Modbus-RTU |
| Output Signal | RS485 and 4G mobile network upload |
| RS485 Communication Distance | Up to 2000 m |
| Optional Function | Built-in electronic compass for orientation-free installation |
| Protection Class | IP54 |
