Automatic weather station
SS1000-04

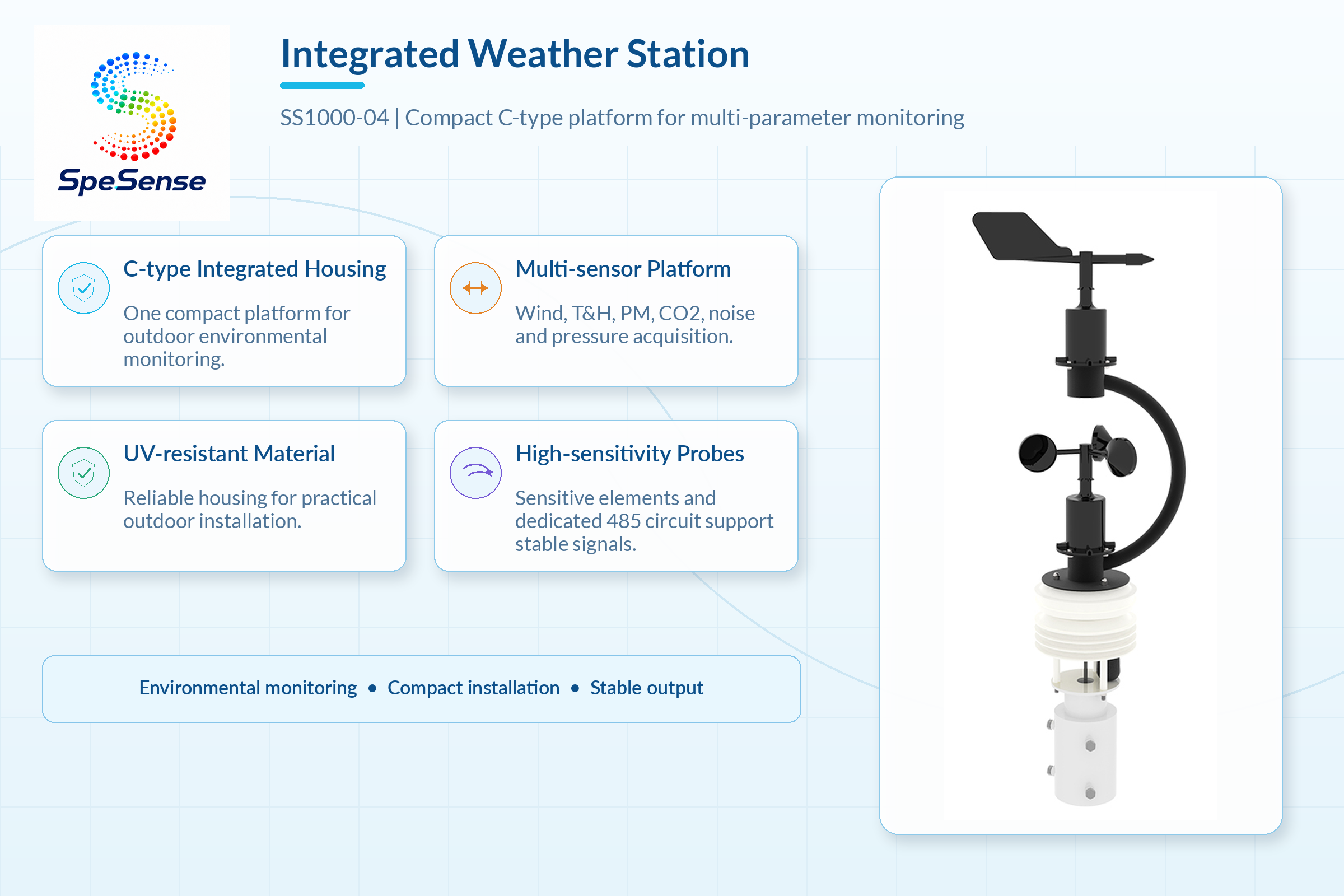

Integrated Weather Station

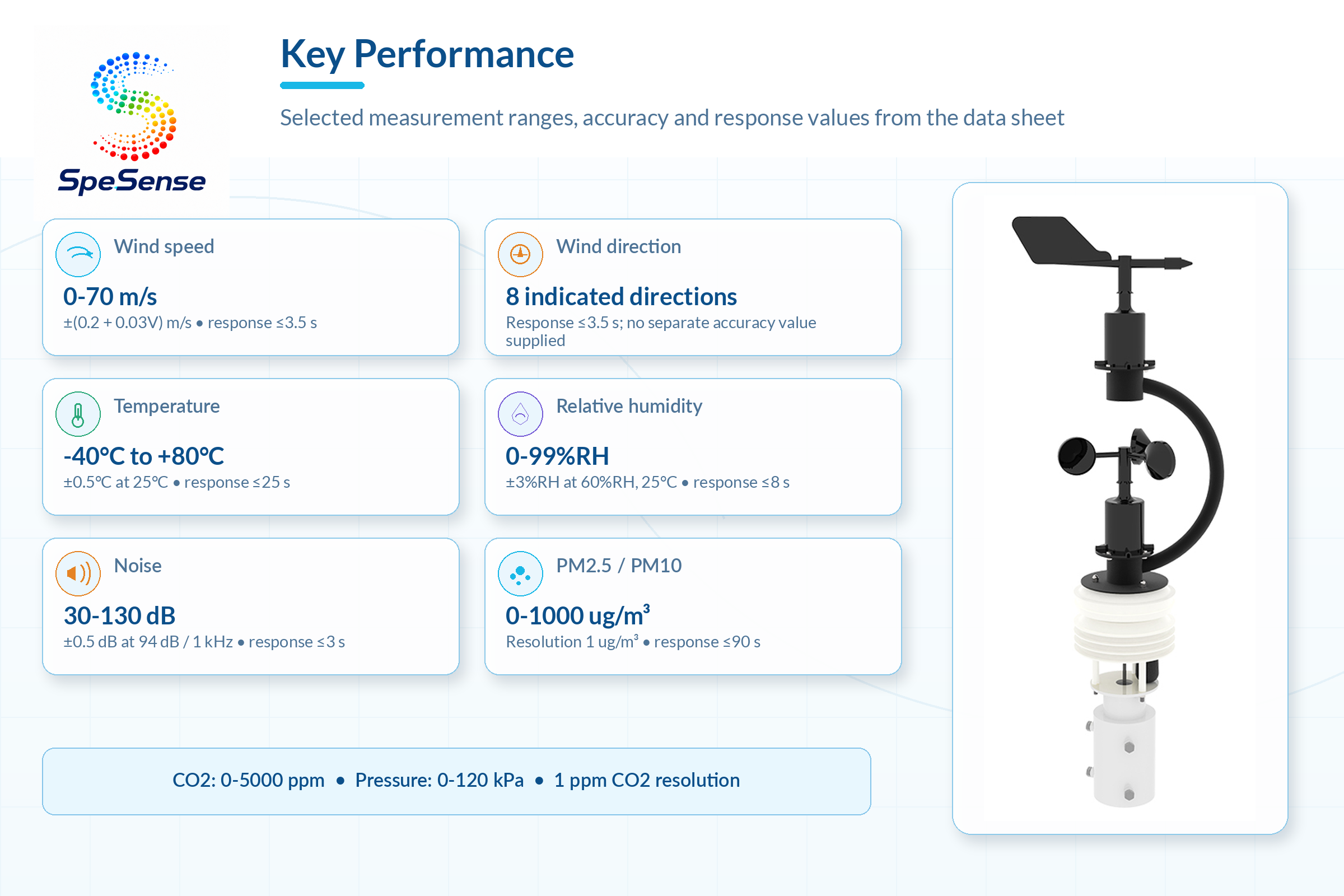

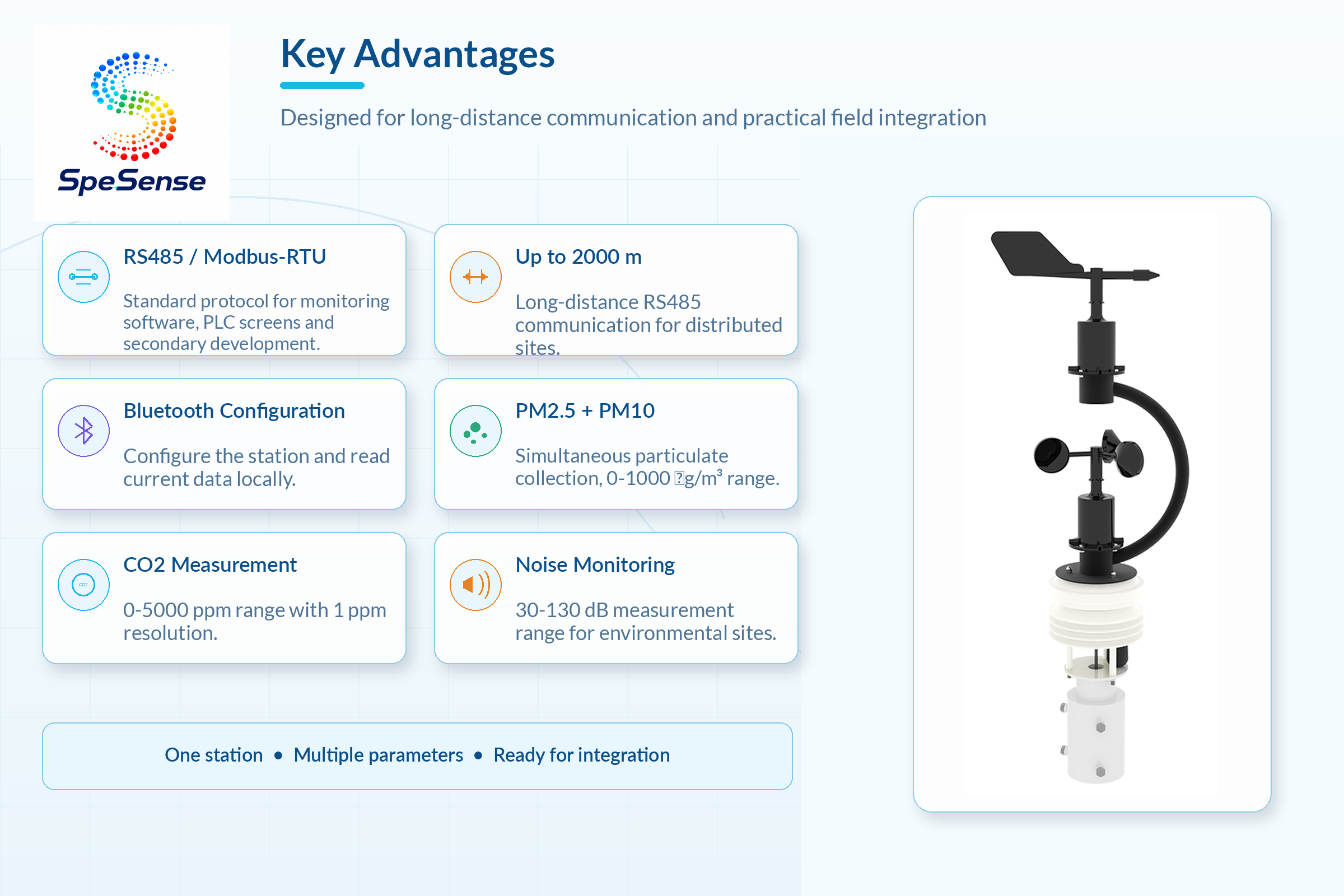

Product Highlights
● Integrated multi-sensor design for convenient installation.
● Wind speed and wind direction structure with low rotational inertia and sensitive response.
● Noise measurement range up to 30-130 dB.
● Simultaneous PM2.5 and PM10 collection, 0-1000 μg/m³ range and 1 μg/m³ resolution.
● CO2 range 0-5000 ppm, effective range 400-5000 ppm, with 1 ppm resolution.
● Wind speed and wind direction structure with low rotational inertia and sensitive response.
● Noise measurement range up to 30-130 dB.
● Simultaneous PM2.5 and PM10 collection, 0-1000 μg/m³ range and 1 μg/m³ resolution.
● CO2 range 0-5000 ppm, effective range 400-5000 ppm, with 1 ppm resolution.
Product Overview

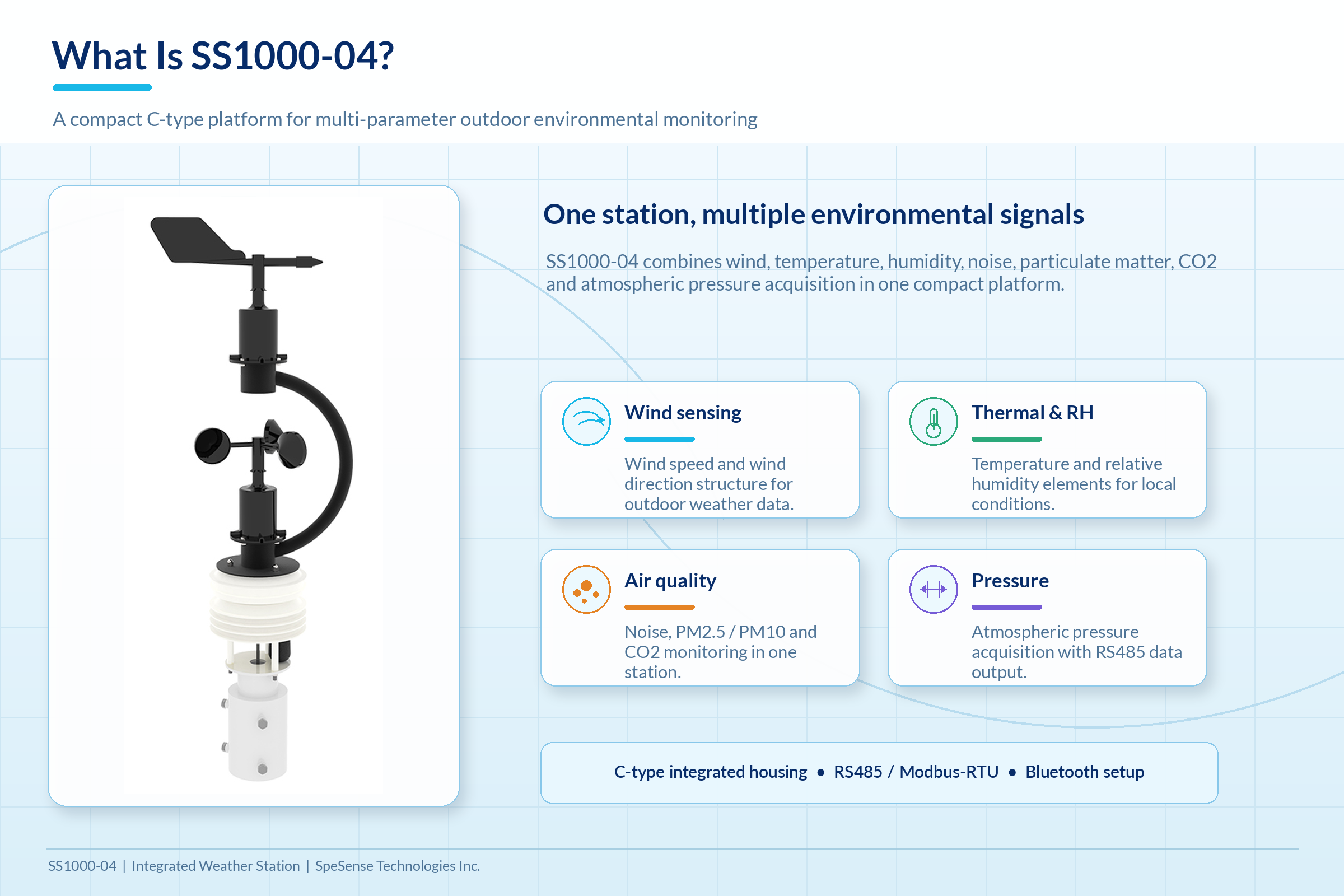

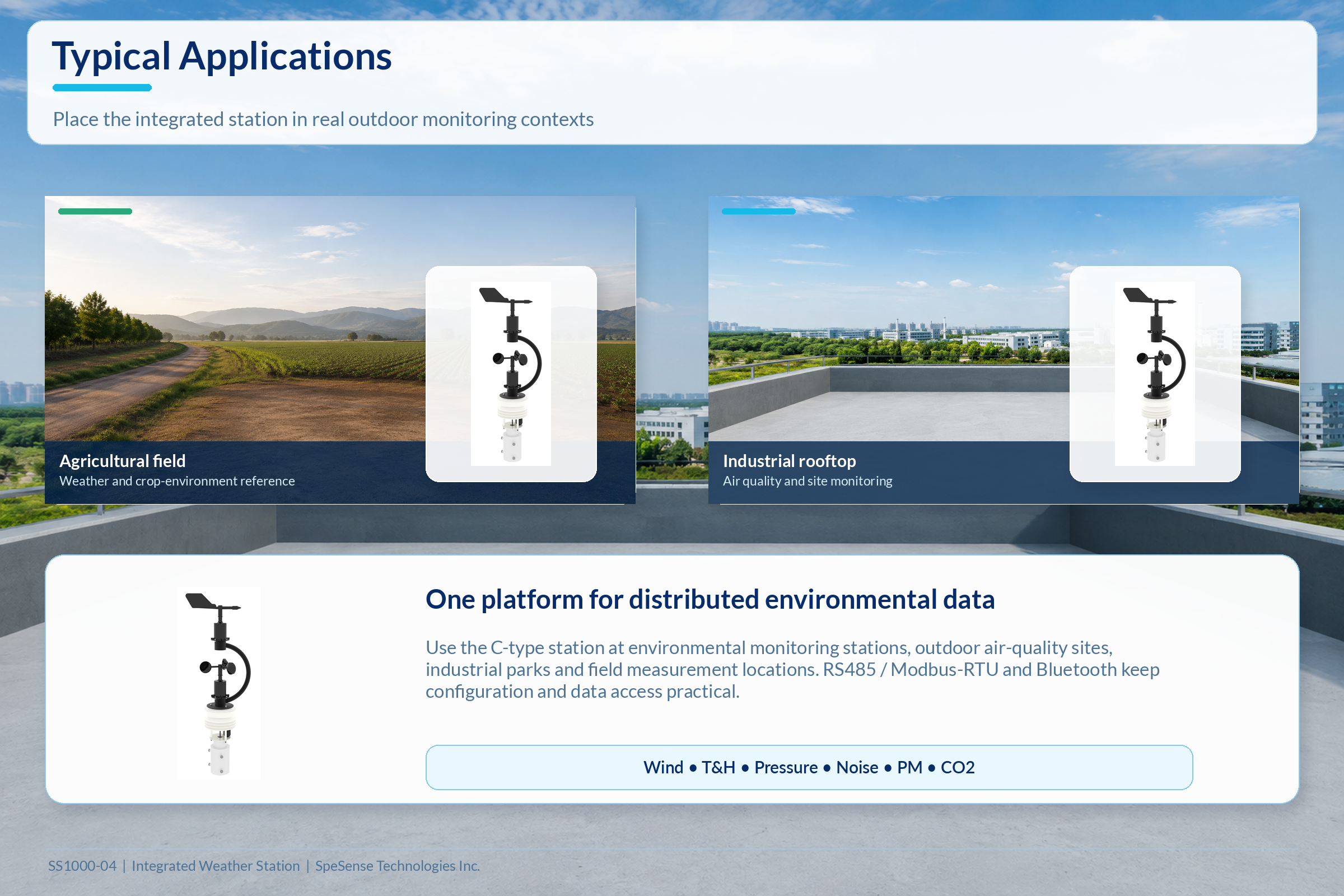

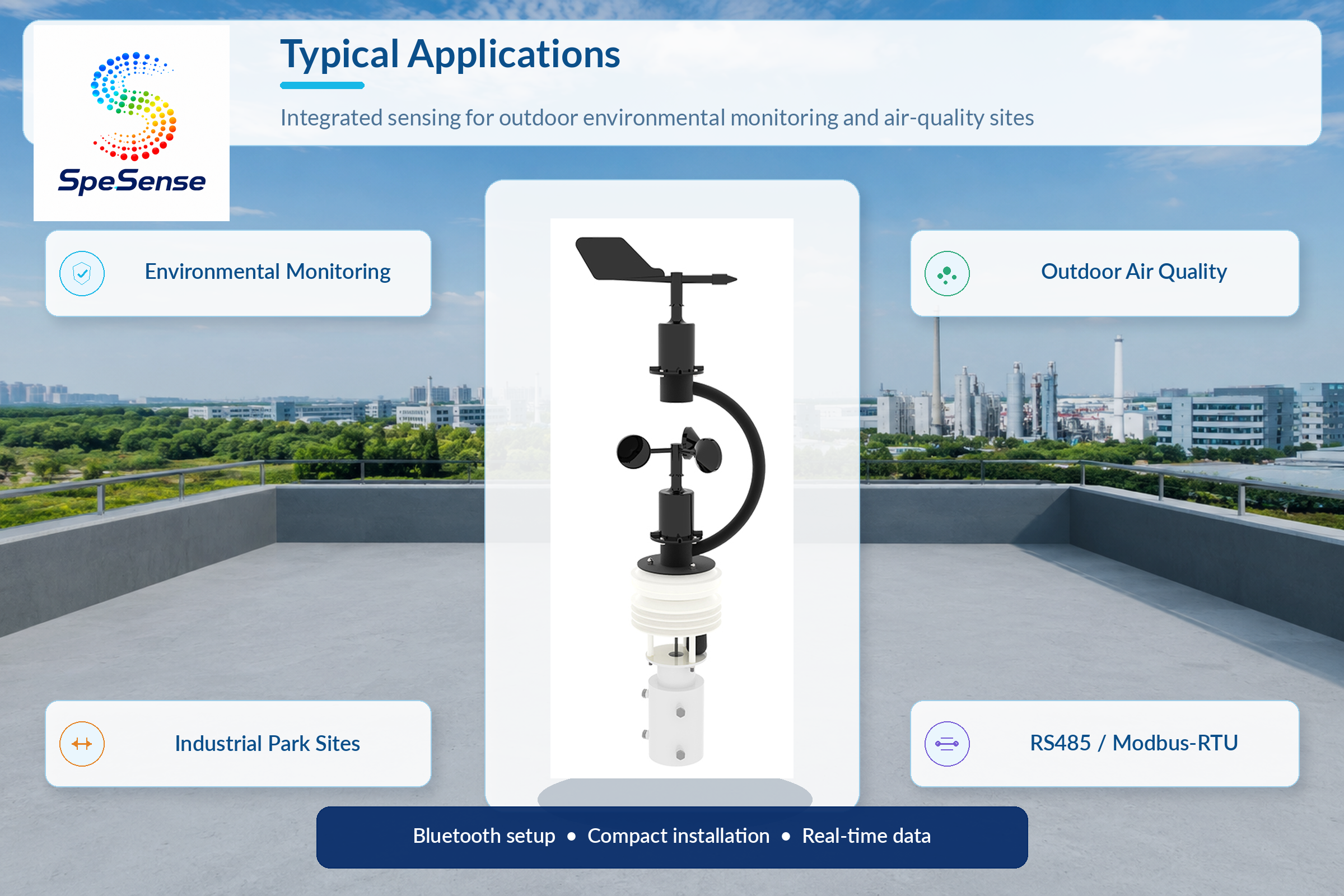

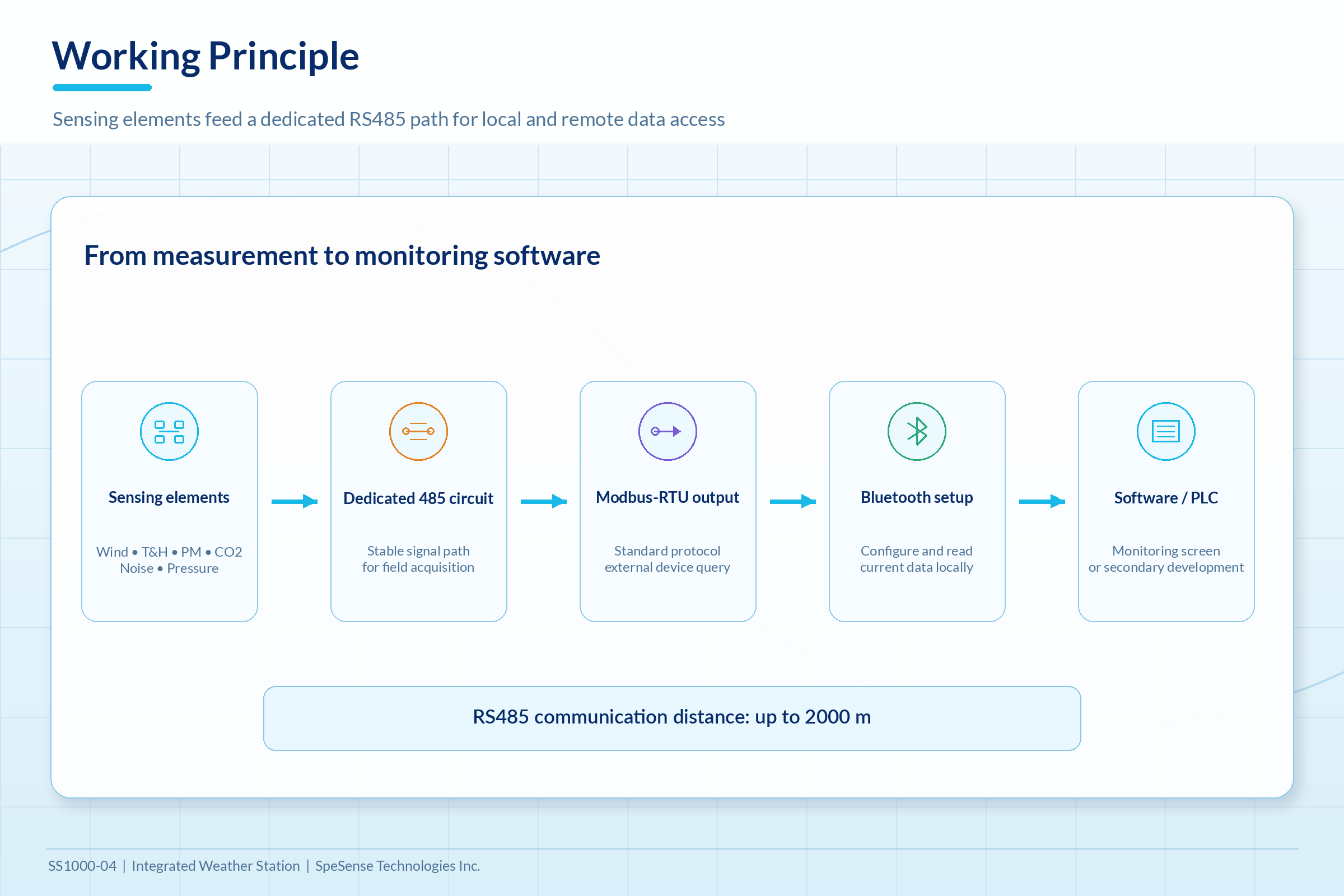

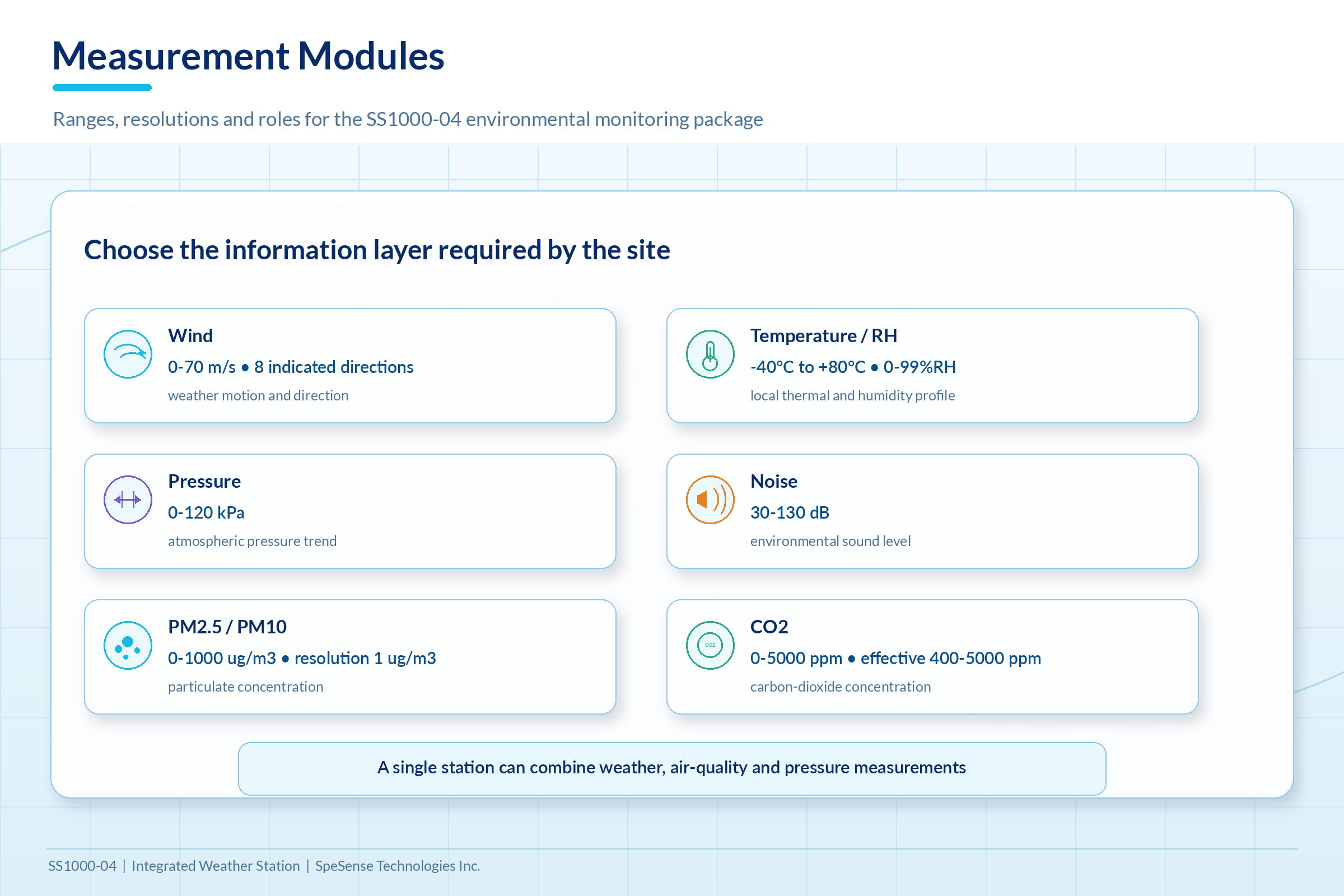

The SpeSense SS1000-04 Integrated Weather Station is designed for multi-parameter environmental monitoring in a compact outdoor installation. Its integrated configuration combines wind measurement with temperature, humidity, atmospheric pressure, noise and selectable air quality measurements, including particulate matter or CO₂ according to the selected configuration. With RS485 Modbus communication, Bluetooth configuration and low-power operation, the station is suitable for smart city monitoring, industrial environmental sensing, agricultural weather observation and automated outdoor data acquisition systems.

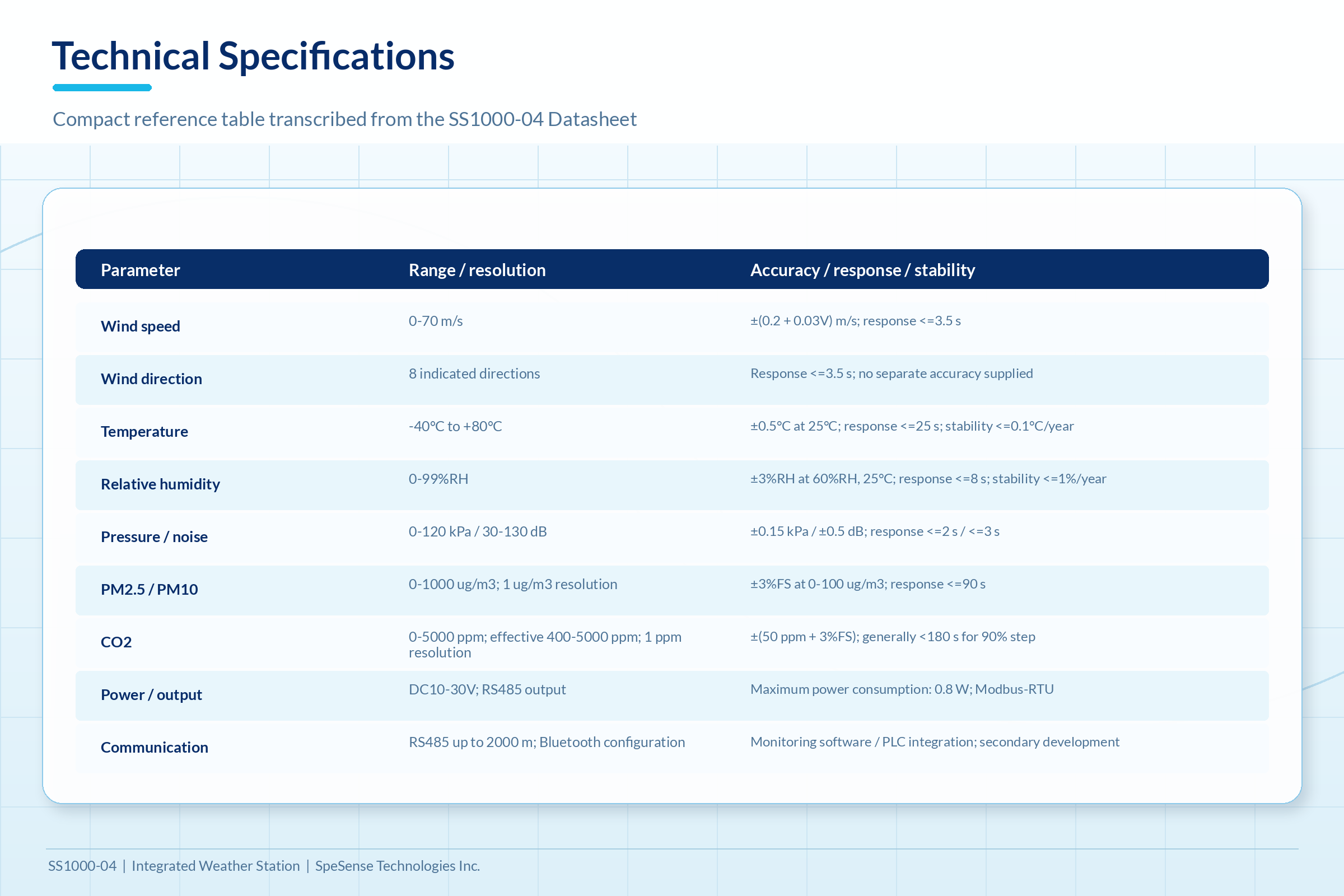

| Item | Specification |

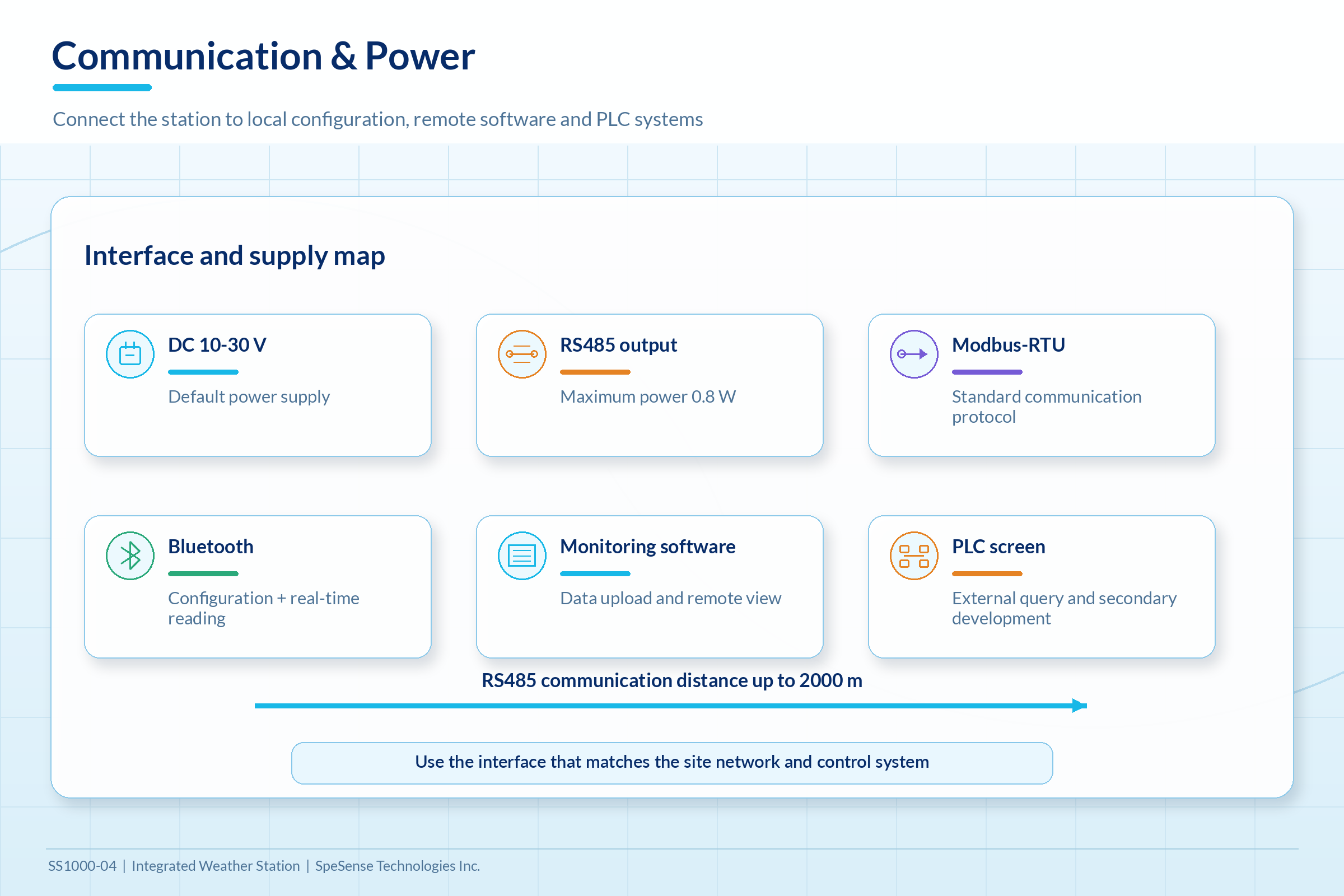

| Default power supply | DC10-30V |
| Maximum power consumption | RS485 output: 0.8 W |
| Output signal | RS485 output; standard Modbus communication protocol |
| Configuration | Bluetooth configuration supported |
| Communication distance | Up to 2000 m through RS485 communication |

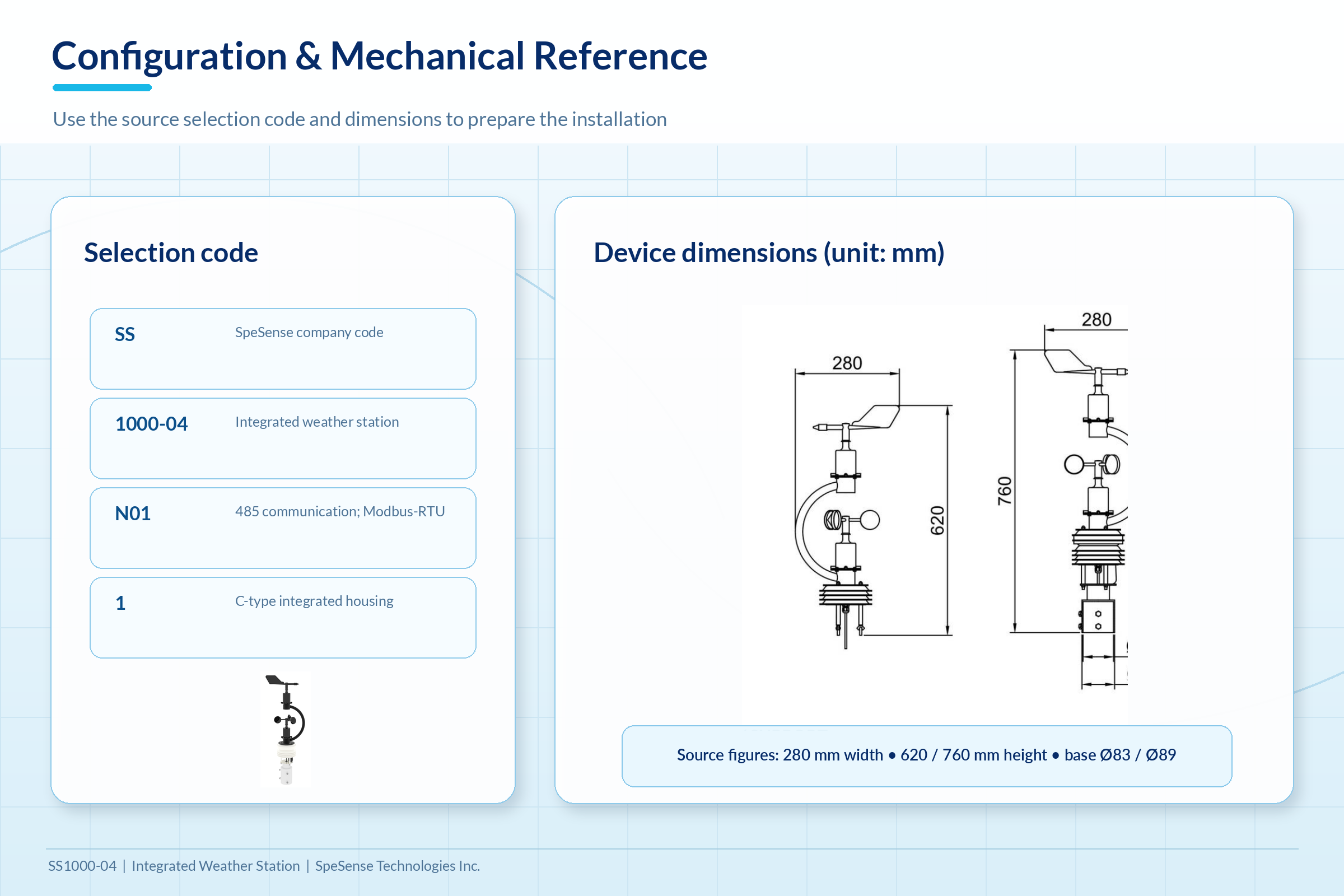

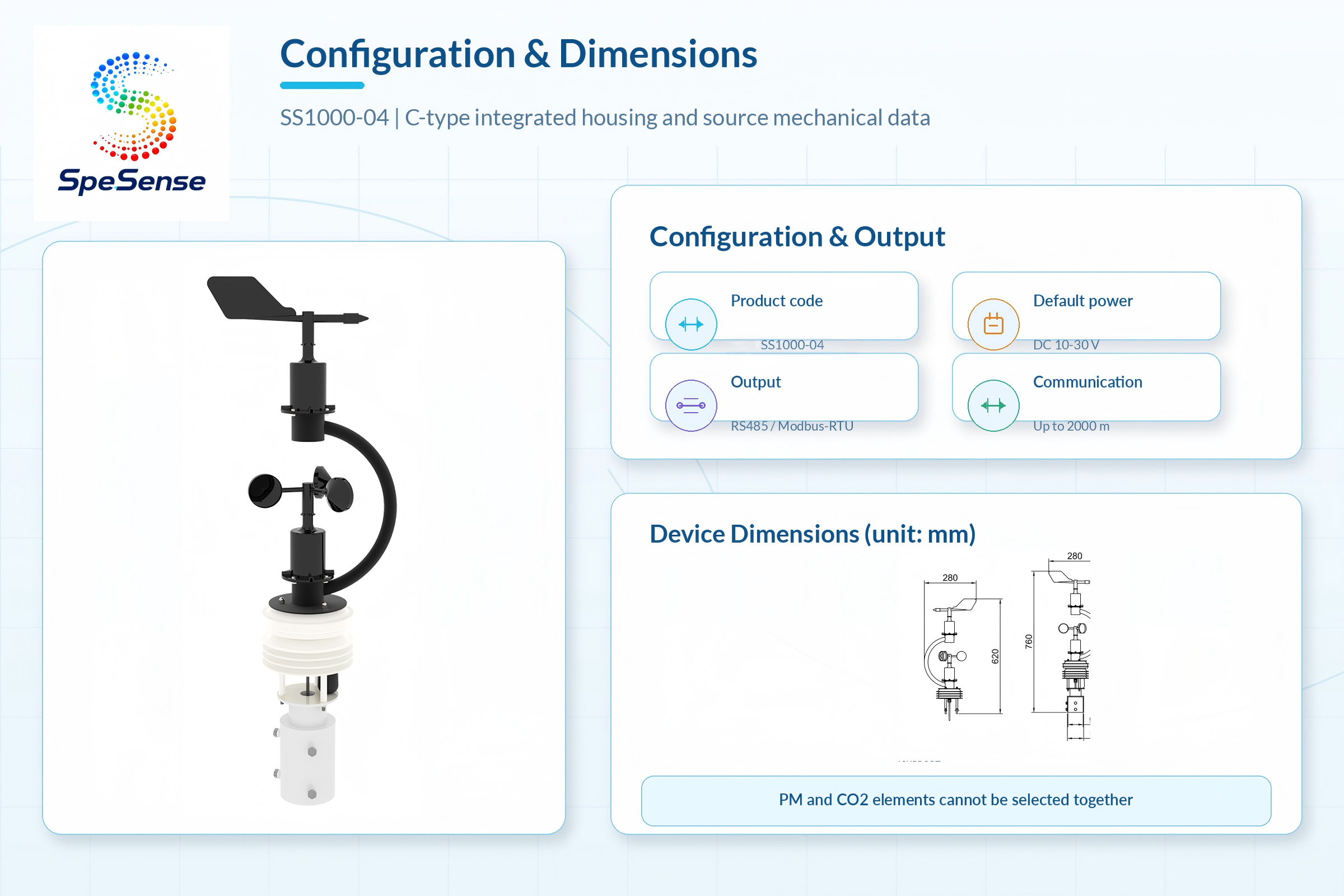

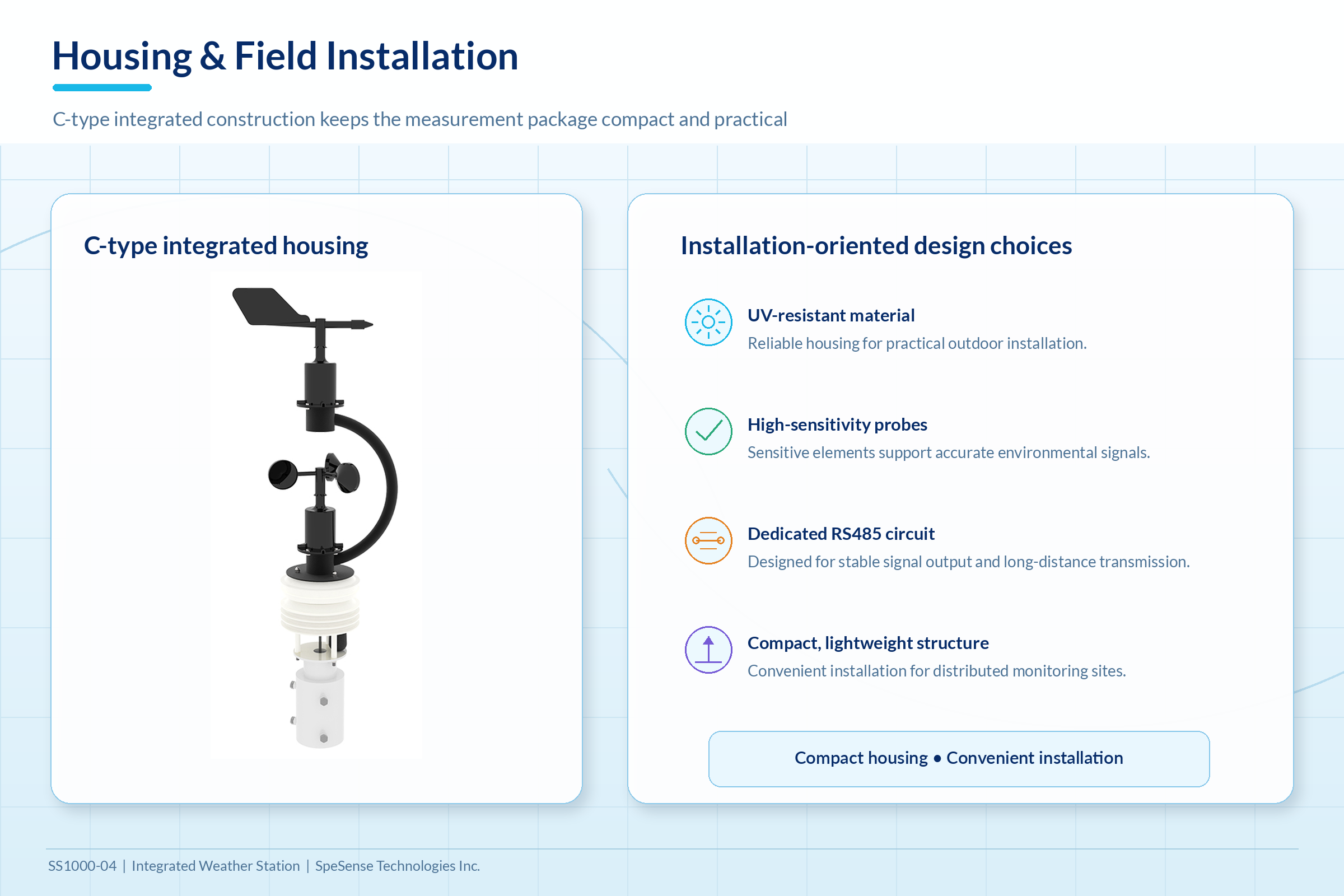

| Housing | C-type integrated housing |

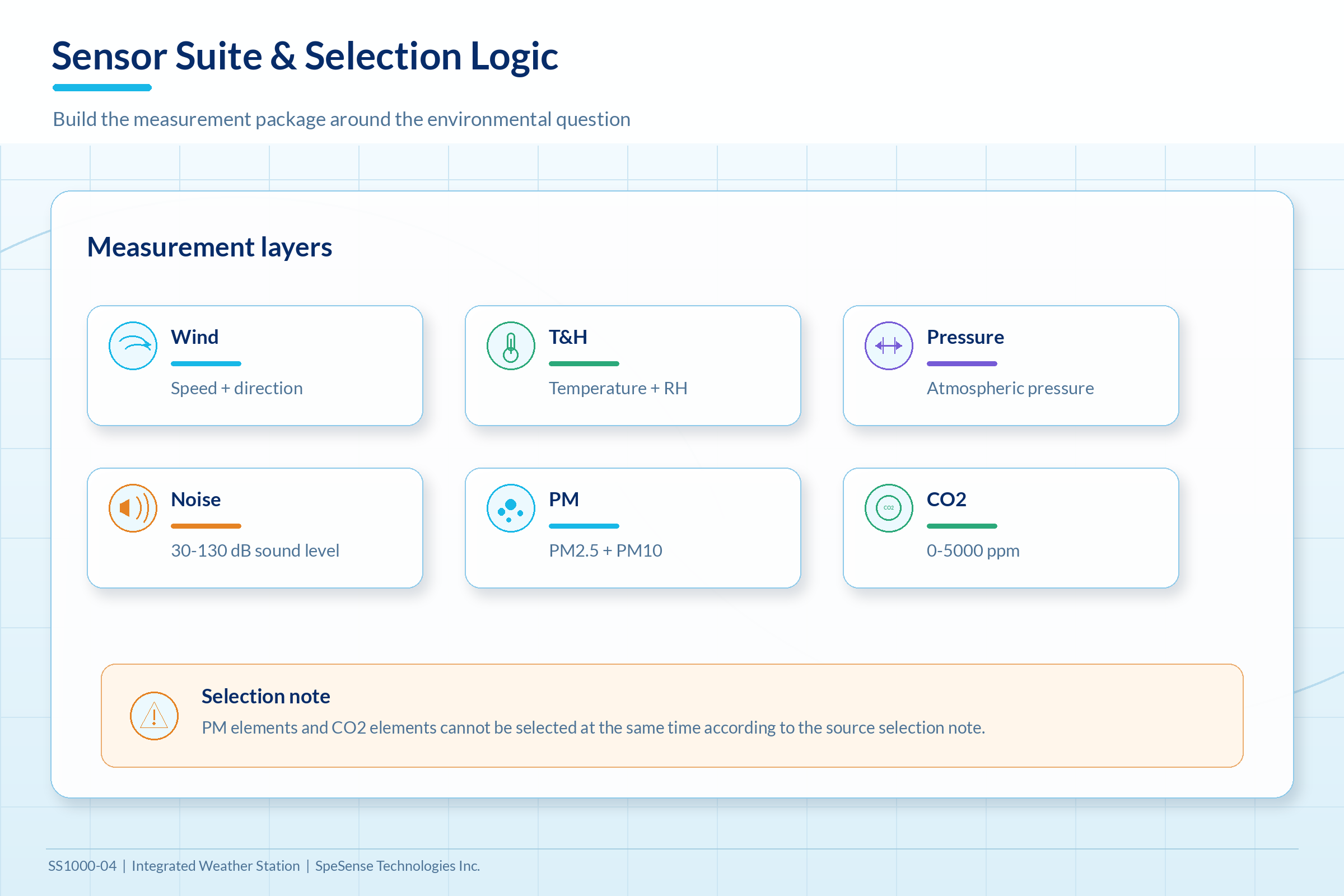

| Important selection note | PM elements and CO2 elements cannot be selected at the same time according to the source selection note. |
