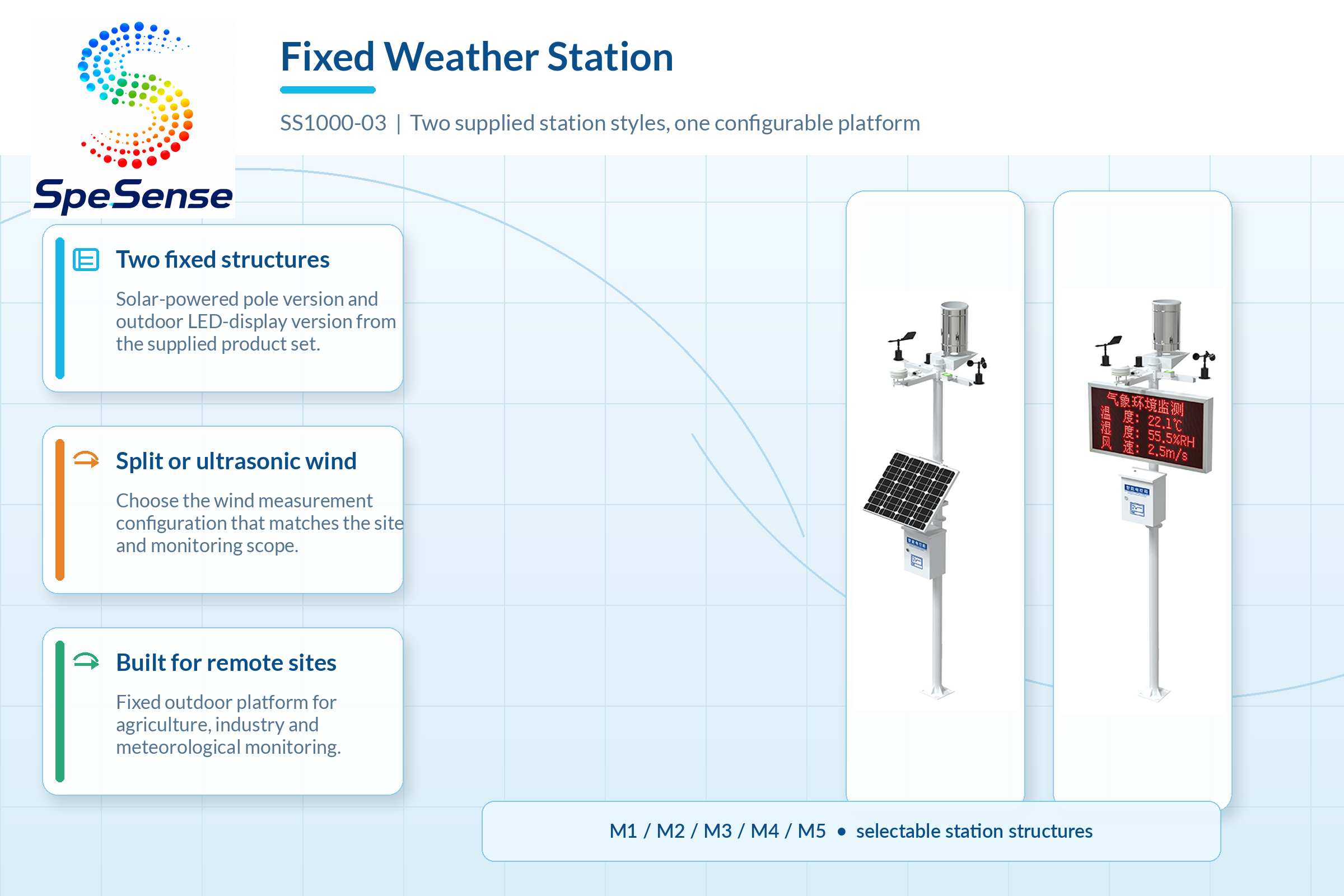

Automatic weather station

SS1000-03

固定式气象站

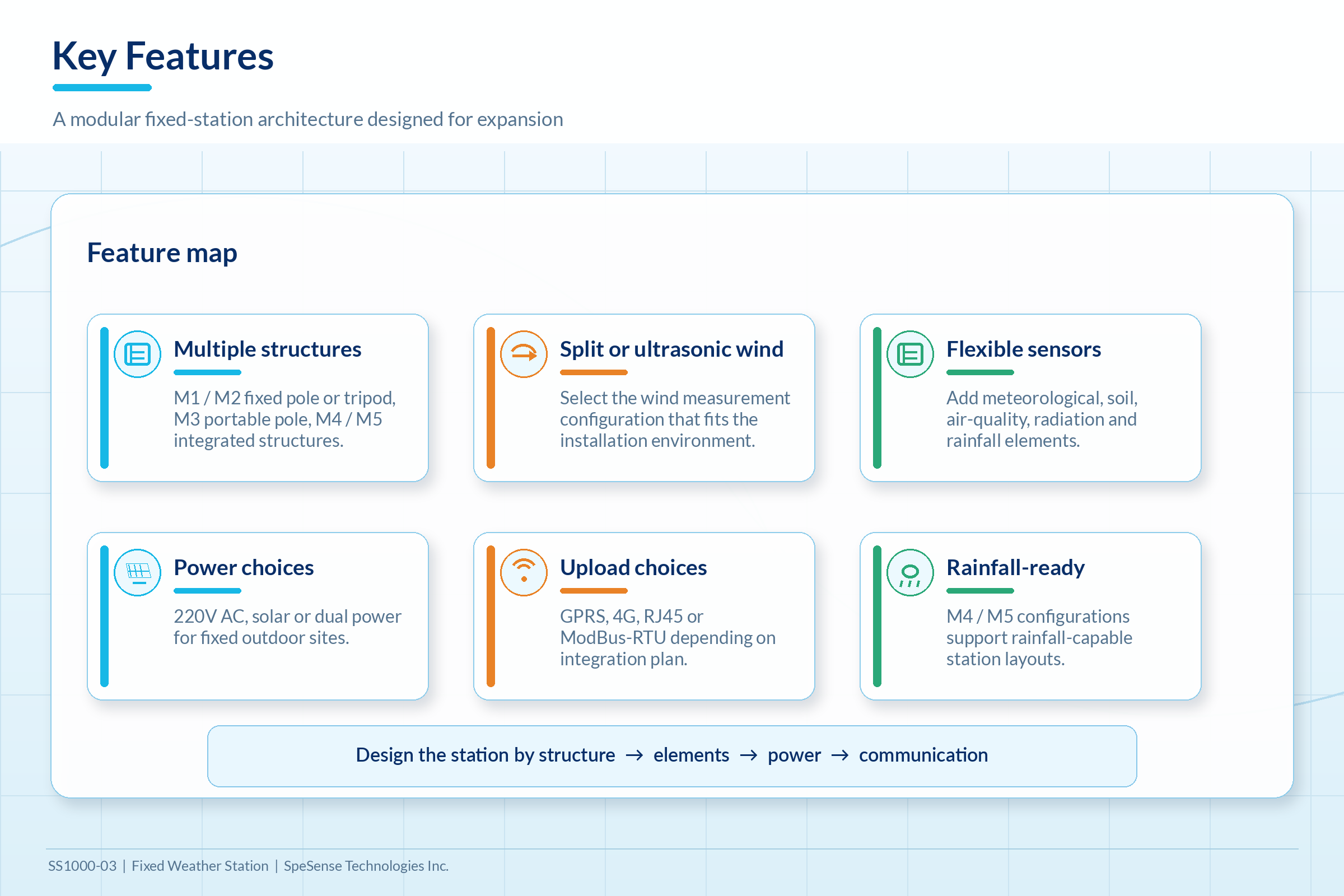

产品亮点

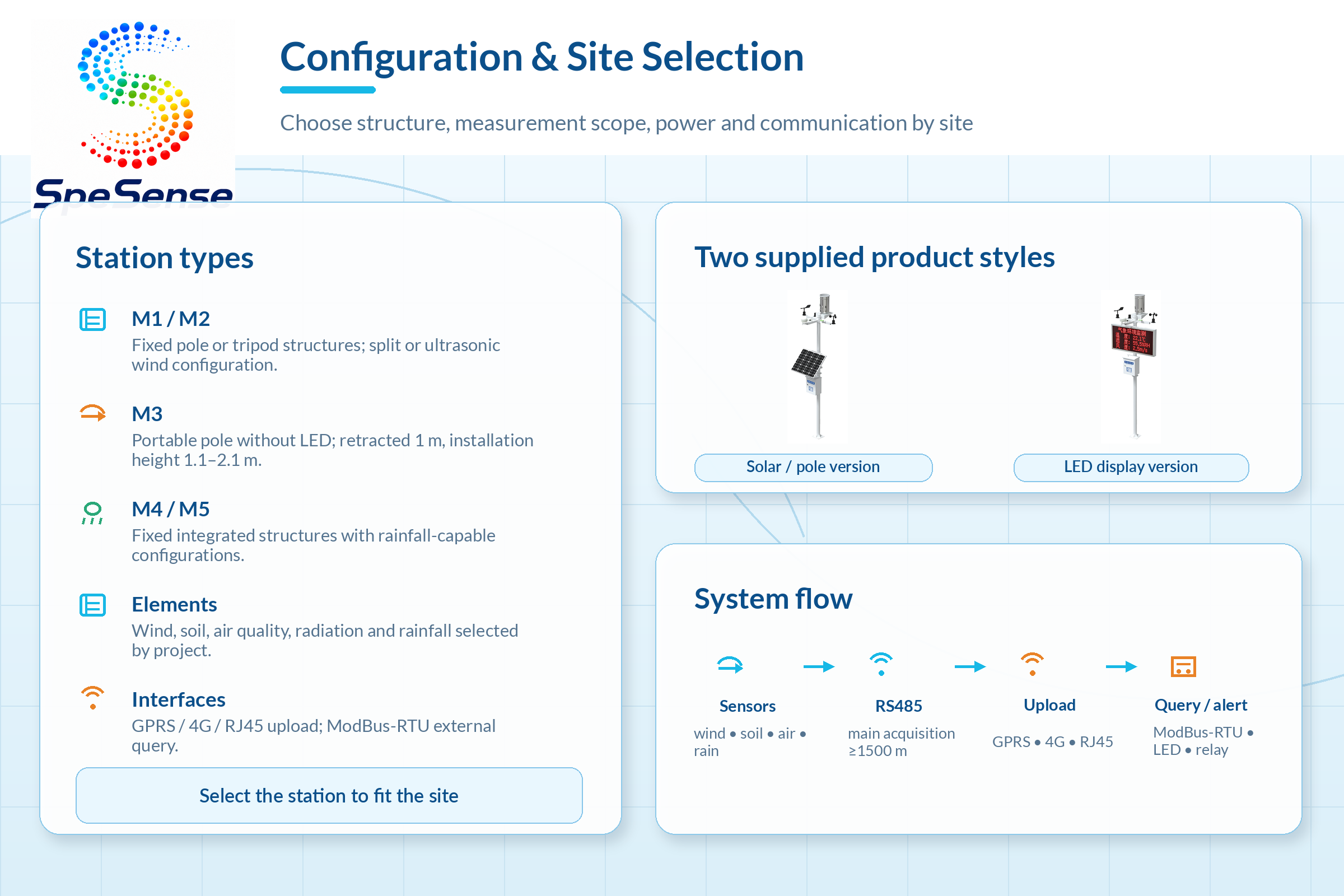

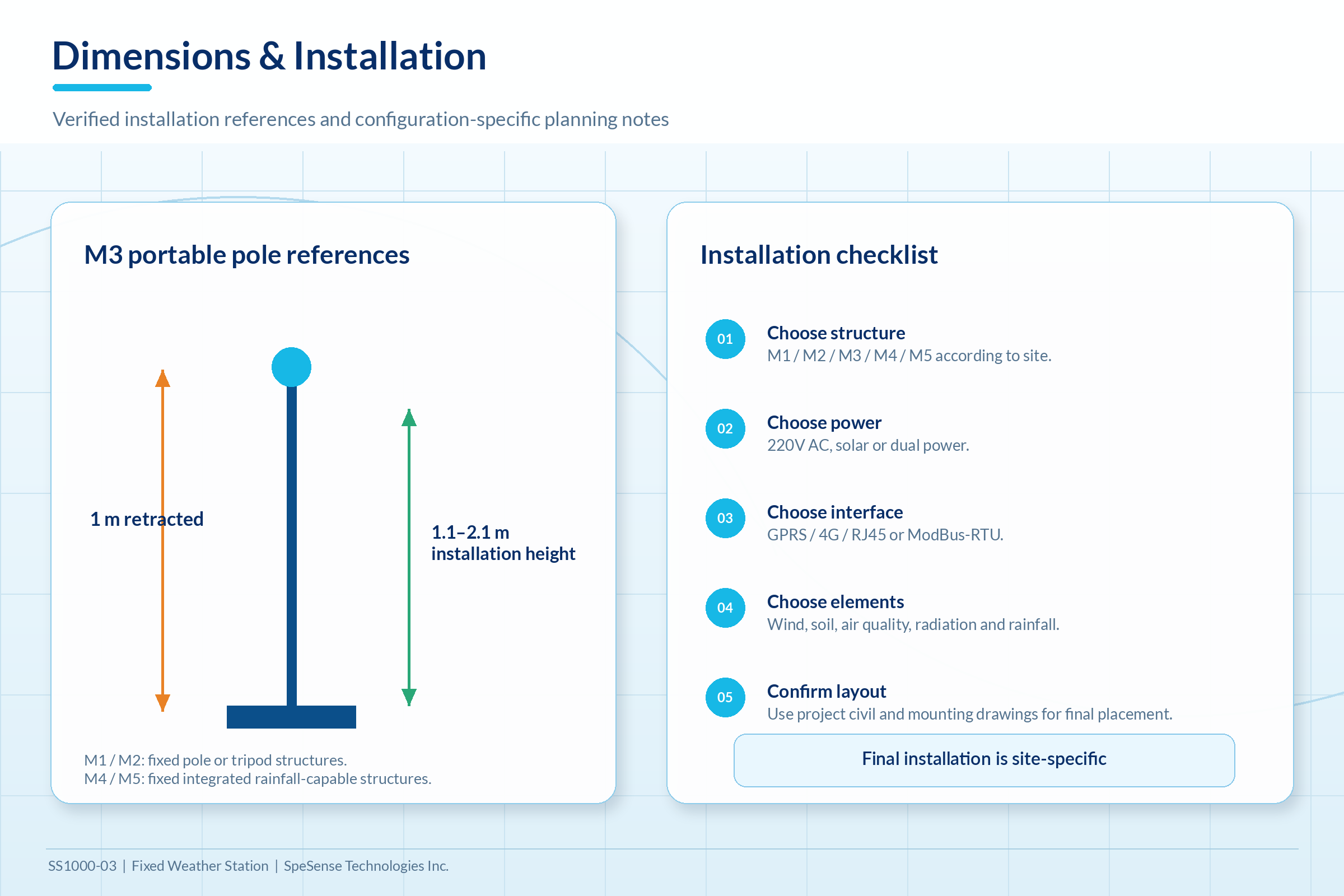

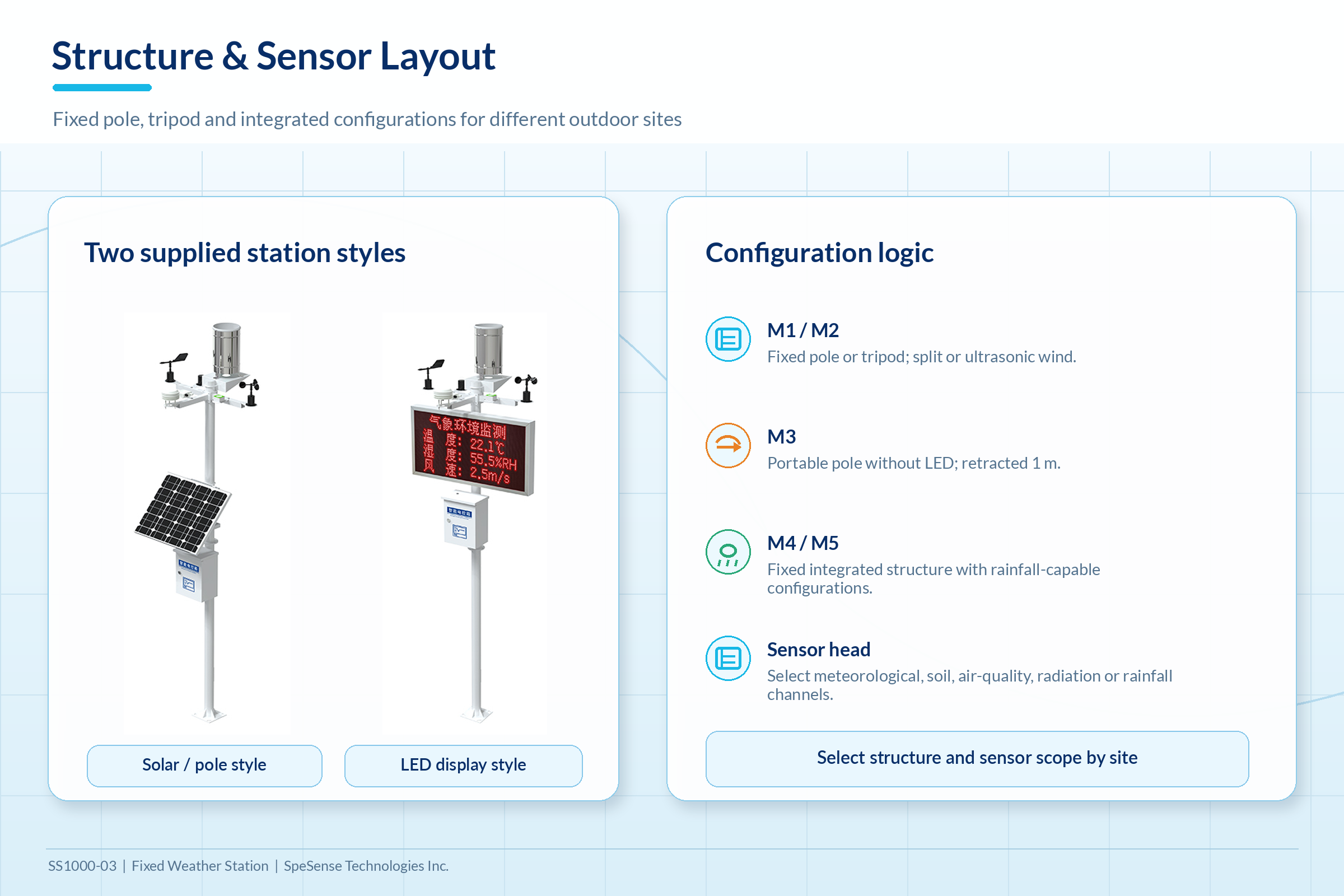

● Multiple fixed station structures for different installation environments.
● Supports split wind sensors or ultrasonic integrated wind measurement configurations.

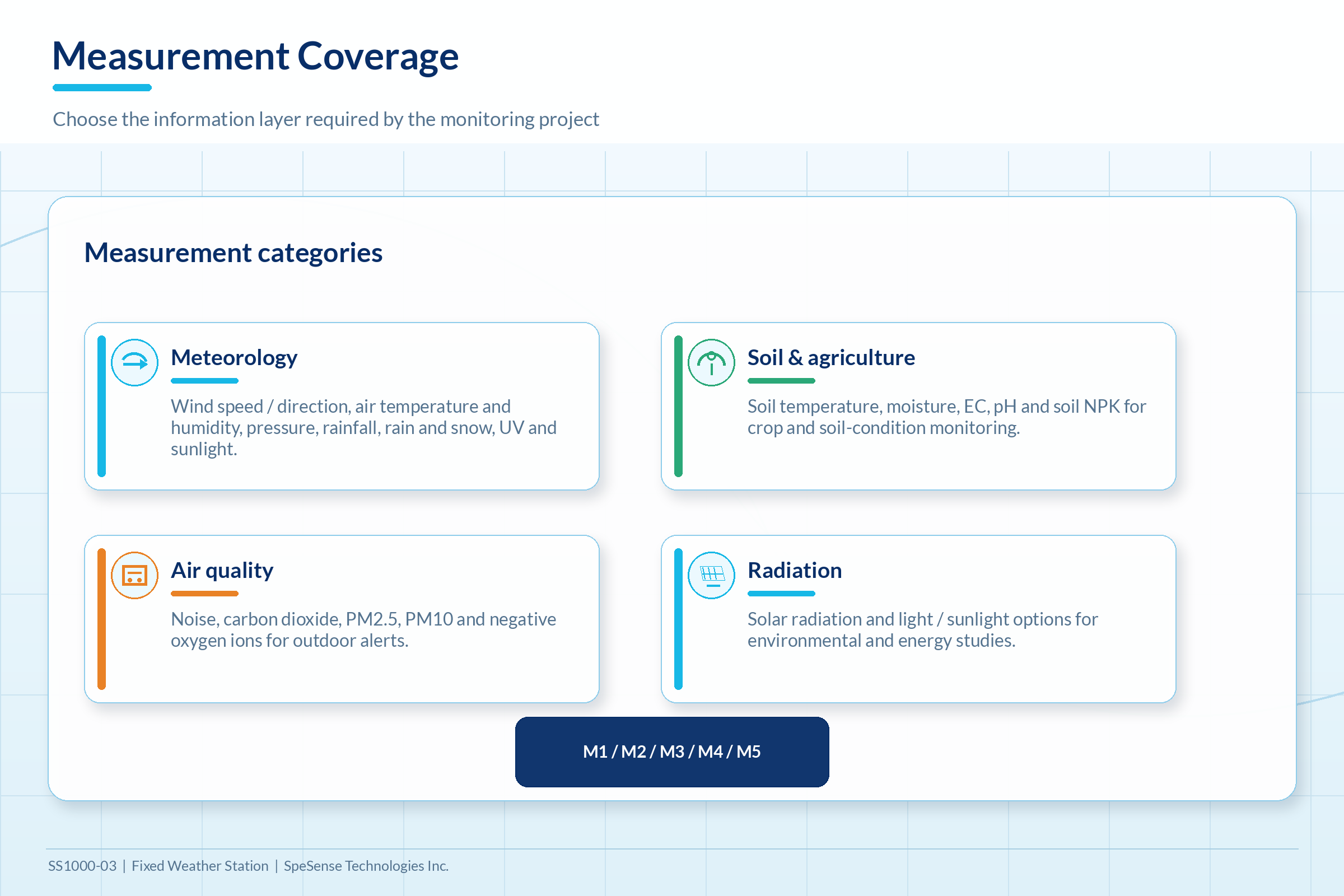

● Flexible sensor selection covering meteorological, soil, radiation, air-quality and rainfall monitoring.
● Multiple power and data-upload configurations for fixed outdoor sites.

下载PDF

产品概述

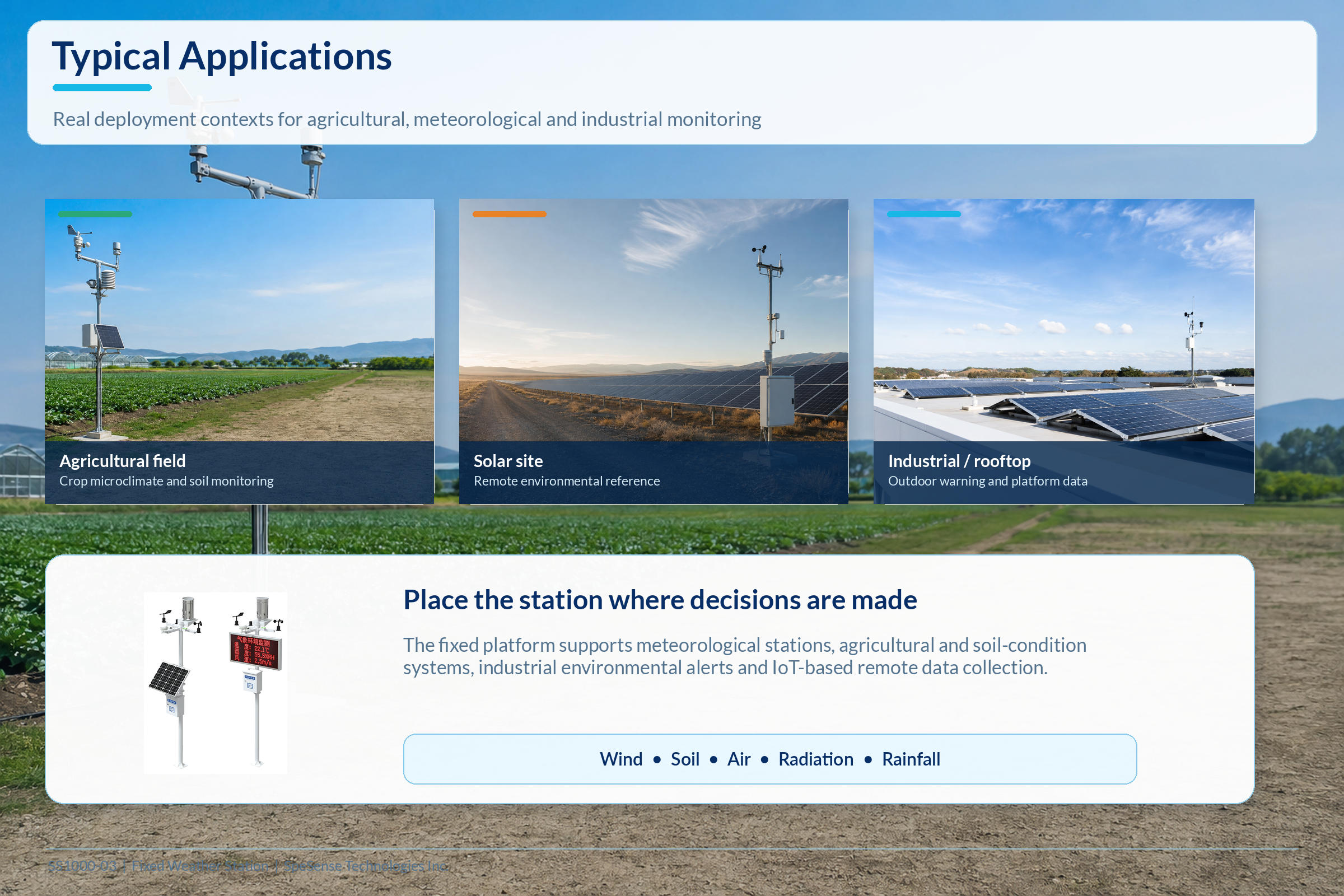

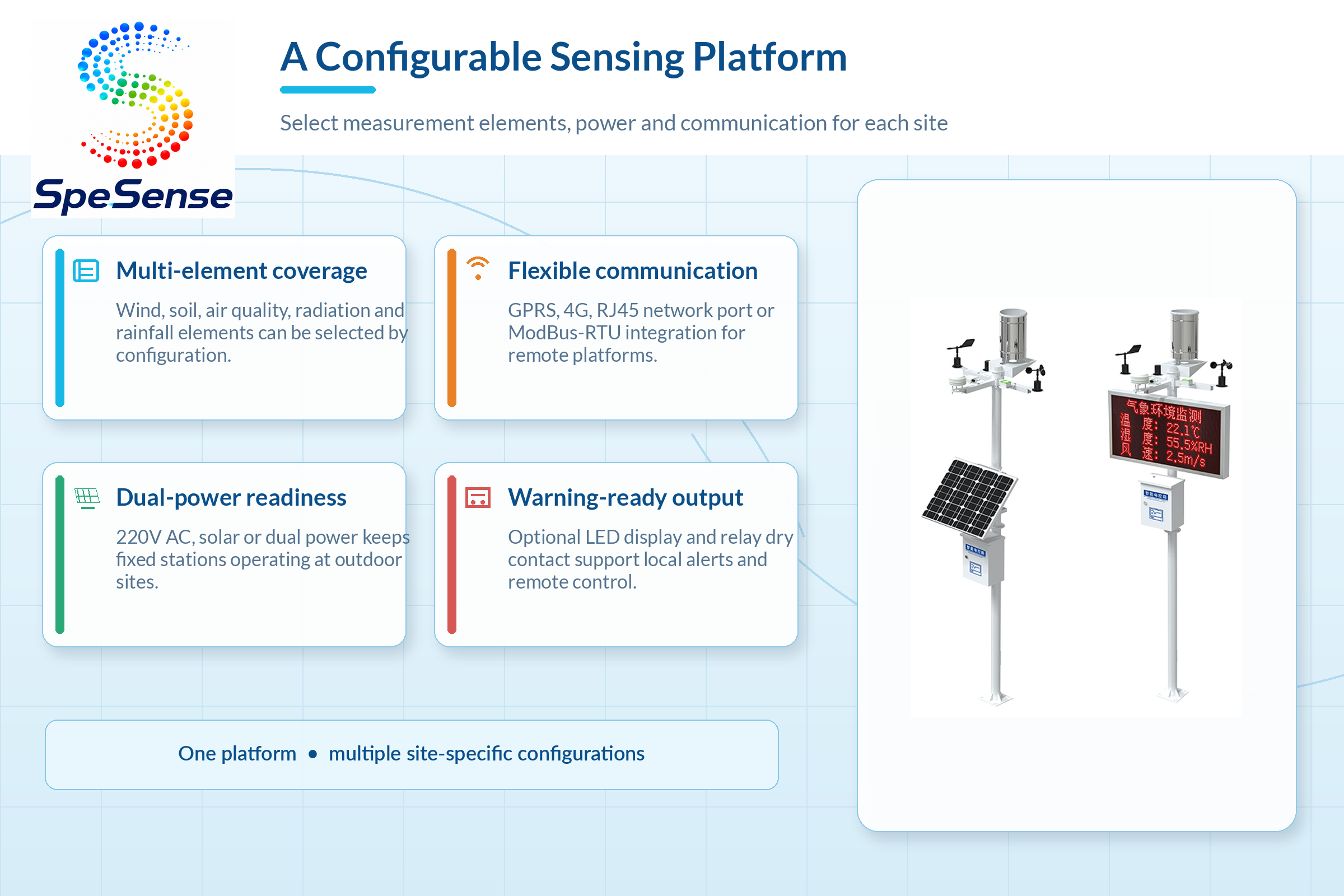

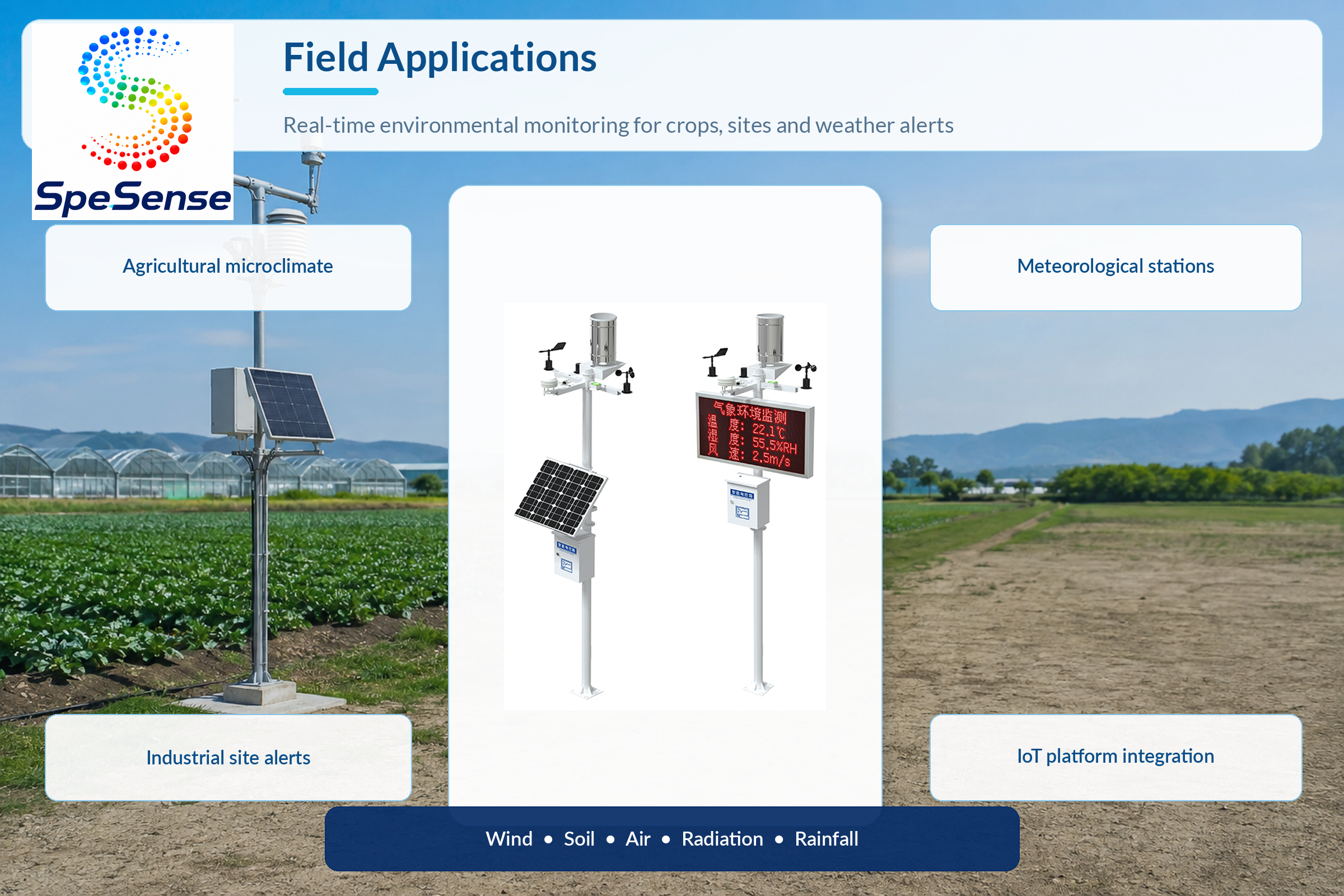

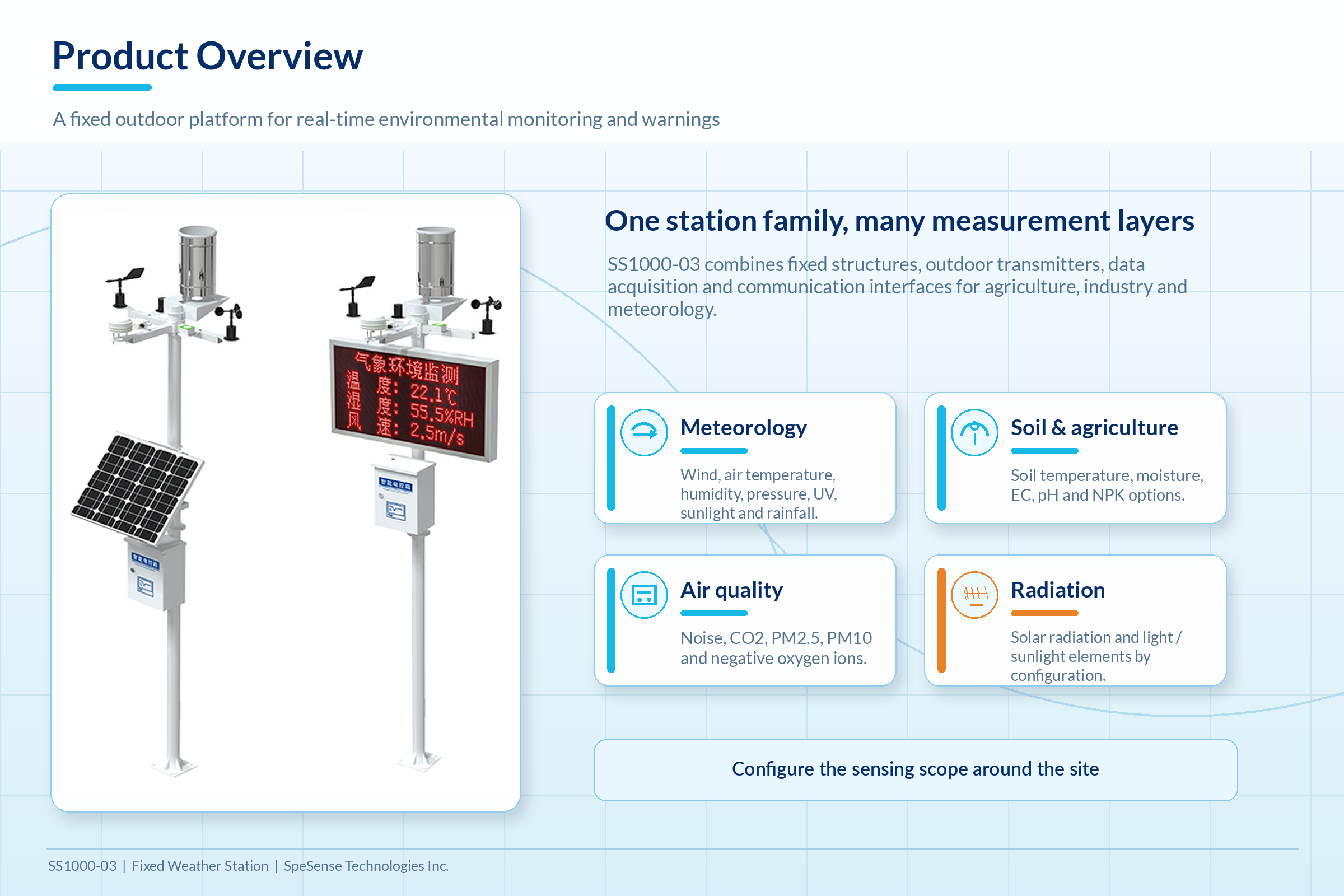

Outdoor fixed weather station platform for real-time environmental monitoring, IoT-oriented data acquisition and weather warning applications across agriculture, industry and meteorology.

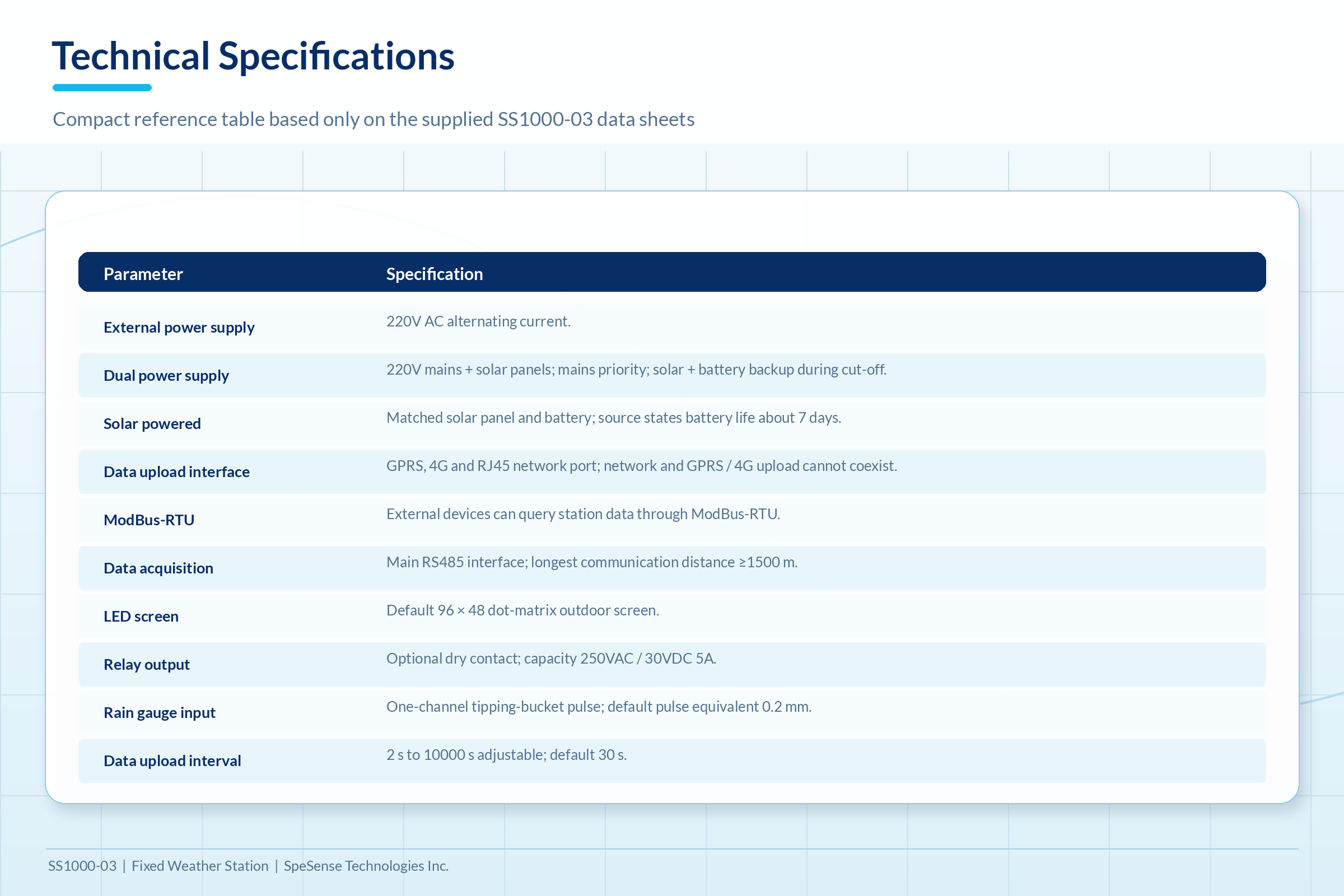

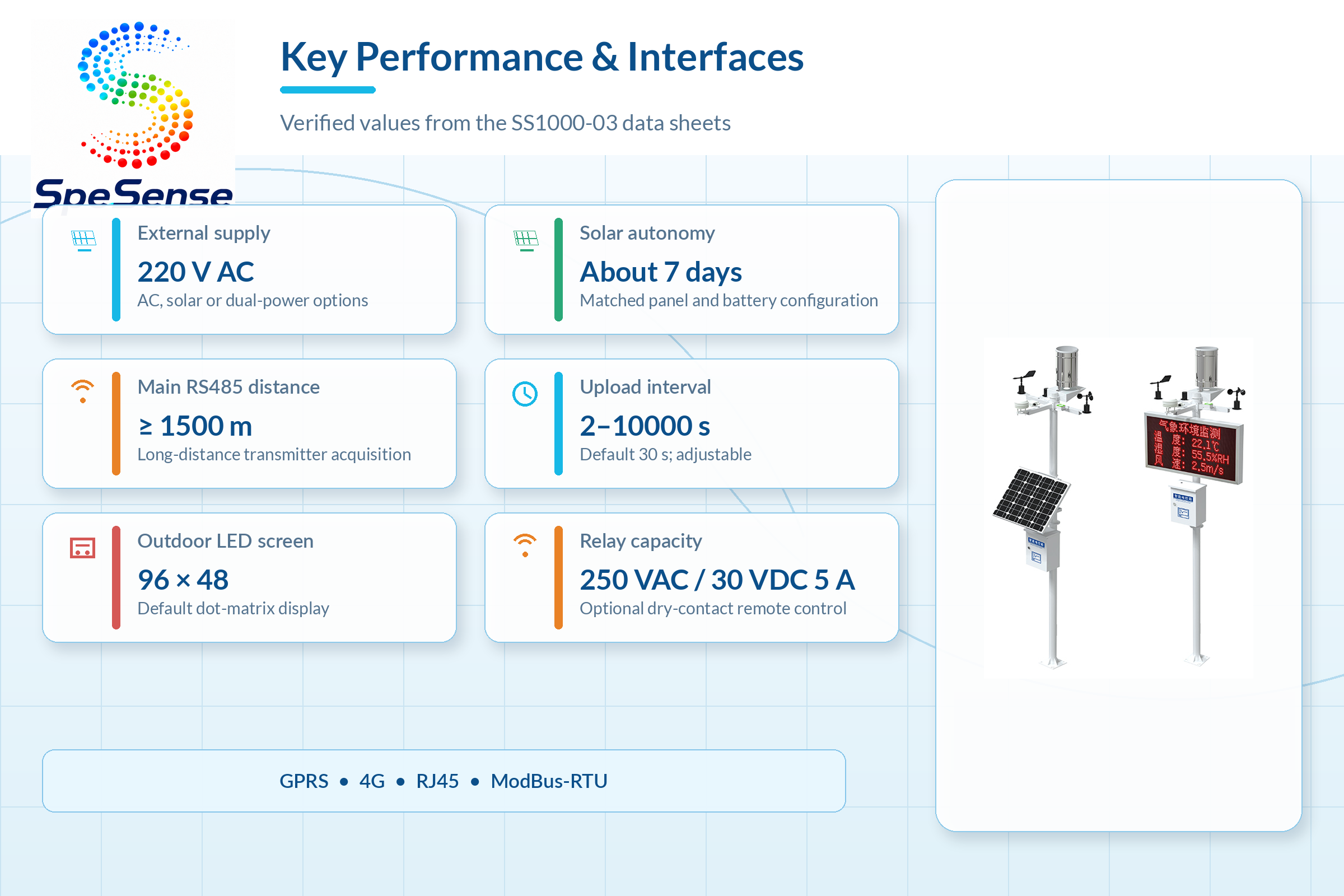

Parameter	Specification
External power supply	220V AC alternating current.

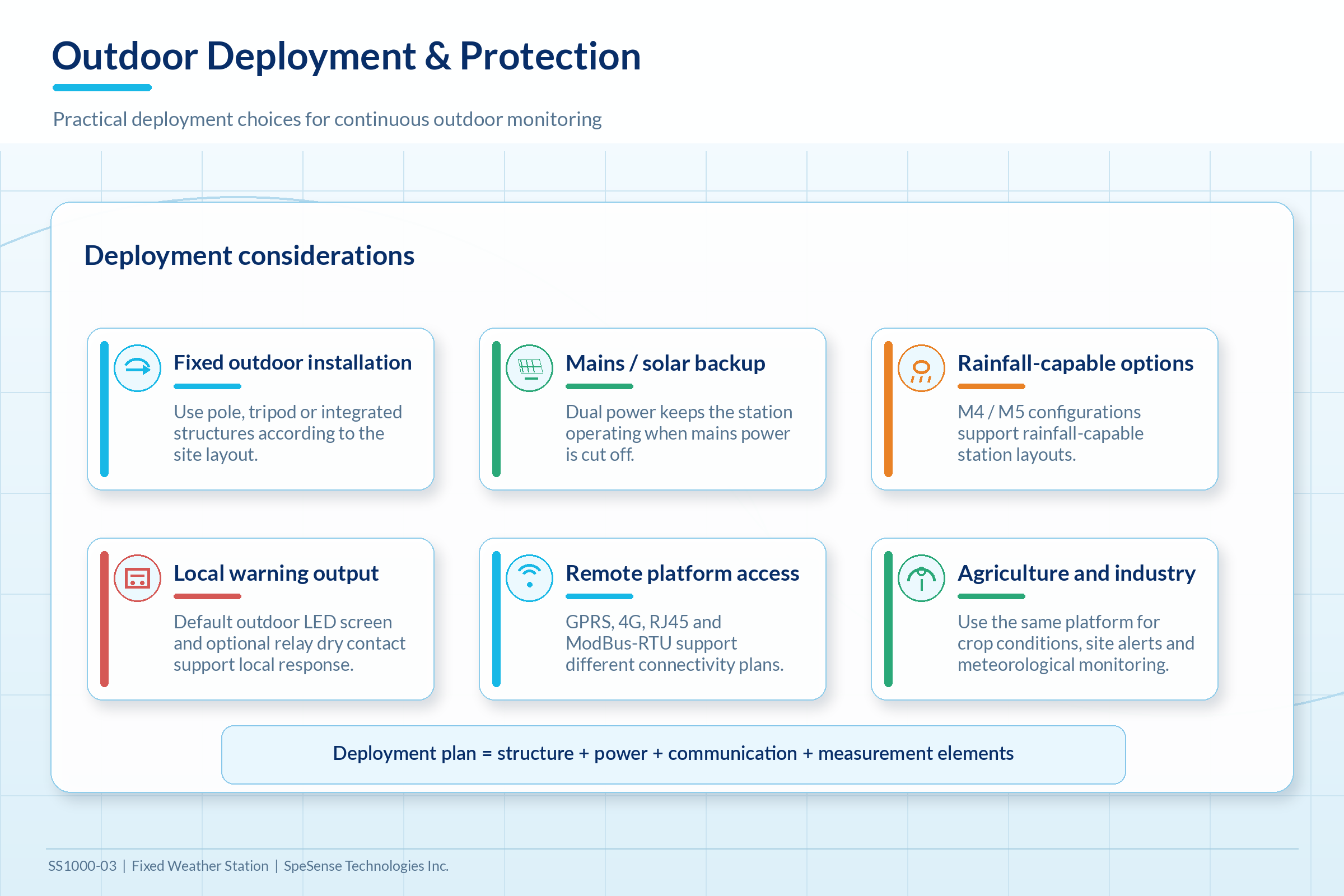

Dual power supply	Supports 220V mains and solar panels; mains power has priority, while solar panels and batteries keep the equipment operating when mains power is cut off.
Solar powered	Supports matched solar panels and batteries; source states battery life is about 7 days.

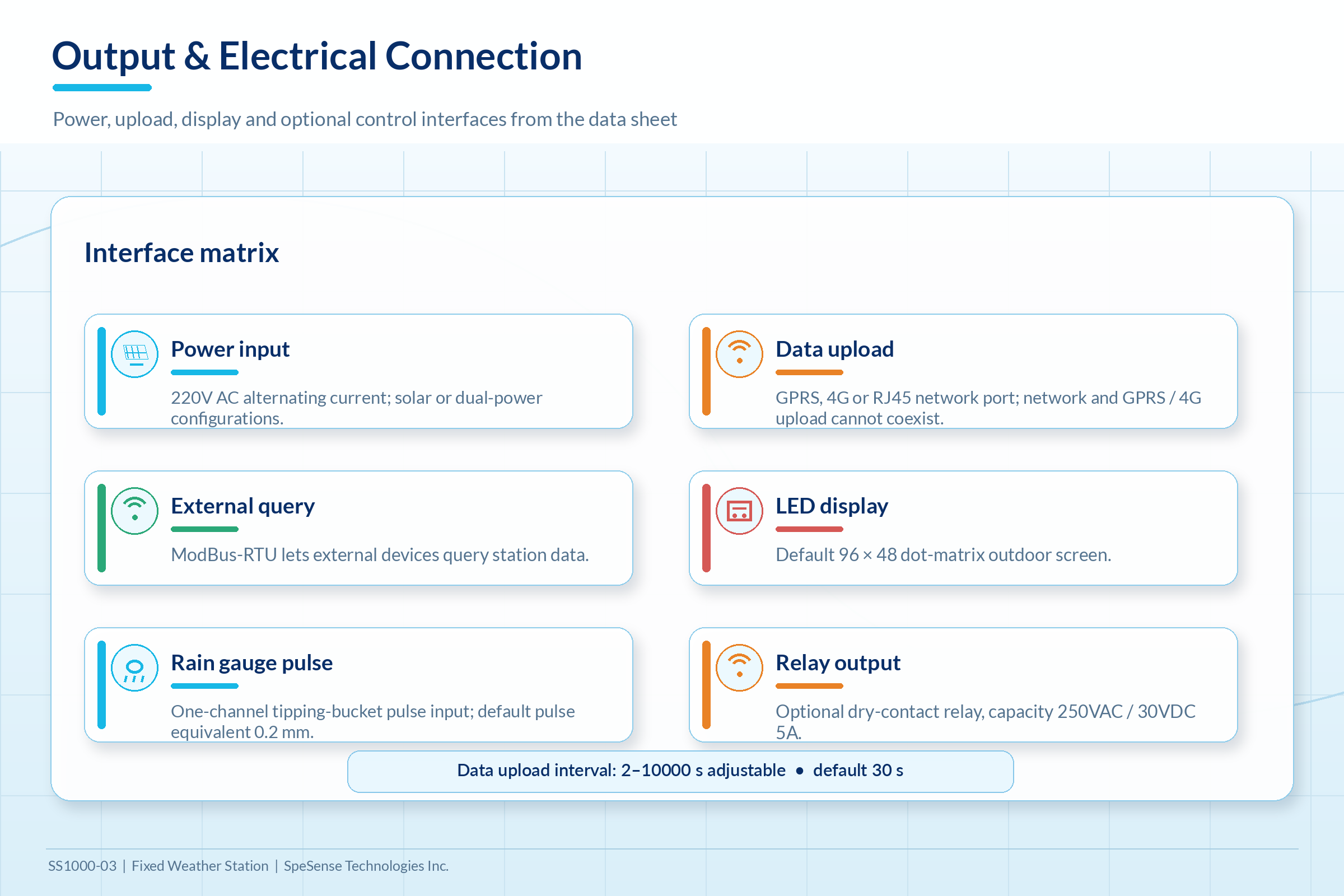

Data upload interface	GPRS, 4G and RJ45 network port. Network-port uploading and GPRS / 4G uploading cannot coexist.
ModBus-RTU	Supports external devices querying station data through ModBus-RTU.

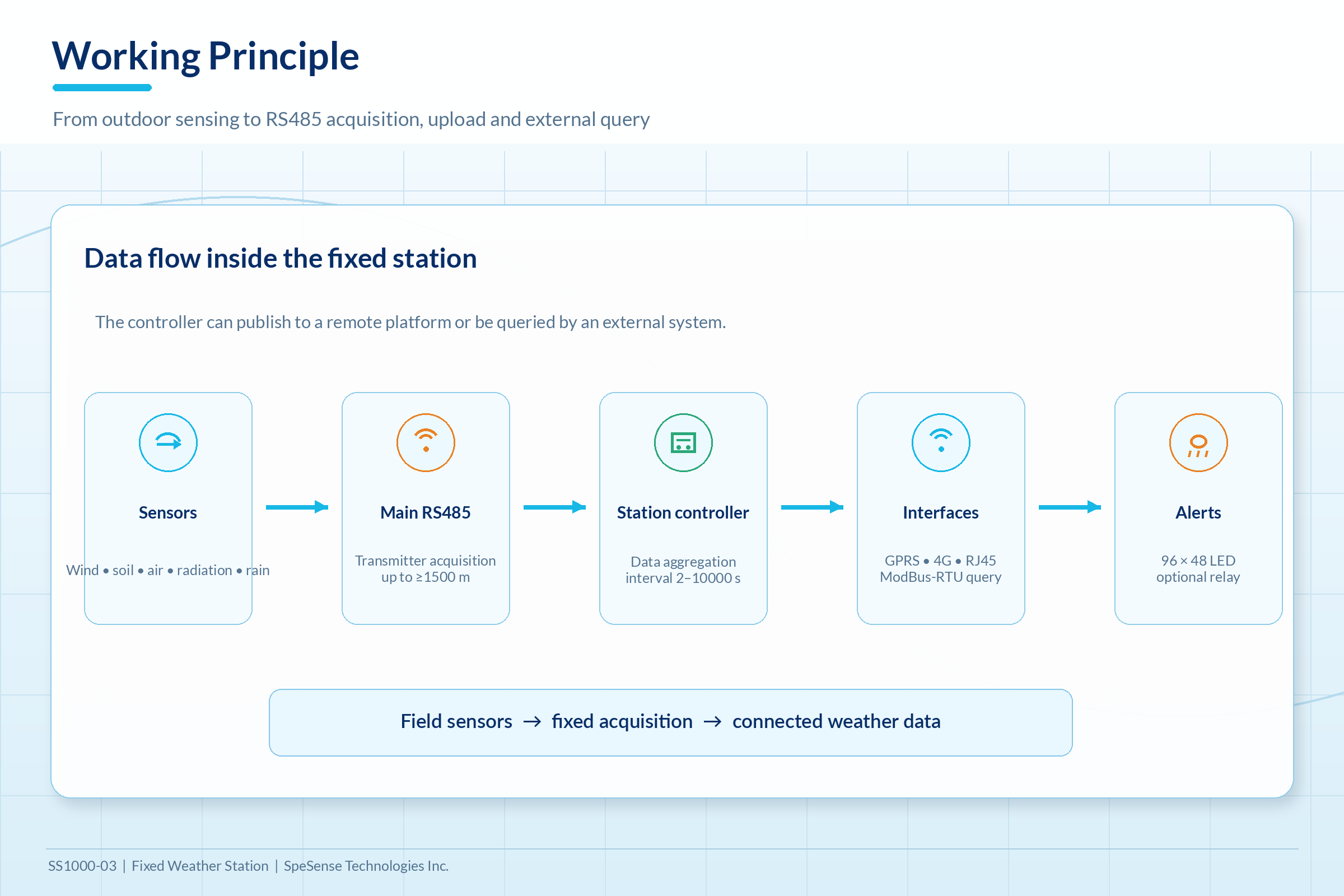

Data acquisition interface	Main RS485 interface collects data from 485-interface transmitters; longest communication distance >=1500 m.
LED screen interface	Default 96 x 48 dot-matrix outdoor screen.
2-way relay output	Optional relay dry-contact output; relay capacity 250VAC / 30VDC 5A; can be used for remote control.
Rain gauge input	One-channel tipping-bucket rain gauge pulse input. Default pulse equivalent: 0.2 mm. Supports instantaneous rainfall, daily rainfall, current rainfall and accumulated rainfall values.
Data upload interval	2 s to 10000 s adjustable; default 30 s.
