Automatic weather station
SS1000-02
PV 气象站
产品亮点

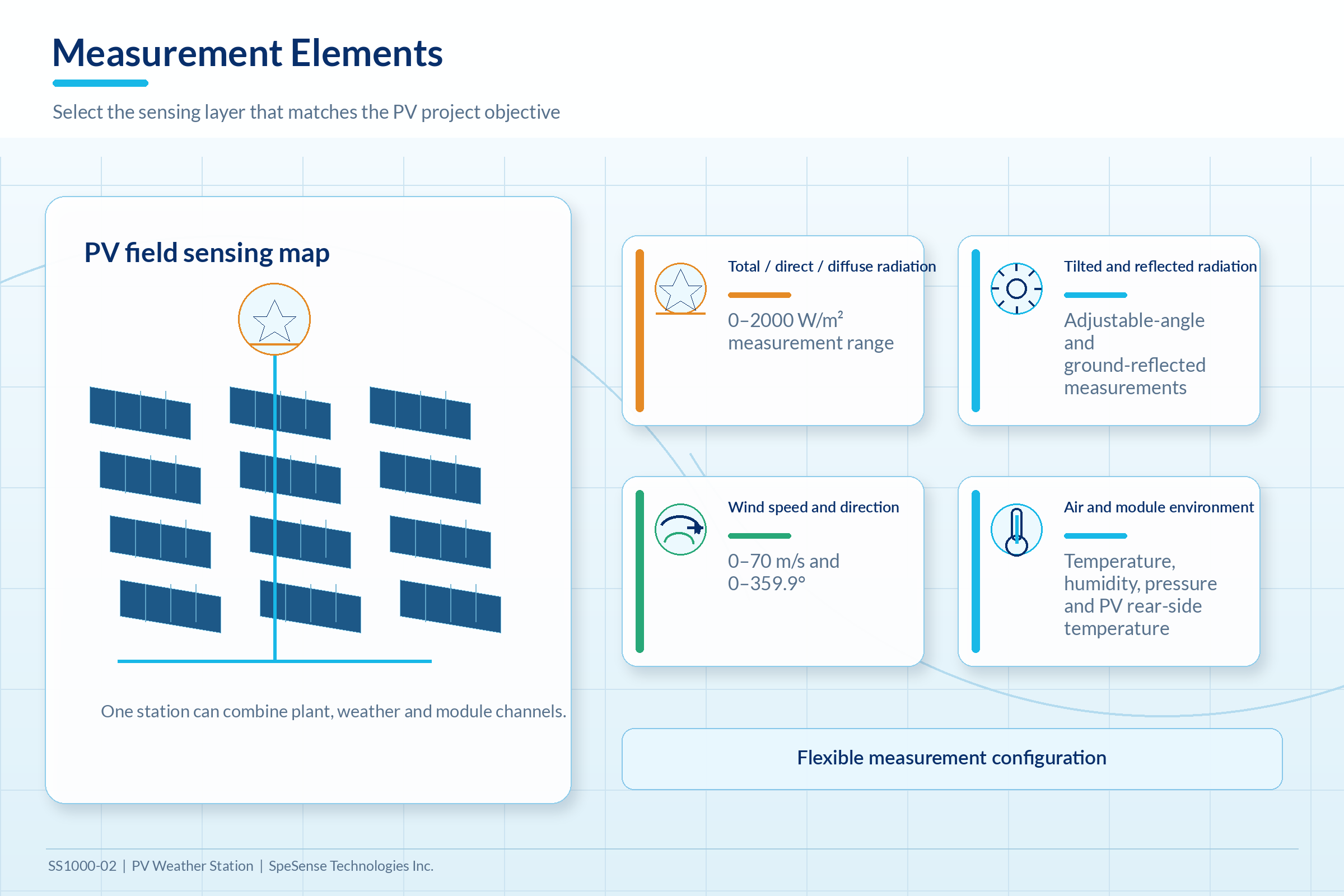

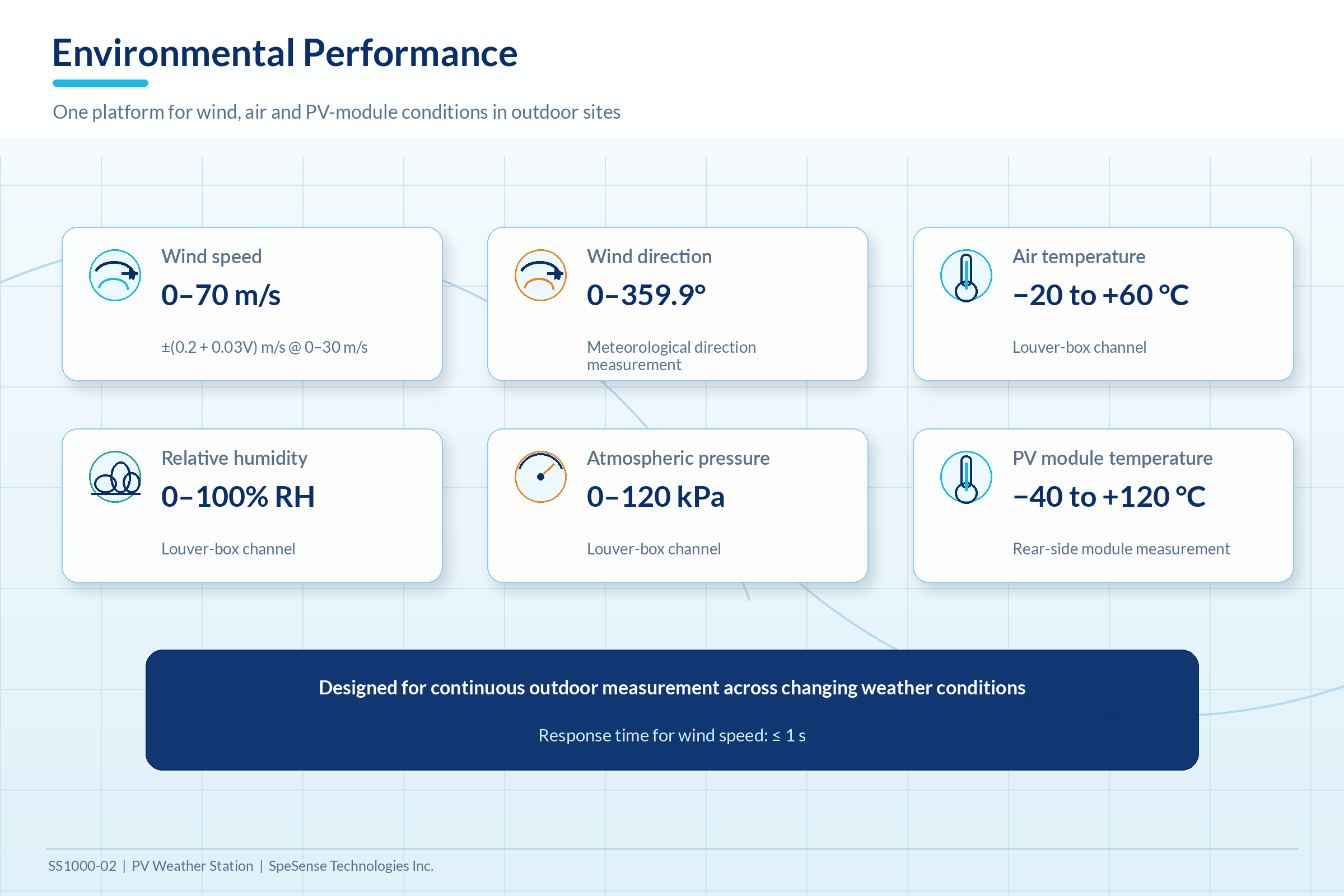

• Measures PV-specific parameters including tilted radiation, sunshine duration, total/direct/diffuse solar radiation, reflected radiation, wind and module temperature.
• Monitoring elements are flexible and can be adjusted according to project requirements.

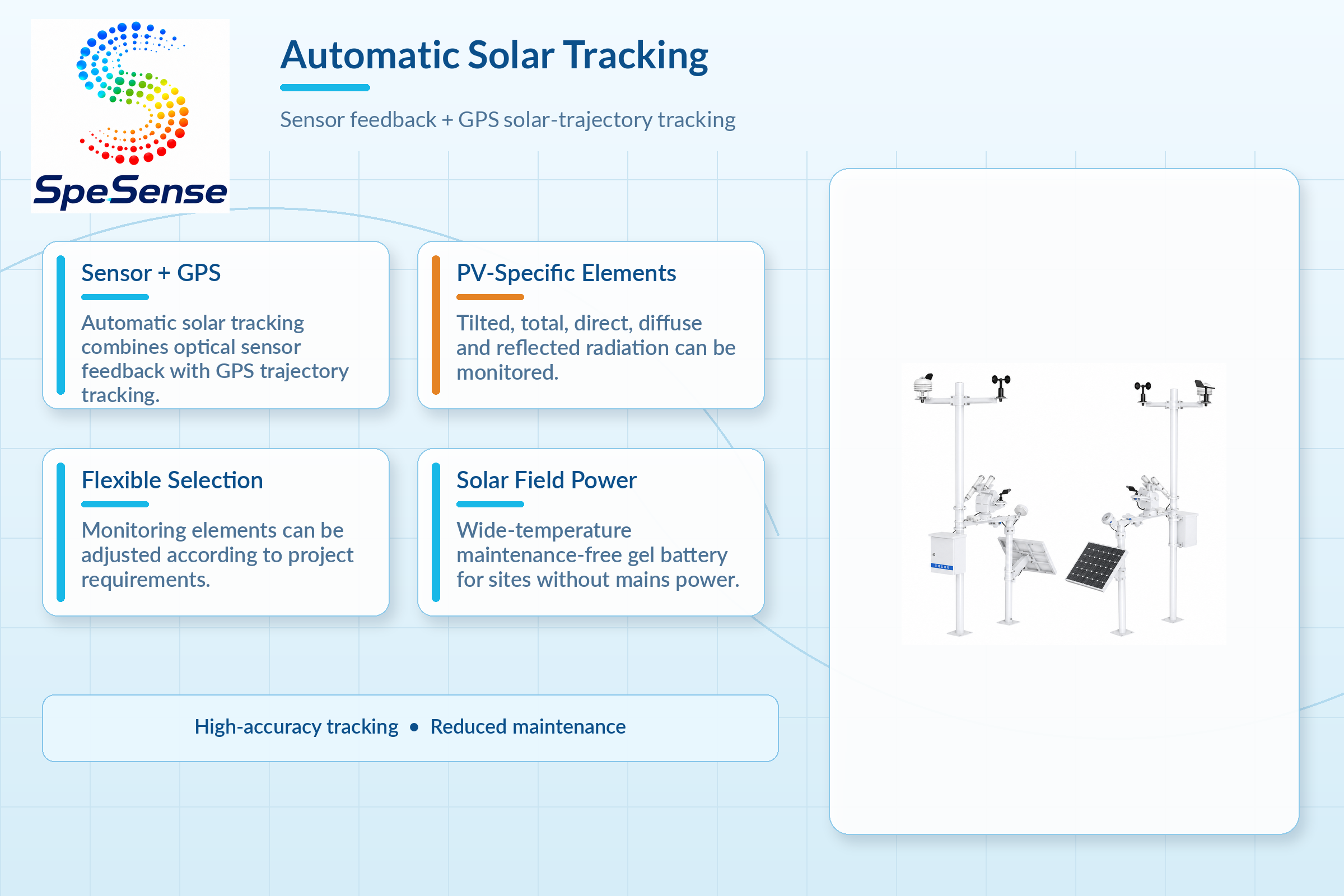

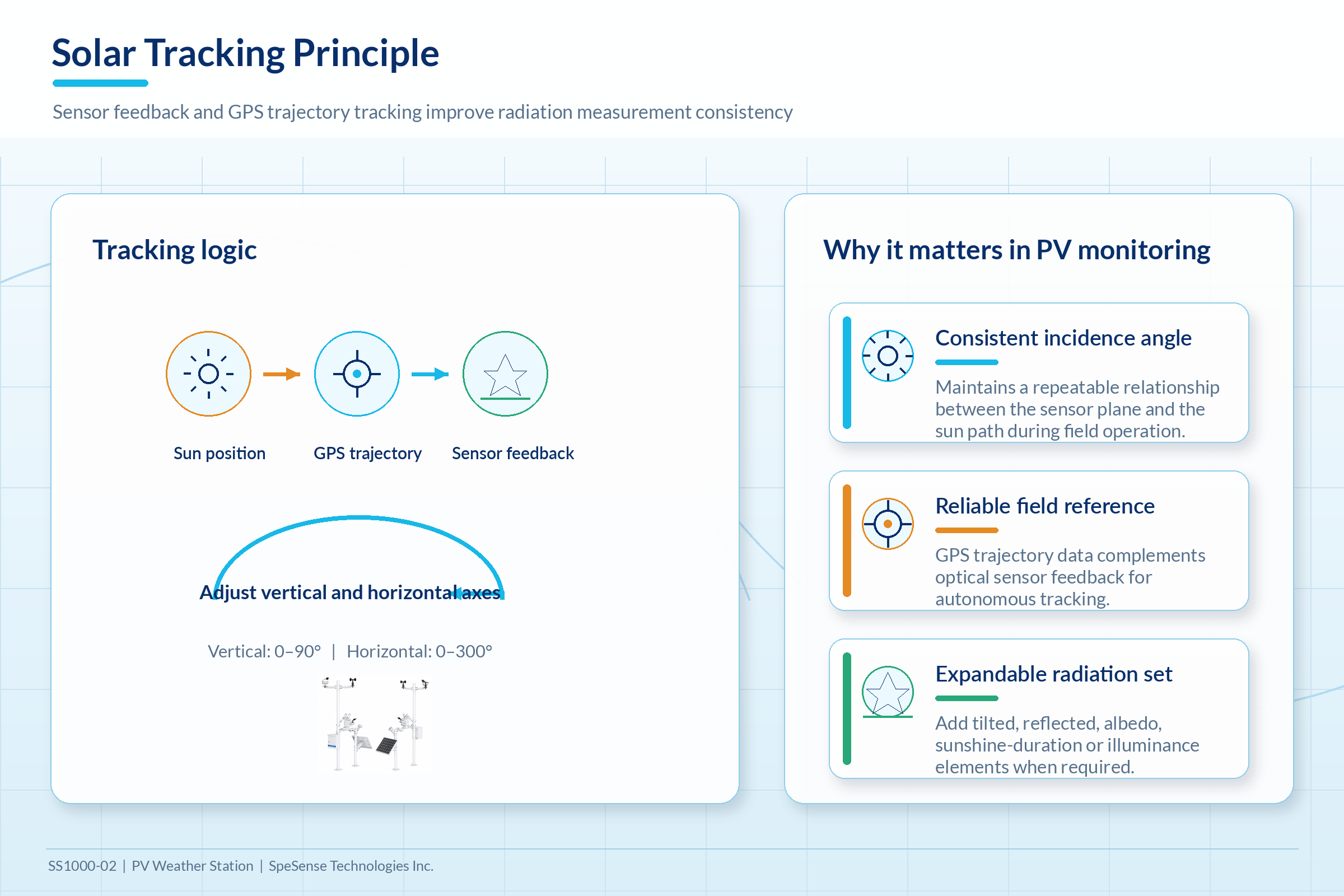

• Fully automatic solar tracking using sensor tracking plus GPS solar trajectory tracking.
• Solar power system with wide-temperature maintenance-free gel battery for field sites without mains power.
• 4G data upload with cloud platform and APP access; optional Ethernet data upload.
• Monitoring elements are flexible and can be adjusted according to project requirements.
• Fully automatic solar tracking using sensor tracking plus GPS solar trajectory tracking.
• Solar power system with wide-temperature maintenance-free gel battery for field sites without mains power.
• 4G data upload with cloud platform and APP access; optional Ethernet data upload.
产品概述

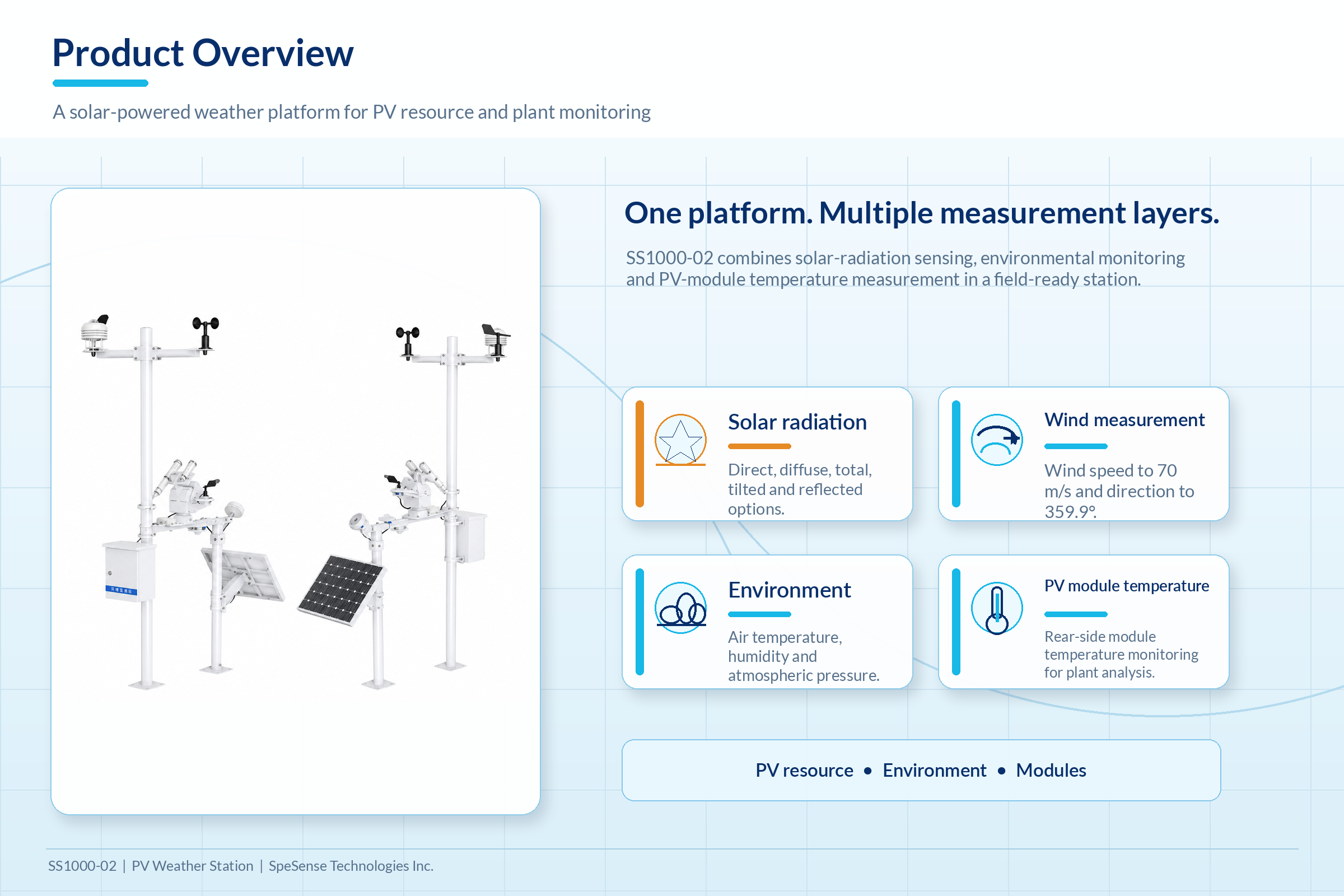

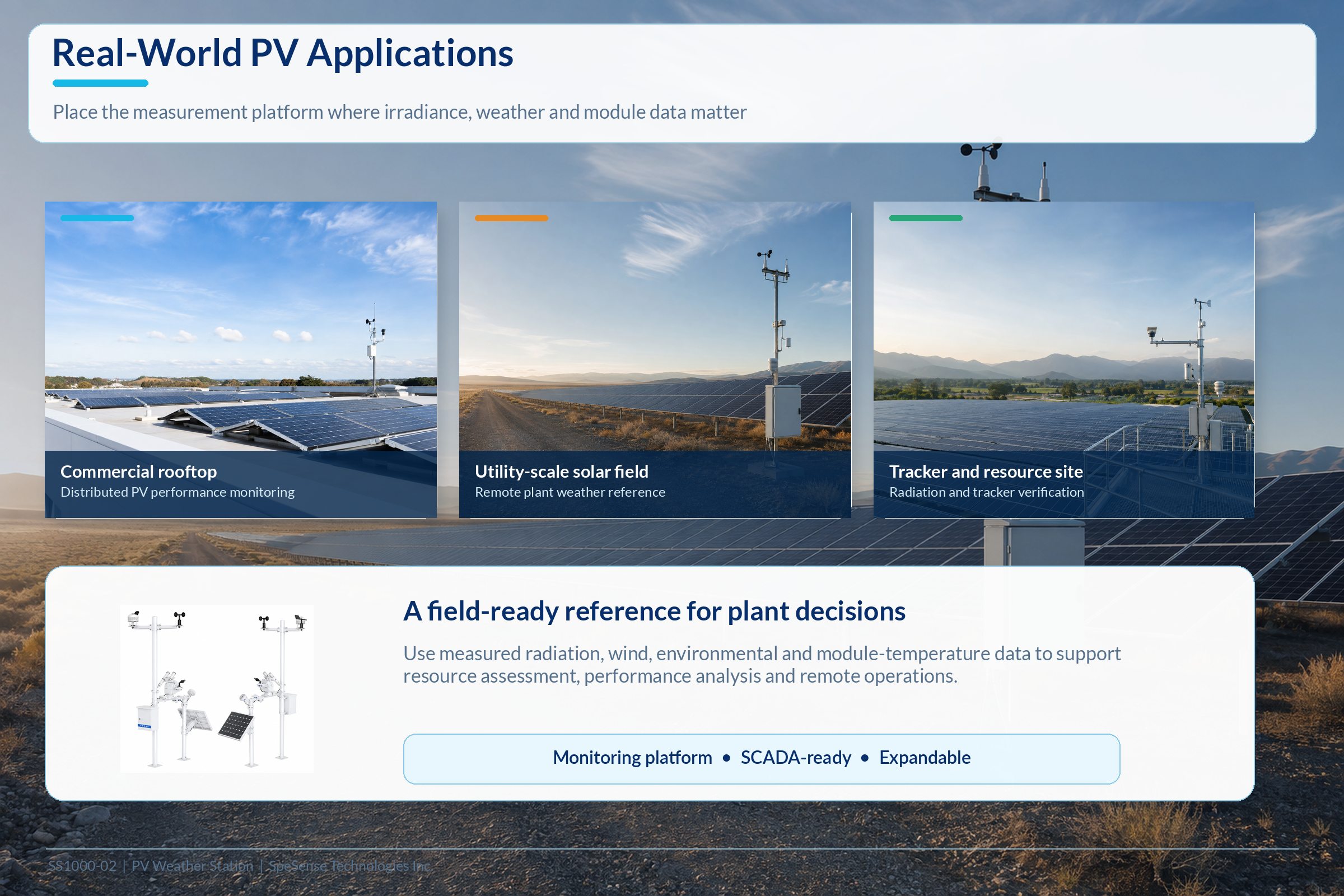

Solar-powered photovoltaic weather station for solar radiation, environmental and PV module monitoring with automatic solar tracking and 4G / Ethernet data upload.

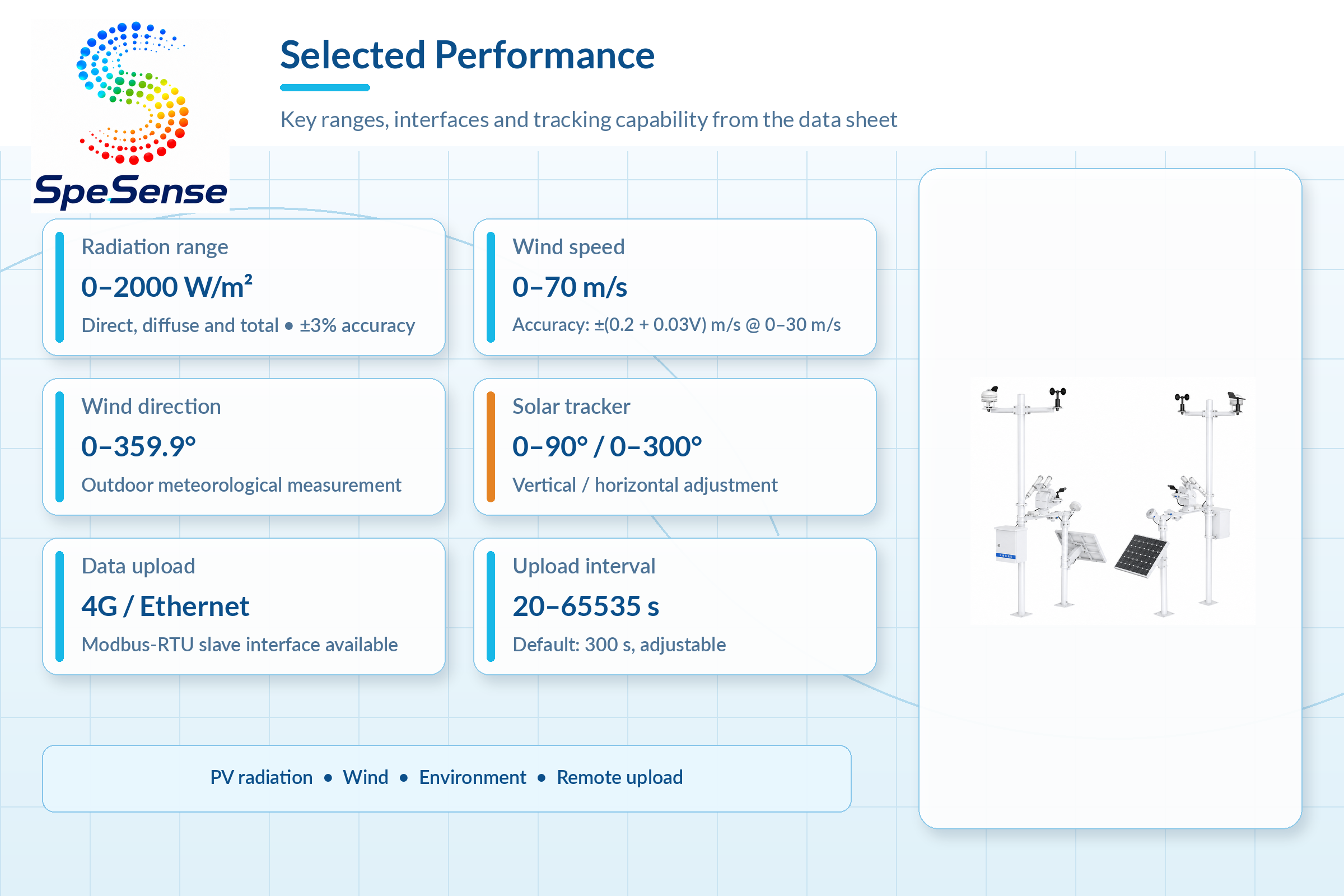

| Item | Specification |
| External power supply | 220V AC power supply |

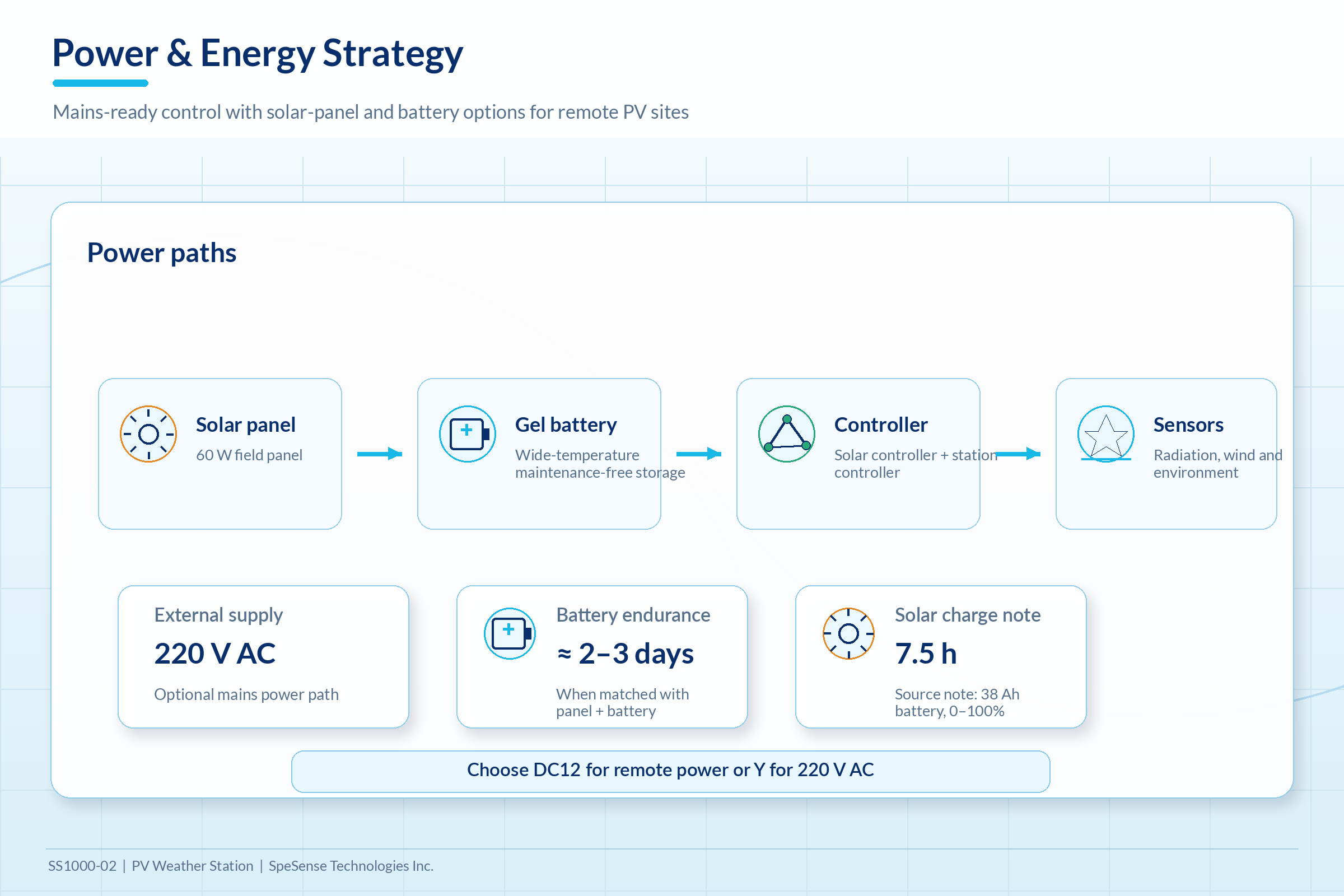

| Solar power supply | Matched solar panel and battery; battery endurance about 2-3 days |

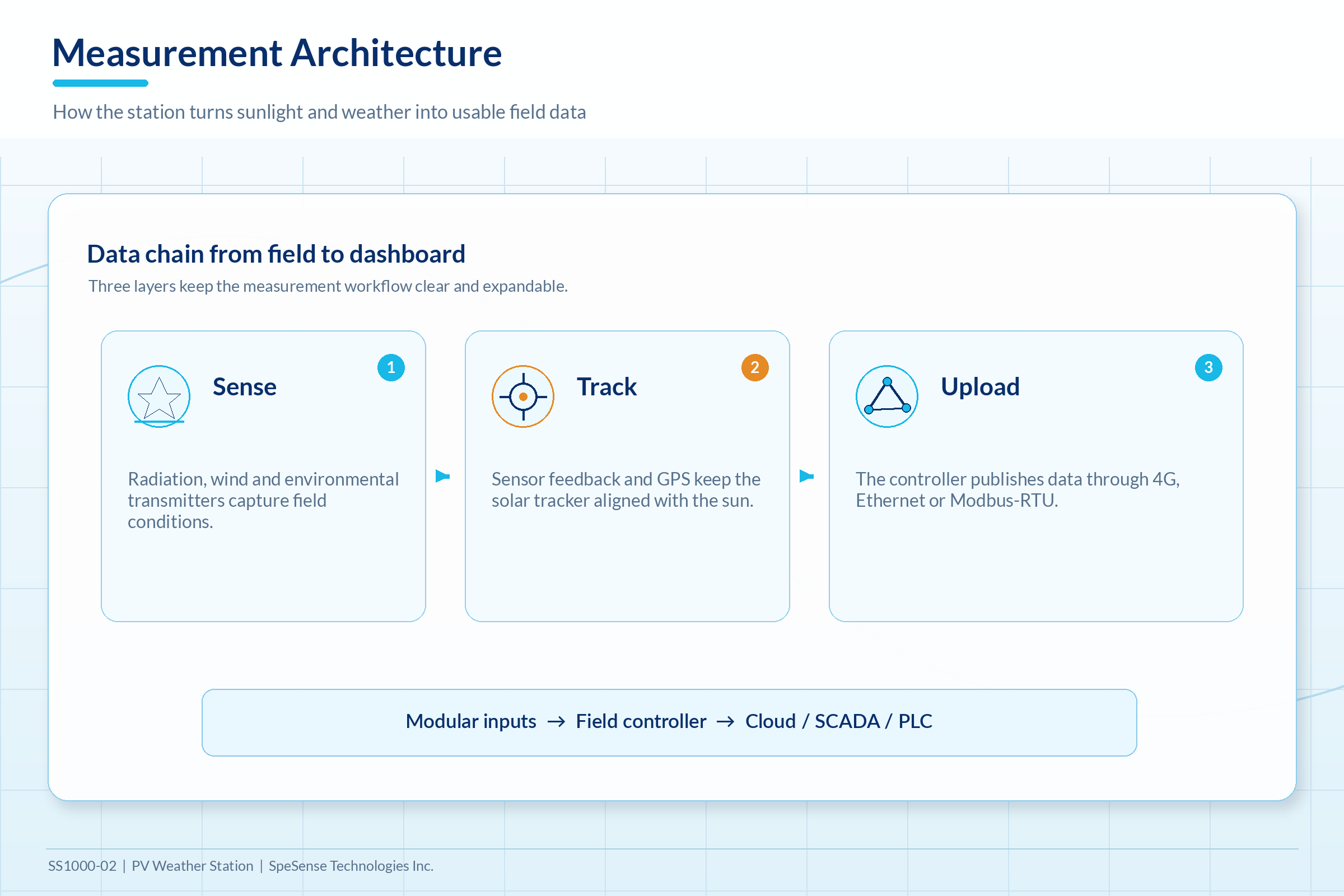

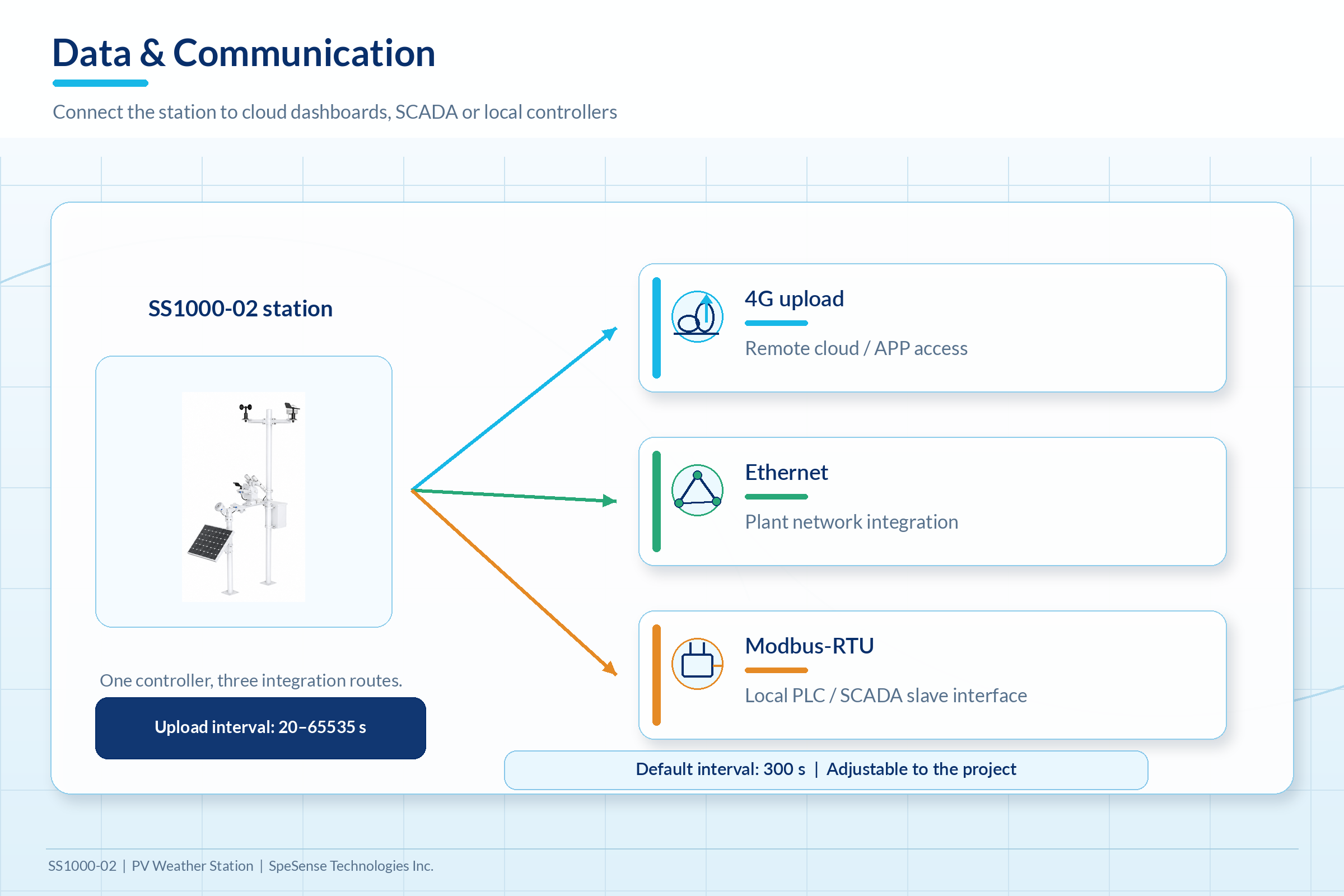

| Data upload interface | 4G or Ethernet data upload; Modbus-RTU slave interface |
| Data upload interval | 20 s to 65535 s adjustable; default 300 s |

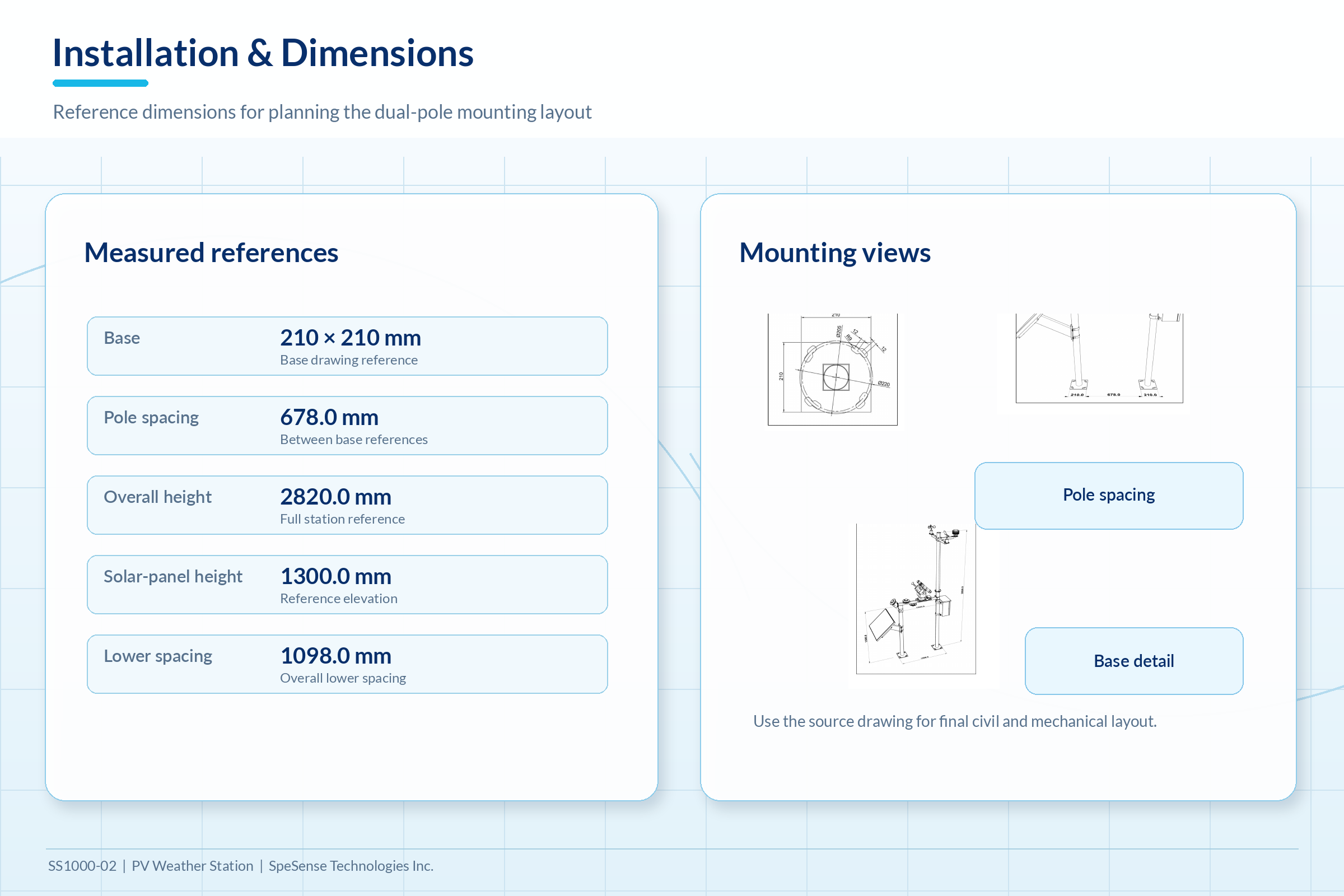

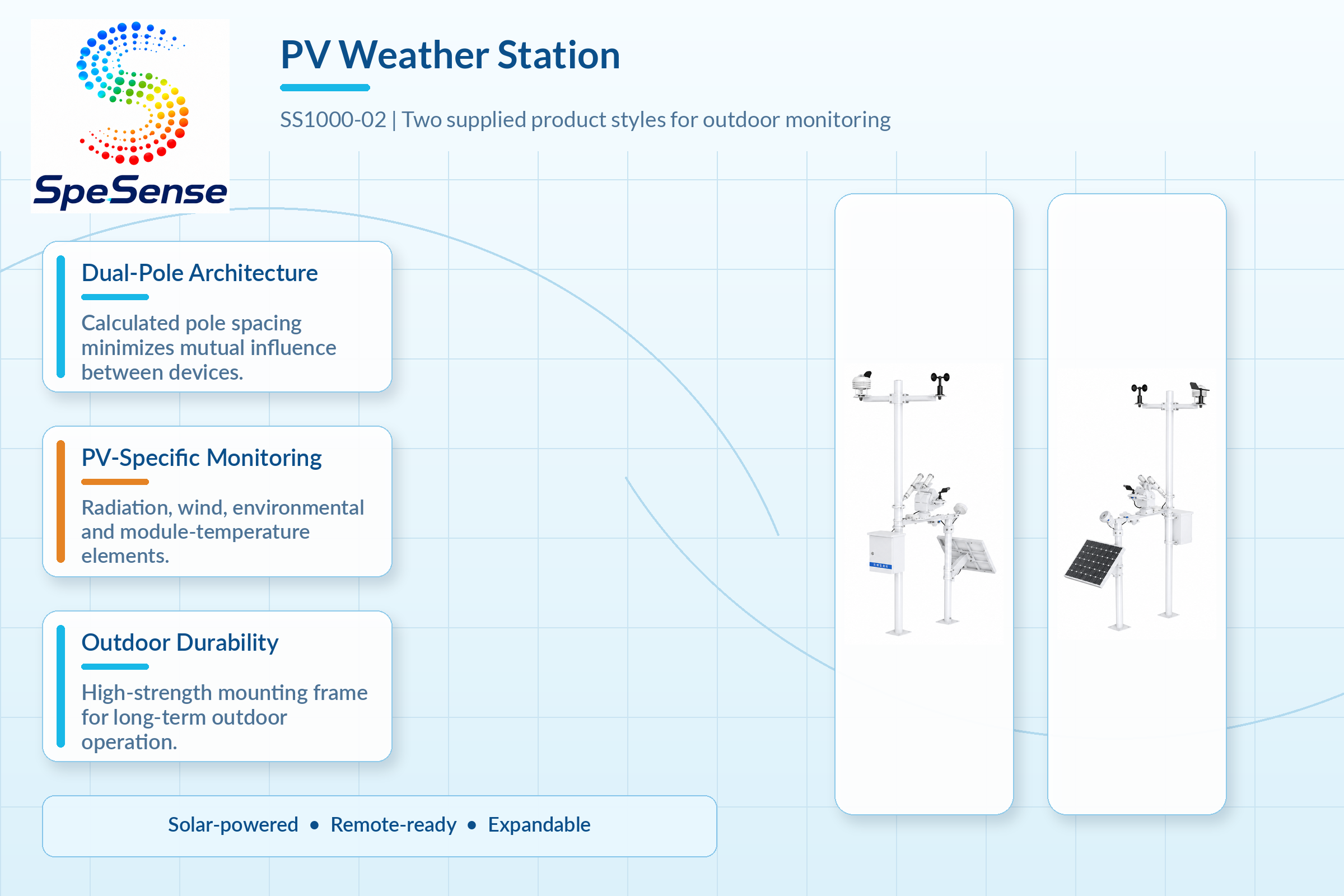

| Installation structure | Dual-pole design with calculated spacing to minimize mutual influence between devices |
| Outdoor durability | High-strength pole mounting frame for long-term outdoor operation under strong wind, rain and snow |
