Raman Analyzer
SR300L-01
显微拉曼光谱仪

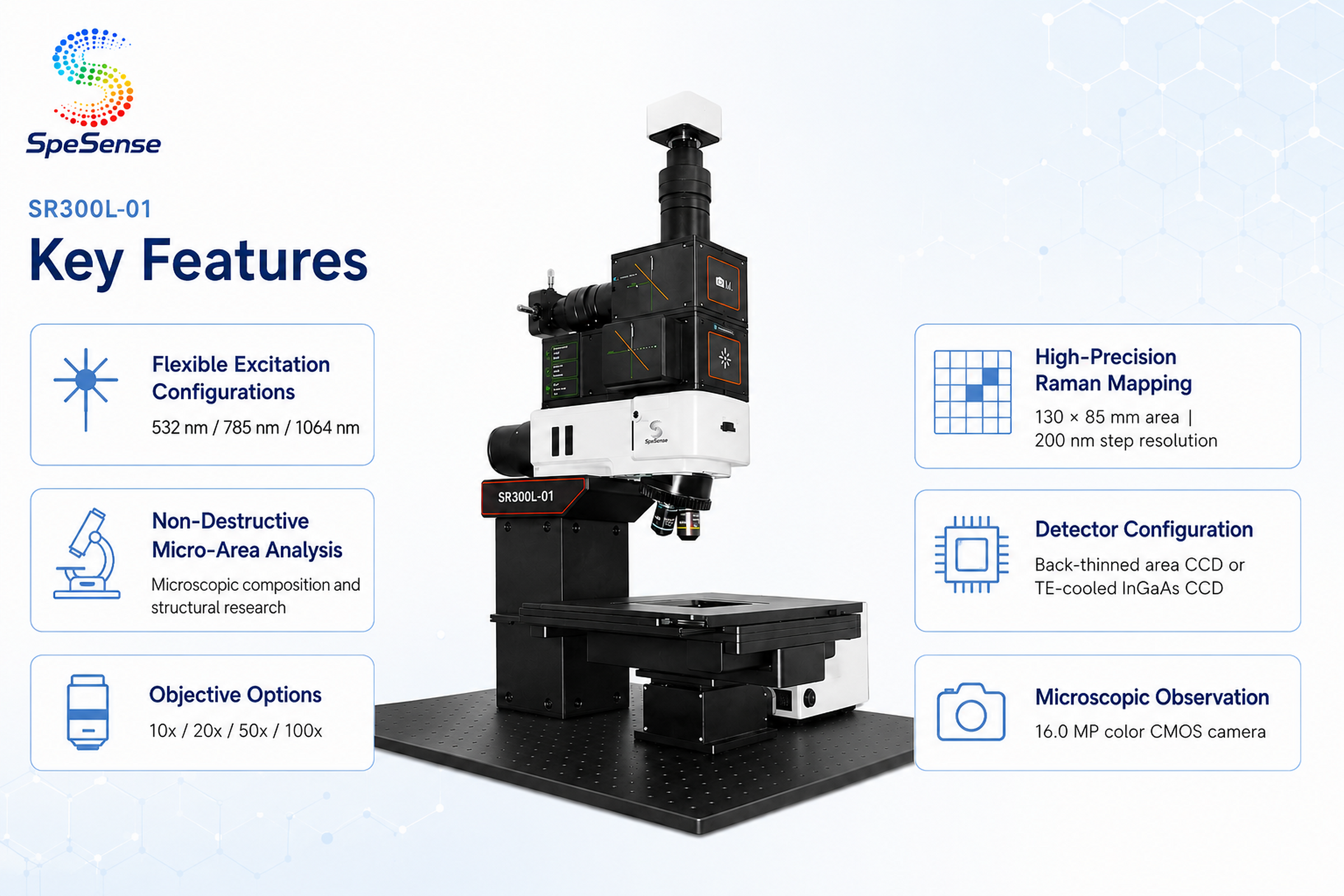

产品亮点

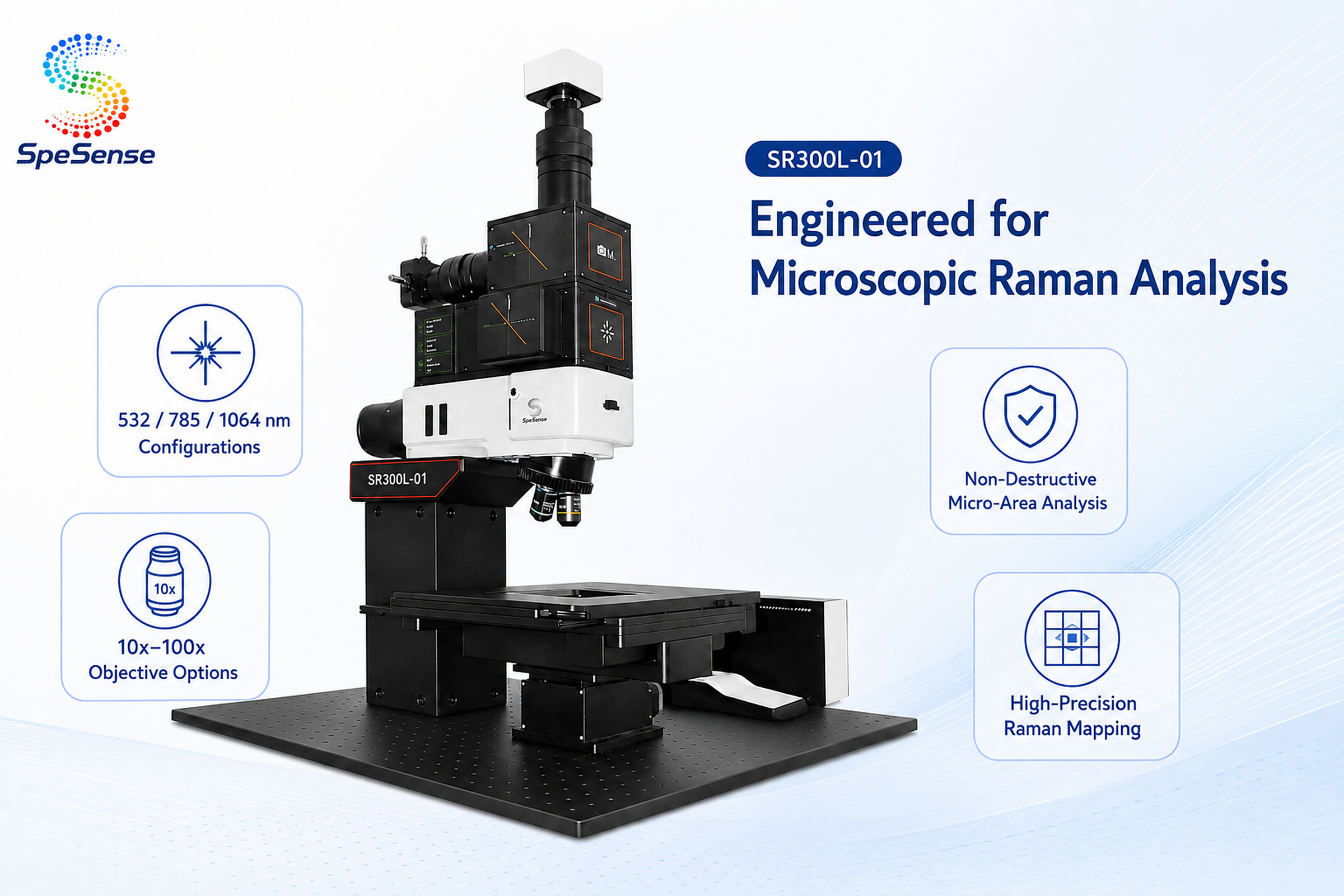

● Supports 532 nm, 785 nm and 1064 nm configurations covered by the source parameter sets.

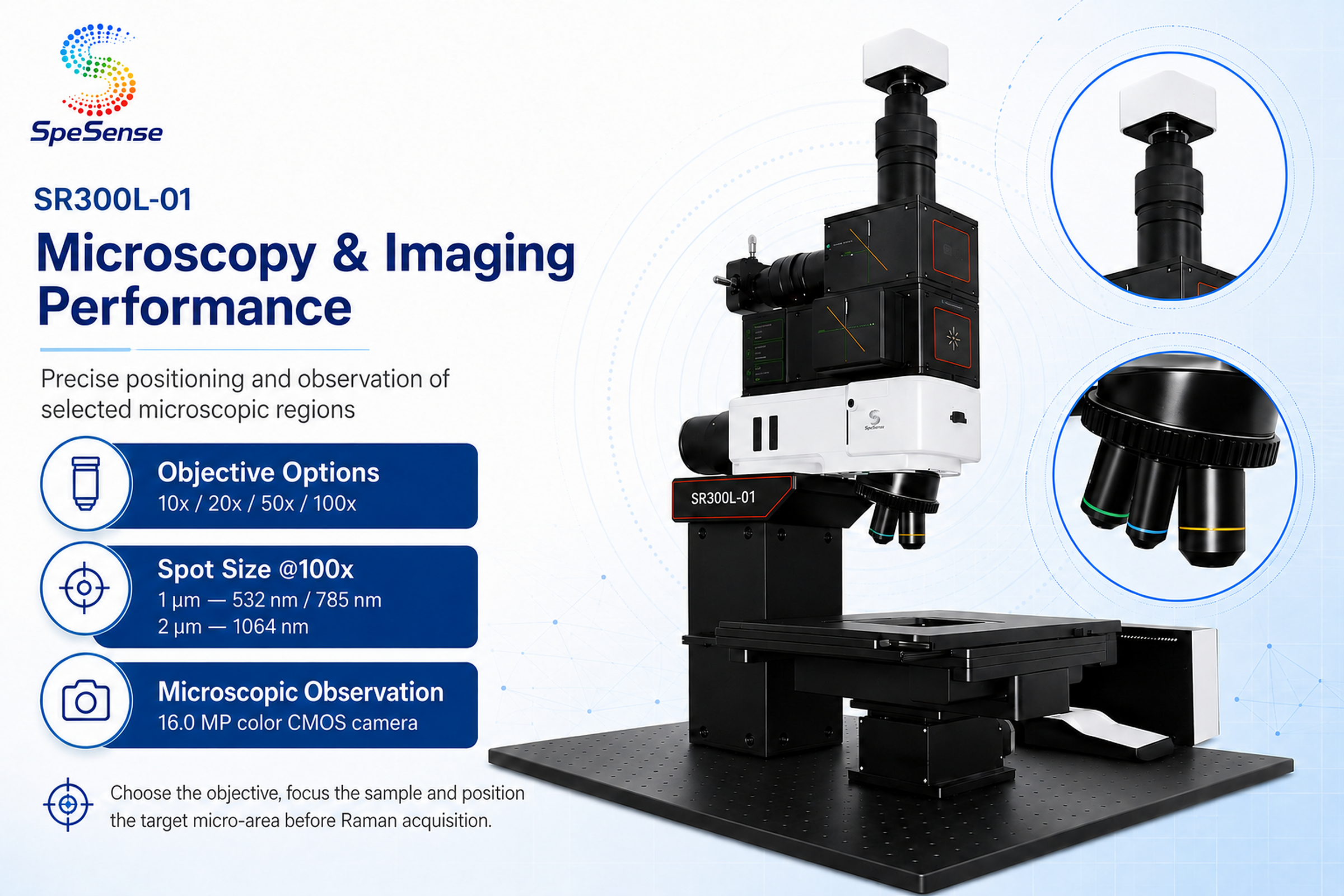

● Microscopic non-destructive Raman analysis with objective options from 10x to 100x.

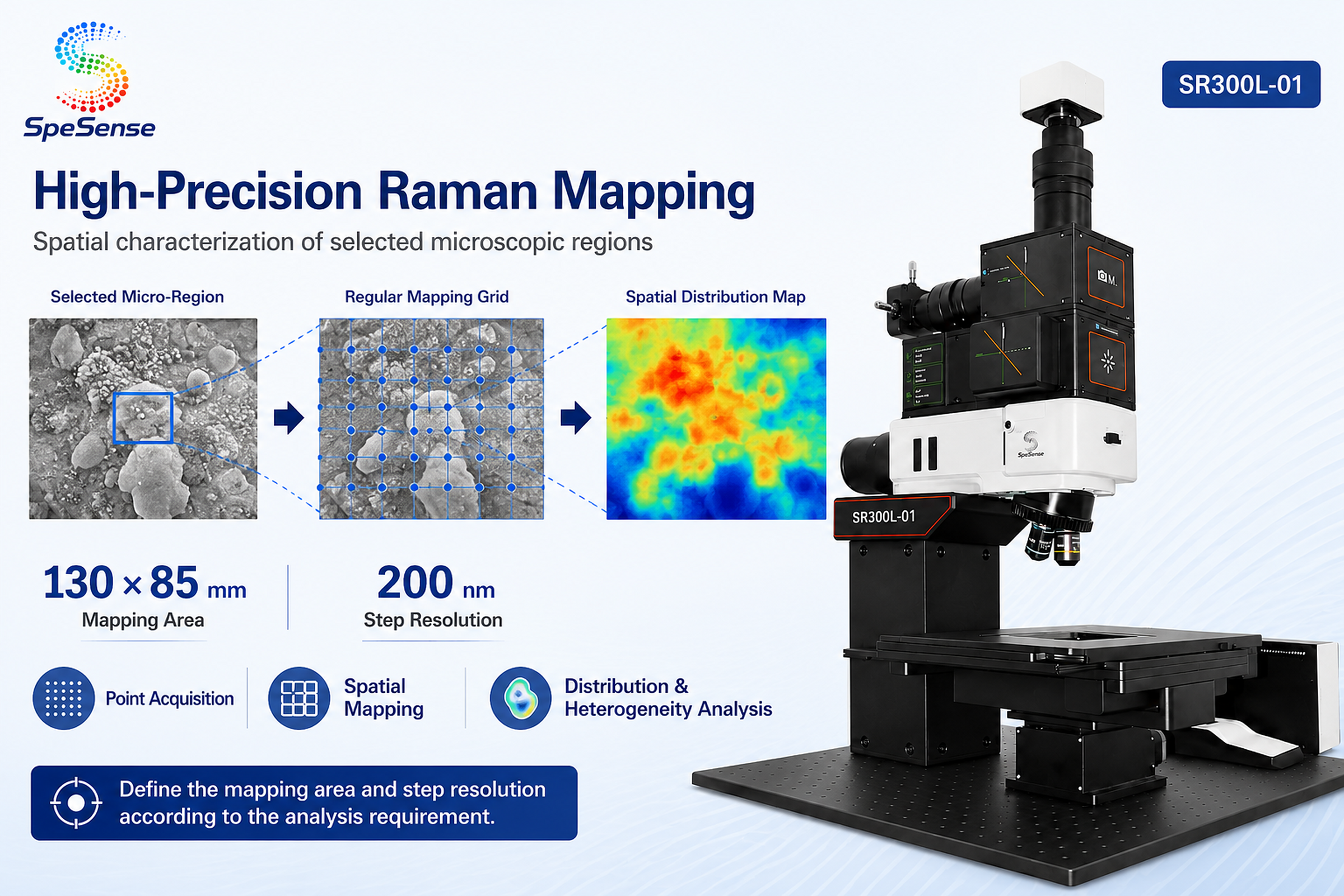

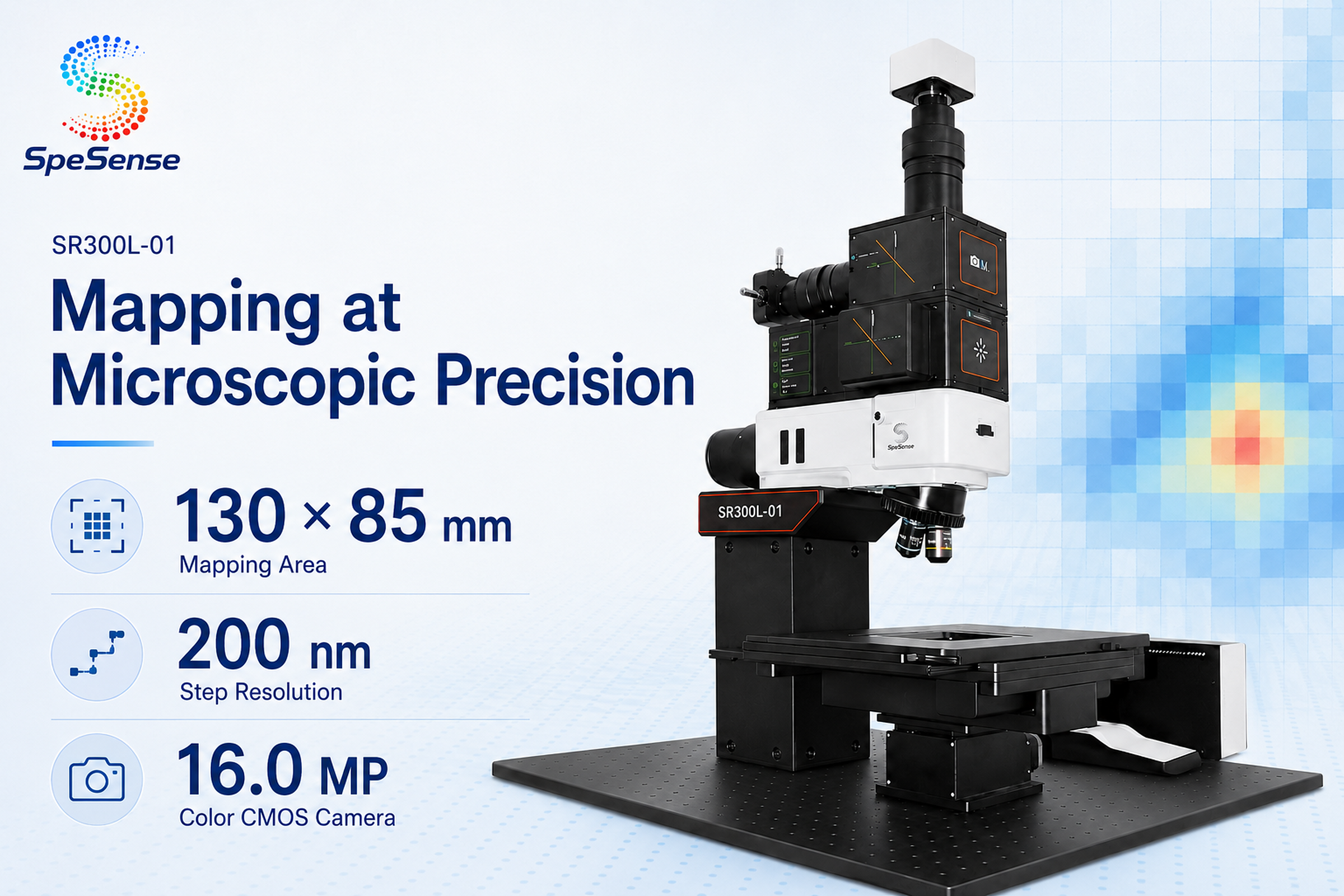

● Mapping area up to 130 × 85 mm with 200 nm step resolution.

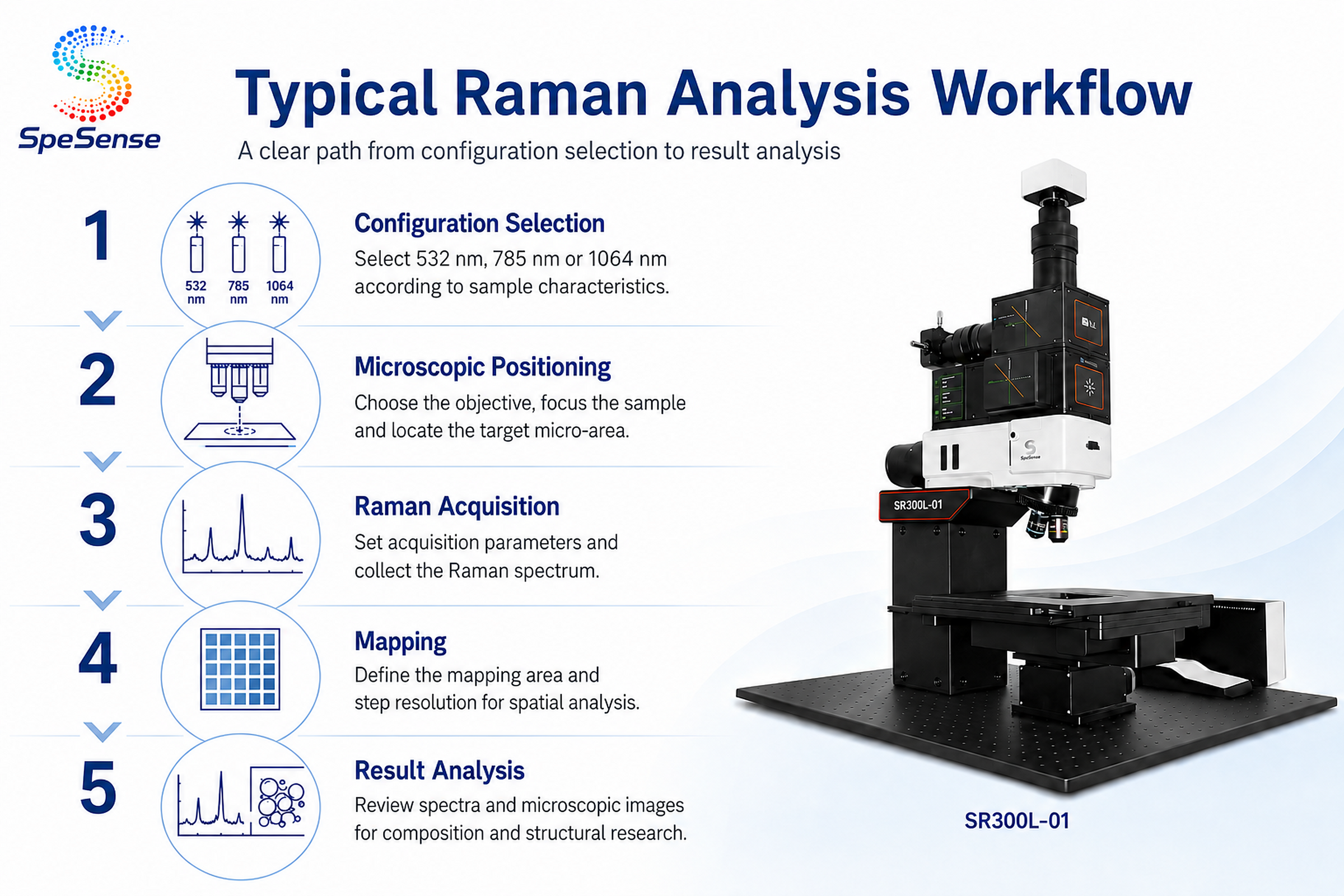

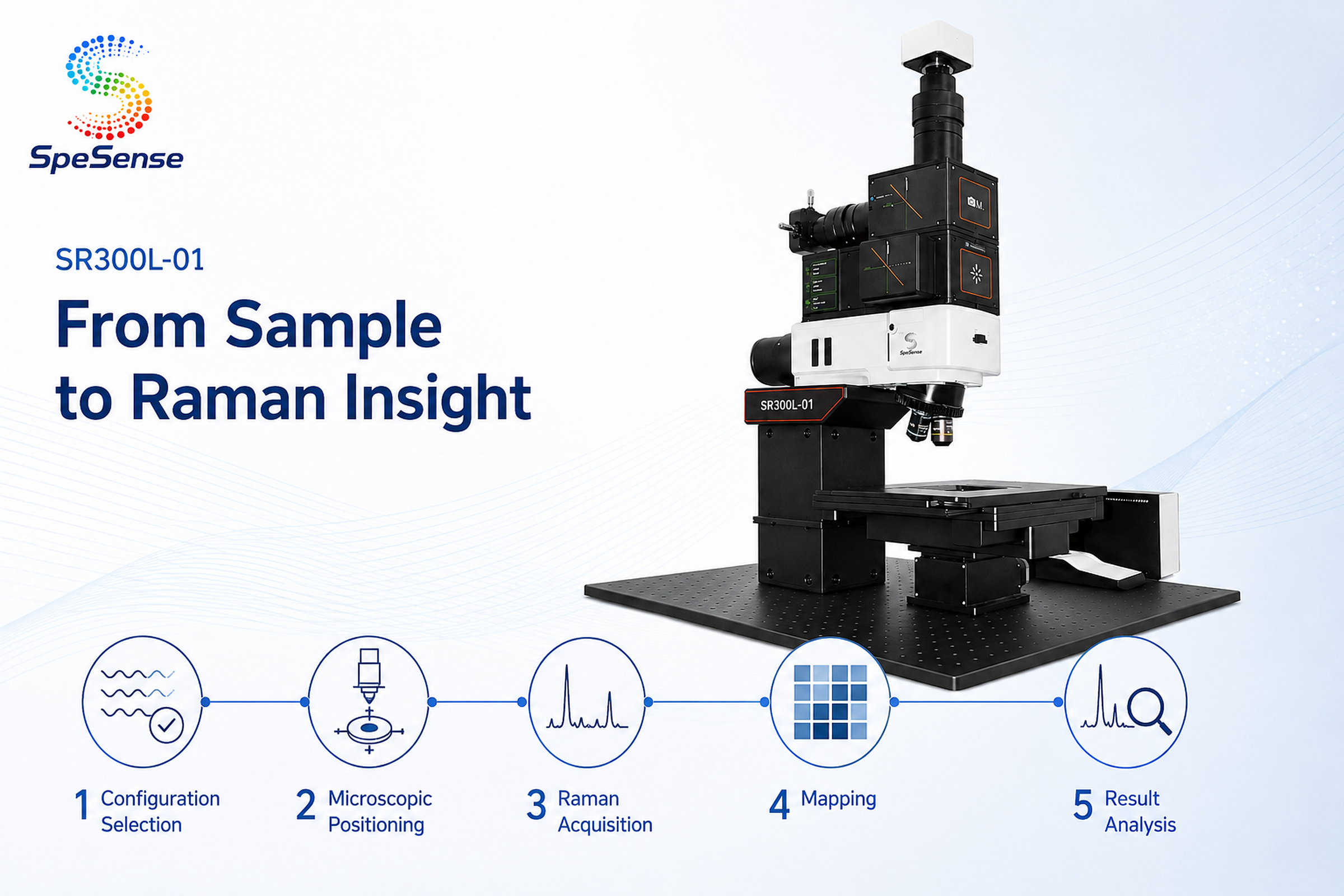

● Flexible configuration for Raman acquisition, microscopy and mapping.
● Back-thinned area CCD for the 532 nm and 785 nm configurations.
● TE-cooled InGaAs CCD for the 1064 nm configuration.

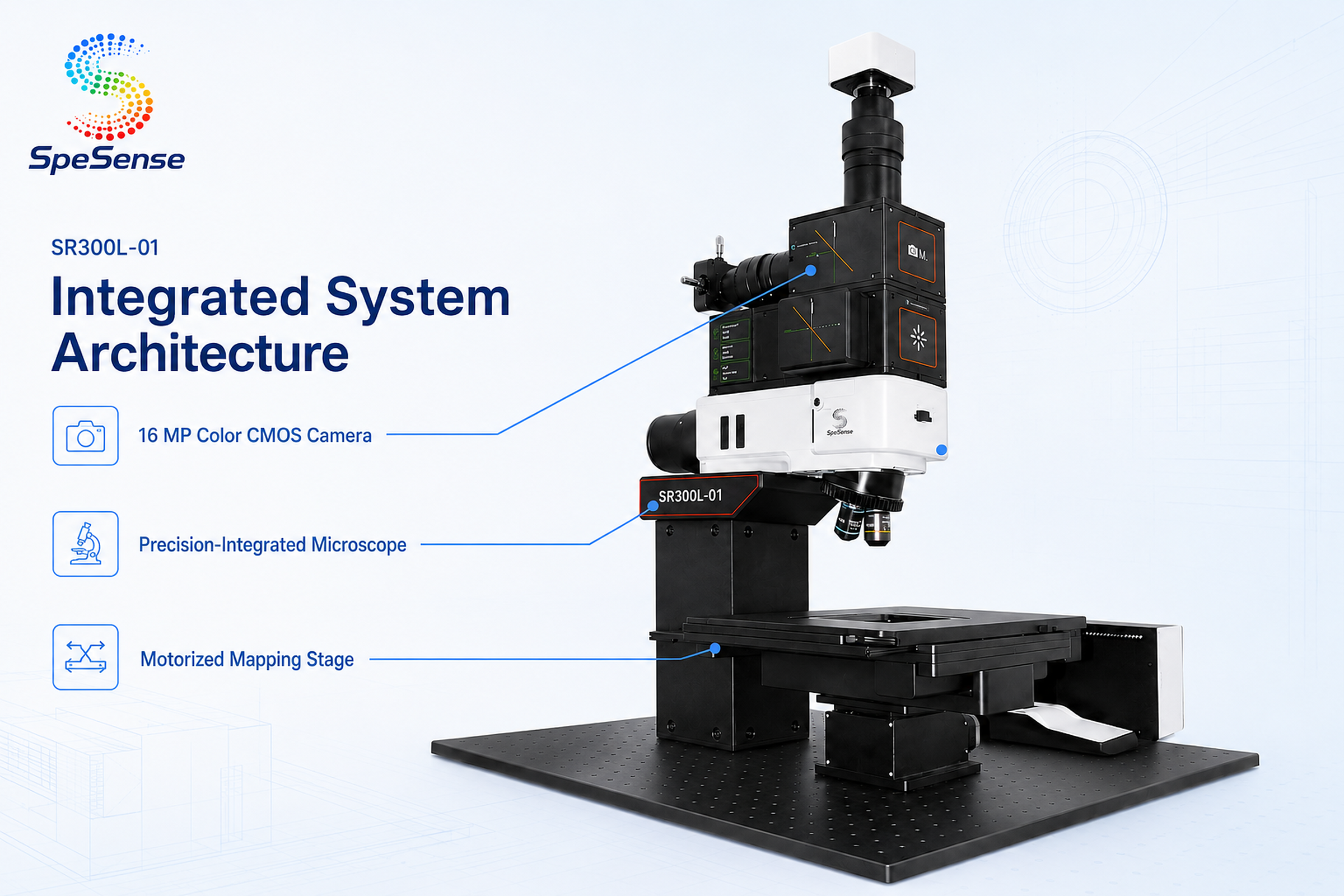

● 16.0 MP color CMOS camera for microscopic observation.
● Low-wavenumber configurations available for 532 nm and 785 nm according to the source.
● Microscopic non-destructive Raman analysis with objective options from 10x to 100x.
● Mapping area up to 130 × 85 mm with 200 nm step resolution.
● Flexible configuration for Raman acquisition, microscopy and mapping.
● Back-thinned area CCD for the 532 nm and 785 nm configurations.
● TE-cooled InGaAs CCD for the 1064 nm configuration.
● 16.0 MP color CMOS camera for microscopic observation.
● Low-wavenumber configurations available for 532 nm and 785 nm according to the source.
产品概述

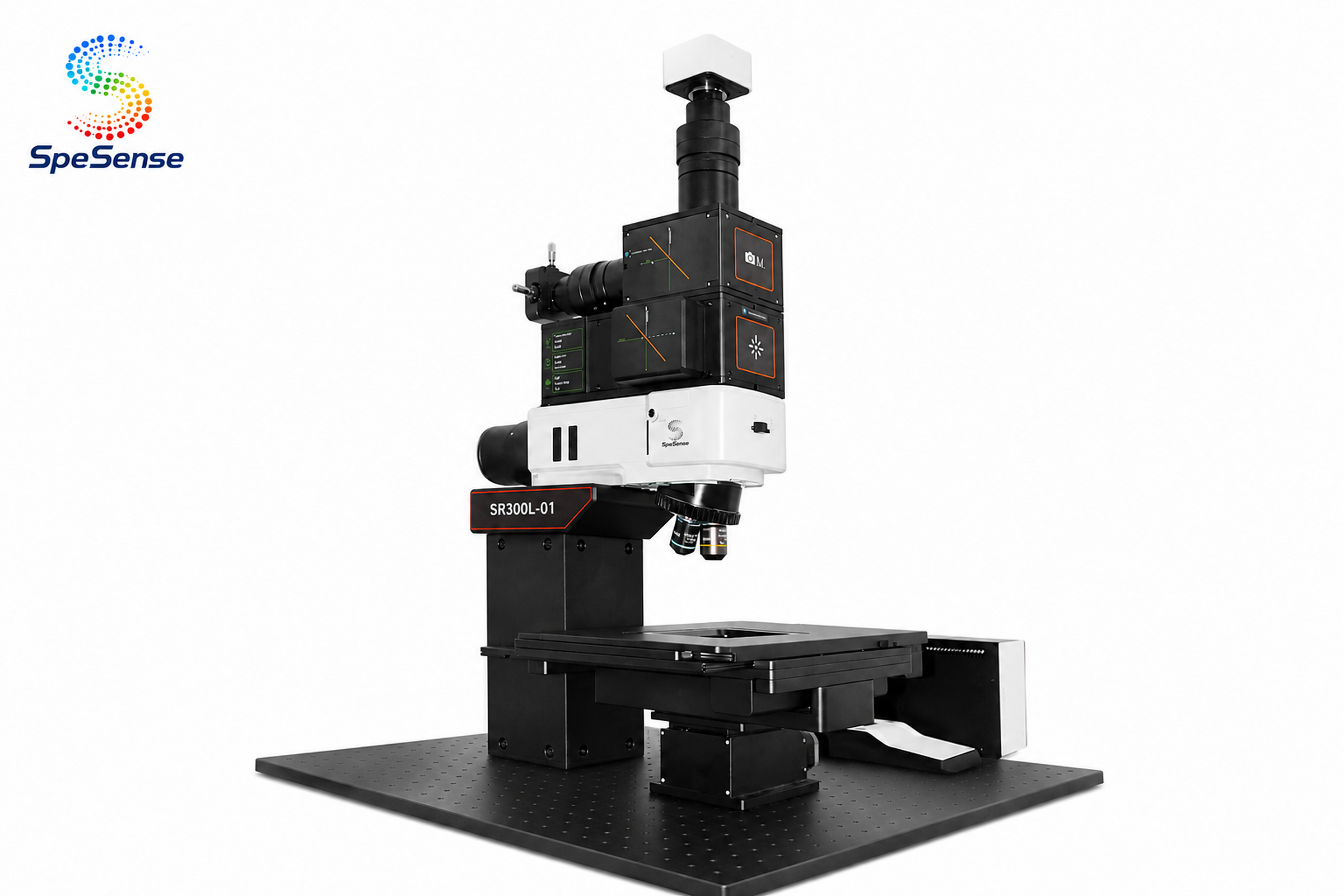

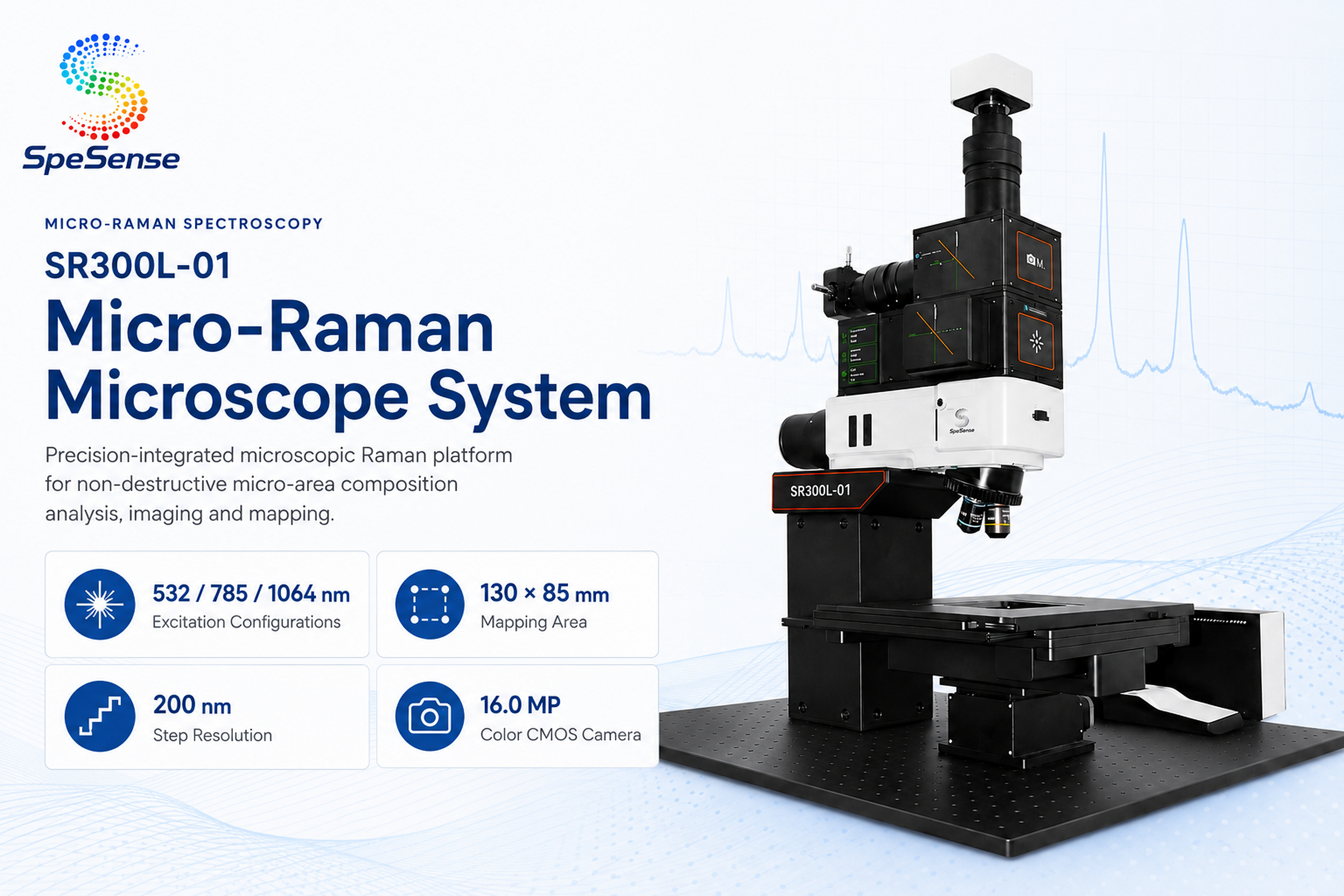

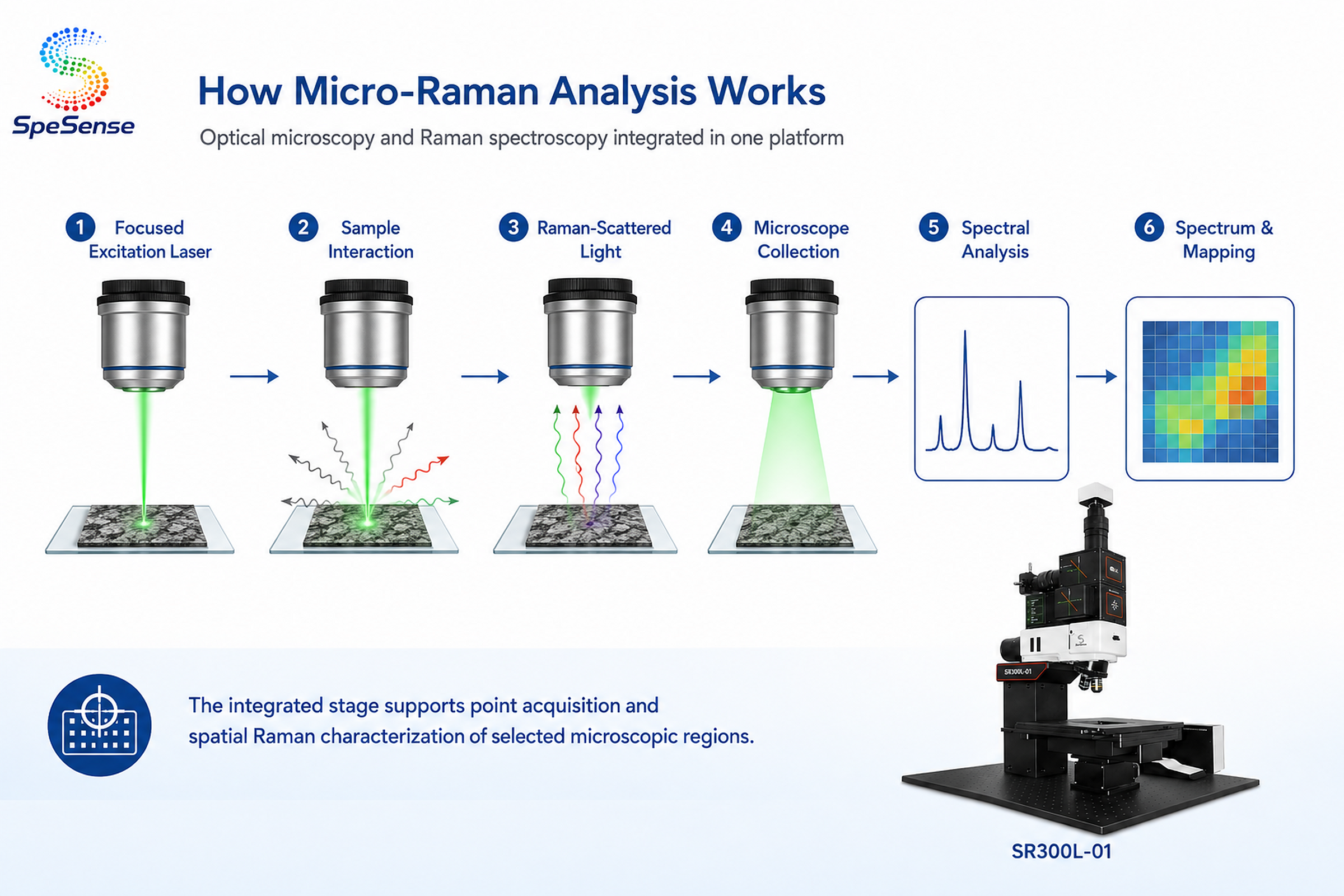

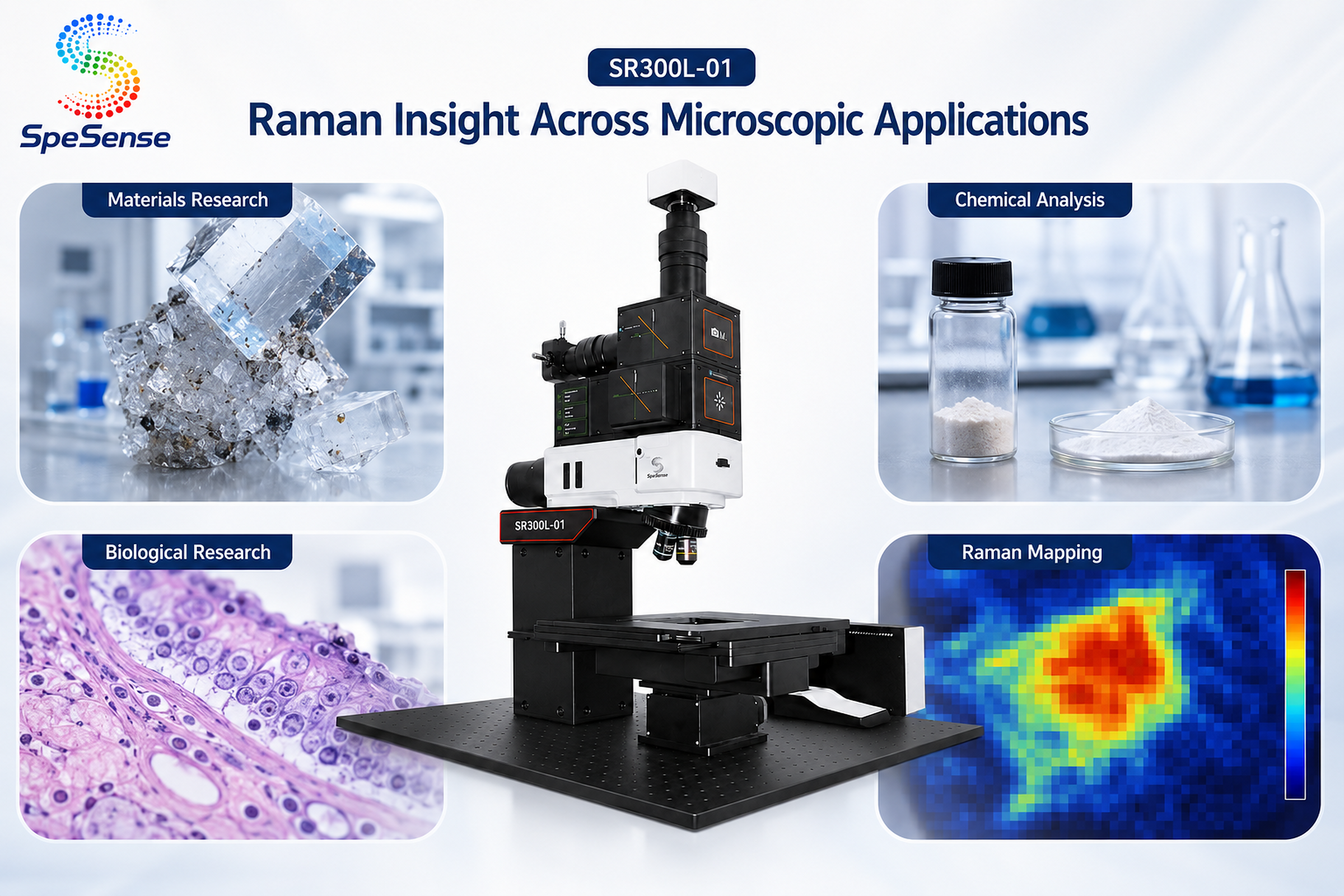

The SpeSense SR300L-01 Micro-Raman Microscope System combines optical microscopy, Raman spectroscopy and spatial mapping for non-destructive microscopic analysis of materials, chemicals and biological samples. Supporting 532 nm, 785 nm and 1064 nm excitation configurations, the system offers flexible measurement for samples with different fluorescence characteristics and analytical requirements. With objective options from 10x to 100x, mapping areas up to 130 × 85 mm, 200 nm step resolution and high-sensitivity CCD or InGaAs detectors, the SR300L-01 is well suited for microscopic composition analysis, Raman imaging, structural research, materials science and advanced laboratory spectroscopy.

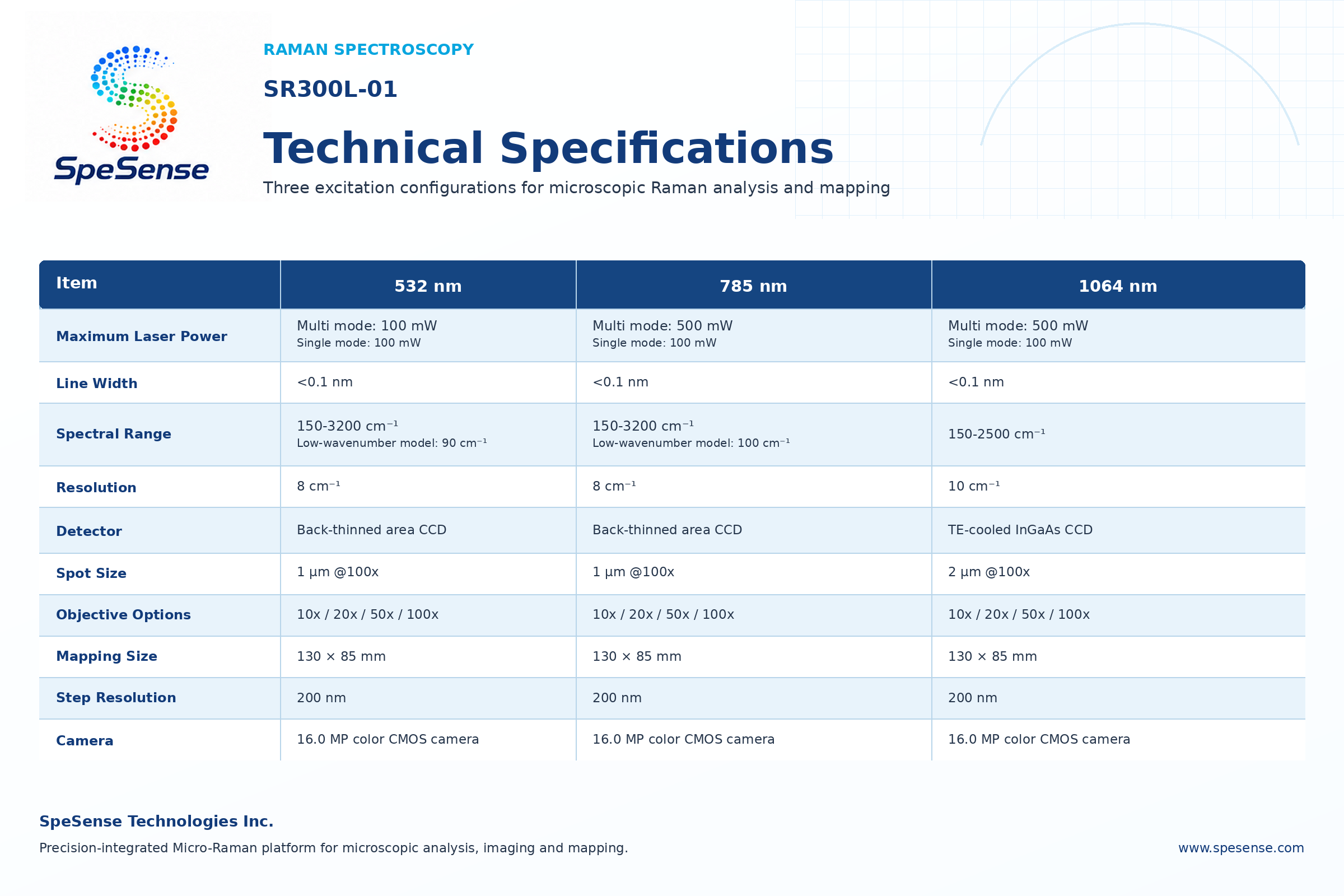

| Item | 532 nm | 785 nm | 1064 nm |
| Maximum Laser Power | Multi mode: 100 mW / Single mode: 100 mW | Multi mode: 500 mW / Single mode: 100 mW | Multi mode: 500 mW / Single mode: 100 mW |
| Line Width | <0.1 nm | <0.1 nm | <0.1 nm |
| Spectral Range | 150–3200 cm⁻¹ / Low-wavenumber model: 90 cm⁻¹ | 150–3200 cm⁻¹ / Low-wavenumber model: 100 cm⁻¹ | 150–2500 cm⁻¹ |
| Resolution | 8 cm⁻¹ | 8 cm⁻¹ | 10 cm⁻¹ |
| Detector | Back-thinned area CCD | Back-thinned area CCD | TE-cooled InGaAs CCD |
| Spot Size | 1 μm @100x | 1 μm @100x | 2 μm @100x |
| Objective Options | 10x / 20x / 50x / 100x | 10x / 20x / 50x / 100x | 10x / 20x / 50x / 100x |
| Mapping Size | 130 × 85 mm | 130 × 85 mm | 130 × 85 mm |
| Step Resolution | 200 nm | 200 nm | 200 nm |
| Camera | 16.0 MP color CMOS camera | 16.0 MP color CMOS camera | 16.0 MP color CMOS camera |
